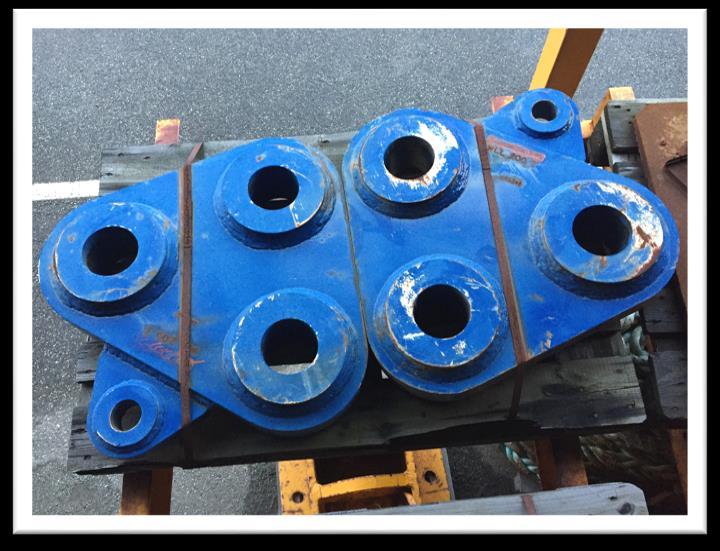

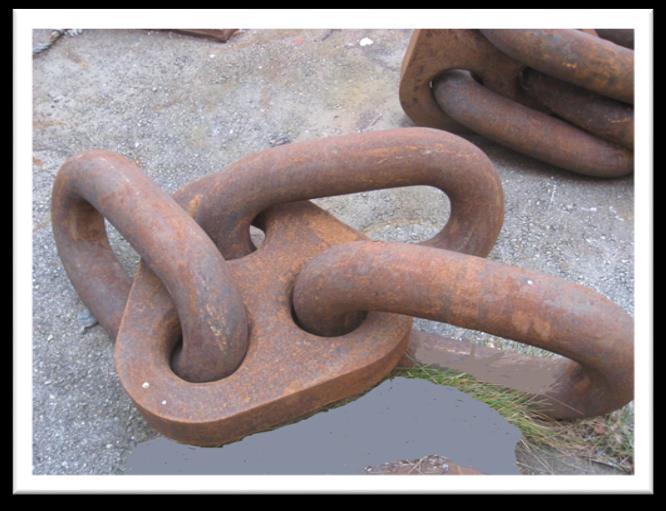

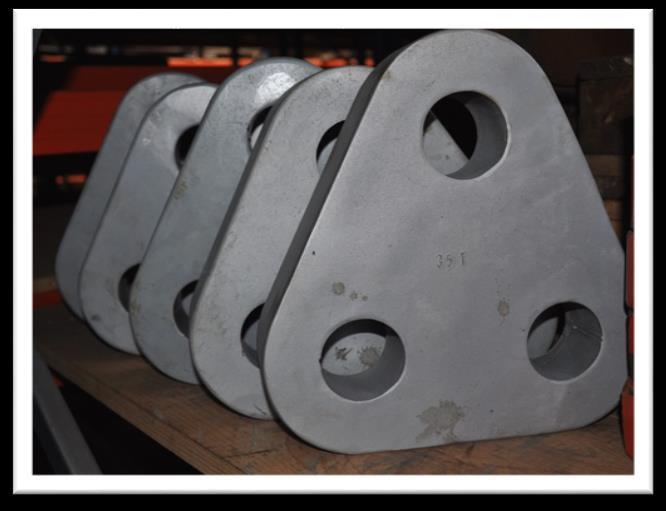

TRIPLATES

Triangle plates for towing or load distribution, capacity up to 700 ton

35

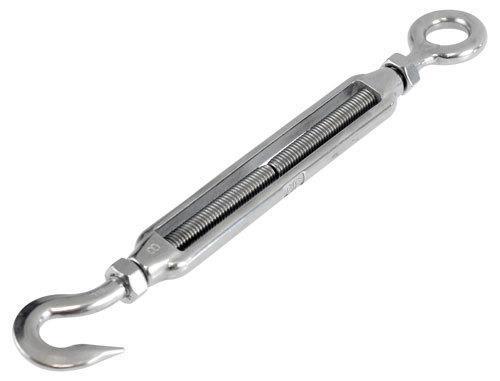

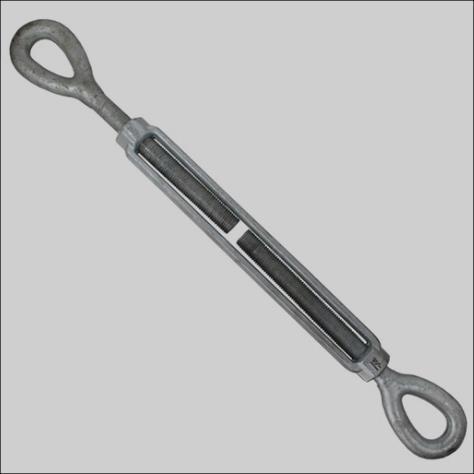

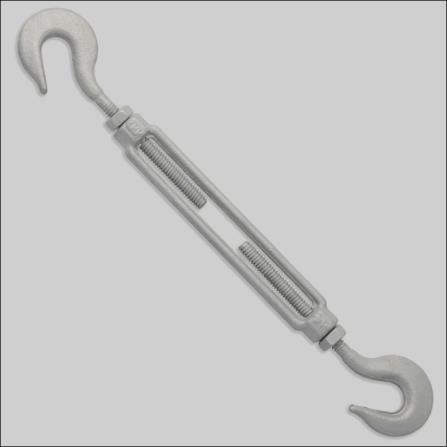

Turnbuckles used to shorten or expand wirerope or chain assemblies

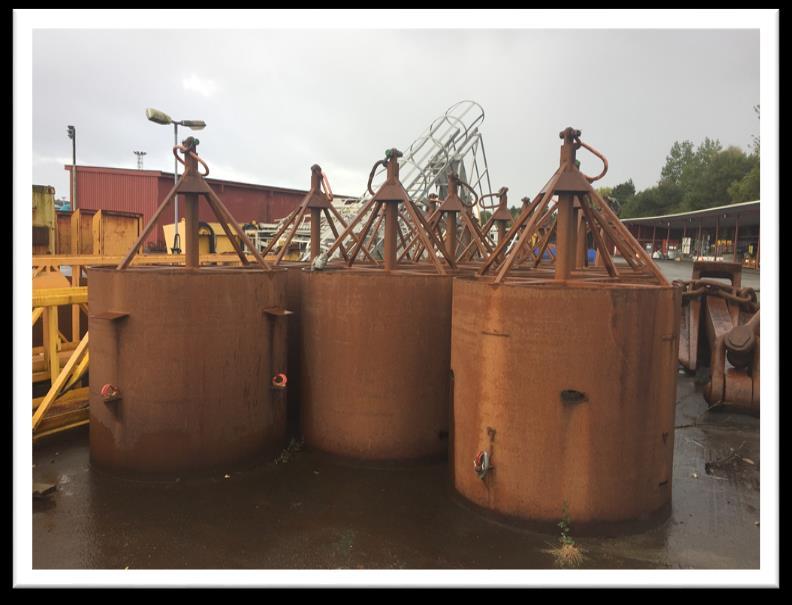

Turnpoints for subsea use to redirect pipes, cables and similar

3 Ton turnpoint ø1524 mm

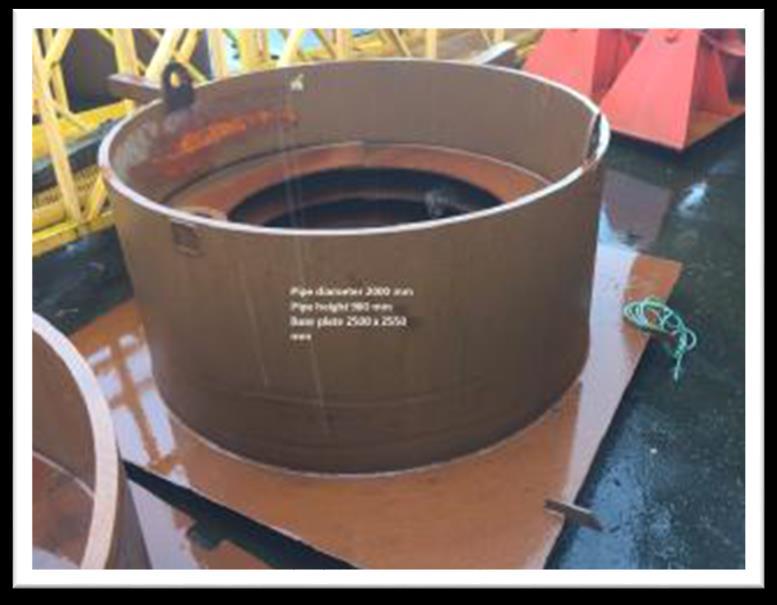

1.5 Ton turnpoint ø2000 mm

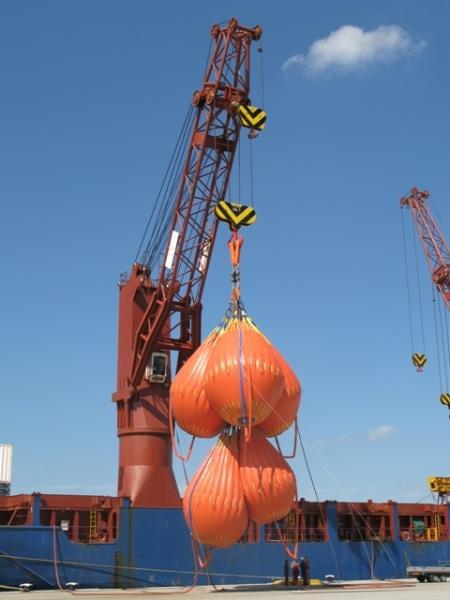

Water Bags

GMC has a wide range of water bags with single units up to 100 Tonne. The water weights have a space saving design and are used for testing of cranes, winches or other equipment.

Shackles, master link and fluid transfer fittings comes on each waterbag. Water bags are foldable for easy storage and transportation.

Capacity: 2, 5, 10, 20, 35, 50 and 100 Ton single waterbags

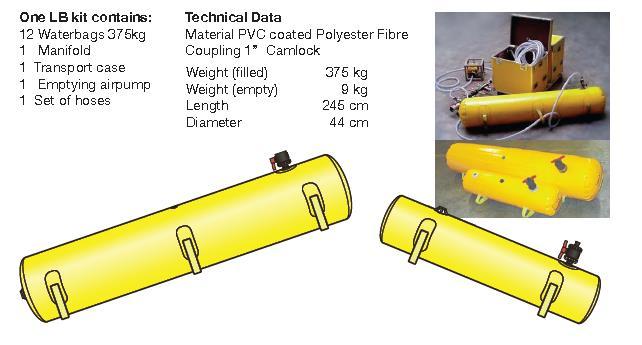

Water Bags For Lifeboat Testing

GMC life boat testing kits can be used to apply an evenly distributed load to a lifeboat or any other object that has to be proof loaded.

Depending upon the required proof load, a number of water bags have to be spread evenly in the life boat and connected to the manifold.

The bags have to be filled to their maximum capacity, this way you can be sure of the total weight, as the manufacturer guarantees a filled weight of 375 kg with a tolerance of 1%.

These specially designed Life boat testing bags of 375kg each are part of a complete life boat testing set. A remote system with a manifold and filling hoses, allows proof load testing to be conducted safely, without entering the craft in the ‘dangerous’ overload situation.

The GMC life boat proof load testing set can also be used for load testing of gangways and small bridges.
