TRANSFORMATIVE URBAN INTERVENTIONS: A HOLISTIC APPROACH TO REVITALIZE PUBLIC SPACES OF ADYAR

STUDIO INTRODUCTION

Program (L4)

Students Ashwin Joshua James Abdullah Mohammad Nuwala Stephen Immanuel Alya Rajan Kolandra Giri Mani Prasanth Neeha Shrey Chudasma Aditiya Thomas Annesh Sanchai Kedar Hari Krishnan Bathrinathan Nikhil Bhavri Maansi Panda Gowrish Kumar

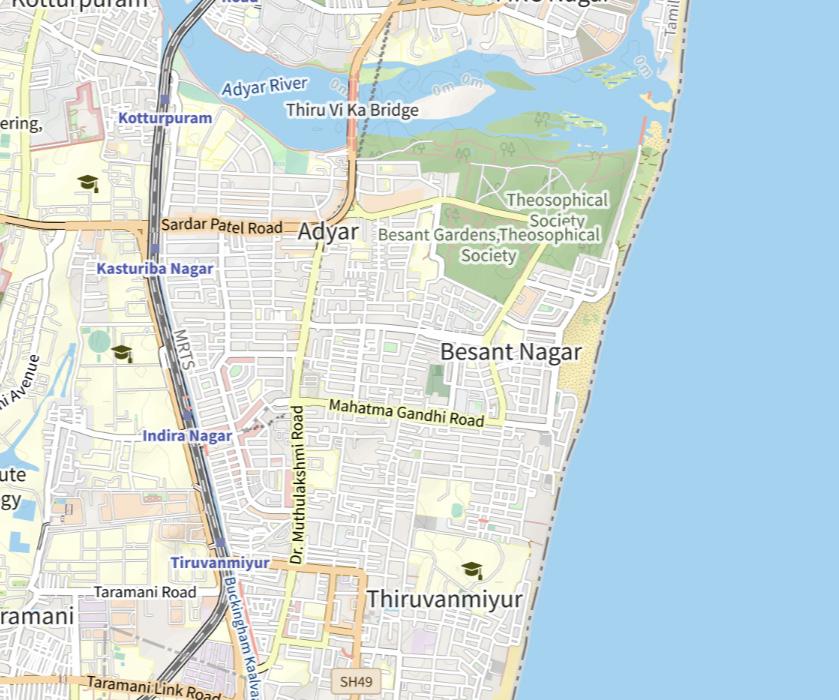

Fig 1 : Adyar map

Page 1

Studio Brief

AR.Geeva Chandana.B

“Revitalisation of urban entertainment zones incorporating emerging trends in recreational public space design. To strike a harmonious chord between Adyar’s modern aspirations and the preservation of its unique identity and quality of life” How can we leverage global urban design trends to enhance and reimagine Adyar’s public spaces, ensuring they cater to the need of both residents and visitors, while respecting its cultural and environmental heritage

Zones: These zones are categorized according to their proximity to various water bodies

zone 3

zone 2

AR.Prasanth.P

zone 1

Zone 1 : The Elliots Beach Zone 2 : Buckingham Canal Zone 3 : Adyar River View Point

MODULE NO : 01

Page 2

MODULE NO : 01

ZONE 1(THE ELLIOTS BEACH) - STUDY SHEETS

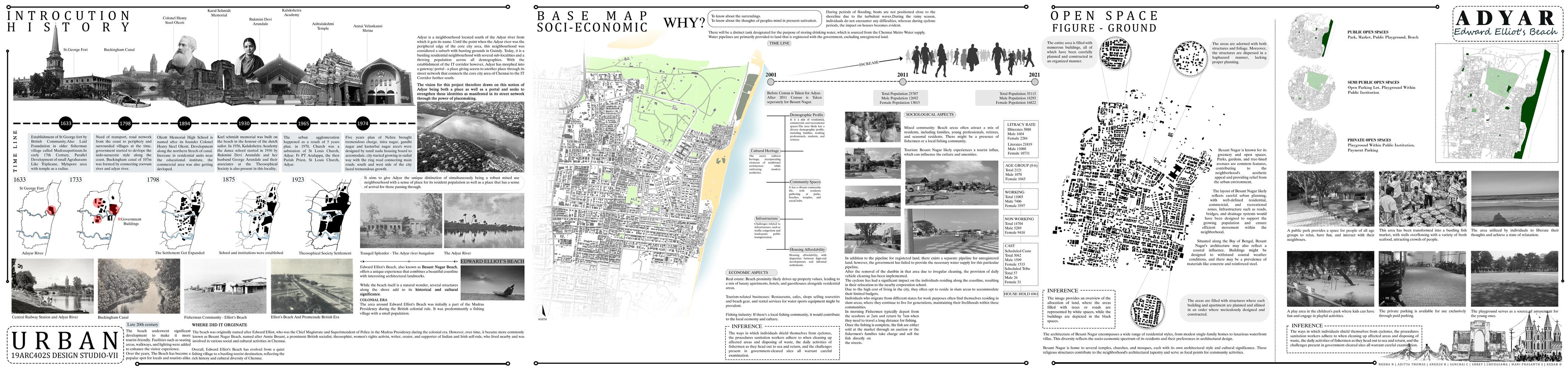

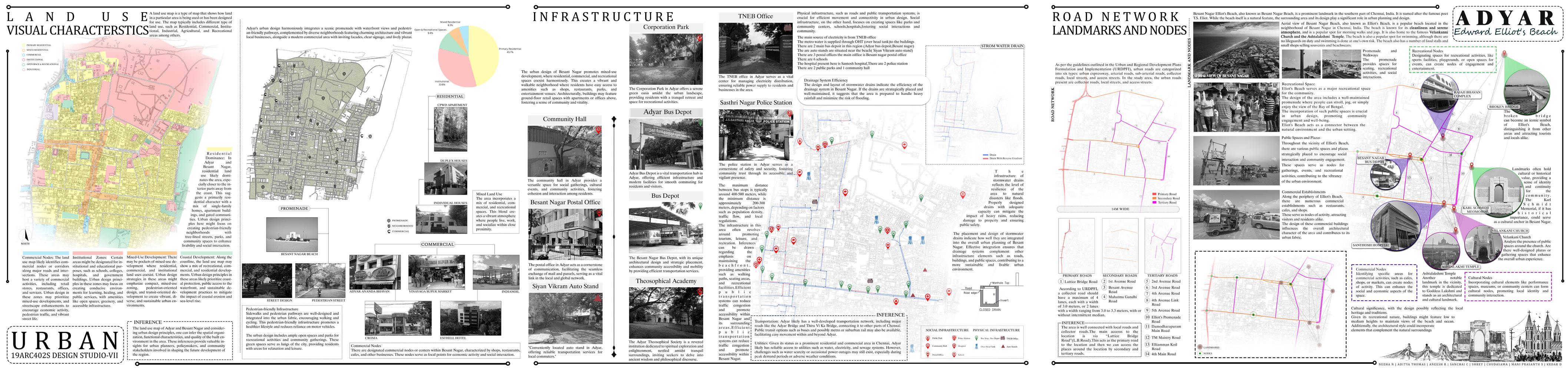

Fig 3 : Pannel Sheet 2 The sheet displays the Landuse, transporation and infrastructure map of the

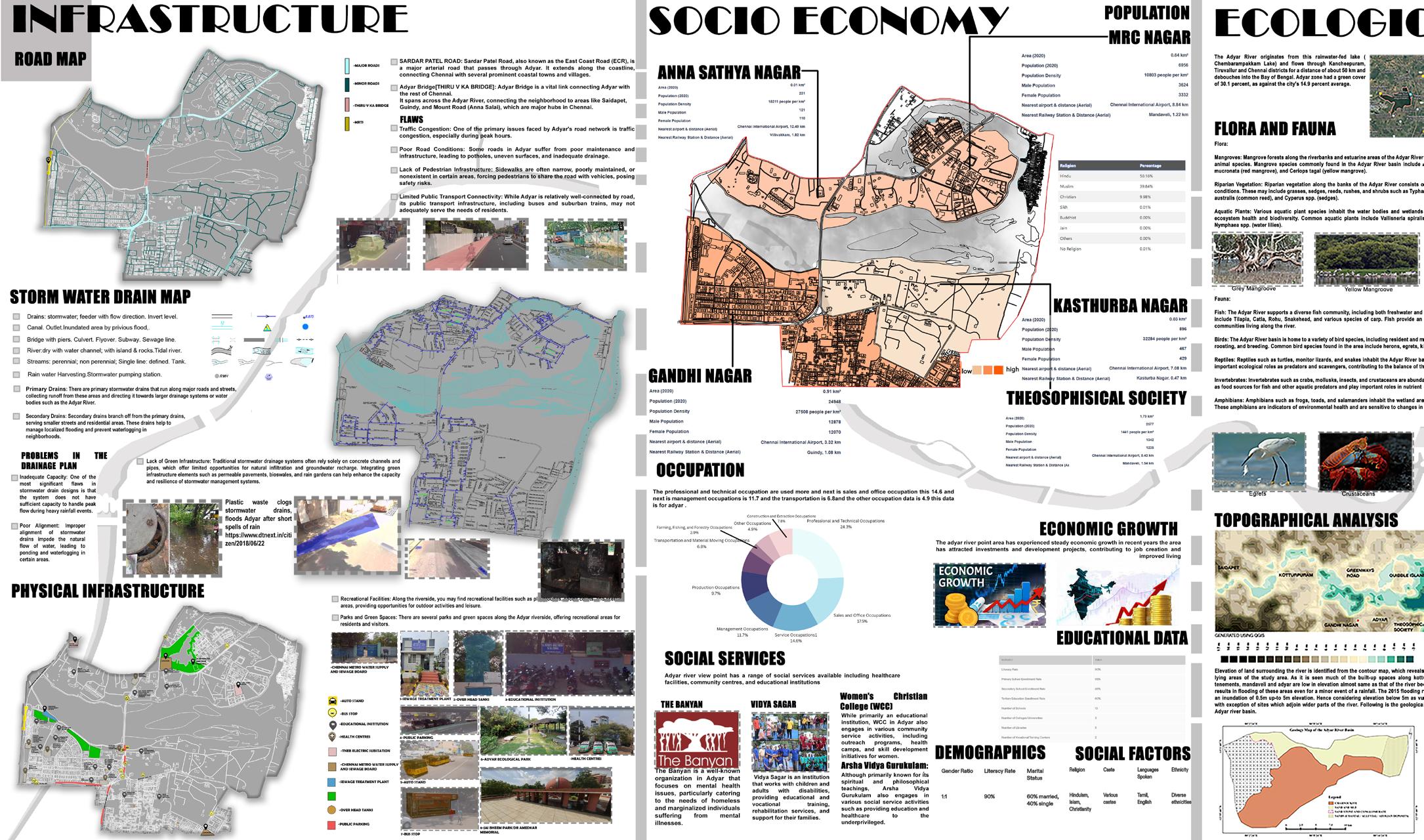

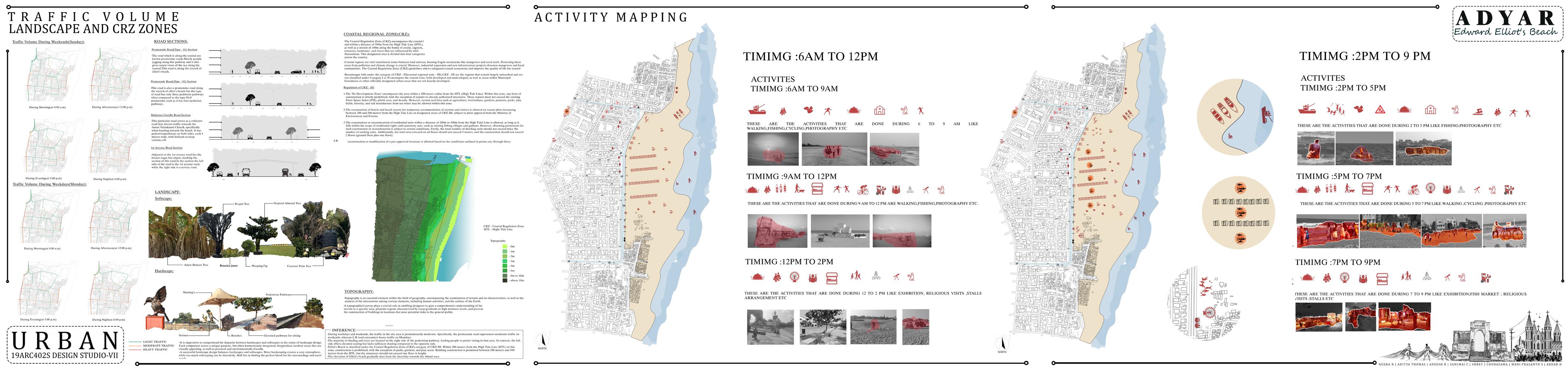

Fig 4 : Pannel Sheet 2 The sheet displays the Activity and Ecology map of the area.

ZONE - 06

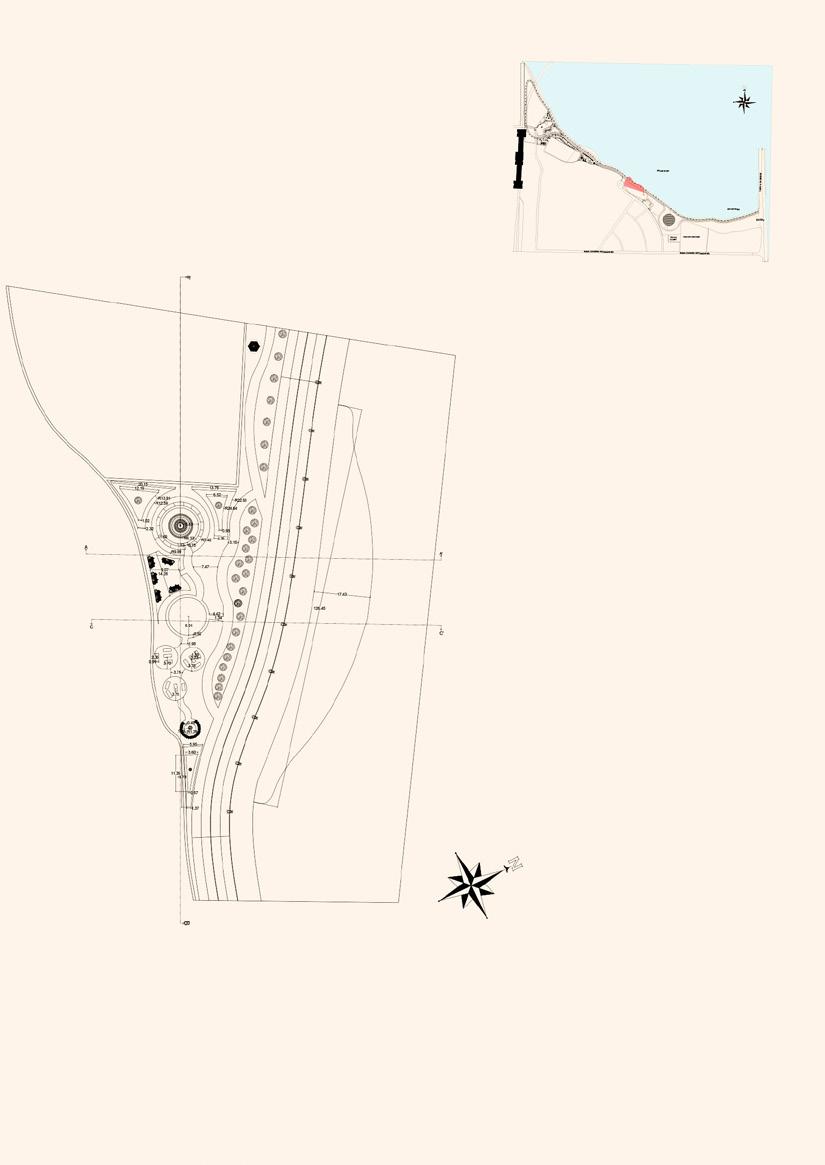

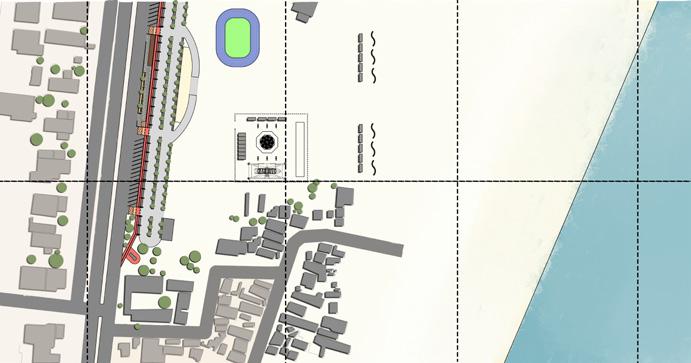

ZONE - 06 ZONAL PLAN

PEDESTRIAN PATHWAY

B

6718.67

22000.00

32000.00

14000.00 10184.42

5000.00 24000.00

Dedicated Cycle Lane

6500.00

1000.00 5000.00

4000.00

1000.00

1400.00

• Integrating bike lanes into the urban space is a smart move that benefits everyone. It not only fosters sustainable transportation but also enhances the quality of life for residents.

• By promoting cycling as a safe and viable mode of transportation, bike lanes improve overall safety and reduce traffic congestion. Moreover, they contribute to a greener, healthier, and more accessible urban environment, making the city a better place for all.

SKATING RINK

10000.00

5000.00 2000.00

1800.00

13500.00 4500.00

A’

A

8400.00

5650.00 2000.00

B

37525.86 30000.00

Natural Shading • Incorporating tree shading into urban areas not only enhances the aesthetics of our surroundings but also promotes a greener and healthier environment for everyone.

• By doing so, we can contribute to a sustainable future and create a more pleasant living space.

6718.67

5000.00 2385.00

22000.00

32000.00

14000.00 1710.00

10184.42

STALLS & SITTING AREA

24000.00

1000.00 1200.00

943.49

6500.00

730.00

4500.00

51517.97

B’

1800.00 10000.00

6000.00 4000.00

8000.00

40034.55 4500.00

1200.00

5000.00

5000.00

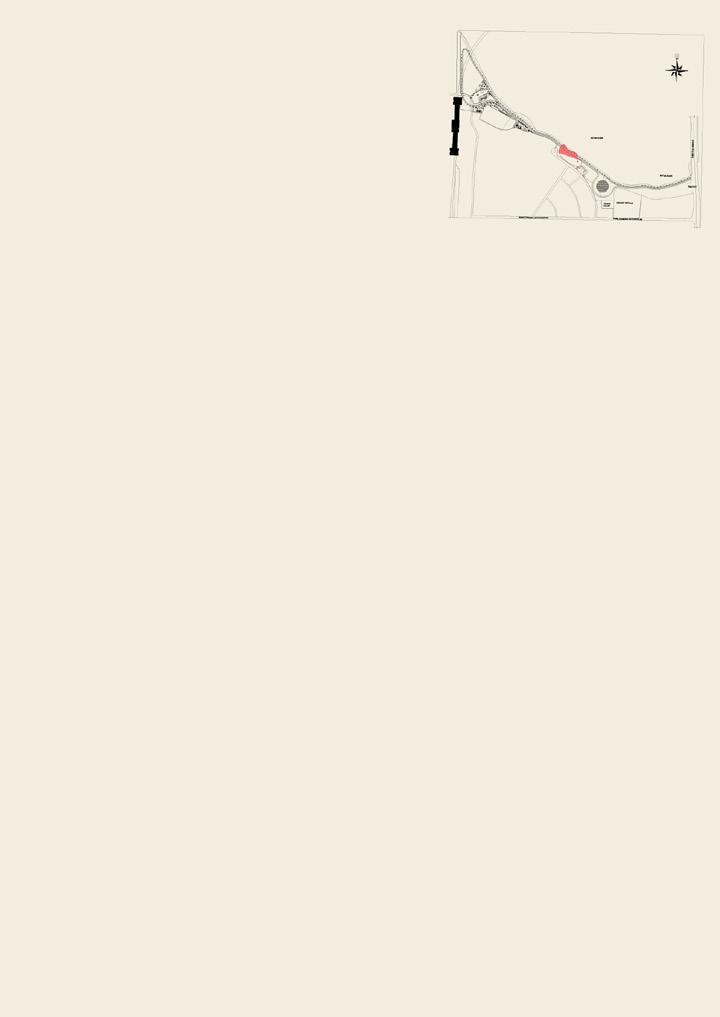

KEY PLAN:

1800.00 4000.00

1000.00

2000.00

5000.00 1400.00

5000.00

13500.00 4500.00

3000.00

8000.00

8400.00

1000.00 2000.00 5650.00

Universal Design

2000.00 6000.00

10000.00

• Incorporating universal design principles into urban spaces can greatly enhance social sustainability and foster inclusivity.

• It aims to create environments that cater to the needs of all individuals, irrespective of their abilities, age, or background.

• By doing so, it promotes a sense of belonging and community for everyone, ultimately making our cities more livable and enjoyable for all.

14700.00 37525.86 30000.00

A

3000.00

A'

Water Dispenser

Dust Bin

4000.00

500.00

1900.00

4500.00

8000.00 4200.00

2400.00

1500.00 4000.00

PARA - TRANSIT STOP

B'

OUTDOOR GYM SPACE

STALLS AND SEATING AREA

PARA TRANSIT STOP

Sitting Spaces

KEY PALN

• Beach-facing seating areas can significantly enhance the urban landscape, providing a relaxing and peaceful atmosphere for visitors to unwind and connect with nature.

• They not only promote well-being but also create unforgettable memories for everyone who visits the waterfront. So, incorporating such seating areas can be an excellent way to improve the overall experience of the waterfront and attract more people to the area.

para transit stop

Activity Zones • Carnival and open gym spaces are essential components of vibrant urban activity zones. They offer opportunities for physical activity, community engagement, and well-being.

• By promoting these activities, they create a positive environment that fosters social interaction and helps people lead healthier and happier lives.

• Moreover, they contribute to the overall liveliness and vibrancy of urban areas by providing spaces where people can come together and enjoy themselves.

4000.00

Toilets

8000.00

40034.55 4500.00

4000.00

1200.00

5000.00

13500.00 3000.00 2000.00

6000.00

10000.00

14700.00

ZONE 1 - DESIGN INTERVENTION

37525.86 30000.00

4200.00

1500.00 4000.00

ENTRY & EXIT RAMPS

4000.00

CARNIVAL

SKATING RINK

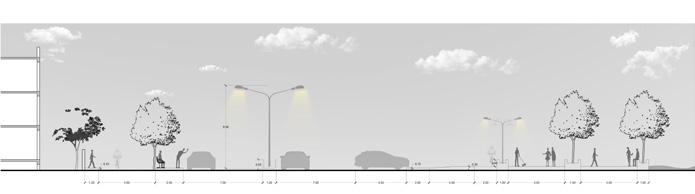

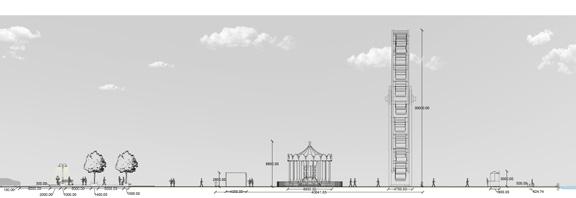

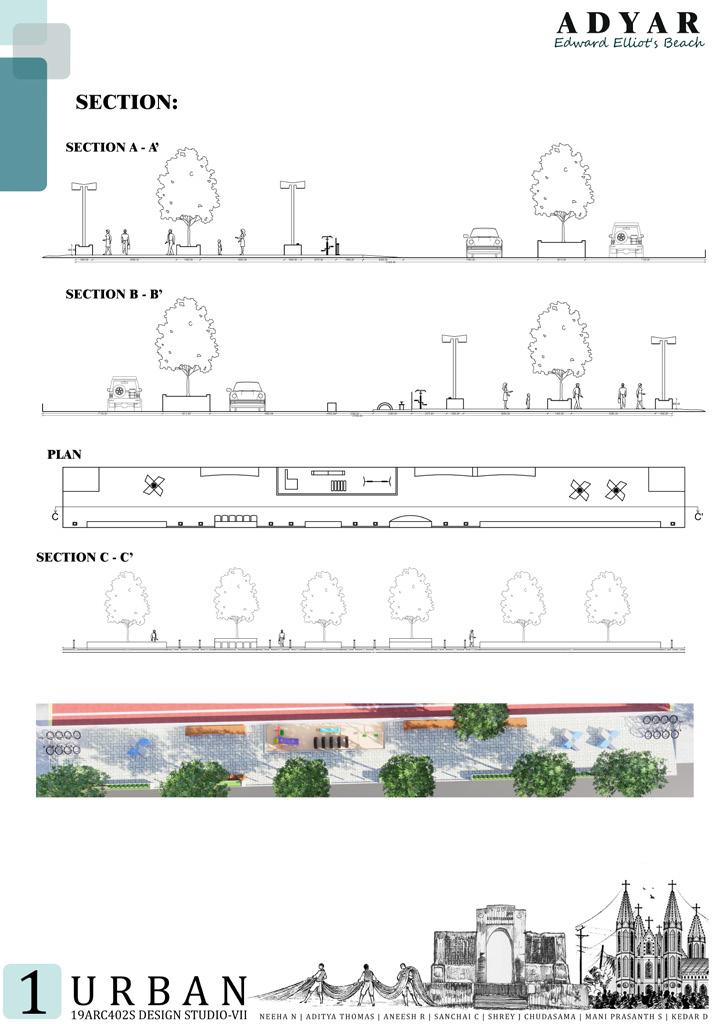

SECTION A - A’:

4500.00

Para Transit Stop

CARNIVAL

• The provision of para-transit stops can improve mobility, foster inclusivity, and help establish a safer and more efficient transportation network.

N SCALE : 1:500

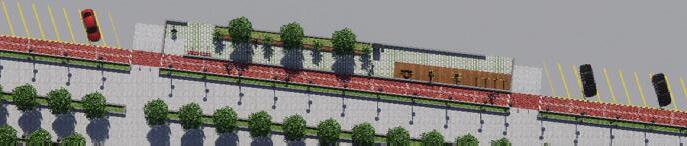

PARA TRANSIT STOP:

OUTDOOR GYM SPACE AND CARNIVAL:

View - 02 View - 01

View - 05

View - 04

Utilizing LED screens to display real-time passenger information at bus stops can enhance the quality of service and lead to greater passenger satisfaction, resulting in increased ridership.

Stall Plan:

Seating Area Plan:

• Iroko wood is highly durable and resistant to decay.

• It can withstand harsh weather conditions, saltwater exposure, and insect infestation. Iroko contains natural oils that act as a protective barrier.

• These oils guard against insects and fungus stains.

• The wood’s inherent resistance contributes to its longevity. Iroko wood moderates heat, ensuring comfort during both hot summers and cold winters.

V 01

Porotherm bricks are a versatile and practical construction material that combine strength, insulation, and environmental friendliness. They can be used for both load-bearing and nonload-bearing walls, and offer unlimited life and maximum fire protection. Additionally, para-transit stops play an important role in enhancing urban mobility, promoting inclusivity, and contributing to a safer and more efficient transportation system.

ALL DIMESIONS ARE IN MILLIMETERS(mm)

STALLS AND SEATING AREA:

View - 03

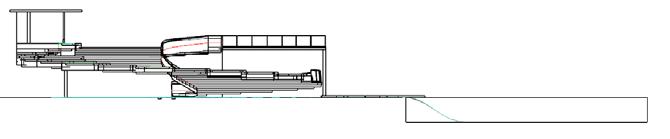

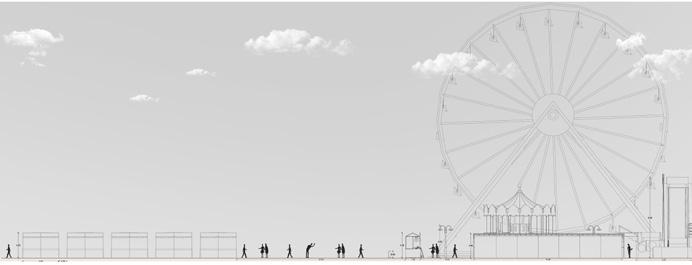

Sectional Elevation:

View - 06

smart bikes are a great option for transportation that is not only cost-effective but also environmentally friendly. This mode of transportation benefits not only individuals but also the community at large.

V 01 V 06 V 03 V 02

SKATING RING:

Using low-E glass for windows can improve thermal insulation, lower energy expenses, and create a more comfortable living space.

Installing solar panels on para transit stops can not only help in achieving carbon neutrality but also bring a positive change in public transportation by making it more eco-friendly, accessible, and efficient.

• Synthetic acrylic flooring provide good grip for roller skaters.

• Synthetic acrylic materials are designed to withstand wear and tear from regular skating activities. They not only stand the test of time but also maintain reliability even after heavy usage.

• A secure grip on the surface is essential for maintaining balance, executing tricks, and preventing accidents.

Synthetic acrylic flooring excels in providing the grip that skaters need to confidently navigate the rink • In the realm of roller skating, performance is the ultimate pursuit. Skaters strive to push their boundaries, perfect their skills, and elevate their overall experience. The seamless and smooth nature of synthetic acrylic materials contributes to a surface that facilitates fast and fluid movements.

• Synthetic acrylic flooring is incredibly versatile. It can accommodate various roller skating rink sizes and designs, from classic roller discos to modern, high-tech rinks.

V 05

V 04

GAME STALLS

Skating Rink Plan:

At all entry and exit points, ramps have been thoughtfully provided in a 1:16 ratio to ensure ease of access for all. These ramps span a comfortable 2400mm and offer a generous landing space of 1600mm. Furthermore, to ensure the safety of pedestrians and cyclists, bollards have been strategically placed along the pathway. This attention to detail ensures a smooth and safe experience for all who use the cycle track.

V 08

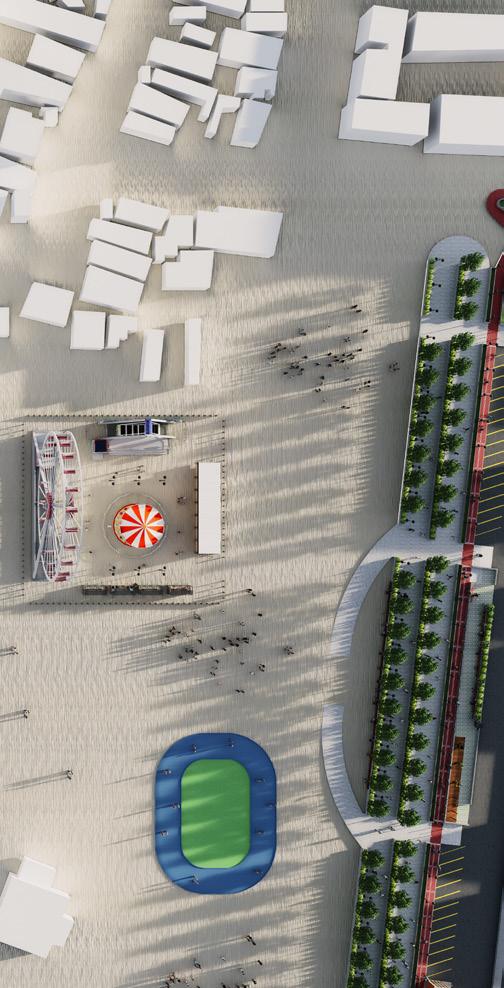

The carnival is spread across a total area of 1660 sq.m and it comprises of different sections that cater to diverse interests. These sections include:

Plan:

• • • • • •

Section:

Food stalls, Seating area that faces towards the beach, Game stalls, Ferry wheel, Pirate ship, and Horse ride.

PEDESTRIAN PATHWAY AND OTHER VIEWS:

Flooring Material

Each section has its own unique charm and offers a fun-filled experience for everyone to enjoy.

Solar Panles

View - 07

Porotherem Brick

V 09

Slate Stone flooring is used for the pedestrian.Some of the benefits of using this type of flooring in the urban spcaes are:

V 07

Bollards

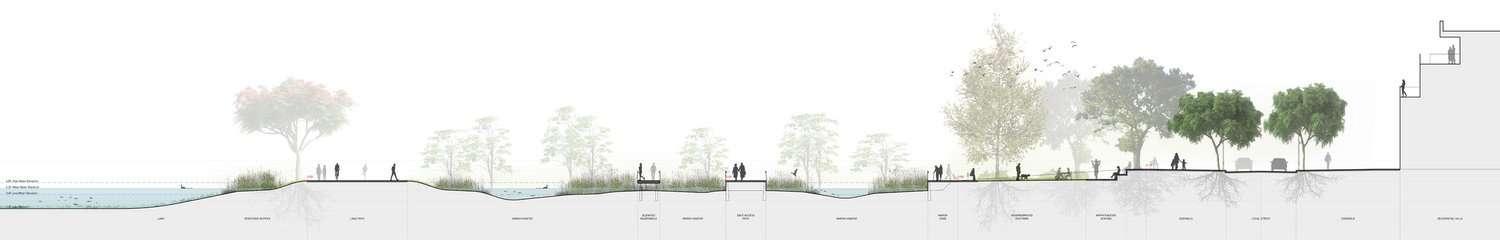

SECTION B - B’:

View - 08

View - 09

FOOD STALLS

• It can withstand harsh weather conditions and heavy foot traffic without deteriorating.

• It requires low maintenance.

• Slate Stone Flooring has high durability.

ALL DIMESIONS ARE IN MILLIMETERS(mm)

Landscape:

STREETSCAPE:

• • • • • • • •

Biological Name(Botanical Name): Azadirachta indica Common Name: Neem tree Height Of the Plant: Neem trees can grow up to 15-20 meters (50-65 feet) tall.

Crown Width: The crown of a neem tree can spread out to around 10-15 meters (30-50 feet) wide.

Evergreen or Deciduous: Evergreen Soil Type: Neem trees are adaptable to various soil types but prefer well-drained soils. They can grow in sandy, loamy, or clay soils but do best in sandy loam with a slightly acidic to neutral pH. Climatic Condition: Neem trees thrive in tropical and subtropical climates. They are well-suited to hot, dry conditions but can also tolerate a range of climates from arid to humid.

Characteristics: Neem trees have a long history of medicinal use and are known for their antibacterial, antifungal, antiviral, and insecticidal properties. Various parts of the neem tree, including its leaves, seeds, bark, and oil, are used in traditional medicine, agriculture, and cosmetics.It also has salt tolerance and is is pest resistance.

• Biological Name(Botanical Name): Ligustrum ovalifolium ‘Aureum’ • Common Name: Golden privet • Height Of the Plant: Golden privet typically grows to a height of around 6 to 10 feet (1.8 to 3 meters) tall, though it can be pruned to maintain a desired size.

• Crown Width: The crown width of Golden privet can vary depending on the pruning and growing conditions but typically ranges from 4 to 8 feet (1.2 to 2.4 meters).

• Evergreen or Deciduous: Golden privet is semi-evergreen, meaning it retains its leaves throughout most of the year, but may lose some foliage in cold climates or during particularly harsh winters.

• Soil Type: It prefers well-drained, fertile soil but can tolerate a variety of soil types, including clay, loam, and sandy soils.

• Climatic Condition: Golden privet thrives in temperate climates with mild winters and warm summers. It can tolerate a range of temperatures but prefers moderate climates.

• Characteristics: Golden privet is valued for its vibrant golden-yellow foliage, which provides year-round interest in the landscape and also it is Salt Tolerance, Drought Tolerance, Attractive Foliage, Low Maintenance and Wildlife Attraction.

ALL DIMESIONS ARE IN METERS(m)

ALL DIMESIONS ARE IN METERS(m)

ALL DIMESIONS ARE IN MILLIMETERS(mm)

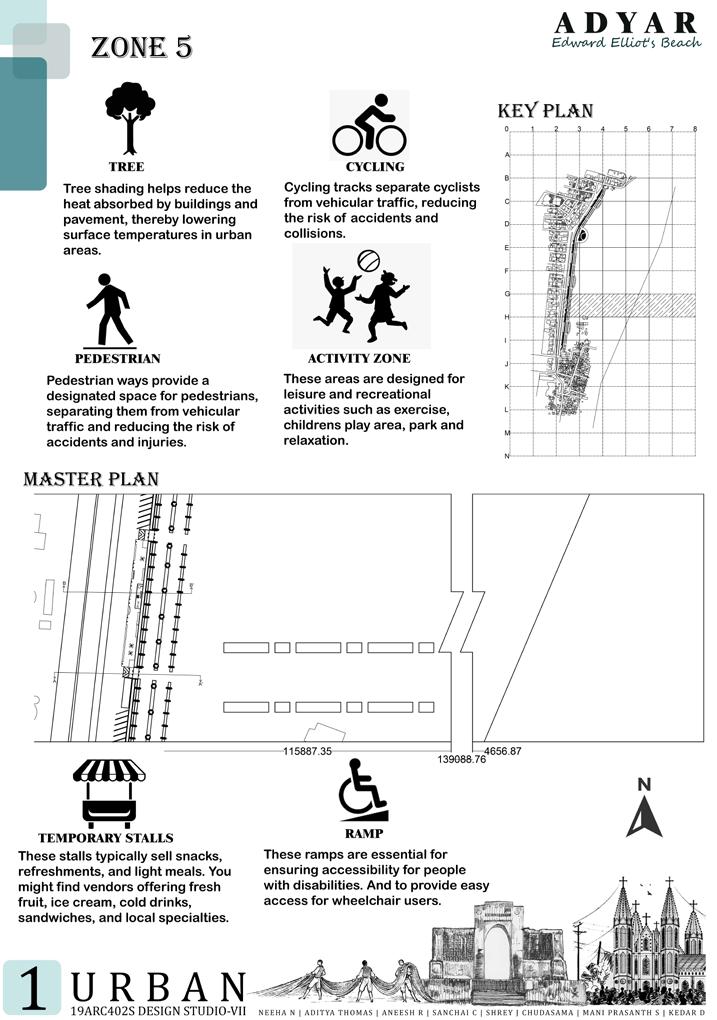

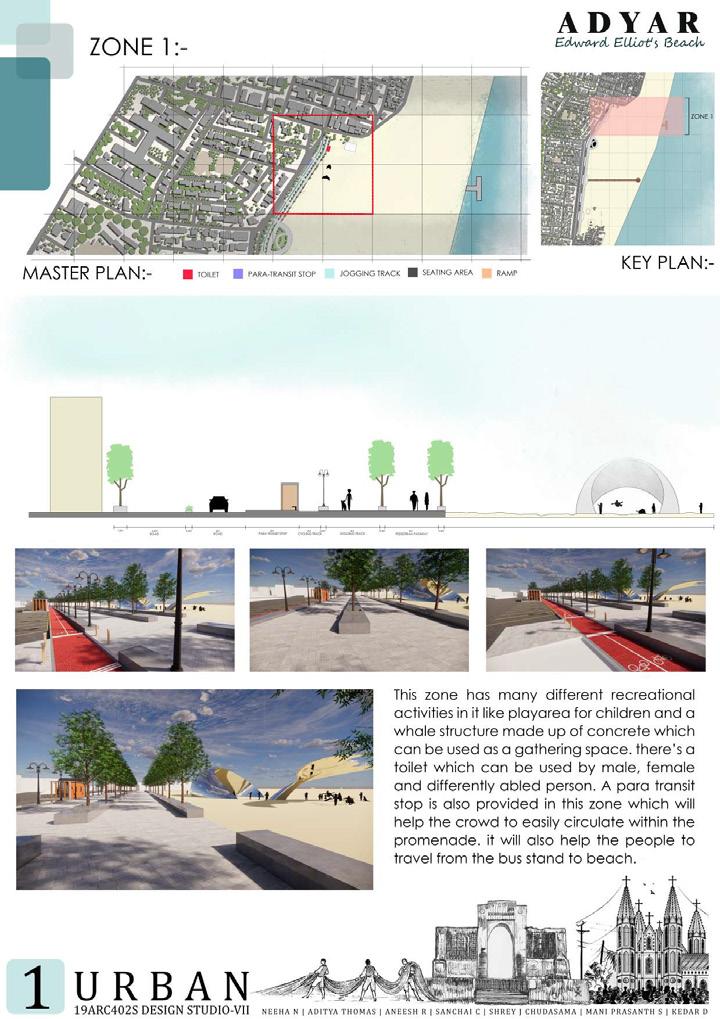

Fig 5 : Mani Prasant Design intervention on beach

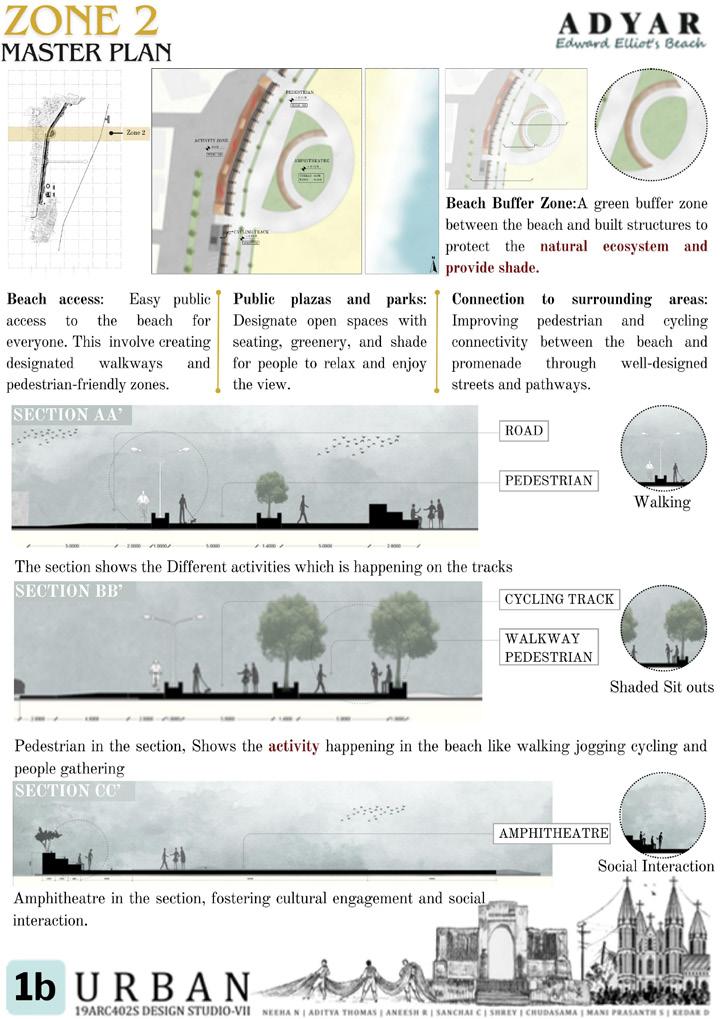

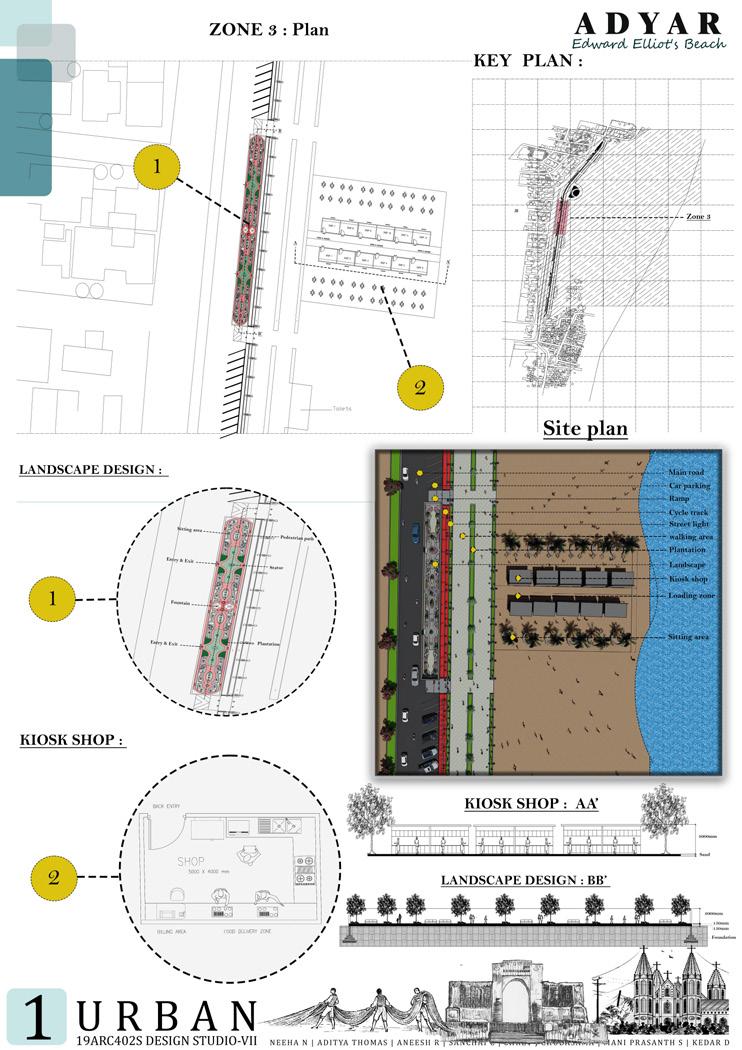

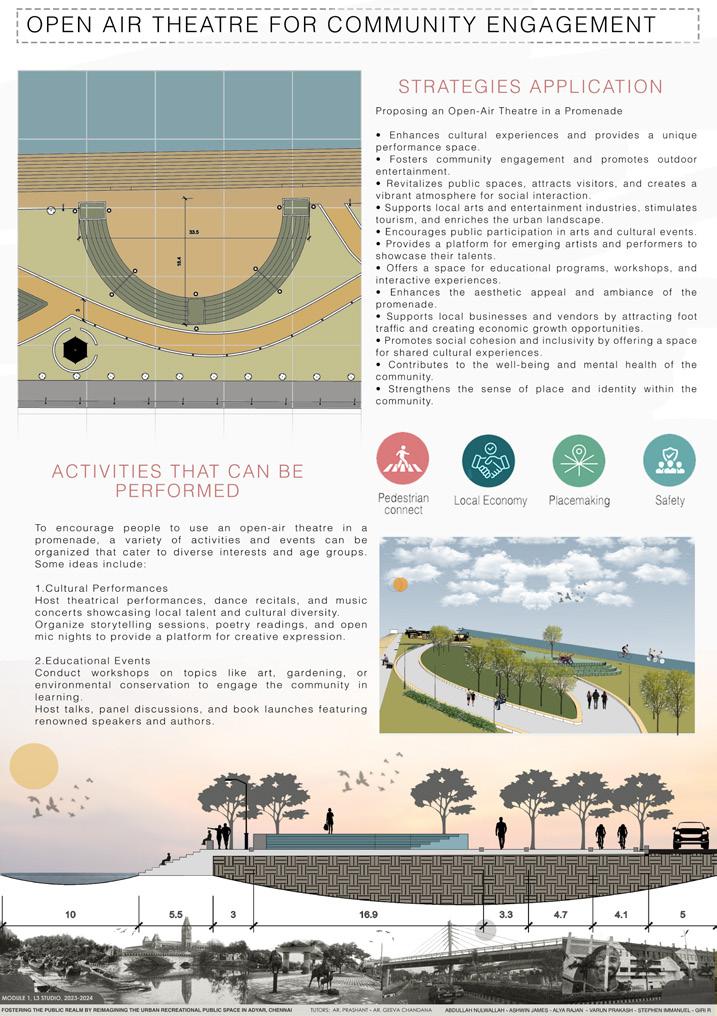

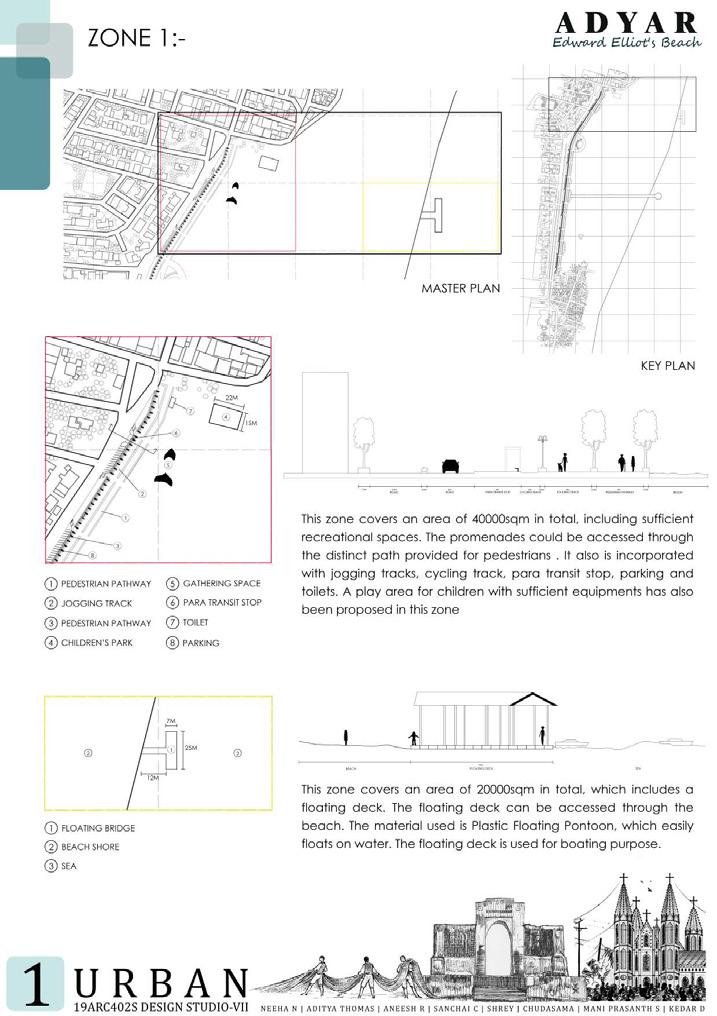

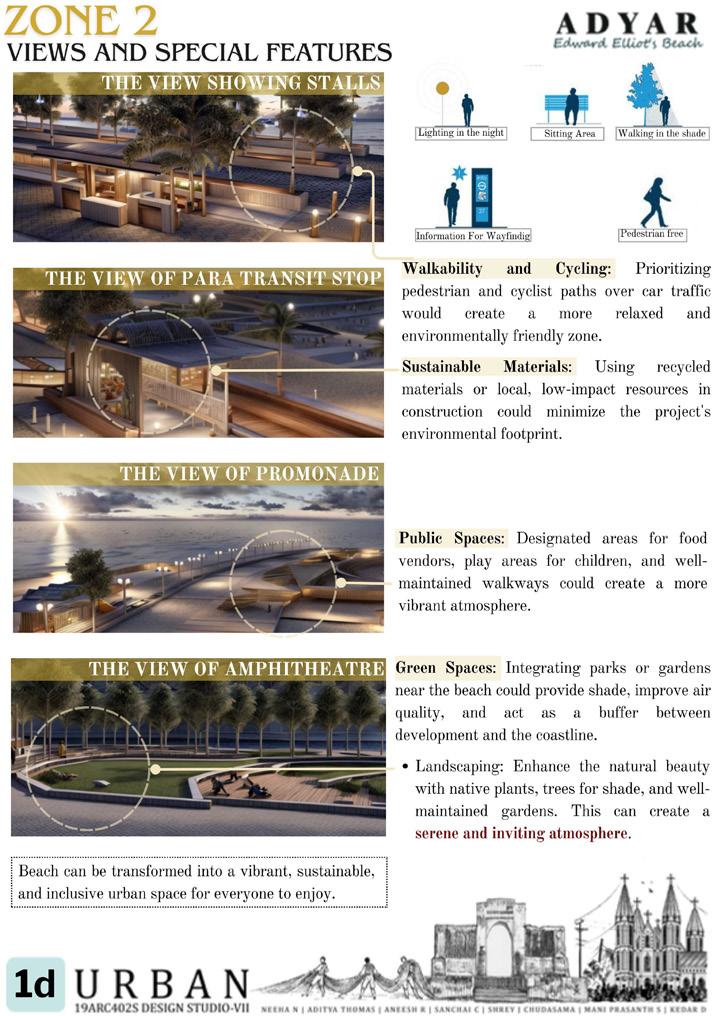

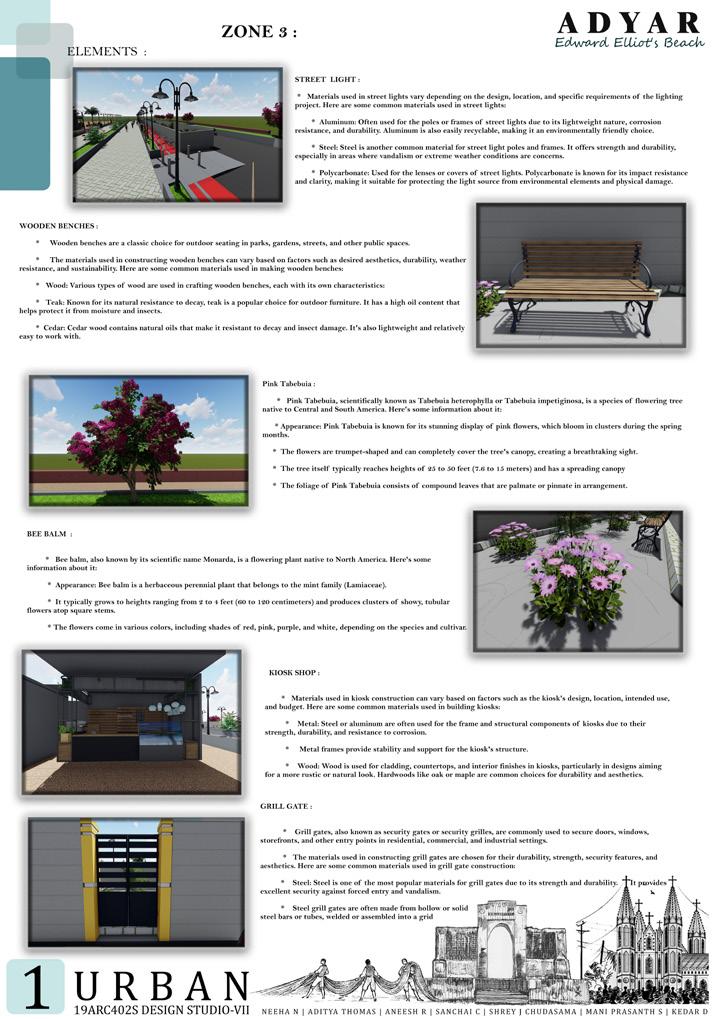

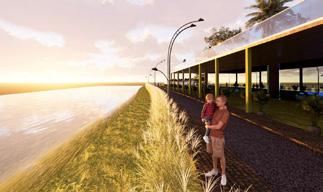

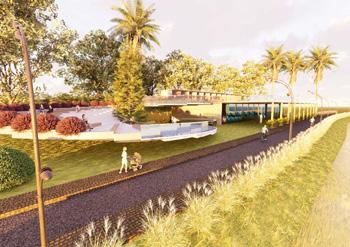

Fig 6 : Neeha Design intervention (Promonade) Page 4

MODULE NO : 01

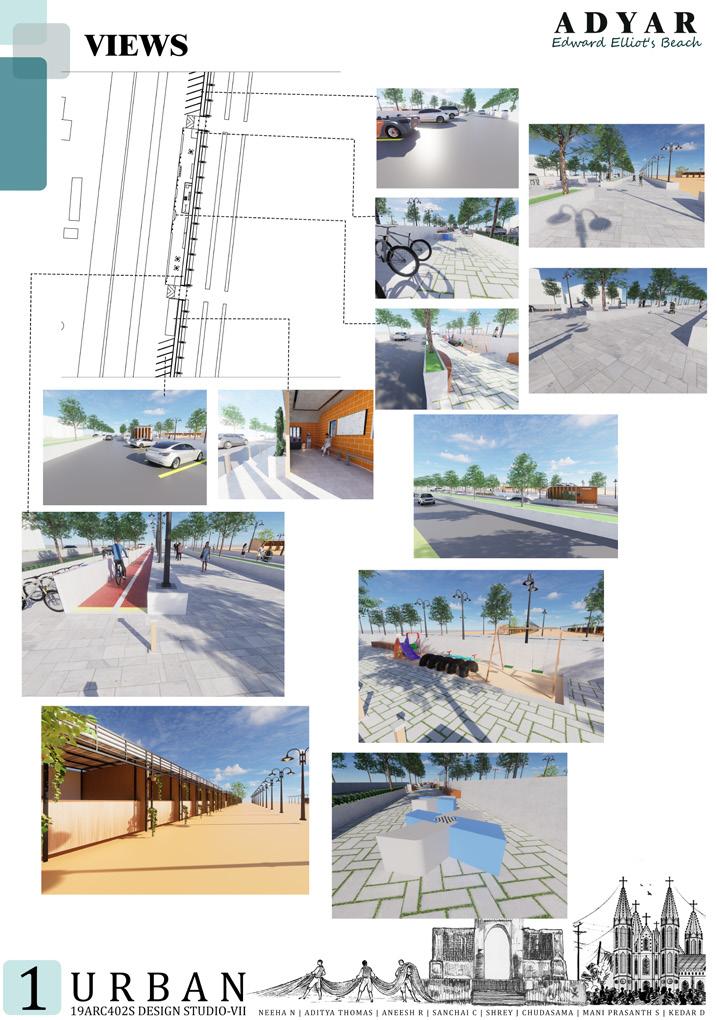

ZONE 1 - DESIGN INTERVENTION

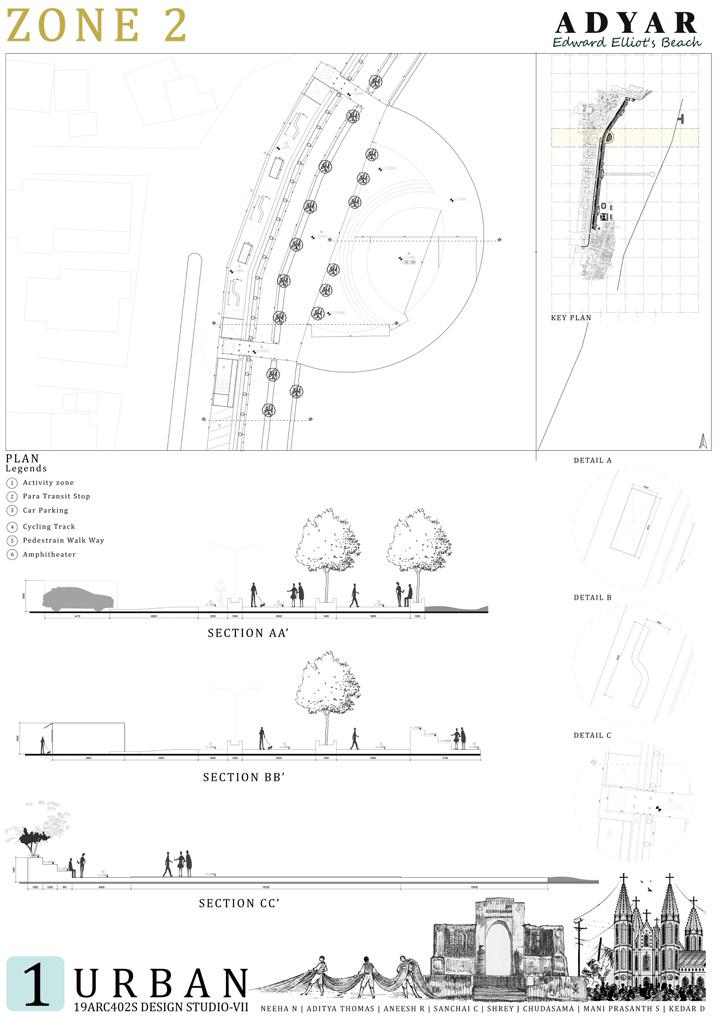

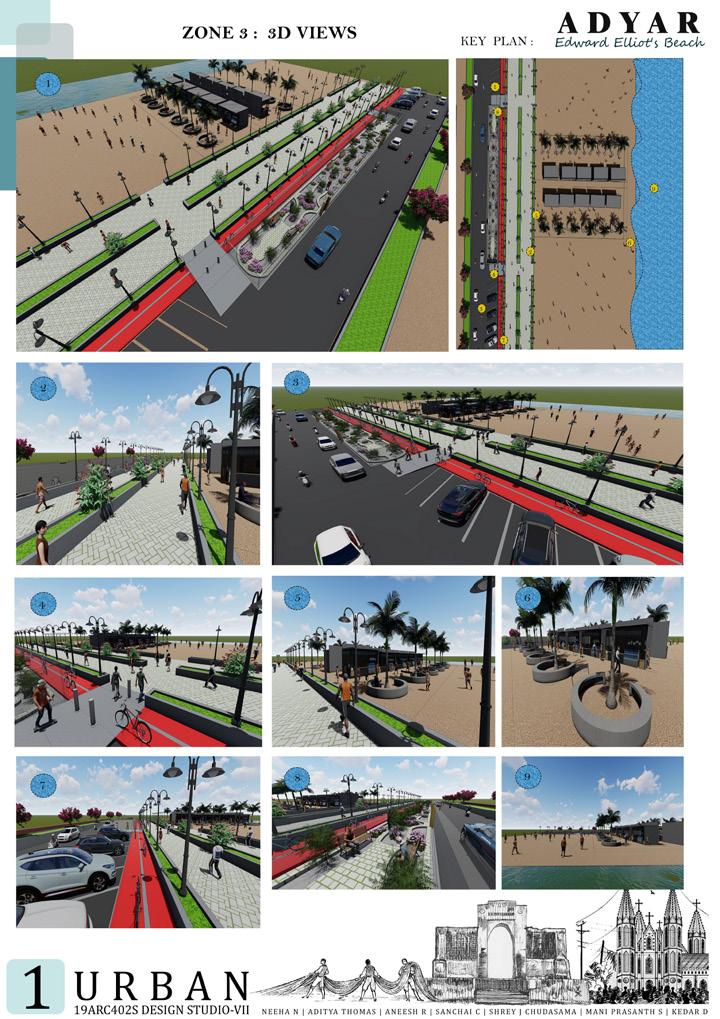

Fig 7 : Shrey Chudasma Design intervention on beach

Fig 8 : Aneesh Design intervention on beach

Page 5

Fig 9 : Mani Prasant Design intervention on beach

MODULE NO : 01

ZONE 2 (BUCKINGHAM CANAL) - STUDY SHEETS

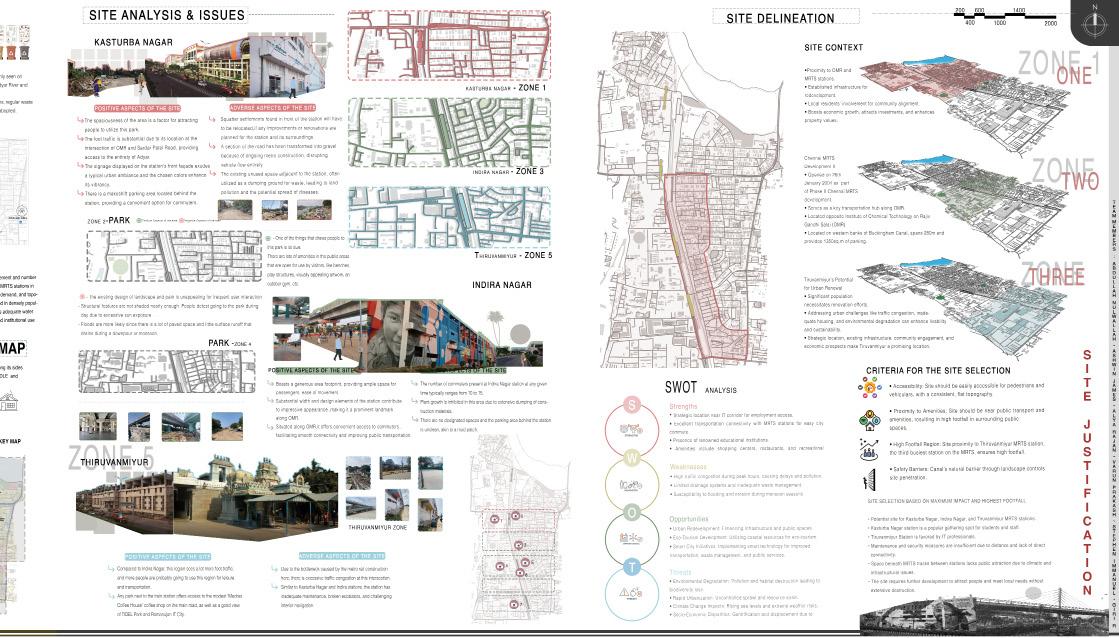

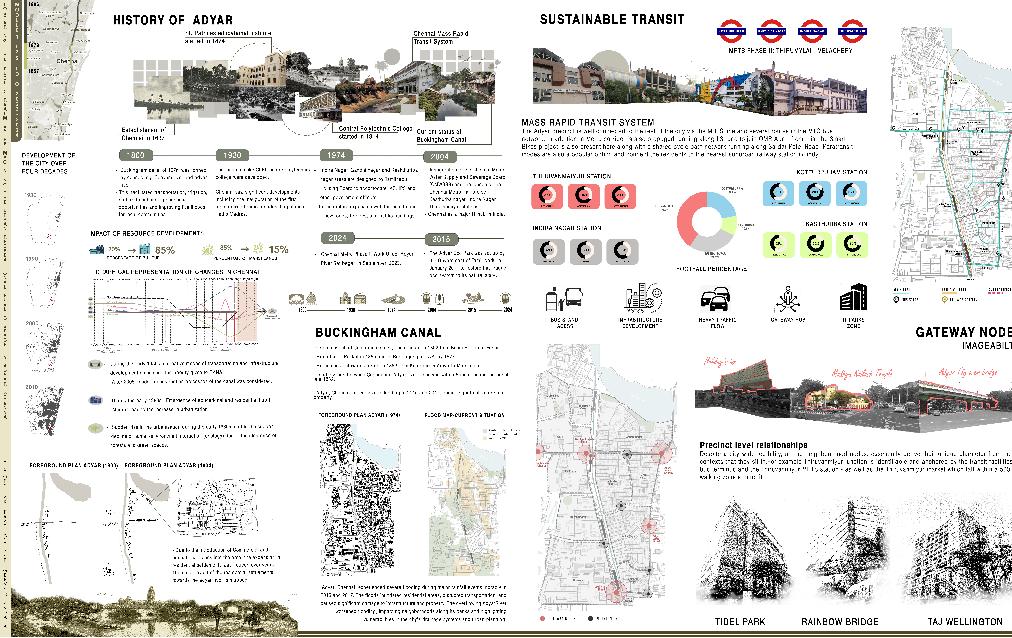

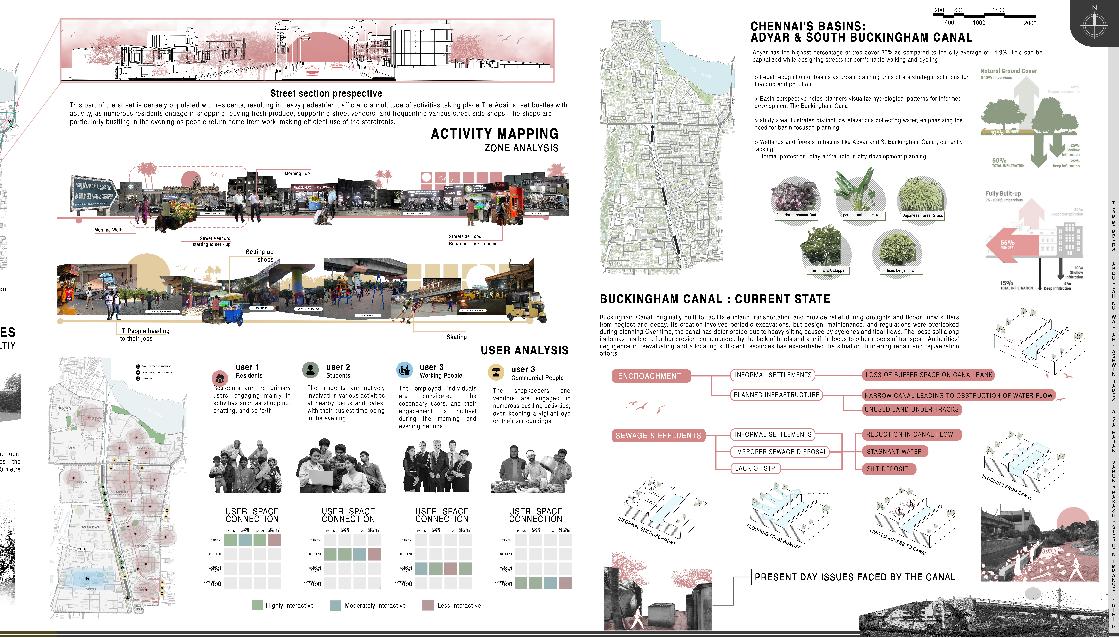

Fig 10 : Pannel Sheet 1 The sheet displays the history, Transportation and activity map.

Page 6

MODULE NO : 01

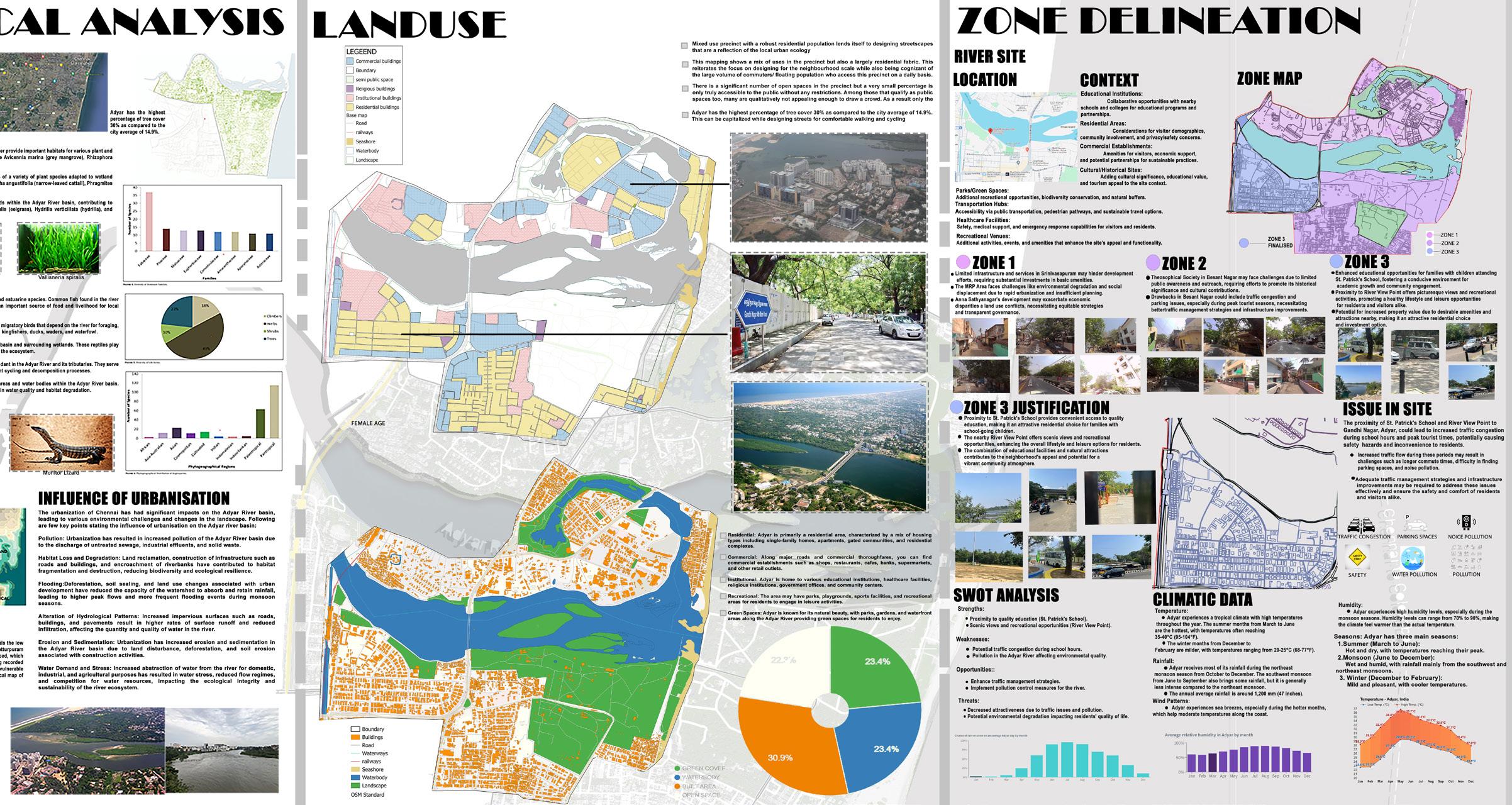

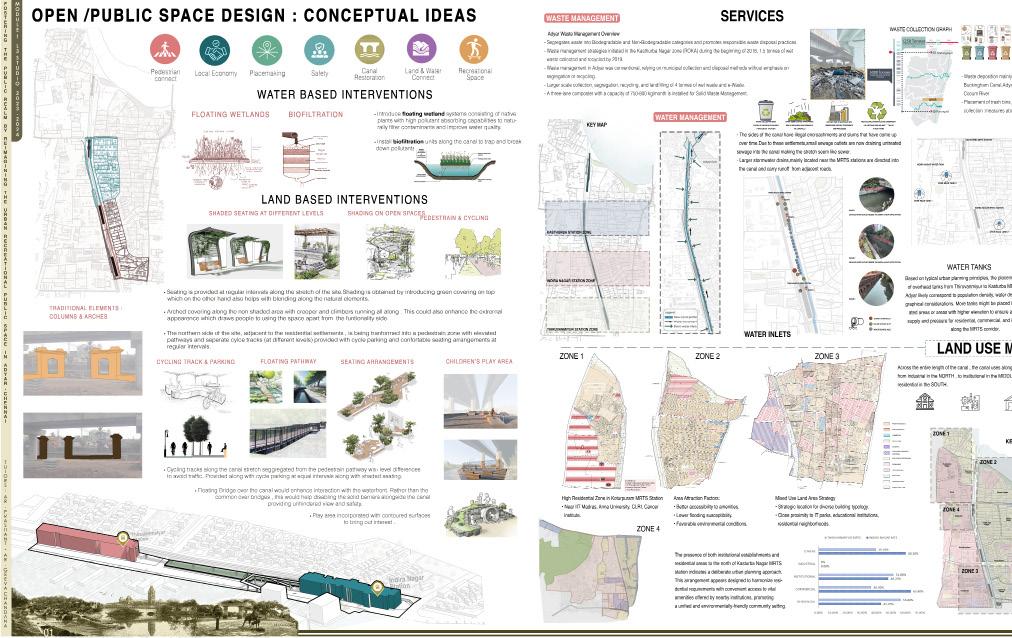

Fig 11 : Pannel Sheet 2 The sheet displays the Open space, Service, Site Analysis and Site Delineation.

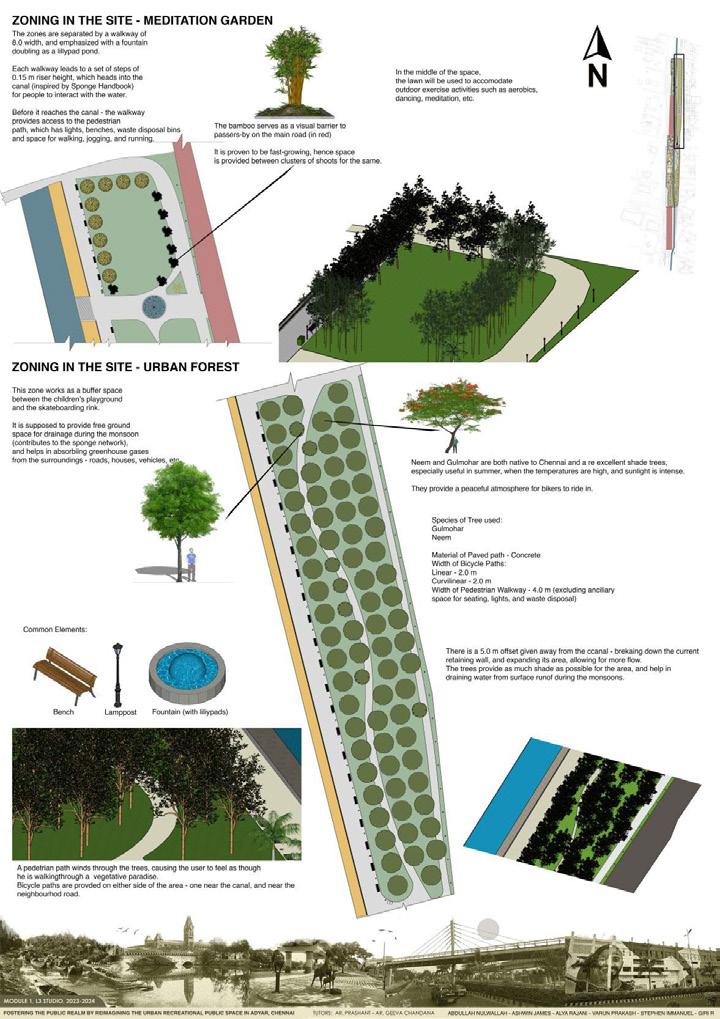

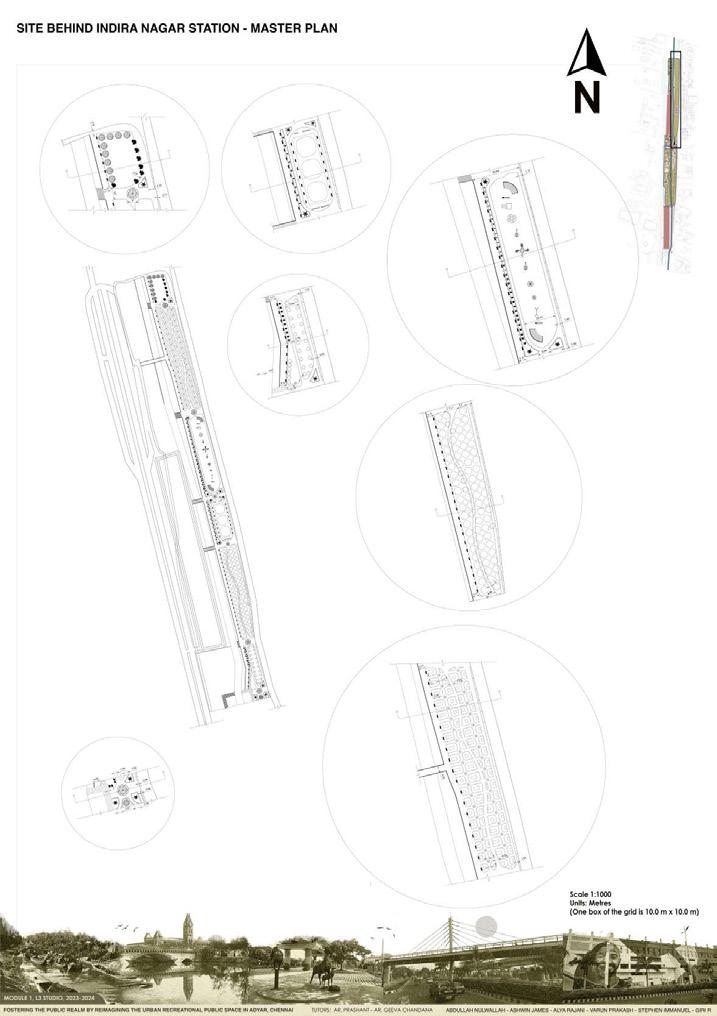

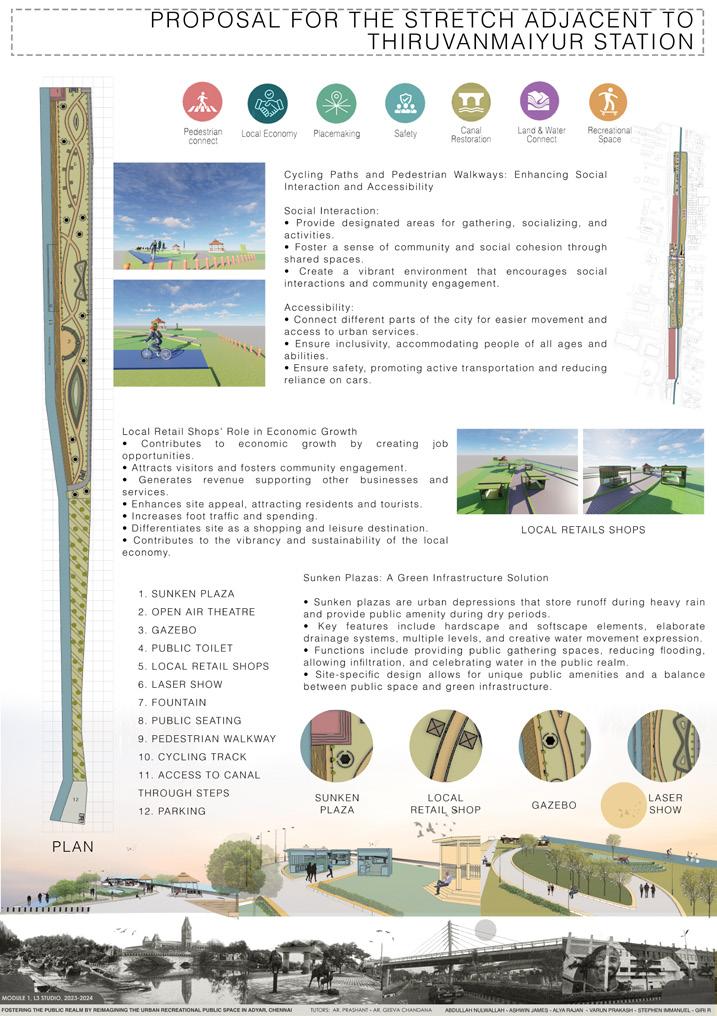

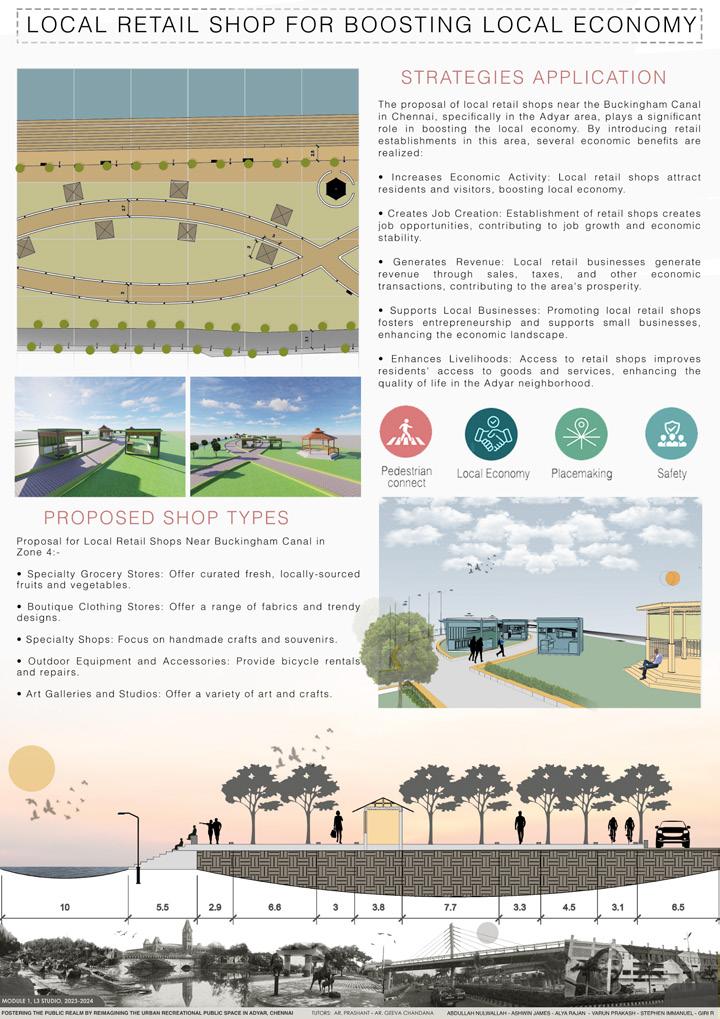

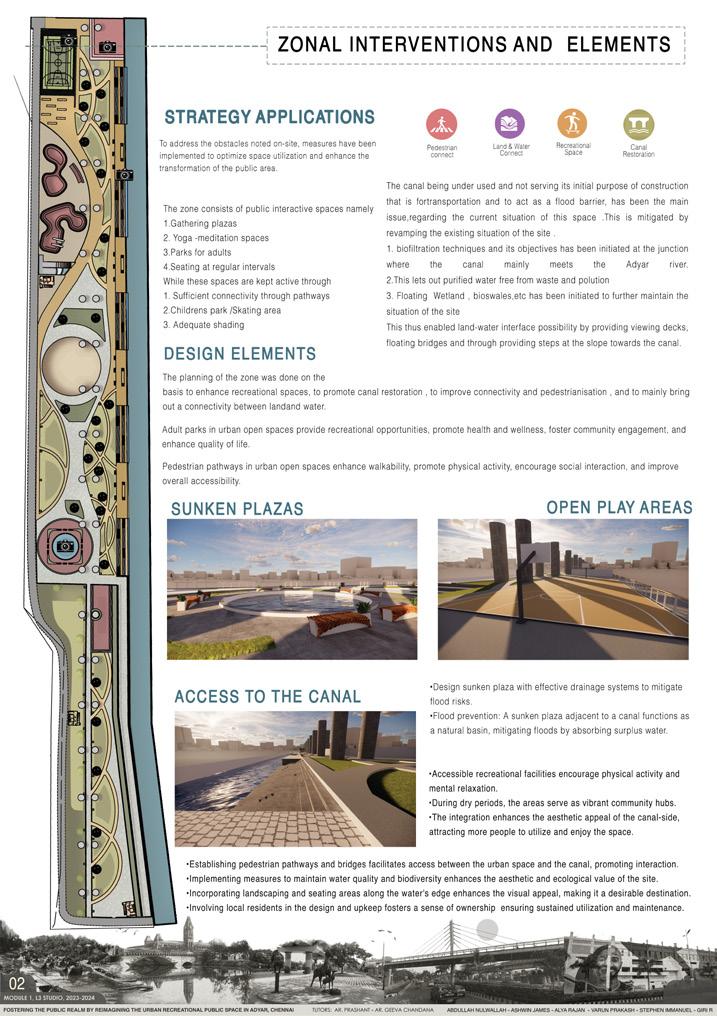

ZONE 2 - DESIGN INTERVENTION

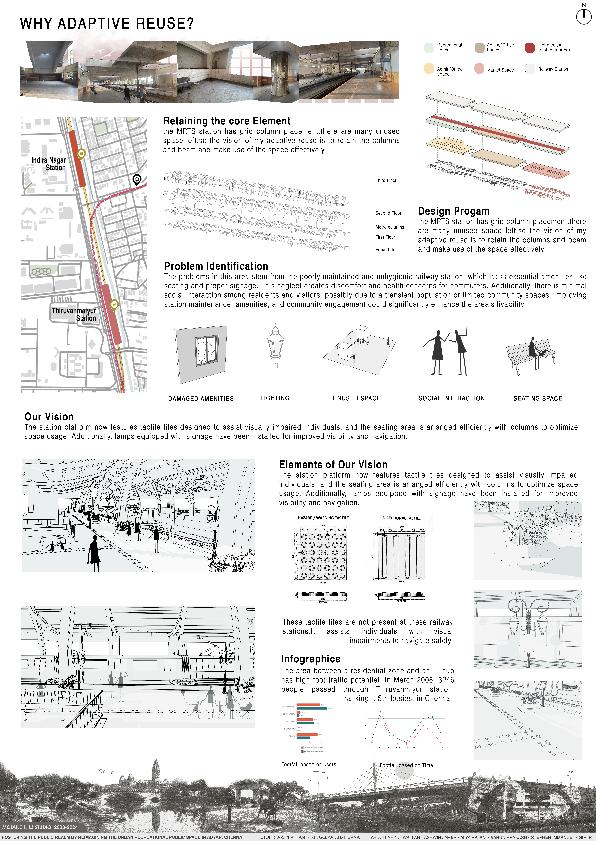

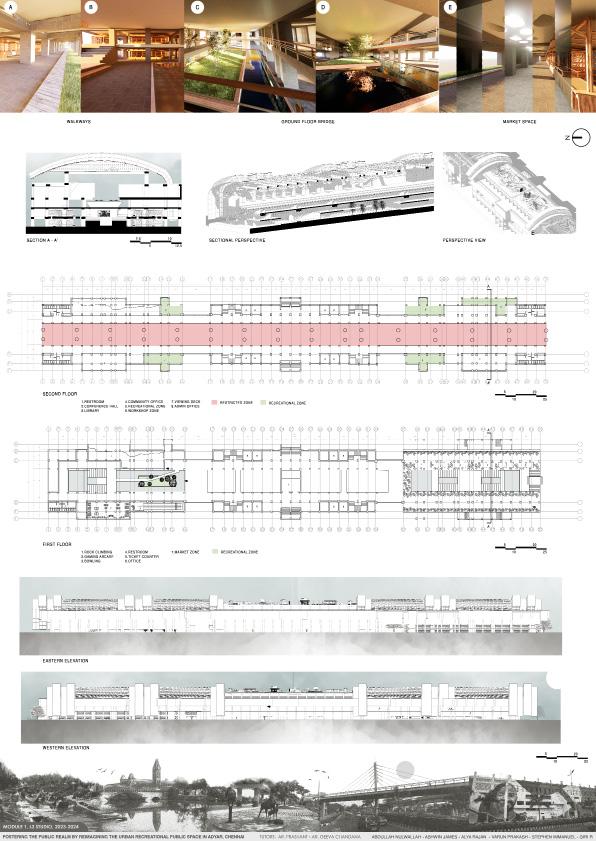

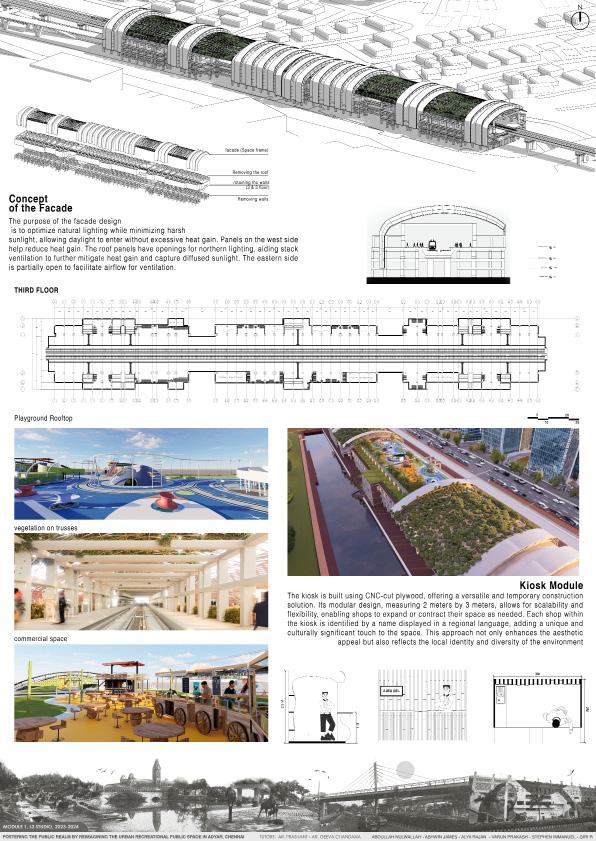

Fig 12 : Giri R Design intervention on Build form

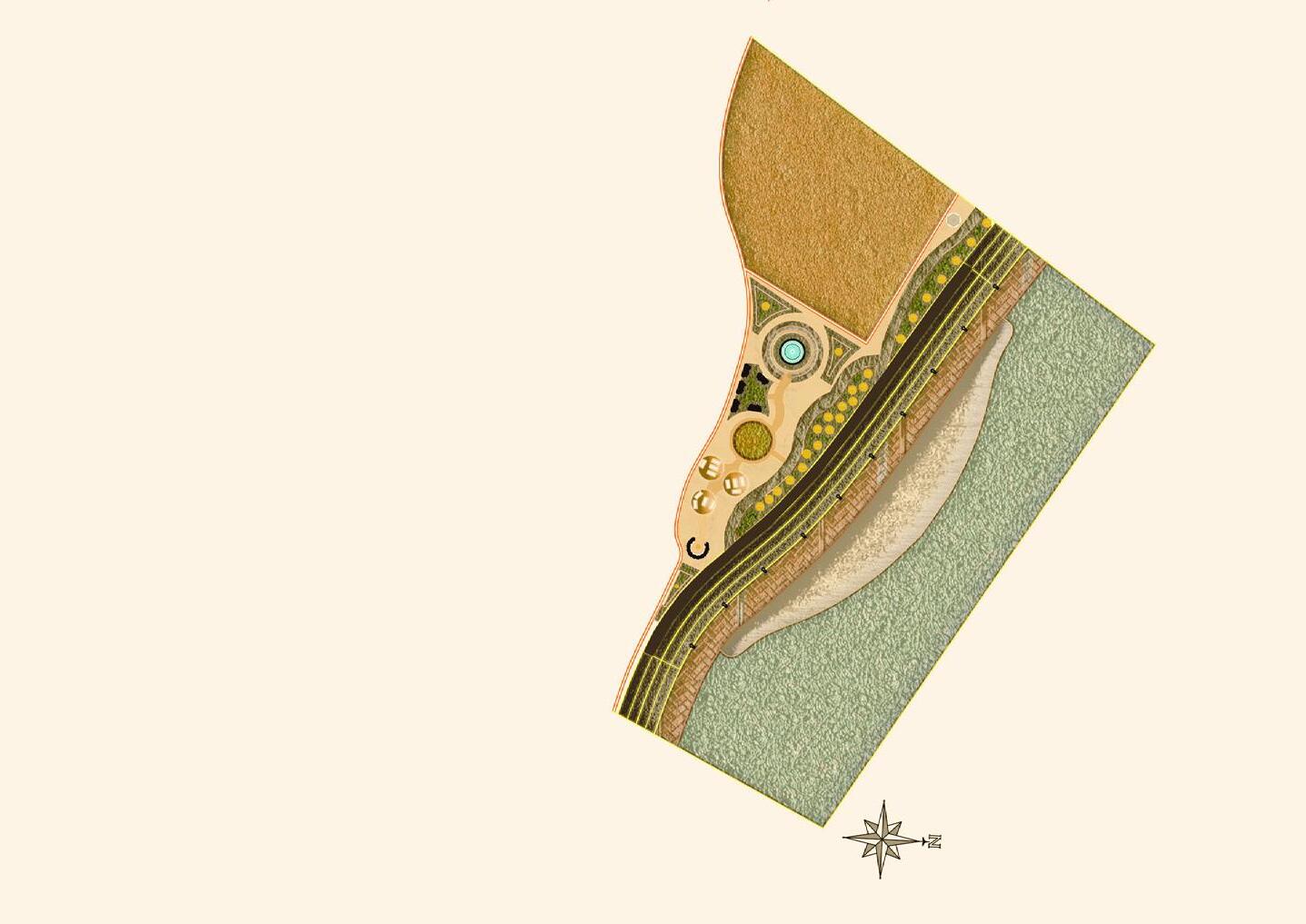

Fig 13 : Alya Rajan kolandra Design intervention on open space

Page 8

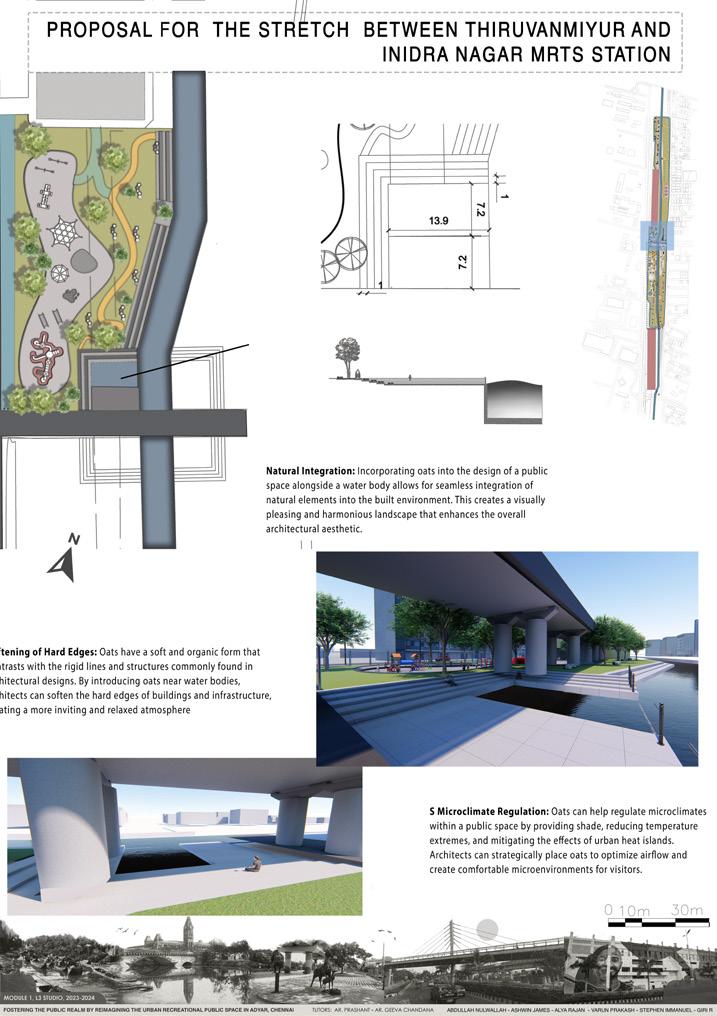

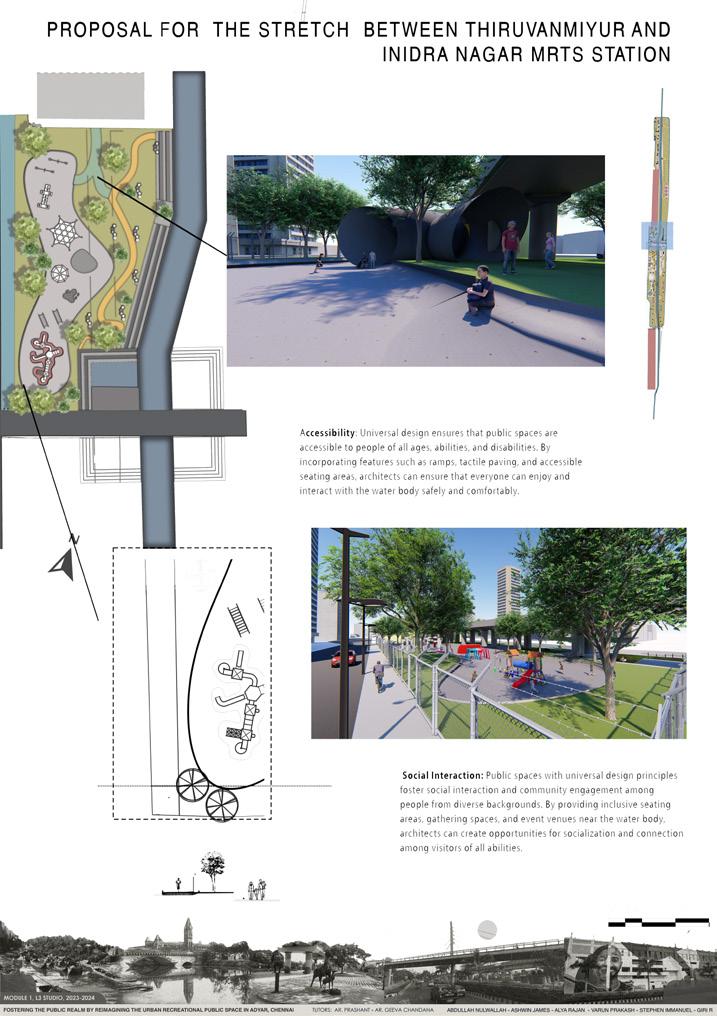

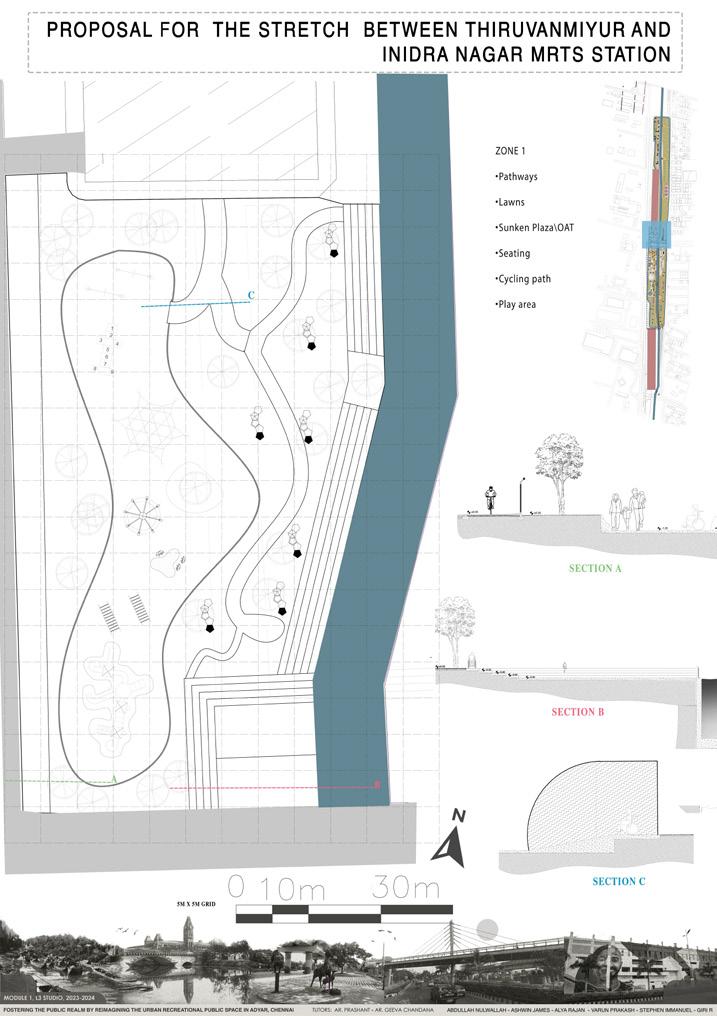

Fig 14 : Varun prakash Design intervention on Park

MODULE NO : 01

ZONE 2 - DESIGN INTERVENTION

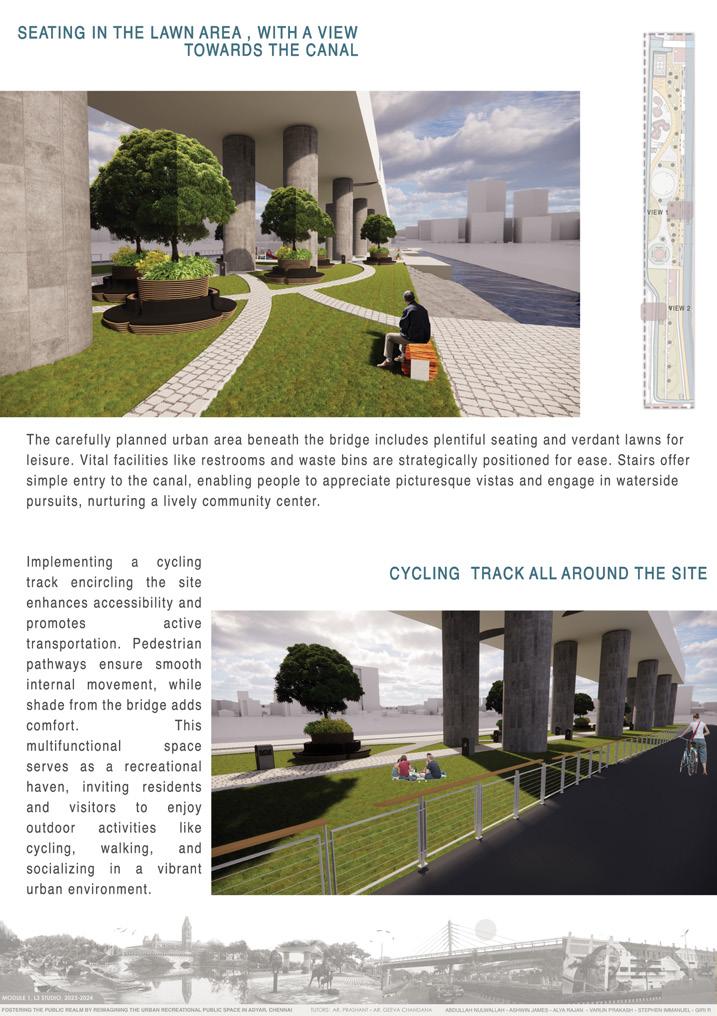

Fig 15 : Ashwin James Design intervention on pa

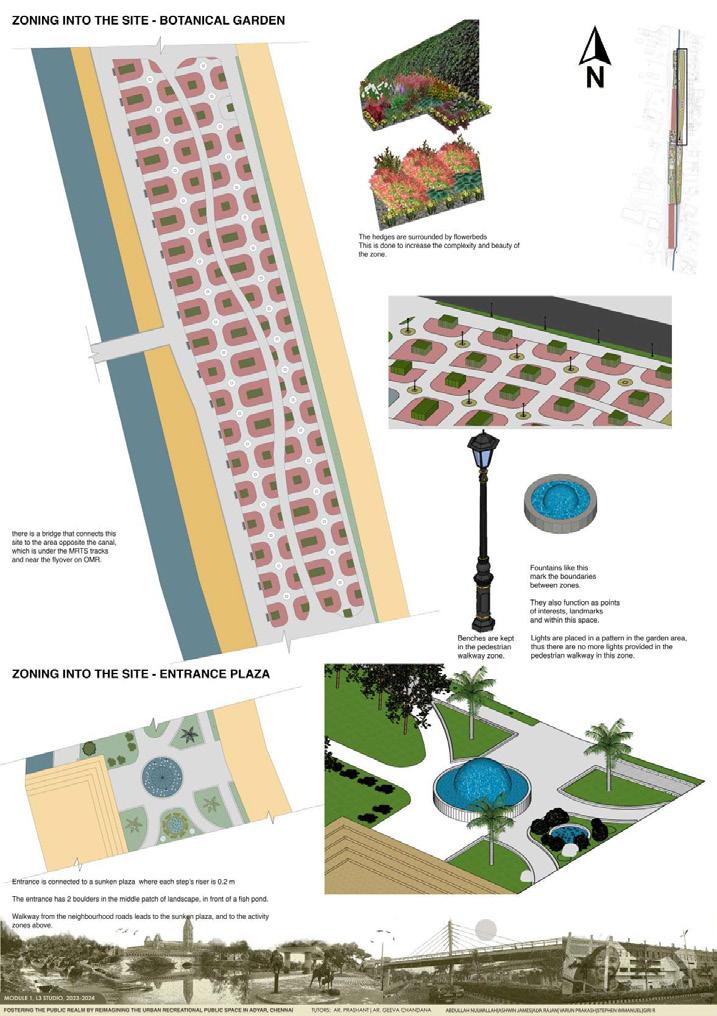

Fig 16 : Stephen Imanuel Design intervention park

Page 9

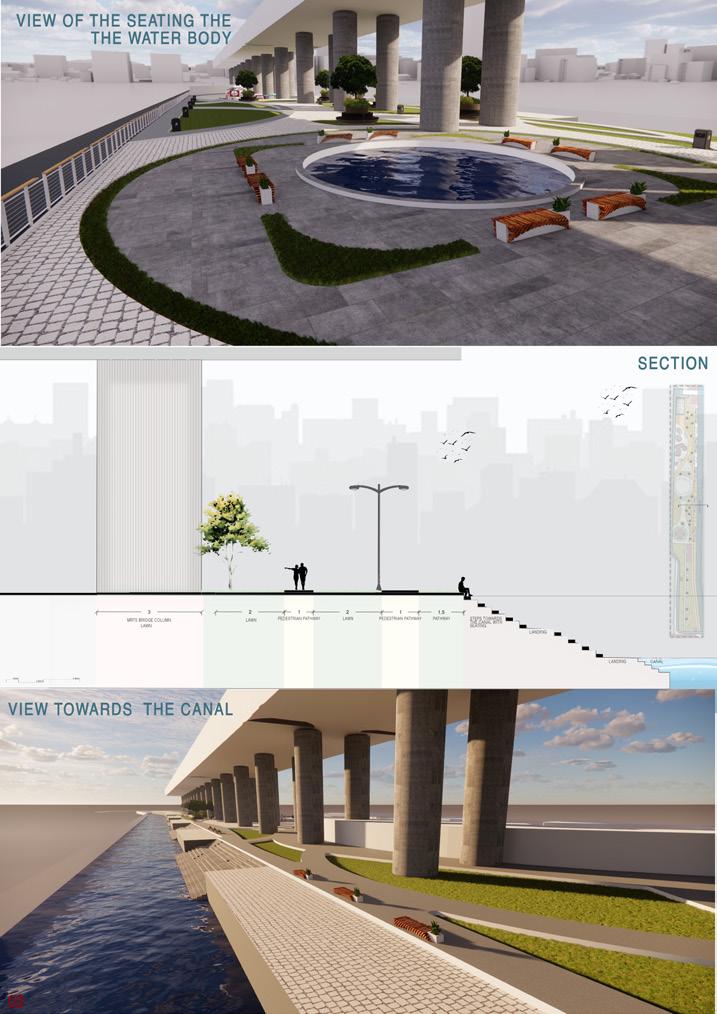

Fig 17 : Abdullah Design intervention on park

MODULE NO : 01

ZONE 3 (ADYAR RIVER VIEW POINT) - STUDY SHEETS

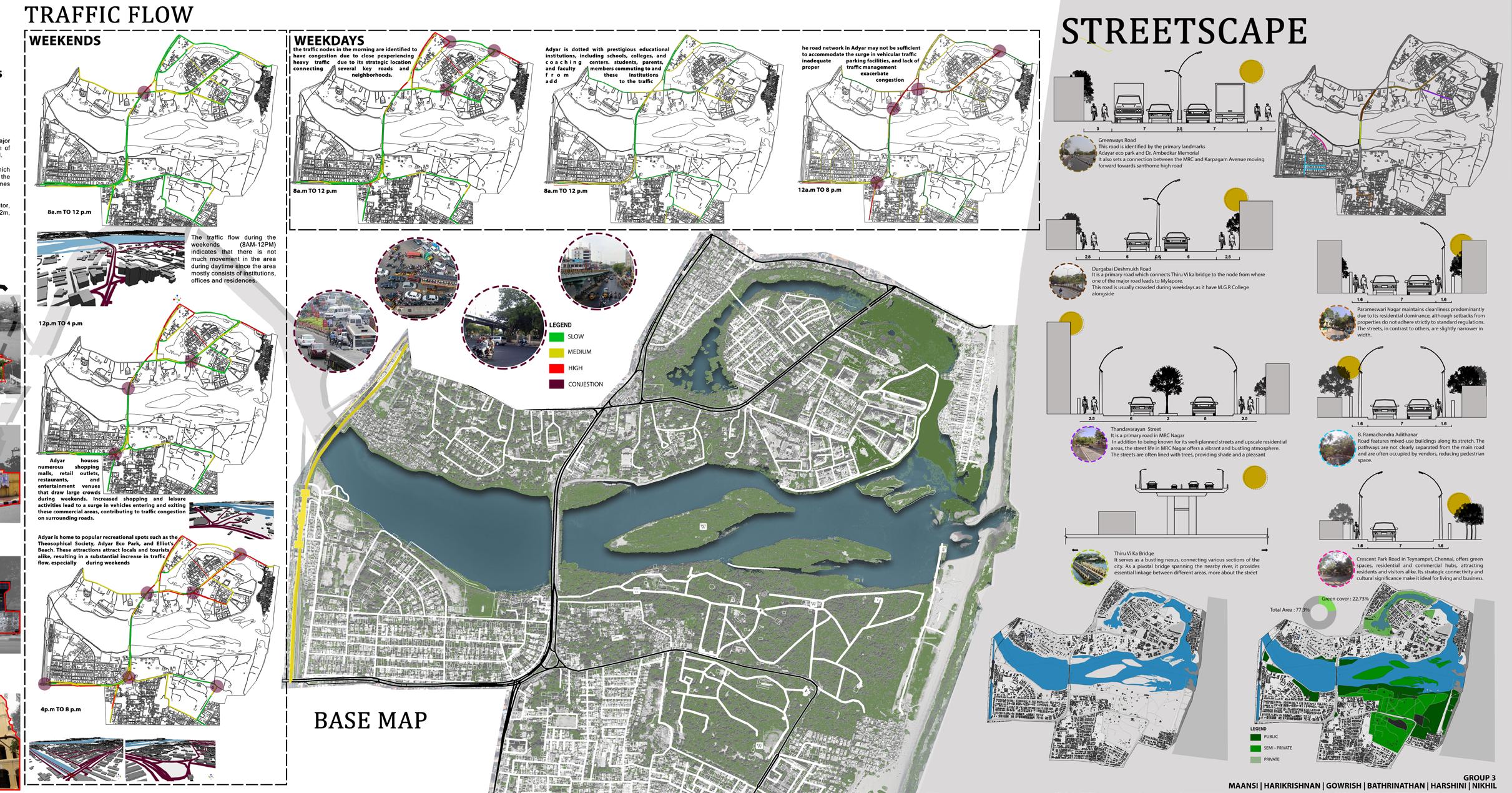

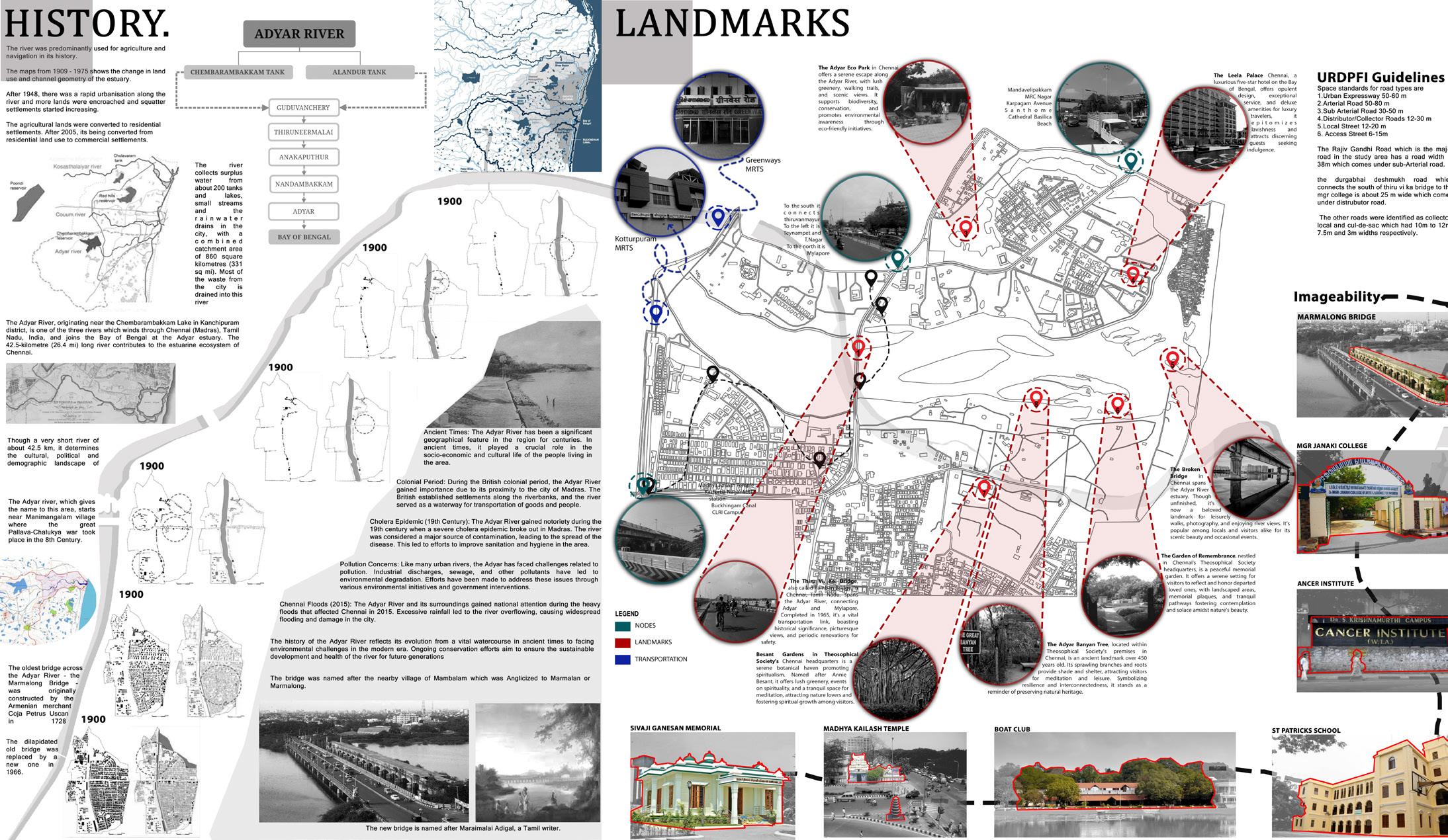

Fig 18 : Pannel Sheet 1 The sheet displays the history, Transportation and Landmark map.

Page 10

MODULE NO : 01

Fig 19 : Pannel Sheet 2 The sheet displays the Open space, Service, Socio-ecnomic status and Site Delineation.

Above the staircase, there is a ceiling or upper twork of lines, possibly indicating a design feature, ms. dds a dual purpose to the stairs, creating a usable a square footage.

Public plazas and open spaces: O daylight increases the efficiency.

Public plazas and open spaces: Open areas designed for public gatherings, events, Riverfront boardwalks and terraces: Elevated wooden walkways or terraced and outdoor activities, often featuring seating, landscaping, and amenities like platforms that extend over the water, providing unique vantage points and fountains or public art installations. opportunities for outdoor dining or leisure activities.

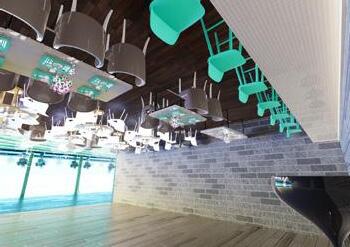

VIEWS: Ceiling structure acts as a viewing deck as well as gathering space.

Ceiling or Upper Structure: Above the staircase, there is a ceiling or upper structure with a complex network of lines, possibly indicating a design feature, lighting, or mechanical systems.

Increased Functionality: It adds a dual purpose to the stairs, creating a usable space without taking up extra square footage.

Public plazas and open spaces: Open areas designed for public gatherings, Interpretation of abundant daylight increases the efficiency. events, and outdoor activities, often featuring seating, landscaping, and Passive Cooling: By integrating natural ventilation techniques into the ceiling amenities like fountains or public art installations. structure, energy expenses and the need for air conditioning can be minimized. Skylights and planter boxes are two other ways to improve the natural setting.

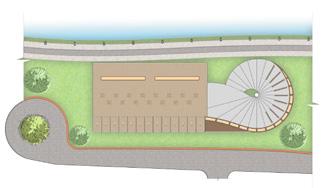

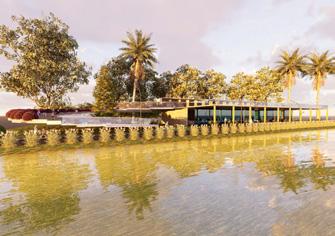

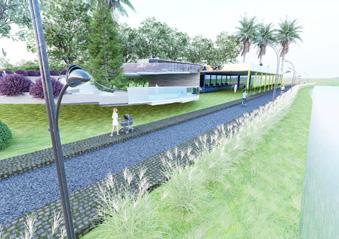

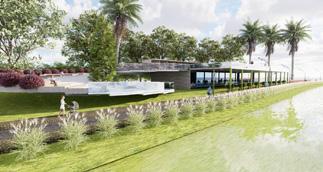

BUILT FORM:

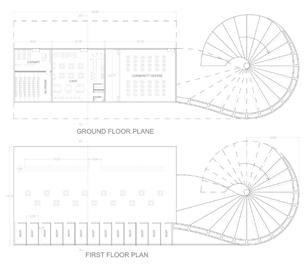

FLOOR PLAN:

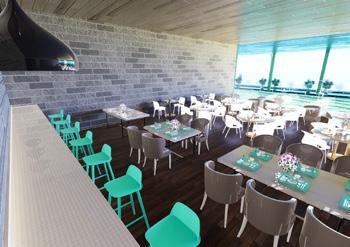

Restaurant/Café extension: Provide patrons with a distinctive dining experience while overlooking the river by extending the seating of a restaurant or cafe onto the ceiling platform.

Riverfront parks and green spaces: Incorporating parks, gardens, and green spaces along the riverfront can provide recreational opportunities, enhance the natural environment, and serve as a buffer between the built form and the river.

Restaurant/Café extension: Provide patrons with a distinctive dining experience while overlooking the river by extending the seating of a restaurant or cafe onto the ceiling platform.

VIEWS AND ELEMENTS:

Community amenities: Providing amenities like amphitheaters, outdoor classrooms, or recreational facilities can encourage community engagement and create spaces for cultural events, educational programs, or recreational activities.

Pedestrian walkways and promenades: These linear pathways run parallel to the river, providing pedestrian access and opportunities for recreational activities, such as walking, jogging, or cycling.

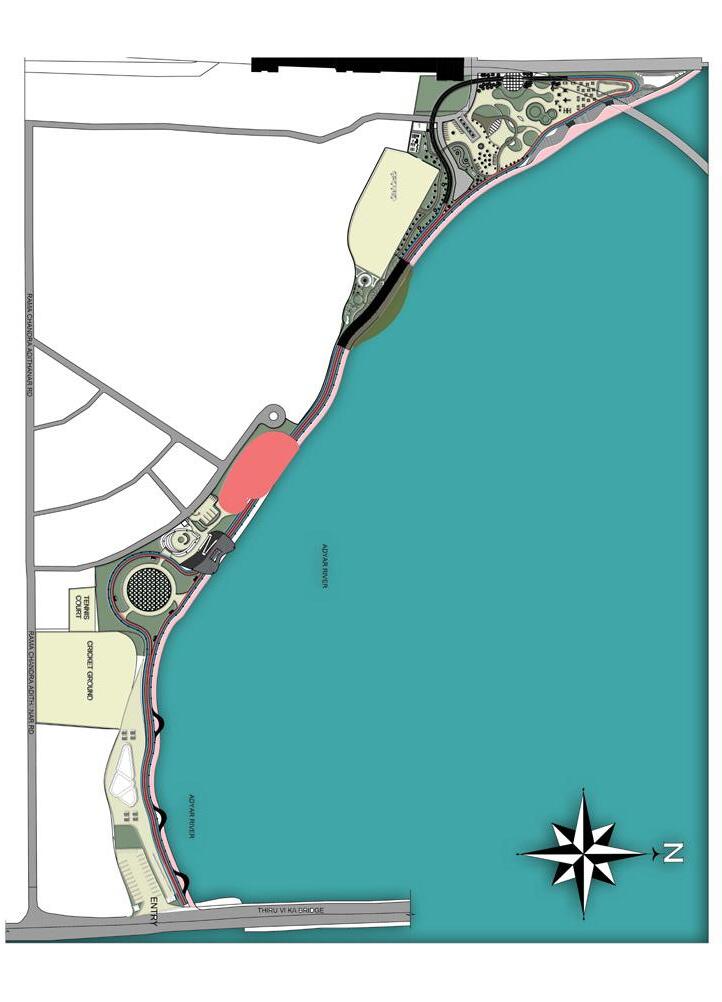

ZONE 3 - DESIGN INTERVENTION

Ceiling structure acts as a viewing deck as well as gathering space.

VIEWS:

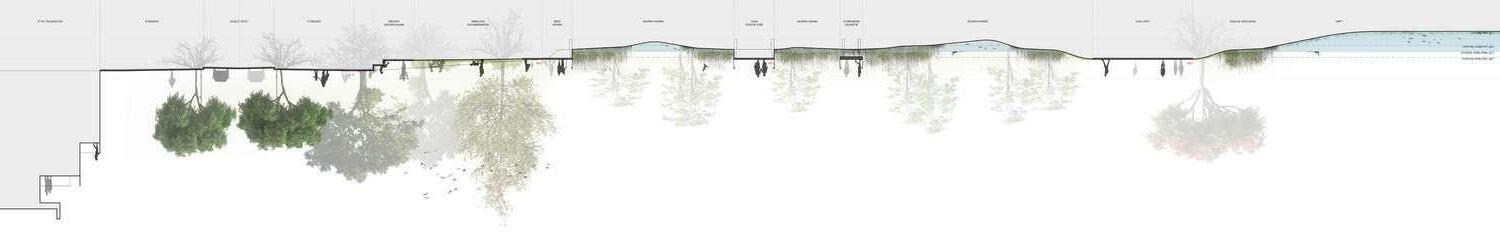

Section a-a’

Ceiling or Upper Structure: Above the staircase, there is a ceiling or upper structure with a complex network of lines, possibly indicating a design feature, lighting, or mechanical systems.

Increased Functionality: It adds a dual purpose to the stairs, creating a usable space without taking up extra square footage.

Public plazas and open spaces: Open areas designed for public gatherings, Interpretation of abundant daylight increases the efficiency. events, and outdoor activities, often featuring seating, landscaping, and Passive Cooling: By integrating natural ventilation techniques into the ceiling amenities like fountains or public art installations. structure, energy expenses and the need for air conditioning can be minimized. Skylights and planter boxes are two other ways to improve the natural setting.

Fig 20 : Bathrinathan Design intervention on Build form

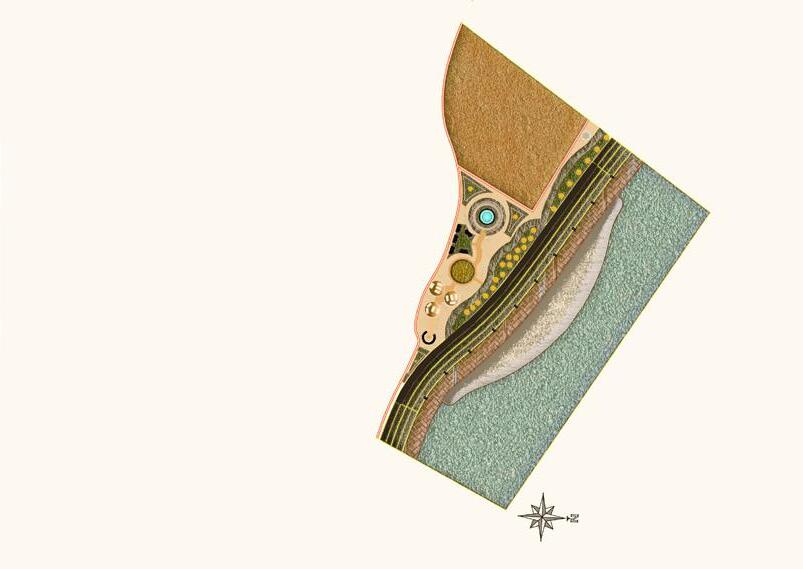

Fig 21 : HariKrishnan Design intervention on open space

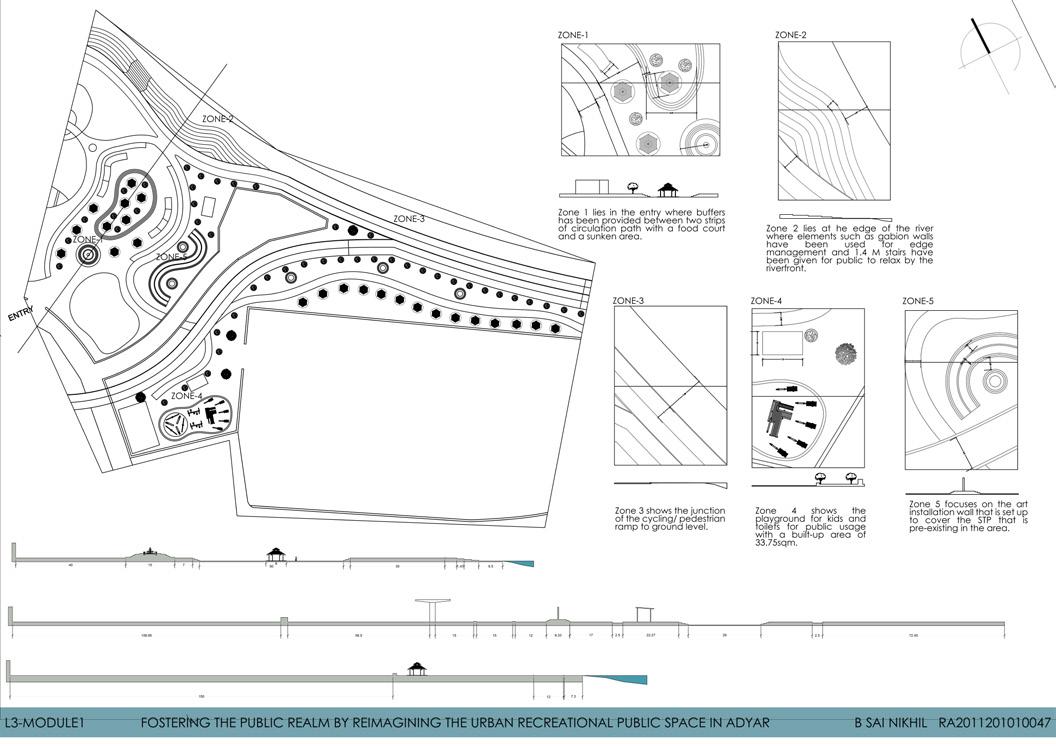

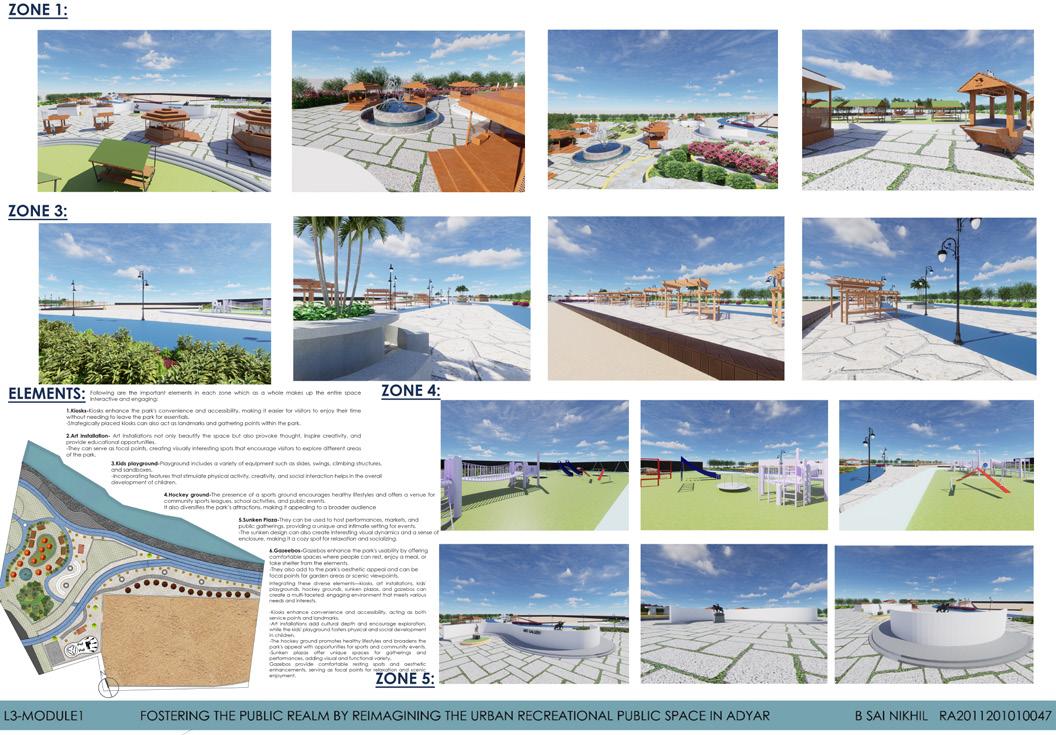

Fig 22 : Nikhil Bhaviri Design intervention on Elements of Park

Page 12

MODULE NO : 01

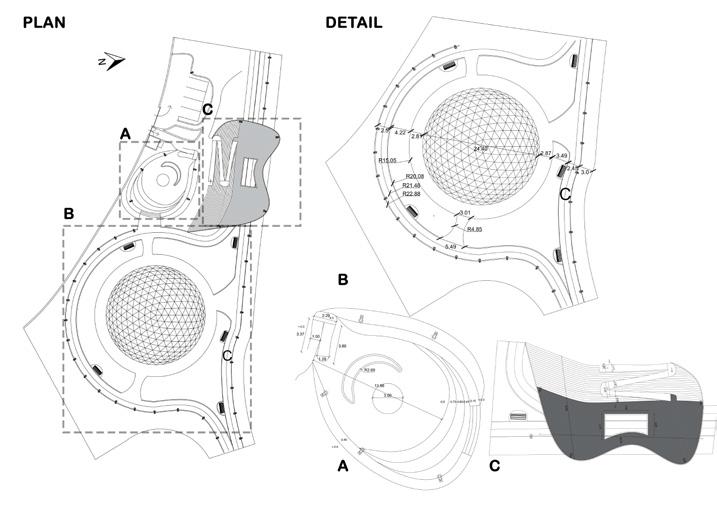

ZONE 3 - DESIGN INTERVENTION

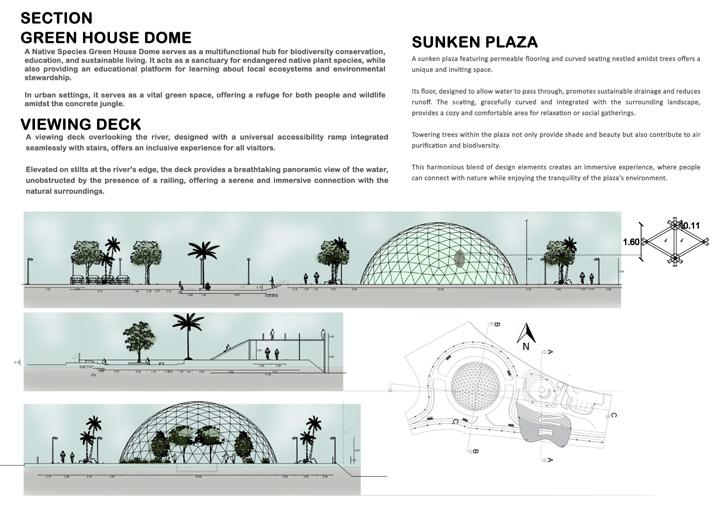

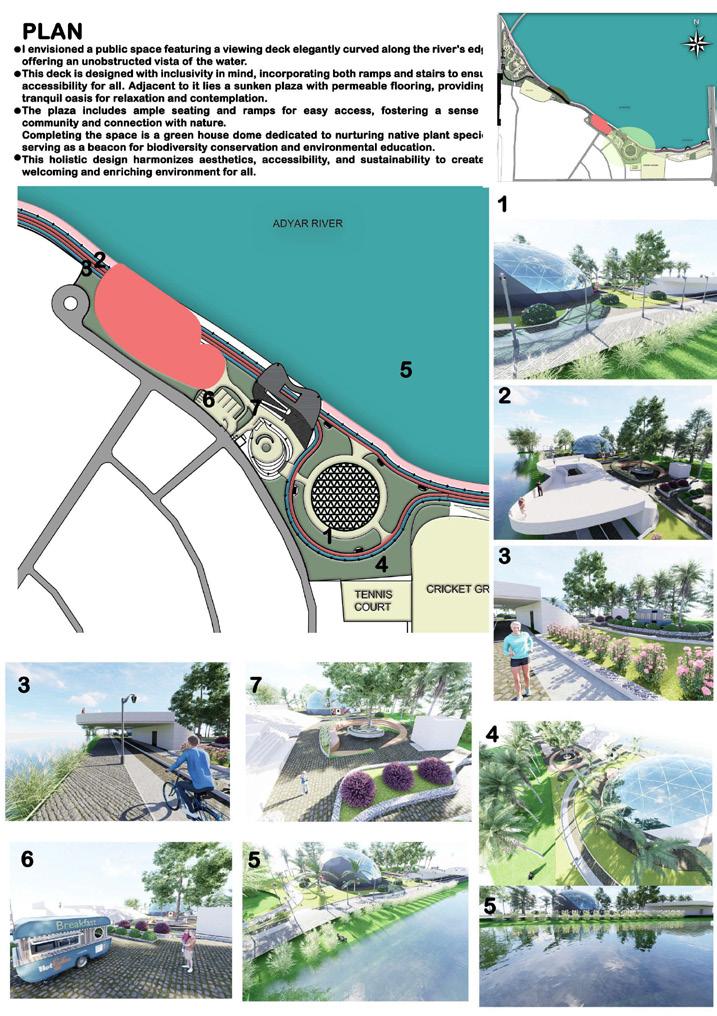

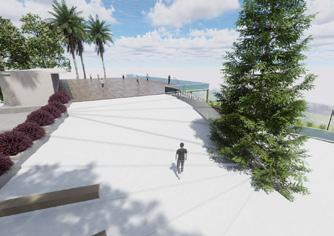

Fig 23 : Gowrish Design intervention on Deck

Fig 24 : Mansi Panda Design intervention park 3D VIEWS

ELEMENT SHEET: ZONE :1

RIVER

WATER FOUNTAIN

DECK

BRIDGE

LEGEND 1

RIVER

2

DECK

GREEEN COVER

KEY MAP:

3 BRIDGE 4

WATER FOUNTAION

SEATING AREA

Water Features: Fountains, small ponds, or water walls not only

6 SEATING AREA 7

ART INSTALLATION

8

ART GALLERY

KEY MAP:

SEATING AREA

GREEEN COVER

5 WATER FOUNTAIN

ZONE :2

4

3 5

2 1

enhance the aesthetic appeal but also provide a calming effect and attract wildlife.

ART INSTALLATION

ART GALLERY SEATING AREA

6

WATER FOUNTAION

ZONE :3

connectivity within the park. They should be accessible to people of all ages and abilities.

8

ART INSTALATION 6

ART INSTALLATION

1

Page 13

ZONE :6

ZONE :5 ART GALLERY

19ARC402S - DESIGN

t.sree harshini [RA2011201010012]

ART GALLERY

Outdoor art galleries can be such a unique experience, blending art with nature or urban environments. They often offer a different perspective on art, allowing visitors to engage with the artworks in a more immersive way.

Greenery: Incorporating plants, trees, shrubs, and flowers adds natural beauty, provides shade, improves air quality, and attracts birds and butterflies.

2

ART INSTALLATION- INNER VIEW

ART INSTALLATION- INNER VIEW

Seating: Comfortable and versatile seating options such as benches, movable chairs, and picnic tables encourage people to relax, socialize, and enjoy the surroundings

Art and Sculptures: Integrating art installations, sculptures, murals, or interactive features adds visual interest and cultural value to the park.

CIRCULAR SEATING AREA

GREEEN COVER

Pathways: Welldesigned pathways create a sense of exploration and .

7

19ARC402S - DESIGN

SEATING AREA

ART GALLERY

PATHWAY

DECK

BRIDGE

BRIDGE

Aesthetics in landscape design play a crucial role in creating visually appealing and harmonious outdoor spaces.

t.sree harshini [RA2011201010012]

4

Fig 25 : Harshini Design intervention on park

19ARC402S - DESIGN

t.sree harshini [RA2011201010012]

MODULE NO : 01
