PILOT CATALOG
Gilmore has surpassed industry standards with our GEN2 Variable Pilot Valve product line designed to provide control systems with extremely accurate and adjustable pilot sequencing.
The GEN2 Variable Pilot Valves push the boundaries in reliable performance for pilot control valves while having drop-in replacement ability.
3-Way | Separate Pilot
The GEN2 Variable Pilot Valve with separate pilot allows pilot signal to come in. Available in Normally Open and Normally Closed configurations.
3-Way | Combined Pilot
Designed to reduce leakage paths, the Combined Pilot Valve joins the inlet pressure and the pilot pressure into one port, enabling simple installations. Available in Normally Open and Normally Closed configurations.
GEN2 Variable Pilot Valves obtain varying pressures with an easy installation that reduces leaks in abrasive, high pressure environments.
1. Pilot Set Range - This is the set pressure range of adjustments and the specified pilot pressure used to actuate, pressurize or vent a pilot valve, actuator or cylinder, and subsequently resets with low dead band.
2. Normally Open (N.O.) - Logic for the default energized position of the valve, where supply port communicates with function port and “closes” when the valve is piloted, whereas Normally Closed (N.C.) supply is closed to function and “opens” when the valve is piloted.
3. Combined Pilot - The combined pilot valve joins the inlet pressure and the pilot pressure into one port, enabling a simple installation and reduces leaks.
4. Separate Pilot - The separate pilot valve pilot pressure is independent from the supply pressure, this allows the signal to come in from a separate source and allows for different pressures to be obtained in supply and pilot.
5. Shear Seal - Metal-bonded Tungsten Nickel composite seal that is resilient to high pressures and abrasive environments by creating metal to metal seal durability, allowing it to excel in high pressure environments.
6. Pilot Reset - The reset pressure is when the valve returns to the unenergized position, also known as dead band.
7. Dead Band - The difference in pressure between the set point and the reset point, essentially it is the force required to overcome the internal friction of the valve.

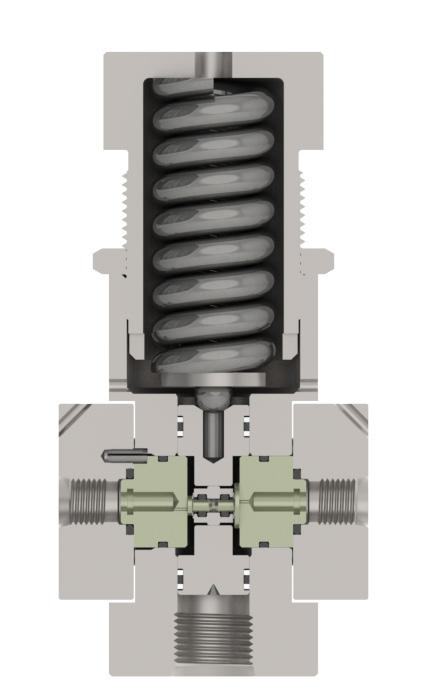

Figure 1: GEN2 Variable Pilot Valve (Cross Section)
Variable Pilot Valve Technical Sheet
Available Configurations: 1/4” SAE In/Out, 3-Way N.C. with customizable end connections and mounting
FUNCTIONAL DESIGN SPECIFICATION
Maximum Allowable Working Pressure 5000 PSI
Pilot Set Range 800 - 1,600 PSI
Minimum Recommended Working Pressure 800 PSI
Recommended Maximum Operating Flow 1 GPM
Acceptable Leakage Rate up to 4 drops per minute
Flow Coefficent (Cv) .02 (CALC)
Hydrostatic Proof Pressure 7500 PSI
Dead Band 150-500 PSI at 5000 PSI supply
Predicted Life Cycle 2500 Cycles
Operating Temperature Range 32˚F to 150˚F
Storage Temperature Range 32˚F to 150˚F
Acceptable Operating Fluid Types Water and mineral oil-based control fluid
Mounting Restrictions none
Maximum Operating Depth 12,000 ft BILL OF MATERIALS
Available Configurations: 1/4” SAE In/Out, 3-Way N.C. with customizable end connections and mounting
Separate Pilot 1/2” N.C. , SAE Pilot, 3-Way 1600 - 3300 PSI, STD, HD 1/4” SAE In/Out
FUNCTIONAL DESIGN SPECIFICATION
Maximum Allowable Working Pressure 5000 PSI
Pilot Set Range 1,600 - 3,300 PSI
Minimum Recommended Working Pressure 1,600 PSI
Recommended Maximum Operating Flow 1 GPM
Acceptable Leakage Rate up to 4 drops per minute Flow Coefficent (Cv) .02 (CALC)
Hydrostatic Proof Pressure 7500 PSI
Dead Band
PSI at 5000 PSI supply
Predicted Life Cycle 2500 Cycles
Operating Temperature Range
˚F to 150 ˚F
Acceptable Operating Fluid Types Water and mineral oil-based control fluid
Mounting Restrictions none
Maximum Operating Depth 12,000 ft
Separate Pilot 1/2” N.O. , SAE Pilot, 3-Way 1600-3300 PSI, HD 1/4” SAE In/Out
Configurations:
FUNCTIONAL DESIGN SPECIFICATION
Maximum Allowable Working Pressure 5000 PSI
Pilot Set Range 1600 - 3300 PSI
Minimum Recommended Working Pressure 1600 PSI
Recommended Maximum Operating Flow 1 GPM
Acceptable Leakage Rate up to 4 drops per minute
Flow Coefficent (Cv) .02 (CALC)
Hydrostatic Proof Pressure 7500 PSI
Dead Band 150-500 PSI at 5000 PSI supply
Predicted Life Cycle 2500 Cycles
Operating Temperature Range 32 ˚F to 150 ˚F
Storage Temperature Range 32 ˚F to 150 ˚F
Acceptable Operating Fluid Types Water and mineral oil-based control fluid
Mounting Restrictions none
Maximum Operating Depth 12,000 ft
Available Configurations: 1/4” NPTF In/Out, 3-Way N.C. with customizable end connections and mounting
Combined Pilot 1/4” N.C. , NPT Pilot, 3-Way, 800-1600 PSI, STD 1/4” NPTF In/Out
FUNCTIONAL DESIGN SPECIFICATION
Maximum Allowable Working Pressure 5000 PSI
Pilot Set Range 800 - 1600 PSI
Minimum Recommended Working Pressure 800 PSI
Recommended Maximum Operating Flow 1 GPM
Acceptable Leakage Rate up to 4 drops per minute
Flow Coefficent (Cv) .02 (CALC)
Hydrostatic Proof Pressure 7500 PSI
Dead Band 150-500 PSI at 5000 PSI supply
Predicted Life Cycle 2500 Cycles
Operating Temperature Range 32 ˚F to 150 ˚F
Storage Temperature Range 32 ˚F to 150 ˚F
Acceptable Operating Fluid Types Water and mineral oil-based control fluid
Mounting Restrictions none
Maximum Operating Depth 12,000 ft
Combined Pilot 1/4” N.C. , NPT Pilot, 3-Way, 1600-3300 PSI, STD 1/4” NPT In/Out
Available Configurations: 1/4” NPT In/Out, 3-Way N.C. with customizable end connections and mounting
FUNCTIONAL DESIGN SPECIFICATION
Maximum Allowable Working Pressure 5000 PSI
Pilot Set Range 1600 - 3300 PSI
Minimum Recommended Working Pressure 1600 PSI
Recommended Maximum Operating Flow 1 GPM
Acceptable Leakage Rate up to 4 drops per minute Flow Coefficent (Cv) .02 (CALC)
Hydrostatic Proof Pressure 7500 PSI
Dead Band 150-500 PSI at 5000 PSI supply
Predicted Life Cycle 2500 Cycles
Operating Temperature Range 32 ˚F to 150 ˚F
Storage Temperature Range 32 ˚F to 150 ˚F
Acceptable Operating Fluid Types Water and mineral oil-based control fluid
Mounting Restrictions none
Maximum Operating Depth 12,000 ft

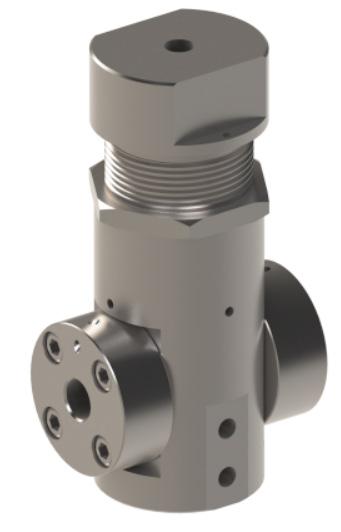

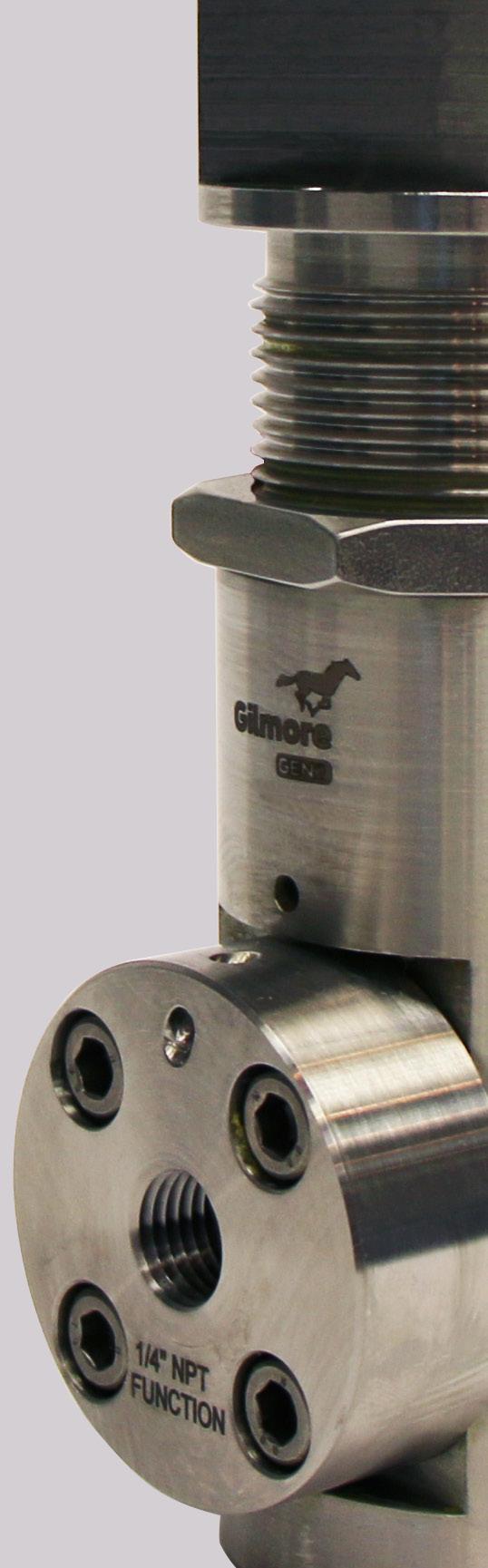

Part Number Shown #29048

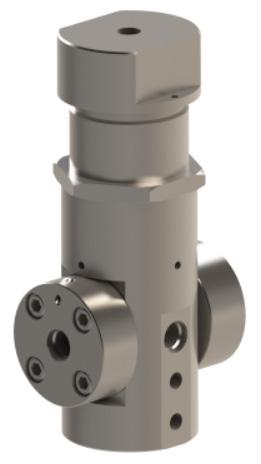

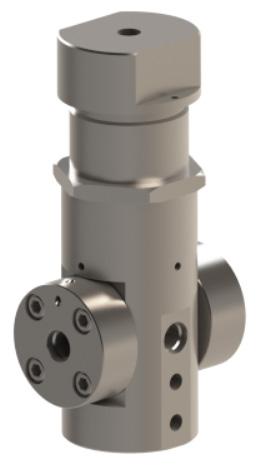

Part Number Shown #29052
Available Configurations: 1/4” SAE In/Out, 3-Way N.C. with customizable end connections and mounting
Combined Pilot 1/4” N.C. , NPT Pilot, 3-Way, 1600-3300 PSI, STD 1/4” SAE In/Out
FUNCTIONAL DESIGN SPECIFICATION
Maximum Allowable Working Pressure 5000 PSI
Pilot Set Range 1600 - 3300 PSI
Minimum Recommended Working Pressure 1600 PSI
Recommended Maximum Operating Flow 1 GPM
Acceptable Leakage Rate up to 4 drops per minute
Flow Coefficent (Cv) .02 (CALC)
Hydrostatic Proof Pressure 7500 PSI
Dead Band 150-500 PSI at 5000 PSI supply
Predicted Life Cycle 2500 Cycles
Operating Temperature Range 32 ˚F to 150 ˚F
Storage Temperature Range 32 ˚F to 150 ˚F
Acceptable Operating Fluid Types Water and mineral oil-based control fluid
Mounting Restrictions none
Maximum Operating Depth 12,000 ft
Combined Pilot 1/4” N.O. , NPT Pilot, 3-Way, 800-1600 PSI, STD 1/4” NPT In/Out,
Available Configurations: 1/4” NPT In/Out, 3-Way N.O. with customizable end connections and mounting
FUNCTIONAL DESIGN SPECIFICATION
Maximum Allowable Working Pressure 5000 PSI
Pilot Set Range 800 -1600 PSI
Minimum Recommended Working Pressure 800 PSI
Recommended Maximum Operating Flow 1 GPM
Acceptable Leakage Rate up to 4 drops per minute
Flow Coefficent (Cv) .02 (CALC)
Hydrostatic Proof Pressure 7500 PSI
Dead Band 150-500 PSI at 5000 PSI supply
Predicted Life Cycle 2500 Cycles
Operating Temperature Range 32 ˚F to 150 ˚F
Storage Temperature Range 32 ˚F to 150 ˚F
Acceptable Operating Fluid Types Water and mineral oil-based control fluid
Mounting Restrictions none
Maximum Operating Depth 12,000 ft

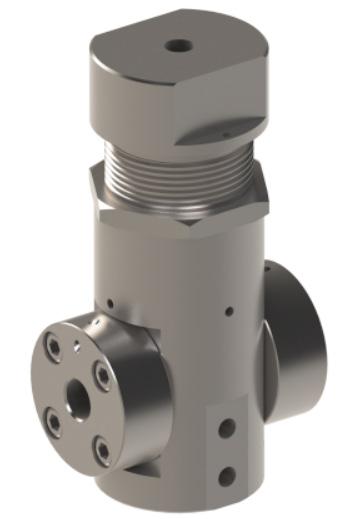

Part Number Shown #29048
Combined Pilot 1/4” N.O. , NPT Pilot, 3-Way, 1600-3300 PSI, STD 1/4” NPT In/Out
Available Configurations: 1/4” NPT In/Out, 3-Way N.O. with customizable end connections and mounting
FUNCTIONAL DESIGN SPECIFICATION
Maximum Allowable Working Pressure 5000 PSI
Pilot Set Range 1600 -3300 PSI
Minimum Recommended Working Pressure 1600 PSI
Recommended Maximum Operating Flow 1 GPM
Acceptable Leakage Rate up to 4 drops per minute
Flow Coefficent (Cv) .02 (CALC)
Hydrostatic Proof Pressure 7500 PSI
Dead Band 150-500 PSI at 5000 PSI supply
Predicted Life Cycle 2500 Cycles
Operating Temperature Range 32 ˚F to 150 ˚F
Storage Temperature Range 32 ˚F to 150 ˚F
Acceptable Operating Fluid Types Water and mineral oil-based control fluid
Mounting Restrictions
Maximum Operating Depth 12,000 ft
Part Number Shown #29048
