Gilmore Subsea Compact Regulator Product Sheet

Gilmore Subsea Compact Regulator

A compact solution providing robust pressure regulation in hydraulic and chemical circuits.

Gilmore’s Subsea Compact Regulator is debris and chemical tolerant to provide the highest reliability in pressure regulating for hydraulic and chemical systems. Tungsten Carbide shear seal technology allows thousands of reliable cycles between valve maintenance, making these regulators a perfect choice to maintain regulated pressure in subsea systems when space is limited.

This versatile design can be used in low- and high-pressure applications, capable of enduring high flow conditions during start-up. With precise setpoints and predictable performance, the Gilmore Subsea Compact Regulator offers safe, dependable, and effective pressure control.

INFO@Gilmore.com

www.gilmore.com

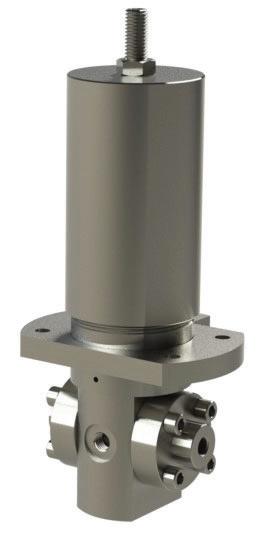

Gilmore Subsea Compact Regulator

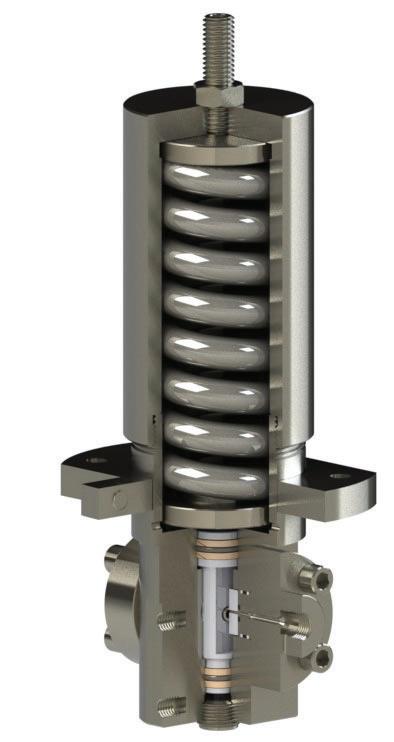

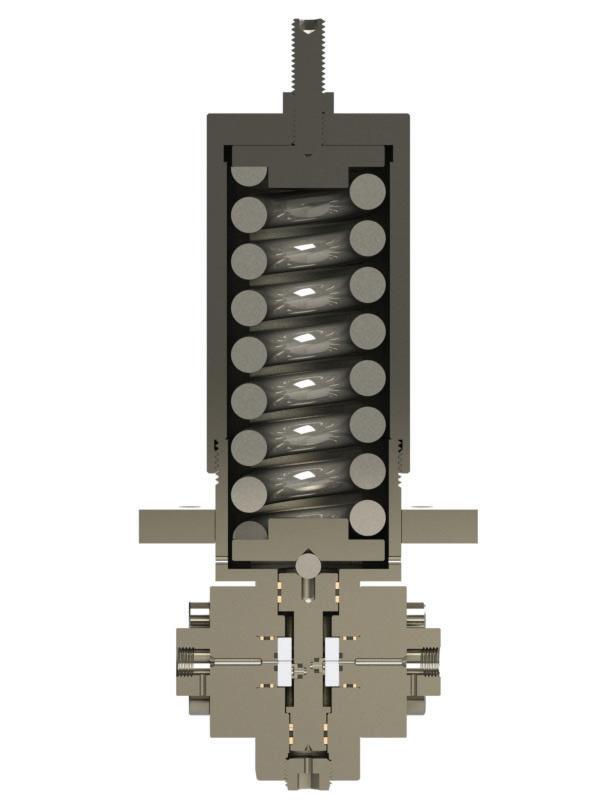

Subsea Compact Regulator

Locked tamper proof regulated pressure adjustment prevents unintentional setting changes

• Balanced seal carrier

• Tungsten Carbide seal trim for zero leakage

• Durable simple design for maximum reliability

INFO@Gilmore.com

www.gilmore.com

Features and Benefits

Proven Gilmore Tungsten Carbide shear seal technologies

Provides extreme durability to extend service life

Supply pressure up to 15,000 psi

Extensive regulated pressure range from 3000 psi – 9000 psi

Failsafe manual spring configuration

Construction allows for quick and simple field maintenance

CRA Material Construction

• Tungsten Carbide seal trim

• Nitronic 50 Body

• Nitronic 60 Seal Carrier

• T316 Flanges

• Inconel X-750 Compression Spring

Available configurations

1/4” MP and NPT connections

Available with panel mounting for easy installation

Subsea corrosion resistant materials

Refined Tungsten Carbide seal trim
