Gilmore GEN2 Check Valve -Half Inch Product Sheet

Features and benefits

• Qualification exceeds API 16D requirements

Two separate endurance tests at 2500 cycles each

Hyperbaric Chamber test to 100 cycles at 15,000 ft. depth

• Redesigned legacy ball type check to a more reliable guided poppet check mechanism

• Enhanced material selection across entire valve

• Shouldered poppet design to prevent reverse flow failure

• Field serviceable

• Improved valve materials: 316SS body

Nitronic 60 Poppet Check Mechanism

Delrin 511P seal seat

HNBR O-rings w/PEEK double backup rings

Nitronic 60 piston plunger Elgiloy Springs

Dependable check valve performance you can count on to prevent unwanted backflow within your control systems.

Gilmore developed the 1/2” GEN2 Check Valve product line to improve field performance in backflow prevention. Customer feedback was essential to the redesign of a more reliable and field serviceable valve.

FUNCTIONAL DESIGN SPECIFICATIONS

Maximum Allowable Working Pressure

Standard Cracking Pressure

Recommended Maximum Operating Flow

Flow Coefficent (Cv-Calculated)

Qualified Life Cycle

Operating Temperature Range

GPM

Cycles

to 150˚F

Acceptable Operating Fluid Types Water or mineral oil-based drilling control fluid

Mounting Restrictions

Maximum Operating Depth

ft

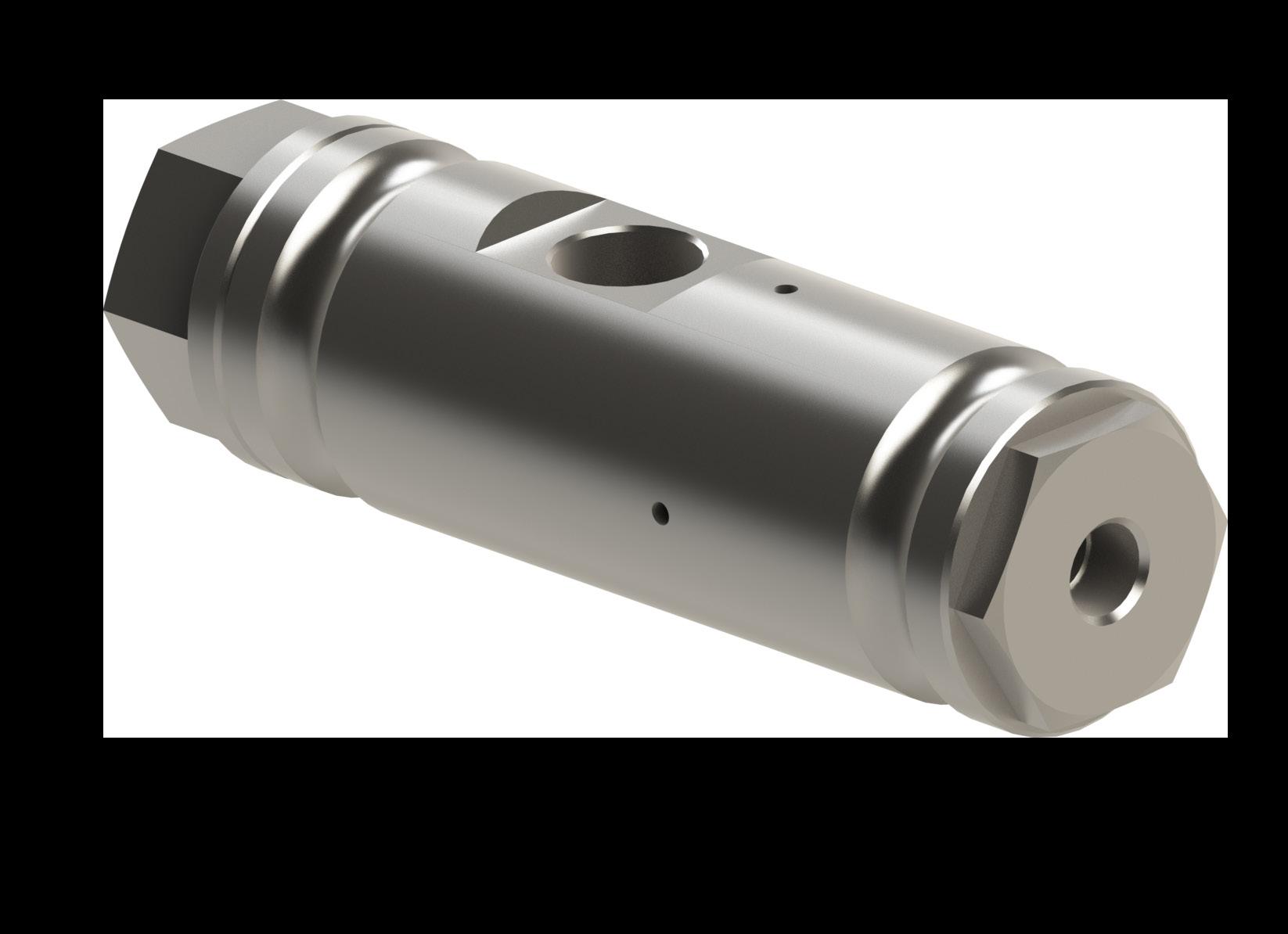

Figure 1. PN 29001-1: GEN2 Check valve, Pilot Operated

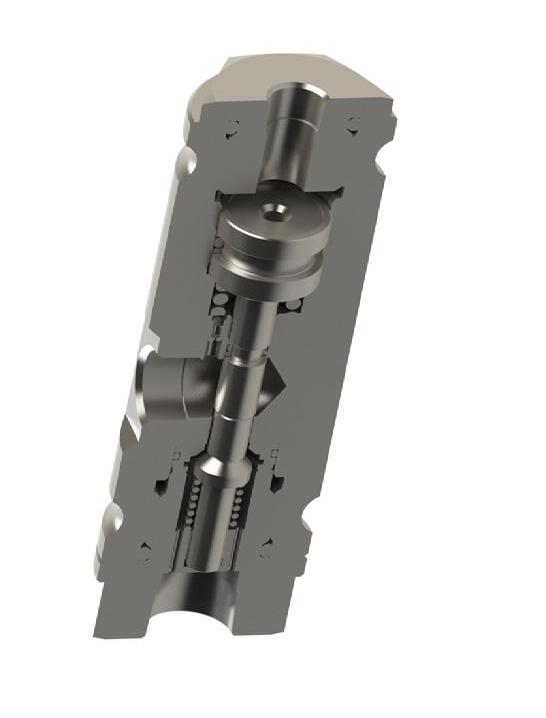

Figure 2: PN 29001-1, GEN2 Check Valve, 1/2” Pilot Operated Figure 3: PN 29114, GEN2 Check Valve, 1/2” NPT Throttling Pilot Operated to handle 5000 psi full differential pressure while ensuring valves integrity.

Figure 2: PN 29001-1

Figure 3: PN 29114
