Gilmore Agiliti SAFEGUARDTM
Meeting the demand for operational efficiency with extended service life.
The Gilmore Agiliti SAFEGUARDTM serves as an economical mechanical relief package to protect your pressure pumping assets.
Significant erosion and corrosion enhancements
• Gilmore field proven shear seal technology maximizes life expectancy
• Modular component design to facilitate refurbishment
• Compatible with sand slurry mixtures and treated produced water applications
• Erosion and corrosion resistant materials in strategic locations
GILMORE AGILITITM SAFEGUARD-REV 1.18.23
INFO@gilmore.com www.gilmore.com
| Agiliti AgilitiTM

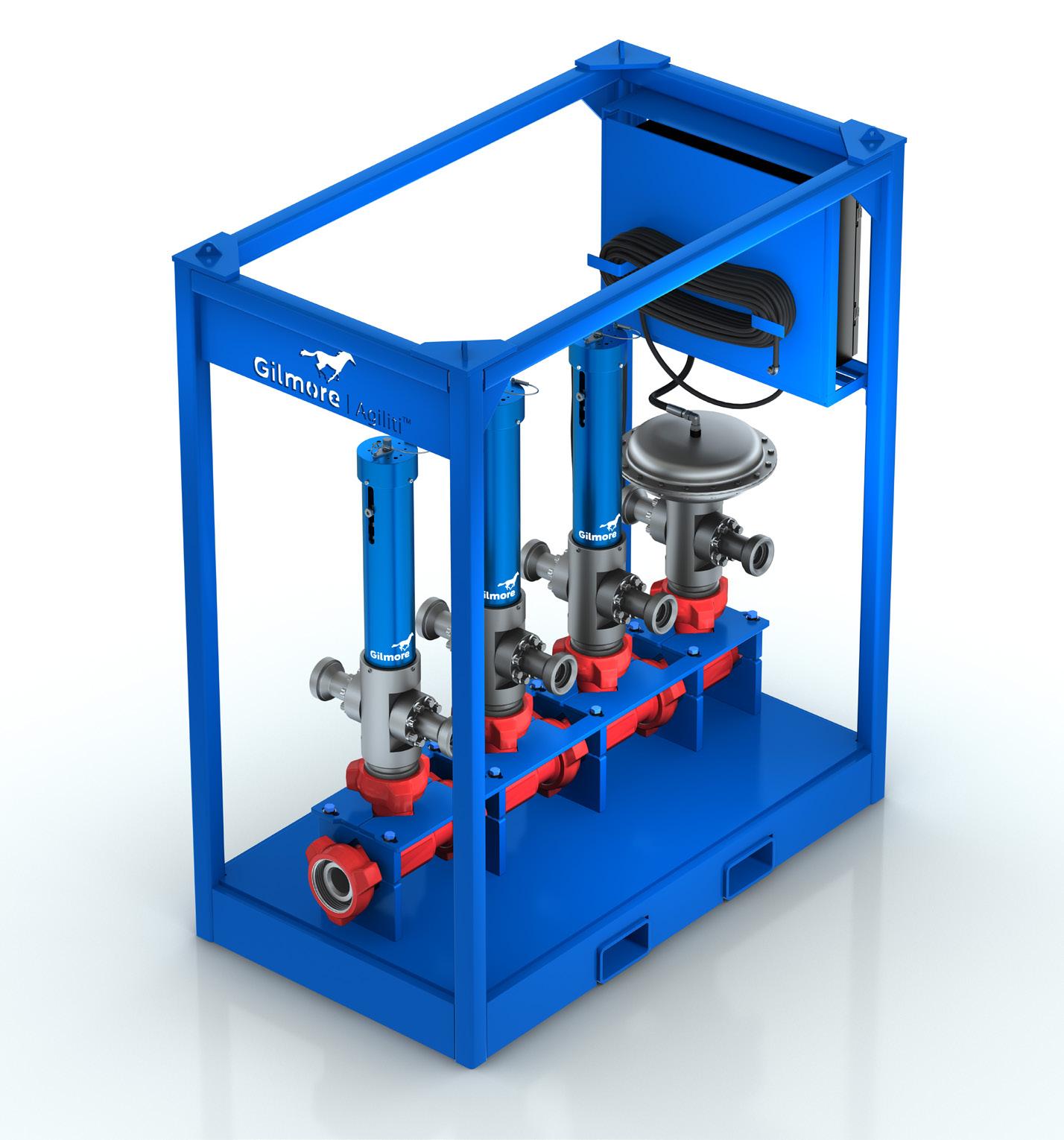

Gilmore Agiliti SAFEGUARDTM
• 3”-1502 hammer union connection
• Working pressure 15,000 psi
• 2”-1502 F hammer union vent ports
• 2,500 lbs weight
UNCONVENTIONAL INFO@gilmore.com
INFO@Gilmore.com www.gilmore.com
Features and Benefits

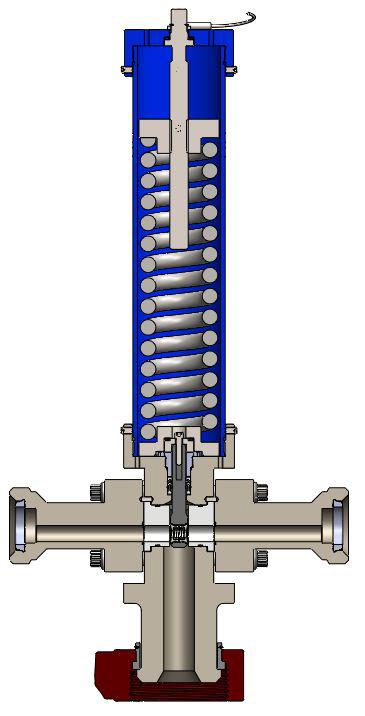

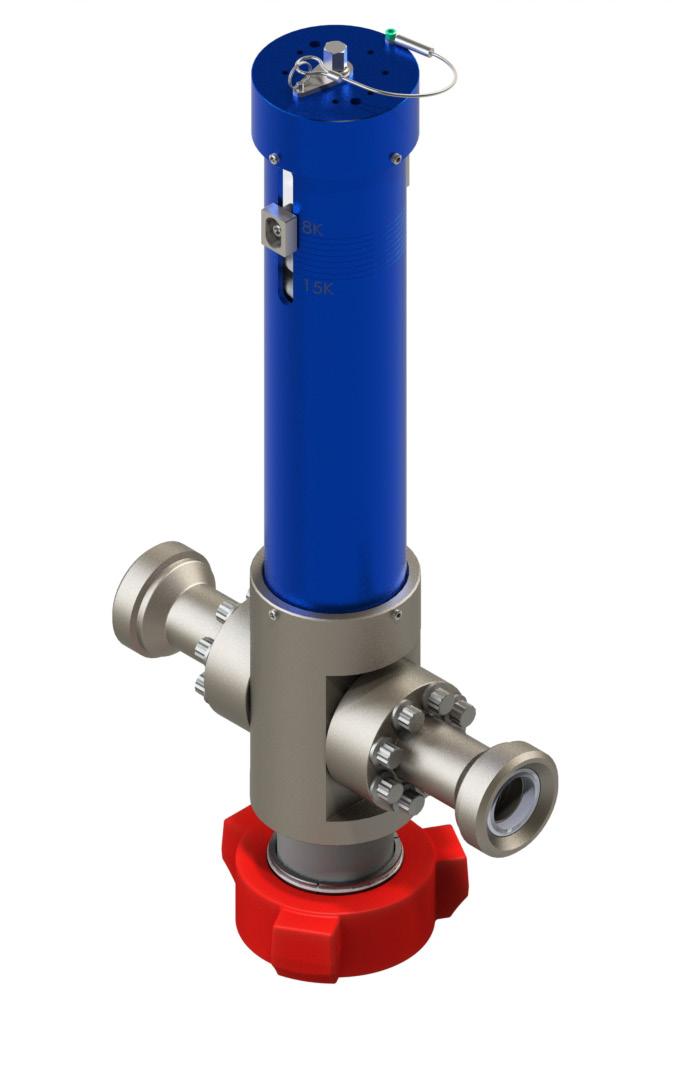

• 0-3 Gilmore AgilitiTM Relief Valves and 1 Gilmore Bleed Valve mounted
• Manually adjustable relief points: 8,000 – 15,000 psi
• Maximum system flow rate +75 BPM
• Automatic mechanical reset
• Remote bleed using 120 VAC hardwired simple switch box
• Shear seal technology
• ESG compliant
• Available configurations: Gilmore Agiliti SAFEGUARDTM [75], [50], [25], [B] 25 BPM per relief valve installed
* Contact us for any custom requirements
| Agiliti AgilitiTM

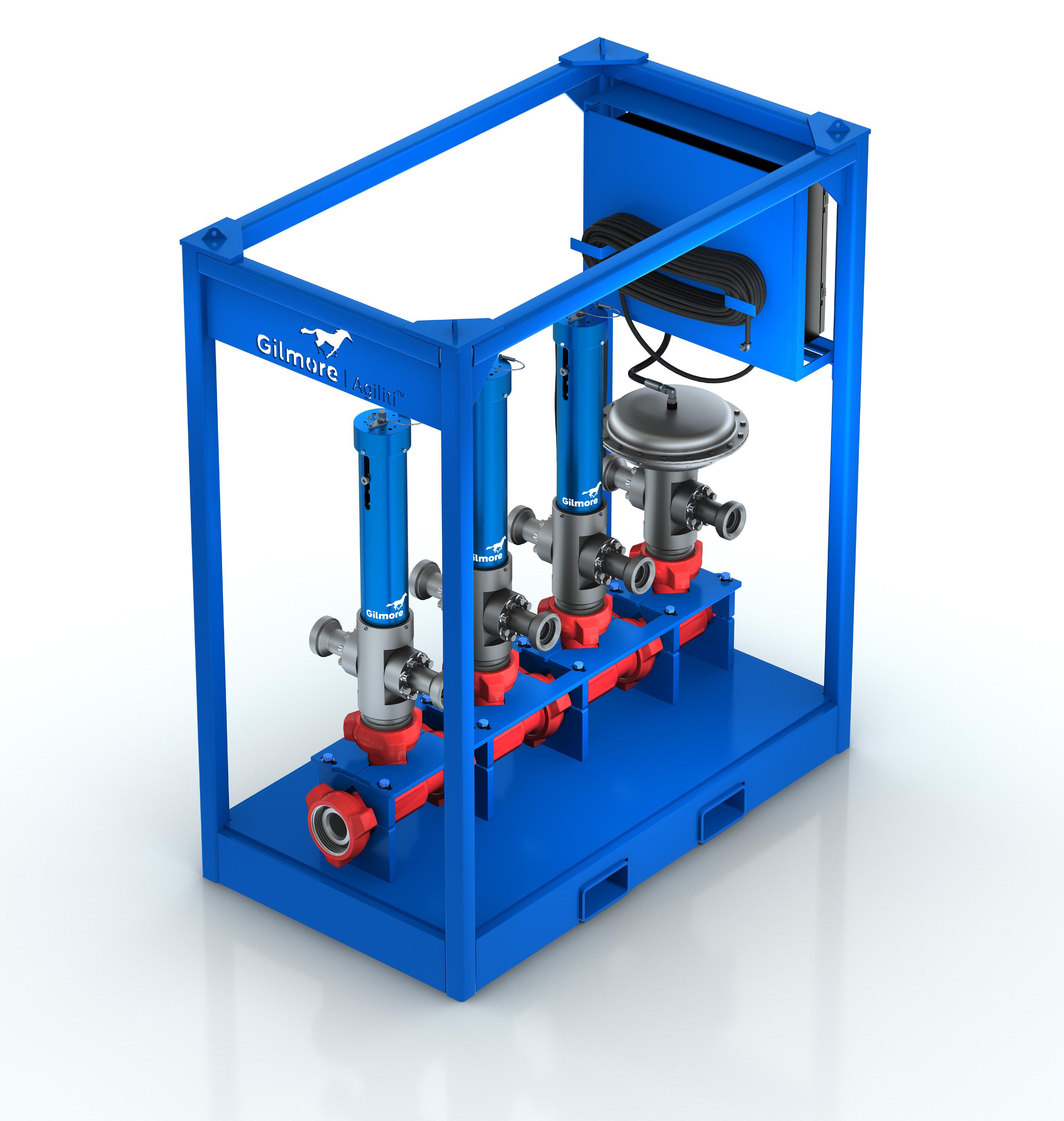

Gilmore Agiliti SAFEGUARDTM [75]
