Features and benefits
• Qualification exceeds API 16D requirements. Two endurance qualification tests at 5000 and 7500 cycles
• Rated for supply pressures up to 6000 psi
• Wider regulated set pressure ranges
• Tungsten Carbide seal trim for debris tolerance
• Dynamic Plunger T-Seal
• Improved Corrosion Resistant Alloy Construction
• Field serviceable
Reliable regulator suited to provide hydraulic control systems with stable regulated system pressure.

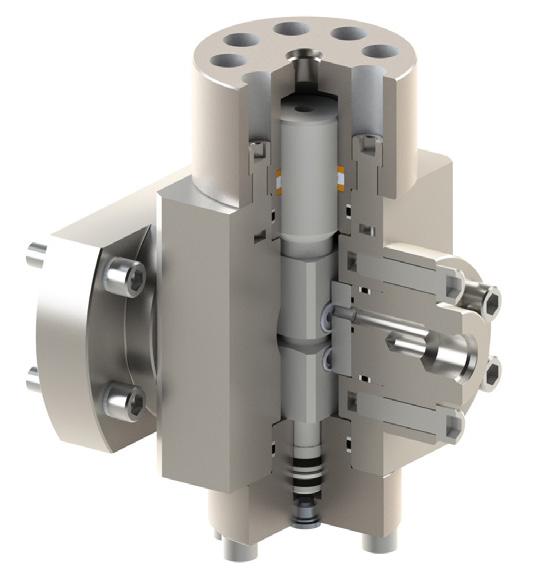

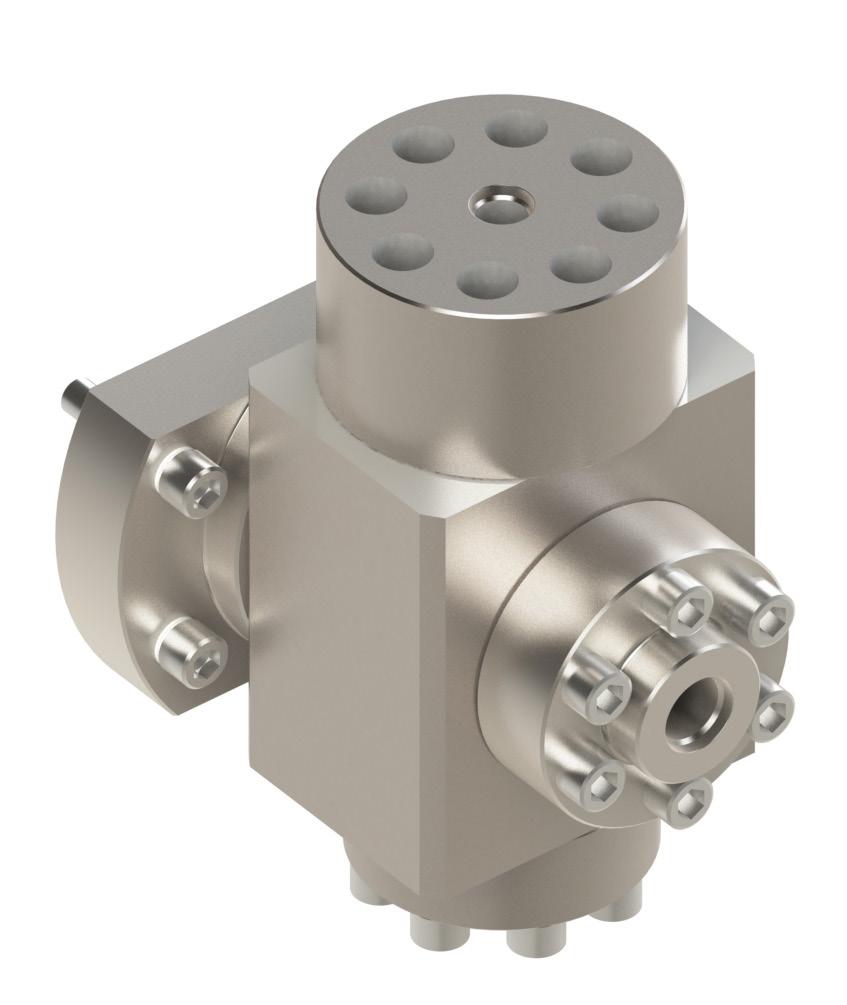

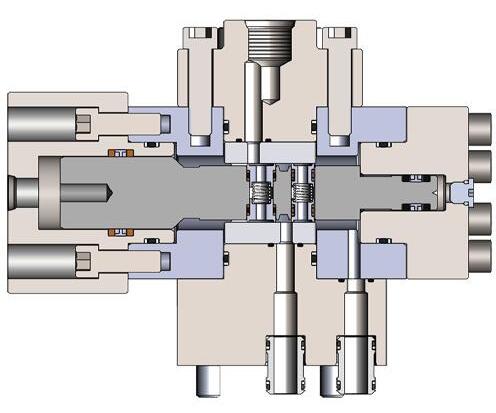

The 1/2” GEN2 Pressure Regulator designed with guided hydraulic damping seal technology reduces pressure oscillation, hunting, chattering, and overcorrection, lessening leaks and failure points. Tungsten Carbide seal trim is precision lapped to provide benchmark reliability and debris tolerance with wiping action that resists contamination and leaking. The improved deadband performance assures a precise response.
FUNCTIONAL DESIGN SPECIFICATIONS
Maximum Inlet Pressure 6,000 PSI
Fully Open Flow Coefficient (Cv) Regulated 0.5
Fully Open Flow Coefficient (Cv) Vent 0.2
Set Point Range 1,000-5,000 PSI
Typical Deadband at 6,000 psi Supply 300+100 PSI
Fully Open Max Regulated Flow Rate 25 GPM
Predicted Cycle Life 7500 cycles
Operating Temperature Range 320F to 1500F
Acceptable Operating Fluid Types
Water or mineral oil-based control fluid
Mounting Restrictions No known restrictions
US Patent 10,739,796
