10 ksi Pressure Regulator-Manual Spring |
Features and benefits
• Qualification exceeds API 16D requirements
.Endurance qualification test at 7500 cycles
.Hyperbaric Chamber Testing to 15,000 ft water depth
• Proprietary guided hydraulic damping technology
• Wider regulated set pressure ranges
• Tungsten Carbide seal trim for debris tolerance
• Dynamic Plunger T-Seal
• Improved Corrosion Resistant Alloy Construction
• Field serviceable
Reliable regulator suited to provide hydraulic control systems with stable regulated system pressure.
The 1/2” GEN2 10 ksi Pressure Regulator designed with guided hydraulic damping seal technology reduces pressure oscillation, hunting, chattering, and overcorrection, lessening leaks and failure points.
Tungsten Carbide shear seal trim is precision lapped to provide benchmark reliability and debris tolerance with wiping action that resists contamination and leaking for critical pressure regulating applications.
FUNCTIONAL DESIGN SPECIFICATION
Maximum Inlet Pressure Pressure 10,000 psi
Fully Open Flow Coefficient (Cv) Regulated 0.5
Fully Open Flow Coefficient (Cv) Vent 0.2
Set Point Range 3,000-8,000 psi
Typical Deadband at 10,000 psi Supply 600 + 100 psi
Typical Deadband at 7,500 psi Supply 450 + 100 psi
Fully Open Max Regulated Flow Rate 25 GPM
Predicted Cycle Life 7,500 Cycles
Operating Temperature Range 32˚F to 150˚F
Storage Temperature Range 32˚F to 150˚F
Acceptable Operating Fluid Types Water or mineral oil-based control fluid
Mounting Restrictions None
Available Connection Type MP US Patent 10,739,796

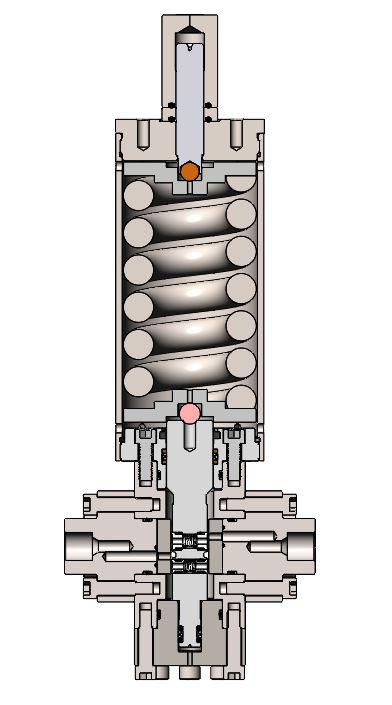

Figure 1. PN 29197, 1/2” GEN2 Pressure RegulatorManual Spring

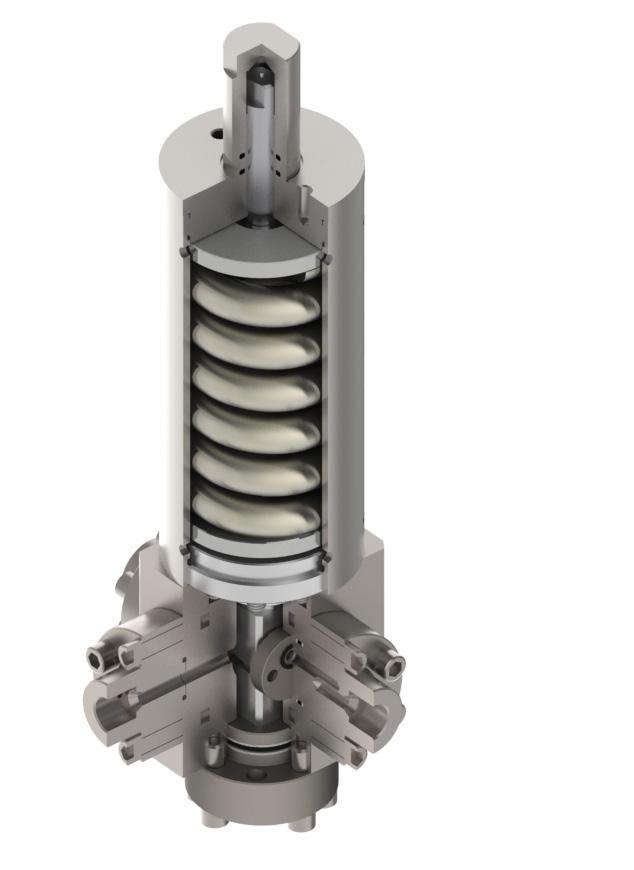

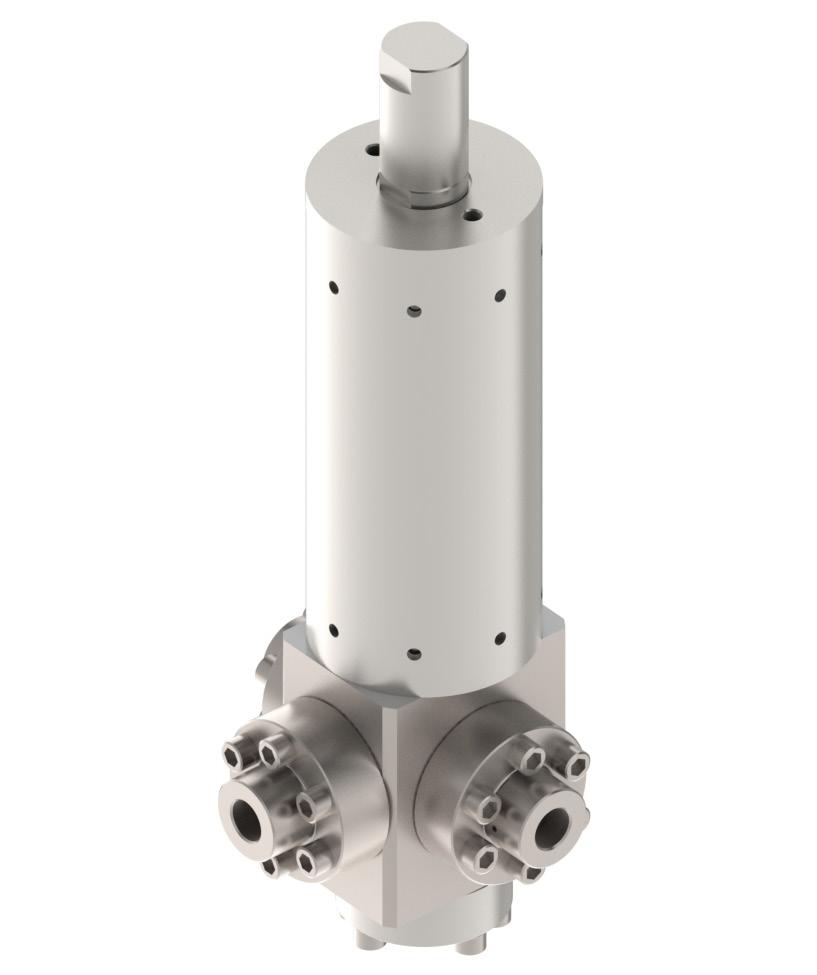

Figure 2&3: PN 29197, 1/2” GEN2 Pressure Regulator-Manual Spring
Figure 2: PN 29197
Figure 3: PN 29197
