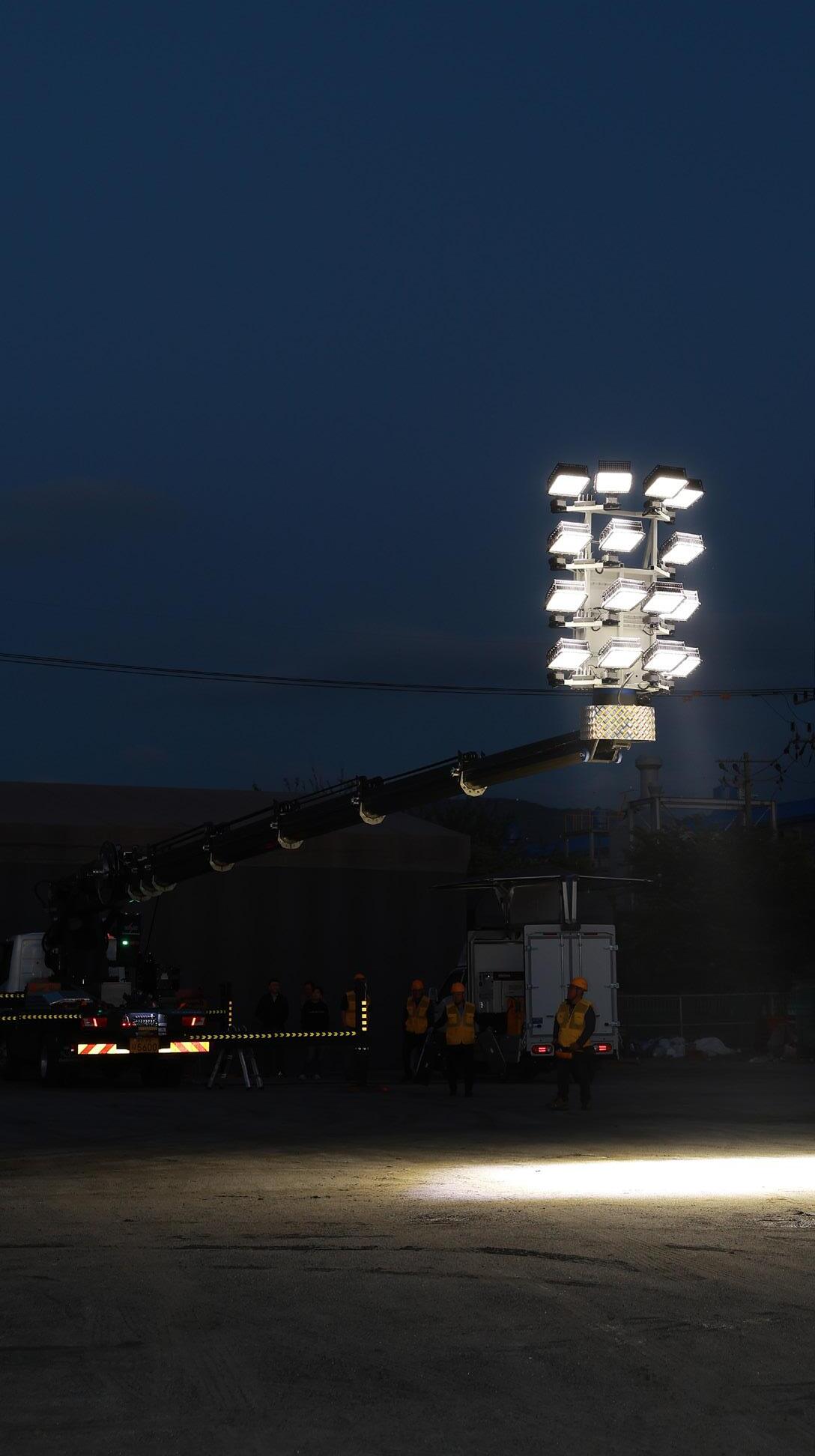

HIGH POWER EMERGENCY LIGHTING A Mobile Lighting Platform that Illuminates Crisis Sites

www.gigateraled.com

HPEL High Power Emergency Lighting Search & Rescue Lighting

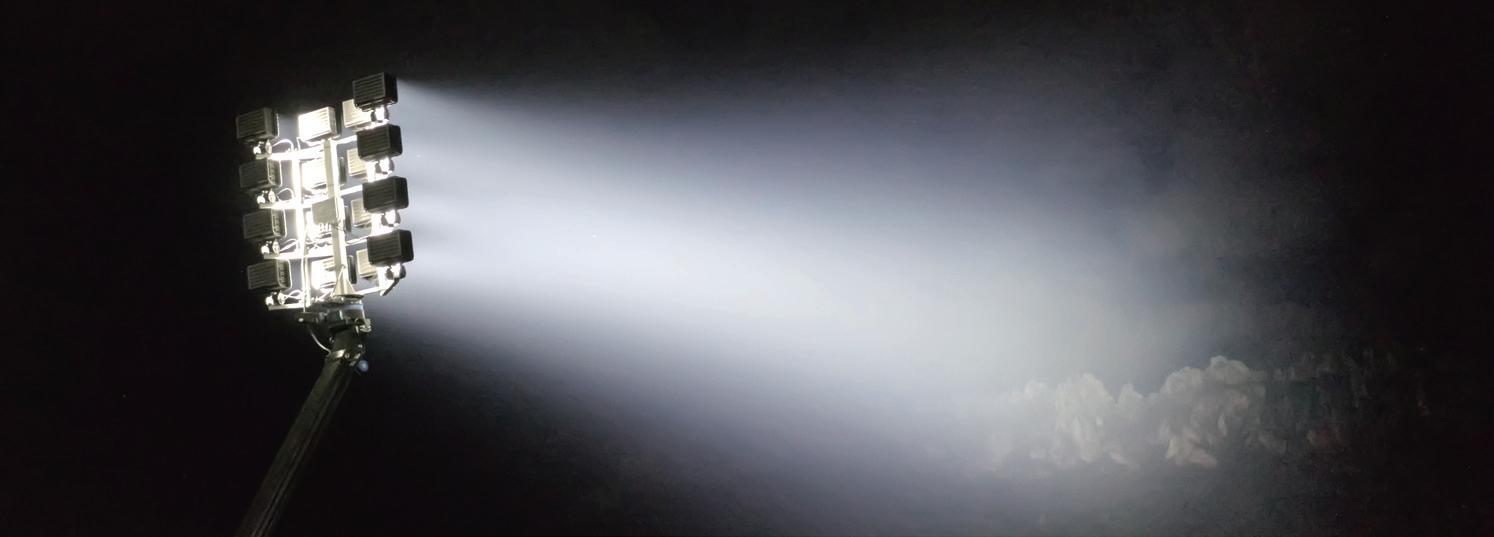

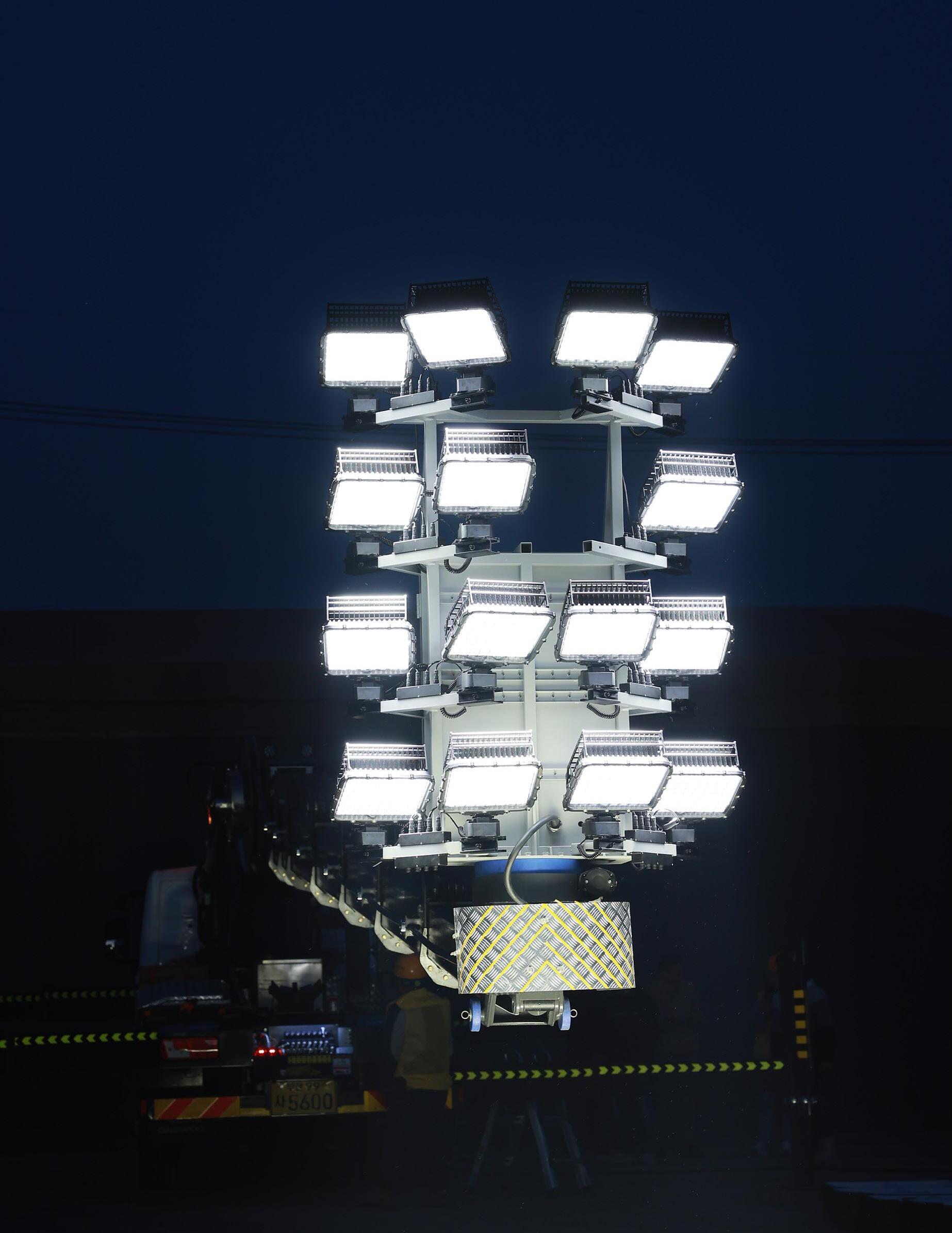

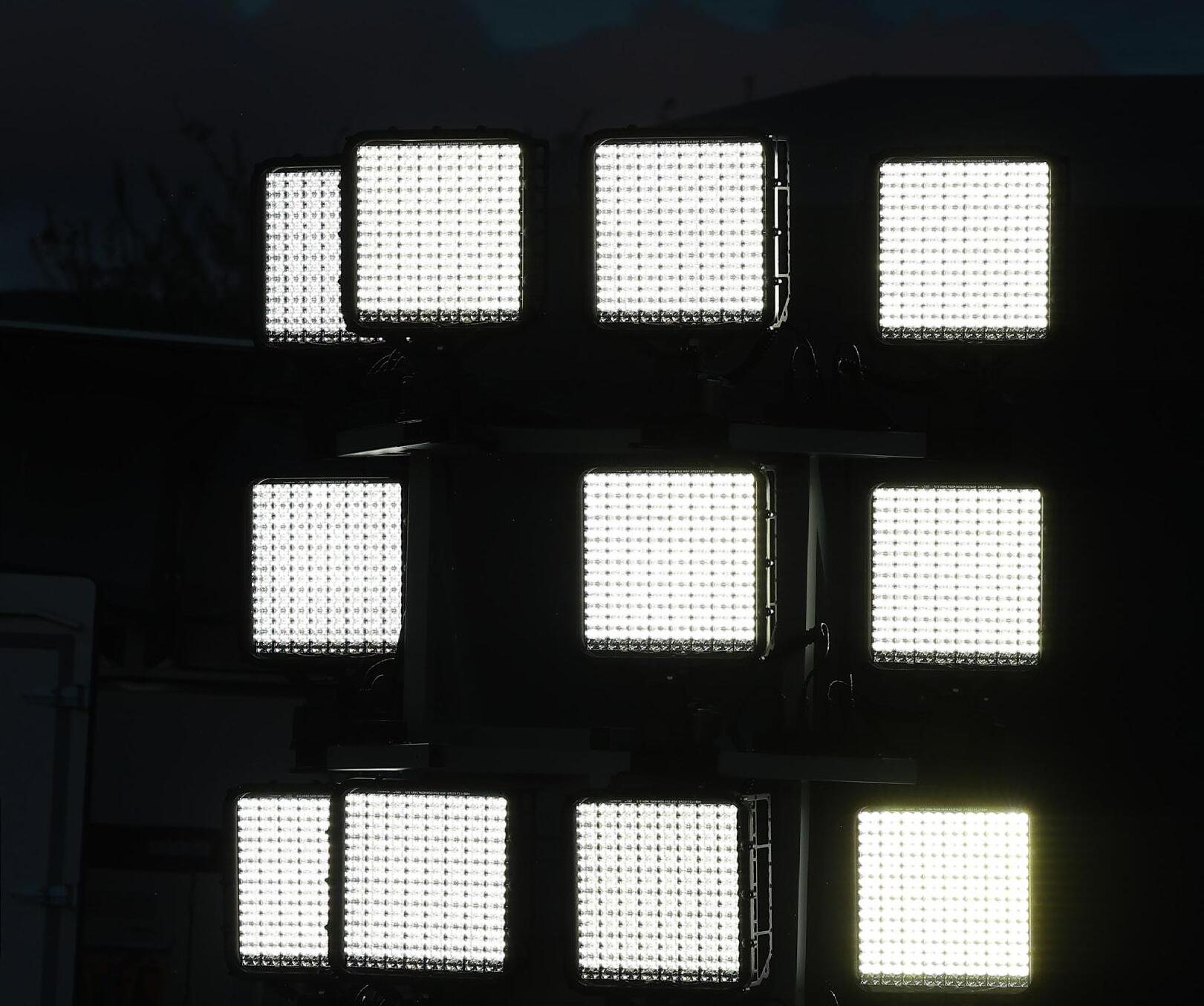

HPEL is equipped with 16 units of SUFA-PTX™ 1,500W high-performance LED luminaires, delivering an overwhelming total luminous power of 24 kW in a single mobile system. It instantly illuminates a wide area, providing a clear line of sight under the most adverse conditions.

Notably, its design, which allows for rapid deployment and simple installation, ensures optimal response capabilities in crisis situations where every second counts, and its unique mobility delivers light even to hard-to-reach areas.

Furthermore, its precision Tilting and Steering functions allow for realtime adjustment of the illumination angle, enabling the flexible creation of an optimized lighting environment according to the site conditions. The instant-on characteristic of LED floodlights enables immediate use upon the occurrence of an emergency, maximizing the efficiency of the initial response.

• Instant-on LED floodlights for immediate use • 1,500W high-power LEDs for strong, focused brightness • Tilting & Steering for quick beam adjustment • Easy and fast deployment in emergency situations

HPEL Youtube Link

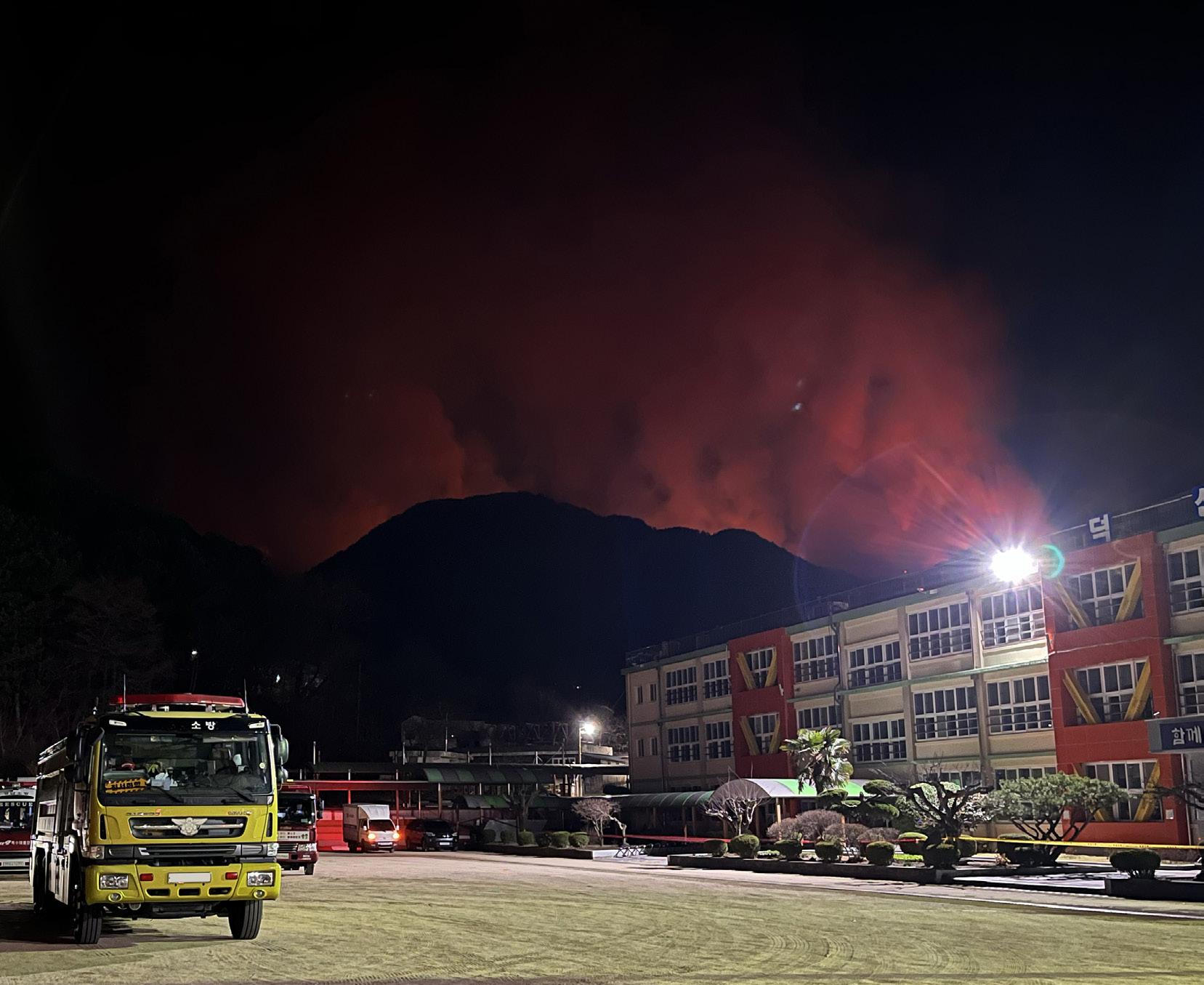

Applications · Disaster Rescue Sites In the event of various disasters such as wildfires, earthquakes, floods, and collapses, it enables rapid deployment to maximize the efficiency of rescue and recovery operations and ensures the safety of nighttime search efforts.

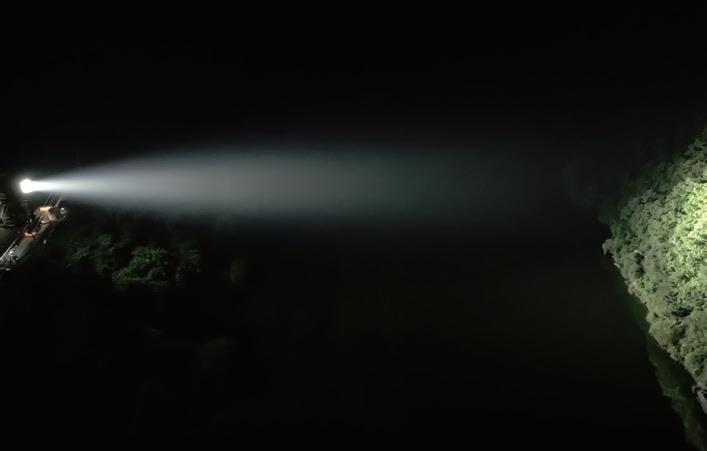

Nighttime Search Sites

· Nighttime Construction and Industrial Sites It illuminates large areas stably during nighttime operations such as large-scale construction and emergency recovery work, simultaneously enhancing work efficiency and safety. · Large-Scale Events and Temporary Facility Operations It supports smooth operations by supplying a stable light source in places requiring immediate, large-scale lighting, such as outdoor concerts, local festivals, and temporary shelters.

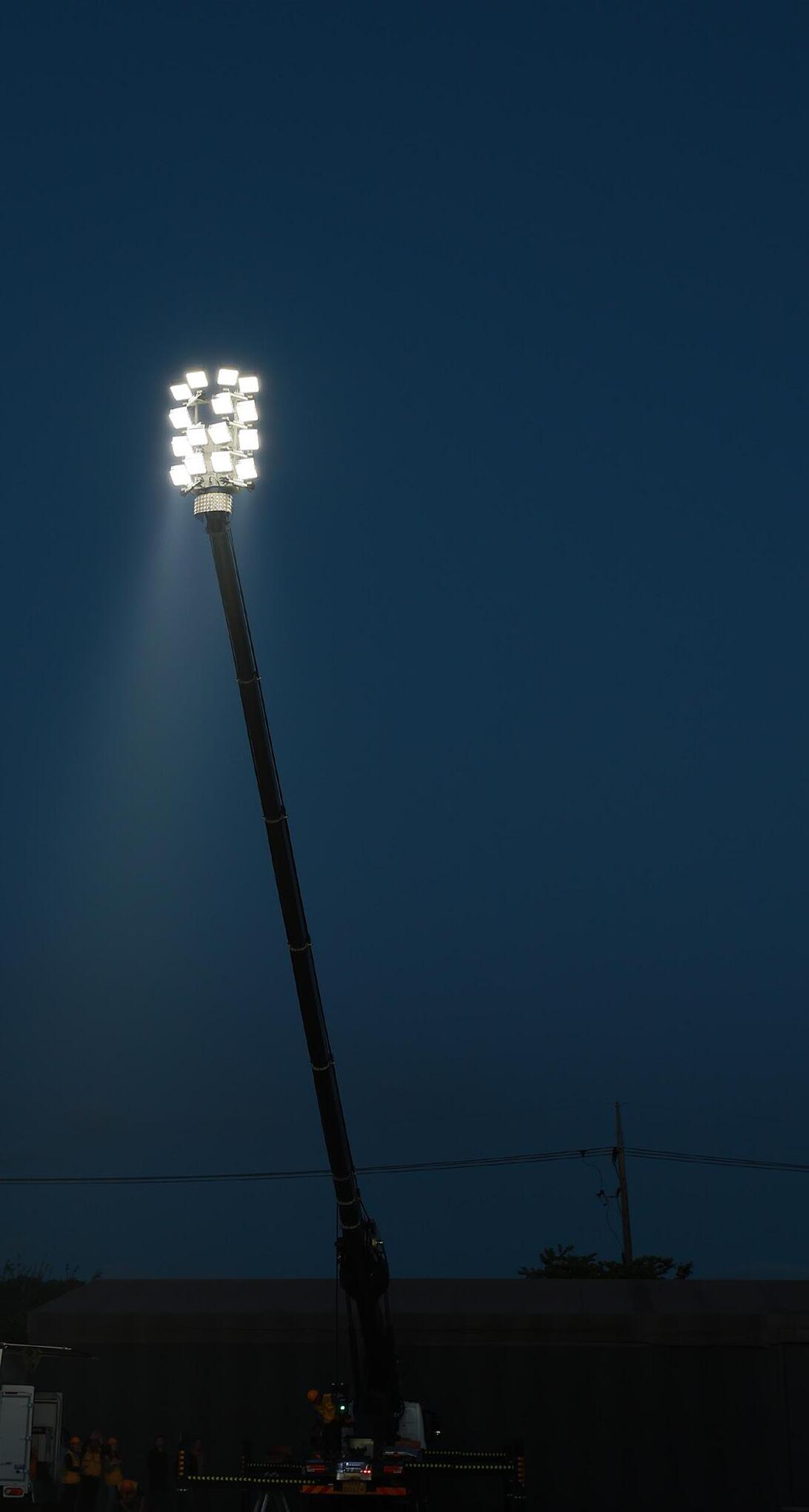

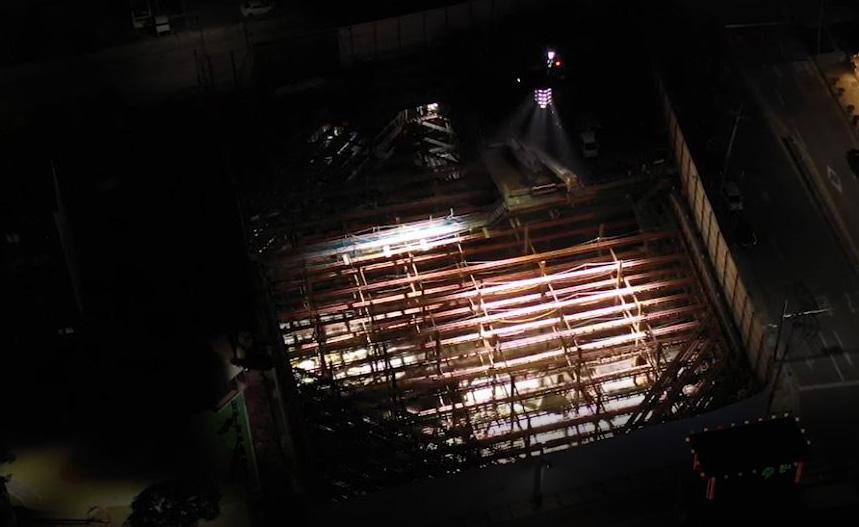

Nighttime Construction

· Defense and Public Security It provides a powerful and reliable lighting solution required for performing special missions such as military operations and training, nighttime patrols, and search activities.

System Features Category

Specs

Features

Immediate Response

Integrated setup of all related equipment

Enables instant deployment, illumination, and shutdown

Wide-Area Lighting

• Long-distance lens distribution • 16 × 1,500W floodlights • Installed at a height of 40 m

• Average illuminance of 120 lux (based on 100m × 100m area) • Minimizes three major discomfort factors (glare, shadows, and flicker)

• Supports various beam patterns

Adaptive Operation

• Equipped with beam-angle adjustment mechanism • 1:1 integration of RTS™ and floodlights

Stability

• Floodlight weight: 12.9 kg/ea • SMPS positioned at ground level

• Reduced overhead load: 206.4 kg • Separation of luminaires and power-supply components

Eco-Friendliness

• Equipped with a 25 kW generator • Generator noise-reduction enclosure

• No electrical grid connection required • Minimizes generator noise

(spot, wide, longitudinal, bidirectional)

• Can be instantly adjusted according to on-site conditions

Technical Specifications

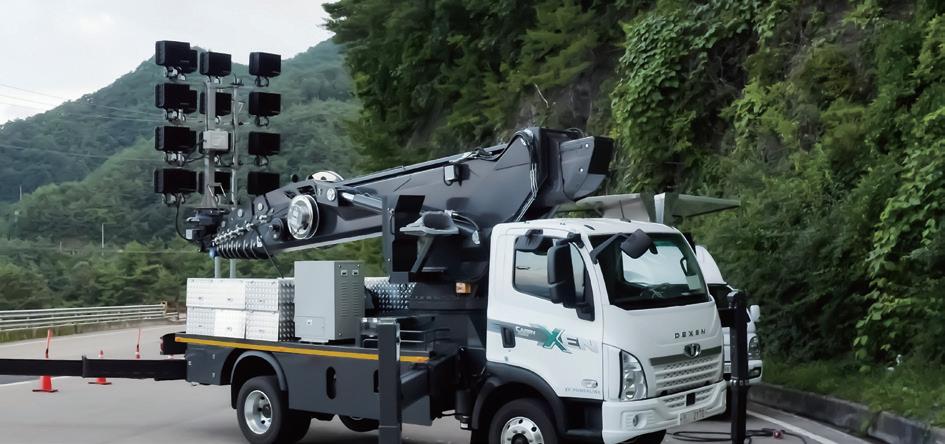

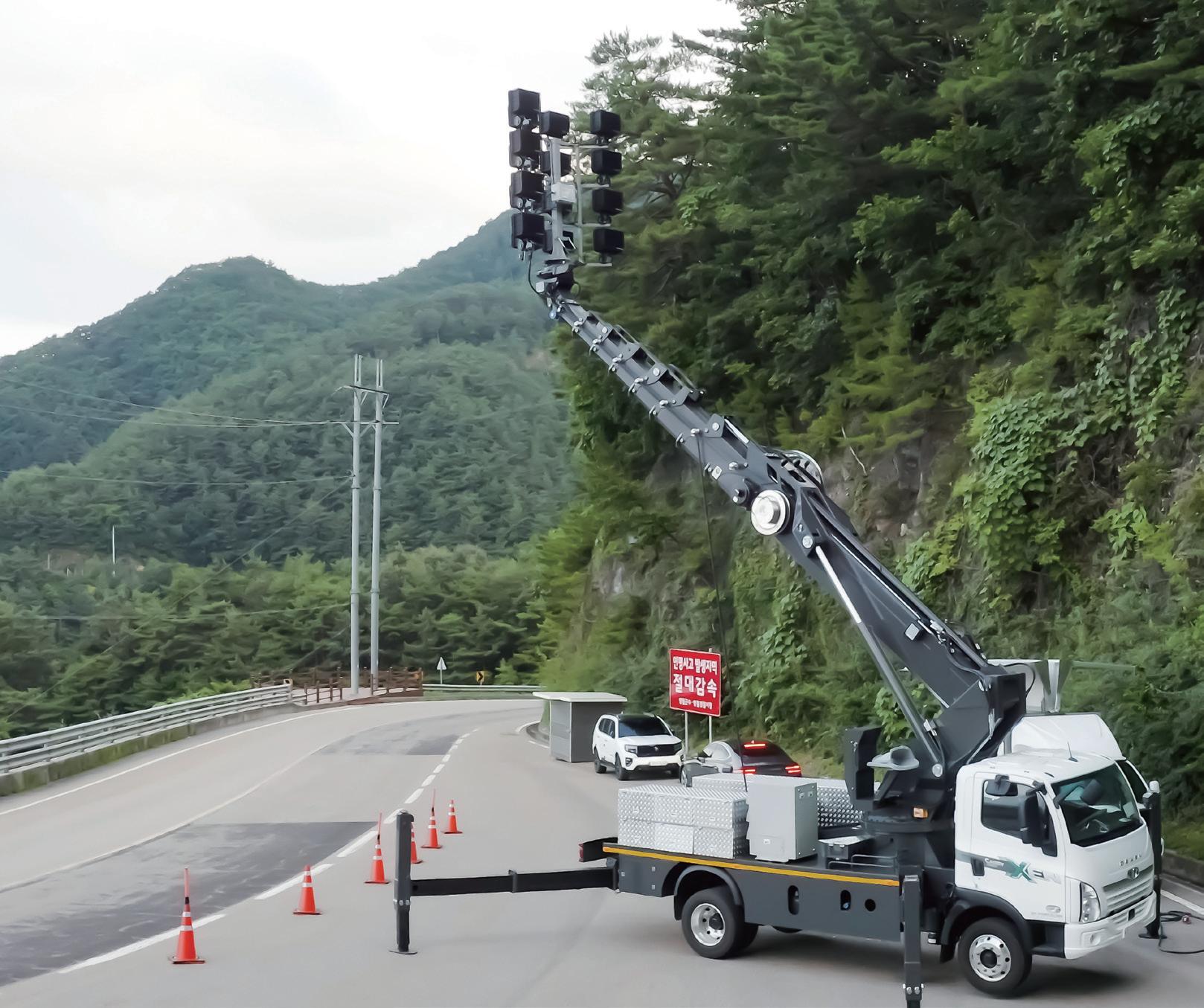

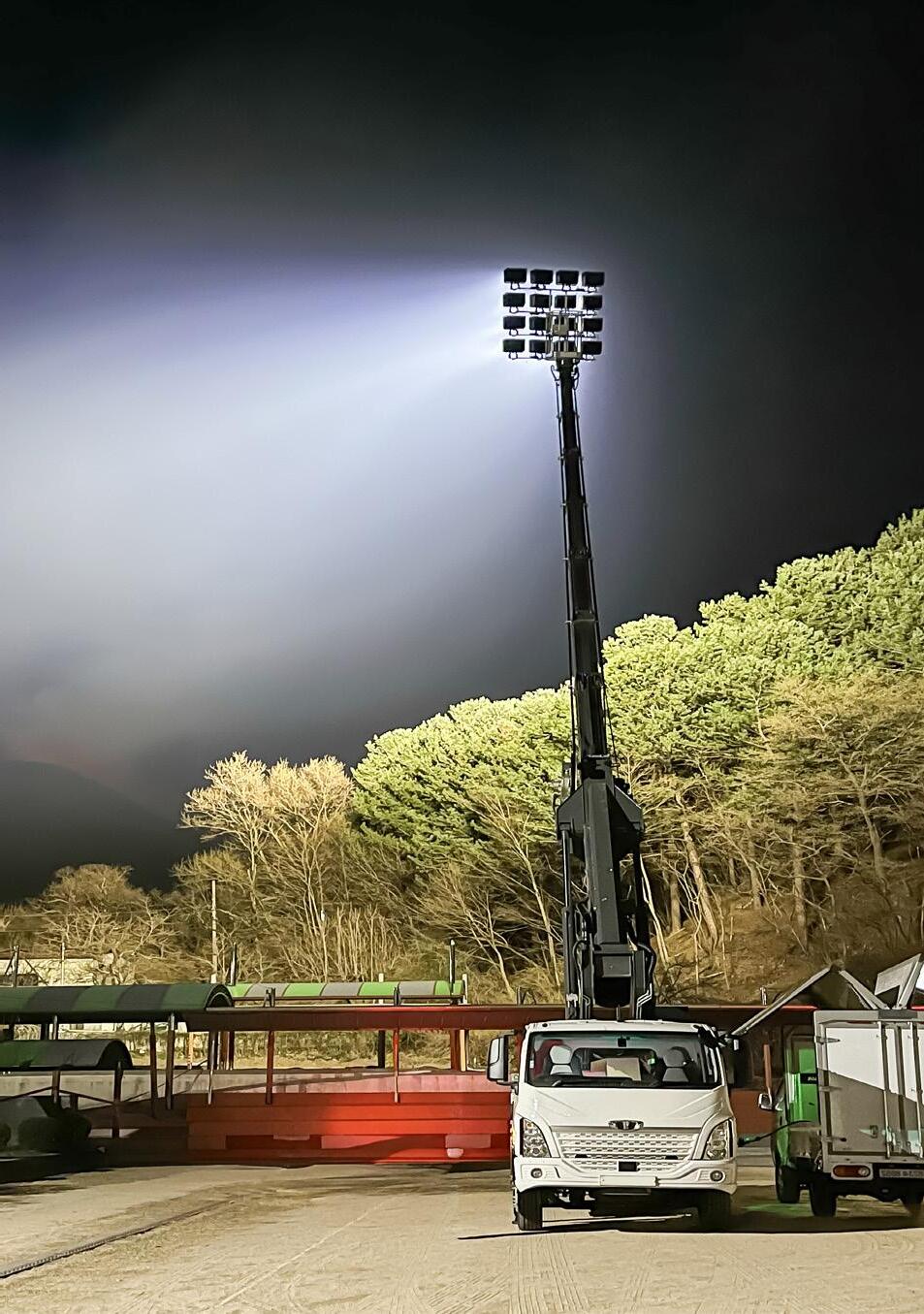

▲ Aerial Work Platform Vehicle

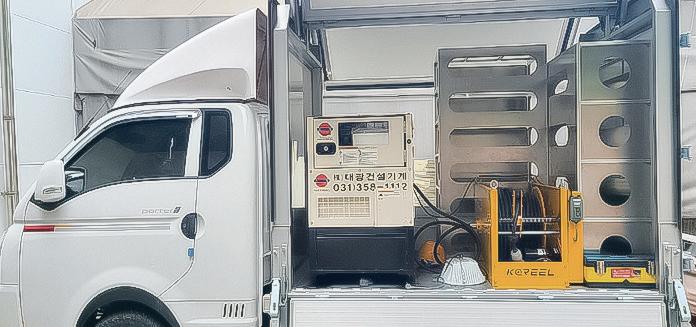

▲ Mobile Generator System

• Aerial Work Vehicle and Mobile Power System Type

Vehicle Specification

Based on a 5-ton truck

Bucket Rated Load and including Luminaire Weight

400 kgf / 219.2 kg (SFP1K5 x 16ea)

Maximum Working Radius

26 m

Maximum Working Height

40 m

Boom Type

8-stage, 7-sided high-tensile boom, straight-type

Boom Deployment / Retraction Speed

Deployment: 75 sec / Retraction: 24 sec

Slewing Method

Hydraulic motor + planetary gear reduction type

Slewing Angle

-180° ~ +180° (Total 360°)

Slewing Speed

Max 0.9RPM (Varies with working radius)

Safety Devices

Safety valve + safety devices (emergency stop, leveling indicator, alarms, moment detector, various sensors, etc.)

Vehicle Specification

Based on a 1-ton truck

Generator Maximum Output

25 kVA

Generator Rated Output

20 kW

Generator rated voltage

440(220)V

Generator Phase

3-Phase, 4-Wire

Generator Engine

Vertical Water-cooled 4-cycle Diesel Engine

Generator Engine Output

23.7 kW [32.2PS]

Generator Displacement

2.434ℓ

Fuel Tank Capacity

65ℓ

• System Supply Type

Integrated Type

※ Supports rapid deployment with an integrated configuration, while also allowing partial operation when needed.

Aerial Work Platform Vehicle

Floodlight

Generator

Mobile Generator System

RTS™

O

O

O

O

O

Modular Type

O

3,370mm

• Aerial Work Vehicle Specifications

7,675mm

O

Retracted: 1,970mm~Extended: 6,685mm

Mobile Generator System

Specification

Retracted: 1,980mm~Extended: 6,485mm

Aerial Work Platform Vehicle

Item

Retracted: 4,655mm~Extended: 7,055mm ※ Specs and design may change without prior notice.
