2026 GIGATERA® LIGHTING CATALOG Sports Flood Lighting / Area Flood Lighting / Bay Lighting Roadway Lighting / Entertainment Lighting / Control System by
Giga denotes a 109 metric factor - the main frequency in wireless communications. Tera denotes a 1011 metric factor - the main frequency in LED lighting.
GigaTera® Lighting merges the world’s greatest IT engineering prowess with advanced LED systems, innovating at every turn to develop the most precise and reliable light.
CONTENTS 01 Company Company Our History Global Awards
05 Product Overview 06 07 08

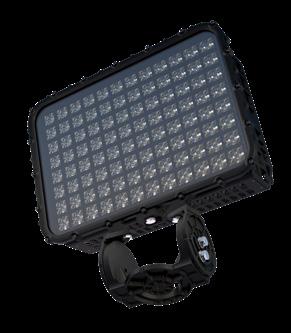

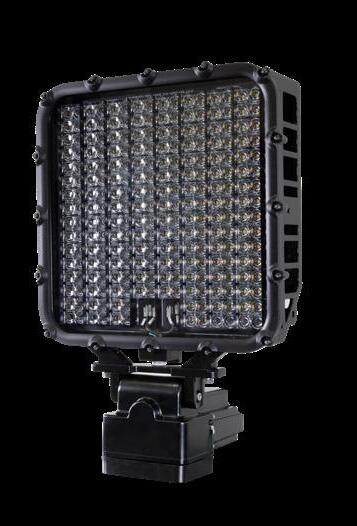

01 Sports Flood Lighting SFP Remote SFP Built-in SFP Integral SFX SFM
02 System Configuration Quality System Reliability Equipment
12 13

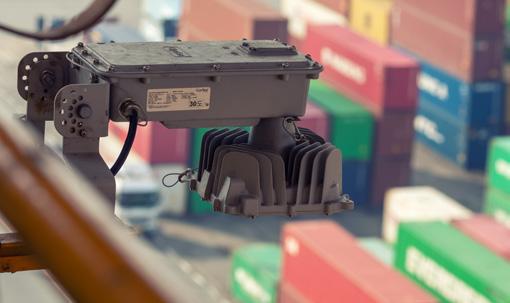

02 Industrial Lighting MHP MAH SMA WP
03 Proprietary Technology PTX™ Thermal Technology
14
Optical Technology Inner Visor Glare Control / NMBF Back-light Control / Full Cut-off Indirect Reflection & Thermal Optimization Lumen Field

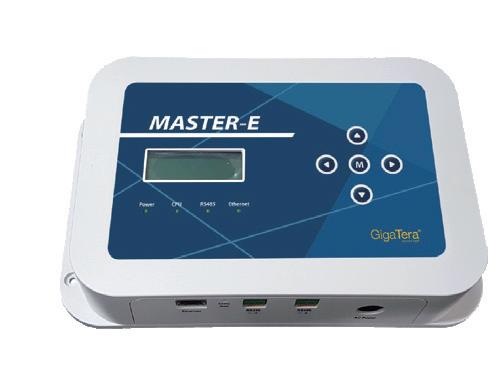

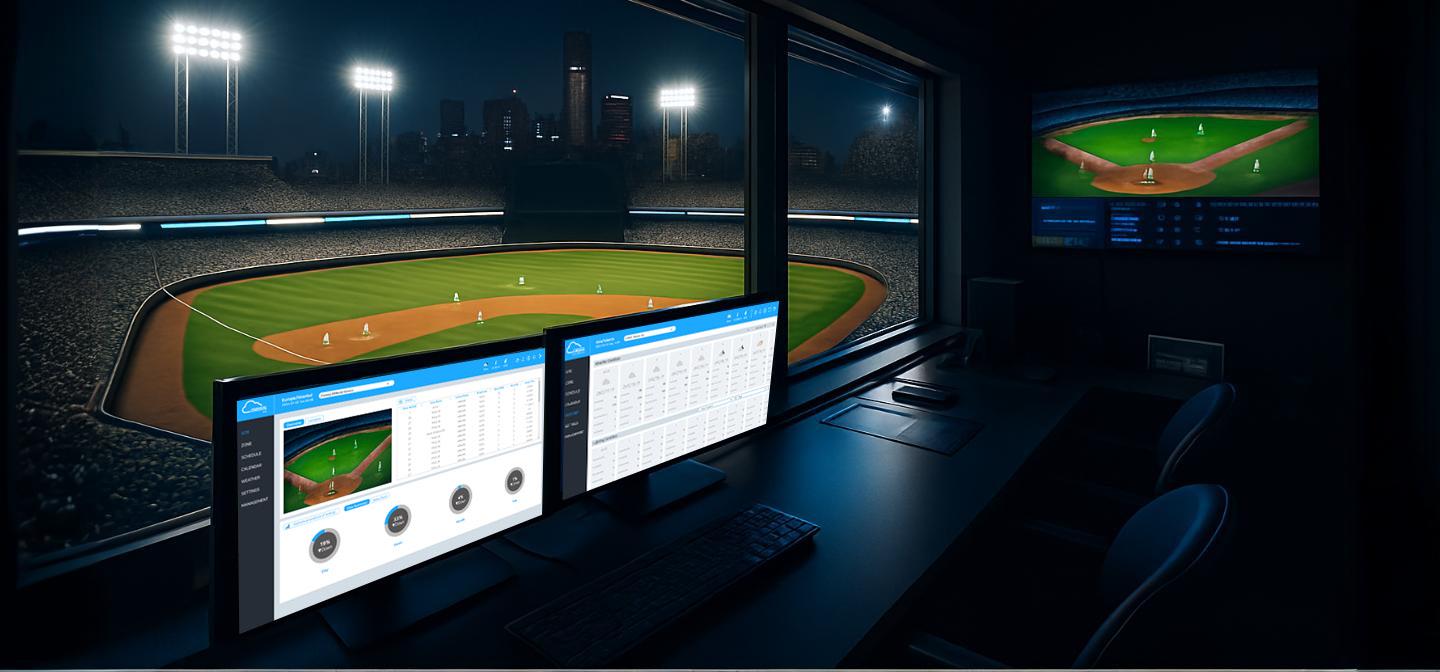

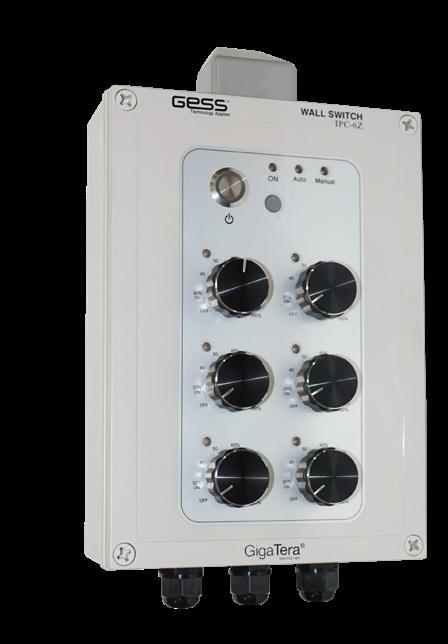

GeSS® Control System ®

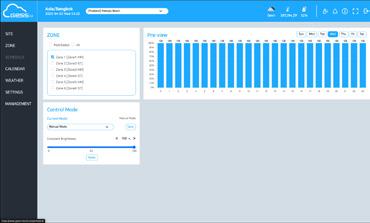

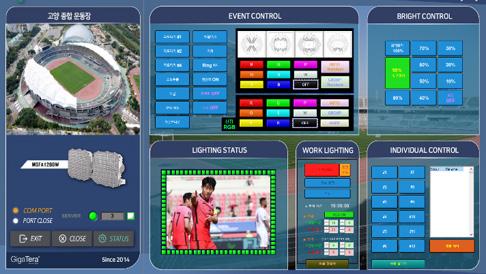

GeSS GUI ®

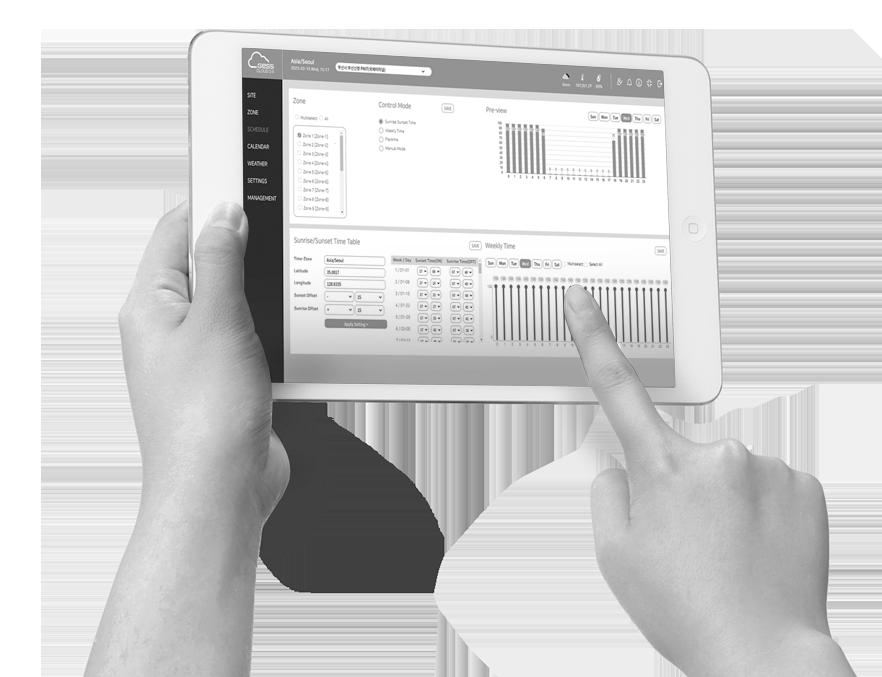

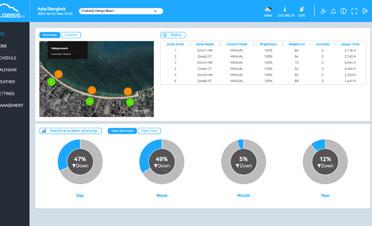

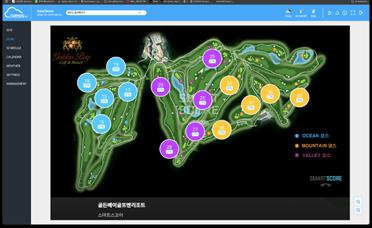

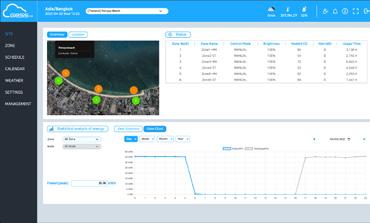

GeSS Cloud 3.0

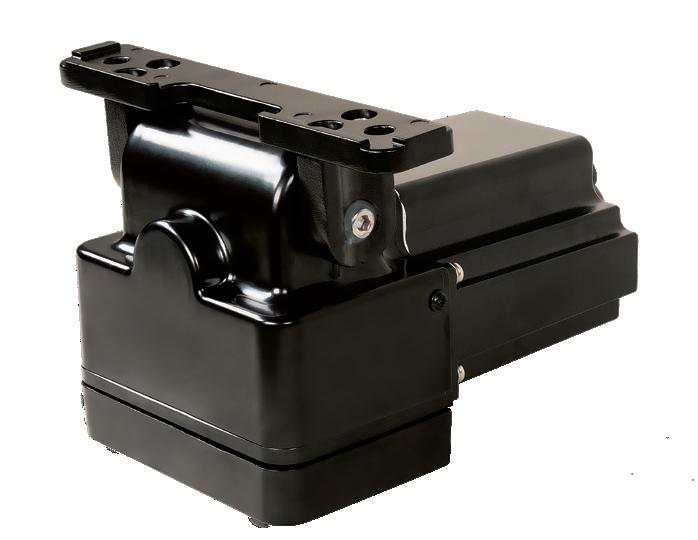

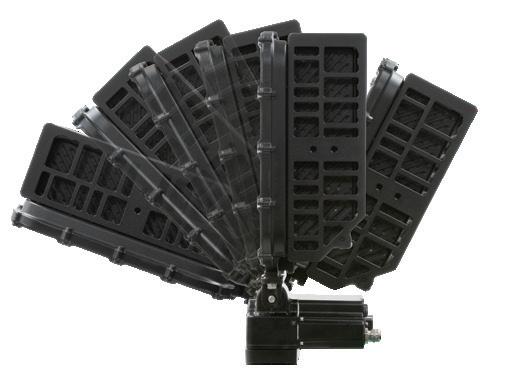

RTS™ Remote Control Technology RTS™-G3 RTS™-G4
15 16 17 18 19 20 22 23 24 25
36 37 38 39 40 41 42 44 45

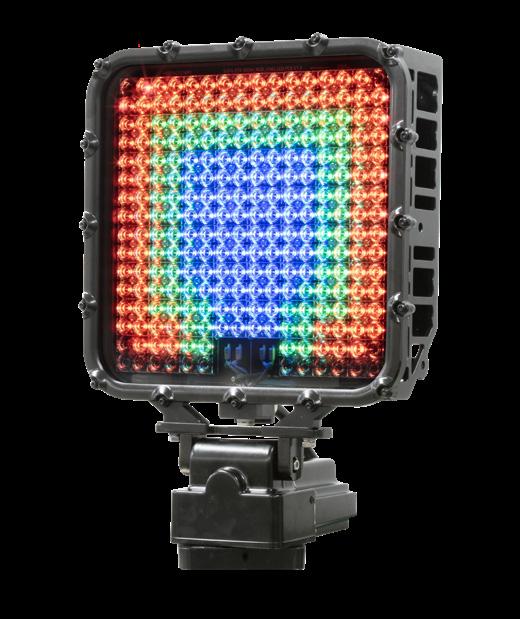

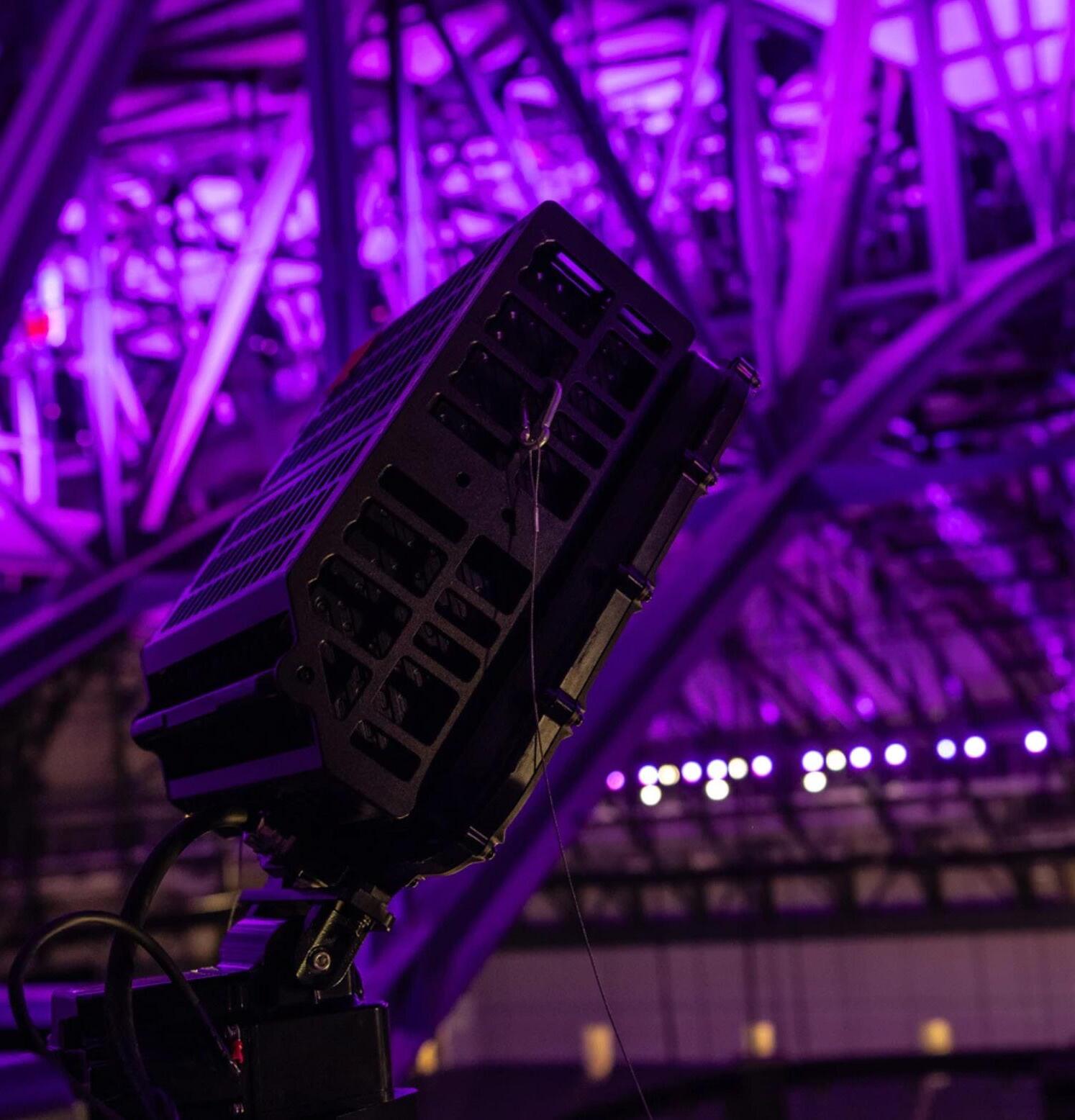

03 Entertainment Lighting SFM-TW/ SFP TW (Tunable White) SFP-RGBW SFC-RGBW / SFC-W SFX-RGBW MA-RGB
46 47 48 49 50

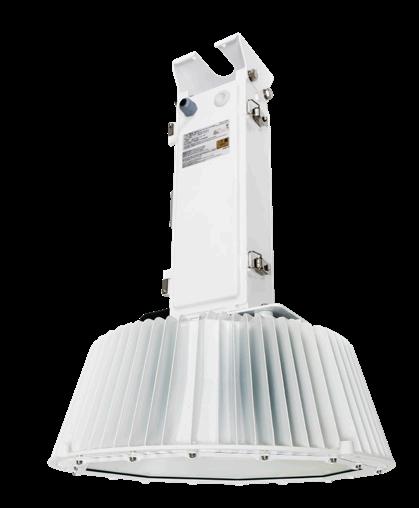

04 Bay LIghting SEH SE
51 52

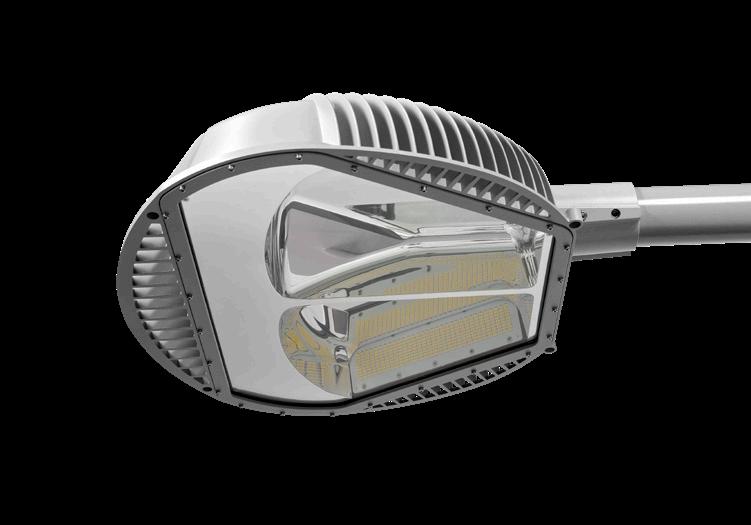

05 Roadway Lighting MT SET
54 55

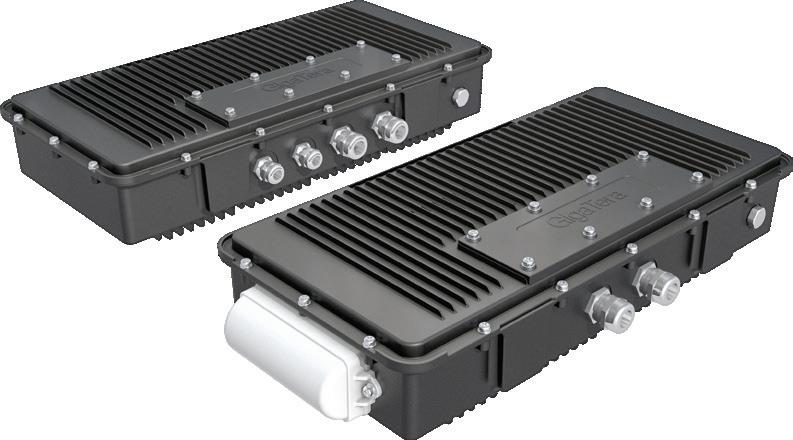

06 External Driver & GeSS® Control System BLP (External Remote Driver)
04 Key Reference Projects
26
RTS™-G3 (Remote Tilting and Steering) RTS™-G4 (Remote Tilting and Steering) Master Unit/ Master-E (GeSS® Control System) IPC-6Z (GeSS® Control System)
56 57 57 58 59
07 HPEL™ & TML™ HPEL™ (High Power Emergency Lighting) TML™ (Truck Mobile Lighting)System)
60 61
GigaTera® Exclusive:
Proprietary Technologies Beyond Compare
[CONTROL INNOVATION] RTS™ Smart Aiming & Moving System • Flawless wireless remote control of steering and tilting mechanisms. • Immediate, safe, and ultra-precise aiming from the ground, eliminating the need for aerial lifts. • One-touch aiming angle transitions based on custom presets tailored to specific spatial needs (e.g., field-centric, track-centric). • Goes beyond traditional illumination to deliver dynamic, immersive entertainment lighting performances that captivate audiences.
[STRUCTURAL INNOVATION] PTX™ Ultra-Lightweight Thermal Solution (NET Certified) • Guarantees an overwhelmingly long lifespan through an unrivaled thermal management design. • Achieves an ultra-lightweight and compact form factor that shatters the limits of conventional high-power lighting by minimizing heat sink volume. • Drastically reduces wind load, enabling safe and streamlined installation even on aging, existing masts. • Demonstrates top-tier technological credibility, officially awarded the NET (New Excellent Technology) certification by the Korean Agency for Technology and Standards (KATS).
[OPTICAL INNOVATION] Hybrid Precision Light Distribution Design • Achieves extreme luminous efficacy by minimizing optical loss through the optimal combination of lenses and reflectors. • Features ultra-precise, customized optics tailored specifically to individual LED chip characteristics and industrial applications. • Offers a high-end reflector lineup designed to perfectly control and eliminate glare. • Delivers a high-quality, high-uniformity illuminance environment with zero blind spots across expansive spaces.
4
5
01 Company
Company
Who We Are
A Global Leader in LED Lighting, GigaTera®
GigaTera® is a leading LED sports and high-power lighting company, recognized globally for its innovative technology and advanced manufacturing processes. We provide world-class lighting solutions optimized for diverse environments, including sports stadiums, large-scale ports, and industrial facilities. In particular, we have maximized product efficiency and operational convenience through our proprietary PTX™ thermal management technology and RTS™ (Remote Tilting and Steering) technology, both developed in 2024. We continue to lead the global market with our next-generation lighting lineup featuring these new technologies.
What We Offer
Entertainment Sports Lighting and Emergency Lighting Systems Modern professional sports venues demand immersive entertainment systems that interact with the audience beyond simple illumination. By integrating cutting-edge RGBW and RTS™ (Remote Tilting and Steering) technologies, GigaTera® successfully completed installations at Dickies Arena in the US in 2024, followed by the BMG Stadium in Germany in 2025. This provides dramatic visual effects during major events, delivering overwhelming immersion to spectators. Furthermore, we contribute to realizing social safety values through our high-power emergency lighting systems, which fully support on-site safety and rescue operations even in disaster situations with limited power supply.
What We Own Innovation-Driven R&D and Global Network GigaTera®’s innovation originates from the cutting-edge infrastructure and outstanding researchers at our corporate R&D center, ‘Crazy Lab.’ We rigorously verify product performance and durability through various in-house testing equipment simulating harsh environments, securing uncompromising reliability. Additionally, we have maximized production efficiency by establishing an organic supply chain between our headquarters in South Korea and our manufacturing base in Vietnam. We possess a robust sales network that provides prompt and stable services to customers worldwide through our global corporate network connecting Europe, the US, Japan, China, and Türkiye.
by
6
Company Name
GigaTera Lighting Inc.
CEO
Song Jung-nam
Established

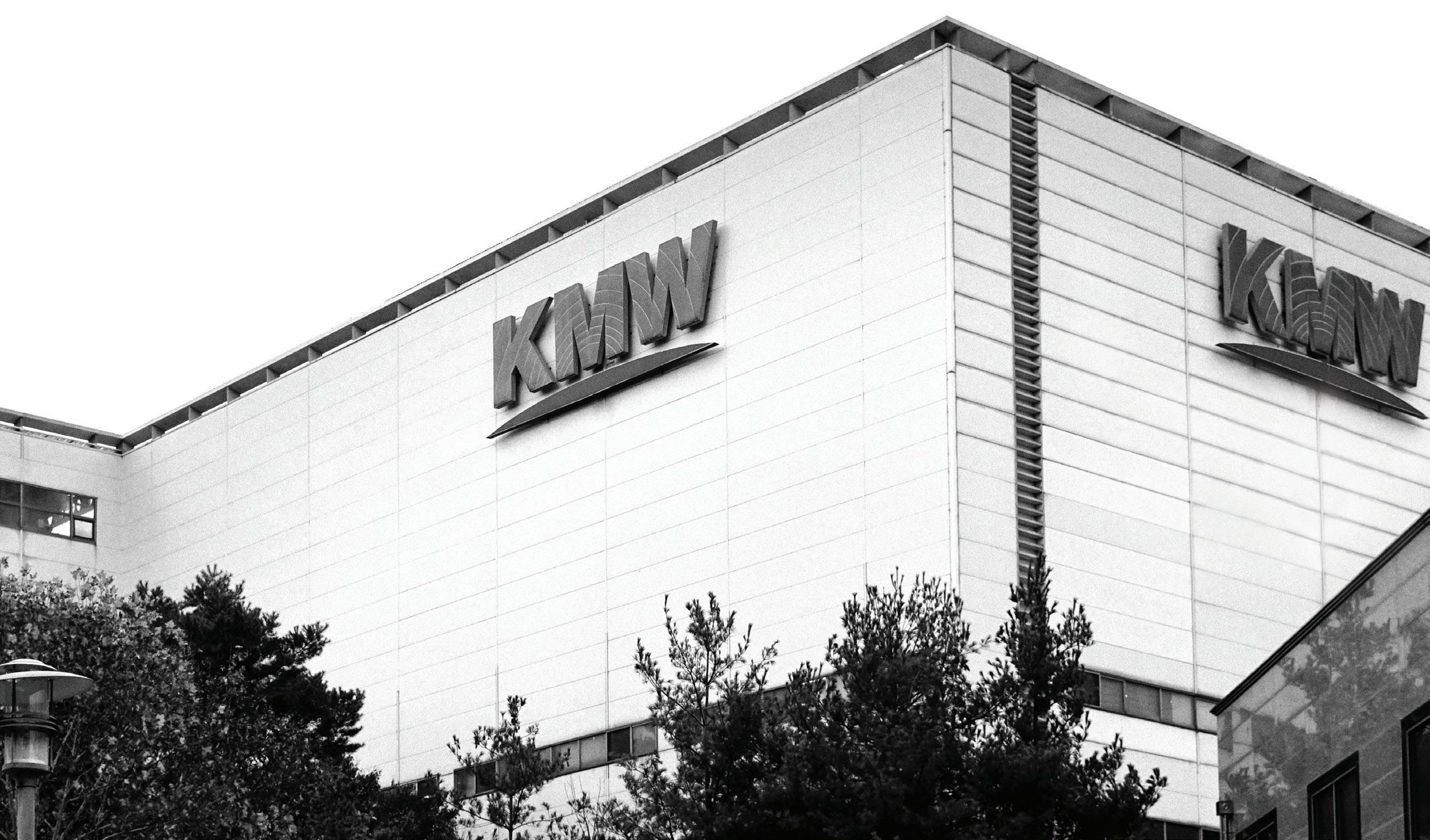

July 2017 (KMW Business Unit)
Headquarters
21, Dongtan-daero 25-gil, Hwaseong-si, Gyeonggido, Republic of Korea
Specialties
Sports Lighting, Area Floodlighting, High Bay Lighting, Roadway Lighting, RGB Lighting, Controls
01 Company
Our History
2009
2010
2011
2012
· KS Certification for LED Lighting Products · Excellent Manufacturing (Korea Land & Housing Corporation) Technology Research Center · 8th Luminaire Design Grand Prize Designation (ATC) · New Technology (NET) Certification
· TL9000 Certification · Anseong ORT Center Completed
· “Crazy Lab” R&D Center Established · OHSAS18001 Certification
2017
2015
2014
2013
· GigaTera® Lighting Established
· Global Procurement Leading Company Program Selection
· ICT Certification · Established GigaTera® Subsidiaries
· World Class 300 Company Selection · $200M Export Tower Award(Trade Day)
· LED Lighting Business Unit Established · LED Category Grand Prize
(KMW Spinoff)

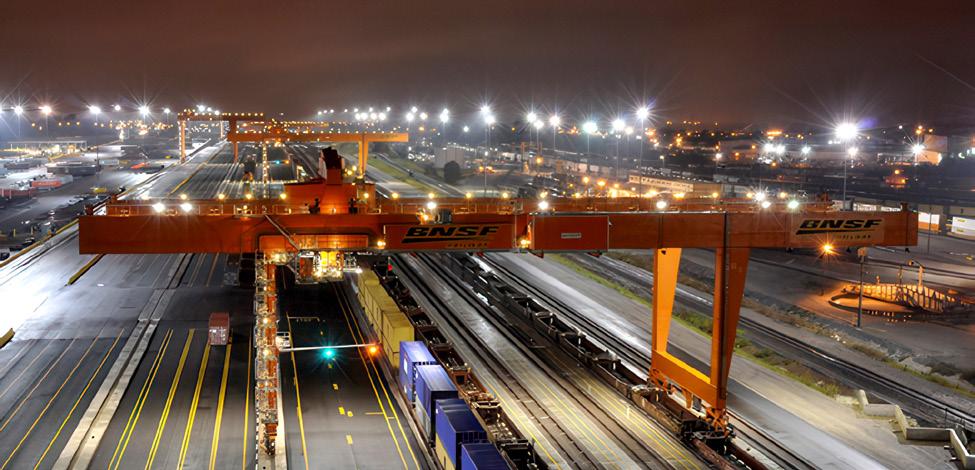

· BNSF Lighting Supplier Contract
(P300)
· VietnamProduction PlantEstablished · Established GigaTera® Subsidiaries (Türkiye, India)
(Middle East, Europe, Japan, China)
2018
2019
2020
2021
· ISO 9001 certification · Maru Lighting Co., Ltd. Established
· SUMA Series Launched
· MAHA-Plus Series Launched · GigaTera® U.S. Subsidiary Established
· RAS Technology Development
2025
2024
2023
2022
· Minister’s Award for New Technology Development
· Light + Building Exhibitor · SNI Certification in Indonesia
· SFP Approved for FIFA Quality Pro · Developed HPEL™ System · Developed TML™ System (FQP) · PTX™ Series Development · SFP won 3 Categories at LIT · RTS™-G2 System Development Lighting Design Awards · Launched RTS™ Sports · SFP Selected as IES 2025 Entertainment System Innovative Product · Developed RTS™-G4 integrated · Exhitited at MJBizCon, USA (SOLNSOL) Circular SUFA (SFC) · Developed RTS™-G4 integrated · Installed Lighting at Dickies Arena, USA (Sports Entertainment Rectangular SUFA (SFR) Lighting System) · Launched SUFA-P / MAHA-P · Developed RTS™-G3 / RTS™-G4 · Indoor-Ag Con Exhibitor
(International Optoelectronics Expo)
· SOLNSOL Horticultural Lighting Brand Launched · International Agriculture Expo Exhibitor (SOLNSOL) · Smart Farm Korea Exhibitor (SOLNSOL)
(SOLNSOL)
· Smart Farm Korea Exhibitor (SOLNSOL)
· Exhibited at NACDA Orlando, USA · Exhibited at TOC Europe · Exhibited at FSB Germany
77
01 Company
Approved Brilliance The SUFA‑P FIFA Quality Pro Advantage · Approved Models
SFP1K5 (5700K 90Ra), SFP1K5 (5700K 80Ra) SFP1K2 (5700K 90Ra), SFP1K2 (5700K 80Ra) · Certified Stadium
Trabzonspor Stadium (FIFA STANDARD A) / Türkiye
FIFA Quality Program requires engagement with a FIFA‑accredited test institute at every stage. A floodlight manufacturer must be officially licensed by FIFA in order to certify floodlight installations for the FIFA Quality and FIFA Quality Pro levels. Installed stadiums are then listed in FIFA website registry following certification of field tests. FIFA Quality Programme certification provides an international benchmark that simplifies technical tender requirements for floodlights and assures stakeholders that the system meets the highest standards available.
FIFA Quality Programme certified floodlight installations are backed by GigaTera’s US$7 million global product liability insurance, providing comprehensive protection for the lighting equipment. GigaTera® has also obtained the WFSGI labor‑rights pledge, underscoring its adherence to international labor standards. SUFA‑P is designed and certified for sustainability, limiting hazardous substances and ensuring components can be easily recycled with minimal adhesives, as confirmed through life‑cycle assessments. Developed to meet the most demanding sustainability requirements, GigaTera’s SUFA‑P delivers world‑class illumination, comprehensive safety and enduring operational confidence, making it the future‑ready choice for uncompromising floodlighting excellence. 8
01 Company

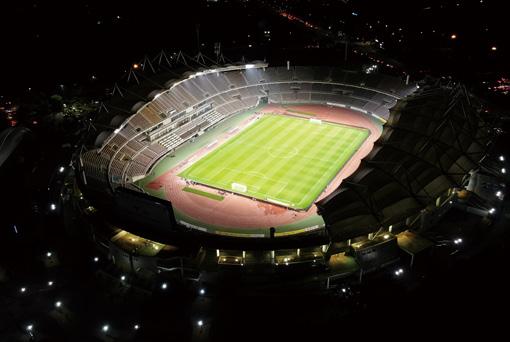

Trabzonspor Stadium, Türkiye
FIFA Quality Pro certified stadium
9
01 Company
Global Awards
04 Global Awards
GigaTera® SUFA-P Selected as an Innovative Product in 2025 IES Progress Report GigaTera® Lighting’s flagship sports lighting luminaire, the SFP1K5 (SUFA-P), has been officially selected as an innovative product in the 2025 Progress Report by the Illuminating Engineering Society (IES), the world’s most prestigious international standards organization for lighting technology. Notably, the SFP1K5 earned high technical acclaim for flawlessly overcoming lumen depreciation - a chronic limitation of conventional high-power sports lighting caused by thermal buildup - by seamlessly integrating our proprietary PTX™ thermal management solution with ultra-precision optical design. Furthermore, it garnered praise for breaking the physical boundaries of highpower sports lighting, achieving an ultra-lightweight form factor through structural design innovation despite its overwhelming 1,500W-class output.
Above all, the drastically reduced weight and aerodynamic design minimize the wind load exerted on structures, even in outdoor environments with strong winds. This ultra-lightweight form factor not only maximizes worker safety and installation convenience in extreme high-altitude settings but also dramatically elevates the structural stability of the entire lighting system, perfectly satisfying the rigorous safety standards of global engineering firms.
The IES establishes the definitive global lighting design guidelines for environments ranging from sports facilities to industrial sites, serving as the ultimate benchmark for the world’s top-tier engineering firms. This prestigious selection officially validates GigaTera® Lighting’s overwhelming capabilities in the global sports lighting market, specifically demonstrating: • World-class technology recognized by IES • Unmatched reliability and quality in the global market • Strengthened position as a brand leading the way in innovation
10
01 Company
Global Awards
Winner in Three Categories at the LIT Lighting Design Awards™ GigaTera® Lighting has achieved a remarkable milestone by sweeping three categories at the world-renowned LIT Lighting Design Awards™, an institution that celebrates exceptional innovation and creativity in architectural, entertainment, and product lighting worldwide. Evaluated by an international jury on rigorous criteria - including aesthetic merit, technical innovation, and sustainability—GigaTera® Lighting outshone over 1,000 global entries to secure this ultimate honor. The core lineups that earned official recognition for their world-class technological prowess in this award are as follows:
WINNER 2025
WINNER 2025
HONORABLE MENTION 2025
AWARD LIT LIGHTING DESIGN AWARDS 2025 WINNER
AWARD LIT LIGHTING DESIGN AWARDS 2025 WINNER
AWARD LIT LIGHTING DESIGN AWARDS 2025 HONORABLE MENTION
PROJECT NAME STADIUM ENTERTAINMENT LIGHTING FOR PAPARA PARK
PROJECT NAME SFP-RTS SPORTS LIGHTING SYSTEM
PROJECT NAME SUFA-P FLOODLIGHT
COMPANY GIGATERA LIGHTING
COMPANY GIGATERA LIGHTING
COMPANY GIGATERA LIGHTING
LEAD DESIGNER JONG-JU HAN
LEAD DESIGNER DUK-YONG KIM
LEAD DESIGNER DUK-YONG KIM
OTHER DESIGNERS JB CHAE, CEM CANSU, GÜLER KARATAS
OTHER DESIGNERS JONG-JU HAN, PYEONG-HWA CHOI
OTHER DESIGNERS JONG-JU HAN, JB CHAE
The jury panel of LIT Lighting Design Awards certifies that GigaTera Lighting has received this award for "Stadium Entertainment Lighting for Papara Park" in "Other Entertainment Lighting Projects" category.
The jury panel of LIT Lighting Design Awards certifies that GigaTera Lighting has received this award for "SFP-RTS Sports Lighting System" in "Sport Lighting Systems" category.
The jury panel of LIT Lighting Design Awards certifies that GigaTera Lighting has received this award for "SUFA-P Floodlight" in "Flood Lights" category.
HOSSEIN FARMANI FOUNDER
HOSSEIN FARMANI FOUNDER
HOSSEIN FARMANI FOUNDER
LIGHTING DESIGN AWARDS
LIGHTING DESIGN AWARDS
LIGHTING DESIGN AWARDS
ASTRID HEBERT DIRECTOR
ASTRID HEBERT DIRECTOR
ASTRID HEBERT DIRECTOR
Awards: Other Entertainment Lighting Projects / Sports Lighting Systems / Flood Lighting
SUFA-PTX™ Floodlight: Achieves an unprecedented ultra-lightweight design without compromising its overwhelming luminous efficacy, delivering optimized reliability for rofessional sports environments. It was highly commended for engineering excellence that drastically reduces installation complexity and overall construction costs. SFP-RTS™ Sports Lighting System: Powered by our proprietary RTS™ (Remote Tilting & Steering) technology, this system guarantees flawless precision and seamless scalability. It serves as a next-generation entertainment solution, transforming ordinary stadiums into landmark arenas through dynamic moving light performances.
This recognition is a direct testament to GigaTera® Lighting’s relentless commitment to maximizing the longterm durability and operational efficiency of high-power sports lighting systems. We will continue to solidify our absolute leadership in the global market by delivering innovative, future-ready lighting solutions.
11
02 System Configuration
One-Stop Integrated System
Quality System
In-house Quality Testing for Verified Reliability GigaTera® operates a fully integrated one-stop system that spans from R&D to manufacturing, enabling a structured and highly efficient workflow. With creativity and efficiency as core values, we maintain an optimized organizational system designed to achieve our vision and goals effectively. We are equipped with an in-house reliability testing system certified by UL Korea, through which we thoroughly validate product performance and continuously strive for quality improvement and technological innovation. GigaTera® provides high-quality lighting solutions optimized for various applications, including sports facilities and industrial sites, delivering both maximum efficiency and exceptional economic value as a leading professional lighting manufacturer.
Integrated System Structure
Continuous Research & Development
In-house Production Line
In-house Reliability Verification
Continuous R&D through the fusion of 30 years of wireless communication thermal technology and 15 years of lighting technology
In-house production line spanning the Korea headquarters and Vietnam manufacturing base
Excellent quality verification system through in-house reliability equipment
Light Performance Measurement Equipment Integrating Sphere System The integrating sphere positions the light source at the center and measures luminous flux, luminous efficacy, and spectral characteristics of the emitted light. By comparing the output of the standard light source and the test luminaire, the system immediately verifies and analyzes the stability and performance of the lighting fixture in real time.

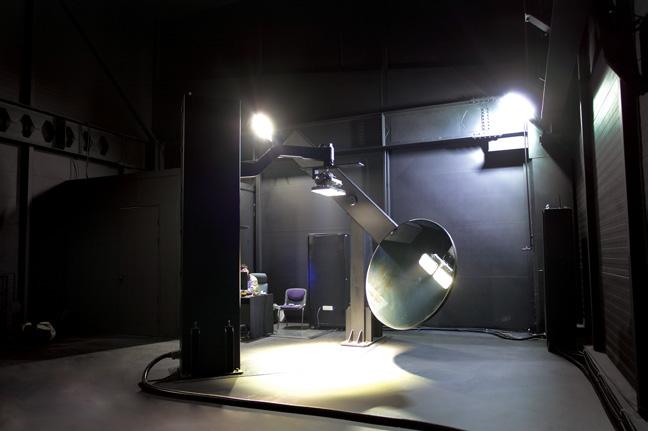

Mirror type Goniophotometer The goniophotometer rotates the light source or luminaire around its optical axis, and measures luminous intensity distribution and photometric characteristics using sensors that detect reflected light. It supports evaluation of the luminaire’s optical stability in accordance with CIE and IESNA LM79 standards and can simulate real-world installation angles through Burning Position settings. Additionally, the system automatically adjusts measurement intervals for precise testing, and meets the measurement requirements specified by NEMA classifications.
12
02 System Configuration

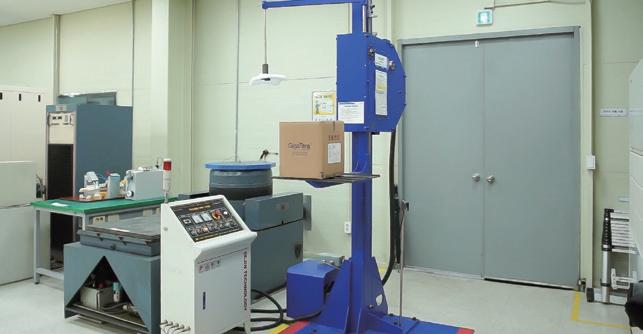

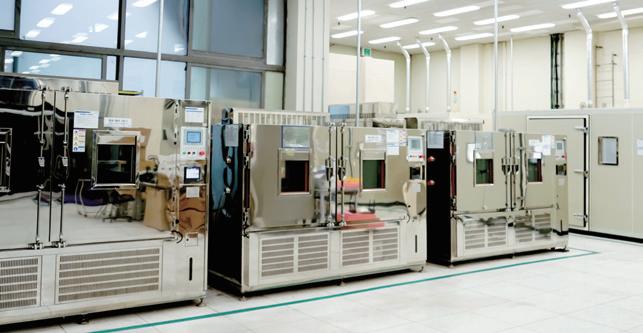

Reliability Equipment
Reliability Equipment

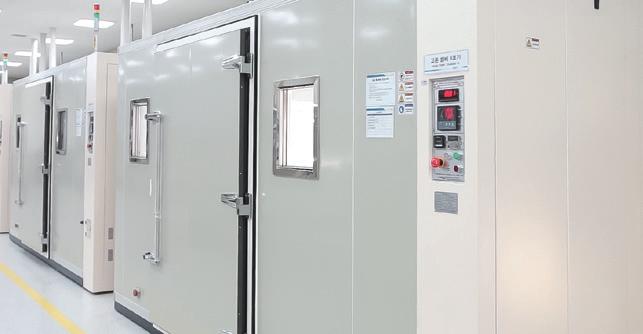

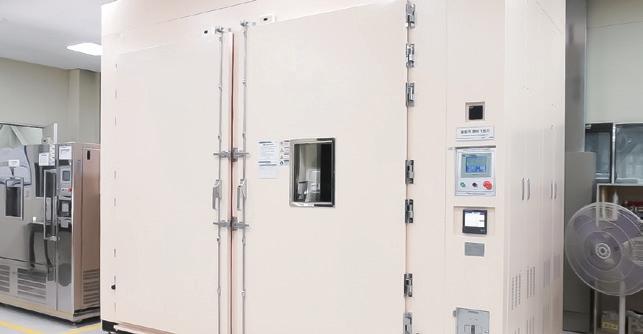

High & Low Temperature Chamber
Temperature/Humidity Chamber
Thermal Shock Tester

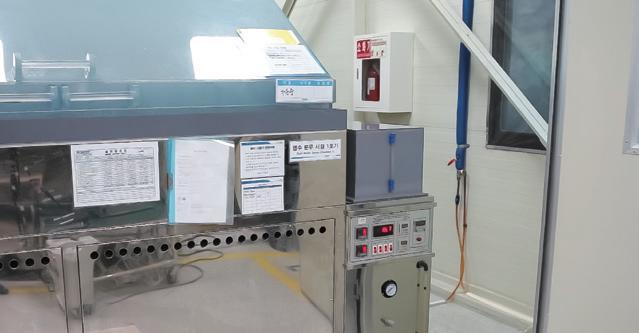

Salt Spray Tester

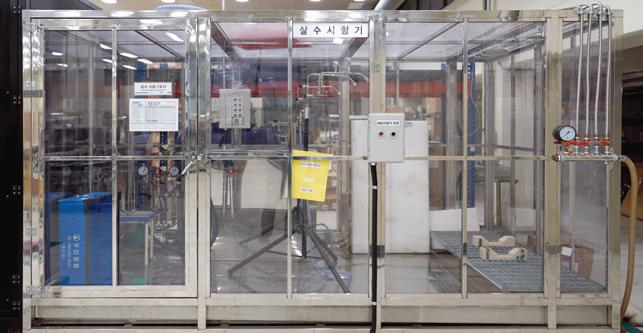

Rain Tester
Dust Tester

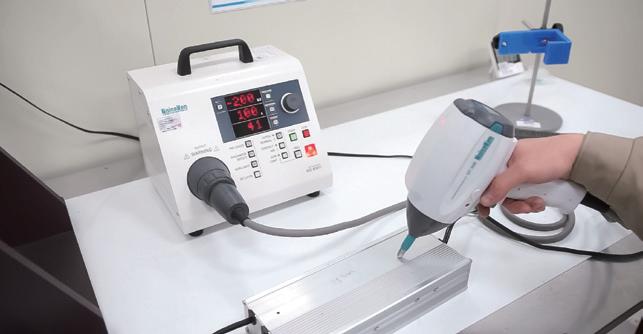

ESD Simulator
Drop Tester

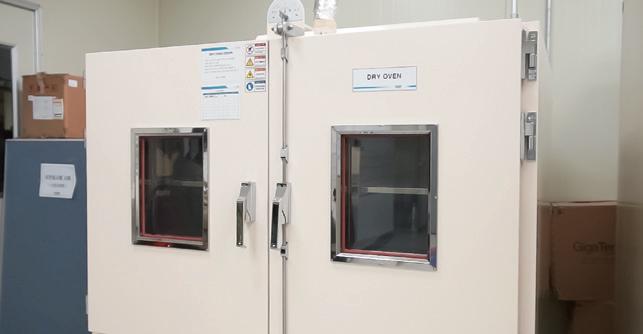

Dry Oven
Equipment
No
Spec/Range
1
High Temperature Tester
AC380V, 3Ø, 60Hz, 18kW, RT~80°C
2
Constant Temp. & Humid
AC380V, 3Ø, 60Hz, 45kW, -50~120°C, 30%~98% R.H
3
Thermal Shock Tester
AC380V, 3Ø∅, 60Hz, 78kW, -50~150°C
4
Salt Spray Tester
AC220V, 1Ø, 60Hz, 5kW, RT~35°C, NaCl 5%
5
Rain Tester
IPX5 : 12.5L/min ±5% (≥3 min) / IPX6 : 100L/min ±5% (≥3 min)
6
Dust Tester
IP6X: Protection against external dust particles
7
Vibration System
220V, 60Hz, 47AMPS
8
ESD Simulator
AC100~240V, 50/60Hz, 75VA
9
Drop Tester
AC100~240V, 50/60Hz, 75VA
10
On/Off Tester
AC100~240V, 50/60Hz, 75VA
11
Dry Oven
AC380V, 3Ø, 60Hz, 12kW, RT~250°C
12
Cryo Chamber
Temperature range: approx. −70~80°C
13
Draught Proof Enclosure
Luminaires and lamps temperature rise testing
14
Integrating Sphere System
CIE 84 / IESNA LM79
15
Mirror type Goniophotometer
- CIE 43, 69, 70, 84, 121, 127 - IESNA LM31, LM35, LM41, LM42, LM46, LM79
13
03 Proprietary Technology

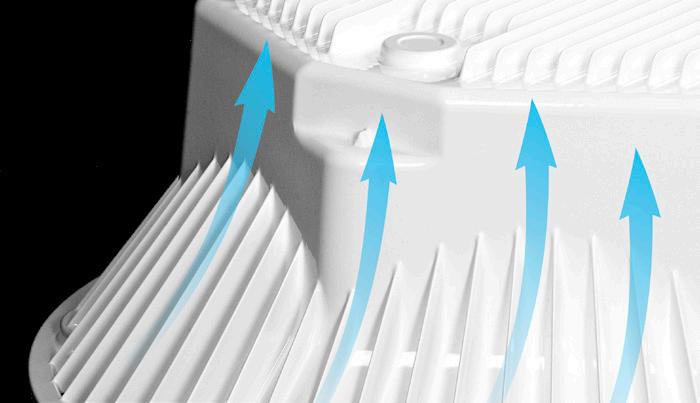

PTX™ Thermal Technology
PTX™ Thermal Technology

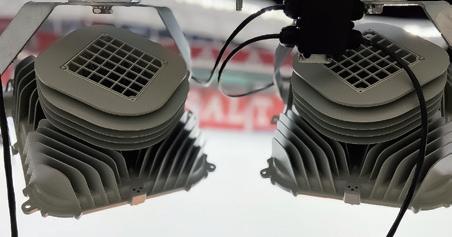

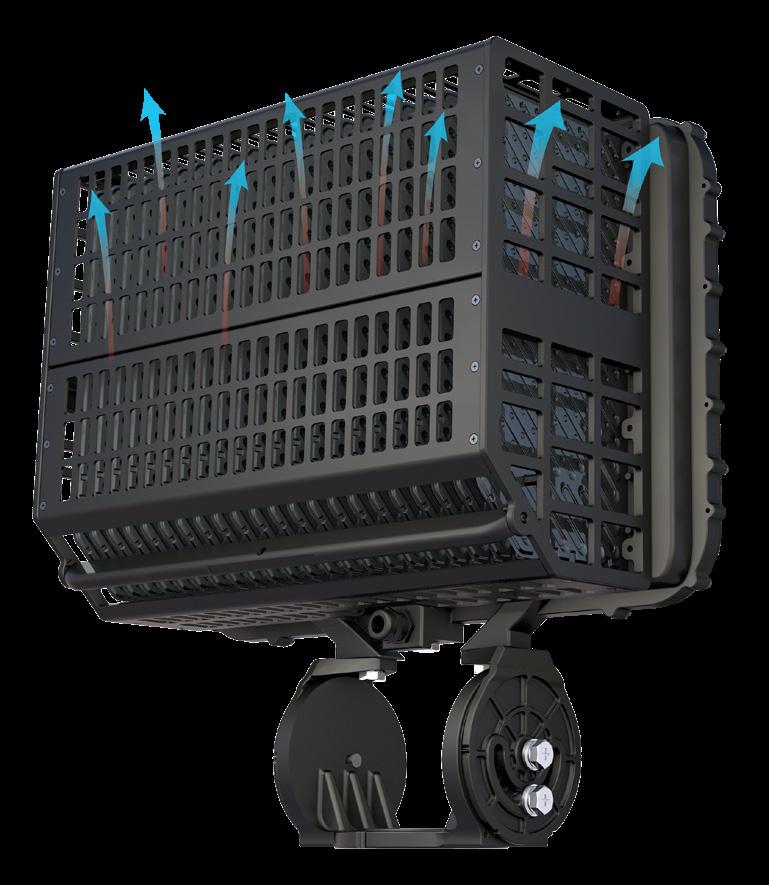

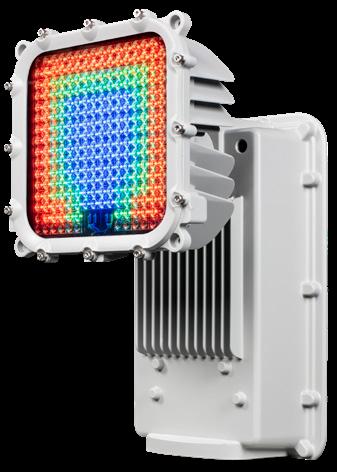

Exclusive GigaTera® PTX™ Thermal Technology Among the core technologies of LED lighting products, thermal management plays a crucial role not only in brightness but also in product lifespan. Traditional heat-sink structures commonly used in lighting increase overall product weight, which has long been a limitation in LED lighting design. GigaTera has overcome this challenge with its innovative PTX™ (Plate Thermal eXchanger) technology. PTX™ enables ultra-high brightness performance and exceptional thermal efficiency while maintaining structural stability, resulting in long-life, high-reliability products. This technology was officially recognized as a new technology in December 2024 under the certification title: “Finless high-performance thermal technology applying large-area LED lighting heat-pipe structure for telecommunication equipment and high-power lighting.”

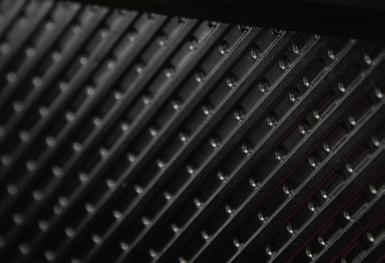

PTX™ : Plate Thermal eXchanger
PTX™ Features
Lightweight Design
Exceptional heat conduction performance
Up to 11.8kg lightweight design offering outstanding structural integrity
Rapid heat dissipation for enhanced stability and extended product lifespan
A new benchmark in thermal technology
Sustainable, eco-friendly cooling solution
Optimized thermal design delivering superior cooling performance with PTX™ technology
PFAS-Free materials ensuring high performance and environmental safety
PTX™
PTX™ Thermal Conductivity PTX™ achieves a thermal conductivity of over 3,000 W/mK, surpassing silver (420 W/mK) and far exceeding copper and aluminum. This breakthrough cooling technology, optimized for LED lighting, dramatically improves heat transfer efficiency - enhancing system reliability and overall project performance.Compared to traditional heat sinks, PTX™ overcomes weight and performance limitations, delivering long-lasting, high-efficiency thermal management that sets a new standard in the industry. Pulsating Heat Sink
14
PTX™
Heavy (increases product weight)
Ultra-light
Performance degradation over time
Long-life performance
1,000W/mK
3,000W/mK
3,000 W/mK

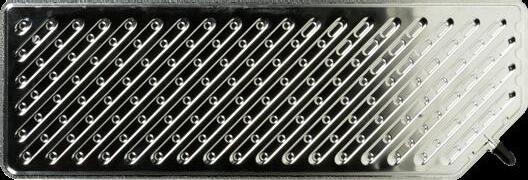

PTX™ Heat Sink
1,000 W/mK
Silver Copper Aluminum 0
100 200 300 400 500 600 700 800 900 1,000 3,000 [Thermal Conductivity (W/mK)]
Thermal Conductivity by Material
03 Proprietary Technology
PTX™ Thermal Technology
Product Evolution: SUFA Lineup

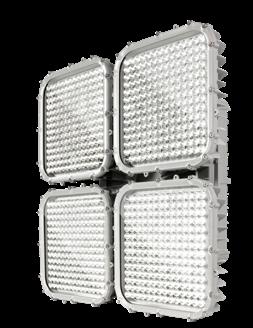

Quad Module(2010)

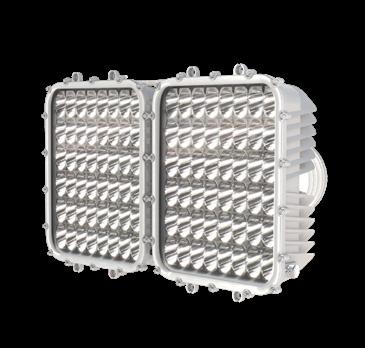

Dual Module(2015)

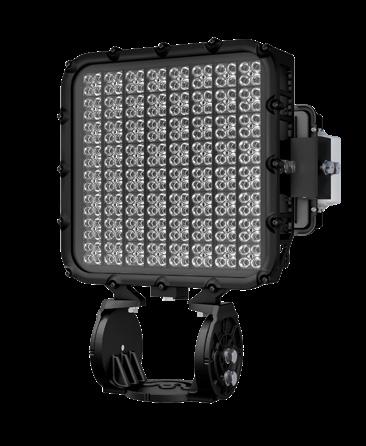

Single Module(2024)
Max 800W / 25.0Kg
Max 1.2kW / 18.0Kg
Max 1.5kW / 11.8Kg
Lighting & Pole Design Traditional heat‐sink structures used in lighting fixtures are a major cause of increased product weight. However, PTX™ thermal technology drastically overcomes these structural limitations. Products featuring PTX™ technology achieve both lightweight construction and streamlined design, improving efficiency across manufacturing, logistics, installation, and maintenance. Especially for high‐output floodlights, weight and wind load have significant impact on pole engineering and cost. PTX™‐optimized products reduce structural load, allowing reuse of existing pole designs or adoption of more efficient engineering alternatives. This flexibility delivers major advantages not only for new installations, but also for retrofit projects where lighting is upgraded while poles remain unchanged. Advantages of PTX™ Installation · Reduced pole loading allows optimization of steel thickness and pole structure, lowering installation cost · Lower EPA (Effective Projected Area) minimizes wind load impact · Lightweight fixtures ensure greater installation stability · Simplified installation eliminates the need for additional equipment and manpower · Reduced long‐term maintenance costs

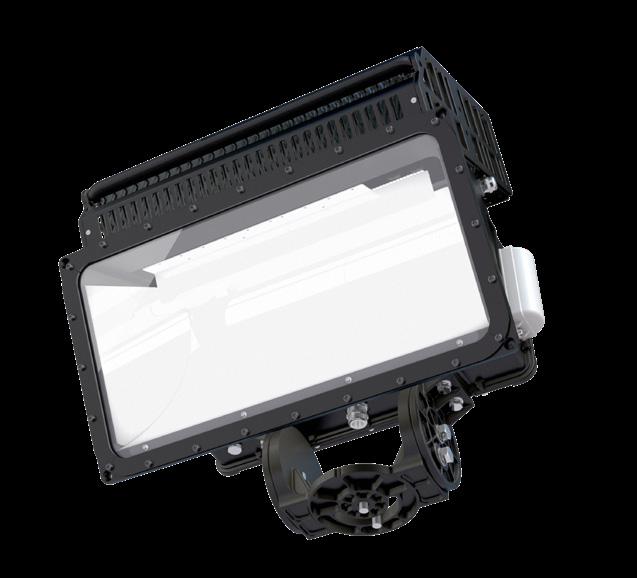

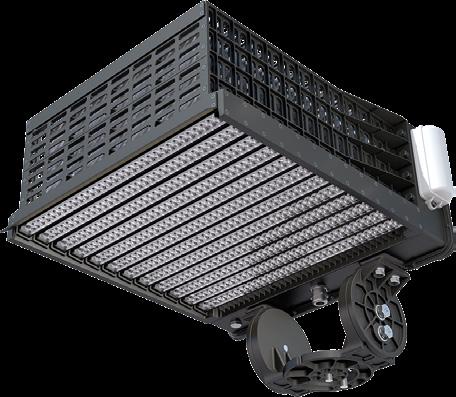

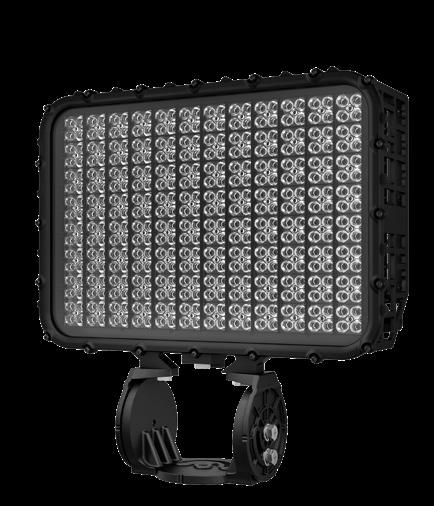

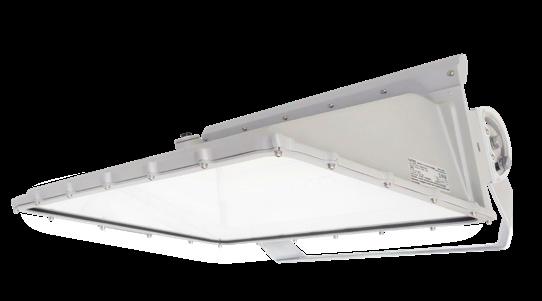

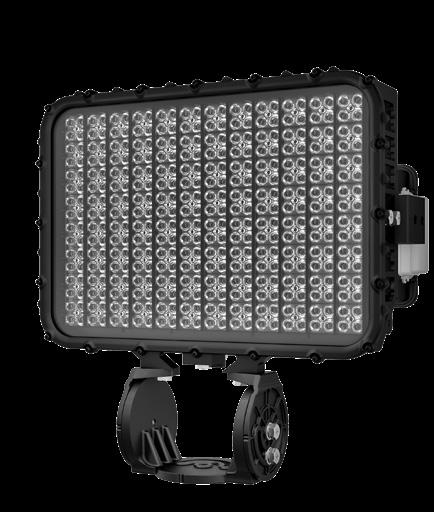

GigaTera® New Products: SUFA-PTX™ (SFP Series) & MAHA-PTX™ (MHP Series) Up to approx. 52% weight reduction (SFP1K2)/ Up to approx. 50% weight reduction (MHP1K2)
SUFA Series
MAHA Series
GigaTera® Sports Flood Lighting Series 1200W
GigaTera® Area Flood Lighting Series 1000W
11.8Kg
SFP1K2
14.0Kg
26.0Kg 21.0Kg 18.0Kg
SFH1K2 SFM1K2 SFA1K2
MHP1K0 MAH1K0
28.2Kg 15.2Kg
(Built-in)
MAH1K0 (Remote)
15
03 Proprietary Technology
Optical Technology
Optical Technology

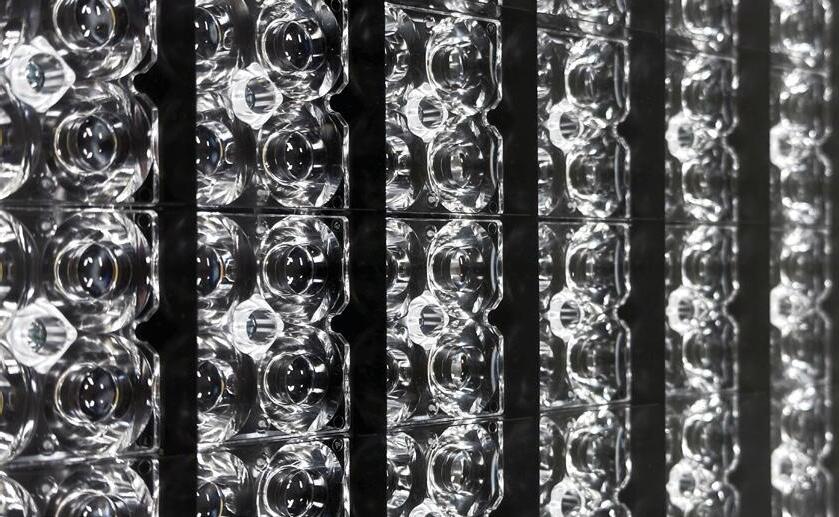

GigaTera® Precision Optical Design GigaTera® lighting systems are engineered with precision optical design to minimize uplight and maximize efficiency. Even when compared with lighting systems that have similar rated luminous efficacy, GigaTera® demonstrates superior uniformity and higher illuminance performance in real-world simulation environments. · Inner Visor · Glare Control · Dual-Head & Multi-Beam Forming Technology (NMBF) · Backlight Control · Full Cut-off Illumination · Optimized Light Distribution & Thermal Design · Field Lumen Performance
Inner Visor An inner visor refers to a visor installed inside the luminaire rather than externally. External visors increase fixture weight, wind load, and can disrupt fixture appearance and design, especially in stadium or large‐scale outdoor installations where structural load and aesthetics are critical. GigaTera’s stadium lighting uses internal visors that effectively block spill light and glare from inside the fixture, increasing useful light output to the intended target area while reducing unwanted light spill.
VS
Competitor External Visor
Inner Visor
20–30% reduction in upward light spill and glare compared to fixtures using external visors
· Minimizes glare and light spill · Rugged, one‐piece integrated design protects lenses from environmental damage · Eliminates the need for external visors → reducing weight and wind load · No additional cleaning or maintenance work required due to enclosed structure · Superior internal design ensures excellent durability and optical stability · Precise beam control that blocks unnecessary light spill and improves uniformity
Inner Visor
Intentional lighting on targeted areas

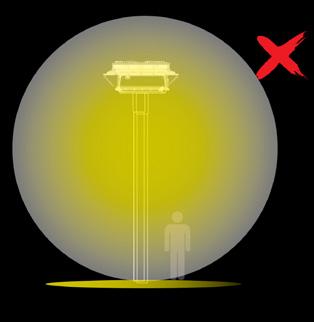

Spill Light (Not Proper Cut-off)
No Spill Light (Clear Cut-off)
External Visor
GigaTera® Inner Visor
If spill light is not properly controlled, unwanted light spreads into surrounding residential or public areas, causing light pollution and discomfort. With GigaTera®’s internal visor technology, spill light is effectively blocked, increasing useful lumens on the target surface and reducing wasted light. Many lighting manufacturers calculate efficiency including spill light; however, what truly matters is how much useful light reaches the field. In real-world stadium performance, GigaTera®’s inner visor design delivers superior uniformity and higher illuminance compared to fixtures marketed with high luminous efficiency but external visor structures.
16
03 Proprietary Technology
Optical Technology
Glare Control GigaTera®’s innovative optical technology provides optimal solutions, even for stadiums with spatial or height limitations. By combining asymmetric hybrid optics with high-efficiency NMBF (narrow multi-beam forming) technology, our lighting systems are designed to deliver top-tier performance in even the most constrained environments. Other LED Lighting
GigaTera® LED Lighting
Other LED Lighting
GigaTera® LED Lighting
Harsh shadows High spill light and glare Severe glare
Soft, balanced shadows Low spill light and glare Glare minimized
• Enhanced light control through chip-specific lens application • Zero uplight and uniform coverage across target areas • Minimal light spill and glare for better visibility • Consistent illuminance even without exact aiming • Minimizes spill light caused by aiming adjustments • Smooth distribution and even light coverage across large spaces
Dual-Head & Multi Beam Forming Technology(NMBF) GigaTera®’s luminaires use low-power LED modules that can be combined to create high-power systems of 800W, 1200W, or 1500W. Each module allows for independent tilting and rotation, minimizing interference during aiming and focusing light precisely where needed. Such modular design achieves exceptional uniformity and nearly eliminates glare, often creating the illusion that our lights are off. · Optimized energy use with minimal spill light · Enhanced uniformity through multiple aiming points · Reduced glare for athletes · Flexible aiming for even light coverage · Low glare, low spill light, and low light pollution · Dual-module setup with mounted or remote drivers · Sustainable modular design for decarbonization from design to install
Other LED Lighting
Dual-Head GigaTera® LED Lighting
Single-beam structure
Distributed multi-beam structure Glare suppressed and
Glare and light loss occur Uneven uniformity
spill light minimized Optimal uniformity delivered
Distributed Beam Structure: Delivers Optimal Uniformity
17
03 Proprietary Technology
Optical Technology
Back-light Control Zero Uplight & Back-light Suppression The MAHA series features a complete light distribution that minimizes glare, spill light, and light trespass without additional visors or complex aiming adjustments, ensuring zero light pollution and preserving the natural night sky. Even when mounted at heights of up to 14 m and aimed up to 15° upward, the MAHA series maintains a ULR value of 0 with exceptionally low glare ratings.
Advanced Full Technology
Light Trespass
Useful Light
MAHA Series
SUMA products significantly reduce glare by applying precise optical engineering for superior visual comfort and safety. With the Advanced Full technology, SUMA products achieve approximately twice the glare reduction compared to the MAHA series. Height GR 1.7m GR 5m
Glare
Distance 200 m
Distance 300 m
MAHA
46.9
41.6
SUMA
23.1
18.1
MAHA
47.4
41
SUMA
24.7
13.9
GR(Glare Rating): Lower values indicate reduced glare and enhanced visual comfort.
Light Trespass
Useful Light
Glare
SUMA Series

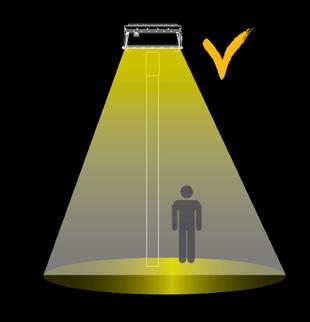

Full Cut-off Lighting · Comfortable lighting with no glare for both players and spectators · Uplight-free (ULR 0%) design (MAHA, SUMA series) · Precise beam control delivering light only where needed · Reduces light spill and protects the natural environment with eco-friendly illumination
Even when installed in the same location, GigaTera® full Cut-off optics significantly reduce spill light compared to conventional luminaires. By precisely directing light only to the target area, backlight and spill are minimized, ensuring a comfortable, glare-free environment for both players and audience.
Conventional LED Lighting
GigaTera® Full Cut-off Lighting

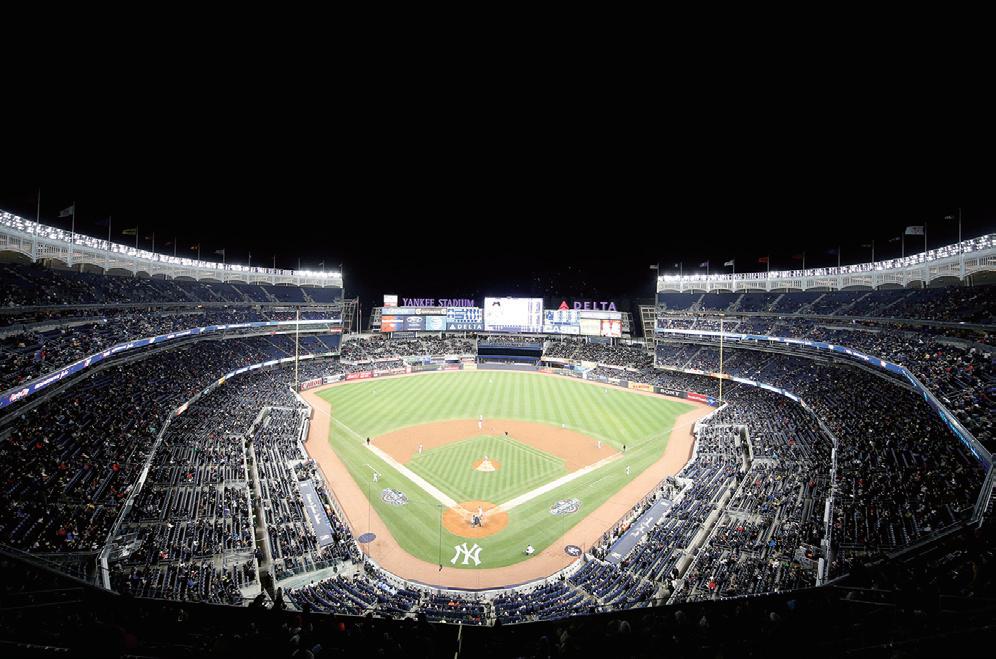

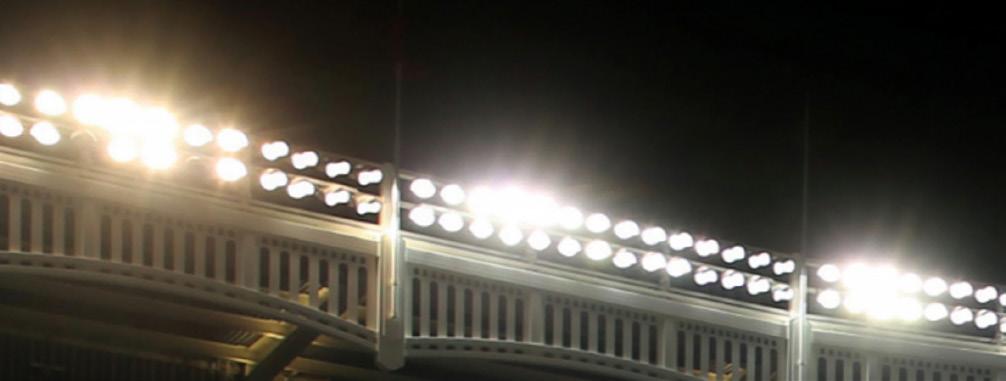

Even after 10 years of installation, Yankee Stadium in New York continues to rely on GigaTera® lighting for perfect illumination.
Spill light and glare
Conventional LED Lighting
18
GigaTera® Full Cut-off Lighting (SUFA series)
03 Proprietary Technology
Optical Technology

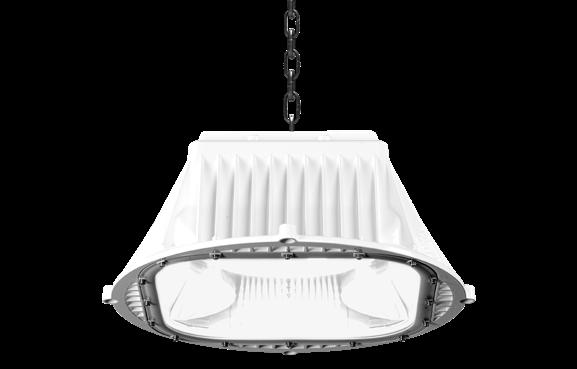

Indirect Reflection & Thermal Optimization The high-bay SEGA series and roadway META/SETA series deliver brighter, more uniform light with minimal glare, transforming environments with improved visibility and safety. Through indirect reflection optical design, light is evenly distributed across the space without direct glare, enhancing comfort and clarity. Separately structured vertical LED modules maximize light output while minimizing direct eye exposure. Additionally, vertical cooling fins and optimized airflow paths efficiently dissipate heat and prevent dust buildup, ensuring long-term reliability and stable performance even during extended operation. Smart wireless control enables easy maintenance management, while high luminous efficiency and low power consumption provide excellent long-term cost savings.

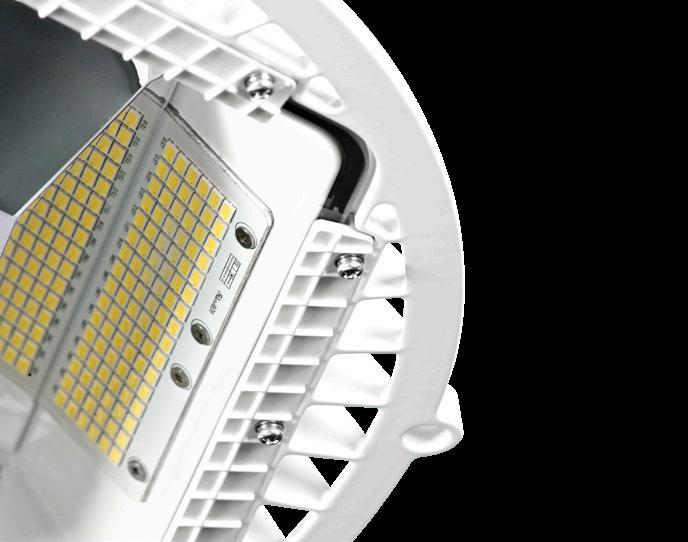

Vertical Separated LED Module
Reflector Optical Design
Cooling Fin Structure GigaTera® high-bay luminaires utilize a vertically-oriented fin structure designed for efficient natural convection cooling. Unlike forced-air cooling designs, this passive thermal structure maximizes airflow and dissipates heat effectively without added mechanical components, overcoming thermal limitations common in high-power LED luminaires. Efficient thermal management is directly linked to product lifespan and reliability, making advanced heat-dissipation engineering a key core technology in GigaTera® products.
[ SEGA Series Heat-Sink Fin Structure]
Field-Lumen Measurement (Minimizing Spill Light & Light Loss) Even with high luminous efficacy, lighting is ineffective if light does not accurately reach the target area. When light spreads outside the intended zone, visibility decreases and spill light issues arise. GigaTera®’s optical system incorporates a Multi-Layered Inner Visor (MLV™) inside the luminaire, delivering precise light control that directs light exactly to the intended location. This results in consistent illumination quality and comfortable visibility for players, spectators, and broadcast cameras. Competitor Lighting

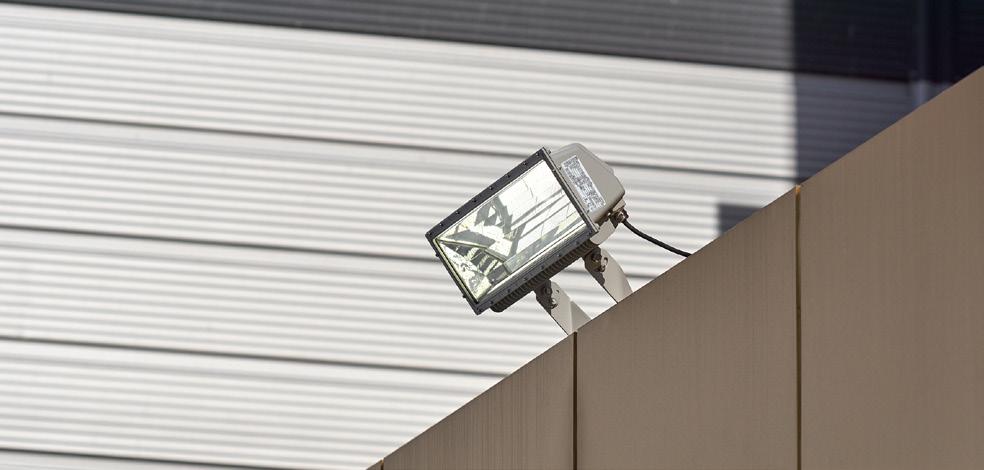

Competitor Lighting
GigaTera® Lighting
GigaTera® fixtures achieve only a 5% loss in field lumen, compared to 38% for competitors — proving significantly superior field-lumen performance.
GigaTera® Lighting
No Visor
Spill Light
18,032 lm
12,052 lm
Field Lumen
104,975 lm
78,327 lm
With Visor
Spill Light
10,079 lm
4,898 lm
Field Lumen
65,769 lm
74,660 lm
spill Light Reduction
48%
59%
Field-Lumen Loss
38%
5%
Why Field Lumens Makes a Difference? ➀Targeted Illumination: Light only where it’s needed, reducing glare and keeping the field comfortable for players and spectators ➁ Game-Optimized Lighting: Custom light distribution for every sport, maximizing focus and immersion ➂ Energy Smart: Minimize wasted light, boost efficiency, and cut operational costs
non-uniformity
uniformity
19
03 Proprietary Technology
GeSS® Control System
GeSS® Control System Facility managers must be able to control lighting anytime, anywhere without location constraints. GigaTera®’s GeSS® control solution provides flexible and remote lighting management with various control modes. The GeSS® control system allows lighting installed on poles, buildings, or indoors to be easily turned on/off or finely adjusted via PC, tablet, or smartphone. With the GeSS® platform, users can monitor lighting, apply automated schedules, analyze power consumption, and manage dimming for smart energy efficiency. This enables significant energy savings and improved operational convenience. Starting from a single fingertip, GigaTera®’s innovative smart lighting control system brings intelligent energy reduction and advanced operation to any site.
GeSS® Features
Event Setting
Wireless Control
System Setting Dimming Control
01 Smart Lighting Control for Sustainability The GeSS® control solution provides a more intuitive and streamlined lighting management system, enabling both energy savings and long-term sustainability. By illuminating only the required areas instead of lighting the entire sports park or tennis court at once, unnecessary power usage is minimized. With GeSS®, lighting can be precisely controlled only where and when it is needed. Its intuitive user interface and simplified control functions reduce complex configurations, significantly lowering both energy consumption and operational costs.
02 Flexible Installation Options — Wired, Wireless, and Hybrid to Reduce Infrastructure Costs One of the biggest challenges in deploying a control system is the initial infrastructure cost. GigaTera®’s lighting control solution supports wired, wireless, and hybrid installation options, offering flexibility suited to the site environment and budget. This allows maximum use of existing infrastructure and minimizes installation work, reducing time and cost. Particularly in remote or difficult-to-wire environments, wireless-based control provides excellent economic and operational efficiency, delivering a fast and convenient control experience.
20
03 Proprietary Technology
GeSS® Control System
GigaTera® Control System GigaTera® provides the GeSS® lighting control solution, supporting both wired (DMX-RDM, RS-485) and wireless (Zigbee) networks, offering seamless control integration and flexible networking options tailored to customer needs.
[Supported Networks] (Wired) DMX- RDM | RS-485, (Wireless) Zigbee
Flexible control options
Energy-efficient operation
$
Reduced installation cost
Benefits
Designed for compatibility with existing control systems, GeSS® enables lighting replacement or upgrades without modifying current infrastructure - provided the site meets supported network requirements. The system can be integrated without changing control protocols, allowing customers to retain their current system while upgrading easily, without additional installation cost. This reflects GigaTera®’s customer-first philosophy providing a flexible control solution that considers operational needs, environment, and budget to enable smarter lighting management.
User-Centered Values Enabled by GeSS®
Smart Energy Savings
Flexible Remote Management
· Real-time brightness control · Scheduled operation settings
· Real-time control via PC or mobile · Control from any location, without on-site access · Group control & simple batch settings
Optimizes light levels based on environment and purpose, enhancing energy efficiency and providing long-term electricity savings.
Offers convenient operation and fast response capability, enabling centralized management even in large-scale facilities.
Operational Efficiency & Maintenance Optimization
Data-Driven Insights
· Monitoring of lighting status and system operation · Quick action in case of abnormalities · Reduces unnecessary on-site inspections
· Collects lighting usage patterns and energy consumption data · Provides reporting and analysis for users · Predictive maintenance and intelligent scheduling
Improves operational efficiency and significantly reduces time and cost required for maintenance.
Enables strategic, data-driven lighting management, supporting more scientific and future-oriented energy and facility operation.
21
03 Proprietary Technology
GeSS® GUI
Graphic User Interface System
GUI
The GeSS® GUI is a local lighting control solution that offers a user-friendly interface, fully programmed and customized for each site. Integrated with both wired and wireless control methods, the GeSS® GUI system ensures reliable and seamless lighting management in any environment. It enables precise control such as on/off switching, dimming, RGB effects, and event-based scenes—providing optimized, customized lighting solutions for diverse applications. • Supports multiple control methods (wired & wireless) • Individual fixture control to group-based control • High-stability system design • Reduces energy and maintenance costs
Wired Local Control · Control available via PC or IPC · Up to 200 fixtures controllable with a single Master-W unit
Hybrid Local Control (Wired + Wireless) · Control available via PC or IPC · Wireless communication distance between Master-WH-M and Master-WH-S: up to 200 m (*LOS standard) · Each Master-WH-S supports up to 32 wired fixtures
22
* WH-M : Hybrid Master * WH-S : Hybrid Slave
03 Proprietary Technology
GeSS® Cloud 3.0
GeSS® Cloud 3.0 Lighting Control System
Cloud 3.0
With GeSS® Cloud, users can monitor and remotely control lighting installations anytime, anywhere. By leveraging PCs, tablets, and smartphones, the system enables efficient operation and maximized energy-saving performance. • Monitoring: Hourly Power Consumption Monitoring • Core Functions: Auto scheduling / Reservation mode / Power consumption monitoring • Lighting ON/OFF & Dimming Control: Automatic & manual switching Dimming range: 10–100%, step control or slider control available • User-Tailored Convenience: Customized settings based on user needs and site conditions
CLOUD 3.0
Full-site lighting status & statistics
Operational monitoring
Automated ON/OFF schedule display
Power usage analytics
Wireless Local Control · One Master-E can manage up to 2 Master-W units · One Master-W can control up to 200 luminaires
Hybrid (Wired + Wireless) Local Control · One Master-E can manage up to 2 Master-WH-M units · One Master-WH-S can control up to 32 luminaires
23
03 Proprietary Technology
RTS™-G3 remote tilting and Steering
Remote Tilting & Steering Bracket
RTS™-G3 Control System
The SUFA-P Series, available in White, Tunable White, and RGBW versions, can be seamlessly integrated with the RTS™-G3 remote control bracket. Positioned as a future - ready solution, RTS™-G3 can be mounted to all SUFA-P main luminaires—either during the initial installation or added later as an advanced upgrade. Unlike typical moving lights, the RTS™-G3 is designed as a flexible component, offering robust remote tilting and steering control as a premium option (±70° steering, 20° to –70° tilting, moving speed 5°/ sec). This ensures precision, adaptability, and long-term scalability, enabling stadiums and arenas to transform into landmark venues.
-70°
70° 20°
-70°
RTS™-G3
±70° Steering

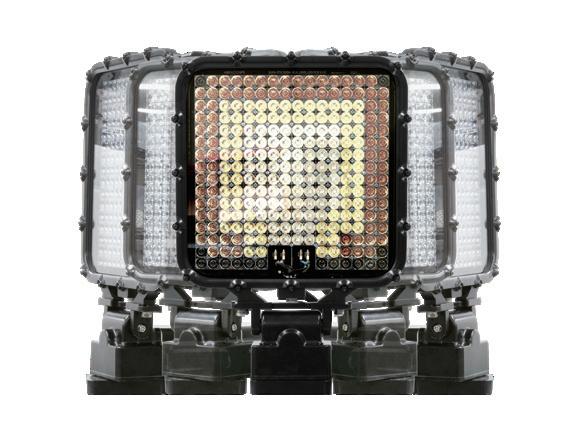

SUFA-PTX™ Tunable White Multi-Purpose Arena & Stadium Lighting Without Limits The SUFA-P TW delivers 4000K–5700K tunable white lighting to meet official standards across multiple sports with the precision RTS™-G3 bracket delivering optimal beam direction for any venue layout.
SUFA-PTX™ RGBW (RGB Optional) Bringing Dynamic Color Transitions with Seamless Control and Clarity As venues and schools continue to elevate the spectator experience, color and motion have become essential for energizing crowds and creating unforgettable moments. The SUFA-P RGBW enables smooth, programmable movement for immersive fan experiences, events, and shows. 24
20° to –70° Tilting
03 Proprietary Technology
RTS™-G4 remote tilting and Steering
Remote Tilting & Steering Bracket
RTS™-G4 Control System
Going beyond the limitations of the previous RTS™-G3’s optional bottom-bracket design, the RTS™-G4 has been reborn as an “all-in-one rear-mounted control system” perfectly integrated with the luminaire. Designed to be unified at the rear of the newly developed SUFA lineup (Circular and Rectangular types), the RTS™-G4 achieves unrivaled mechanical stability. This enables it to effortlessly support heavier, high-output lighting, while delivering extensive tilting and steering control, as well as ultra-precise aiming, at significantly faster speeds. Notably, the SUFA Circular model, which modernizes the traditional lighting form, supports both White and RGBW specifications. This allows it to flawlessly create the most dynamic and immersive lighting environment that captivates audiences in any space. 60° -60°
60°
-60°
RTS™-G4
±60° Steering
±60° Tilting Steering and tilting angles may vary depending on the installation method.
SUFA Circular White Premium Main Lighting for Professional Sports Stadiums The SUFA Circular White is an 800W high-output luminaire. Seamlessly integrated with the RTS™-G4 system, it serves flawlessly as the main lighting for premium stadiums. Utilizing the tilting and steering functions of the RTS™-G4 system, stadium operators can focus the light exactly where it is needed at any time.
SUFA Circular RGBW Bringing Dynamic Color Transitions with Seamless Control and Clarity As venues and schools continue to elevate the spectator experience, color and motion have become essential for energizing crowds and creating unforgettable moments. The SUFA Circular RGBW enables smooth, programmable movement for immersive fan experiences, events, and shows. 25
04 Key Reference Projects
Yankee Stadium New York, USA
Sports Flood Lighting
SUFA
• Installed 2015

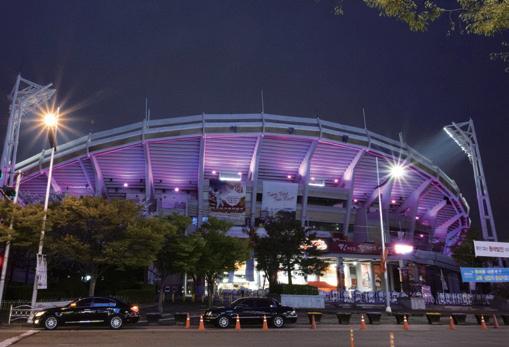

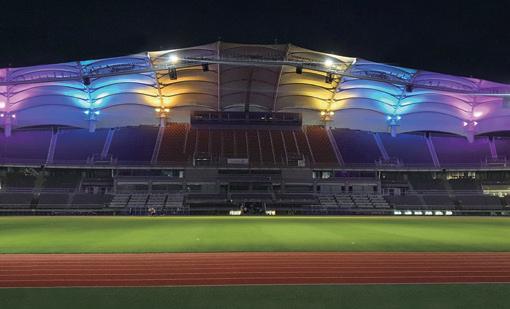

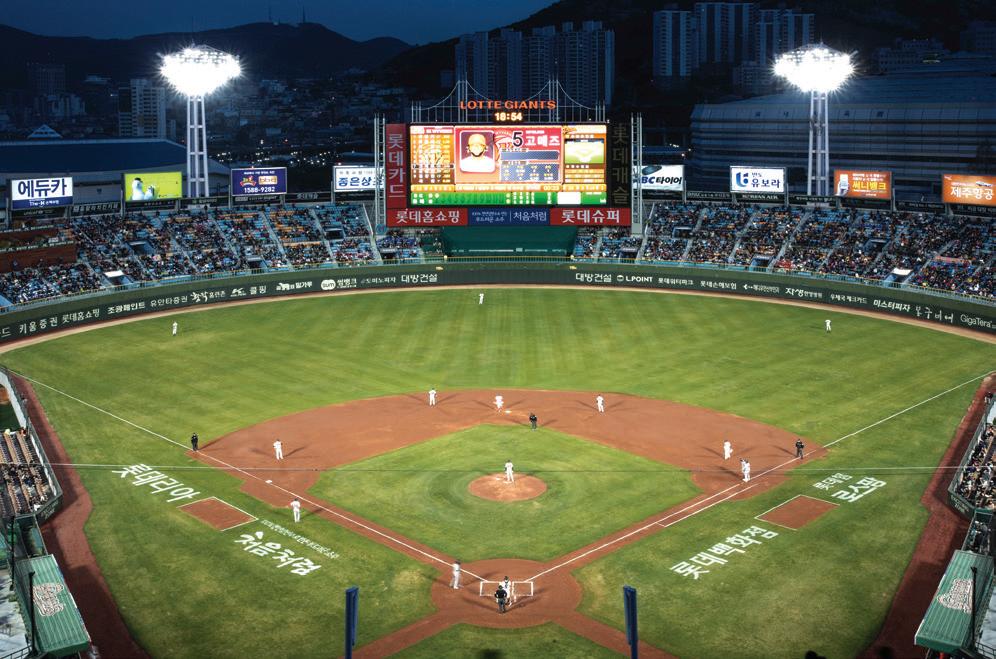

Sajik Baseball Stadium Busan, South Korea
Sports Flood Lighting
SUFA
• Installed 2015 • Exterior RGB Lighting

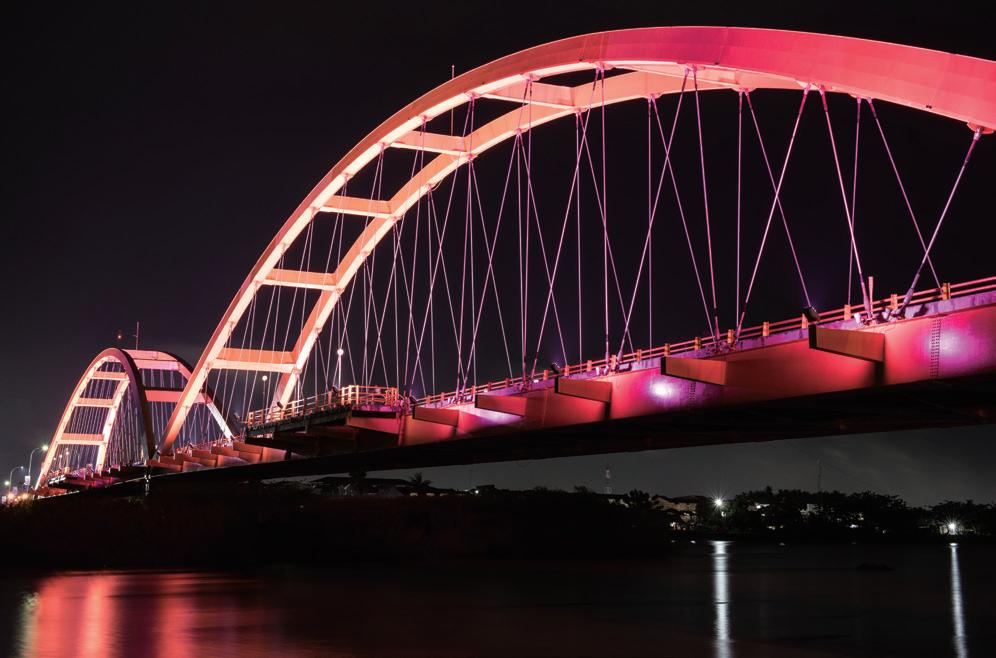

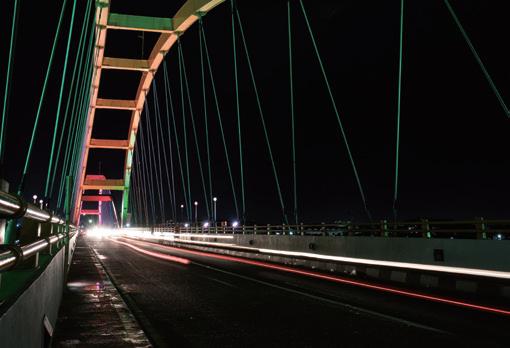

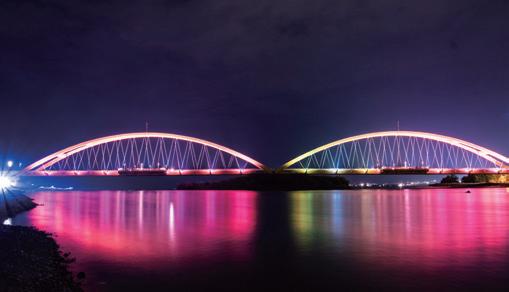

Jembatan Ponulele Palu, Indonesia
Facade Lighting
MAHA_RGB
• Installed 2016 • RGB Lighting System
26
2015-2016
2016-2017
04 Key Reference Projects

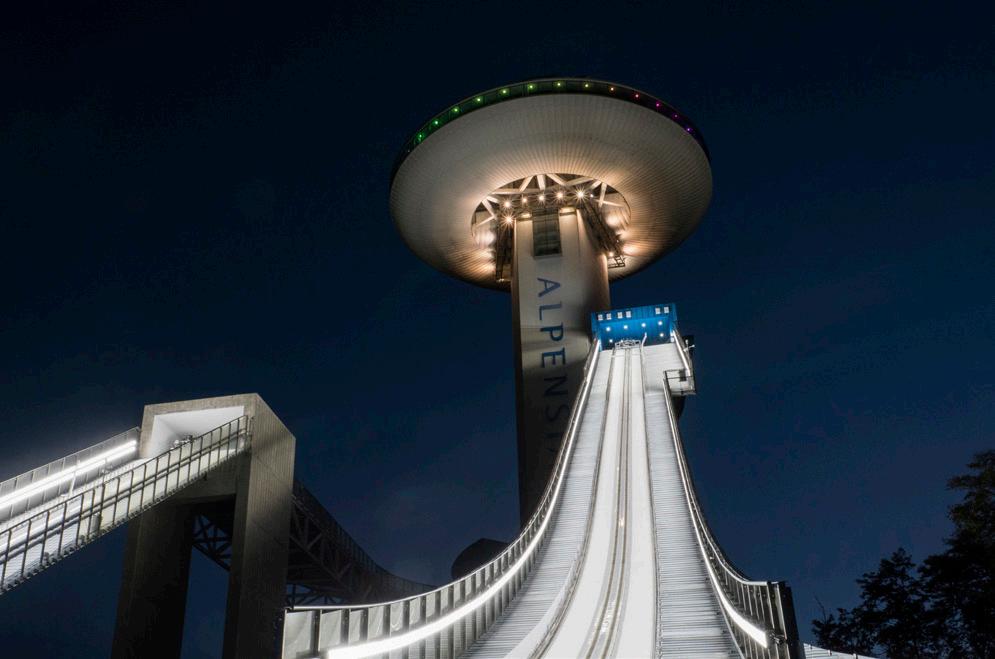

2018 Winter Olympics Pyeongchang, South Korea Sports Flood Lighting
SUFA
• Installed 2016 • Curling Center, Speed Skating Oval, Biathlon Arena & Cross-Country Ski Venue

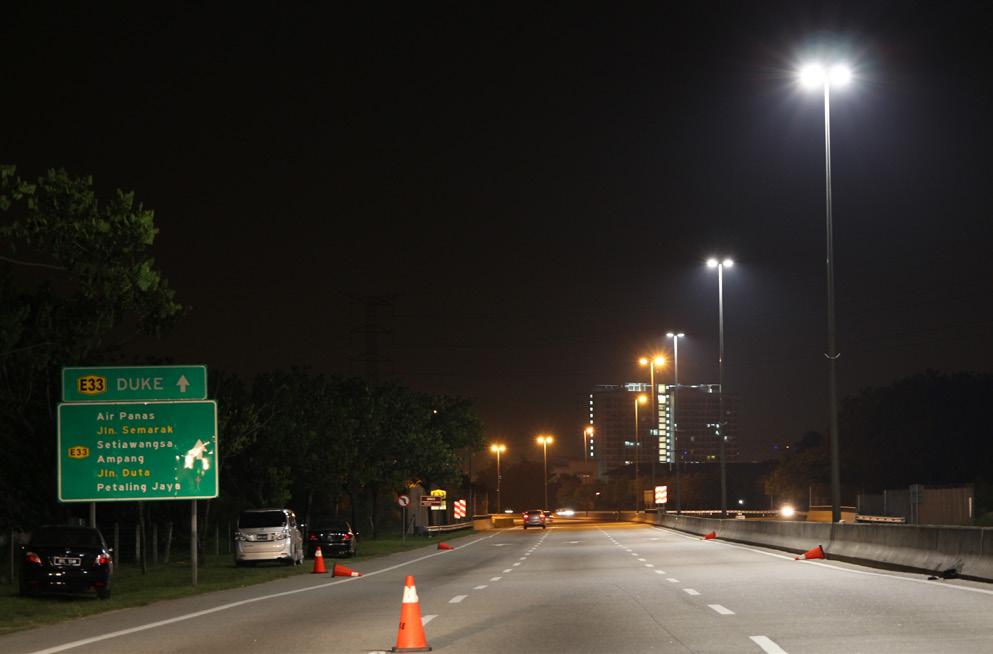

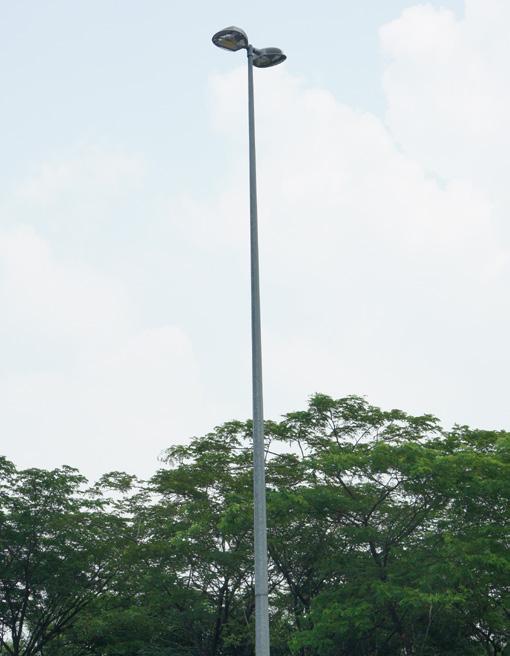

DUKE Highway Malaysia
Roadway Lighting
META
• Installed 2016

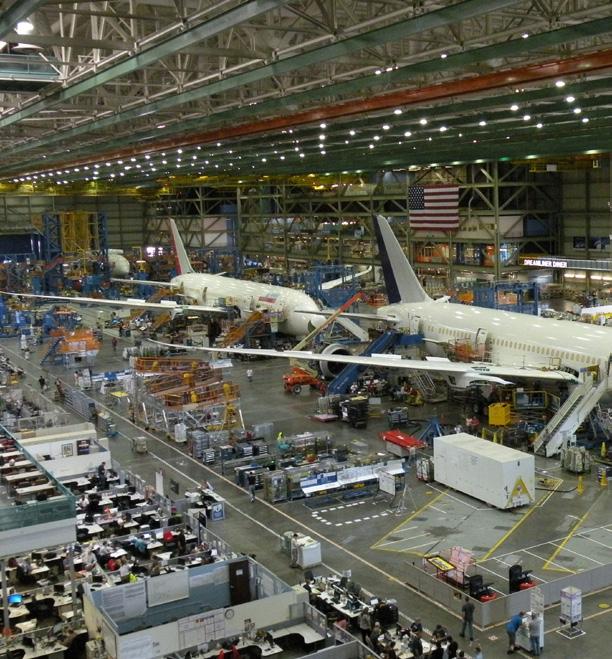

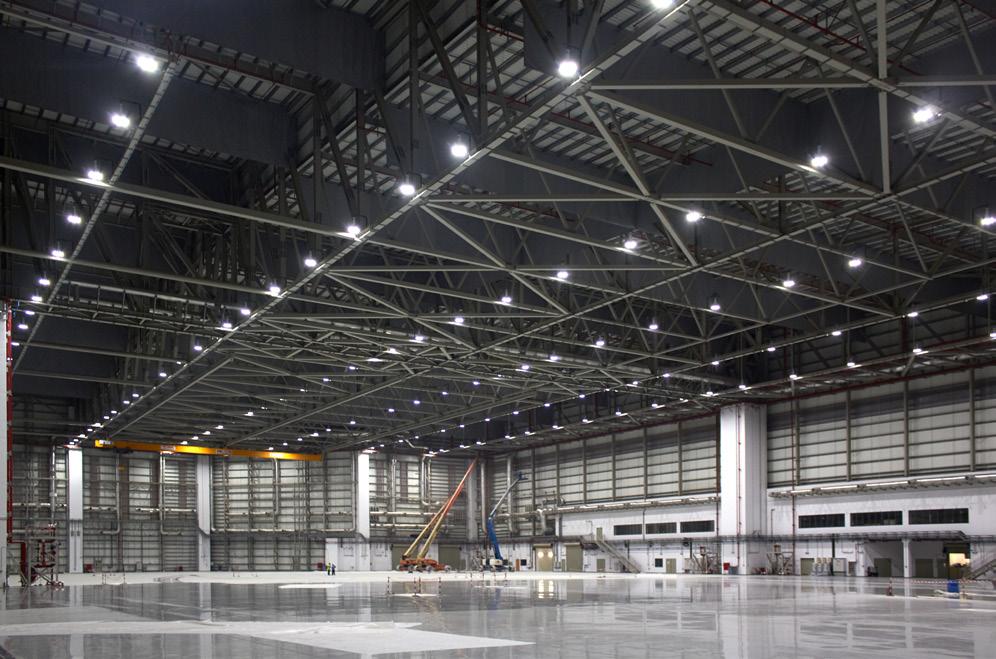

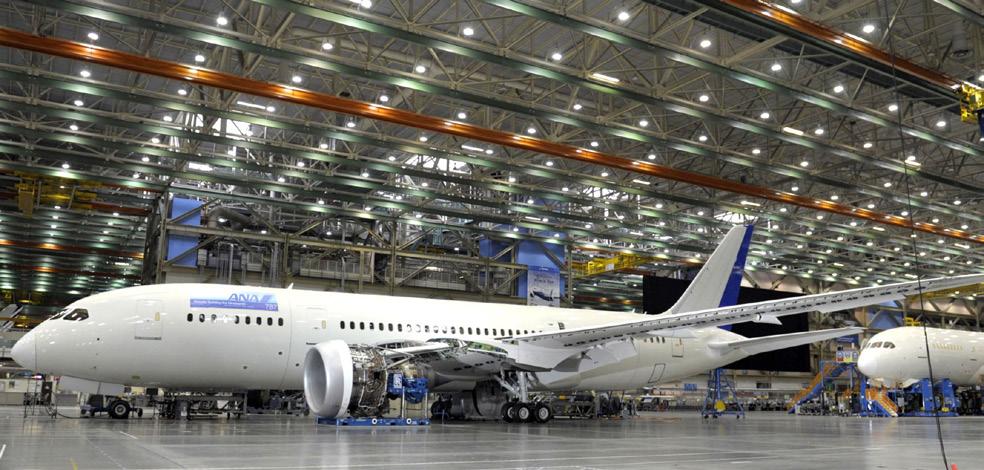

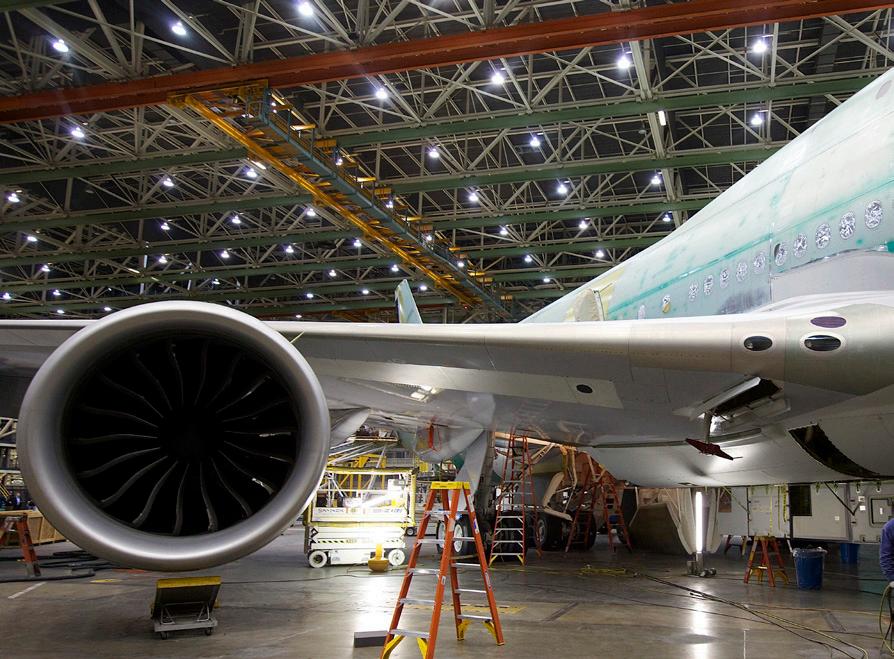

Boeing USA United States
Bay Lighting
SEGA-HP
• Installed 2017
27
04 Key Reference Projects

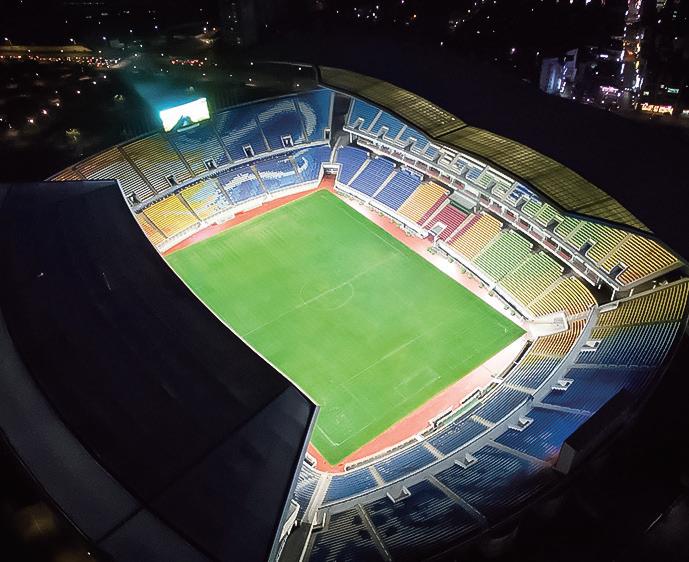

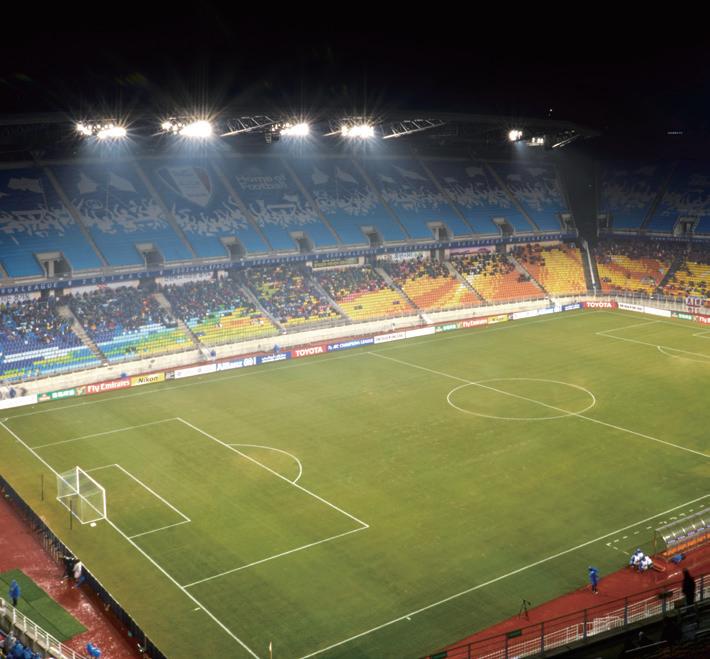

Suwon World Cup Stadium Suwon, South Korea
Sports Flood Lighting
SUFA
• Installed 2017

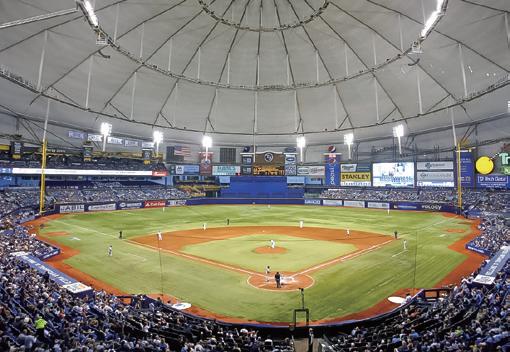

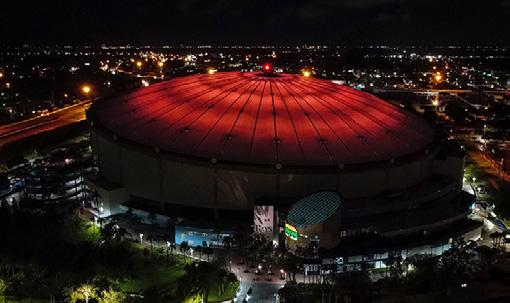

Tropicana Field Tampa Bay, USA
Sports Flood Lighting
SUFA
• Installed 2017 • RGB Lighting Installed

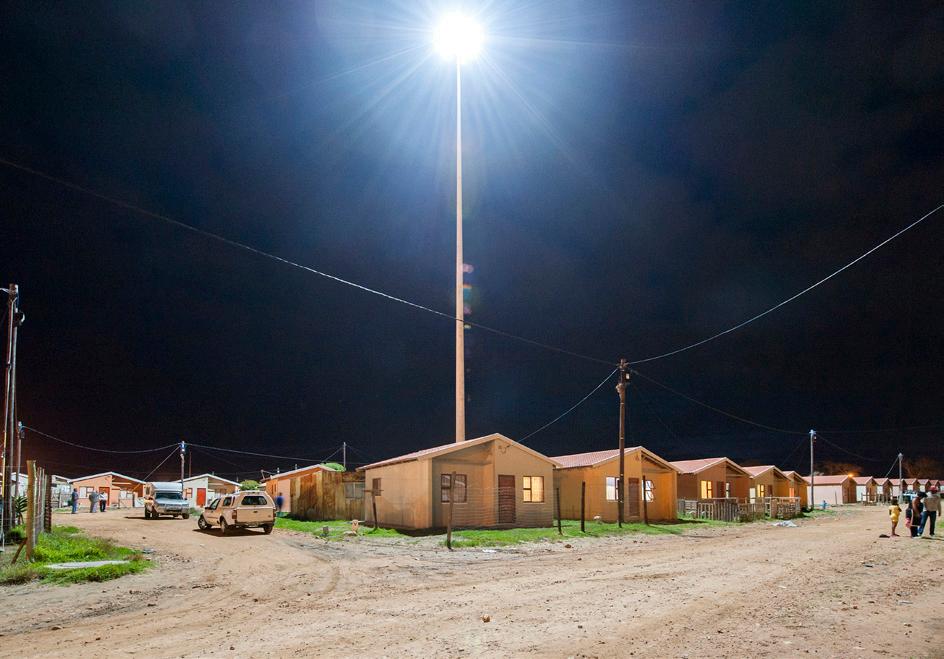

Port Elizabeth South Africa South Africa
Area Flood Lighting
MAHA
• Installed 2017
28
2017
2017-2018
04 Key Reference Projects

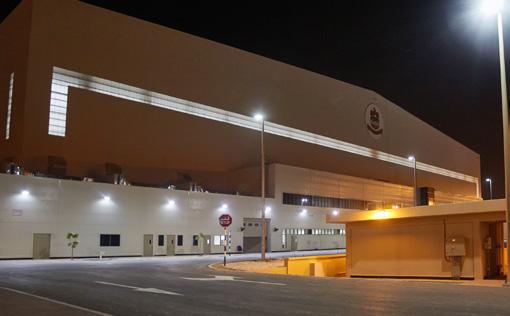

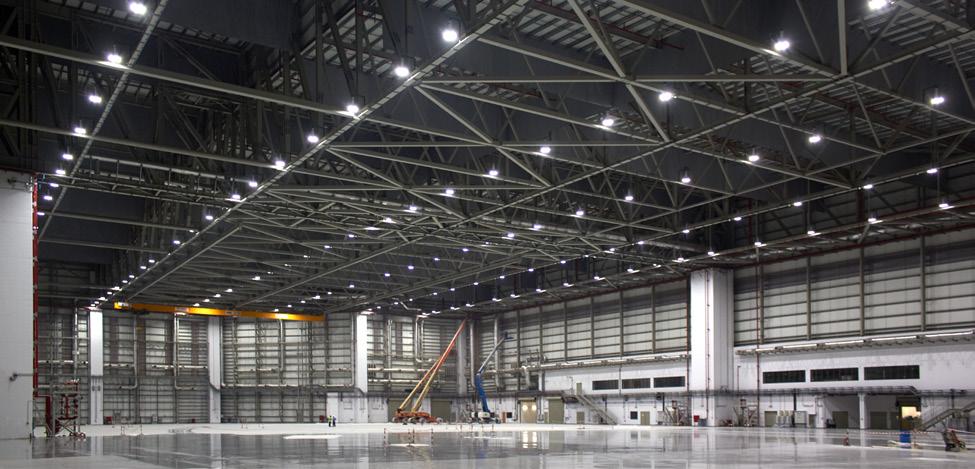

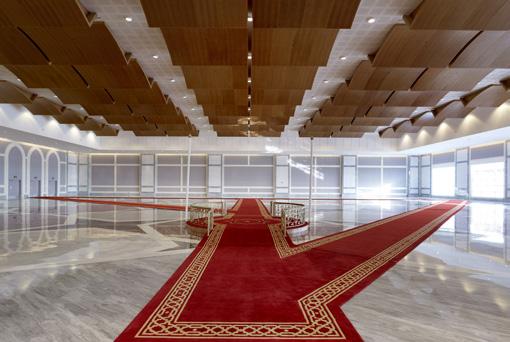

Presidential Flight Hangar Abu Dhabi Abu Dhabi, UAE
Bay /Area Flood Lighting
SEGA-HP, WAPA • Installed 2017

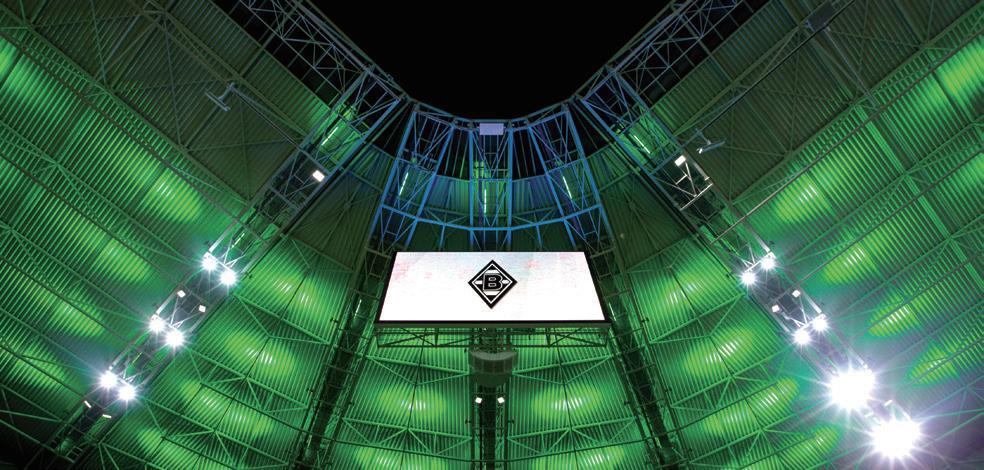

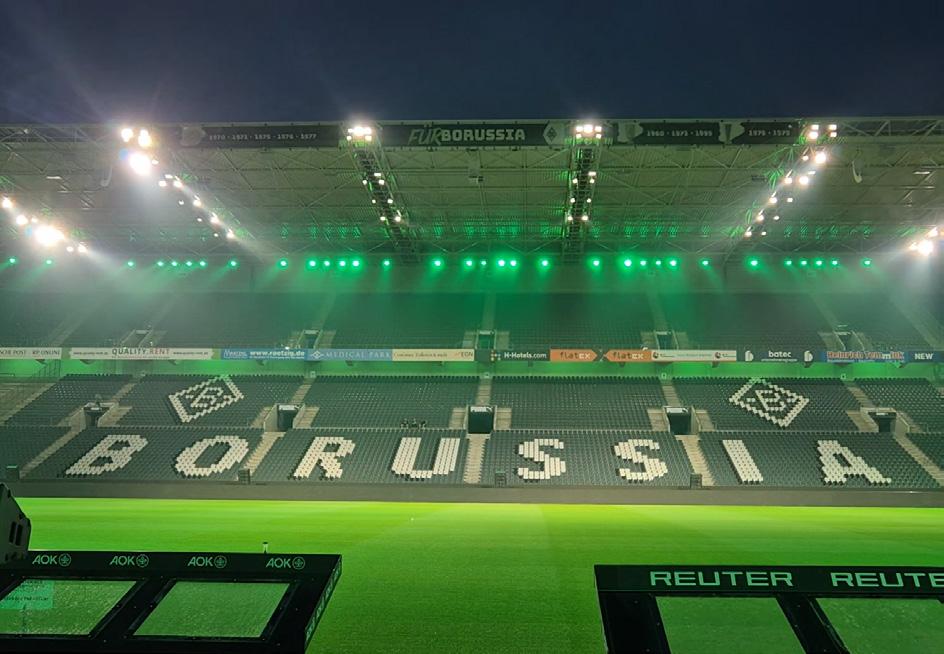

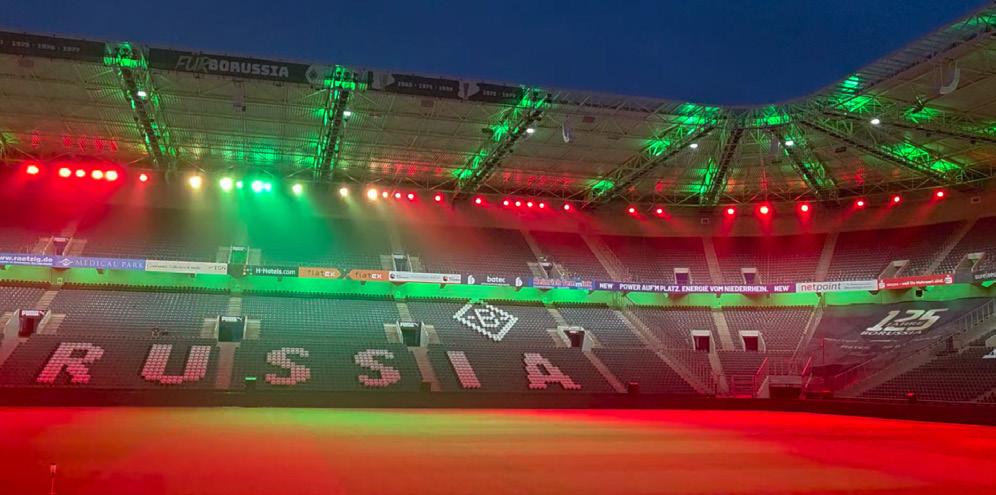

Borussia Park Mönchengladbach, Germany
Facade Lighting
SUFA, SUFA RGB • Installed 2017 (*WAPA Green) • Renovation 2025 (*SUFA-PTX™ Upgrade)

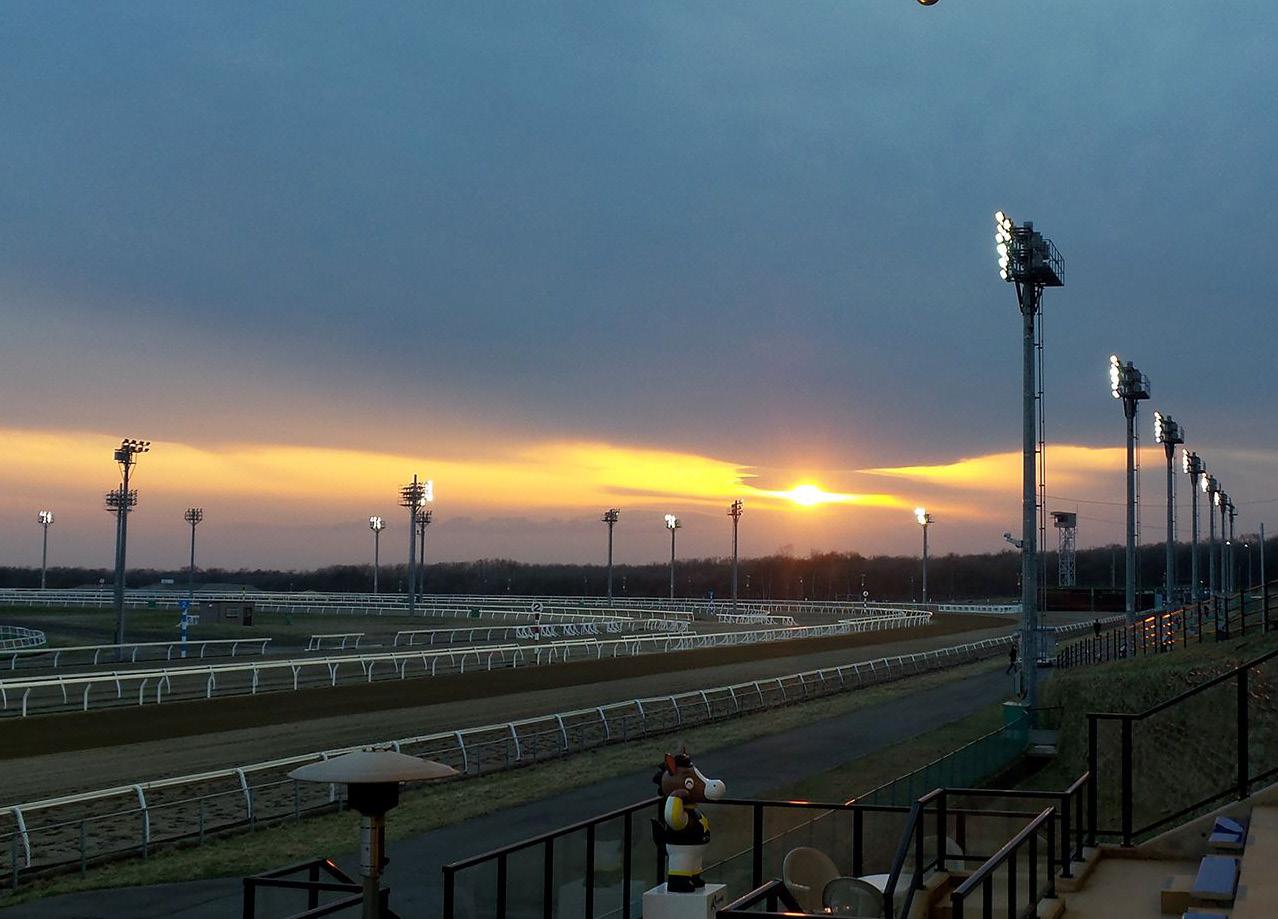

Mombetsu Racecourse Hokkaido, Japan
Sports Flood Lighting
SUFA
• Installed 2018
29
04 Key Reference Projects

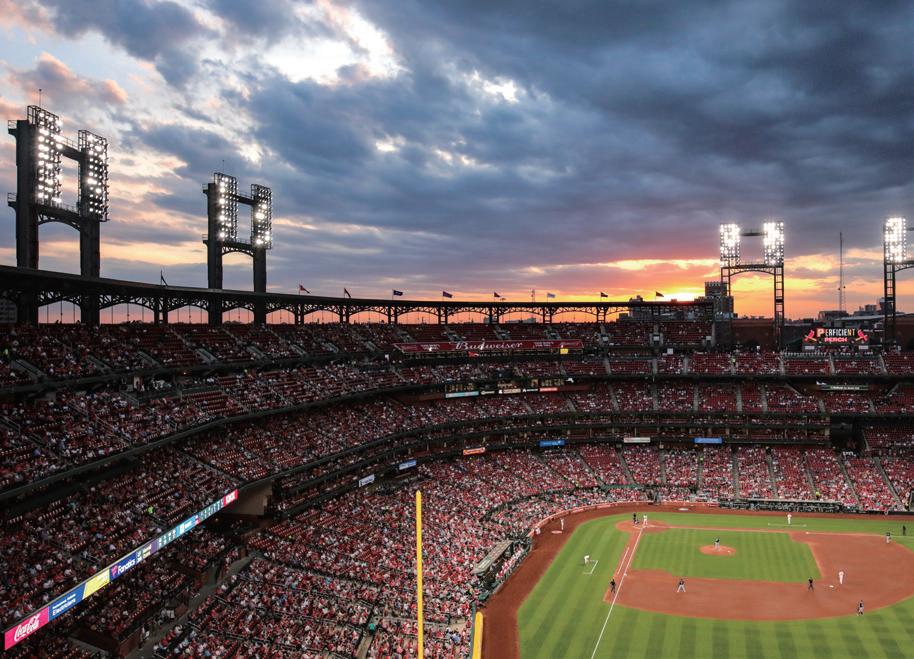

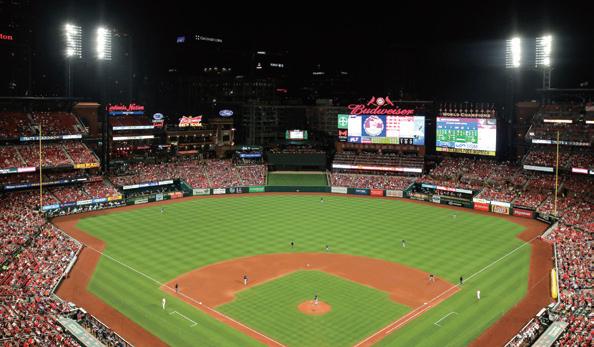

Busch Stadium St. Louis, USA
Sports Flood Lighting
SUFA
• Installed 2018

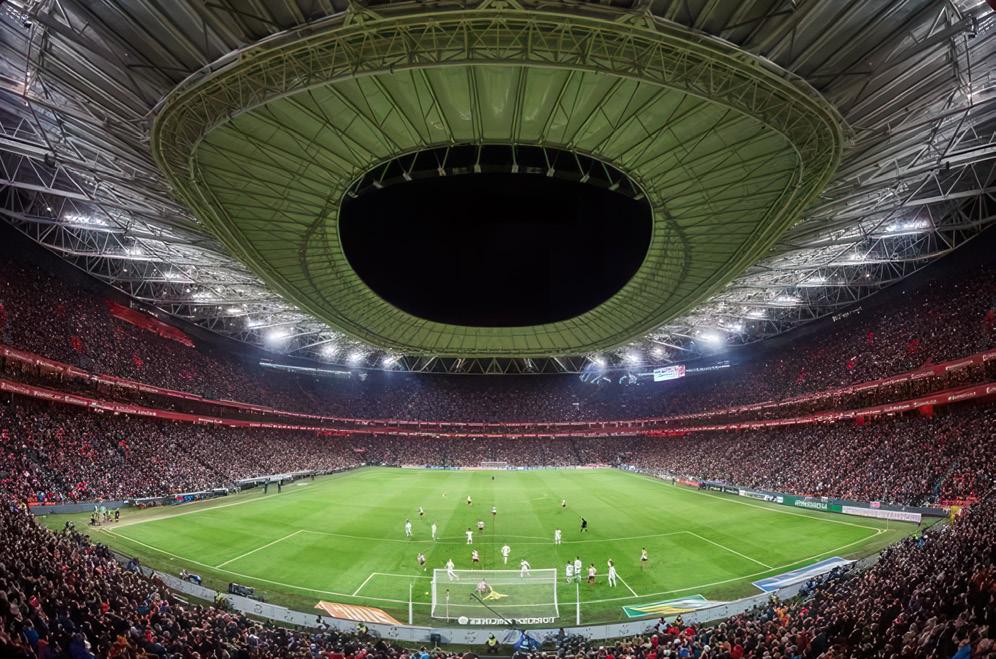

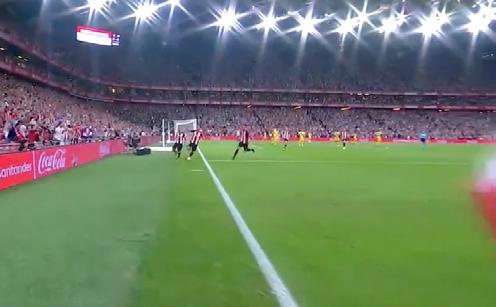

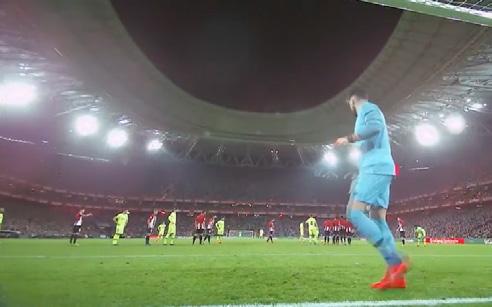

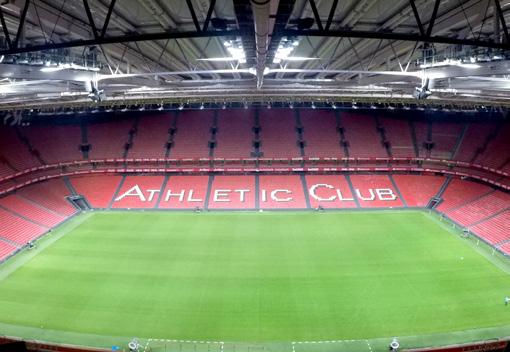

Estadio San Mamés Bilbao, Spain
Sports Flood Lighting
SUFA
• Installed 2019

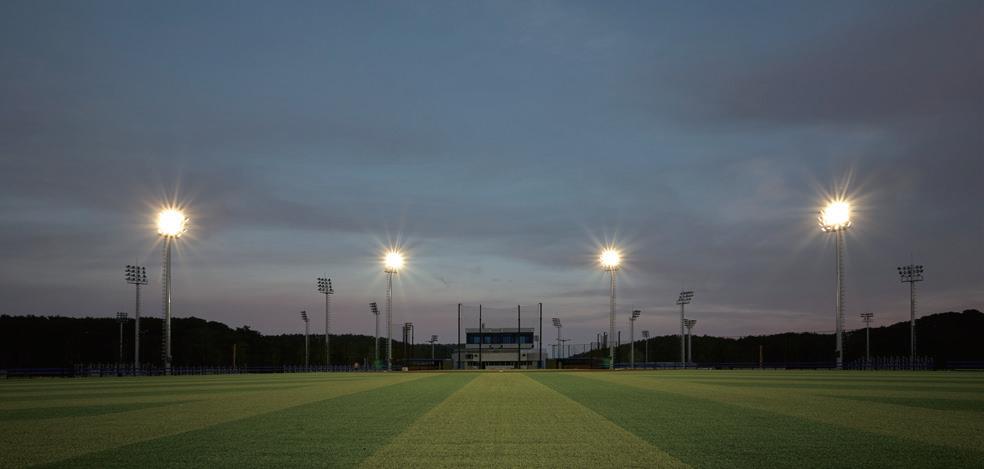

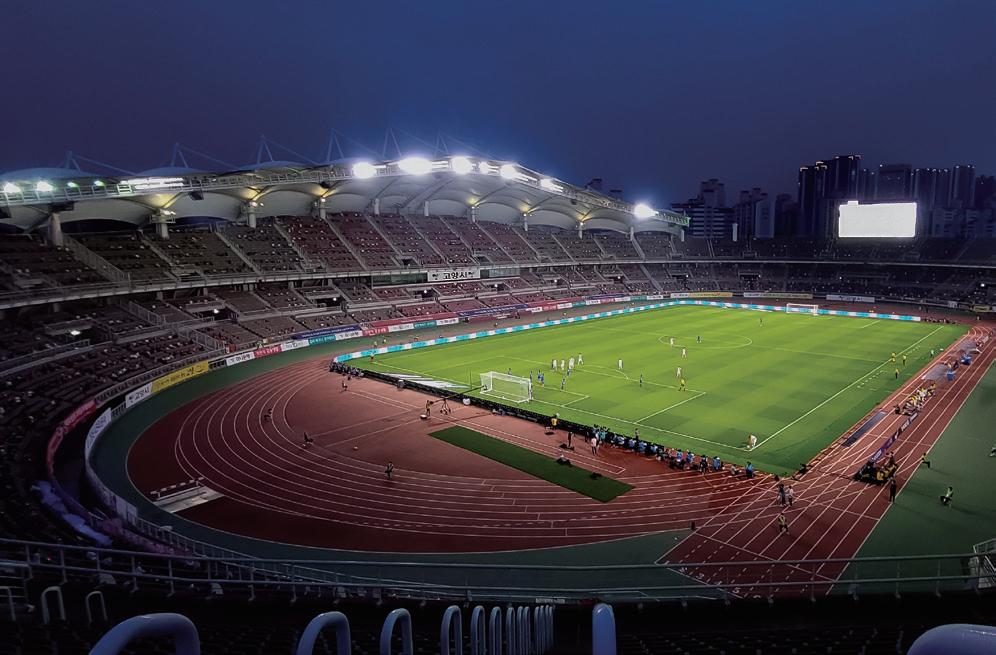

Goyang Sports Complex Goyang, South Korea
Sports Flood Lighting
SUFA
• Installed 2021
30
2018-2021
2022-2023
04 Key Reference Projects

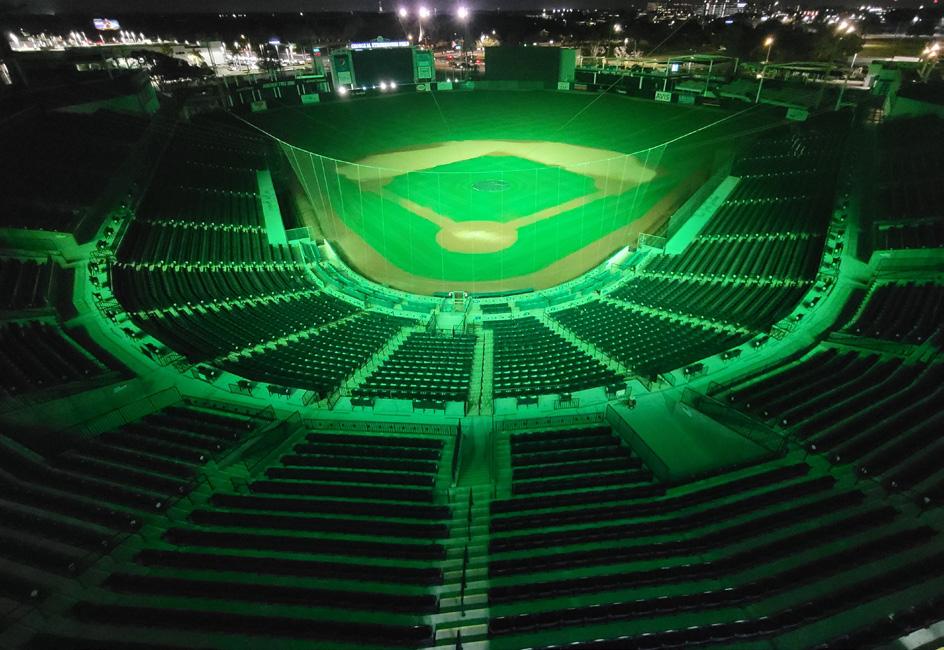

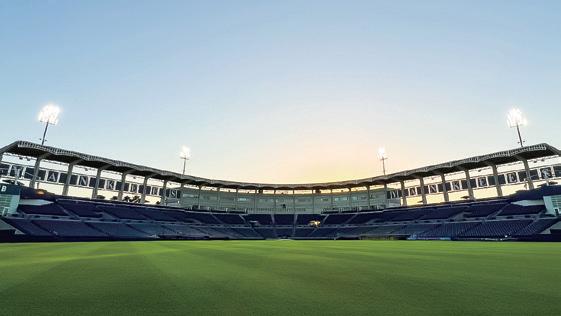

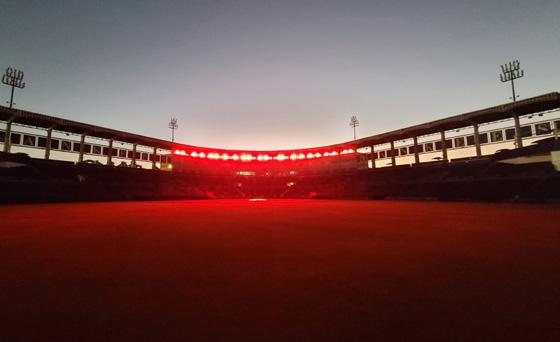

George M. Steinbrenner Field Tampa, USA
Sports Flood Lighting
SUFA, MAHA
• Installed 2022 • First MLS-standard installation in the U.S.A.
Busan New Port Busan, South Korea
Area Flood Lighting
MAHA
• Installed 2023

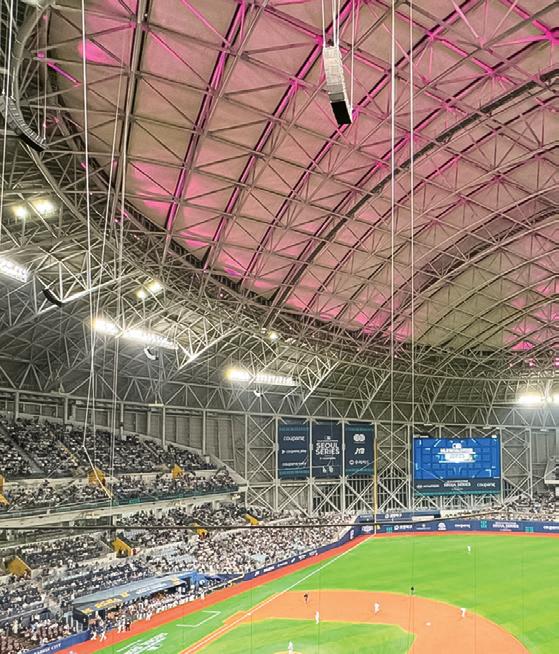

Gocheok Sky Dome Seoul, South Korea
Sports Flood Lighting
SUFA
• Installed 2023 • RGB lighting installed
31
04 Key Reference Projects

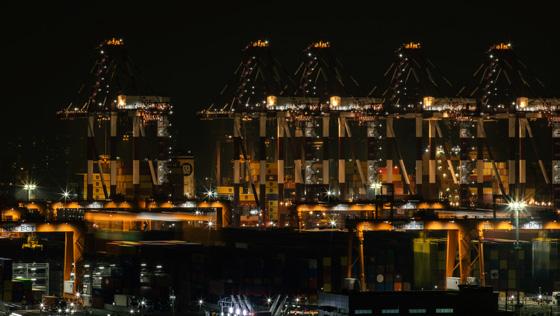

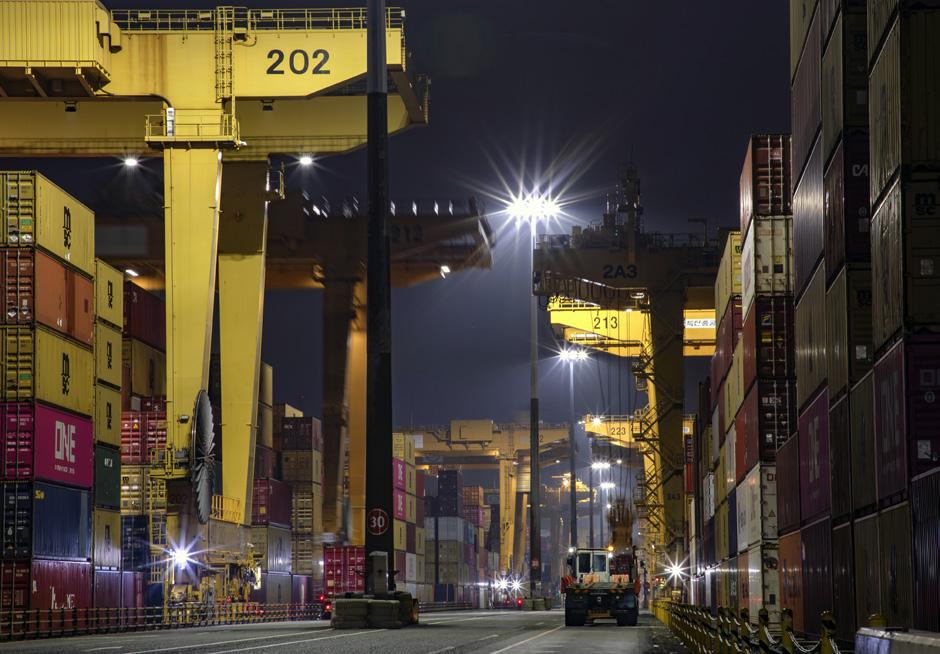

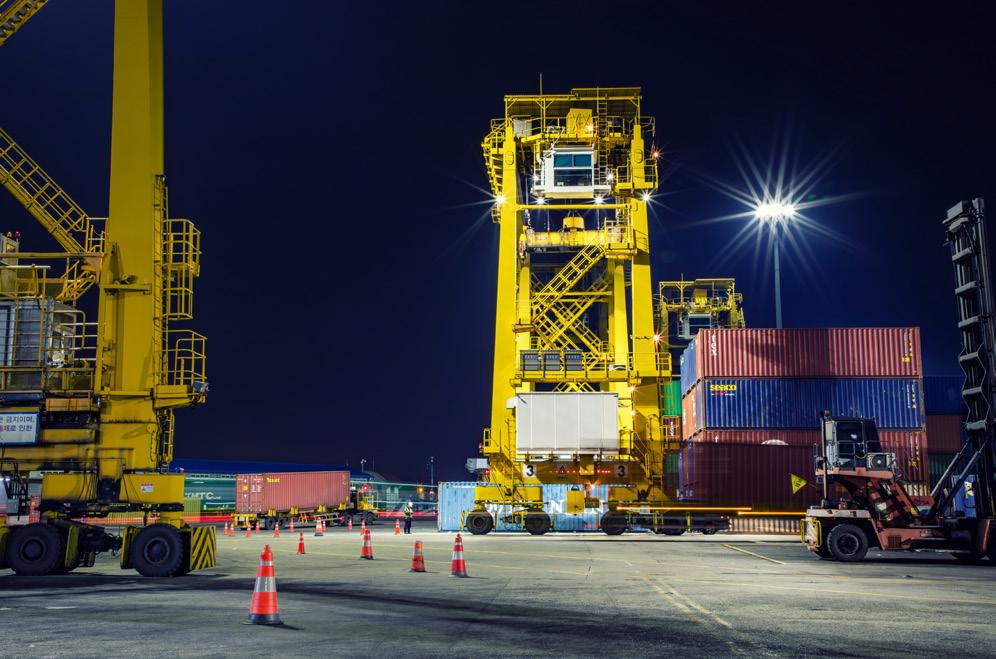

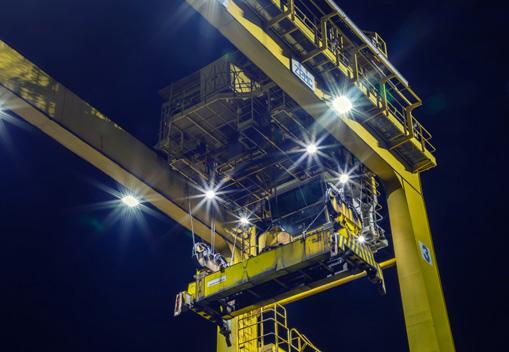

Incheon Container Terminal Incheon, South Korea
Flood Lighting
MAHA, SUFA
• Installed 2024

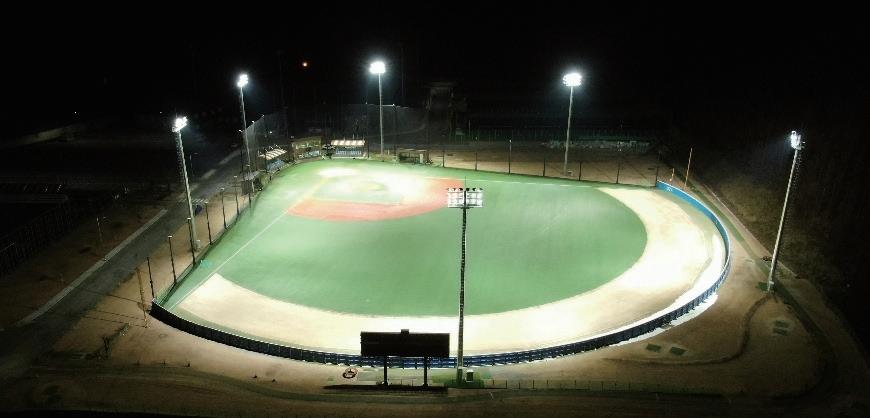

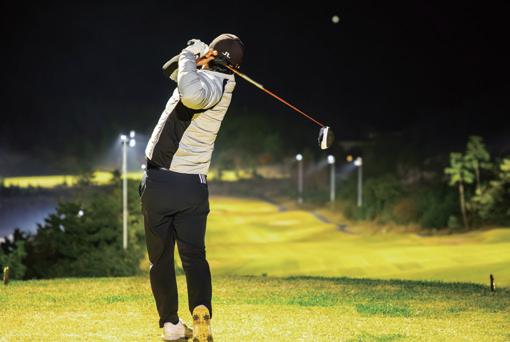

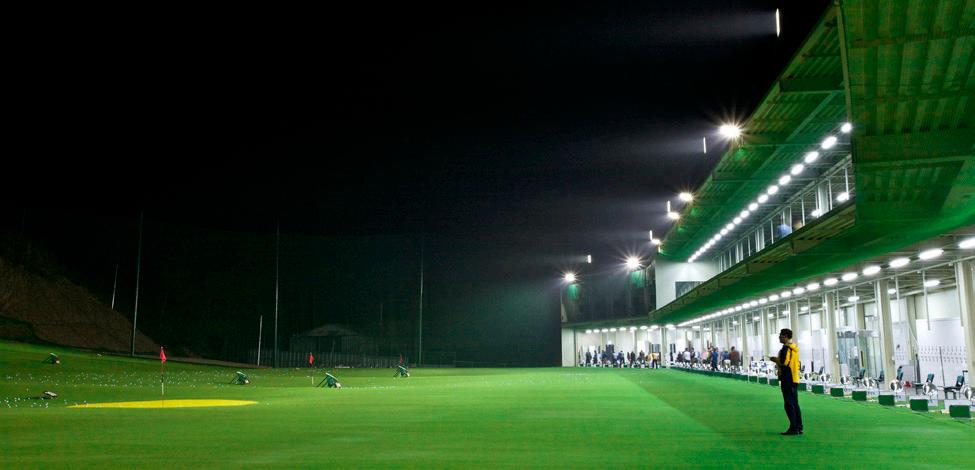

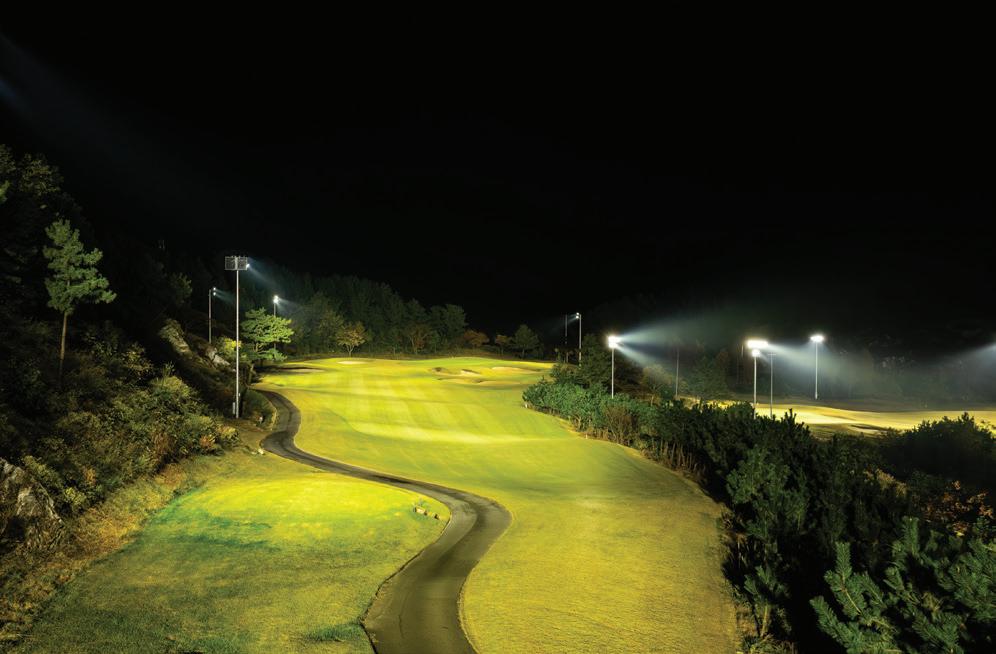

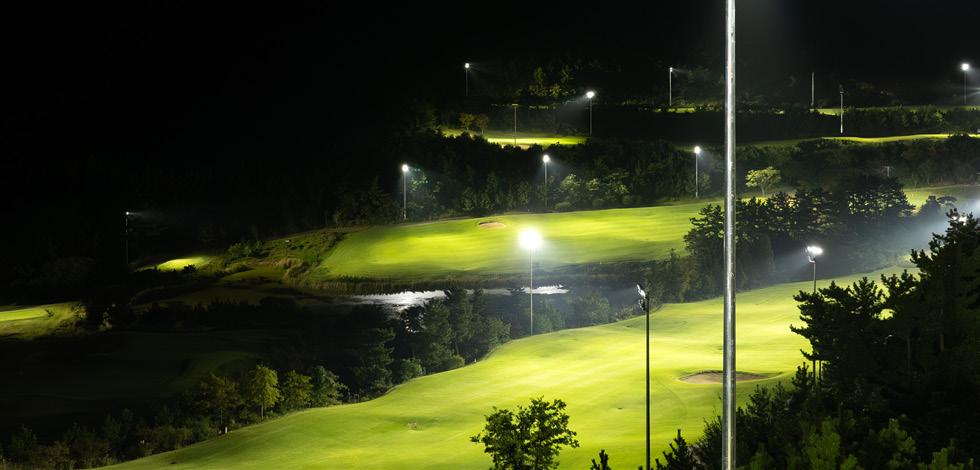

Goldenbay CC South Korea
Sports Flood Lighting
SUFA
• Installed 2024

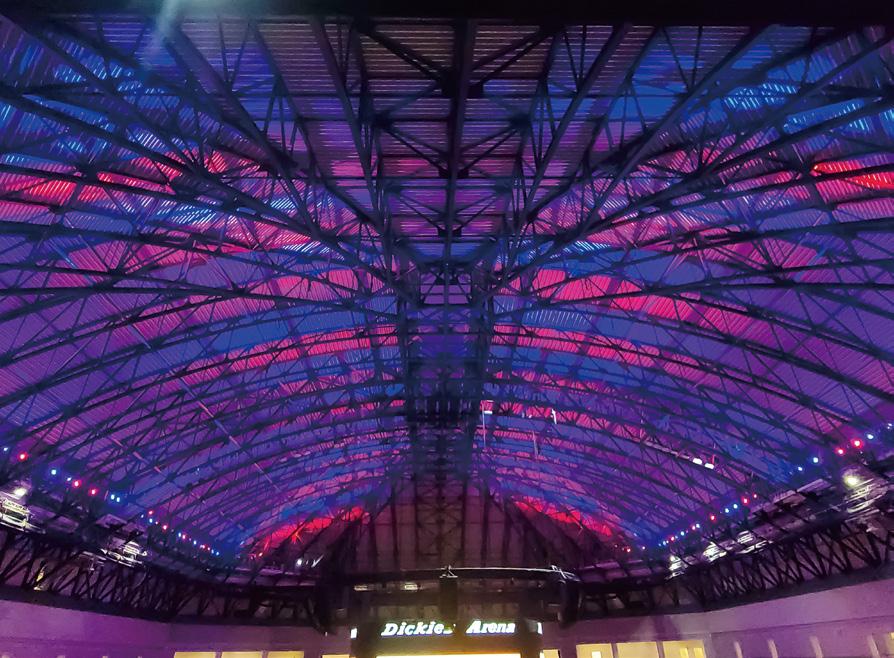

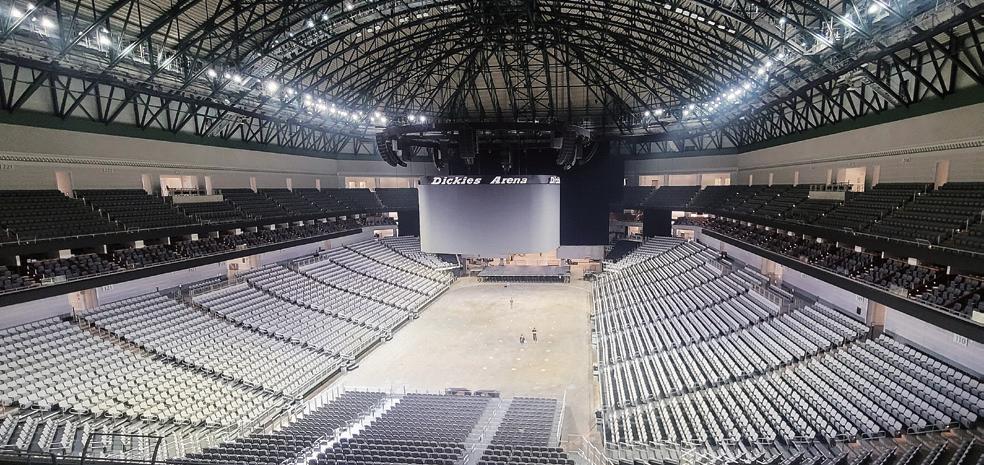

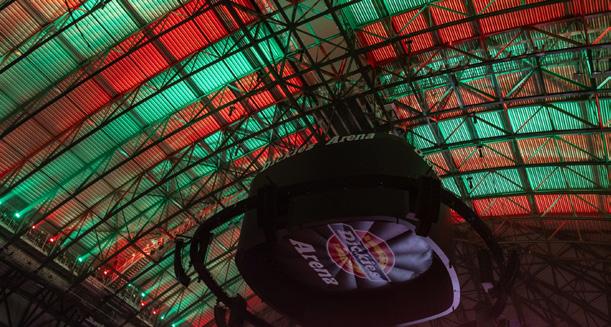

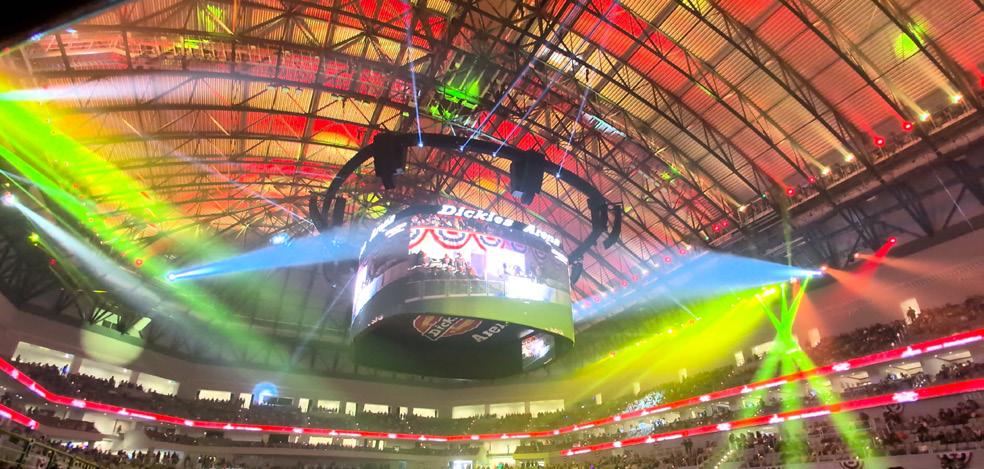

Dickies Arena Texas, USA
Sports Flood Lighting
SUFA
• Installed 2024 • SUFA Tunable White & RGBW installed
32
2024
2024
04 Key Reference Projects

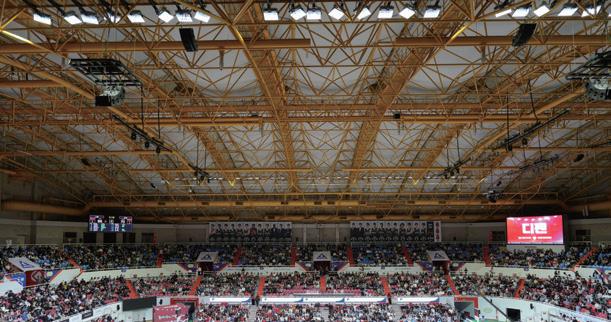

Sono Arena Goyang, South Korea
Area Flood Lighting
MAHA-PLUS
• Installed 2024

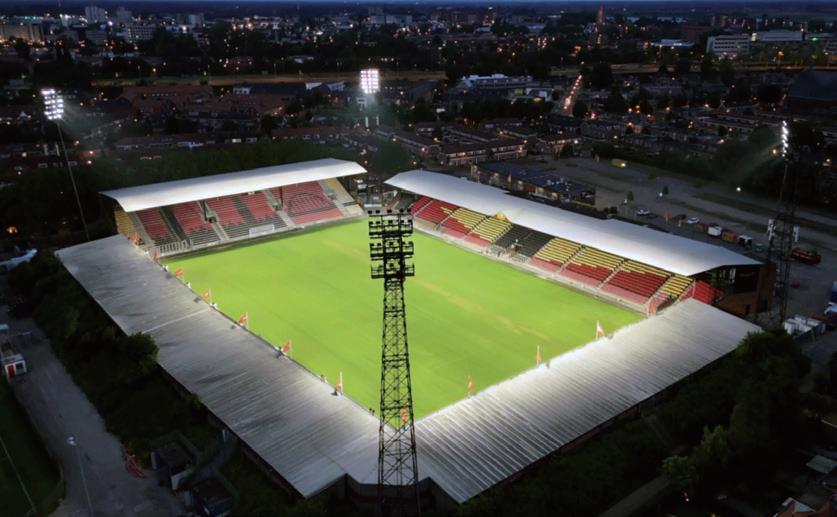

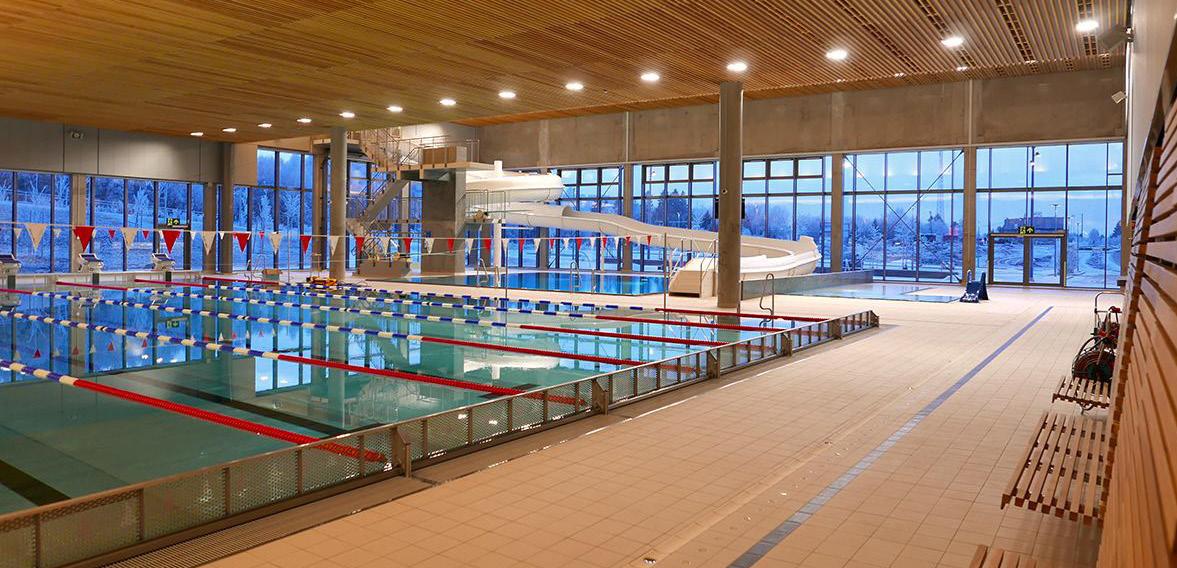

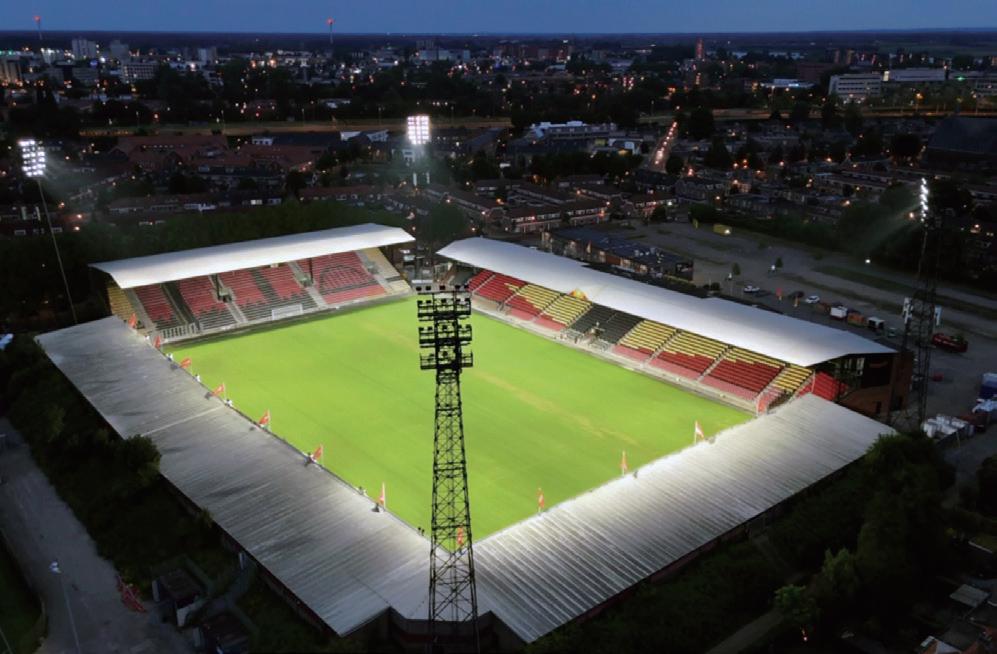

Go Ahead Eagles De Adelaarshorst Deventer, Netherlands
Sports Flood Lighting
SUFA
• Installed 2024

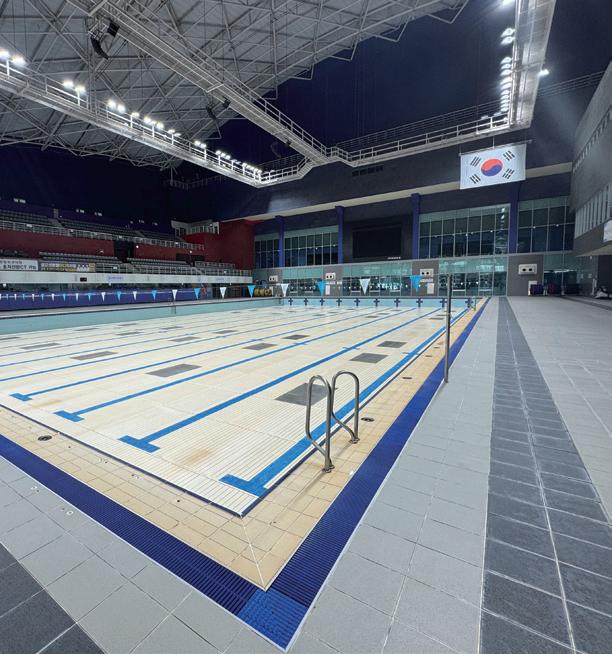

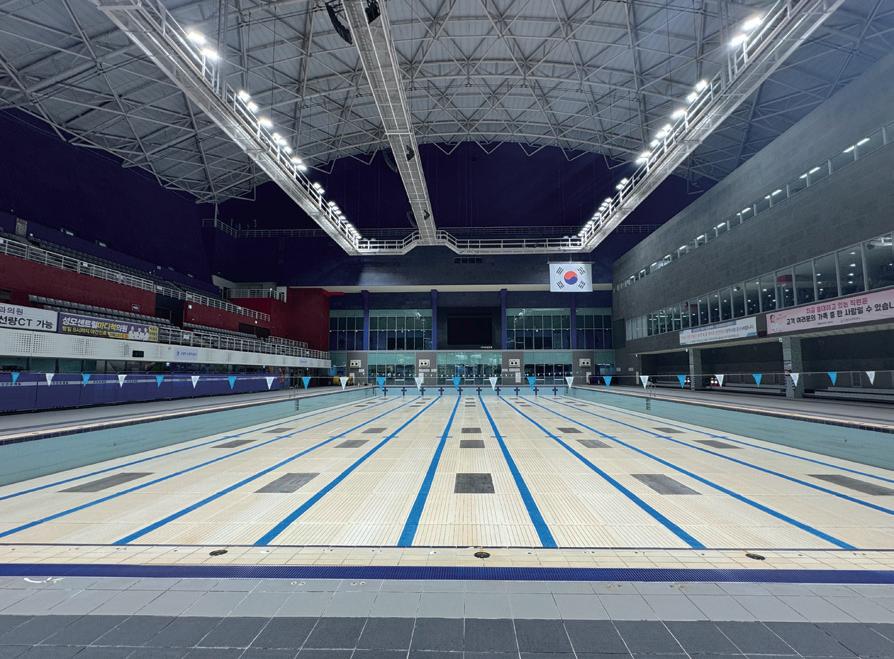

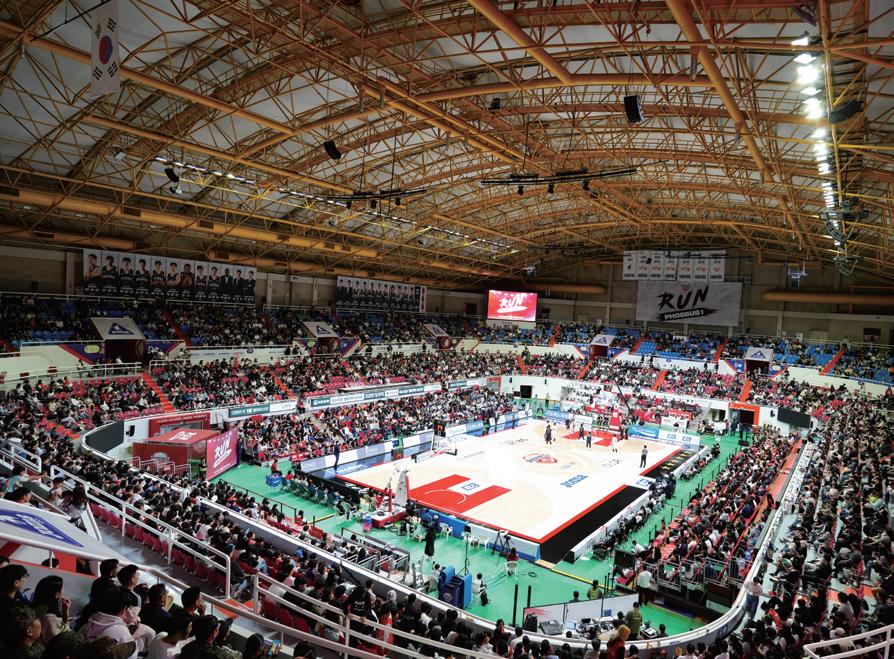

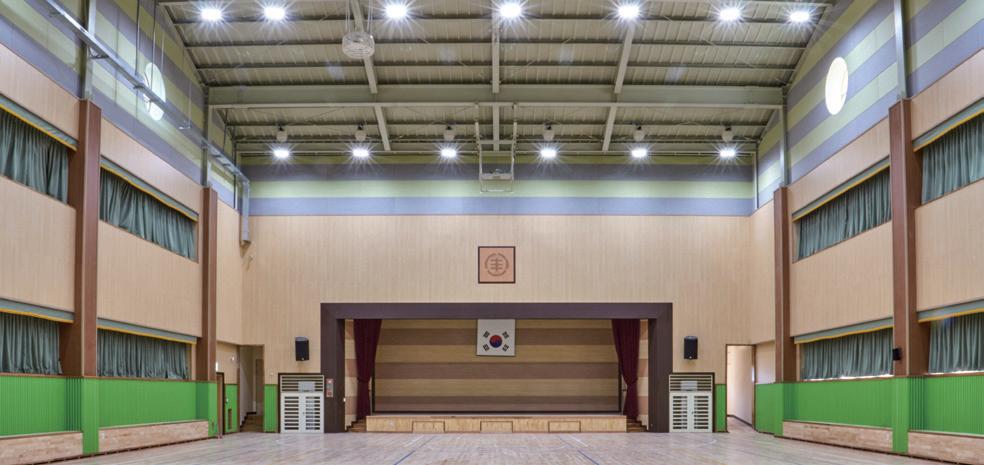

Ulsan Dongcheon Gymnasium Ulsan, South Korea
Area Flood Lighting
MAHA
• Installed 2024
33
04 Key Reference Projects
East st. Louis High School East st. Louis High School, U.S.A.
Flood Lighting
SUFA
• Installed 2025
Istanbul Sabiha Gokcen Airport Sabiha Gokcen Airport Istanbul, Türkiye
Sports Flood Lighting
MAHA
• Installed 2025
YDA Dalaman Airport Apron YDA Dalaman Airport Apron, Türkiye Sports Flood Lighting
MAHA
• Installed 2025
34
2025
2026
04 Key Reference Projects
Princess Noura University Stadium Princess Noura University Stadium, Saudi Arabia
Area Flood Lighting
SUFA
• Installed 2026
Borussia-Park
Stadion im Borussia-Park. Germany
Sports Flood Lighting
SUFA with RTS™-G3 • Installed 2026

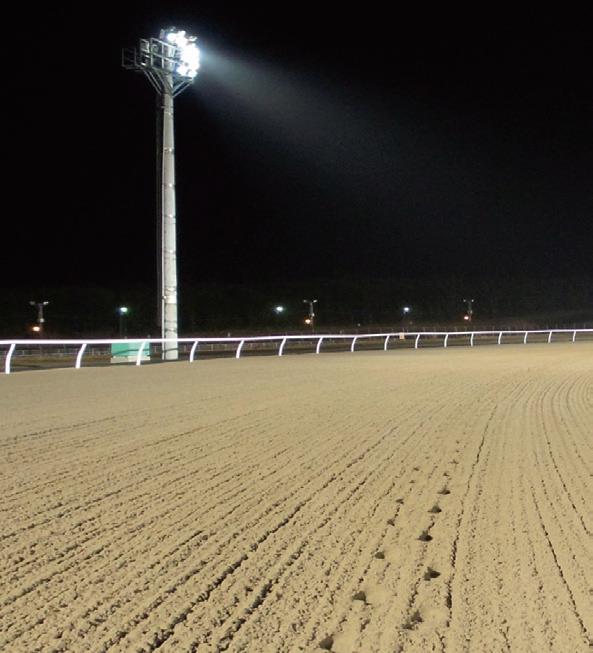

Monbetsu Racecourse Monbetsu Racecourse, Japan Sports Flood Lighting
SUFA
• Installed 2026
35

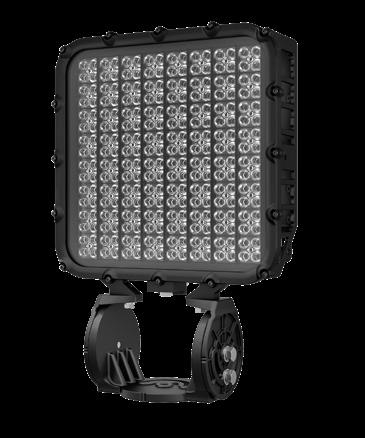

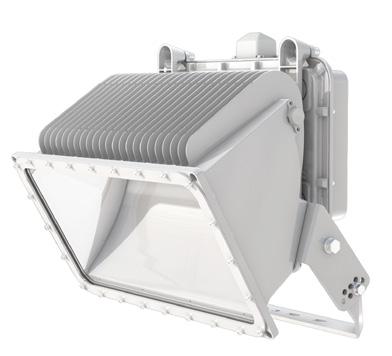

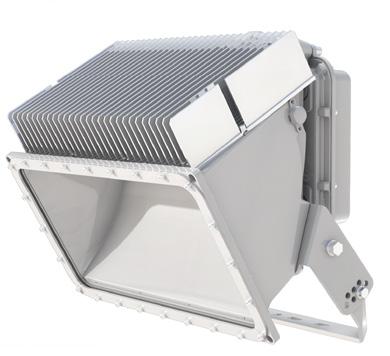

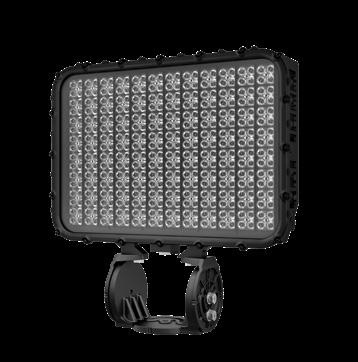

05 Product Overview
Sports Flood Lighting
IP 66
SFP

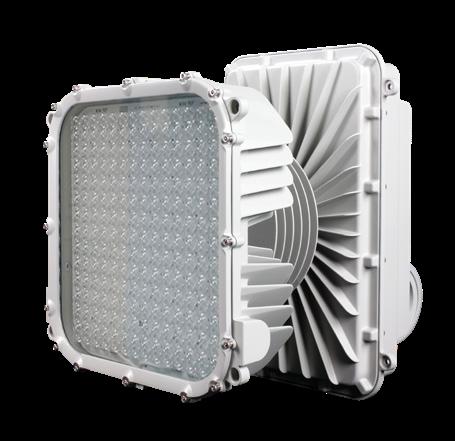

SUFA PTX™ Remote Driver · Compact body with high-efficiency thermal design · Inner Visor system for minimal spill light and glare control · Precision aiming & advanced optical beam control · Reduced glare & light pollution for professional applications · Remote driver configuration for flexible installation & maintenance
SFP600/800
SFP1K2/1K5
* Tolerance : ±5% / ** Tolerance : ±10%
Model Name
Power Consumption*
SFP600
600W
SFP800
800W
SFP1K2
1200W
CCT
Luminous Flux**
Luminous Efficacy**
Input Voltage
5000K
81,600 lm
136 lm/W
4000K
78,600 lm
131 lm/W
5000K
104,800 lm
131 lm/W
4000K
100,800 lm
5000K
157,200 lm
126 lm/W 131 lm/W
4000K
151,200 lm
CRI
Operating Temp.
8.1kg 200~480V 70Ra
-30°C~45°C 13.9kg
126 lm/W
5000K 180,000 lm 120 lm/W 277~480V 4000K 172,500 lm 115 lm/W 15°(Symmetric), 20°(Symmetric), 30°(Symmetric/ Asymmetric), 45°(Symmetric)
SFP1K5***
15.0kg
1500W
Light distribution CCT
5700K, 5000K, 4000K, 3000K
CRI
70Ra, 80Ra, 90Ra
Weight
Material
Body : Cast Aluminum | Optic : Polycarbonate Lens | Cover : Tempered Glass 3.2T (Clear) | Finish : Electro Deposition (Black / Gray)
Bracket
MT Bracket (STD, REV) / Yoke Bracket (STD, REV) / RTS™-G3 Bracket
Control
Wireless (Zigbee, NEMA7, Zhaga Interface) | Wired (DMX-RDM, DALI-2) *** SFP1K5: KC, UL Not Certified (REV: Reverse / STD: Standard)
Product Dimensions · SFP1K2 198.2
496.8
348.6
· SFP1K5
491.0 × 496.8 × 247.8mm
491.0 × 496.8 × 247.8mm
491.0
247.8
496.8
348.6 × 496.8 × 198.2mm
Applications Sports Stadium, Indoor Venues, Sports Fields, Ports and Terminals
36
491.0
247.8
496.8
· SFP800
05 Product Overview
Sports Flood Lighting
IP 66
SFP
SUFA PTX™ Built-in Driver · Ultra-lightweight 1,500W floodlight (18.0kg) · Compact body with high-efficiency thermal design · Internal visor for minimized light spill · Precision aiming & advanced optical control · Anti-glare & light pollution reduction · Built-in driver system
SFP600/800
SFP1K2/1K5
* Tolerance : ±5% / ** Tolerance : ±10%
Model Name
Power Consumption*
SFP600
600W
SFP800
800W
SFP1K2 SFP1K5*** Light distribution
1200W 1500W
CCT
Luminous Flux**
Luminous Efficacy**
Input Voltage
CRI
Operating Temp.
Weight
136 lm/W
5000K
81,600 lm
4000K
75,600 lm
126 lm/W
5000K
104,800 lm
131 lm/W
4000K
100,800 lm
5000K
157,200 lm
126 lm/W 131 lm/W
4000K
151,200 lm
126 lm/W
5000K
184,500 lm
123 lm/W
14.0 Kg 200~480V 70Ra
-30°C~45°C 18.0 Kg
277~480V
4000K 177,000 lm 118 lm/W 15°(Symmetric), 20°(Symmetric), 30°(Symmetric/ Asymmetric), 45°(Symmetric)
CCT
5700K, 5000K, 4000K, 3000K
CRI
70Ra, 80Ra, 90Ra
Material
Body : Cast Aluminum | Optic : Polycarbonate Lens | Cover : Tempered Glass 3.2T (Clear) | Finish : Electro Deposition (Black / Gray)
Bracket
MT Bracket (STD, REV) / Yoke Bracket (STD, REV) / Internal Wiring(STD, REV) / RTS™-G3 Bracket
Control
Wireless (Zigbee, NEMA7, Zhaga Interface) | Wired (DMX-RDM, DALI-2) *** SFP1K5: KC, UL Not Certified (REV: Reverse / STD: Standard)
Product Dimensions · SFP600/800
· SFP1K2/1K5 491.0 × 496.5 × 323.0mm 320.7
496.8
370.0
491.0
323.0
496.5
370.0 x 496.8 x 320.7mm
Applications Sports Stadium, Indoor Venues, Sports Fields, Ports and Terminals
37
05 Product Overview
Sports Flood Lighting
IP 66
SFP
SUFA PTX™ Integrated Driver · Ultra-lightweight floodlight, up to 8.7 kg · Slim body with PTX™ thermal technology · Side-mounted integrated driver design · Compatible with GeSS® control system with wired/wireless control options
* Tolerance : ±5% / ** Tolerance : ±10%
Model Name
Power Consumption*
SFP300
300W
SFP400 Light distribution
CCT
Luminous Flux**
Luminous Efficacy**
5000K
40,800 lm
136 lm/W
4000K
39,300 lm
131 lm/W 131 lm/W
CRI
Operating Temp.
Weight
200~480V
70Ra
-30°C~45°C
8.7 Kg
-30°C~45°C
8.7 Kg
5000K 52,400 lm 200~480V 70Ra 126 lm/W 4000K 50,400 lm 15°(Symmetric), 20°(Symmetric), 30°(Symmetric/ Asymmetric), 45°(Symmetric) 400W
CCT
5700K, 5000K, 4000K, 3000K
CRI
70Ra, 80Ra, 90Ra
Material
Body : Cast Aluminum | Optic : Polycarbonate Lens | Cover : Tempered Glass 3.2T (Clear) | Finish : Electro Deposition (Black)
Bracket
Yoke Bracket
Control
Wireless (Zigbee, NEMA7, Zhaga Interface) | Wired (DMX-RDM, DALI-2)
Product Dimensions · SFP300 | SFP400 306.9 × 404.9 × 210.5mm 210.5
404.9
306.9
Applications Sports Stadium, Indoor Venues, Sports Fields, Ports and Terminals
38
Input Voltage
05 Product Overview
Sports Flood Lighting
IP 66
SFX SUFA-X · Seamless All-in-One integrated fixture and driver · Thermal-Isoldatd design between housing and driver · Choice of 15°, 20°, 30°, and 45° Beam Angles · Wired/Wireless Controls Integrated with GeSS® · Optional heavy-duty marine bracket for SFX600
SFX200
SFX600
* Tolerance : ±5% / ** Tolerance : ±10%
Model Name
Power Consumption*
SFX200
200W
SFX600 Light distribution
CCT
Luminous Flux**
Luminous Efficacy**
5000K
27,000 lm
135 lm/W
4000K
26,000 lm
130 lm/W 135 lm/W
Input Voltage
CRI
Operating Temp.
Weight
100~277V 347~480V
70Ra
-30°C~45°C
7.5kg
-30°C~45°C
17.4kg
5000K 81,000 lm 200~277V 70Ra 277~480V 130 lm/W 4000K 78,000 lm 15°(Symmetric), 20°(Symmetric), 30°(Symmetric/ Asymmetric), 45°(Symmetric) 600W
CCT
5700K, 5000K, 4000K, 3000K
CRI
70Ra, 80Ra, 90Ra
Material
Body : Cast Aluminum | Optic : Polycarbonate Lens | Cover : Tempered Glass 3.2T (Clear) | Finish : Powder Coating
Bracket
SFX200 : Swivel Bracket / Surface Mount Bracket | SFX600 : Heavy duty mount bracket
Control
Wireless (Zigbee), Wired (DMX-RDM)
Product Dimensions · SFX200
· SFX600
377.0 × 498.8 × 294.1mm
208.0
498.8
386.0
208.0 × 386.0 × 220.0mm
220.0
377.0
294.1
Applications Sports Stadium, Indoor Venues, Sports Fields, Ports and Terminals
39
05 Product Overview
Sports Flood Lighting
IP 66
SFM SUFA-M · Unique dual-head design with 2 x 200W modules on bridge bracket · Minimized glare via precision reflector optics · Flexible omni-directional aiming (tilting & steering) · High installation flexibility for diverse structures · Wired/wireless controls integrated with GeSS®
* Tolerance : ±5% / ** Tolerance : ±10%
Model Name
Power Consumption*
CCT
SFM400
360W
5000K 4000K
Light distribution
Luminous Flux**
Luminous Efficacy**
Input Voltage
CRI
Operating Temp.
Weight
54,700 lm 52,000 lm
135 lm/W 130 lm/W
200~480V
80Ra
-30°C~45°C
12.5kg
15°(Symmetric), 20°(Symmetric), 30°(Symmetric/ Asymmetric), 45°(Symmetric)
CCT
5700K, 5000K, 4000K, 3000K
CRI
70Ra, 80Ra, 90Ra
Material
Body : Cast Aluminum | Optic : AL Coating Reflector | Cover : Tempered Glass 3.2T (Clear) | Finish : Powder Coating
Control
Wired (DMX-RDM)
Product Dimensions ∅1
· SFM400
6
516.0
Applications Sports facilities (Baseball/Soccer/Tennis/Golf), Ports
40
15°
218.0
516.0 × 218.0 × 316.0mm
316.0
05 Product Overview
Industrial Lighting
IP 66
MHP MAHA-PTX™ · Maximized energy savings up to 135 lm/W · Low EPA design for minimum wind resistance · Fully open housing for maximum natural convection · Supports both top and bottom bracket mounting · Integrated or remote driver options available
* Tolerance : ±5% / ** Tolerance : ±10%
Model Name
Power Consumption*
MHP300
300W
MHP400 Light distribution
400W
CCT
Luminous Flux**
Luminous Efficacy** 135 lm/W
5000K
40,500 lm
4000K
40,500 lm
135 lm/W
5000K
52,000 lm
130 lm/W
4000K
52,000 lm
130 lm/W
Input Voltage
CRI
Operating Temp.
Weight
277~480V
70Ra
-30°C~50°C
9.0kg
Asymmetric Wide
CCT
5700K, 5000K, 4000K, 3000K
CRI
70Ra, 80Ra, 90Ra
Material
Body : Cast Aluminum | Optic : Polycarbonate Lens | Cover : Tempered Glass 3.2T (Clear) | Finish : Electro Deposition (Black)
Bracket
MT Bracket(Standard, Reverse)
Control
Wireless(Zigbee, NEMA7, Zhaga Interface) | Wired (DMX-RDM, DALI-2)
Product Dimensions · MHP300/400
317.0
433.0
433.0 × 317.0 × 239.0mm
239.0
Applications Public sports, Airports, Ports, Parking lots, Railways, Large areas
41
05 Product Overview
Industrial Lighting
IP 66
MAH
MAH1K2 (Remote)
MAHA-PLUS Remote & Built-in Driver
· Delivers excellent thermal performance and high luminous efficacy · Minimizes glare and light pollution for an eco-friendly lighting environment · Provides perfect Cut-off optical performance · Supports smart lighting control with integrated wired/wireless options · Offers both integrated and remote driver configurations for flexible installation environments
MAH1K2 (Bulit-in)
* Tolerance : ±5% / ** Tolerance : ±10%
Model Name
Power Consumption*
MAH1K0
1000W
MAH1K2***
1200W
MAH1K6***
1600W
Light distribution
CCT
Luminous Flux**
Luminous Efficacy**
5000K
150,000 lm
150 lm/W
4000K
145,000 lm
145 lm/W
5000K
174,000 lm
145 lm/W
4000K
168,000 lm
140 lm/W
5000K
216,000 lm
135 lm/W
4000K
208,000 lm
130 lm/W
Input Voltage
CRI
Operating Temp.
200~277V 277~480V
70Ra
-30°C~50°C
200~277V 277~480V
70Ra
-30°C~50°C
200~277V 277~480V
70Ra
-30°C~50°C
Weight (Remote) 15.2 Kg (Built-in) 28.2 Kg (Remote) 15.2 Kg (Built-in) 28.2 Kg (Remote) 15.2 Kg (BuiIt-in) 28.2 Kg
Asymmetric Wide
CCT
5700K, 5000K, 4000K, 3000K
CRI
70Ra, 80Ra, 90Ra
Material
Body : Cast Aluminum | Optic : Reflector + Lens | Cover : Tempered Glass 4.0T (Clear) | Finish : Powder Coating
Control
Wireless (Zigbee, NEMA7, Zhaga Interface) | Wired (RS-485, DMX-RDM, DALI-2) *** MAH1K2, MAH1K6: KC, UKCA Not Certified
Product Dimensions 619.0 x 365.0 x 964.0mm
544.0
275.0
275.0
· MAH1K6 Built-in
619.0 x 397.0 x 679.0mm
Applications Sporting Facilities, Airplane Hangars, Airport Aprons, Parking Lots, Harbour, Yard
42
619.0 679.0
964.0
397.0
596.0
544.0
767.0
· MAH1K6 Remote
619.0
620.0 x 275.0 x 544.0mm
365.0
· MAH1K0(1K2) Remote
620.0
577.0 x 275.0 x 544.0mm
275.0
· MAH1K2 Built-in
596.0 × 275.0 × 767.0mm
577.0
· MAH1K0 Built-in
05 Product Overview
Industrial Lighting
IP 66
MAH
MAH600 (Built-in)
MAHA-PLUS Built-in Driver
· Delivers excellent thermal performance and high luminous efficacy · Minimizes glare and light pollution for an eco-friendly lighting environment · Provides perfect Cut-off optical performance · Supports smart lighting control with integrated wired/wireless options · Built-in driver
MAH200 (Built-in)
* Tolerance : ±5% / ** Tolerance : ±10%
Model Name
Power Consumption*
MA150***
150W
MAH200
200W
MAH250
250W
MAH300
300W
MAH400
400W
MAH500***
500W
MAH600
600W
CCT
Luminous Flux**
Luminous Efficacy**
5000K
22,500 lm
150 lm/W
4000K
22,500 lm
150 lm/W
5000K
30,000 lm
150 lm/W
4000K
30,000 lm
150 lm/W
5000K
36,250 lm
150 lm/W
4000K
36,250 lm
150 lm/W
5000K
45,000 lm
150 lm/W
4000K
45,000 lm
150 lm/W
5000K
60,000 lm
150 lm/W
4000K
60,000 lm
150 lm/W
5000K
75,000 lm
150 lm/W
4000K
72,500 lm
145 lm/W
5000K
90,000 lm
150 lm/W
87,000 lm
145 lm/W
Light distribution
4000K Asymmetric Wide
CCT
5700K, 5000K, 4000K, 3000K
CRI
70Ra, 80Ra, 90Ra
Input Voltage
CRI
Operating Temp.
Weight
100~277V 277~480V
70Ra
-30°C~50°C
7.5kg
100~277V 277~480V
70Ra
-30°C~50°C
7.5kg
100~277V 277~480V
70Ra
-30°C~50°C
7.5kg
100~277V 277~480V
70Ra
-30°C~50°C
10.5kg
100~277V 277~480V
70Ra
-30°C~50°C
10.5kg
100~277V 277~480V
70Ra
-30°C~50°C
20.0kg
100~277V 277~480V
70Ra
-30°C~50°C
20.0kg
Material
Body : Cast Aluminum | Optic : Reflector + Lens(MAH600) | Cover : Tempered Glass 4.0T (Clear) | Finish : Powder Coating
Control
Wireless (Zigbee, NEMA7, Zhaga Interface) | Wired (RS-485, DMX-RDM, DALI-2) *** MA150, MAH500: CE Not Certified
Product Dimensions · MAH300/400
· MAH500/600
516.0 × 196.0 × 528.0mm
412.0
528.0
577.0 543.0
196.0
242.0
577.0 × 280.0 × 543.0mm
516.0
347.0
347.0 × 242.0 × 412.0mm
280.0
· MA150/MAH200/MAH250
Applications Public sports, Airports, Ports, Parking lots, Railways, Swimming pool, Large areas
43

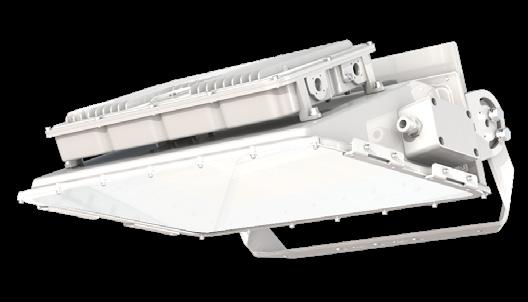

05 Product Overview
Industrial Lighting
IP 66
SMA SUMA · Applies Full Cut-off optical technology · Reduced glare with extended effective light reach · Precise aiming with +10° upward / −20° downward tilt adjustment · Stable performance with excellent thermal management and durability · Flexible installation with integrated or remote driver options · Supports wired and wireless dimming control
SMA600 (Bulit-in)
SMA400 (Bulit-in)
* Tolerance : ±5% / ** Tolerance : ±10%
Model Name
Power Consumption*
SMA400***
400W
SMA600 Light distribution
CCT
600W
Luminous Flux**
Luminous Efficacy**
5000K
50,000 lm
125 lm/W
4000K
48,000 lm
120 lm/W
5000K
75,000 lm
125 lm/W
4000K
72,000 lm
120 lm/W
Input Voltage
Operating Temp.
CRI
Weight (Remote) : 12.5 Kg
220~240V 200~277V 347~480V
70Ra
-30°C~50°C
(BuiIt-in) : 18.6 Kg (Remote) : 13.5 Kg (BuiIt-in) : 19.3 Kg
Asymmetric Wide
CCT
5700K, 5000K, 4000K, 3000K
CRI
70Ra, 80Ra, 90Ra
Material
Body : Cast Aluminum | Optic : AL Coating Reflector | Cover : Tempered Glass 4.0T (Clear) | Finish : Powder Coating
Bracket
Mount Bracket/ Pole Mount
Control
Wireless (Zigbee, NEMA7) | Wired (RS-485, DMX-RDM) *** SMA400: UKCA Not Certified
Product Dimensions
517.0
371.0
· SMA400 Built-in
517.0
375.0
· SMA600 Built-in
517.0 × 442.0 × 371.0mm
517.0 × 439.0 × 375.0mm
517.0
517.0
371.0
375.0
Applications Sporting Facilities, Airplane Hangars, Airport Aprons, Parking Lots, Harbour, Yard
44
439.0
517.0 × 429.0 × 375.0mm
442.0
· SMA600 Remote
381.0
517.0 × 381.0 × 371.0mm
429.0
· SMA400 Remote

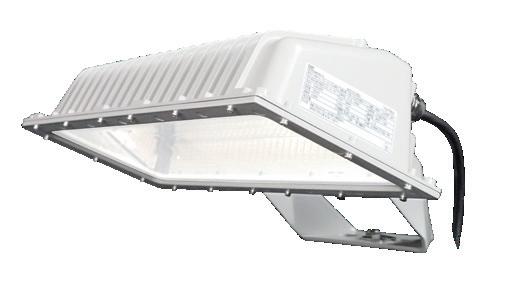

05 Product Overview
Industrial Lighting
IP 66
WP WAPA WP50 · Perfect Cut-off asymmetric light distribution · Reflector-based optical system to minimize glare · Versatile lighting suitable for various installation environments · Indirect lighting method for soft, natural light quality · Heat-resistant optical structure maintains consistent performance over long operation WP75 / WP100
* Tolerance : ±5% / ** Tolerance : ±10%
Model Name
Power Consumption*
CCT
WP50***
50W
5000K 4000K
WP75***
75W
WP100 Light distribution CCT
Luminous Flux**
Luminous Efficacy**
CRI
Operating Temp.
Input Voltage
Weight
7,000 lm 7,000 lm
140 lm/W 140 lm/W
100~240V 100~277V
70Ra
-30°C~50°C
3.2 Kg
5000K
10,500 lm
140 lm/W
4000K
10,500 lm
140 lm/W
5000K 14,000 lm 100W 4000K 14,000 lm Asymmetric Wide 5700K, 5000K, 4000K, 3000K
140 lm/W 140 lm/W
100~240V 100~277V
70Ra
-30°C~50°C
4.2 Kg
70Ra, 80Ra, 90Ra
CRI Material
Body : Cast Aluminum | Optic : AL Coating Reflector | Cover : Tempered Glass 3.2T (Clear) | Finish : Powder Coating
Bracket Control
Wall Mount/ Mount Bracket/ Pole Mount Wireless (ZigBee) | Daylight Sensor *** WP50, WP75: CE Not Certified
Product Dimensions
390.0
262.0
140.0
262.0
137.0
552.0
279.0
390.0
166.0
: 552.0 × 166.0 × 262.0mm · WP75/100(Node/None) [Node] [None] : 552.0 × 140.0 × 262.0mm
165.0
279.0
: 390.0 × 165.0 × 279.0mm · WP50(Node/None) [Node] [None] : 390.0 × 137.0 × 279.0mm
552.0
Applications Wall Packs, Billboards, Roadways, Parking Lots
45
05 Product Overview
Entertainment Lighting
IP 66
SFM-TW·SFP-TW
SUFA-M Tunable White, SUFA PTX™ Tunable White · Flexible color temperature control (4000K–5700K) · Creates lighting that enhances the atmosphere and emotion of each space · Improves visual comfort while optimizing energy efficiency · Infinite possibilities to perfectly support multipurpose environments · Smart lighting control solution optimized for event applications
SFP500 TW
SFM400 TW
Bracket Option (RTS™-G3) * Tolerance : ±5% / ** Tolerance : ±10%
Model Name
Power Consumption*
SFM400 (Warm·Cool)
400W
Color Tunable 36,000 lm (4000K~5700K) 40,000 lm
90 lm/W 200~277V 100 lm/W 347~480V
SFP500 (Warm·Cool)
500W
Color Tunable 47,500 lm (4000K~5700K) 56,000 lm
95 lm/W
CCT
Luminous Flux**
Luminous Efficacy**
Input Voltage
200~277V 112 lm/W 277~480V
CRI 90Ra 80Ra 90Ra 80Ra
Operating Temp.
Weight
-30°C~45°C
8.0 Kg
-30°C~45°C
9.5 Kg (Bracket Included)
SFM400-TW : 15°(Symmetric), 30°(Symmetric/ Asymmetric)
Light distribution
SFP500-TW : 15°(Symmetric), 30°(Symmetric/ Asymmetric), 45°(Symmetric) 4000K~5700K
CCT
SFM400-TW Body : Cast Aluminum | Optic : AL Coating Reflector Cover : Tempered Glass 3.2T (Clear) | Finish : Powder Coating
Material
SFP500-TW Body : Cast Aluminum | Optic : Polycarbonate Lens Cover : Tempered Glass 4.0T (Clear) | Finish : Electro Deposition (Black)
Bracket
SFP500-TW : MT Bracket/ RTS™-G3 Bracket
Control
Wired (DMX-RDM)
Power Box
Weight : 10.0 Kg
Product Dimensions · SFP500-TW
561.0 × 218.0 × 316.0mm
348.6
218.0mm 218.0
561.0 561.0mm
15°
218.0mm
316.0mm
15° 15°
316.0mm 316.0
Applications Sports facilities, Indoor Venues
390.0 × 390.0 × 128.0mm
198.2
496.8
561.0mm
46
· Power Box
348.6 × 496.8 × 198.2mm
390.0
128.0
390.0
· SFM400-TW
05 Product Overview
Entertainment Lighting
IP 66
SFP-RGBW SUFA-PTX™ RGBW · Lightweight design with excellent thermal performance · All-in-one RGBW lighting for sports entertainment · Flexible tilt and rotation through RTS™-G3 bracket remote control · Dynamic RGB effects optimized for multi-purpose stadiums and arenas · Built-in 20kV surge protection · Durable construction, and high-corrosion-resistant powder coating
Bracket Option (RTS™-G3) * Tolerance : ±5% / ** Tolerance : ±10%
Model Name
Power Consumption*
SFP500 RGBW
500W
Light distribution
CCT
RGBW
Colors
Luminous Flux**
Luminous Efficacy**
Red
4,950 lm
15 lm/W
Green
19,800 lm
60 lm/W
Blue
3,300 lm
10 lm/W
White
22,805 lm
57 lm/W
Input Voltage
Operating Temp.
Weight
200~277V 277~480V
-30°C~45°C
9.5 Kg (Bracket included)
15°(Symmetric), 30°(Symmetric/ Asymmetric)
Material
Body : Cast Aluminum | Optic : Polycarbonate Lens | Cover : Tempered Glass 4.0T (Clear) | Finish : Electro Deposition(Black)
Bracket
MT Bracket/ RTS™-G3 Bracket
Control
Wired (DMX-RDM)
Power Box
Weight : 10.0 Kg
Product Dimensions · SFP500 RGBW + RTS™-G3
· Power Box
348.6 × 496.8 × 205.5mm
390.0 × 390.0 × 128.0mm
348.6
205.5
128.0
390.0
496.8
390.0

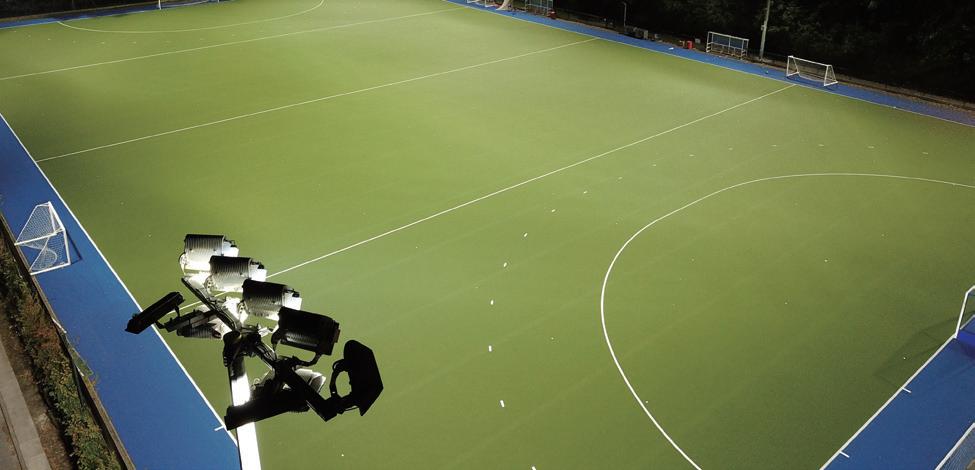

Applications Sports facilities, Indoor Venues, Arenas
47
05 Product Overview
Sports Flood Lighting / Entertainment Lighting
IP 66
SFC-RGBW·SFC-W
RTS™-G4
SUFA-Circular + RTS™-G4
· Lightweight architecture with superior thermal management · All-in-one RGBW lighting optimized for sports entertainment · Flexible aiming control through seamless integration with the RTS™-G4 · RTS™-G4: Steering ±60° | Tilting ±60°
· Enables remote lighting control via a wired DMX-RDM interface · Dynamic event effects tailored for professional stadiums SFC800-White
SFC600-RGBW * Tolerance : ±5% / ** Tolerance : ±10%
Model Name
Power Consumption*
SFC600 -RGBW
600W
CCT
RGBW
Luminous Flux**
Luminous Efficacy**
Red
10,500 lm
49 lm/W
Green
16,000 lm
76 lm/W
Blue
2,000 lm
10 lm/W
White
26,500 lm
128 lm/W
Colors
Model Name
Power Consumption*
CCT
Luminous Flux**
Luminous Efficacy**
CRI
SFC800 -White
800W
5000K 4000K
108,800 lm 104,800 lm
136 lm/W 131 lm/W
70Ra 70Ra
Light distribution
Input Voltage
Operating Temp.
200~480V -30°C~45°C
12.0kg (RTS™-G4 Included)
15°, 30°
Material
Body : Cast Aluminum | Optic : AL Coating Reflector | Cover : Tempered Glass 3.2T | Finish : Electro Deposition (Black)
Control
Wireless (Zigbee) | Wired (DMX-RDM)
Product Dimensions · SFC600-RGBW / SFC800-White
· RTS™-G4
Ø16.5 × 357.6mm
180.0 × 267.0 × 254.6mm 180.0
254.6
267.0
Ø
16
.5
357.6
Applications Sports Stadium, Indoor Venues, Sports Fields, Ports and Terminals
48
Weight
05 Product Overview
Entertainment Lighting
IP 66
SFX-RGBW SUFA-X RGBW
· Equipped with RGBW capability for vivid multi-color lighting effects · Lighting design optimized for indoor/outdoor sports and event facilities · Excellent thermal structure and built-in 20kV surge protection for outstanding durability · Versatile lighting that supports both functional illumination and dynamic show lighting · Supports wired control system for event lighting · Integrated driver
* Tolerance : ±5% / ** Tolerance : ±10%
Model Name
Power Consumption*
SFX120-RGBW
Light distribution
120W
CCT
RGBW
Colors
Luminous Flux**
Luminous Efficacy**
Red
3,604 lm
53 lm/W
Green
3,654 lm
58 lm/W
Blue
600 lm
8 lm/W
White
7,500 lm
100 lm/W
Input Voltage
Operating Temp.
Weight
100~277V 220~240V 347~480V
-30°C~45°C
9.0 Kg
15°, 30°, Frosted
Material
Body : Cast Aluminum | Optic : AL Coating Reflector | Cover : Tempered Glass 3.2T (Clear) | Finish : Powder Coating
Control
Wired (DMX-RDM)
Product Dimensions · SFX120-RGBW 208.0 × 386.0 × 220.0mm 220.0
386.0
208.0
Applications Sports Facilities, Indoor Venues, Arenas
49
05 Product Overview
Entertainment Lighting
IP 66
MA-RGB MAHA-RGB · Dynamic RGB technology for versatile color effects · Optimized for indoor and outdoor sports and event venues · Exceptional durability with advanced thermal management & 20kV surge protection · Multi-purpose design fulfilling both functional and entertainment lighting needs · Laminated surface treatment for soft illumination · Supports wired control systems for event lighting · Integrated Driver
* Tolerance : ±5% / ** Tolerance : ±10%
Model Name
Power Consumption*
CCT
MA070-RGB
70W
RGB
Light distribution
Color
Luminous Flux**
Luminous Efficacy**
Red
NA
NA
Green
NA
NA
Blue
NA
NA
Input Voltage
Operating Temp.
Weight
100~277V
-30°C~50°C
10.0kg
Asymmetric Wide
Material
Body : Cast Aluminum | Optic : AL Coating Reflector | Cover : Tempered Glass 3.2T (Laminated) | Finish : Powder Coating
Control
Wired (DMX-RDM)
Product Dimensions · MA070-RGB
160.5
357.0 × 551.5 × 160.5mm
551.5
357.0

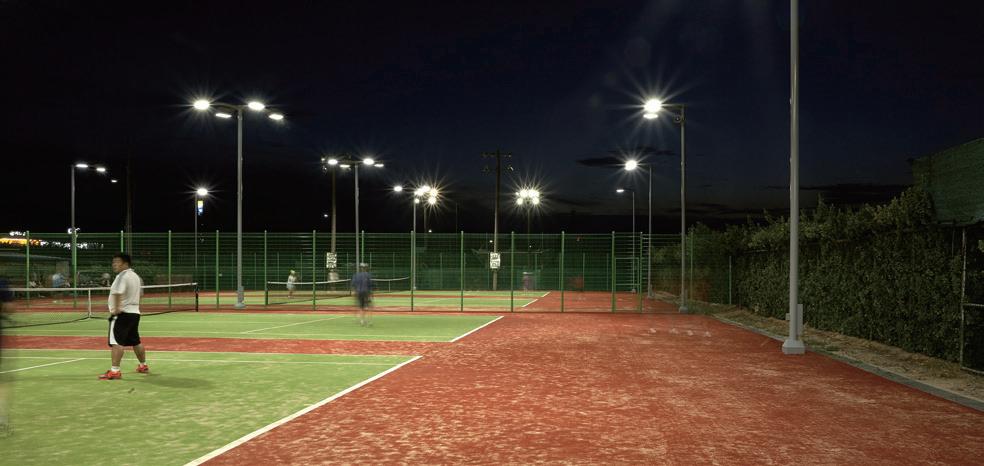

Applications Sports facilities (baseball fields, soccer fields, etc.), stadiums, arenas, landscape lighting, etc.
50
05 Product Overview
Bay Lighting
IP 65
SEH SEGA-HP · High-bay industrial LED lighting optimized for high-power environments · 145 lm/W efficiency for maximum energy savings [Pipe] · Vertical heat-sink structure minimizes thermal stress · Available with integrated or remote driver options depending on installation conditions · Compatible with wired/wireless control systems for additional energy-saving benefits · Offered with clear, frosted, and diffuser lens options
[Chain]
* Tolerance : ±5% / ** Tolerance : ±10%
Model Name
Power Consumption*
Cover Clear
SEH400
400W Frosted Clear
SEH450
450W Frosted Clear
SEH500
500W Frosted
Light distribution
CCT
Luminous Flux**
Luminous Efficacy**
5000K
58,000 lm
145 lm/W
4000K
58,000 lm
135 lm/W
5000K
54,000 lm
135 lm/W
4000K
54,000 lm
125 lm/W
5000K
65,250 lm
145 lm/W
4000K
65,250 lm
135 lm/W
5000K
60,750 lm
135 lm/W
4000K
60,750 lm
125 lm/W
5000K
72,500 lm
145 lm/W
4000K
72,500 lm
135 lm/W
5000K
67,500 lm
135 lm/W
4000K
67,500 lm
125 lm/W
Input Voltage
CRI
Operating Temp.
120~277V 347~480V
70Ra
-30°C~50°C
120~277V 347~480V
70Ra
-30°C~50°C
120~277V 347~480V
70Ra
-30°C~50°C
Weight
21.2 Kg
80°
CCT
5700K, 5000K, 4000K, 3000K

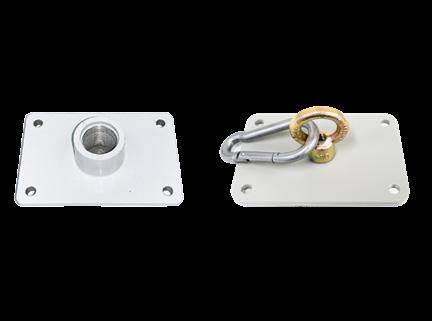

Bracket
Ceiling bracket (pipe/chain)
Material
Body : Cast Aluminum | Optic : AL Coating Reflector | Cover : Tempered Glass 4.0T (Clear) | Finish : Powder Coating
Control
Wireless (Zigbee) | Wired (0-10V)
Product Dimensions · SEH400/450/500(Pipe Type)
· SEH400/450/500(Chain Type) [Chain] : Ø480.0 × 748.0mm
Ø480.0
748.0
726.0
[Pipe] : Ø480.0 × 726.0mm
Ø480.0

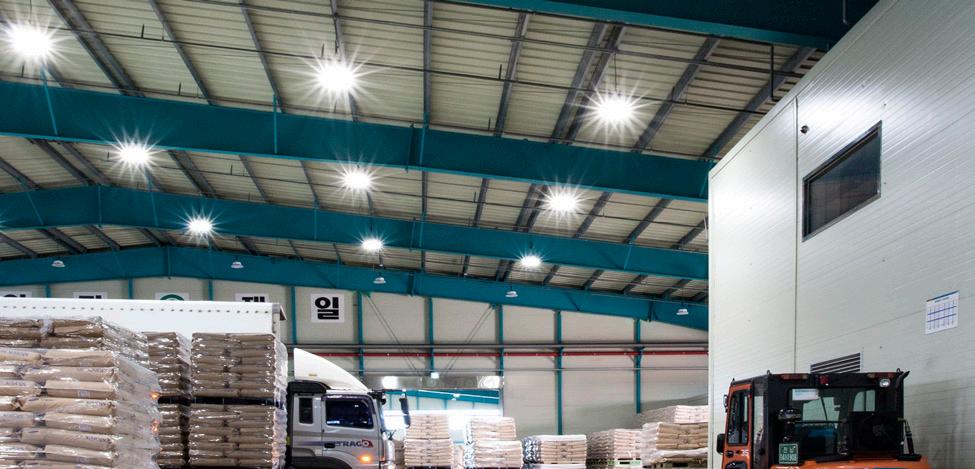

Applications Gyms, Airports, Warehouse, Factories
51
05 Product Overview
Bay Lighting
IP 66
SE SEGA · High-efficiency LED solution optimized for industrial environments · 145 lm/W efficiency for maximum energy savings SE280 / SE320 · Reflector-type optical design for improved visibility and workplace safety (Pipe) · Product lineup from 280W to 320W to support various installation conditions · Compatible with wired/wireless control systems for additional energy-saving benefits · Available with clear and frosted cover options
* Tolerance : ±5% / ** Tolerance : ±10%
Model Name
Power Consumption*
CCT
Luminous Flux**
Luminous Efficacy**
5000K
40,600 lm
145 lm/W
4000K
40,600 lm
145 lm/W
5000K
37,800 lm
135 lm/W
4000K
37,800 lm
135 lm/W
5000K
46,400 lm
145 lm/W
4000K
46,400 lm
145 lm/W
5000K
43,200 lm
135 lm/W
4000K
43,200 lm
135 lm/W
Cover
Input Voltage
CRI
Operating Temp.
Weight
100~277V
70Ra
-30°C~50°C
9.5kg
Clear SE280***
280W Frosted
Clear SE320
320W Frosted
Light distribution
90°
CCT
5700K, 5000K, 4000K, 3000K
Bracket
Ceiling bracket (pipe/chain)
Material
Body : Cast Aluminum | Optic : AL Coating Reflector | Cover : Tempered Glass 4.0T (Clear) | Finish : Powder Coating
Control
Wireless (Zigbee) *** SE280: UL Not Certified
Product Dimensions · SE280/320
56
.0
120.0
Ø56.0 × 184.0mm
Ø
184.0
710.0
18.0
53.0
60.0
80.0
60.0
Applications Factories, Gyms, Warehouse, Superstores
52
05 Product Overview
Bay Lighting
IP 65
SE
*** SE200: KC, CE 미취득
SEGA
· High-efficiency LED solution optimized for industrial environments · 150 lm/W efficiency for maximum energy savings · Reflector-type optical design for improved visibility and workplace safety · Product lineup from 80W to 200W to support various installation conditions · Compatible with wired/wireless control systems for additional energy-saving benefits · Available with clear and frosted cover options
SE80 / SE100 (Chain)
* Tolerance : ±5% / ** Tolerance : ±10%
Model Name
Power Consumption*
Cover
CCT
Luminous Flux**
Luminous Efficacy**
Input Voltage
Operating Temp.
CRI
Weight
5000K 12,000 lm 150 lm/W 4000K 12,000 lm 140 lm/W 80W 5000K 11,200 lm 140 lm/W Frosted 100~277V 4000K 11,200 lm 140 lm/W 100~240V 70Ra -30°C~50°C 4.3 Kg 5000K 15,000 lm 150 lm/W 347~480V Clear 4000K 15,000 lm 150 lm/W 100W 5000K 14,000 lm 140 lm/W Frosted 4000K 14,000 lm 140 lm/W 5000K 19,500 lm 150 lm/W Clear 4000K 19,500 lm 150 lm/W 130W 5000K 18,200 lm 140 lm/W Frosted 4000K 18,200 lm 140 lm/W 5000K 24,000 lm 150 lm/W Clear 100~277V 4000K 24,000 lm 150 lm/W 100~240V 70Ra -30°C~50°C 6.5 Kg 160W 5000K 22,400 lm 140 lm/W 347~480V Frosted 4000K 22,400 lm 140 lm/W 5000K 29,000 lm 145 lm/W Clear 4000K 29,000 lm 145 lm/W 200W 5000K 27,000 lm 135 lm/W Frosted 4000K 27,000 lm 135 lm/W SE80,SE100 : 80°, 110° | SE130,SE160,SE200 : 90°, 130° 5700K, 5000K, 4000K, 3000K Ceiling bracket (pipe/chain) Body : Cast Aluminum | Optic : AL Coating Reflector | Cover : Tempered Glass 3.2T (Clear) | Finish : Powder Coating Wireless (Zigbee) Clear
SE80
SE100
SE130
SE160
SE200*** Light distribution CCT Bracket Material Control
*** SE200: KC, CE Not Certified
Product Dimensions
Ø315.0
Ø315.0
Ø420.0
710.0
681.0
556.0
: Ø420.0 × 556.0mm · SE130/160 [Pipe] [Chain] : Ø420.0 × 710.0mm
[Pipe] : Ø315.0 × 527.0mm [Chain] : Ø315.0 × 681.0mm
527.0
· SE80/100
Ø420.0
Applications Factories, Gyms, Warehouse, Superstores
53
05 Product Overview
Roadway Lighting
IP 66
MT META · Energy-saving high efficacy of 145 lm/W · Versatile 130W–200W lineup for tailored applications · Type III-S asymmetric short-throw optics for side mounting · Wide application from side streets to 4-lane roads · Reflector-based optical design for visual comfort · Wireless, NEMA & daylight sensor ready for smart control · Built-in 20kV surge protection for robust stability
* Tolerance : ±5% / ** Tolerance : ±10%
Model Name
Power Consumption*
MT130
130W
MT150
150W
MT180***
180W
MT200*** Light distribution
200W
CCT
Luminous Flux**
Luminous Efficacy**
5000K
18,850 lm
145 lm/W
4000K
18,850 lm
145 lm/W
5000K
21,750 lm
145 lm/W
4000K
21,750 lm
145 lm/W
5000K
26,100 lm
145 lm/W
4000K
26,100 lm
145 lm/W
5000K
28,000 lm
140 lm/W
4000K
28,000 lm
140 lm/W
Input Voltage
CRI
Operating Temp.
Weight
100~277V 100~240V 347~480V
70Ra
-30°C~50°C
7.9kg
Type III-S
CCT
5700K, 5000K, 4000K, 3000K
CRI
70Ra, 80Ra, 90Ra
Bracket
Pole Mount (*Mount Hole Size : Ø60.5mm, Weight : 1.2Kg) / Junction Box
Material
Body : Cast Aluminum | Optic : AL Coating Reflector | Cover : Tempered Glass 3.2T | Finish : Powder Coating
Control
Wireless (Zigbee, NEMA7) | Daylight Sensor *** MT180, MT200: KC, CE Not Certified
Product Dimensions 505.0

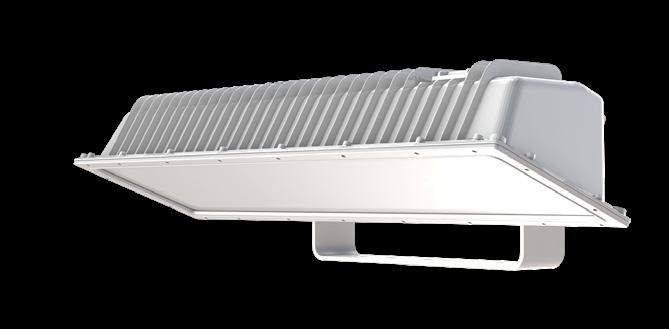

480.0
505.0 × 480.0 × 152.8mm
Applications Highways, arterial roads, general roadways, industrial park access roads, etc.
54
152.8
· MT130/150/180/200
05 Product Overview
Roadway Lighting
IP 66
SET SETA · Advanced thermal management for stable, high efficacy · Tailored solutions for public spaces and roadways · Precision reflector optics for perfect Type II-S distribution · Smart wireless controls (Zigbee, NEMA) for easy management · Maximized energy savings to minimize operating costs · Built-in 20kV surge protection for robust system stability
* Tolerance : ±5% / ** Tolerance : ±10%
Model Name
Power Consumption*
SET80***
80W
SET100
Light distribution
CCT
Luminous Flux**
Luminous Efficacy**
5000K
11,200 lm
140 lm/W
4000K
11,200 lm
130 lm/W
5000K
14,000 lm
140 lm/W
4000K
14,000 lm
130 lm/W
Input Voltage
CRI
Operating Temp.
Weight
100~240V 100~277V
70Ra
-30°C~50°C
4.5kg
100W Type II-S
CCT
5700K, 5000K, 4000K, 3000K
CRI
70Ra, 80Ra, 90Ra
Bracket
Pole Mount (*Mount Hole Size : Ø60.5mm, Weight : 1.2Kg) / Junction Box
Material
Body : Cast Aluminum | Optic : AL Coating Reflector | Cover : Tempered Glass 3.2T | Finish : Powder Coating
Control
Wireless (Zigbee, NEMA7) | Daylight Sensor *** SET80: CE Not Certified
Product Dimensions · SET80/100
157.0
415.0
398.0
415.0 × 398.0 × 157.0mm
Applications Industrial parks, warehouse roadways, public spaces, alleys and side streets, residential streets and sidewalks, etc.
55
05 Product Overview
External Driver
IP 66
BLP External Driver
BLP800(Node)
· Up to 1.5kW, IP66-rated LED driver (rear-mount or remote installation) · Supports multiple wired control options · Programmable control: DALI-2, D4i, DMX-RDM, 0–10V, etc. · Non-isolated Class I, high efficiency (98%) · Wide input range: 200–480Vac / 277–480Vac
BLP1K2(1K5)(Cable)
Model Name
Power Consumption
BLP800
800W
Input Voltage
DC Voltage Typ. 240V
200~480V BLP1200
1200W
BLP1500
Typ. 380V
1500W
277~480V
Typ. 380V
Input Current Max. 4.69A (@200Vac) Max. 1.96A (@480Vac) Max. 6.94A (@200Vac) Max. 2.96A (@480Vac) Max. 6.17A (@277Vac) Max. 3.64A (@480Vac)
Bracket
Wall Mount/ SUS-BAND/ Cabinet type(Non IP)
Material
Body : Cast Aluminum | Electro Deposition (Black)
Control
Wired (DALI-2, D4i, DMX-RDM) / Wireless (Zigbee, Casambi)
Rated Current
Operating Temp.
(Wireless) 4.3 Kg
Max. 3.17A Max. 3.03A
Weight
(Wired) 4.3 Kg (Wireless) 6.1 Kg
-30°C~45°C *Tc : Max. 80°C
(Wired) 6.0 Kg (Wireless) 6.1 Kg
Max. 3.9A
(Wired) 6.0 Kg
* Tc : Temperature Case
Product Dimensions · BLP800
· BLP1K2 /1K5 [Basic(*None)] : 439.0 × 212.0 × 105.0mm [Node(*Zigbee)] : 449.0 × 212.0 × 105.0mm [Cable(*DMX512 or DALI-2)] : 439.0 × 212.0 × 105.0mm
212.0
212.0
[Basic(*None)] : 360.0 × 212.0 × 109.0mm [Node(*Zigbee)] : 364.0 × 212.0 × 109.0mm [Cable(*DMX-RDM)] : 360.0 × 212.0 × 109.0mm
439.0
109.0
449.0
109.0
439.0
360.0
56
105.0
212.0
212.0
364.0
105.0
212.0
109.0
212.0
360.0
105.0
05 Product Overview
Remote Controlled Tilting and Steering
IP 65
RTS™-G3 Remote Tilting & Steering Bracket · Precise remote control via wired DMX-RDM · Wide control range: Tilting 20° to -70° / Steering ±70° · Fast tilting & steering speed of 5°/sec · Enables rapid aiming response · Fully compatible with SUFA-PTX™ 600–1500 series
Model Name
Power Consumption
Input Movement Adj. Angle Angular Velocity Voltage
RTS™-G3
MAX 48W
Life Time
40,000 cycle
Material
Body : Cast Aluminum | Finish : Electro Deposition(Black)
Control
Wireless (Zigbee - *Option) | Wired (DMX-RDM)
Data Rate
DMX-RDM : 250,000 [bps] | Zigbee(*Option) : 2.4 GHz – IEEE 802.15.4 (Compatible)
24VDC
Steering
±70°
5°/sec
Tilt
20~-70°
5°/sec
Product Dimensions
Connector
Operating Temp.
Weight
Waterproof
-30°C~60°C
3.2kg
178.0
205.5
· RTS™-G3 134.0
178.0 × 134.0 × 205.5mm
RTS™-G4
IP 65
Remote Tilting & Steering ■ Precise remote control via wired DMX-RDM ■ Wide control range: Tilting ±60° / Steering ±60° ■ Fast tilting & steering speed of 9°/sec ■ Enables rapid aiming response ■ Fully compatible with SUFA-Circular White and RGBW series
Model Name
Power Consumption
Input Movement Adj. Angle Angular Velocity Voltage
RTS™-G3
MAX 100W
24VDC
Life Time
40,000 cycle
Material
Body : Cast Aluminum | Finish : Electro Deposition(Black)
Control
Wireless (Zigbee - *Option) | Wired (DMX-RDM)
Data Rate
DMX-RDM : 250,000 [bps] | Zigbee(*Option) : 2.4 GHz – IEEE 802.15.4 (Compatible)
Product Dimensions
Steering
±60°
9°/sec
Tilt
±60°
9°/sec
Connector
Operating Temp.
Weight
Waterproof
-30°C~60°C
4.2kg
180.0
254.6
· RTS™-G4 267.0
180.0 × 267.0 × 254.6mm
57
05 Product Overview
GeSS® Control System
IP 66
MASTER Unit·USB Converter GeSS® Controller
· GUI-integrated lighting control hardware interface · Supports RS-485 and DMX512 wired control and Zigbee wireless control · For wired control: monitor and control up to 32 slave units per master · For wireless control: monitor and control up to 200 fixtures per master
MASTER Unit USB Converter Application
Input Voltage
Power Consumption
Input Current
Master
Model Name
Operating Temp.
-20°C~50°C -10°C~40°C Industrial High bay Lighting, Sports Lighting, High mast Lighting, Flood Lighting, Port 100~240V, 100~277V
MAX 3W
40mA(@100V)/30mA(@240V)
Control
Wireless (ZigBee) | Wired (RS-485, DMX-RDM)
Data rate
Zigbee : 250kbps | RS-485 : 115,200 [bps]
Weight 3.8 Kg (Driver excluded)
Product Dimensions 209.0
· Master Unit/USB Converter
331.0
209.0 × 331.0 × 140.0mm
Master 140.0
MASTER-E
IP 40
GeSS® Controller
■ Ethernet-based lighting control hardware interface for GeSS® Cloud ■ Transfers RS-485 control signals between the control PC and Master unit ■ Can be configured independently without PC connection
Model Name Master-E Application
Input Voltage
Power
Operating Temp.
100~240V, 100~277V, 340~480V MAX 3W -20°C~50°C Industrial High bay Lighting, Sports Lighting, High mast Lighting, Flood Lighting, Port
Control
Wired(RS-485, Ethernet)
Data rate
RS-485 : 115,200 [bps] | 100Mbps
Product Dimensions 270.5
· Master-E
60.0
Master-E
58
Master-E
165.5
270.5 × 165.5 × 60.0mm
Weight 0.9 Kg
05 Product Overview
GeSS® Control System
IP 20
IPC-6Z Intelligent Power and Control · Wall-mounted switch with dimming and scheduling control · Supports 10–100% wired/wireless dimming control · Individual ON/OFF control by zone and group · Lock function to prevent accidental or unauthorized operation · LED indicators for intuitive monitoring of dimming and control status
Model Name IPC-6Z Application
Input Voltage
Power Consumption
Input Current
Weight
100~277V, 347~480V
MAX 3W
-20°C~50°C
1.5 Kg
Industrial High bay Lighting, Sports Lighting, High mast Lighting
Control
Wireless (Zigbee) | Wired (RS-485)
Data rate
Zigbee : 250kbps | RS-485 : 115,200 [bps], 8-N-1
Product Dimensions · IPC-6Z
305.0
180.0 × 305.0 × 100.0mm
180.0
100.0
System Configuration
System Configuration
IPC-6Z (1Group/ Max. 200ea Lighting Control)
Wireless (2.4Ghz)
Lighting
Node Unit
59
05 Product Overview
High Power Emergency Lighting
HPEL™ High Power Emergency Lighting · Instant use in emergencies with zero warm-up time · Powerful, highly directional lighting via 16 units of 1,200W LEDs · Flexible aiming control via Tilt & Steering function · Rapid deployment in urgent environments like disaster relief
Aerial work platform vehicle
Category
Specification
Vehicle specification Bucket rated load and including luminaire weight Max. working radius
Base on a 5-ton truck
Max. working height
40m
Boom type
8-stage, 7-sided high-tensile boom, straight-type
Boom deployment / Retraction Speed
Deployment: 75 sec / Retraction: 24 sec
Slewing method
Hydraulic motor + planetary gear reduction type
Slewing angle
-180° ~ +180° (Total 360°)
Slewing speed
Vehicle specification
Max 0.9RPM (Varies with working radius) Safety valve + safety devices(emergency stop, leveling indicator, alarms, moment detector, various sensor, etc.) Based on a 1-ton truck
Generator max. output
25kVA
Generator rated output
20kW
Generator rated voltage
440(220)V
Generator phase
3-Phase, 4-Wires
Generator engine
Vertical Water-cooled 4-cycle diesel engine
Generator engine output
23.7kW [32.2PS]
generator displacement
2.434ℓ
Fuel tank capacity
65ℓ
3,370
Mobile generator system
Applications
26m
Retracted: 1,980~Extended: 6,485
Safety devices
400kgf / 219.2kg (SFP1K5 x 16ea)
Retracted: 1,970~Extended: 6,685
Equipment
7,675
Retracted: 4,655~Extended: 7,055
Disaster relief sites, Nighttime construction & industrial sites, Large-scale events & temporary facility operations, Public satety, etc.
60
05 Product Overview
Truck Mobile Lighting
TML™ Truck Mobile Lighting · Core performance and flexible configuration · Exclusive advantage: Real-time precise aiming control on the move · Dynamic solution for all nighttime operations · Versatile applications: Industrial sites, emergencies, leisure, etc.
Category
TML™ Specifications & Features
System Name
TML™ (Truck Mobile Lighting)
Platform
Pickup Truck
Primary Lighting
SFP(SUFA-PTX™) 800W
Secondary Lighting
MHP(MAHA-PTX™) 400W
Mast System
Motorized pole system (Max. height: 4m)
Aiming Control
RTS™-G3 / RTS™-G4 series remote control system (Remote Tilting & Steering)
Illumination Distance
700m ~ 1km (Based on SFP 800W)
Additional Features
Red/blue warning lights & white light switching via RGBW technology
Control System
Independent lighting control system (Mobile/ Tablet / PC)
Key Applications
Nighttime search & rescue, constructioln sites, leisure(camping, fishing), police/safety warnings, etc.
Pickup Truck-Based Mobile Lighting System Maximizing Mobility and Agility Equipped with two SFP 800W high-performance LEDs, the TML™ delivers clear visibility to distant targets using powerful, highly directional narrow beams. It also supports mixed configurations with asymmetric MHP 600W units to efficiently cover broad areas, providing flexible lighting solutions optimized for diverse site conditions. Unlike conventional mobile lighting that requires the vehicle to be parked, the TML™ features exclusive technology for real-time, precise aiming control while on the move. This enables continuous target tracking and instant response. The motorized pole elevates up to 4m, providing omnidirectional control via tilting and steering. With simple operation and no complex setup, users can rapidly secure the optimal light source.
Applications Search & rescue operations, Emergency recovery operations, Nighttime patrol & perimeter security, etc.
61
62
Ports & Terminals, South Korea
MAHA-PLUS Series Installed
63
A Global Leader in the LED Sports Lighting Industry, GigaTera Lighting Inc. www.gigateraled.com
Global Networks
Head Office, Republic of Korea
GigaTera North America
21 Dongtan-daero 25-gil, Dongtan-gu, Hwaseong-si, Gyeonggi-do, Republic of Korea (18462) Tel : +82-31-370-8800 E-mail : ledsales@gigateraled.com
8111 Royal Ridge Pkwy Irving, TX 75063 Tel : +1-714-515-1481 Email : info@gigateralighting.com https://www.gigateralighting.com
GigaTera EU GmbH (EU & Middle East)
GigaTera Türkiye
Bonner Str. 355 40589 Dusseldorf, Germany Tel : +49-(0)211-989-675-0 E-mail : gigateraeu@gigateraled.com me@gigateraled.com https://www.gigateraled.com/eng/
Flora Residence No.1 K.28 D.365 Atasehir, Istanbul 34750 Tel : +90-216-999-3578 / +90-530-324-0309 E-mail : info@gigatera.com.tr https://www.gigatera.com.tr
KMW China
KMW Japan
No.38, South Tuanjie Road, Hi-Tech Zone, Xi’an, Shaanxi Province, P.R.C. Tel : +86-29-8838-4888 Fax : +86-29-8799-5999 E-mail : sales@htctelecom.com https://www.gigateraled.com/eng/
5F, K&G Bldg., 1-3, Yamabukicho, Naka-ku Yokohama-shi, Kanagawa, 231-0038, Japan Tel : +81-45-231-6430 Fax : +81-45-231-6433 E-mail : info@kmwinc.co.jp https://www.gigateraled.com/jap/
KMW Viet Nam (Production Plant) Lot C, Dong Van I Industrial Park, Yen Bac Ward, Duy Tien Town, Ha Nam Province, Viet Nam Tel : +84 2263-585-590 E-mail : ledsales@kmwinc.com https://www.gigateraled.com/vie/
Due to continuous research and development for product improvement, specifications are subject to change without prior notice. Actual product colors may vary from those shown on screens or in this brochure. All images and specifications contained herein are based on the latest information available at the time of publication. © 2026 GigaTera®. All rights reserved. No part of this document may be reproduced or utilized in any form without the prior written consent of GigaTera.
Contact us
21 Dongtan-daero 25-gil, Dongtan-gu, Hwaseong-si, Gyeonggi-do, Republic of Korea (18462) Tel : +82-31-370-8800 E-mail : ledsales@gigateraled.com | https://www.gigateraled.com
Follow us YouTube /
Instagram /
Facebook /
