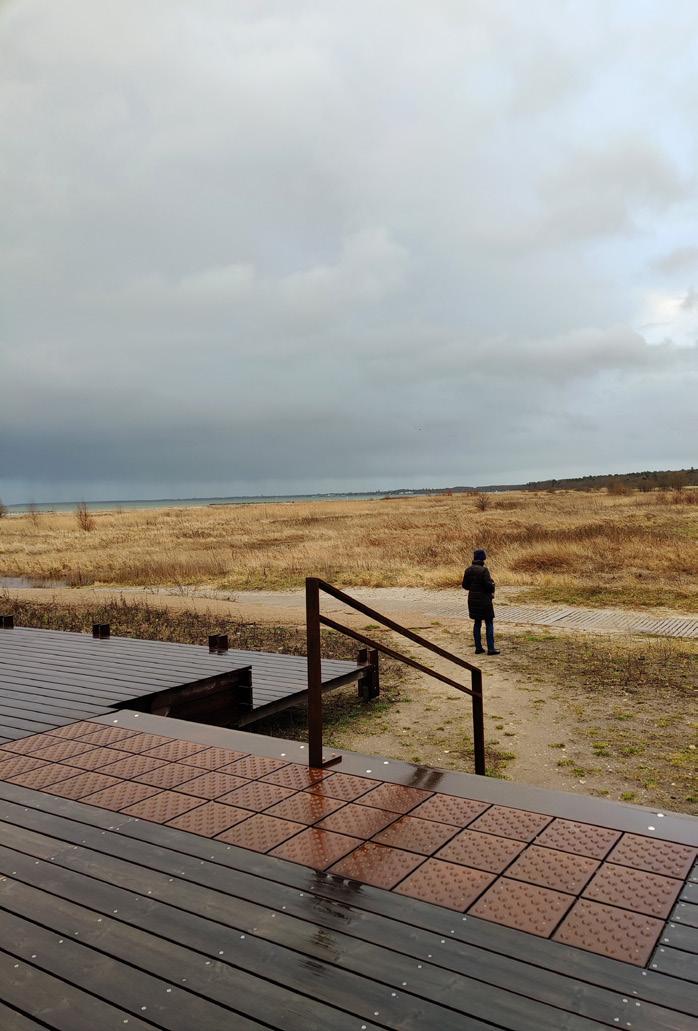

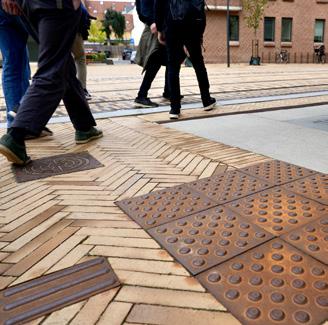

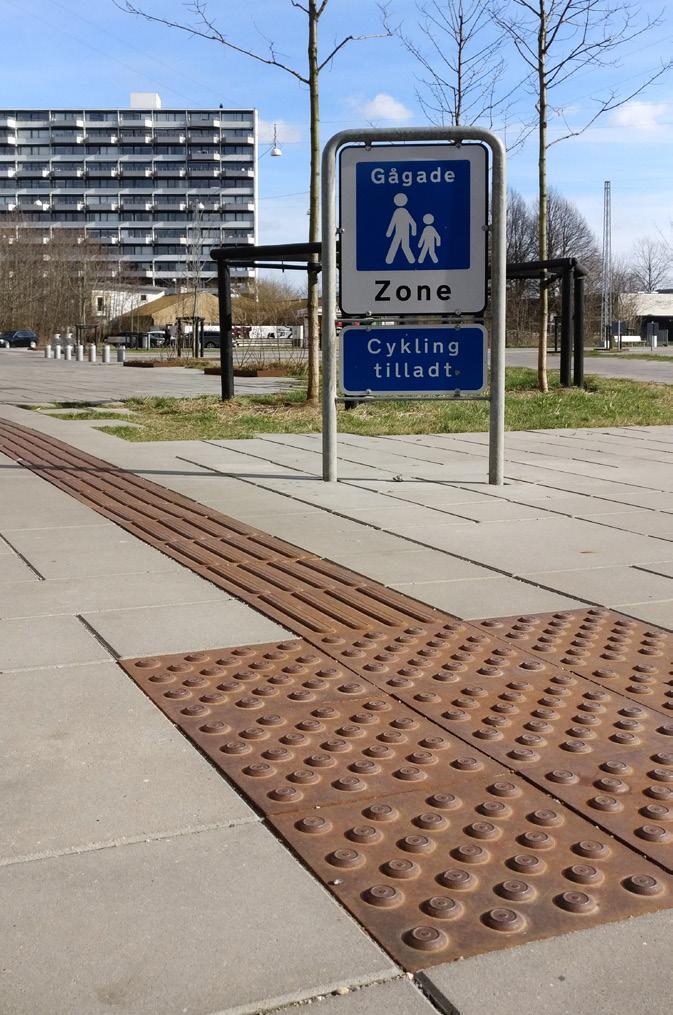

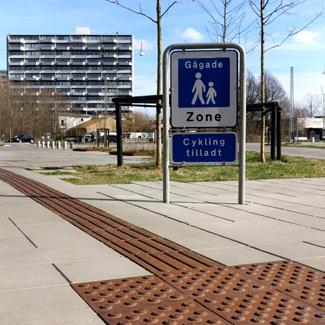

Pictoform® Cast iron Ø36 knobbed tiles. Søndre Strand beach, Køge coast.

B.22.009

8

ESTABLISHING TACTILE GUIDED PATHS

12

PICTOFORM® 26 PAVING AND TILES

14

PICTOFORM® 26 SOLO ELEMENTS

16

PICTOFORM® 36 PAVING AND TILES

18

PICTOFORM® 36 SOLO ELEMENTS

20

PICTOFORM® 36 SOLO ELEMENTS GLOW

24

PRODUCT OVERVIEW

28

PICTO-LINE® PAVING

30

PRODUCT RANGE & MATERIALS

32

CALCULATING QUANTITIES

38

TACTILE GUIDED PATHS - UPKEEP

P I CTO F O R M ®

PRODUCT PROGRAM

PRODUCT PROG RAM FOR ESTAB LISH I NG TACTI LE G U I DE D PATHS

6

4

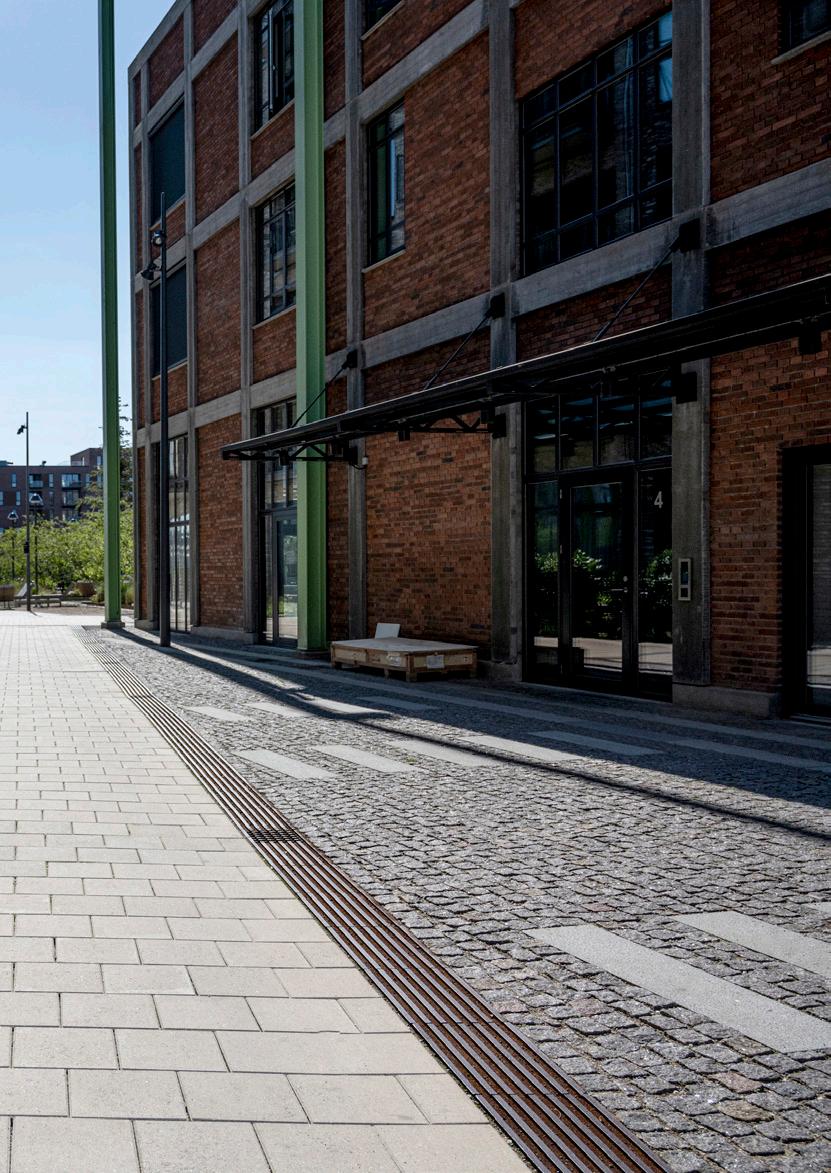

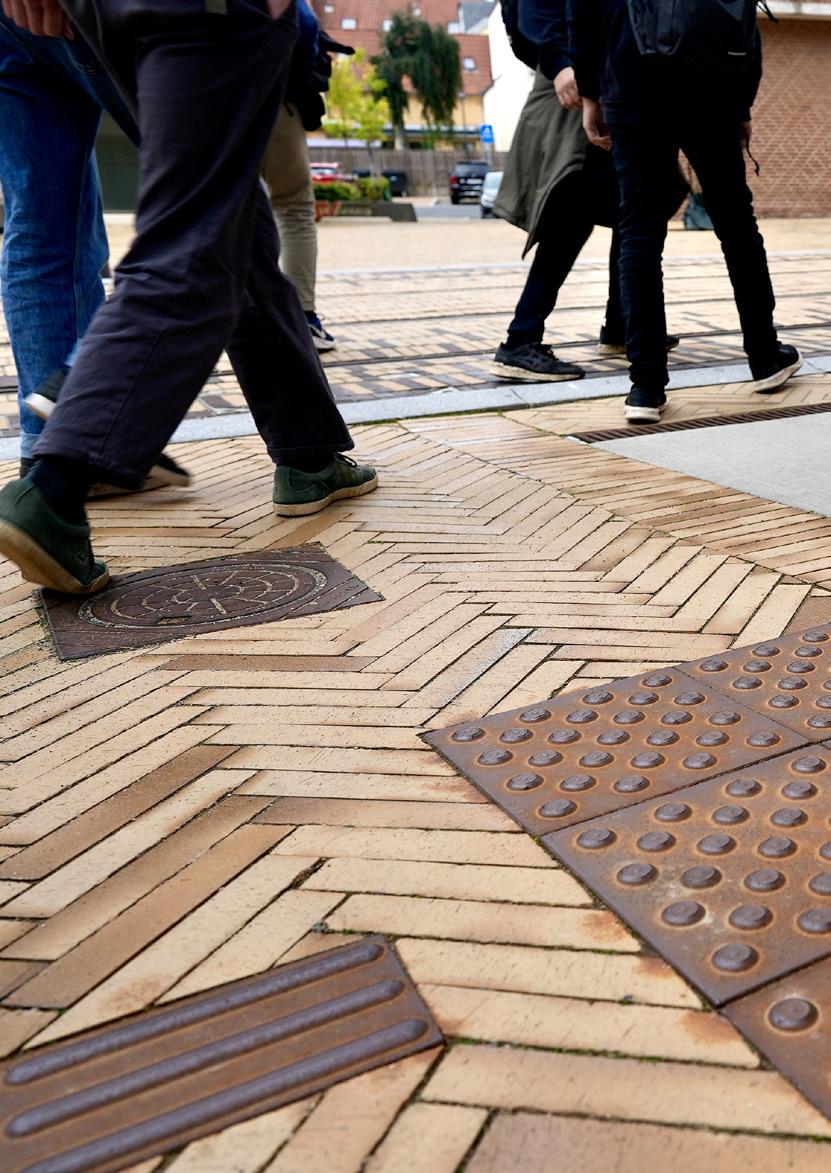

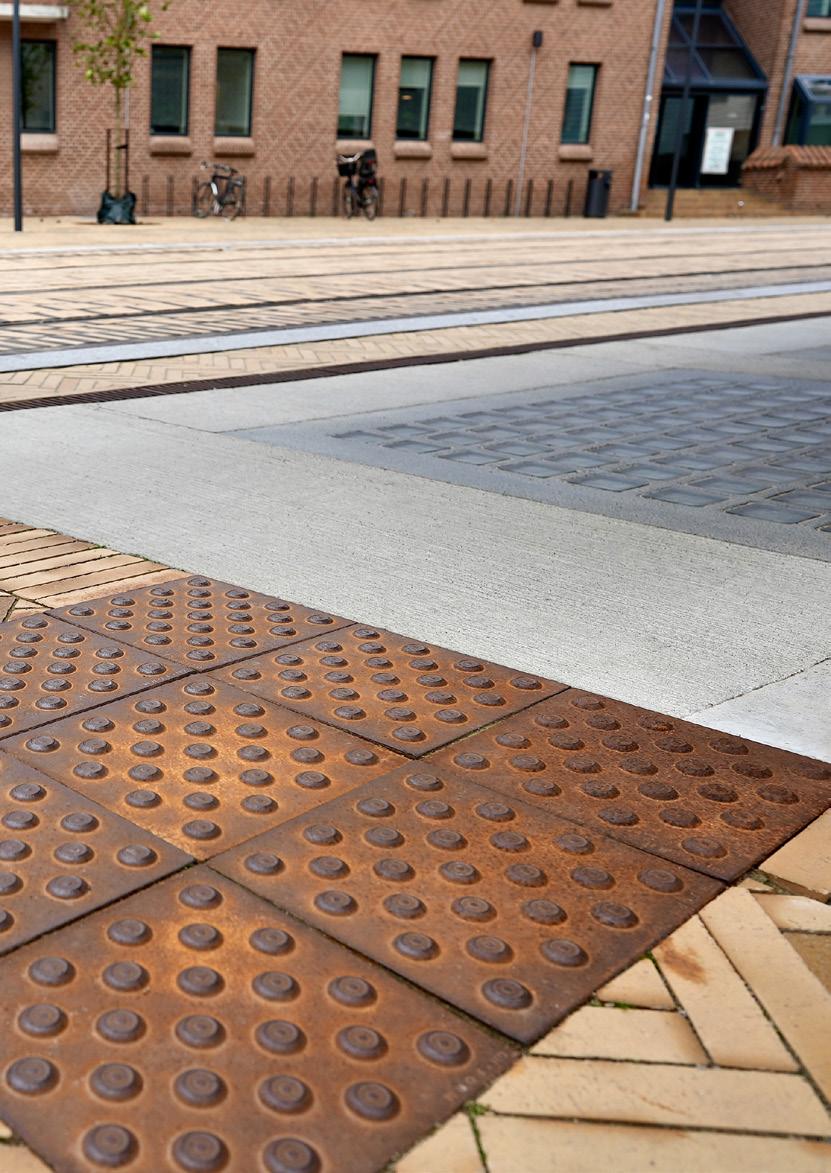

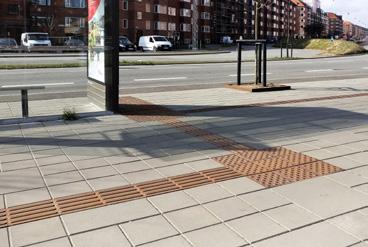

LIG HT RAI LWAY / ODE NSE THOMAS B. TH R IG ES GADE

TACTI LE G U I DANCE SYSTE M – FOR TH E B LI N D AN D TH E SIG HT-I M PAI R E D

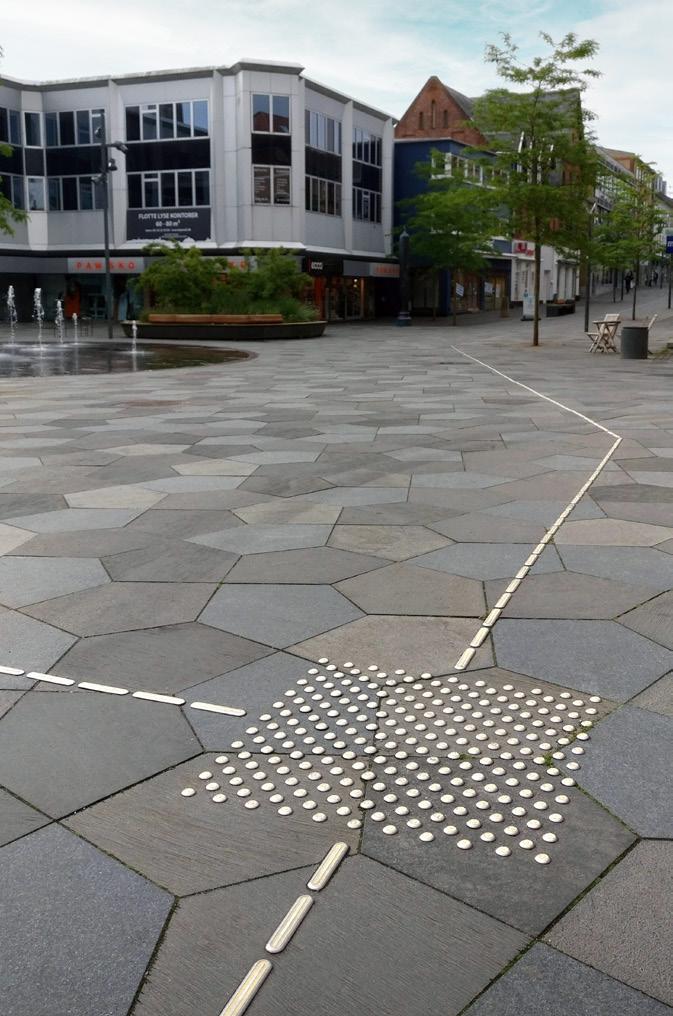

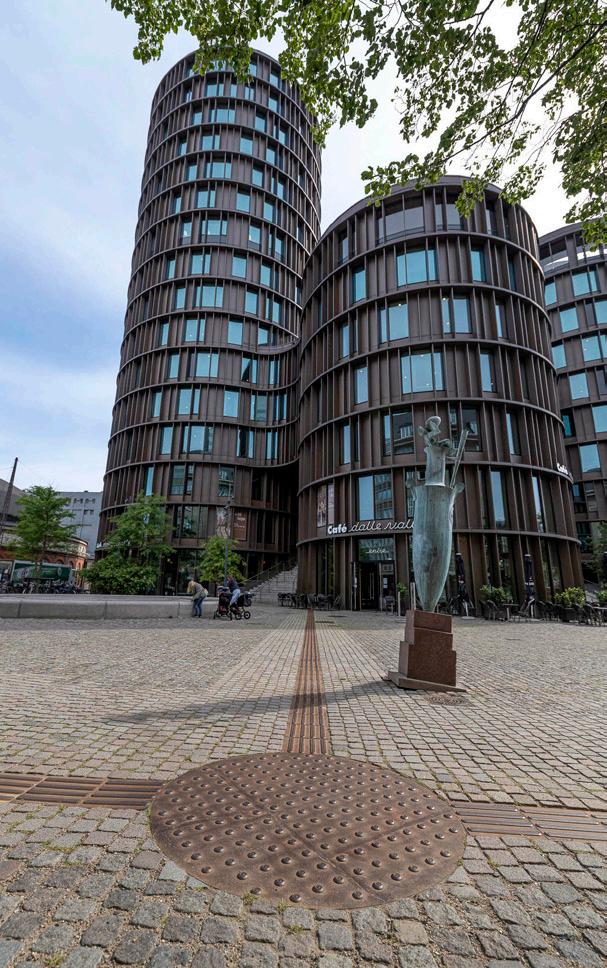

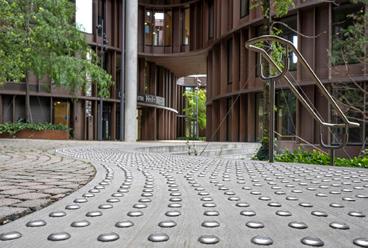

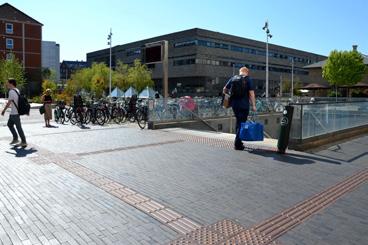

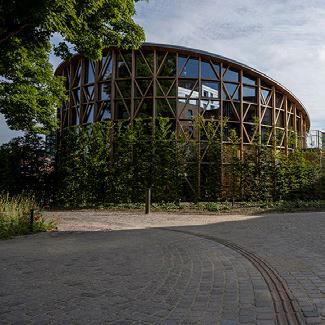

A guided pathway with attention blocks is established on large open squares etc. where there are no other orientation points. / Axel Towers, Copenhagen

6

PICTOFOR M ®

TACTI LE G U I DANCE SYSTE M – FOR THE BLIND AND THE SIGHT-IMPAIRED

The Pictoform® tactile guidance system is one of the results of a Danish research project called ‘Bykort for Blinde’ (which means “urban mapping for the sight-impaired”). This initiative was set in motion in 1993 by Dansk Design Center and the Danish Board of Business Development in 1993. GH Form won the 1997 ID award and the 2015 iF Award for its Pictoform® tactile guidance system for the sight-impaired.

In collaboration with Knud Holscher Industrial Design and landscape architect Charlotte Skibsted, GH Form came up with the idea of a system of tactile paving in 1995, which is intended to make it easier for the blind and sight-impaired to navigate urban environments.

The Picto-line® range was designed by White Arkitekter in partnership with GH Form.

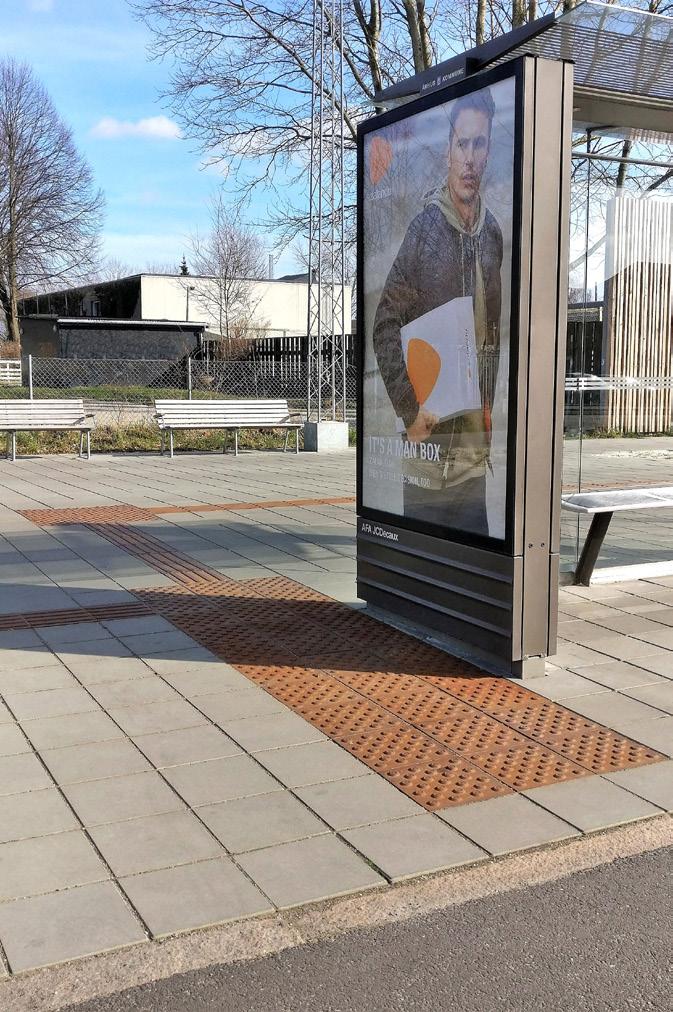

They can serve as a guided route across a particular space, signal a transition from (for example) pavement to road or indicate the location of a bus stop, and so on. There will be a particular need to install the system at traffic hotspots and town centres with open squares and pedestrianised streets.

All the principles set out in the catalogue are for instructional purposes only, as there is currently no universally-adopted standard.

Specifications can vary from country to country, based on differing cultural requirements. Local sight-impairment consultants can be brought into each specific project as and when required.

All our cast iron Pictoform® products are EPD certified.

EPD is an environmental product declaration that was developed to European and international standards as defined in EN 15804.

Product-specific EPD certifications help our customers to provide appropriate environmental declaration. Our EPD certifications can be downloaded from the EPD Denmark database at epddanmark.dk.

e pdd a n m a r k PICTOFORM.DK

7

PR I NCI PLES WH E N ESTAB LISH I NG TACTI LE G U I DE D PATHS

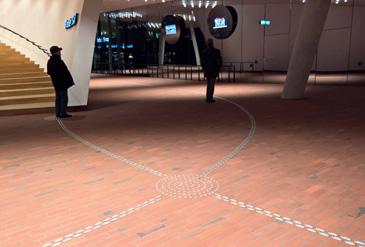

A square or circular attention block is laid where guidance lines meet, perpendicular to the attention block.

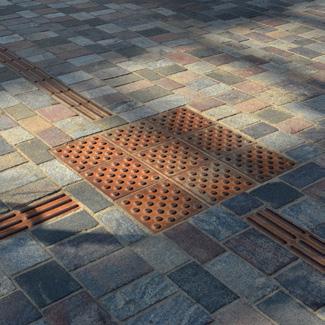

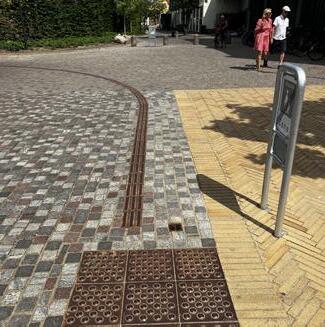

Pictoform® Cast iron tile Ø36 knobbed and Pictoform® 36 Tile with 4 guidance lines. / Aarhus City Centre.

8

PICTOFOR M ®

E STAB LI S H I NG OF TACTI LE G U I D E D PATH S PRINCIPLES

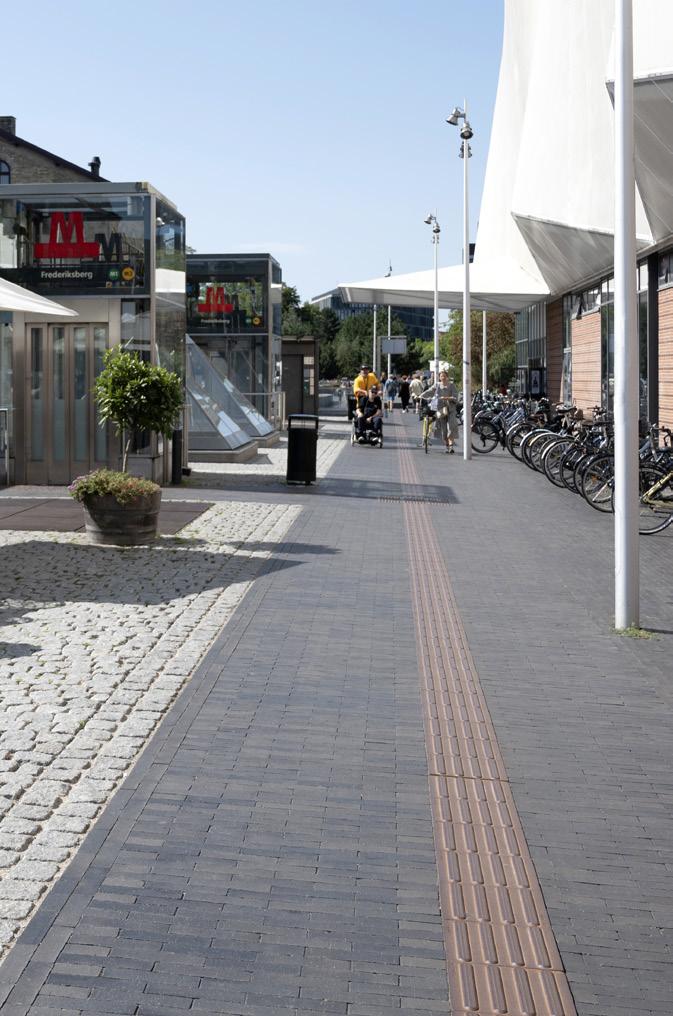

GH Form tactile guide elements should be laid to follow natural lines of movement. They can be traced by foot or using a stick.

The special form of the paving and the sounds the various profiles produce when contacted by a mobility guidance stick are a way to aid the blind and the sight-impaired to navigate.

This is a very simple system that uses only two guidance indicators.

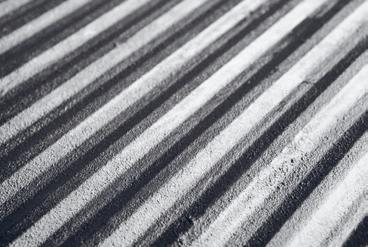

The first guidance element uses a repeated elongated form that means “go”.

The second is a semi-spherical element that is positioned in blocks to indicate “pay full attention”.

A guidance line is laid perpendicular to an “attention block”.

A route should not change direction without the presence of the latter.

The guidance line should start and end with an attention block to ensure that the guidance line is easy to locate.

There should be plenty of space on either side of the guidance line to ensure that it can be followed in both directions.

Attention blocks should draw attention to a new “event”, such as the end of the guided route, a change of direction, a pedestrian crossing, a ticket sales point, stairways and lifts/elevators.

Attention blocks can be laid with no connected guidance line, but guidance lines should not be established without the presence of an attention block.

These principles are key to the concept and apply both indoors and outdoors.

The size of the attention block will depend on traffic conditions.

As a general rule, outdoor blocks should be at least a single step.

Smaller attention blocks can be used where space does not permit the use of normal size blocks.

Blocked fields at pedestrian crossings and at the top of stairs must be at least 600 mm deep. The blocked field should cover the entire width of the crossing or stairway.

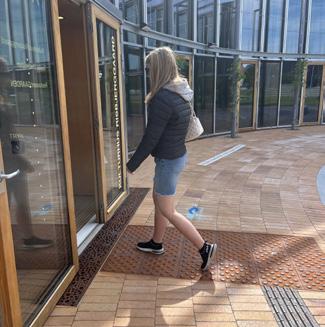

Indoor environments may necessitate guided routes to reception desks, lifts/elevators, toilets, routes to/from the main entrance and so on.

Smaller attention blocks may suffice indoors, as people normally walk more slowly indoors than they do outside.

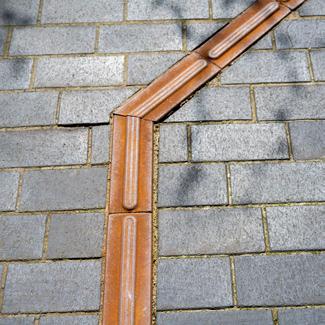

GUIDED PATHWAYS AND ATTENTION BLOCKS FOR: CHANGE OF DIRECTION A square attention block should be positioned where guided pathways meet, perpendicular to the attention block.

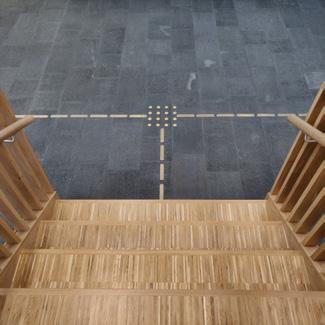

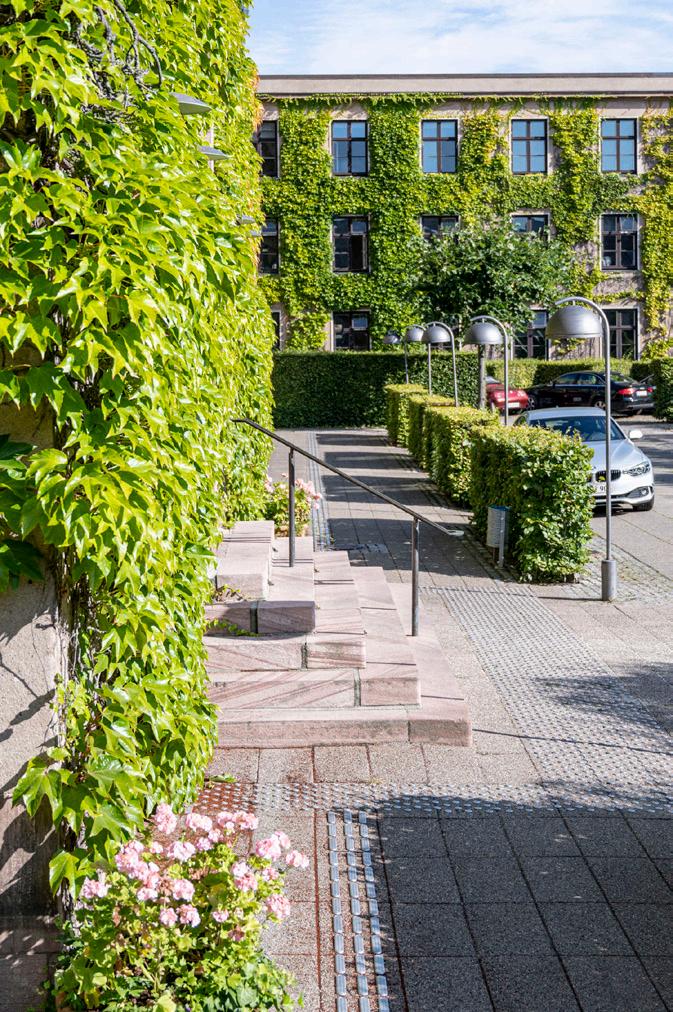

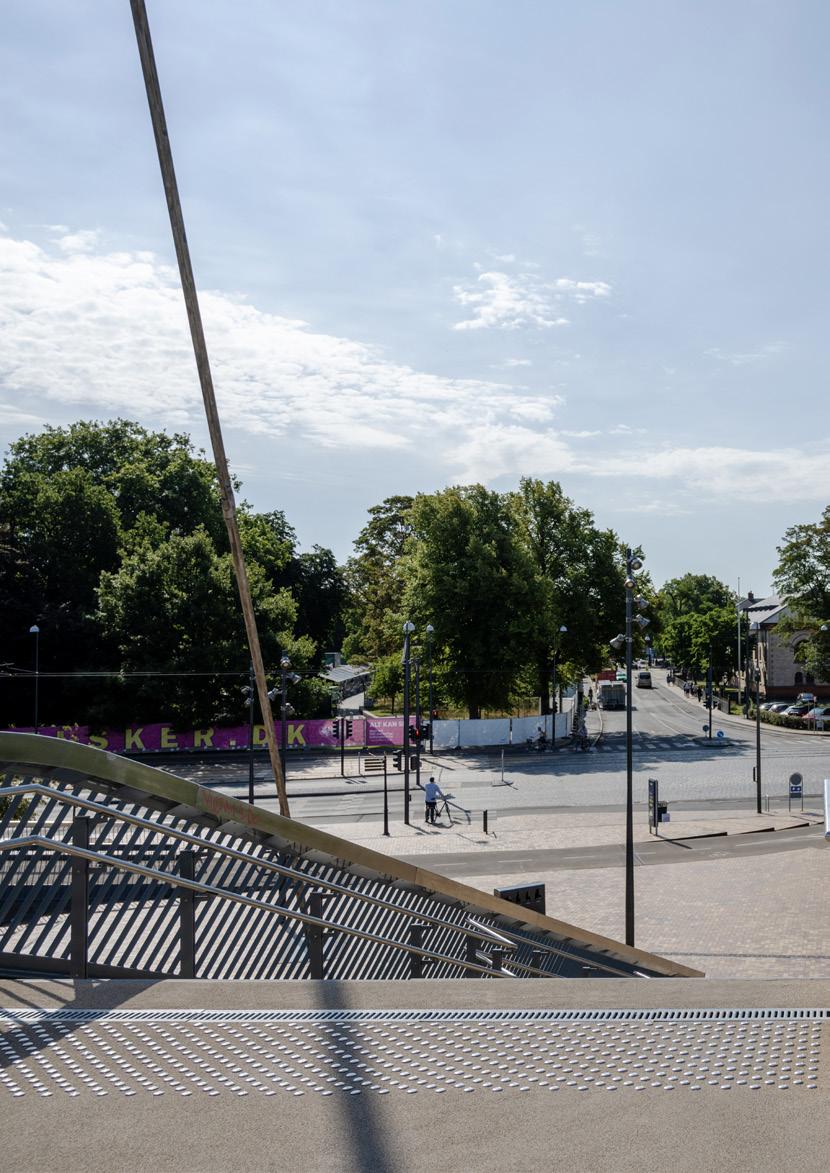

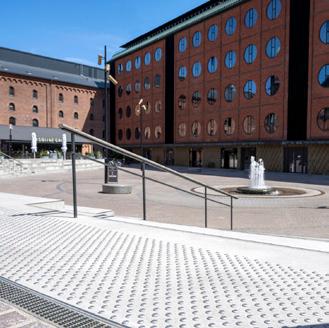

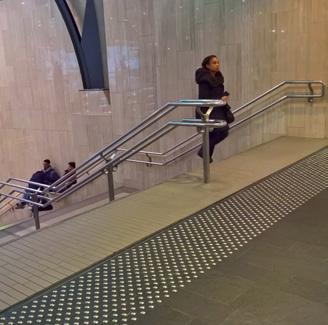

STAIRWAYS A 600 mm deep attention block should be positioned at least 300 mm before the topmost step, covering the entire width of the stairway. An attention block is not required at the foot of stairways, unless you want to communicate “this is where the stairway is.”

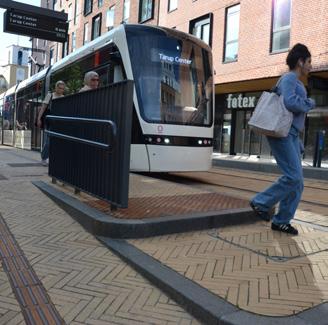

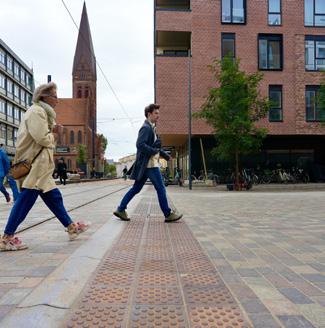

PEDESTRIAN CROSSING A 600 mm deep attention block should be positioned at least 300 mm before the kerb, covering the entire width of the crossing.

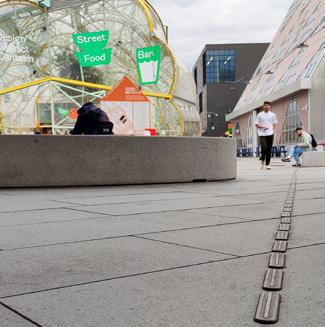

OPEN SPACES Guided pathways with attention blocks can be laid on large open spaces and squares etc., where there may be no other navigation points. A minimum of 500 mm passing space should be left on both sides of the guided pathway when setting up booths, cycle stands and clothing racks etc.

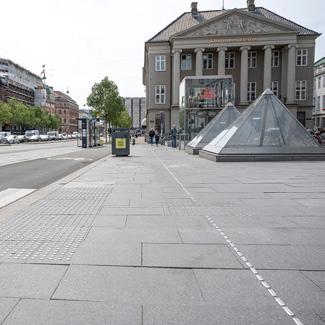

TRAFFIC HOTSPOTS Traffic hotspots should be planned according to the afore­ mentioned principles.

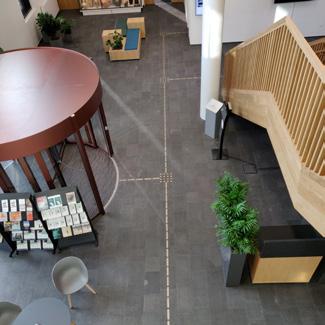

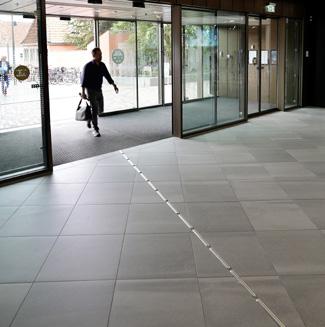

INDOORS Guided pathways can be required indoors for reception desks, lifts/elevators, toilets, routes to/from the main entrance and so on. Smaller attention blocks may suffice indoors, as people normally walk more slowly indoors than they do outside.

PICTOFORM.DK

9

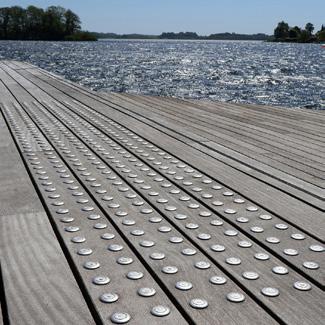

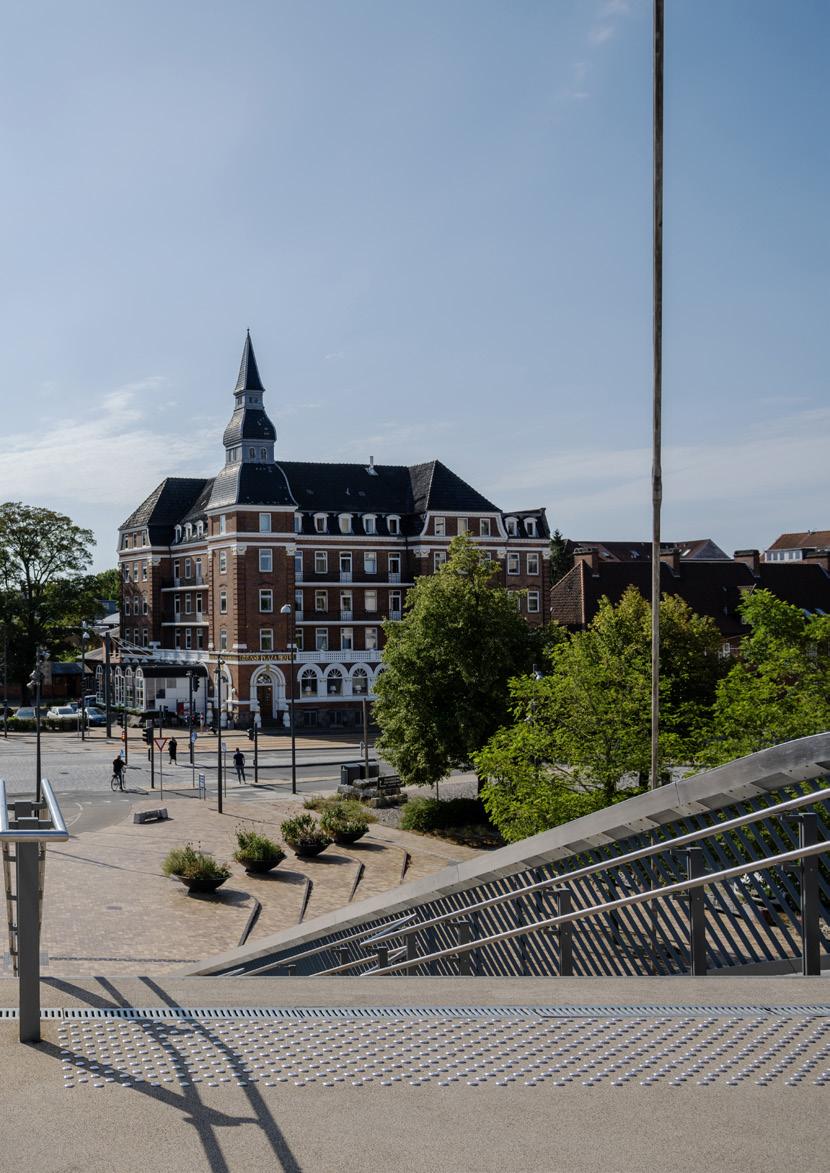

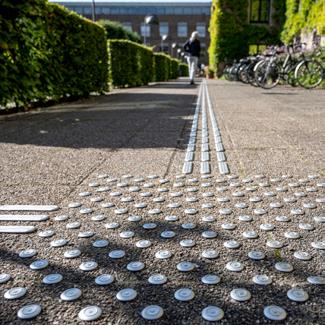

ODE NSE / STI B ROE N / PICTOFOR M ® 36 SOLO E LE M E NTS I N STAI N LESS STE E L

10

11

PICTOFOR M ® 26 PAVI NG AN D TI LES

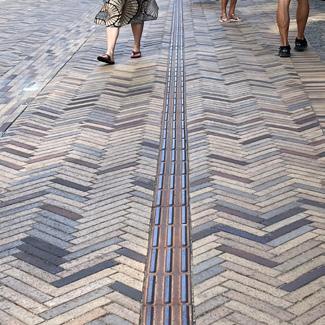

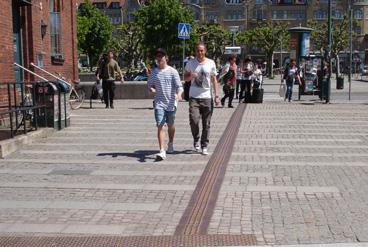

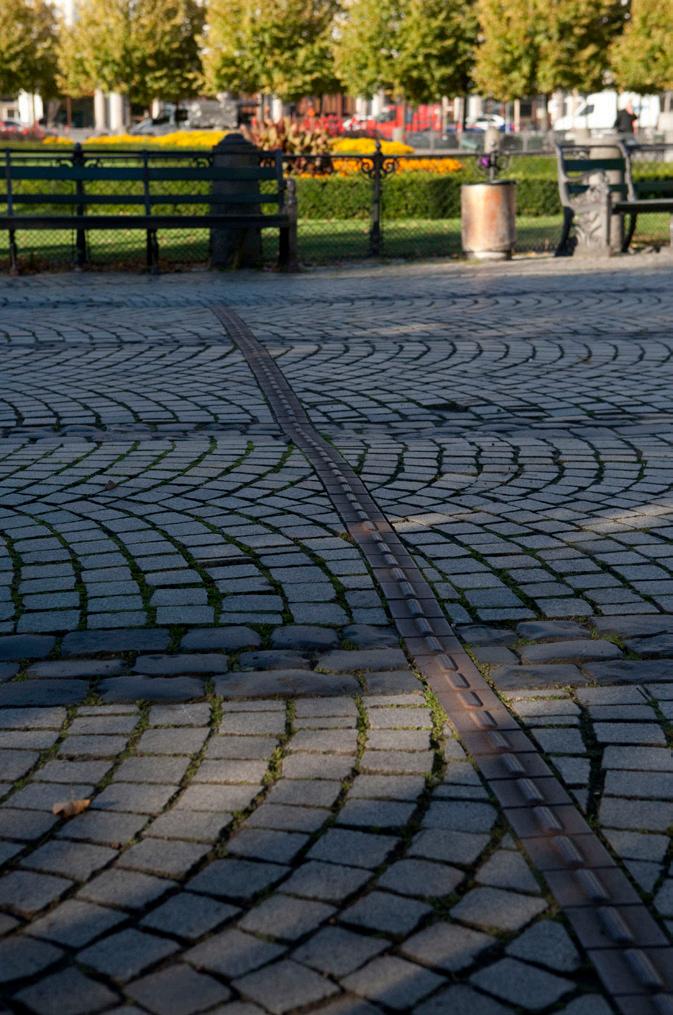

Guidance lines are laid to follow natural walking routes and can be followed by foot or stick.

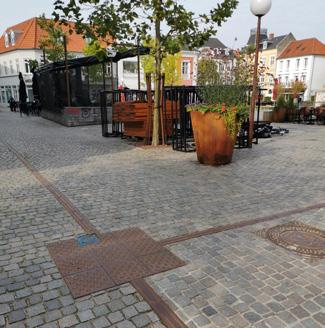

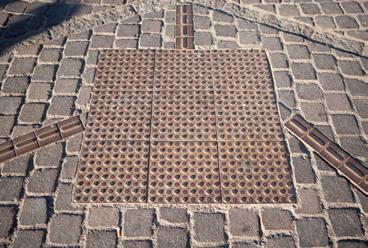

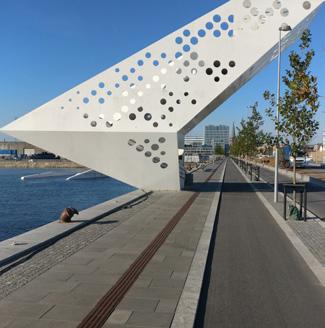

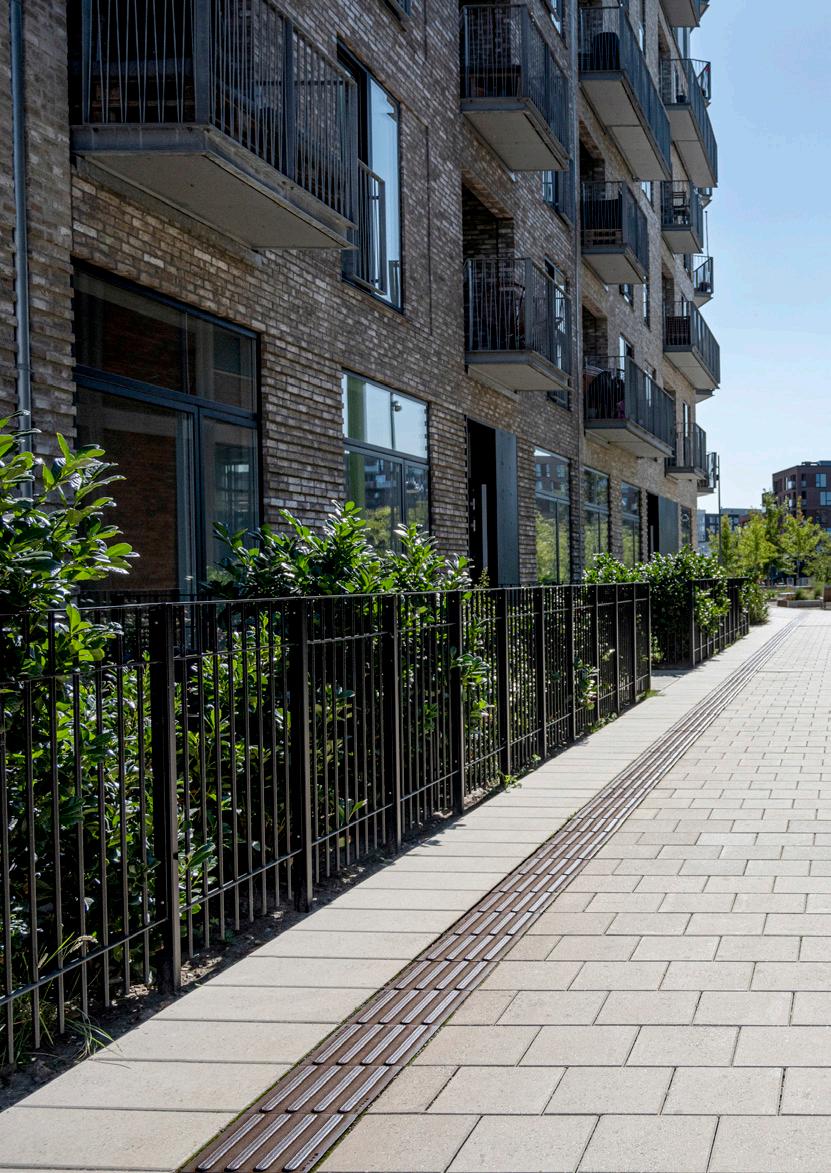

Stockholm Hammarby Sjöstad.

12

B.11.018

PICTOFOR M ® 26 PAVI NG AN D TI LE S

The indicators are cast either as “knobs” or a linear path. Guided pathways can be selected with either a single line or with a triple parallel line profile.

On large open squares etc. with no other orientation points, a guided pathway is established using attention blocks.

PICTOFOR M ® 26 PAVI NG AN D TI LE S TACTI LE G U I DANCE SYSTE M The cast iron elements are available in several variants and can be supplied and installed as tiles or paving slabs. The tactile guidance texturing is cast either as semi-spherical “knobs” or as elongated lines.

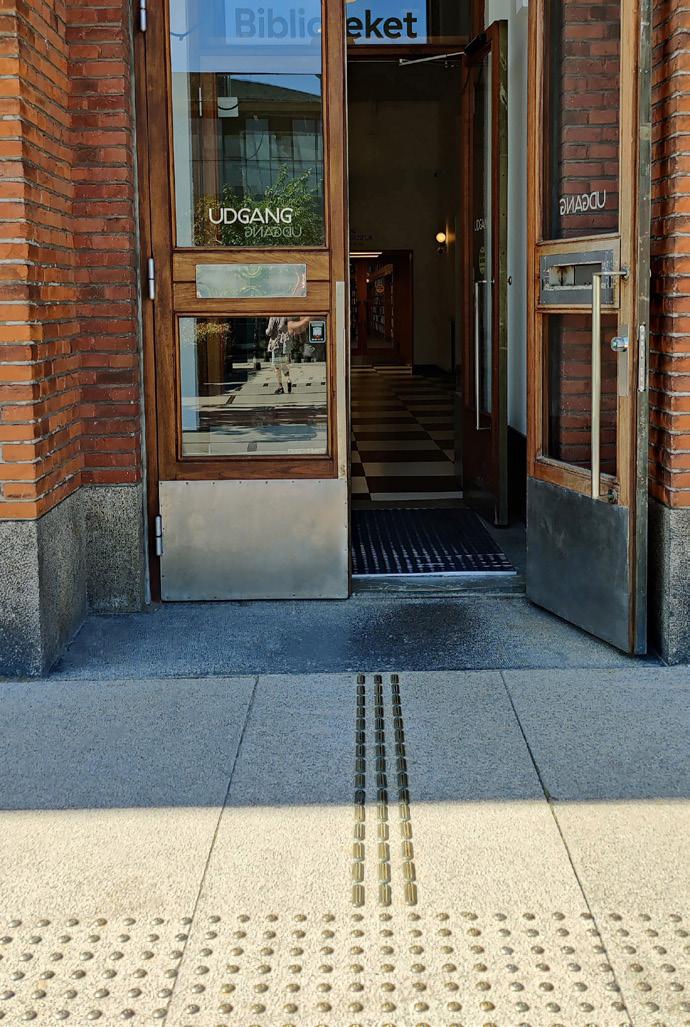

Guided pathways can use either a single line or a system of three parallel lines.

100

When installing guided pathways, we recommend the installation of attention blocks where the guided pathway starts and ends. This helps users to find their way to and from the guided pathway. Attention blocks should also be laid where the pathway changes direction.

Attention blocks can be laid in isolation, such as at pedestrian crossings, stairways and so on.

300

70

For an overview of product numbers, please go to page 24.

70

300

300

e pdd a n m a r k PICTOFORM.DK

13

PICTOFOR M ® 26 SOLO E LE M E NTS

All solo elements in the Pictoform® 26 series are available in bronze and can be supplied with or without holes.

14

D.23.038 / D.13.046

PICTOFOR M ® 26 SOLO E LE M E NTS

Indoor environments may necessitate guided routes to reception desks, lifts/elevators, toilets, routes to/from the main entrance and so on.

Smaller attention blocks may suffice indoors, as people normally walk more slowly indoors than they do outside.

Ø26

PICTOFOR M ® 26 SOLO E LE M E NTS G U I DE D PATHWAY SYSTE M US I NG SOLO E LE M E NTS

Ø26

Rust-resistant steel and bronze are very durable materials, which can cope with large amounts of wear and tear.

Guided pathway system elements are available in two sizes: 26 x 70 mm and 26 x 90 mm. They can also be produced to custom lengths on a “by project” basis. Each semi-spherical “knob” is 26 mm in diameter.

26 90

The elements are available in two variants: one for securing to a glued anchor point and one for securing with glue alone. This type of guided pathway will require a certain amount of maintenance, according to where it is positioned.

For an overview of product numbers, please go to page 25.

26 90

e pdd a n m a r k PICTOFORM.DK

15

PICTOFOR M ® 36 PAVI NG AN D TI LES

Paving slabs and tiles in the Pictoform® ranges feature cast indicators in the form of lines or semi-spherical knobs.

16

B.11.027

PICTOFOR M ® 36 PAVI NG AN D TI LE S

Attention blocks can be laid in isolation, such as at pedestrian crossings, stairways and similar locations where pedestrians need to be advised of a potential hazard or point of interest.

100 300

PICTOFOR M ® 36 PAVI NG AN D TI LE S TACTI LE G U I DANCE SYSTE M

70

300

300

The square tiles and paving slabs each have four rows of lines, each line being 36 mm wide. The rectangular tiles and paving slabs each have one row of lines, each line being 36mm wide. The Ø36 mm “knobs” on the square tiles and paving slabs are aligned in a diagonal pattern covering the item.

70

300

70

The cast iron elements are available in various sizes and can be supplied and installed as tiles or paving slabs. The textured guide pattern is cast either as lines or semi-spherical “knobs”, which designate a path to follow and an “attention” block, respectively.

300

When installing guided pathways, we recommend the installation of attention blocks at the beginning and end of the guided pathway.

Attention blocks should also be positioned where the path changes direction and at other locations where attention is required. Linear pathways and attention blocks should, as far as possible, be perpendicular to each other.

For an overview of product numbers, please go to page 26.

e pdd a n m a r k PICTOFORM.DK

17

PICTOFOR M ® 36 SOLOE LE M ETE R

Pictoform® Solo elements from both the, 26 and 36 ranges can be used both indoors and outdoors, depending on the surfacing. Both types should be installed on top of existing surfacing.

18

E.13.057 / E.23.053

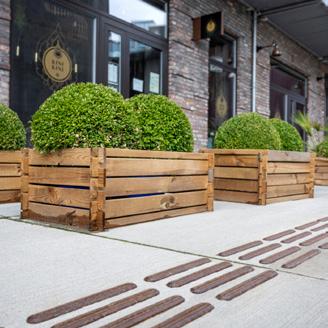

PICTOFOR M ® 36 SOLO E LE M E NTS

Ø36 Solo elements are available in cast iron or rust-resistant steel in the variants presented in the product overview.

The 35 mm long Ø8 installation wedges on the underside are conical.

The rust-resistant elements are available with durable inlaid epoxy in contrasting colours.

PICTOFOR M ® 36 SOLO E LE M E NTS Ø36

G U I DE D PATHWAY SYSTE M US I NG SOLO E LE M E NTS Ø36

Solo elements are available in both cast iron and rust-resistant steel variants. Please see the product overview for the exact details. The elements have conical Ø8 mm 35 mm long studs.

The rust-resistant elements are available either with or without durable inlaid epoxy in contrasting colours.

When installing guided pathways, we recommend the installation of attention blocks at the beginning and end of the guided pathway.

Attention blocks should also be positioned where the path changes direction and at other locations where attention is required. Linear pathways and attention blocks should, as far as possible, be perpendicular to each other.

290

Attention blocks can be laid in isolation, such as at pedestrian crossings, stairways and similar locations where pedestrians need to be advised of a potential hazard or point of interest.

For an overview of product numbers, please go to page 27.

36

e pdd a n m a r k PICTOFORM.DK

19

PICTOFOR M ® 36 SOLO E LE M E NTS WITH R E FLECTIVE CONTRAST COLOU R S

We offer the option of contrasting colours in reflective finishes where extra accentuation of guided pathways and attention blocks is required.

20

E.13.071 / E.23.074

PICTOFOR M ® 36 SOLO E LE M E NTS WITH R E FLECTIVE CONTRAST COLOU RS

PICTOFOR M ® 36 SOLO E LE M E NTS – WITH R E FLECTIVE CONTRAST COLOU RS

We offer the option of contrasting colours in reflective finishes where extra accentuation of guided pathways and attention blocks is required.

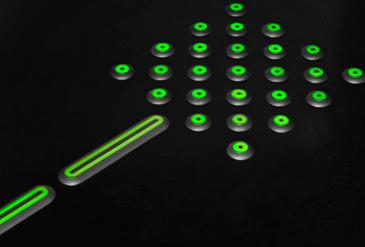

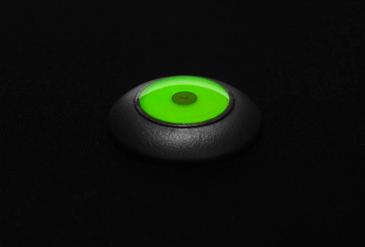

The light-sensitive particles in these elements store up light during daylight, even on overcast days. After dark, the elements emit a flourescent illumination effect that remains visible during the hours of darkness.

For an overview of product numbers, please go to page 27.

PICTOFORM.DK

21

PICTOFOR M ® 36 CAST I RON TI LE / 4 X 36 M M WI DE G U I DANCE LI N E

22

PICTOFORM.DK

23

PICTOFOR M ® 26 PROD UCT OVE RVI EW PAVING AND TILES

A.21.003 Pictoform® Knobbed element / Concrete

100 x 300 x 70

A.21.004 Pictoform knobbed element / Concrete

300 x 300 x 70

B.21.005 Pictoform® Knobbed element / Cast iron

100 x 100 x 70

®

B.21.006 Pictoform Knobbed element / Cast iron

100 x 300 x 70

B.21.007 Pictoform® Knobbed element / Cast iron

300 x 300 x 70

®

B.21.008 Pictoform® Knobbed element / Cast iron

600 x 600 x 70

E.11.050 Pictoform® Knobbed element / Rust-resistant steel

300 x 300 x 60

A.11.011 Pictoform® Guide element / Concrete

100 x 300 x 70

A.11.012 Pictoform Guide element / Concrete

300 x 300 x 70

B.11.013 Pictoform® Guide element / Cast iron

100 x 100 x 70

B.11.018 Pictoform Guide element / Cast iron

100 x 300 x 70

B.11.019 Pictoform® Guide element / Cast iron

100 x 400 x 70

B.11.021 Pictoform Guide element / Cast iron - single line

300 x 300 x 70

B.11.020 Pictoform® Guide element / Cast iron

300 x 300 x 70

B.22.021 Pictoform® Knobbed element / Cast iron

100 x 300 x 8

B.22.023 Pictoform Knobbed element / Cast iron

300 x 300 x 8

B.22.027 Pictoform® Knobbed element / Cast iron

400 x 400 x 8

E.22.029 Pictoform Knobbed element / Rust-resistant steel

350 x 350 x 8

B.12.031 Pictoform® Guide element / Cast iron

100 x 300 x 8

®

®

®

®

®

B.12.033 Pictoform Guide element / Cast iron

100 x 315 x 8

B.12.034 Pictoform® Guide element / Cast iron

100 x 325 x 8

B.12.035 Pictoform® Guide element / Cast iron

100 x 400 x 8

E.12.036 Pictoform® Guide element / Rust-resistant steel

100 x 350 x 8

B.12.037 Pictoform® Guide element / Cast iron

300 x 300 x 8

®

24

SOLO ELEMENTS

D.23.038 Pictoform® Solo knobbed element Ø26 with installation hole

Bronze

E.23.039 Pictoform Solo knobbed element Ø26 with installation hole

Rust-resistant steel

®

D.23.040 Pictoform® Solo knobbed element Ø26

Bronze

E.23.041 Pictoform Solo knobbed element Ø26

Rust-resistant steel

®

D.13.042 Pictoform® Solo guide element 26 x 70 with installation hole

Bronze

D.13.046 Pictoform Solo guide element 26 x 90 with installation hole

Bronze

®

E.13.043

Pictoform® Solo guide element 26 x 70 with installation hole

Rust-resistant steel

E.13.047

Pictoform® Solo guide element 26 x 90 with installation hole

Rust-resistant steel

D.13.044 Pictoform® Solo guide element 26 x 70

Bronze

D.13.048 Pictoform Solo guide element 26 x 90

Bronze

®

E.13.045

Pictoform® Solo guide element 26 x 70

Rust-resistant steel

E.13.049

Pictoform® Solo guide element 26 x 90

Rust-resistant steel

TILBEHØR

E.25.001

Glue anchor point, rust-resistant steel with hole

E.25.002

Wood screws, Pictoform wood stainless 4 x 20 TX20

GH.13.1072 Glue, Adheseal, 3 colours: Grey / black / light grey GH.13.1073 Glue, two-component, 280 ml GH.13.1074 Glue, two-component, 280 ml, winter GH.13.1075 Degreaser, spray can GH.13.1076 Glue, Safe seal 290 ml black GH.13.1079 Glue gun for two-component glue GH.13.1081 Template 300 x 300 for Ø26, diagonal Pictoform® knobbed block GH.13.1082 Template 330 x 330 for Ø26, diagonal Pictoform® knobbed block

PICTOFORM.DK

25

PICTOFOR M ® 36 PROD UCT OVE RVI EW PAVING AND TILES

B.21.009 Pictoform® Cast iron tile / Ø36 mm knobbed indicators Pictoform Cast iron tile / Ø36 mm indicator

350 x 350 x 70

B.21.011

Pictoform® Cast iron tile / Ø36 mm indicator

400 x 400 x 70

B.21.012

Pictoform® Cast iron tile / Ø36 mm indicator

300 x 300 x 70

B.11.024

Pictoform® Cast iron tile / 36 mm wide guidance line

100 x 300 x 70

B.11.025

Pictoform Cast iron tile / 36 mm wide guidance line

100 x 350 x 70

B.11.026

Pictoform® Cast iron tile / 36 mm wide guidance line

100 x 400 x 70

B.11.027

Pictoform® Cast iron tile / 4 x 36 mm wide guidance line

300 x 300 x 70

B.11.028

Pictoform Cast iron tile / 5 x 36 mm wide guidance line

350 x 350 x 70

B.11.029

Pictoform® Cast iron tile / 6 x 36 mm wide guidance line

400 x 400 x 70

B.11.030

Pictoform® Cast iron tile / 4 x 36 mm wide guidance line / reflective colour

300 x 300 x 70

B.11.031

Pictoform® Cast iron tile / 4 x 36 mm wide guidance line / without concrete 300 x 300 x 70

®

®

B.22.009 Pictoform® Cast iron tile / Ø36 knobbed indicators

26

300 x 300 x 70

B.21.010

®

300 x 300 x 8

B.22.010

Pictoform Cast iron tile / Ø36 knobbed indicators

350 x 350 x 8

B.22.011

Pictoform® Cast iron tile / Ø36 knobbed indicators

400 x 400 x 8

B.12.024

Pictoform® Cast iron tile / 36 mm wide guidance line

100 x 300 x 8

®

B.12.025

Pictoform Cast iron tile / 36 mm wide guidance line

100 x 350 x 8

B.12.026

Pictoform® Cast iron tile / 36 mm wide guidance line

100 x 400 x 8

B.12.027

Pictoform® Cast iron tile / 4 x 36 mm wide guidance line

300 x 300 x 8

B.12.028

Pictoform Cast iron tile / 5 x 36 mm wide guidance line

350 x 350 x 8

B.12.029

Pictoform® Cast iron tile / 6 x 36 mm wide guidance line

400 x 400 x 8

®

®

SOLO ELEMENTS

B.13.050 Pictoform® Solo guide element / studding, cast iron

36 x 290

E.13.060

Pictoform Solo guide element / studding and colour inlay, rust-resistant steel

36 x 290

E.13.061

Pictoform® Solo guide element / studding, rust-resistant steel

36 x 290

E.13.070

Pictoform Solo guide element / studding and inlaid reflective colour, rust-resistant

36 x 290

®

®

B.13.051 Pictoform® Solo guide element / studding, cast iron

36 x 180

E.13.056

Pictoform® Solo guide element / studding and colour inlay, rust-resistant steel

36 x 180

E.13.057

Pictoform Solo guide element / studding, rust-resistant steel

36 x 180

E.13.071

Pictoform® Solo guide element / studding, inlaid reflective colours, rust-resistant steel

36 x 180

D.13.075

Pictoform Solo guide element / studding / bronze

36 x 290

E.13.058

Pictoform® Solo guide element / colour inlay, rust-resistant steel

36 x 180

E.13.059

Pictoform® Solo guide element / rust-resistant steel

36 x 180

E.13.062

Pictoform Solo guide element / colour inlay

36 x 290

E.13.063

Pictoform® Solo guide element / rust-resistant steel

36 x 290

E.13.072

Pictoform Solo guide element / inlaid reflective colour rust-resistant steel

36 x 180

E.13.073

Pictoform® Solo guide element / inlaid reflective colour rust-resistant steel

36 x 290

D.13.077

Pictoform® Solo guide element / bronze

36 x 180

D.13.078

Pictoform® Solo guide element / bronze

36 x 290

®

®

®

®

B.23.051 Pictoform® Solo knobbed element / cast iron

Ø36

E.23.052 Pictoform® Solo knobbed element / studding and colour inlay, rust-resistant steel

Ø36

E.23.053 Pictoform Solo knobbed element / studding, rust-resistant steel

Ø36

E.23.074

Ø36

®

Pictoform® Solo knobbed element / studding and inlaid reflective colour, rust-resistant steel

D.23.053 Pictoform Solo knobbed element / bronze

Ø36

®

B.23.056 Pictoform® Solo knobbed element / cast iron

Ø 36

Ø36

E.23.054 Pictoform® Solo knobbed element / colour inlay, rust-resistant steel, no studding

Ø36

E.23.055 Pictoform® Solo knobbed element / rust-resistant steel

Ø36

E.23.075

Ø36

Pictoform® Solo knobbed element / inlaid reflective colour, rust-resistant steel

D.23.055 Pictoform Solo knobbed element / bronze ®

Ø 36

Ø 36

Ø36

TILBEHØR GH.13.1072 Glue, Adheseal, 3 colours: Grey / black / light grey GH.13.1073 Glue, two-component, 280 ml GH.13.1074 Glue, two-component, 280 ml, winter GH.13.1075 Degreaser, spray can GH.13.1076 Glue, Safe seal 290 ml black GH.13.1079 Glue gun for two-component glue GH.13.1083 Template 900 x 900 for Ø36 / Diagonal Pictoform® knobbed block GH.13.1084 Template 900 x 900 for Ø36 / Square Pictoform® knobbed block GH.13.1085 Template 600 x 600 for Ø36 / Diagonal Pictoform® knobbed block GH.13.1086 Template 600 x 600 for Ø36 / Square Pictoform® knobbed block GH.13.1087 Template 300 x 300 for Ø36 / Diagonal Pictoform® knobbed block GH.13.1088 Template 300 x 300 for Ø36 / Square Pictoform® knobbed block

PICTOFORM.DK

27

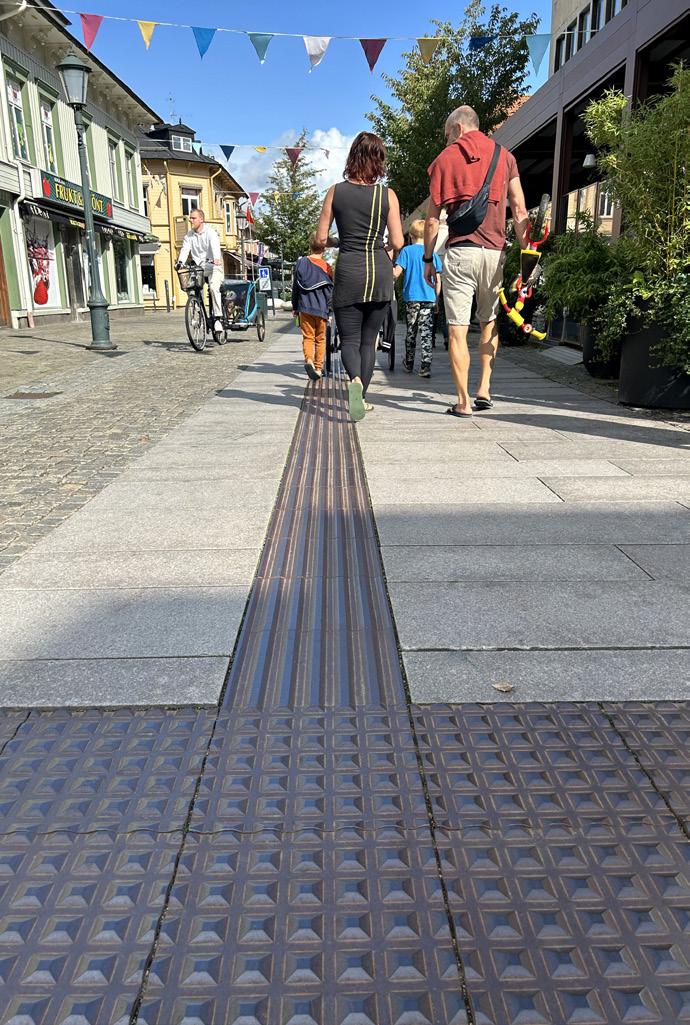

PICTO-LI N E ®

Picto-line® 350 x 350 x 70 mm.

28

WA12.4011 / WA12.4012

PICTOFOR M ®

Picto-line® is part of a range of two paving elements: a guide slab and a warning slab that are each designed for various situations. The guide slab is also available in a variant with an integrated kerb stone.

PICTO-LI N E ® WH ITE AR KITE KE R

Picto-line® slabs are either 350 mm or 600 mm wide. The paving slab is made of cast iron and features a tactile pattern. It is designed to help the blind and sight-impaired to find their way around urban environments.

Picto-line® is part of a range of two paving elements: a guide slab and a warning slab that are each designed for various situations. The guide slab is also available in a variant with an integrated kerb stone.

Picto-line® is made of cast iron. It can be laid as paving in the exact same way as any other solid paving slab.

70 350

The guide pattern is constant and continues without interruption for the entire length of the guided pathway.

350

The warning slab has a knobbed pattern that is formed according to the design of the guide element.

70 350 350

80

600 600

WA.12.4001 Picto-line® Slab with linear guide

600 x 600 x 80 mm

WA.12.4002 Picto-line Slab with knobbed pattern

600 x 600 x 80 mm

WA.12.4011 Picto-line® Slab with linear guide

350 x 350 x 70 mm

®

80

600 600

WA.12.4012 Picto-line Slab with linear guide

350 x 350 x 70 mm

WA.12.4013 Picto-line® Slab with linear guide

300 x 300 x 70 mm

WA.12.4014 Picto-line® Kerb slab with knobbed pattern

300 x 300 x 70 mm

WA.12.4015 Picto-line® Kerb slab with linear guide / Slip-resistant

350 x 350 x 70 mm

WA.12.4021 Picto-line Kerb slab with linear guide

600 x 700 x 80 mm

®

®

PICTOFORM.DK

29

PRODUCT RANG E AN D MATE R IALS

All solo elements in the Pictoform® 26 series are available in bronze and can be supplied with or without holes.

30

D.23.038 / D.13.046

PROD UCT RANG E AN D MATE R IALS PRODUCT INFORMATION

All slabs and tiles should be inlaid with the standard paving.

Paving slabs are suitable for outdoor use. The tiles can be used both indoors and outdoors and are particularly suitable for large halls, at entrances and similar locations.

Paving slabs and tiles in the Pictoform® and Picto-line® ranges feature cast indicators in the form of linear profiles or semi-spherical knobs.

Linear paving slabs or tiles should be positioned to form a con­ tinued line indicating the path that should be followed. Paving slabs or tiles with kobbed patterns should be used to form attention blocks in sizes appropriate to the specific location.

Pictoform® solo elements from both the, 26 and 36 ranges can be used both indoors and outdoors, depending on the surfacing. Both types should be installed on top of existing surfacing.

Elements from the Solo elements 26 range should only be installed with glue and/or glue and a glue anchor point. Elements from the Solo elements 36 range are supplied for either gluing or with cast tapered studding.

Before installing indivdual elements there should be an assessment of the underlying surface. Test holes should be drilled if appropriate.

The floor surfacing, structure and any underlying installations (such as in-floor heating) determines whether the elements should be secured into drilled holes or only attached to the surface with glue.

Element dimensions should be chosen so as not to cover surface grouting.

On granite surfaces or other surfaces that are unsuitable for drilling, the elements should only be secured with glue.

For outdoor installation we generally recommend that each element is secured with a glue anchor point/tapered studding.

All the individual elements are available in several different variants. One example of this flexibility is that the elements from the solo elements 36 range are available in rust-resistant steel with contrast colour inlays.

MATERIALS

CAST IRON Cast iron is a material that most people are already familiar with in urban environments in the form of street surfacing elements like manhole covers and drainage grates. The Pictoform® and Picto-line® ranges are cast in a material that, over time, has the same durability, strength and patina as these familiar features.

Cast iron tiles and paving slabs are supplied with a slightly water-repellant surface treatment in a brownish shade. This treatment prevents the cast iron from shedding onto the surrounding paving surface. When the surface treatment has worn off after a while, the cast iron patinates to the same deep brown tone we are all so familiar with on our streets.

During outdoor installation, cast iron slabs must rest on a plastic underlay to prevent rust from coming into contact with existing paving nearby.

All paving and tiles in the Pictoline® and Pictoform® ranges, as well as the series 36 solo elements are made of cast iron.

Paving slabs are 80 mm (Picto-line®) or 70 mm (Pictoform®) in height. They are cavitied castings and can be supplied with a sand/concrete mix, which makes not only them a good match with surrounding paving, but allows them to be laid in the same way as normal paving slabs.

Tiles are 8 mm high and are normally laid in wet concrete, both indoors and outdoors.

RUST-RESISTANT STEEL Rust-resistant steel elements are built to AISI 316 standard, which makes them acid-resistant and very durable. The various elements have a high degree of surface uniformity but a small amount of variation can occur. This will become less noticeable after a short period of wear and tear and will eventually disappear altogether. Elements can be supplied in stained variants if the guided pathway is to be installed in particularly demanding environments, such as in proximity to railway lines or at indoor swimming pools etc.

All the Pictoform® 26 and 36 series solo elements, glue anchor points and some of the paving slabs and tiles are made of rust-resistant steel. 26 series solo elements can be supplied with or without holes. 36 series solo elements can be supplied with or without tapered studding and with or without inlaid epoxy contrast colours. Contrast colours are cast directly into the element and do not require the use of traditional solvents.

Contrast colours are supplied on a by-order basis.

BRONZE Bronze elements are built to CUSN 10 standard, which makes them acid-resistant and very durable. The various elements have a high degree of surface uniformity but a small amount of variation can occur. This will become less noticeable after a short period of wear and tear and will eventually disappear altogether.

All solo elements in the Pictoform® 26 series are available in bronze and can be supplied with or without holes. The elements are secured to the same rust-resistant steel glue anchors as those used for the steel elements from the same product range.

PICTOFORM.DK

31

CALCU LATI NG QUANTITI ES

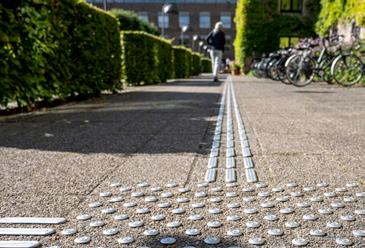

GH Form tactile guide elements should be laid follow natural lines of movement.

They can be traced by foot or using a stick. Pictoform® 36 Soloelements.

32

E.13.057 / E.23.053

CALCU LATI NG QUANTITI E S CALCULATING QUANTITIES - SOLO ELEMENTS

PICTOFORM ® 26

PICTOFORM ® 36

For one metre of guided pathway, use: 10 pcs. 90 mm guide elements 12 pcs. 70 mm guide elements

For one metre of guided pathway, use: 3,3 stk af 290 mm guide elements 5,5 stk af 180 mm guide elements

Diagonally patterned attention block with vertical/horizontal distance to centre of 75 mm:

Diagonally patterned attention block with vertical/horizontal distance to centre of 100 mm:

300 x 300 mm = 0,1 m2 = 25 knobbed elements 600 x 600 mm = 0,36 m2 = 113 knobbed elements 900 x 900 mm = 0,81 m2 = 265 knobbed elements 1000 x 1000 mm = 1 m2 = 356 knobbed elements

300 x 300 mm = 0,1 m2 = 13 stk knobbed elements 600 x 600 mm = 0,36 m2 = 61 stk knobbed elements 900 x 900 mm = 0,81m2 = 145 stk knobbed elements 1000 x 1000 mm = 1 m2 = 181 stk knobbed elements

Square patterned attention block with distance to centre of 60 mm:

Square patterned attention block with distance to centre of 85 mm:

300 x 300 mm = 0,1 m2 = 25 knobbed elements 600 x 600 mm = 0,36 m2 = 100 knobbed elements 900 x 900 mm = 0,81 m2 = 225 knobbed elements 1000 x 1000 mm = 1 m2 = 279 knobbed elements

300 x 300 mm = 0,1 m2 = 16 stk knobbed elements 600 x 600 mm = 0,36 m2 = 49 stk knobbed elements 900 x 900 mm = 0,81 m2 = 121 stk knobbed elements 1000 x 1000 mm = 1 m2 = 144 stk knobbed elements

QUANTITY CALCULATION PAVING SLABS AND TILES - Pictoform® 26, Pictoform® 36 & Picto-line®

GUIDED PATHWAY / PAVING SLABS AND TILES

ATTENTION BLOCKS / PAVING SLABS AND TILES

For one metre of guided pathway, use:

For a 1 m2 attention block, use:

100 x 100 mm = 10 pcs 100 x 300 mm = 3,3 pcs 300 x 300 mm = 3,3 pcs 350 mm long elements = 2,9 pcs 400 mm long elements = 2,5 pcs 600 x 600 mm = 1,7 pcs

300 x 300 mm knobbed element = 11,1 pcs 350 x 350 mm knobbed element = 8,2 pcs 400 x 400 mm knobbed element = 6,25 pcs 600 x 600 mm knobbed element = 2,8 pcs

PICTOFORM.DK

33

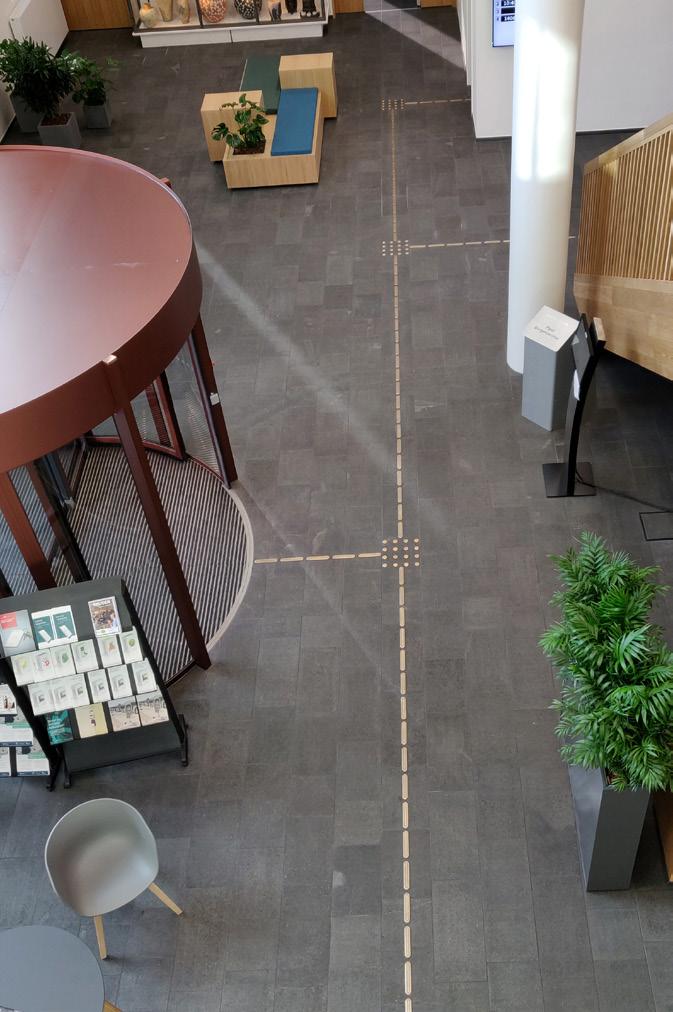

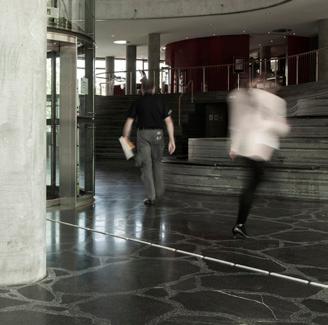

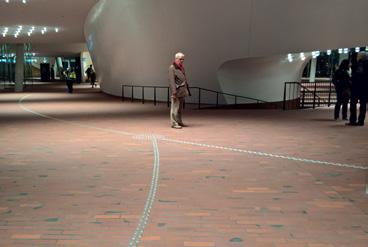

I N DOOR G U I DE D PATHWAY

34

PICTOFOR M ® SOLO E LE M E NTS PICTOFOR M ®

PICTOFORM.DK

35

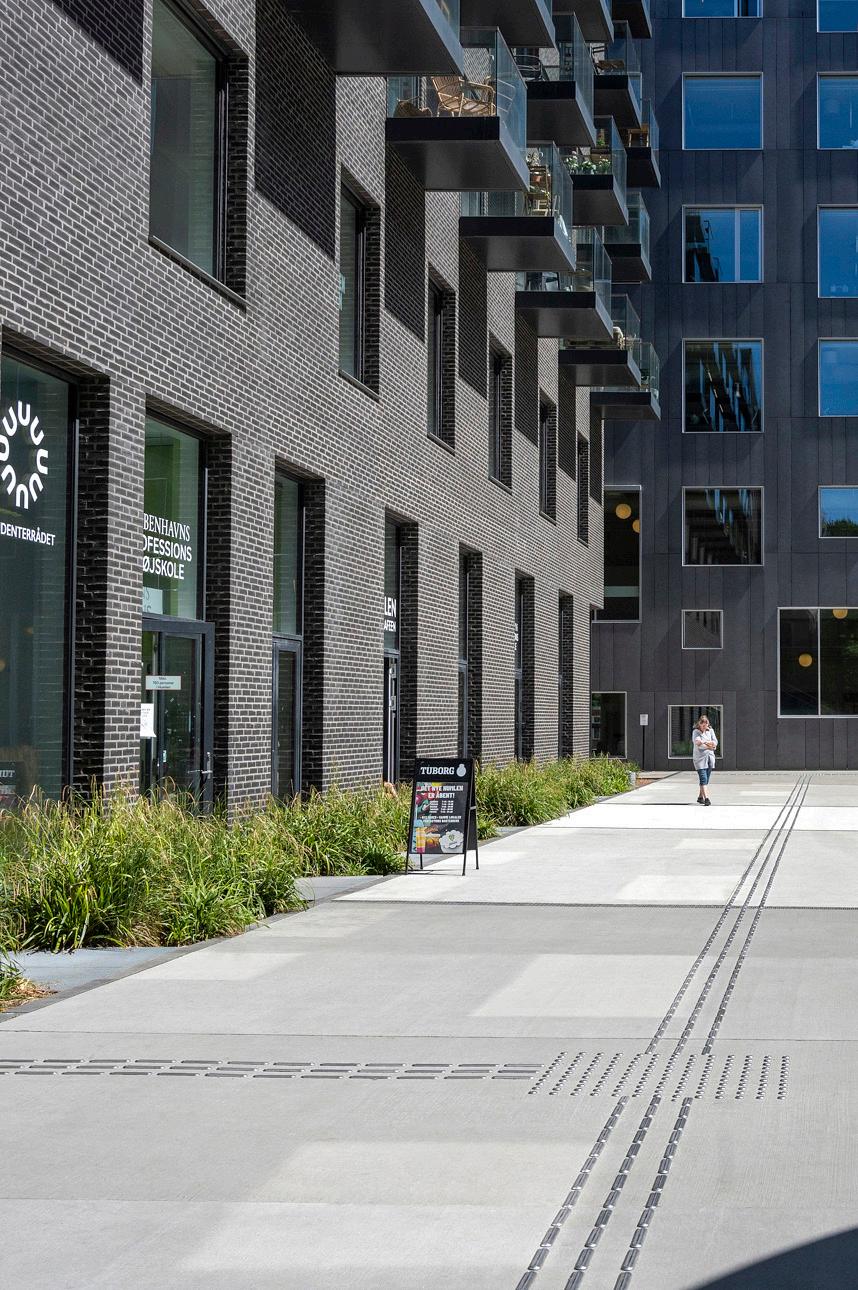

PICTOFOR M ® PAVI NG AN D TI LES

36

PICTOFOR M ®

PICTOFORM.DK

37

AD D ITIONAL I N FOR MATION G H FOR M

GH Form has many years of experience providing advice to planned Pictoform® Tactile guided pathways and is pleased to be at your disposal to provide suggested solutions and advice about how to establish pathways using the minimum quantity of materials within the context of your project.

MAINTAINING TACTILE GUIDED PATHWAYS We recommend an annual inspection of guided pathways and attention blocks that use solo elements so that any damage can be repaired.

Outdoor snow clearing with brushes and rotary brush snow removal machines is recommended wherever solo elements have been installed.

The use of a snowplough can potentially cause installed elements to dislodge. Cast iron paving slabs and tiles should be cleaned in the same way as the surrounding paving.

INSTALLATION GH Form also recommends that solo elements should be installed by GH Forms own fitters or by one of our regular partners in the Nordic countries. This is the only way we can be certain of the durability of the installed guided pathways and attention blocks. We also recommend that developers conclude maintenance agreements with GH Form or one of our partners.

DOKUMENTATION Each delivered Pictoform® is supplied with the following for the supplied product • FDV-dokumentation • Installation instructions EPD CERTIFIED PRODUCTS All our cast iron Pictoform® products are EPD certified.

EPD is an environmental product declaration that was developed to European and international standards as defined in EN 15804.

Product-specific EPD certifications help our customers to provide appropriate environmental declaration. Our EPD certifications can be downloaded from the EPD Denmark database at epddanmark.dk.

Please call us on +45 59 44 09 90 or send us an e-mail on mail@ghform.dk if you need any help or advice.

e pdd a n m a r k epddanmark.dk

B E NCH E S I N U R BAN S PACE S B E NCH E S, CI RCU LAR B E NCH E S, PICN IC S ETS

FLORAFOR M TR E E G RATE S AN D FLOWE R PLANTE RS

LIG HT I N U R BAN S PACE S LIG HTI NG

H I STOR ICAL CASTI NG S WE R ECR EATE H I STOR ICAL CASTI NG S

WI N DOWS I N ROOFS AN D FACAD E S CAST I RON WI N DOWS

F U R N I T U R E F O R U R B A N S PAC E S

DIVE RTI NG RAI NWATE R

G E T TO K N OW O U R P R O D U CT R A N G E S

AQUAFOR M

GH FORM APS BÆKGÅRDSVEJ 64 DK 4140 BORUP T +45 59 44 09 90 MAIL@GHFORM.DK

GHFORM.DK
