GH Form markets the Aquaform® range of rainwater diversion and drainage products.

We strive to comply with the UN Global Environment Goals.

We focus on certain goals: 7, 8, 11 and 12:

Via an EU Regional Development Fund project, “Investing in our shared future”, Provice (Danish process consultants) analysed GH Form’s products.

“In our analysis, we compared GH Form products and products from a European competitor to quantify the impact of using 100 % recycled iron produced at the Ferrofoss foundry (owned by GH Form).

We conclude that using 100 % reclaimed iron is indeed significant to the foundry’s total environmental impact. The production of one GH Form linear drainage grate emits 3.58 kg CO2, whereas the carbon footprint of a comparable product produced by a European competitor is 14.59 kg CO2” A comparable European competitor uses 35 % reclaimed iron and 65 % iron ore and has also higher transport costs. The calculations were made in the SimaPro LCA calculation tool.

Our carbon footprint is calculated in a cradle-to- grave perspective. It is based on one GH Form Aquaform® linear drainage grate weighing 5.5 kg compared to a corresponding European competitor product.

DEN EUROPÆISKE UNION Den Europæiske Fond for Regionaludvikling

Vi investerer i din fremtid

No. 7 Affordable and Clean Energy

No. 8 Decent Work and Economic Growth

The most sustainable energy is energy that we don’t use. We strive consistently to minimise our energy consumption by investing in energy-efficient technology and optimising the amount of energy we use for heating and melting iron.

We are proud to say that we are a great place to work. We respect our employees and believe it is important to meet their needs. We create economic growth via good design and sustainable production.

No. 11 Sustainable Cities and Communities

No. 12 Responsible Consumption and Production

Via sustainable production processes, we make a positive contribution to tomorrow’s urban spaces. Good design is only sustainable if it is appreciated.

By diverting rainwater into stylish and attractive linear drainage grates, Aquaform® helps making society sustainable.

Aquaform® maintains an especially sustainable consumption of materials. We use only recycled materials from other production sites on Zealand (a Danish island). We deploy the most eco-friendly method of melting steel when we make cast iron in electric ovens.

Linear drainage with concealed frames

About Aquaform®

Contents

Linear drainage

5

About Aquaform®

31

Linear drainage Special projects

V-channel

Dock-Line open linear drainage

6

Linear drainage and surfacing

32

6 7 8 9 10 11 12 13 15 16 16 17 18 19

32 Dock-Line rectangular drainage grate

33 Plaza rectangular drainage grate

20

Special projects

24

Polymer concrete water channels

26 Overview of 140 mm pre-sloped channels

and accessories

27

Water channel elements

Sand and leaf traps Channel end caps Drain connector

28

Water channel frames

29

How to determine load class

30

Laying instructions

All standard Aquaform® grates were originally developed to order for projects and designed in collaboration with Danish and Swedish architects for:

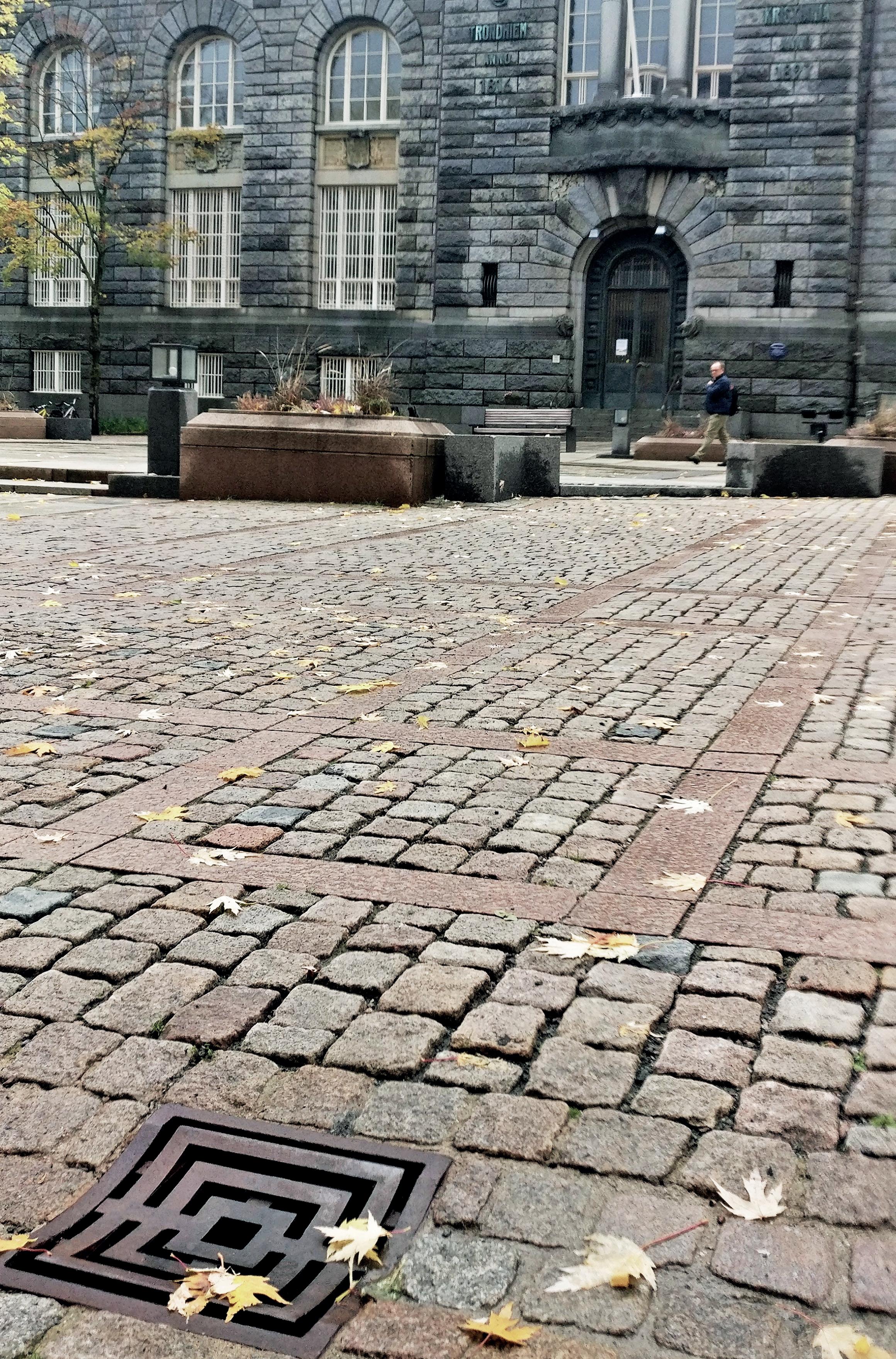

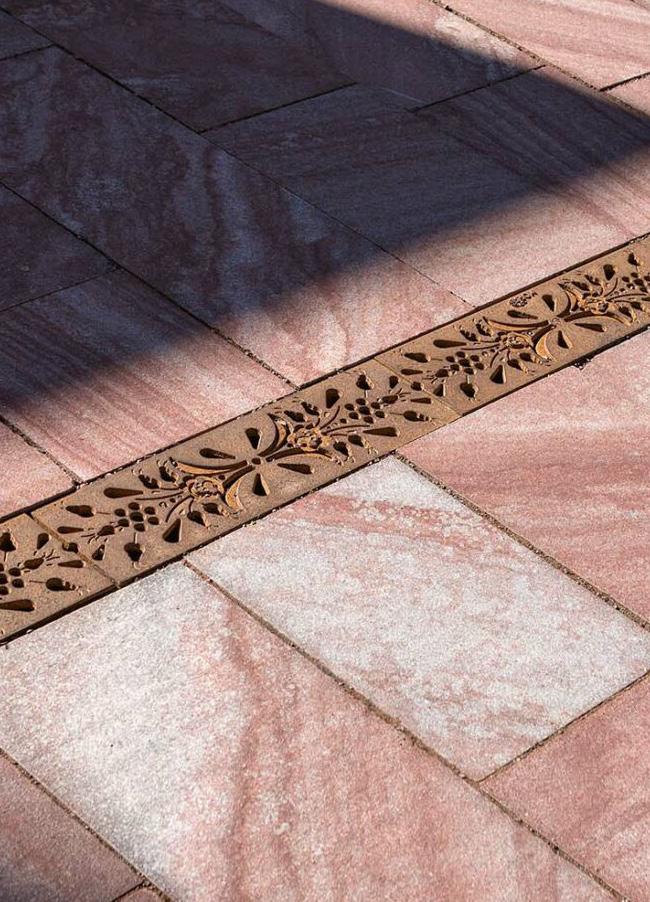

Købmagergade, Copenhagen Kalvebod Brygge, Copenhagen Sluseholmen, Copenhagen Vadstena, Sweden Frederiksberg town centre Aarhus harbour and river Pedestrian street, Aarhus Mora, Sweden Pedestrian street, Hørsholm Pedestrian street, Horsens Pedestrian street, Sønderborg Skovbakken residential housing, Frederiksværk Valby Have residential and commercial district Täby Torv urban space, Sweden Aquaform® linear drainage systems are high quality drainage products.

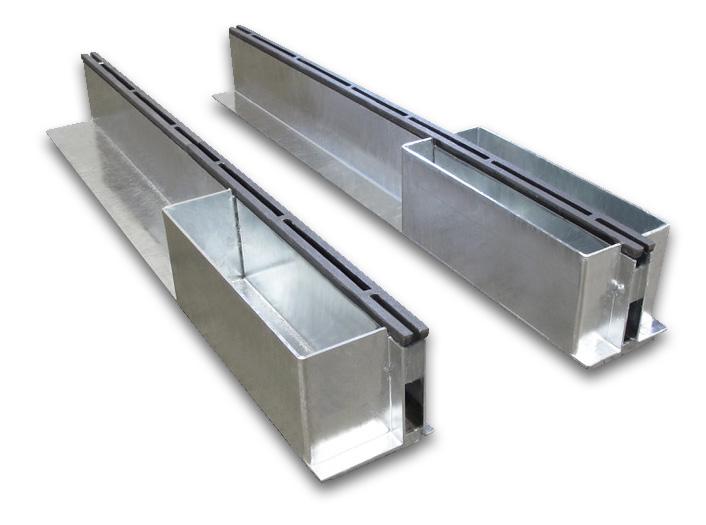

The underlying channel and frame are always concealed. The frame is therefore adequately protected from knocks and damage. Only the grate, encased in surfacing on both sides, is visible in the urban space.

Campus linear drainage Campus paving Water Cell linear drainage and paving Campus Straight linear drainage Jugend linear drainage Orbit linear drainage Dock-Line linear drainage system and surfacing Dock-Line linear drainage system for strip lighting Linear drainage and surfacing Vadstena linear drainage Square linear drainage Mora linear drainage and surfacing Drops linear drainage Klima linear drainage, 90 tons

Open linear drainage

Rectangular drainage

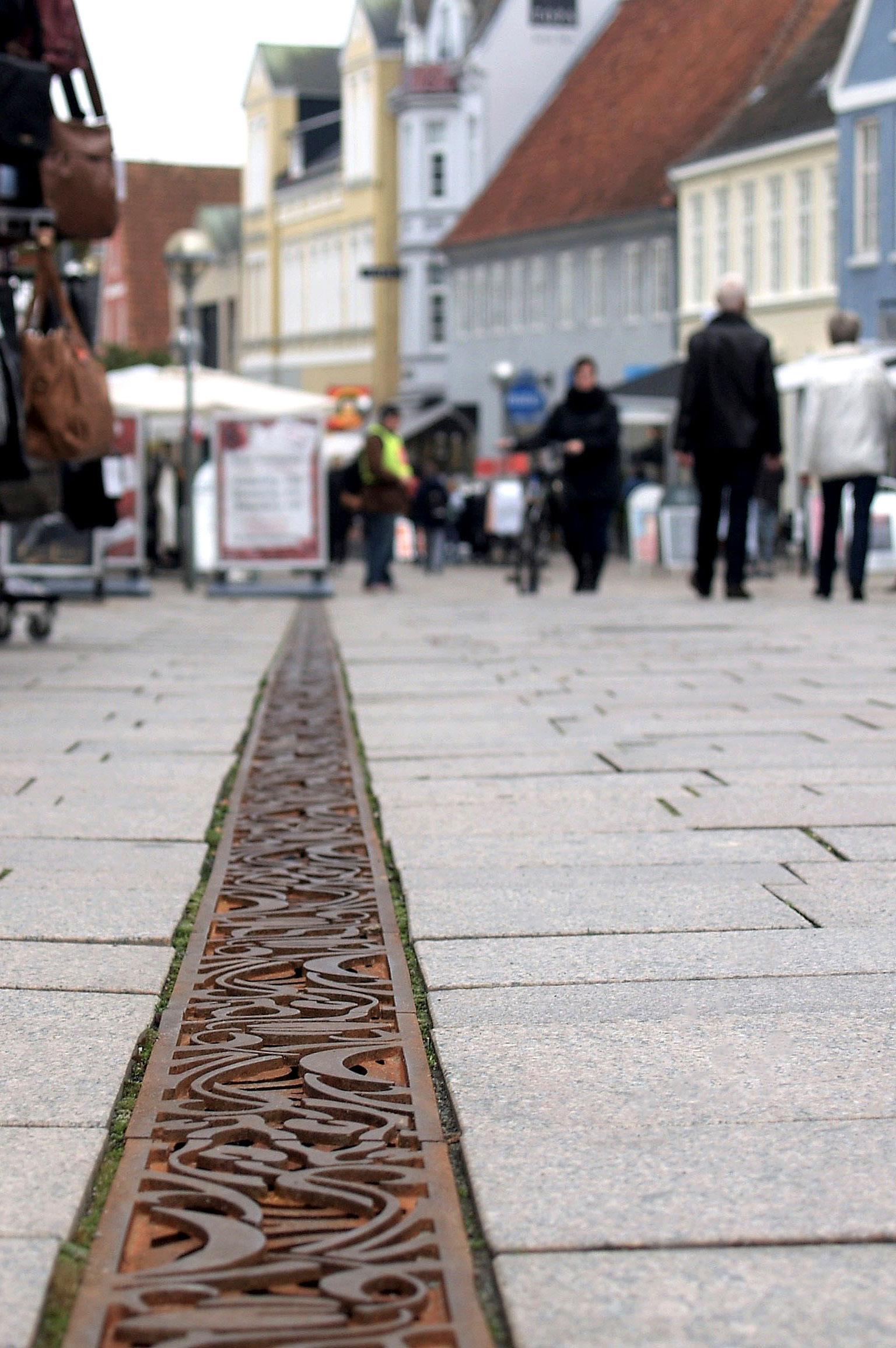

Pedestrian street in Horsens, Denmark

Aquaform® produces attractive linear drainage grates encased in surfacing on both sides — with no concealed frames 5

Aquaform®

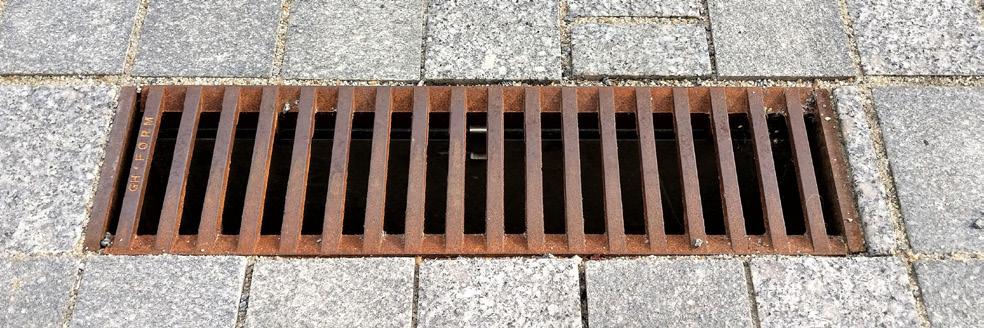

Campus linear drainage and paving slab are made of SG iron and suitable for heavy duty use (heavy vehicles).

SLA.11.5502

Untreated cast iron SLA.11.5526

A stainless steel spring lock locks the linear drainage grate or paving slab to the channel. The spring lock is not visible when the grate/ paving slab is in place on the channel. The grate and paving slab are designed to conceal the edges of the water channel beneath. The top course can be laid right up to the grate/paving slab.

When laying in asphalt, a stainless steel profile can be attached to one or both sides of the polymer concrete channel.

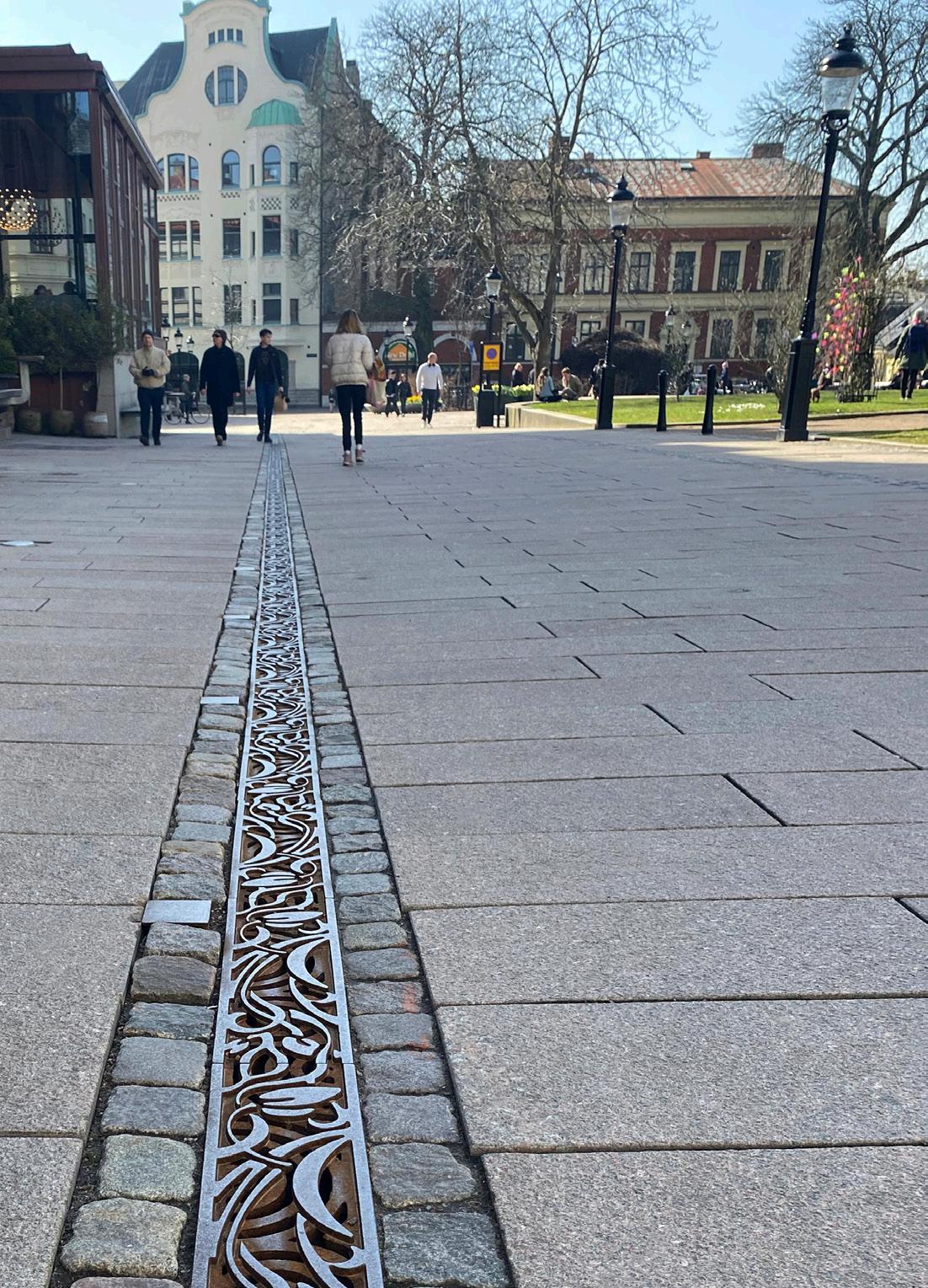

Campus linear drainage grate, 240 x 500 mm Campus linear drainage grate, 190 x 500 mm Untreated cast iron

SLA.11.5505

Campus linear drainage grate, 140 x 500 mm Untreated cast iron

SLA.11.5503

Campus paving slab for channel, 240 x 500 mm Untreated cast iron

SLA.11.5527

7.35 kg CO2 6.3 kg CO2

Campus paving Campus paving slab and Campus linear channel have the same pattern design. Laid side-by-side, the elements form a continuous patterned band.

SLA.12.4010

Campus paving slab, 240 x 500 x 70 mm Untreated cast iron

kg CO2

®

3.51

Q

UA F O R

M

®

UA F O R

FOOT ON

A

A

Campus linear drainage

kg CO2

M

CAR B

4.29

Q

Linear drainage and surfacing

INT PR

FOOT ON

INT PR

Linear drainage and surfacing

CAR B

Aquaform®

9.75 kg CO2

SLA.12.4012 Campus paving slab, 190 x 500 x 70 mm Untreated cast iron SLA.12.4011 Campus paving slab, 140 x 500 x 70 mm

4.29 kg CO2

Untreated cast iron

3.51 kg CO2

7.35 kg CO2

Campus paving slab for channel, 190 x 500 mm Untreated cast iron

SLA.11.5504

GH Form produces Campus linear drainage elements to order with a customised radius, i.e. so that the grate/paving slab are seated tight in the longitudinal direction.

Campus paving slab for channel, 140 x 500 mm Untreated cast iron

At entrances and other transitions, it is often an advantage to combine the band of Campus linear drainage grates with Campus paving slabs.
