MY24 Liv Faith

DREAM BIG

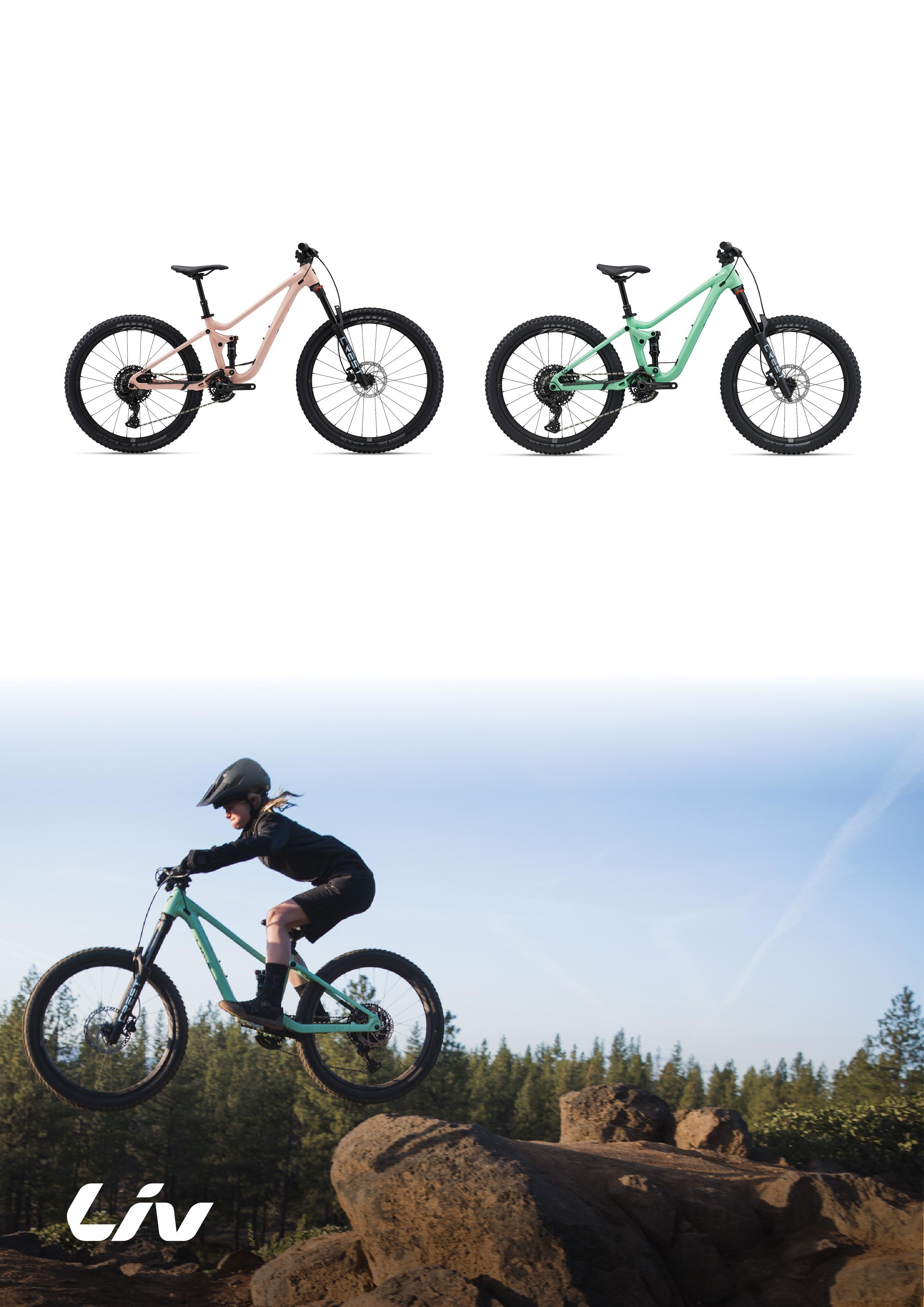

THE ALL-NEW LIV FAITH

THE ALL-NEW FAITH RANGE DREAM BIG

Welcome to the revolution of youth mountain biking! The all-new Liv Faith is a capable high-performance, full-suspension trail bike that is designed for the development of smaller riders. No longer do parents have to search for a bike that meets the demands of young shredders.

Built like an adult bike, no feature was left off the table, the Liv Faith is engineered to elevate young riders' skills and confidence. The lightweight aluminum frame and youth-specific components allow kids the freedom to move and handle their bikes with ease. Trail geometry and the new Unified Suspension Setup create a balanced responsive ride, empowering them on the climb and the descent.

The Liv Faith features a 27.5-inch front wheel and 26-inch rear, which provides a stable front and a more nimble rear end, while the Liv Faith 24 is equipped with 24-inch wheels for improved handling for even smaller riders. Allowing for lower tire pressure, the TRA WheelSystem helps increase traction on roots and bumps. No trail is too daunting, no obstacle too challenging - with the Liv Faith young riders are equipped to fulfill their dreams like their heroes. Let's redefine what it means to ride like a girl, as we empower the next generation of trailblazers.

FLEXPOINT SUSPENSION TECHNOLOGY

Using a patented design, FlexPoint delivers smooth, unimpeded rear suspension that absorbs trail bumps, from small vibrations to bigger hits, and gives you better control and traction without sacrificing efficiency. A linkage-driven, single-pivot design makes it lightweight, durable and easy to maintain.

KEY BENEFITS

SMOOTH CONTROL

This linkage-driven, single-pivot system reates consistent damping and spring performance throughout its travel, isolating the rear shock to provide small bump sensitivity through the entire wheel path. It gives riders a smooth, active feel through the entire shock stroke with no harsh bottom outs.

LIGHTWEIGHT DESIGN

FlexPoint saves significant weight over traditional dual-rocker designs by eliminating the lower rocker arm and using the controlled flexing action of the chainstay/ seatstay junction to provide fully active rear suspension. Unique to the patent is the principle that the suspension both begins and ends with zero flex in the system—providing the lightest initiation and end-point of any linkage-driven, single-pivot suspension system on the market.

EASY MAINTENANCE

FlexPoint offers similar performance as multilink suspension systems but without the added complexity, weight and frequent maintenance associated with traditional designs.

HOW IT WORKS

1.OPTIMIZED PIVOT POINT

The minimal flexing articulation of the chainstay/seatstay junction provides highly active, efficient and lightweight performance. Patented, zero-flex design at both the beginning and end-stroke provide unimpeded initiation and smooth suspension progression—two critical traits for any suspension system.

2.PATENTED PERFORMANCE

A linkage-driven, single-pivot system delivers smooth action to improve the trail-riding experience for a wide range of riders.

3.ALUXX ALUMINUM SWINGARM

Proprietary rear swingarm combines lightweight efficiency with long-lasting durability that can withstand the rigors of trail riding.

TOTAL YOUTH OPTIMIZATION

CREST FLOTRAC LITE SHOCK

The Crest FloTrac Lite Shock is designed and built in-house to complement Giant’s suspension kinematics for lightweight riders. Customized lite tuning provides responsive damping with less force input. Triple Flow Path technology actively stabilizes shock motion, giving smaller riders increased traction and control.

CREST TR ELITE LITE & CREST SL FLOTUNE LITE FORK

The Crest TR Elite and SL Lite forks deliver performance suspension action to younger and lighter weight riders. Low-friction action, the latest Giant FloTune Lite damper and a fullrange of easy to use setup adjustments offer responsive control on rugged terrain.

UNIFIED SUSPENSION SETUP

To streamline initial setup of the rear shock and fork, optimal air pressure and damper setting recommendations, based on rider weight, are predetermined and presented inan easy-to-read graphic displays. The Unified Suspension Setup guide provides comprehensive fork and shock tuning suggestions and is located on the both on the fork and online.

TRA 24/26 WHEELSYSTEM

Proven by Liv athletes, the TRA WheelSystem is now available in 24” and 26” options. Alloy rims with 5mm hollow-construction walls enhance impact protection while keeping weight low. Wide rim walls reduce pinch flats and allow lower tire pressure for better traction and control. A durable 72-tooth freehub maximizes power transfer for more speed and fun.

CONTACT SWITCH AT LITE DROPPER

The Contact Switch AT Lite is ideal for riders under 62kg, with purpose-engineered lower pressure it requires less weight to lower the saddle and makes lever engagement easier. Adjustable travel caters to various rider heights, and a rotating cable actuator simplifies installation on smaller frames.

LIV FAITH

Built to meet the demands of young shredders, the Liv Faith provides a performance full suspension platform to fuel limitless possibilities.

KEY FEATURES

YOUTH-TUNED SUSPENSION

The Crest FloTrac Lite Shock delivers 135mm of smooth travel tuned specifically for lighter-weight riders, up front, the 140mm Crest SL FloTune Lite Fork handles rocks, roots, and ruts. The new Unified Suspension Setup tailors to the rider's body weight, optimal air pressure, and damping clicks are predefined for both the fork and shock to create smooth balance and control. Our dedication to youth optimization guarantees effortless setup and the best youth fitcontinuing Liv's commitment to supporting the next generation of female riders.

AGILE AND EFFICIENT

An ALUXX SL aluminum frame with youth-specific trail geometry provides unmatched robust efficiency, combined with quality lightweight components that minimize weight to help young riders tackle challenging terrain. The FlexPoint single-pivot design maximizes pedaling efficiency and delivers capable control, to help kids stay focused even on bumpy terrain.

OFF-ROAD CONTROL

With the wide-wall technology of TRA WheelSystem, young riders can enjoy enhanced traction through lower tire pressure, increasing grip and stability. For smaller riders, 27.5-inch front and 26-inch rear wheels bring burly handling, ready for progression. A dropper seatpost makes it easy to optimize riding position while climbing or descending, giving them more control to conquer the trail.

LIV FAITH TECHNOLOGY

1. ALUXX SL ALUMINUM

This high-performance, state-of-the-art aluminum material is made predominantly from 6011 alloy and delivers best-in-class strength-to-weight ratios. The frameset features youth-specific trail geometry to minimize overall weight and motivate young riders as they tackle steep, technical climbs.

2 FLEXPOINT

The FlexPoint rear suspension delivers 135mm of travel tuned specifically for lighter weight young riders. The linkage-driven, single-pivot design eliminates the need for additional complexity, which helps improve durability

3. CREST FLOTRACK LITE SHOCK

Fully tunable rear shock engineered for lightweight riders. Low-friction damper and floating compression valve technology deliver a smooth, active performance that gives lighter riders more traction and control on the trail.

4. CREST SL FLOTUNE LITE FORK

Lightweight trail fork with an arch-bridge lower for increased stiffness and minimal weight gives young riders a smooth, confident ride on technical terrain. The Low-friction chassis and FloTune Lite damper is tuned specifically for riders weighing under 136 LB

5 UNIFIED SUSPENSION SETUP

Optimal air pressure and damper setting recommendations, based on rider weight, are predetermined and presented in easy-to-read graphic displays on the bike itself—one on the rear shock and one on the fork—and also online.

6 MIXED TRA WHEELSYSTEM

The combination of a 26-inch rear wheel aimed at lightweight agility and a 27.5-inch front wheel for improved rollover capabilities gives young riders the perfect combination of stability and control. Wide Guard technology adds rim strength and reduces the risk of wheel damage and tire punctures.

7. DROPPER SEATPOST

The Giant Contact Switch AT Lite has a lower-pressure cartridge that makes it easier to engage the lever and requires less weight to lower the saddle. With adjustable travel settings and an innovative rotating cable actuator for easy installation on smaller frames, it's the perfect solution for young shredders.

8. OVERDRIVE

Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/2” lower and 1 1/8” upper) and tapered steerer tube work in conjunction to provide optimal steering stiffness.

9. MEGADRIVE

A massive down tube and oversized top tube work in unison to provide superior front end lateral and torsional stiffness. The precisely engineered, rectangular shaped down tube yields unprecedented steering precision and pedaling performance.

10.POWERCORE

A massively oversized bottom bracket area features a fully integrated 92mm wide design. Asymmetric chainstays provide additional stiffness on the driveside and increased stability on the non-driveside.

11.INTEGRATED FRAME PROTECTION

The driveside chainstay and down tube feature builtin protection against rocks and debris. A clear 3M protective strip on the underside of the head tube/ down tube junction protects the frame when it’s loaded onto a shuttle vehicle.

12.BOOST TECHNOLOGY

Wider hub spacing (110mm front/148mm rear) results in stiffer wheels for added control plus more tire clearance and an improved chainline for optimal drivetrain performance.

13.GIANT TUBELESS SYSTEM

Integrated Tubeless WheelSystem and tires deliver improved efficiency, comfort and control in the most user-friendly and reliable system.

LIV FAITH 24

Built to meet the demands of young shredders, the Liv Faith 24 provides a performance full-suspension platform to fuel limitless possibilities.

KEY FEATURES

YOUTH-TUNED SUSPENSION

The Crest FloTrac Lite Shock delivers 130mm of smooth travel tuned specifically for lighter-weight riders, up front, the 140mm Crest SL FloTune Lite Fork handles rocks, roots, and ruts. The new Unified Suspension Setup tailors to the rider's body weight, optimal air pressure, and damping clicks are predefined for both the fork and shock to create smooth balance and control. Our dedication to youth optimization guarantees effortless setup and the best youth fitcontinuing Liv's commitment to supporting the next generation of female riders.

AGILE AND EFFICIENT

An ALUXX SL aluminum frame with youth-specific trail geometry provides unmatched robust efficiency, combined with quality lightweight components that minimize weight to help young riders tackle challenging terrain. The FlexPoint single-pivot design maximizes pedaling efficiency and delivers capable control, to help kids stay focused even on bumpy terrain.

OFF-ROAD CONTROL

With the wide-wall technology of TRA WheelSystem, young riders can enjoy enhanced traction through lower tire pressure, increasing grip and stability. For smaller riders, 24-inch wheels bring burly handling, ready for progression. A dropper seatpost makes it easy to optimize riding position while climbing or descending, giving them more control to conquer the trail.

LIV FAITH 24

TECHNOLOGY

1.ALUXX SL ALUMINUM

This high-performance, state-of-the-art aluminum material is made predominantly from 6011 alloy and delivers best-in-class strength-to-weight ratios. The frameset features youth-specific trail geometry to minimize overall weight and motivate young riders as they tackle steep, technical climbs.

2.FLEXPOINT

The FlexPoint rear suspension delivers 130mm of travel tuned specifically for lighter weight young riders. The linkage-driven, single-pivot design eliminates the need for additional complexity, which helps improve durability.

3.CREST FLOTRACK LITE SHOCK

Fully tunable rear shock engineered for lightweight riders. Low-friction damper and floating compression valve technology deliver a smooth, active performance that gives lighter riders more traction and control on the trail.

4.CREST TR ELITE LITE FORK

Lightweight trail fork with an arch-bridge lower for increased stiffness and minimal weight gives young riders a smooth, confident ride on technical terrain. Low-friction chassis and FloTune damper is tuned specifically for riders weighing under 46kg.

5.UNIFIED SUSPENSION SETUP

Optimal air pressure and damper setting recommendations, based on rider weight, are predetermined and presented in easy-to-read graphic displays on the bike itself—one on the rear shock and one on the fork—and also online.

6.24-INCH TRA WHEELSYSTEM

Smaller-diameter wheel size reduces weight, improves handling, and makes the Faith 24 easier for young riders to maneuver and ride with. Wide Guard technology adds rim strength and reduces the risk of wheel damage and tire punctures.

7.DROPPER SEATPOST

The Giant Contact Switch AT Lite has a lower-pressure cartridge that makes it easier to engage the lever and requires less weight to lower the saddle. With adjustable travel settings and an innovative rotating cable actuator for easy installation on smaller frames, it's the perfect solution for young shredders.

8.OVERDRIVE

Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/2” lower and 1 1/8” upper) and tapered steerer tube work in conjunction to provide optimal steering stiffness.

9.MEGADRIVE

A massive down tube and oversized top tube work in unison to provide superior front end lateral and torsional stiffness. The precisely engineered, rectangular shaped down tube yields unprecedented steering precision and pedaling performance.

10.POWERCORE

A massively oversized bottom bracket area features a fully integrated 92mm wide design. Asymmetric chainstays provide additional stiffness on the driveside and increased stability on the non-driveside.

11.INTEGRATED FRAME PROTECTION

The driveside chainstay and down tube feature builtin protection against rocks and debris. A clear 3M protective strip on the underside of the head tube/ down tube junction protects the frame when it’s loaded onto a shuttle vehicle.

12.BOOST TECHNOLOGY

Wider hub spacing (110mm front/148mm rear) results in stiffer wheels for added control plus more tire clearance and an improved chainline for optimal drivetrain performance.

13.GIANT TUBELESS SYSTEM

Integrated Tubeless WheelSystem and tires deliver improved efficiency, comfort and control in the most user-friendly and reliable system.
