your race. your bike.
*Please note that Liv Cycling USA will only be offering the complete bike, not the frame set.
THE ALL-NEW AVOW YOUR
RACE. YOUR BIKE.
Start strong with the fastest, lightest, most aero tri bike available for women.
Adjust armrest and seatpost: More aggressive. More comfortable. More room for growth.
Stash gels and bars in the larger bento box for quick access on the fly. Minimize bottle handling and maximize aero positioning, thanks to the new integrated hydration system.
Shave some time. Save some energy. Pave the way for more women in triathlon.
This is not your ordinary, mass-produced, good-enough-for-a-girl bike.
It’s the one-of-a-kind, top-of-the-line, head-turning, split-crushing bike of your dreams.
This is your race. And the Liv Avow is your bike.
T
HE WOMEN’S TRI FIELD IS GROWING, AND SO IS THE DEMAND FOR BRANDS THAt get women
25% 49%
Ironman World Champion field
More women participating, Ironman World Champion
Age groups with most significant growth in women triathlon participation
committed to women, at every stage of their tri journey.
aims to be the go-to resource for women cyclists.
the liv difference
Here are a few ways we support women in triathlon:
We design and build a range of bikes and gear for a range of athletes, with several performance road bikes in addition to the tri-specific Avow.
We cultivate a growing community of riders, both online, with original storytelling and how-to guide content, and on the ground, thanks to an enthusiastic network of ambassadors.
We champion women at the highest levels of racing, including these pro triathletes and time trialists:
With two big finishes already aboard the new Avow Advanced SL Tri Frameset:
• Pa ris 2024 Paralympic Games, paratriathlon, bronze
• World Triathlon Para Championships 2024, world title
LETIZIA PATERNOSTER Liv AlUla Jayco WorldTeam
EMMA PALLANT-BROWNE Liv Racing Collective
ALLYSA SEELY Liv Racing Collective

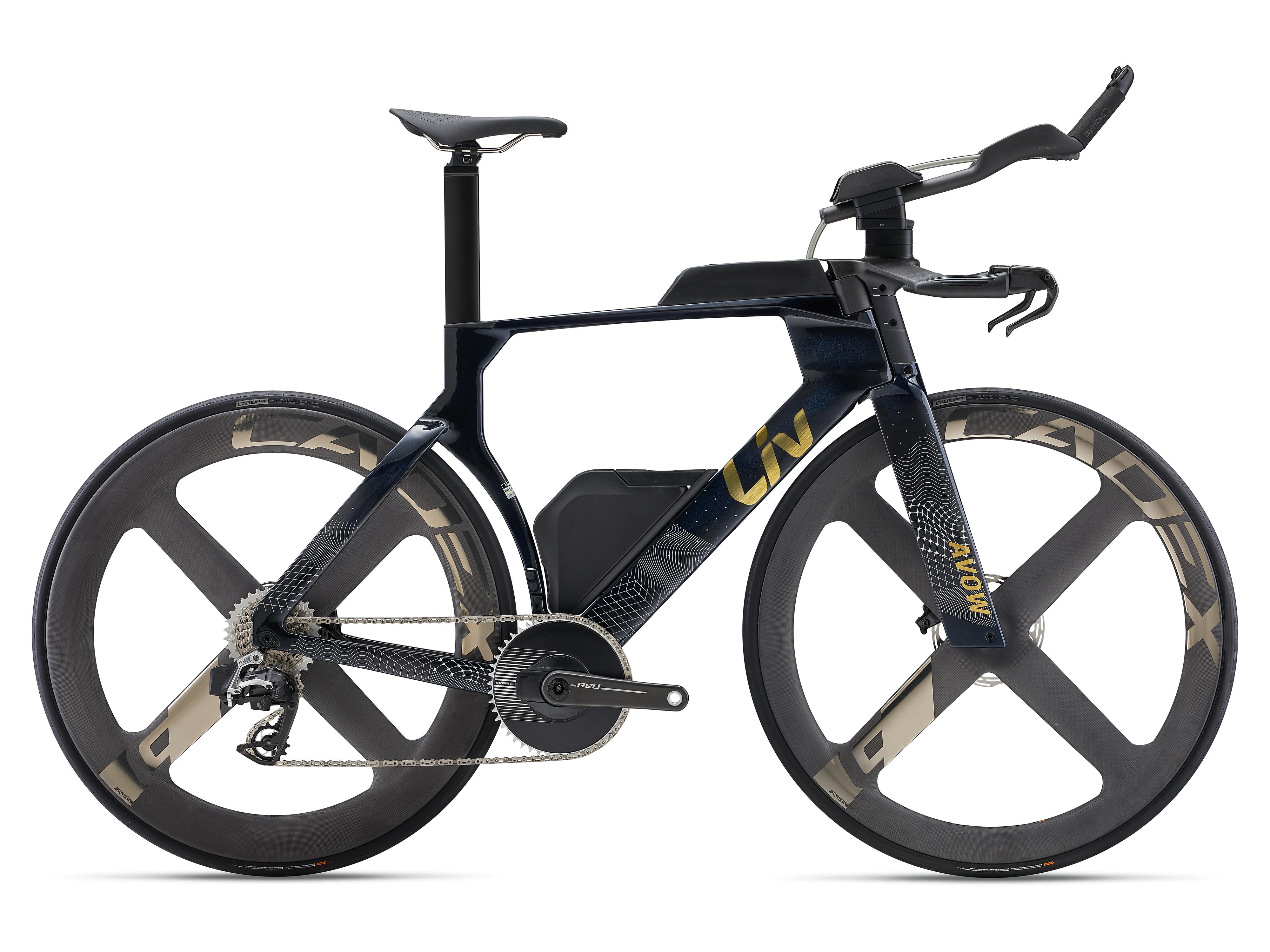

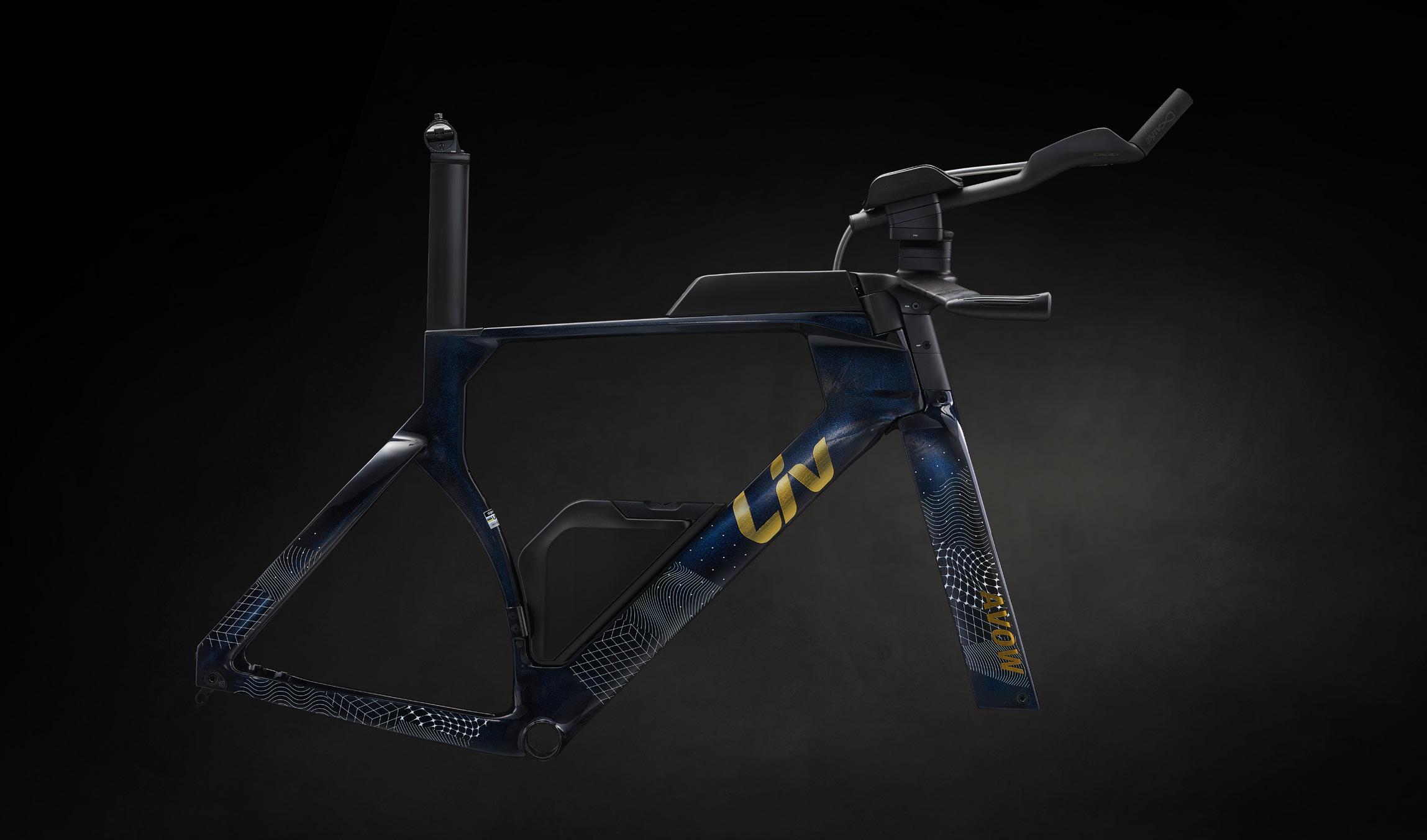

AVOW ADVANCED SL
From Kona to Nice to Roth, the women’s triathlon field is growing and with it, the need for speed. Building on its legacy as the world’s first-ever triathlon bike for women, the all-new Avow Advanced SL Tri has been optimized for splitcrushing performance. Not only is it lighter and more efficient for noticeable speed gains, it’s designed for integrated disc brakes for greater stopping power without aero compromise, and it offers more adjustability for optimal fit and legsaving efficiency. Start strong with the fastest, lightest, most aero tri bike available for women, and make it your race and your bike.
KEY PERFORMANCE FACTOR
YOUR FASTEST
BIKE SPLIT
Everything about the Advanced SL carbon frameset has been optimized to shave seconds. The sleek, integrated hydration reservoir and bento box put fuel at your fingertips. And the new frameset is lighter by 433g, without compromising stiffness or aerodynamics, translating to 10% greater overall efficiency—which means energy left over for the run.
KEY PERFORMANCE FACTOR
YOUR OPTIMIZED FIT
Dial in every aspect, with four seatpost offset positions (within a 51mm range) and 24x more armrest positions, varying stack, reach, angle and width, using a simple, travel-friendly two-bolt mechanism. Make it your bike for the course—more comfort for Ironman or more streamlined for TT.
KEY PERFORMANCE FACTOR
YOU’RE IN CONTROL
Integrated disc brakes deliver greater stopping power without compromise to aero efficiency, thanks to fork shaping that shields the brakes from the wind. Enhanced seatpost and armrest compliance help you settle into a comfortable, confident position for 20k or 180k.

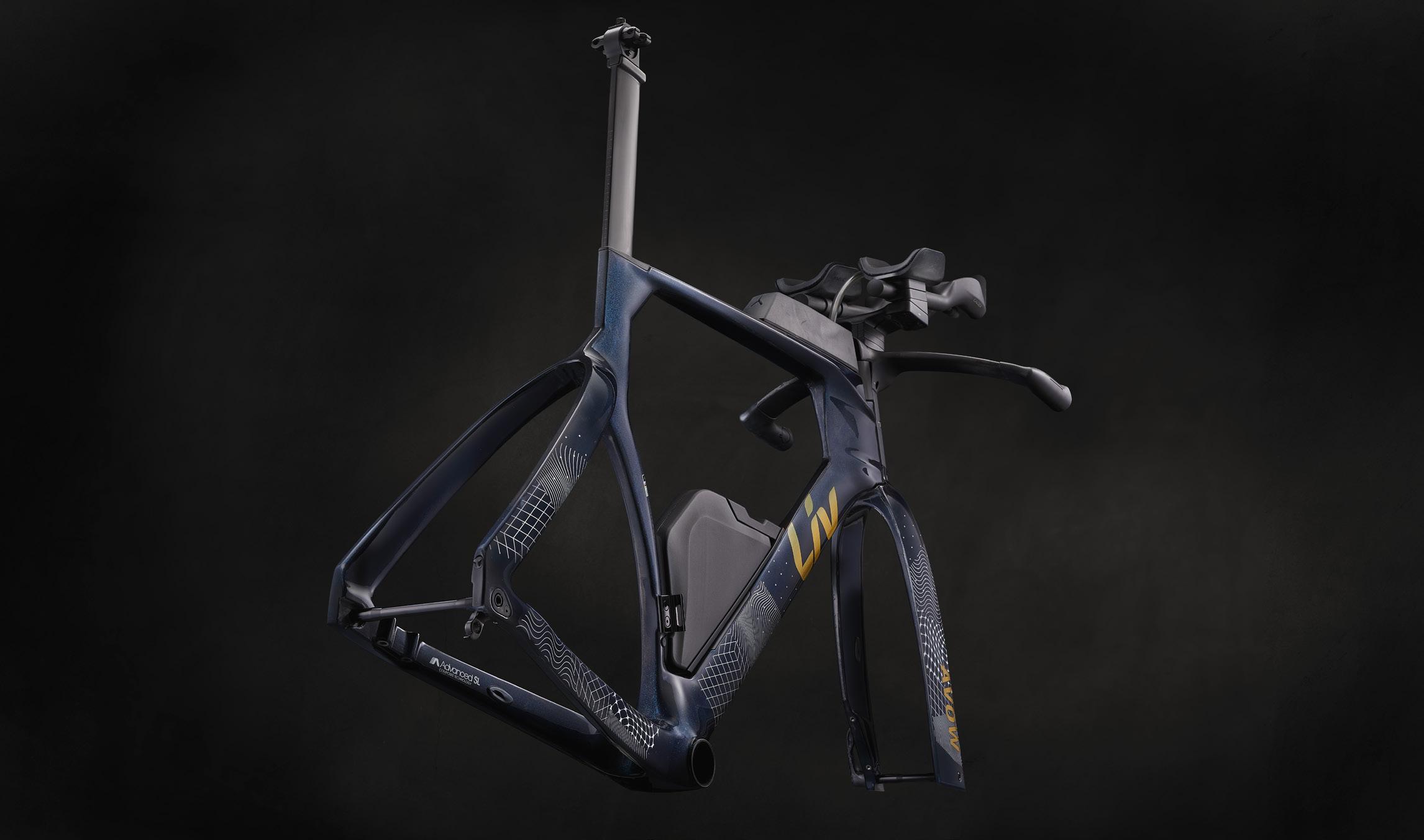

1.ADVANCED SL COMPOSITE: Professionalgrade raw carbon and cutting-edge engineering shave off 433 grams compared to the previous generation Avow, all while maintaining stiffness and power transfer.
2.AEROSYSTEM SHAPING TECHNOLOGY: Using CFD and dynamic wind-tunnel testing, engineers optimize every tube shape to maximize aerodynamic performance.

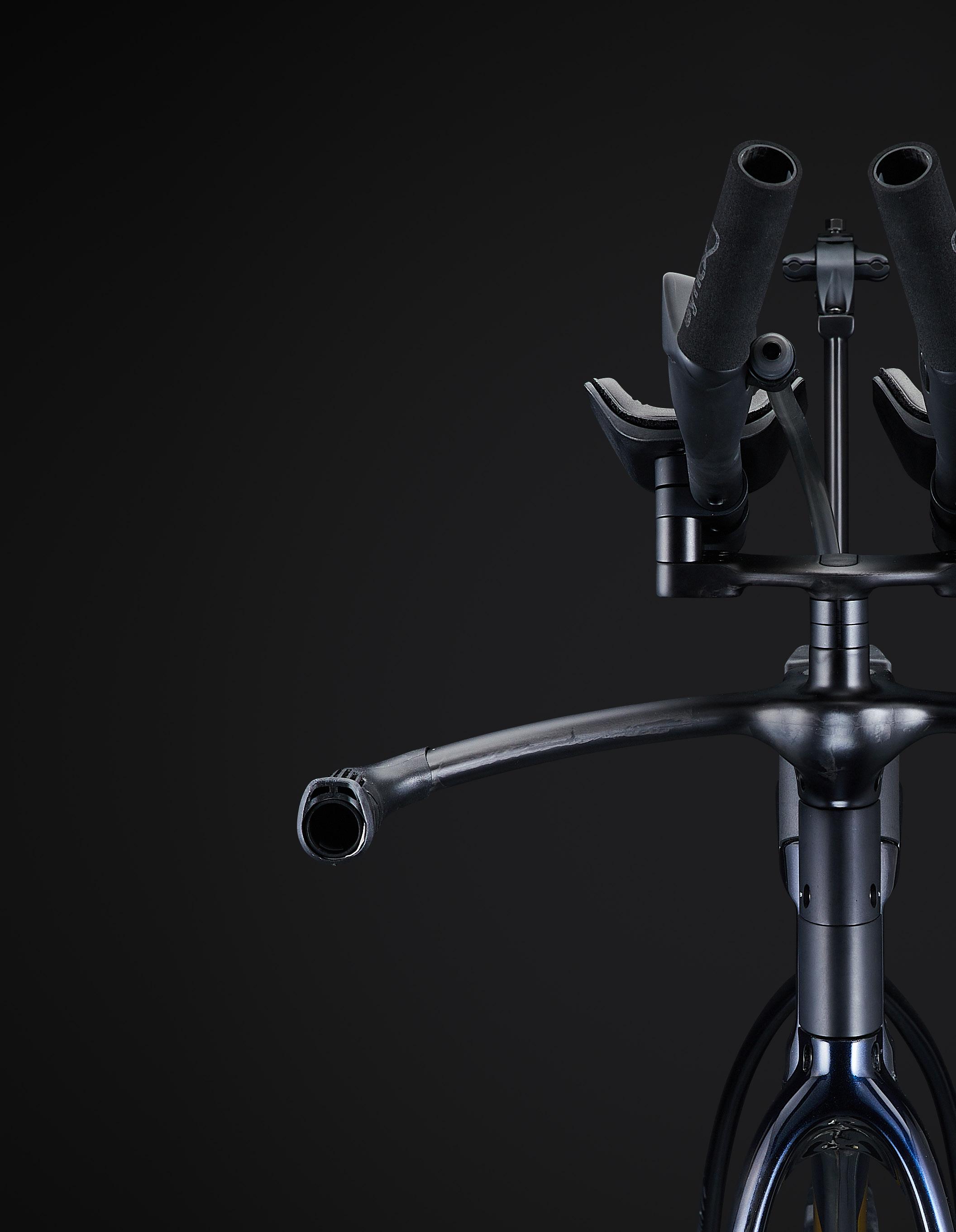

3.AERODRIVE TRI COMPOSITE BASE BAR: Avow’s proprietary, triathlon-specific 5:1 airfoil base bar delivers the ultimate in aerodynamic performance and a wider range of adjustment compared to the previous generation.

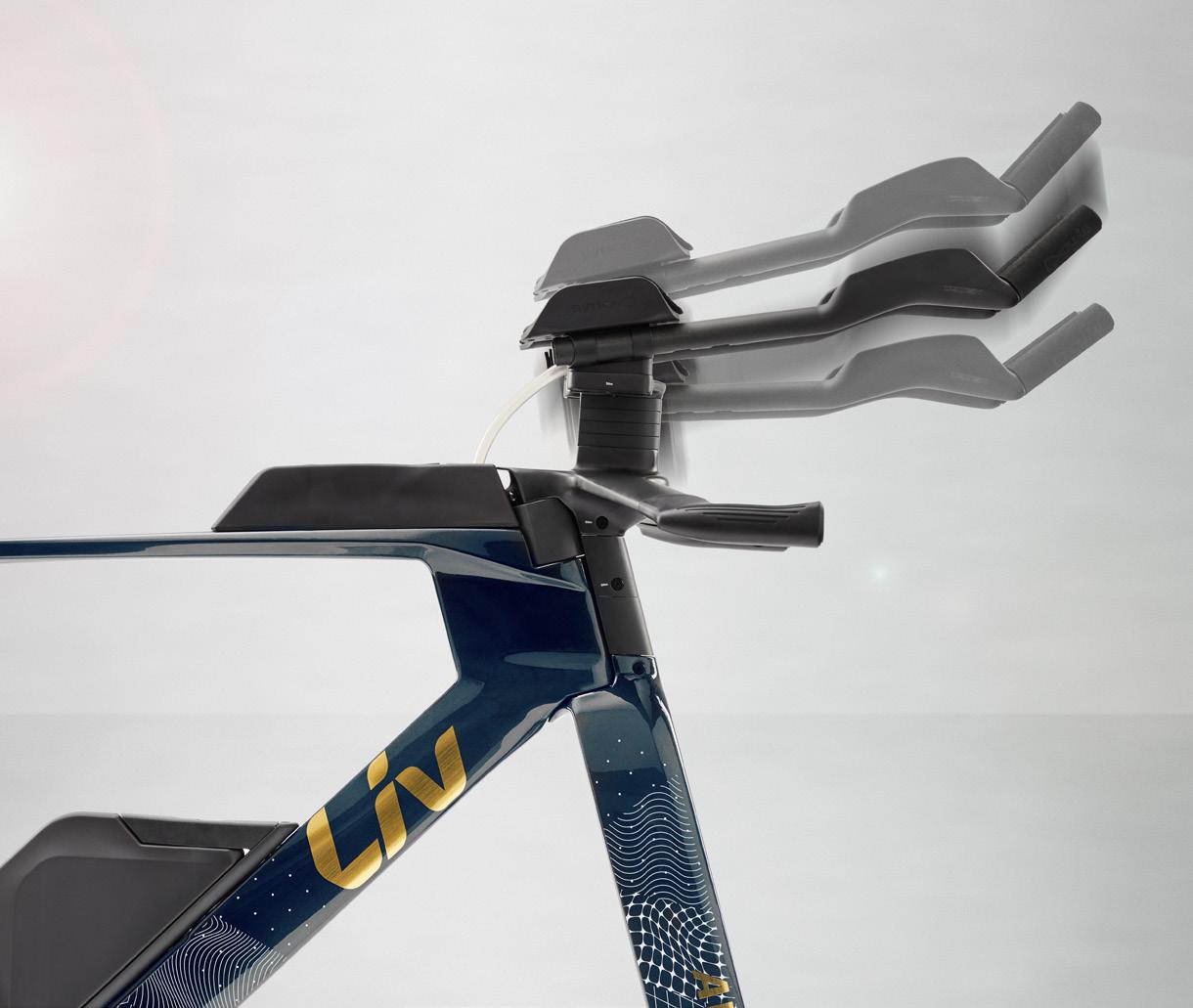

4.ADJUSTABLE ARMRESTS: The redesigned armrests offer a perfect fit and improved performance, with 24x more options for stack, reach, angle, and width. Easily fine-tune your setup with a two-bolt mechanism, ensuring a
custom fit that matches your body and riding position. For added convenience, the cockpit is travel-friendly—just remove the two screws to detach the clamp bridge, making packing for your next race effortless.
5.4-POSITION SEATPOST OFFSET: The new seatpost design offers four offset positions and a 51mm adjustment range (compared to two positions and 40mm previously), giving you more flexibility to find your ideal riding position for improved comfort and efficiency.
6.POWERCORE: The oversized bottom bracket area and fully integrated 86mm design provide exceptional stiffness and power transfer, while the asymmetric chainstays add extra stability, ensuring a smooth, responsive ride every time.

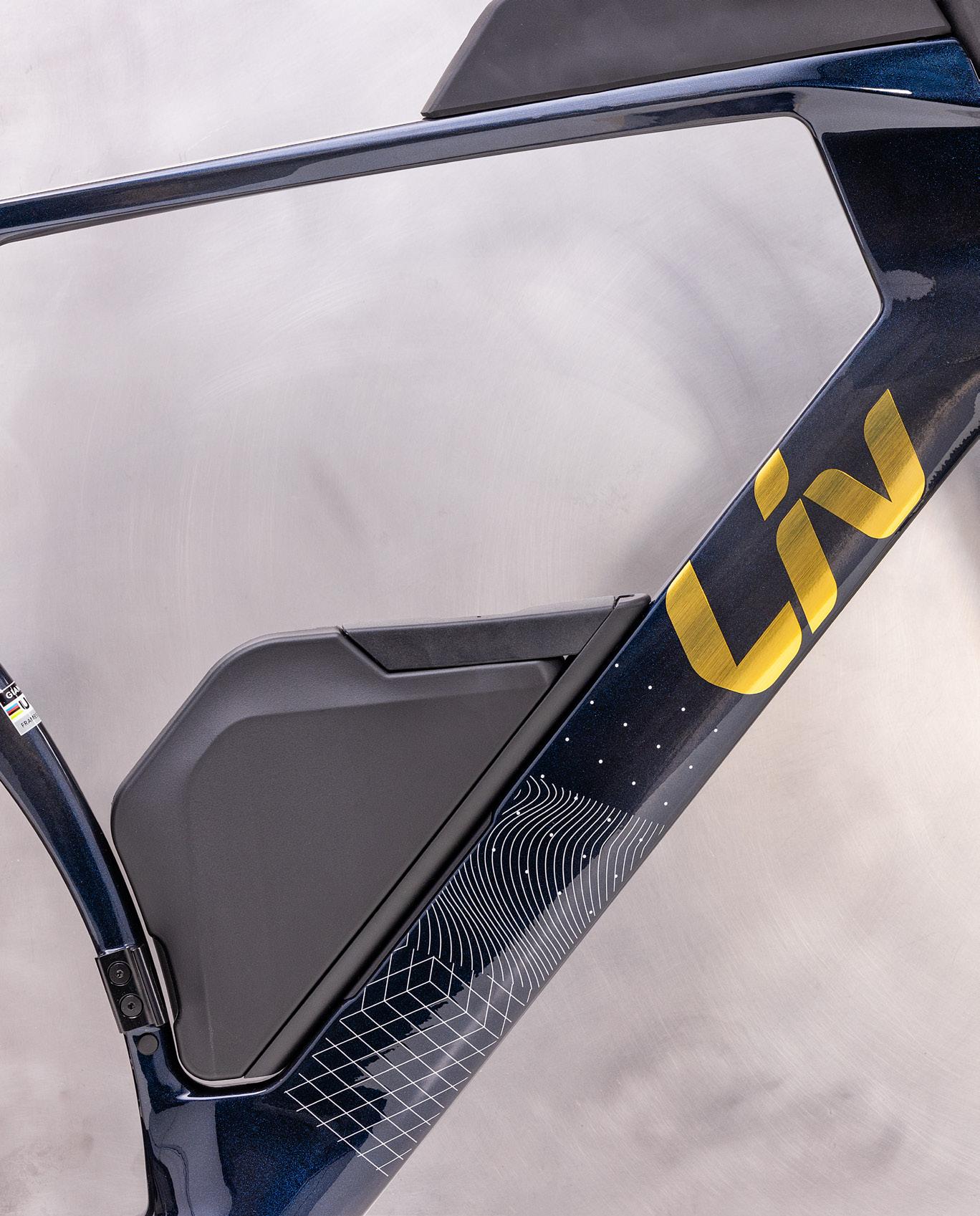

7.AEROVAULT SYSTEM: The integrated fueling system includes a hydration reservoir (700ml for XXS, XS, S; 850ml for M) with an easy-access straw positioned near the armrests and a top tube bento box that holds up to six 32g gel packets. The hydration reservoir is easy to clean, thanks to the included metal threading tool, making maintenance quick and convenient. CFD analysis and wind-tunnel testing confirm that this system maximizes aerodynamic performance.
8.INTERNAL CABLE ROUTING PORTS: The internal cable routing ports are positioned at the head tube and rear dropout for easy electronic shifting setup, keeping cables hidden for a cleaner look and enhanced aerodynamics.
TECHNOLOGIES

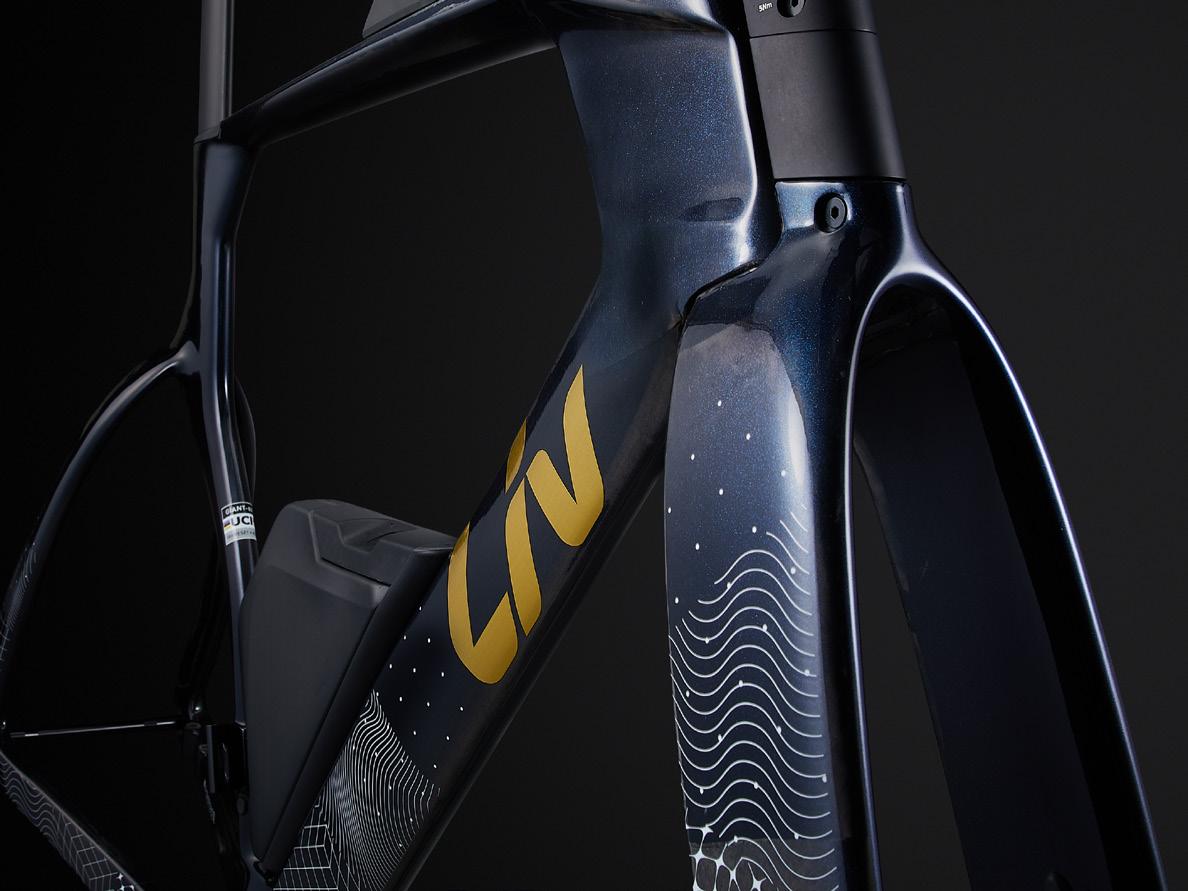

9.DISC-BRAKE INTEGRATION: The frame and fork are engineered for disc brakes, using aero shaping to reduce drag and provide confident, reliable braking. This ensures better control in corners and consistent performance in all weather conditions.
10.COMPUTER MOUNT: Track your performance with ease using the provided computer mount, which includes two interface options for seamless integration with your Garmin, Wahoo, Hammerhead, or Dash device. Designed for a sleek and race-ready setup, the mount attaches directly to the extension bars after removing the rubber covers, ensuring your data is always within reach.
Professional Grade raw carbon fiber is woven to produce our lightest, stiffest and highest quality frames. This is the technology used by Liv’s pro racers in almost every cycling discipline. These frames feature the most advanced engineering and construction methods.
1.MATERIALS: Professional
Grade raw carbon material is used to engineer framesets with the highest stiffness-to-weight ratios available today.
2.RESIN: Professional Formula resin features Carbon Nanotube Technology (CNT), a microscopic polymer that acts like miniature buttresses to strengthen the layers of composite. Framesets featuring CNT are 14% more impact resistant than those without it.

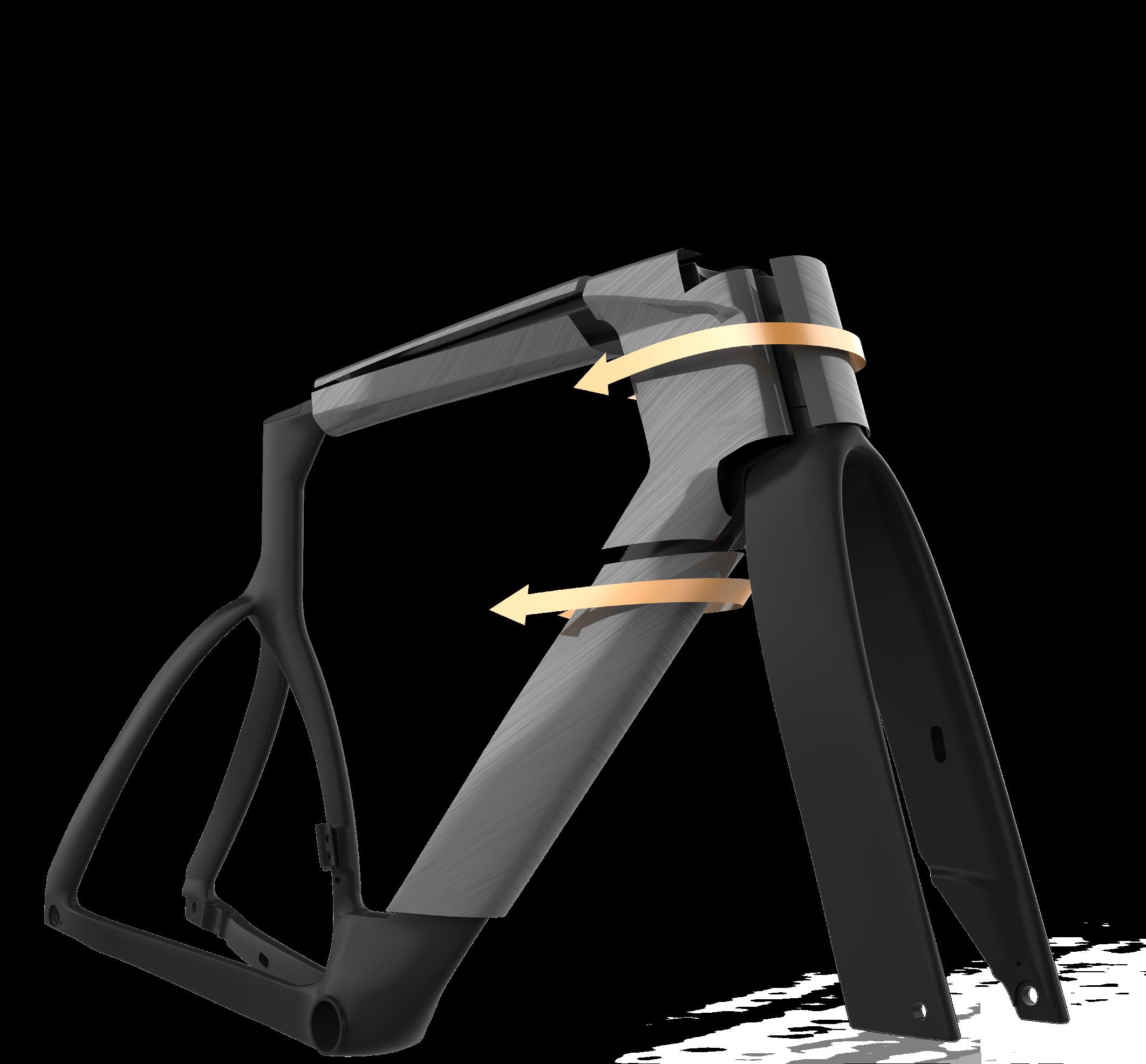

3.CONTINUOUS FIBER TECHNOLOGY: This manufacturing process allows Liv to construct the front triangle of Advanced SL frames with larger, and therefore fewer, sections of composite material. With fewer pieces and junctions, these frames are lighter and significantly stronger.
your optimized fit

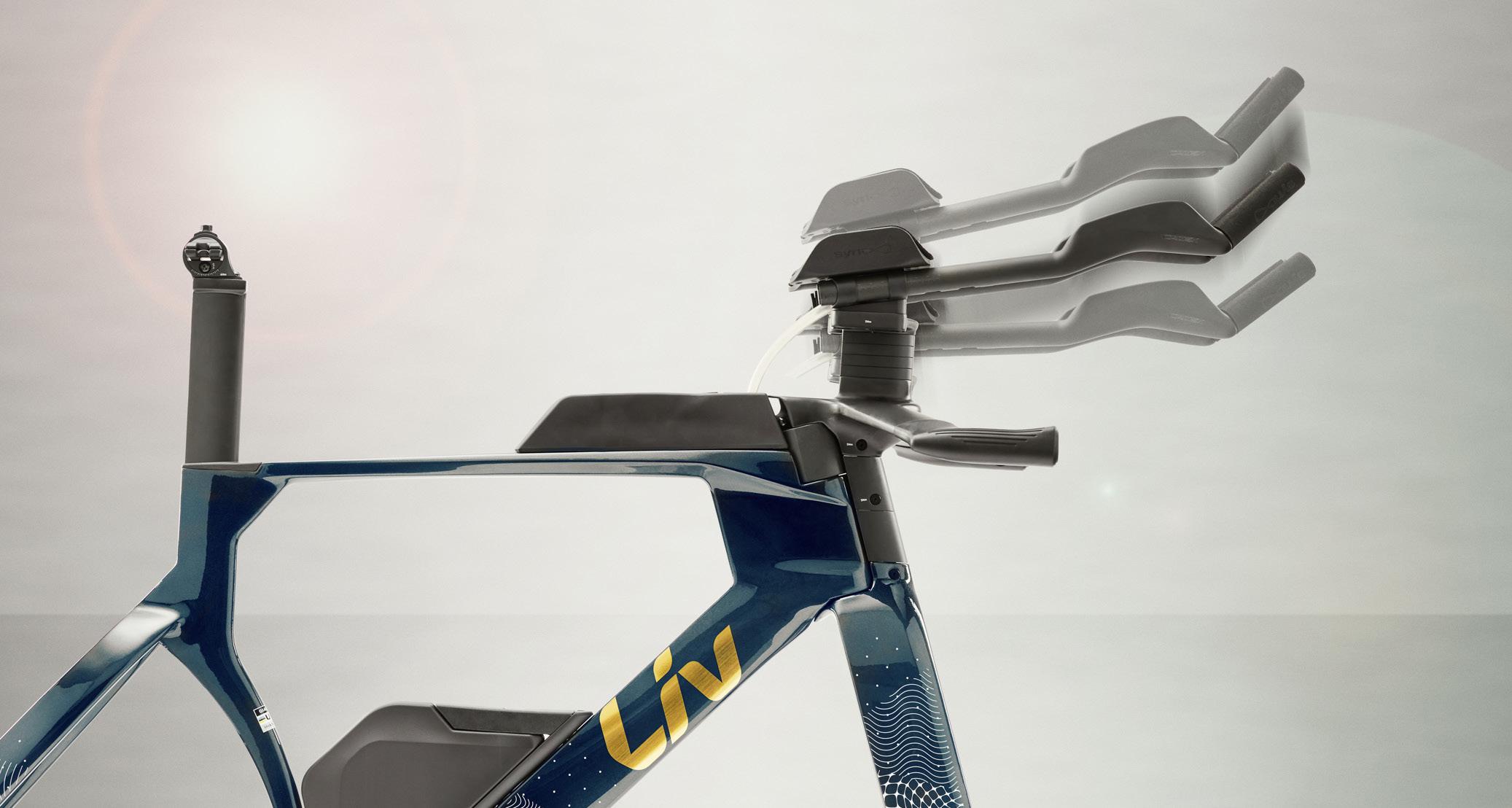

We’ve reengineered the Avow for maximum adjustability, offering 24x more armrest positions and 4 seatpost offset options.
This allows athletes to fine-tune their fit for optimal comfort and performance, ensuring the bike adapts as they evolve.
The new design also features significant improvements in compliance, with a 28% increase in armrest compliance and a 100% increase in seatpost compliance compared to the previous generation, enhancing overall comfort and stability during training rides and races.
WIDTH
ARMREST ANGLE
avow
testing results
Introducing the Avow Advanced SL Tri — the fastest, most powerful Avow yet.
With cutting-edge design and innovative construction, it’s built for the women who are redefining what’s possible in triathlon. With participation surging, faster bike splits, and more technical courses, this bike doesn’t just keep up—it sets the pace.
From powering up climbs to dominating descents and carving through corners, the Avow is redesigned to deliver. Explore our testing results to see how we’ve pushed the limits in weight, stiffness, efficiency, and aerodynamics.
When women raise the bar, their bikes should too.
avow testing results WEIGHT COMPARISON
While seemingly objective, frameset weight can be a highly subjective variable. It all hinges on what is considered a frameset. Liv defines a frameset as follows:
• Size medium, painted and decaled production frame
• Painted production fork
• Seatpost with internal seatpost clamp (ISP)
• Front and rear derailleur hanger/clamps
• Expander, top cap, headset and spacers
• Aero handlebars and extensions
• AeroVault componentry
• All production hardware (water bottle bolts, etc.)
The new Avow Advanced SL Tri makes the leap from Advanced-grade composite to our most premium Advanced SL-grade composite, applying cutting-edge materials and construction techniques for unmatched performance. Every tube shape was meticulously refined to reduce weight without sacrificing strength or stiffness. And we didn’t stop there—every detail, from the cockpit to the hydration system and bento box, was optimized for maximum weight savings.
All of these innovations add up: the all-new Avow Advanced SL Tri is a full 433g lighter than its predecessor, making it the lightest, fastest Avow we’ve ever built.
avow testing results
STIFFNESS + EFFICIENCY
COMPARISON
Stiffness was assessed using industry-standard protocols with size medium framesets. Liv tested both pedaling and torsional stiffness with the corresponding fork in place. This provides a far more accurate measure of how a bicycle will perform in real-world conditions and helps ensure that our testing procedures translate into performance gains that can be felt on the road.
Our testing determined how much the complete frameset flexed torsionally under load, with each frame locked at the rear dropouts and lateral force applied to the fork. Higher frame stiffness means better cornering and response to rider input.
With nearly a decade of the Avow’s proven performance on the racecourse, we’ve listened closely to athlete feedback. They loved the balance of steering, sprinting, and pedaling stiffness, so we made sure to retain that perfect formula. The one consistent request was to make it lighter—so, we did. By integrating Advanced SL-grade composite, we achieved a lighter frameset without sacrificing the stiffness athletes depend on.
The result? A 10% improvement in efficiency. The new Avow Advanced SL is not only faster and more responsive, but it also delivers the ideal combination of stiffness and agility. It’s designed to perform at the highest level—while giving you that extra edge in every race.
avow testing results AERODYNAMICS COMPARISON
The new Avow Advanced SL maintains the same exceptional aero efficiency as the previous Avow Advanced Pro, despite the performance shift from rim to disc brakes. This consistency is achieved through our ongoing commitment to AeroSystem Shaping Technology, which has been applied to every tube shape and junction to minimize drag and optimize efficiency.

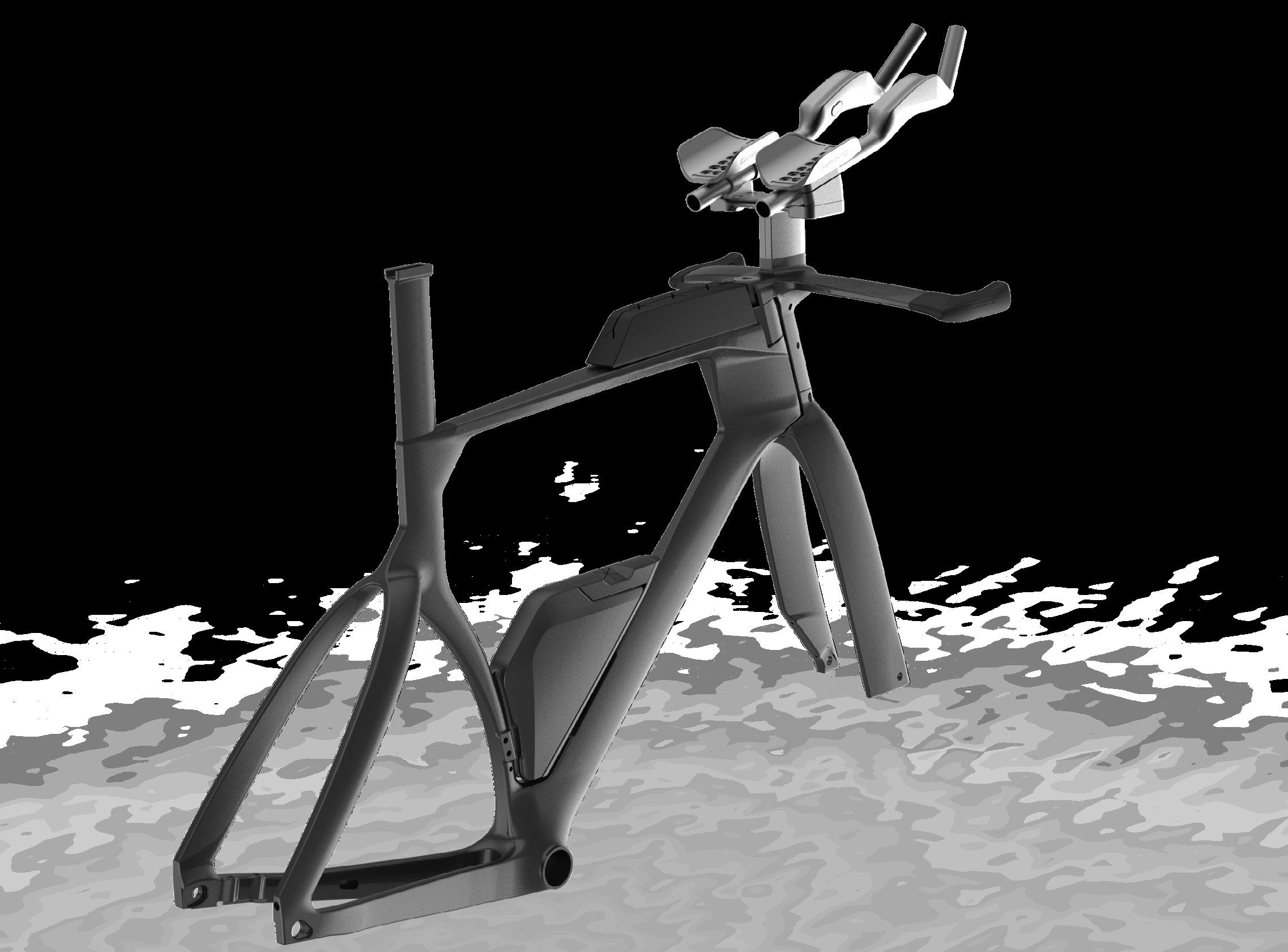

AeroSystem Shaping Technology combines cutting-edge Computational Fluid Dynamics (CFD) analysis with wind-tunnel testing, ensuring the frameset performs as a cohesive, highperformance unit. Each section of the frameset is meticulously engineered to reduce drag and manage airflow across all relevant yaw angles, fine-tuning the frameset’s aerodynamic capabilities.
To ensure the utmost precision, we use wind-tunnel testing with a dynamic mannequin that features anatomically correct, articulating legs. This setup allows us to measure pressure and friction drag while simulating the exact interaction between the rider and the bike, eliminating variables such as body position and pedaling cadence, and ensuring consistent, reliable results.
Key updates to the new Avow include modified truncated ellipse shaping on the head tube, down tube, fork, and seatpost. Additionally, the integration of disc brakes prompted a redesign of the frame and fork, incorporating new tubing shapes that integrate the front and rear calipers, further minimizing drag.

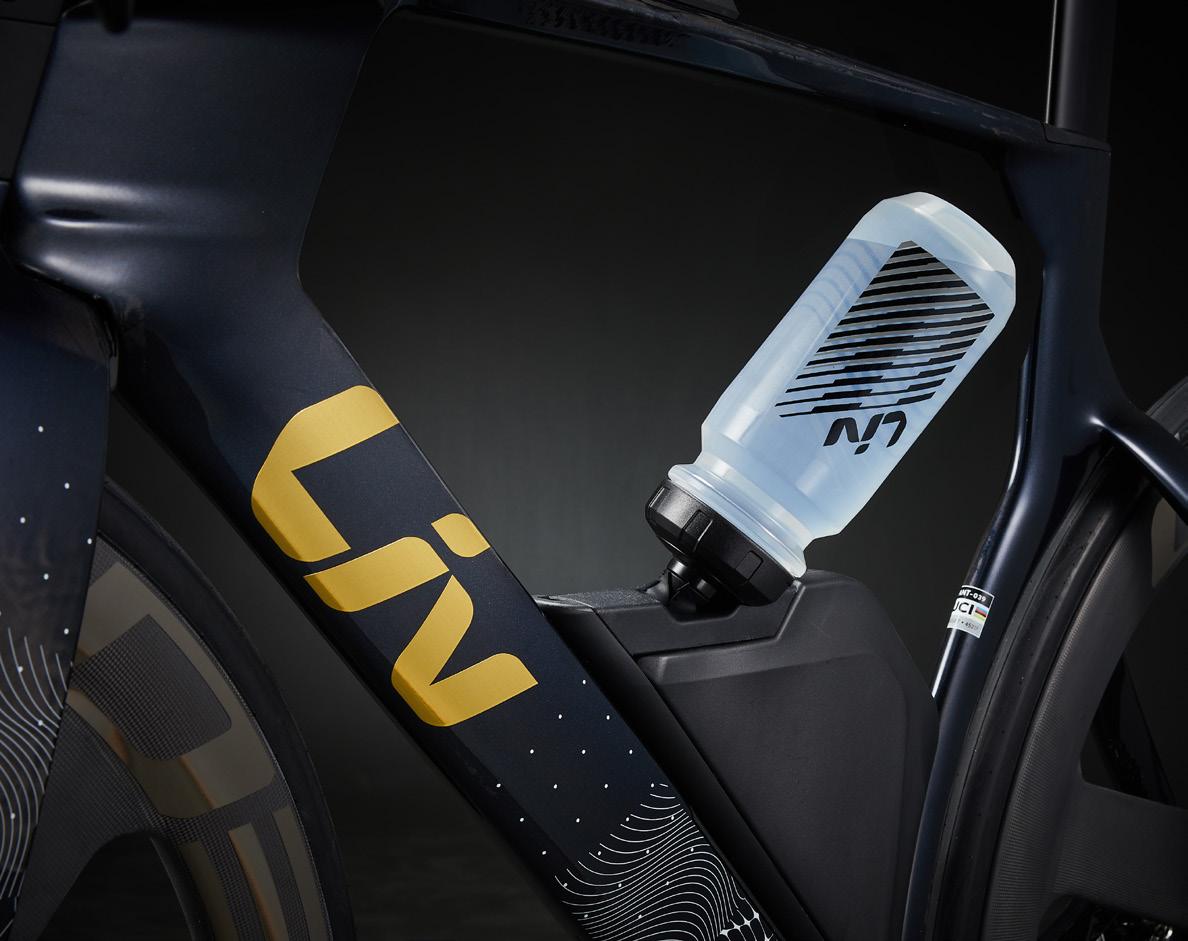

The new integrated fueling system is another significant advancement. It includes a large hydration reservoir (700ml for size XXS, XS, and S frames; 850ml for Medium) and a sleek bento box on the top tube behind the handlebar extensions. This not only improves aerodynamics but also ensures the rider is efficiently fueled for long, intense races.
These updates refine every aspect of the Avow, ensuring it remains the ultimate platform for triathletes seeking the perfect balance of speed, efficiency, and customizability for their race-day performance.
avow testing results
AERODYNAMICS COMPARISON
Average 2016 Avow Advanced Pro frameset to new 2025 Avow Advanced SL frameset drag at 45kph with all triathlon accessories installed, from -20 to +20 degree yaw angles (watts)
OLD VS. NEW TUBE SHAPES
