ELEVATE YOUR RIDE
The Avail Advanced E+ Elite, our new high-performance electric bike, redefines what’s possible on the road. Experience the thrill of road biking supercharged with powerful electric assistance. With the sleek design of a premium carbon road bike, the Avail Advanced E+ Elite gives you a ride that’s smooth, responsive, and engineered to (out) perform.
AVAIL ADVANCED E+ ELITE RANGE
AVAIL ADVANCED E+ ELITE RANGE
HEAD-TURNING DESIGN

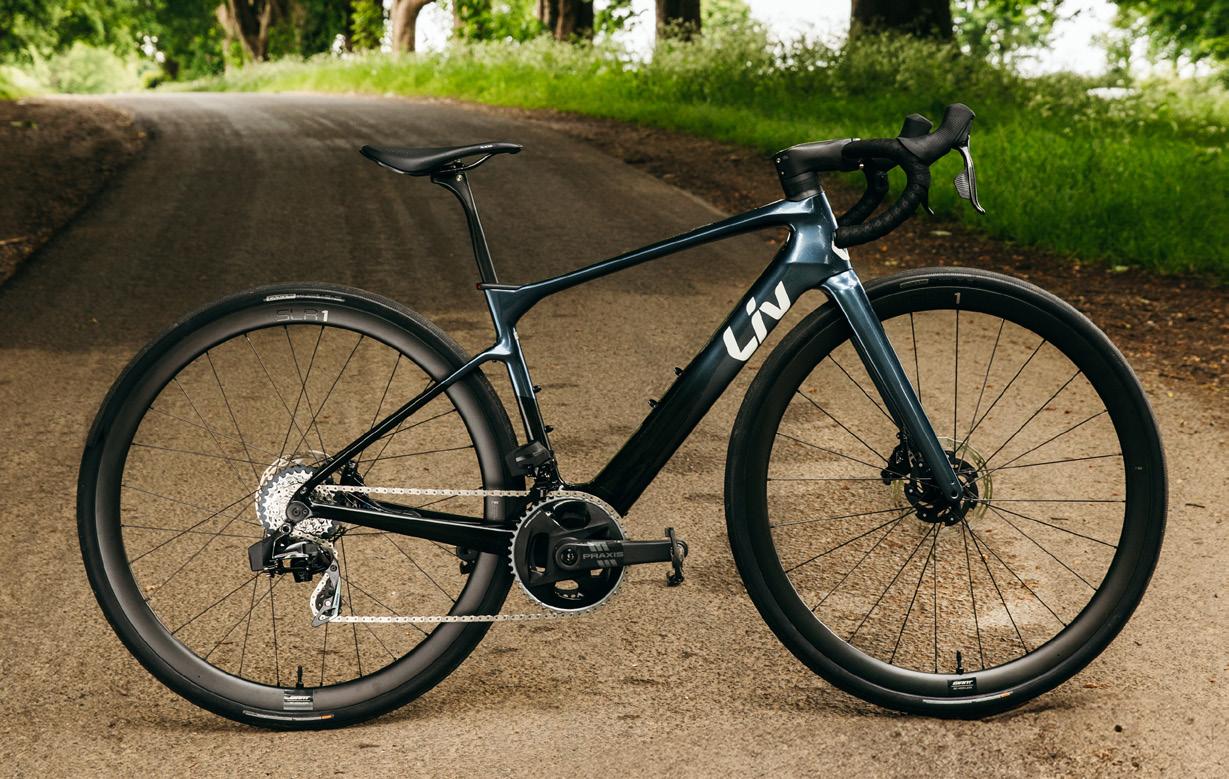

The design of the Avail Advanced E+ Elite stealthily conceals its potent electric capabilities. A compact rear hub motor, lightweight carbon frame and fork, hidden controls, and internal cable routing is the epitome of a beautiful, high-end road bike that looks fast—even when it’s not moving.
A NATURAL RIDE
It looks like an analog road bike and, best of all, it rides like one. Experience the revolutionary fusion of electric power and traditional road cycling with our new E-Road exclusive riding pattern. It provides the ultimate smooth motor support so your riding experience still feels authentic and au naturel.
MAXIMUM MILES. MINIMUM FATIGUE.
The Avail Advanced E+ Elite provides up to 600Wh with its 400Wh main battery and the optional 200Wh range extender. It features Avail endurance geometry for long-ride comfort, while the Liv D-Fuse handlebar and seatpost absorb road vibrations, giving you a smooth and enjoyable riding experience.
DELIVERING POWER & SPEED
The SyncDrive Move Plus Motor is a powerful rear hub motor with a maximum torque of 75 Nm. It provides the maximum assisted speed to reach the speed limit of 28 mph / 45 km/h (class 3)
1. ADVANCED-GRADE COMPOSITE FRAMESET:
This frameset, made at our in-house factory from high-performance grade raw carbon, offers just the right balance: stiffness for efficient power transfer whilst also giving you a smooth, comfortable ride.

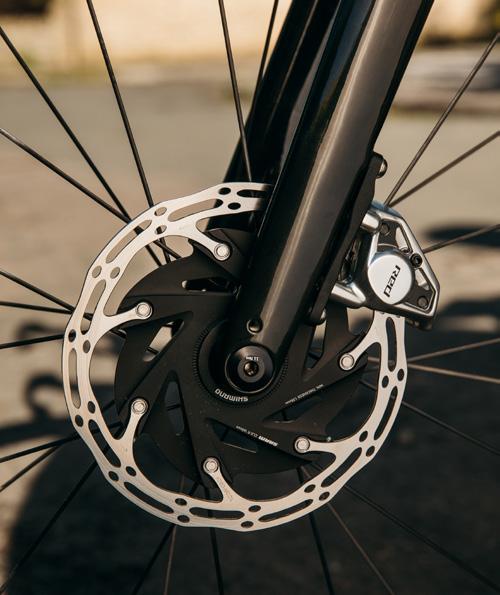

2. ADVANCED-SL GRADE COMPOSITE FORK:
The fork is expertly crafted from high-performance carbon material, optimizing strength, stiffness, and precision steering to deliver exceptional control and responsiveness.
3. SYNCDRIVE MOVE PLUS MOTOR: With 75 Nm maximum torque, our new rear hub motor provides exceptional custom tunable power but—and this is the best bit—keeps the natural feel of a regular road bike. The Smart Assist technology uses sensors to deliver precisely the right level of pedaling support for an authentic ride.
4. ENERGYPAK SMART 400Wh BATTERY: Confidently take on longer rides with this small yet powerful, highdensity 400Wh battery. Stealthily integrated into the down tube (what battery?!), it provides the capacity and high torque you need to enjoy more epic miles in the saddle.
5. RIDECONTROL GO: Streamline your ride with this integrated top tube console. Effortlessly change power mode using the button and check your battery level and support mode on the go using vibrant LED lights. Use it alone for a minimalist control panel or pair it with the SRAM Bonus Buttons or SRAM Blips for added support mode options.

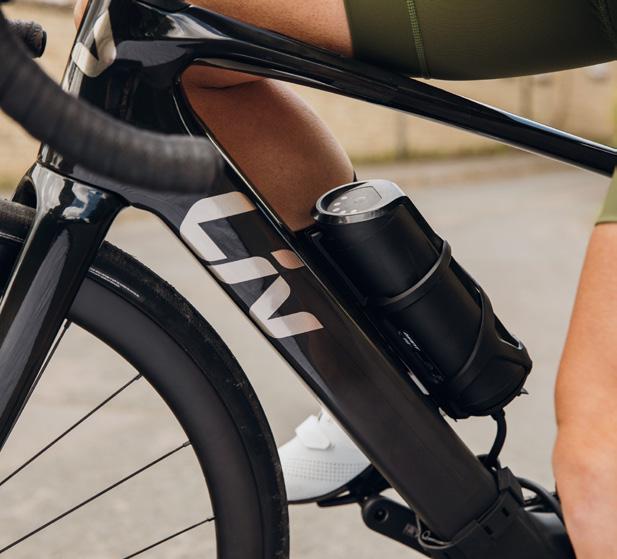

6. ENERGYPAK PLUS 200 RANGE EXTENDER: In the mood for a longer ride? This powerful range extender has an additional 200Wh battery capacity so you can extend your ride by up to 47mi (75 km)—depending on the support mode you use. It’s a sleek, water bottleshaped device weighing only 2.43lbs (1.1 kg) and effortless to use and carry. (picturedonpage9)
7. SRAM BONUS BUTTONS & SRAM BLIPS: Power up or down with an effortless flick of a blip. Seamlessly integrated inside the shifters, the compact and featherlight SRAM Bonus Buttons allow you to change power levels without the need to move your hand position. Additionally, SRAM Blips are conveniently integrated under the handlebar, providing another quick and precise way to adjust your power level. Improved ergonomics help to reduce fatigue, particularly on longer rides.
As Liv is a SRAM partner, a unique feature on the Avail Advanced E+ Elite is the ability to choose your support mode directly through the SRAM Bonus Buttons and SRAM Blips. Other brands have to use the SRAM App.
If you need to reset the settings, you simply do it through the RideControl App, without needing to switch to the SRAM App. This Liv/SRAM integration means you can spend more time enjoying your ride and less time looking at multiple apps.
8. LIV CONTACT SLR/SL D-FUSE HANDLEBAR: Navigate rough roads effortlessly with these lightweight handlebars. Designed with D-shaped tubing tailored
for women’s hands and an 8-degree flare drop for stability to keep you comfortable. The 40% compliance increase and 2% stiffness boost, compared to previous generations, enhances your cornering, sprinting, and climbing efficiency.

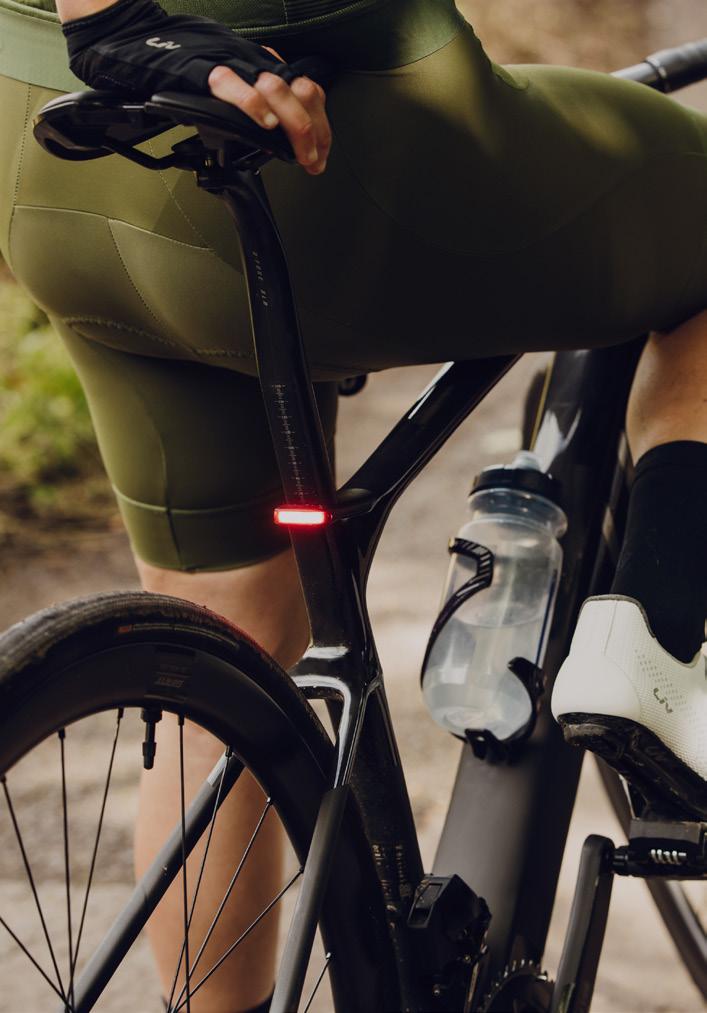

9. D-FUSE SLR/SL COMPOSITE SEATPOST: Experience smoother rides over rough terrain with our proprietary lightweight carbon seatpost. Featuring a D-shaped shaft, it’s designed to absorb road vibrations and shock, so you feel less tired and more comfortable when things get bumpy.

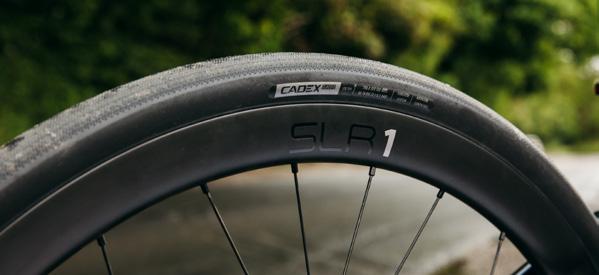

10. TIRE CLEARANCE: For a smooth and comfortable ride on gravel paths and rough roads, you have the flexibility to fit tires up to 38 mm wide, so you can tackle diverse terrains with ease.
11. FENDER FRAME MOUNT: The frame includes mounts for convenient fender installation providing the option to stay protected against splashes and debris on wet or muddy rides.

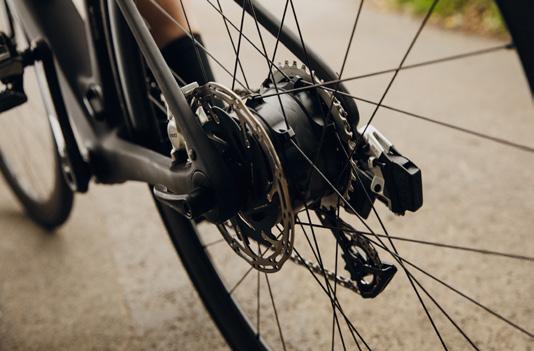

SYNCDRIVE MOVE PLUS MOTOR technology
Our E-Road bike exclusive motor provides you with the most analog bike-like power support possible. This is cool because...you get all the benefits of riding an electric bike while keeping that joyful road bike feeling we all know and love.
POWERFUL (YET PETITE)
Ready to talk torque? This rear hub motor has the custom tunability to supply up to 75nm, providing all the power you need to (out) perform on the road. But don’t associate power with bulk because it weighs in at just 3.75lbs (1.7 kg)
NEED TO REMOVE THE REAR WHEEL? NO PROBLEM.
If you need to remove the rear wheel, including the motor, for transportation it’s easy. Simply use the quick-release thru-axle. No faff. No hassle.
AN AUTHENTIC RIDE
Thanks to its seamless and smooth power assistance, this E-Road bike closely emulates the experience of riding an analogue road bike. And the app tuneable electric support empowers you to reach impressive speed limits: 28mph / 45 km/h (class 3)
E-ROAD EXCLUSIVE RIDING
Drawing from over 50+ years of bike manufacturing expertise, we’ve engineered an electric road bike that delivers natural and seamless power support. Not only does our Avail Advanced E+ Elite look like a regular high-end road bike, but it also rides like one.
Here are five scenarios of how it works during your ride:
1.Starting off: When you first start pedaling from a static position the motor gradually increases the power. This gives you a nice smooth start with no sudden surge of power.
2.Smooth deceleration: When you stop pedaling, the motor gradually reduces support to avoid a sudden feeling of power loss.
3.Speed limit optimization: For safety, electric bikes have a speed limit. So power assistance stops when you reach that limit. However, we aim to give you an authentic road cycling experience without making you feel impacted by the speed limit.
To achieve this, we’ve designed the motor to avoid any sudden loss of power support. Instead, it gradually eases off a few kilometers before you reach the speed limit, ensuring a smooth and seamless transition.
When you reach the speed limit, simply slow down slightly to fall just below it. The motor will then smoothly re-engage power, allowing you to continue your ride without any sudden interruption.
4. Battery range optimization: With innovative adjustments to power usage throughout your ride, the battery range is optimized without sacrificing performance or ride quality
The Avail E+ is ideal for endurance rides. When you’re cruising with minimal pedaling effort, the motor automatically reduces power output slightly, saving battery life and extending your range. When you speed up or climb after cruising, the motor adjusts to gradually provide you with more power
With optimized battery usage, the Avail E+ can reach 93 mi (150 km) range by using the 400Wh main battery and a 200Wh range extender. Even with just the 400Wh main battery, the range can exceed 62 mi (100 km)
5. Enjoy an extra Boost: For this premium E-Road bike, we’ve introduced a boost assist within the highest support level, Power mode, providing an impressive 450% support assist.
When you’re in Power mode, and the motor detects you’re pedaling hard but your speed is slow—like when riding into a headwind or climbing— it automatically activates boost and, voila, your ride just got much easier
Trust us, this boost assist will quickly become your best friend on those challenging climbs.
ENERGYPAK SMART 400 BATTERY
Introducing our latest innovation: a fully integrated in-tube battery which is sleekly integrated into the down tube. Developed in collaboration with industry leader Panasonic, it boasts a 400Wh capacity in a tiny package. So you can effortlessly ride the extra mile without carrying extra weight.
At the heart of this battery’s performance is the higher-density 22700-cell. It’s denser than the Tesla 21700-cell pack and vastly outperforms the 21700 and 18650 cells found in most E-bikes. With increased density and reduced weight, the 22700 cell is ideal for high-performance E-bikes.
LIGHTWEIGHT AND COMPACT
At just 5 lbs (2.3 kg), this compact battery packs in the power thanks to 22700 highdensity cells. This means you get hours of riding without sacrificing weight.
SMOOTH FINISH
With a battery that’s fully integrated into the down tube, you have a perfectly sleeklooking bike.
EFFICIENCY
All EnergyPak Smart series batteries feature a Battery Management System with temperature monitoring and Smart Charging to extend battery life. Individual cell casing prevents overheating, while our safety-tested E-bikes meet or exceed UL, EN, CE, FCC, UKCA, PSE, KC, and BSMI certifications, ensuring the highest safety standards.

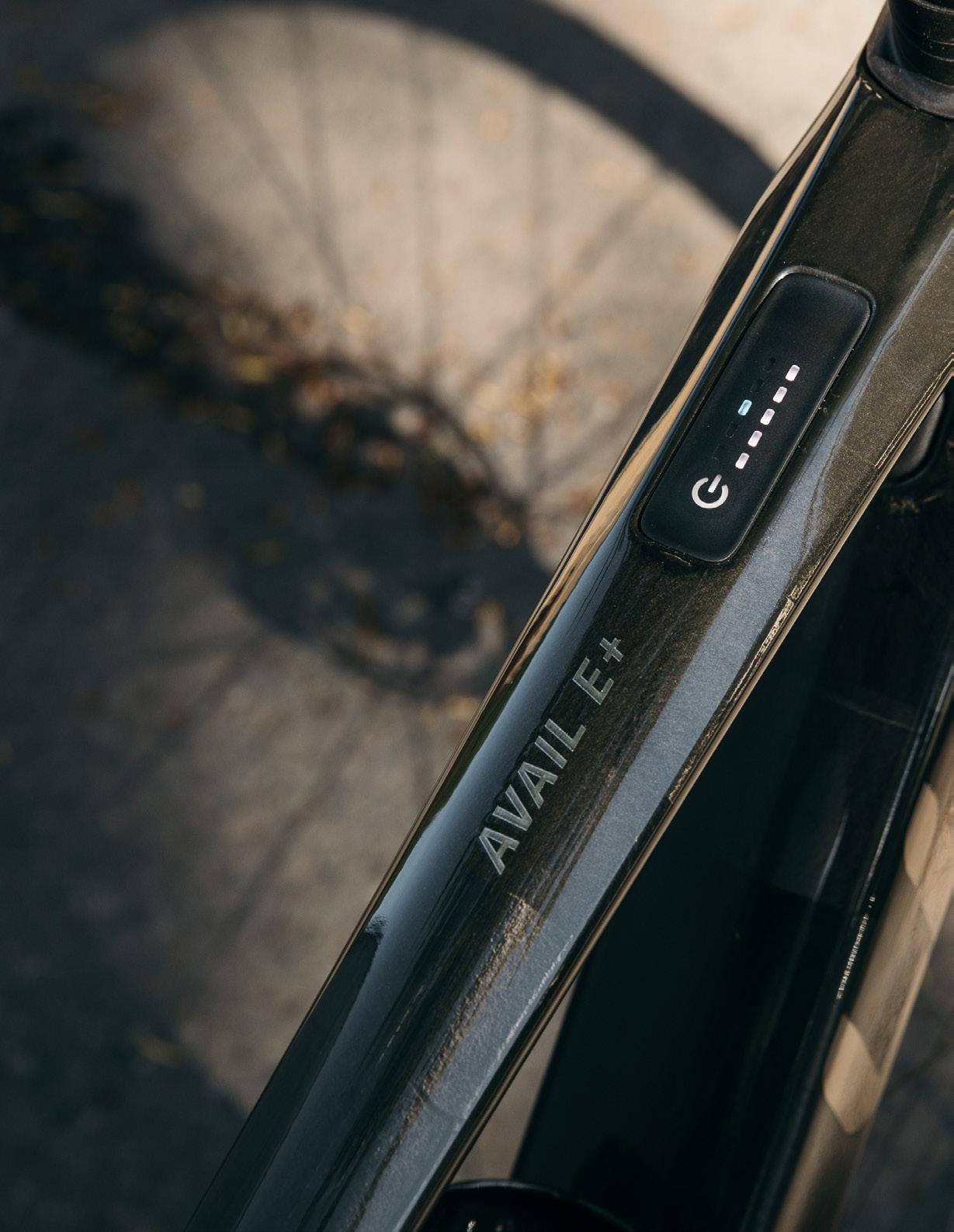

RIDECONTROL GO

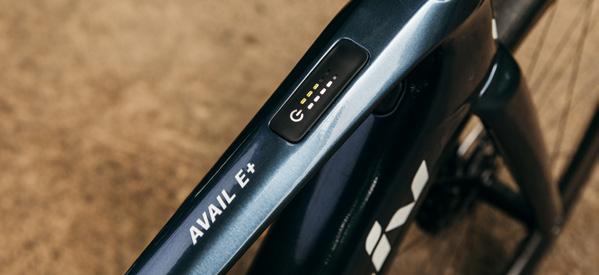

You’ll find this console, with two rows of lights and a power button, seamlessly integrated into the top tube. It’s designed to provide you, at a glance, visibility of your mode and battery level. It functions as a standalone control panel or syncs with the SRAM Bonus Buttons or SRAM Blips, providing an additional way of selecting your support mode.
Liv’s E-bike system not only excels on its own but also flawlessly integrates with third-party components.
RIDECONTROL APP
The RideControl App brings an exciting new level of connectivity to your E-bike riding experience. By connecting your phone to your E-bike, you can customize your motor’s support ratio, acceleration timing, and torque settings to suit your preferences. You can even track your fitness by recording and sharing your ride data, including; time, distance, speed, calories, elevation, and cadence.
The App also features a quick diagnostic check so you can easily see the health of your E-components and update firmware. And no more range anxiety, as it displays your battery level and range in real time. So, whether you’re a fitness enthusiast or a casual rider, the RideControl App provides all the information you need for a seamless ride.
RIDECONTROL APP TUNING
Customize your motor support settings to fit your taste; use the RideControl App to select from five support default modes and extra micro-assist support modes. Choose between stronger, more aggressive performance, or tune it for a more comfortable ride.
New advanced tuning functionality gives a wider range of ride customization at your fingertips. Besides the existing five support default modes, you can now individually tune your support ratio, torque, and acceleration to suit your preferred riding style.
For our premium E-Road bike, the Avail E+, we’ve introduced a boost assist within the highest support level, Power mode. The default support ratio for Power mode is 450%. This provides you with powerful assistance when you need it.
