Show up at a gravel race or an online gravel forum, and you’ll notice something pretty special. The gravel riding community is inclusive, encouraging, fun — and growing.
→ The new Devote leans into a more aggressive geometry, an advantage for podium-chasers and adventure-seekers
→ The flip chip – dropout lets you adjust your wheelbase and tire clearance to your route.
→ Integrated down tube storage stashes extra fuel or tools.
There’s no doubt, women are leading this growth. The rise in women’s gravel participation is steeper than Dollarhide at Rebecca’s Private Idaho.
Gravel is new territory for everyone— which means nothing is sacred, and everything is possible. And with the new Liv Devote, the possibilities just got even more exciting.
→ Internal cable routing keeps your cockpit streamlined.
→ The second generation Devote range spans from the Advanced Devote, to the supremely lightweight Devote Advanced Pro.
Since the 2020 Devote debut, gravel has picked up speed— and so has the Devote.

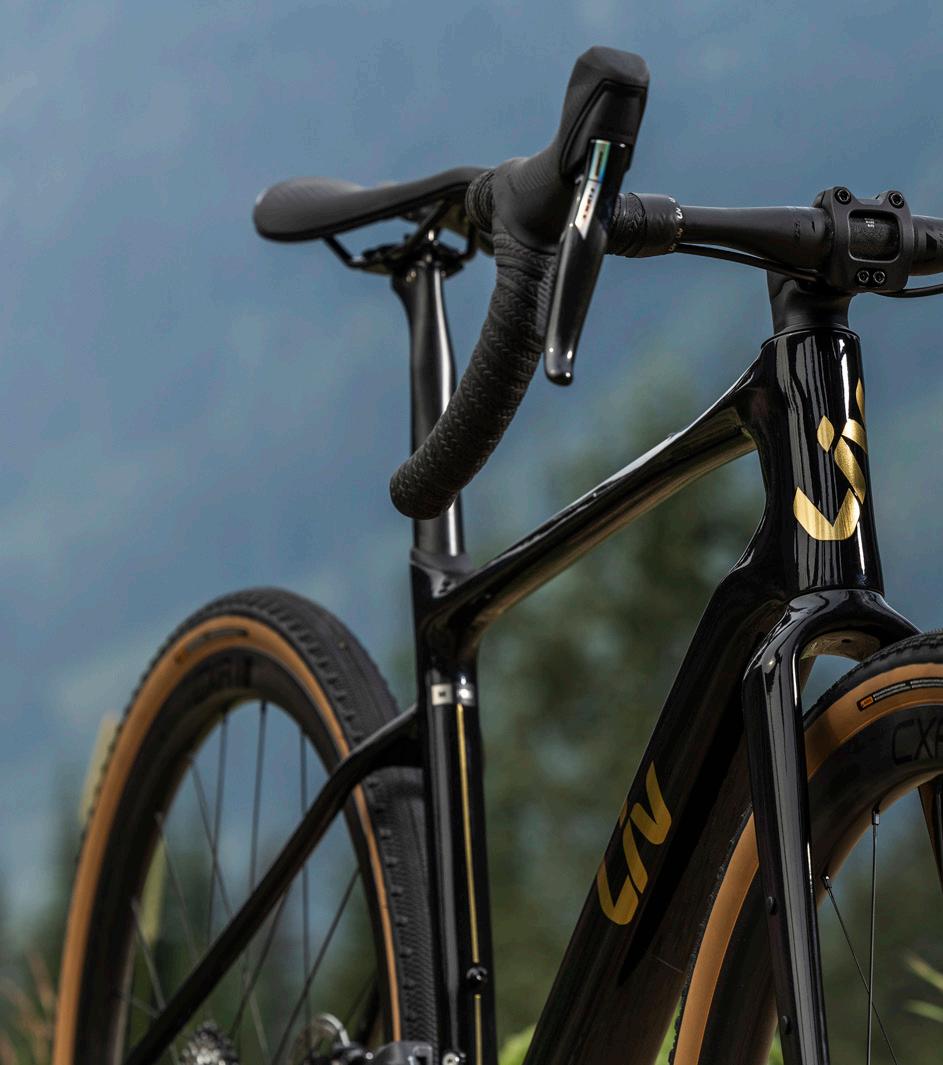

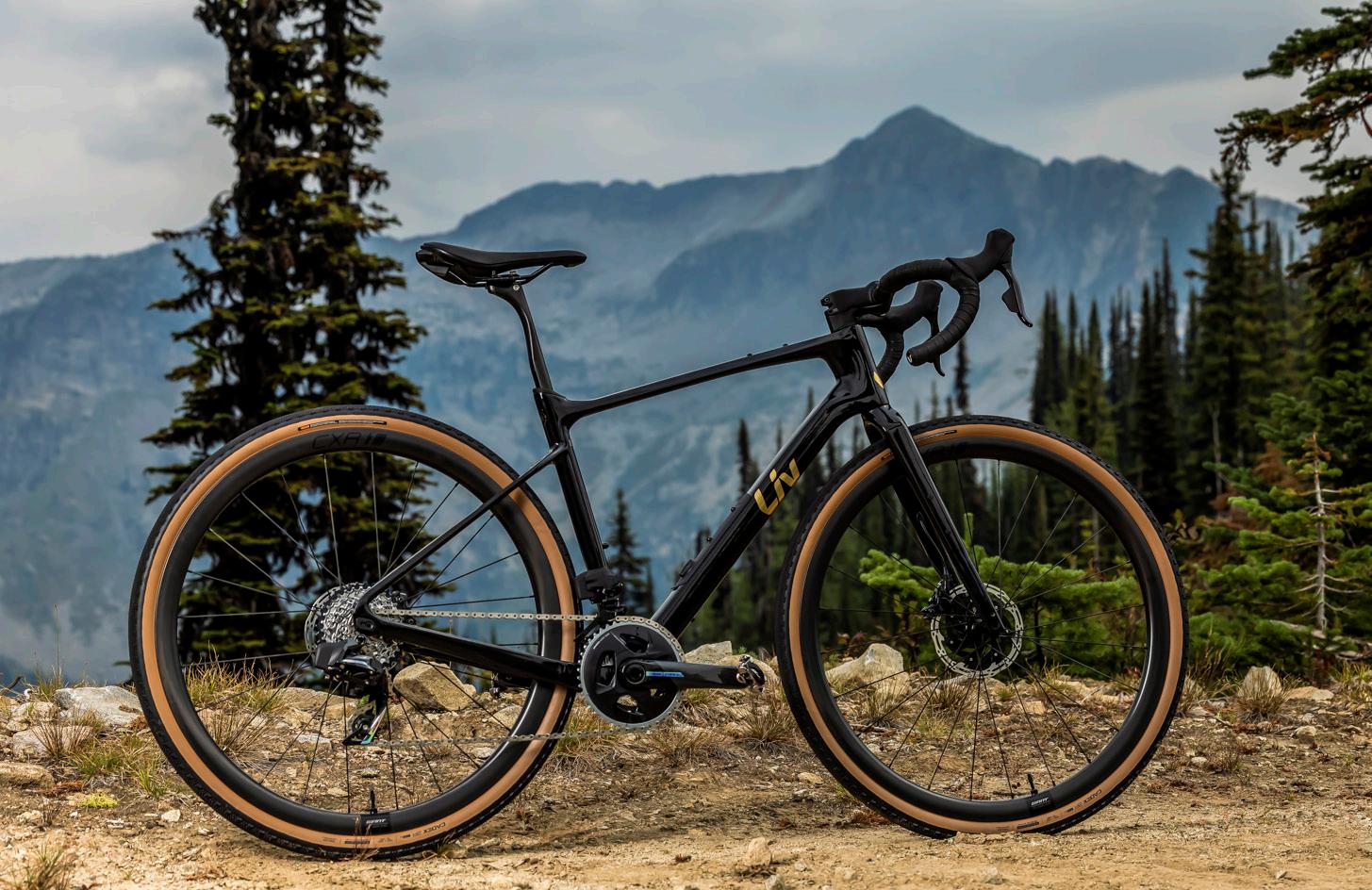

↑ Devote Advanced Pro Carbon/Chrome
The Devote Advanced Pro was born and bred for gravel race glory. With its lightweight yet robust construction and performance-driven design, it’s ready to carry speed across county lines, above tree lines, and over finish lines.
An ultralight Advanced-grade composite frame and new Advanced SL-grade composite fork make for snappy acceleration, while internal cable routing streamlines your cockpit and makes room for your must-have accessories. And the redesigned geometry puts you in a more aggressive position, increases traction and stability, and allows more control at speed and on descents.
The Contact SLR XR D-Fuse handlebar features a 5-degree back sweep and flare drop for comfortable and ergonomic grip. The D-Fuse SLR seatpost can be swapped out for a 30.9mm or 27.2mm round seatpost. These proprietary D-Fuse components absorb bumps and reduce vibrations, ensuring less fatigue and more fun on those epic rides.
Adapt to the route with the flip chip – dropout, which lets you adjust your wheelbase length and rear-wheel tire clearance. Go shorter for responsive handling and quick acceleration. Go longer for added stability plus clearance for larger tires and extra traction. Plus, the integrated down tube storage lets you stash a multi-tool or extra fuel, so nothing’s slowing you down.
1. ADVANCED-GRADE COMPOSITE
The frame is constructed from high-performance grade raw carbon material in our own composite factory, providing exceptional strength and lightweight performance for greater power transfer, agility, and efficiency. The front triangle is assembled and molded as one continuous piece using a proprietary manufacturing process called Modified Monocoque Construction.
2. ADVANCED SL-GRADE COMPOSITE FORK
The fork is expertly crafted from high-performance carbon material, optimizing strength, stiffness, and precision steering to deliver exceptional control and responsiveness.
3. OVERDRIVE
Our oversized fork steerer tube technology is specifically engineered to deliver precise front-end steering performance. Featuring oversized headset bearings made of stainless steel for added longevity, along with a tapered steerer tube, this system delivers the ideal balance of steering stiffness and responsiveness.
4. D-FUSE TECHNOLOGY
Proprietary D-shaped composite seatpost and handlebar were designed to function as a system to absorb shocks and vibrations from various surfaces, resulting in a smoother, more compliant ride quality.
5. INTEGRATED DOWN TUBE STORAGE
Open a latch on the down tube to reveal an internal compartment that contains a water-resistant bag where you can store essential items including an inner tube, CO2 cartridge, tire lever, snacks, or a multi-tool. The compartment cover also serves as a versatile water bottle cage mount, allowing you to flip and latch it at either the top or bottom for flexible bottle placement.
6. FLIP CHIP – DROPOUT
Easily adjust the geometry and rear-wheel tire clearance with our eccentric (offset, two-position) hardware, located in the rear frame dropouts. Switch to the short position for quicker handling and a maximum tire clearance of 45mm, or choose the long position for stability at speed and increased tire clearance up to 53mm.
7. SE ATPOST COMPATIBILITY
The Devote is compatible with multiple seatpost options, including D-Fuse and round seatposts in 30.9mm or 27.2mm sizes, allowing you to tailor the bike to your riding style.
8. CONTACT AEROLIGHT STEM
Premium alloy stem inspired by wind tunnel design, guides the cables from the handlebars through the frame, creating an aerodynamic cockpit setup that enhances both performance and aesthetics for an optimal riding experience.
9. M ULTIPLE WATER BOTTLE MOUNTS
The Devote features three sets of frame mounts, allowing you to carry multiple water bottles and ensuring easy access to hydration during long rides or bike-packing expeditions.
10. AD DITIONAL FRAME MOUNTS

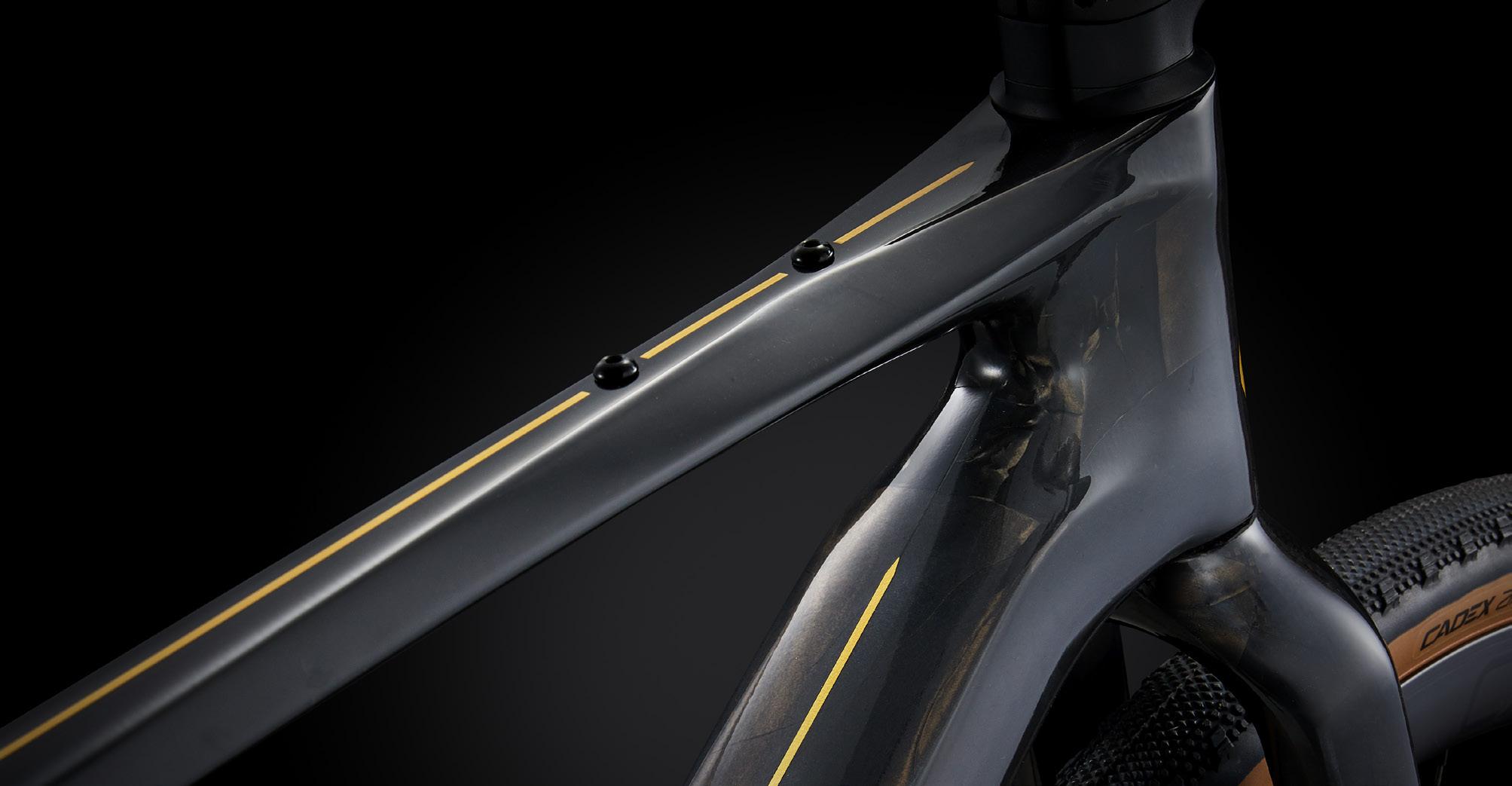

Discover added versatility with top tube mounts for secure bag attachment, fork mounts for accessory integration, and fender mounts to ward off debris and water.
11. D ISC BRAKE INTEGRATION
The frame and fork are engineered specifically for flat-mount disc brakes, including front and rear 12mm thru-axles for reliable braking performance in all weather and road conditions.
12. G IANT TUBELESS WHEELSYSTEM
Engineered with proprietary Dynamic Balanced Lacing technology, this tubeless ready composite WheelSystem delivers superior efficiency, pinpoint control and comfort.

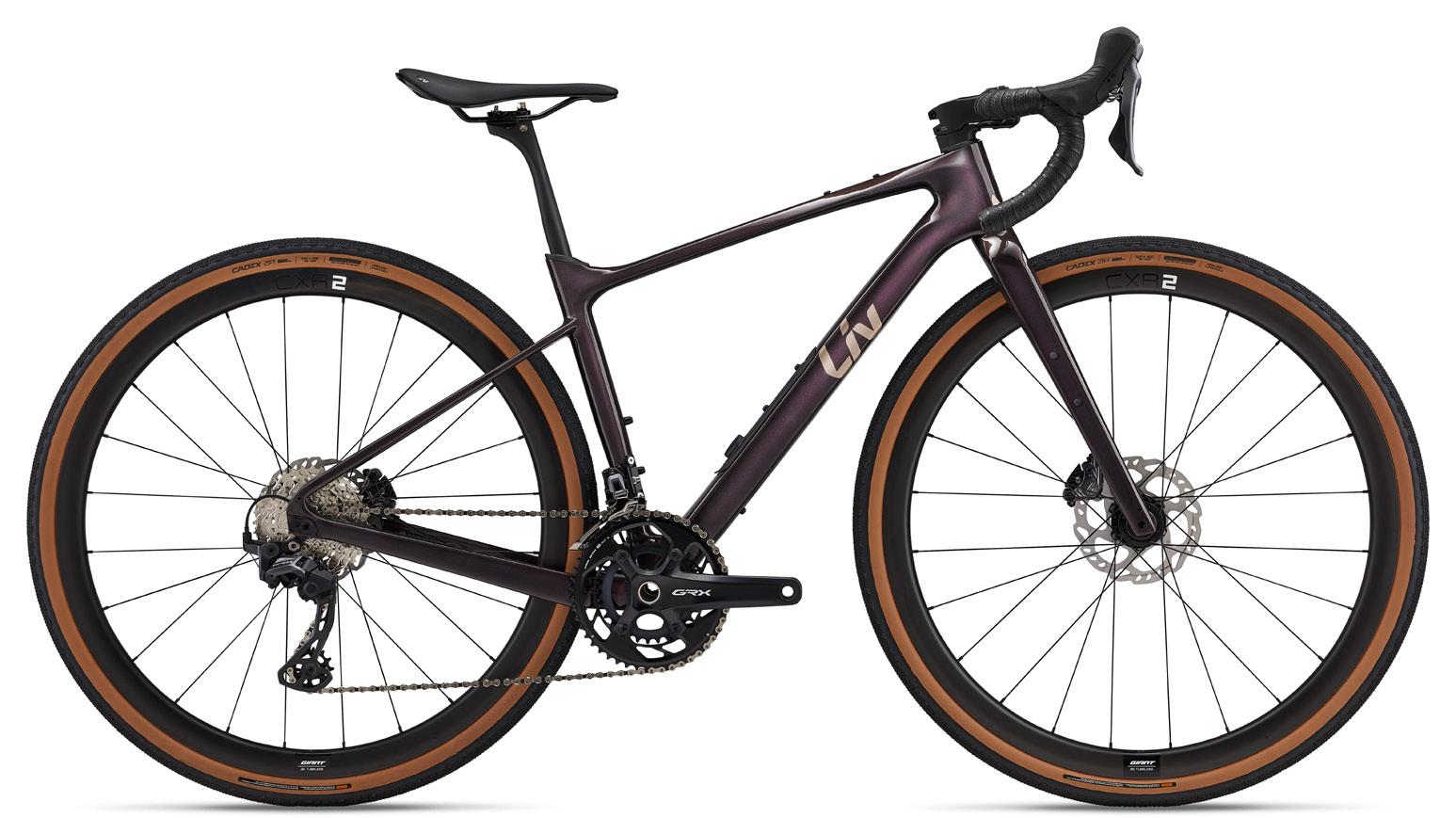

The Devote Advanced is your go-to for going fast, wherever the gravel muse may call you. Balancing speed and ruggedness, this versatile bike is ready for race day, rest day, and multi-day adventures.
An ultralight Advanced-grade composite frame and fork make for snappy acceleration, while internal cable routing streamlines your cockpit and makes room for your must-have accessories. And the redesigned geometry puts you in a more aggressive position, increases traction and stability, and allows more control at speed and on descents.
The Contact XR D-Fuse handlebar features a 5-degree back sweep and flare drop for comfortable and ergonomic grip. Select models also feature the D-Fuse seatpost and one is equipped with a dropper post. Or swap out for your preferred set-up. These proprietary D-Fuse components absorb bumps and reduce vibrations, ensuring less fatigue and more fun on those epic rides.
Adapt to the route with the flip chip – dropout, which lets you adjust your wheelbase length and rear-wheel tire clearance. Go shorter for responsive handling and quick acceleration. Go longer for added stability plus clearance for larger tires and extra traction. Plus, the integrated down tube storage lets you stash a multi-tool or extra fuel, so nothing’s slowing you down.
1. ADVANCED-GRADE COMPOSITE FRAMESET
The frame and fork are constructed from high-performance grade raw carbon material in our own composite factory, providing exceptional strength and lightweight performance for greater power transfer, agility, and efficiency. The front triangle is assembled and molded as one continuous piece using a proprietary manufacturing process called Modified Monocoque Construction.
2. OVERDRIVE
Our oversized fork steerer tube technology is specifically engineered to deliver precise front-end steering performance. Featuring oversized headset bearings made of stainless steel for added longevity, along with a tapered steerer tube, this system delivers the ideal balance of steering stiffness and responsiveness.
3. D-FUSE TECHNOLOGY
Proprietary D-shaped composite seatpost and handlebar were designed to function as a system to absorb shocks and vibrations from various surfaces, resulting in a smoother, more compliant ride quality.
4. INTEGRATED DOWN TUBE STORAGE
Open a latch on the down tube to reveal an internal compartment that contains a water-resistant bag where you can store essential items including an inner tube, CO2 cartridge, tire lever, snacks, or a multi-tool. The compartment cover also serves as a versatile water bottle cage mount, allowing you to flip and latch it at either the top or bottom for flexible bottle placement.
5. FLIP CHIP – DROPOUT
Easily adjust the geometry and rear-wheel tire clearance with our eccentric (offset, two-position) hardware, located in the rear frame dropouts. Switch to the short position for quicker handling and a maximum tire clearance of 45mm, or choose the long position for stability at speed and increased tire clearance up to 53mm.
6. SE ATPOST COMPATIBILITY
The Devote is compatible with multiple seatpost options, including D-Fuse and round seatposts in 30.9mm or 27.2mm sizes, allowing you to tailor the bike to your riding style.
7. CONTACT AEROLIGHT STEM
Premium alloy stem inspired by wind tunnel design, guides the cables from the handlebars through the frame, creating an aerodynamic cockpit setup that enhances both performance and aesthetics for an optimal riding experience.
8. M ULTIPLE WATER BOTTLE MOUNTS
The Devote features three sets of frame mounts, allowing you to carry multiple water bottles and ensuring easy access to hydration during long rides or bike-packing expeditions.
9. AD DITIONAL FRAME MOUNTS
Discover added versatility with top tube mounts for secure bag attachment, fork mounts for accessory integration, and fender mounts to ward off debris and water.
10. D ISC BRAKE INTEGRATION
The frame and fork are engineered specifically for flat-mount disc brakes, including front and rear 12mm thru-axles for reliable braking performance in all weather and road conditions.
11. TUBELESS
The integrated tubeless wheelsystem or wheelset (depending on the model), coupled with tubeless tires deliver improved efficiency, comfort, and control.

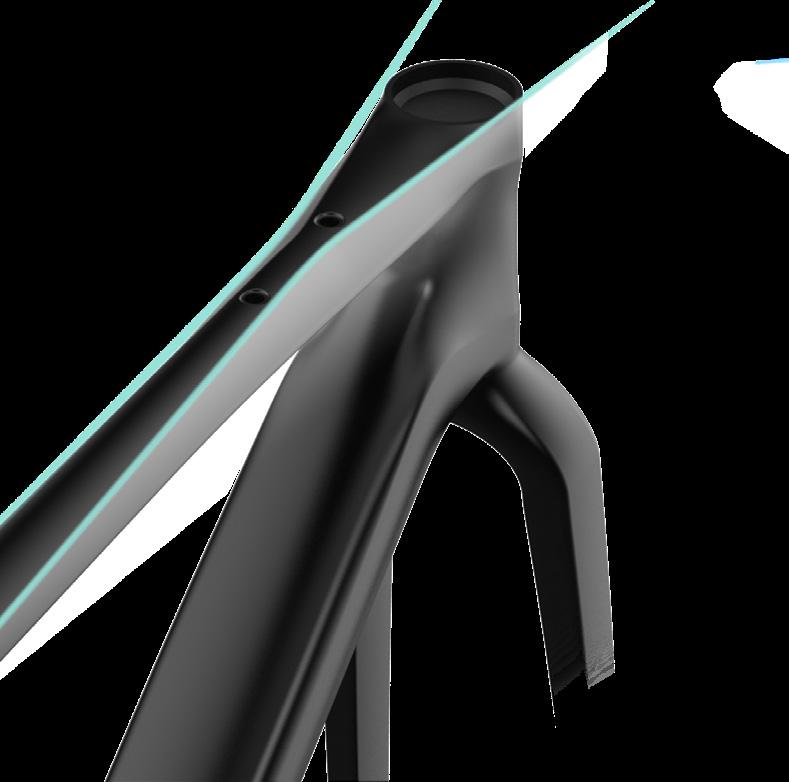

Defined by reimagined tube shapes, dynamic feature lines, and an unmistakable personality, Vitality injects a thrilling new dimension into the Devote product line. This bold design approach firmly distinguishes the Devote range, capturing Liv’s unwavering commitment to elevate your ride.

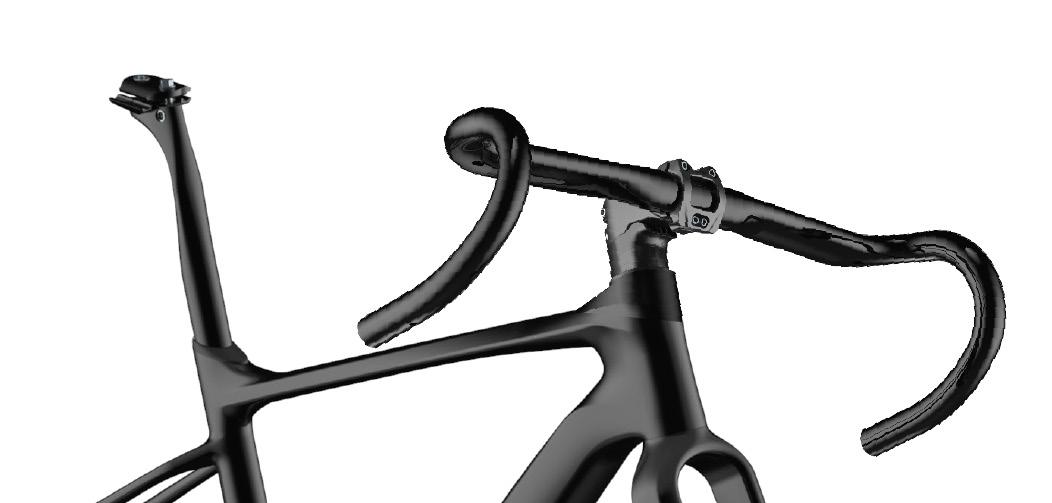

D-Fuse technology was first introduced in 2014 as a seatpost for pro-level cyclocross bikes. It was designed to absorb low-amplitude shocks and highamplitude vibrations to deliver a smoother ride on variable terrain. The heart of this pioneering concept is its distinctive “D-shaped” tubing with a round front and flattened rear section. Following its success in cyclocross, including multiple world championship titles, D-Fuse technology was expanded to endurance road and gravel bikes—and later to the front half of the bicycle. Together, the handlebar and seatpost add compliance at two key contact points without the unwanted complexity or weight associated with pivots or inserts. There are several, gravel-specific, D-Fuse handlebar options available for the Devote range –each more compliant and lighter than their round-shaped predecessors.
1.D-FUSE SEATPOST
A D-shaped composite shaft absorbs shocks and vibrations. With up to 7mm of flex, this engineered compliance produces a smooth ride quality to help minimize fatigue.
2.D-SHAPED TUBING
D-Fuse handlebars are made with D-shaped tubing on the tops for added compliance and hand comfort.
3.LIGHTWEIGHT
Contact XR D-Fuse handlebars feature lightweight construction while offering outstanding vertical compliance.
4.COMPLIANT
10% more “pushing” (downward) compliance compared to round shaped Contact handlebars to absorb road shock and vibrations.
5.EFFICIENT
Up to 30% more “pulling” (upward) stiffness compared to round shaped Contact handlebars for cornering, sprinting and climbing efficiency.

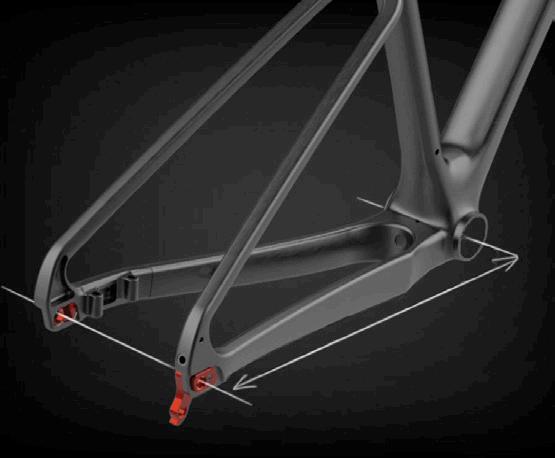

The flip chip – dropout on the Liv Devote range enables geometry and tire clearance customization to match your riding style and terrain. By switching the chip between the short and long positions, you can opt for either a more agile, responsive ride or enhanced stability and comfort.

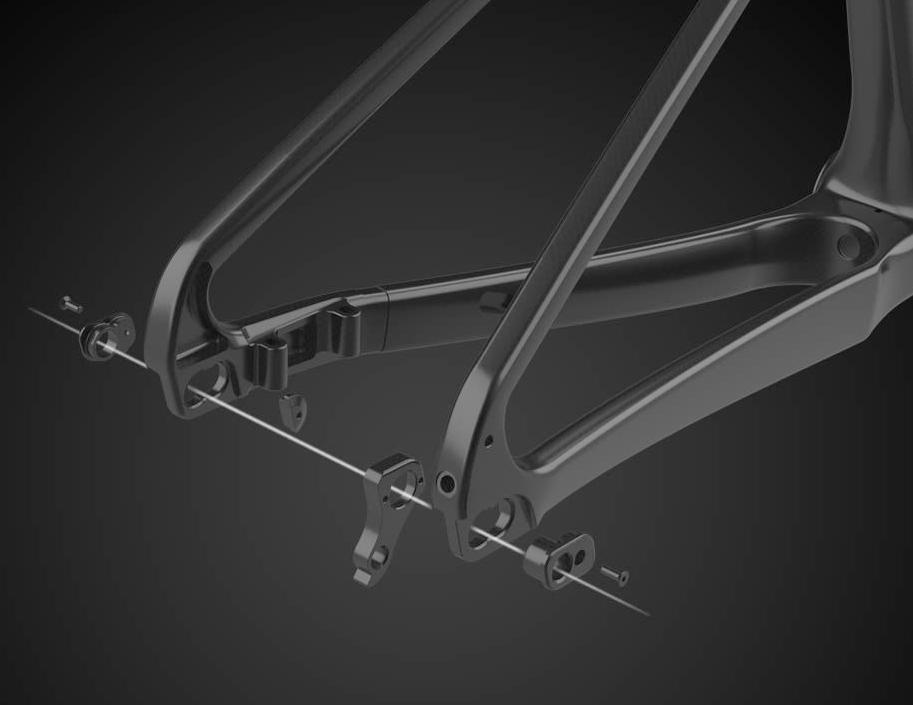

You’ll find a flip chip on each side of the rear dropout that can be set to a long or short position. The integrated system consists of eccentric, offset hardware that can be easily loosened, removed and flipped to the long or short setting using a 5mm hex wrench.
SHORT POSITION
LONG POSITION

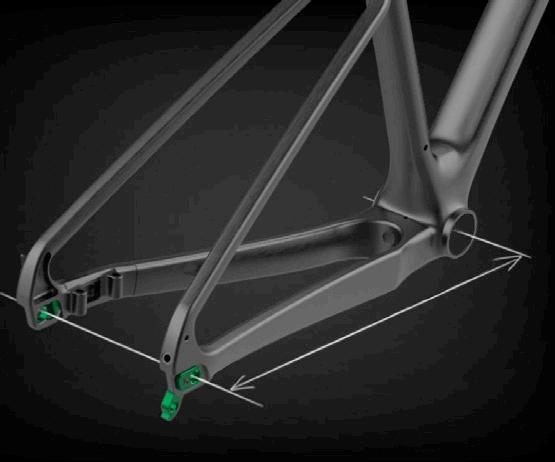

When the flip chip is in the short position, the wheelbase becomes shorter, allowing for a maximum tire clearance of 45mm.
When the flip chip is in the long position, the wheelbase extends 10mm, providing an increased tire clearance of up to 53mm.
SHORT POSITION
When the flip chip is in the short position, the wheelbase is shorter, resulting in a quicker, more agile ride quality. This is a great option when riding mixed terrain that combines paved roads with smooth, fast gravel and dirt. The responsive feel, combined with smaller diameter (and lighter weight) tires, makes it a smart choice when speed, efficiency and quick handling matter most.
LONG POSITION
When the flip chip is in the long position, the wheelbase extends, which adds stability for more rugged gravel and dirt. Additionally, you get added tire clearance (up to 53mm), which allows you to choose high-volume tires for added traction and control. The long position is a great choice for rides and routes that might include fast, loose descents and tricky off-road climbs.

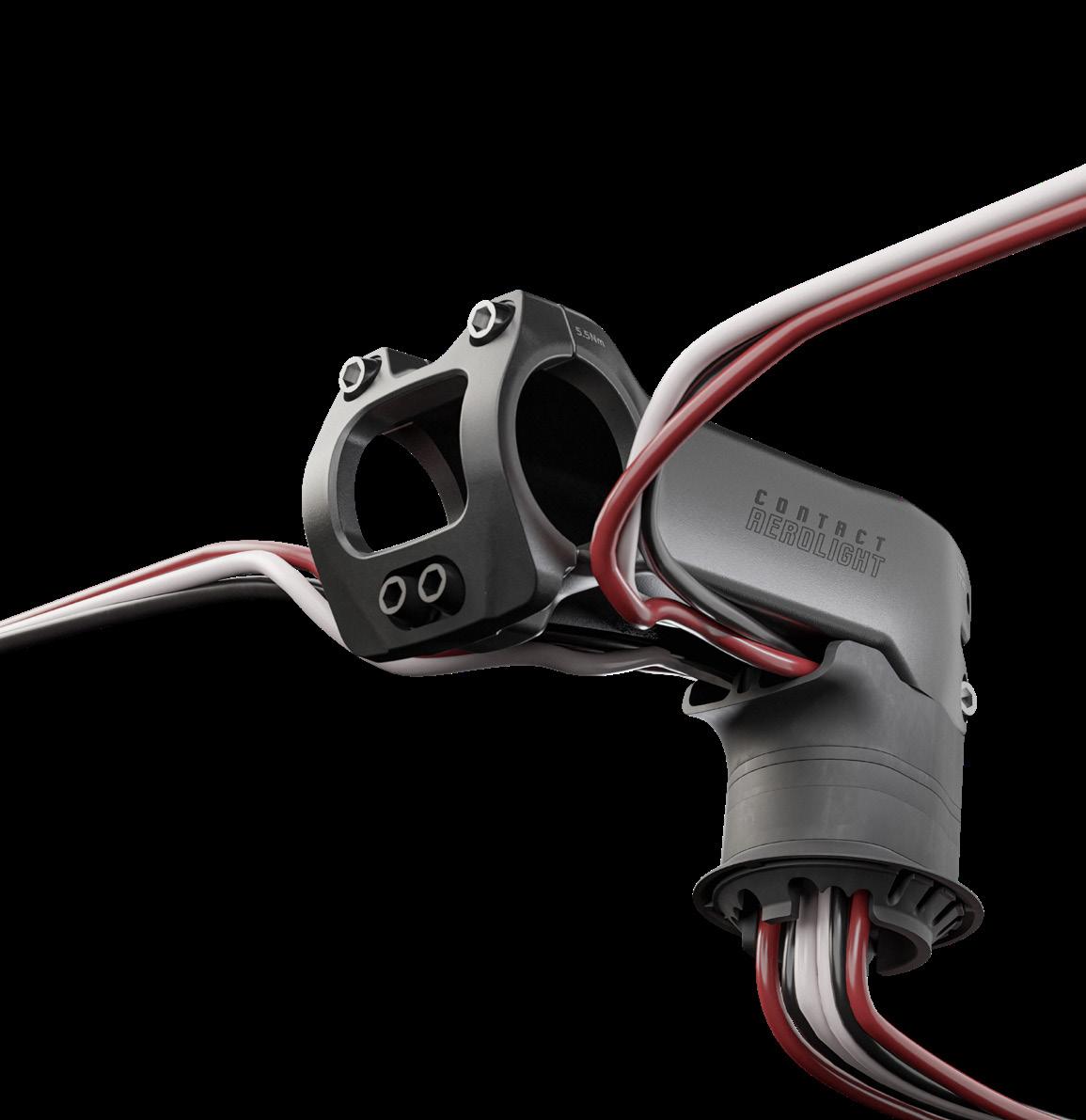

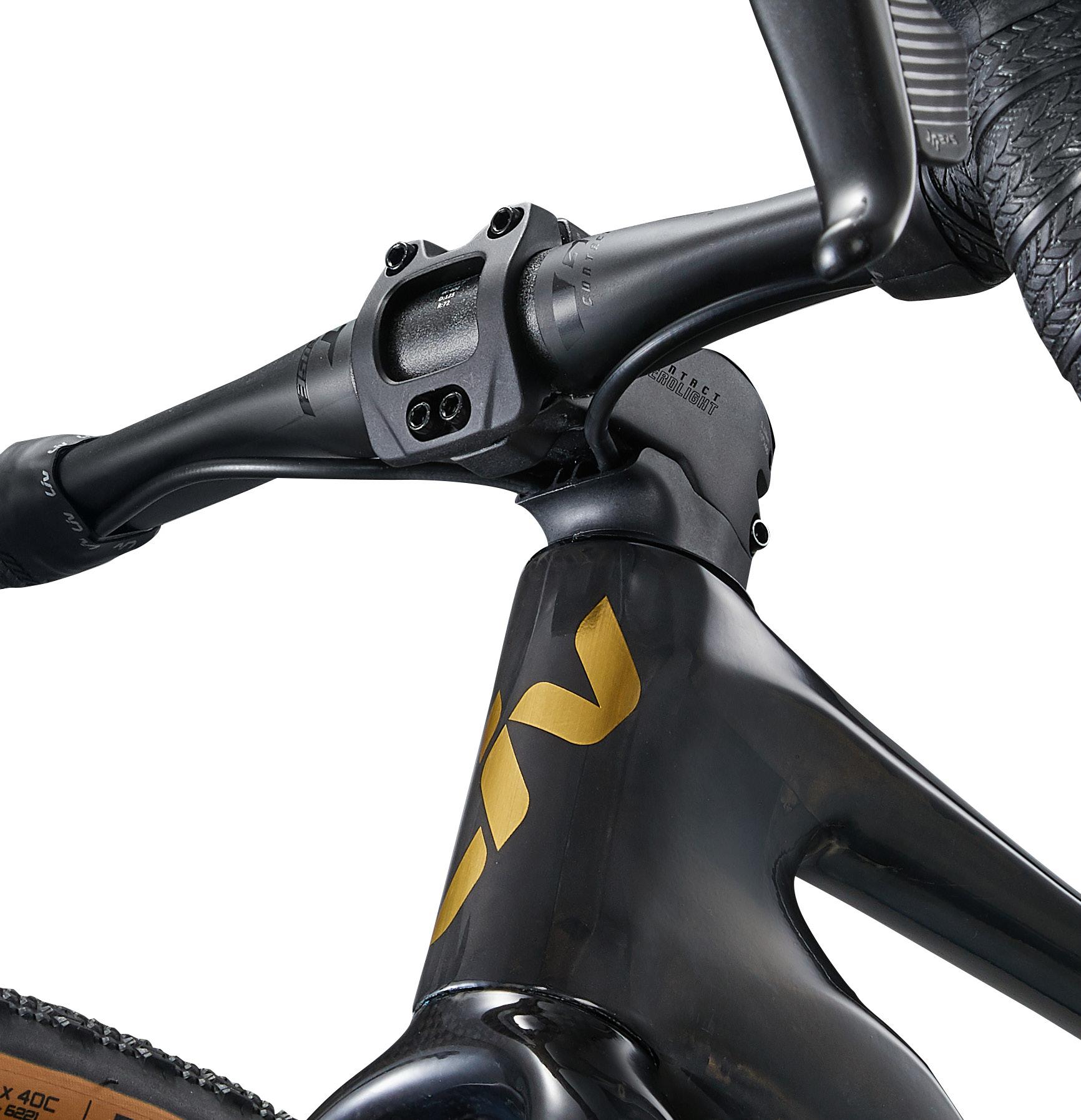

The all-new Contact AeroLight stem is specifically designed for round steerers, offering easy cable management to ensure a tidy and integrated cable system for all setups.
Designed for traditional forks with roundsteerer tubes, the Contact AeroLight stem faceplate channels external cables beneath the sides of the stem. This design not only enhances aerodynamic performance but also provides a clean, integrated appearance for both drop-bar and flat-bar bikes.
When combined with a round steerer tube, the stick-to-steer cable guides and top and bottom enlarged-size bearings create additional room within the headset for shifter, brake, and dropper lines.
Cables are channeled beneath the stem, providing extra cable length for convenient headset spacer adjustments.
Stock bikes are built in ‘short’ position.
* ** ***
Seat angle is actual.
Top tube is measured from the center of the head tube horizontally back to the top of the effective extension of the seat tube.
Standover height is based on the largest tire that will fit the bike not necessarily the included size tire.
