INTRODUCING Intrigue X Advanced E+ Elite Supercharged thrills
Next-level performance and unforgettable fun await you on this premium E-MTB.
The cutting-edge Intrigue X Advanced E+ Elite is remarkably light but super powerful.
Get ready to feel like a pro as you shred technical terrain with confidence, accelerate up climbs, and corner at top speed.
Key Performance Factors
Lightweight and nimble
This full-suspension E-MTB, with its short chainstay and 140mm (rear)/150mm (front) travel, is engineered to create an ultra-light, efficient and responsive ride. Exceptional shock absorption is an added bonus on rock gardens.
Powerful and smooth
A potent 85Nm of torque delivered by the lightweight SyncDrive Pro 2 motor is smooth and instant, keeping you efficient and in control at all times. The ultra-slim, 400Wh battery hidden in the down tube minimizes weight and provides a perfect balance of efficiency and range.
Sleek design
From the integrated control unit to the sleek console on the top tube and the internal cable routing, every design element embodies a high-end, modern look. It combines leading-edge E-MTB design with a user-friendly experience.
Technologies
SYNCDRIVE PRO 2 MOTOR: The lightweight SyncDrive Pro 2 motor, with 85Nm of torque, provides a performance-focused ride with powerful but controlled acceleration at all speeds. It allows you to select and tune the support ratios up to four times your effort. So you have full control over your bike’s performance, and excellent traction and control for smooth hill starts—even on rough terrain.
ENERGYPAK 400 INTUBE BATTERY: The revolutionary, highdensity 22700 cell is exclusively used by Liv E-bikes. It’s the first E-bike-specific battery cell in the world and results in a full-power motor in an ultra-slim battery. Sleekly and stealthily integrated into the down tube, you’ll become used to hearing surprised gasps of “is that really an E-bike?” as you whiz down the trails.
MAESTRO SUSPENSION TECHNOLOGY: This state-of-the-art rear suspension system offers 140mm of rear travel and boosts your performance and confidence with more traction, control, comfort, and acceleration. From high-frequency trail vibrations to big-hit compressions, Maestro soaks up the impact and gives you a smoother ride.
FLIP CHIP MAESTRO: This flip chip provides ultimate customization by allowing you to adjust the geometry of your bike to suit how and where you ride. Easily change the head tube angle, seat tube angle, and bottom bracket height using eccentric hardware located in the upper rocker arm.
RIDECONTROL ERGO 3: All the functionality you need is bundled up in this stealthily integrated control unit on your handlebar grip. With a user-friendly and ergonomic design, you can use the three buttons to power up, power down, and activate Walk Assist.
RIDECONTROL GO: This console is integrated into the top tube and features the button you need to press to activate your E-bike. Two rows of lights display, at a glance, what mode you’re in and your battery level.
ADVANCED-GRADE COMPOSITE FRAME: The handcrafted frame is engineered with high-performance grade raw carbon fiber so it’s exceptionally lightweight, stiff, and compliant. It’s constructed using an innovative technique that reduces weight without compromising ride quality, strength, or stiffness.
CONTACT SLR TRAIL INTEGRATED HANDLEBAR: Your hands and arms will adore this full carbon, ultra-light, shock-absorbing handlebar as you ride over rocky terrain. You can also adjust it to suit your individual riding style. No rigid ride position, just ultimate personalization.
RIDECONTROL APP: This app pairs your phone to your E-bike allowing you to customize your support ratio, torque, and acceleration settings, track and share your ride data and keep an eye on your battery level and the health of your E-components. It also provides navigation functionality.
INTERNAL CABLE ROUTING: All cables are internally routed through the headset so they’re protected and out of sight, giving a premium, sleek design.
SMART ASSIST: This is an adaptive support mode. It’s an intelligent system using six sensors and advanced algorithms to determine the optimum power support you need on variable terrain. And since it always delivers just the right amount of pedaling support, it also improves your efficiency.
JUNCTION BOX: The junction box provides the most organized e-components cable routing solution. Integrating all the cables together makes it much easier for you when it comes to maintenance. The box is firmly attached to the battery and is waterproof and dustproof so the cables stay clean and protected.
MIXED WHEEL SIZE: A 29” front wheel and 27.5” rear wheel provides stability and traction over tricky terrain and keeps you agile and nimble over obstacles and through corners.

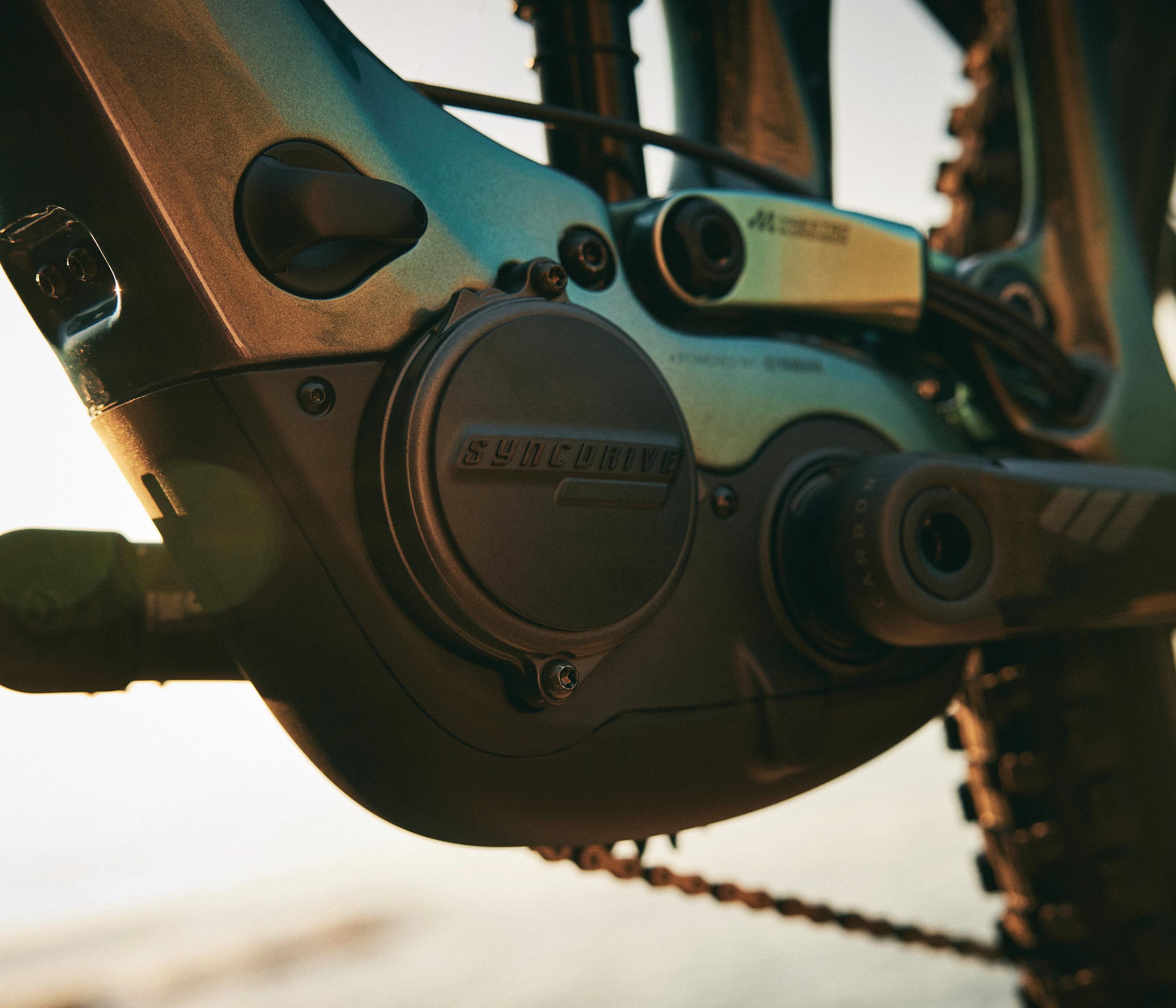

SyncDrive Pro 2 Motor
The powerful, performance-orientated SyncDrive Pro 2 Motor was co-developed with Yamaha and is the lightest ever E-bike motor at a mere 2.7kg (5.95lb). The benefit? A super light and nimble trail partner. This customizable motor provides up to 85Nm of torque, 400% rider support ratio, 2.5 milliseconds of acceleration timing and 150rpm capability. So you can confidently and smoothly conquer challenging mountain bike terrain with no power loss at high cadence.

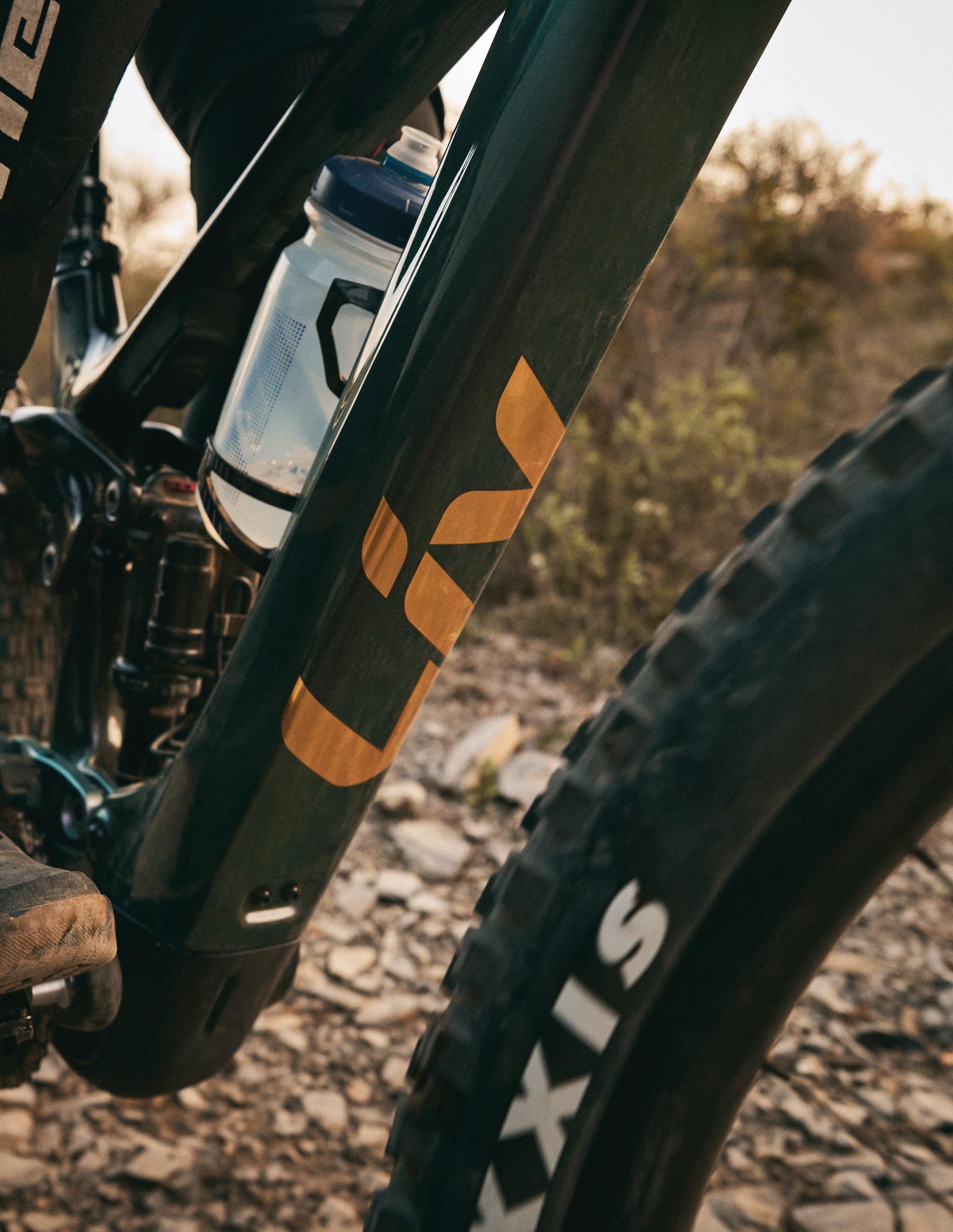

EnergyPak 400 InTube Battery
The all-new EnergyPak 400 InTube battery, co-developed with Panasonic, is sleekly integrated into the down tube. Weighing a minimal 2.3kg (5lbs), this ultra-slim battery packs a powerful punch thanks to 22700 high-density cells. As each cell has a high-density and high-discharge rate, the overall battery size is smaller but it can still support 85Nm of torque. The Battery Management System prevents overheating, increases battery life, and optimizes charging performance.

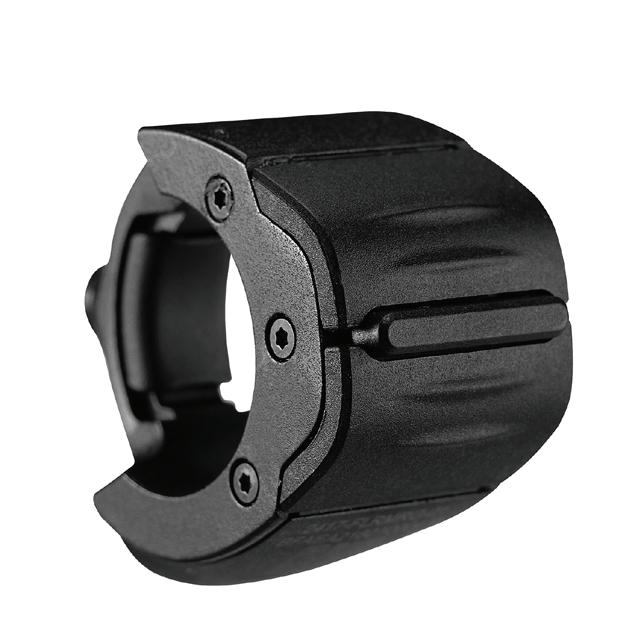

RideControl Ergo 3
This easy-to-use control unit can be fitted on either the left or right side of the handlebar. Or you can have one on each side. The ergonomic design is user-friendly and features three buttons so you can power up, power down, and select Walk Assist. If you pair it with the RideControl App you can configure the three buttons to your personal preferences by choosing from power up, power down, Walk Assist, Smart Assist, light and information.

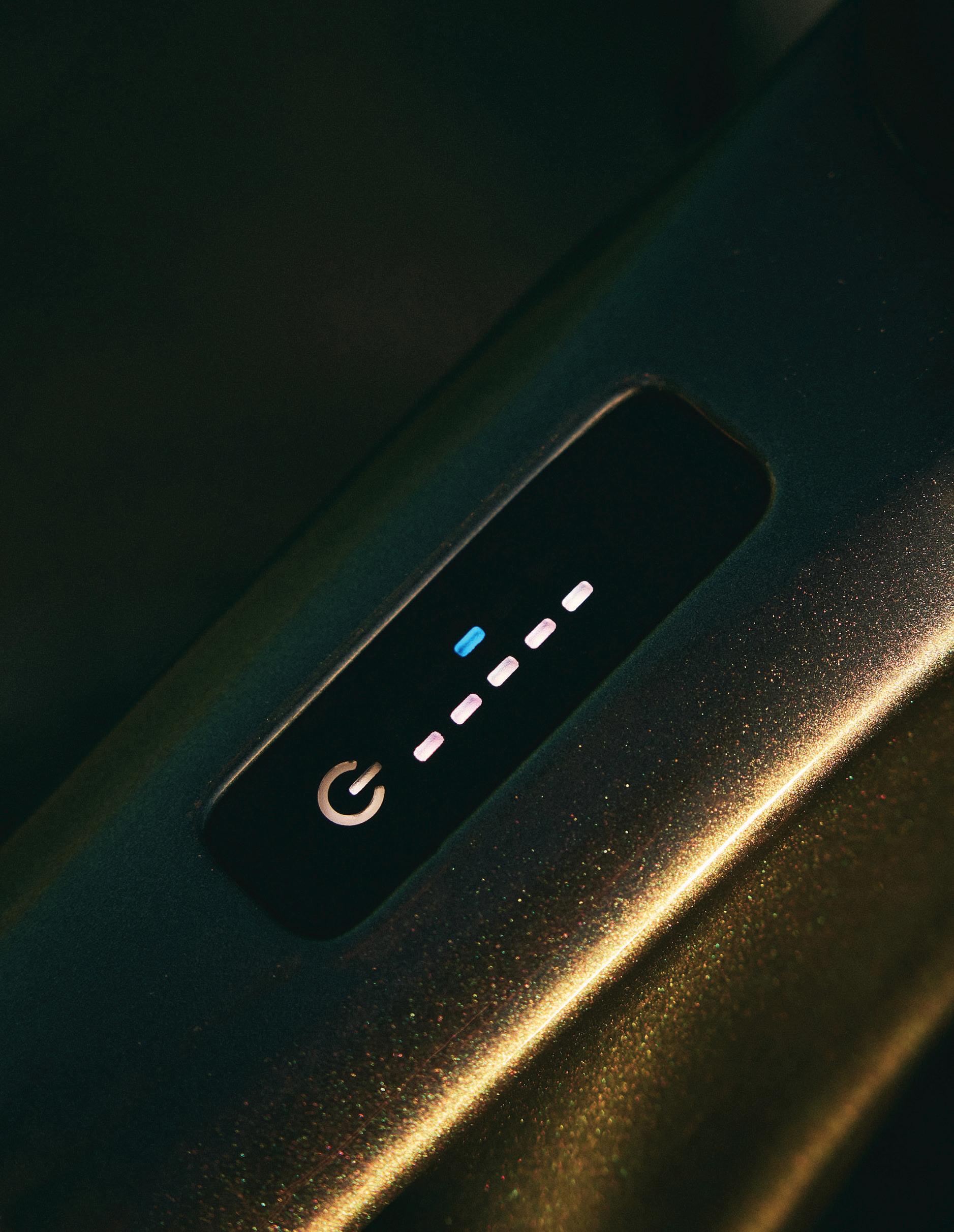

RideControl Go
This console features two rows of lights and a power button and is integrated into the top tube to display mode and battery level at a glance. It functions on its own as a minimalist control panel or it can work in tandem with the RideControl Ergo 3, providing an additional way of selecting your support mode.

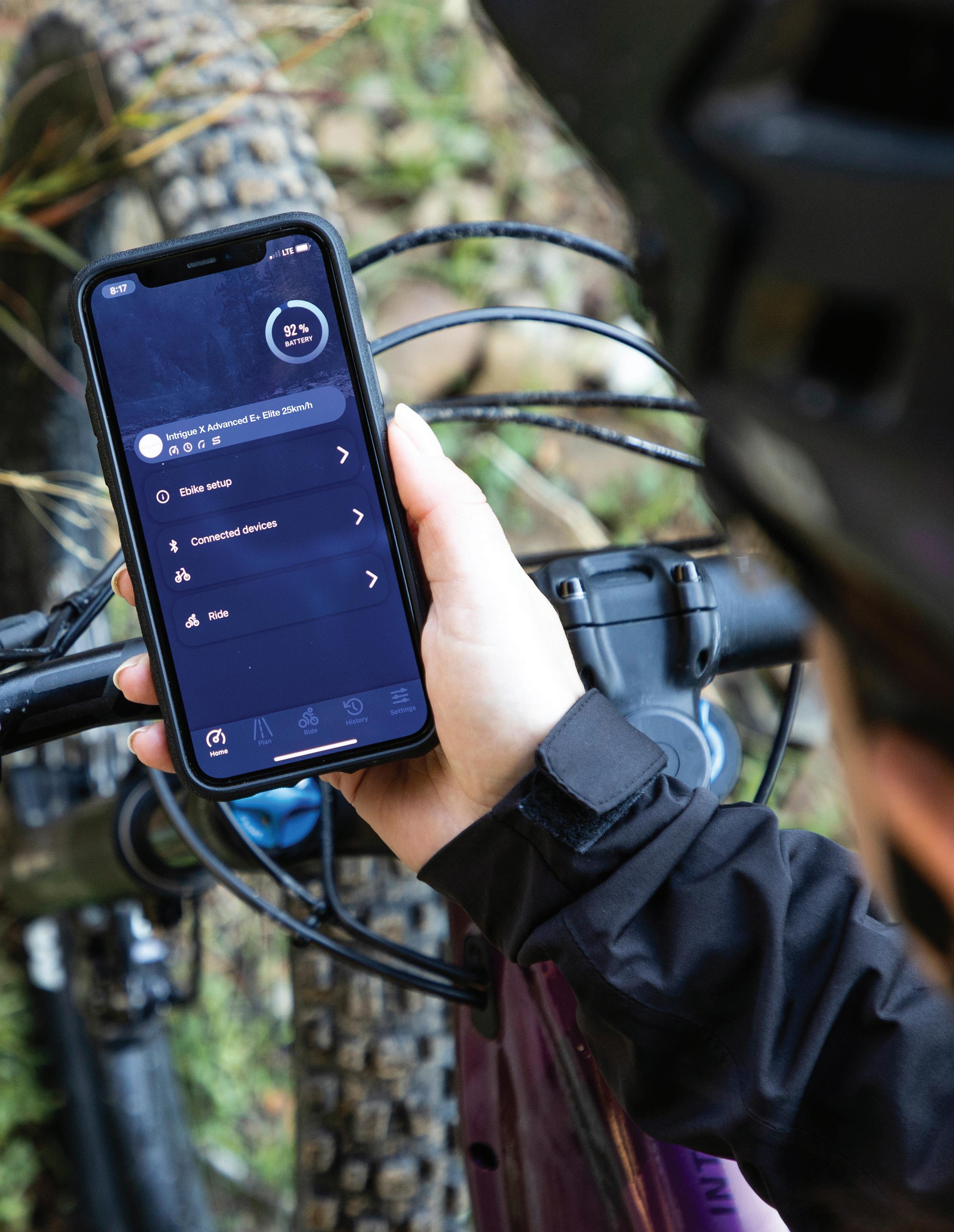

RideControl App
This app opens up a world of ride-enhancing connectivity for your E-bike. Connect your phone to your E-bike to customizeyour motor’s support ratio, acceleration timing, and torque settings. Keep track of your fitness by recording, and sharing, all your ride data such as time, distance, speed, calories, elevation, and cadence. And the app also features a quick diagnostic check so you can easily check on the health of your E-components. Plus, you can kiss goodbye to range anxiety because it shows your battery level and range in real time.

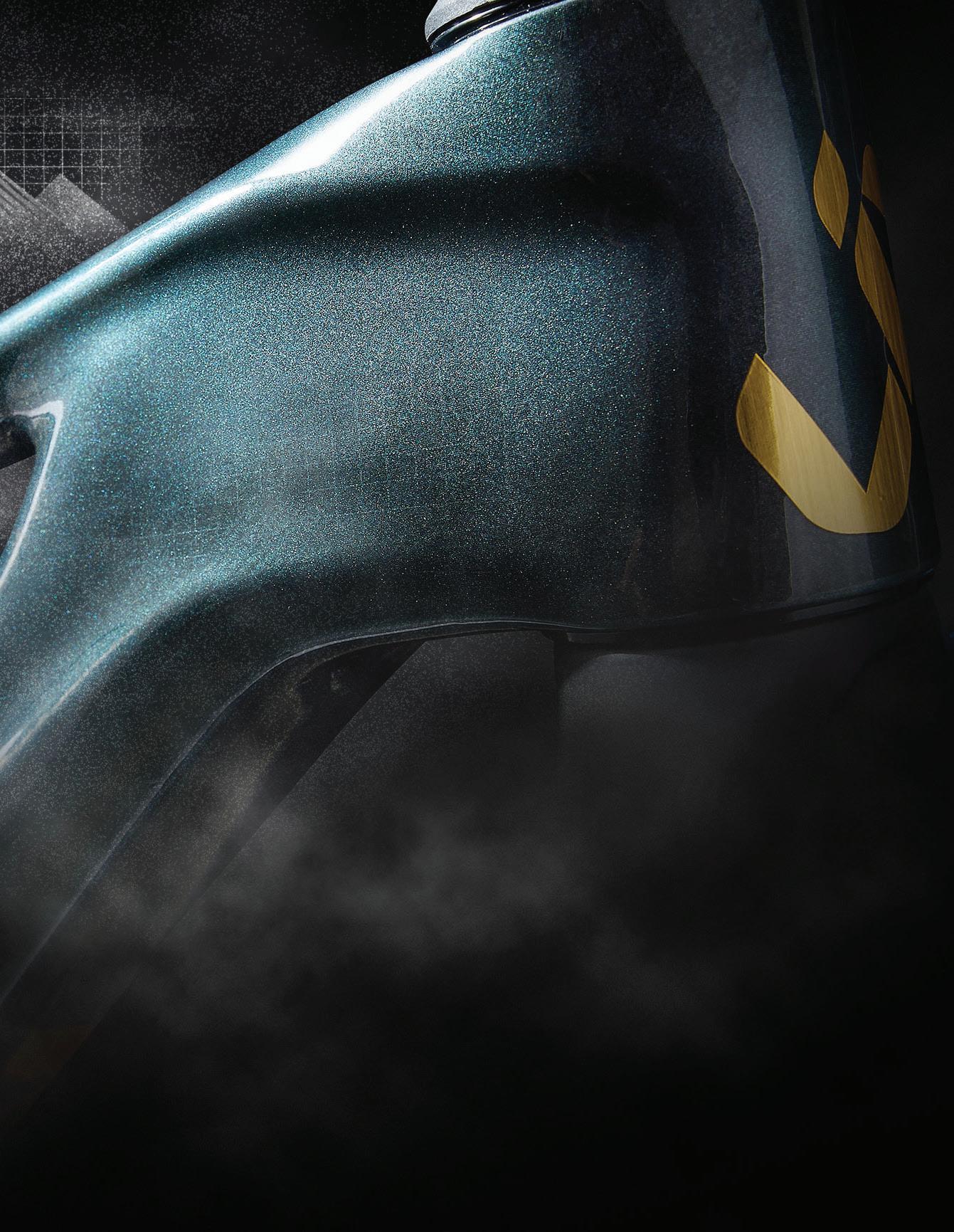

Color and Graphics
The striking raw carbon texture graphic and color contrast are designed to reflect the ground we ride on and symbolize strong, confident, women who share a love of nature and outdoor adventures.

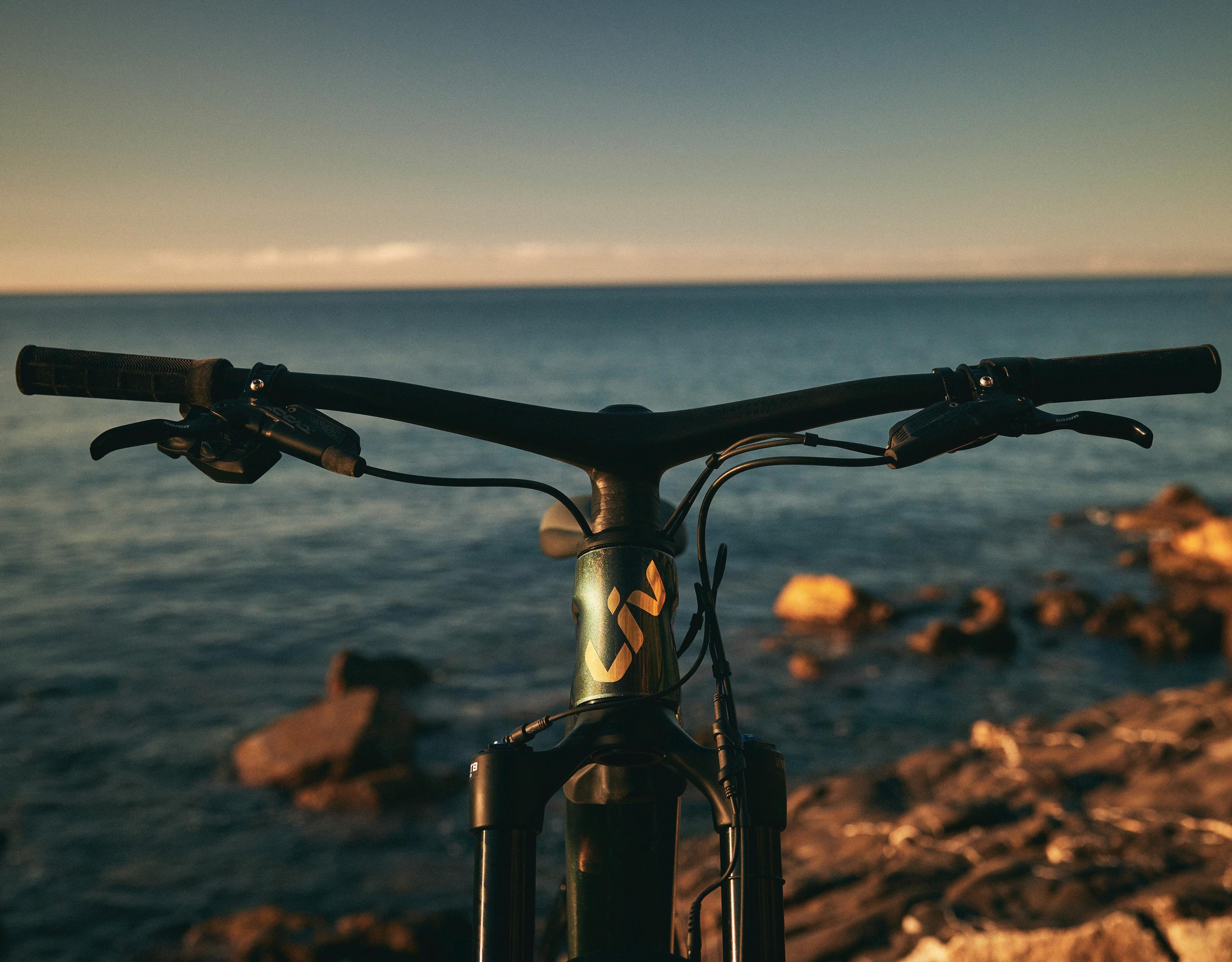

Contact SLR Trail Integrated Handlebar
This full carbon, ultra-light handlebar (weighing just 255 grams) has a proprietary carbon fiber layup and a slimmer profile near the center. This helps provide shock and vibration absorption, reducing arm pump and improving hand comfort on rugged terrain. You can also set it up to suit your riding style by adjusting the stem length to 40mm, 45mm, or 50mm and position from 0 degrees, +3 degrees, or -3 degrees giving you a backsweep of 7 degrees, 8 degrees, or 9 degrees. The cover can be replaced with a mount for a bike computer, GoPro camera, or headlight.
Airglow Intrigue X Advanced E+ Elite 1
Suds Intrigue X Advanced E+ Elite 2 Mirage Intrigue X Advanced E+ Elite 3
Soap
Geometry
Intrigue X Advanced E+ Elite
*Seat angle is actual
** Top tube is measured from the center of the headtube horizontally back to the top of the effective extension of the seattube
*** Stand over height is based on the largest tire that will fit the bike not necessarily the included size tire
XS-lowXS-highS-lowS-highM-lowM-highL-lowL-high Size in millimeters Seat tube length 380 380 400 400 425 425 450 450 Seat tube angle* (Degrees) 77.2 78.0 77.2 78.0 76.0 76.7 76.0 76.7 Top tube length** 557 555 572 570 597 595 622 620 Head tube length 95 95 95 95 100 100 115 115 Head tube angle (Degrees) 65.7 66.5 65.7 66.5 65.8 66.5 65.8 66.5 Fork rake 44 44 44 44 44 44 44 44 Trail 113 108 113 108 113 108 113 108 Wheelbase 1174 1175 1188 1190 1200 1201 1228 1229 Chainstay length 447 447 447 447 447 447 447 447 Bottom bracket drop 30 20 30 20 30 20 30 20 Stack 606 601 606 601 611 605 625 619 Reach 419 427 434 442 444 452 466 473 Standover height*** 722 730 726 735 717 726 711 723 Handlebar width 760 760 760 760 800 800 800 800 Stem length 40 40 40 40 40 40 50 50 Crank length 160 160 160 160 165.0 165.0 165.0 165.0 Wheel size R27.5" / F29" R27.5" / F29" R27.5" / F29" R27.5" / F29" R27.5" / F29" R27.5" / F29" R27.5" / F29" R27.5" / F29"
