Athlete tested. Race proven.
The Langma Evolution
Langma series wins:
2019
TOTAL WINS
2017
The Langma debuts on the world stage.
Designed for and with our pro road team, the Langma quickly becomes the climbing bike of choice from the Pyrenees to the Alps. Riding the new Langma, Team Sunweb racks up the victories, including Lucinda Brand’s Queen Stage 8 win at Giro Rosa.
2018
More Langma wins for Team Sunweb.
Ruth Winder wins Giro Rosa’s hilly stage 5, Coryn Rivera wins the Tour of Norway, to name just a few.
Langma wins for CCC-Liv.
Marianne Vos wins La Course by Le Tour de France, the Women’s World Tour title, four stages at Giro Rosa, and many, many, many more.
6 NATIONAL CHAMPIONSHIPS
2021 Langma wins for Liv Racing WorldTeam.
Racing resumes after a year of cancellations and postponements, and Lotte Kopecky accelerates to victory at Le Samyn Des Dames aboard the all-new Langma Advanced SL Disc, the first disc brake model for the team.
2020
More Langma wins for CCC-Liv.
Marianne Vos, Ashley Moolman-Pasio and their teammates continue to rack up the W’s, including Team Classification for Giro Rosa.
47
Langma Advanced SL Disc Key Performance Factors
Featherweight efficiency
The heart of the Langma is an ultra-light Advanced SL-Grade Composite frameset—which we’ve rebuilt with longer, more continuous pieces of carbon fiber for a stiffer bike that’s 60 grams lighter.* So you get a responsive ride that accelerates immediately, skims over rough roads and surges up climbs. And a translucent frame coating shows off this carbon construction, making the Langma look as fast as it feels.

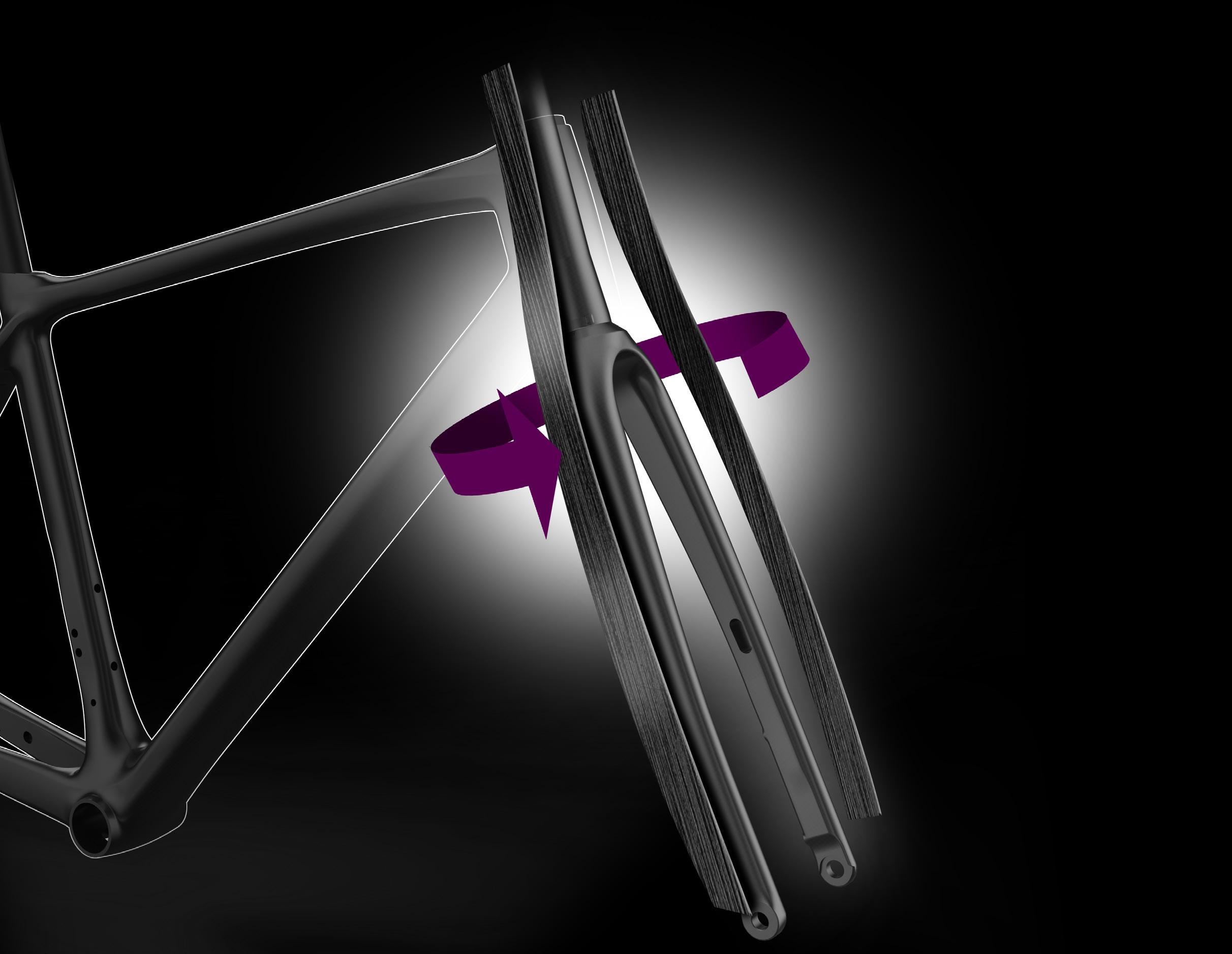

Intuitive handling
We’ve re-engineered the Langma fork for 50% more lateral stiffness,** for precise handling and responsiveness. An oversized headset and all-new Liv Contact SLR handlebar boost control without sacrificing aerodynamics. Integrated, flat-mount disc brakes deliver stopping confidence in varied conditions. The Langma even accommodates tires up to 32mm for extra grip in the corners and cobbles.
Aero advantage
Updated truncated ellipse tubing reduces wind drag at a wider range of yaw angles, gaining you precious seconds in flats, descents, and headwinds. Our relentless testing and refinement have also inspired the development of the new fully-carbon Variant SLR seatpost. Plus, the all-new CADEX 36 Disc WheelSystem with side-drag control lets you stash more watts for the sprint finish.
*Compared to the first-generation Langma Advanced SL frameset
**Compared to the first-generation Langma Advanced SL fork
Langma re-engineered. Lighter. Stiffer. Faster.
Langma Advanced SL Disc re-engineered.
60g LIGHTER FRAMESET
Over first-generation Langma frameset
141g SEATPOST Fully-carbon Variant SLR Seatpost
50% MORE LATERAL STIFFNESS
Over first-generation Langma fork
More AERO TRUNCATED ELLIPSE TUBING Improved from first-generation Langma
21% GREATER TRANSMISSION STIFFNESS
Over first-generation Langma frameset
Better
POWER TRANSFER Through the drivetrain
Already favored by climbing addicts and WorldTour racers, the all-new Langma Advanced SL Disc is redesigned to be lighter, stiffer, and ready to throw down on race day.
Athlete tested. Race proven.

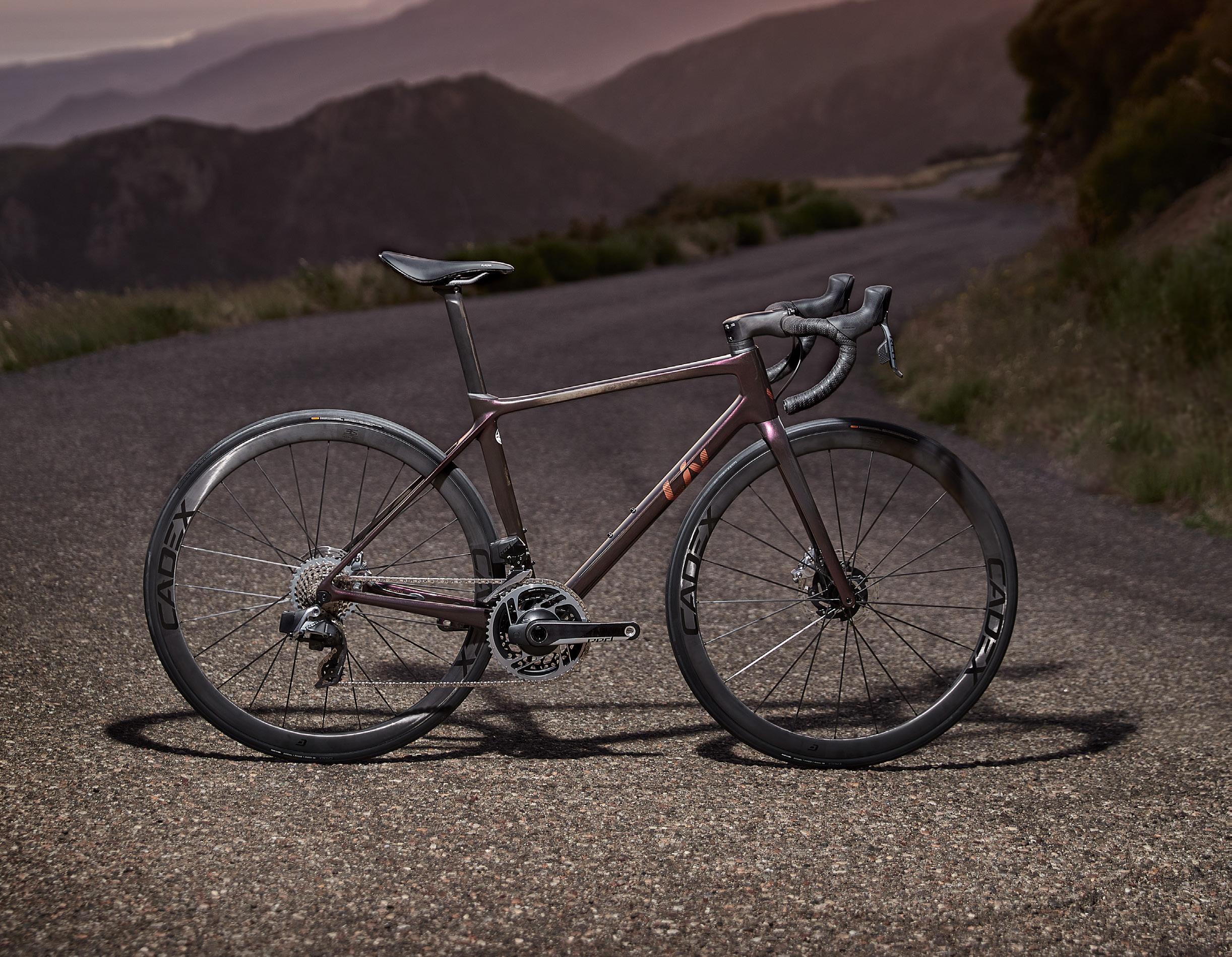

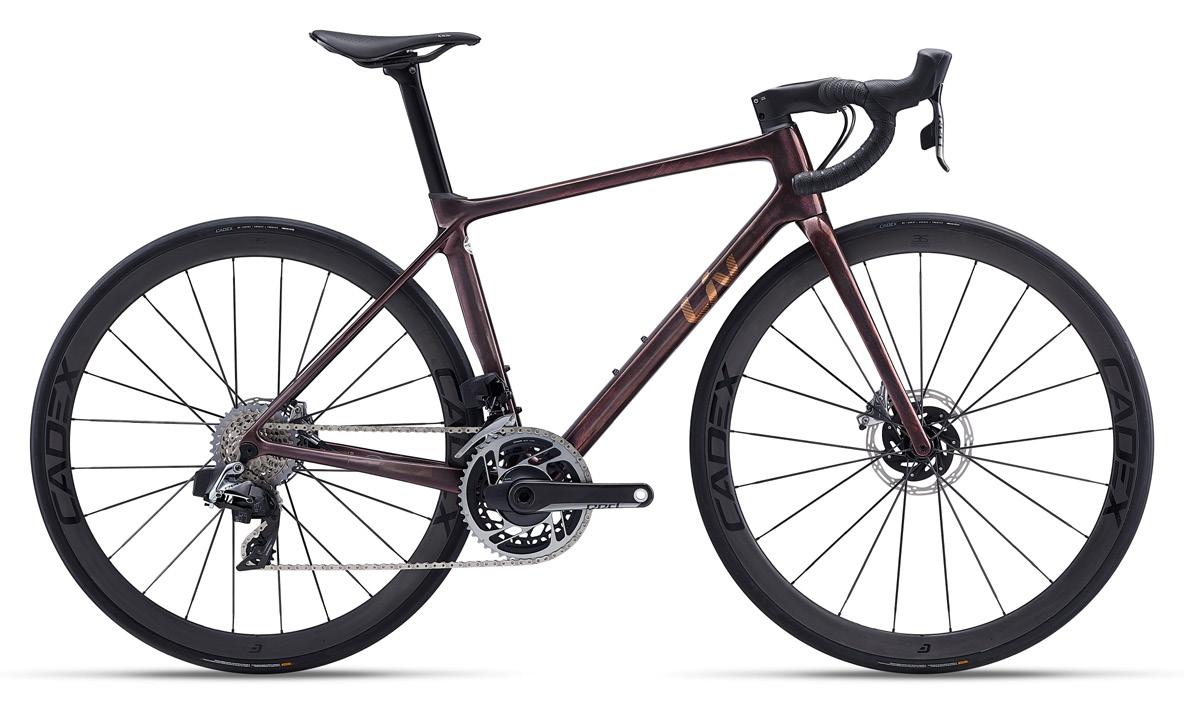

Langma Advanced SL Disc
Langma Advanced SL Disc Technology
ADVANCED SL COMPOSITE
Professional-grade raw carbon material is woven and formed in our own composite factory using our most advanced engineering and construction methods, including Continuous Fiber Technology for greater strength and less weight; Carbon Nanotube Technology resin for better impact resistance; and FusionProcess for lighter, stronger frame junctions.

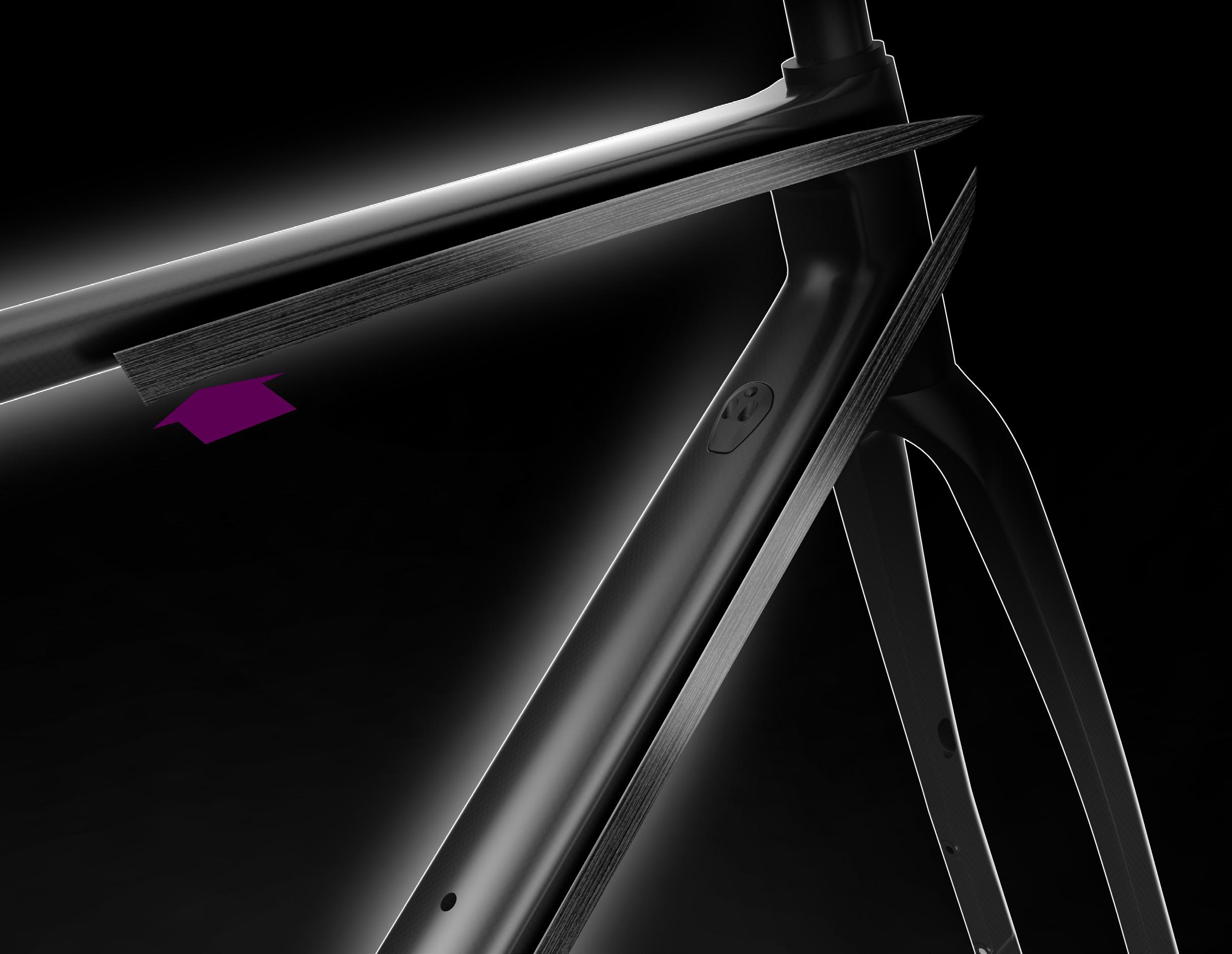

CONTINUOUS CARBON FIBER CONSTRUCTION
Longer, more continuous pieces of carbon fiber across frame tubes and junctions means greater stiffness with less weight. And the continuous application of SL-Grade Composite in the chainstays provides a stronger connection from the dropout to the bottom bracket, meaning not only less weight but also more efficient power transfer.
SYMMETRIC AERO COMPOSITE FORK
Constructed with fully continuous pieces of cut carbon and a higher percentage of Advanced SL-Grade Composite material than any other model, this new fork enhances steering control, precision, and stiffness. Plus, it now features discbrake integration and increased clearance for tires up to 32mm.
Langma Advanced SL Disc Technology
XIRALLIC® OR COLORSTREAM®
Frame coating with Xirallic® or Colorstream® provides a light, thin coating that reveals the carbon fiber construction. Xirallic® and Colorstream® are trademarks of Merck KGaA, Darmstadt, German and/or affiliates.
LIV CONTACT SLR HANDLEBAR
Our all-new carbon handlebar features an aerodynamic design, ergonomic grip and optimized drop and reach that’s customized for women’s measurements.
VARIANT SLR SEATPOST
Using more continuous carbon fibers and titanium bolts, Langma’s first fully-carbon seatpost is lightweight, aero, and easily adjustable.

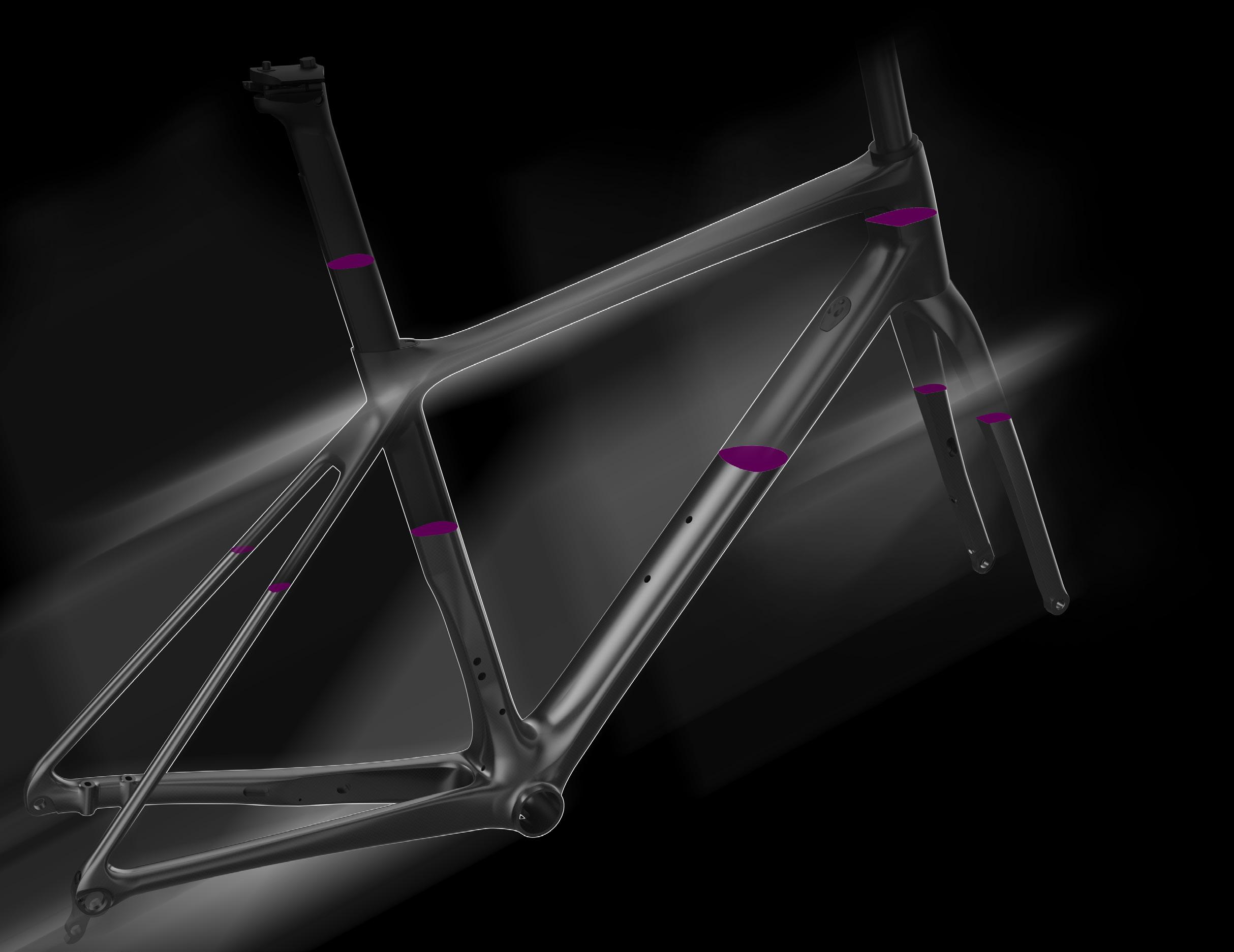

TRUNCATED ELLIPSE TUBING
New strategically engineered airfoil sections in the frame and fork, developed through Computational
Fluid Dynamics (CFD) and wind-tunnel testing, reduce wind drag at a wider range of yaw angles compared to traditional “teardrop”-shaped tubes.
Langma
Advanced SL Disc Technology
OVERDRIVE 2
Liv’s most advanced steerer tube technology. Designed to offer unprecedented front-end steering performance, the system’s oversized headset bearings (1-1/2” lower, 1-1/4” upper) and tapered steerer tube work in harmony to provide supreme steering stiffness.
MEGADRIVE
A massive rectangular downtube forms the link between the OverDrive 2 headtube area and the PowerCore bottom bracket. This precisely engineered, rectangular shape yields unprecedented steering and pedaling stiffness while optimizing aerodynamic flow over a standard water bottle.

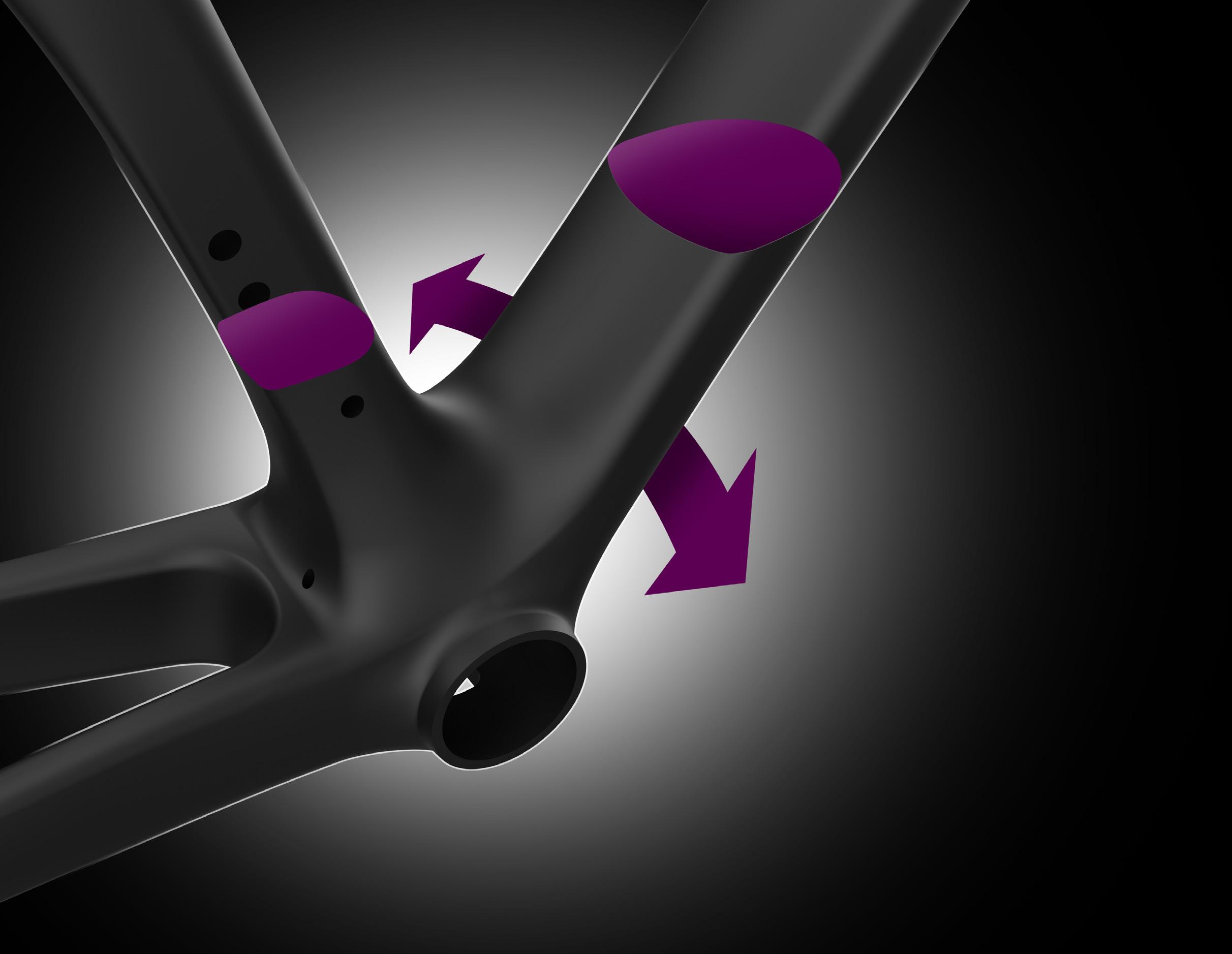

POWERCORE
An oversized bottom-bracket/ chainstay area features a fully integrated, 86millimeter-wide bottom-bracket design. Symmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
E-SHIFTING CABLE ROUTING
Advanced SL-Grade Composite frames features e-shifting only cable routing for a clean look.
Langma Advanced SL Disc Technology

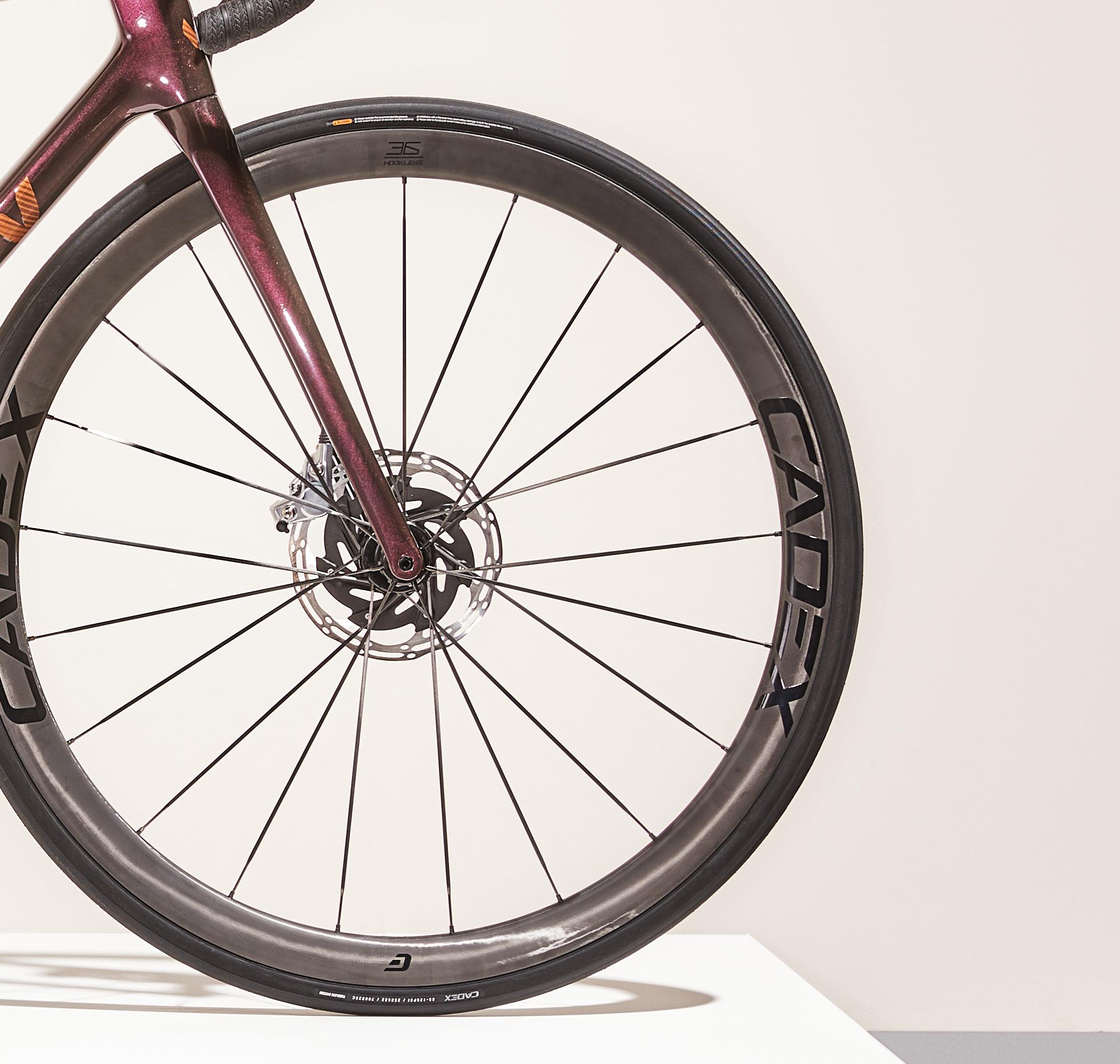

TUBELESS CADEX 36 DISC WHEELSYSTEM
Custom-engineered Dynamic Balanced Lacing (DBL), reinforced carbon lay-up, high-tensile-strength carbon aero spokes and innovative hookless rim design combine to provide faster acceleration, ultra efficiency, stability and control.
HOOKLESS RIM
The hookless rim design provides better overall durability and it adds inner rim width without adding weight. It also creates a rounder tire shape, providing greater sidewall support when cornering, and superior grip and handling overall.
DISC BRAKE INTEGRATION
The frame and fork are engineered for flat-mount disc brakes, delivering powerful, consistent braking performance in all conditions.
Langma Advanced Disc Series Langma Advanced Pro Disc Series Langma Advanced SL Disc Series
The Langma Disc Range

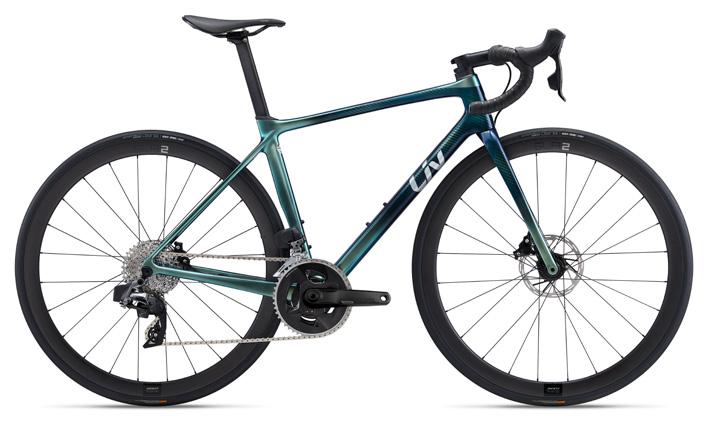

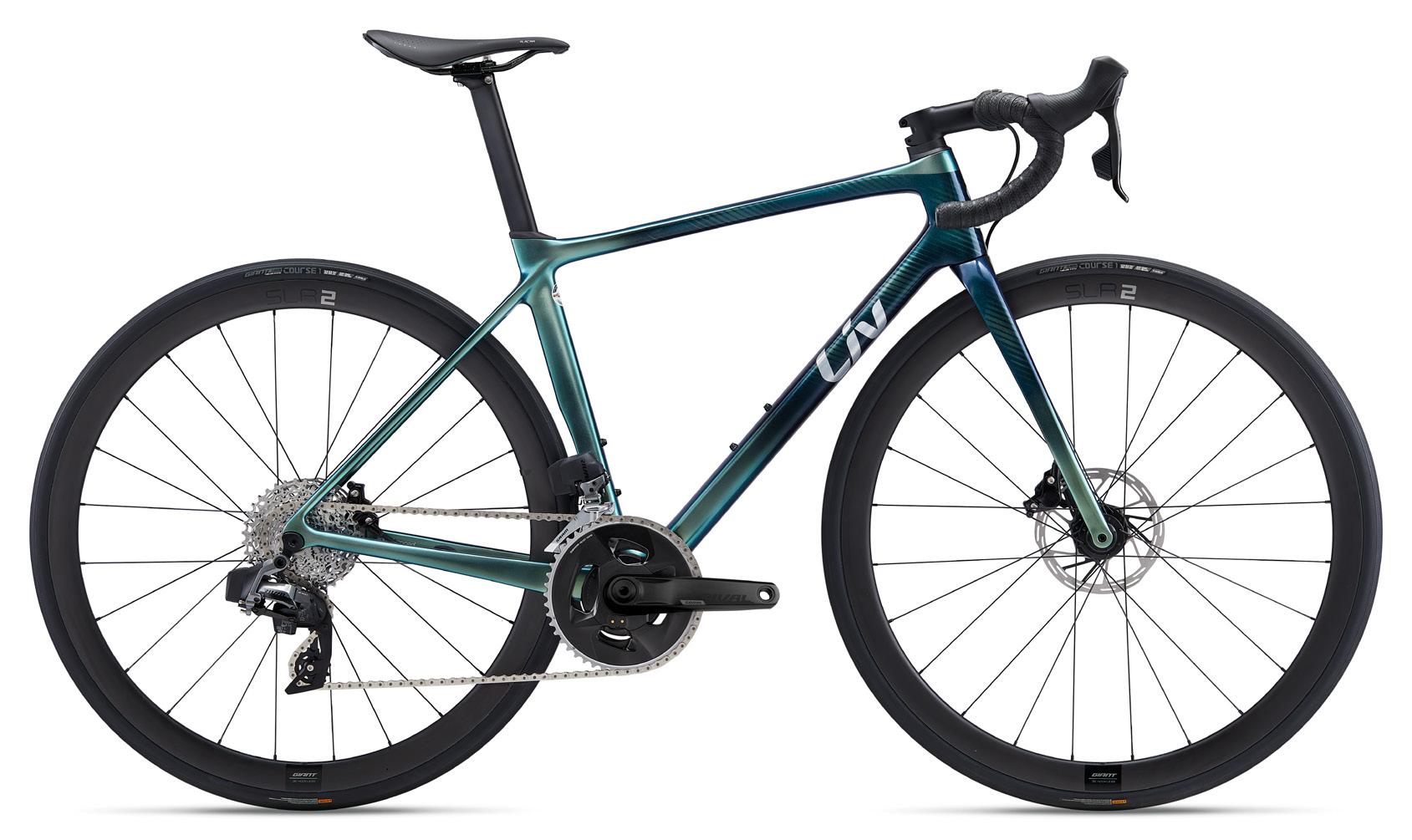

The Langma Advanced Pro Disc
25g LIGHTER FRAME
Over first-generation Langma Advanced Pro frame
30g LIGHTER FORK
Over first-generation Langma Advanced Pro fork
6.6% MORE TORSIONAL STIFFNESS
Over first-generation Langma Advanced Pro frame
Climb every mountain, crush every sprint. The Langma Advanced Pro Disc features a re-engineered lightweight aero frame and all-new Giant SLR 36 Disc WheelSystem with integrated disc brakes and hookless rims, plus custom Liv saddle and handlebars, for powerful, race-ready performance.
Langma Advanced Pro Disc
Race-ready
technology
SYMMETRIC AERO COMPOSITE FORK
The new Advanced-Grade Composite fork features a symmetric design which makes it lighter, stiffer and more aerodynamic. Plus, it now features disc-brake integration and increased clearance for tires up to 32mm.
LIV CONTACT SLR HANDLEBAR
Our all-new carbon handlebar features an aerodynamic design, ergonomic grip and optimized drop and reach that’s customized for women’s measurements.
VARIANT SEATPOST
This proprietary seatpost design offers the perfect balance of light weight, superior ride quality, aerodynamics and easy saddle installation and adjustment.
TRUNCATED ELLIPSE TUBING
New strategically engineered airfoil sections in the frame and fork, developed through Computational Fluid Dynamics (CFD) and wind- tunnel testing, reduce wind drag at a wider range of yaw angles compared to traditional “teardrop”-shaped tubes.
ADVANCED COMPOSITE
High-performance-grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
MEGADRIVE
A massive rectangular downtube forms the link between the OverDrive 2 headtube area and the PowerCore bottom bracket. This precisely engineered, rectangular shape yields unprecedented steering and pedaling stiffness while optimizing aerodynamic flow over a standard water bottle.
POWERCORE
An oversized bottom-bracket/ chainstay area features a fully integrated, 86millimeter-wide bottom-bracket design. Symmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
OVERDRIVE 2
Liv’s most advanced steerer tube technology. Designed to offer unprecedented front-end steering performance, the system’s oversized headset bearings (1-1/2” lower, 1-1/4” upper) and tapered steerer tube work in harmony to provide supreme steering stiffness.
TUBELESS GIANT SLR 36 DISC WHEELSYSTEM
Engineered with proprietary Dynamic Balanced Lacing, the all-new composite WheelSystem is set up factory tubeless, providing greater efficiency, comfort and control.
DISC BRAKE INTEGRATION
The frame and fork are engineered for flat-mount disc brakes, delivering powerful, consistent braking performance in all conditions.
HOOKLESS RIM
The hookless rim design provides better overall durability and it adds inner rim width without adding weight. It also creates a rounder tire shape, providing greater sidewall support when cornering, and superior grip and handling overall.

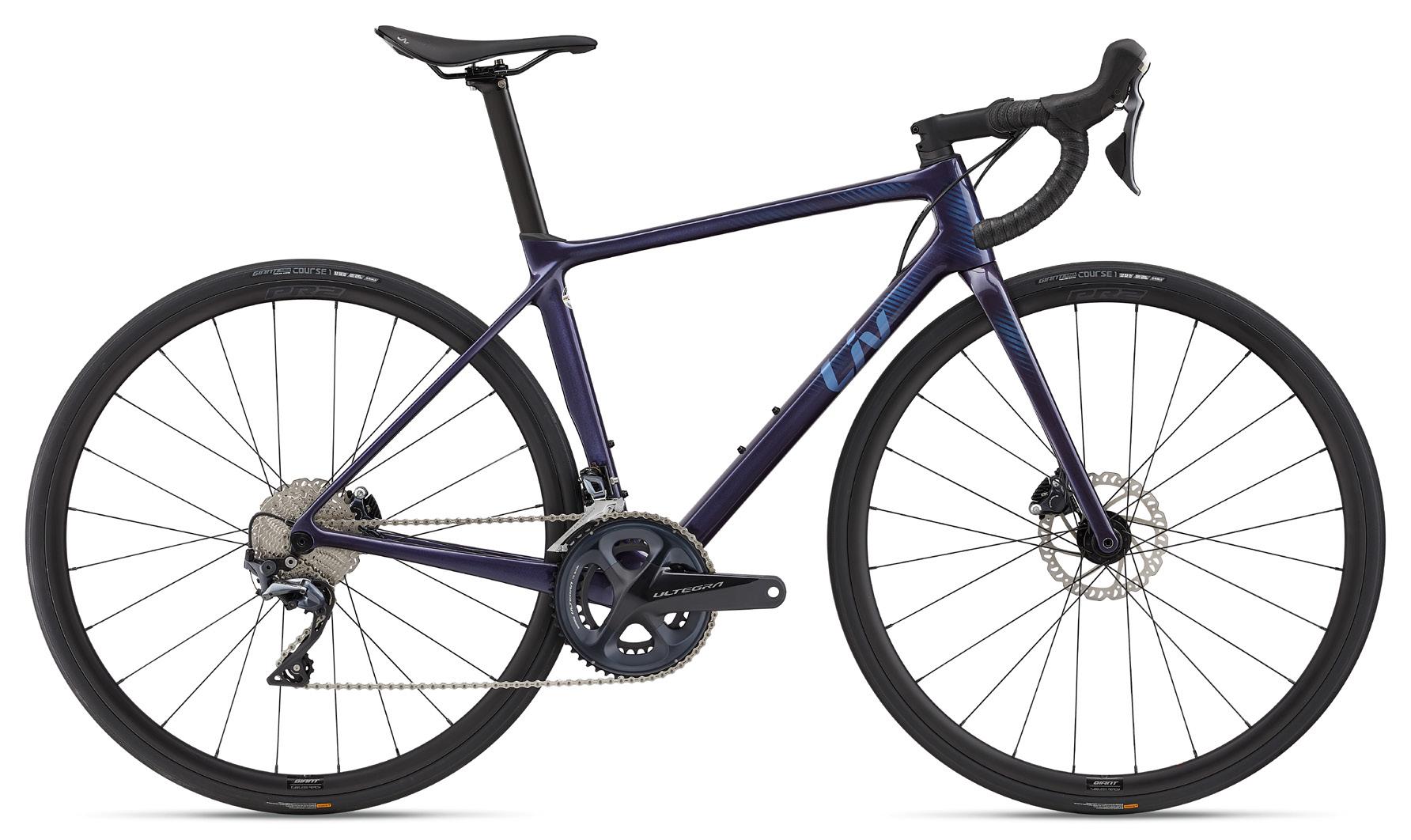

The Langma Advanced Disc
25g LIGHTER FRAME
Over first-generation Langma Advanced frame
120g LIGHTER FORK
Over first-generation Langma Advanced fork
6.6% MORE TORSIONAL STIFFNESS
Over first-generation Langma Advanced frame
Whether you’re in it for the love of the climb, the rush of the descent, or the next PR, the Langma Advanced Disc is ready with its re-engineered lightweight aero frame and all-new Giant SLR 36 Disc WheelSystem (select models) with integrated disc brakes, plus custom Liv saddle and handlebars for powerful fit and performance.
Langma Advanced Disc Race-ready technology
SYMMETRIC AERO COMPOSITE FORK
The new Advanced-Grade Composite fork features a symmetric design which makes it lighter, stiffer and more aerodynamic. Plus, it now features disc-brake integration and increased clearance for tires up to 32mm.
LIV CONTACT HANDLEBAR
Our all-new aluminum handlebar features an aerodynamic design, ergonomic grip and optimized drop and reach that’s customized for women’s measurements.
VARIANT SEATPOST
This proprietary seatpost design offers the perfect balance of light weight, superior ride quality, aerodynamics and easy saddle installation and adjustment.
TRUNCATED ELLIPSE TUBING
New strategically engineered airfoil sections in the frame and fork, developed through Computational Fluid Dynamics (CFD) and wind- tunnel testing, reduce wind drag at a wider range of yaw angles compared to traditional “teardrop”-shaped tubes.
ADVANCED COMPOSITE
High-performance-grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
MEGADRIVE
A massive rectangular downtube forms the link between the OverDrive headtube area and the PowerCore bottom bracket. This precisely engineered, rectangular shape yields unprecedented steering and pedaling stiffness while optimizing aerodynamic flow over a standard water bottle.
POWERCORE
An oversized bottom-bracket/ chainstay area features a fully integrated, 86millimeter-wide bottom-bracket design. Symmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
OVERDRIVE
Liv’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1-1/4” lower and 1-1/8” upper) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
TUBELESS GIANT WHEELS
All Advanced level Langmas are set up factory tubeless, providing greater efficiency, comfort and control.
DISC BRAKE INTEGRATION
The frame and fork are engineered for flat-mount disc brakes, delivering powerful, consistent braking performance in all conditions.
Langma Report card
TESTING STIFFNESS
To best test for real-world conditions, we conducted both steering and pedaling stiffness with its corresponding fork in place to determine the final frameset transmission stiffness. The stiffer the frame, the greater cornering control, responsiveness to rider input and power transmission, enabling the rider to achieve and maintain higher speeds with less effort.
TESTING STANDARDS
• Utilized protocols established by Germany’s TOUR magazine
• Medium framesets
• Frame was locked at the rear dropouts with lateral force applied to the fork TEST
Applied lateral force to the fork and measured the torsional flex of the frameset under load.
FRAME AND FORK STIFFNESS COMPARISON
INTERPRETING THE RESULTS
Langma Advanced SL Disc provides up to...
• 21% greater transmission stiffness over first-generation Langma Advanced SL (rim)
• 13% greater transmission stiffness over Specialized Tarmac SL7 Disc
• 35% greater transmission stiffness over Trek Emonda SLR 9 Disc
COMPONENT STIFFNESS TYPE ALL-NEW LIV LANGMA ADVANCED SL DISC LIV LANGMA ADVANCED SL (RIM) SPECIALIZED TARMAC SL7 DISC TREK EMONDA SLR 9 DISC FORK Lateral (N/mm) 84.1 55.9 61.8 54.4 FRAME Pedaling (N/mm) 63.93 66.19 68.83 54.79 TRANSMISSION STIFFNESS (LATERAL FORK + FRAME PEDALING) Transmission (N/mm) 148.03 122.09 130.63 109.19 DIFFERENCE -17.52% -11.75% -26.23%
Langma Report card
WEIGHT COMPARISON
TESTING STANDARDS
Frameset is defined as the following:
• Size medium, painted/ decaled production frame
• Production fork (uncut)
• Seatpost (included with the frameset)
• Seat clamp
• Front and rear derailleur hanger/ clamps
• All production hardware (water bottle bolts, etc.)
YEAR-TO-YEAR COMPARATIVE LANGMA WEIGHTS
AND THE WINNER IS.... THE ALL-NEW LANGMA ADVANCED SL DISC!
The re-engineered Langma frameset rises to the top podium step in stiffness-to-weight ratio.
COMPARATIVE WEIGHTS
STIFFNESS-TO-WEIGHT COMPARISON
WEIGHT (g) ALL-NEW LANGMA ADVANCED SL DISC LANGMA ADVANCED SL (RIM) FRAME W/ PAINT 810 915 FORK 322 330 SEATPOST 141SEATPOST CLAMP 23.5ISP CLAMP - 113 FRONT DERAILLEUR HANGER 15.5 16.23 REAR DERAILLEUR HANGER 12.9 10.89 FRAMESET WEIGHT (g) 1325 1385 TOTAL WEIGHT SAVINGS: 60 GRAMS
WEIGHT (g) ALL-NEW LIV LANGMA ADVANCED SL DISC SPECIALIZED TARMAC SL7 DISC TREK EMONDA SLR 9 DISC FRAMESET (COMPLETE AND PAINTED) 1325 1429 1293 TOTAL WEIGHT SAVINGS 104 -32
FEATURE ALL-NEW LIV LANGMA ADVANCED SL DISC SPECIALIZED TARMAC SL7 DISC TREK EMONDA SLR 9 DISC TRANSMISSION STIFFNESS (LATERAL FORK AND FRAME PEDALING) 148.03 N/mm 130.63 109.19 FRAMESET WEIGHT (COMPLETE AND PAINTED) 1.32 kg 1.43 kg 1.29 kg STIFFNESS-TO-WEIGHT RATIO 112 91 (-19% less efficient) 85 (-24% less efficient)
Langma Disc Range Geometries
* Seat angle is actual
** Toptube is measured from the center of the headtube horizontally back to the top of the effective extension of the seattube
*** Standover height is based on the largest tire that will fit the bike not necessarily the included size tire
XXS XS S M L Size in millimeters Seattube length 390 420 450 480 510 Seattube angle* (Degrees) 75.0 75.0 74.5 74.0 73.5 Toptube length** 498 508 524 540 555 Headtube length 105 120 135 155 175 Headtube angle (Degrees) 70.0 71.0 72.0 72.5 72.5 Fork rake 49 49 49 49 49 Trail 74.3 67.8 61.4 58.2 58 Wheelbase 970 973 977 984 996 Chainstay length 405 405 405 405 405 Bottom bracket drop 72 72 70 70 67 Stack 499 517 532 553 569 Reach 364 370 377 382 386 Standover height*** 680 700 730 760 790 Handlebar width 360 360 380 400 420 Stem length 80 80 90 100 110 Crank length 165.0 165.0 170.0 170.0 172.5 Wheel size 700C 700C 700C 700C 700C
Langma Technology Appendix
Appendix: Featherweight efficiency
60g LIGHTER FRAMESET
Over first-generation Langma frameset
Lighter Frameset
• Longer, more continuous pieces of carbon fiber across frame tubes and junctions
• Greater stiffness, less weight
• Less carbon overall, but higher grade composite
Langma Technology
Images are solely for illustrative purposes and may not accurately represent the actual construction
Langma Technology Appendix: Featherweight efficiency

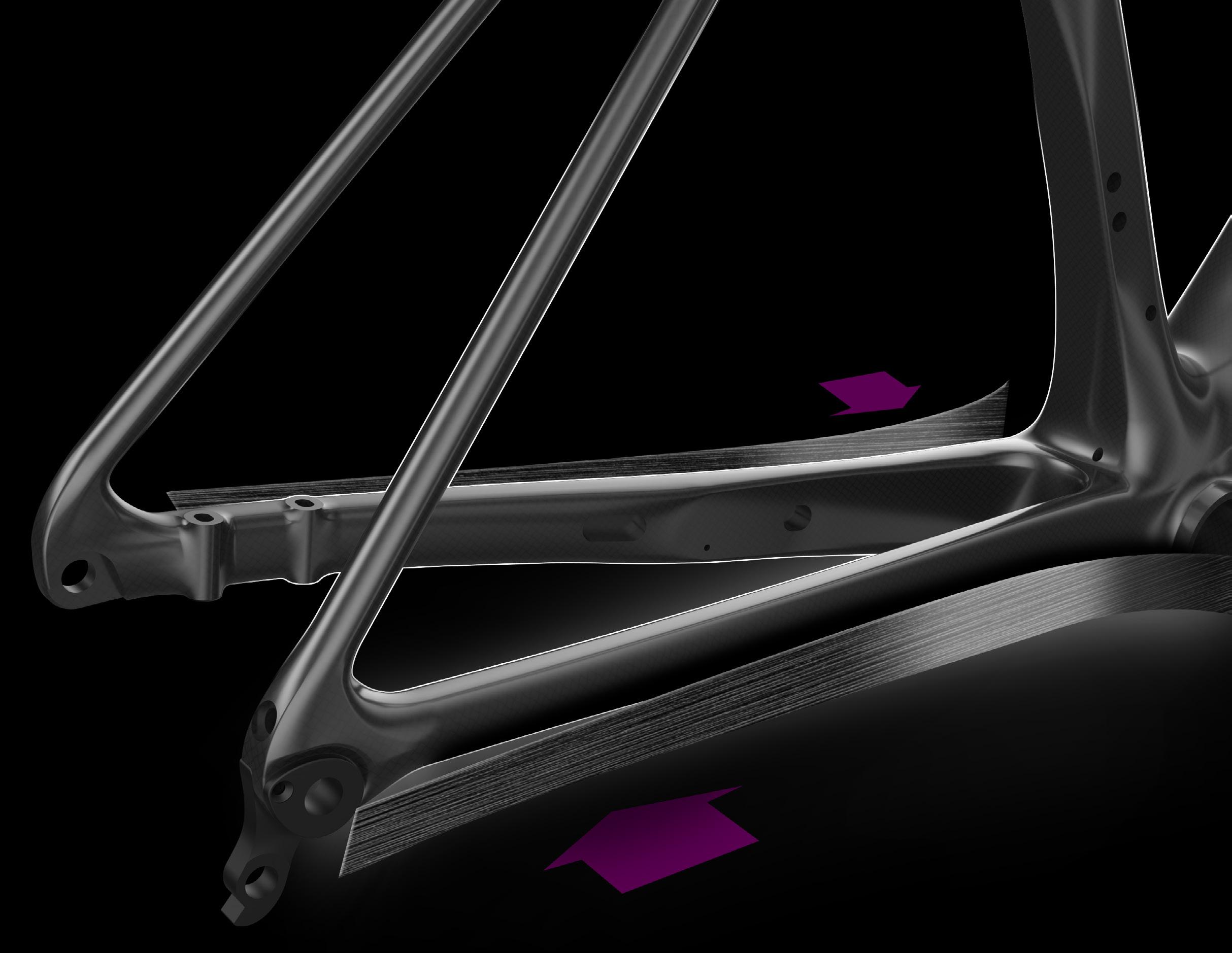

Better Power Transfer in the chainstays
• Advanced SL-Grade Composite throughout the chainstays
• Stronger connection from the dropout to the bottom bracket
• Less weight, more efficient power transfer
Images are solely for illustrative purposes and may not accurately represent the actual construction
Langma Technology Appendix: Featherweight efficiency
Better Power Transfer through the drivetrain
• Significantly updated from first-generation Langma
• Still aero, and now also wider and stiffer
• More efficient power transfer through the drivetrain
Images are solely for illustrative purposes and may not accurately represent the actual construction

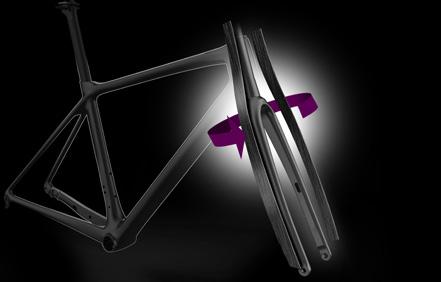

Langma Technology Appendix: Intuitive handling
50% MORE LATERAL STIFFNESS
Over first-generation Langma fork
More Lateral Stiffness
• Lightest and stiffest Langma fork to date
• Longer, more continuous pieces of carbon fiber
• Greater percentage of Advanced SL-Grade Composite
Images are solely for illustrative purposes and may not accurately represent the actual construction
Appendix: Aero advantage

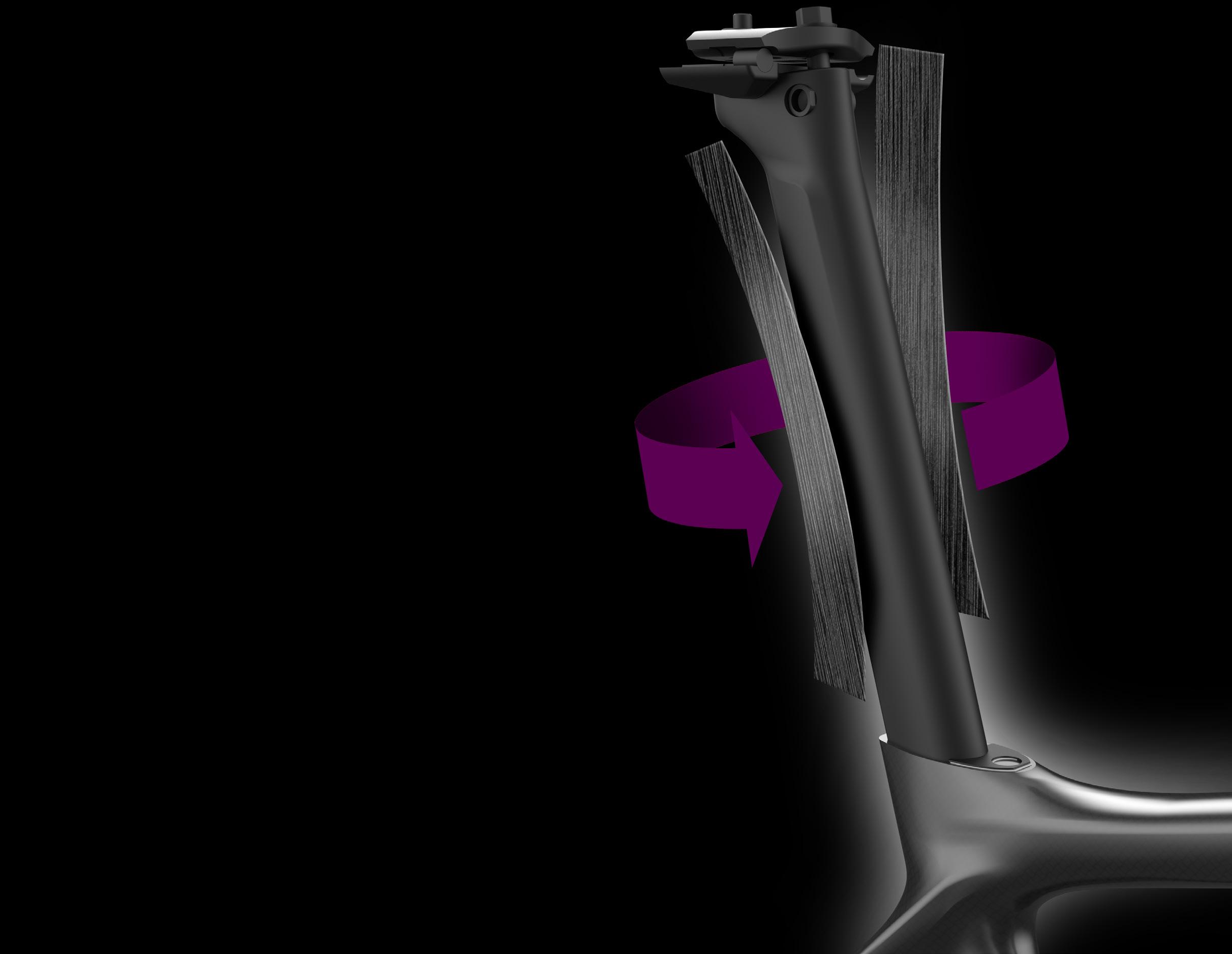

141g SEATPOST
Fully-carbon Variant SLR Seatpost
Fully-carbon Variant SLR Seatpost
• The first fully-carbon seatpost for the Langma
• Lightweight, aero and easily adjustable
• Longer, more continuous carbon fibers
• Titanium bolts
• Among the most elite posts currently available
Langma Technology
Images are solely for illustrative purposes and may not accurately represent the actual construction
Langma Technology Appendix: Aero
advantage
Aero Truncated Ellipse Tubing
• Updated from first-generation Langma
• Incorporated in all tube sections of the frame
• Efficient airflow, reduced drag
• Improved rider energy conservation
Images are solely for illustrative purposes and may not accurately represent the actual construction
