Introducing
Feel more connected to the trail with the all-new Lurra.
Built for charging up singletrack climbs and diving into fast, flowy descents, this hardtail trail bike is simplicity at its best.
KEY PERFORMANCE FACTOR
Optimal Trail Design
Lightweight ALUXX SL-Grade Aluminum hardtail frame with a steep seat tube angle optimizes your input when powering up climbs and hammering on the flats, resulting in greater efficiency and speed. And a 66-degree head tube angle offers confidence on steep descents, while the 438mm chainstays keep it feeling stable and playful. Frame sizes are paired up with wheel sizes, providing the ideal fit for you and where you want to ride.
KEY PERFORMANCE FACTOR
Adventure-Ready

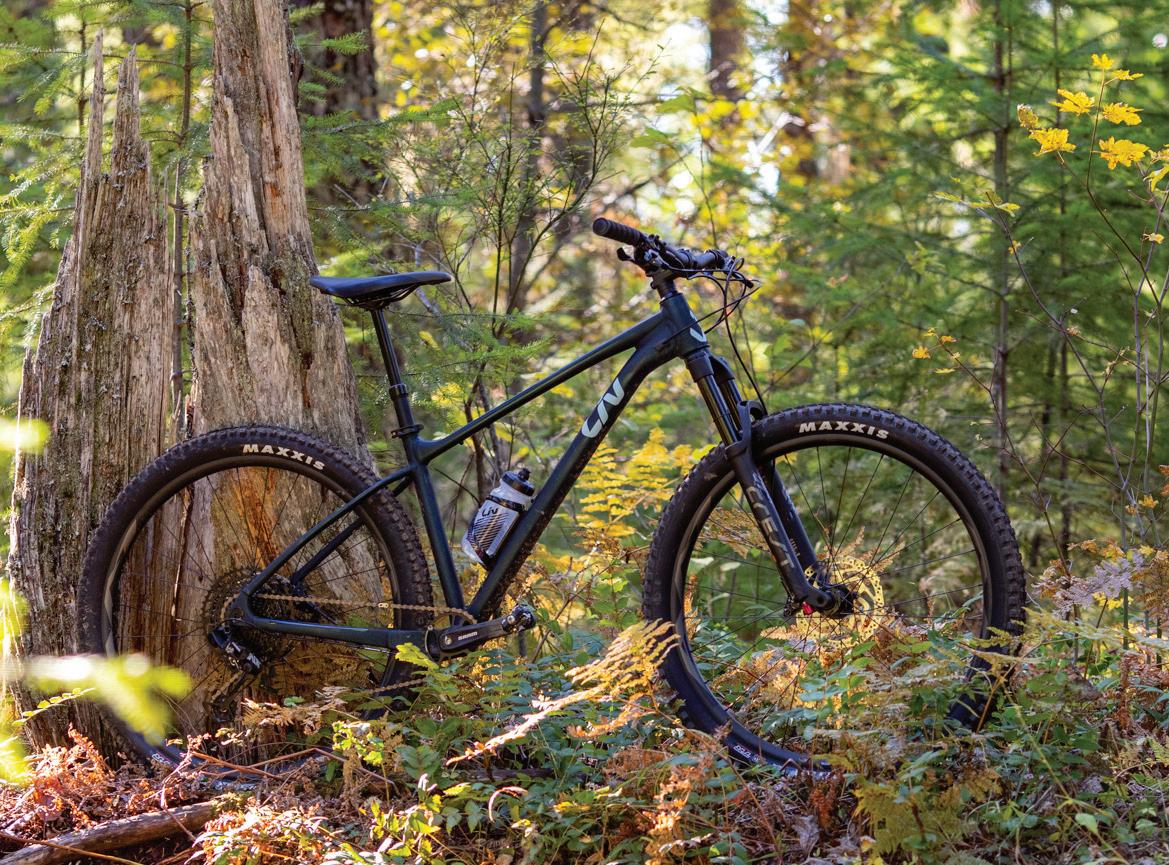

The Lurra comes equipped with mounts for two water bottle cages and additional mounts on the underside of the top tube allow riders to add a small gear bag for stowing tools. Internal cable routing keeps the important stuff tidy and protected, so you can stay focused on the ride ahead.
KEY PERFORMANCE FACTOR Boosted Confidence
Take on technical terrain with the 130mm of plush front suspension, high-volume tubeless tires offering extreme traction on roots, rocks and ruts, and a dropper seatpost allowing you to get low and ride with control.
Highlights
1. ALUXX SL-GRADE ALUMINUM FRAME: State-ofthe-art aluminum frameset material features best-inclass strength-to-weight ratios and unique welding technologies for a high-performance ride quality. 2. OVERDRIVE: Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/2” lower and 1 1/8” upper) and tapered steerer tube work in conjunction to provide optimal steering stiffness. 3. 130MM FORK: 130mm of travel up front allows you to easily navigate trail obstacles and singletrack terrain.
TUBELESS: Tubeless ready, so you can run lower tire pressure for added traction and control
5.
6. INCREASED
7.
8.
1 3 2 4 6 5 7 8
4.
BOOST HUB SPACING: Boost 15x110 [F], 12X148 [R] hub spacing improves stiffness, trail handling and tire clearance.
TIRE CLEARANCE: Run up to 2.6-inch tires on 27.5-inch wheel models and 2.5-inch tires on 29-inch wheel models for increased stability.
MOUNTS: The frame features mounts for two water bottle cages and additional mounts on the underside of the top tube to add a small gear bag for stowing tools.
INTERNAL CABLE ROUTING: Keeps your cables tidy and protected from the elements.
* Seat angle is actual ** Top tube is measured from the center of the headtube horizontally back to the top of the effective extension of the seattube *** Stand over height is based on the largest tire that will fit the bike not necessarily the included size tire Geometry XS S S M L Size in millimeters Seat tube length 360 380 380 410 430 Seat tube angle (Degrees) 76.0 76.0 76.5 76.5 76.5 Top tube length 544 564 554 575 596 Head tube length 95 105 90 100 110 Head tube angle (Degrees) 66.0 66.0 66.0 66.0 66.0 Fork rake 44 44 44 44 44 Trail 114 114 122 122 122 Wheelbase 1118 1140 1136 1159 1182 Chain stay length 438 438 438 438 438 Bottom bracket drop 60 60 60 60 60 Stack 608 617 618 627 636 Reach 393 410 406 425 443 Stand over height 613 661 661 712 737 Handlebar width 760 760 760 760 780 Stem length 40 40 40 50 50 Crank length 165.0 170.0 170.0 170.0 170.0 Wheel size 27.5" 27.5" 29" 29" 29" Lurra
Lurra

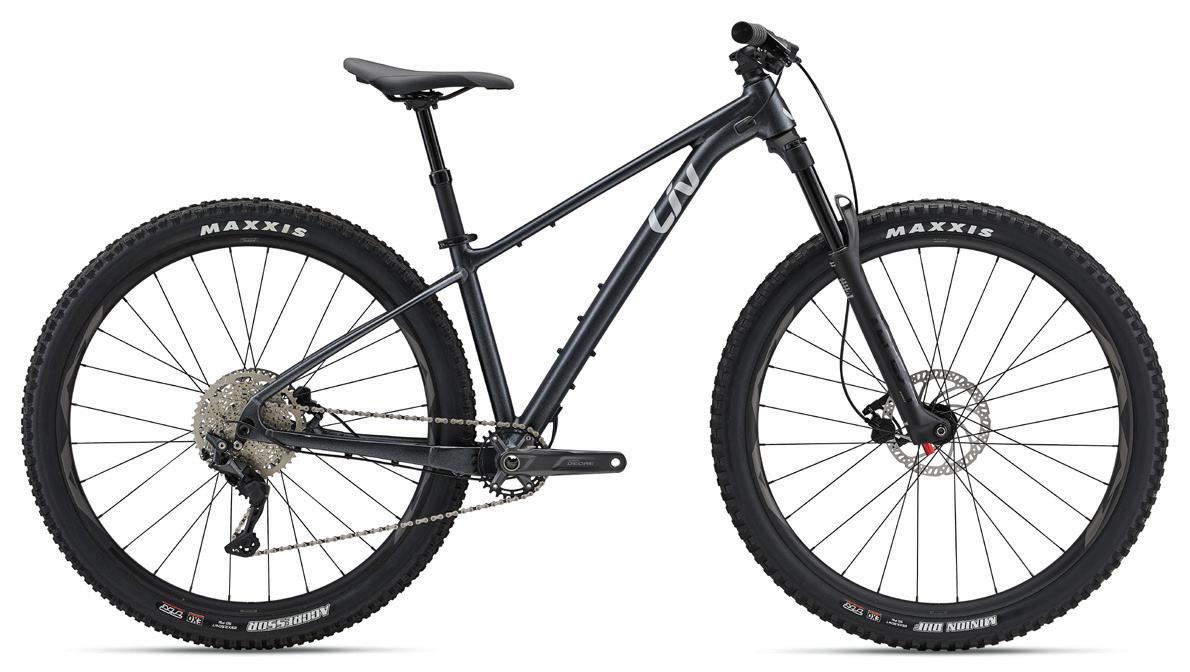

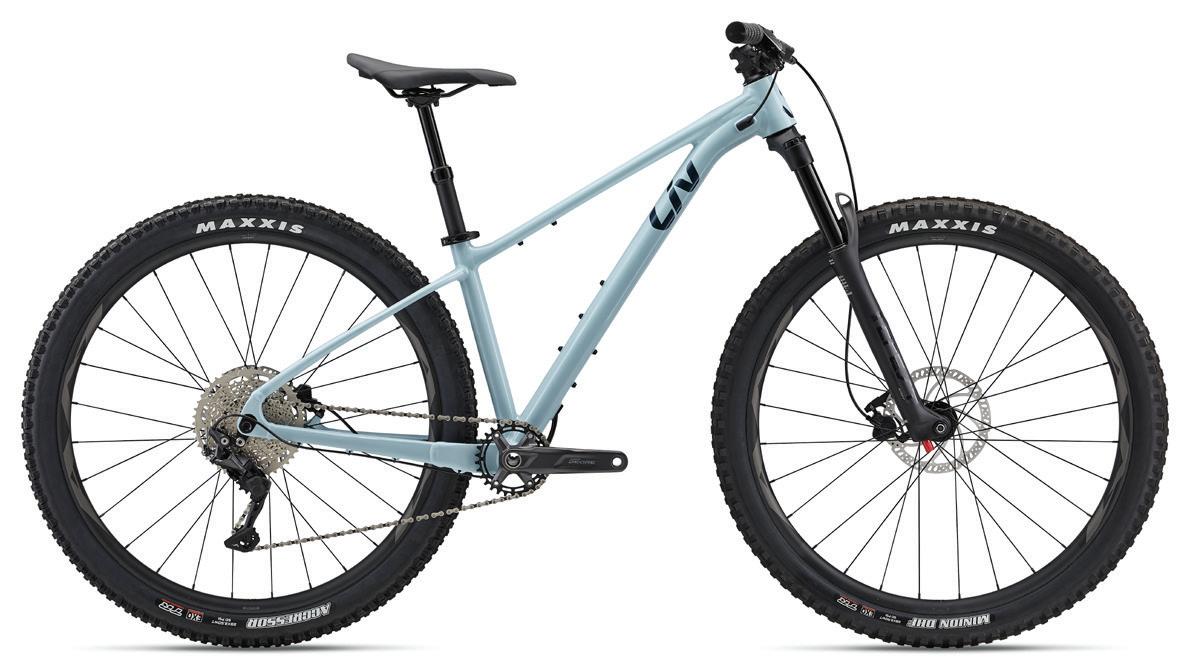

Soap Suds Lurra 2 Black Diamond Lurra 2

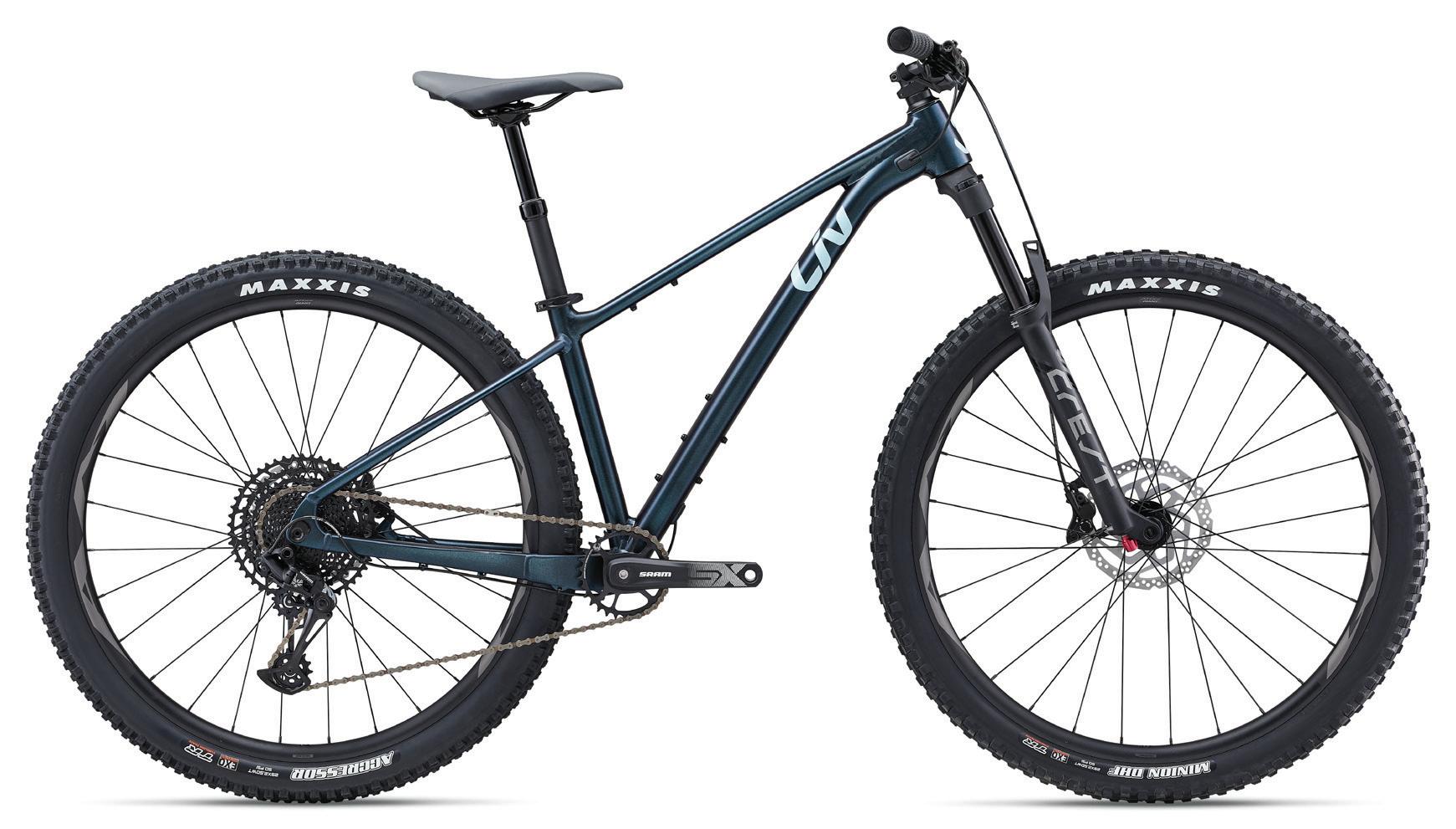

Starry Night
1
The Lurra Series
