MY23 Liv Embolden E+

Fully-Charged Fun

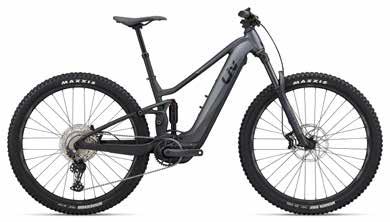

Embolden E+ Pro Feel the rush on the Embolden E+ Pro. A full-suspension electric mountain bike designed to help you shred demanding trails, breeze the climbs and conquer obstacles with confidence. Nothing is off-limits now.

KEY PERFORMANCE FACTOR

Capable and fun The high-performing Embolden E+ Pro provides an exhilarating ride. It has loads of travel (140mm front, 125mm rear), and a powerful motor (85Nm or 75NM of torque).

Epic mountain biking, trekking, and touring adventures are now well within your capabilities.

KEY PERFORMANCE FACTOR

Versatile for multi-usage The Embolden E+ is your new secret weapon.

With its 140mm front/125mm rear suspension, integrated kickstand, fender mounts, and carrier compatibility, this E-bike is ready to tackle challenging technical trails and tick off your bucket list of touring and trekking adventures.

KEY PERFORMANCE FACTOR

Premium, integrated design This E-bike brings a head-turning wow factor to the trails thanks to its internally routed cables, smooth and simple frame lines, and attractive color and graphics. Additionally, the lower standover height makes it easy to get on and off.

Technology Highlights SYNCDRIVE PRO 2 MOTOR: Enjoy a performancefocused ride with powerful but controlled acceleration at all speeds, delivered by the lightweight SyncDrive Pro 2 motor with 85Nm of torque. It allows you to select and tune the support ratios to up to four times your effort.

So you have full control over your bike’s performance, and excellent traction and control for smooth hill starts—even on rough terrain.

ENERGYPAK SMART 800 BATTERY: Welcome to the latest battery generation, providing ultimate reliability and performance. Coupled with the SyncDrive Pro 2 motor, which has an average range of 50-112 miles with a maximum range of 180 miles when optional EnergyPak 250 range extender is used. So you can adventure further for longer, with total confidence.

RIDECONTROL DASH CONTROL UNIT: All the tech you need is in this compact 2-in-1 control unit. It displays all your riding data at a glance, allows you to select Walk Assist, and pairs with the RideControl App. It even features a convenient USB port to keep your electronic devices charged.

ALUXX SL ALUMINUM: Enjoy the thrill of a highperformance, responsive riding experience aboard the state-of-the-art aluminum frame. It’s made from 6061 alloy, so it’s formidably strong yet impressively light.

We don’t like to brag, but we’re talking best-in-class strength-to-weight ratios.

SUSPENSION FORK: With 140mm of front travel you will get better control, a smoother ride, and easier climbs on rough terrain. Not to mention the confidence to tackle sections you previously thought of as off-limits.

Technology Highlights FLEXPOINT SUSPENSION: The single-pivot design provides a lightweight and durable suspension system with 125mm of shock-absorbing rear travel to carry you smoothly over the bumpiest of trails.

INTERNAL CABLE ROUTING: All cables are internally routed into the head tube. So they’re protected and out of sight, giving a premium, sleek design with no unsightly clutter.

DROPPER SEAT POST: Hit the dropper lever on the fly without breaking your pedal stroke. By lowering your center of gravity, you’ll enjoy the confidence of an easier descent with better braking and handling. Trust us: once you experience the thrill of a dropper seat post, you won’t go back.

PERFECT WHEEL TO FRAME SIZE RATIO: The XS frame is fitted with 27.5-inch wheels, and the S/M/L frames have 29-inch wheels. By fitting the ideal wheel size to the frame, you enjoy an optimized riding experience with greater comfort and control. The frame is compatible with up to 2.5-inch wide tires, further extending the capabilities of your ride so you can take on the gnarliest of trails with ease.

MULTI-PURPOSE FEATURES: The integrated kickstand and fender mounts eliminate clunky-looking brackets and add to the head-turning, sleek design. The carrier compatibility and mounts provide endless trekking and touring opportunities.

Key Technologies SYNCDRIVE PRO 2 MOTOR The powerful SyncDrive Pro 2 Motor was co-developed with Yamaha and is Liv’s lightest ever E-bike motor. It provides 85Nm of torque, the most in the Embolden E+ range, and will help you confidently conquer the steepest of hills. The Smart Assist mode uses six sensors to optimize your power support automatically. It provides seamless acceleration and a power boost exactly when you need it. With this powerful yet quiet motor underneath you, you’ll feel naturally strong in any riding situation and at any speed.

ENERGYPAK SMART 800 BATTERY Enjoy the peace of mind and reliability that comes from riding an E-bike with a battery co-developed with, and tested by, industry-leaders Panasonic.

Our lightweight EnergyPak Smart 800 battery provides the longest range in the Embolden E+ series, with an average range of 50-112 miles and a maximum range of 180 miles when optional EnergyPak 250 range extender is used for additional capacity. The Battery Management System prevents overheating, increases battery life, and optimizes charging performance.

RIDECONTROL DASH This compact 2-in-1 control unit has everything you need at your fingertips. Glance down at the color display to check all your riding data, such as battery status, speed, distance, time, and cadence. Pair it with the RideControl App and you can opt to get phone notifications.

Keep your electronic devices charged using the convenient USB port. Need to get off and walk a little? We’ve got you. Simply tap Walk Assist and easily push your bike uphill or over rough terrain.

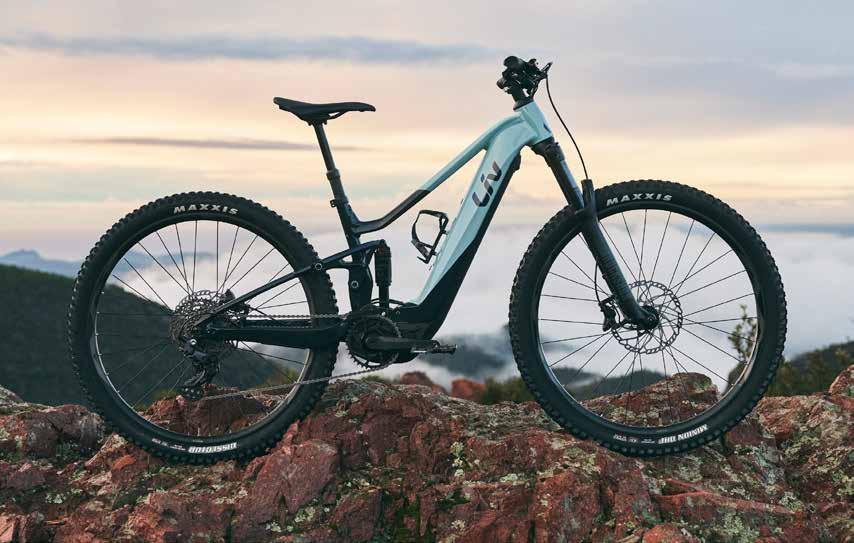

Embolden E+ Feel the rush on the Embolden E+. A full-suspension electric mountain bike designed to help you shred demanding trails, breeze the climbs and conquer obstacles with confidence.

Nothing is off-limits now.

KEY PERFORMANCE FACTOR

Capable and fun The high-performing Embolden E+ provides an exhilarating ride. It has a maximum range maximum range of 112 miles, loads of travel (140mm front, 125mm rear), and a potent motor (75Nm of torque). Epic mountain biking, trekking, and touring adventures are now well within your capabilities.

KEY PERFORMANCE FACTOR

Versatile for multi-usage The Embolden E+ is your new secret weapon.

With its 140mm front/125mm rear suspension, integrated kickstand, fender mounts, and carrier compatibility, this E-bike is ready to tackle challenging technical trails and tick off your bucket list of touring and trekking adventures.

KEY PERFORMANCE FACTOR

Premium, integrated design This E-bike brings head-turning wow factor to the trails thanks to its internally routed cables, smooth and simple frame lines, and attractive color and graphics. Additionally, the lower standover height makes it easy to get on and off.

Technology Highlights SYNCDRIVE SPORT 2 MOTOR: The compact and quiet SyncDrive Sport 2 motor provides 75Nm of torque with 400% maximum support. This means it can multiply your pedaling effort four times. So you enjoy a powerful riding experience, even at low speeds, with the traction and control required for smoother hill starts, and excellent handling.

ENERGYPAK SMART 625 BATTERY: Coupled with the SyncDrive Sport 2 motor, this battery provides an average range of 31 - 62 miles and a maximum of 112 miles when you add the EnergyPak range extender. So you can confidently plan an epic ride. The lightweight, reliable EnergyPak Smart 625 battery integrates sleekly into the downtube to provide a compact and streamlined profile.

ENERGYPAK SMART 500 BATTERY: Combined with the SyncDrive Sport 2 motor, this battery provides an average range of 25-50 miles and a maximum of 87 miles when you add the EnergyPak range extender. So you can confidently plan a long ride. The lightweight, reliable EnergyPak Smart 500 battery integrates sleekly into the downtube to provide a compact and streamlined profile.

RIDECONTROL DASH CONTROL UNIT: All the tech you need is in this compact 2-in-1 control unit. It displays all your riding data at a glance, allows you to select Walk Assist, and pairs with the RideControl App. It even features a convenient USB port to keep your electronic devices charged.

ALUXX SL ALUMINUM: Enjoy the thrill of a highperformance, responsive riding experience aboard the state-of-the-art aluminum frame. It’s made from 6061 alloy, so it’s formidably strong yet impressively light.

We don’t like to brag, but we’re talking best-in-class strength-to-weight ratios.

SUSPENSION FORK: With 140mm of front travel you will get better control, a smoother ride, and easier climbs on rough terrain. Not to mention the confidence to tackle sections you previously thought of as off-limits.

Technology Highlights FLEXPOINT SUSPENSION: The single-pivot design provides a lightweight and durable suspension system with 125mm of shock-absorbing rear travel to carry you smoothly over the bumpiest of trails.

INTERNAL CABLE ROUTING: All cables are internally routed into the head tube. So they’re protected and out of sight, giving a premium, sleek design with no unsightly clutter DROPPER SEAT POST: Hit the dropper lever on the fly without breaking your pedal stroke. By lowering your center of gravity, you’ll enjoy the confidence of an easier descent with better braking and handling. Trust us: once you experience the thrill of a dropper seat post, you won’t go back.

QUICK RELEASE ADJUSTABLE SEAT POST: Easily adjust your seat height when you’re out on the trails.

Ready to tackle the downhill? Simply put your seat post down to lower your center of gravity. Then enjoy an easier descent with better braking and handling.

PERFECT WHEEL TO FRAME SIZE RATIO: The XS frame is fitted with 27.5-inch wheels, and the S/M/L frames have 29-inch wheels. By fitting the ideal wheel size to the frame, you enjoy an optimized riding experience with greater comfort and control. The frame is compatible with up to 2.5-inch wide tires, further extending the capabilities of your ride so you can take on the gnarliest of trails with ease.

MULTI-PURPOSE FEATURES: The integrated kickstand and fender mounts eliminate clunky-looking brackets and add to the head-turning, sleek design. The carrier compatibility and mounts provide endless trekking and touring opportunities.

Key Technologies SYNCDRIVE SPORT 2 MOTOR This compact motor, co-developed with Yamaha, provides power, comfort, and battery efficiency.

It’s also blissfully silent. The Smart Assist mode uses six sensors to optimize your power support automatically. It provides seamless acceleration and a power boost exactly when you need it. With 75Nm of torque, you’ll feel naturally strong in any riding situation and at any speed—from long gravel climbs to endurance adventures.

ENERGYPAK SMART 625 BATTERY Enjoy the peace of mind that comes from riding an E-bike with a reliable battery co-developed with, and tested by, industry-leaders Panasonic. When coupled with the SyncDrive Sport 2 motor, this lightweight EnergyPak Smart 625 battery provides an average range of 31-62 miles and a maximum range of 112 miles when you add the EnergyPak range extender. The range extender will provide 250Whr of additional capacity. Or upgrade to the EnergyPak Smart 800 battery with an average range of 50-112 miles and a maximum range of 180 miles.

RIDECONTROL DASH This compact 2-in-1 control unit has everything you need at your fingertips. Glance down at the color display to check all your riding data, such as battery status, speed, distance, time, and cadence. Pair it with the RideControl App and you can opt to get phone notifications.

Keep your electronic devices charged using the convenient USB port. Need to get off and walk a little? We’ve got you. Simply tap Walk Assist and easily push your bike uphill or over rough terrain.

Geometry Embolden E+

XS

S

M

L

Size in millimeters Seat tube length

380

395

425

455

Seat tube angle (Degrees)

77.0

76.5

76.0

76.0

Top tube length

565

575

595

615

Head tube length

105

105

115

125

Head tube angle (Degrees)

66.0

66.0

66.0

66.0

Fork rake

44

44

44

44

Trail

121

121

121

121

Wheelbase

1201

1199

1215

1237

Chain stay length

468

468

468

468

Bottom bracket drop

20

40

40

40

Stack

601

621

630

639

Reach

426

425

437

455

Stand over height

690

710

735

760

Handlebar width

750

750

780

780

Stem length

40

40

50

60

Crank length

165.0

165.0

165.0

165.0

Wheel size

R27.5”/F29”

29”

29”

29”

* Seat angle is actual ** Top tube is measured from the center of the headtube horizontally back to the top of the effective extension of the seattube *** Stand over height is based on the largest tire that will fit the bike not necessarily the included size tire

The Embolden E+ Range

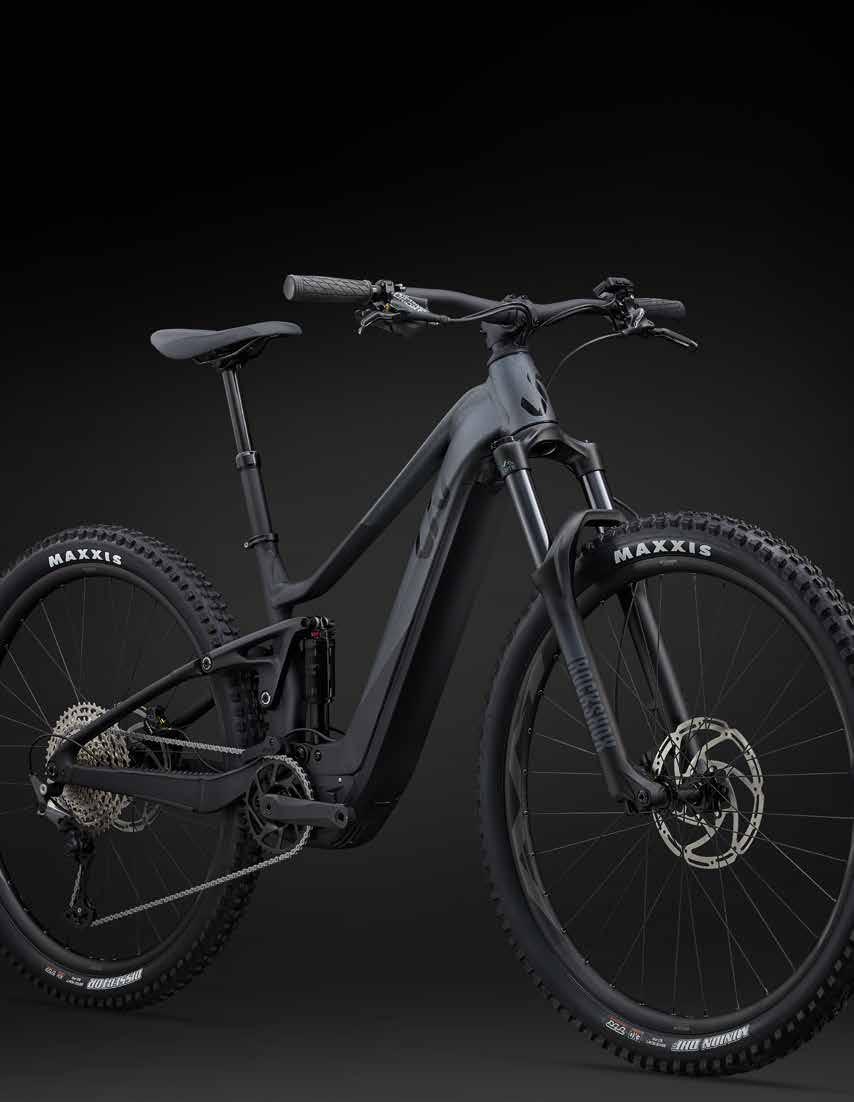

Embolden E+ Pro Black Diamond

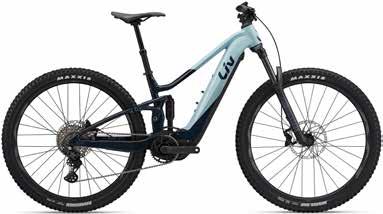

Embolden E+ 1

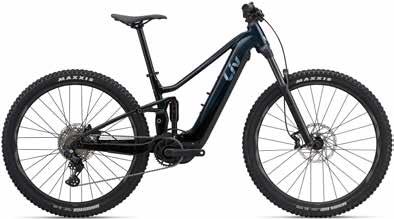

Embolden E+ 2

Soap Suds

Cosmos Navy
