MY24 Giant Trance X

MASTER THE MOUNTAIN THE ALL-NEW TRANCE X RANGE

2

MOUNTAIN | PERFORMANCE | TRAIL

MAKING THE ULTIMATE TRAIL BIKE Now more capable than ever, the new Trance X range includes a full collection of progressive trail bikes that combine all-rounder versatility with even greater control for technical terrain. From superlight composite frame bikes to dynamic alloy models made by the world leaders in aluminum frame construction, there’s one for every rider and all types of terrain.

Born from the idea that every trail is unique, every ride its own type of challenge, the range is built on new framesets with added suspension travel and even greater adjustability than the previous generation. In addition, most models now offer the option to swap out the stock 29-inch rear wheel for a 27.5 to run a mixed-wheel “mullet” setup. The longer-travel SX models come with a 29/27.5 front/rear setup for optimal performance on the most technical terrain.

Every new Trance X is backed by Giant’s unrivaled expertise in composite and aluminum frame engineering, a rigorous process that includes everything from weaving and forging raw materials in our own manufacturing facilities to fine-tuning the patented Maestro suspension system. Beyond the framesets, Giant also engineers and produces critical elements including WheelSystems and components to elevate the ride experience with zero compromises.

Building on the versatility of the previous generation, which introduced flip chip technology to adjust geometry for individual riding style and terrain, the new Trance X range adds a second flip chip at the headset so you can quickly adjust reach and dial in your cockpit dimensions.

3

MOUNTAIN | PERFORMANCE | TRAIL

All Trance X models now have added rear travel thanks to an updated Maestro suspension system. The Trance X Advanced and Trance X models go from 135mm to 140mm, paired with a 150mm fork up front. The new, longer travel “SX” models, including the Trance Advanced SX and Trance X SX, put greater focus on descending with 145mm of rear travel and a 160mm fork.

The new Maestro setups are engineered with Advanced Forged Composite upper rocker arms that increase stiffness and lower overall frame weight. The result is better handling while bombing down technical trails, cornering at speed, and accelerating out of corners. A trunnion mount shock produces a longer stroke, and the leverage ratio has been adjusted to provide a smoother end stroke without harsh bottom-outs.

The new range also includes updates aimed at improving the trail riding experience, including integrated down tube frame storage that makes it easy to carry tools and other essentials. Mounts below the top tube offer an additional option for storage, and more robust protection on the underside of the down tube is also new.

What makes the perfect trail? It’s an individual choice. Tight and technical, or fast and flowy. Your go-to weekday ride may be totally different than the weekend epic where you’ll push new limits. With the new Trance X range, there are no compromises. One trail bike to do it all.

4

MOUNTAIN | PERFORMANCE | TRAIL

MAESTRO SUSPENSION TECHNOLOGY Whatever your choice of off-road terrain, Maestro Suspension expands your bike’s capabilities and boosts your performance. It’s an adaptable rear suspension platform that gives you more control, traction, comfort and speed.

KEY BENEFITS PEDALING EFFICIENCY

Whether you’re sprinting up a climb or hammering through a rock garden, Maestro performs consistently under pedaling power and doesn’t compromise efficiency.

FULLY ACTIVE

From high-frequency trail vibrations to big-hit compressions, Maestro

soaks up the full spectrum of trail impacts to give you a smoother ride over all types of terrain.

TOTAL BRAKE INDEPENDENCE

Even under full braking force, Maestro Suspension stays active, keeping your tires in contact with the trail and giving you better traction at all times.

5

MOUNTAIN | PERFORMANCE | TRAIL

5

6

3

1 2

4

7

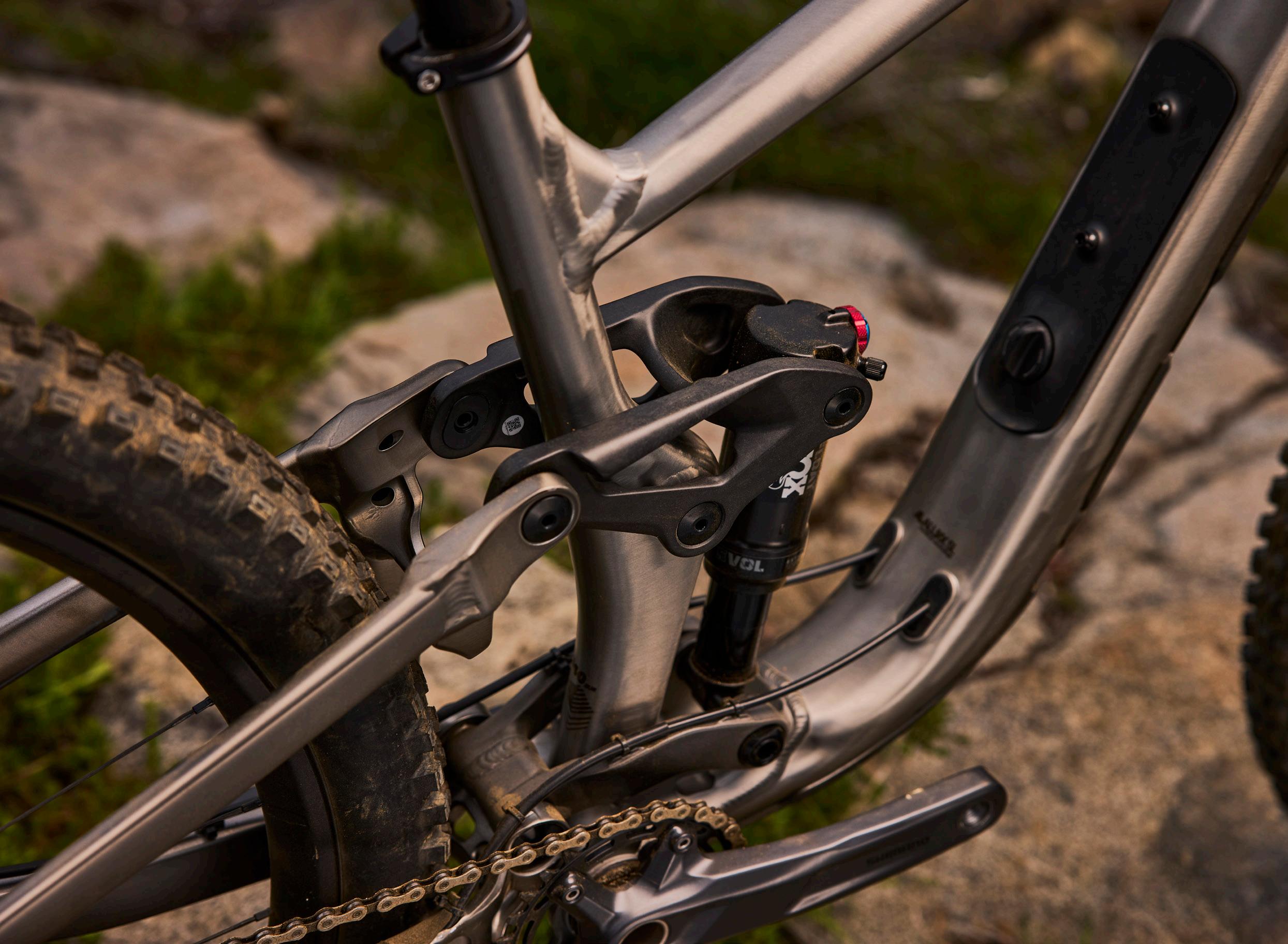

HOW IT WORKS 1. GROUND CONTROL

Maestro’s near-vertical wheel path and linear spring curve allow the rear suspension to remain sensitive to both small and big impacts without “packing up” under rapid, successive hits or bottoming out from big hits. This results in better contact between your tires and the trail, improving traction, acceleration, cornering and braking.

2. FOUR, TWO, ONE

Maestro utilizes four strategically positioned pivot points (the four red circles above) and two linkages that all work to create a single floating pivot point (the larger circle). This single floating pivot point improves pedaling efficiency by counteracting pedaling forces that would otherwise create suspension compression (squatting) or pedal kickback (bobbing).

3. FULLY CONNECTED aestro’s upper rocker arms feature trunnion shock mounts, M

which produce a lower leverage ratio on rear shock compression for better pedaling and braking efficiency. This configuration also allows engineers to create bikes with shorter chainstays, improving their climbing capabilities and agility.

4. LOWER CENTER OF GRAVITY

aestro’s moving parts and components, including the linkages, M shock, pivots and hardware, are centralized within the frameset.

This results in a low center of gravity, which helps improve the bike’s overall handling on the trail.

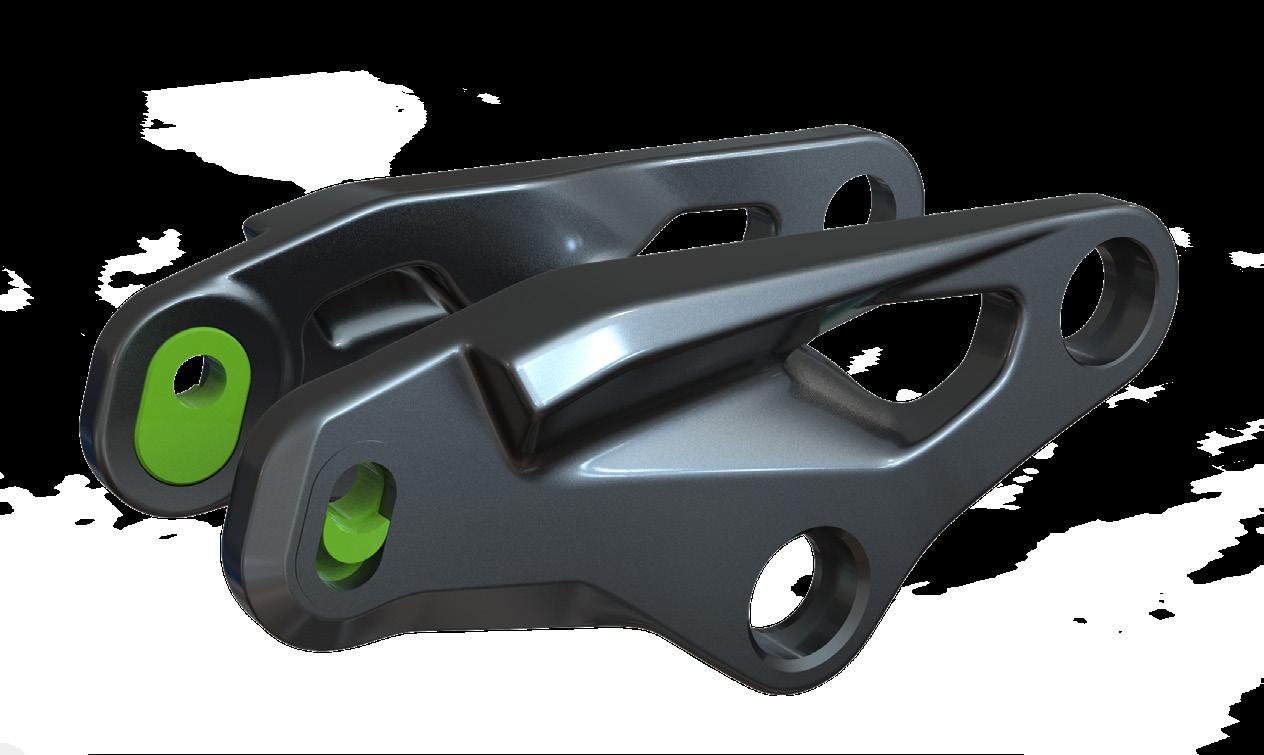

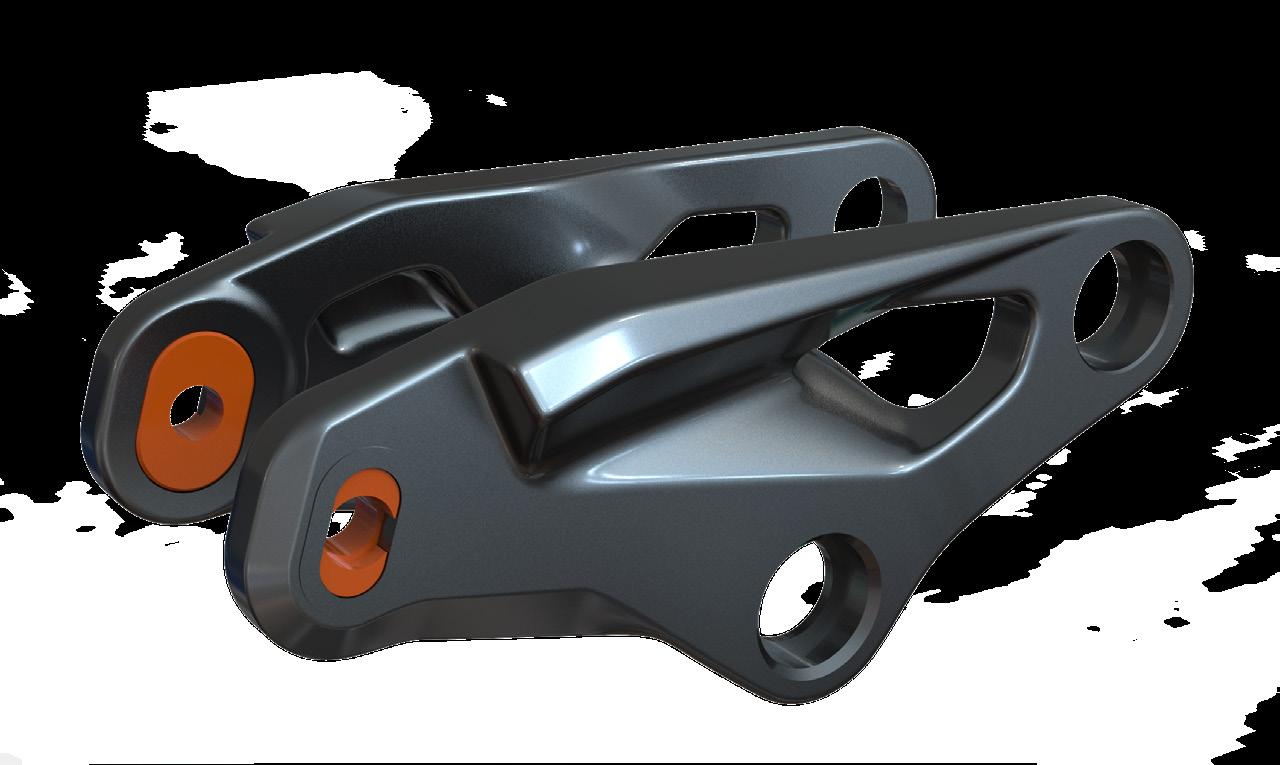

5. LIGHTER AND STRONGER

A state of the art, high-pressure molding process is used to produce the Advanced Forged Composite upper rocker arm.

This makes it lighter, stiffer and stronger than aluminum to help boost the overall performance of your bike.

6. SMOOTH OPERATOR

Double-sealed pivot bearings provide long-term, smoothfunctioning suspension articulation.

7. PRECISE TRACKING

A single-piece rear swingarm (no chainstay or seatstay pivots) provides the ultimate in rear-end stiffness for precise tracking over rough terrain.

6

MOUNTAIN | PERFORMANCE | TRAIL

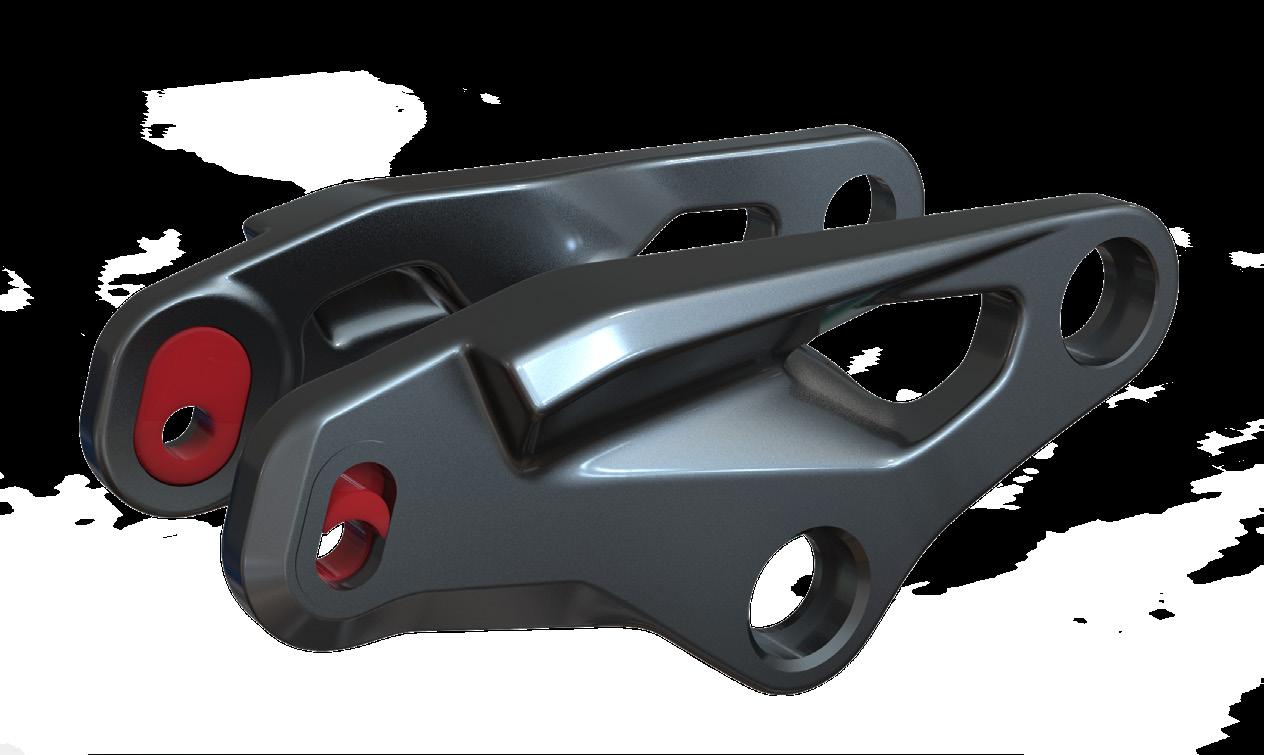

ADJUSTABILITY BEYOND COMPARE FLIP CHIP - MAESTRO 3

This technology allows riders to quickly adjust the geometry and choose a rear wheel size (29-inch or 27.5-inch) for their riding style and terrain. It’s available on select Maestro-equipped mountain bikes. The adjustment affects head tube and seat tube angles, bottom bracket height, and rear-wheel size using eccentric flip chip hardware located on the upper rocker arm of the rear suspension.

3

1

2 HOW DOES IT WORK? his technology provides three positions (high, mid and low) using two different flip chips—a combination high/low chip or a dedicated T mid-position chip.

1. HIGH POSITION

When this dual-position flip chip is installed in the high setting, the frame’s head and seat tube angles become steeper and the bottom bracket height is elevated.

2. MID POSITION

When this single-position flip chip is installed, the frame’s head tube and seat tube angles are positioned in a neutral stance, and the bottom bracket height is at its mid-height point.

3. LOW POSITION

When this dual-position flip chip is installed in the low setting, the frame’s head and seat tube angles become slacker, and the bottom bracket height is lowered. This provides the most stable geometry for riding at higher speeds and on the most aggressive terrain.

7

MOUNTAIN | PERFORMANCE | TRAIL

CUSTOMIZE YOUR FIT FLIP CHIP - HEADSET

This new three-position flip chip at the headset lets riders quickly fine-tune cockpit dimensions and geometry for their riding style and terrain.

1

3

2

HOW DOES IT WORK? wo different “chips” set the headset/reach in either a -5mm (short), T 0mm (mid), or +5mm (long) offset position. The modular system consists of two positioning chips (short/long and mid), which can be easily removed and swapped to achieve a short, mid or long reach.

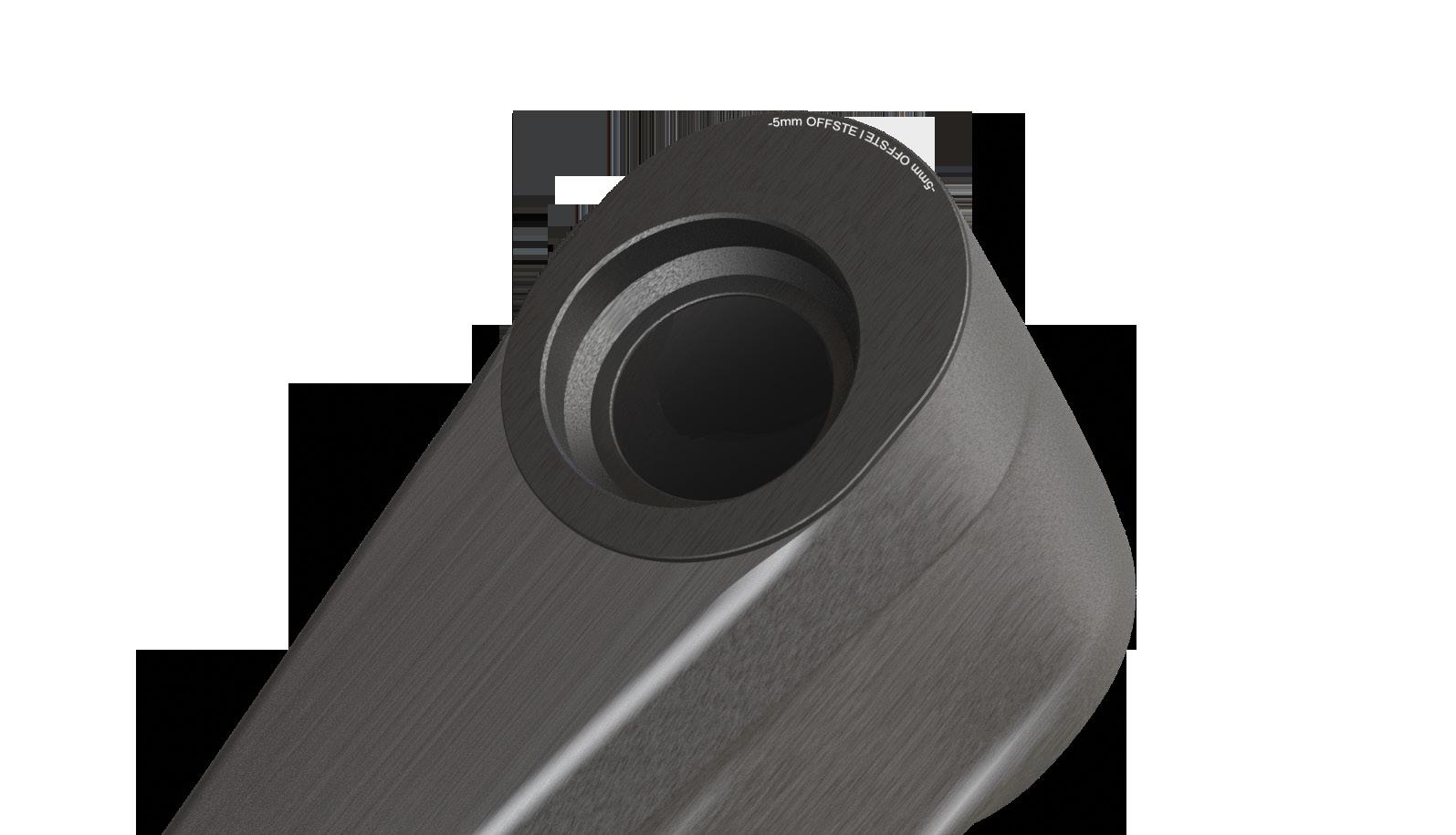

1. SHORT POSITION (-5MM)

The headset/reach is positioned 5mm closer to the rider.

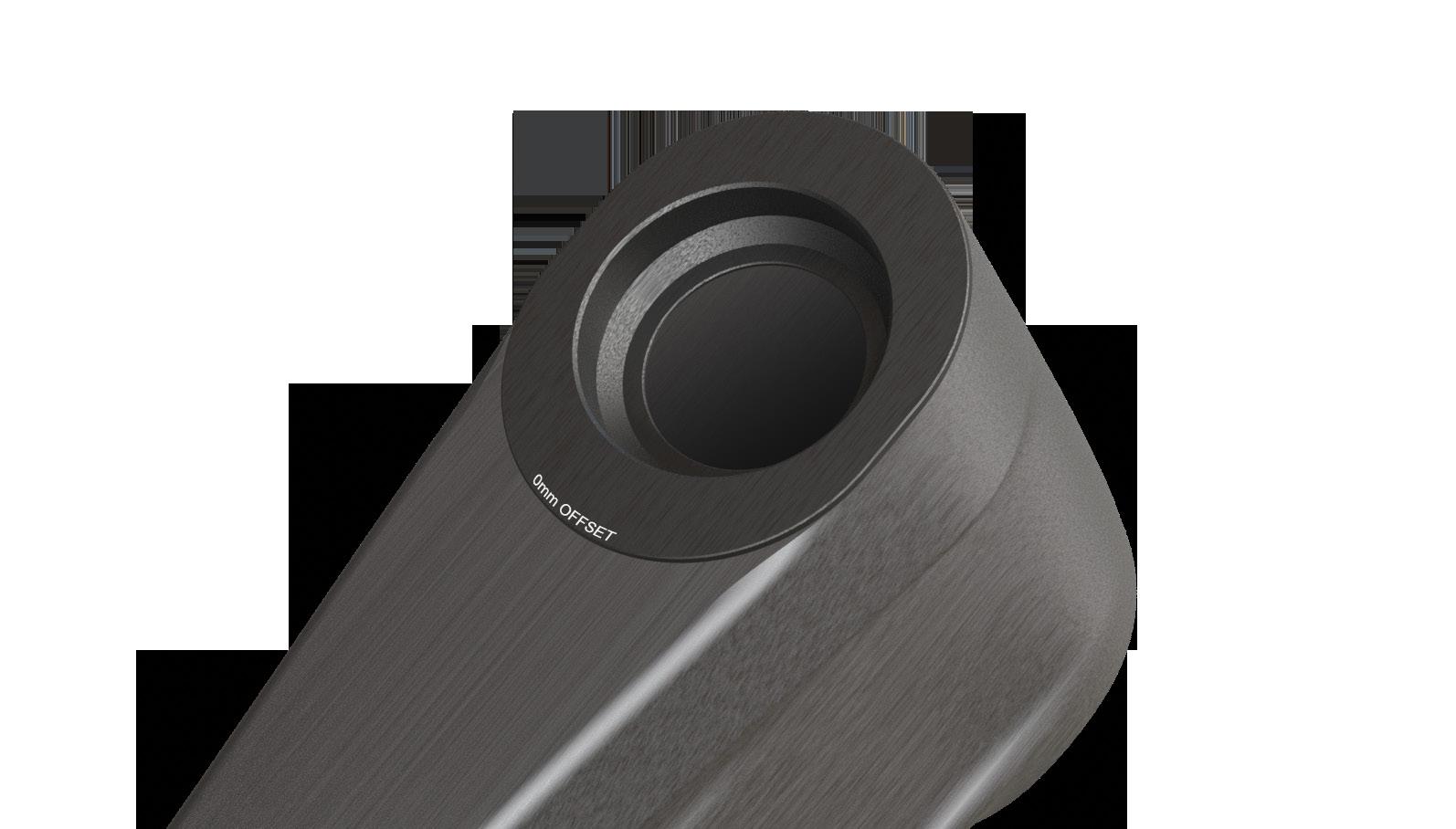

2. MID POSITION (0MM)

The headset/reach is positioned neutrally. In this position, the bike is best suited for a balance of descending/technical conditions.

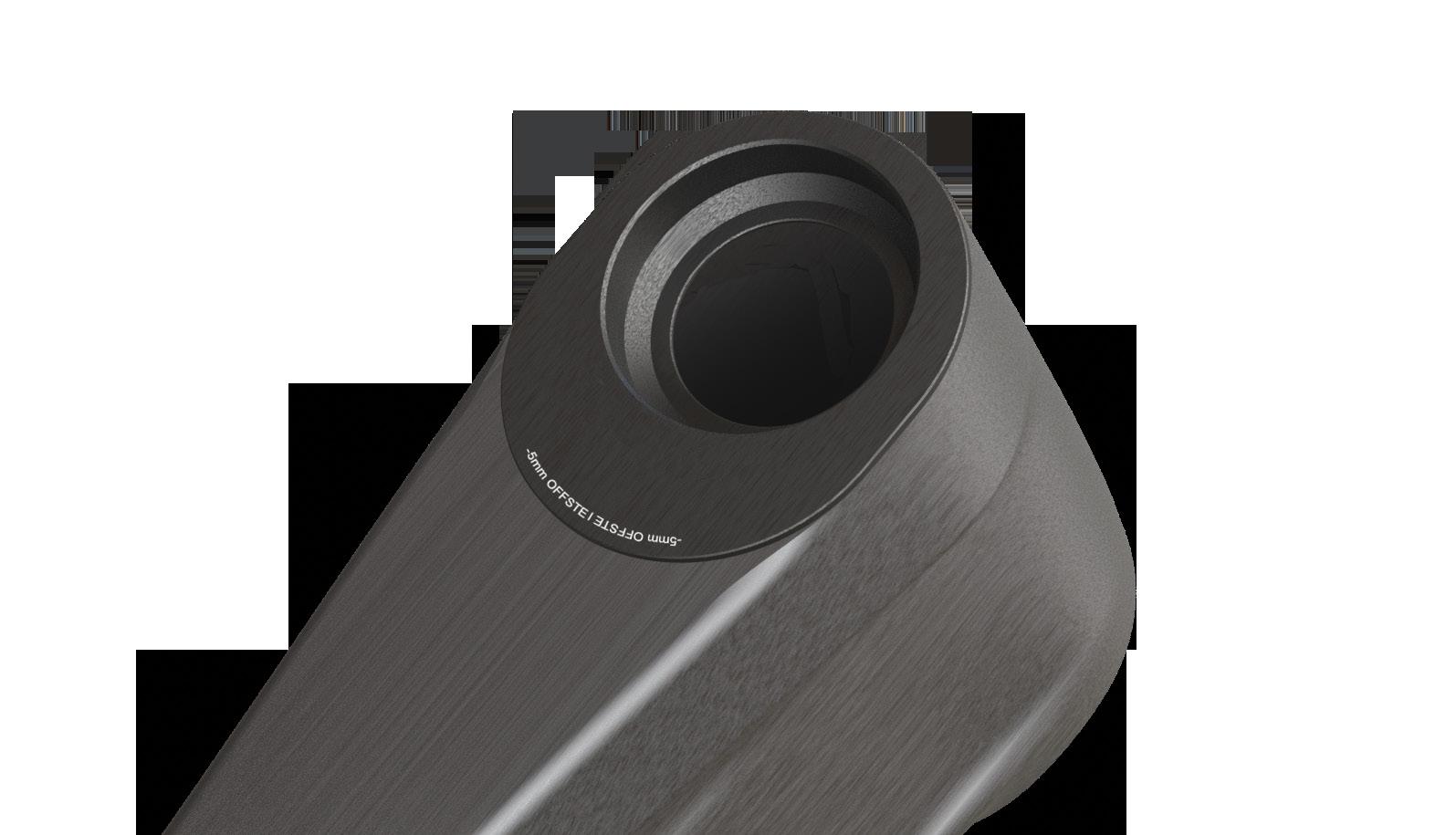

3. LONG POSITION (+5MM)

The headset/reach is positioned 5mm farther from the rider. In this position, the bike is best suited for faster conditions. This long position also offers “corrected” rider positioning for 29/27.5-wheel configuration.

HOW DOES IT CHANGE MY RIDE EXPERIENCE? SHORT POSITION

A shorter reach produces quick handling, a great option for tight, twisty terrain. This position translates into shorter reach, top tube, front/ center and wheelbase measurements and a more upright position for quicker turning, more flickable handling.

MID POSITION

A neutral reach produces well-balanced handling, ideal for trails with general technical challenge and equal parts pedaling and descending.

A zero-offset headset position translates into neutral reach, top tube, front/center and wheelbase measurements and a balanced position for predictable handling.

LONG POSITION

A longer reach produces stable handling, a great option for efficient performance over smoother terrain. This translates into longer reach, top tube, front/center and wheelbase measurements and a more stretched out rider position for a planted feel while cornering.

8

MOUNTAIN | PERFORMANCE | TRAIL

SUSPENSION SCIENCE

Giant engineers took great care in perfecting the delicate balance of anti-squat, anti-rise, and leverage ratio. These critical elements lie at the foundation of the Trance X range, shaping how power is transferred, how braking forces are managed, and how the bike interacts with ever-changing terrain. The following three charts delve into the intricacies of anti-squat, which counteracts unwanted suspension movement during pedaling; anti-rise, which resists brake dive; and leverage ratio characteristics that determine how the bike absorbs impacts and handles rough terrain.

ANTI-RISE he Trance X range T

100 90

features the right amount of anti-rise capability to combat brake dive.

80

Anti-Rise (%)

70 60 50 40 30 20 10 0

0

10

20

30

40

50

60

70

80

90

100

110

120

130

140

90

100

110

120

130

140

Rear Wheel Travel (mm)

ANTI-SQUAT aestro Suspension M

100

80 Anti-Squat (%)

technology allows for complete suspension activity, whether under pedaling forces or coasting down the steepest terrain.

120

60

40

20

0

0

10

20

30

40

50

60

70

80

Rear Wheel Travel (mm)

9

MOUNTAIN | PERFORMANCE | TRAIL

SUSPENSION SCIENCE LEVERAGE RATIO highly revised leverage ratio feels softer off the top, progressing steadily through its mid-stroke, then finishing with smooth bottom-out A performance.

3.1 3.0

Leverage Ratio

2.9 2.8 2.7 2.6 2.5 2.4 2.3 0

10

20

30

40

50

60

70

80

90

100

110

120

130

140

Rear Wheel Travel (mm)

TRANCE X SETUP SERIES WITH STOCK WHEEL SIZE

27.5-INCH REAR-WHEEL COMPATIBILITY

29-INCH REAR-WHEEL COMPATIBILITY

FLIP CHIP MAESTRO 3 POSITION

FLIP CHIP HEADSET POSITION

TRANCE X ADVANCED (29/29)

YES

YES

MID OR LOW (SUGGESTED), HIGH (ACCEPTABLE)

0MM (SUGGESTED), -5MM OR +5MM (ACCEPTABLE)

TRANCE X (29/29)

YES

YES

MID OR LOW (SUGGESTED), HIGH (ACCEPTABLE)

0MM (SUGGESTED), -5MM OR +5MM (ACCEPTABLE)

TRANCE X ADVANCED SX (29/27.5)

YES

NO

MID OR HIGH (SUGGESTED), +5MM (SUGGESTED), 0MM LOW (ACCEPTABLE) OR -5MM (ACCEPTABLE)

TRANCE X SX (29/27.5)

YES

NO

MID OR HIGH (SUGGESTED), +5MM (SUGGESTED), 0MM LOW (ACCEPTABLE) OR -5MM (ACCEPTABLE)

10

MOUNTAIN | PERFORMANCE | TRAIL

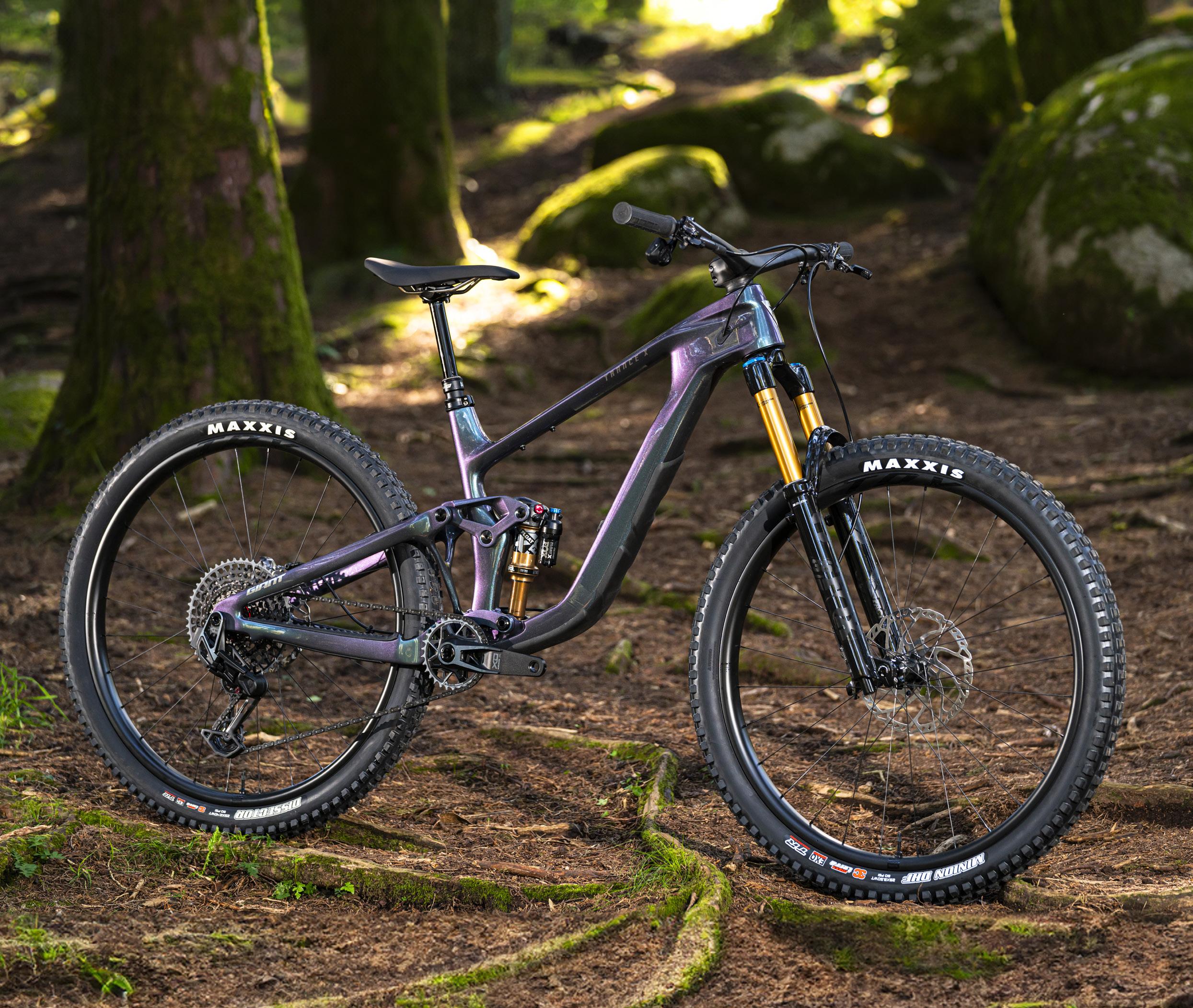

TRANCE X ADVANCED A new Advanced-grade composite frameset with Maestro suspension offers 5mm added travel compared to the previous generation, going from 135mm to 140mm. The rear suspension is paired with a 150mm fork. The frame is equipped with two, three-position flip chips for the ultimate in versatility and adjustability. The rear flip chip, located on the Maestro rocker arm, lets you adjust frame geometry and fine-tune handling for riding style and terrain. A second flip chip at the headset makes it easy to change the reach, offering 10mm (-5mm, 0mm or +5mm) of adjustment without having to swap your stem. Also new is an integrated down tube storage compartment to carry trail-riding essentials.

5 1

6

10

4

3

11 7 9

8 2

Trance X Advanced 0

TECHNOLOGY

1 ADVANCED COMPOSITE

High-performance grade raw carbon is used to produce this custom frame material in our own composite factory. The mainframe and rear swingarm are handcrafted with monocoque construction for optimized stiffness-to-weight and an ultra-responsive ride quality.

2 MAESTRO SUSPENSION

Four strategically positioned pivot points and two linkages all work together

to create a single floating pivot for the most active, efficient and independent suspension system.

3 ADVANCED FORGED COMPOSITE

A high-pressure molding process is used to produce a complex shaped

carbon-fiber upper rocker arm that is lighter, stiffer and stronger than an aluminum version.

4 ADJUSTABLE FRAME GEOMETRY

Flip chip adjustability lets you switch between three settings depending on the

terrain you are riding. You can select a 64.4, 64.8 or 65.1-degree head angle and corresponding 76.8, 77.2 or 77.5-degree seat tube angle, resulting in a 40, 35 or 30mm bottom bracket drop (size medium).

5

REACH ADJUST

Three-position flip chip at the headset lets riders dial in cockpit dimensions

and geometry. This modular system helps fine tune the bike’s handling and rider position using two positioning chips that can be removed and swapped to achieve a Short (-5mm), Mid (0mm) or Long (+5mm) reach.

6 REAR WHEEL OPTIONS

Riders can choose either a 29- or 27.5-inch rear wheel, paired with a 29-

inch front wheel. The larger 29-inch option improves stability and roll-over capabilities, while the 27.5 option delivers a more agile, snappier feel. It’s a quick and easy way to adjust the bike’s handling.

7 FRAME STORAGE

New integrated frame storage inside the down tube makes it easy to carry

tools, snacks and other essentials. Mounts below the top tube offer an additional option for storage.

8 POWERCORE

A massive down tube and oversized top tube work in unison to provide

superior front end lateral and torsional stiffness. The precisely engineered, rectangular shaped down tube yields unprecedented steering precision and pedaling performance.

9 INTEGRATED FRAME PROTECTION

The driveside chainstay and down tube feature built-in protection against rocks

and debris. A clear 3M protective strip on the underside of the head tube/ down tube junction protects the frame when it’s loaded onto a shuttle vehicle.

10 BOOST TECHNOLOGY

Wider hub spacing (110mm front/148mm rear) results in stiffer wheels for

added control plus more tire clearance and an improved chainline for optimal drivetrain performance.

11 GIANT TUBELESS SYSTEM

Integrated Tubeless WheelSystem and tires deliver improved efficiency,

comfort and control in the most user-friendly and reliable system.

11

MOUNTAIN | PERFORMANCE | TRAIL

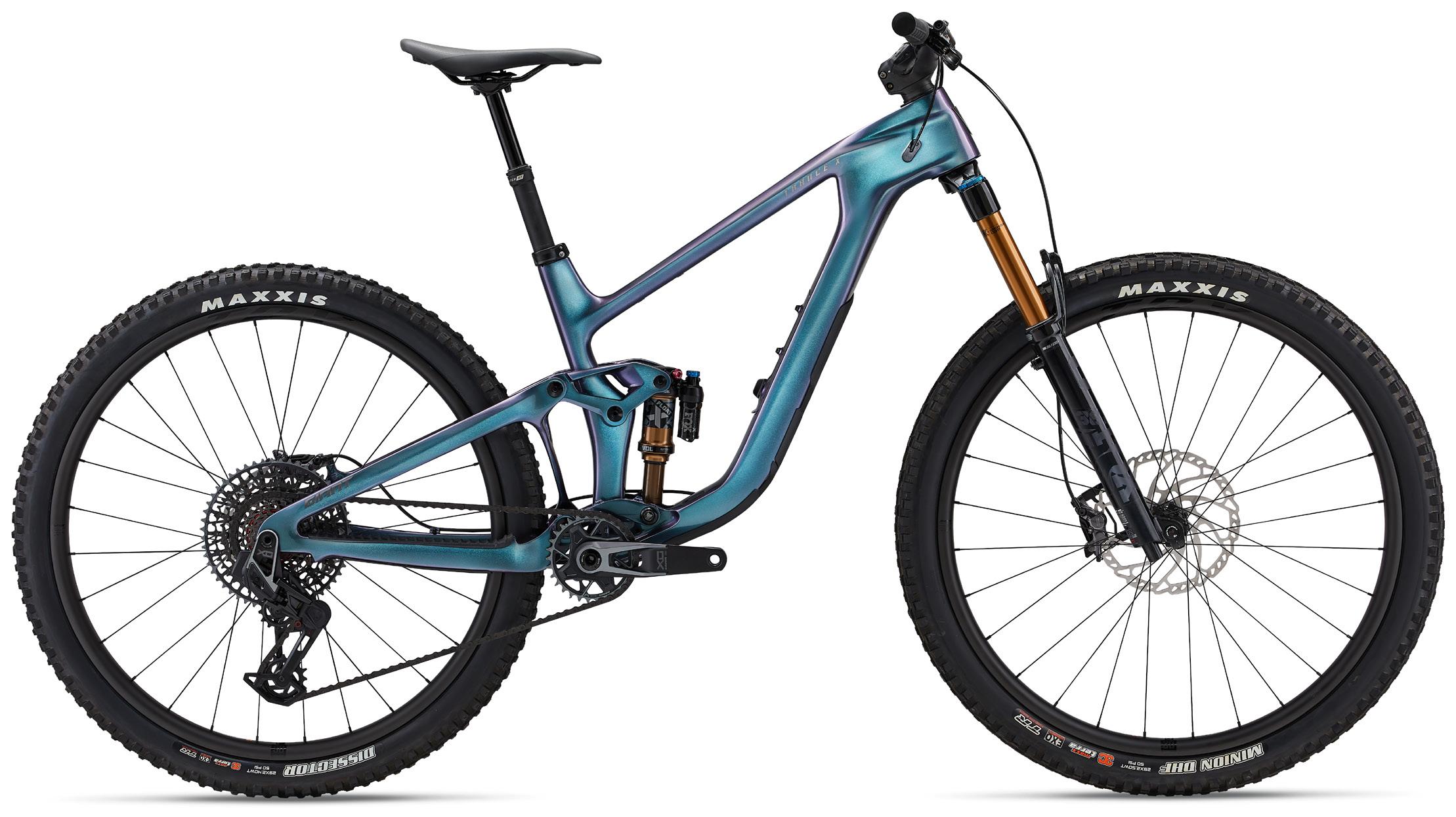

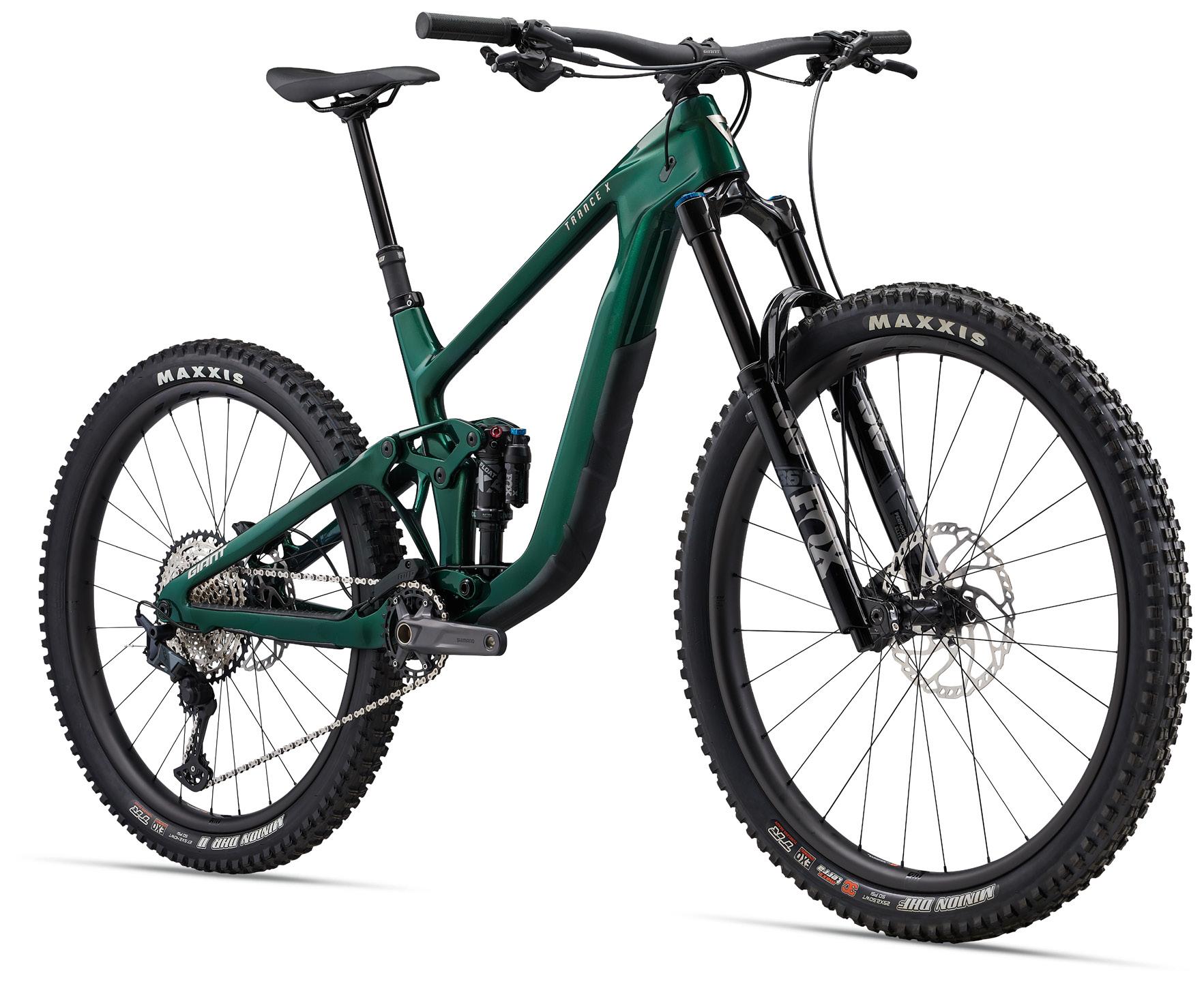

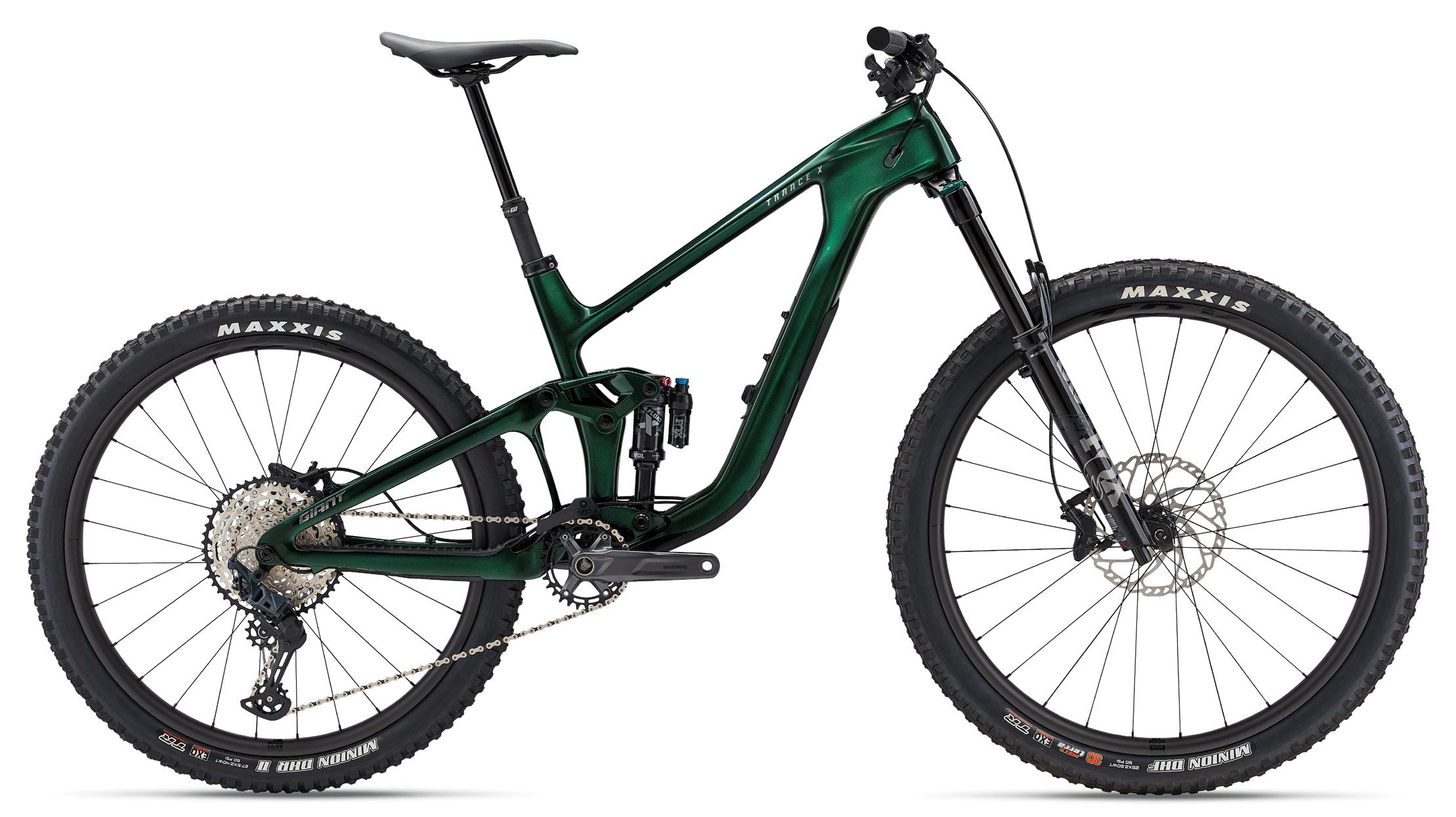

TRANCE X ADVANCED

Float up technical climbs and sail down chunky descents. This all-new, full-composite trail bike gives you 140mm of smooth Maestro rear suspension and all sorts of adjustability. You can dial in frame geometry and switch the rear wheel size for the terrain.

Trance X Advanced 1

KEY PERFORMANCE FACTORS

MORE TRAVEL New Maestro rear suspension adds 5mm of travel over previous generation, going from 135mm to 140mm. A trunnion mount shock and Advanced Forged Composite rocker arm combine for a longer stroke with a smooth, active feel. Rear suspension is paired with a 150mm travel fork for superior confidence and control on technical singletrack terrain.

ADJUSTABLE TRAIL GEOMETRY A three-position Maestro flip chip lets you dial in frame geometry for your riding style and terrain. The high setting adds more ground clearance, a good option for tight, technical terrain. The low setting creates a slacker head angle and lower bottom bracket for confident handling at higher speeds. The middle position is neutral. In addition, a new headset flip chip provides 10mm of reach adjustment.

REAR WHEEL OPTIONS All models come with 29-inch front and rear wheels, but the flip chip lets you opt for a mixed wheel setup including a 27.5 rear. The stock setup optimizes stability and roll-over speed, while a 27.5 rear wheel delivers a snappier feel and more saddle-to-tire clearance. Some riders favor this “mullet” setup for riding steep, technical terrain.

TECHNOLOGIES

FRAME GEOMETRY (UNITS IN MM UNLESS OTHERWISE INDICATED) FRAME

S-LOW

S-MID

S-HIGH

M-LOW

M-MID

M-HIGH

L-LOW

L-MID

L-HIGH

XL-LOW

XL-MID

XL-HIGH

Seat tube length

400

400

400

425

425

425

450

450

450

475

475

475

Seatpost insertion

280.0

280.0

280.0

305.0

305.0

305.0

330.0

330.0

330.0

355.0

355.0

355.0

Seat tube angle (degrees)

76.8

77.2

77.5

76.8

77.2

77.5

76.8

77.2

77.5

76.8

77.2

77.5

Top tube length

571

570

569

602

601

600

624

623

622

656

656

655

Head tube length

100

100

100

105

105

105

115

115

115

125

125

125

Head tube angle (degrees)

64.4

64.8

65.1

64.4

64.8

65.1

64.4

64.8

65.1

64.4

64.8

65.1

Fork rake

44

44

44

44

44

44

44

44

44

44

44

44

Trail

134

131

128

134

131

129

134

131

129

134

131

129

Wheelbase

1190

1189

1189

1222

1222

1221

1246

1246

1245

1281

1280

1280

Chain stay length

440

439

438

440

439

438

440

439

438

440

439

438

Bottom bracket drop

40

35

30

40

35

30

40

35

30

40

35

30

Stack

617

614

611

621

619

616

631

628

625

640

637

634

Reach

426

430

434

456

460

464

476

480

484

507

510

514

Stand over height

733

737

742

737

741

746

754

759

763

752

757

762

Handlebar width

800

800

800

800

800

800

800

800

800

800

800

0

Stem length

40

40

40

40

40

40

50

50

50

50

50

50

Crank length

165.0

165.0

165.0

170.0

170.0

170.0

170.0

170.0

170.0

170.0

170.0

170.0

Wheel size (front)

29"

29"

29"

29"

29"

29"

29"

29"

29"

29"

29"

29"

Wheel size (rear)

29"

29"

29"

29"

29"

29"

29"

29"

29"

29"

29"

29"

12

MOUNTAIN | PERFORMANCE | TRAIL

TRANCE X ADVANCED SX An all-new frameset is engineered with an Advanced-grade composite mainframe and swingarm. The “SX” indicates its descending focus, with additional travel including updated 145mm Maestro suspension in the rear and a beefier 160mm fork up front. The frame is equipped with two, three-position flip chips for the ultimate in versatility and adjustability.

The rear flip chip, located on the Maestro rocker arm, allows riders to adjust frame geometry and fine-tune handling for riding style and terrain. A second flip chip at the headset provides 10mm (-5mm, 0mm, +5mm) of reach adjustment.

Also new is an integrated down tube storage compartment for carrying trail-riding essentials.

5 1 10 6

4

3

11 7 9

8 2

Trance X Advanced SX

TECHNOLOGY

1 ADVANCED COMPOSITE

High-performance grade raw carbon is used to produce this custom frame material in our own composite factory. The mainframe and rear swingarm are handcrafted with monocoque construction for optimized stiffness-to-weight and an ultra-responsive ride quality.

2 MAESTRO SUSPENSION

Four strategically positioned pivot points and two linkages all work together

6 MIXED WHEEL SETUP

A 29-inch front wheel provides speed, stability and front-end control on rough,

technical trails. A 27.5-inch rear wheel adds agility and maneuverability to help riders rail corners, pop over features and show off their style.

7 FRAME STORAGE

New integrated frame storage inside the down tube makes it easy to carry

tools, snacks and other essentials. Mounts below the top tube offer an additional option for storage.

to create a single floating pivot for the most active, efficient and independent suspension system.

3 ADVANCED FORGED COMPOSITE

A high-pressure molding process is used to produce a complex shaped

carbon-fiber upper rocker arm that is lighter, stiffer and stronger than an aluminum version.

4 ADJUSTABLE FRAME GEOMETRY

Flip chip adjustability lets you switch between three settings depending on the

terrain you are riding. You can select a 63.2, 63.5 or 63.9-degree head angle and corresponding 75.6, 75.9 or 76.3-degree seat tube angle, resulting in a 30, 26 or 21mm bottom bracket drop (size medium).

5

REACH ADJUST

Three-position flip chip at the headset lets riders dial in cockpit dimensions

and geometry. This modular system helps fine tune the bike’s handling and rider position using two positioning chips that can be removed and swapped to achieve a Short (-5mm), Mid (0mm) or Long (+5mm) reach.

8

POWERCORE

A massively oversized bottom bracket area features a fully integrated, 92mm

wide design. Asymmetric chainstays provide additional stiffness on the driveside and increased stability on the non-driveside.

9 INTEGRATED FRAME PROTECTION

The driveside chainstay and down tube feature built-in protection against rocks

and debris. A clear 3M protective strip on the underside of the head tube/ down tube junction protects the frame when it’s loaded onto a shuttle vehicle.

10 BOOST TECHNOLOGY

Wider hub spacing (110mm front/148mm rear) results in stiffer wheels for

added control plus more tire clearance and an improved chainline for optimal drivetrain performance.

11 GIANT TUBELESS SYSTEM

Integrated Tubeless WheelSystem and tires deliver improved efficiency,

comfort and control in the most user-friendly and reliable system.

13

MOUNTAIN | PERFORMANCE | TRAIL

TRANCE X ADVANCED SX

Rock rolls, sketchy drops and step-ups. This new full-composite trail machine handles it all with confidence and control. New longer travel Maestro rear suspension (145mm), adjustable geometry, and a mixed wheel setup make it a singletrack sensation.

Trance X Advanced SX

KEY PERFORMANCE FACTORS

MORE TRAVEL This “SX” series features an all-new Maestro rear suspension system with added travel (145mm) for technical singletrack. The trunnion mount shock and Advanced Forged Composite rocker arm combine for a longer stroke that has a smooth, active feel, plus greater stiffness in the chassis for improved tracking over rough terrain. The rear suspension is paired with a longer travel 160mm suspension fork, giving aggressive trail riders added confidence and control.

ADJUSTABLE TRAIL GEOMETRY A three-position Maestro flip chip lets you dial in frame geometry to suit your riding style and terrain. The high setting adds more ground clearance, a good option for tight, technical singletrack. The low setting creates a slacker head angle and lower bottom bracket for confident handling at higher speeds. The middle position is neutral. In addition, a new headset flip chip provides 10mm of total reach adjustment.

MIXED WHEEL SETUP This model comes with a 27.5-inch rear wheel. The smaller wheel diameter delivers an agile, snappy feel on the trail and more saddle-to-tire clearance in the rear. Riders typically favor this “mullet” setup for riding steep, technical terrain.

TECHNOLOGIES

FRAME GEOMETRY (UNITS IN MM UNLESS OTHERWISE INDICATED) FRAME

S-LOW

S-MID

S-HIGH

M-LOW

M-MID

M-HIGH

L-LOW

L-MID

L-HIGH

XL-LOW

XL-MID

XL-HIGH

Seat tube length

400

400

400

425

425

425

450

450

450

475

475

475

Seatpost insertion

280.0

280.0

280.0

305.0

305.0

305.0

330.0

330.0

330.0

355.0

355.0

355.0

Seat tube angle (degrees)

75.5

75.9

76.3

75.6

75.9

76.3

75.6

76.0

76.3

75.7

76.0

76.3

Top tube length

574

573

572

605

604

603

627

626

625

660

659

658

Head tube length

100

100

100

105

105

105

115

115

115

125

125

125

Head tube angle (degrees)

63.1

63.5

63.9

63.2

63.5

63.9

63.2

63.6

63.9

63.3

63.6

63.9

Fork rake

44

44

44

44

44

44

44

44

44

44

44

44

Trail

144

141

138

144

141

138

143

141

138

143

140

138

Wheelbase

1194

1193

1193

1226

1225

1225

1250

1250

1249

1285

1284

1283

Chain stay length

440

439

438

440

439

438

440

439

438

440

439

438

Bottom bracket drop

30

25

21

30

26

21

30

26

21

31

26

21

Stack

626

623

621

631

628

625

640

638

635

650

647

644

Reach

413

417

421

443

447

451

463

467

471

494

497

501

Stand over height

725

729

734

739

743

748

762

760

765

773

778

782

Handlebar width

0

800

0

0

800

0

0

800

0

0

800

0

Stem length

40

40

40

40

40

40

50

50

50

50

50

50

Crank length

165.0

165.0

165.0

170.0

170.0

170.0

170.0

170.0

170.0

170.0

170.0

170.0

Wheel size (front)

29"

29"

29"

29"

29"

29"

29"

29"

29"

29"

29"

29"

Wheel size (rear)

27.5"

27.5"

27.5"

27.5"

27.5"

27.5"

27.5"

27.5"

27.5"

27.5"

27.5"

27.5"

14

MOUNTAIN | PERFORMANCE | TRAIL

TRANCE X The all-new frameset is engineered with a super strong and lightweight ALUXX SL aluminum chassis and updated Maestro suspension system. With 140mm of rear travel and a 150mm fork, it gobbles up rocks, roots and ruts with ease. The frame is equipped with two, three-position flip chips for the ultimate in adjustability. The rear flip chip, located on the Maestro rocker arm, lets you change frame geometry and switch the standard 29-inch rear wheel to 27.5 if you prefer. A second flip chip at the headset provides 10mm of reach adjustment. New, integrated frame storage inside the down tube makes it easy to carry tools, snacks and other essentials. Mounts below the top tube offer an additional option for storage, and protection on the down tube prevents damage from trail debris and transportation.

5 1

6

10

4

3

11 7 9

8 2

Trance X 1

TECHNOLOGY

1 ALUXX SL ALUMINUM

This high-performance, state-of-the-art aluminum material is made predominantly from 6011 alloy and delivers best-in-class strength-to-weight ratios. The frameset features advanced welding technologies for a highperformance ride quality.

2 MAESTRO SUSPENSION

Four strategically positioned pivot points and two linkages all work together

to create a single floating pivot for the most active, efficient and independent suspension system.

3 ADVANCED FORGED COMPOSITE

A high-pressure molding process is used to produce a complex shaped

carbon-fiber upper rocker arm that is lighter, stiffer and stronger than an aluminum version.

4

ADJUSTABLE FRAME GEOMETRY

Flip chip adjustability lets you switch between two settings depending on the

terrain you are riding. You can select a 64.4, 64.8 or 65.1-degree head angle and corresponding 76.8, 77.2 or 77.5-degree seat tube angle, resulting in a 40, 35 or 30mm bottom bracket drop (size medium).

5

REACH ADJUST

Three-position flip chip at the headset lets riders dial in cockpit dimensions

and geometry. This modular system helps fine tune the bike’s handling and rider position using two positioning chips that can be removed and swapped to achieve a Short (-5mm), Mid (0mm) or Long (+5mm) reach.

6 REAR WHEEL OPTIONS

Riders can choose either a 29- or 27.5-inch rear wheel, paired with a 29-

inch front wheel. The larger 29-inch option improves stability and roll-over capabilities, while the 27.5 option delivers a more agile, snappier feel. It’s a quick and easy way to adjust the bike’s handling and feel.

7 FRAME STORAGE

New integrated frame storage inside the down tube makes it easy to carry

tools, snacks and other essentials. Mounts below the top tube offer an additional option for storage.

8 POWERCORE

A massively oversized bottom bracket area features a fully integrated, 92mm

wide design. Asymmetric chainstays provide additional stiffness on the driveside and increased stability on the non-driveside.

9 INTEGRATED FRAME PROTECTION

The driveside chainstay and down tube feature more robust protection against

rocks and other trail debris compared to the previous generation.

10 BOOST TECHNOLOGY

Wider hub spacing (110mm front/148mm rear) results in stiffer wheels for

added control plus more tire clearance and an improved chainline for optimal drivetrain performance.

11 GIANT TUBELESS SYSTEM

Integrated Tubeless WheelSystem and tires deliver improved efficiency,

comfort and control in the most user-friendly and reliable system.

15

MOUNTAIN | PERFORMANCE | TRAIL

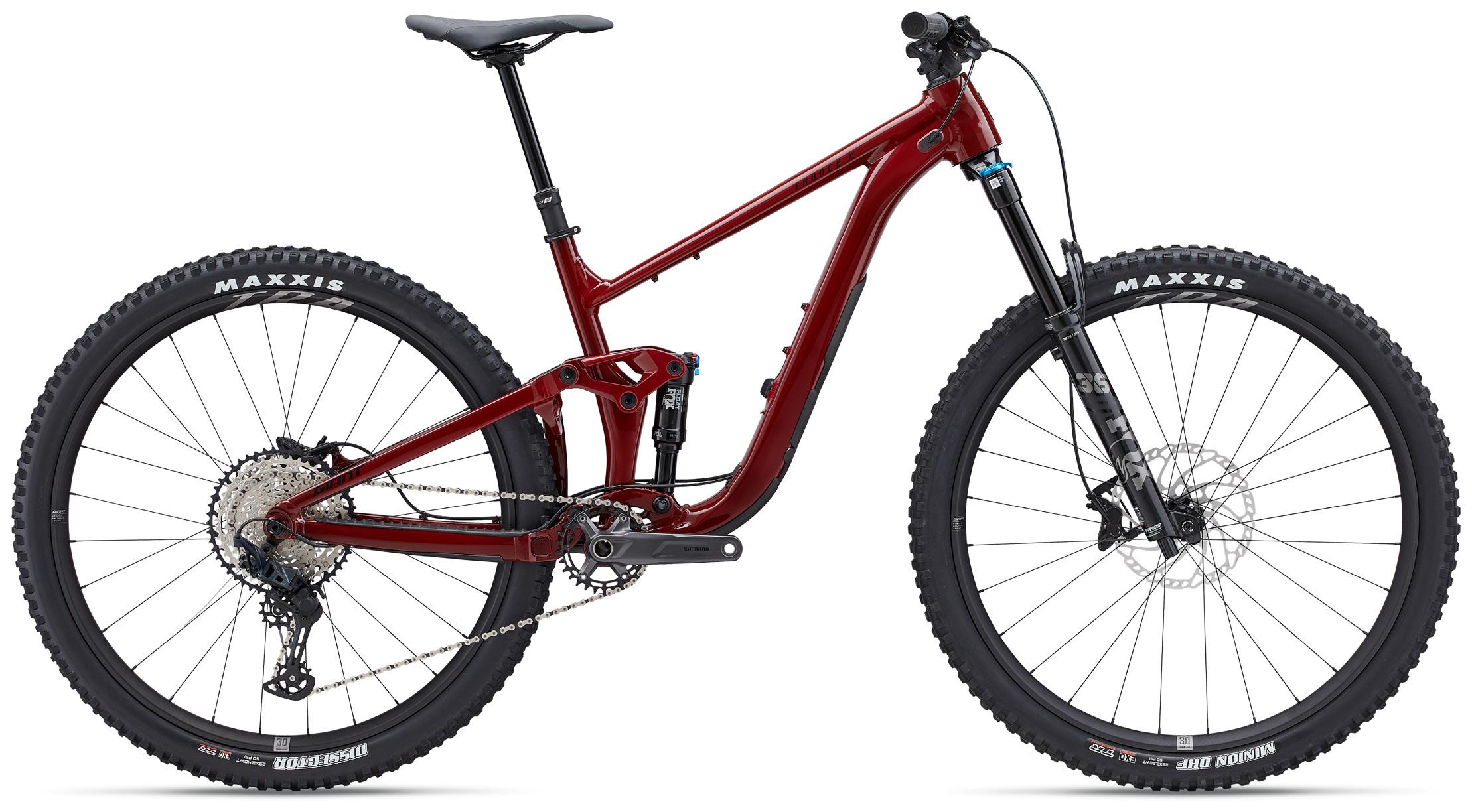

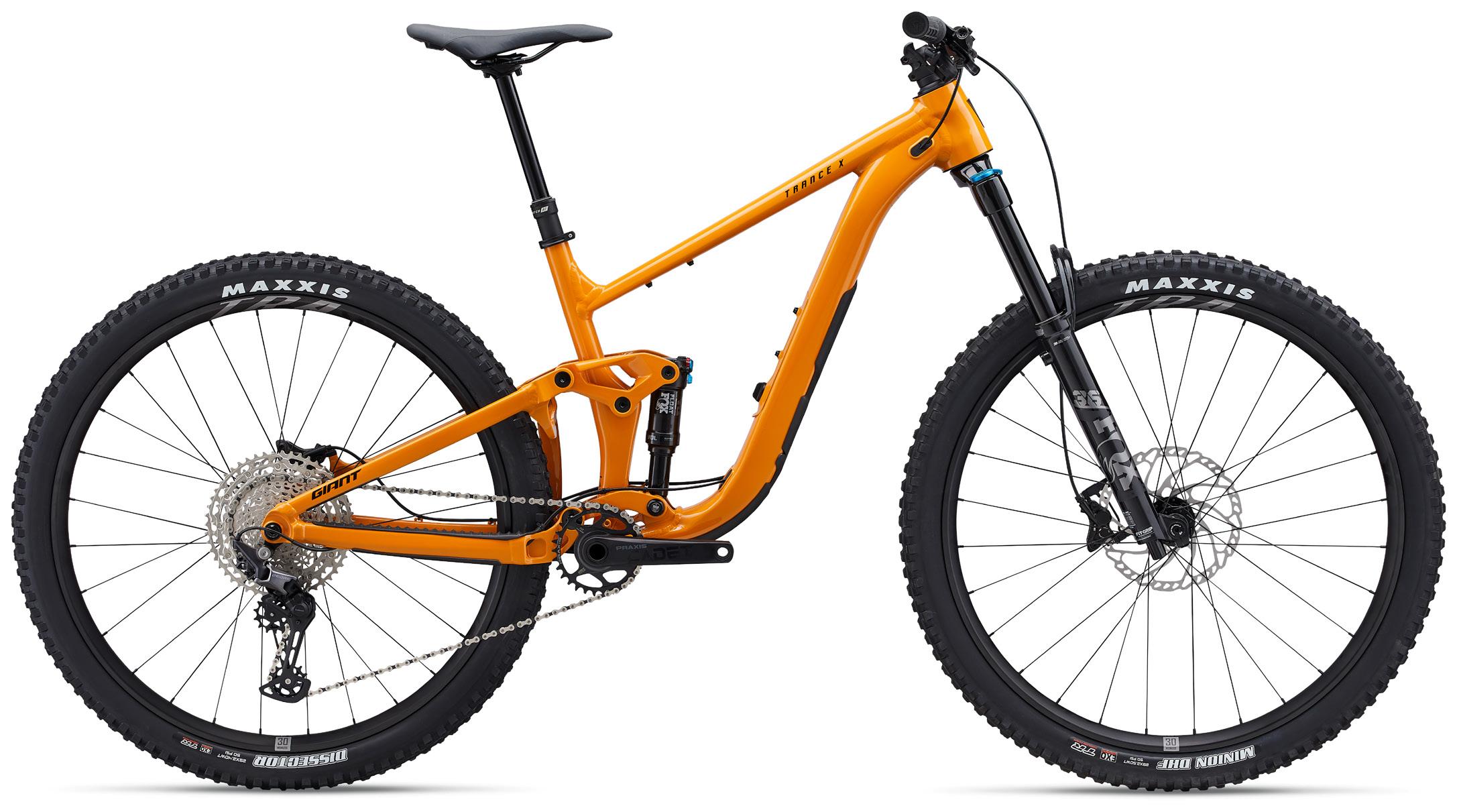

TRANCE X

Find your flow on technical trails. With adjustable geometry, the option to change rear wheel size, and a new 140mm Maestro rear suspension setup, this versatile trail bike steamrolls singletrack with confidence and control.

*Colorway not carried in USA line-up

Trance X 2

KEY PERFORMANCE FACTORS

UPDATED SUSPENSION A new Maestro rear suspension system gives trail riders 140mm of rear travel. The trunnion mount shock and Advanced Forged Composite rocker arm combine for a longer stroke that has a smooth, active feel, plus greater stiffness in the chassis for precision control. The rear suspension is paired with a 150mm travel fork, providing superior confidence and control on technical singletrack.

ADJUSTABLE TRAIL GEOMETRY A three-position Maestro flip chip lets riders dial in frame geometry for their riding style and terrain. The high setting adds more ground clearance, a good option for tight, technical terrain. In the low setting, the head tube gets slacker and the bottom bracket drops, ideal for confident handling at higher speeds. The middle position is neutral.

In addition, a new headset flip chip adjusts reach so that riders can easily achieve their preferred positioning.

REAR WHEEL OPTIONS All models come with 29-inch front and rear wheels, but the flip chip lets you opt for a mixed wheel setup including a 27.5 rear. The stock 29-inch rear wheel optimizes stability and roll-over capabilities, while a 27.5 delivers a more agile, snappier feel and more saddle-to-tire clearance in the rear. Some riders favor this “mullet” setup for riding steep, technical terrain.

TECHNOLOGIES

FRAME GEOMETRY (UNITS IN MM UNLESS OTHERWISE INDICATED) FRAME

S-LOW

S-MID

S-HIGH

M-LOW

M-MID

M-HIGH

L-LOW

L-MID

L-HIGH

XL-LOW

XL-MID

XL-HIGH

Seat tube length

400

400

400

425

425

425

450

450

450

475

475

475

Seatpost insertion

280.0

280.0

280.0

305.0

305.0

305.0

330.0

330.0

330.0

355.0

355.0

355.0

Seat tube angle (degrees)

76.8

77.2

77.5

76.8

77.2

77.5

76.8

77.2

77.5

76.8

77.2

77.5

Top tube length

571

570

569

602

601

600

624

623

622

656

656

655

Head tube length

100

100

100

105

105

105

115

115

115

125

125

125

Head tube angle (degrees)

64.4

64.8

65.1

64.4

64.8

65.1

64.4

64.8

65.1

64.4

64.8

65.1

Fork rake

44

44

44

44

44

44

44

44

44

44

44

44

Trail

134

131

128

134

131

129

134

131

129

134

131

129

Wheelbase

1190

1189

1189

1222

1222

1221

1246

1246

1245

1281

1280

1280

Chain stay length

440

439

438

440

439

438

440

439

438

440

439

438

Bottom bracket drop

40

35

30

40

35

30

40

35

30

40

35

30

Stack

617

614

611

621

619

616

631

628

625

640

637

634

Reach

426

430

434

456

460

464

476

480

484

507

510

514

Stand over height

732

737

742

746

750

755

763

768

773

781

758

790

Handlebar width

800

800

800

800

800

800

800

800

800

800

800

800

Stem length

40

40

40

40

40

40

50

50

50

50

50

50

Crank length

165.0

165.0

165.0

170.0

170.0

170.0

170.0

170.0

170.0

170.0

170.0

170.0

Wheel size (front)

29"

29"

29"

29"

29"

29"

29"

29"

29"

29"

29"

29"

Wheel size (rear)

29"

29"

29"

29"

29"

29"

29"

29"

29"

29"

29"

29"

16

MOUNTAIN | PERFORMANCE | TRAIL

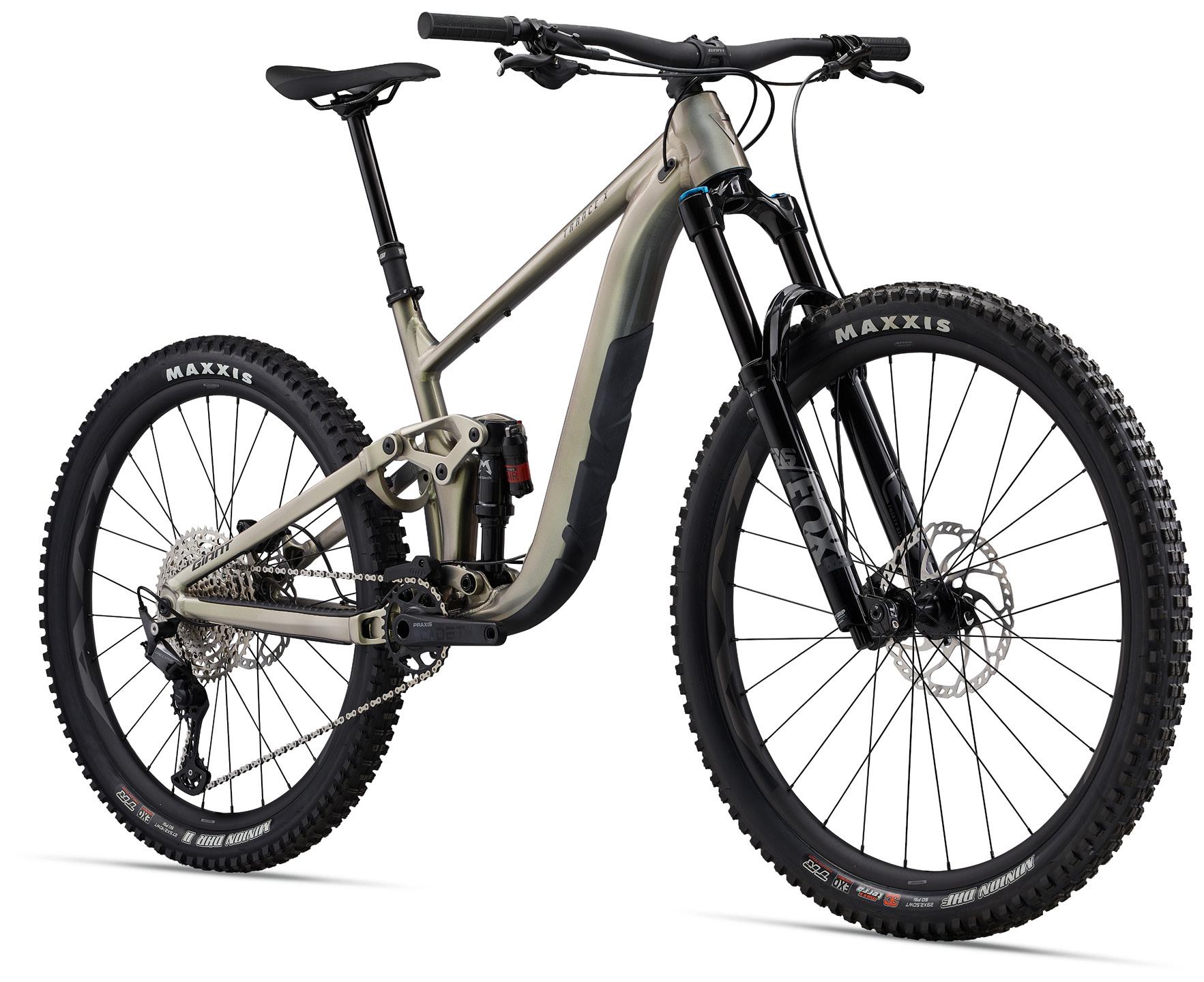

TRANCE X SX An ALUXX SL aluminum chassis features a new Maestro rear suspension setup with 145mm of rear travel. Combined with a 160mm fork, this longer travel trail bike gobbles up rocks, roots and ruts with total control. The mixed wheel “mullet” setup combines a 27.5-inch rear and 29-inch front, a playful combination that blends rollover capabilities with quick and agile maneuvering. The frame is equipped with two, three-position flip chips. The rear flip chip, located on the rocker arm, lets riders adjust geometry and fine-tune the handling. And a new headset flip chip offers 10mm of reach adjustment to dial in position and fit. New, integrated frame storage inside the down tube makes it easy to carry tools, snacks and other essentials. Mounts below the top tube offer an additional option for storage, and protection on the down tube prevents damage from trail debris and transportation.

5 1

6

10

4

3

11 7 9

8 2

Trance X SX

TECHNOLOGY

1 ALUXX SL ALUMINUM

This high-performance, state-of-the-art aluminum material is made predominantly from 6011 alloy and delivers best-in-class strength-to-weight ratios. The frameset features advanced welding technologies for a highperformance ride quality.

2 MAESTRO SUSPENSION

Four strategically positioned pivot points and two linkages all work together

to create a single floating pivot for the most active, efficient and independent suspension system.

3 ADVANCED FORGED COMPOSITE

A high-pressure molding process is used to produce a complex shaped

carbon-fiber upper rocker arm that is lighter, stiffer and stronger than an aluminum version.

4 ADJUSTABLE FRAME GEOMETRY

Flip chip adjustability lets you switch between two settings depending on the

terrain you are riding. You can select a 63.2, 63.5 or 63.9-degree head angle and corresponding 75.6, 75.9 or 76.3-degree seat tube angle, resulting in a 30, 26 or 21mm bottom bracket drop (size medium).

5

REACH ADJUST

Three-position flip chip at the headset lets riders dial in cockpit dimensions

and geometry. This modular system helps fine tune the bike’s handling and rider position using two positioning chips that can be removed and swapped to achieve a Short (-5mm), Mid (0mm) or Long (+5mm) reach.

6 MIXED WHEEL SETUP

A 29-inch front wheel provides speed, stability and front-end control on rough,

technical trails. A 27.5-inch rear wheel adds agility and maneuverability to help riders rail corners, pop over features and show off their style.

7 FRAME STORAGE

New integrated frame storage inside the down tube makes it easy to carry

tools, snacks and other essentials. Mounts below the top tube offer an additional option for storage.

8 POWERCORE

A massively oversized bottom bracket area features a fully integrated, 92mm

wide design. Asymmetric chainstays provide additional stiffness on the driveside and increased stability on the non-driveside.

9 INTEGRATED FRAME PROTECTION

The driveside chainstay and down tube feature more robust protection

against rocks and debris compared to the previous generation.

10 BOOST TECHNOLOGY

Wider hub spacing (110mm front/148mm rear) results in stiffer wheels for

added control plus more tire clearance and an improved chainline for optimal drivetrain performance.

11 GIANT TUBELESS SYSTEM

Integrated Tubeless WheelSystem and tires deliver improved efficiency,

comfort and control in the most user-friendly and reliable system.

17

MOUNTAIN | PERFORMANCE | TRAIL

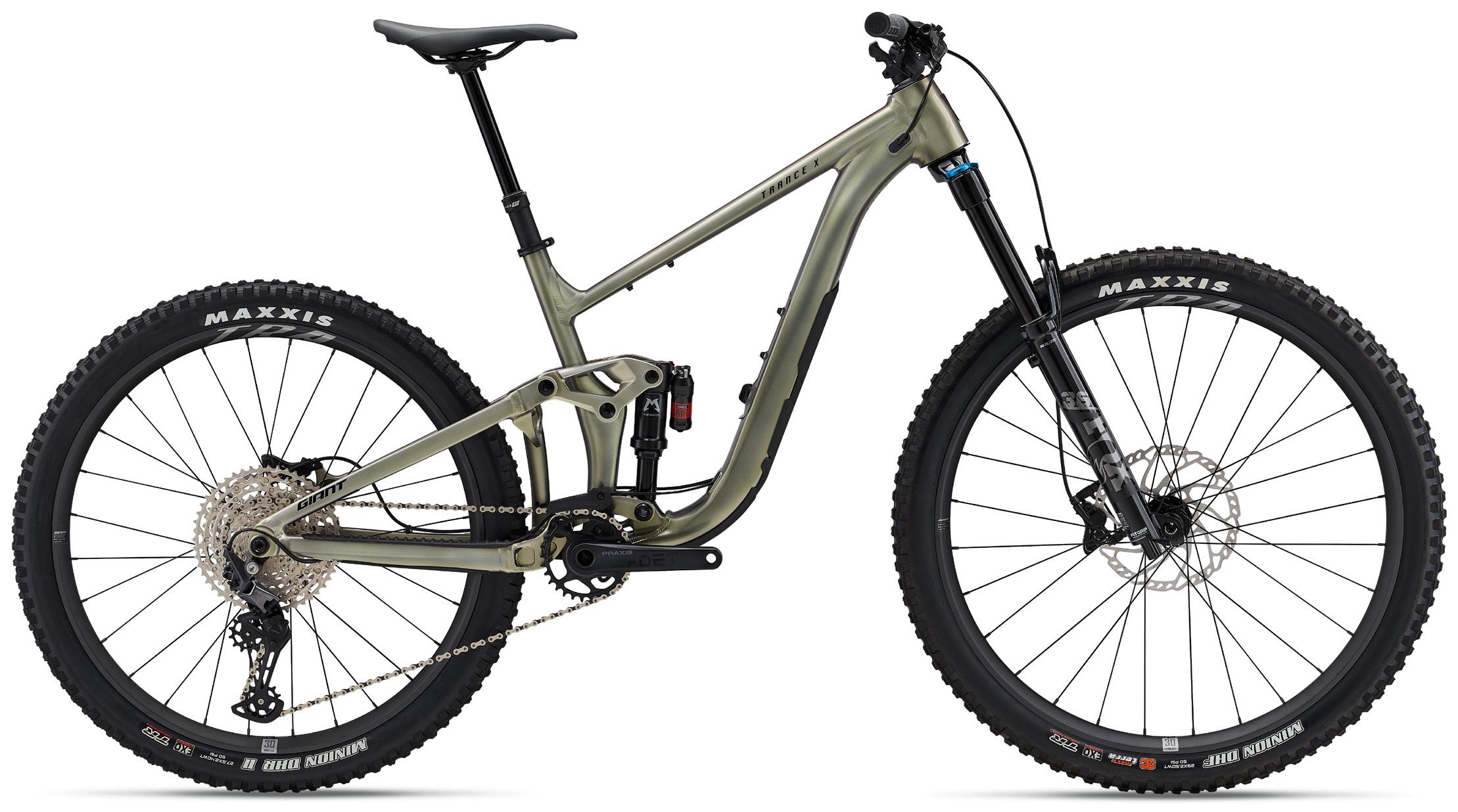

TRANCE X SX

From loam to chunder, alpine peaks to desert rock, this trail slayer has a 29-inch front wheel and 27.5-inch rear for the ultimate combo of quickness and control. With 145mm of rear suspension, a beefy 160mm fork, and adjustable geometry, it’s ready to let loose on black diamond descents.

Trance X SX

KEY PERFORMANCE FACTORS

UPDATED SUSPENSION This “SX” series features all-new Maestro rear suspension with added travel (145mm) for technical singletrack and rugged descents. The trunnion mount shock and Advanced Forged Composite rocker arm combine for a longer stroke that has a smooth, active feel, plus greater stiffness in the chassis for precision control. The rear suspension is paired with a longer travel 160mm fork, giving riders superior confidence and control on the descents.

ADJUSTABLE TRAIL GEOMETRY A three-position Maestro flip chip lets riders dial in frame geometry to suit their riding style and terrain. The high setting adds more ground clearance, a good option for tight, technical terrain. In the low setting, the head tube gets slacker and the bottom bracket drops, ideal for confident handling at higher speeds. The middle position is neutral. In addition, a new headset flip chip adjusts reach so you can easily achieve your preferred positioning.

REAR WHEEL OPTIONS A 29-inch front wheel provides speed, stability and front-end control on rough, technical trails. A 27.5-inch rear wheel adds agility and maneuverability to help riders rail corners, pop over features and show off their style.

TECHNOLOGIES

FRAME GEOMETRY (UNITS IN MM UNLESS OTHERWISE INDICATED) FRAME

S-LOW

S-MID

S-HIGH

M-LOW

M-MID

M-HIGH

L-LOW

L-MID

L-HIGH

XL-LOW

XL-MID

XL-HIGH

Seat tube length

400

400

400

425

425

425

450

450

450

475

475

475

Seatpost insertion

280.0

280.0

280.0

305.0

305.0

305.0

330.0

330.0

330.0

355.0

355.0

355.0

Seat tube angle (degrees)

75.5

75.9

76.3

75.6

75.9

76.3

75.6

76.0

76.3

75.7

76.0

76.3

Top tube length

574

573

572

605

604

603

627

626

625

660

659

658

Head tube length

100

100

100

105

105

105

115

115

115

125

125

125

Head tube angle (degrees)

63.1

63.5

63.9

63.2

63.5

63.9

63.2

63.6

63.9

63.3

63.6

63.9

Fork rake

44

44

44

44

44

44

44

44

44

44

44

44

Trail

144

141

138

144

141

138

143

141

138

143

140

138

Wheelbase

1194

1193

1193

1226

1225

1225

1250

1250

1249

1285

1284

1283

Chain stay length

440

439

438

440

439

438

440

439

438

440

439

438

Bottom bracket drop

30

25

21

30

26

21

30

26

21

31

26

21

Stack

626

623

621

631

628

625

640

638

635

650

647

644

Reach

413

417

421

443

447

451

463

467

471

494

497

501

Stand over height

725

729

734

739

743

748

762

760

765

773

778

782

Handlebar width

0

800

0

0

800

0

0

800

0

0

800

0

Stem length

40

40

40

40

40

40

50

50

50

50

50

50

Crank length

165.0

165.0

165.0

170.0

170.0

170.0

170.0

170.0

170.0

170.0

170.0

170.0

Wheel size (front)

29"

29"

29"

29"

29"

29"

29"

29"

29"

29"

29"

29"

Wheel size (rear)

27.5"

27.5"

27.5"

27.5"

27.5"

27.5"

27.5"

27.5"

27.5"

27.5"

27.5"

27.5"

#RIDEUNLEASHED
