Display upgrade interface

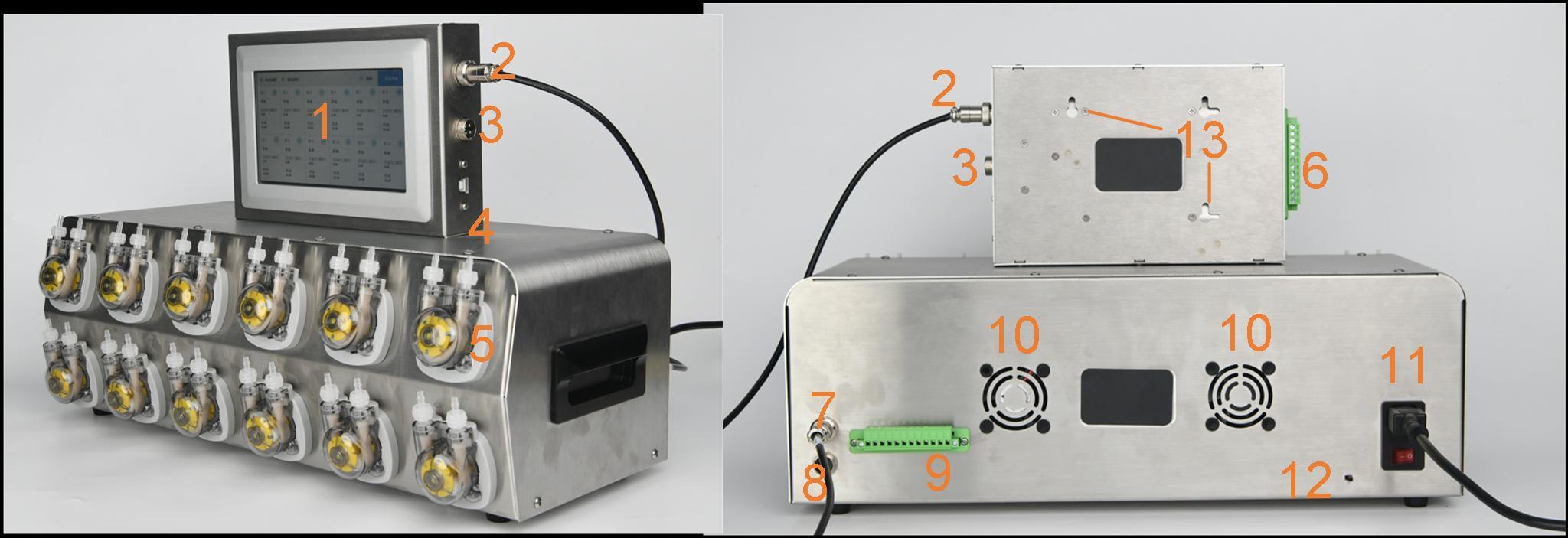

1.5 Product appearance
1. Touch screen controller 2. Display connection wire (6 cores) 3. Foot switch interface (4 cores) 4. Display screen upgrade line 5. KPAS100 pump head, which can be customized according to demand 6. The quick connect terminal of the touch screen controller has the functions of (1) CANL (2) CANH (3) RS485B (4) RS485A (5) foot pedal (6) grounding (11) operation state output (12) error state output (7) (8) (9) (10) standby from top to bottom 7. Outlet of online communication line, which can be connected to display controller 8. Inlet of online communication line 9. The quick connect terminal of the pump unit is (1) canl (2) canh (3) rs485b (4) rs485a (5) ~ (12) standby from left to right 10. Fan 11. Integrated power switch 12. Detailed settings of communication switch are as follows (looking from the back to the front)
Advertisement
Stand alone: Dial 12 to the right Online: middle slave, dial 12 to the left; The last slave, dial 12 to the right
13. Hanging hole
