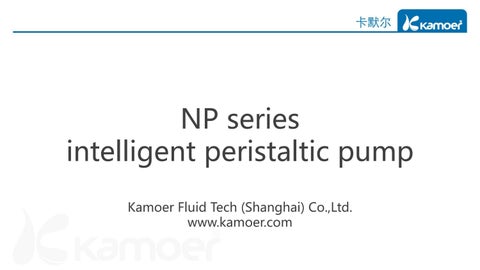

NP series intelligent peristaltic pump Kamoer Fluid Tech (Shanghai) Co.,Ltd. www.kamoer.com


1. Product introduction 2. Orders and documents 3. App 4. Precautions for use


1.1 Background introduction Scenario 1: remote control equipment is required to complete the experiment in cooperation with others. Each pump head independently controls the start and stop, sets the speed, operation mode, etc., and 12 pump heads are required Corresponding product NP12-KPAS100 Scenario 2: the enterprise laboratory tests the proportion of new solution, so that the No. 1 pump head always operates at a constant speed, and the No. 2 pump head circulates and operates quantitatively. The flow rates are adjustable respectively, and 12 pump heads are required Corresponding product NP04-KCS Scenario 3: ophthalmic equipment. The equipment operates locally. Each pump head is controlled independently. The flow rate needs 15ul/min, and 12 pump heads are required Corresponding product: NP12-KCS


1.2 Product introduction NP series peristaltic pump is a multi-channel intelligent peristaltic pump. The whole machine is made of stainless steel. It can be controlled through the touch screen provided by the device, or remotely controlled through App. It supports the independent operation of each pump head. The pump head includes manual mode. After triggering the pump operation, the pump will run continuously and stop again. It also supports quantitative mode. After triggering the pump to run for a certain quantity, the pump will stop after running for a certain quantity. In addition to the above functions, it also includes flow rate setting, calibration, suction back function, filling, emptying, running direction and other functions. The device includes external interfaces, including RS485, foot switch, and IO output functions. Different pump heads and tubes can be replaced to meet the needs of different flow ranges and accuracy.


1.3 Product features  It supports touch screen operation and remote App operation, and supports Android and IOS  Multiple pump heads to meet more filling channels at the same time  Support a variety of pump heads to meet the requirements of different flow and accuracy  A variety of peripheral interfaces, support RS485, switching value control and other external control methods  Each pump head can be configured and operated independently, including continuous mode and quantitative mode  Support flow calibration, anti dripping and back suction, flow rate adjustment, filling and emptying, running direction setting and other functions  Support remote firmware upgrade, make it easier to update software, and customize rich software functions


1.4 Application scenarios  Laboratory solution configuration  Production filling  And PLC constitute the system


1.5 Selling points  Laboratory solution configuration  Production filling  And PLC constitute the system


1.5 Product appearance

1. KCS pump head 2. Tube joint 3. connecting rod, for fixing buckle shell 4. Touch screen 5. Foot switch interface 6. Communication entrance 7. Communication outlet 8. Communication switch, as defined below Stand alone: 8 and 13 are all dialed to the right Online: middle slave, 8 and 13 are all dialed to the left; The last slave, 8 to the left, 13 to the right 9. Display upgrade interface 10. Function quick connect terminal. The functions from left to right are (1) CANL (2) CANH (3) RS485B (4) RS485A (5) foot pedal (6) grounding (11) operation state output (12) error state output (7) (8) (9) (10) standby 11. Fan 12. Integrated power switch


1.5 Product appearance

1. Touch screen controller 2. Display connection wire (6 cores) 3. Foot switch interface (4 cores) 4. Display screen upgrade line 5. KPAS100 pump head, which can be customized according to demand 6. The quick connect terminal of the touch screen controller has the functions of (1) CANL (2) CANH (3) RS485B (4) RS485A (5) foot pedal (6) grounding (11) operation state output (12) error state output (7) (8) (9) (10) standby from top to bottom 7. Outlet of online communication line, which can be connected to display controller 8. Inlet of online communication line 9. The quick connect terminal of the pump unit is (1) canl (2) canh (3) rs485b (4) rs485a (5) ~ (12) standby from left to right 10. Fan 11. Integrated power switch 12. Detailed settings of communication switch are as follows (looking from the back to the front) Stand alone: Dial 12 to the right Online: middle slave, dial 12 to the left; The last slave, dial 12 to the right 13. Hanging hole


1.6 Accessories Item No

Specifications


remarks

10.09.0502

Foot switch of dispensing machine; GX16-4 female plug; The line is 2 meters long

10.09.0532

NP04-KK15 communication line

Display screen and pump unit are used together

10.09.0531

NP04-KK15 with power communication line

It is used when the display is externally connected, and 10.09.0532 communication line is used between pump units

13.00.0041

FT-2; grease; Kamoer customization


1.7 Technical parameters Project

Parameter

Flow and accuracy

Refer to the corresponding pump head + pump tube parameters

Speed

0.1~350rpm

Support app

Kamoer Lab(IOS, Android)

Power adapter

Input: 100VAC - 240VAC Output: DC24V 2A

Interface

WiFi, RS485, foot switch

Working environment

Temperature 0 - 70 ℃, humidity 10% - 90% (non condensing)

Storage environment

Temperature -20 ℃ - 85 ℃, humidity 10% - 90% (non condensing)


1.8 Applicable pump head Applicable pump head

Applicable hose

KCS (3 rotors, 6 rotors)

13# 14# 19# 16# 40# 30# 01# 00#

Maximum reference flow

characteristic

300ml/min

Pagoda connector, high precision of pump head, long service life, expensive price

KCS3 (3 rotors, 6 rotors)

14# 19# 16# 40#

300ml/min

Threaded joint, high precision of pump head, long service life, expensive price

KPAS100

14# 19# 16#

110ml/min

Ruhr connector, with high precision of pump head, is cheaper than KCs

KPST

1.6*4.8 N 2.4*5.6 N

70ml/min

Quick tube change

KK300

13# 14# 19# 16# 40# 25#

330ml/min

Quick tube change

KK1800

14# 19# 16# 25#

1500ml/min

Quick tube change, large flow


1.9 Summary 1. Can the pump head be controlled independently? Answer: the parameters of each pump head can be set independently. The commonly used parameters include flow rate, filling liquid volume, circulation times, positive and negative rotation, back suction parameters, etc

2. External interface? Answer: 1. WIFI

2. RS485

3. Foot switch


(2) Order  Complete machine model NP12-KPAS-B163-GB; Stainless steel /3.2*6.4/3 rotor / national standard NP04-KCS-B163-GB; V2/ stainless steel /BPT/3.2*6.4/3 rotor / national standard NP04-KCS-B146-GB; V2/ stainless steel /BPT/1.6*4.8/6 rotor / national standard NP04-KCS-B166-GB; V2/ stainless steel /BPT/3.2*6.4/6 rotor / national standard NP04-KK15-S18-GB; Silicone /7.9*11.1/3 rotor / national standard

Item No

Description of material number

CK.33.15.0010 CK.33.15.0007 CK.33.15.0008 CK.33.15.0009 CK.33.15.0006

When searching the material number, search NP+ the number of pump heads required, such as NP04. If there is no required CK number, Jianfei book reviews and builds the corresponding material number The pump head specification, pump pipe specification, number of pump heads and other information need to be provided


2 Summary 1. NP series intelligent peristaltic pump currently supports pump heads of some specifications Answer: KCS

KCS3

KPAS100

KK300

KPST

KK1800


3 App Download  Scan the QR code on the packaging box to download  Apple users enter the app store, search "Kamoer lab" and find the app Download with the corresponding icon  Android mobile phone users enter Google play, domestic Huawei or Xiaomi mobile phone users enter their own app stores, and other domestic Android mobile phone users enter Tencent app stores, search "kamoer lab" and find the app Download with the corresponding icon

Applying

App Store

Google Play

Applying

Tencent app


3.1 Binding and control equipment WiFi remote control enables you to remotely control the operation of the device and check the operation status of the device through the App At the same time, only one app and touch screen control are supported. For example, when App is controlled, the pump on the touch screen does not work WiFi only supports 2.4G WiFi, not 5G WiFi


(4) Precautions for use  Before using the equipment, please read the instructions and follow the instructions  After the service life of the pump tube is reached, the pump tube needs to be replaced. The service life of the commonly used pump tube is 1000 hours for BPT tube and 200 hours for silicone tube. The software will record the service time of the pump tube  WiFi only supports 2.4G WiFi, not 5g WiFi


4.1 Summary 1. Can the touch screen and app operate the device at the same time Answer: No 2. Maximum pump heads supported by NP series Answer: 32
