FITTINGS | ELBOWS & END CAPS Elbows, Long Radius, Carbon Steel 90˚
OVERVIEW w Hot-formed from seamless pipe w Chamfered ends w Lightly oiled w No paint or lacquer
37-1/2˚
RELATED PRODUCTS w Domed end caps w Round discs and plates
IR
Part #
Type
SCH. 40 Size
Outside Dia.
Degree
Inside RAD (IR)
Material
Finish
Weight
SE4
Seamless
1-1/4"
ø 1.660"
90˚
1-1/16"
Carbon Steel
Mill
0.60 lbs. each
SE2
Seamless
1-1/2"
ø 1.900"
90˚
1-5/16"
Carbon Steel
Mill
0.90 lbs. each
SE6
Seamless
2"
ø 2.375"
90˚
1-13/16"
Carbon Steel
Mill
1.20 lbs. each
End Caps, Type C Weld-On, Steel OVERVIEW w Stamped steel w No chamfered ends w Lightly oiled RELATED PRODUCTS w Elbows INSTALLATION w Weld and grind smooth
L
Part #
Type
SCH. 40 Size
Outside Dia.
Material
Finish
Length (L)
Weight
3219B
Weld-On
1-1/4"
ø 1.660"
Steel
Mill
1-1/8"
0.18 lbs. each
3220B
Weld-On
1-1/2"
ø 1.900"
Steel
Mill
1-1/8"
0.22 lbs. each
3221B
Weld-On
2"
ø 2.375"
Steel
Mill
1-3/8"
0.33 lbs. each
3225-4B
Weld-On
4"
ø 4.500"
Steel
Mill
1-5/8"
0.90 lbs. each
Discover Bezdan Your one-stop shop for pipe and tube fittings, glass and cable railing. Explore hundreds of products, industry news, expert resources and effortless online ordering. Go to geobezdan.com
10/25
geobezdan.com
1 800 663 6356
3
NEW! Clickable Content
n Pipe & Tube Railing | Bezdan Select

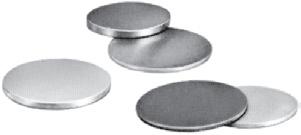

FITTINGS | DISCS & PLATES Discs, Plain, Steel OVERVIEW w Stamped steel w Lightly oiled
ø
RELATED PRODUCTS w Elbows Gauge/Thickness
Part #
Type
Diameter (ø)
SCH. 40
Material
Finish
Gauge/Thickness Weight
D030
Plain
ø 1-5/16"
1"
Steel
Mill
10
0.06 lbs. each
D039
Plain
ø 1-3/8"
-
Steel
Mill
10
0.05 lbs. each
D045
Plain
ø 1-1/2"
-
Steel
Mill
10
0.07 lbs. each
D060
Plain
ø 1-5/8"
1-1/4"
Steel
Mill
10
0.08 lbs. each
D075
Plain
ø 1-7/8"
1-1/2"
Steel
Mill
10
0.10 lbs. each
D090
Plain
ø 2"
-
Steel
Mill
10
0.10 lbs. each
D105
Plain
ø 2-3/8"
2"
Steel
Mill
10
0.15 lbs. each
D132-1
Plain
ø 2-7/8"
2-1/2"
Steel
Mill
10
0.25 lbs. each
D135
Plain
ø 3"
-
Steel
Mill
10
0.30 lbs. each
D165
Plain
ø 3-1/2"
3"
Steel
Mill
10
0.36 lbs. each
D195
Plain
ø 4"
3-1/2"
Steel
Mill
10
0.50 lbs. each
D035
Plain
ø 1-5/16"
1"
Steel
Mill
1/4"
0.09 lbs. each
D071-1
Plain
ø 1-3/8"
-
Steel
Mill
1/4"
0.10 lbs. each
D053
Plain
ø 1-1/2"
-
Steel
Mill
1/4"
0.13 lbs. each
D065
Plain
ø 1-5/8"
1-1/4"
Steel
Mill
1/4"
0.13 lbs. each
D080
Plain
ø 1-7/8"
1-1/2"
Steel
Mill
1/4"
0.18 lbs. each
D098
Plain
ø 2"
-
Steel
Mill
1/4"
0.19 lbs. each
D110
Plain
ø 2-3/8"
2"
Steel
Mill
1/4"
0.28 lbs. each
D134-1
Plain
ø 2-7/8"
2-1/2"
Steel
Mill
1/4"
0.47 lbs. each
D143
Plain
ø 3"
-
Steel
Mill
1/4"
0.49 lbs. each
D173
Plain
ø 3-1/2"
3"
Steel
Mill
1/4"
0.60 lbs. each
D203
Plain
ø 4"
3-1/2"
Steel
Mill
1/4"
0.80 lbs. each
Plates, Round with Holes, Steel OVERVIEW w Fabricate handrail brackets w Stamped steel w Lightly oiled w Holes are not countersunk
ø 1/4" Holes (3) ø 1/2" Center Hole
4
Part #
Type
Diameter
Center Hole
Material
Finish
Thickness
Weight
DISC B-2
3 Holes
ø 3-1/2"
ø 1/2"
Steel
Mill
3/16"
0.50 lbs. each
geobezdan.com
1 800 663 6356
10/25
NEW! Clickable Content
n Pipe & Tube Railing | Bezdan Select

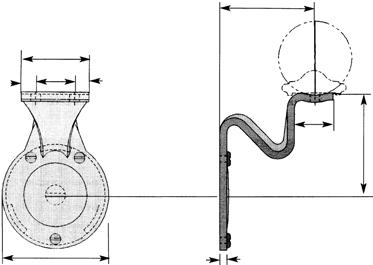

FITTINGS | HANDRAIL BRACKETS Brackets, 1/4" Welded Disc and Bar, Steel 1/2"
OVERVIEW w Saddle suits round, square or rectangular handrail w Fully weldable 1/4" plate w Lightly oiled w Holes are not countersunk w Test Report for BB 4.0 w Test Report for BB 4.5
3" or 3-1/2"
ø 5/16" Holes (3) 1/2"
R=1"
3"
ø 2.94"
3-15/16"
1/2"
Both Brackets
1/4"
Part #
Saddle Type
Holes to Wall
Wall to Saddle
Material
Finish
Weight
BB 4.0
Round or Flat
3
3"
Steel
Mill
1.06 lbs. each
BB 4.5
Round or Flat
3
3-1/2"
Steel
Mill
1.08 lbs. each
Brackets, 3/16" Formed, Steel
ø 1/4" Holes (2)
ø 7/16" Hole
3426B
3434B, 3442B
OVERVIEW w Saddle suits round, square or rectangular handrail w Stamped steel w Fully weldable 3/16" plate w Lightly oiled w Holes are not countersunk w Test Report available
ø 1/4" Holes (3)
3458B, 3466B
2-1/2" or 3"
1-3/4" 1"
3/8" ø 1/4" Holes (2) 15/16"
2-3/4"
10/25
2-1/2"
3/8"
3/16"
Part #
Saddle Type
Holes to Wall
Wall to Saddle
Material
Finish
Weight
3434B
Round or Flat
2
2-1/2"
Steel
Mill
0.53 lbs. each
3458B
Round or Flat
3
2-1/2"
Steel
Mill
0.53 lbs. each
3426B
Round or Flat
1
3"
Steel
Mill
0.53 lbs. each
3442B
Round or Flat
2
3"
Steel
Mill
0.52 lbs. each
3466B
Round or Flat
3
3"
Steel
Mill
0.52 lbs. each
geobezdan.com
1 800 663 6356
5
NEW! Clickable Content
n Pipe & Tube Railing | Bezdan Select
FITTINGS | HANDRAIL BRACKETS Brackets, 3/16" Formed, Steel 1-3/4" 1"
3/8"
Wall
3/8"
OVERVIEW w Saddle suits round, square or rectangular handrail w Stamped steel w Fully weldable 3/16" plate w Lightly oiled w Holes are not countersunk w Test Report available w The clearance from the underside of the handrail to the horizontal arm exceeds other formed brackets in this section by 1"
2-1/2"
ø 1/4" Holes (2)
1-1/2"
3-1/2"
ø 7/16" Hole
3/16"
2-3/4"
Part #
Saddle Type
Holes to Wall
Wall to Saddle
Material
Finish
Weight
3419B
Round or Flat
1
2-1/2"
Steel
Mill
0.52 lbs. each

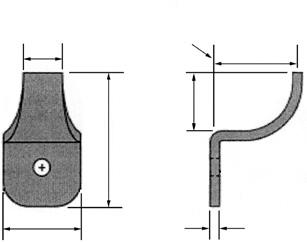

Brackets, 1/4" Formed, Steel Wall
OVERVIEW w Saddle suits round, square or rectangular handrail w Stamped steel w Fully weldable 1/4" plate w Lightly oiled w Hole is not countersunk w Test Report available
2-1/4" or 3"
3-13/32"
1-1/2"
1"
2"
ø 7/16" Hole
1/4"
Part #
Saddle Type
Holes to Wall
Wall to Saddle
Material
Finish
Weight
BB 2.5
Round or Flat
1
2-1/4"
Steel
Mill
0.55 lbs. each
BB 3.0
Round or Flat
1
3"
Steel
Mill
0.55 lbs. each
