GEMSEAL ABHILASH INDUSTRIES
Packaging Machine Portfolio
Oil • Milk & Sambaram • Powder & Granule • Bottle Filling • Sipup/Candy Packing Machines
Engineering Precision Packaging Since 1994
Founded in 1994 as GEMPAC; rebranded to GEMSEAL to reflect advanced mechatronics and upgraded quality.
Fully automatic Form Fill Seal (FFS) machines for Oil, Water, Milk, Powder, and Granules.
Strong presence across Kerala and Tamil Nadu, with export customers in UAE, Saudi Arabia, Sri Lanka, and Algeria.
A dedicated R&D and engineering team based in South Kalamassery, Kochi, Kerala.

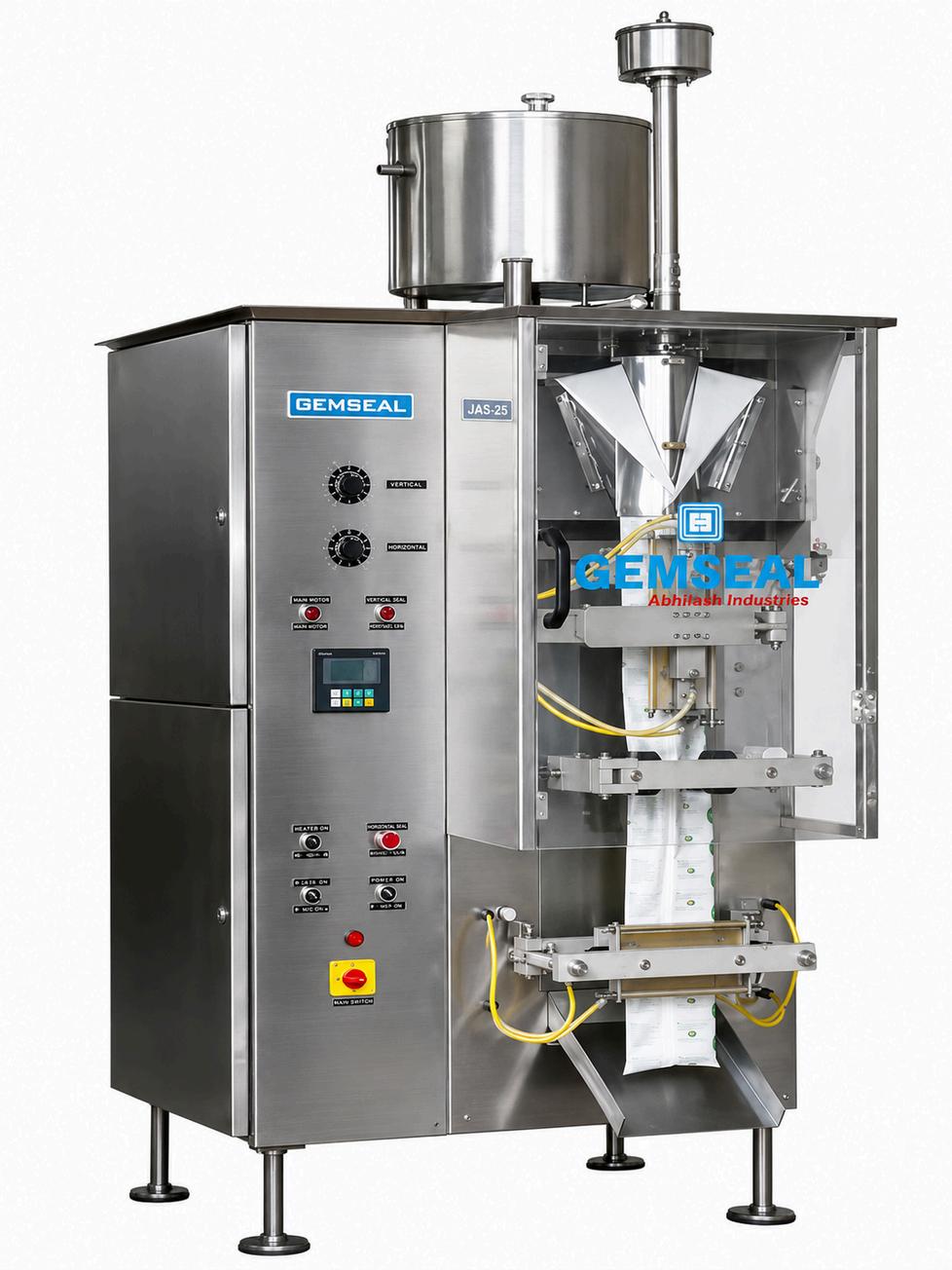

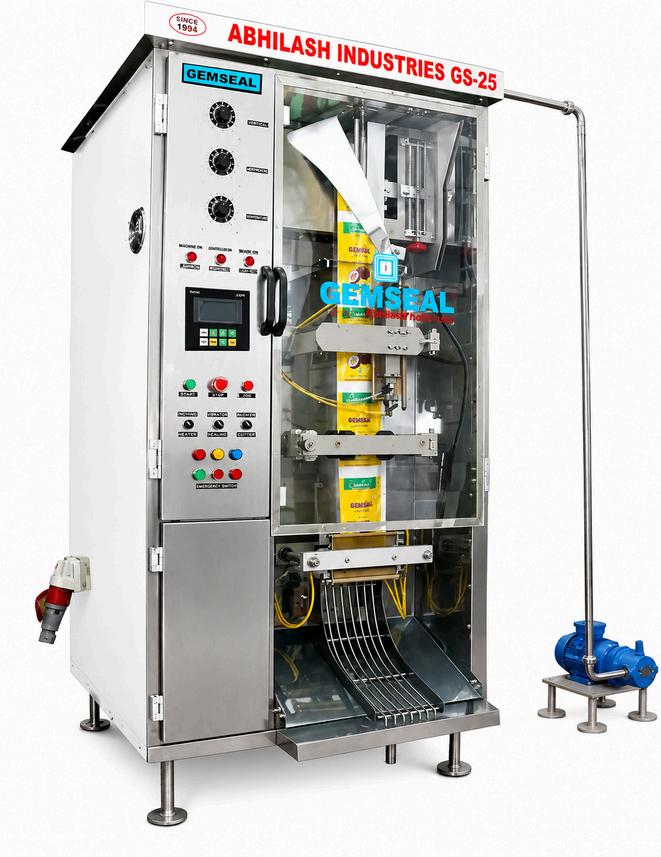

Oil Packing Machine
Mechanical & fully automatic FFS models — GS-15, GS20, GS-25, GS-30, GS-5000
KEY SPECIFICATIONS
Capacity range: 200ml – 1000ml (GS-15/20/25/30 series)
5 KG variant available: GS-5000
Speed: 16–25 pouches per minute
GDC control and display, center/side seal
FEATURES
Fully automatic machine with PLC and touchscreen (higher models)
Contact parts made of food-grade materials
Motorised film carrier & roll unwinding (GS-30)
Quantity adjustable with high accuracy and consistency APPLICATIONS
Edible oil, ghee, vanaspathi, lubrication oils, paint & varnishes, fruit pulps
KEY SPECIFICATIONS

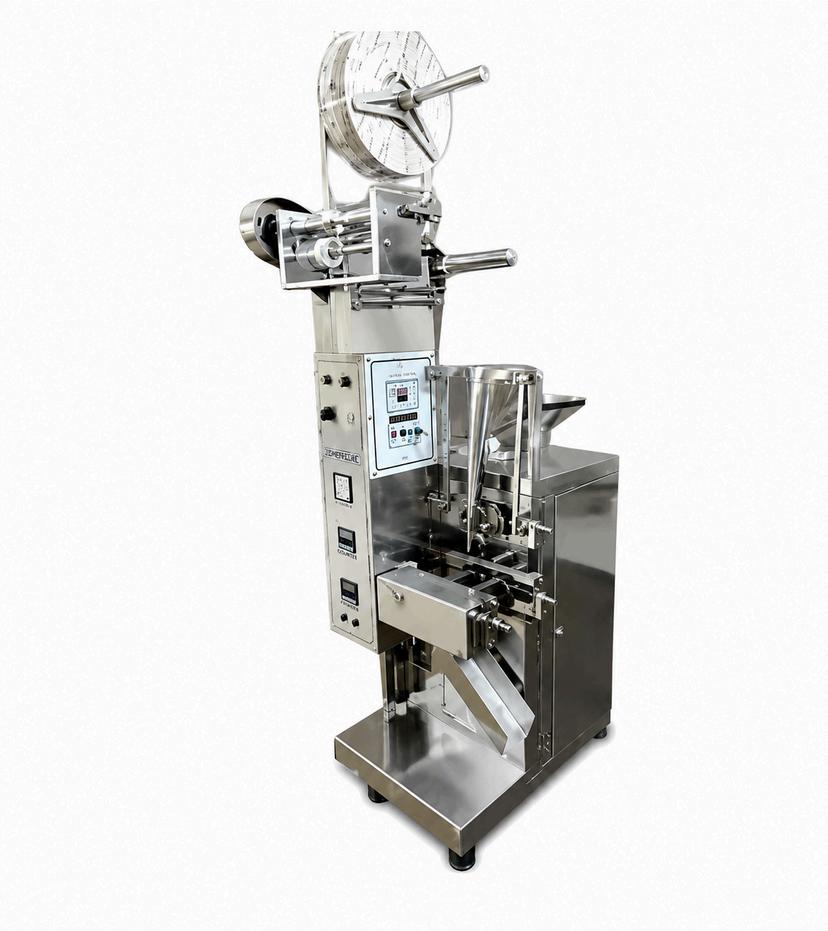

Sipup / Candy Packing
Packing range: 30–40ml
Speed: 35–40 pouches per minute
Motor: 1/2 HP single phase
Heater load: 350W (4 heaters)
FEATURES
Sealing type: 3-side sealing / center sealing
Works with any heat-sealable laminated film
Machine size: 750 × 560 × 1800 mm
Net weight: approx. 250 kg
APPLICATIONS
Sipup drinks, candies, and confectionery pouches
3-side / center seal pouch packing for confectionery
Packing Machine
KEY SPECIFICATIONS
Capacity: 50ml – 200ml
Speed: 20–30 pouches per minute
Input: 415V AC, 50Hz, 3-phase, 4-wire
Connected load: 4 KW
FEATURES
Contact parts made of food-grade materials
Operator friendly, high accuracy & consistency
Quantity adjustable to exact needs
Optional: photocell, batch coding, servo stabilizer
APPLICATIONS
Edible oil, ghee, vanaspathi, lubrication oils, paint & varnishes, fruit pulps, car shampoo
Oil, Ghee, Car Shampoo
GS-200 laminated, side seal, GDC control & display

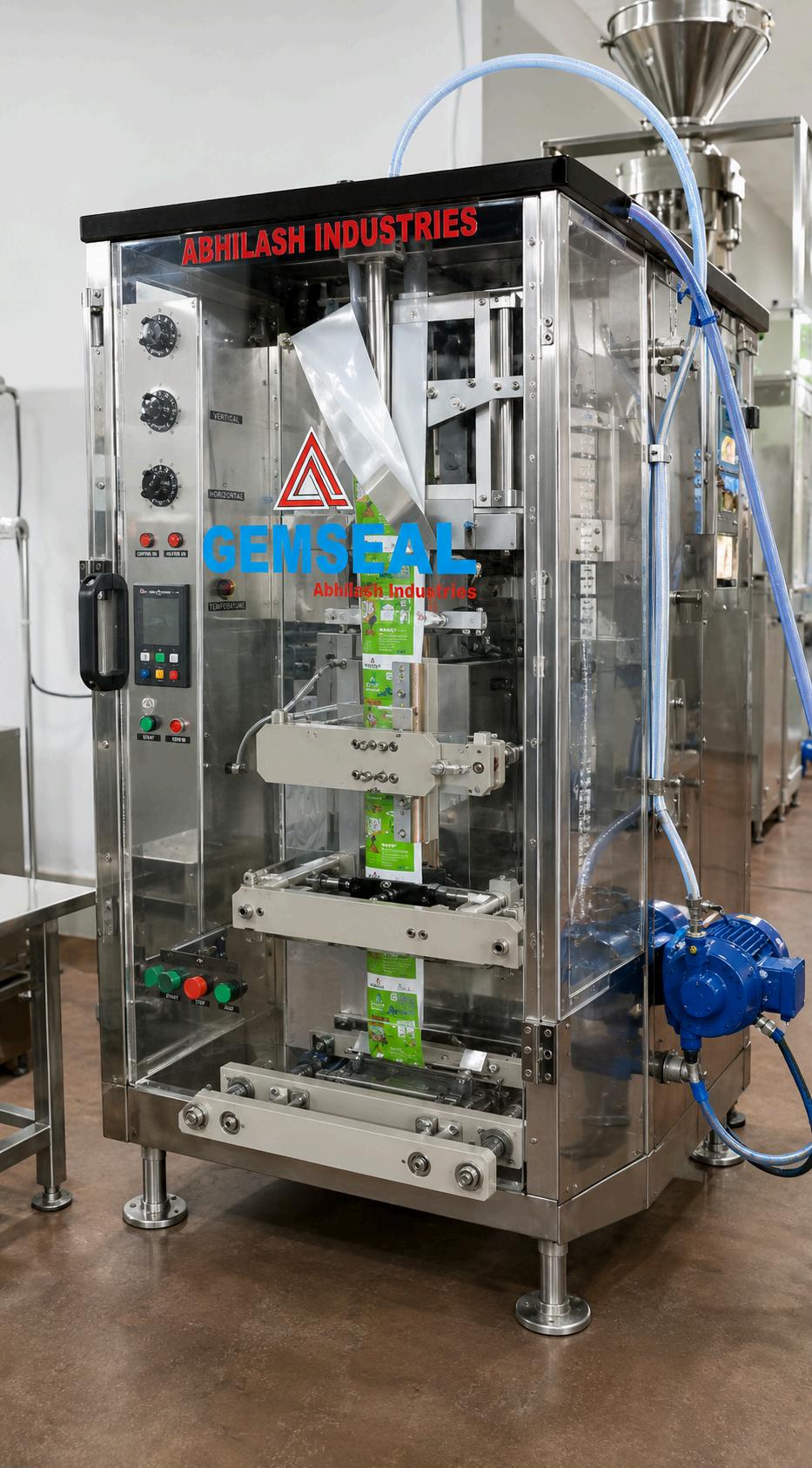

Milk / Sambaram Packing
KEY SPECIFICATIONS
GS-203 C (Closed Body): Speed 30–50 ppm
GS-203 (Open Body): Speed 30–35 ppm
Double Head (DH) variants: up to 50–60 ppm
Accessory required: 5 KVA stabilizer
FEATURES
Fully automatic with GDC control and display
Contact parts made of food-grade materials
Quantity adjustable with ease
Operator friendly, high consistency APPLICATIONS
Milk pouches and Sambaram (buttermilk) packaging for dairies
GS-203 (Open) & GS-203 C (Closed body) single & double head

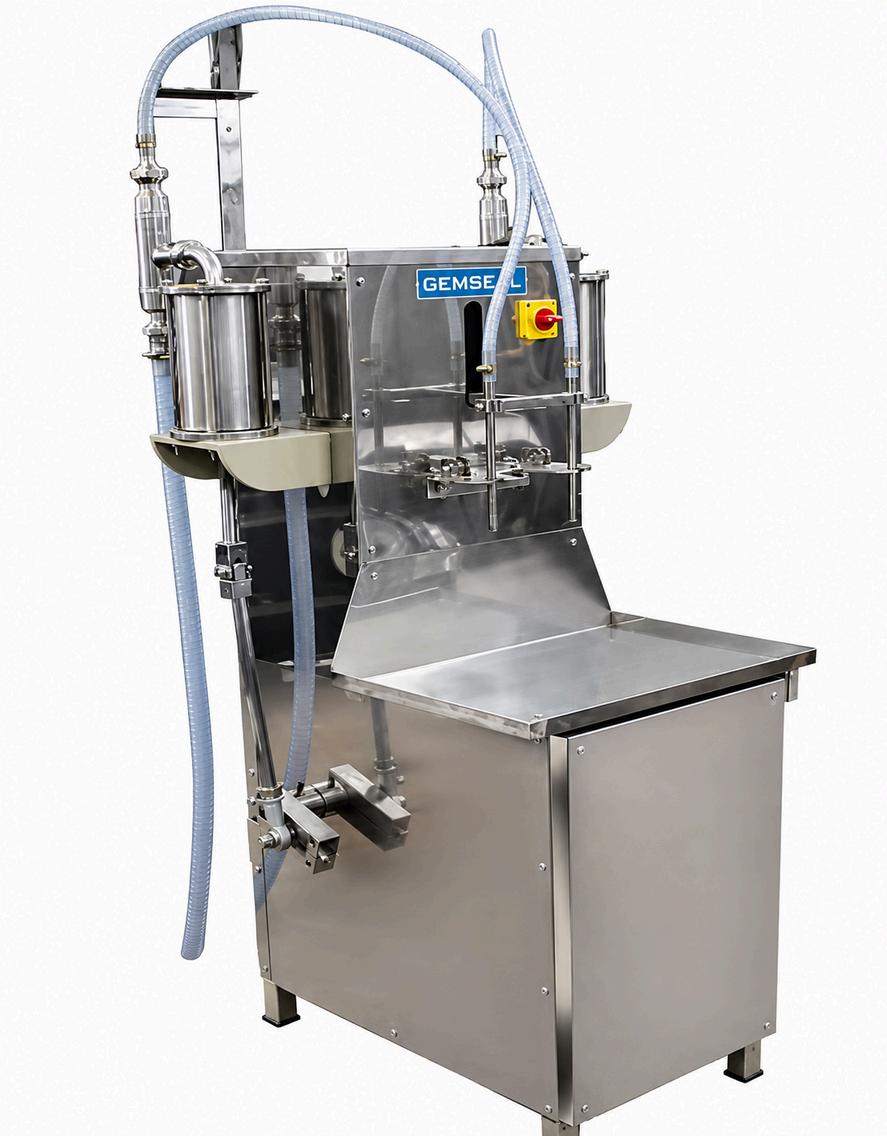

Semi-Automatic Bottle
Filling
Mechanical type volumetric bottle filler
KEY SPECIFICATIONS
Capacity: up to 1000ml
Speed: 6–10 bottles per minute
Motor: 1 HP single phase
FEATURES
Contact parts made of food-grade materials
Operator friendly design
Higher accuracy and consistency
Fill quantity adjustable to requirement APPLICATIONS
Edible oils, lubricants, liquids requiring bottle-format filling

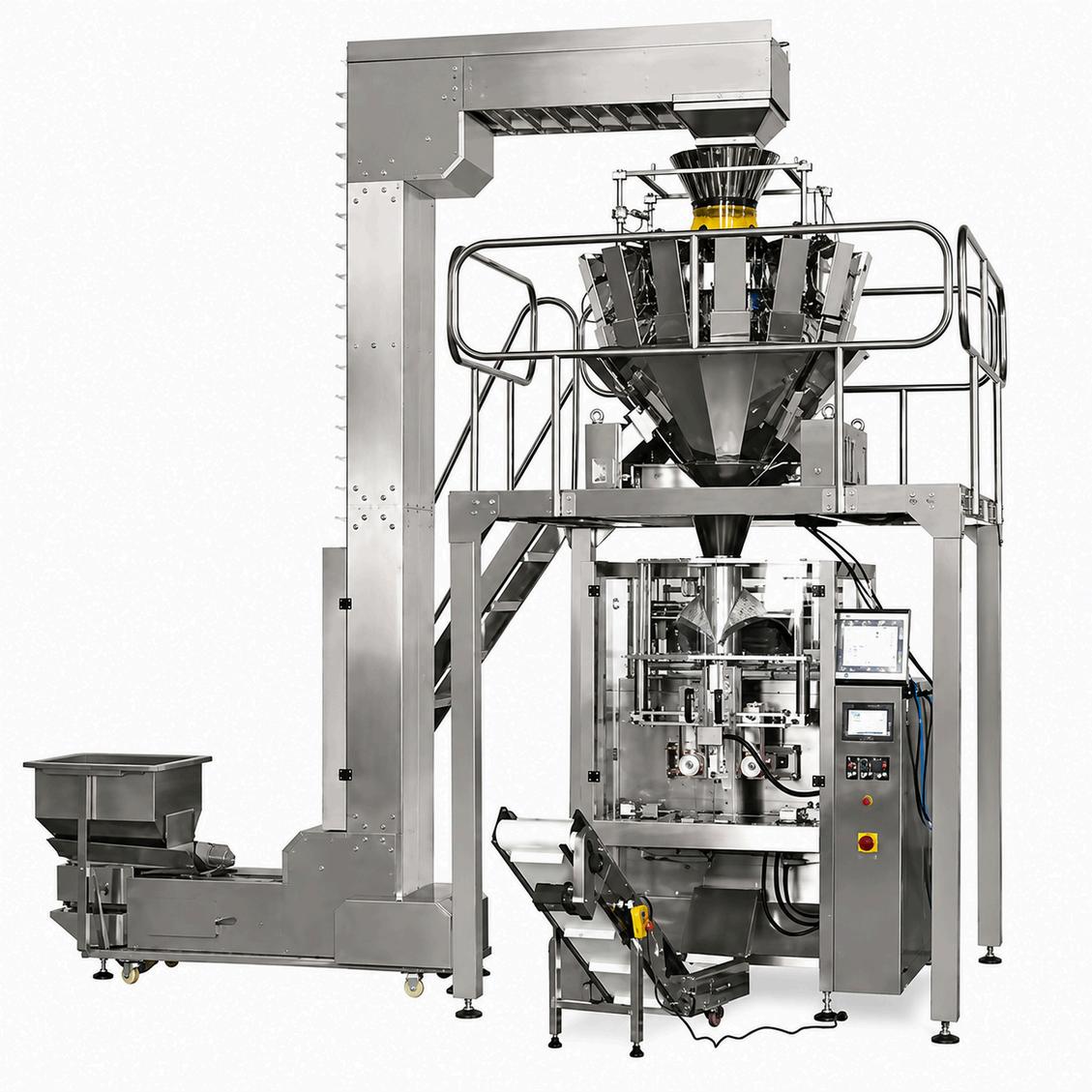

Multihead Weigher — GS-
KEY SPECIFICATIONS
Weight range: 10gm – 1000gm | Accuracy: 0.5–1.5gm
Max speed: 65 pouches per minute
Bucket size: 1.6L | Weight: 375 kg
7" touchscreen HMI
FEATURES
CE-marked PLC & touchscreen automation
Highest speed & accuracy in the weigher range
Perforation system for chain pouches
Adjustable stroke for optimum sealing APPLICATIONS
Spices, atta, milk powder, coffee powder, agro-chemicals, wheat & rice powder
Pneumatic, PLC-based, servo/non-servo, high-speed multihead
Make Packaging Simple
