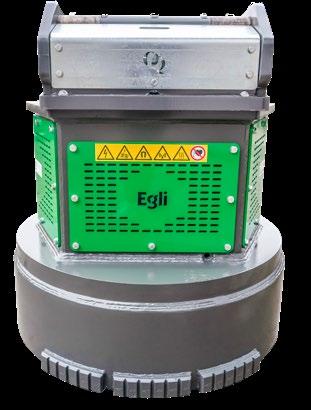

Egli hydraulic magnet
Redesign and maximum magnetic force
Hydraulic magnet by Egli Expert for sorting and demolition work
The Egli hydraulic magnet: where efficiency meets performance
With our hydraulic magnet, you not only optimise the quality of your demolition material, but also increase your profitability, because the separated iron can be resold directly.
Continuously developed since 2007, the Egli hydraulic magnet offers maximum performance, precise and efficient ejection control and an impressively long service life.
In addition, cleaning the truck route ensures a tidy construction site while significantly reducing the risk of tyre damage; delivering safety, efficiency, and reliability to your operations.
swiss enginerring
Performance significantly increased
► increased performance due to larger magnet plate
► maintenance-friendly due to new design
► improved ESCO wear and tear protection
YouTube video

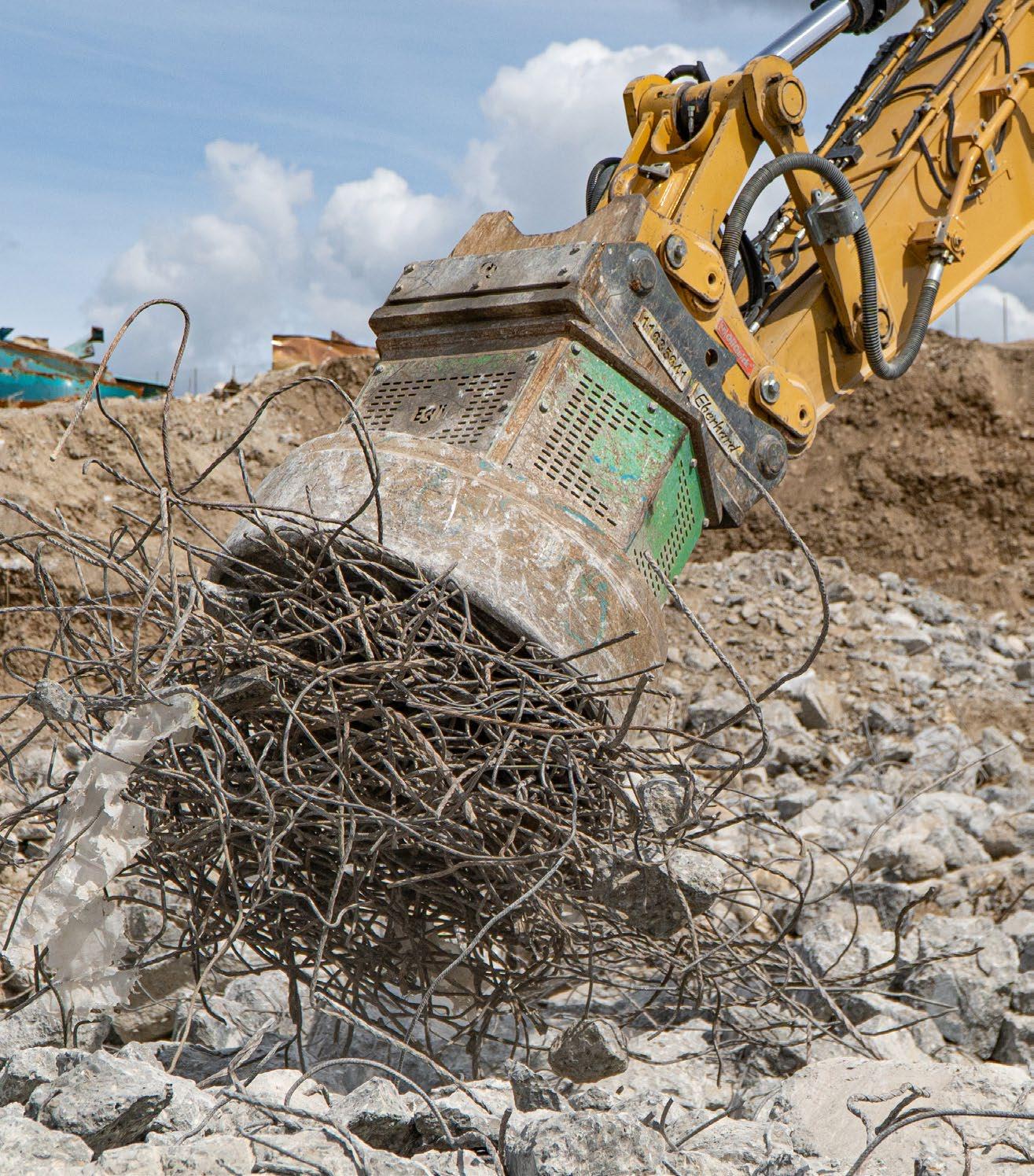

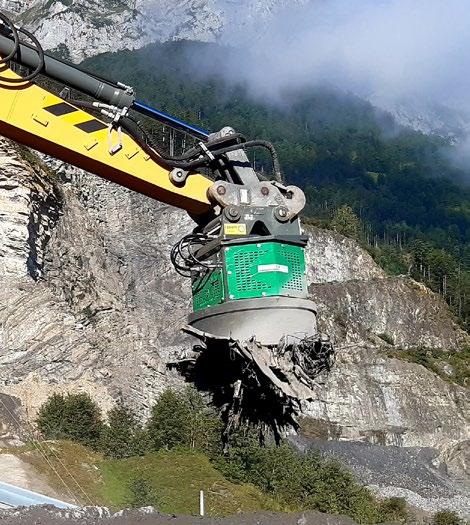

Using a hydraulic magnet

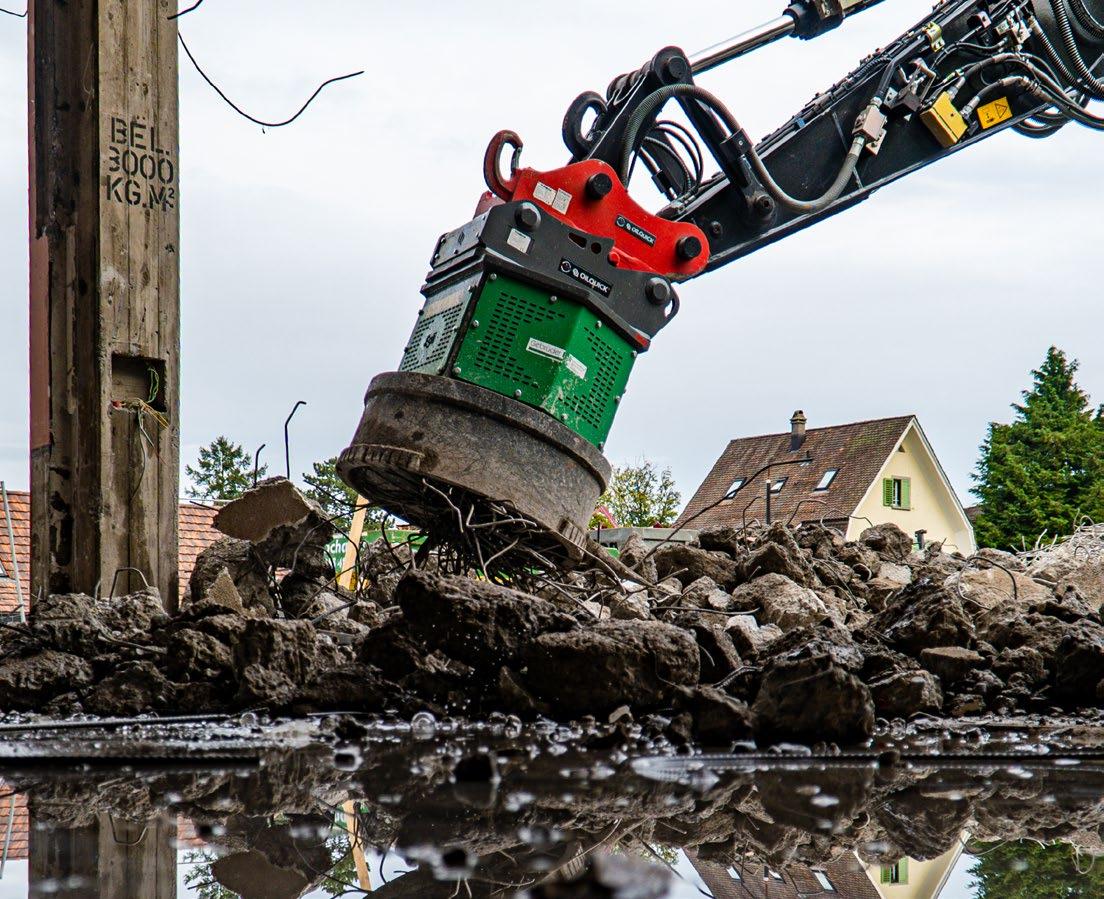

► Clean-up
swift and simple clean-up of roadways

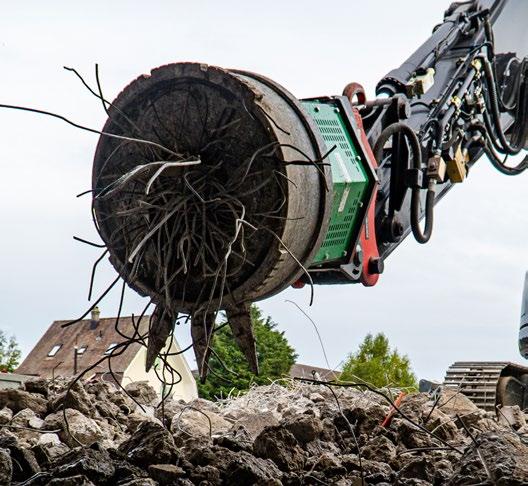

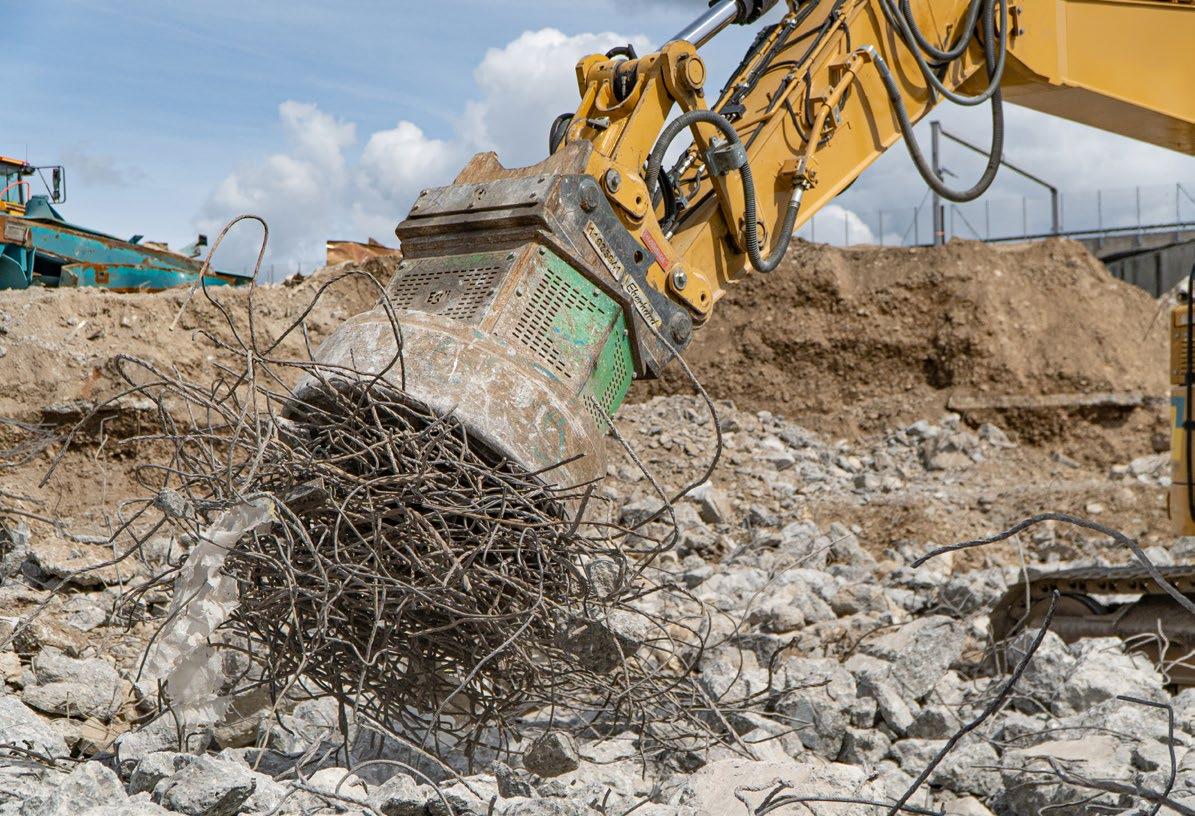

► Sorting
Pre-sorted material protects the concrete crushers
► Presorting quick and easy without troublesame manual labor

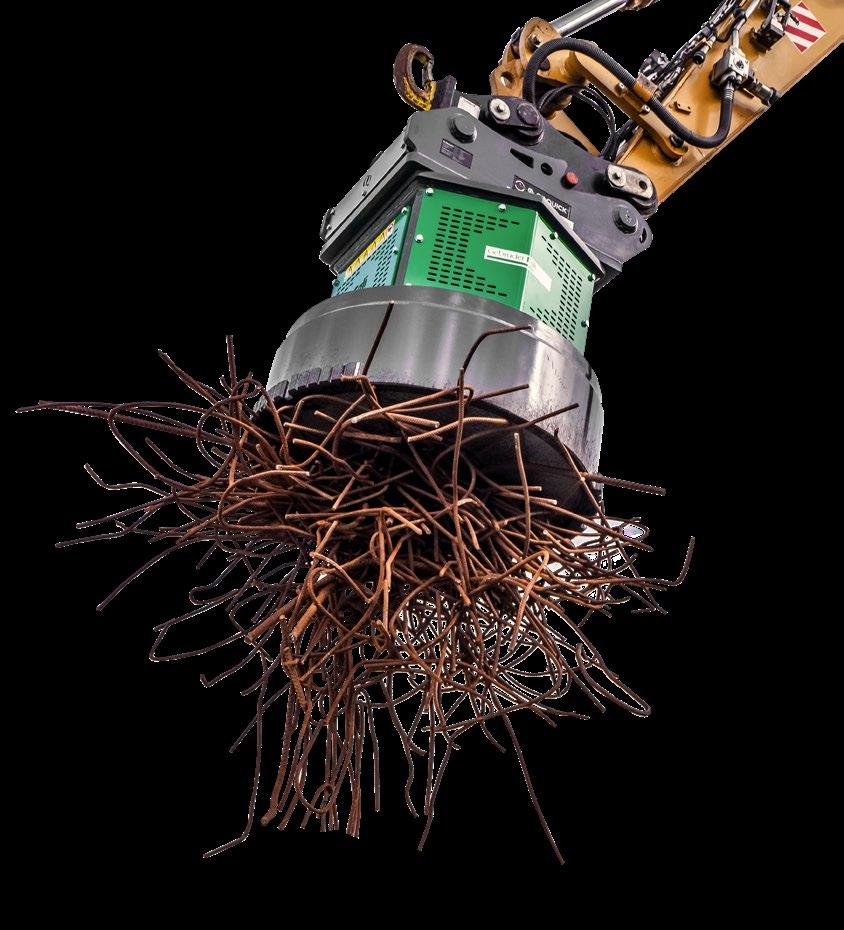

► Loading easy loading of steel
Hydraulic magnet Technical specifications
*Setting: single-acting H // double-acting S **Tear-off test according to DIN VDE 0580 with air gap Ø/300
The characteristics at a glance
► Savings and flexibility
- thanks to the integrated generator, quick and smooth installation is possible on almost all carriers
- reduced tyre damage on trucks, wheel loaders and mobile excavators as metal parts can be quickly and easily removed from driveways
- less wear to conveyor belts when feeding the crusher plants due to pre-sorted material
- lower maintenance costs for the crusher
► Technical advantages
- the generator is double-bearing, brushless, externally ventilated and temperature-monitored
- leakage oil and volume flow protection
- the electronics are protected from impacts, thanks to moulded components
- no radio control are therefore no external influence
- maintenance-friendly as all covers can be individually removed
► Resource preserving and accident prevention
- staff and time can be efficiently scheduled
- mechanical sorting of metal parts replaces laborintensive manual work, minimizing the risk of staff injuries caused by reinforcement steel
- fast work cycles are possible in conjunction with the OilQuick quick coupler system
- power cables do not need to be routed over the boom
► Release control
- precise ejection in seconds by reversing the polarity of the magnetic field at the touch of a button

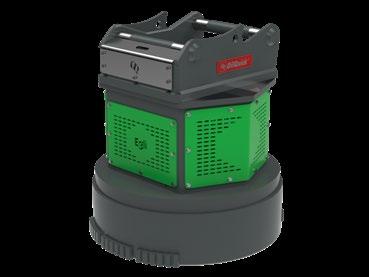

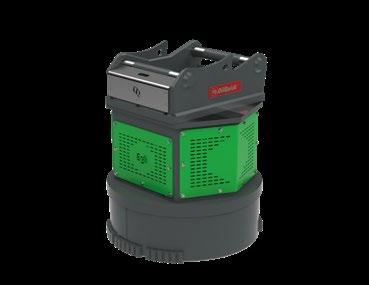

EgliMag 1120A
EgliMag 920A

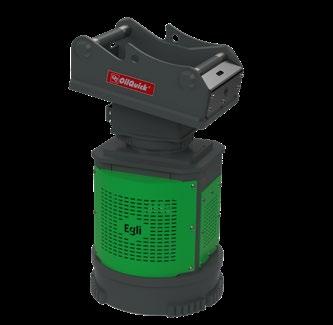

EgliMag 720 with slew drive
Maximum safety
► Certified hydraulic magnet
- generator with protection class IP54
- electrical cables and sockets are not mounted on the excavator boom
- robust magnetic chassis also allows work in a vertical position
- CE-conpliant
- with Euro Test Certificate from Construction Industry Association, Germany (BG Bau)

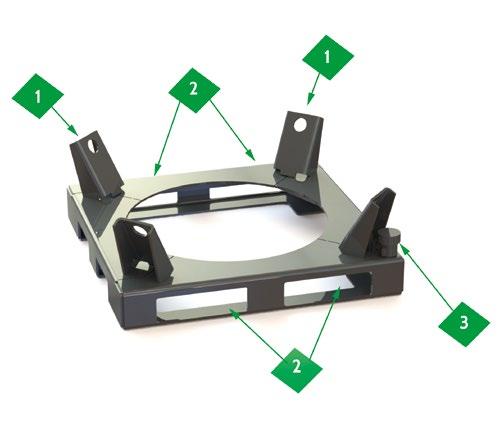

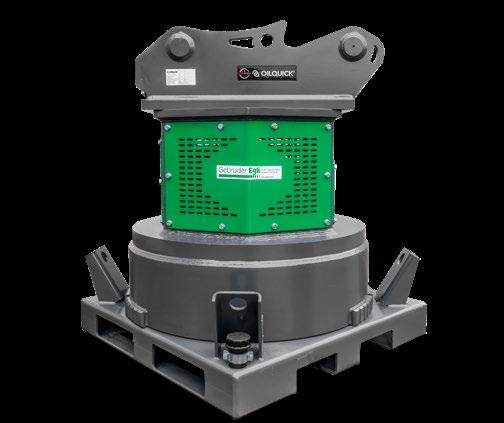

Transport frame
Customized
For every attachment, we offer a perfectly matched transport frame, available as an option. Our rental machines always come with the appropriate frame.
► Transport: simply and safely
Custom-made
On request, we also manufacture custom transport frames for existing machines and third-party products. Feel free to contact us!
Legend:
1 Fixing loops on all four corners
2 Access from all four sides for pallet jacks and forklifts
3 Document compartment (for operating manuals)
