Weldcoa Pallets Product Catalog

Cylinder pallets, truck bodies & trailers

Weldcoa pallet systems, with The Strongest, Most Dependable Cylinder Pallets in the INdustry.

Table of contents Modern Manufacturing Overview

2

Sur-LocTM Overview

4

Sur-LocTM Pallets and Cages

6

• Sur-Loc Pallet Options • Sur-Loc Safety Storage and Propane Safety Cages • Sur-Loc Liquid Cylinder Pallet • Sur-Loc 18 Cylinder Gas Pack Pallet Manifold

Stack-LocTM Pallets with Sur-Loc Locking System

12

• Stack-Loc 4 Rail • Stack-Loc MC Acetylene • Stack-Loc B Acetylene • Stack-Loc D&E Medical

Sur-LocTM Double Wide & Yard Pallets

16

Sur-LocTM and Link-LocTM Storage Racks

18

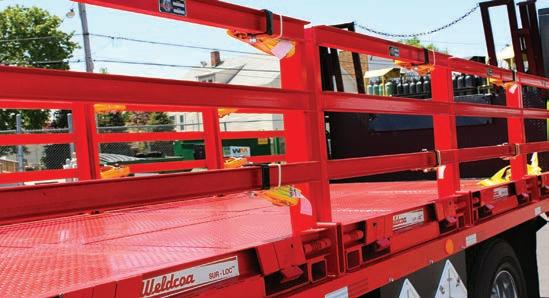

Sur-LocTM Truck Bodies & Trailers

20

• Palletized Truck Bodies • Smart Bed Palletized Truck Bodies • Palletized Trailers

Pallet Accessories

23

Link-LocTM Tombstone and Slot Style Pallets

24

We’re with you every step of the way.

A Long History of Innovation

Focused on Your Success

For over 50 years we have made it our mission to support gas distributors. From palletization to specialty gas filling and automation, we have continually innovated solutions that have reshaped our industry. Now we all move more efficiently, fill more consistently and work more productively. That’s why so many gas distributors turn to Weldcoa for ways to improve their business.

Everything we do is driven by our motivation to improve your business.

The Service You Deserve Become a Weldcoa client and gain access to our knowledgeable team of industry experts. Everyone at Weldcoa is focused on providing you with the highest possible level of service and support.

Proudly Made in the USA We are a true U.S. manufacturer with the people, equipment and experience necessary to design, manufacture and test a wide range of products for the compressed gas industry.

Our process control and automation ensure the highest quality and consistency.

© Copyright 2022 Welding Company of America All rights reserved.

• Reduce costs • Improve safety • Increase capacity • Increase productivity • Maximize uptime • Minimize waste • Ensure long-term performance • Gain competitive advantage • Maximize ROI Your customers will value the difference it makes in their business.

• Consistent mixes • Broader offerings • Faster turnaround

Modern Manufacturing Overview

Made in the USA. A Modernized Manufacturing Facility with Automated Operations.

Ensure that the products and services you depend on are of the highest quality, and will be there when you need them, time and time again.

We’ve adapted to a new way of working, in order to meet new expectations.

We’re better, stronger, and will respond with greater agility. More than ever before, we are committed to delivering quality, Made in the USA products and services, that you can always depend on, and that will contribute to the success of your business.

As we embrace a new order of business, our mindset remains unchanged: quality in - quality out. That means constant evaluation, constant rethinking, constant innovation, constant improvement. And that is what we have accomplished.

We have reimagined our facility, our manufacturing environment and our processes, all in an effort to provide products and services that provide a greater value to you.

2

% Call 1 (630) 806-2000, or email sales@weldcoa.com to order!

Advanced Manufacturing Execution System The Epicor Advanced MES (Manufacturing Execution System) delivers the most advanced level of production and process monitoring available today.

Our implementation of this Industry 4.0 solution brings a host of benefits to the products and services we provide to you. The system provides accurate data directly from machines and operators to deliver real-time production metrics, analytics and tracking, allowing us to turn data into actionable insights. Built-in best practices bring our overall process to another level of efficiency.

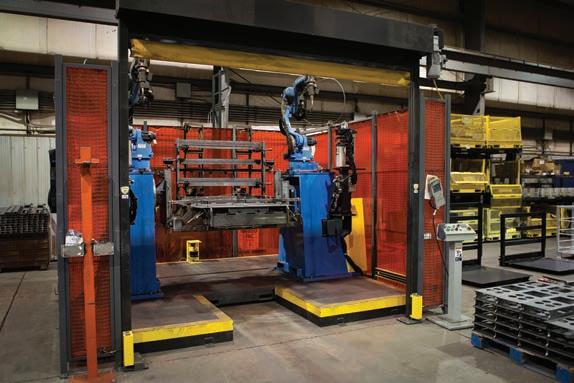

Robotic Welders The accuracy and consistency provided by the use of robotic welding is paramount to meeting our high quality standards. We have recently doubled the amount of robotic welders at our Aurora, IL facility, generating greater output of our most popular products, including pallets, carts and other equipment components.

Digital Laser Cutting In our constant effort to control quality throughout our manufacturing process, we recently added additional laser cutting capabilities within our facility. Our automated laser cutting provides for accuracy, high output and reduced waste. Many of our equipment components are now cut on our lasers.

Check Point Quality Inspections Automation of our complete process has allowed more time for our staff to perform additional quality inspections at various stages throughout the process. All inspections become part of the data within our system which is immediately available and actionable.

Modern improvements to our facility. a positive impact on your business.

© Copyright 2022 Welding Company of America All rights reserved.

3

Sur-Loc Overview TM

The Sur-loc Pallet System.

The Reliable System, that Mechanically Locks Onto the Transport Structure.

TM

Ensure your load is secure during transport The proven Sur-Loc pallet system is one of the only systems that mechanically locks onto the transportation structure. If the entire truck/trailer structure rotated 180°, the pallets would remain locked onto the frame. Within the US our system is in compliance with 49 CFR 393.102 and 49 CFR 177.840.

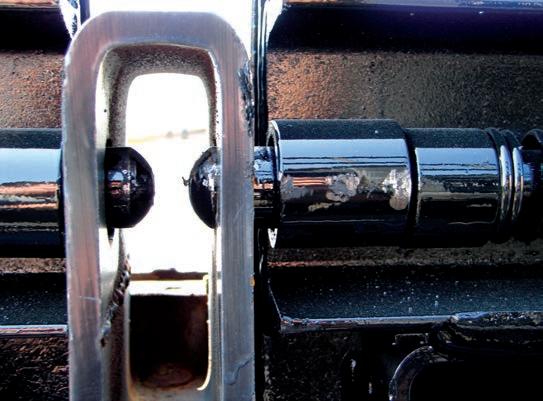

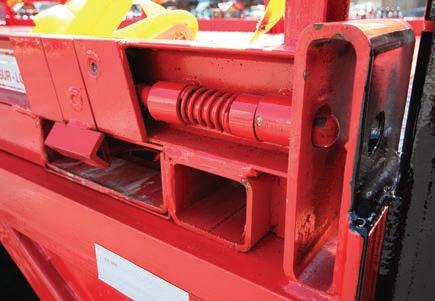

Details that make a difference • 4 point locking system mechanically locks onto transport structure • 4-way entry and are self-aligning when positioned into a pallet truck or trailer • The fork pockets are re-enforced to eliminate the possibility of broken plates • Automatic Safety - Pallet truck forks automatically engage and disengage the mechanical locks • Visible Safety Check - Drivers and managers can clearly see if the locks are properly engaged

4

% Call 1 (630) 806-2000, or email sales@weldcoa.com to order!

Quality construction for all pallet types All Weldcoa Sur-Loc pallets are manufactured by robots at our facility to ensure quality welds and consistency, pallet after pallet.

Pallets are available in many options for an array of gas cylinder types.

Structural Capabilities • Holds up to 21 “T” cylinders (18 cylinders are recommended in order to have a center aisle) • The pallet deck can accommodate any standard 4’ x 4’ wood pallet and cargo 3-Rail Sur-Loc Pallet Part Number IPSL3R-BTNS-2

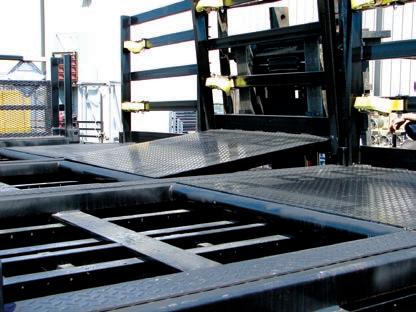

• The corners of the diamond plate deck have been blunted for improved safety • 4-point patented locking system • The pallet base is structurally sound • Grease reservoir lubricates all of the moving parts every time the lock is actuated Standard Features and Available Options • Entire pallet is professionally powder-coated with black, textured, non-skid paint for added safety and to also protect from wear, corrosion, impact, and weather • Standard powder-coated paint is also available • Galvanizing is an available option for high corrosive environments • All of our pallets are manufactured by robots at our facility to ensure quality welds and consistency • 100% made in the USA

Several Style Options Available

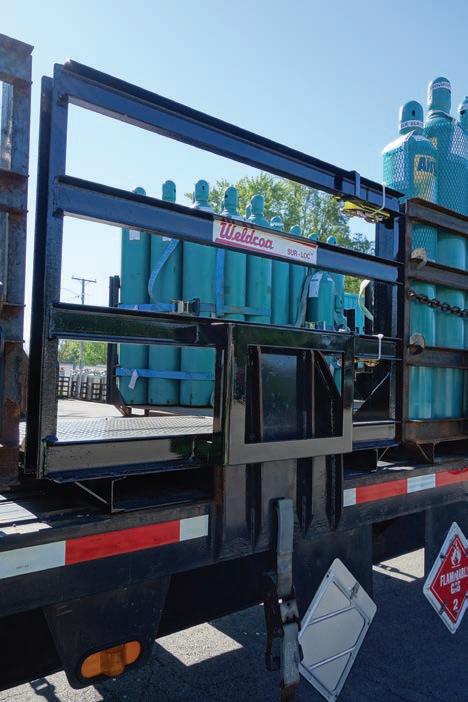

Standard Pallet with No Side Rails

Standard Pallet with 3/4 Side Rails

Standard Pallet with Full Side Rails

• Most Popular Style

• Side rails provide added protection during loading and unloading at customer sites

• Side rails provide added protection during loading and unloading at customer sites

• Availble in both 3-Rail and 4-Rail models

• Availble in both 3-Rail and 4-Rail models

• Availble in both 3-Rail and 4-Rail models

© Copyright 2022 Welding Company of America All rights reserved.

5

Sur-Loc Pallets and Cages TM

PALLET OPTIONS Textured Non-Skid Black Paint Product

Description

Item #

No Side Rails

3 Rail, No Sides, Professionally Powder-Coated with Black Textured Non-Skid Paint.

IPSL3R-BTNS

3 Rail with (1) Strap and Bracket, No Sides, Professionally Powder-Coated with Black Textured Non-Skid Paint.

IPSL3R-BTNS-1

3 Rail with (2) Straps and Brackets, No Sides, Professionally Powder-Coated with Black Textured Non-Skid Paint.

IPSL3R-BTNS-2

4 Rail, No Sides, Professionally Powder-Coated with Black Textured Non-Skid Paint .

IPSL4R-BTNS

4 Rail with (1) Strap and Bracket, No Sides, Professionally Powder-Coated with Black Textured Non-Skid Paint.

IPSL4R-BTNS-1

4 Rail with (2) Straps and Brackets, No Sides, Professionally Powder-Coated with Black Textured Non-Skid Paint.

IPSL4R-BTNS-2

3 Rail with(2) 3/4 Side Rails, with Black Textured Non-Skid Paint.

IPSL3R-BT3S

3 Rail with (2) Full Side Rails, Professionally Powder-Coated with Black Textured Non-Skid Paint.

IPSL3R-BT3F

4 Rail with(2) 3/4 Side Rails, Professionally Powder-Coated with Black Textured Non-Skid Paint.

IPSL4R-BT3S

4 Rail with (2) Full Side Rails, Professionally Powder-Coated with Black Textured Non-Skid Paint.

IPSL4R-BT3F

With Side Rails

Professionally Powder-Coated with Textured Non-Skid Black Paint

6

% Call 1 (630) 806-2000, or email sales@weldcoa.com to order!

All Sur-LocTM Pallets are Compliant with DOT Regulations | Made in the USA

Sur-Loc Pallet 3 Rail, No Sides

Sur-Loc Pallet 4 Rail, No Sides

© Copyright 2022 Welding Company of America All rights reserved.

7

Sur-Loc Pallets and Cages TM

SAFETY STORAGE CAGES AND PROPANE SAFETY CAGES Keep Cylinders Secure at Your Facility and During Transport Our cages are built on a standard Sur-Loc pallet. They have two swinging doors that are secured by a lock. The cylinders are secured with binder straps within the cage that is manufactured to be self-contained. They can be used indoors as well as outdoor.

A center shelf is included in both designs. The full cage allows for maximum storage capacity.

Standard Features and Available Options • 4-Point crane lifting eyes, with an additional single point lifting eye, are incorporated into the frame • 4-Way forklift accessible from the bottom.

• Built on a standard Weldcoa Pallet Base with the patented Sur-Loc™ Locking Mechanism • The pallet base is structurally sound • A grease reservoir that lubricates all of the moving parts every time the lock is actuated (We recommend using an anti-seize compound rather then grease to lubricate the pallet locks) • Entire pallet is professionally powder-coated for added safety and to also protect from wear, corrosion, impact, and weather • Complies with Federal DOT regulations • 100% Made in the USA

Product

Description

Item #

Safety Storage Cages

Instaload Pallet, Full Cage, Safety Yellow, 2 Piece Cage Door, Expand Metal

IPCGSC-SYNS-2DEM

Instaload Pallet, Full Cage, Black, 2 Piece Cage Door, Expand Metal

IPCGSC-BKNS-2DEM

Two Doors and Lock. Designed to handle (22) 33 lb.

Propane Cylinders. Professionally Powder-Coated Black.

IPCGPC-BKNS-2DEM

Propane Cage with Sur-Loc™ Pallet Base

8

% Call 1 (630) 806-2000, or email sales@weldcoa.com to order!

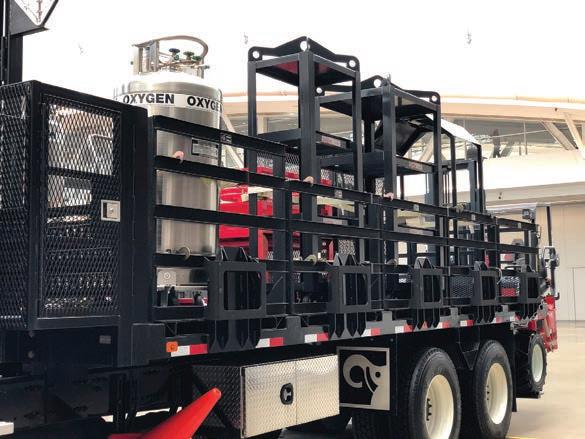

LIQUID CYLINDER PALLET The Liquid Cylinder Pallet is a Great Microbulk Alternative The Liquid pallet allows (4) of the LS160/GP45/GP55 liquid dewars to be connected to a common header via the Gas port on the liquid dewar. This allows large volume end users to supply to their downstream application via a regulator attached to one or both of the exit CGA’s on the common header.

This is an excellent alternative for suppliers to both utilize dormant dewar assets and supply product to their end users who may not be viable candidates for a microbulk setup with Orca liquid deliveries to their site.

The units can easily be broken down back at the fill plant and replaced with full dewars for the next swap at the client, assuring a continuous supply of gas without the need to make a large investment in a microbulk installation Standard Features and Available Options • 4-Way forklift accessible from the bottom.

• Built on a standard Weldcoa Pallet Base with the patented Sur-Loc™ Locking Mechanism • The pallet base is structurally sound • A grease reservoir that lubricates all of the moving parts every time the lock is actuated • Entire pallet is professionally powder-coated for added safety and to also protect from wear, corrosion, impact, and weather • Complies with Federal DOT regulations • 100% Made in the USA

Product

Description

Liquid Cylinder Pallet

Sur Loc 4 Liquid Cylinder 160-180 Liter, Textured Non-Skid Paint, Black IPLQL4-BTNS

Liquid Cylinder Pallet Manifolds

Liquid Manifold, 4 Cylinder Brass Header, Flexible Double Braided Post-Sintered Teflon Lined Leads MAWP 3,600 PSI,CGA 540, with Standard Pressure Valves

PM04B-FDBP-B540

Liquid Manifold, 4 Cylinder Brass Header, Flexible Double Braided Post-Sintered Teflon Lined Leads MAWP 3,600 PSI,CGA 580, with Standard Pressure Valves

PM04B-FDBP-B580

Liquid Manifold, 4 Cylinder Brass Header, Flexible Single Braided Non-Sintered Teflon Lined Leads MAWP 3,000 PSI,CGA 540, with Standard Pressure Valves

PM04B-FNBP-B540

Liquid Manifold, 4 Cylinder Brass Header, Flexible Single Braided Non-Sintered Teflon Lined Leads MAWP 3,000 PSI,CGA 580, with Standard Pressure Valves

PM04B-FNBP-B580

© Copyright 2022 Welding Company of America All rights reserved.

Item #

9

Sur-Loc Pallets and Cages TM

18 CYLINDER GAS PACK PALLET MANIFOLD Saves Money and Drastically Improves Efficiency The 18 cylinder pallet manifold is a terrific alternative to costly micro bulk delivery vehicles for safely delivering higher volumes of gas. It includes 3 quality Weldcoa products: Sur-LocTM 3 rail pallet, protective hood and manifold with leads. Once required cylinders are placed on the pallet, the hood with manifold can be easily slipped on for an instant cylinder cluster.

Now you only need to move the pallet, not 18 individual cylinders. This has become a standard, rather than an alternative to cylinder carts, for distributors across the country.

The Weldcoa pallet manifold can be positioned into a Weldcoa fill island for efficient filling, and it can also be locked onto a Weldcoa truck or trailer for safe transporting.

“ By moving from individual cylinders to the clusters, we’ve saved our customers countless hours in labor for cylinder handling. The installations we’ve done allow the customer to no longer have to touch the cylinder. We deliver a new pallet, pick up the old one, and all the customer knows is that their gas supply is constant. As a result, they’re more efficient, and we’re more efficient.”

David Mahoney, President of Noble Gas Solutions

18 cylinder gas pack benefits Highly Efficient 18 cylinder cluster greatly reduces cylinder handling.

Cost Saving Alternative to Micro Bulk Delivery Installs Quickly Without Tools Fork Lift Accessible Integrates With Weldcoa Filling and Transportation Systems The Sur-LocTM Pallet can be positioned into an accommodating island for efficient filling, and safely locked onto a Weldcoa truck or trailer for transporting.

10

% Call 1 (630) 806-2000, or email sales@weldcoa.com to order!

Highly Efficient | Cost Saver | Made in the USA

Details that Make the Difference • Made specifically with high gas volume end users in mind, the 18 pack is designed to utilize size “T” 300 CU.FT. cylinders.

• Pallet and Hood is professionally powder coated to protect from wear, corrosion, impact, and weather.

• Every Weldcoa manifold assembly is 100% hydrostatically pressure tested to 1.5 times the MAWP, 100% nitrogen leak tested and 100% oxygen cleaned, dried, bagged to meet CGA 4.1 requirements.

Product

Description

Item #

Pallet Options

Weldcoa 3-Rail Sur-Loc Pallet. Supplied with (2) Binder Straps and Brackets. Professionally Powder-Coated with Black Textured Non-Skid Paint.

IPSL3R-BTNS-2

Weldcoa 3-Rail Link-Loc Pallet Only. Does not include Binder Straps and Bracket. These will need to be supplied by customer. Pallet is Professionally Powder-Coated with Black Textured Non-Skid Paint.

ITAG3R-BTNS

Weldcoa 3-Rail Link-Loc Pallet. Supplied with (2) Binder Straps and Brackets. Professionally Powder-Coated with Black Textured Non-Skid Paint.

ITAG3R-BTNS-2

18 Cylinder Pallet Bracket and Hood

Steel formed hood. Professionally Powder-Coated Black.

Bracket included.

PMBKT-18BK

Manifold Options

18 Cylinder Brass Header, Rigid Stainless Steel Leads, CGA 580, with Standard Valve.

PM18B-SSBPB580

18 Cylinder Brass Header, Flexible Double Braided Post-Sintered Teflon Lined Leads MAWP 3,600 PSI, CGA 540, with Standard Valve.

PM18B-FDBPB540

18 Cylinder Brass Header, Flexible Double Braided Post-Sintered Teflon Lined Leads MAWP 3,600 PSI, CGA 580, with Standard Valve.

PM18B-FDBPB580

Other CGA and manifold options are available upon request.

© Copyright 2022 Welding Company of America All rights reserved.

10

Stack-Loc Pallets with SUR-LOC Locking System TM

TM

STACK-LOC 4 RAIL TM

Double Your Working Payload The Stack-Loc™ Pallet is a traditional Weldcoa Sur-Loc™ 4-Rail Pallet with added vertical supports and an X frame for rigidity. Designed to be very versatile. Great option for doubling your working payload on all small cylinder and dry goods.

Standard Features and Available Options • Features all the benefits and safety of a Sur-Loc™ and more • Pallets lock on to each other the same way they’re secured onto our pallet trucks and trailers • A maximum of 2000 lbs. can be carried on the upper pallet • The payload is held in place with traditional binder straps (rated at 10,000 lbs. breaking strength) • Upper and lower pallets are interchangeable • Designed for universal uses.

• Stack-Loc™ pallets have 4-way entry and are self-aligning when positioned into a pallet truck or trailer.

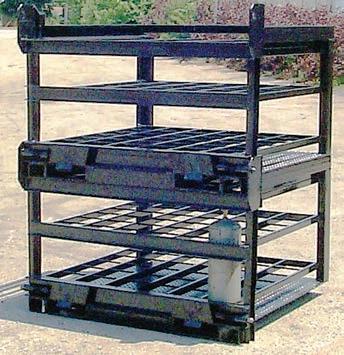

Shown: Two Stack-Loc™ Pallets (Part number IPST4R-WB) stacked on top of each other.

• Entire pallet is professionally powder-coated to protect from wear, corrosion, impact, and weather • Standard powder-coated paint is available in several colors.

• Complies with Federal DOT regulations 49 CFR 393.102 & CFR 177.840.

• 100% Made in the USA

12

Product

Description

Item #

Stack-LocTM 4 Rail Pallets

Designed for Small Cylinders and Carts.

Professionally Powder-Coated Black.

IPST4R-BK

Designed for Small Cylinders and Carts.

Professionally Powder-Coated Cardinal Red.

IPST4R-CR

Designed for Small Cylinders and Carts.

Professionally Powder-Coated Safety Orange.

IPST4R-SO

Designed for Small Cylinders and Carts.

Professionally Powder-Coated Weldcoa Blue.

IPST4R-WB

Designed for Small Cylinders and Carts.

Professionally Powder-Coated Safety Yellow

IPST4R-SY

Designed for Small Cylinders and Carts.

Professionally Powder-Coated John Deere Green

IPST4R-JG

% Call 1 (630) 806-2000, or email sales@weldcoa.com to order!

STACK-LOC MC ACETYLENE TM

Securely Transport MC Size Acetylene Cylinders The Stack-Loc™ MC Acetylene Pallet was designed specifically to alleviate the portability and security problems normally associated with transporting and handling smaller cylinders. Each cylinder is individually secured within the frame. This not only prevents the cylinders from escaping but also prevents label damage.

Details that Make the Difference • Each cylinder is individually secured within the Stack-Loc’s frame.

This prevents the cylinders from escaping but also prevents label damage • The pallet locks on to the delivery vehicle and the bottles are locked within the cart frame • To protect the cylinder valve, the pallet has been designed with adequate height clearance • Each MC Stack-Loc Pallet can carry up to 81 cylinders Shown: Three MC Stack-Loc™ Pallets (Part number IPSTMC-WB) stacked on top of each other.

• Pallets lock on to each other the same way they’re secured onto our pallet trucks and trailers • Works with any Weldcoa pallet truck or trailer • Can be stacked up to 5 pallets high for storage in your yard/facility • Entire pallet is professionally powder-coated for added safety and to also protect from wear, corrosion, impact, and weather • Complies with Federal DOT regulations 49 CFR 393.102 & CFR 177.840 • 100% Made in the USA

Product

Description

Item #

Stack-LocTM MC Acetylene Pallets

Designed for Small MC Aceteylene Cylinders Professionally Powder-Coated Black.

IPSTMC-BK

Designed for Small MC Aceteylene Cylinders Professionally Powder-Coated Cardinal Red.

IPSTMC-CR

Designed for Small MC Aceteylene Cylinders Professionally Powder-Coated Safety Orange.

IPSTMC-SO

Designed for Small MC Aceteylene Cylinders Professionally Powder-Coated Weldcoa Blue.

IPSTMC-WB

Designed for Small MC Aceteylene Cylinders Professionally Powder-Coated Safety Yellow.

IPSTMC-SY

Designed for Small MC Aceteylene Cylinders Professionally Powder-Coated John Deere Green.

IPSTMC-JG

© Copyright 2022 Welding Company of America All rights reserved.

13

Stack-Loc Pallets with SUR-LOC Locking System TM

TM

STACK-LOC B ACETYLENE TM

Efficiently Store and Transport B Acetylene Cylinders The Stack-Loc™ Pallet B Acetylene model provides a secure, space efficient solution for storing and/or transporting B size Acetylene cylinders. Durable, long lasting product that will provide years of reliable service.

Standard Features • Capable of handling 36 “B” size acetylene cylinders per pallet • Each cylinder is individually secured within the Stack-Loc’s frame.

This prevents the cylinders from escaping but also prevents label damage • The pallet locks on to the delivery vehicle and the bottles are locked within the cart frame • Can be stacked up to 3 pallets high for storage in your yard or facility • Pallets lock on to each other the same way they’re secured onto our pallet trucks and trailers Shown: Two B Stack-Loc™ Pallets (Part number IPSTBA-BK) stacked on top of each other.

• Works with any Weldcoa pallet truck or trailer • Entire pallet is professionally powder-coated for added safety and to also protect from wear, corrosion, impact, and weather • Complies with Federal DOT regulations 49 CFR 393.102 & CFR 177.840 • 100% Made in the USA

14

Product

Description

Item #

Stack-LocTM B Acetylene Pallets

Designed for Small B Acetylene Cylinders.

Professionally Powder-Coated Black.

IPSTBA-BK

Designed for Small B Acetylene Cylinders.

Professionally Powder-Coated Cardinal Red.

IPSTBA-CR

Designed for Small B Acetylene Cylinders. rofessionally Powder-Coated Safety Orange.

IPSTBA-SO

Designed for Small B Acetylene Cylinders.

Professionally Powder-Coated Weldcoa Blue.

IPSTBA-WB

Designed for Small B Acetylene Cylinders.

Professionally Powder-Coated Safety Yellow.

IPSTBA-SY

Designed for Small B Acetylene Cylinders.

Professionally Powder-Coated John Deere Green.

IPSTBA-JG

% Call 1 (630) 806-2000, or email sales@weldcoa.com to order!

STACK-LOC D&E MEDICAL TM

Securely Transport D&E Medical Cylinders The Stack-Loc™ Pallet D & E Medical model was designed specifically to alleviate the portability and security problems normally associated with transporting and handling smaller cylinders.

Standard Features • Capable of handling (64) D or E size medical cylinders • Each cylinder is individually secured within the Stack-Loc’s frame.

This prevents the cylinders from escaping but also prevents label damage • The pallet locks on to the delivery vehicle and the bottles are locked within the cart frame • To protect the cylinder valve, the pallet has been designed with adequate height clearance • Pallets lock on to each other the same way they’re secured onto our pallet trucks and trailers • Works with any Weldcoa pallet truck or trailer • Entire pallet is professionally powder-coated for added safety and to also protect from wear, corrosion, impact, and weather • Complies with Federal DOT regulations 49 CFR 393.102 & CFR 177.840 Shown: One D&E Stack-Loc™ Pallet (Part number IPSTDE-JG), and close-up of cylinder locking mechanism.

• 100% Made in the USA

Product

Description

Item #

Stack-Loc D&ETM Medical Pallets

Designed for D or E size Medical Cylinders.

Professionally Powder-Coated Black.

IPSTDE-BK

Designed for D or E size Medical Cylinders.

Professionally Powder-Coated Cardinal Red.

IPSTDE-CR

Designed for D or E size Medical Cylinders.

Professionally Powder-Coated Safety Orange.

IPSTDE-SO

Designed for D or E size Medical Cylinders.

Professionally Powder-Coated Weldcoa Blue.

IPSTDE-WB

Designed for D or E size Medical Cylinders.

Professionally Powder-Coated Safety Yellow.

IPSTDE-SY

Designed for D or E size Medical Cylinders.

Professionally Powder-Coated John Deere Green.

IPSTDE-JG

© Copyright 2022 Welding Company of America All rights reserved.

15

SUR-LOC Double Wide and Yard Pallets TM

DOUBLE WIDE PALLETS Ideal for Moving 1 Ton’s Around Double wide pallets are primarily used in the handling and transportation of 1 Ton liquid units, utilizing additional welded on D Rings for horizontal securement strapping of said units.

The pallets can also be used for handling and transport of standard high pressure cylinders that traditionally nest in an upright position, but utilizing individual pallets for this purpose is preferable.

As shown, the unit can be moved in traditional fashion with a forklift, utilizing the center forklift pockets. The outer lock assemblies are manual in nature, using a Destaco hand lock as there would be no way to use a forklift to actuate the locking system in all 4 locations.

Details that Make the Difference • Weight is approximately 6,708 lbs empty, width is 100 ¾”, height is 38 ¼” • To protect the cylinder valve, the pallet has been designed with adequate height clearance • Pallets lock on to each other the same way they’re secured onto our pallet trucks and trailers • Works with any Weldcoa pallet truck or trailer • Entire pallet is professionally powder-coated for added safety and to also protect from wear, corrosion, impact, and weather • Complies with Federal DOT regulations • 100% Made in the USA

16

Product

Description

Item #

Double Wide Pallets

3 Rail, No Sides, 7” Center Cross Tube Width, 4 Recessed D-Rings Professionally Powder-Coated with Black Textured Non-Skid Paint.

IPSL3D-BTNS-HL7C-DR

4 Rail, No Sides, 7” Center Cross Tube Width, 4 Recessed D-Rings Professionally Powder-Coated with Black Textured Non-Skid Paint.

IPSL4D-BTNS-HL7C-DR

% Call 1 (630) 806-2000, or email sales@weldcoa.com to order!

YARD PALLETS An Alternative, Cost-Effective Solution for Moving Clusters of Cylinders Throughout the Fill Plant Yard Pallets offer the same quality manufacturing as our popular Sur-Loc pallets, but without the locking structure that secures Sur-Loc pallets to trucks and trailers. Yard pallets are a cost effective solution for moving clusters of cylinders through the filling process, within a fill plant, when a transportation locking mechanism is not required.

Standard Features and Available Options • Entire pallet is professionally powder-coated in yellow to easily identify them as yard pallets • 4-way entry fork pockets are re-enforced to eliminate the possibility of broken plates • Holds up to 21 “T” cylinders (18 cylinders are recommended in order to have a center aisle) • The pallet deck can accommodate any standard 4’ x 4’ wood pallet and cargo • The corners of the diamond plate deck have been blunted for improved safety • The pallet base is structurally sound • All of our pallets are manufactured by robots at our facility to ensure quality welds and consistency • 100% made in the USA

Product

Description

Item #

Yard Pallets

Yard Pallet, 3 Rail, No Sides, Safety Yellow, No Locks

IPSL3R-SYNS-NL

Yard Pallet, 3 Rail, No Sides, Safety Yellow, No Locks,1 Strap

IPSL3R-SYNS-NL-1

Yard Pallet, 3 Rail, No Sides, Safety Yellow, No Locks, 2 Straps

IPSL3R-SYNS-NL-2

Yard Pallet, 4 Rail, No Sides, Safety Yellow, No Locks

IPSL4R-SYNS-NL

Yard Pallet, 4 Rail, No Sides, Safety Yellow, No Locks,1 Strap

IPSL4R-SYNS-NL-1

Yard Pallet, 4 Rail, No Sides, Safety Yellow, No Locks, 2 Straps

IPSL4R-SYNS-NL-2

© Copyright 2022 Welding Company of America All rights reserved.

17

SUR-LOC and Link-Loc Storage Racks TM

TM

SUR-LOC STORAGE RACKS TM

Organize Cylinders and Fully Utilize Space Weldcoa’s modular pallet storage rack system allows the customer to customize their cylinder pallet storage requirements based on available space, material flow and volume needs. The system allows for future growth by allowing for expansion, reconfiguration and relocation with just a few basic tools. The storage racks are suitable for indoor and outdoor use.

Choose From Several Configuration Options Single-Sided: Units can be assembled to any length needed. (Single sided units would normally be installed along walls, fences or other perimeters.) continued on next page >

18

Product

Description

Item #

Sur-Loc Storage Racks

1 Pallet Double, 77" Standard, Black, Attachable Unit

SR1D-STWBKAU

1 Pallet Single, 101" High, Black, Attachable Unit

SR1S-HGWBKAU

1 Pallet Single, 77" STandard, Black, Attachable Unit

SR1S-STWBKAU

2 Pallet Double, 101" High, Black, Attachable Unit

SR2D-HGWBKAU

2 Pallet Double, 101" High, Black, Main Unit

SR2D-HGWBKMU

2 Pallet Double, 77" Standard, Black, Attachable Unit

SR2D-STWBKAU

2 Pallet Double, 77" Standard, Black, Main Unit

SD2D-STWBKMU

2 Pallet Single, 101" High, Black, Attachable Unit

SR2S-HGWBKAU

2 Pallet Single, 101" High, lack, Main Unit

SR2S-HGWBKMU

2 Pallet Single, 77" Standard, Black, Attachable Unit

SR2S-STWBKAU

2 Pallet Single, 77" Standard, Black, Main Unit

SR2S-STWBKMU

101" High, Black, 1 Pallet Wide Back

SRXX-HGWBKXX-1PBK

101" High, Black, 2 Pallet Wide Back

SRXX-HGWBKXX-2PBK

101" High, Black, Side

SRXX-HGWBKXX-SIDE

77" Standard, Black, 1 Pallet Wide Back

SRXX-STWBKXX-1PBK

77" Standard, Black, 2 Pallet Wide Back

SRXX-STWBKXX-2PBK

77" Standard, Black, Side

SRXX-STWBKXX-SIDE

Black, Lower V

SRXX-XXWBKXX-LOWV

Black, Upper V

SRXX-XXWBKXX-UPPV

% Call 1 (630) 806-2000, or email sales@weldcoa.com to order!

LINK-LOC STORAGE RACKS TM

Double-Sided: Units can be assembled to any length needed. (Double sided unit would be installed where access to both sides is available.

This optimizes the space utilization and is recommended when possible.)

“L”, “T” and “U” Configurations: can also be created to fit inside buildings and yards to meet customer needs.

Standard Features and Available Options • Standard height: 77” • Maximum height available 101” (gas packs) • Weight capacity: 7000 lbs (including pallet) • Available in single-sided and double-sided • 100% Made in the USA

Product

Description

Item #

Link-Loc Storage Racks

1 Pallet Double, 77" Standard, Black, Attachable Unit

SR1D-STTBKAU

1 Pallet Single, 101" High, Black, Attachable Unit

SR1S-HGTBKAU

1 Pallet Single, 77" STandard, Black, Attachable Unit

SR1S-STTBKAU

2 Pallet Double, 101" High, Black, Attachable Unit

SR2D-HGTBKAU

2 Pallet Double, 101" High, Black, Main Unit

SR2D-HGTBKMU

2 Pallet Double, 77" Standard, Black, Attachable Unit

SR2D-STTBKAU

2 Pallet Double, 77" Standard, Black, Main Unit

SR2D-STTBKMU

2 Pallet Single, 101" High, Black, Attachable Unit

SR2S-HGTBKAU

2 Pallet Single, 101" High, Black, Main Unit

SR2S-HGTBKMU

2 Pallet Single, 77" Standard, Black, Attachable Unit

SR2S-STTBKAU

2 Pallet Single, 77" Standard, Black, Main Unit

SR2S-STTBKMU

101" High, Black, Side

SRXX-HGTBKXX-SIDE

77" Standard, Black, Side

SRXX-STTBKXX-SIDE

77" Standard, Black, 1 Pallet Wide Back

SRXX-STWBKXX-1PBK

77" Standard, Black, 2 Pallet Wide Back

SRXX-STWBKXX-2PBK

101" High, Black, 1 Pallet Wide Back

SRXX-HGWBKXX-1PBK

101" High, Black, 2 Pallet Wide Back

SRXX-HGWBKXX-2PBK

Black, Lower V

SRXX-XXTBKXX-LOWV

Black, Upper V

SRXX-XXTBKXX-UPPV

© Copyright 2022 Welding Company of America All rights reserved.

19

SUR-LOC Truck Bodies & Trailers TM

PALLETIZED TRUCK BODIES Transport Palletized Cylinders More Safely and Efficiently Weldcoa’s Insta-Load Pallet System™ with Sur-Loc™ pallets moves more cylinders faster and with less handling. The net outcome is an increase in your production and a decrease in your labor costs.

All of Weldcoa’s truck bodies are manufactured out of structural steel tubing. They are manufactured in Weldcoa’s facility and can be shipped anywhere in the world. The truck bodies can be installed quickly and are secured onto the chassis using U bolts and wood firing strips. Historically, the average Weldcoa truck body will outlive a chassis 3 times over. In each case, the palletized body is simply transferred over to the new chassis.

A wide range of truck bodies and trailers are available and manufactured to fit your needs, including 4, 6, 8 and 10 pallet configurations.

Standard Features and Available Options • Bodies manufactured with structural steel tubing • Available in 4, 6, 8 and 10 Pallet Configurations • Professionally powder coated to protect from wear, corrosion, impact, and weather • Complies with Federal DOT regulations 49 CFR 393.102 & CFR 177.840 • 100% Made in the USA

Contact Us Today to Start Your Order! sales@weldcoa.com

20

% Call 1 (630) 806-2000, or email sales@weldcoa.com to order!

SMART BED PALLETIZED TRUCK BODIES Gain Measureable Time Savings at Every Stop Make deliveries faster and easier with a Weldcoa Smart Bed truck body.

Dramatically reduce loading and unloading delivery times.

The Smart Bed Palletized truck body incorporates stairs behind the cab that llows for the driver to enter the truck body through a secure gate, without the need to lower and raise the liftgate for entry. A typical delivery that use to require the lowering and raising of the liftgate 3 times now only requires only 1 time.

Standard Features and Available Options • Bodies manufactured with structural steel tubing • Available in 4, 6, 8 and 10 Pallet Configurations • Professionally powder coated to protect from wear, corrosion, impact, and weather • Complies with Federal DOT regulations 49 CFR 393.102 & CFR 177.840 • 100% Made in the USA

Greatly Reduce Liftgate Activity Time Standard Truck Body =

Driver lowers liftgate and rides up on gate to access Truck Bed.

6x Driver chooses cylinders required for delivery and lowers cylinders down via liftgate.

Driver returns to truck with empties and rides up liftgate.

Weldcoa Smart Body =

Driver secures empties and rides liftgate down.

Driver returns gate to up position and secures.

2x

Driver ascends stairs behind cab and enters truck body through secure gate. Driver chooses cylinders required for delivery and lowers cylinders down via liftgate.

Driver returns to truck with empties and rides up liftgate.

Driver secures empties and liftgate. Driver walks out gate and down stairs.

MEASURABLE TIME SAVINGS AT EVERY STOP

© Copyright 2022 Welding Company of America All rights reserved.

21

SUR-LOC Truck Bodies & Trailers TM

PALLETIZED TRAILERS Transport Palletized Cylinders More Safely and Efficiently Weldcoa’s Insta-Load Pallet System™ with Sur-Loc™ pallets moves more cylinders faster and with less handling. The net outcome is an increase in your production and a decrease in your labor costs.

All of Weldcoa’s trailers are manufactured in our facility, to our rigid quality standards, and can be shipped anywhere in the world.

Standard Features and Available Options • Bodies manufactured with structural steel tubing • Available in 12, 14, 16, 18 and 20 Bay Configurations • Available in 96” and 101” widths • Professionally powder coated to protect from wear, corrosion, impact, and weather.

• Complies with Federal DOT regulations 49 CFR 393.102 & CFR 177.840 • 100% Made in the USA

Contact Us Today to Start Your Order! sales@weldcoa.com

22

% Call 1 (630) 806-2000, or email sales@weldcoa.com to order!

PALLET ACCESSORIES PORTABLE DOCKS AND PALLET RAMPS Sur-Loc™ Pallets come with a variety of accessories that will complement your palletization system.

Portable Docks Portable Docks can serve as a temporary extension of the existing dock.

They bring the pallets to floor level with the permanent dock, allowing for easier loading and unloading of cylinders.

Pallet Ramps Pallet Ramps allow for easier loading and unloading conditions during cylinder sorting.

Product

Description

Item #

Instaload Portable Docks

Adjustable Portable 2 Pallet Dock, Black

IM-ADPDK-BK

Instaload Pallet Ramps

Floor Level Pallet Ram, Black

IM-FLPRP-BK

18" Ramp for Sur Loc Pallet, Alumimum

IM-PMP18-XX-AL

36" Ramp for Sur Loc Pallet, Alumimum

IM-PMP36-XX-AL

48" Ramp with 26" Angular Distance for Sur Loc Pallet, Alumimum

IM-RMP48X26-XX-AL

48" Ramp for Sur Loc Pallet, Alumimum

IM-RMP48-XX-AL

© Copyright 2022 Welding Company of America All rights reserved.

23

LINK-LOC Tombstone and Slot Style Cylinder Pallet Overview TM

Link-Loc Delivers The Tombstone and SLot Style Pallets You Prefer, and The Quality You SHould Require.

TM

Choose the Ultimate in Quality Tombstone and Stake Style Pallets Weldcoa has been manufacturing high quality cylinder pallets for over 50 years.

We have now added the tombstone and stake style pallet designs to our product offerings with both 3-rail and 4-rail options.

Link-Loc pallets feature a pocket design on the rail side of the pallet.

The pocket allows the pallets to slip over a tombstone or stake, to secure to a truck or trailer bed. Linc-Loc pallets can be part of an overall palletized system to provide even greater efficiencies.

All Link-Loc™ pallets are laser cut, formed, robotically welded and manufactured at Weldcoa’s facility in Aurora, IL. Consistent, precision welded, long lasting results are what you can expect with this most recent cylinder pallet offering.

24

% Call 1 (630) 806-2000, or email sales@weldcoa.com to order!

Structural Capabilities • Holds up to 21 9.5” diameter cylinders, or 26 7” diameter cylinders • The pallet deck can accommodate any standard 4’ x 4’ wood pallet and cargo • The corners of the diamond plate deck have been blunted for improved safety • The pallet base is structurally sound Standard Features and Available Options • Entire pallet is professionally powder-coated with black, textured, non-skid paint for added safety and to also protect from wear, corrosion, impact, and weather • Standard powder-coated paint is also available • Galvanizing is an available option for high corrosive environments • All of our pallets are manufactured by robots at our facility to ensure quality welds and consistency • 100% made in the USA

Tombstone Truck Bodies Coming Soon!

© Copyright 2022 Welding Company of America All rights reserved.

25

LINK-LOC Pallets TM

LINK-LOC TOMBSTONE PALLETS TM

The Right Choice for Tombstone-Style Pallets Weldcoa has been manufacturing high quality cylinder pallets for over 50 years. We have now added the “tombstone” style pallet design to our product offering with both 3-rail and 4-rail options. All Link-Loc™ pallets are laser cut, formed, robotically welded and manufactured at Weldcoa’s facility in Aurora, IL. Consistent, precision welded, long lasting results are what you can expect with this new cylinder pallet offering.

Standard Features • Designed to transport high pressure cylinders • All Link-Loc™ pallet options have 4-way forklift entry • The tombstone bracket is one solid piece of layered and formed steel plate for added durability and longevity • The corners of the diamond plate deck have been blunted for improved safety • The fork pockets are re-enforced and have an oval shaped design specifically to reduce high stress points in the base.

• The pallet base is structurally sound • Entire pallet is professionally powder-coated with black, textured, non-slip paint for added safety and to also protect from wear, corrosion, impact, and weather • 100% Made in the USA

Tombtone-Style Pallet benefits Solid Tombstone Bracket The tombstone bracket is one solid piece of lasered and formed steel plate for added durability and longevity.

Textured Non-Slip Black Paint All tombstone-style pallets are professionally powder-coated with textured non-skid black paint.

4-Way Forklift Entry The fork pockets are re-enforced and have an oval shaped design specifically to reduce high stress points in the base.

Structurally Sound Pallet Base 100% Made in the USA

26

% Call 1 (630) 806-2000, or email sales@weldcoa.com to order!

2

3

1

2

F

2

1

8

7

8

7

6

6

5

D

4

5

3 18 4 "

3 18 4 "

4

3

2

3

2

1

1

1 34"

3 18 #: PART PART #: ITAG4R-BKNS 4 "ITAG4R-BKNS DESCRIPTION: DESCRIPTION: PALLET/INSTALOAD PALLET/INSTALOAD TOMBSTONE, TOMBSTONE, - 4 RAIL, - 4 RAIL, - BLACK, - BLACK, F - NO SIDES - NO SIDES

1 34"

50 13 16 "

4

3 14 "

4

F

5 44 8 " E

E

49 58 "

2

9 44 16 "

3

5 44 8 "

47 58 "

4

E

1

C 48"

48"

48"

7 47 16 "

44"

7 47 16 "

C

44"

C

D

7 29 8 "

D

7 29 8 "

D

B

25"

19 13 16 "

3 38 16 "

31 13 16 "

B

DIMENSIONS ARE IN INCHES TOLERANCES: FRACTIONAL 1/16 ANGULAR: MACH 0.5 BEND 0.5 TWO PLACE DECIMAL 0.01 THREE PLACE DECIMAL 0.005

Product

THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF WELDCOA. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF WELDCOAAIS PROHIBITED.

NSP

3/16/2015

AMNCPC 7/26/2016 TITLE:

ENG APPR. MFG APPR.

COMMENTS:

FINISH

3

8

B

13 31 16 "

Item #

REV

ITAG3R-BKNS

SCALE: 1:16 WEIGHT: 287.01 SHEET 1 OF 1

3 Rail with No 2Sides.

1 Professionally Powder-Coated Textured Non-Slip Paint. Color: Black 7

13 19 16 "

13 31 16 "

A

ITAG3R-BTNS

7

6

6

5

5

4

3 Rail with No Sides and (2) Double Strap Mounting Brackets for Cottter Pins. Professionally Powder-Coated Textured Non-Slip Paint. Color: Black

4

UNLESS OTHERWISE SPECIFIED:

UNLESS OTHERWISENAME SPECIFIED:DATE

DIMENSIONS ARE IN INCHES TOLERANCES: FRACTIONAL 1/16 ANGULAR: MACH 0.5 BEND 0.5 TWO PLACE DECIMAL 0.01 THREE PLACE DECIMAL 0.005

NSP 3/16/2015 DRAWN DRAWN DIMENSIONS ARE IN INCHES TOLERANCES: 3/7/2017 TITLE: CHECKED CHECKED FRACTIONAL 1/16 jason ANGULAR: MACH 0.5 BEND 0.5 ENG APPR. ENG APPR. TWO PLACE DECIMAL 0.01 THREEAPPR. PLACE DECIMAL 0.005 MFG MFG APPR.

3

3

TOLERANCING PER:

MATERIAL PROPRIETARY AND CONFIDENTIAL THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF WELDCOA. ANY REPRODUCTION IN PART FINISH OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF WELDCOA IS PROHIBITED.

2

ITAG3R-BTNP-CP

4 Rail with No Sides.

Professionally Powder-Coated Textured Non-Slip Paint. Color: Black

ITAG4R-BTNS

4 Rail with No Sides and (2) Double Strap Mounting Brackets for Cottter Pins. Professionally Powder-Coated Textured Non-Slip Paint. Color: Black

ITAG4R-BTNP-CP

© Copyright 2022 Welding Company of America All rights reserved.

Q.A. INTERPRET GEOMETRIC

INTERPRET GEOMETRIC TOLERANCING PER: PROPRIETARY AND CONFIDENTIAL THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF WELDCOA. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF WELDCOA IS PROHIBITED.

T:\PALLETS & PALLET ACESSORIES\INSTA T:\PALLETS LOAD & PALLET TOMBSTONE ACESSORIES\INSTA PALLETS\ITAG4R-BKNS\ LOAD TOMBSTONE PALLETS\ITAG4R-BKNS\

8

13 19 16 "

B

INSTALOAD PALLET TOMBSTONE STYLE 3 RAIL NO SIDES

SIZE DWG. NO.

DO NOT SCALE DRAWING

A

3 35 4 "

Weldcoa 335 East Sullivan Rd Aurora, IL 60505

Q.A.

MATERIAL

Link-Loc™ Tombstone 4 5 Pallets

CHECKED

DATE

Description

INTERPRET GEOMETRIC TOLERANCING PER:

PROPRIETARY AND CONFIDENTIAL

DRAWN

NAME

1 15 8 "

3 35 4 "

D

UNLESS OTHERWISE SPECIFIED:

B

1 15 8 "

ITAG4R-BKNS

12 11 16 "

REV

3 16 8 "

C

3 16 8 "

7 3 16 "

HICK

4

QTY.

13 12 "

L, 3 EB X

5

4 Rail Tombstone-Style Pallet

7 38 16 "

CK X 4

3 Rail Tombstone-Style Pallet

2

COMMENTS:

MATERIAL

FINISH

Weldcoa DATE 335 East Sullivan Rd. NSP 3/16/2015 Aurora, IL 60505

We 335A East Aurora

NAME

jason

3/7/2017

TITLE:

INSTALOAD PALLET TOMBSTONE STYLE Q.A. 3 RAIL NO SIDES COMMENTS:

SIZE DWG. NO.

D

ITAG4R-BKNS

INSTALOA TOMBSTO 3 RAIL N

SIZE DWG. REV NO.

D

ITAG4R-

SHEET 11:8 OF WEIGHT: 1 SCALE: 1:8 WEIGHT: 297.96 SCALE: 1

27

1

LINK-LOC Pallets TM

LINK-LOC SLOT-STYLE PALLETS TM

The Right Choice for Slot-Style Pallets Weldcoa has been manufacturing high quality cylinder pallets for over 50 years. We have now added the “slot” style pallet design to our product offering. All Link-Loc™ pallets are laser cut, formed, robotically welded and manufactured at Weldcoa’s facility in Aurora, IL. Consistent, precision welded, long lasting results are what you can expect with this new cylinder pallet offering.

Standard Features • Designed to transport high pressure cylinders • All Link-Loc™ pallet options have 4-way forklift entry • The corners of the diamond plate deck have been blunted for improved safety • The fork pockets are re-enforced and have an oval shaped design specifically to reduce high stress points in the base.

• The pallet base is structurally sound • Entire pallet is professionally powder-coated with black, textured, non-skid paint for added safety and to also protect from wear, corrosion, impact, and weather • 100% Made in the USA

Slot-Style Pallet benefits Textured Non-Slip Black Paint All stake-style pallets are professionally powder-coated with textured non-skid black paint.

4-Way Forklift Entry The fork pockets are re-enforced and have an oval shaped design specifically to reduce high stress points in the base.

Structurally Sound Pallet Base 100% Made in the USA

28

% Call 1 (630) 806-2000, or email sales@weldcoa.com to order!

4

3

7

2

6

1

5

42" 3 38 8 "

No Sides Slot-Style Pallet

3 38 4 "

2

4

3

D

3-Sided Slot-Style Pallet

B

1

D

1 28 2 " 3/16 DIAMOND PLATE

41.5X1.5X0.120 TUBE

5

6

7

2x0.120 TUBE

3

2

C

8

8

1

7

TOP VIEW 1 2"

1 2"

1 40 2 "

1 33 16 "

NCE,

D

D

31"

7 39 16 " 3 38 4 " B

N SIDES GHT RED SURFACE

5 R ANDFORMED 11 8 " LET CHANNELS .

42"

5

4

DIMENSIONS ARE IN INCHES TOLERANCES: FRACTIONAL 1/16 ANGULAR: MACH 0.5 BEND 0.5 TWO PLACE DECIMAL 0.01 THREE PLACE DECIMAL 0.005

3/16/2015

CHECKED

Jason

3/31/2021 TITLE:

B

3/16 DIAMOND 3/16 DIAMOND PLATE PLA

MFG APPR.

B

6

1 19 4 "

B

2

5 5 11 8 "

CHECKED

neal

10/27/2016 TITLE:

INSTALOAD PALLET TOMBSTONE DESIGN 2 RAILS 2 SIDES

COMMENTS:

SIZE DWG. NO.

B

FINISH

VULCAN BLACK HP

B

31"

1 39 2 "

31"

1 39 2 "

REV

A1

ITBA2R-BK3S

SCALE: 1:16 WEIGHT: 259.34 SHEET 1 OF 1

DO NOT SCALE DRAWING

2

3

A

1

1 22"

DETAIL B SCALE 1 : 8 LASER ANDFORMED LASER ANDFORMED PALLET CHANNELS PALLET .CHANNELS.

5 27 8 "

1 40 2 "

3/16/2015

Q.A.

4

5 418 "

DATE

NSP

MFG APPR.

MATERIAL

REV

THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF WELDCOA. ANY REPRODUCTION IN PART OR AS B A WHOLE WITHOUT THE WRITTEN PERMISSION OF WELDCOA IS PROHIBITED.

Weldcoa 335 East Sullivan Rd Aurora, IL 60505

NAME DRAWN

ENG APPR.

INTERPRET GEOMETRIC TOLERANCING PER:

SCALE: 1:16 WEIGHT: 203.09 SHEET 1 OF 1

DO NOT SCALE DRAWING

3

UNLESS OTHERWISE SPECIFIED: DIMENSIONS ARE IN INCHES TOLERANCES: FRACTIONAL 1/16 ANGULAR: MACH 0.5 BEND 0.5 TWO PLACE DECIMAL 0.01 THREE PLACE DECIMAL 0.005

PROPRIETARY AND CONFIDENTIAL

7SIZE DWG. NO. 2 16 " DECK HEIGHT ITBA2T-BTSP

1.5X1.5X0.120 1.5X1.5X0.120 TUBE TUBE

2x2x0.120 TUBE 2x2x0.120 TUBE

LINK-LOC PALLET SYSTEM A 7 BASE STYLE "A" SIZE 1 39 16 " 33 16 " 2" TUBE BACK FENCE NO SIDES

ENG APPR.

COMMENTS:

MATERIAL

MATION CONTAINED IN THIS S THE SOLE PROPERTY OF ANY REPRODUCTION IN PART HOLE WITHOUT THE WRITTEN FINISHPALLET\Nexair Pallet\ T ACESSORIES\SAF-T-CART OF WELDCOA IS PROHIBITED. VULACN BLACK HP

7

DATE

NSP

Q.A.

INTERPRET GEOMETRIC TOLERANCING PER:

C

Weldcoa 335 East Sullivan Rd Aurora, IL 60505

NAME DRAWN

3

D

1 1 28 2 " 28 2 " 3 38 4 "

3 38 4 "

4

C C

UNLESS OTHERWISE SPECIFIED:

4

42" 3 38 8 " B

DETAIL B SCALE 1 : 8

7 38 16 "

TARY AND CONFIDENTIAL

5

6

1 22"

5 48"

5 27 8 "

37"

42" 3 38 8 "

1 39 2 "

C

6

7

1 22"

7 38 16 " UNLESS OTHERWISE SPECIFIED:

Product

Description A

PROPRIETARY AND CONFIDENTIAL

Link-Loc™ Slot-Style BSTONE PALLETS\ITBA2T-BTSP\ Pallets 7

6

DIMENSIONS ARE IN INCHES TOLERANCES: FRACTIONAL 1/16 ANGULAR: MACH 0.5 BEND 0.5 TWO PLACE DECIMAL 0.01 THREE PLACE DECIMAL 0.005

DATE

NSP

3/16/2015

CHECKED

Jason

3/31/2021 TITLE:

ENG APPR. MFG APPR.

A

Q.A.

INTERPRET GEOMETRIC TOLERANCING PER:

COMMENTS:

MATERIAL

Weldcoa 335 East Sullivan Rd Aurora, IL 60505

NAME DRAWN

SIZE DWG. NO.

B Slot Style Tombstone Design, 2 Rail, 3 Sided, Black THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF WELDCOA. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF WELDCOA IS PROHIBITED.

5

4

FINISH

VULACN BLACK HP

DO NOT SCALE DRAWING

8

7

Item #

ANGULAR: MACH 0.5 ANGULAR: MACH 0.5 BEND BEND 0.5 ENG 0.

A TWO PLACE DECIMAL TWO PLACE 0.01 DECIMAL 0.01 THREE PLACE DECIMAL THREE0.005 PLACE DECIMAL MFG 0.005A

7

PROPRIETARY AND CONFIDENTIAL PROPRIETARY ANDMATERIAL CONFIDENTIAL

6

MATERIAL

Q.A.

COMM

THE INFORMATION CONTAINED THE INFORMATION IN THIS CONTAINED IN THIS DRAWING IS THE SOLE DRAWING PROPERTY IS OFTHE SOLE PROPERTY OF WELDCOA. ANY REPRODUCTION WELDCOA. IN ANY PART REPRODUCTION IN PART OR AS A WHOLE WITHOUT OR AS THEAWRITTEN WHOLE WITHOUT THE WRITTEN FINISH FINISH PERMISSION OF WELDCOA PERMISSION IS PROHIBITED. OF WELDCOA IS PROHIBITED. VULCAN BLACKVULCAN HP BLACK HP

1 6

INTERPRET GEOMETRICINTERPRET GEOMETRIC TOLERANCING PER: TOLERANCING PER:

ITBA2T-BT3S

SCALE: 1:16 WEIGHT: 203.09 SHEET 1 OF 1

Slot Style Tombstone Design, 2 Rail, No Sides, Black

© Copyright 2022 Welding Company of America All rights reserved.

DRAW DIMENSIONS ARE IN INCHES DIMENSIONS ARE IN INCHES TOLERANCES: TOLERANCES: CHECK FRACTIONAL 1/16 FRACTIONAL 1/16

A

REV

ITBA2T-BTSP

T:\PALLETS & PALLET T:\PALLETS ACESSORIES\SAF-T-CART & PALLET ACESSORIES\SAF-T-CART PALLET\Nexair PALLET\Nexair Pallet\ 2 Pallet\ 3

8

UNLESS OTHERWISE UNLESS SPECIFIED: OTHERWISE SPECIFIED

LINK-LOC PALLET SYSTEM BASE STYLE "A" SIZE 2" TUBE BACK FENCE NO SIDES

5

5

ITBA2T-BTSP

4

4

3

29

3

Empowering Productivity

logistics products • filling products • long-term support • training & education 335 E. Sullivan Rd, Aurora, IL 60505 1 (630) 806-2000 weldcoa.com

© Copyright 2022 Welding Company of America All rights reserved. 4/22
