Construction Heaters
wORKmAn And nORSEmAn hEATERS
hEATSTAR BY EnERcO cOnVEcTiOn hEATERS
L.B. whiTE TRAdESmAn pORTABLE FORcEd AiR hEATERS
• Unique top design provides superior distribution of heat • One piece barrel adds to strength and durability, no assembly required • Norseman design offers heavy gauge steel body, rugged cast iron burner and horizontal model has low ceiling clearance • Workman design offers aluminized steel body and enclosed stainless steel burner • 10 ft. hose and regulator included (LP gas models only) • CSA Certified (WORKMAN & NORSEMAN 200 PLUS) • 1-Year warranty
• Aluminized steel construction • “Insta-Lock” telescoping design system for easy assembly • 20 ft. hose and regulator included (LP gas models only) • CSA Certified • 1-Year limited warranty
Fuel Type RMI Part Number Capacity BTU/HR Operating Pressure Ignition Type Burner
Fuel Usage LBS/HR Case Material
LP WORKMAN 225 PLUS 225,000 10.2 psig Piezo Stainless Steel 10.4 Aluminized Steel NG WORKMAN 100N PLUS 100,000 7" w.c. Piezo Stainless Steel 100 cu ft/hr Aluminized Steel LP NORSEMAN 200 PLUS 200,000 23 psig Piezo Cast Iron 9.3 Heavy Gauge Painted Steel LP NORSEMAN 250 250,000 23 psig Manual Cast Iron 11.6 Heavy Gauge Painted Steel LP NORSEMAN 200 HORIZONTAL 200,000 23 psig Manual Cast Iron 9.3 Heavy Gauge Painted Steel
HS80CV
Fuel Type RMI Part Number Capacity BTU/HR Operating Pressure Ignition Type Burner
Fuel Usage LBS/HR Case Material

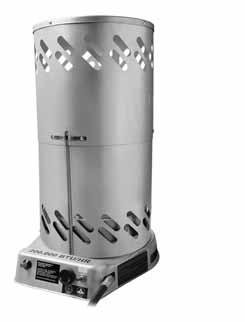

LP HS80CV 80,000 11" w.c. Piezo Aluminized Steel 3.7 Aluminized Steel NG HS80CVN 80,000 4" w.c. Piezo Aluminized Steel 55.5 cu ft/hr Aluminized Steel LP HS200CV 200,000 10 psig Piezo Aluminized Steel 9.3 Aluminized Steel HS200CV
© Ray Murray Inc. Edition 11 • Rugged construction with Tri-Shield coating provides protection against abrasion and corrosion • Unique 3-trial electronic spark ignition system • Variable output control for maximum fuel efficiency • ULTRA models include self diagnostic service saver for convenient trouble-shooting • 10 ft. hose and regulator included (LP gas models only) • CSA Certified • 1-Year warranty
Fuel Type RMI Part Number Capacity BTU/HR Operating Pressure Ignition Type
Air Output (CFM)
Fuel Usage LBS/HR T-Stat

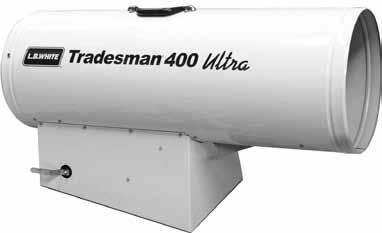

LP TRADESMAN 100 100,000 11" w.c. electronic spark 350 4.6 n/a LP TRADESMAN 170 ULTRA 170,000 11" w.c. electronic spark 625 7.2 Standard NG TRADESMAN 170N ULTRA 170,000 7" w.c. electronic spark 625 155 cu ft/hr Standard LP TRADESMAN 400 ULTRA 400,000 5.2 psig electronic spark 1,582 18.5 Standard
hEATSTAR BY EnERcO pORTABLE FORcEd AiR hEATERS
hEATSTAR BY EnERcO pORTABLE RAdiAnT hEATERS
• Durable steel construction • Heavy-duty high output fan • High temperature limit switch • Heater shuts off with loss of flame or power supply • 20 ft. hose and regulator included (LP gas models only) • CSA Certified • 1-Year limited warranty HS35FA HS85FAV
Air Output (CFM)
Fuel Usage LBS/HR T-Stat
LP HS35FA 35,000 10 psig Piezo 100 1.6 n/a LP HS60FAV 60,000 28" w.c. Continuous 300 2.08 n/a LP HS85FAV 85,000 28" w.c. Continuous 300 3.9 n/a LP HS125FAV 125,000 28" w.c. Continuous 350 5.8 n/a LP HS170FAVT 170,000 28" w.c. Automatic 450 7.8 built-in NG HS170NG 150,000 4" w.c. Automatic 450 138 cu ft/hr built-in LP HS400FAVT 400,000 20 psig Automatic 1,400 18.5 built-in HS170FAVT
HS400FAVT
• Built-in battery and battery charger • Replaceable 12Volt sealed lead acid battery • Runs up to 8 hrs. (HS35CLP) & 4 hrs. (HS60CLP) on a single charge • Charges in 5 hours • Quiet burn technology - 50% quieter than standard models • Operates while charging • 10 ft. hose and regulator included • ETL Certified • 1-Year limited warranty
• Durable steel construction • Fully assembled - ready to use • Folding handle and transport wheels included • Safety shut-off • 20 ft. hose and regulator included (LP gas models only) • Tip-over switch included on HS35LP • CSA Certified • 1 Year limited warranty
Air Output (CFM)
Fuel Usage LBS/HR T-Stat

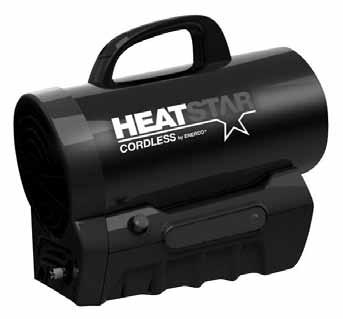

LP HS35CLP 35,000 38" w.c Piezo 117 1.6 n/a LP HS60CLP 60,000 36" w.c Electronic 300 1.39 n/a HS35CLP
LP HS35LP 35,000 27.5" w.c. Piezo LP HS125LP 125,000 11" w.c. Piezo NG HS125NG 125,000 7" w.c. Piezo HS35LP
HS125LP
