Wrenches, Flare Equipment, Hose Tools

Think of RMI for all of your Ridgid tools and equipment!

RidGid STEEL And ALUminiUm NON-SPARKING TOOLSpipE wREnchES

RMI Part No. Length

31020-14 14" Steel Pipe Wrench 31025-18 18" Steel Pipe Wrench 31030-24 24" Steel Pipe Wrench 31035-36 36" Steel Pipe Wrench 31040-48 48" Steel Pipe Wrench 31045-60 60" Steel Pipe Wrench 31100-814 14" Aluminum Pipe Wrench 31105-824 24" Aluminum Pipe Wrench 31110-836 36" Aluminum Pipe Wrench 31115-848 48" Aluminum Pipe Wrench

ThERmOcOUpLE wREnchES

Alloy steel open end HEX wrench.

RMI Part No. Description

GK-382 Thermocouple Wrench, 3/8 " x 7/16 "

M-2

P-39

nOn-SpARKinG TOOLS

Beryllium alloy, non-magnetic, and corrosion resistant. NON-SPARKING TOOLS

RMI Part No. Description Size Length

M-2 Mallet 1 lb. 14 oz. 12" W-211 Pipe Wrench 1" max 10" W-212 Pipe Wrench 11/2" max 14" W-214 Pipe Wrench 21/2" max 24" W-71 Adjustable 15/16" max 8" W-72 Adjustable 11/8" max 10" W-73 Adjustable 15/8" max 12" P-39 Pliers 11/2"" max 91/2 " S-49 Screw Driver 6" Blade 101/8 " S-50 Screw Driver 8" Blade 13" S-51 Screw Driver 12" Blade 17" S-1100 Philips Screw Driver 6" Blade 101/8 " WB-40 Wire Brush -- 14" W-211

WB-40

SpAnnER wREnch/J-wREnch

For tightening and loosening 21/4", 31/4", 41/4" ACME Couplings.

RMI Part No. Type

MEP120B Fisher J-WRENCH 31/4" Box J-WRENCH

MEP120B

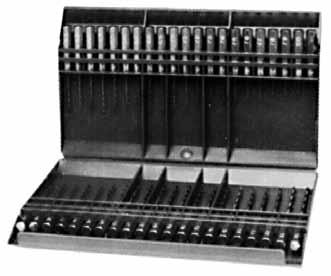

dRiLL KiTS

Various combinations of drills with handles in a plastic case. See part no. and description for kit make-up.

RMI Part No. Description

G1939 (21) Gauging Drills #19 - #39; RMH-90 Reamer w/ Handle; Plastic Case G4080 (41) Gauging Drills #40 - #80; RMH-90 Reamer w/ Handle; Plastic Case

indiVidUAL REpLAcEmEnT dRiLLS

RMI Part No. Description DH-19 thru DH-80 Individual Replacement Drills; #19 - #80 w/ Handles RMH-80; RMH-90 Individual Replacement Reamer; #80 & #90 w/Handles

AdJUSTABLE REAmER KiT

hAndi-LiTE

6” Match clip extends to 24” for easy lighting of pilots, burners and grills. Available with or without magnet. Adjustable orifice reamer can ream, enlarge or measure orifices used on LP-Gas appliances.

RMI Part No. Description

HANDI-LITE Extendable Match Holder & Magnet Z6-413 Extendable Match Holder - No Magnet HR, HC

RMI Part No. Description

HR Adjustable Reamer Kit - #51 to #80 HC Adjustable Reamer Kit - #31 to #50 © Ray Murray Inc. Edition 11

Copper Flaring Tools

500-FA

impERiAL EASTmAn FLARE TOOLS

525-F

RMI Part No. Description 500-FA "Rol-Air" Flare Tool-handles 3/16" to 5/8" OD Tubing 525-F "Grabber" Rol-Air Flare Tool One Opening Fits All Sizes

124-FA

FLARinG & cUTTinG KiTS

RMI Part No. Description

124-FA Kit Includes 500-FA & 274-FC

LEVER TYpE TUBE BEndERS

Each tool bends one size. Heavy duty benders make smooth short radius bends up to 180°. 420

512

RMI Part No. Description

420 "Papco" Rothenberger Flaring Tool 512 "Papco" Rothenberger Tubing Cutter 51212 Replacement Cutting Wheel

pApcO TOOLS

pApcO 420

Unmatched flexibility and efficiency for precision flaring. Swing release and hex clamp blocks rotate in dependable 45° single lap flare.

pApcO 512

Clean cutting, durable, wide-roller tubing cutter.

945TH

pARKER FLARinG TOOL

Swing Release Type For 3/16" through 3/4" OD Tubing.

RMI Part No. Description

945TH Parker Flaring Tool

impERiAL EASTmAn cOppER TUBinG cUTTERS

364-FHA-08 364-FHA -10

Style furnished for 1/4" and 1/2" O.D. tubing Style furnished for 5/8" and 3/4" O.D. tubing

RMI Part No. Description

364-FHA-06 3/8" OD Tubing Bender 364-FHA-08 1/2" OD Tubing Bender 364-FHA-10 5/8" OD Tubing Bender 370-FH 1/4", 3/8", 1/2" OD Bender Triple 127-FB 274-FC

RMI Part No. Description

127-FB "Imp" Cutter: 1/8" - 5/8" OD Tubing 174-F "Big Imp" Cutter: 3/8" - 11/8" OD Tubing 274-FC "Hi-Duty" Cutter: 1/8"- 11/8" OD Tubing 75015 Cutting Wheel For 127-FB & 274-FC

SpRinG TYpE TUBE BEndER

For Hand Bending of Soft Tube, available in 3 sizes.

cSST TUBE cUTTERS

RMI Part No. Size

Description

TC-15 3/16" - 1 Tube 1/8 " cutter No. 15 TC-152 11/4" - 2" Tube cutter No. 152

© Ray Murray Inc. Edition 11

RMI Part No. Description 102-E 3/8" OD Tubing Bender 102-F 1/2" OD Tubing Bender 102-I 5/8" OD Tubing Bender

102 Series

TUBE cUTTER REpLAcEmEnT pARTS

RMI Part No. Size Description

FGP-E-5272 TC-15RB 11/4" - 2" Cutter Wheel for No.152 Cutter Wheel for No. 15

GAS cOnTROL TAp KiT

Kit provides taps to refurbish damaged or cross threaded gas connections. The three taps will rework standard thermocouple, main burner and pilot outlets. Thread gauge determines proper tap selection. MI-131: 23 Most Common Sizes & Chart (Over 300 Pieces) MI-132: 32 Most Common Pilot Orifices & Chart (Over 100 Pieces) MI-135: 23 Most Popular LP Orifices & Chart (Nearly 300 Pieces)

RMI Part No. Description

TPK-1 Complete Gas Control Tap Kit Individual Parts TP-11/32DL Thermocouple Tap - 11/32 " x 32 NS TP-3/8-18 Main Burner Tap - 3/8 " x 18 NPT TP-7/16-24 Pilot Tap - 7/16 " x 24 NS TP-TG Thread Gauge - 18 Blade TPK-1

GAS-KiT mi-100K ORiFicE AdApTOR KiT

Kit will renew 80–90% of all orifices to use higher BTU gases. instructions: Remove existing orifice. Insert into anvil. Ream out orifice in conjunction with handpiece. Remove orifice from anvil, insert adaptor. Place orifice on end of anvil. Use driving tool & strike with hammer to set adaptor. Insert crimping tool into anvil Strike with hammer & flare adaptor.

RMI Part No. Description

MI-100K Complete Orifice Adaptor Kit INDIVIDUAL PARTS MI-100 Adaptor TL-061 Hand Piece TL-062 Crimping TL-063 Driving Tool TL-064 Adaptor Crimping Tool TL-070 Reamer TL-074 Anvil

Ream out hole Insert adapter Crimp adapter end Completed installation

GAS-KiT ORiFicE KiTS

GK-201: Contains 10 each of standard cap orifices and 10 each of plug types to cover most conversion applications plus those “hard to get” taps and drills to refurbish thread connections. GK-202: Contains 20 each of standard cap orifices and 20 each of 5 plug types.

RMI Part No. Description

GK-201 Complete Orifice Kit, 10 each and taps and drills GK-202 Orifice Kit, selected orifices, no taps or drills To install specific orifice, use Drill and Tap as shown in chart below.

dRiLLS & TApS FOR USE wiTh GAS-KiT ORiFicE KiTS

Orifice Drill Tap RMI Part No. Type Thread RMI Part No. Size RMI Part No. Size

CO-400/80 Cap 3/8" x 27 -- -- -- -PO-512/80 Plug 5/16" x 32 GK-180D 9/32" GK-180T 5/16" x 32 PO-518/80 Plug 11/32" x 32 GK-188D 5/16" GK-188T 11/32"" x 32 PO-508/80 Plug 1/4" x 28 GK-185D #3 GK-185T 1/4" x 28 PO-501/80 Plug 17/64" x 36 GK-187D ÒB" GK-187T 17/64" x 36 PO-511/80 Plug 7/16" x 27 GK-182D ÒYÓ GK-182T 7/16" x 27

AndERSOn & FORRESTER ORiFicE KiTS

RMI Orifice Kit Part No.

MI-132 MI-131 MI-135 Pilot Orifice Kit Serviceman's Orifice Kit LP Plug & Cap Orifice Kit

Contains Contains Contains Part No. Pcs. Part No. Pcs. Part No. Pcs.

BA-701 3 CO-400 25 CO-400 25 BA-702 2 MI-100 30 CO-401 10 BA-703 3 MI-108 10 CO-402 10 BA-718 6 PO-501 12 CO-403 10 BA-719 3 PO-505 5 CO-405 5 BA-720 4 PO-508 20 MI-100 30 GE-751 1 PO-511 10 MI-108 10 GE-752 2 PO-515 12 PO-501 10 GE-753 3 PO-518 20 PO-505 5 GE-757 9 PO-519 15 PO-508 15 GR-801 7 PO-520 10 PO-511 10 GR-803 5 PO-523 12 PO-518 10 GR-804 4 PO-529 15 PO-519 15 GR-805 3 PO-530 12 PO-520 10 GR-806 3 PO-533 10 PO-523 10 GR-807 3 PO-536 8 PO-527 10 GR-813 5 PO-538 10 PO-529 15 GR-818 6 PO-539 15 PO-531 10 GR-820 5 PO-543 10 PO-533 15 GR-821 4 PO-554 8 PO-536 10 MH-851 3 PO-557 10 PO-538 10 MH-854 4 PO-558 10 PO-539 15 MH-856 4 PO-559 10 PO-543 10 MH-857 6 MH-858 4 MH-859 5 WR-900 3 WR-901 1 WR-902 1 WR-903 2 WR-904 1 WR-905 1 MI-131

piLOT cLEAninG pUmp

Heavy-duty construction for years of dependable service. Attaches quickly to hot water heater, furnace, stove and dryer. Fits easily into tool box or pocket. Eliminates the replacement of orifices. Useful in cleaning moisture, carbon and lint from orifices and in removing water from flooded lines. Includes fittings for 1/8" – 3/16" and 1/4" pilot tubing nuts.

TL-095

RMI Part No. Description

TL-095 Pilot Cleaning Pump Kit EBK Replacement Fitting Kit © Ray Murray Inc. Edition 11
