Hose End Valves

83

Hose End Valves/Toggle Valves

mE791 TOGGLE VALVE

Marshall Excelsior quick acting hose end valve features standard or locking device on handle, positive shut-off and maximum flow.

ME800G

RMI Part No. Without Lock With Lock Inlet Outlet Vent Valve

ME791C ME792C 1/2" 1/4" No ME791CJ ME792CJ 1/2" 1/4" Yes ME791D ME792D 1/2" 1/2" No ME791DJ ME792DJ 1/2" 1/2" Yes

SQUiBB TAYLOR hOSE End VALVE

• Minimum bleed at disconnect .6cc • Quick jaw version 1/8 turn to connect/disconnect • All valve have heavy duty handle

RMI Part No. Description

AL343 Bobtail Hose End Valve AL364 3/4" x 1 3/4" Quick Jaw AL363 1" x 1 3/4" Quick Jaw AL366 1 1/4" x 1 3/4" Quick Jaw AL343

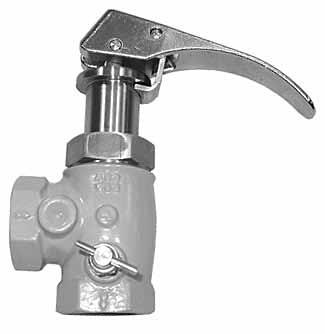

mARShALL EXcELSiOR TOGGLE VALVE

• All Stainless Components • Self Locking Handle • Stainless Bleed Valve Included

ME810-4

RMI Part No. Angle Globe Size Ports Bleed Valve Installed

ME810-4 ME820-4 1/2" 1 Yes ME810-6 ME820-6 3/4" 1 Yes ME810-8 ME820-8 1 1 Yes

EcOnOmY VERSiOn (GLOBE OnLY)

RMI Part No. Size Ports Bleed Valve Installed

ME821-4 1/2" 2 No ME821-6 3/4" 2 No ME821B-4 1/2" 2 Yes ME821B-6 3/4" 2 Yes

mARShALL EXcELSiOR hOSE End VALVE

• Pressure tested to 600 PSIG • User friendly handle • Quick opening and closing action with locking mechanism • Extremely low gas loss • All steel and stainless construction

RMI Part No. Inlet Outlet

ME800 1" 1 3/4" ME800WS With Factory Installed Swivel ME800C Composite Handle ME800CWS Composite with Swivel ME800G Fluted Handle (Rego style) ME800GWS Fluted with Swivel ME800EXT Extended Version ME800EXTWS Extended Version w/Swivel ME800-SARK Stem Assembly Repair Kit ME800-LSRK Lower Seal Repair Kit

REGO hOSE End VALVE

• Operator friendly contoured handle • Self-locking handle • Vents less that 1/500th of gallon when connected

RMI Part No. Description

A7797 1" hose end valve A7797-50 Repair Kit © Ray Murray Inc. Edition 11

Filler Couplings and Adaptors

FiLLER hOSE AdApTOR

ME571H Hose end check adapters which may be left on the tank filler valve in case of valve failure. All models have an integral breakaway feature in case of truck roll away that will leave the check intact on the tank.

ME571H is a high flow adapter – up to 86GPM

ME574

Intended for the outlet of bobtail truck filling hose. The M570 enables the filling hose to be removed if the filler valve fails to close. Designed for N480 valve, although usable with all brands.

RMI Part No. Style Swivel Installed Vent

ME570 Compact No No ME571 Tall Yes No ME572 Compact Yes No ME574 Tall Yes Yes ME571H* Tall Yes No

EXTEndEd FiLL AdApTORS FOR U/G TAnKS

• 7” Extension • Eliminates unsafe stacking of multiple checks • Integral bread-a-way feature

ME572EXTHD ME574EXT

RMI Part No. Description

ME572EXT Standard Handle ME572EXTHD Heavy Duty Handle ME574EXT Standard Handle w/Bleeder ME574EXTHD Heavy Duty Handle w/Bleeder

FLO-mAX FULL FLOw FiLL AdApTOR

• Up to 30% higher flow rates through full port body • Includes key for shut-off valve

RMI Part No.

Description

ME578 13/4" F. Acme Swivel x 13/4"" M. Acme ME578-02 Spare Key ME388

pOL FiLLER cOUpLinGS

Soft Nose POL Coupling for Handtight O-Ring Seal.

ME390

RMI Part No. Tank Conn. Hose Conn. Length Type

ME390 POL 1/4 " MNPT 6" Heavy Duty

ME390S POL 1/4 " MNPT 6" Heavy Duty

M390 POL 1/4 " MNPT 6" Std. Long

M388 POL 1/4

" MNPT 21/2" Short All brass shafts, except ME390S, which has a steel shaft.

ME392

pOL FiLLER AdApTOR

Adapts POL filler coupling to 1 3/4” ACME or QCC.

RMI Part No. Description

ME568 F POL X 13/4" ACME adaptor ME392 Adaptor FPOL x 1 5/16"QCC ME394 F POL X 15/16 " M QCC

TYpE 1 FiLLER cOUpLinG

RMI Part No. Description

ME515 1/4” x Type 1 w/knurled handle ME516 1/4” x Tyle 1 w/forged handle ME516S 1/4” x Type 1 w/ss nipple ME796 Quick fill QCC Fill Adapter ME516

TYpE i (Qcc) FiLLER AdApTORS

Adapts Type I (QCC 1 5/16") filler coupling to POL, Fork Lift or 1 3/4” ACME valves.

ME393 ME394 ME569

RMI Part No. Description

ME393 Male QCC x MPOL w/ Hand Wheel ME394 Male QCC x Female 11/4" Fork Lift ME569 Male QCC x Female 13/4" ACME

© Ray Murray Inc. Edition 11

FiLLER hOSE AdApTOR

M570

RMI Part No. Description

M570 13/4" ACME adapter for N480 T13098T0012Replacement Outer Washer T13103T0012 ME570 901B Replacement Inner Washer Non-Swivel Compact Hose Adapter 901B

LiFT TRUcK FiLLER cOUpLinG

Extended motor fuel filling connector permits fast, easy connection through cylinder collar. Available with F. POL inlet.

MSA-700

RMI Part No. Inlet Outlet

MSA-790 1/4" MNPT 11/4" ACME M.F. MSA-700P F. POL 11/4" ACME M.F.
