FRAMEWORK DESIGN

MASSACHUSETTS, U.S.A.

The primary goal of this project is to better understand how designers can potentially generate designs that uphold locally specific community values through stakeholder engagement. Two cultural regions (sharing the same climate zone) were chosen for their similar weather patterns and natural resources. The people within these cultural regions, who likely had no communication with one another, responded to a similar set of challenges with a similar set of materials. Despite these similarities, their differing cultural values and social structures manifest in entirely different dwelling styles. This project aims to examine the architectural expression of cultural differences. Through this study, a framework for design was developed and utilized to design a new building typology specific to three communities in Boston. The framework is not absolute but is meant to supplement the common practice of engaging with stakeholders through design.

One cultural region is home to the Ainu Indigenous peoples located in what is currently known as southern Hokkaido, Japan. The other cultural region is home to the Wendant (Huron) first nation located in what is currently known as Quebec, Canada. There is supplementary photography from the Hisatsinom (Sinagua) first nation located in what is currently known as Sedona, Arizona U.S.A.

To this day in the Americas, many first nation names circulating common knowledge are names given by white settlers. there is a desire to change the familiarity to slowly dissolve these names and use the ones true to each first nation community. Many country’s constitutions to this day still perpetuate systems of oppression. For further information scan the QR codes or feel free to reach me directly.

Thank you to those who made this possible in no particular order: James and Jill Gabbe, Killion Mokwete, Jessica Larochelle, Noemie, Katherine Calzada, Alison Ottaviano, Christine Oka, Musee Huron-Wendat, Huron Traditional Site - Wendake, Paul Pedulla, Devon Whitney, Michael Thornton, Mary Hale contact: gershman.g@northeastern.edu @gavinarchitecture

Ainu Structure Study

-built inside first row of coastal sandy dunes protection from gales

-irregular placement, no roads to guide eye through village

-rank weed & vegetables planted around dwellings

-construction; quadrilateral roof made first, round sticks lashed together, storage shelf at top plate

-arundinaria, 18” coarse for reeds

-steep roof pitch for easy snow melt, eaves reach within 4’ of ground

-roof placed on 4 corner square sticks

-roof slope north west south, 15 square feet west appendix, may be internally separated by wicker framework

-median of house east to west direction

-worship god of sun through eastern window

-south two windows ,w/ shutters that latch open awning style

-optional addition: wash basin placed under northern window, south entry, roofed porch on south,

-fireplace, oblong in shape, always underneath ridgepole, more on western side

-flooring, boarded n,e,s sides of fireplace, more typical board under eastern window

-entrance, western side or south if western addition is present

-spatial organization: north-sacred to family, east-only distinguished guests/permanent visitors, south-casual visitors

-walls - slope inward for strength

-storehouse, similar construction, raised 5’ off ground, notched stick functioned as ladder

-men and women had different bathrooms, mens larger with door

Wendat Social Structure

-maternal social structure

-wendake means island, as they lived on a peninsula, wendat means people on an island

-linguistic family -> nation -> smaller nation -> tribe/village -> clan

-oldest woman in each clan was the clan chief, in charge of all clan decisions

-each village had several dozen clans and the clan chiefs would elect other male chiefs to handle politics and war since other linguistic families wouldn’t respect a woman as chief

-for marriage, man would leave home clan to join woman’s clan

-out of twelve original clans, the remaining clans & their specialties; bear, medicine; wolf, war; deer, craftsman; turtle, keeper of knowledge

-powwow dance done around outdoor communal fireplace; celebrating seasons, marriage, treaties

-moved to new village site every 15-20 years

-would move sites for fertile soil & structure degradation

-men would hunt, women would gather typically, but could change

-extensive trade network between northern algonquin and southern iroquois

-buried seeds and fish flakes within longhouse in case of fire, the ground would protect them

-colonialist fur trade wars pushed wendat peoples north from great lakes to upper st. lawrence

-animist culture, holding deep respect for all living beings

-three sisters cropping technique, corn, squash, beans

-largest agrarian clans because of fertile soil on wendake peninsula

-population was once 30-40,000 but due to disease and war from settlers, reduced to 300

-under canadian constitution, indigenous peoples considered minors until age of 99

Ainu Social Structure

-patriarchal society

-animist faith, with generosity, hospitality as core values

-kotan (village) comprised of several cise (households)

-low level of inner-kotan family interaction

-gathered for ceremonies such as annual bear festival

-women would join men’s kotan

-when head of house died, cise was burned

-men responsible for tilling, hunting, building

-women responsible for cooking, harvesting, weaving, and children

-familial structure changed depending on the region of the clan

-cise construction was done by many family’s within kotan

-men of one kotan fished and hunted together, women expertly fished at night

-forced into more agrarian life off of hakkaido beaches from japan colonialism

-1899 aboriginals protection act was first-time ainu recognized as indigenous peoples

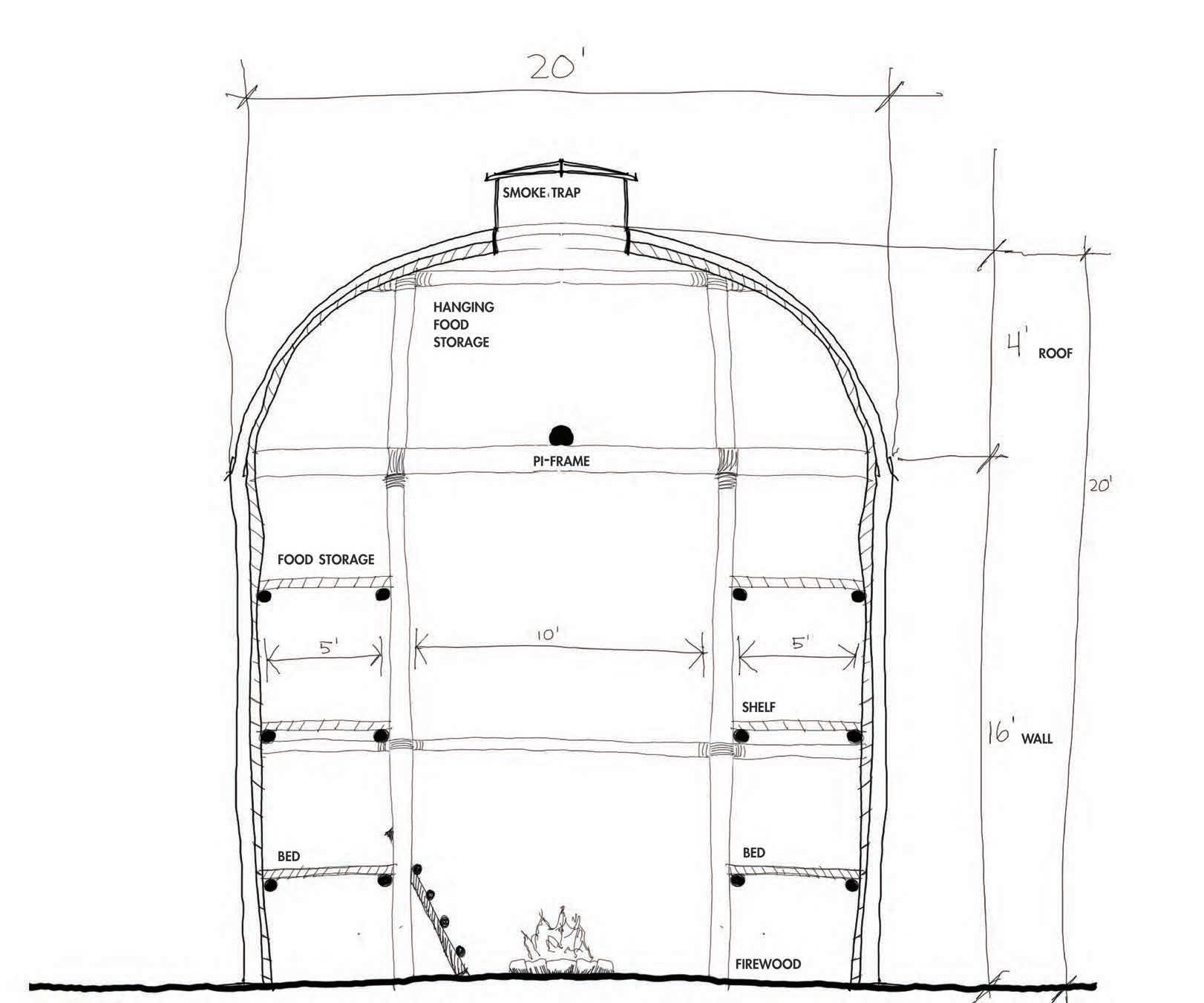

Wendat Structure Study

-qualities of materials: strength, elasticity, combustibility, weight, pliability

-rope made of tree cambium `

-structural strength through center columns, walls & roof are structurally separate

“pi-frames”

-exterior wall post molds 3” in diameter, sunken 2’ into ground & reach 1” diameter at tallest 16’ point

-two roof theories 1. roof & wall separate 2. wall posts run up to ridge

-5’ wide platforms ran along walls served as beds and benches

-conservative estimate of 15 wall posts between “pi-frames”

-central columns varied placement depending on structural needs

-vestibules at each end with door used for outdoor storage like wood and tools

-central corridor housed hearths placed every two pi-forms, each shared by two families each

-bower-like roof had holes in roof with removable vents, roof ratio of 4:1

-typically 180’-220’ long by 20’ wide

-dwellings can be added upon, largest being 400’

WENDAT LONGHOUSE RECREATION QUEBEC, CANADA

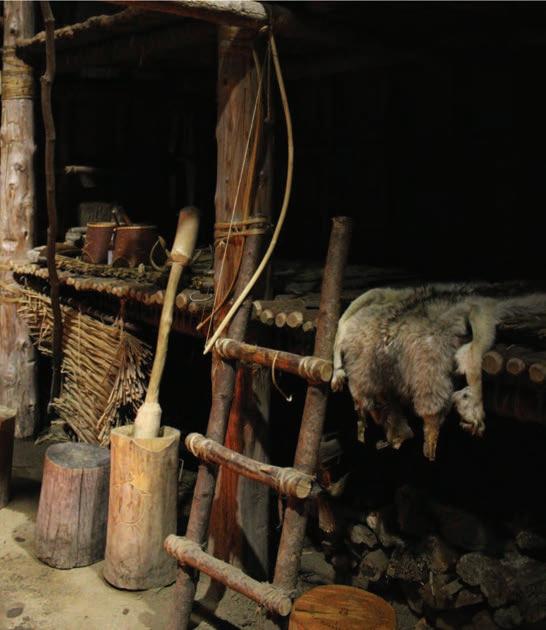

WENDAT INTERIOR

WENDAT INTERIOR

WENDAT INTERIOR

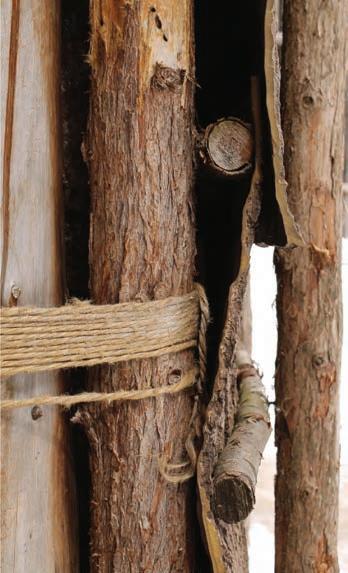

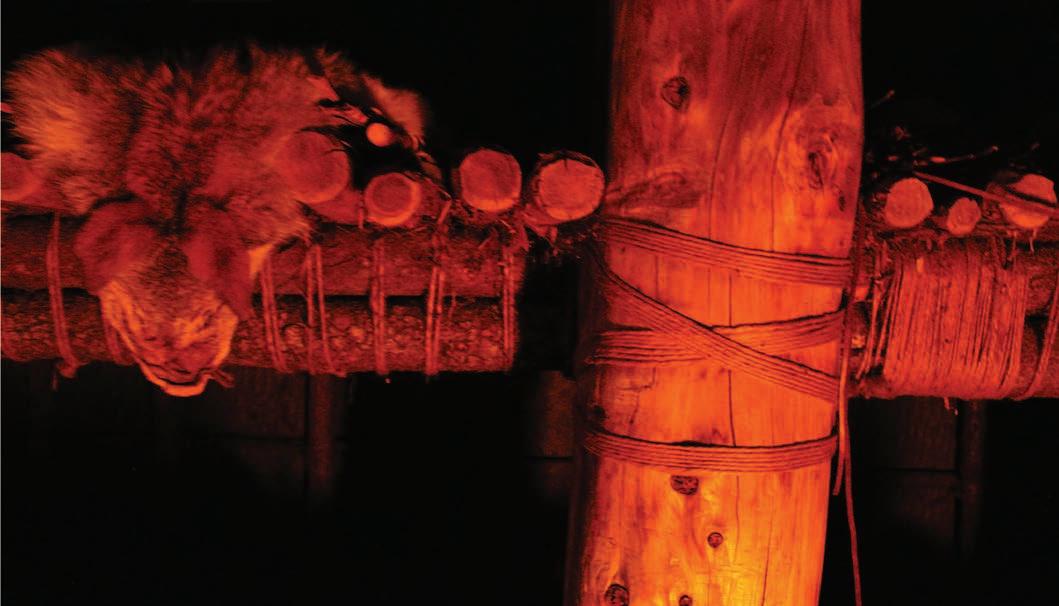

WENDAT LASHING

WENDAT INTERIOR FRAMING

WENDAT EXRTERIOR FRAMING

WENDAT SMOKER

WENDAT SMOKER

WENDAT PALISADE

WENDAT BEDTIME
