Drawers feature fully enclosed 16 gauge cold roll steel construction, heavy-duty smooth-glide drawer slides, spring-loaded

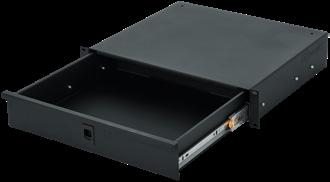

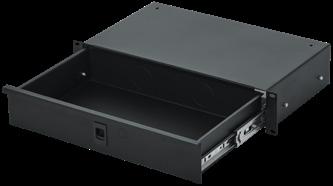

STANDARD RACK DRAWER
GRW-DRW2 - 2U Drawer with 14” Depth
GRW-DRW3 - 3U Drawer with 14” Depth
GRW-DRW4 - 4U Drawer with 14” Depth
SHALLOW RACK DRAWER
GRW-DRWSH2 - 2U Shallow Drawer 10” Depth
GRW-DRWSH3 - 3U Shallow Drawer 10” Depth
STEEL PERFORATED PANEL WITH FLANGED EDGE
GRW-PNLPRF1 - 1U Size Panel
STEEL VENTED PANEL WITH FLANGED EDGE
GRW-PNLVNT1 - 1U Size Panel

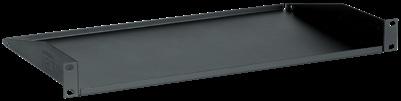

STANDARD SHELVES
GRW-SHELF1 - 1U Shelf with 10” Depth and Rear Flange
GRW-SHELF2 - 2U Shelf with 15” Depth and Rear Flange
GRW-PWRVERT-6 - US Format
GRW-DRWDF2
GRW-DRWDF3
GRW-DRWDF4
GRW-PNLSTFT1
GRW-PNLVNT2 - 2U Size Panel STEEL FLAT PANEL

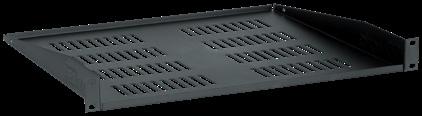

VENTED SHELVES
GRW-SHELFVNT1 - 1U Shelf with 15” Depth and Rear Flange
GRW-SHELFVNT2 - 2U Shelf with 15” Depth and Rear Flange
GR W-SHELFVNT3 - 3U Shelf with 17” Depth and Rear Flange
6 PLUG OUTLET, VERTICAL MOUNT 110V POWER STRIP
POWER/SCREWS/HARDWARE
RACK DRAWER
Drawer with Diced Foam
Drawer with Diced Foam
Drawer with Diced Foam
PANELS
latches and black powder coated finish. Lock knock-out and complimentary lock and key. *Not available on shallow models. and anodized aluminum construction types available.
PANEL WITH FLAT EDGE
1U Size Steel Panel
2U Size Steel Panel
3U Size Steel Panel
SHELVES
WIRELESS MICROPHONE RACK DRAWER
GRW-DRWWRLSS - 2U Drawer Holds 4 Wireless Microphones, Body Packs, and 16 AA Batteries
WIRED MICROPHONE RACK DRAWER
GRW-DRWMIC10 - 2U Drawer Holds 10 Hard Wired Microphones
STEEL PANEL WITH FLANGED EDGE
GRW-PNLSTFG1 - 1U Size Panel
GRW-PNLSTFG2 - 2U Size Panel
STEEL UNIVERSAL PANEL WITH HOLE PUNCH-OUTS AND FLANGED EDGE
GRW-PNLUNIKO - 1U Size
construction with black powder coated finish.
UNIVERSAL SHELF
GRW-SHELF1UNI - 1U Universal Hole Pattern Shelf for Mounting Smaller Rack Components with 10” Depth
POWER/SCREWS/HARDWARE
SLIDING SHELF

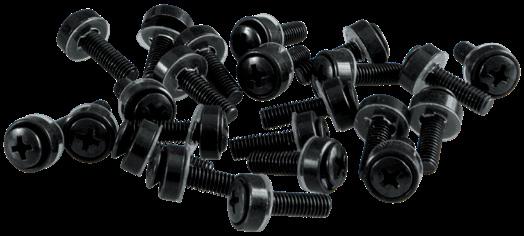

GRW-SHELF1SLD - 1U Vented Smooth Glide Sliding Shelf SCREW PACKS
RACK RAILS
GRW-RACKRAIL-04U
GRW-RACKRAIL-06U
GRW-RACKRAIL-08U
GRW-RACKRAIL-10U
GRW-RACKRAIL-12U

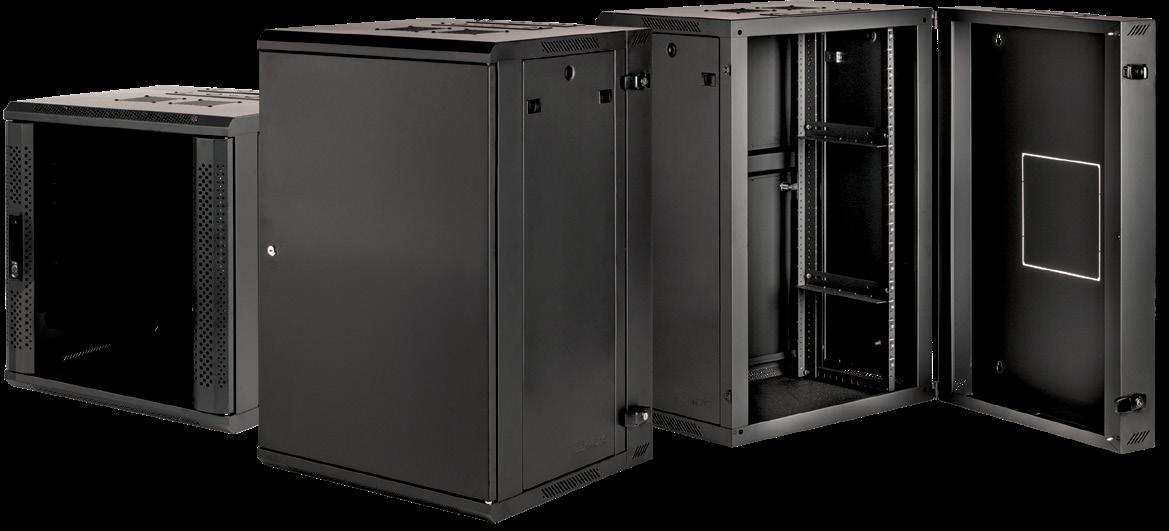

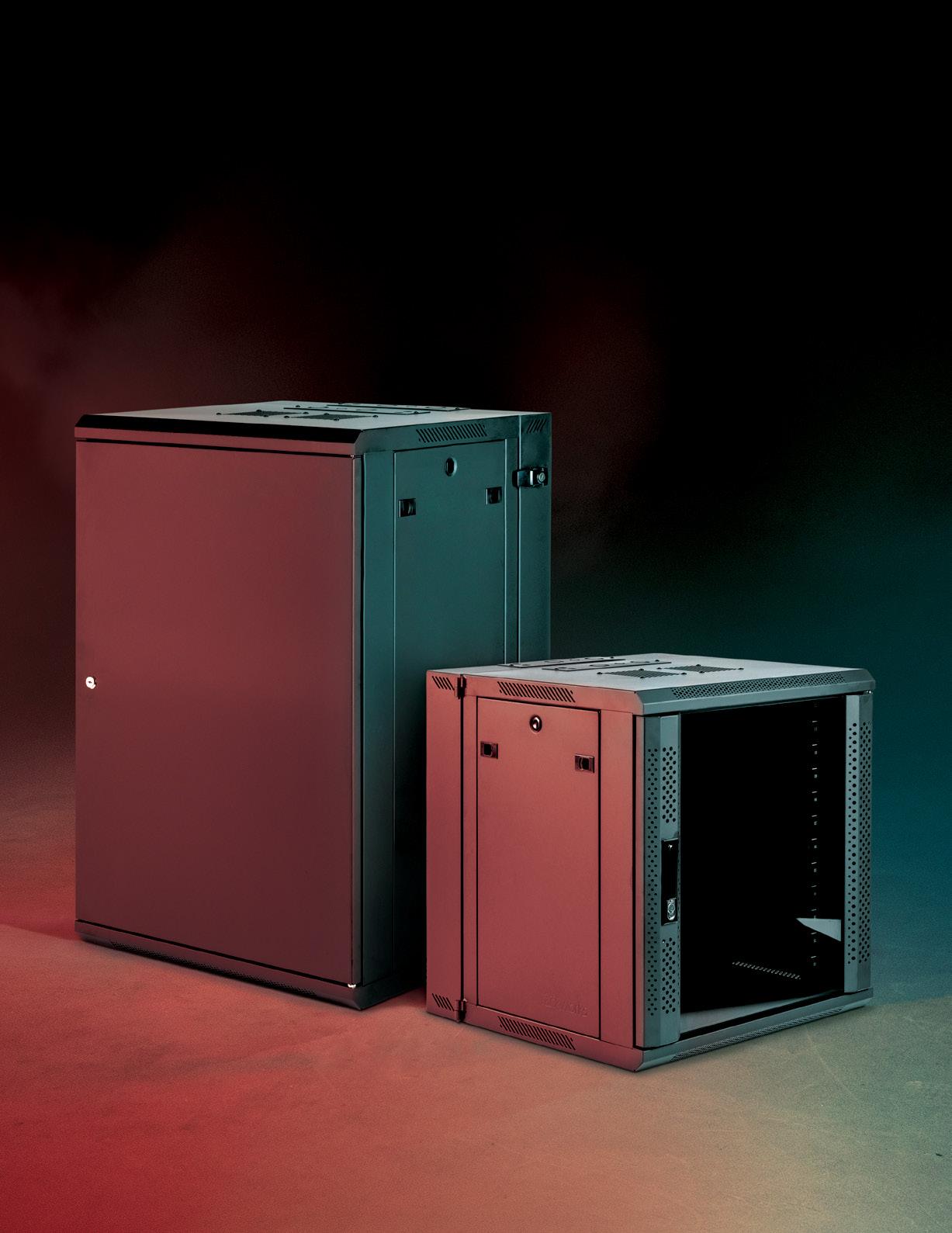

WALL HANGING HINGED RACKS
Hinged back, double section, welded frame construction. 10” x 10”rear access knockout for cable entry.

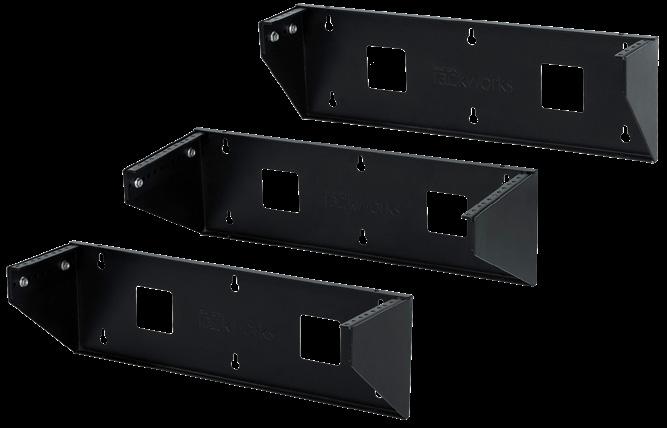

VERTICAL RACK MOUNTS
Wall mounting plate can be mounted vertically or horizontally with a unique design, it can accommodate any rack depth. Cold rolled 16 gauge steel construction that has a 200lb weight capacity.
*See back page for additional measurements
