GARLAND TECHNOLOGY FULL PRODUCT CATALOG PRODUCT CATALOG

FOUNDATION OF VISIBILITY

STARTS WITH SEEING EVERY BIT, BYTE, AND PACKET®

Garland Technology’s best-in-class Network TAP (Test Access Point) and purpose-built Packet Broker solutions provide an innovative, industry leading 360° visibility view for modern visibility fabrics.

Garland’s unique TAP to Tool TM Architecture puts the focus on the performance and visibility of your security and monitoring tools. Offering modular and open vendor solutions, we provide the scalability and flexibility to deploy what you need, when you need it.

It all starts with the packet. On your journey for complete visibility truth, Garland Technology provides 100% visibility, along with increased performance, and network optimization to add value to your investment, while mitigating risk.

The Garland Leadership

Chris Bihary, CEO/Co-Founder

Chris’ experience and technical knowledge of IT and OT network access and visibility challenges drive the success of Garland Technology, and is the foundation for its loyal and growing customer base.

Chris started his career owning an IT reseller who built out 9-1-1 call center network infrastructure, which helped shape his core belief to always ensure uptime for critical networks.

Jerry Dillard,

CTO/Co-Founder

For over 25 years, Jerry has dedicated his career to designing and engineering solutions to ensure network uptime while maintaining a secure network environment. As the inventor of the Bypass TAP technology, Jerry continues to innovate with network TAPs, packet brokers, and inline bypass technology.

Our Commitment to Quality

Garland Technology’s focus will remain centered around reliability while delivering the greatest economical solutions for today’s network teams and the most complex and extensive data center environments worldwide.

The “Garland Quality Standard” ensures all network TAPs are stress tested with live network data and validated, with zero failures in the field. Made, tested, and supported in the USA.

TABLE OF CONTENTS

PACKET VISIBILITY

IN ANY ENVIRONMENT

GARLAND TECHNOLOGY NETWORK TAPS, PACKET BROKERS AND INLINE BYPASS

Garland Technology is committed to helping increase the value of your network by offering the industry's most reliable, economical, easy to deploy network TAP and packet broker solutions.

Garland Technology provides the scalability and flexibility to deploy what you need, when you need it, so you can focus on what's important - network visibility.

NETWORK TAPS

Passive Fiber TAPs | 1/10/25/40/100/400G

Copper TAPs | 10/100/1000M (1G)

Regeneration TAPs | 1/10/25/40/100G

Aggregator TAPs | 1/10G

Industrial Specialized TAPs | 10/100/1000M (1G)

XtraTAP TM Packet Broker Hybrid | 1/10/40G

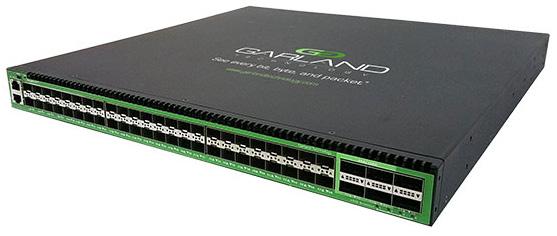

NETWORK PACKET BROKERS

PacketMAX TM Advanced Aggregator | 1/10

PacketMAX TM Advanced Features | 1/10/40/100G

PacketMAX TM Advanced Features Deduplication | 10/40G/100G

INLINE BYPASS

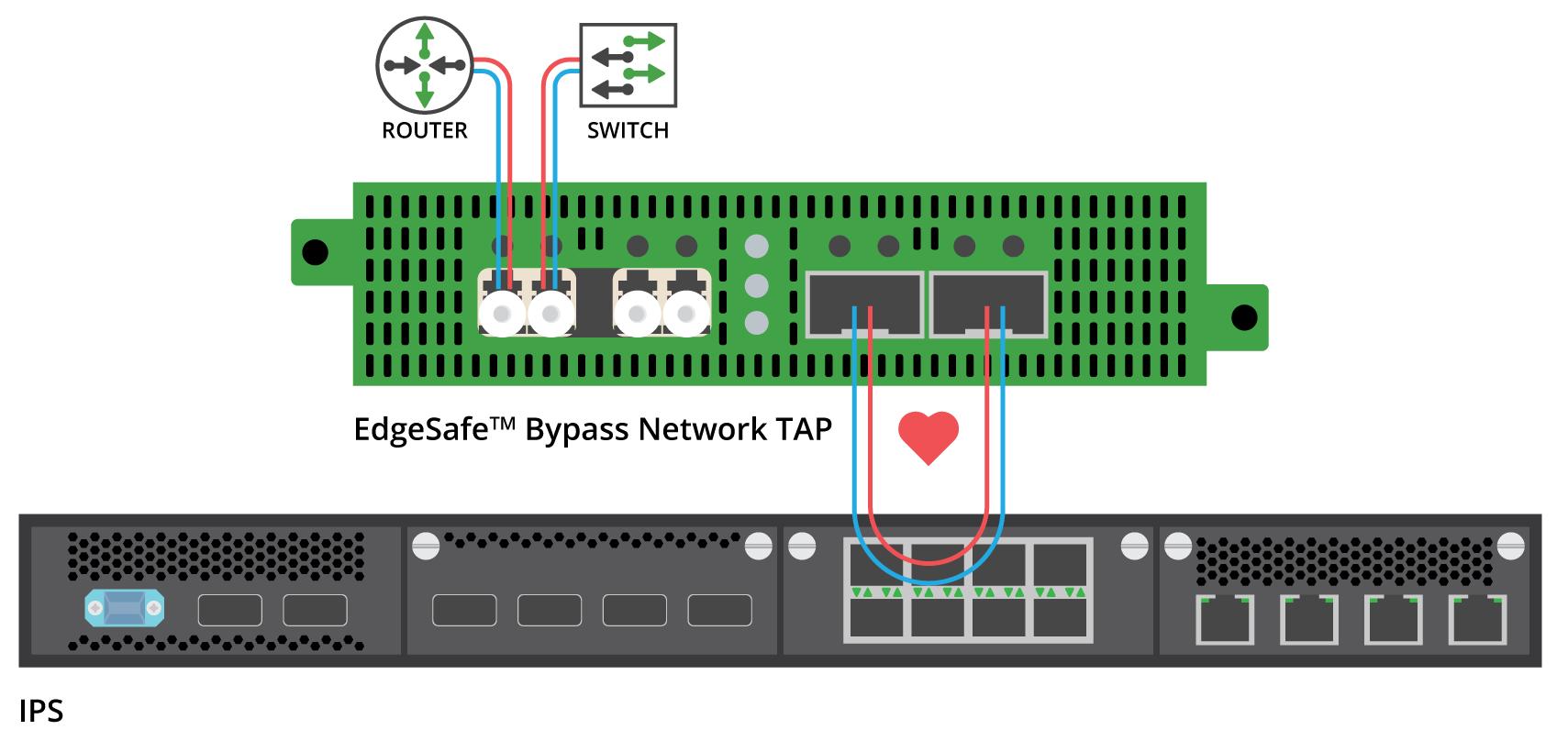

EdgeSafeTM Bypass TAPs | 1/10/40/100G

EdgeLens® Inline Security Packet Brokers | 1/10/40G

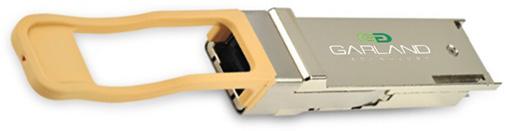

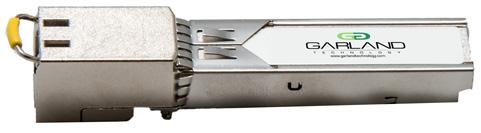

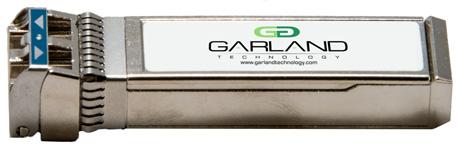

ACCESSORIES: PLUGGABLE TRANSCEIVERS

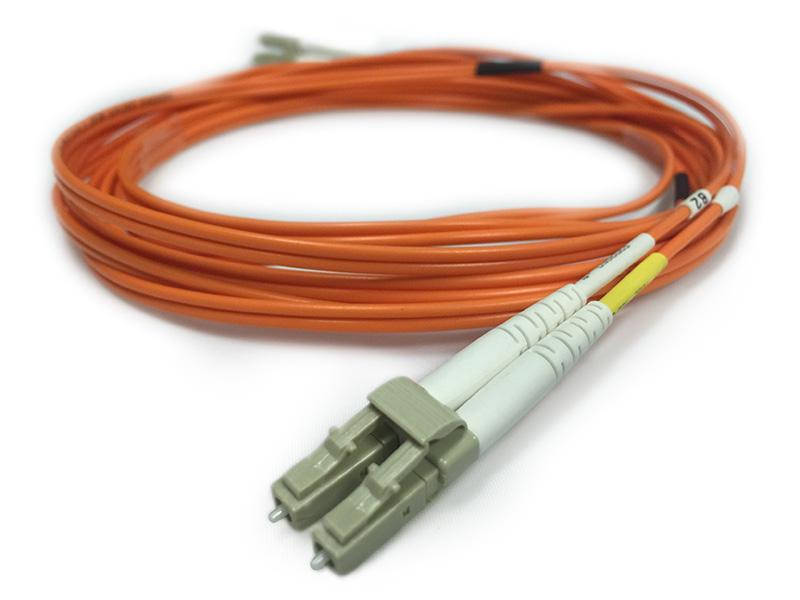

ACCESSORIES: CABLES

4 | 5 | 12 | 14 | 17 | 21 | 24 | 28 | 30 | 29 | 30 | 31 | 32 | 35 | 36 | 38 |

NETWORK TAPS OVERVIEW

Complete Packet Visibility for Performance and Security Monitoring Solutions

Network performance monitoring, troubleshooting, threat hunting, incident detection systems and other monitoring tools are deployed in an out-of-band monitoring architecture and rely on packet level data. Challenges come from providing these tools with complete packet visibility and optimizing this traffic for optimal tool performance.

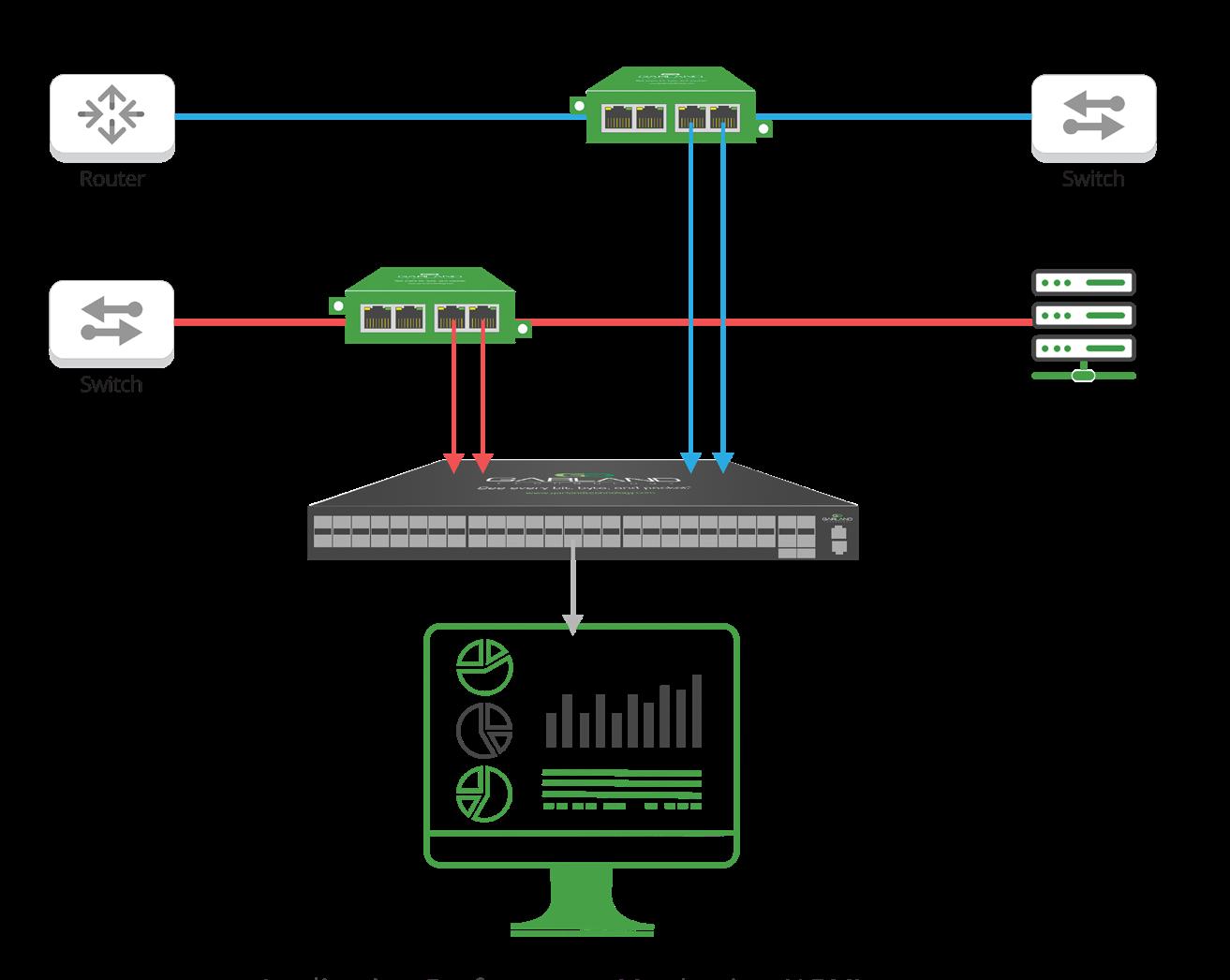

Network TAPs (test access points) are a purpose-built hardware device that allows teams to access and monitor network traffic by copying packets without impacting or compromising network integrity, continuously, 24/7/365. The Network TAP ensures these tools are getting complete data, as SPAN (Mirror/switched port analyzer) ports are known to drop packets, create duplicate packets and were not developed for continuous monitoring. A visibility fabric of purpose-built network TAPs and Packet Brokers provide real-time visibility to monitor, protect, and analyze traffic in real-time, all the time.

Network TAP Benefits

• Provide complete packet visibility with full-duplex copies of network traffic.

• Ensure no dropped packets, while passing physical errors and support jumbo frames without introducing delay, or altering the data.

• Support speeds from 10/100M, 1G, 10G, 40G, 100G, and 400G and are available in single-mode and multi-mode fiber or copper ethernet.

• Available in Tap ‘Breakout,’ aggregation, regeneration, bypass and advanced filtering.

• Passive or failsafe – Does not affect the network.

• No IP address, or MAC address, and cannot be hacked.

Garland Technology’s extensive line of network TAPs are purpose-built scalable hardware devices that can either provide a single copy, multiple copies (regeneration), or consolidate traffic (aggregation). As well as, innovative data diodes and advanced filtering designs, to maximize the production of your monitoring tools for faster deployments and improved reliability. Garland network TAPs are available with Tap ‘Breakout,’ aggregation, regeneration, advanced filtering and inline bypass modes.

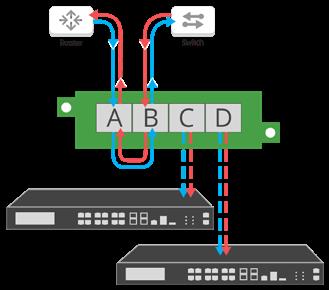

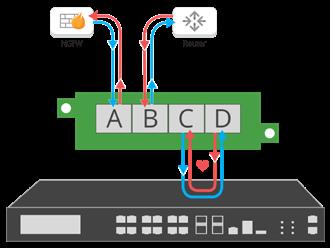

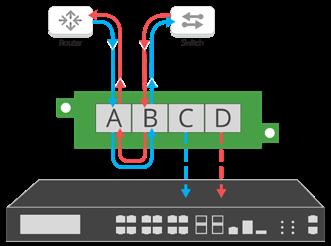

Tap ‘Breakout’ TAP Aggregation Regeneration Advanced Filtering Inline Bypass

PASSIVE FIBER NETWORK TAPS BREAKOUT NETWORK TAPS

SelectTAP TM: Fiber Modular Chassis

Ultimate flexibility and scalability for data center visibility

• Provide 100% full duplex traffic visibility

• Supports TAP 'Breakout' Mode

• Supports speeds of 1G/10G/25G/40G/100G/400G

• Accommodates 16 to 24 TAP modules

• Supports single-mode and multi-mode OS1, OS2, OM1, OM2, OM3, OM4, OM5

• Supports Cisco BiDirectional optical technology

• Supports MPO/MTP brand connectors

• Passive, no power source required

Model # Network Speed No. of TAPs Split Ratio Wavelengths Media Connector FMC-1U Fiber Modular Chassis OS2501M 1/10/25/40/100G 1 50/50 1290-1330nm 1530-1570nm Fiber-OS1/OS2 LC Single-Mode OS2701M 1/10/25/40/100G 1 70/30 1290-1330nm 1530-1570nm Fiber-OS1/OS2 LC Single-Mode OS2502-BiDiM 1/10G 2 50/50 1270-1350nm 1450-1530nm 1510-1590nm Fiber-OS2 LC Single-Mode OS2702-BiDiM 1/10G 2 70/30 1270-1350nm 1450-1530nm 1510-1590nm Fiber-OS2 LC Single-Mode OS2501WM 1/10/25/40/100/400G 1 50/50 1270-1350nm 1510-1590nm Fiber - OS1/OS2 LC Single-Mode OS2701WM 1/10/25/40/100/400G 1 70/30 1270-1350nm 1510-1590nm Fiber - OS1/OS2 LC Single-Mode OS2501-PSM4BM 100G 1 50/50 1310nm Fiber-OS1/OS2 MTP12 B Style Male Connectors (MPO) OS2701-PSM4BM 100G 1 70/30 1310nm Fiber-OS1/OS2 MTP12 B Style Male Connectors (MPO) OM1501M 1/10G 1 50/50 850-1300nm Fiber-OM1/OM2 LC Multi-Mode OM1701M 1/10G 1 70/30 850-1300nm Fiber-OM1/OM2 LC Multi-Mode OM4501M 1/10/25G 1 50/50 850nm Fiber-OM3/OM4 LC Multi-Mode OM4701M 1/10/25G 1 70/30 850nm Fiber-OM3/OM4 LC Multi-Mode OM5501M 1/10/25/40/100G* 1 50/50 850-950nm Fiber OM5 LC Multi-Mode OM5701M 1/10/25/40/100G* 1 70/30 850-950nm Fiber OM5 LC Multi-Mode OM4501-40GSRBiDiM 40G 1 50/50 800-950nm Fiber-OM3/OM4 LC Multi-Mode OM4701-40GSRBiDiM 40G 1 70/30 800-950nm Fiber-OM3/OM4 LC Multi-Mode OM5501-SRBiDiM 40/100G* 1 50/50 800-950nm Fiber OM5 LC Multi-Mode

Passive Fiber Network TAPs | Breakout Network TAPs

SelectTAP TM Continued

Note: OS2 Fiber supports OS1 and 052; 0M1 Fiber supports OM1 and OM2; OM5 Fiber supports OM3 and OM4 *Used for 100G SWDM4. Options available in 100G_CWDM4

Model # Network Speed No. of TAPs Split Ratio Wavelengths Media Connector FMC-1U Fiber Modular Chassis OM5701-SRBiDiM 40/100G* 1 70/30 800-950nm Fiber OM5 LC Multi-Mode OM4501-SRBM 40/100G 1 50/50 850nm Fiber-OM3/OM4 MTP-12 MultiMode OM4701-SR4BM 40/100G 1 70/30 850nm Fiber-OM3/OM4 MTP-12 MultiMode OM5501-SR4BM 40/100/400G* 1 50/50 850-950nm Fiber OM5 MTP12 MultiMode OM5701-SR4BM 40/100/400G* 1 70/30 850-950nm Fiber OM5 MTP12 MultiMode OS23321X3M 1G/10G/25G/40G/100G 1 33.3 / 33.3 / 33.3 1310-1550nm Fiber-OS2 LC Single-Mode OM43321X3M 1G/10G 1 33.3 / 33.3 / 33.3 850nm Fiber-OM3/OM4 LC Multi-Mode

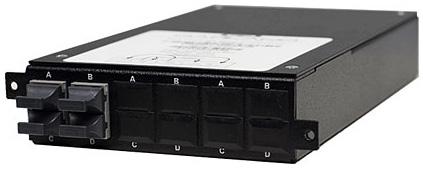

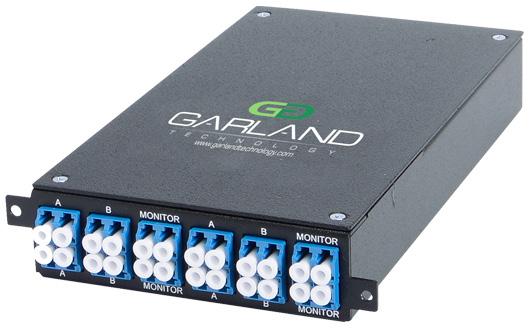

Single-Mode Passive

Fiber Network TAP

Single-mode fiber for long-range connectivity

• Provide 100% full duplex traffic visibility

• Supports TAP 'Breakout' Mode

• Supports speeds of 1G/10G/25G/40G/100G

• Various split ratios available

• Portable module that can be used standalone, in a 1U space using rack mount plate, or DIN Rail mounted

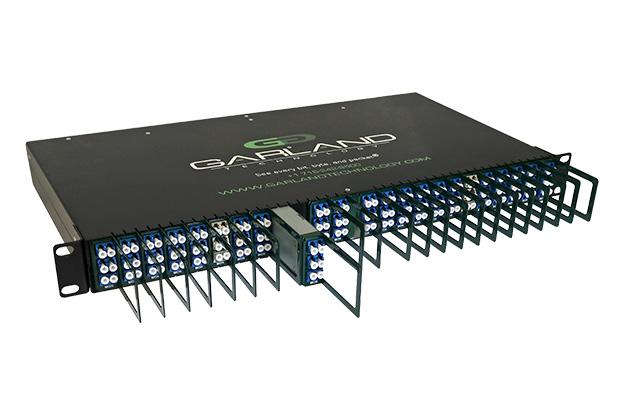

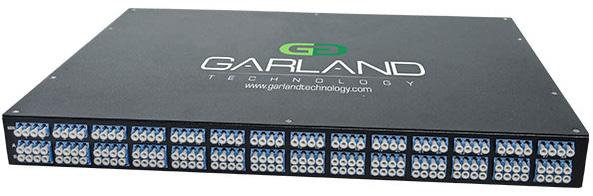

• Exclusive High Density 1U chassis with 28 or 56 TAPs

• Plug & Play installation; no power source needed

• Industry standard LC Connectors

*Custom split ratios are available in 60/40, 80/20, or 90/10. **56 1U Fiber TAPs are populated front and back ***Additional rack mounting options include: RMS-1U, RMS-1U-V2, BRACKET-10, BRACKET-11 °Wideband version is available ( i.e., O52501W, O52701W, etc.)

7 Model # Network Speed Chassis Size No. of TAPs Split Ratio* Wavelengths Media Connector/Mode OS15028 1/10/25/40/100G Chassis 1U 28 50/50 1310/1550nm Fiber-OS1 LC Single-mode OS17028 1/10/25/40/100G Chassis 1U 28 70/30 1310/1550nm Fiber-OS1 LC Single-mode OS25028 1/10/25/40/100G Chassis 1U 28 50/50 1310/1550nm Fiber-OS2 LC Single-mode OS27028 1/10/25/40/100G Chassis 1U 28 70/30 1310/1550nm Fiber-OS2 LC Single-mode OS15056 1/10/25/40/100G Chassis 1U 56** 50/50 1310/1550nm Fiber-OS1 LC Single-mode OS17056 1/10/25/40/100G Chassis 1U 56** 70/30 1310/1550nm Fiber-OS1 LC Single-mode OS25056 1/10/25/40/100G Chassis 1U 56** 50/50 1310/1550nm Fiber-OS2 LC Single-mode OS27056 1/10/25/40/100G Chassis 1U 56** 70/30 1310/1550nm Fiber-OS2 LC Single-mode

Model # Network Speed No. of TAPs Split Ratio* Wavelengths Media Connector RMP-1U 1U Rack Mount Kit - Hold up to 4 Modules, each Mod can have 1, 2, 3 or 4 portable TAPs*** OS1501 1/10/25/40/100G 1 50/50 1310/1550nm Fiber-OS1/OS2 LC Single-Mode OS1601 1/10/25/40/100G 1 60/40 1310/1550nm Fiber-OS1 LC Single-Mode OS1701 1/10/25/40/100G 1 70/30 1310/1550nm Fiber-OS1 LC Single-Mode OS2501° 1/10/25/40/100G 1 50/50 1310/1550nm Fiber-OS2 LC Single-Mode OS2701° 1/10/25/40/100G 1 70/30 1310/1550nm Fiber-OS2 LC Single-Mode OS1502 1/10/25/40/100G 2 50/50 1310/1550nm Fiber-OS1 LC Single-Mode OS1702 1/10/25/40/100G 2 70/30 1310/1550nm Fiber-OS1 LC Single-Mode OS2502° 1/10/25/40/100G 2 50/50 1310/1550nm Fiber-OS2 LC Single-Mode OS2702° 1/10/25/40/100G 2 70/30 1310/1550nm Fiber-OS2 LC Single-Mode OS2702-BiDi° 1/10G 2 70/30 1270-1350nm/1450-1530nm/1510-1590nm Fiber-OS2 LC Single-Mode OS1503 1/10/25/40/100G 3 50/50 1310/1550nm Fiber-OS1 LC Single-Mode OS1703 1/10/25/40/100G 3 70/30 1310/1550nm Fiber-OS1 LC Single-Mode OS2503° 1/10/25/40/100G 3 50/50 1310/1550nm Fiber-OS2 LC Single-Mode OS2703° 1/10/25/40/100G 3 70/30 1310/1550nm Fiber-OS2 LC Single-Mode OS1504 1/10/25/40/100G 4 50/50 1310/1550nm Fiber-OS1 LC Single-Mode OS1704 1/10/25/40/100G 4 70/30 1310/1550nm Fiber-OS1 LC Single-Mode OS2504° 1/10/25/40/100G 4 50/50 1310/1550nm Fiber-OS2 LC Single-Mode OS2704° 1/10/25/40/100G 4 70/30 1310/1550nm Fiber-OS2 LC Single-Mode

Passive Fiber Network TAPs | Breakout Network TAPs

Multi-Mode Passive

Fiber Network TAPs

Multi-mode fiber for short-range connectivity

• Provide 100% full duplex traffic visibility

• Supports TAP 'Breakout' Mode

• Supports speeds of 1G/10G/25G/40G/100G

• Various split ratios available

• Portable module that can be used standalone, in a 1U space using rack mount plate, or DIN Rail mounted

• Exclusive High Density 1U chassis with 28 or 56 TAPs

• Plug & Play installation; no power source needed

• New Prism based technology to reduce bit errors

8 GarlandTechnology.com | Product Catalog © 2022 Garland Technology. All Rights Reserved. Model # Network Speed No. of TAPs Split Ratio* Wavelengths Media Connector RMP-1U 1U Rack Mount Kit - Hold up to 4 Modules, each Module can have 1, 2, 3 or 4 portable TAPs*** OM1501 1/10G 1 50/50 850/1300nm Fiber-OM1 LC Multi-Mode OM1701 1/10G 1 70/30 850/1300nm Fiber-OM1 LC Multi-Mode OM3501 1/10/25G 1 50/50 850/1300nm Fiber-OM3 LC Multi-Mode OM4501 1/10/25G 1 50/50 850nm Fiber-OM3/OM4 LC Multi-Mode OM4701 1/10/25G 1 70/30 850nm Fiber-OM3/OM4 LC Multi-Mode OM4701-40GSRBiDi 40G 1 70/30 800-950nm Fiber-OM3/OM4 LC Multi-Mode OM5501 1/10/25/40/100G 1 50/50 850-950nm Fiber OM5 LC Multi-Mode OM5701 1/10/25/40/100G 1 70/30 850-950nm Fiber OM5 LC Multi-Mode OM1502 1/10G 2 50/50 850/1300nm Fiber-OM1 LC Multi-Mode OM1702 1/10G 2 70/30 850/1300nm Fiber-OM1 LC Multi-Mode OM3502 1/10/25G 2 50/50 850/1300nm Fiber-OM3 LC Multi-Mode OM4502 1/10/25G 2 50/50 850nm Fiber-OM3/OM4 LC Multi-Mode OM4702 1/10/25G 2 70/30 850nm Fiber-OM3/OM4 LC Multi-Mode OM4702-40GSRBiDi 40G 2 70/30 800-950nm Fiber-OM3/OM4 LC Multi-Mode OM5502 1/10/25/40/100G 2 50/50 850-950nm Fiber OM5 LC Multi-Mode OM5702 1/10/25/40/100G 2 70/30 850-950nm Fiber OM5 LC Multi-Mode OM1503 1/10G 3 50/50 850/1300nm Fiber-OM1 LC Multi-Mode OM1703 1/10G 3 70/30 850/1300nm Fiber-OM1 LC Multi-Mode OM3503 1/10/25G 3 50/50 850/1300nm Fiber-OM3 LC Multi-Mode OM4503 1/10/25G 3 50/50 850nm Fiber-OM3/OM4 LC Multi-Mode OM4703 1/10/25G 3 70/30 850nm Fiber-OM3/OM4 LC Multi-Mode OM4703-40GSRBiDi 40G 3 70/30 800-950nm Fiber-OM3/OM4 LC Multi-Mode OM5503 1/10/25/40/100G 3 50/50 850-950nm Fiber OM5 LC Multi-Mode OM5703 1/10/25/40/100G 3 70/30 850-950nm Fiber OM5 LC Multi-Mode OM1504 1/10G 4 50/50 850/1300nm Fiber-OM1 LC Multi-Mode OM1704 1/10G 4 70/30 850/1300nm Fiber-OM1 LC Multi-Mode

Multi-Mode Passive Fiber Network TAPs

*Custom split ratios are available in 60/40, 80/20, or 90/10.

**56 1U Fiber TAPs are populated front and back

***Additional rack mounting options include:

Model # Network Speed Chassis Size No. of TAPs Split Ratio* Wavelengths Media Connector OM15028 1/10G Chassis 1U 28 50/50 850/1300nm Fiber-OM1 LC Multi-Mode OM17028 1/10G Chassis 1U 28 70/30 850/1300nm Fiber-OM1 LC Multi-Mode OM35028 1/10/25G Chassis 1U 28 50/50 850/1300nm Fiber-OM3 LC Multi-Mode OM45028 1/10/25G Chassis 1U 28 50/50 850nm Fiber-OM3/OM4 LC Multi-Mode OM47028 1/10/25G Chassis 1U 28 70/30 850nm Fiber-OM3/OM4 LC Multi-Mode OM55028 1/10/25/40/100G Chassis 1U 28 50/50 850-950nm Fiber OM5 LC Multi-Mode OM57028 1/10/25/40/100G Chassis 1U 28 70/30 850-950nm Fiber OM5 LC Multi-Mode OM15056 1/10G Chassis 1U 56** 50/50 850/1300nm Fiber-OM1 LC Multi-Mode OM17056 1/10G Chassis 1U 56** 70/30 850/1300nm Fiber-OM1 LC Multi-Mode OM35056 1/10/25G Chassis 1U 56** 50/50 850/1300nm Fiber-OM3 LC Multi-Mode OM45056 1/10/25G Chassis 1U 56** 50/50 850nm Fiber-OM3/OM4 LC Multi-Mode OM47056 1/10/25G Chassis 1U 56** 70/30 850nm Fiber-OM3/OM4 LC Multi-Mode OM55056 1/10/25/40/100G Chassis 1U 56** 50/50 850-950nm Fiber OM5 LC Multi-Mode OM57056 1/10/25/40/100G Chassis 1U 56** 70/30 850-950nm Fiber OM5 LC Multi-Mode

RMS-1U, RMS-1U-V2, BRACKET-10, BRACKET-11 Model # Network Speed No. of TAPs Split Ratio* Wavelengths Media Connector OM3504 1/10/25G 4 50/50 850/1300nm Fiber-OM3 LC Multi-Mode OM4504 1/10/25G 4 50/50 850nm Fiber-OM3/OM4 LC Multi-Mode OM3704 1/10/25G 4 70/30 850nm Fiber-OM3 LC Multi-Mode OM4704 1/10/25G 4 70/30 850nm Fiber-OM3/OM4 LC Multi-Mode OM5504 1/10/25/40/100G 4 50/50 850-950nm Fiber OM5 LC Multi-Mode OM5704 1/10/25/40/100G 4 70/30 850-950nm Fiber OM5 LC Multi-Mode Passive Fiber Network TAPs | Breakout Network TAPs

MPO/MTP ® Multi-Mode

Passive Fiber Network TAPs

Portable high speed 40G/100G-SR4 or 100G-SR10

• Provide 100% full duplex traffic visibility

• Supports TAP 'Breakout' Mode

• Multi-mode fiber in either MTP-12 (40G/100G) or MTP 24 (100G)

• MTP® brand connectors for lowest dB loss

• Portable module that can be used standalone, in a 1U space using rack mount plate, or DIN Rail mounted

• Plug & Play installation; no power source needed

1U Rack Mount Kit - Hold up to 4 Modules, each Mod can have 1, 2 or 3 portable TAPs

*Custom split ratios are available in 60/40, 80/20, or 90/10. OM3/OM4** Available in OM5

Model # Network Speed No. of TAPs Split Ratio* Wavelengths Media Connector RMP-1U

OM4501-SR4B 40/100G 1 50/50 850nm Fiber-OM3/OM4 MTP-12 Multi-Mode OM4701-SR4B 40/100G 1 70/30 850nm Fiber-OM3/OM4 MTP-12 Multi-Mode OM5501-SR4B 40/100/400G 1 50/50 850-950nm Fiber OM5 MTP-12 Multi-Mode OM5701-SR4B 40/100/400G 1 70/30 850-950nm Fiber OM5 MTP-12 Multi-Mode OM4502-SR4B 40/100G 2 50/50 850nm Fiber-OM3/OM4 MTP-12 Multi-Mode OM4702-SR4B 40/100G 2 70/30 850nm Fiber-OM3/OM4 MTP-12 Multi-Mode OM5502-SR4B 40/100/400G 2 50/50 850-950nm Fiber OM5 MTP-12 Multi-Mode OM5702-SR4B 40/100/400G 2 70/30 850-950nm Fiber OM5 MTP-12 Multi-Mode OM4503-SR4B 40/100G 3 50/50 850nm Fiber-OM3/OM4 MTP-12 Multi-Mode OM4703-SR4B 40/100G 3 70/30 850nm Fiber-OM3 MTP-12 Multi-Mode OM5503-SR4B 40/100/400G 3 50/50 850-950nm Fiber OM5 MTP-12 Multi-Mode OM5703-SR4B 40/100/400G 3 70/30 850-950nm Fiber-OM3/OM4 MTP-12 Multi-Mode OM4502-100GSR10A 100G 2 50/50 850nm Fiber-OM3/OM4** MTP-24 Multi-Mode OM4702-100GSR10A 100G 2 70/30 850nm Fiber-OM3/OM4** MTP-24 Multi-Mode OM4503-100GSR10A 100G 3 50/50 850nm Fiber-OM3/OM4** MTP-24 Multi-Mode OM4703-100GSR10A 100G 3 70/30 850nm Fiber-OM3/OM4** MTP-24 Multi-Mode

BiDi Passive Fiber Network TAP

Supports Cisco BiDirectional optical technology

• Provide 100% full duplex traffic visibility

• Supports TAP 'Breakout' Mode

• Unique design provides flexibility to TAP multi-mode OM3/OM4/OM5 fiber types

• Portable module that can be used standalone, in a 1U space using rack mount plate, or DIN Rail mounted

• Exclusive High Density 1U chassis with 21 TAPs

• Plug & Play installation; no power source needed

11 Model # Network Speed No. of TAPs Split Ratio* Wavelengths Media Connector/Mode RMP-1U 1U Rack Mount Kit - Hold up to 4 Modules, each Module can have 1, 2 or 3 portable TAPs OM4501-40GSRBiDi Up to 40G 1 50/50 800/950nm Fiber-OM3/OM4 LC Multi-Mode OM5501-SRBiDi 40/100G 1 50/50 850-950nm Fiber OM5 LC Multi-Mode OM4502-40GSRBiDi Up to 40G 2 50/50 800/950nm Fiber-OM3/OM4 LC Multi-Mode OM5502-SRBiDi 40/100G 2 50/50 850-950nm Fiber OM5 LC Multi-Mode OM4503-40GSRBiDi Up to 40G 3 50/50 800/950nm Fiber-OM3/OM4 LC Multi-Mode OM5503-SRBiDi 40/100G 3 50/50 850-950nm Fiber OM5 LC Multi-Mode OM45021-40GSRBiDi Up to 40G 21 50/50 800-950nm Fiber-OM3/OM4 LC Multi-Mode OM55021-SRBiDi 40/100G 21 50/50 850-950nm Fiber OM5 LC Multi-Mode OM4701-40GSRBiDi Up to 40G 1 70/30 800/950nm Fiber-OM3/OM4 LC Multi-Mode OM5701-SRBiDi 40/100G 1 70/30 850-950nm Fiber OM5 LC Multi-Mode OM4702-40GSRBiDi Up to 40G 2 70/30 800/950nm Fiber-OM3/OM4 LC Multi-Mode OM5702-SRBiDi 40/100G 2 70/30 850-950nm Fiber OM5 LC Multi-Mode OM4703-40GSRBiDi Up to 40G 3 70/30 800/950nm Fiber-OM3/OM4 LC Multi-Mode OM5703-SRBiDi 40/100G 3 70/30 850-950nm Fiber OM5 LC Multi-Mode OM47021-40GSRBiDi Up to 40G 21 70/30 800/950nm Fiber-OM3/OM4 LC Multi-Mode OM57021-SRBiDi 40/100G 21 70/30 850-950nm Fiber OM5 LC Multi-Mode OS2502-BiDi 1G/10G 2 50/50 1270~1350nm/ 1450~1530nm/ 1510~1590nm Fiber-OS2 LC Single-Mode OS2504-BiDi 1G/10G 4 50/50 1270~1350nm/ 1450~1530nm/ 1510~1590nm Fiber-OS2 LC Single-Mode OS2506-BiDi 1G/10G 6 50/50 1270~1350nm/ 1450~1530nm/ 1510~1590nm Fiber-OS2 LC Single-Mode

Passive Fiber Network TAPs | Breakout Network TAPs

*Custom split ratios are available in

60/40, 80/20, or 90/10.

COPPER NETWORK TAPS BREAKOUT NETWORK TAPS

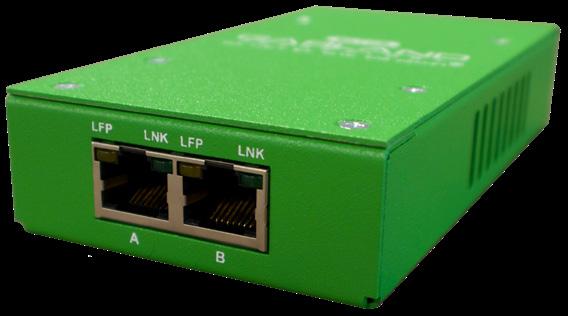

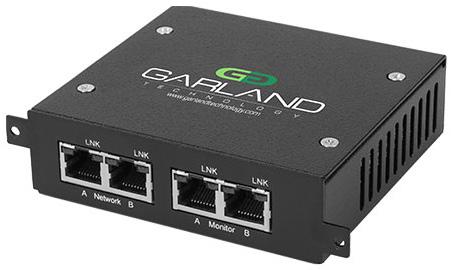

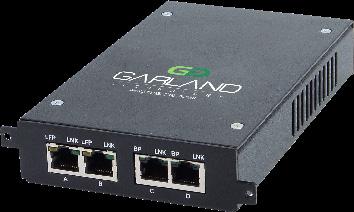

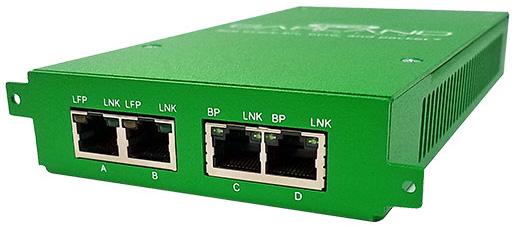

Copper Network TAP

Portable TAP for 1G copper network monitoring and troubleshooting

• Provide 100% full duplex traffic visibility

• Supports TAP 'Breakout' Mode

• Supports speeds of 10M/100M or 10/100/1000M (1G)

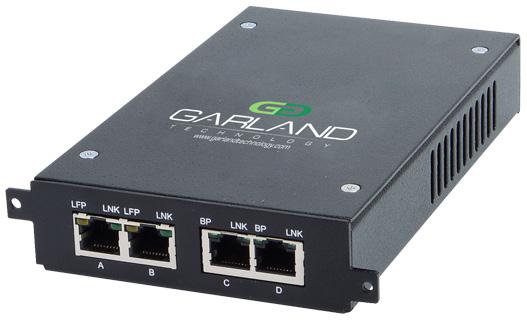

• Failsafe or passive design available

• Link failure propagation

• Portable module that can be used standalone, in a 1U space using rack mount plate, or DIN Rail mounted

• Plug & Play installation

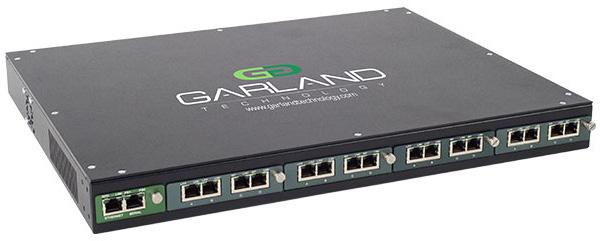

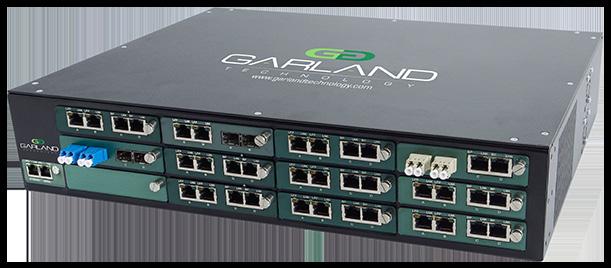

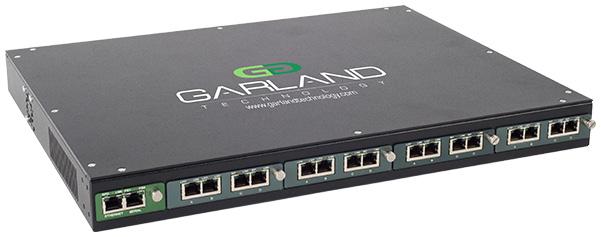

Copper Modular Network TAP

Data Center Solutions for 1G network monitoring

• Provide 100% full duplex traffic visibility

• Supports tap 'Breakout' Mode

• Exclusive high density 1U support 4 TAPs and 2U supports 12 TAPs

• Hot swappable

• Supports jumbo frames

Copper Modular Network TAP | Chassis Options

*M1GL or blanking plates are used if managment card is not required or if not all TAP modules are populated. Management card and additional GT TAP modules can be added to chassis.

Copper Breakout TAP Module Options

RMS-1U-V2, BRACKET-10, BRACKET-11.

Model # Network Speed Network Monitor Breakout Failsafe Data Diode Serial Port Power RMP-1U 1U Rack Mount Kit - Hold up to 4 portable TAPs*** PT100* 10/100M Copper-RJ45 Copper-RJ45 Yes Passive Yes No DC P1GCCB 10/100/1000M (1G) Copper-RJ45 Copper-RJ45 Yes Yes Yes No DC

Model # Network Speed Network Monitor Breakout Aggregation Regeneration Failsafe Data Diode Power M100CCB* 10/100M 2 Copper-RJ45 Passive 2 Copper-RJ45 Yes No No Passive Yes POE M1GCCB 10/100/1000M 2 Copper-RJ45 2 Copper-RJ45 Yes No No Yes Yes Dual AC/DC

Power over Ethernet ***Additional rack mounting options include: RMS-1U,

*Supports

• Link failure propagation

Model # Chassis/TAPs* Power Supplies Voltage Current (nominal) Consumption (maximum) Dimensions (WxHxD) M1G1ACE 1U; up to 4 TAPs Dual Internal AC 100-240VAC 0.75A@115VAC 86.25 Watts 17.40” x 1.75” x 13.45” (441.96mm x 44.45mm x 341.63mm) 2 SFP M1G1DCE 100/1000M Dual Internal DC 36-60VDC 1A@48VDC 48 Watts M1G2ACE 100/1000M Dual Internal AC 100-240VAC 1A@115VAC 115 Watts 17.40” x 3.47” x 13.45” (441.96mm x 88.14mm x 341.63mm) M1G2DCE 100/1000M Dual Internal DC 36-60VDC 2.8A@48VDC 134.4 Watts M1GC* Management

- and- Serial/CLI for M1GxxE

card: Ethernet/GUI

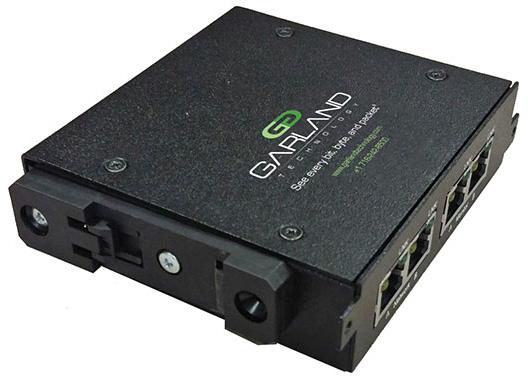

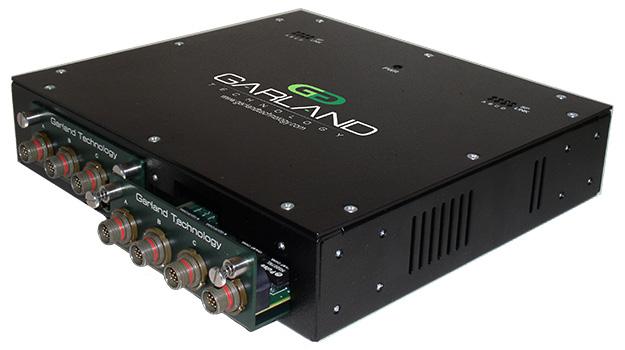

Military-Grade Industrial Network TAP

Rugged modular 1/2 rack for extreme environments

• Provide 100% full duplex traffic visibility

• Supports TAP 'Breakout' Mode

• Captures full duplex traffic up to 2Gbps without dropping packets

• Supports link speed synchronization

• Supports jumbo frames

• Passes physical errors

• Applications: Military Vehicles, Utility Vehicles, Aircraft

Two slot Chassis - Holds up to 2 Modular TAPs

Single external DC power supply unit

13 Model # Network Speed Network Monitor Breakout Aggregation Regeneration Failsafe Data Diode Power

M1GP1G-DC

M100CCBm 10/100M 2 Mighty Mouse 10/100M 2 Mighty Mouse 10/100M Yes No No Yes Yes DC M1GCCBm 10/100/1000M 2 Mighty Mouse 10/100/1000M 2 Mighty Mouse 10/100/1000M Yes No No Yes Yes DC

Copper Network TAPs | Breakout Network TAPs

REGENERATION TAPS BREAKOUT NETWORK TAPS

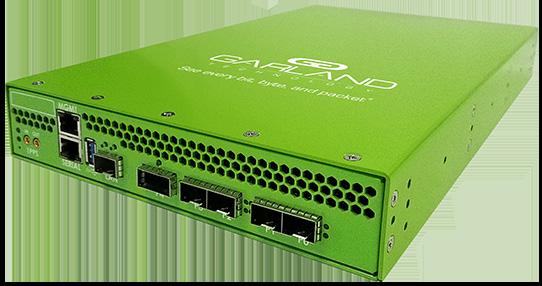

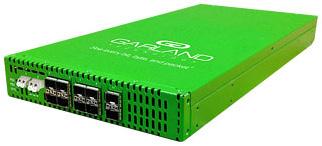

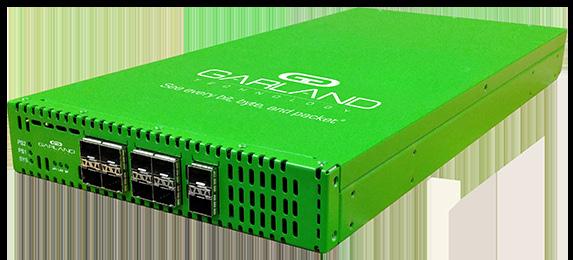

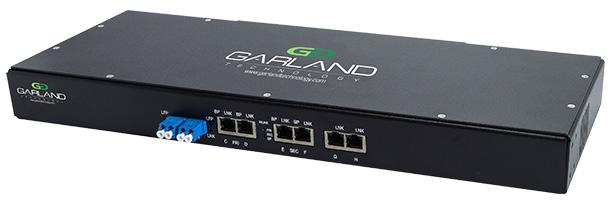

RegenTAP: 1x5

1x5 Replication provides 5 TAP 'breakout' copies of traffic from a single link

• Provide 100% full duplex traffic visibility

• Supports 1G/10G, 1/2 rack 1U Chassis

• Network failsafe or passive design

• OEO design [optical to electric to optical]

• Plug and play; no management

*Custom split ratios are available in 80/20 or 90/10, please inquire.

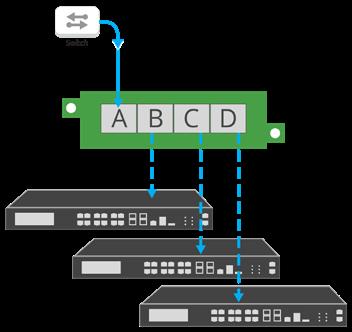

1x5 Regeneration. Five complete copies of data from a single link.

14 GarlandTechnology.com | Product Catalog © 2022 Garland Technology. All Rights Reserved. Model # Network Speed Network Monitor Split Ratio* Failsafe Power INT10G12MSB5 1G/10G SX/SR Multi-Mode Fiber SFP+ - Failsafe Dual AC/DC INT10G12SSB5 1G/10G LX/LR Single -Mode Fiber SFP+ - Failsafe Dual AC/DC INT10G12MSB5-5 1G/10G SX/SR Multi -Mode Fiber SFP+ 50/50 Passive Dual AC/DC INT10G12MSB5-6 1G/10G SX/SR Multi -Mode Fiber SFP+ 60/40 Passive Dual AC/DC INT10G12MSB5-7 1G/10G SX/SR Multi -Mode Fiber SFP+ 70/30 Passive Dual AC/DC INT10G12SSB5-5 1G/10G LX/LR Single -Mode Fiber SFP+ 50/50 Passive Dual AC/DC INT10G12SSB5-6 1G/10G LX/LR Single -Mode Fiber SFP+ 60/40 Passive Dual AC/DC INT10G12SSB5-7 1G/10G LX/LR Single -Mode Fiber SFP+ 70/30 Passive Dual AC/DC

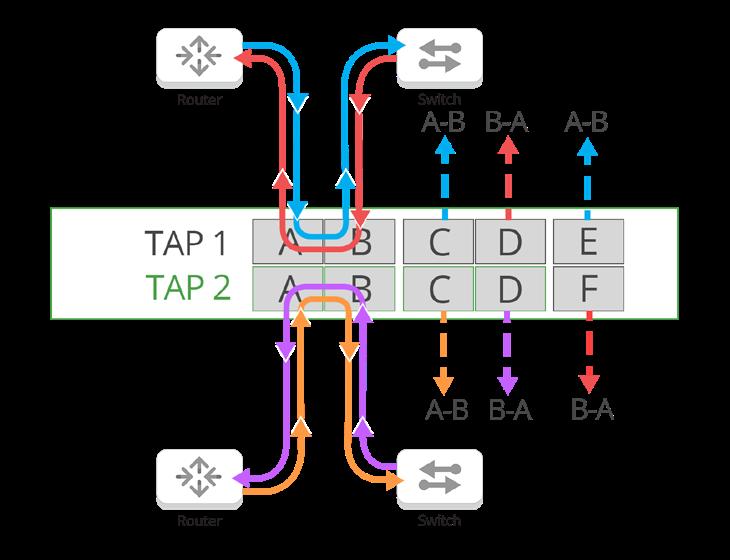

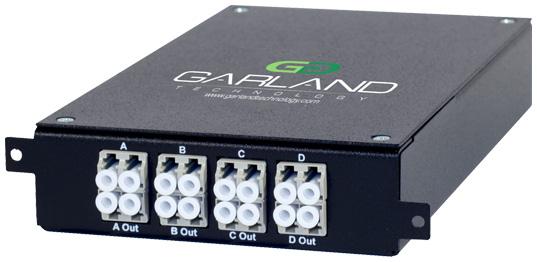

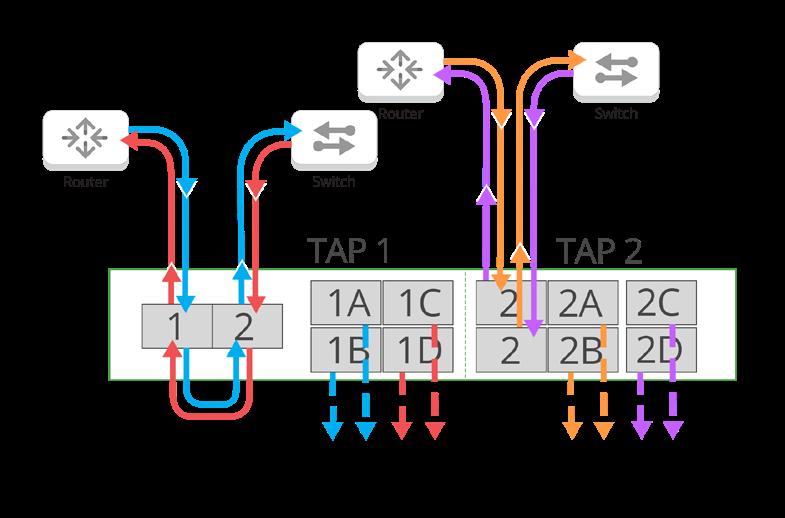

RegenTAP: Dual Breakout Option 1

RegenTAP: Dual Breakout

Dual Breakout provides multiple TAP ‘breakout’ copies of traffic from single link

• Provide 100% full duplex traffic visibility

• Supports 1G/10G | 2 TAPs-in-1, 1/2 rack 1U Chassis

• Ideal for direct connect, SFP, QSFPs, active cable infrastructures

• Network Failsafe or passive design

• OEO design [optical to electric to optical]

• Plug and play; no management

RegenTAP: Dual Breakout Option 2

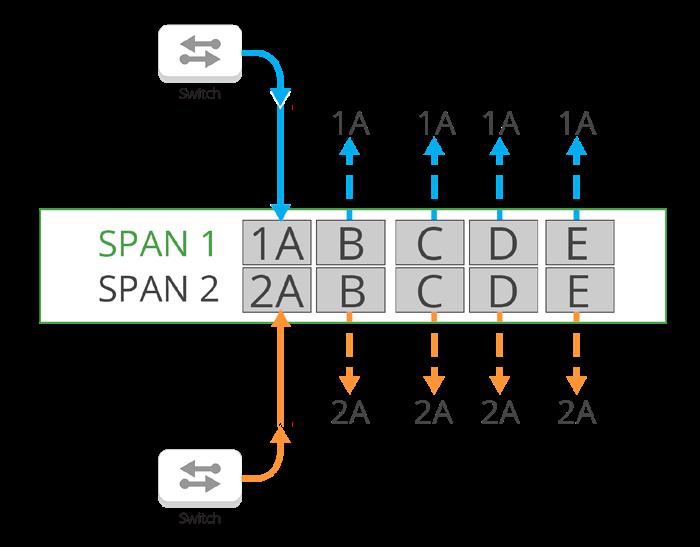

RegenTAP: Dual Breakout SPAN 1x4

15 Dual Breakout Option 1 Dual Breakout Option 2 Dual Breakout SPAN 1x4 Option 3

Model # Network Speed Ports Power INT10G10SP1 1/10G (10) SFP+ 120W

Model # Network Speed Network Monitor Split Ratio* Failsafe Power INT10G12SSV2 1G/10G LX/LR Single-Mode Fiber SFP+ - Failsafe Dual AC/DC INT10G12MSV2 1G/10G SX/SR Multi -Mode Fiber SFP+ - Failsafe Dual AC/DC INT10G12SSV2-5 1G/10G LX/LR Single -Mode Fiber SFP+ 50/50 Passive Dual AC/DC INT10G12SSV2-6 1G/10G LX/LR Single -Mode Fiber SFP+ 60/40 Passive Dual AC/DC INT10G12SSV2-7 1G/10G LX/LR Single -Mode Fiber SFP+ 70/30 Passive Dual AC/DC INT10G12MSV2-5 1G/10G SX/SR Multi -Mode Fiber SFP+ 50/50 Passive Dual AC/DC INT10G12MSV2-6 1G/10G SX/SR Multi -Mode Fiber SFP+ 60/40 Passive Dual AC/DC INT10G12MSV2-7 1G/10G SX/SR Multi -Mode Fiber SFP+ 70/30 Passive Dual AC/DC

split ratios are available in 80/20

90/10,

*Custom

please inquire.

Model # Network Speed Ports Power INT10G10V1 10G (10) SFP+ Dual AC/DC

Regeneration TAPs | Breakout Network TAPs

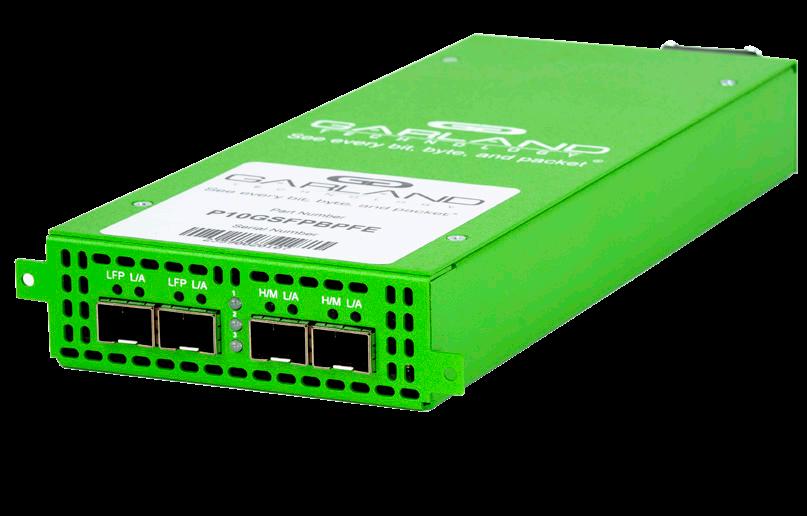

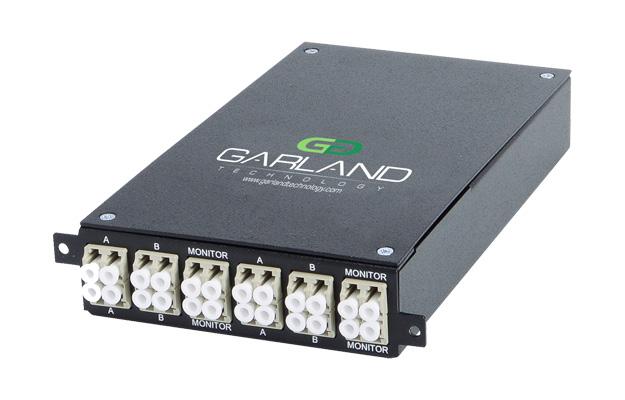

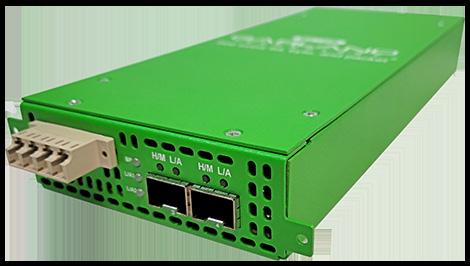

RegenTAP: Passive

• Provide 100% full duplex traffic visibility

• Supports speeds of 1G/10G/25G/40G/100G

• Available in portable, modular, high density

• Easy configuration, no power required

• Supports jumbo frames

• Optional one or two segment configurations per module

• Passes physical errors

***Additional rack mounting options include: RMS-1U, RMS-1U-V2, BRACKET-10, BRACKET-11

16 GarlandTechnology.com | Product Catalog © 2022 Garland Technology. All Rights Reserved. Model # Network Speed Network Monitor # of TAPs Split Ratio Wavelengths Media Connector RMP-1U 1U Rack Mount Kit - Hold up to 4 Modules, each Module can have 1, 2, 3 or 4 TAPs*** OS23321X3 1G/10G/25G/40G/100G 1 LC 3 LC 1 33.3/33.3/33.3 1310/1550nm Fiber-OS2 LC Single-Mode OS23341X3 1G/10G/25G/40G/100G 1 LC 3 LC 2 33.3/33.3/33.3 1310/1550nm Fiber-OS2 LC Single-Mode OS23361X3 1G/10G/25G/40G/100G 1 LC 3 LC 3 33.3/33.3/33.3 1310/1550nm Fiber-OS2 LC Single-Mode OS233421X3 1G/10G/25G/40G/100G 1 LC 3 LC 21 33.3/33.3/33.3 1310/1550nm Fiber-OS2 LC Single-Mode FMC-1U Fiber Modular Chassis OS23321X3M 1G/10G/25G/40G/100G 1 LC 3 LC 1 33.3/33.3/33.3 1310/1550nm Fiber-OS2 LC Single-Mode OM43321X3M 1G/10G 1 LC 3 LC 1 33.3/33.3/33.3 850nm Fiber-OM3/ OM4 LC Multi-Mode

1x3 Replication provides 2 TAP 'breakout' or 3 SPAN copies of traffic from a single link

AGGREGATOR NETWORK TAPS

FieldTAP TM

Pocket-size and portable, ideal for field testing and troubleshooting

• Provide 100% full duplex traffic visibility

• Supports speeds of 10M/100M/1000M (1G)

• Monitoring on USB 3.0

• Supports Power over Ethernet (PoE)

• Plug & Play; easy configuration; switches on back

AggregatorTAP: Passive

Portable passive copper TAP aggregation

• Provide 100% full duplex traffic visibility

• Supports speeds of 100M

• Two (2) 1G Aggregated Monitoring ports

• Supports Power over Ethernet (PoE)

• Plug & Play; easy configuration; switches on back

• Portable module that can be used standalone, in a 1U space using rack mount plate, or DIN Rail mounted

17 Model # Network Speed Network Monitor Size Supported OS Network Monitor Power RMP-1U 1U Rack Mount Kit - Holds up to 4 Portable TAPs - P1GCUA only P1GCUA 10/100/1000Mbps (1Gbps) Copper RJ45 USB 3.0 Portable Windows Linux Mac-OS Copper RJ45 USB 3.0 USB: DC P1GCUA_mini 10/100/1000Mbps (1Gbps) Copper RJ45 USB 3.0 Pocket-size "mini" Windows Linux Mac-OS Copper RJ45 USB 3.0 USB: DC P1GSFPU_mini 1G SFP USB 3.0 Pocket-size "mini" Windows Linux Mac-OS SFP USB 3.0 USB: DC Model # Network Speed Network Monitor Breakout Aggregation Regeneration /SPAN Failsafe Data Diode Power RMP-1U 1U Rack Mount Kit - Holds up to 4 Portable TAPs P100CCA 100M 2 Copper-RJ45 2 Copper 1000M RJ45 No Yes Yes Passive Yes DC PT104 100M 2-PCB 2-PCB No Yes Yes Passive No POE

Aggregator Network TAPs

AggregatorTAP: Copper

Portable copper TAP aggregation

• Provide 100% full duplex traffic visibility

• Supports speeds of 10/100/1000M (1G)

• Supports aggregation, breakout and regeneration/SPAN modes

• Supports jumbo frames and passes physical errors

• Plug & Play; easy configuration; switches on back

• Stand alone unit, or rack mount 4 TAPs in a 1U

AggregatorTAP: Fiber

Portable TAP aggregation and media conversion

• Provide 100% full duplex traffic visibility

• Supports 1G/10G speeds

• Media conversion: SX or LX to copper or SFP / SFP+

• Supports aggregation, tap 'breakout' and regeneration/SPAN modes

• Supports jumbo frames and passes physical errors

• Plug & Play; easy configuration; switches on back of TAP

• Stand alone unit, or rack mount 4 TAPs in a 1U

18 GarlandTechnology.com | Product Catalog © 2022 Garland Technology. All Rights Reserved. Model # Network Speed Network Monitor Breakout Aggregation Regeneration /SPAN Failsafe Data Diode Power RMP-1U 1U Rack Mount Kit - Holds up to 4 Portable TAPs P1GCCAS 10/100/1000M 2 Copper-RJ45 2 Copper-RJ45 Yes Yes Yes Passive Yes AC P1GCSAS 10/100/1000M 2 Copper-RJ45 2 SFP Yes Yes Yes Passive Yes AC

Model # Network Speed Network Monitor Breakout Aggregation Regeneration /SPAN Failsafe Data Diode Power RMS-1U-V2 1U Rack Mount Kit - Holds up to 4 Portable TAPs P10GMSA-5 1G/10G MMF 1G-SX/10G-SR (2) SFP+ Yes Yes Yes Passive Yes DC P10GMSA-6 1G/10G MMF 1G-SX/10G-SR (2) SFP+ Yes Yes Yes Passive Yes DC P10GMSA-7 1G/10G MMF 1G-SX/10G-SR (2) SFP+ Yes Yes Yes Passive Yes DC P10GSSA-5 1G/10G SMF 1G-SX/10G-LR (2) SFP+ Yes Yes Yes Passive Yes DC P10GSSA-6 1G/10G SMF 1G-SX/10G-LR (2) SFP+ Yes Yes Yes Passive Yes DC P10GSSA-7 1G/10G SMF 1G-SX/10G-LR (2) SFP+ Yes Yes Yes Passive Yes DC RMP-1U 1U Rack Mount Kit - Holds up to 4 Portable TAPs P1GMCA 1G (2) SX Multi-Mode Fiber-LC (2) CopperRJ45 Yes Yes Yes Passive Yes DC P1GMSA 1G (2) SX Multi-Mode Fiber-LC (2) SFP Yes Yes Yes Passive Yes DC P1GSCA 1G (2) LX Single-Mode Fiber-LC (2) CopperRJ45 Yes Yes Yes Passive Yes DC P1GSSA 1G (2) LX Single-Mode Fiber-LC (2) SFP Yes Yes Yes Passive Yes DC

AggregatorTAP: 100Base-FX

Portable TAP aggregation and media conversion

• Provide 100% full duplex traffic visibility

• Media conversion: 100Base-FX or 100BASE-LX to Copper Gigabit

• Supports aggregation and breakout modes

• Plug & Play; easy configuration; switches on back of TAP

• Stand alone unit, or rack mount 4 TAPs in a 1U

***Other compatible rack mounts RMS-1U, RMS-1U-V2, BRACKET-10, BRACKET-11

AggregatorTAP: Copper High Density

High density TAP aggregation

• Provide 100% full duplex traffic visibility

• TAP 4 network segments and aggregate traffic to 1 or 2 monitoring ports

• Aggregate 8 SPAN Ports to 1 or 2 monitoring ports

• Link speed synchronization

• Link failure propagation (LFP)

• Supports jumbo frames and passes physical errors

• Data Diode design provides a unidirectional path

19 Model # Network Monitor Breakout Aggregation Regeneration /SPAN Failsafe Data Diode Power RMP-1U 1U Rack Mount Kit - Holds up to 4 Portable TAPs*** P100FXCA 2 100Base-FX 2 Copper-RJ45 100/1000M (1G) Yes Yes No Passive Yes DC P100LXCA 2 100Base-LX 2 Copper-RJ45 100/1000M (1G) Yes Yes No Passive Yes DC Model # Network Speed Network Monitor Breakout Aggregation Regeneration /SPAN Failsafe Data Diode Power 1U Rack Mount Kit included - Holds (2) INT1G10CSA INT1G10CSA 2 100Base-FX 10/100/1000M 4 Copper-RJ45 (pair) 2 SFP Yes Yes Yes Passive Yes AC INT1G10CSA-DC 10/100/1000M 4 Copper-RJ45 (pair) 2 SFP Yes Yes Yes Passive Yes DC INT1G10CSASP 10/100/1000M 8 Copper-RJ-45 2 SFP No Yes Yes N/A Yes AC INT1G10CSASPDC 10/100/1000M 8 Copper-RJ-45 2 SFP No Yes Yes N/A Yes DC

Aggregator Network TAPs

XtraTAP TM: 1G Modular Aggregator

Modular TAP aggregation with breakout, regeneration and bypass

• Provide 100% full duplex traffic visibility

• Port-to-Port Aggregation

• Exclusive high density 1U support 4 TAPs and 2U supports 12 TAPs

• Remote management option with CLI or GUI

• Hot swappable TAP modules

• Supports jumbo frames and passes physical errors

• Supports link failure propagation (LFP)

XtraTAP: 1G Modular Aggregator | Chassis Options

*M1GL or blanking plates (Model #: Tray-BG) are used if managment card is not required or if not all TAP modules are populated. Management card and additional GT TAP modules can be added to chassis.

XtraTAP: 1G Modular Aggregator | Aggregation TAP Options

Model # Network Speed Network Monitor Breakout Aggregation Regeneration /SPAN Bypass Failsafe Data Diode Power M1GCCBP 10/100/1000M 2 Copper-RJ45 2 Copper-RJ45 Yes Yes Yes Yes Yes No Dual AC/DC M1GCSBP 10/100/1000M 2 SX Multi-Mode, passive LC-Fiber 2 Copper-RJ45 Yes Yes Yes Yes Yes No Dual AC/DC M1GMCA 1G 2 Copper-RJ45 2 Copper-RJ45 Yes Yes Yes No Passive Yes Dual AC/DC M1GMSA 1G 2 SX Multi-Mode, passive LC-Fiber 2 SFP Yes Yes Yes No Passive Yes Dual AC/DC M1GSCA 1G 2 LX Single-Mode, passive LC-Fiber 2 Copper-RJ45 Yes Yes Yes No Passive Yes Dual AC/DC M1GSSA 1G 2 LX Single-Mode, passive LC-Fiber 2 SFP Yes Yes Yes No Passive Yes Dual AC/DC

INDUSTRIAL ENVIRONMENTS SPECIALIZED NETWORK TAPS

Data Diode Network TAP

Modular Network TAP and Packet Broker Data Center Solutions for 1G Network Monitoring

• Provide 100% full duplex traffic visibility

• Maintain network integrity for industrial network monitoring without exposing additional risk

• Protect the source of data streams between network segments that have different security requirements

• Physical hardware separation guarantees unidirectional traffic between network segments

• Supports 10/100/1000M (1G)

• Supports tap ‘breakout,’ aggregation, regeneration / SPAN mode

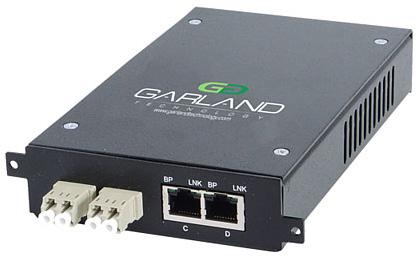

Data Diode SPAN TAP

Secure SPAN Links with Hardware-enforced

Perimeter Protection

• Provide 100% full duplex traffic visibility

• Maintain network integrity for industrial network monitoring without exposing additional risk

• Protect the source of data streams like switch SPAN ports between network segments that have different security requirements

• Physical hardware separation guarantees unidirectional traffic between network segments

• Supports 10/100/1000M (1G)

• Supports regeneration / SPAN mode

21 Model # Network Speed Network Monitor Breakout Aggregation Regeneration /SPAN Failsafe PT100 10/100M 2 Copper-RJ45 2 Copper-RJ45 Yes No No Passive P1GCCB 10/100/1000M 2 Copper-RJ45 2 Copper-RJ45 Yes No No Failsafe P1GCCB_OT 10/100/1000Mbps (1Gbps) Copper - RJ45 Copper - RJ45 Yes No No Failsafe M100CCBm 10/100M 2 Mighty Mouse 10/100M 2 Mighty Mouse 10/100M Yes No No Failsafe M1GCCBm 10/100/1000M 2 Mighty Mouse 10/100/1000M 2 Mighty Mouse 10/100/1000M Yes No No Failsafe

Model # Network Speed Network Monitor Breakout Aggregation Regeneration /SPAN P1GCCAS-Custom 10/100/1000M 2 Copper-RJ45 2 Copper-RJ45 No No Yes CTAP-P1GCCREG 10/100/1000M 2 Copper-RJ45 2 Copper-RJ45 No No Yes Industrial Environments | Specialized Network TAPs

AggregatorTAP: Data Diode

Secure Network and SPAN Links with Hardware-enforced Perimeter Protection

• Provide 100% full duplex traffic visibility

• Maintain network integrity for industrial network monitoring without exposing additional risk

• Protect the source of data streams between network segments that have different security requirements

• INT1G10CSA Aggregate up to 4 TAP links to 1 or 2 monitoring ports

• INT1G10CSASP Aggregate up to 8 SPAN Ports to 1 or 2 monitoring ports

• Supports 10/100/1000M (1G)

Copper OT Network TAP

Visibility Solution for Network and Security Monitoring in Extreme Temperatures

• Provide 100% full duplex traffic visibility

• Supports tap ‘breakout’

• Engineered for extreme temperature variations -40C to +85C / -40F to +185F

• Rugged metal construction

• Fixed DC powered

• Supports 10/100/1000M (1G)

Model # Network Speed Network Monitor Data Diode Breakout Aggregation Regeneration /SPAN Power INT1G10CSA 10/100/1000M 8 Copper-RJ45 2 SFP Yes Yes Yes Yes AC INT1G10CSA-DC 10/100/1000M 8 Copper-RJ45 2 SFP Yes Yes Yes Yes DC INT1G10CSASP 10/100/1000M 8 Copper-RJ45 2 SFP Yes No Yes Yes AC INT1G10CSASPDC 10/100/1000M 8 Copper-RJ45 2 SFP Yes No Yes Yes DC Model # Network Speed Form Factor # of TAPs Failsafe Network Monitor Serial Port Power RMS-1U-v2 1U Rack Shelf Mount Kit - Hold up to 4 Portable 1/10G TAPs RMP-1U 1U Rack Mount Kit - Hold up to 4 portable TAPs DIN_MOUNT Select the Garland Technology portable network TAP model # and add “DIN_MOUNT.” below model P1GCCB_OT 10/100/1000Mbps (1Gbps) Portable 1 Yes CopperRJ45 CopperRJ45 No DC

PCIe Network TAP

Visibility Solution for Network and Security Monitoring PC Integrations

• Provide 100% full duplex traffic visibility

• Supports jumbo frames and passes physical errors

• Easily integrate into network appliances or PC

• Supports failsafe, LFP and link speed synch

Industrial Accessories

DIN Rail | Field DC-DC Converter Power lock connectors

• All of Garland Technology’s portable network TAP form factors are available with Industrial accessories

• Fits standard 35mm DIN rail

• Field DC-DC Converter can be integrated into all RMP-1U chassis configurations or as an external supply option

• Power Lock connectors provide extra assurance power supplies stay connected

DIN Rail Mounting Kit

Field DC-DC Converter

Power Lock Connectors

Model # Network Speed Form Factor # of TAPs Failsafe Network Monitor Serial Port PCIE1GCUA 10/100/1000Mbps (1Gbps) PCIe 1 Yes Copper - RJ45 USB PCIe PCIE1GCA 10/100/1000Mbps (1Gbps) PCIe 1 Yes Copper - RJ45 PCIe PCIe PCIE10GLRA 1/10Gbps PCIe 1 Passive LR Single-Mode Fiber PCIe PCIe PCIE10GSRA 1/10Gbps PCIe 1 Passive SR Multi-Mode Fiber PCIe PCIe

Model # Input Voltage Output Voltage Output Current Output Power Ripple/noise PWR-DCDC1 Typ(Vdc)/ Range (Vdc) (VDC) min(mA) / max(mA) max(W) max(mVp-p) 24 / 9 ~ 36 5 150 / 3000 15 100

Model # Description PWR-DCDC1L Power Supply Lock System for Portable TAPs (except P100CCA) PLTYPE2 Power Supply Lock System for P100CCA Portable TAP

Model # Description DIN_Mount Select the Garland Technology portable Network TAP model number and add "DIN_MOUNT" below model Industrial Environments | Specialized Network TAPs

ADVANCED FILTERING TAPS TAP HYBRIDS

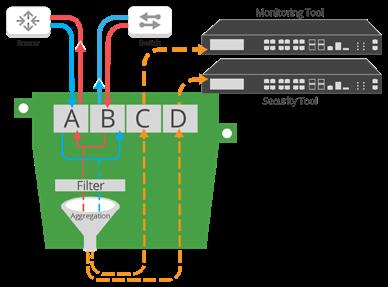

XtraTAP TM: All-In-1

Flexible Visibility Solution with Advanced TAP Filtering and Media Conversion to Improve Tool Performance

• Provide 100% full duplex traffic visibility

• Advanced filtering for Layer 2, Layer 3 and Layer 4

• Set utilization alerts to avoid oversubscription

• Media Conversion (SR, LR, SFP+ / RJ45, SX, LX, SFP)

• Supports tap filtering, ‘breakout,’ aggregation, and regeneration/SPAN modes

*Split ratios are available in 50/50, 60/40, 80/20, or 90/10, please inquire.

24 GarlandTechnology.com | Product Catalog © 2022 Garland Technology. All Rights Reserved. Model # Network Speed Network Monitor Split* Ratio Filtering Breakout Aggregation Regeneration / SPAN Failsafe Power RMS-1U-v2, BRACKET-11 1U Rack Mount Kit - Hold up to 4 Portable 1/10G TAPs P10GSSFE-5 1/10G LR SingleMode Fiber SFP+ 50/50 Yes Yes Yes Yes Yes Dual AC/DC P10GSSFE-6 1/10G LR SingleMode Fiber SFP+ 60/40 Yes Yes Yes Yes Yes Dual AC/DC P10GSSFE-7 1/10G LR SingleMode Fiber SFP+ 70/30 Yes Yes Yes Yes Yes Dual AC/DC P10GMSFE-5 1/10G SR MultiMode Fiber SFP+ 50/50 Yes Yes Yes Yes Yes Dual AC/DC P10GMSFE-6 1/10G SR MultiMode Fiber SFP+ 60/40 Yes Yes Yes Yes Yes Dual AC/DC P10GMSFE-7 1/10G SR MultiMode Fiber SFP+ 70/30 Yes Yes Yes Yes Yes Dual AC/DC RMP-1U 1U Rack Mount Kit - Hold up to 4 Portable 1G TAPs P1GCCFE 10/100/1000M 2 Copper-RJ45 2 Copper-RJ45 NA Yes Yes Yes Yes Yes AC/DC P1GCSFE 10/100/1000M 2 Copper-RJ45 2 SFP NA Yes Yes Yes Yes Yes AC/DC P1GMCFE 1G 2 SX MultiMode 2 Copper-RJ45 * Yes Yes Yes Yes Yes AC/DC P1GMSFE 1G 2 SX MultiMode 2 SFP * Yes Yes Yes Yes Yes AC/DC P1GSCFE 1G 2 LX Single-Mode 2 Copper-RJ45 * Yes Yes Yes Yes Yes AC/DC P1GSSFE 1G 2 LX Single-mode 2 SFP * Yes Yes Yes Yes Yes AC/DC

XtraTAP TM: Portable Packet Broker

Flexible Visibility Solution with Advanced TAP Filtering and Media Conversion to Improve Tool Performance

• Provide 100% full duplex traffic visibility

• Four port SFP+ design

• Ultimate flexibility: Configure TAP modes, ports, speeds and the media you need

• Advanced filtering for Layer 2, Layer 3 and Layer 4

• Set utilization alerts to avoid oversubscription

• Supports tap filtering, ‘breakout,’ aggregation, bypass and regeneration/SPAN modes

XtraTAP: Portable Packet Broker

Model # Network Speed Ports Filtering Breakout Aggregation Regeneration / SPAN Bypass Power RMS-1U-v2 1U Rack Mount Kit - Hold up to 4 Portable TAPs P10GSFPBPFE 1/10G (4) SFP+ Yes Yes Yes Yes Yes Dual AC/ DC

Advanced Filtering TAPs | TAP Hybrids

NETWORK PACKET BROKER TAP HYBRIDS

XtraTAP TM: Modular Packet Broker

Modular Network TAP and Packet Broker Data Center Solutions for 1G Network Monitoring

• Provide 100% full duplex traffic visibility

• Advanced filtering for Layer 2, Layer 3 and Layer 4

• Exclusive high density 1U support 4 TAPs and 2U supports 12 TAPs

• Supports filtering, aggregation, bypass or breakout TAP modules

• Multi-Tier Filtering supports MAC, VLAN, IP, DSCP, TCP, UDP

• Media Conversion: Fiber (SX, LX, ZX) and copper (TX)

XtraTAP: Modular Packet Broker | Chassis Options

M1GC* Management card: Ethernet/GUI - and- Serial/CLI for M1GxxE

*M1GL or blanking plates (Model #: Tray-BG) are used if management card is not required or if not all TAP modules are populated. Management card and additional GT TAP modules can be added to chassis.

XtraTAP: Modular Packet Broker | Filtering TAP Module Options

M1GC* Management card: Ethernet/GUI - and- Serial/CLI for M1GxxE

Model # Chassis/TAPs* Power Supplies Voltage Current (nominal) Consumption (maximum) Dimensions (WxHxD) M1G1ACE 1U; up to 4 TAPs Dual Internal AC 100-240VAC 0.75A@115VAC 86.25 Watts 17.40” x 1.75” x 13.45” (441.96mm x 44.45mm x 341.63mm) M1G1DCE 1U; up to 4 TAPs Dual Internal AC 36-60VDC 1A@48VDC 48 Watts M1G2ACE 2U; up to 12 TAPs Dual Internal AC 100-240VAC 1A@115VAC 115 Watts 17.40” x 3.47” x 13.45” (441.96mm x 88.14mm x 341.63mm) M1G2DCE 2U; up to 12 TAPs Dual Internal AC 36-60VDC 2.8A@48VDC 134.4 Watts

Model # Network Speed Network Monitor Breakout Aggregation Regeneration /SPAN Filtering Bypass Failsafe Power M1GCCF 10/100/1000M 2 Copper-RJ45 2 Copper-RJ45 Yes Yes Yes Yes No Passive Dual AC/ DC M1GCSF 10/100/1000M 2 Copper-RJ45 2 SFP Yes Yes Yes Yes No Passive Dual AC/ DC M1GMCF 1G 2 SX MultiMode, passive LC-Fiber 2 Copper-RJ45 Yes Yes Yes Yes No Passive Dual AC/ DC M1GMSF 1G 2 SX MultiMode, passive LC-Fiber 2 SFP Yes Yes Yes Yes No Passive Dual AC/ DC M1GSCF 1G 2 LX Single-Mode, passive LC-Fiber 2 Copper-RJ45 Yes Yes Yes Yes No Passive Dual AC/ DC M1GSSF 1G 2 LX Single-Mode, passive LC-Fiber 2 SFP Yes Yes Yes Yes No Passive Dual AC/ DC

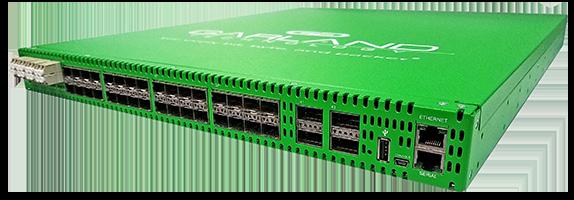

XtraTAP TM: Packet Broker

All-In-1 Network TAP Packet Broker hybrid for easy to deploy visibility and network optimization

• Provide 100% full duplex traffic visibility

• Advanced filtering for Layer 2, Layer 3 and Layer 4

• Exclusive high density 1U support 4 TAPs and 2U supports 12 TAPs

• Supports filtering, aggregation, bypass or breakout TAP modules

• Multi-Tier Filtering supports MAC, VLAN, IP, DSCP, TCP, UDP

• Media Conversion: Fiber (SX, LX, ZX) and copper (TX)

27 Model # Network Speed Network Split Ratio* 10G Ports 40G Ports Failsafe Power INT10G12MSFE-5 1G/10G MMF 1G-SX /10G-SR 50/50 (10) SFP+ - Yes Dual AC/DC INT10G12MSFE-6 1G/10G MMF 1G-SX /10G-SR 60/40 (10) SFP+ - Yes Dual AC/DC INT10G12MSFE-7 1G/10G MMF 1G-SX /10G-SR 70/30 (10) SFP+ - Yes Dual AC/DC INT10G12SSFE-5 1G/10G SMF 1G-LX /10G-LR 50/50 (10) SFP+ - Yes Dual AC/DC INT10G12SSFE-6 1G/10G SMF 1G-LX /10G-LR 60/40 (10) SFP+ - Yes Dual AC/DC INT10G12SSFE-7 1G/10G SMF 1G-LX /10G-LR 70/30 (10) SFP+ - Yes Dual AC/DC INT10G8SR56-5 1G/10G/40G (4) MMF 1GSX /10G-SR 50/50 (32) 1G/10G SFP+ (4) QSFP+ (4x 10G) Yes Dual AC/DC INT10G8SR56-6 1G/10G/40G (4) MMF 1GSX /10G-SR 60/40 (32) 1G/10G SFP+ (4) QSFP+ (4x 10G) Yes Dual AC/DC INT10G8SR56-7 1G/10G/40G (4) MMF 1GSX /10G-SR 70/30 (32) 1G/10G SFP+ (4) QSFP+ (4x 10G) Yes Dual AC/DC INT10G8LR56-5 1G/10G/40G (4) SMF 1GLX /10G-LR 50/50 (32) 1G/10G SFP+ (4) QSFP+ (4x 10G) Yes Dual AC/DC INT10G8LR56-6 1G/10G/40G (4) SMF 1GLX /10G-LR 60/40 (32) 1G/10G SFP+ (4) QSFP+ (4x 10G) Yes Dual AC/DC INT10G8LR56-7 1G/10G/40G (4) SMF 1GLX /10G-LR 70/30 (32) 1G/10G SFP+ (4) QSFP+ (4x 10G) Yes Dual AC/DC

Network Packet Broker | TAP Hybrids

*Split ratios are available in 50/50, 60/40, 80/20, or 90/10, please inquire.

NETWORK PACKET BROKER OVERVIEW

Flexible Network Traffic Optimization

Network Packet Brokers Purpose-built and Specialized for your needs.

In today’s environment with significant investment in security and monitoring tools, Garland Technology recognizes the need for a cost effective solution that allows the flexibility and speed that is required for the networks of the future.

Garland provides the advantages of full-featured Network Packet Brokers (NPB) at a significantly less cost. We take the approach of providing solutions that are flexible and scalable for future on-demand growth with excellent ROI. Allowing you to deploy what you need, when you need it.

For advanced traffic optimization, Network TAP and SPAN traffic from various network segments are passed through a network packet broker (NPB) to provide traffic aggregation, advanced filtering, load balancing, deduplication and tunneling, optimizing the traffic for improved monitoring tool performance.

Garland’s PacketMAX TM line of packet brokers are designed to reduce costs and streamline data between teams. Garland’s deconstructed packet broker approach provides teams with the flexibility to ‘deploy what you need when you need it,’ with modular options and no additional per-port license fees.

Network Packet Broker Benefits

• Optimize network traffic for improved monitoring tool performance.

• Provide traffic aggregation, filtering, and load balancing.

• Provide advanced features such as deduplication, packet slicing and time stamping and GRE, L2GRE, ERSPAN, VxLAN Tunneling.

• Support speeds from 1G, 10G, 25G, 40G, 100G.

• Hybrid packet brokers with TAP integration options.

• Inline Edge Security Packet Brokers with Bypass TAPintegration options.

• No additional per-port or feature license fees.

TRAFFIC AGGREGATION NETWORK PACKET BROKERS

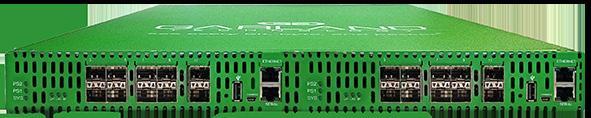

PacketMAX TM: Advanced Aggregator

• Provide 100% full duplex traffic visibility

• Supports 1G/10G

Optimize network traffic to improve security and monitoring tools

• Aggregate network traffic to a single or multiple tools (1:1, 1:N, N:1, N:N)

• Session/flow aware/hash-based load balancing

• Layer 2–4 filtering

• GRE/VXLAN Tunneling

• No additional per-port license fees

29 Model # Network Speed 1G Port 1/10G Port Power Supplies GAA10G10AC 1/10G - (10) SFP+ AC GAA10G20AC 1/10G - (20) SFP+ AC

Traffic Aggregation | Network Packet Brokers

FEATURES NETWORK PACKET BROKERS

PacketMAX TM: Advanced Features

• Supports 1G/10G

• Time stamping

• Packet slicing

• GRE, L2GRE, ERSPAN, VxLAN Tunneling

• Hash-based load balancing, round-robin distribution, filtering and aggregation

• No additional per-port license fees

Extend feature set of existing infrastructure and reduce the processing load to security and monitoring tools

*SFP+ supports 10G only

PacketMAX TM: Advanced Features Dedup

Extend feature set of existing infrastructure and reduce the processing load to security and monitoring tools

• Supports 10G/40G

• FPGA Based design for increased flexibility

• Large window deduplication

• Time Stamping: 5 nS resolution

• Programmable Packet Slicing

30 GarlandTechnology.com | Product Catalog © 2022 Garland Technology. All Rights Reserved. Model # Network Speed 1G Port 1/10G Port Power Supplies AF1G40AC 10/100/1000M (1G), 10G (24) RJ-45 (16) SFP+ AC AF1G52AC 10/100/1000M (1G), 10G (48) RJ45 *(4) SFP+ AC AF1G52DC 10/100/1000M (1G), 10G (48) RJ45 *(4) SFP+ DC

ADVANCED

Model # Network Speed Port Power Watts AF10G4ACE 10/40G (4) SFP+ (1) QSFP 1 AC Power Supply 135W AF10G4DCE 10/40G (4) SFP+ (1) QSFP 1 DC Power Supply 135W

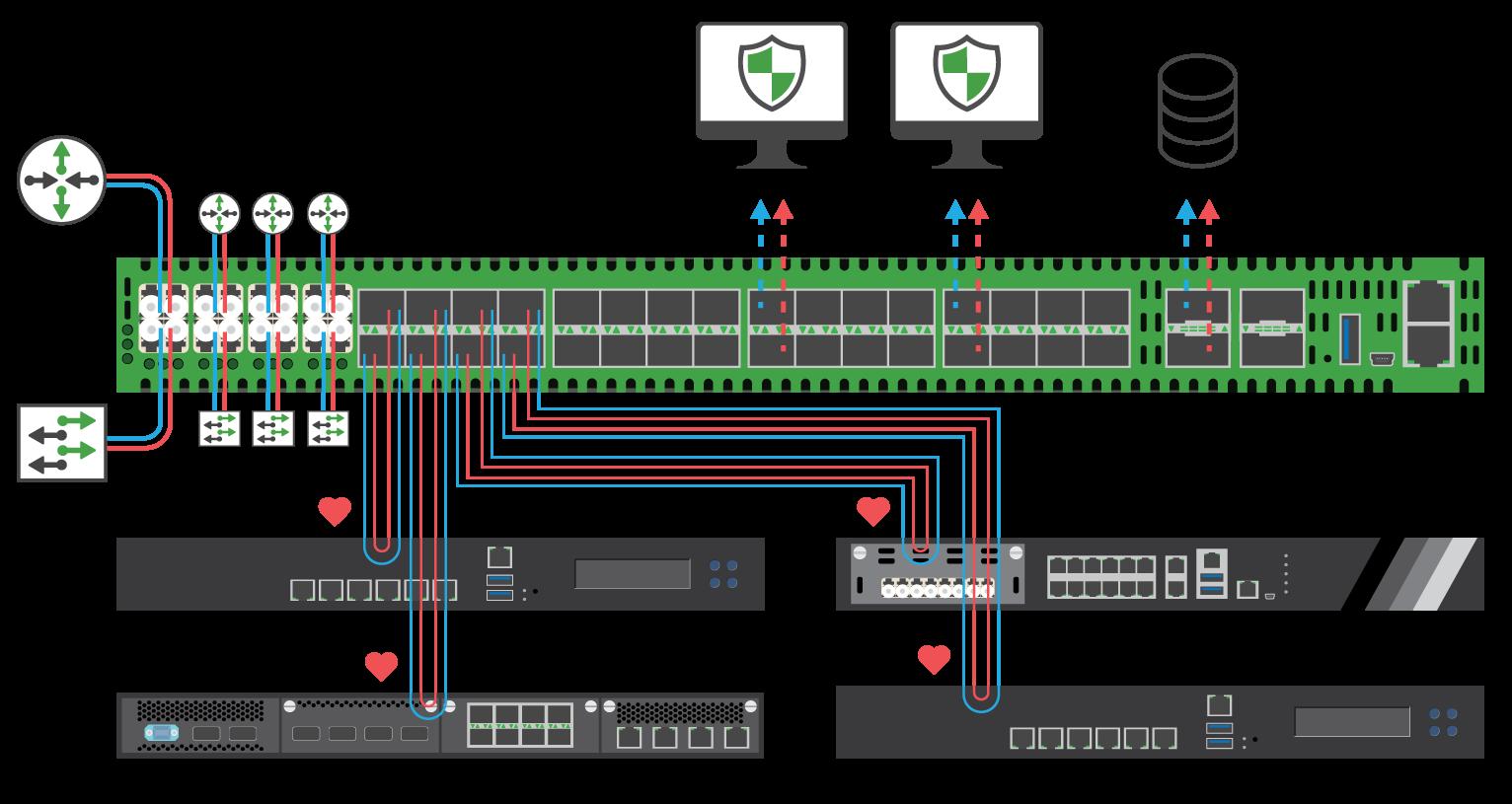

INLINE BYPASS OVERVIEW

Ensure Complete Availability and Reliability for Inline Security Tool Connectivity Across Your IT Environments

Real-time prevention tools like WAF, IPS, SSL Decryption, and firewalls actively analyze network traffic to detect and prevent vulnerability exploits and attacks. These tools sit inline, meaning they are actively blocking threats as traffic passes through them on critical links at the edge or perimeter of the network. This is unlike passive monitoring solutions that analyze out-of-band production network traffic.

As important as these tools are to protect the network – both failure and maintenance of these devices become just as important for network and business availability. And because they sit in the stream of traffic, the deployment, management, failure response and replacement of these devices must be planned out in advance to ensure network continuity and availability.

That is why architects rely on external bypass TAPs (also referred to as a bypass switch) as an industry best practice to resolve the issue of these inline tools causing a single point of failure (SPOF) in the network, which can lead to network downtime and a possible security lapse.

Bypass Benefits

• Prevent your active inline tools from being a single point of failure (SPOF).

• Inline Bypass allows you to sandbox, deploy, troubleshoot and replace active inline tools without taking the network link down.

• Network Failsafe automatically closes the relay circuitry in less than eight milliseconds, keeping the network up.

• Heartbeat health checks monitor the health of the inline appliance. If the tools availability changes, the Bypass TAP will automatically ‘bypass’ the tool.

• Support speeds from 10/100M, 1G, 10G, 40G, and 100G and are available in passive single-mode and multimode fiber or copper ethernet (1G).

Inline Bypass TAPs

INLINE BYPASS TAPS

EdgeSafeTM: 1G Modular Bypass TAP

Ensure multiple inline tool protection and reliability

• Supports 1G; 1U/2U modular chassis, 1U holds 4 bypass TAPs; 2U holds 12 bypass TAPs, hot swappable

• Ideal for data centers and media conversion

• Take your inline appliance out-of-band without interrupting traffic for sandboxing, updates, maintenance and troubleshooting

• Guarantee 100% production network uptime with configurable heartbeat and failsafe technology

• Simple easy to use GUI management

Chassis Options

*M1GL or blanking plates (Model #: Tray-BG) are used if management card is not required or if not all TAP modules are populated. Management card and additional GT TAP modules can be added to chassis. 1U and 2U Chassis also Accommodates Copper Breakout, Aggregation and Filtering TAP modules

EdgeSafeTM: 1G Bypass Modular Network TAP | Bypass TAP Options

Model # Network Speed Network Monitor Bypass Breakout Aggregation Regeneration /SPAN Failsafe Power M1GCCBP 10/100/1000M 2 Copper-RJ45 2 Copper-RJ45 Yes Yes Yes Yes Yes Dual AC/DC M1GCSBP 10/100/1000M 2 SX MultiMode, passive LC-Fiber 2 SFP Yes Yes Yes Yes Yes Dual AC/DC M1GMCBP 1G 2 Copper-RJ45 2 Copper-RJ45 Yes Yes Yes Yes Yes Dual AC/DC M1GMSBP 1G 2 SX MultiMode, passive LC-Fiber 2 SFP Yes Yes Yes Yes Yes Dual AC/DC M1GSCBP 1G 2 LX Single-Mode, passive LC-Fiber 2 Copper-RJ45 Yes Yes Yes Yes Yes Dual AC/DC M1GSSBP 1G 2 LX Single-Mode, passive LC-Fiber 2 SFP Yes Yes Yes Yes Yes Dual AC/DC

Model # Chassis/TAPs* Power Supplies Voltage Current (nominal) Consumption (maximum) Dimensions (WxHxD) M1G1ACE 1U; up to 4 TAPs Dual Internal AC 100-240VAC 0.75A@115VAC 86.25 Watts 17.40” x 1.75” x 13.45” (441.96mm x 44.45mm x 341.63mm) 2 SFP M1G1DCE 1U; up to 4 TAPs Dual Internal AC 36-60VDC 1A@48VDC 48 Watts M1G2ACE 2U; up to 12 TAPs Dual Internal AC 100-240VAC 1A@115VAC 115 Watts 17.40” x 3.47” x 13.45” (441.96mm x 88.14mm x 341.63mm) M1G2DCE 2U; up to 12 TAPs Dual Internal AC 36-60VDC 2.8A@48VDC 134.4 Watts M1GC* Management card: Ethernet/GUI - and- Serial/CLI for M1GxxE

EdgeSafeTM: Integrated Bypass TAP

Purpose-built for High Availability (HA) deployments

• Supports 1G; 1U chassis integrated bypass TAP

• 8 Port High Availability (HA) solution; TAP one link and connect one primary and one back up inline appliance and an additional out-of-band monitoring appliance

• Take your inline appliance out-of-band without interrupting traffic for sandboxing, updates, maintenance and troubleshooting

• Guarantee 100% production network uptime with configurable heartbeat and failsafe technology

EdgeSafeTM: Bypass TAP

Ensure single inline tool protection and reliability

• Supports 1G/10G; Portable Bypass TAP

• Take your inline appliance out-of-band without interrupting traffic for sandboxing, updates, maintenance and troubleshooting

• Guarantee 100% production network uptime with configurable heartbeat and failsafe technology

• Simple easy to use GUI management

Model # Network Speed Network Monitor Bypass Breakout Aggregation Failsafe Power INT1G8CCBP 1G 2 Copper-RJ45 6 Copper-RJ45 Yes Ports CDEF Yes Ports CDEFGH Yes Ports GH Yes AC INT1G8SCBP 1G 2 LX Single-Mode, LC-Fiber 6 Copper-RJ45 Yes Ports CDEF Yes Ports CDEFGH Yes Ports GH Yes AC INT1G8MCBP 1G 2 SX Multi-Mode, LC-Fiber 6 Copper-RJ45 Yes Ports CDEF Yes Ports CDEFGH Yes Ports GH Yes AC Model # Network Speed Network Monitor Bypass Filtering Breakout Aggregation Regeneration /SPAN Failsafe Power RMS-1U-V2 1U Rack Mount Kit - Hold up to 4 Portable TAPs P10GMSBPE 1G/10G 2 SR MultiMode 2 SFP+ Yes Yes Yes Yes Yes Yes Dual DC P10GSSBPE 1G/10G 2 LR Single-Mode 2 SFP+ Yes Yes Yes Yes Yes Yes Dual DC Inline Bypass TAPs

EdgeSafeTM: Bypass Network TAP

with

Model # Network Speed Network Monitor Bypass Breakout Aggregation Regeneration /SPAN Failsafe Power RMP-1U 1U Rack Mount Kit - Hold up to 4 Portable TAPs 1G Bypass with Remote Management P1GCCBPE 100/1000M 2 Copper RJ-45 2 Copper RJ45 Yes Yes Yes Yes Yes DC P1GCSBPE 100/1000M 2 Copper RJ-45 2 SFP Yes Yes Yes Yes Yes DC P1GCCBPPOE+E 100/1000M 2 Copper RJ-45 2 Copper RJ45 Yes Yes Yes Yes Yes DC/POE P1GCSBPPOE+E 100/1000M 2 Copper RJ-45 2 SFP Yes Yes Yes Yes Yes DC/POE P1GMCBPE 1G 2 SX MultiMode 2 Copper RJ45 Yes Yes Yes Yes Yes DC P1GMSBPE 1G 2 SX MultiMode 2 SFP Yes Yes Yes Yes Yes DC P1GSCBPE 1G 2 LX Single-Mode 2 Copper RJ45 Yes Yes Yes Yes Yes DC P1GSSBPE 1G 2 LX Single-Mode 2 SFP Yes Yes Yes Yes Yes DC

Manual Programming P1GCCBP 100/1000M 2 Copper-RJ45 2 Copper RJ45 Yes Yes Yes Yes Yes DC P1GCSBP 100/1000M 2 Copper-RJ45 2 SFP Yes Yes Yes Yes Yes DC P1GCCBPPOE+ 100/1000M 2 Copper-RJ45 2 Copper RJ45 Yes Yes Yes Yes Yes DC/POE P1GCSBPPOE+ 100/1000M 2 Copper-RJ45 2 SFP Yes Yes Yes Yes Yes DC/POE P1GMCBP 1G 2 SX MultiMode, Fiber-LC 2 Copper RJ45 Yes Yes Yes Yes Yes DC P1GMSBP 1G 2 SX MultiMode, Fiber-LC 2 SFP Yes Yes Yes Yes Yes DC P1GSCBP 1G 2 LX Single-Mode, Fiber-LC 2 Copper RJ45 Yes Yes Yes Yes Yes DC P1GSSBP 1G 2 LX Single-Mode, Fiber-LC 2 SFP Yes Yes Yes Yes Yes DC

1G Bypass

EdgeLens ® Focus Inline Security Packet Broker

Manage multiple inline and out-of-band tools from one device

• Supports 1G/10G; 1U half rack integrated bypass TAP

-TAP a 1G or 10G link and deliver data to 1G and 10G tools

• Take your inline appliance out-of-band without interrupting traffic for sandboxing, updates, maintenance and troubleshooting

• Guarantee 100% production network uptime with configurable heartbeat and failsafe technology

• Supports High Availability (HA) and tool chaining

• Supports filtering, aggregating, load balancing, and regeneration

EdgeLens ® Inline Security Packet Broker

Manage multiple inline and out-of-band tools from one device

• Supports 1G/10G/40G; 1U high density integrated bypass TAP -TAP four 1G, 10G or 40G links and deliver data to 1G, 10G and 40G tools

• Take your inline appliance out-of-band without interrupting traffic for sandboxing, updates, maintenance and troubleshooting

• Guarantee 100% production network uptime with configurable heartbeat and failsafe technology

• Supports High Availability (HA) and tool chaining

• Supports filtering, aggregating, load balancing, and regeneration

35 Model # Network Speed Bypass TAP Monitor Power INT10G12MSBP 1/10/100G SR Multi-Mode Fiber (10)SFP+ Dual AC/DC INT10G12SSBP 1/10/100G LR Single-Mode Fiber (10)SFP+ Dual AC/DC

Model # Network Speed Bypass TAP 10G Ports 40G Ports Power INT10G8LR56 1/10/40G (4) SMF 1G-LX/10G-LR (32) 1G/10G SFP+ (4) QSFP + (4x 10G) Dual AC/DC INT10G8SR56 1/10/40G (4) MMF 1G-SX/10G-SR (32) 1G/10G SFP+ (4) QSFP + (4x 10G) Dual AC/DC INT40G2SR44 1/10/40G (2) MMF 40G-SR4 (32) 1G/10G SFP+ (8) 40G QSFP + (4x10G Dual AC/DC INT40G2LR44 1/10/40G (2) SMMF 40G-LR4 (32) 1G/10G SFP+ (8) 40G QSFP + (4x10G Dual AC/DC

PLUGGABLE TRANSCEIVERS

Pluggable Transceivers

Connect your tools with Transceivers, Direct Attach Cables, Copper & Fiber Cables and Accessories

Garland provides high quality pluggable transceivers and cables, designed to excel with the increasing demands for network bandwidth and data storage. Fully compliant with Ethernet, Fibre Channel, Infiniband, SONET/ SDH/OTN, CPRI and PON standards and feature high performance over extended voltage and temperature ranges, while minimizing jitter, electromagnetic interference

1GbE SFP | Pluggable Transceivers

Model # Network Speed Type Media Connector Optical Bandwidth SFP+LR 1Gbps/10Gbps 1000BASE-LX 1G Ethernet 10GBASE-LR/LW 10G Ethernet 9u SMF LC 1260nm-1600nm RX 1260nm-1355nm TX SFP+T 1Gbps/10Gbps 1000BASE-SX 1G Ethernet 10GBASE-SR/SW 10G Ethernet 50u MMF/62.5u MMF LC 840nm-860nm RX 840nm860nm TX SFPEX40km 1Gbps SONET OC-48 LR-1 / SDH STM L-16.1 SONET OC-12 / SDH STM 4 SONET OC-3 / SDH STM-1 Gigabit Ethernet / 1x/2x Fibre Channel 9u SMF LC 1270nm-1600nm RX 1280nm-1355nm TX SFPEX90km 1Gbps SONET OC-48 LR-1 / SDH STM L-16.1 SONET OC-12 / SDH STM 4 SONET OC-3 / SDH STM-1 Gigabit Ethernet / 1x/2x Fibre Channel 9u SMF LC 1270nm-1600nm RX 1280nm-1355nm TX SFPFX 1Gbps 1000Base-SX 50u MMF/ 62.5u MMF LC 770nm-860nm RX 830nm860nm TX SFPLX 1Gbps 1000Base-LX 9u SMF LC 1270nm-1500nm RX 1270nm-1355nm TX SFPLX-WB 1Gbps 1000Base-LX 9u SMF LC 1265nm-1600nm RX 1270nm-1360nm TX SFPSX 1Gbps 1000Base-SX Ethernet 50u MMF/ 62.5u MMF LC 770nm-860nm RX 830nm860nm TX SFPTX 1Gbps 10/100/1000 BASE-T Category 5 UTP RJ45SFPTX1G 1Gbps 10/100/1000 BASE-T Category 5 UTP RJ45SFPZX 1Gbps 1000BASE-LW 1G Ethernet 9u SMF LC 1270nm-1600nm RX 1430nm-1580nm TX

dissipation.

(EMI) and power

ACCESSORIES

Accessories | Pluggable Transceivers

10G Optical SFP+ | Pluggable Transceivers

QSFP | Pluggable Transceivers

Model # Network Speed Type Media Connector Optical Bandwidth SFP+-10GBiDi-1270-1330 10Gbps SFP-10G-BX 9u SMF LC simplex 1270nm-TX /1330nm-RX SFP+-10GBiDi-1330-1270 10Gbps SFP-10G-BX 9u SMF LC simplex 1330nm-TX /1270nm-RX SFP+ER 10Gbps 10GBASE-ER/EW 10G Ethernet 9u SMF LC 1260nm-1600nm RX 1530nm-1565nm TX SFP+SR 1Gbps/10Gbps 1000BASE-SX 1G Ethernet 10GBASE-SR/ SW 10G Ethernet 50u MMF/ 62.5u MMF LC 840nm-860nm RX 840nm-860nm TX SFP+LR 1Gbps/10Gbps 1000BASE-LX 1G Ethernet 10GBASE-LR/ LW 10G Ethernet 9u SMF LC 1260nm-1600nm RX 1260nm-1355nm TX SFP+LR10G 10Gbps 10GBASE-LRM 10G Ethernet 1200-SMLL-L 10G Fibre Channel 9u SMF LC 1260nm-1600nm RX 1260nm-1355nm TX SFP+LRM10G 10Gbps 10GBASE-LRM 10G Ethernet 50u MMF/ 62.5u MMF LC 1260nm-1600nm RX 1260nm-1355nm TX SFP+SR10G 10Gbps 10GBASE-SR/SW 10G Ethernet 50u MMF/ 62.5u MMF LC 840nm-860nm RX 840nm-860nm TX SFP+T 10 mbps/100 mbps/1 gbps 10/100/1000 BASE-T Category 5 UTP RJ45 SFP+SR_T 1Gbps/10Gbps 10GBASE-SR/SW 10G Ethernet 50u MMF/ 62.5u MMF LC 840nm-860nm RX 840nm-860nm TX SFP+ZR80 10Gbps 10GBASE-ER/EW 10G Ethernet 9u SMF LC 1260nm-1600nm RX 1530nm-1565nm TX

Model # Network Speed Type Media Connector Optical Bandwidth QSFP+100GBiDi 1Gbps/10Gbps 40GBASE-SR4 OM4 50 / 125μm MMF Single 1x12 MPO receptacle 840nm-860nm RX 840nm-860nm TX QSFP+10GLR 10Gbps 10GBASE-SR/SW OM4 50 / 125μm MMF LC 840nm-860nm RX 840nm-860nm TX QSFP+28SR4 100Gbps 100GBASE-SR4 100G Ethernet OM4 50 / 125μm MMF Single MPO12 receptacle 840nm-860nm RX 840nm-860nm TX QSFP+28SRSWDM4 100Gbps 100G Ethernet over Duplex MMF OM4 50 / 125μm MMF Duplex LC receptacles λ1 850 RX, 850 TX λ2 880 RX, 880 TX λ3 910 RX, 910 TX λ4 940 RX, 940 TX QSFP+40-LR4 Supports 41.2 Gb/s aggregate bit rates 40BASE-LR4 SMF LC Connector Lane center wavelengths (range) 1264.5 – 1277.5 1284.5 – 1297.5 1304.5 – 1317.5 1324.5 – 1337.5 QSFP+40G Multi-rate capability: 1.06Gb/s to 10.5Gb/s per channel 40BASE-SR4 MMF Single 1x12 MPO receptacle QSFP+ Gen2 Optical Transceiver Module 840nm-860nm RX 840nm-860nm TX QSFP+40G-ER4 Multi-rate capability: 1.06Gb/s to 10.5Gb/s per channel 40BASE-SR4 MMF Single 1x12 MPO receptacle QSFP+ Gen2 Optical Transceiver Module 840nm-860nm RX 840nm-860nm TX QSFP+40GBiDi Multi-rate capability: 1.06Gb/s to 10.5Gb/s per channel 40BASE-SR4 MMF Single 1x12 MPO receptacle QSFP+ Gen2 Optical Transceiver Module 840nm-860nm RX 840nm-860nm TX QSFP28PSM4 10Gbps 10GBASE-SR/SW 10G Ethernet 50u MMF / 62.5u MMF LC 840nm-860nm RX 840nm-860nm TX

ACCESSORIES CABLES

Cables

Connect your tools with Transceivers, Direct Attach Cables, Copper & Fiber Cables and Accessories

Garland provides high quality pluggable transceivers and cables, designed to excel with the increasing demands for network bandwidth and data storage. Fully compliant with Ethernet, Fibre Channel, Infiniband, SONET/SDH/OTN, CPRI and PON standards and feature high performance over extended voltage and temperature ranges, while minimizing jitter, electromagnetic interference (EMI) and

1GbE SFP | Pluggable Transceivers

The 4-way adhesive backed cable tie mount made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. Designed for indoor, high-temperature environments, and comes in packages of 1000.

QSFP28-4SFP28-Ca-

MTP Y Monitoring Cable - OM4 - 1 meter

100-Gigabit Ethernet QSFP28 to 4 x 25-Gigabit Ethernet SFP28 Splitter Cable - 1 Meter

Direct Attach Copper Cable QSFP28 to 4x 25Gb SFP28, Pre-Cut 2 Meter

Direct Attach Copper Cable QSFP28 to 4x 25Gb SFP28, Pre-Cut 3 Meter

Model # Network Speed Reach Type Media Connector Optical Bandwidth Description 100401BK 1FT Black Ethernet Cable - 100 M Copper Cat 5e Cat 6 RJ45 - Ethernet Cable 102617 50um 10Gb Fiber Optic Cable 10Gbps -50u MMF / 62.5u MMF840nm-860nm RX 840nm-860nm TX Fiber Cable 102732 Multimode Fiber Cable 10Gbps -50u MMF / 62.5u MMF840nm-860nm RX 840nm-860nm TX Fiber 102794 9/125 Singlemode Fiber Cable - - - 9u SMF1260nm-1600nm RX 1260nm-1355nm TX Fiber cable Cable Tie Mount0.50" long x 0.50" wide - - - -

Cable Ties - - - - - - Cable ties Console Cable DB9RJ45 - - Copper Cat 5e Cat 6 RJ45Console Cable DB9 Female to RJ45 6 Feet Console Serial Cable M10GxxBP Modules - - Copper - RJ11Console Serial Cable M10GxxBP Modules:

MTP12F-Y-Cable-1 - - - - - -

ble_1 - - - - - -

DB9 Female to RJ11 4 Foot Cable

QSFP28-4SFP28-Ca-

ble_2 - - - - - -

ble_3 - - - - - -

Serial Cable 10Ft DB9 Male to Female for 8 Port - 10 ft Copper - DB9Serial

Male to

USB25 - 2.5 ft Copper USB mini-USB Type B (M) to RJ-45 (M) - USB 2.5 foot

Cable 10Ft DB9

Female for 8 Port

power dissipation.

Accessories | Cables

39 GARLANDTECHNOLOGY.COM | SALES@GARLANDTECHNOLOGY.COM | +1 716.242.8500 NETWORK TAP + INLINE BYPASS + NETWORK PACKET BROKER FOUNDATION OF VISIBILITY
