Wrappers Solutions
Weigh, Wrap and Label.

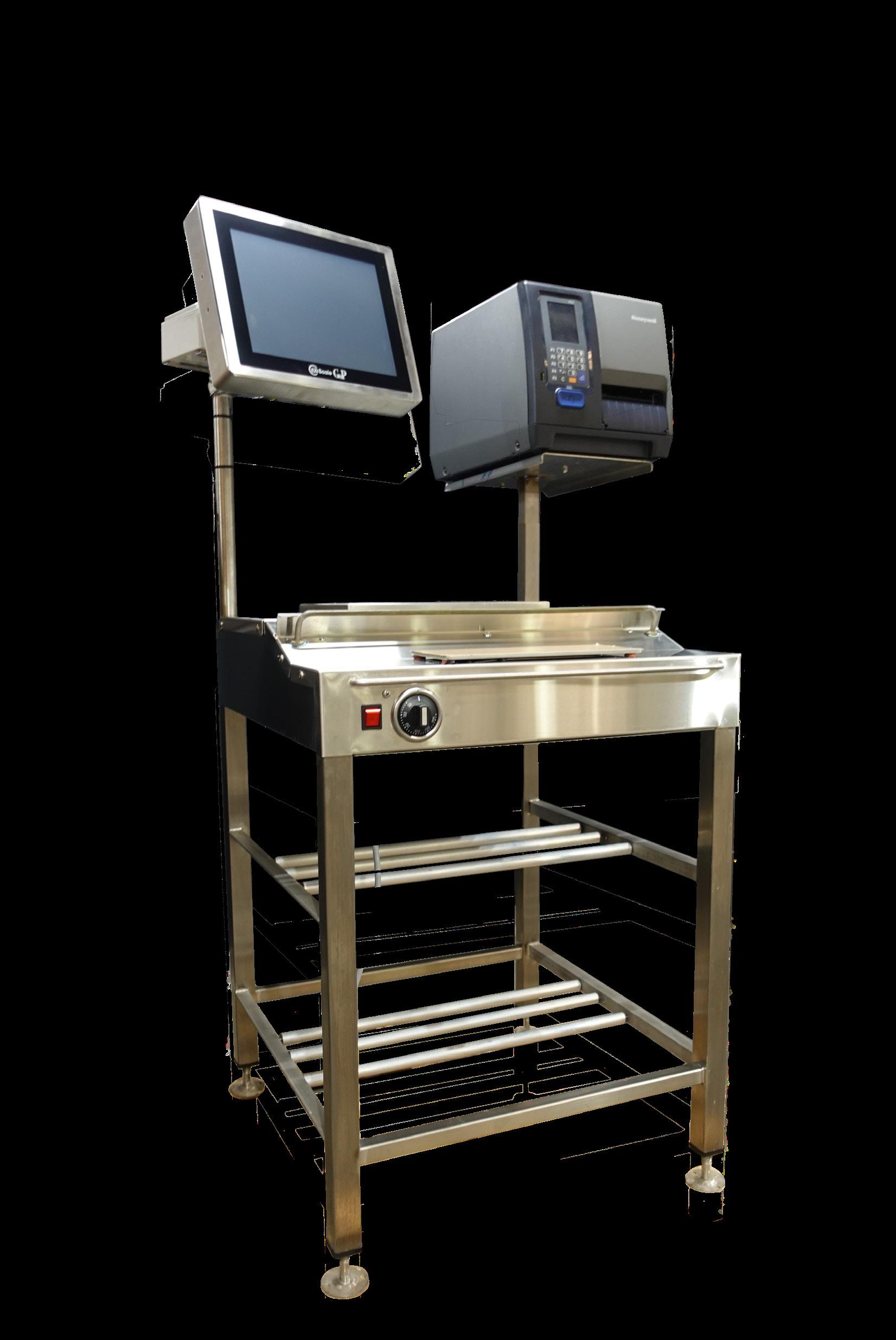

The all in one solution with the

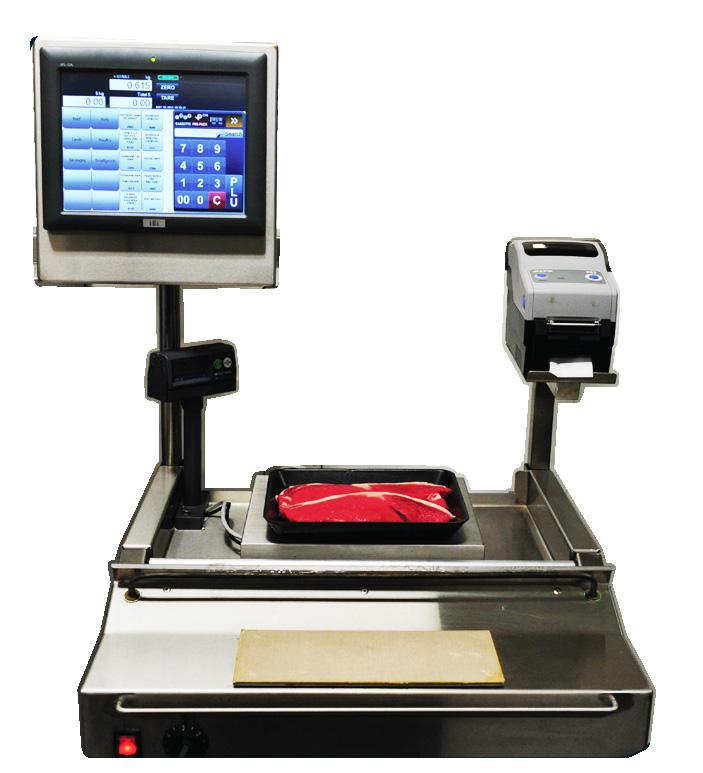

Scale NG1
Ergonomically designed with the operator in mind, minimal depth from the sealing pad to the scale removes the need for operators to bend over the unit. Also, cleanliness and hygiene are assured as the Ezi ScaleNG1 framework has an all stainless steel construction.
Ezi Scale NG1 software is based on the Ezi Scale software, making life easier for operators. The Ezi Scale NG1 enhancements are designed to provide functions specific to hi-speed pre-pack operations.
Features
The Ezi Sclale NG1 printer, when operated in pre-pack mode, ‘holds’ the label until taken by the operator allowing the next label in the queue to present and peel.
The NG1 will produce markdowns and ‘dump stock’ using the same process as Ezi Scale.
Real-time packaging totals are displayed on the screen, keeping operators up to date.
Print nutritional information, allergens and country of origin.
Large 12” display or 15” display.
Adjustable height operator display / printer.
Choice of printer type dependent on use.
Adjustable angle display.
Printer Features
Our Ezi Scale NG1 printer unit has a high-speed labeller for on-demand printing, which can print multiple formats, sizes and graphics, including nutritional information, barcodes, ingredients and preparation requirements.
Label Printing Features
Plain English Allergen Labelling (PEAL)
Preparation/ Storage Instructions
Barcodes including support for GS1 data-matrix
Total Price Information
Nutritional Information
Packed on and used by dates and times
Address Details Ingredient List
Proudly Australian Logo/ Descriptor/Bar
12” or 15” touch display screens
Adjustable height
Scale
Temprature control
Wrapper film rollers
Printer options available dependent on use
Adjustable height
Teflon coated sealing pad
Stainless steel construction
Specifications: Option 1
Screen Size 15’ touch display screen

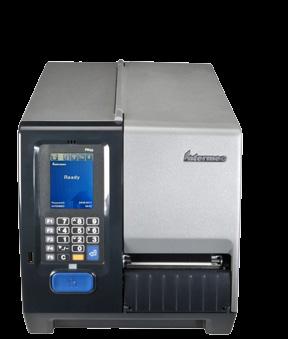

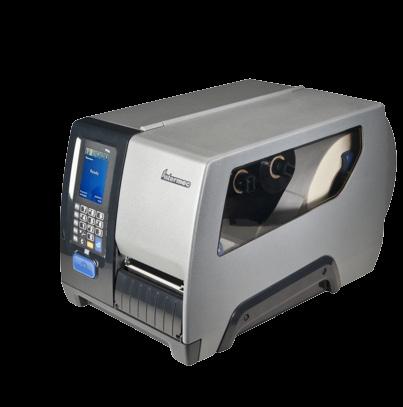

Printer Honeywell PM 43
Print Resolution 300 dpi
Print Speed 100 – 300 mm/s (4 – 12 ips) variable (203/300 dpi)
Print Width
Max. Width with 203 dpi: 108 mm (4.25 in)
Max. Width with 300 dpi: 106 mm (4.17 in)
Media Sensor Gap, notch, black mark, continuous
Media Roll Size 213 mm outer/ 76 mm core inner
Media Type Roll-fed/fan-fold,
Scale Specs Stainless Steel Top and Base
Max 15kg x 5gms incriments
Pan Size: 345mm x 285mm
Wrapper Specs 2 Level Option
350mm - 500mm film
Specifications: Option 2
Screen Size 12’ touch display
Printer ZD421
Print Resolution 203 dpi (300 dpi optional)
Print Speed 152 mm/sec on 203 dpi 102 mm/sec on 300dpi
Print Width 104mm
Media Sensor Full width, movable reflective and black mark sensor
Media Roll Size 127mm outer/ 12.7mm core inner
Media Type Roll-fed/fan-fold, die cut or continuous /black mark, tag stock, continuous receipt paper, and wristbands
Scale Specs Stainless Steel Top and Base Max 15kg x 5gms incriments Pan Size: 345mm x 285mm
Wrapper Specs 2 Level Option 350mm - 500mm film

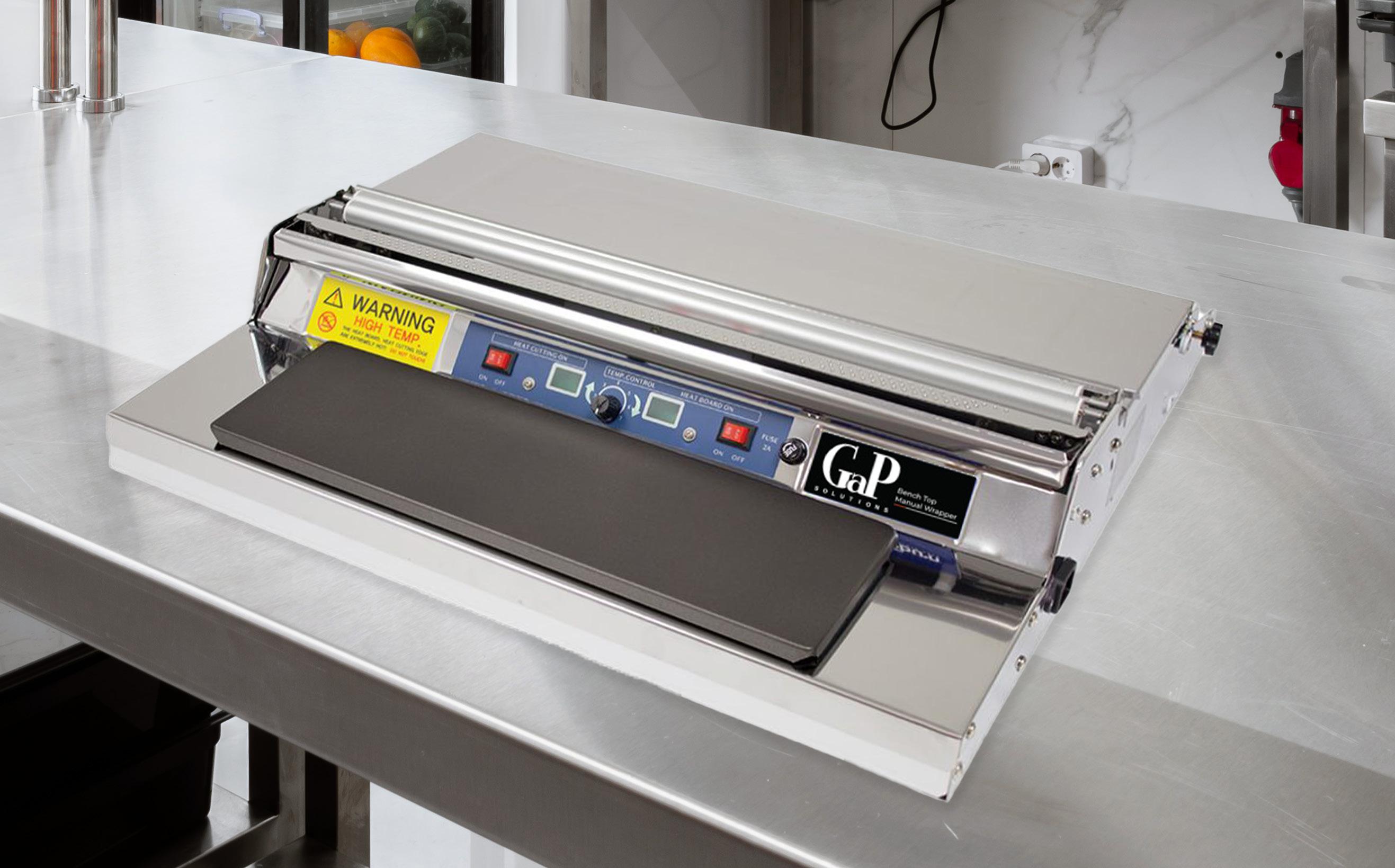

Manual Benchtop Wrapper
Model: GaP-MTXWRAPPER
The manual benchtop wrapper is a must for use in all type of food packaging operations. It is designed for operator safety, durability and hygiene.
Printer Features
User friendly allowing for a quick and simplistic packaging process
Easy to clean and hygienic due to stainless steel construction
Adjustable heat control for heat plate and element bar
Internally fused for complete protection
Independent power switches for the element bar and heat plate
Adjustable tension function to correct film
Small footprint
Specifications
Dimensions (WxDxH) 540 x 580 x 130 mm
Film Width
500mm
Power Specification 230v/1-phase/0.7 Amp/50Hz
EMC Standard EN 61 000-6-3. equivalent to AS/NZS 425.1
Safety Standard AS/NZS 3350.2.45
