The new EM Pos™ Slim Line is the latest addtion to the GaP Solutions pos hardware range. Featuring a sleek, streamlined design, this new pos unit not only performs impressively but looks great to.
The latest Intel TPM software and hardware security
Powered USB Connections
Undercounter I/O hub with Customer Type C connector
15.6’ Multi Touch Display Screens
No internal cooling fan
Waterproof IP66 on front panel

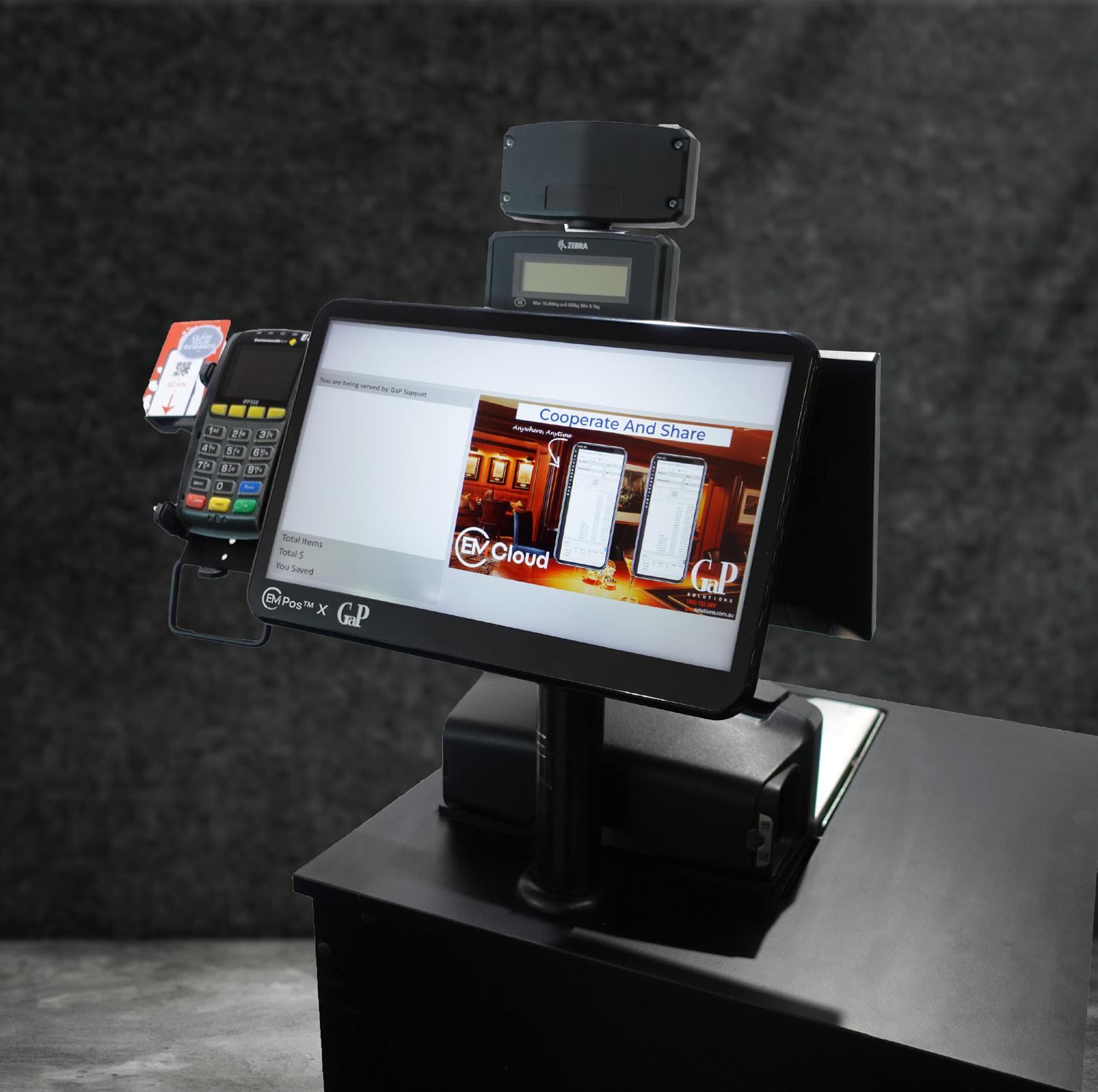

Counter pole with customer screen back to back.
• Counter pole without screen.
• Counter pole with customer screen back to back, EFT Pos Arm and Loyalty Scanner.
Processor Intel@ Core™ I3-12100 Processor
Compliance Certification: CE, FCC,LVD,RoHS
System Memory
8GB DDR4 RAM
Power Adpater 130W External Power Adapter (20V)
TPM Intel F/W
Storage M.2 SSD 128GB
Material Main Unit Die = Cast Aluminium
Dimension 176 mm (W) x 60 mm (D) x 115 mm (H)
OS Support
OS: Win10 IoT 2021 LTSC Value (64bits, English)
Screen 15.6 LCD 350-nit Slim boarder LED LCD, 50K-Hr, PCAP Touch
Screen Display 1920 x 1080

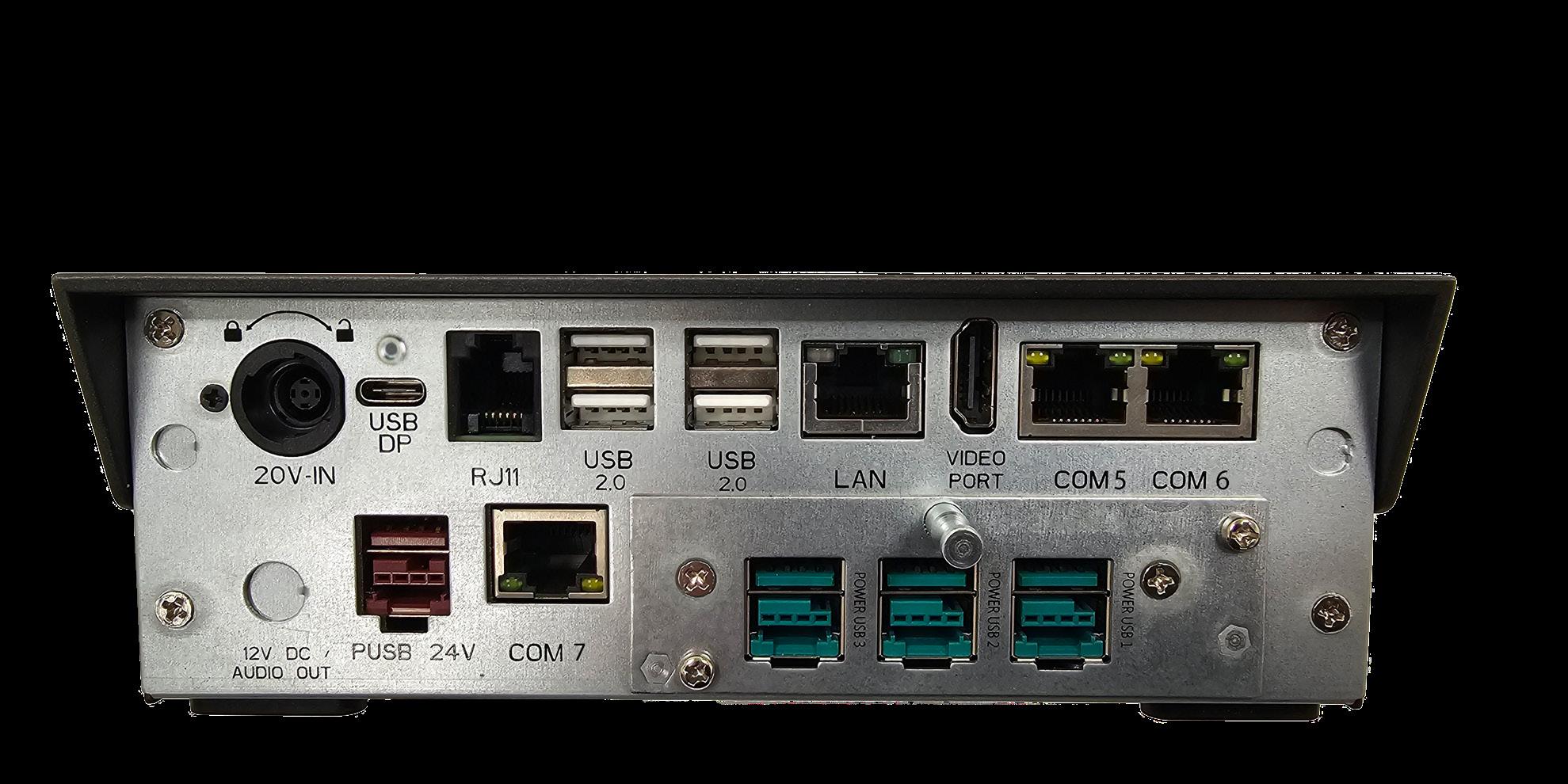

1 x RJ11 Cash Drawer (12V/24V)
1 x USB DP Port (for 2nd Display)
4 x USB port (USB Type A 2.0)
1 x R145 Giga Lan
2 x R145 (RS232 R1. 5V, 12V
20V DC in
1 x Audio Line-out or PC out 12 V (Optional)
1 x Powered USB 24V 1 x R145 (RS232 R1. 5V, 12V
Type C 2 x COM(R145) L 1 x 12V Power USB
Type G: 3 x 12V Power USB
