Playful Landscapes

Playful Landscapes

A

6

About Playful Landscapes™

8

Mesas

14

Dunes

22

PlaySpheres™

28

Frequently Asked Questions

29

Colors and Warranty

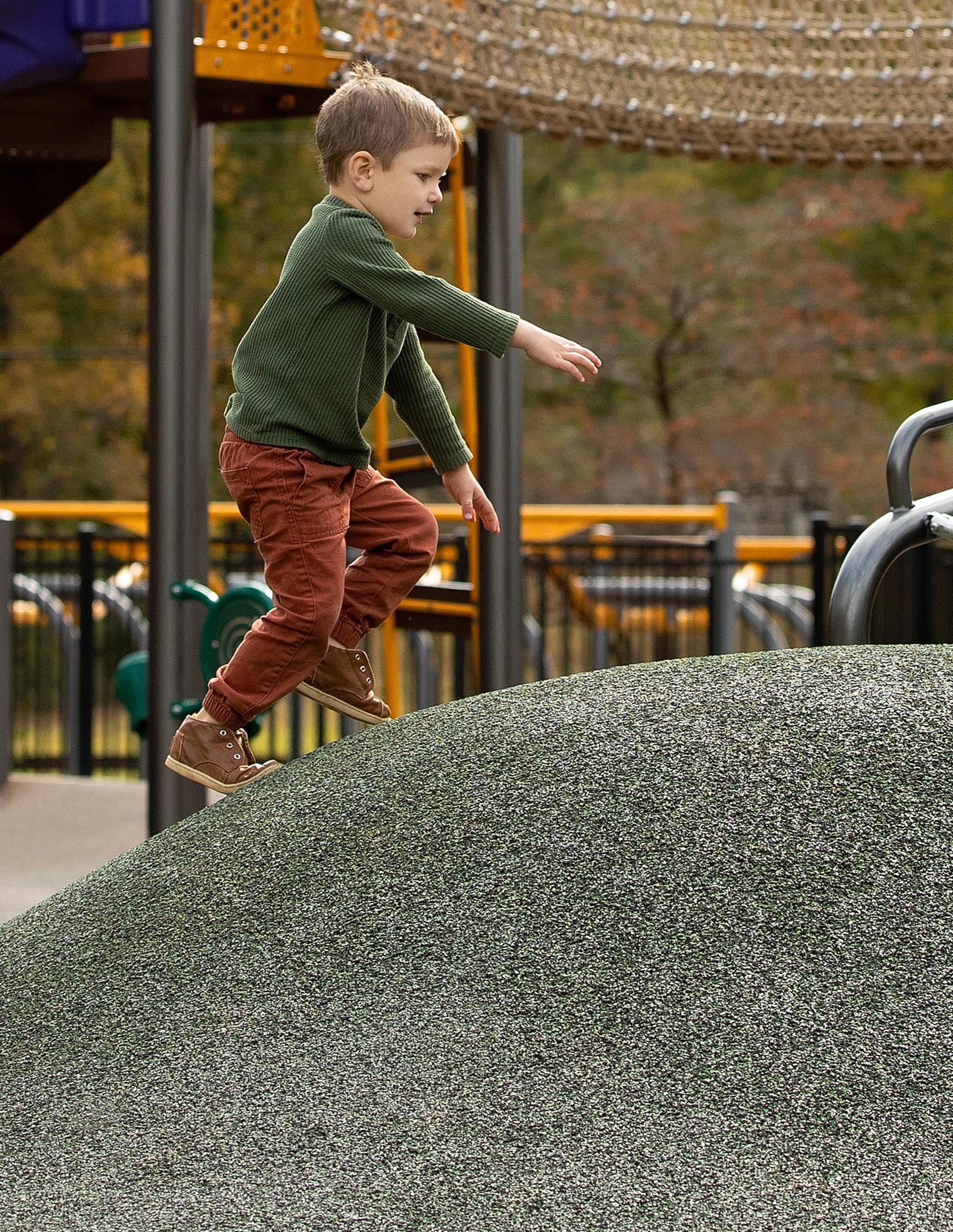

We know children love to climb hills.

When children climb hills, mounds, and other natural objects they develop their physical, cognitive, and motor skills. Hill climbing also enhances spatial awareness, and it’s a lot of fun!

The problem is, not every park or playground has hills to climb, so children miss out on this important play activity.

Playful Landscapes can help!

2

Add hills to any playground Playful Landscapes Mesas and Dunes are preconfigured hills you assemble on site. Their patent-pending design make it easy to add one or more hills for children to climb and explore. Our LockTech™ framework takes all the guesswork out of the process, with the precise installation you’ve come to expect from GameTime products.

3

Mesa 18 with ShadowPlay®

Dune 9 with Space Arch

4

Dune 12 with Leaf Climbers

Create a Playful Landscape There are more than 30 combinations of Mesas and Dunes to choose from! You can select different styles and sizes and add integrated climbers. If you like to design with Sketchup or other CAD tools, you’ll love the convenience of adding these Playful Landscapes to your playful landscape.

5

LockTech™ Makes it Possible The patent-pending design of our LockTech framework makes adding Playful Landscapes Dunes and Mesas quick and easy. Our preconfigured designs can be added to your CAD drawings like any other playground equipment.

With LockTech assembly, your Playful Landscapes are precisely installed to specification every time and carry a GameTime warranty.

Mesa 2’11”

MORE ABOUT MESAS These larger hill designs have an overall height of 35” with a slope between 40 and 45 degrees. Fall height is 3’. They’re a super fun way to add climbing play anywhere on your playground with or without integrated climbers.

6

The Playful Landscapes Advantage Playful Landscapes offer advantages over other methods.

CAD Files

Assembly Instructions

Easy, Precise Installation

GameTime Warranty

Playful Landscapes

Other Methods

Dune

1’11”

DETAILS ABOUT DUNES Add climbing hills throughout your play area with these smallto-medium size hills. Dunes have an overall height of 23” with a slope of 38.5 degrees and a 2’ fall height. Add multiple dunes or combine with Mesas for a truly playful landscape!

7

Mesas offer up to 250-square feet of climbable, explorable, and enjoyable play! With up to a 45-degree slope, they offer a fun and challenging climbing experience, and the large flat top surface makes them ideal for sitting, resting, and socializing. Shown with optional, integrated Sprouts climbers.

Mesa 16

11’7” (3.5m) 17’8” (5.4m)

Mesa 18

12’11” (3.9m) 19’3” (5.9m)

9

Mesa 16 #6312

Mesa 16 with ShadowPlay® #6328

ASTM Use Zone: 29’7” x 23’11” (9m x 7.3m) Fall Height: 4’ (1.2m) Age Range: 2 to 5 or 5 to 12 years Capacity: 12 children

ASTM Use Zone: 29’7” x 23’11” (9m x 7.3m) Fall Height: 4’ (1.2m) Age Range: 2 to 5 or 5 to 12 years Capacity: 14 children

Mesa 16 with Conifer Climbers #6324

Mesa 16 with Vine Climbers #6326

ASTM Use Zone: 29’7” x 23’11” (9m x 7.3m) Fall Height: 8’ (2.4m) Age Range: 5 to 12 years Capacity: 17 children

10

ASTM Use Zone: 29’7” x 23’11” (9m x 7.3m) Fall Height: 8’ (2.4m) Age Range: 5 to 12 years Capacity: 21 children

Mesa 16 Mesa 16 climbing hills offer more than 200 square feet of play surface with a slope of 40-degrees. Add one or more Mesas to your play area for fun climbing adventures. Choose one of the five integrated climbers for even more climbing fun!

Mesa 16 with Space Arch #6329 ASTM Use Zone: 35’11 x 23’11” (11m x 7.3m) Fall Height: 8’ (2.4m) Age Range: 5 to 12 years Capacity: 17 children

Mesa 16 with Sprout Climbers #6325 ASTM Use Zone: 29’7” x 23’11” (9m x 7.3m) Fall Height: 8’ (2.4m) Age Range: 5 to 12 years Capacity: 20 children

11

Mesa 18 #6311

Mesa 18 with ShadowPlay® #6322

ASTM Use Zone: 31’10” x 25’4” (9.7m x 7.7m) Fall Height: 4’ (1.2m) Age Range: 2 to 5 or 5 to 12 years Capacity: 15 children

ASTM Use Zone: 31’10” x 25’4” (9.7m x 7.7m) Fall Height: 4’ (1.2m) Age Range: 2 to 5 or 5 to 12 years Capacity: 17 children

Mesa 18 with Conifer Climbers #6351

Mesa 18 with Vine Climbers #6353

ASTM Use Zone: 31’10” x 25’4” (9.7m x 7.7m) Fall Height: 8’ (2.4m) Age Range: 5 to 12 years Capacity: 30 children

12

ASTM Use Zone: 31’10” x 25’4” (9.7m x 7.7m) Fall Height: 8’ (2.4m) Age Range: 5 to 12 years Capacity: 28 children

Mesa 18 Mesa 18 is our largest Playful Landscapes climbing hill. It offers nearly 250 square feet of play surface with a challenging 45-degree slope.

Transform your playground surfacing with one or more Mesas or choose an integrated climber option for more climbing adventures.

Mesa 18 with Space Arch #6323 ASTM Use Zone: 31’10”x 32’7” (9.7m x 9.9m) Fall Height: 8’ (2.4m) Age Range: 5 to 12 years Capacity: 20 children

Mesa 18 with Sprout Climbers #6352 ASTM Use Zone: 31’10” x 25’4” (9.7m x 7.7m) Fall Height: 8’ (2.4m) Age Range: 5 to 12 years Capacity: 27 children

13

Our Dune climbing hills are perfect for smaller spaces and offer up to 100 square feet of play surface. Add one or more Dunes with or without integrated climbers to transform your playground surfacing into a playful landscape.

Dune 9 7’4” (2.2m) 10’8” (3.3m)

Dune 11 9’5” (2.9m) 11’5” (3.5m)

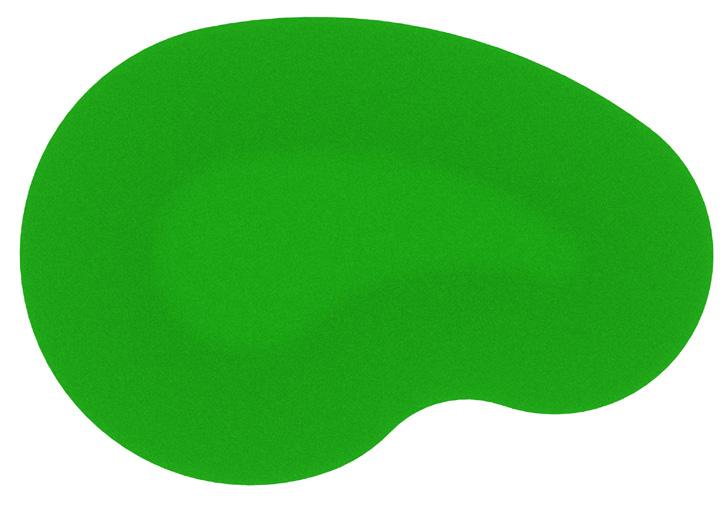

Dune 12

9’9” (3m) 13’5” (4.1m)

15

Dune 9 #6315

Dune 9 with ShadowPlay® #6362

ASTM Use Zone: 23’3” x 19’11” (7.1m x 5.8m) Fall Height: 3’ (0.9m) Age Range: 2 to 5 or 5 to 12 years Capacity: 7 children

ASTM Use Zone: 23’3” x 19’11” (7.1m x 5.8m) Fall Height: 4’ (1.2m) Age Range: 2 to 5 or 5 to 12 years Capacity: 9 children

Dune 9 with Conifer Climbers #6344

Dune 9 with Vine Climbers #6360

ASTM Use Zone: 23’3” x 19’11” (7.1m x 5.8m) Fall Height: 8’ (2.4m) Age Range: 5 to 12 years Capacity: 16 children

16

ASTM Use Zone: 23’3” x 19’11” (7.1m x 5.8m) Fall Height: 8’ (2.4m) Age Range: 5 to 12 years Capacity: 14 children

Dune 9 Patent-pending LockTech™ design makes installation easy and precise!

These 23” tall climbing hills have a 35.5-degree slope and over 65 square feet of climbing and play surface!

Add one or more with or without integrated climbers.

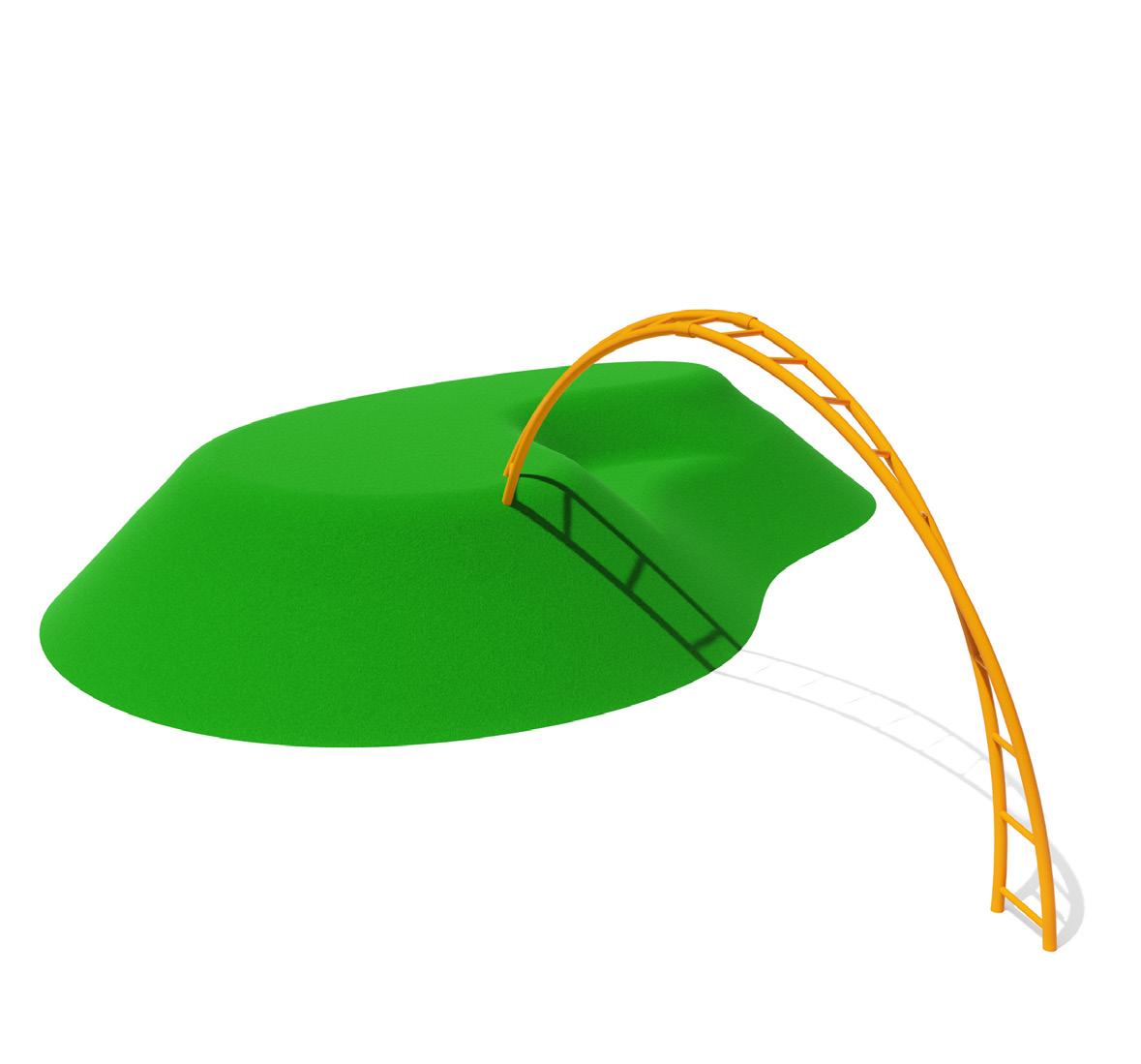

Dune 9 with Space Arch #6350 ASTM Use Zone: 23’3” x 26’2” (7.1m x 8.6m) Fall Height: 8’ (2.4m) Age Range: 5 to 12 years Capacity: 12 children

Dune 9 with Sprout Climbers #6359 ASTM Use Zone: 23’3” x 19’11” (7.1m x 5.8m) Fall Height: 8’ (2.4m) Age Range: 5 to 12 years Capacity: 15 children

17

Dune 11 #6314

Dune 11 with ShadowPlay® #6341

ASTM Use Zone: 24’2” x 21’11” (7.4m x 6.7m) Fall Height: 3’ (0.9m) Age Range: 2 to 5 or 5 to 12 years Capacity: 9 children

ASTM Use Zone: 24’2” x 21’11” (7.4m x 6.7m) Fall Height: 4’ (1.2m) Age Range: 2 to 5 or 5 to 12 years Capacity: 11 children

Dune 11 with Conifer Climbers #6336

Dune 11 with Vine Climbers #6343

ASTM Use Zone: 24’2” x 21’11” (7.4m x 6.7m) Fall Height: 8’ (2.4m) Age Range: 5 to 12 years Capacity: 18 children

18

ASTM Use Zone: 24’2” x 21’11” (7.4m x 6.7m) Fall Height: 8’ (2.4m) Age Range: 5 to 12 years Capacity: 16 children

Dune 11 Create hillsides and add more play value with our Playful Landscape Dunes. Add one or more to create ground-level climbers or link areas of a playground. Each is 23” tall with a slope of 35.5 degrees and over 85 square feet of play space. Available with integrated climbers.

Dune 11 with Space Arch #6342 ASTM Use Zone: 24’2”x 29’11” (7.4m x 9.1m) Fall Height: 8’ (2.4m) Age Range: 5 to 12 years Capacity: 14 children

Dune 11 with Sprout Climbers #6337

Dune 11 with Sprout Climbers v2 #6338

ASTM Use Zone: 24’2” x 21’11” (7.4m x 6.7m) Fall Height: 8’ (2.4m) Age Range: 5 to 12 years Capacity: 17 children

ASTM Use Zone: 24’2” x 21’11” (7.4m x 6.7m) Fall Height: 8’ (2.4m) Age Range: 5 to 12 years Capacity: 17 children

19

Dune 12 #6313

Dune 12 with ShadowPlay® #6334

ASTM Use Zone: 26’8” x 22’4” (8.1m x 6.8m) Fall Height: 3’ (0.9m) Age Range: 2 to 5 or 5 to 12 years Capacity: 11 children

ASTM Use Zone: 26’8” x 22’4” (8.1m x 6.8m) Fall Height: 4’ (1.2m) Age Range: 2 to 5 or 5 to 12 years Capacity: 13 children

Dune 12 with Conifer Climber #6354

Dune 12 with Vine Climbers #6332

ASTM Use Zone: 26’8” x 22’4” (8.1m x 6.8m) Fall Height: 8’ (2.4m) Age Range: 5 to 12 years Capacity: 20 children

20

ASTM Use Zone: 26’8” x 22’4” (8.1m x 6.8m) Fall Height: 8’ (2.4m) Age Range: 5 to 12 years Capacity: 18 children

Dune 12 Add one or more Dunes to create ground-level climbers or link areas of a playground. Patent-pending LockTech™ design makes it easy to add multiple hills quickly. Each is 23” tall with a 35.5 degree slope and over 115 square feet of play area.

Dune 12 with Space Arch #6357 ASTM Use Zone: 26’8” x 30’3” (8.1m x 9.2m) Fall Height: 8’ (2.4m) Age Range: 5 to 12 years Capacity: 16 children

Dune 12 with Sprout Climbers #6356 ASTM Use Zone: 26’8” x 22’4” (8.1m x 6.8m) Fall Height: 8’ (2.4m) Age Range: 5 to 12 years Capacity: 23 children

21

Play Spheres are play events covered in the same rubber compound we use in playground surfacing, but they’re play activities - not surfacing. Available in three sizes and in full or half sphere styles, they make great gathering areas or mini climbers. Children also love to jump from one to another.

14” Sphere

1’2” (0.34m)

20” Sphere

1’8” (0.5 m)

28” Sphere

2’4” (0.71m)

23

Standard or Premium Standard PlaySpheres use our industryleading organic color coating methods and sealants to bond color to the rubber granules.

24

Premium PlaySpheres use Gezoflex EPDM granules to create more color options from bright solids to special blends for specific color themes.

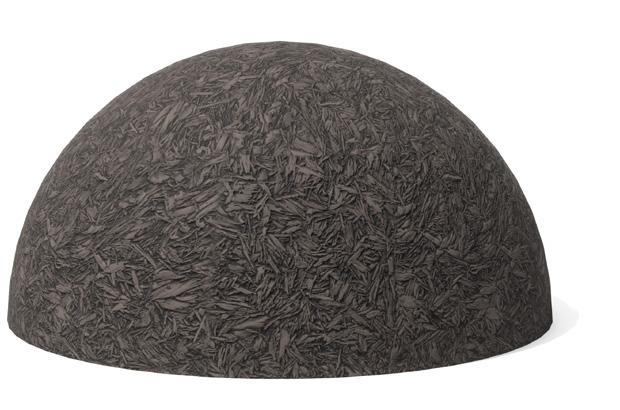

Half Sphere, Standard 14” #6094SP

Half Sphere, Premium 14” #6100SP

ASTM Use Zone: 13’2” dia (4m dia) Fall Height: 1’ (0.3m) Capacity: 1 child

ASTM Use Zone: 13’2” dia (4m dia) Fall Height: 1’ (0.3m) Capacity: 1 child

Half Sphere, Standard 20” #6096SP

Half Sphere, Premium 20” #6102SP

ASTM Use Zone: 13’8” dia (4.2m dia) Fall Height: 1’ (0.3m) Capacity: 1 child

ASTM Use Zone: 13’8” dia (4.2m dia) Fall Height: 1’ (0.3m) Capacity: 1 child

Half Sphere, Standard 28” #6098SP

Half Sphere, Premium 28” #6104SP

ASTM Use Zone: 14’4” dia (4.4m dia) Fall Height: 2’ (0.6m) Capacity: 1 child

ASTM Use Zone: 14’4” dia (4.4m dia) Fall Height: 2’ (0.6m) Capacity: 1 child

For more information about PlaySpheres, contact your local GameTime representative at 800.235.2440.

Full Sphere, Standard 14” #6095SP

Full Sphere, Premium 14” #6101SP

ASTM Use Zone: 13’2” dia (4m dia) Fall Height: 2’ (0.6m) Capacity: 1 child

ASTM Use Zone: 13’2” dia (4m dia) Fall Height: 2’ (0.6m) Capacity: 1 child

Full Sphere, Standard 20” #6097SP

Full Sphere, Premium 20” #6103SP

ASTM Use Zone: 13’8” dia (4.2m dia) Fall Height: 2’ (0.6m) Capacity: 1 child

ASTM Use Zone: 13’8” dia (4.2m dia) Fall Height: 2’ (0.6m) Capacity: 1 child

Full Sphere, Standard 28” #6099SP

Full Sphere, Premium 28” #6105SP

ASTM Use Zone: 14’4” dia (4.4m dia) Fall Height: 3’ (0.9m) Capacity: 1 child

ASTM Use Zone: 14’4” dia (4.4m dia) Fall Height: 3’ (0.9m) Capacity: 1 child

25

26

27

Frequently Asked Questions WHAT AGE GROUP IS INTENDED FOR PLAYFUL LANDSCAPES? For standard Mesa and Dune mounds the age group is listed on the product installation sheets. For custom mounds, the age group is determined by the height and angle of the hill, as well as the type of components and their spacing. If necessary, Landmark Design can perform a risk assessment of your design and recommend an age group.

ARE DUNES AND MESAS CONSIDERED PART OF A COMPOSITE PLAY STRUCTURE? If a Dune or Mesa is functionally linked to a play system using an integrated climber, it is considered part of the composite play structure.

WHAT IS THE FALL HEIGHT OF A CLIMBER INTEGRATED WITH A DUNE OR MESA? The fall height of an integrated climber depends on the slope of the area beneath the climber. In most cases, the fall height is measured from the surface directly under the climber. If the use zone has a steep slope contained within it, a taller fall height may be necessary.

CAN I INCLUDE DUNES AND MESAS INSIDE A USE ZONE? Yes, is the Dune or Mesa is functionally linked and doesn’t impose on the use of other products. For example, you cannot include a Dune under the center of an overhead climber or at the end of a ramp on a play system.

WHAT IS THE DIFFERENCE BETWEEN NATURAL TOPOGRAPHY AND PLAYFUL LANDSCAPES? Many designers use the natural topography of a space to provide playful activity and visual interest. Playful Landscapes Dunes and Mesas offer these same benefits, but also serve as a play event or destination for users.

Warranty GameTime provides a five-year limited warranty on the Playful Landscapes HDPE frame against degradation under normal wear and usage and a two-year limited warranty on Poured-in-Place Rubber when applied in a Playful Landscapes (mound or hillside) application against loss of integrity due to rubber degradation, where Playful Landscapes are installed by certified GameTime installers following provided installation guidelines and finished with a minimum of 3” of GTImpax branded PIP.

28

Paint Colors

Light Green

White

Spring Green

Champagne

Blue

Metallic

Sky Blue

Starlight

Periwinkle

Black

Royal Purple

Bronze

Burgundy

Beige

Red

Brown

Orange

Dark Green

Butterscotch

Green

Yellow

EPDM Colors*

Buffings Colors*

Beige

Black

Green

Gray

Blue

Tan

Red

Brown Green Blue Red

*Additional EPDM and Buffing Colors available upon request

29

800.235.2440 gametime.com/playfullandscapes
