Master Thesis

PRODUCTIVE ARCHITECTURE

Alternative forms of architecture for urban agriculture and community building.

Osi-Ghia, Turin Architecture comprises 3 out of 4 basic needs for survival: shelter, water and fire ( energy ).

The 4th remaining necessity, Food is usually left outside the architectural sphere. In the context of nowadays, humanity is struggling to feed and to host current population. New solutions of how we produce food and how we live are necessary.

This thesis places and recognizes the food as the fourth element under the architecture sphere’s umbrella next to the other 3 above mentioned and it proposes that agriculture should harmonize with architecture through technologies and design in order to provide new and in the same time alternative - continuous food producing-spaces, strategies / food stocks to be able to sustain urban life.

Click here for a short video presentation: https://gabycotrau.wixsite.com/website/1st-project

HIGH SIX as holistic working method,the basis for development of this problem - solving achitetural exercise

5

6

MEMORY EXERCISE

WORLD WAR II

Great sense of survival The sheaves collected in the municipal field are transported to PIAZZA CASTELLO in Turin for threshing

TODAY - TOMORROW

Alternative and sustainable ways of producing food. Building new communities, diversity and communication

ORTO DI GUERRA = GARDEN OF WAR 7

8

SOCIAL SPACES

FOOD PRODUCTION

GREEN SPACES

PROGRAM LAYOUT

INFRASTRUCTURE

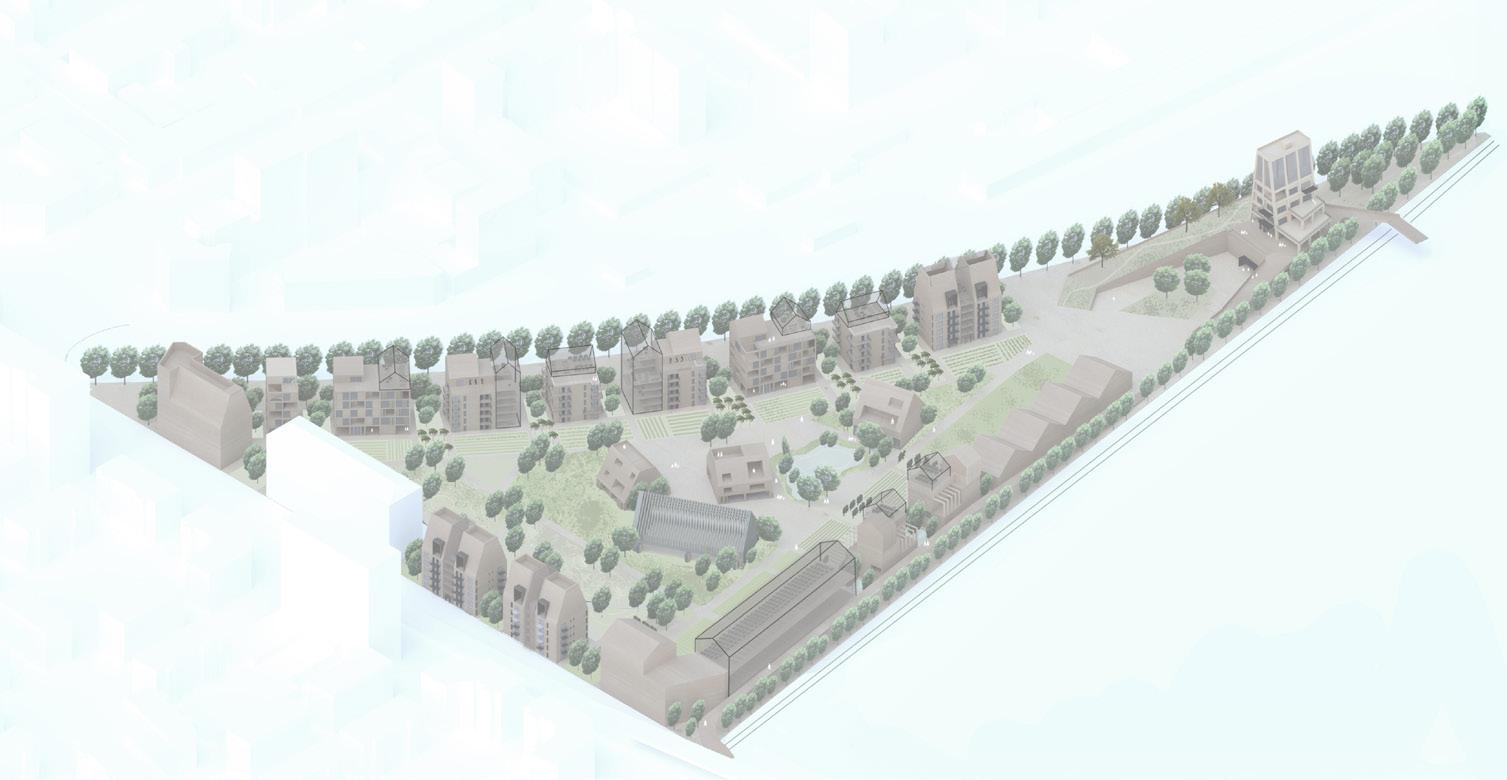

MASTER PLAN - UNDERLAYERS

9

10

The Architectural Proposal From an architecture that includes shelter, water and fire towards an architecture that includes shelter, water, fire + FOOD, relying on clear objectives of Agenda 2030, translated in functional programme in order to build a sustainable community.

EXISTING SITUATION 43.000 mp abandoned spaces 0 mp green spaces 53.000 mp Building footprint PROPOSAL 17.000 mp Green production 26.000 mp Green + forest 10.000 mp Building footprint

11

12

13

14

DISTRIBUTION

FUNCTIONS

BUILDING TYPOLOGY 1

1ST - 4TH FLOOR PLANS

15

16

17

18

TRANSFORMATION

02

Master project

ADAPTIVE TO RESIST + MITIGATE, Dante District, Turin The design process led to the development of a master plan that would involve viable solutions. A fundamental step was to establish where and how to keep existing structures and what new use will be applied to them.

19

20

Roof toop of the existing building as urban agriculture space. A new building shape in a way to maximize the views to public space ( pink )

Creating a slope ( Osi steps ) to acces to the urban farm and a platform to residential building

A flexible space under the urban farm

NEW RESIDENTIAL BUILDING ON SITE

21

22

23

24

25

26

SECTION 1:50

FACADE 1:50 X

Green Roof ( greenhouse ) ( solution provided by Icopal )

28mm Composite boards 40mm Composite battens 25mm Leveling plates 2 layers water proof membrane 220mm Hard insulation pressure resistent 220mm Concrete slab ( prefab. element )

300mm Icopal lightweight top soil 2mm Icopal filter fleece 20mm Icopal drainage board 4mm Icopal Top 2.5mm Icopal Based 220mm Hard insulation pressure resistant DPM - damp proof membrane ( polyethylene) 220mm Concrete slab ( prefab. element )

ELEMENTS DIVISION 1:50

Required U value: 0.22W/m2K Actual U value: 0.17W/m2K

Detail 2

5740

24.00

1600

3000

IX

2500

3000

Detail 3

3000

Required U value: 0.22W/m2K Actual U value: 0.13W/m2K

27.00

Roof terrace

VIII 21.00

VII

18.00

VI

15.00

V

12.00

IV

9.00

III

6.00

Glass folding facade Combi futura + Required U value: 1.40 W/m2K Actual U value: 0.74W/m2K

External wall structure Prefab. concrete - sandwich element: Inner leaf: 220mm reinforced concrete -load bering layer 180mm insulation Outer leaf:50mm light concrete - exterior finish U value required: 0.26 W/m2K U value actual: 0.21 W/m2K

Detail 4

Ceiling Thermatex 600x600 (fixed in understructure) 50mm Rockwool insulation

2nd - 6th floor structure ( day area )

2nd - 6th floor structure ( interior garden )

22mm Oak parquet 8mm Sound absorbtion foam 50mm Concrete cast on site 220mm Concrete slab ( prefab)

5mm Sika ( epoxy floor ) 80mm Cement cast on site 220mm Concrete slab ( prefab)

Ground floor structure ( commercial )

3500

6000

6000

2240

5mm Sika comfort ( epoxy floor ) 100mm Cement cast on site 100mm Thermotec ( good thermal and and sound properties ) 220mm Concrete slab ( prefab. element ) Required U value: 0.26W/m2K Actual U value: 0.21W/m2K Detail 1

II

0.00

ELEMENT TYPE 1

ELEMENT TYPE 2

I

-3.15

ELEMENT TYPE 3

ELEMENT TYPE 4

ELEMENT TYPE 5

27

28

VII

18.00

VI

15.00

Glass folding facade Combi futura + Required U value: 1.40 W/m2K Actual U value: 0.74W/m2K

External wall structure

DETAIL | PREFABRICATED BALCONY CONNECTED TO THE BUILDING

Prefab. concrete - sandwich element: Inner leaf: 220mm reinforced concrete -load bering layer 180mm insulation Outer leaf:50mm light concrete - exterior finish U value required: 0.26 W/m2K U value actual: 0.21 W/m2K

V

DETAIL | ROOF PARAPET

12.00 Vertical wooden elements (paving the interior part of balcony's walls)

Detail 4

Ceiling

Wooden handrail

Thermatex 600x600 (fixed in understructure) 50mm Rockwool insulation

Impregnated wooden edge battens 24mm impregnated plywood

Metallic understructure frame

Zinc flashing profile

Grey light panels

IV

Secured glass balustrade

2nd - 6th floor structure ( day area ) 22mm Oak parquet 8mm Sound absorbtion foam 50mm Concrete cast on site 220mm Concrete slab ( prefab)

9.00

2nd - 6th floor structure ( interior garden ) 5mm Sika ( epoxy floor ) 80mm Cement cast on site Composite battens 220mm Concrete slab ( prefab) Composite flooring boards Composite boards (understructure) Composite battens 2 Layers water proof membrane DPM- damp proof membrane

K01_TXX_H7_EX_N07 III

6.00 2240

3500

40mm screed for leveling

40mm screed for leveling

Concrete cast on site

Concrete cast on site

Ground floor structure ( commercial ) 5mm Sika comfort ( epoxy floor ) 100mm Cement cast on site 100mm Thermotec ( good thermal and and sound properties ) 220mm Concrete slab ( prefab. element )

6000

40mm screed for leveling

6000

Steel profile used to stabilize the wall of parapet

Composite flooring boards

Edge Delta beam profile

Required U value: 0.26W/m2K Actual U value: 0.21W/m2K Detail 1 Connector (Delta beam and prefab.element)

II

U profile ( part of balcony's understructure)

0.00

Vertical wooden elements ( mounted on site )

I beam ( mounted on site )

I beam ( mounted on site )

Rubber membrane ( to minimize the cold bridge impact )

Rubber membrane ( to minimize the cold bridge impact )

Edge Delta beam

Edge Delta beam

ELEMENT TYPE 1

ELEMENT TYPE 2

I

-3.15

ELEMENT TYPE 3

ELEMENT TYPE 4 12mm Cement base 40mm Cement board element

Elastic joint ( for facade movements, preventing cracks)

ELEMENT TYPE 5

Sealing tape

Detail 3 Roof parapet 1:5

False window frame ( filled with insulation, avoiding cold bridge )

Detail 4 Balcony attachment 1:5

Detail 4 Balcony attachment 1:5

LEGEND

Prefabricated exterior wall element Concrete cast on site Hard insulation Thermotec insulation Sand

Bring ideas to life VIA University College

Prefabricated interior wall element Soil

VIA Built Environ Ca

PROJECT:

TYPE PROJECT NAME

DATE: 02/16/09

SUBJECT:

EXAMPLE SHEET

SCALE: 1 : 50

Gravel

DRAWN BY: Author

29

CLASS:

30

K

I AM NOT THE AUTHOR OF THIS RENDER

03

Work project

Lersø Park Alle Copenhagen The new circular 10 storey building acts as a corner landmark adding special character to the area.
