ABBREVIATIONS
APPLICABLE CODES
PROJECT DIRECTORY
(CALIFORNIA
SYMBOLS LEGEND
GENERAL NOTES
PROVIDE AND INSTALL DI-ELECTRIC FITTINGS ON PIPING.
THE CONTRACTOR SHALL COORDINATE ALL MECHANICAL FLOOR/WALL SLEEVES AND SHAFTS IN CONCRETE SLABS/WALLS WITH MECHANICAL, PLUMBING, FIRE PROTECTION, ELECTRICAL, STRUCTURAL AND ARCHITECTURAL DRAWINGS AND DISCREPANCIES, IF ANY, TO BE BROUGHT TO NOTICE OF THE ENGINEER PRIOR TO EXECUTION OF WORK.
THE CONTRACTOR SHALL CONDUCT HIS OWN SITE SURVEY OF THE EXISTING GROUND AND CURB ELEVATIONS (LEVELS) AND REPORT ACTUAL ELEVATIONS (LEVELS) TO THE ENGINEER.
ALL ELEVATIONS (LEVELS) ARE IN FEET AND INCHES
ALL DIMENSIONS ARE IN FEET AND INCHES AND ANGLES IN DEGREES
FLOOR PLAN GENERAL NOTES
Gabriela Karbownik
Gabriela Karbownik
INTERIOR ELEVATION NOTES
DOOR GENERAL NOTES
ALL SIZES INDICATED ON THE SCHEDULE ARE NOMINAL ONLY. REFER TO DETAILS AND FIELD
CONDITIONS TO DETERMINE EXACT SIZE.
ALL WINDOWS SHALL BE DUAL GLAZED WITH WEATHER-STRIPPED OR LOW NFILTRATION
FRAMES MEETING ANSI AIR FILTRATION STANDARDS.
SAFETY GLAZING SHALL BE INSTALLED IN THE

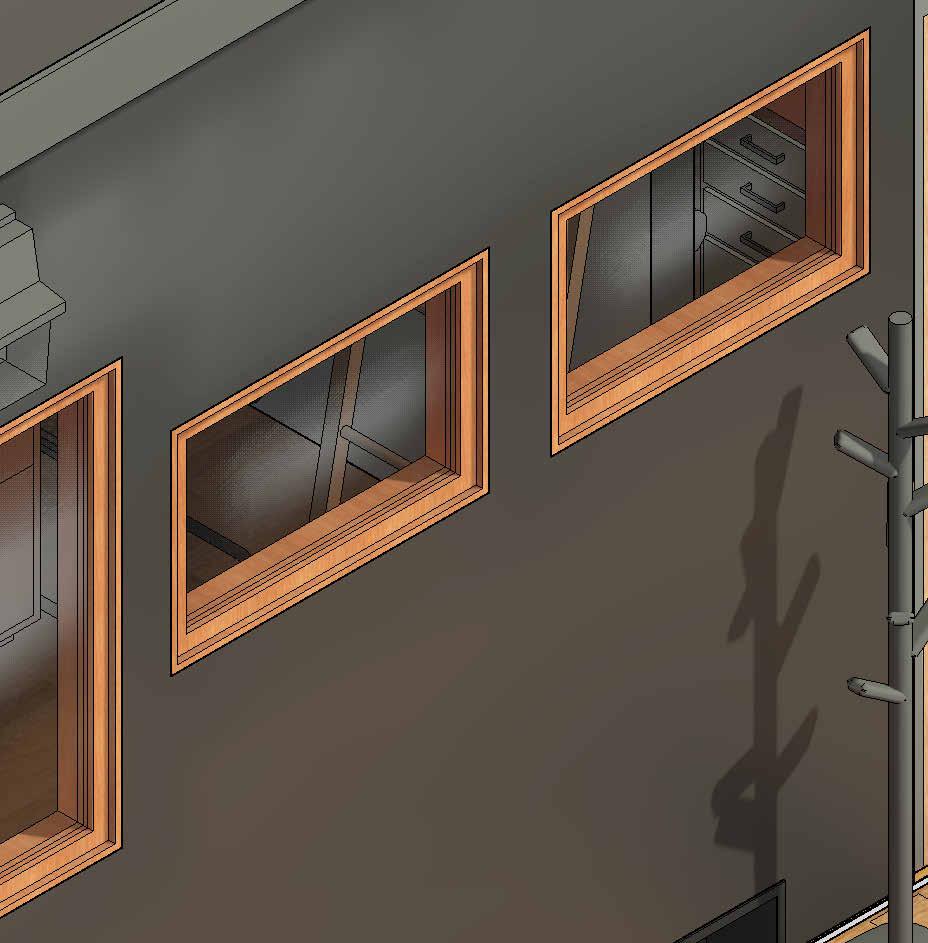

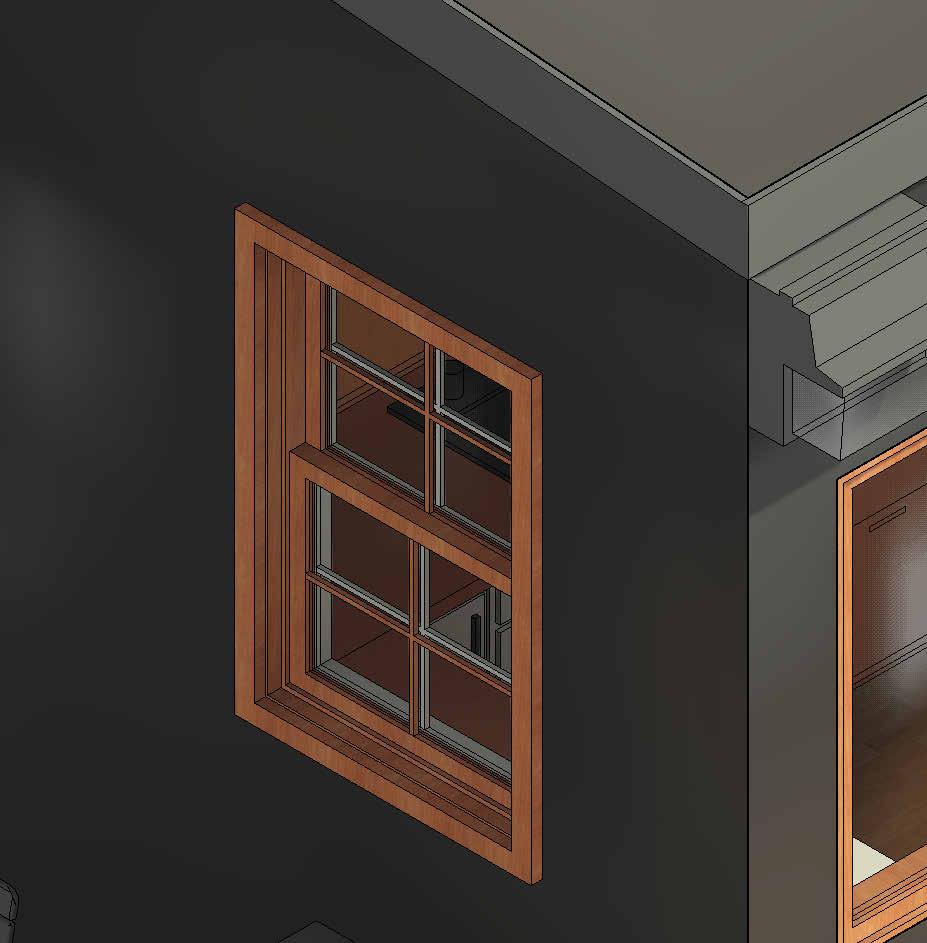

WINDOW GENERAL NOTES
ALL SIZES INDICATED ON THE SCHEDULE ARE NOMINAL ONLY. REFER TO DETAILS AND FIELD
CONDITIONS TO DETERMINE EXACT SIZE.
ALL WINDOWS SHALL BE DUAL GLAZED WITH WEATHER-STRIPPED OR LOW NFILTRATION
FRAMES MEETING ANSI AIR FILTRATION STANDARDS.
SAFETY GLAZING SHALL BE INSTALLED IN THE FOLLOWING LOCATIONS PER CBC2406.4: THE EXPOSED AREA OF AN INDIVIDUAL PANE IS GREATER THAN 9 SQUARE FEET. THE BOTTOM EDGE OF THE GLAZING IS LESS THAN 18 INCHES ABOVE THE FLOOR.
THE TOP EDGE OF THE GLAZING IS GREATER THAN 36 INCHES ABOVE THE FLOOR. ONE OR MORE WALKING SURFACE(S) ARE WITHIN 36 INCHES, MEASURED HORIZONTALLY AND IN A STRAIGHT LINE, OF THE PLANE OF THE GLAZING.
Gabriela
EXACT LOCATIONS OF ALL ELECTRICAL OUTLETS, SWITCHES, TELEPHONES TV OUTLETS, AND OTHER DEVICES TO BE VERIFIED BY BUILDER PRIOR TO INSTALLATION.
PROVIDE A QUICK DISCONNECT AT MECHANICAL EQUIPMENT, IF REQUIRED
50% OF LIGHT FIXTURES SHALL BE HIGH-EFFICACY.
PROVIDE A MINIMUM
ELECTRICAL PLAN LEGEND
$ SD GFCI
110V DUPLEX A.F.C.I. PROTECTED OUTLET, +15" UON TAMPER RESISTANT
110V DUPLEX W/ GROUND FAULT INTERRUPTER
ELECTRICAL SERVICE PANEL
SINGLE POLE SWITCH, +48"
SMOKE DETECTOR CEILING MOUNTED
CEILING MOUNTED LIGHT FIXTURE
WALL MOUNTED LIGHT FIXTURE, EXTERIOR
CEILING FAN W/ LIGHT. WIRE FOR FAN AND LIGHT TO BE SWITCHED INDEPENDENTLY. ELECTRICAL BOX TO BE UL RATED AND MARKED FOR USE WITH CEILING FANS, AND SHALL INCLUDE MAXIMUM WEIGHT TO BE SUPPORTED.
