Bi-Fold Door System
A superior Italian manufactured bi-folding door system, this range is high value for money and provides you with a superb solution for bi-folding kitchen, pantry and wardrobe doors. Extremely smooth and quiet system ideally suited to kitchen and bathroom fit-outs.
• Super smooth sliding with industrial grade ball bearing rollers
• Systems for doors up to 50kg
• Suits timber or aluminium framed glass doors
• Left hand roller & hinge moves to left when opening
• Right hand roller & hinge moves to right when opening
• No bottom track required
• Soft closing when used with soft close cabinet hinges (order separately)
23
Aluminium Top Track 25kg Roller and Hinge 50kg Roller and Hinge Part No. Description CT1200C.ALU 1200mm track CT1650C.ALU 1650mm track CT2400C.ALU 2400mm track Part No. Description CTS.25R.ZP Right hand hinge CTS.25L.ZP Left hand hinge Part No. Description CTS.50R.ZP Right hand hinge CTS.50L.ZP Left hand hinge Top View Top View RH RH 33 28 5,5 50 32 42 28 42 28 5.5 50 32 27,5 110 53 27.5 110 Centre
Twin
Part No. Finish CSHC.ZP Zinc Plated Part No. Finish ACHB35.NP Nickel Plated Part No. Finish CTSC.GY Grey LH LH
Bi-Fold Hinge
Cup Centre Bi-Fold Hinge Hinge Cover
Rivvi Bi-Fold Door System
Standard side hinges

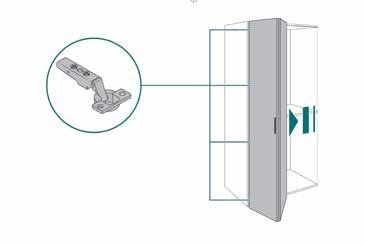

Soft Closing effect simply by using soft close hinges
Maximum Stability
Cover Vertical force Horizontal force
24 Installation Details
25
Installation Details Rivvi Bi-Fold Door System 1 Door application
2 Door application
Rivvi Bi-Fold Door System
26 50kg System
Installation Dimensions
Rivvi Bi-Fold Door System
Installation Dimensions
Standard Central Hinges
part no. CSHC.ZP.FG
T = top/bottom panel thickness
Adjustable Central Hinges
part no. ACHB35.NP.FG
T = top/bottom panel thickness
27
Rivvi Bi-Fold Door System
28 25kg System
Dimensions
Installation
Rivvi Bi-Fold Door System
Installation Dimensions
Standard Central Hinges
part no. CSHC.ZP.FG
T = top/bottom panel thickness
Adjustable Central Hinges
T = top/bottom panel thickness
part no. ACHB35.NP.FG
29
