A superior Italian manufactured bi-folding door system, this range is high value for money and provides you with a superb solution for bi-folding kitchen, pantry and wardrobe doors. Extremely smooth and quiet system ideally suited to kitchen and bathroom fit-outs.
• Super smooth sliding with industrial grade ball bearing rollers
• Systems for doors up to 50kg
• Suits timber or aluminium framed glass doors
• Left hand roller & hinge moves to left when opening
• Right hand roller & hinge moves to right when opening
• No bottom track required
• Soft closing when used with soft close cabinet hinges (order separately)

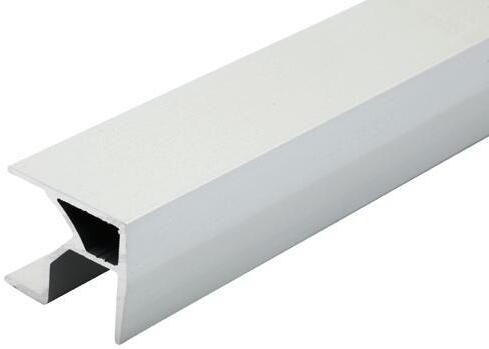

Aluminium Top Track

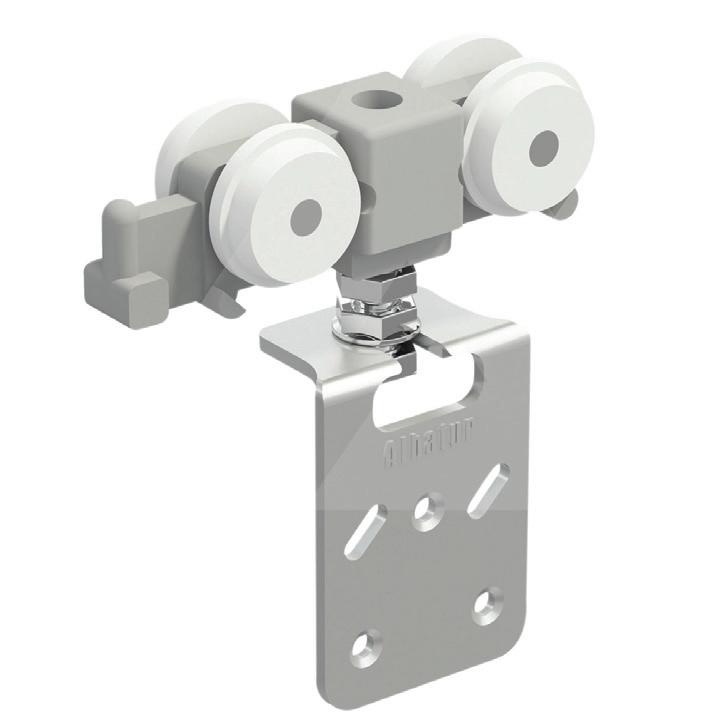

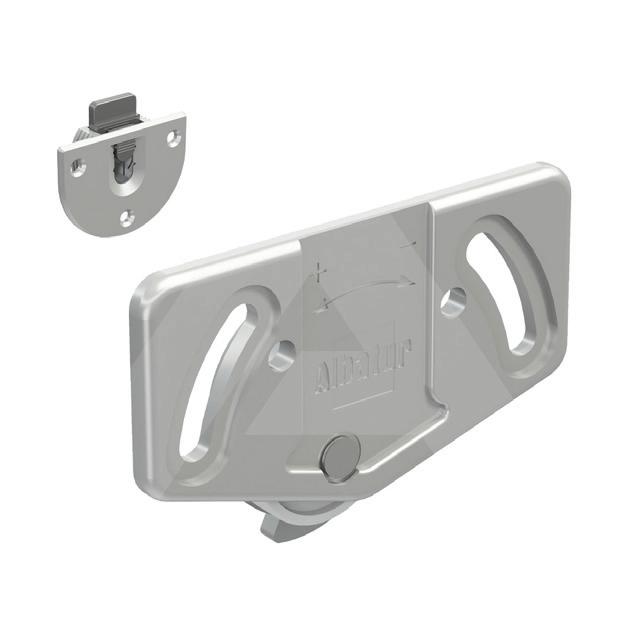

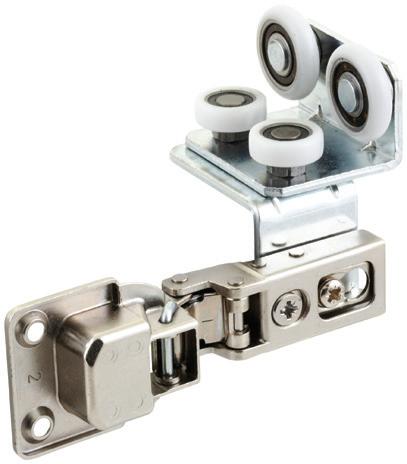

25kg Roller and Hinge 50kg Roller and Hinge

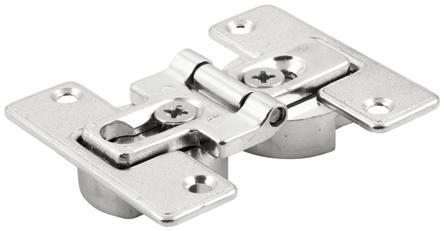

Centre Bi-Fold Hinge
Twin Cup Centre Bi-Fold Hinge Hinge Cover

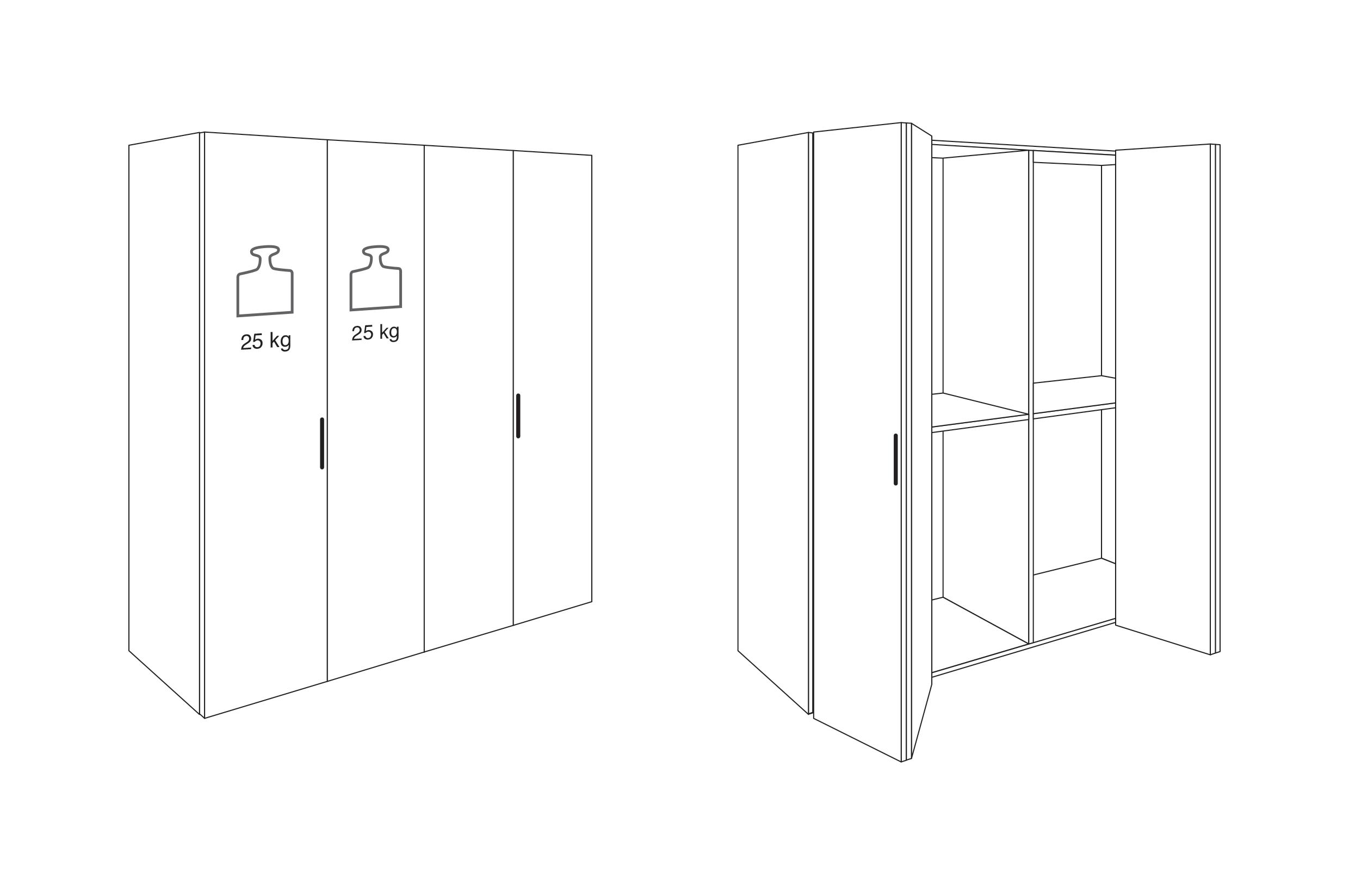

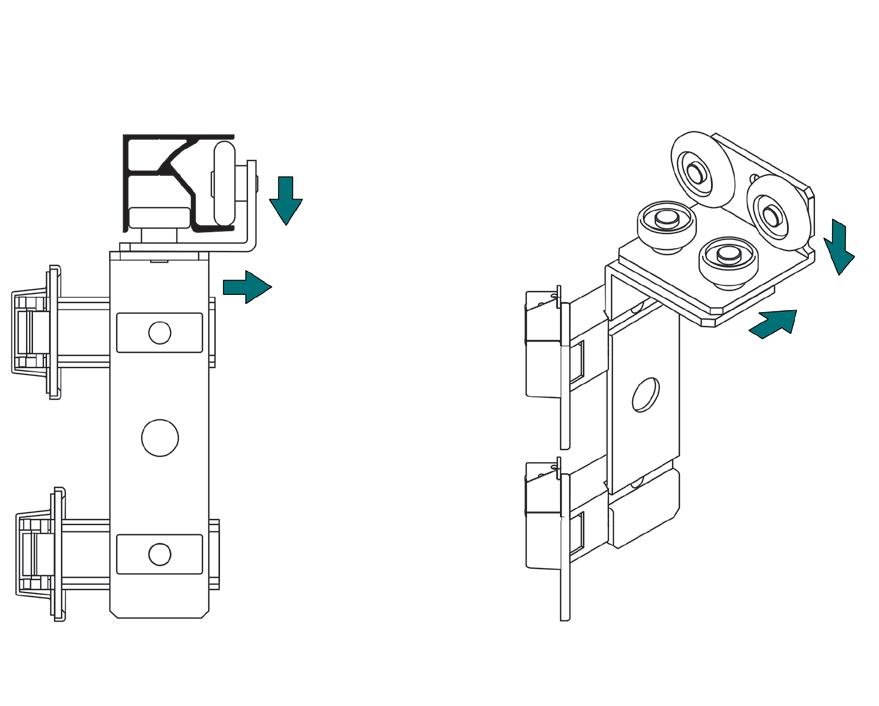

Bi-Fold Door System

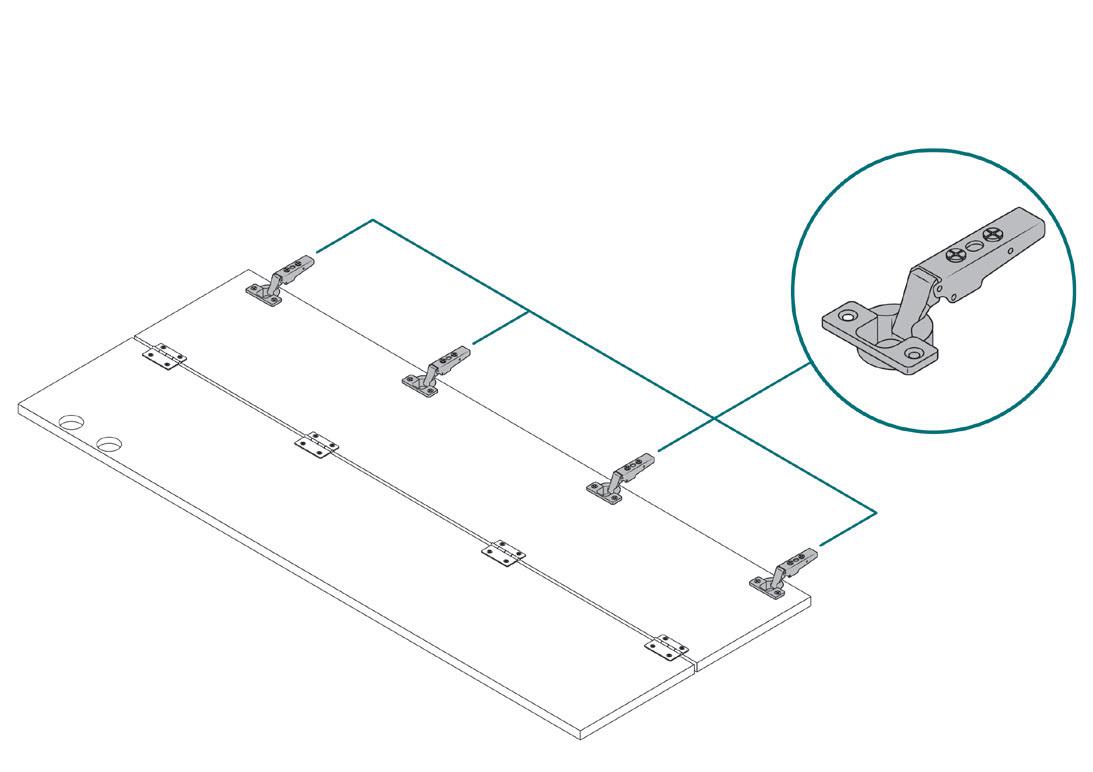

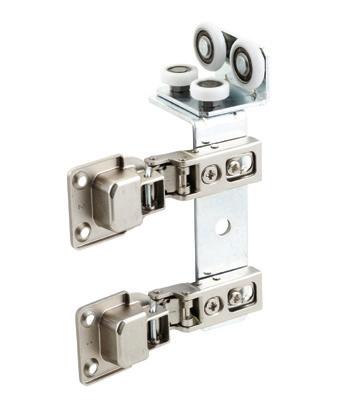

Standard side hinges

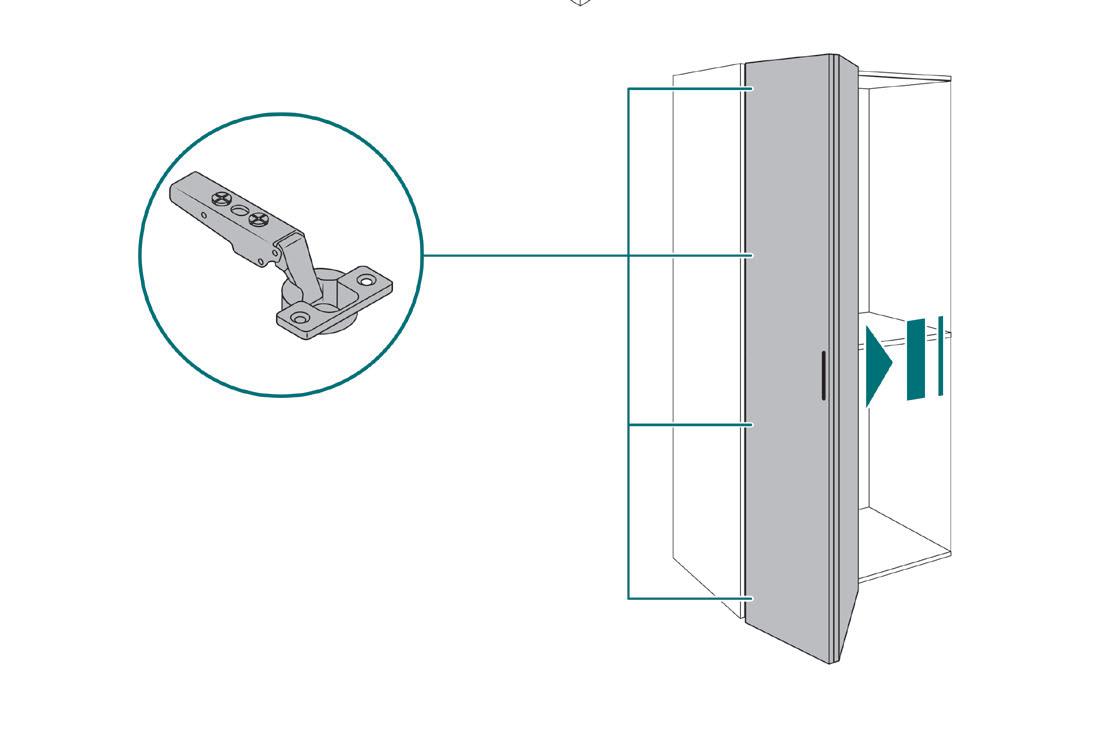

Soft Closing effect simply by using soft close hinges

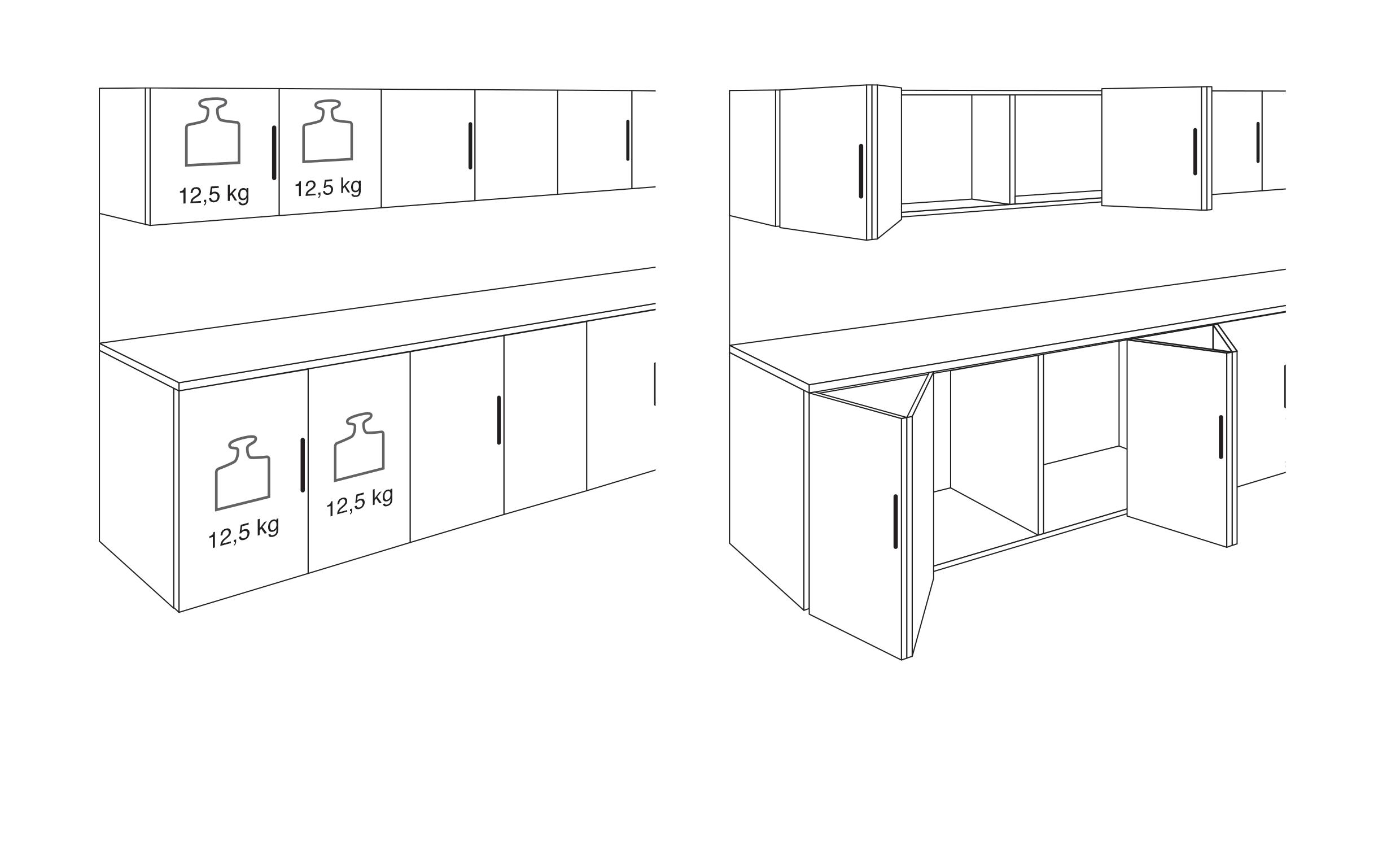

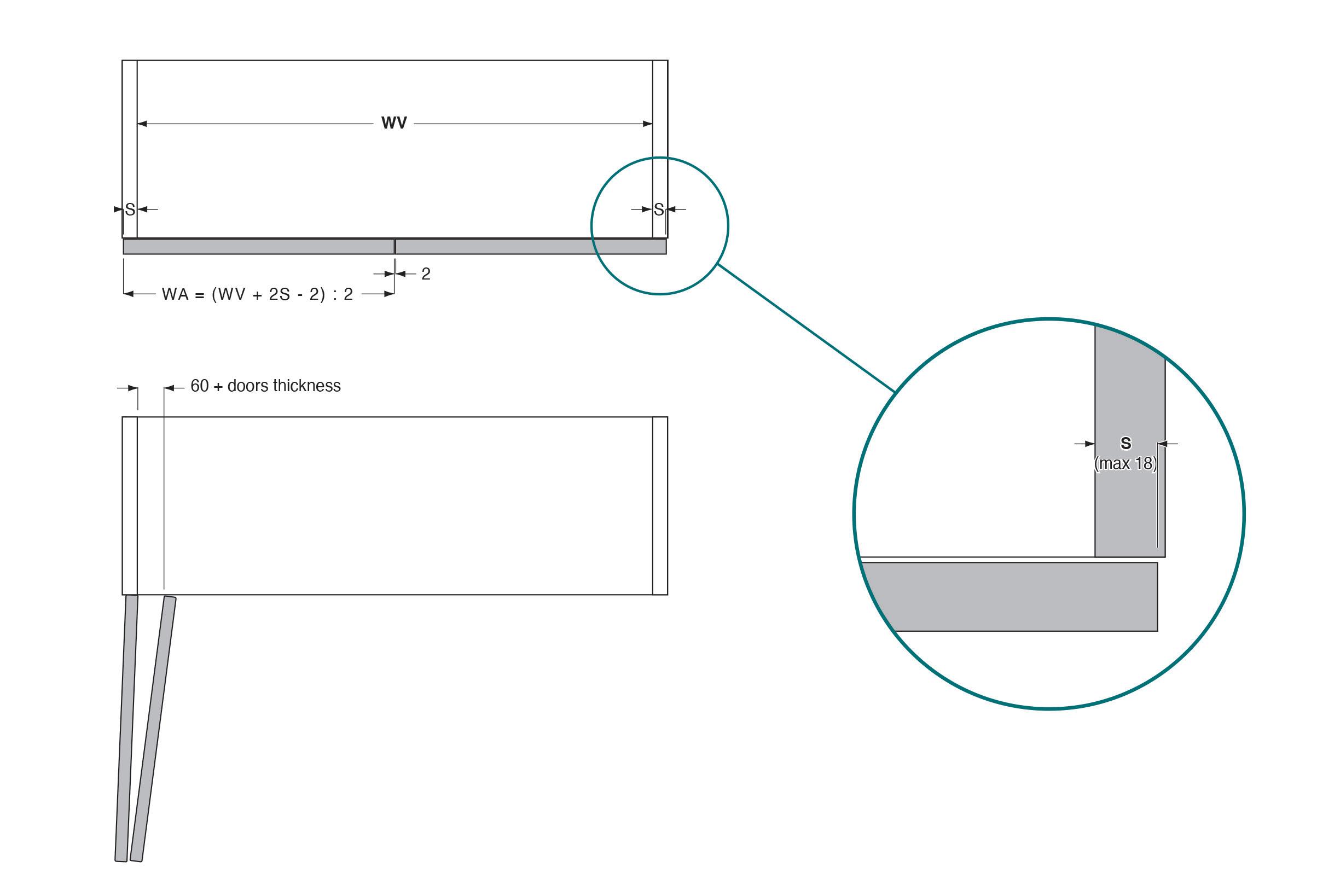

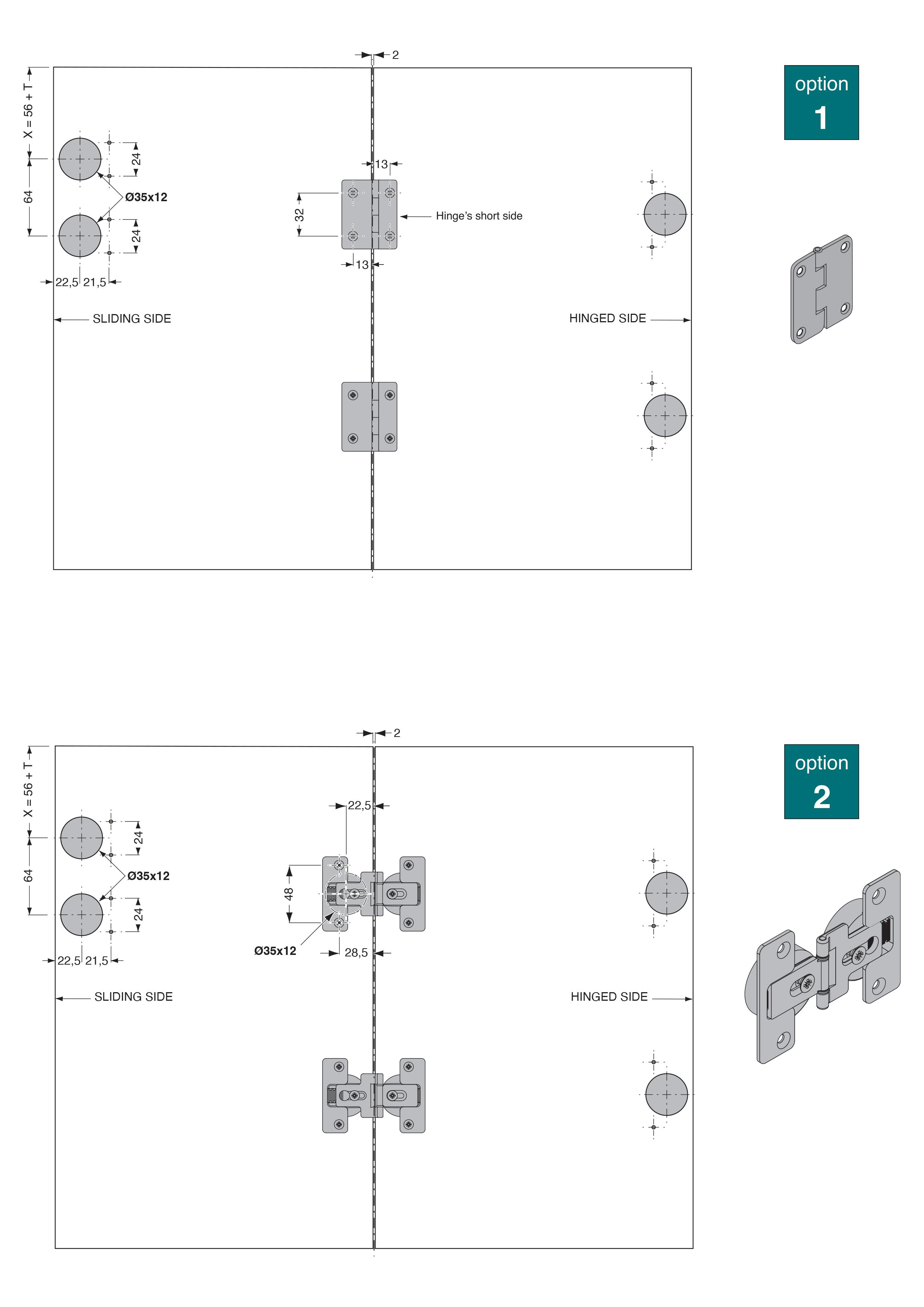

1 Door application

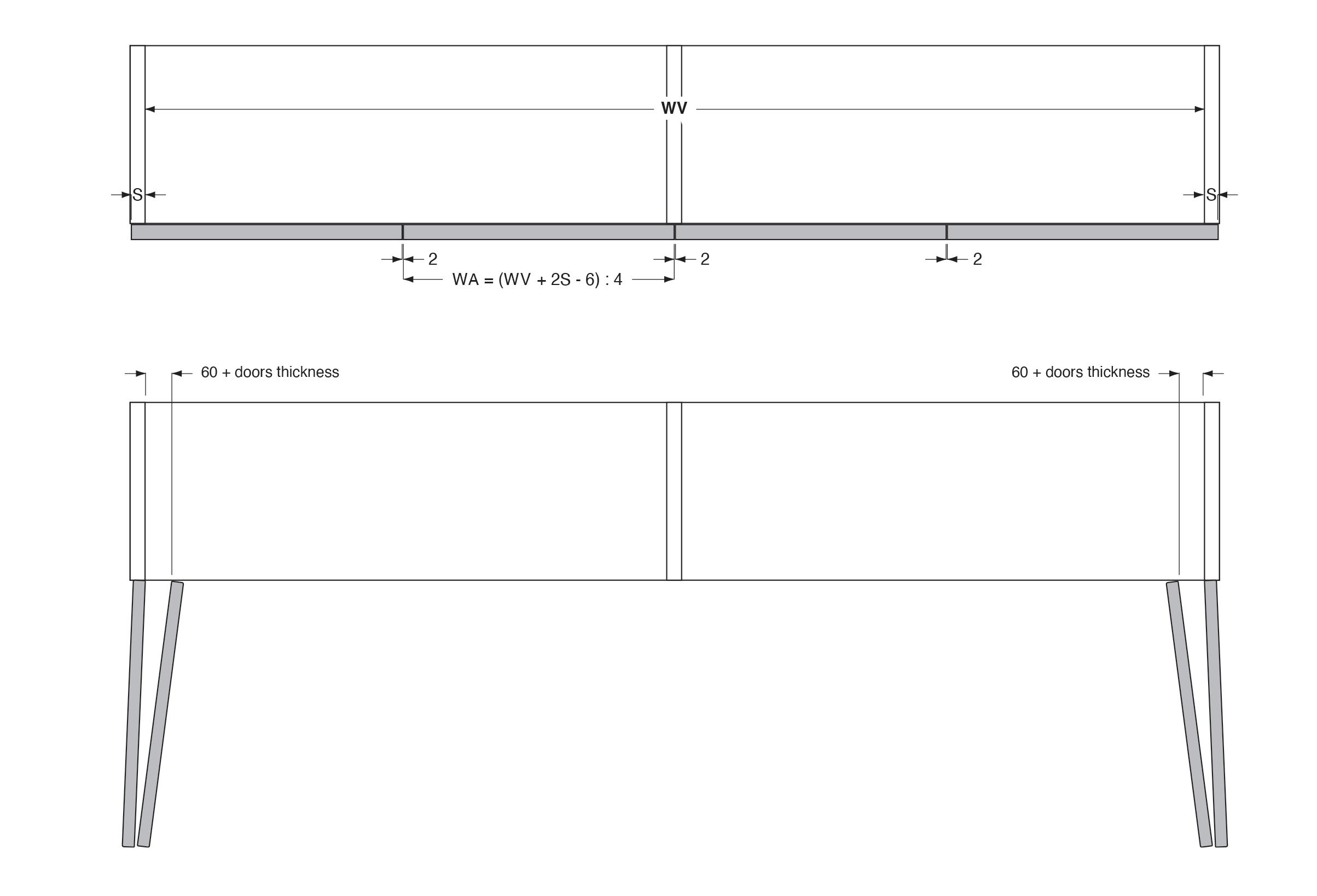

2 Door application

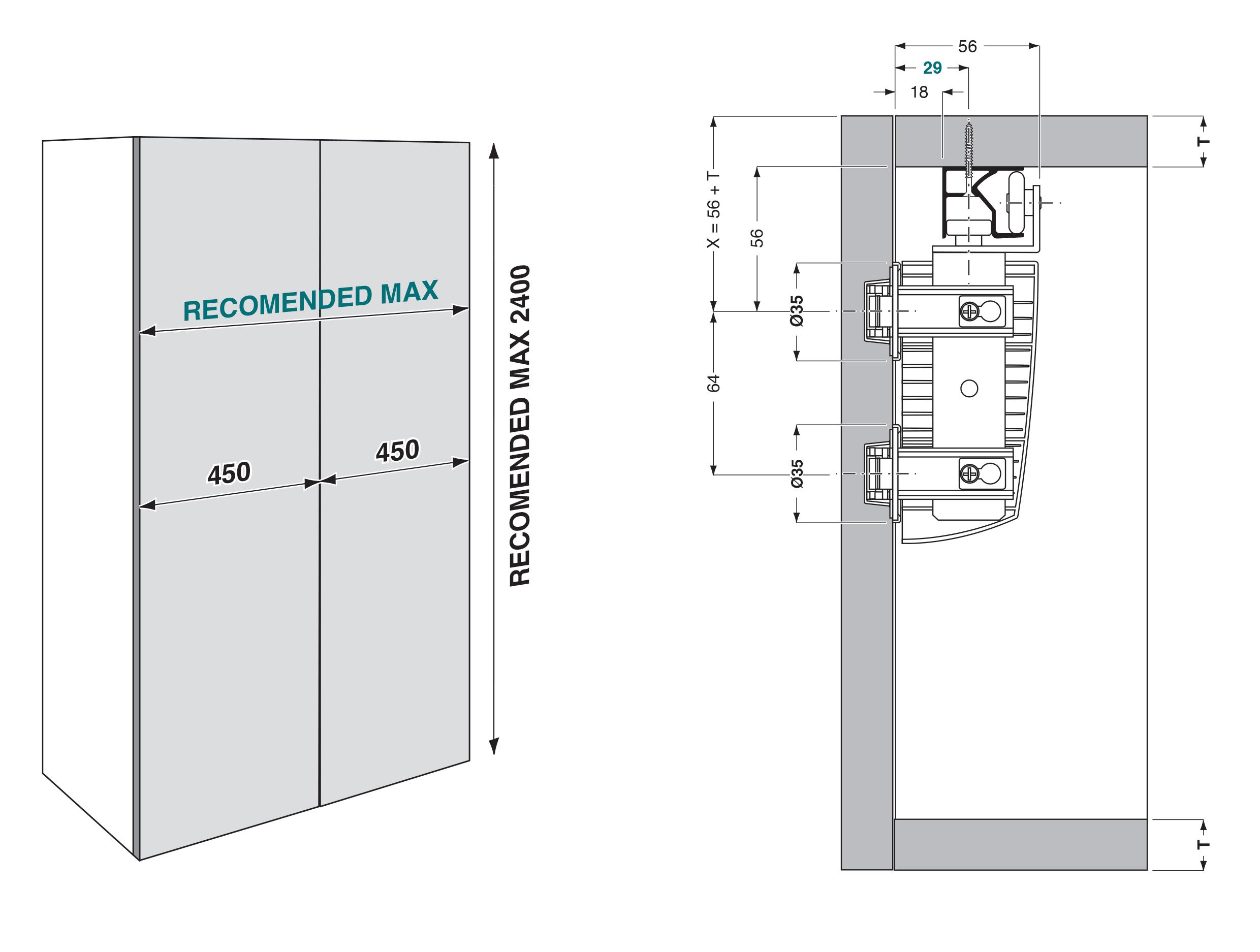

Standard Central Hinges
T = top/bottom panel thickness

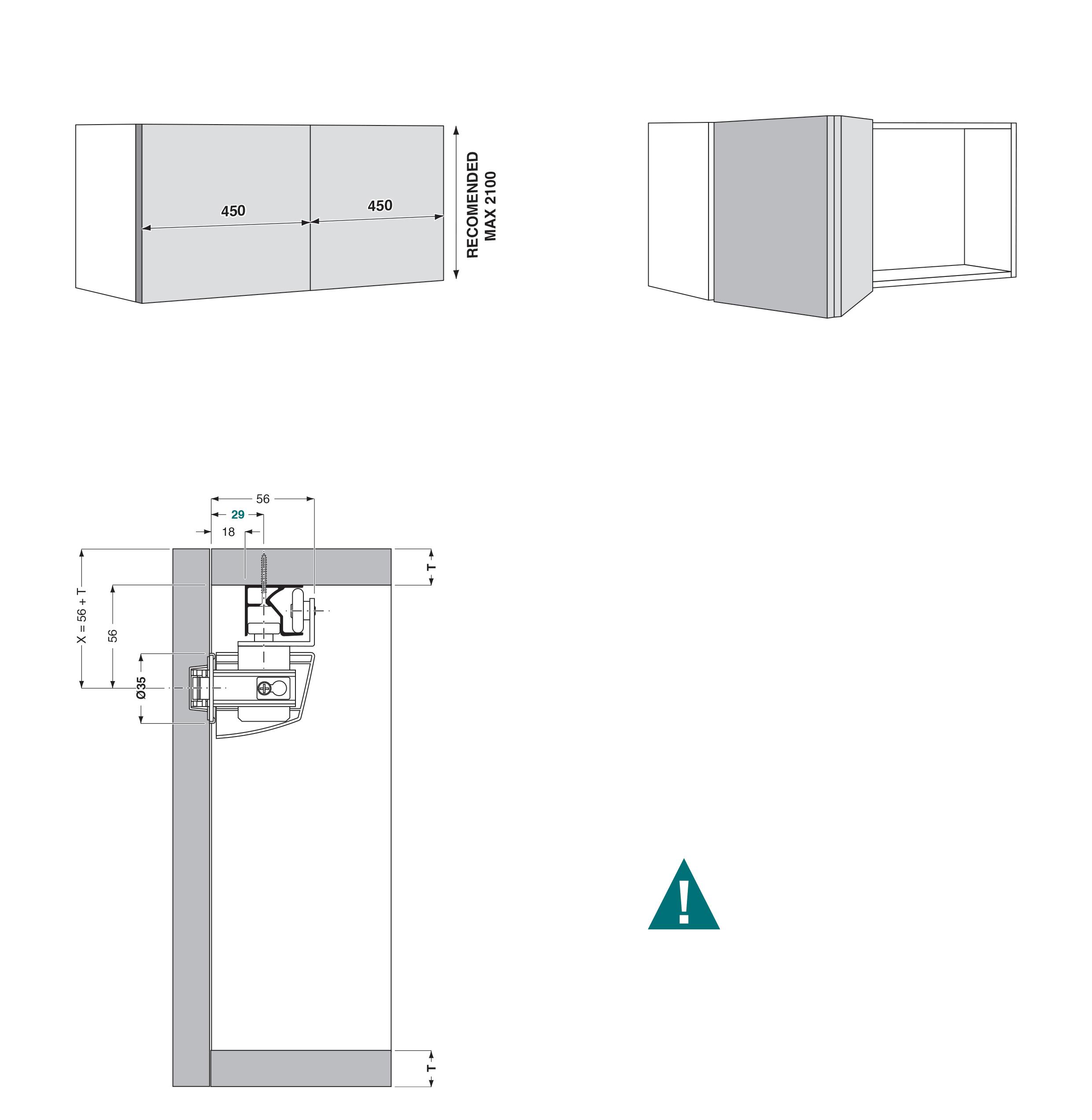

Adjustable Central Hinges
T = top/bottom panel thickness
part no. ACHB35.

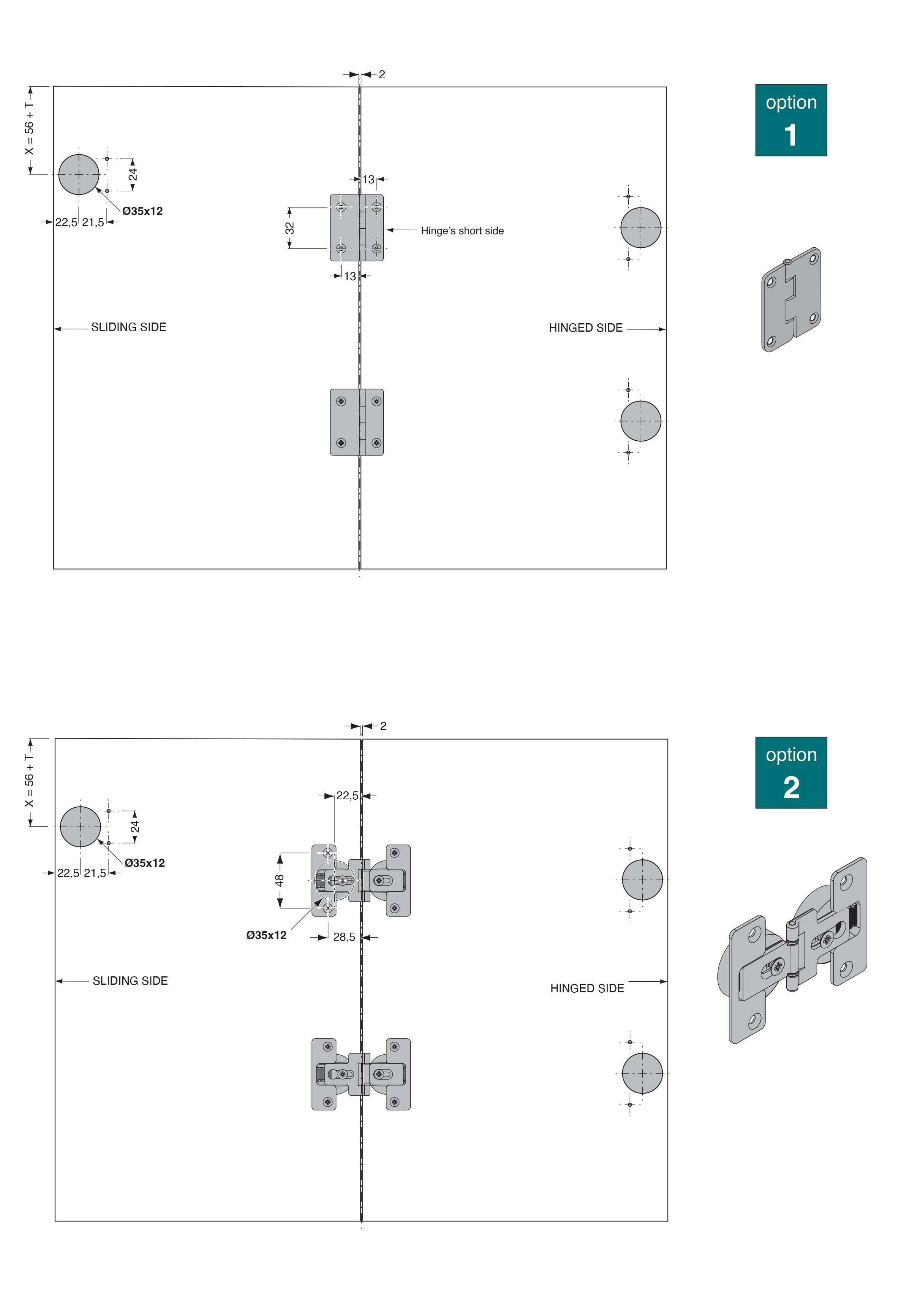

Rivvi Bi-Fold Door System
Standard Central Hinges
T = top/bottom panel thickness
Adjustable Central Hinges
T = top/bottom panel thickness
part no. CSHC.ZP.FG

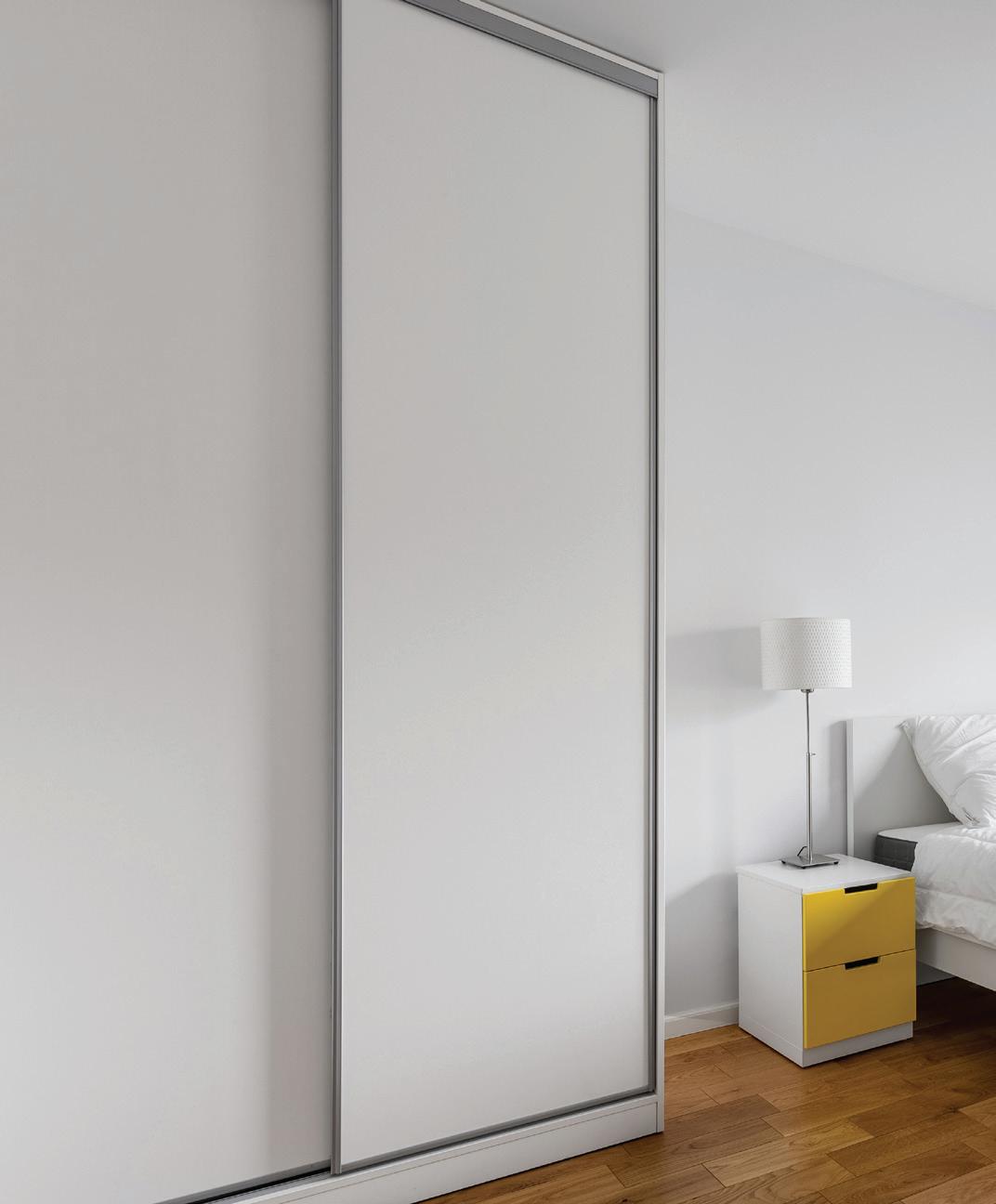

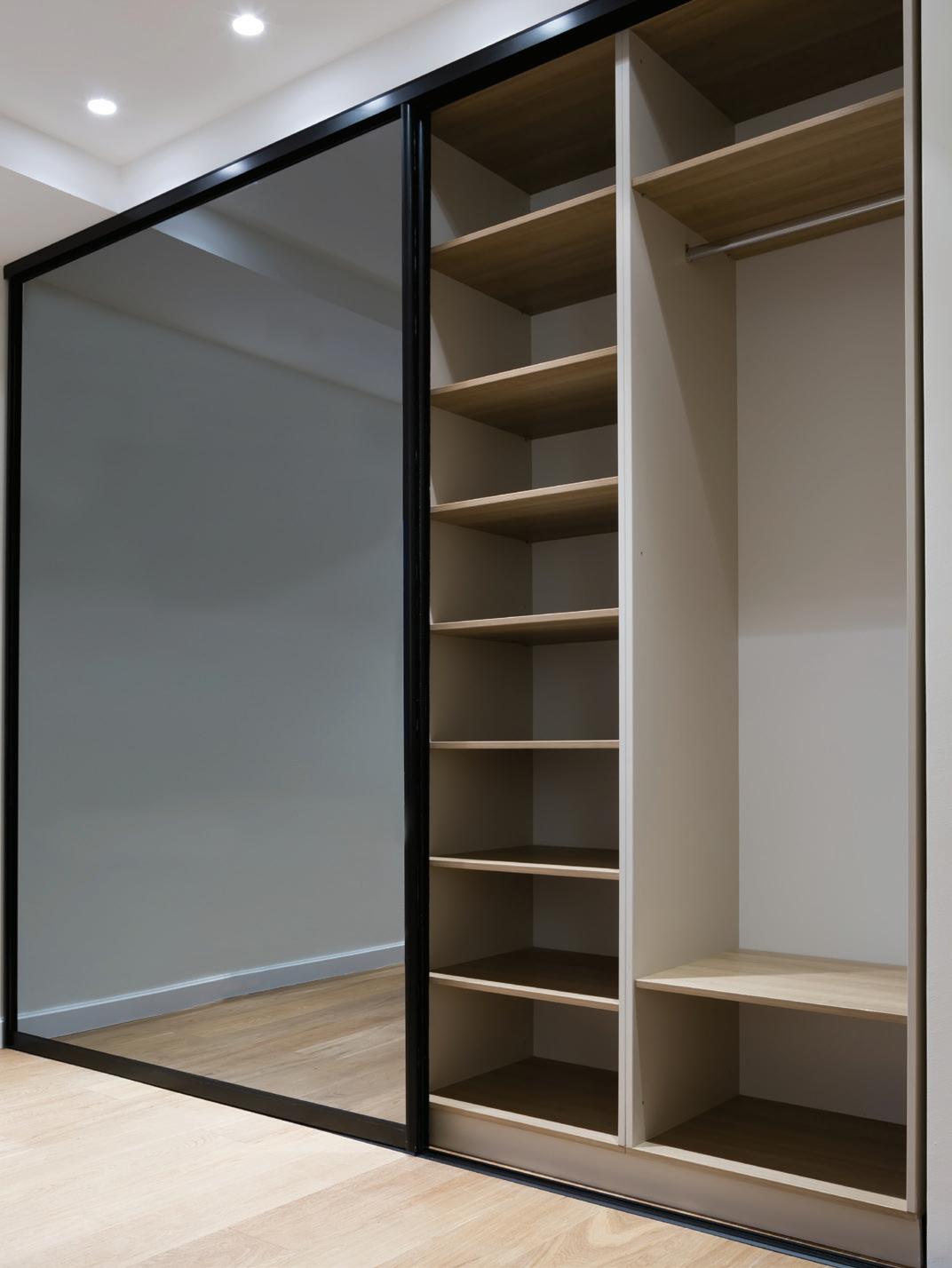

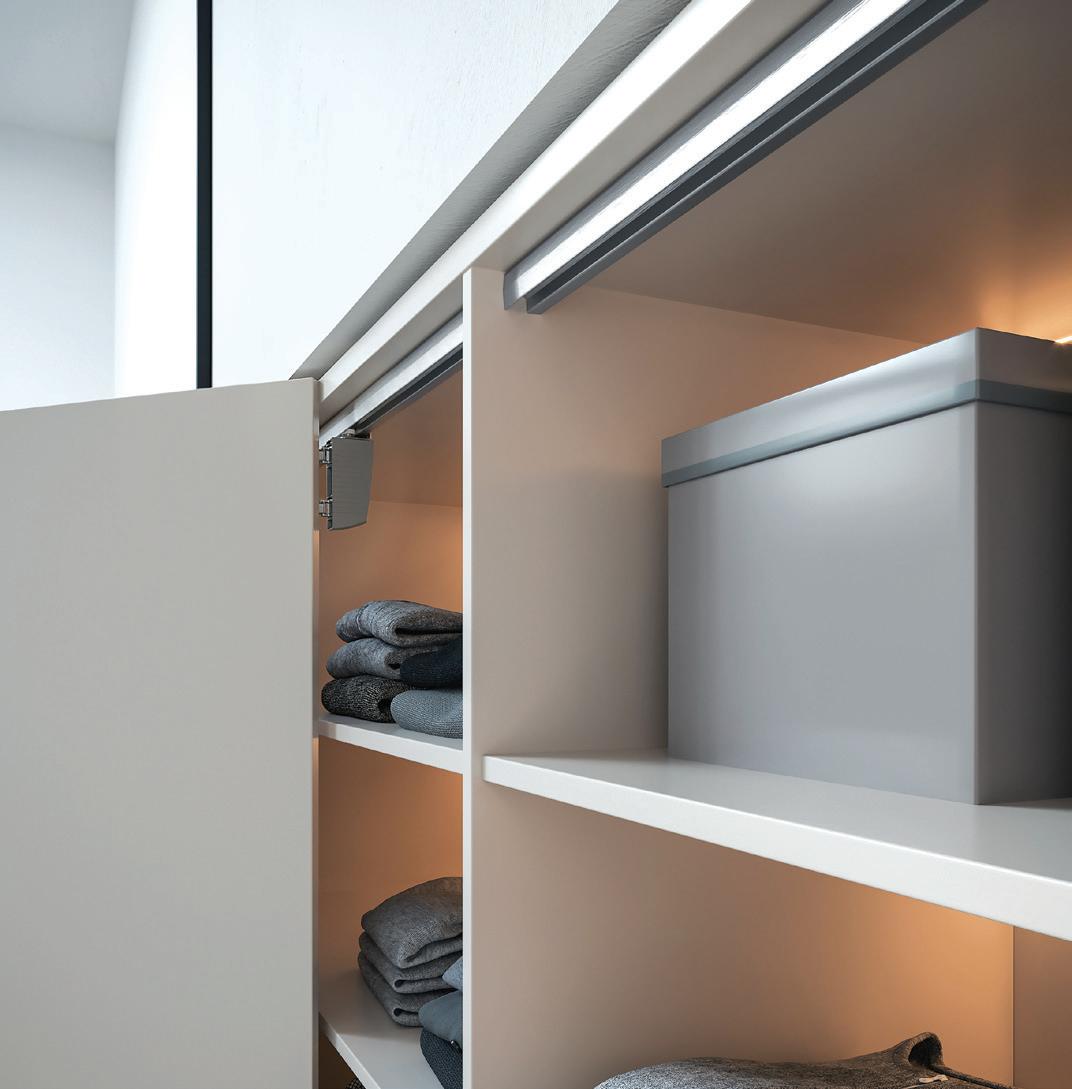

Our Rivvi soft close wardrobe system is available in two options, to suit doors up to 70kg. The systems offer smooth rolling action due to high quality ball bearings, large diameter wheels, function exceptionally well and are super simple to install.
• Smooth rolling action due to high quality ball bearing wheels.
• Suitable for doors 18-22mm thick, up to 70kg per door.
• Suitable for 2, 3 or 4 door installations.
• Fully adjustable rollers with anti-jump feature on top guides.
• Concealed soft-close action in both left & right directions.
• Bottom track available in surface mount or recessed versions.
• Fast and simple to install.
• Matching handle profiles suit 16mm or 18mm board.
• Available in Aluminium, White and Matt Black.
• Note: For 3 door systems order 1 x 2 door system + 1 x 3rd door system
3.6m
60kg Standard System
70kg Premium System

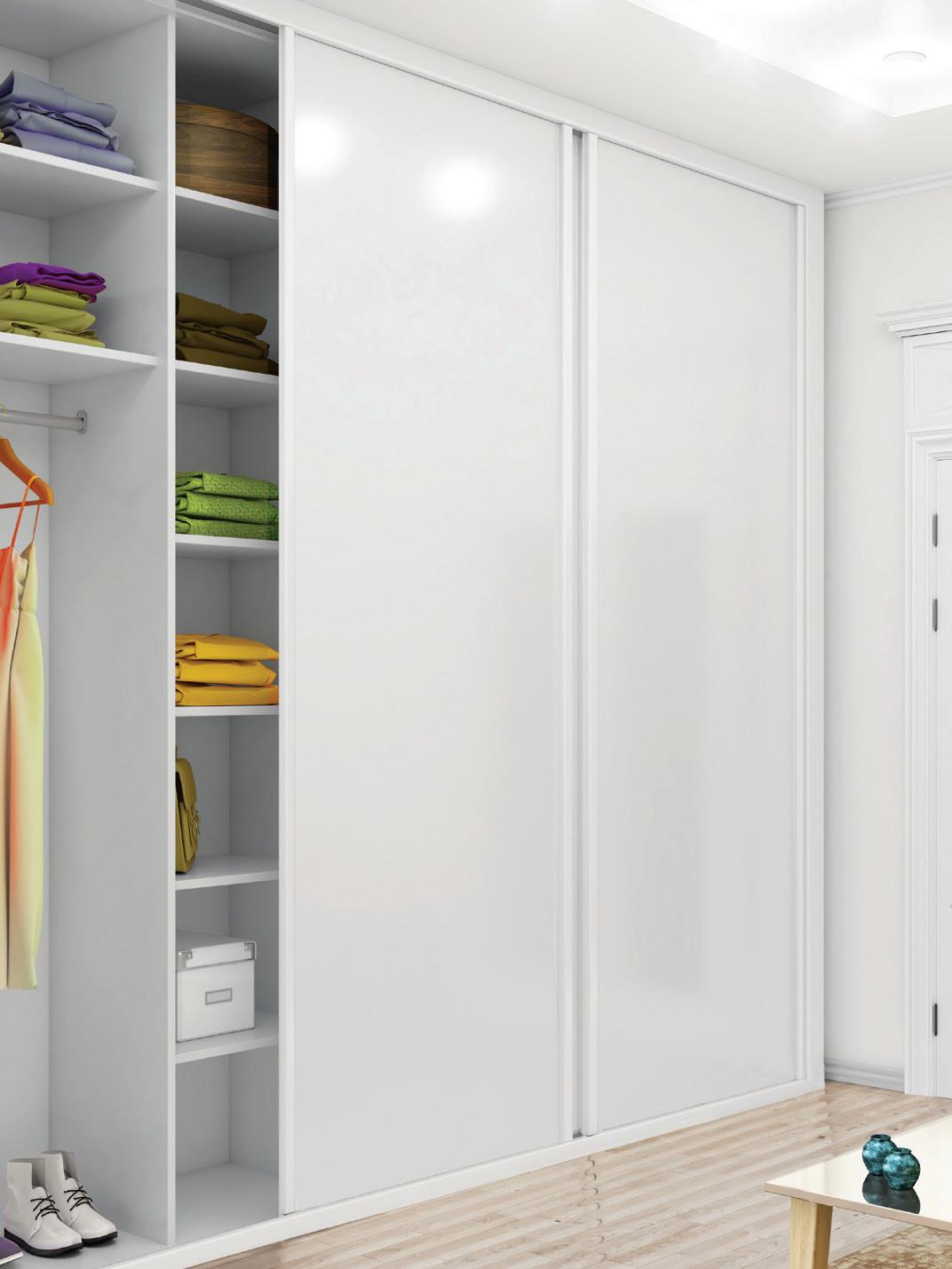

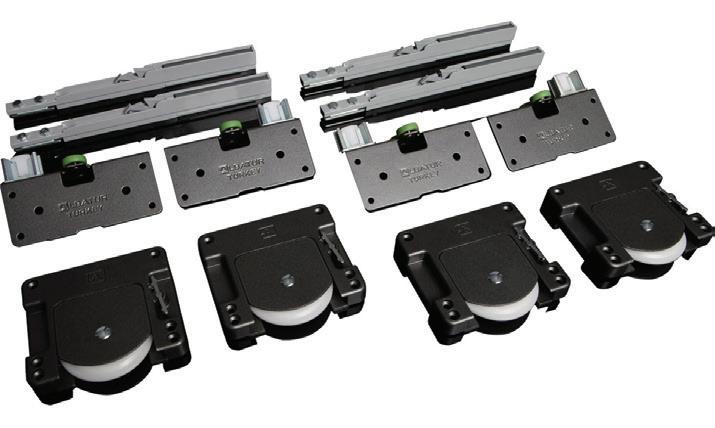

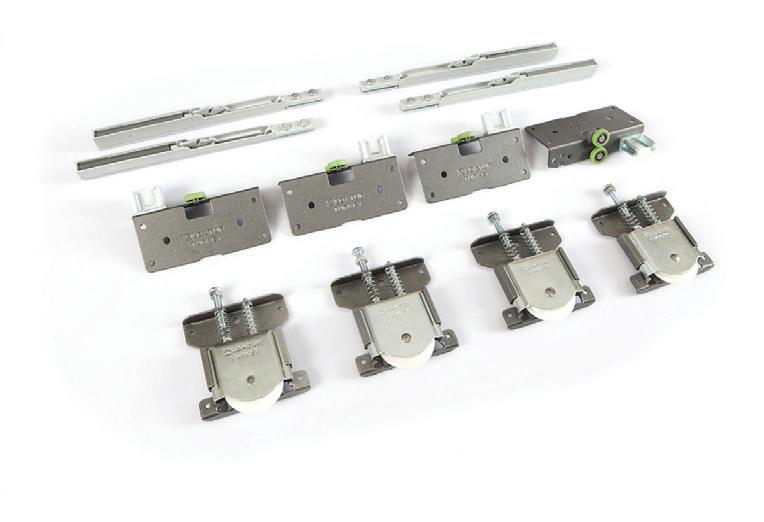

Rivvi Soft Close Wardrobe System
Upper Sliders
Rollers
Soft Close
Top Track
Upper Dampers
Door
Handle Profile
Rivvi Soft Close Wardrobe System
Rivvi Soft Close Wardrobe System
Rivvi Soft Close Wardrobe System
Rivvi Soft Close Wardrobe System
Rivvi Soft Close Wardrobe System
Rivvi Soft Close Wardrobe System
SOFT CLOSING
UPPER SLIDER WITHOUT ACTIVATOR
UPPER SLIDER WITHOUT ACTIVATOR
4
Install running and guiding components
5 Install running and guiding components
All connections
Ø3,5 x 16
Ø3,5 x 16
Ø3,5 x 16
Ø3,5 x 16
Rivvi Soft Close Wardrobe System

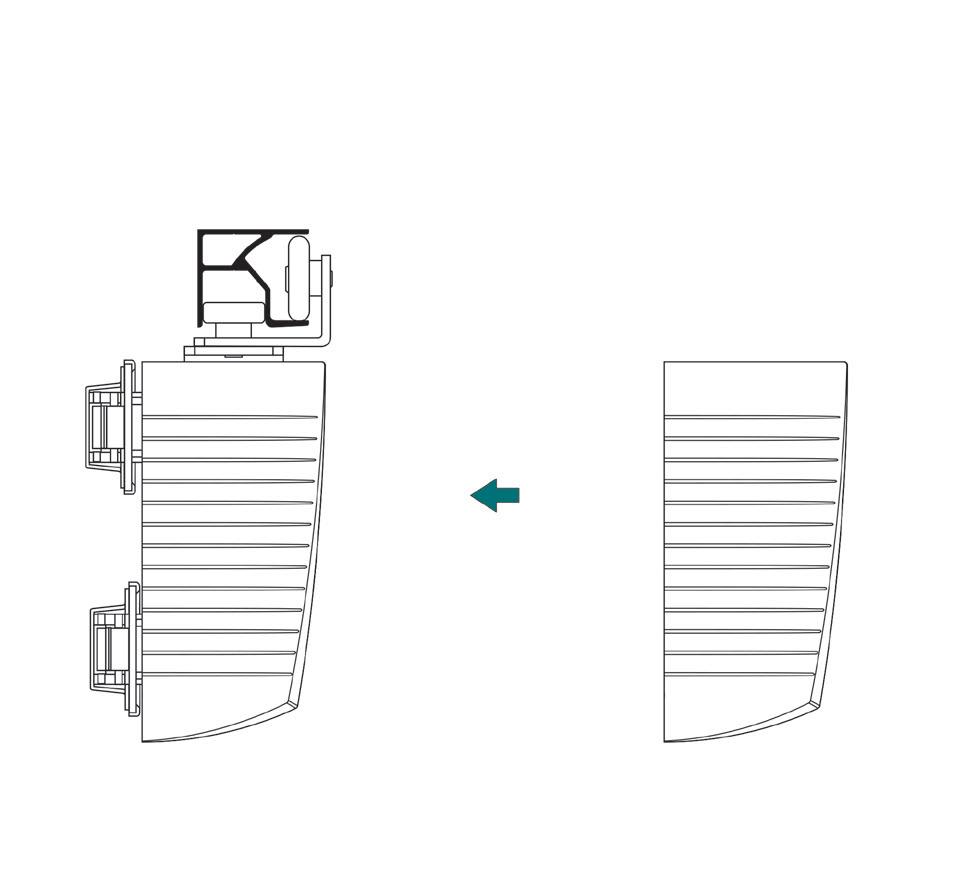

Internal Door: Place upper slider inside of behind top rail
External Door: Place upper slider inside of front of top rail

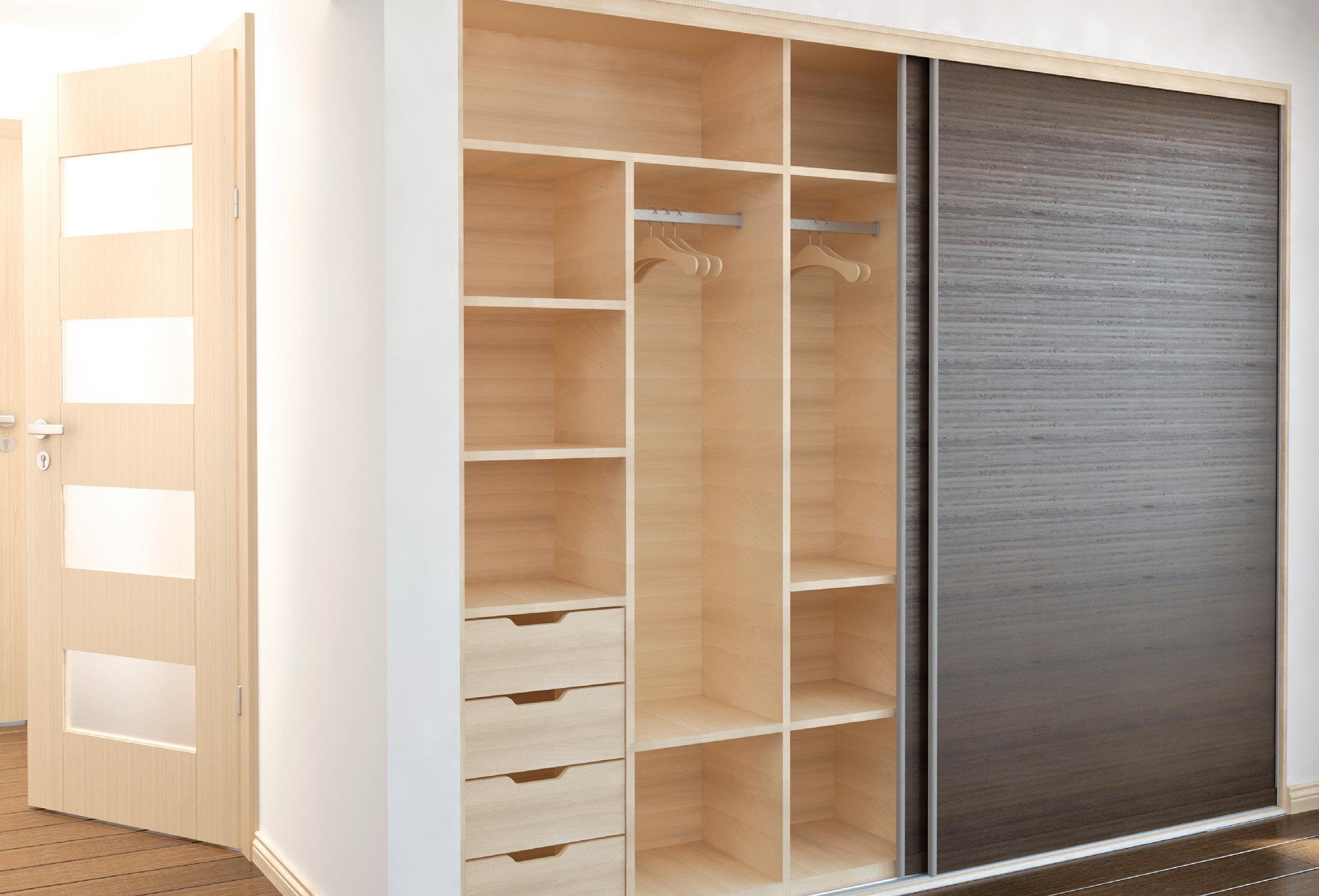

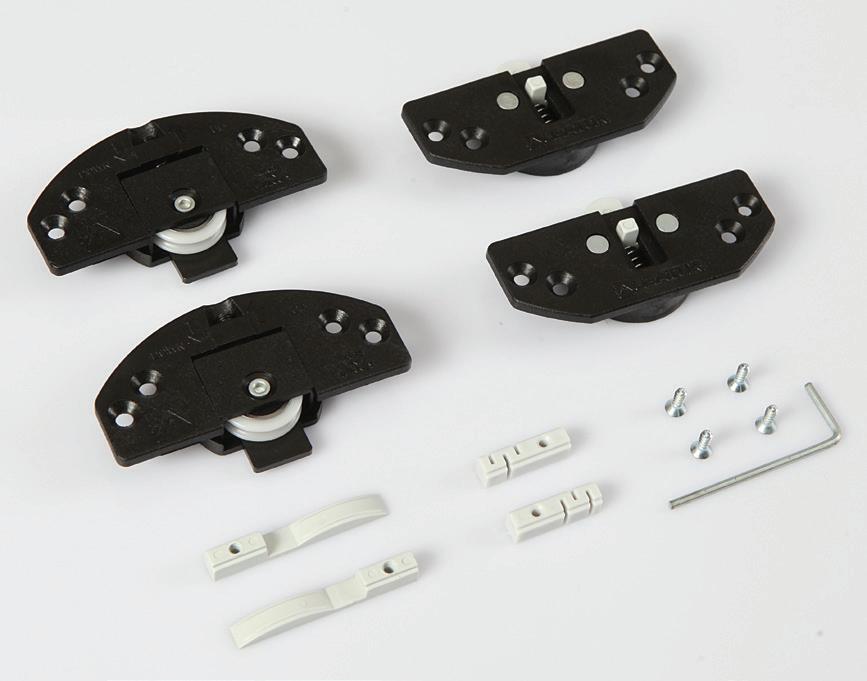

Information Rivvi 40kg Adjustable Sliding Door System
• Smooth rolling action due to high quality ball bearing rollers.
• Designed for doors 18mm thick and up to 40kg per door. Can also be used on doors 16mm thick
• Guided roller and top catch prevent doors from coming off the track.
• Suitable for 2, 3 or 4 door installations.
• Height adjustable bottom rollers.
• Recessed top and bottom aluminium tracks.
Rivvi 40kg Adjustable Sliding Door System
Planning Dimensions - 2 Doors 18mm thick
Planning Dimensions - 2 Doors with handle profile

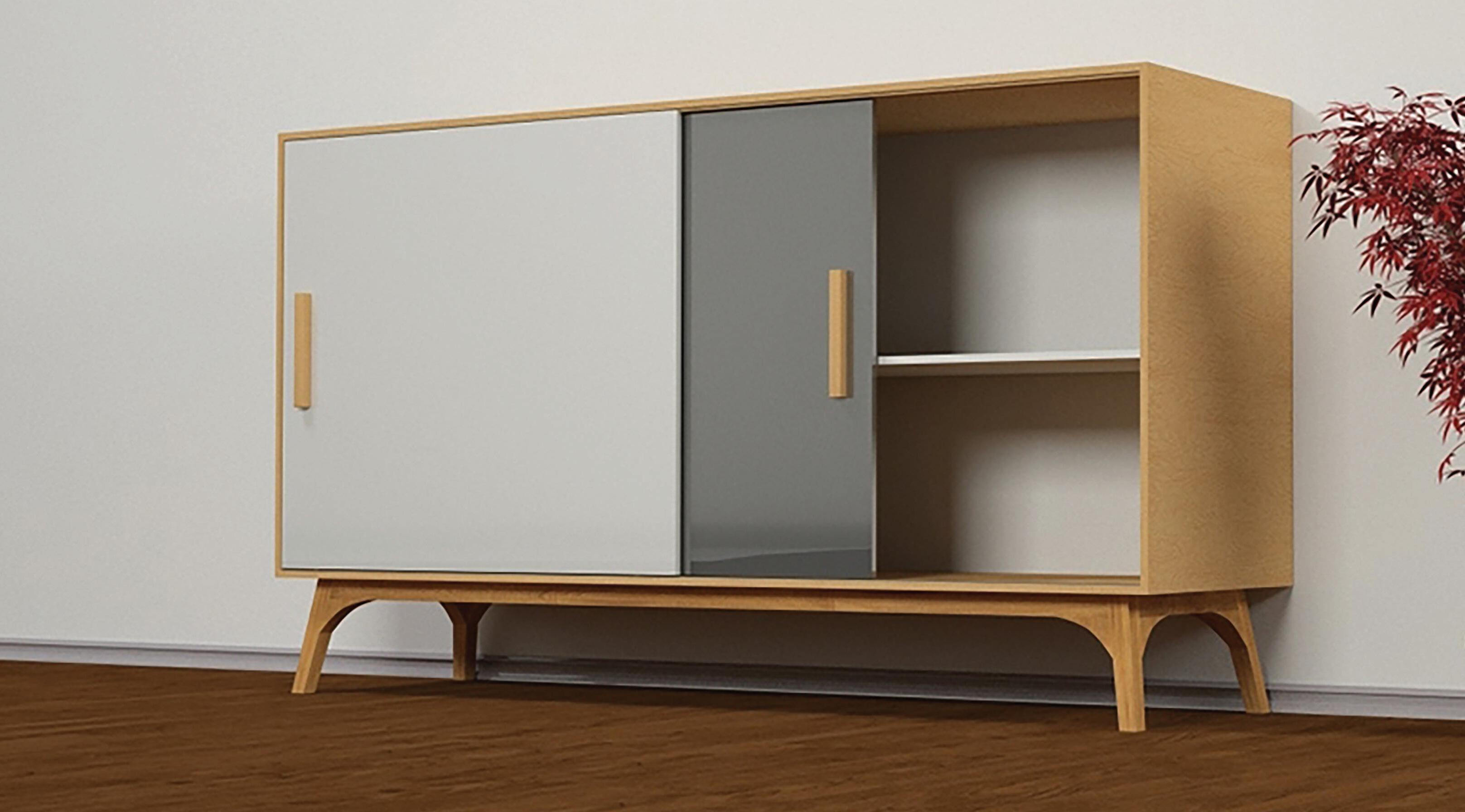

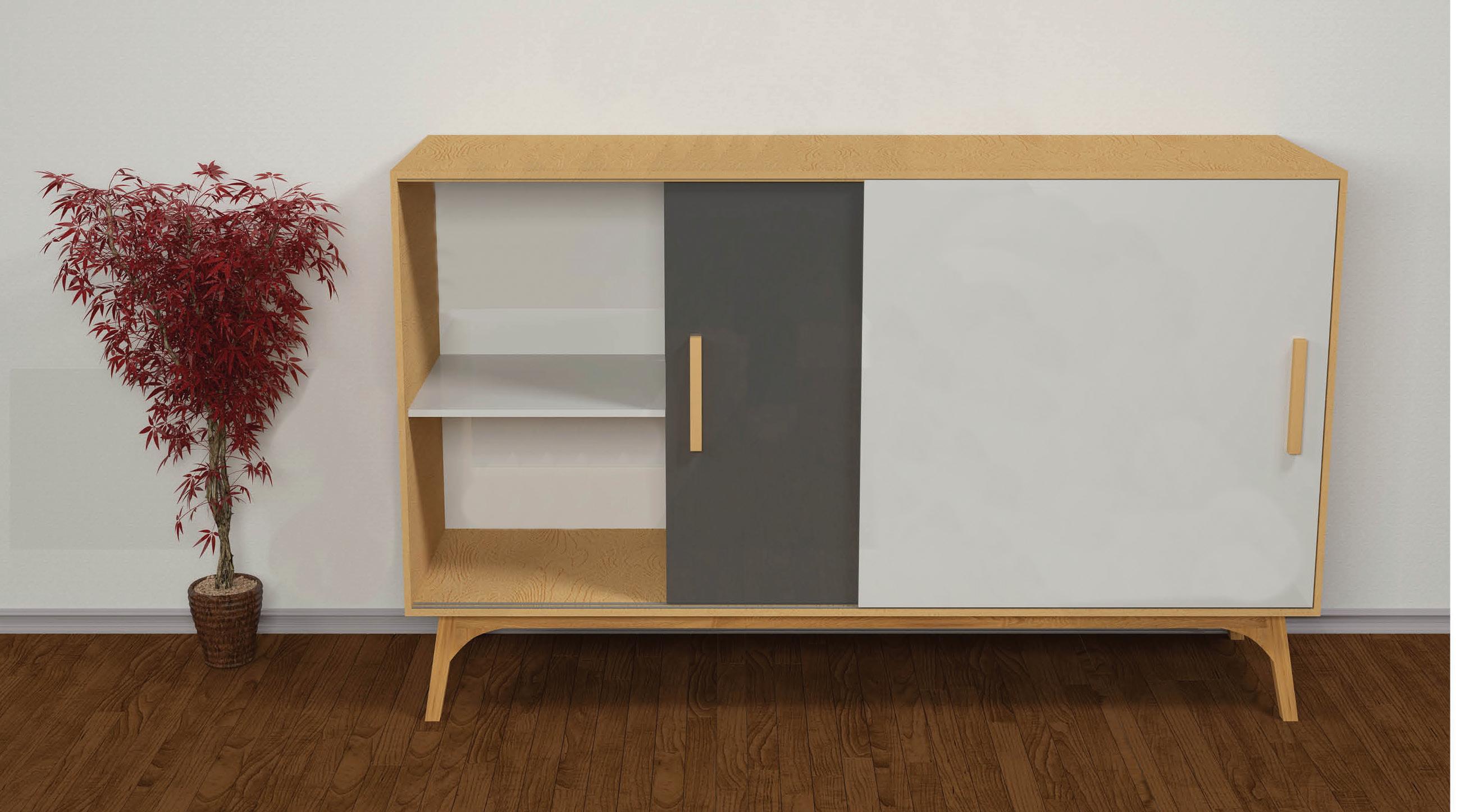

Rivvi Light Duty Sliding Door System
• Suitable for doors 16-18mm thick and up to 15kg per door.
• Guided roller & top catch prevent doors from coming off the track.
• Suitable for 2, 3 or 4 door installations.
• Height adjustable bottom rollers.
• Recessed top and bottom aluminium tracks.
Installation Dimensions

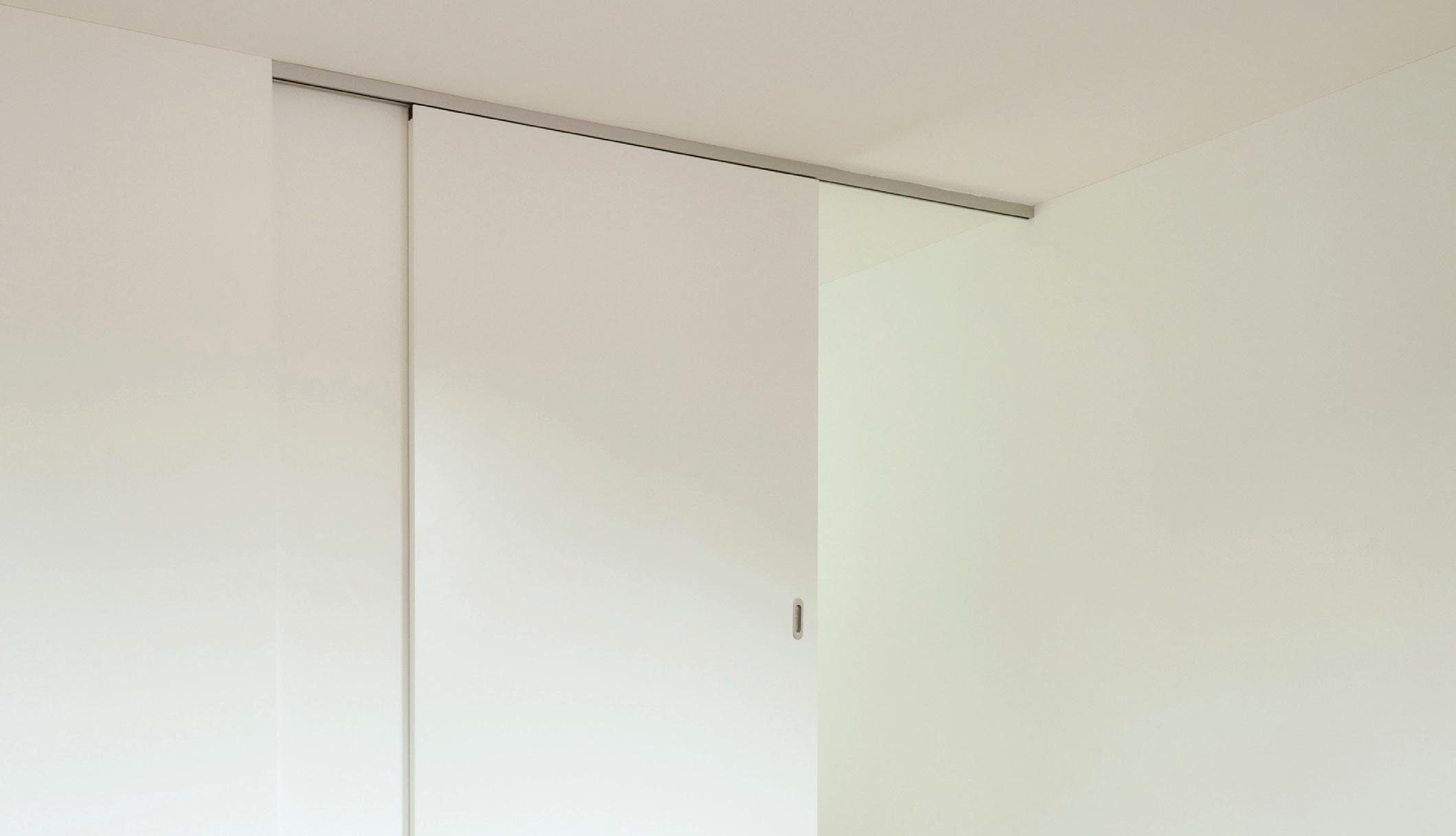

Rivvi Top Hung Sliding Door System
• Adjustable top hung captive roller with mounting brackets.
• Suitable for doors 18-50mm thick and up to 60kg per door.
• Plastic bottom guide.
• Aluminium top track with optional wall mounting brackets.
Installation Dimensions

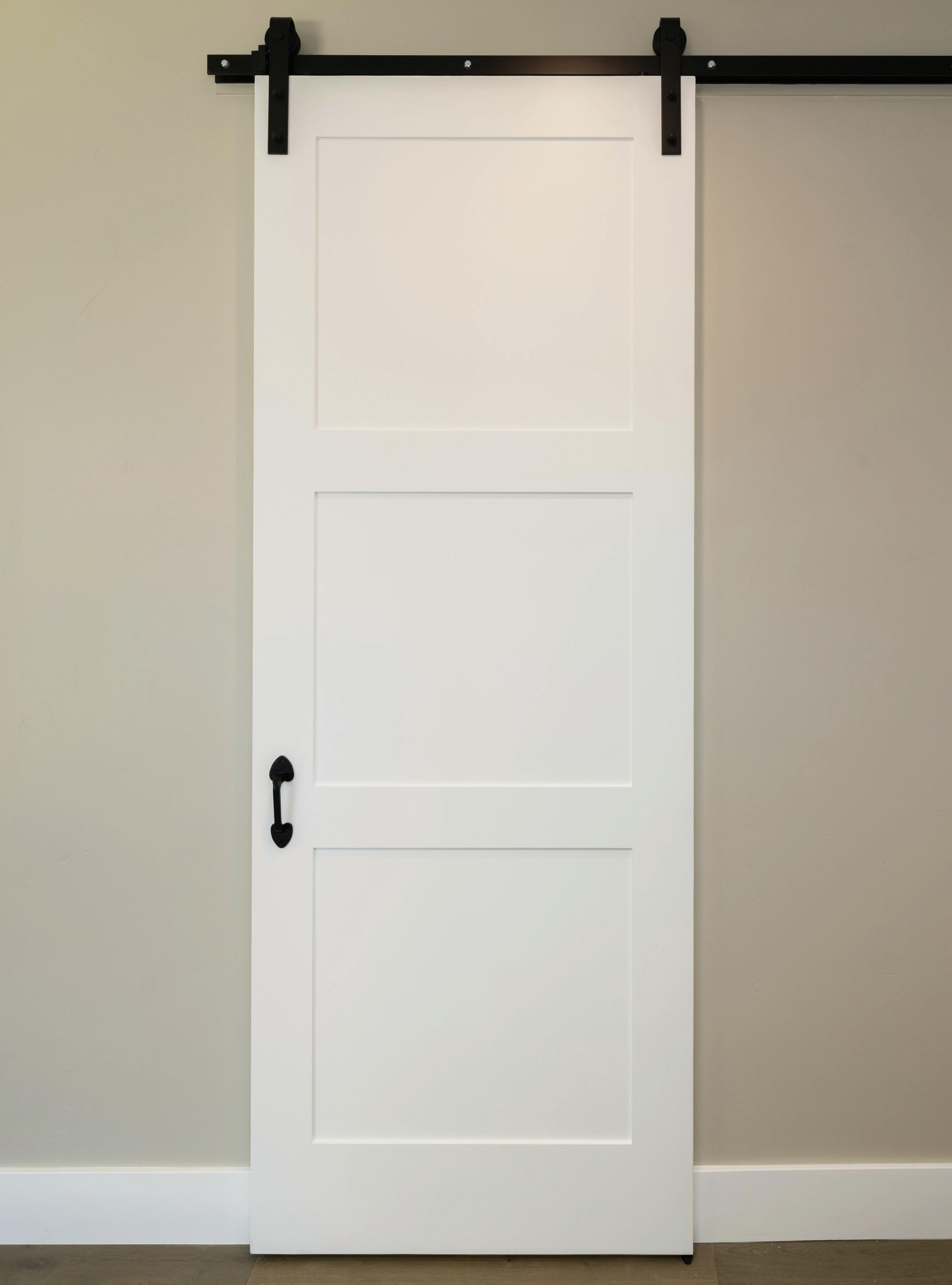

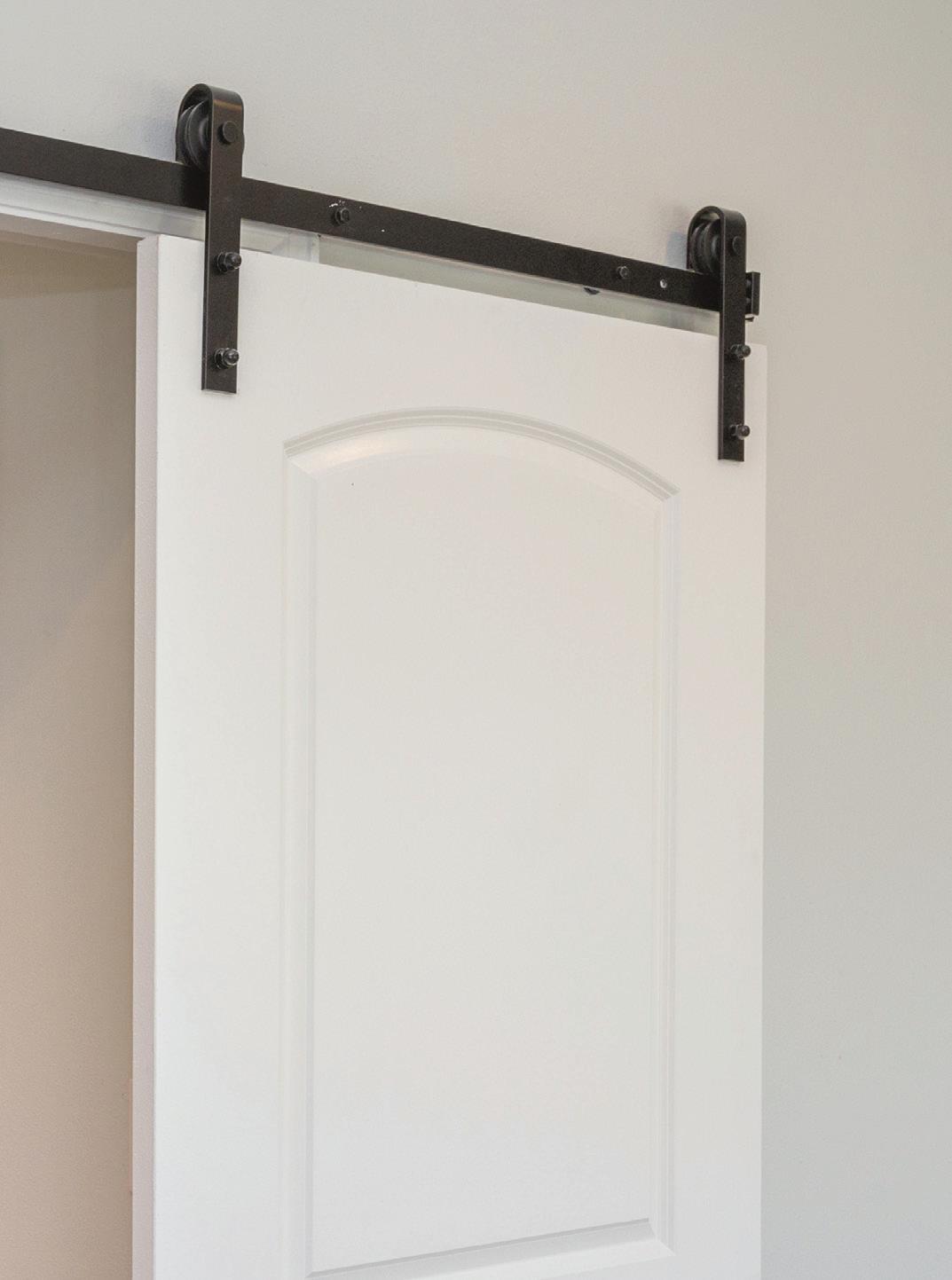

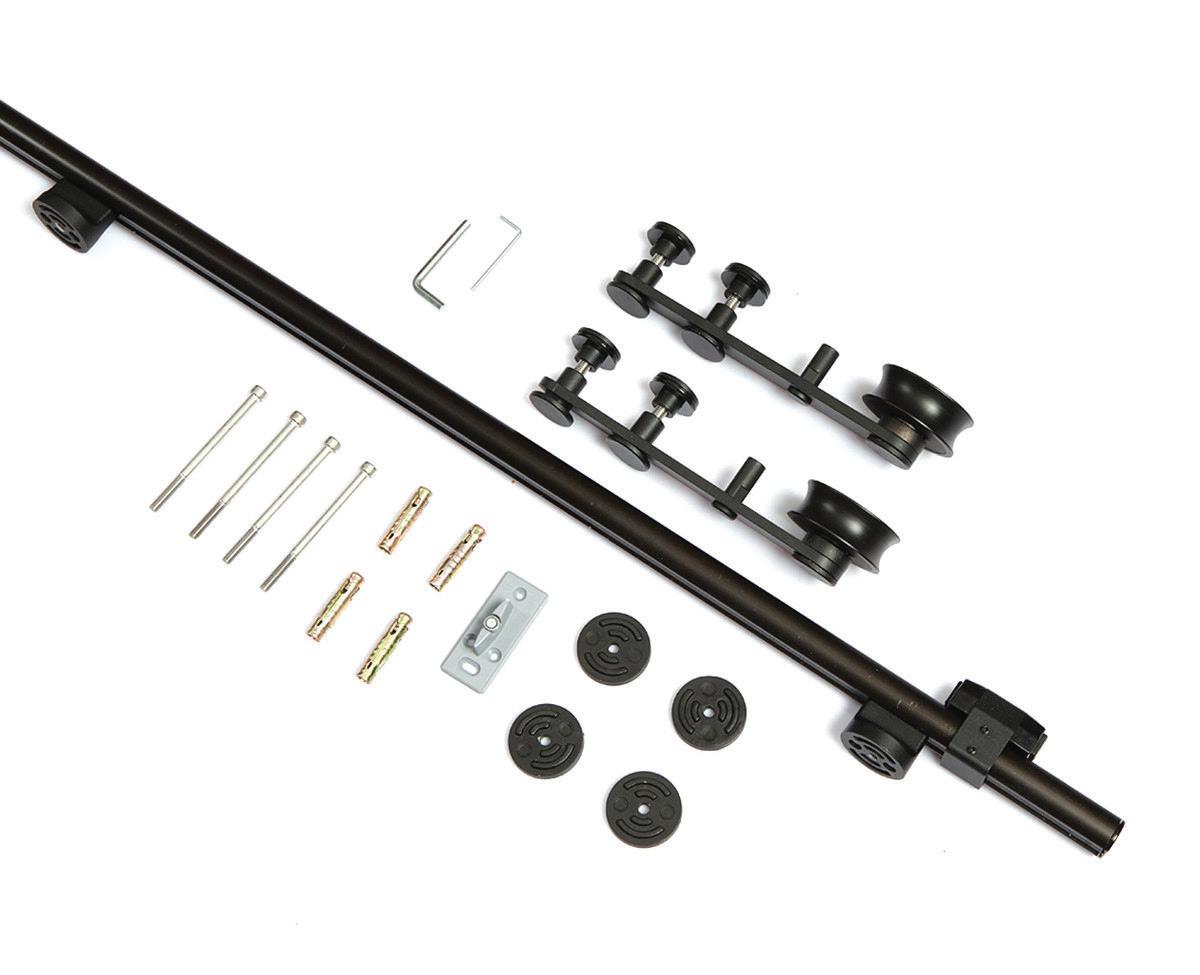

Rivvi Barn Door Sliding Door System
• Adjustable top hung exposed captive barn door style rollers with mounting brackets.
• Smooth rolling action due to high quality ball bearing rollers.
• Top track is wall mounted and hardware is designed to be exposed.
• Suitable for doors 32-50mm thick, up to 80kg per door.
• Supplied as a full kit with 2m track in black only.
• Black aluminium top track with wall mounting brackets.
