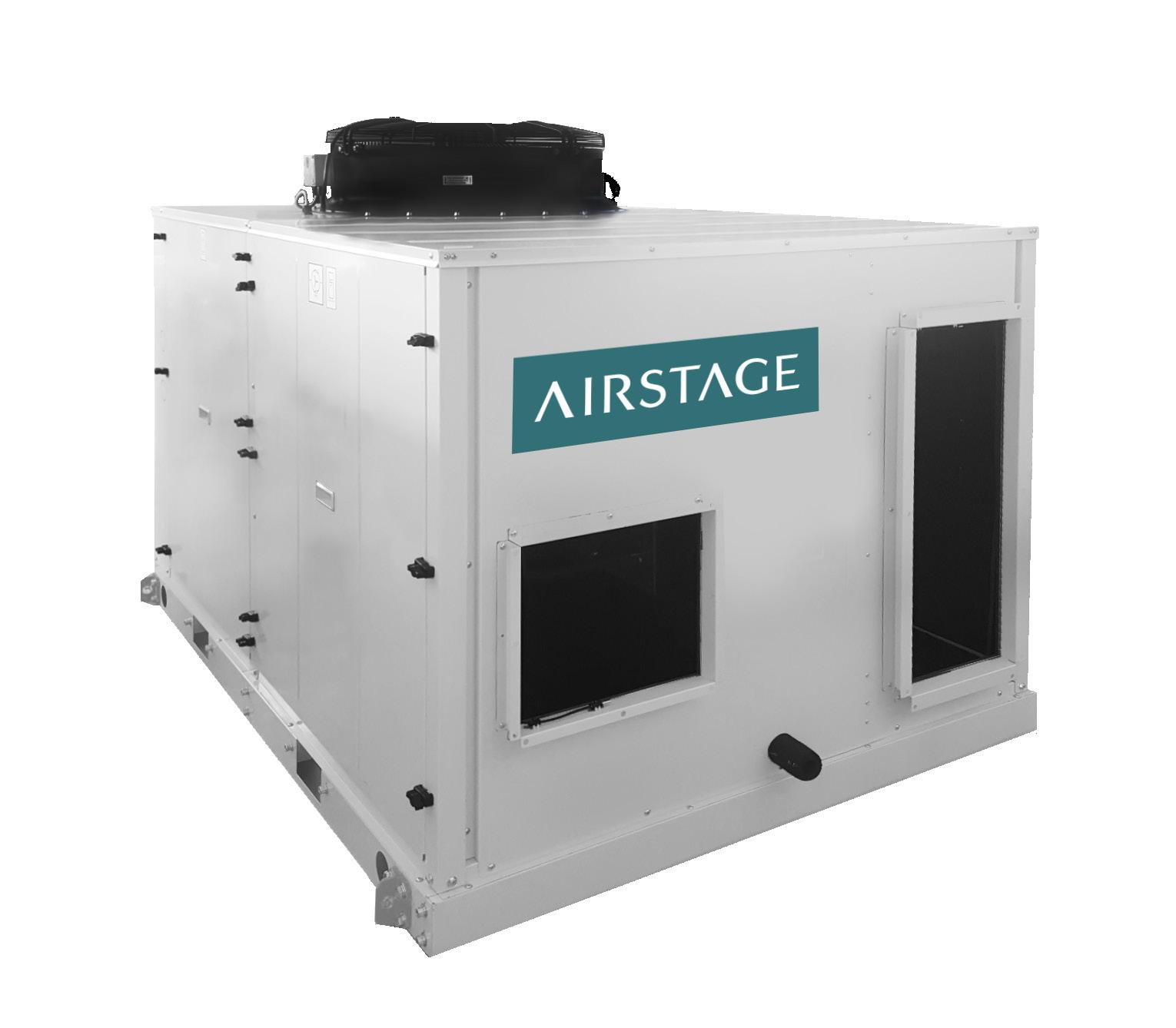

Premium R454B Single Skin Roof Top Packaged Units (RTPU)
R454B Refrigerant - GWP 466
Single Skin (Premium with highly efficient EC Plug Fans)
Economiser Options
Black Epoxy Coating on Condenser Coil
12 Models, from 12.97kW to 114.90kW Heating
Equipped with Danfoss Controls & Componentry
Specifications are based on the following conditions: Cooling capacity: Indoor temperature of 27.0°CDB/19.0°CWB, and outdoor temperature of 35.0°CDB/24.0°CWB. Heating capacity: Indoor temperature of 20.0°CDB/15.0°CWB, and outdoor temperature of 7.0°CDB/6.0°CWB. Sound pressure level: Measured values in free field conditions at 1m from the unit. Future improvement, specifications, designs of product and availability are subject to change without notice. Please refer to specifications before installation and servicing this product. Only persons and/or companies qualified and experienced in the installation, service and repair of refrigerant products should be permitted to do so.
DANFOSS UNIT CONTROL
ANYWAiR® iO REMOTE CONTROL with Touchscreen Room Thermostat (optional)
(UTY-RTPU-ANYWIO)
Room controller with following functions is also available:
On/Off, Weekly schedule, Mode setting (incl. Auto Mode)
EC INVERTER PLUG FANS ON SUPPLY SECTION
• EC Inverter control electronically modulates the airflow
• Operating air flow rate is set during installation
CONDENSER FAN
• Axial fans directly coupled to a three-phase electric motor with external rotor. A safety fan guard is fitted on the air flow discharge.
