Lot 5518 Launch Dr Spec Doc

NEW HOME SPECIFICATIONS

NEW HOME TURN KEY

INCLUSIONS Lot 5518 Launch Drive, Tarneit ELVIRA – S3 KITCHEN APPLIANCES

EXTERNAL FEATURES

Dishwasher:

600mm Free Standing SS Dishwasher

Externa l Walls:

Oven & Cook Top:

900mm Freestanding Upright Oven and Cooktop

Range Hood:

900mm Canopy Rangehood

Sink:

Double bowl stainless steel sink with drainer

Tap:

Chrome sink mixer with swivel outlet

CABINETRY

Brick veneer – clay bricks refer to colour board (product specific).

Autoclaved aerated concrete. Rendered finish refer to colour board. (Product Specific)

Mortar Joints:

Natural colour rolled joints (if required)

Front Elevations:

As per Working Drawings. Acrylic render/feature to selected areas as per plan (Product Specific)

Windows:

Feature aluminium windows to front elevation (Product Specific). Sliding aluminium windows to sides and rear. Aluminium improved windows throughout. Translucent glazing to Bathroom and Ensuite windows.

Cupboards:

Fully lined melamine modular cabinets

Doors/Drawers:

Laminate doors

Kitchen Bench Top:

20mm Square Edge Reconstituted Stone Bench tops

Bathroom & Ensuite Bench Top:

20mm Square Edge Reconstituted Stone Bench tops

Entry Frame:

Timber painted Door jamb

Laundry Bench Top:

33mm Laminate Bench top

Front Entry Door:

Hume door as per colour selection

Handles:

Selected from colour board

Door Furniture:

Pantry:

Melamine modular shelving

Entrance lockset in polished stainless steel with deadbolt (Product Specific).

Ext. Hinged Door:

Entrance lockset in polished stainless steel to external door

Door Seal:

Door seal and weather seal to all external hinged doors

BATHROOM & ENSUITE Basins:

Insert 1TH vanity basin

Mirrors:

Polished edge mirrors full length of vanity

INSULATION

Bath:

White Freestanding

Ceiling:

Shower Bases:

Step-free tiled shower bases throughout (900 x 900)

Fiberglass batts to ceiling of roof space (excludes garage ceiling)

Shower Screens:

2000mm high Semi framed shower screens with powder coated aluminium frame (polished silver finish) and clear glazed pivot door

Externa l Walls:

Fiberglass wall batts including Sisalation to external brick veneer walls (excluding garage) and wall between garage and house

Taps:

Chrome mixer tapware

Shower Outlet:

Shower on rails in Chrome

Toilet Suite:

Close coupled toilet suit soft close seat

Accessories:

600mm single towel rails and toilet roll holders in chrome finish

Exha ust Fans:

250mm exhaust fans including self-sealing air flow draft stoppers to bathroom

CERAMIC TILING Wall Tiles:

Wall tiles to kitchen, bathroom, ensuite and laundry where shown on plans. Selection as per colour board.

Floor Tiles:

Floor tiles to ensuite, bathroom, laundry, WC as shown on plans. Selection as per colour board

Floorboards:

As shown on plan. As per colour board.

Note: Wall wrap will be sealed around openings in accordance with energy rating assessor’s report

GARAGE General:

Single/Double garage with colorbond hip roof including single/double Colourbond roller door to front, rendered foam infill over garage door.

Plaster ceiling and concrete floor. Remote control with 2 handsets included

Pedestrian Door:

Door: Weatherproof flush panel, water-based enamel gloss paint finish Door Frame: Timber painted door jamb

INTERNAL FEATURES Doors:

Flush panel. 2040mm high. Either hinged or sliding as per plan.

Door Furniture:

Lever door furniture in polished chrome finish to all rooms

Mouldings: MDF architraves

67 x 18mm square dressed MDF skirting & 67 x 18mm

Doorstops:

Plastic white door stops to hinged doors

CARPET Carpet:

As per colour board

PAINT – 3 COAT APPLICATION Gloss water-based enamel to internal doors, jambs & mouldings

Ceilings:

Flat water-based to ceilings

SEVEN STAR ENERGY RATING

Internal Walls:

Water-based low sheen acrylic to internal walls

Energy rating:

7 Star Energy Rating compliant

Entry Door:

Gloss water-based enamel to front entry door

PV Sola r System:

PV Solar System (kW design specific)

Colours:

As per colour selection

Eight Homes reserves the right to substitute the make, model or type of any of the products to maintain the quality and product development of its homes. Changes may be made subject to Residential Development Standards (ResCode requirements).

Window and sliding door sizes may vary subject to energy rating requirements. Electricity transfer fees may apply. Visual images provided is for illustrative purposes only and not to be used as final. Colours, materials may vary. October 2025

INITIAL

Timberwork:

NEW HOME TURN KEY

INCLUSIONS Lot 5518 Launch Drive, Tarneit ELVIRA – S3 ELECTRICAL

LAUNDRY Trough:

45LT Insert Stainless Steel (SS)

Tap:

Chrome Sink mixer with swivel outlet

Washing Machine:

Chrome washing machine stops/grubs

PLASTER Plasterwork:

10mm plasterboard to ceilings and wall, WR board to wet walls, ensuite, bathroom and laundry, 75mm cove cornice to house, 90mm to garage.

Internal Light Points:

100mm diameter LED fittings throughout as per standard electrical layout

Externa l Lights:

100mm LED downlight to front entry. Weatherproof Para flood light to rear as per drawings

Power Points:

Double power points throughout excluding dishwasher and fridge space

TV Points:

Two points including 5 metres of coaxial cable to roof space (one to main bedroom and one to living area)

Telephone Point:

Two pre-wired telephone points with wall plate as per working drawings including connection availability to

FRAMING Framing:

PLUMBING Taps:

the National Broadband Network (NBN) – Basic pack

Stabilised pine wall frame and roof trusses

2 external taps, 1 to front water meter and 1 to rear of home

only.

Switch Plates:

White wall mounted switches.

Smoke Detector(s):

Hardwired with battery backup

Safety Switches:

RCD safely switch and circuit breakers to meter box.

ROOFING Roof Pitch:

Roof Pitch to be 22.5 degrees

RECYCLED WATER CONNECTION

Material:

Corrugated roof sheets

Fascia & Guttering:

Colourbond fascia, guttering and downpipes

Recycled Water Connection:

HEATING Heating:

Gas ducted heating to bedrooms and living areas (excludes wet areas). Total number of points and unit size product specific.

HOT WATER UNIT Hot Water System:

Instantaneous Hot Water System in Recycled Water Estates.

CEILINGS Height:

SITE CONDITIONS/FOUNDATIONS Foundation Class:

Up to Class ‘H’ concrete slab with a maximum of 300mm fall over building envelope. Allotment up to 600m2 with a maximum setback of 5m to the house.

Temporary Fencing:

Supply and hire of temporary fencing to site to council requirements.

Silt Fence:

Supply and hire of environmental silt fence to front of property as required by council.

Rock Allowance:

Allowance of rock excavation and removal (if percussive equipment is required, extra charge will apply).

Termite Treatment:

Termite spray system where required by relevant authority.

Angle of Repose:

Home to be sited to a minimum of three metres off easement. If sited closer, additional charges may apply.

Wind Classification:

Up to N2 Wind Classification.

2590mm height throughout

STORAGE Shelving:

Walk in Robe: One white melamine shelf

Robes:

One white melamine shelf with hanging rail

Pantry/Linen:

Four white melamine shelves

Doors:

Robes – 2040mm high Redicote flash panel, hinged or sliding doors as per plan.

Provide recycled water connection if required (additional charges will apply)

Linen – 2040mm high Redicote flush panel, hinged door(s).

Flush pull in polished chrome finish

Eight Homes reserves the right to substitute the make, model or type of any of the products to maintain the quality and product development of its homes. Changes may be made subject to Residential Development Standards (ResCode requirements).

Window and sliding door sizes may vary subject to energy rating requirements. Electricity transfer fees may apply. Visual images provided is for illustrative purposes only and not to be used as final. Colours, materials may vary. October 2025

INITIAL

Handles:

NEW HOME TURN KEY

INCLUSIONS Lot 5518 Launch Drive, Tarneit ELVIRA – S3

CONNECTION COSTS

WINDOW FURNISHINGS & FLYSCREENS

Connection of services (water, gas, electricity, sewer, stormwater and telephone conduit). Does not include electricity and telephone consumer account opening fees.

Modern & Stylish Roller Blinds cover every window, and flyscreens are fitted to every opening window for complete privacy and comfort.

LANDSCAPING The front and rear of your home will be fully landscaped Including a Mixture of Garden Beds, Turf, Permeable Toppings (Completed to Developer Guidelines if applicable). Landscaping Package is also Inclusive of Front and Rear Drip System with Timer, Fold Clothesline and Modern Letterbox.

FENCING

SPLIT SYSTEM AIR CONDITIONER Wall Mounted Reverse Cycle Split System with Isolation Switch and Condenser.

ALARM SYSTEM Alarm system with 3 sensors inc. panel to walk in robe and keypad to entrance inc. single power point.

Your home is fenced with 1800mm High Timber Pailing Fence to Sides and Rear of the Dwelling Including Side Wing Fence and Gate. Note: Fencing Height and Material may be subject to Developer Guidelines and Approval.

FIBRE OPTIC READY

DRIVEWAY & PATH

Note: Service Provider Specific to Developer Guidelines.

Your home comes complete with Fibre Optic Service Ready for Internet Connection

Eight Homes reserves the right to substitute the make, model or type of any of the products to maintain the quality and product development of its homes. Changes may be made subject to Residential Development Standards (ResCode requirements).

Window and sliding door sizes may vary subject to energy rating requirements. Electricity transfer fees may apply. Visual images provided is for illustrative purposes only and not to be used as final. Colours, materials may vary. October 2025

INITIAL

Your home includes Concrete Paving to Driveway and Porch(Floorplan Specific Only) Disclaimer: Concrete Paving is not sealed.

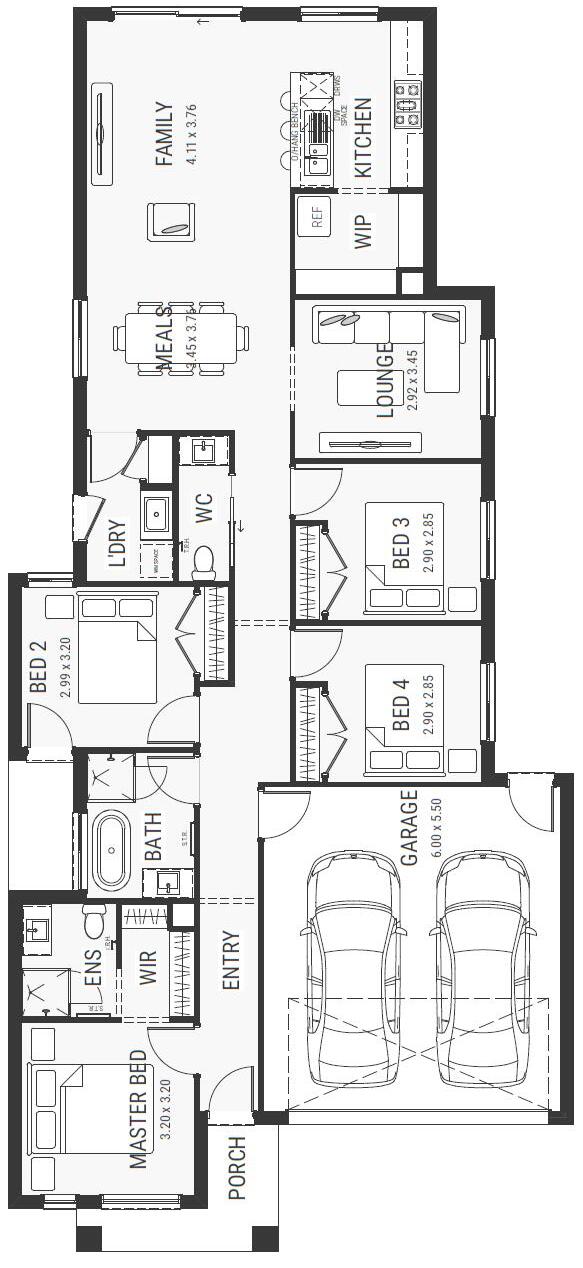

Lot 5518 LAUNCH DR

Living

141.67 m2

15.25 sqs

Garage

2

37.06 m

3.99 sqs

ELVIRA – S3

Porch

5.01 m

0.54 sqs

2

2

2

Lot Size: 10.5m x 28m

TOTAL

Eight Homes reserves the right to substitute the make, model or type of any of the products to maintain the quality and product development of its homes. Changes may be made subject to Residential Development Standards (ResCode requirements).

Window and sliding door sizes may vary subject to energy rating requirements. Electricity transfer fees may apply. Visual images provided is for illustrative purposes only and not to be used as final. Colours, materials may vary. October 2025

INITIAL

4

2

183.74 m2 19.78 sqs

SCHEME 2

CLASSIC MIST

Colorbond Roof

Render Colour 1

Render Colour 2

Woodland Grey

CB – Dune

Polar Bear 7

Gutter & Fascia

Downpipe & Windows

Timber Post (if applicable)

Woodland Grey

Dune

Polar Bear 7

Cladding & Front Door

Garage Door

Balsa 1

Dune

Eight Homes reserves the right to substitute the make, model or type of any of the products to maintain the quality and product development of its homes. Changes may be made subject to Residential Development Standards (ResCode requirements).

Window and sliding door sizes may vary subject to energy rating requirements. Electricity transfer fees may apply. Visual images provided is for illustrative purposes only and not to be used as final. Colours, materials may vary. October 2025

INITIAL

Image swatches for illustrative purposes only.

SCHEME 2

CLASSIC MIST

Floor Tiles

Carpet

Timber Flooring

Connect Pumice 400 x 400

Island – Timber Wolf

Marquis – Washed Oak

Paint Colour

Overhead Cabinet Laminate

Balsa 1

Formica – Cinnamon Ash

Kitchen Splashback

Kitchen Benchtop

Base Cabinet Laminate

Voyage Pumice Gloss 100 x 300

Quantum Zero – Luna White

Formica – Malibu

Bathroom/Ensuite Benchtop

Bathroom/Ensuite Base

Blinds

Quantum Zero – Luna White

Formica – Cinnamon Ash

Caulk finish

Eight Homes reserves the right to substitute the make, model or type of any of the products to maintain the quality and product development of its homes. Changes may be made subject to Residential Development Standards (ResCode requirements).

Window and sliding door sizes may vary subject to energy rating requirements. Electricity transfer fees may apply. Visual images provided is for illustrative purposes only and not to be used as final. Colours, materials may vary. October 2025

INITIAL

Image swatches for illustrative purposes only.
