NYCT Subway Station ADA Upgrade Location:

New York, United States

Proprietor:

MTA / New York City Transit

Architects:

di Domenico + Partners

Consultant:

Stantec / HDR / WSP

Project Years: 2017Building Type: Transportation Position:

Project Architect, PD / SD / DD / CD

New York City Transit launched the plan of systematically upgrade the subway station hardware and make the

subway system completely accessible. di Domenico +

Partners is teamig up with Stantec on the feasibility study of over 150 stations across the five boroughs. Scope

of work includes on site investigation, documentation

of existing conditions, provide accessibility solution in drawing format and presentation to the authority.

ED AT EV EL

S IDE -S

ND OU GR R DE UN

ES SID

ED AT EV EL

D AN ISL

ND OU GR R DE UN

NK

BA

EM

D AN ISL EN OP

TCU

S

IDE

S T-

N ME

T-

N ME

NK

BA

EM

ES SID EN

OP

UT

C

D

AN

ISL

D

AN

ISL

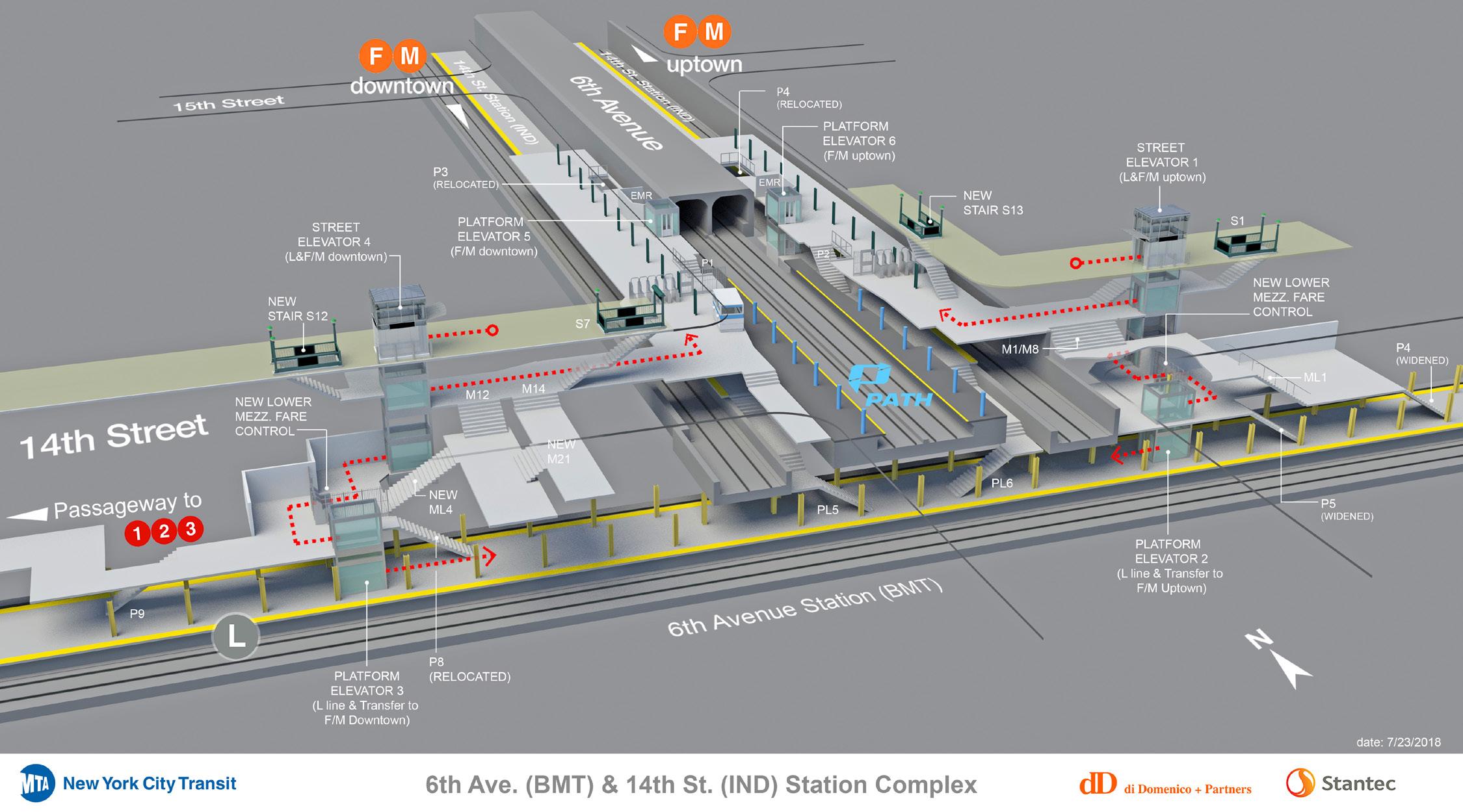

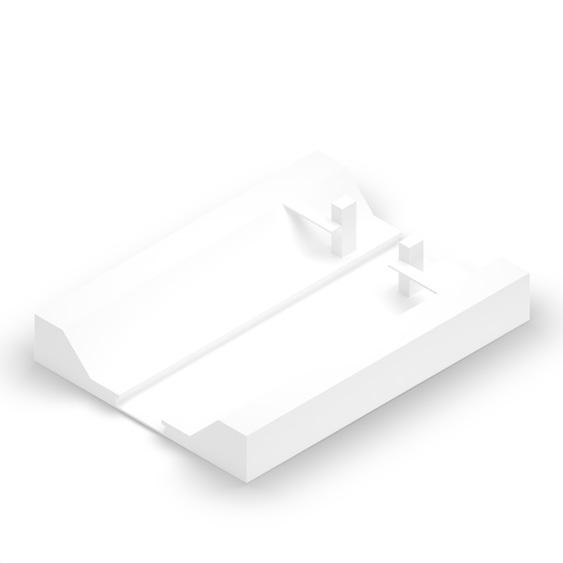

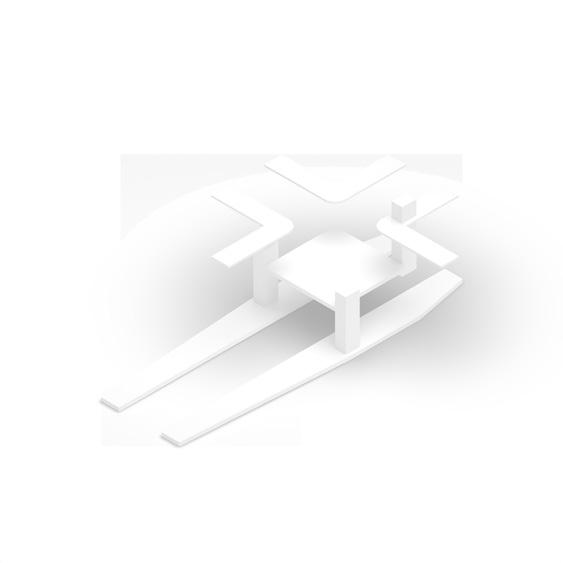

Station Typology Analysis

14th Street / 6th Avenue Station, Manhattan

While some stations share the same typology, each station is in an unique condition and faces different surrounding contexts and therefore makes every

station a distinctive challenge. Solutions often involve

installing new elevators and providing supportive stair

or ramp. The attention the spatial organization in each

station, ADA standard, and how is the addition structure interacting with the environment within is critical.

New EDR 463sf

ELECTRONIC MAINT. RM.

New EDR 463sf

ELECTRONIC MAINT. RM.

ADA Boarding Area

HEADROOM 8'

ADA Boarding Area

HEADROOM 8'

ADA Boarding Area

ADA Boarding Area EMR 161sf

EMR 161sf

New York City Transit Authority New York City Vernon Boulevard-Jackson Avenue Station STANTEC CONSULTING Transit Authority

EXISTING UNPAID AREA EXISTING PAID AREA

475 5th Ave, 12th Floor New York, NY 10017

STANTEC CONSULTING

EXISTING SERVICE SPACES



NEW UNPAID AREA

Proposed Location ADA Boarding Area Proposed Location ADA Boarding Area

NEW PAID AREA

475 5th Ave, 12th Floor

d i D oNew m eYork, n i c NY o +10017 Partners

3743 CRESCENT ST., L.I.C., NY 11101

 d i D o m e n i c o + P a r t n e r s

3743 CRESCENT ST., L.I.C., NY 11101

NEW UNPAID ELEVATOR/STAIR NEW PAID ELEVATOR/STAIR

(MR 464) Vernon Boulevard-Jackson 7 Line Avenue Station (MR 464) Proposed Scheme 7 Line Platform Level Proposed Scheme Platform Level A-304

NEW SERVICE SPACES

A-304

Underground Side Platforms / Vernon Blvd - Jackson Ave Station, Queens

ADA Boarding Area Narrow down existing platform stairs

Reframe canopy structure ADA Boarding Area

Narrow down existing platform stairs

Reframe canopy structure ADA Boarding Area

ADA Boarding Area

New York City Transit Authority New York City STANTEC CONSULTING Transit Authority

EXISTING UNPAID AREA EXISTING PAID AREA EXISTING SERVICE SPACES

475 5th Ave, 12th Floor New York, NY 10017

NEW UNPAID AREA NEW PAID AREA NEW UNPAID ELEVATOR/STAIR

Proposed Location ADA Boarding Area Proposed Location ADA Boarding Area

NEW PAID ELEVATOR/STAIR NEW SERVICE SPACES

Elevated Island Platform / Parkchester Station, Bronx

STANTEC CONSULTING

 d i

475 5th Ave, 12th Floor D oNew m eYork, n i c NY o +10017 Partners

3743 CRESCENT ST., L.I.C., NY 11101

 d i D o m e n i c o + P a r t n e r s

3743 CRESCENT ST., L.I.C., NY 11101

Parkchester (MR 366) 6 Line Parkchester (MR 366) Proposed Scheme 6 Line Platform Level Proposed Scheme Platform Level A-303 A-303

Involve property acquisition

ADA Boarding Area

ADA Boarding Area

EMR 151sf

New York City Transit Authority

EXISTING UNPAID AREA EXISTING PAID AREA

STANTEC CONSULTING

EXISTING SERVICE SPACES

475 5th Ave, 12th Floor New York, NY 10017

NEW UNPAID AREA NEW PAID AREA NEW UNPAID ELEVATOR/STAIR

Proposed Location ADA Boarding Area



di Domenico+Partners

3743 CRESCENT ST., L.I.C., NY 11101

Avenue J Station (MR 49) Q Line Proposed Scheme Platform Level

NEW PAID ELEVATOR/STAIR NEW SERVICE SPACES

A-306

Embankment Side Platforms / Avenue J Station, Brooklyn

Relocate existing overpass

Narrow down existing stairs for platform clearance

New York City Transit Authority

EXISTING UNPAID AREA EXISTING PAID AREA

STANTEC CONSULTING

EXISTING SERVICE SPACES

475 5th Ave, 12th Floor New York, NY 10017

NEW UNPAID AREA NEW PAID AREA NEW UNPAID ELEVATOR/STAIR

Proposed Location ADA Boarding Area

 d i D o m e n i c o + P a r t n e r s

3743 CRESCENT ST., L.I.C., NY 11101

Tompkinsville Station (MR 502) Staten Island Railway Proposed Scheme Street Level

NEW PAID ELEVATOR/STAIR NEW SERVICE SPACES

Open Cut Side Platforms / Tompkinsville Station, Staten Island

A-301

CANAL STREET STATION (MR 18, MR19, MR 104, MR410) EXISTING UNPAID AREA

LAF AYE T

EXISTING PAID AREA

TE

NEW UNPAID AREA

ST

NEW PAID AREA NEW UNPAID ELEVATOR/STAIR

W AR D

ST

NEW PAID ELEVATOR/STAIR

HO

NEW SERVICE SPACES

NEW PAID ELEVA -6 DOWNTOWN P -N,Q UPTOWN PL NEW UNPAID ELEVATOR EL 9 -STREET LEVEL NEW PAID ELEVATOR EL 6 -R,W UPTOWN MEZZANINE -R,W UPTOWN MEZZANINE -N,Q UPTOWN PLATFORM

BRO

ADW AY

EXTEND RAMP TO MEET ADA REQUIREMENT S6

S12ABC

S7

M3

UPT OW

N

ADA

S10 S11

BOA

BOA

RDI

RDI

NG

P14

ARE

A

NG

A

CA

ST

PL28

P10

NEW STAIR ML28 TO PREVENT DEAD-END CORRIDOR

PL22

S8

NEW STREET STAIR S9, M9

L NA

PL31 M2

ARE

P11

NEW UNPAID ELEVATOR EL 10 -STREET LEVEL -R,W DOWNTOWN MEZZANINE

PL29

NEW RAMP -MEZZANINE ADA -PLATFORM

PL24 PL23

DOW PL27 PL26

NTO

WN

NEW PAID ELEVATOR EL 8 -R,W DOWNTOWN PLATFORM -UNDERGROUND CONNECTOR

CEN

TRE

ADA

ADA

N

BO

WN

ING

S6 S3

S3ABC

S2 ADA

PL10 P6

PL9

BOA

RDIN

P3

P2

ARE

A

S1

ATOR EL 4 PLATFORM LATFORM

ML2 P5

PL13

IN

G

A

R

E

A

P1

D

A

R

E

A

R

O

A

B

G

A

IN

D A

D

A

B

O

A

R

D

A

PL19

PL16

NEW PAID ELEVATOR EL 3 -6 DOWNTOWN PLATFORM -N,Q DOWNTOWN PLATFORM

N

OW PT

U

PL18

R KE

PL30

W AL

DO

ST

N

W TO WN

NEW PAID ELEVATOR EL 5 -R,W UPTOWN MEZZANINE -N,Q DOWNTOWN PLATFORM NEW PAID ELEVATOR EL 7 -R,W UPTOWN MEZZANINE -UNDERGROUND CONNECTOR

BRO

ADW AY

PL6

PL4

NTO

PL11

ML1

REA

DOW

PL41

PL15

PL17

GA

PL5

S5

N

ST

EXISTING ELEVATOR #324

N

EXISTING ELEVATOR ARD ING #325 ARE A

TOW

ARD

CA

BO

UPT OW

DO

ST

UPT OW

NEW PAID ELEVATOR EL 2 -6 UPWNTOWN PLATFORM -N,Q UPTOWN PLATFORM

L NA

WN

NEW PAID ELEVATOR EL 1 NEW PLATFORM STAIR PL7,PL8, PL40 -J,Z PLATFORM -N,Q DOWNTOWN PLATFORM

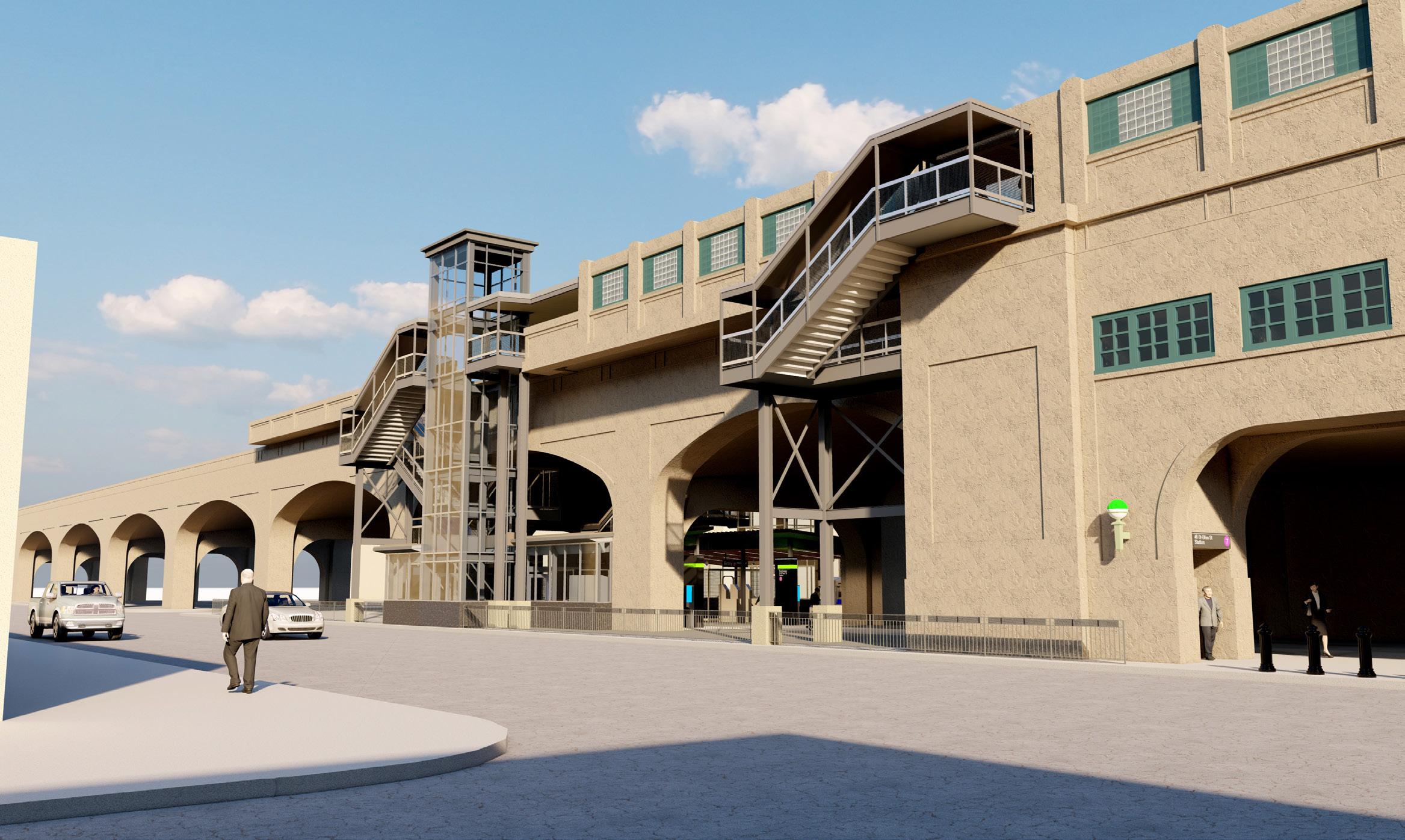

46th St - Bliss St Station Exterior View

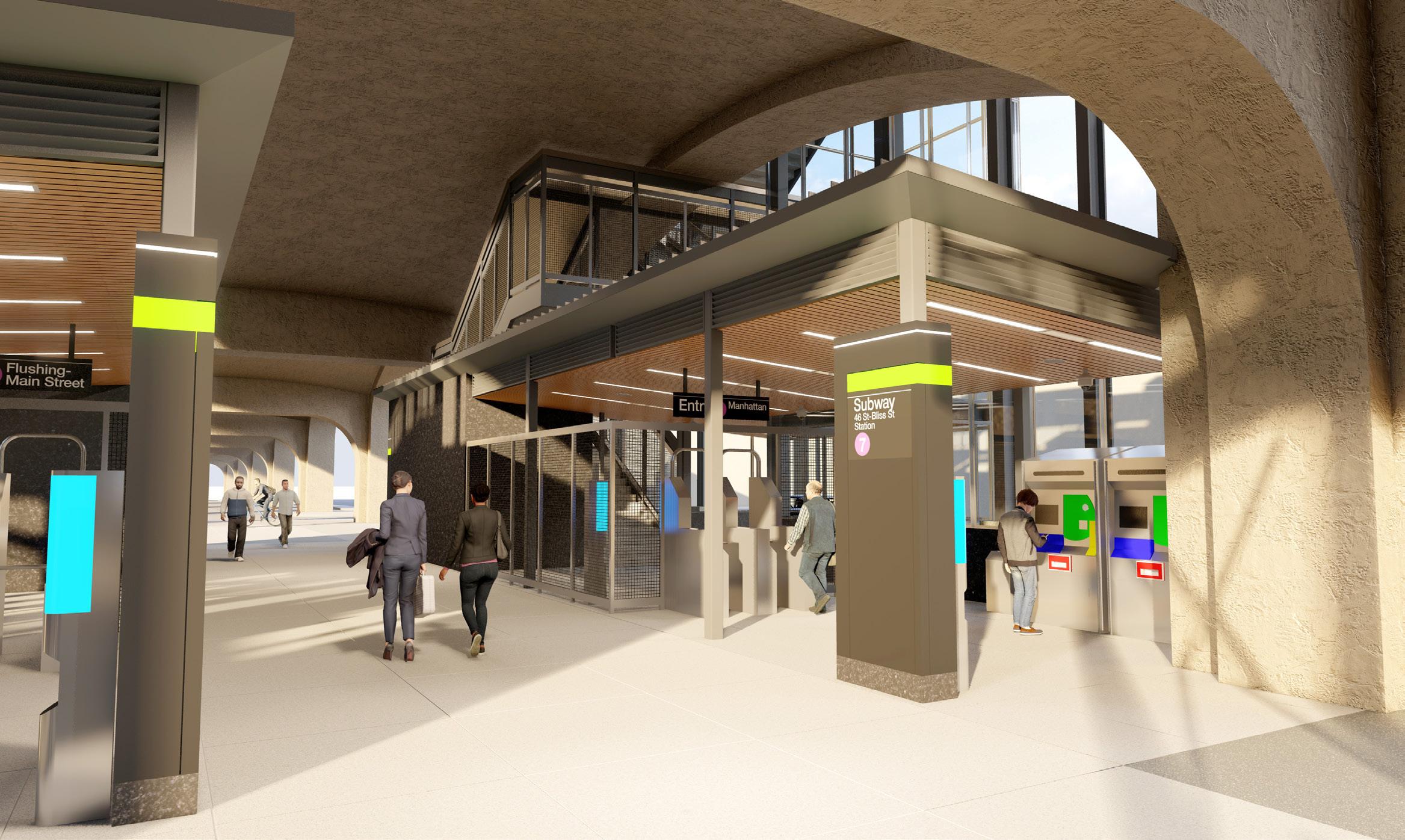

46th St - Bliss St Station Entrance View

25-01 Queens Plaza North MTA Exit Location:

New York, United States

Proprietor:

MTA / New York City Transit

Architects:

di Domenico + Partners

Cooperator:

Handel Architects

Project Years: 2019Building Type: Transportation Position:

Project Architect, PD / SD / DD / CD / CA

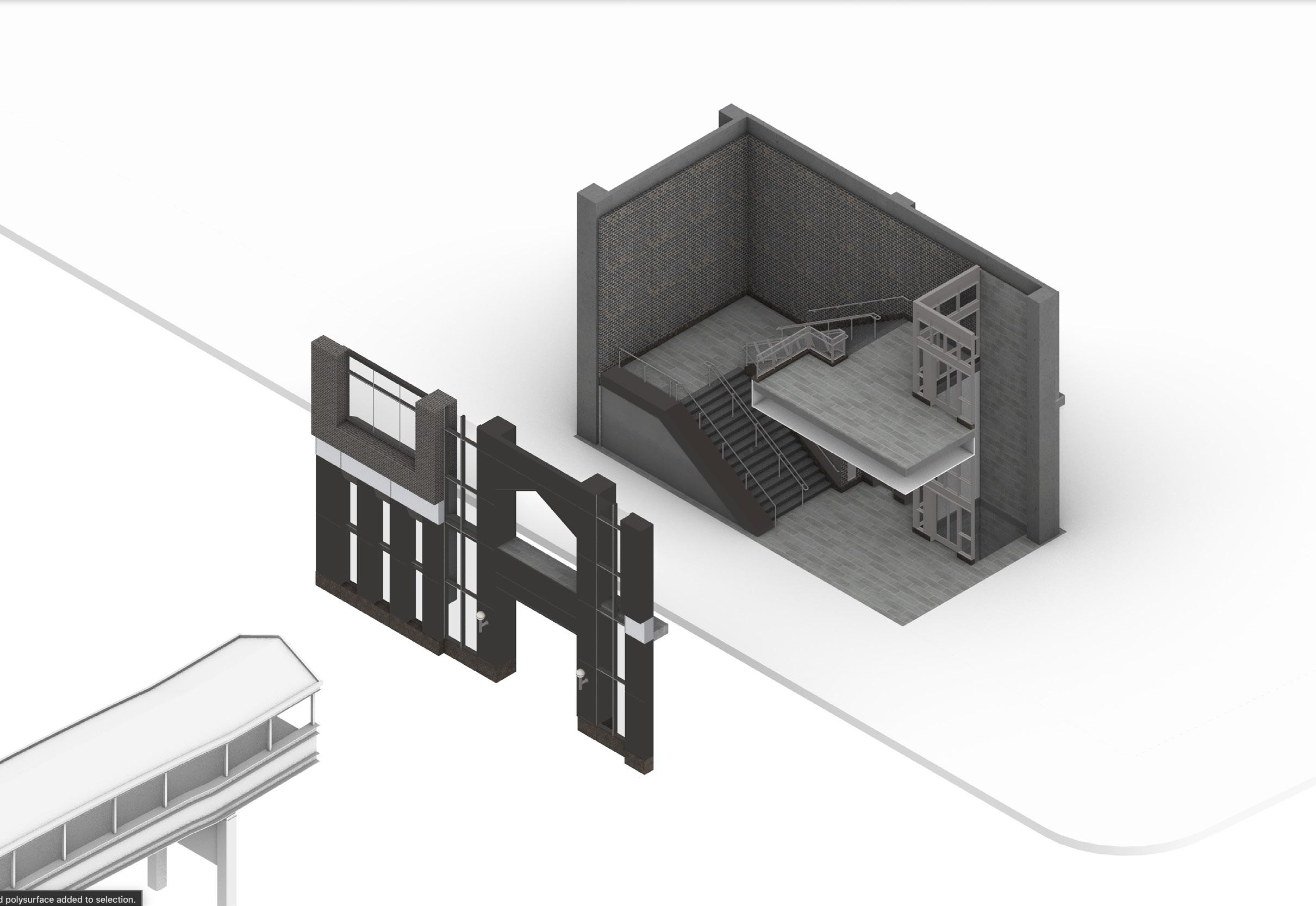

di Domenico + Partner is working on the new MTA exit

at Queens Plaza. The project provides stair and elevator within the MTA easement in a new mixed-use building,

and a temporary stairs to maintain access to the station

while the existing building was demolished – connecting

the sidewalk level to the pedestrian walkway over Queens Plaza North. Structural concrete has now been completed and interior finish work of the space is in progress.

IT IS A VIOLATION OF THE PROFESSIONAL LICENSE LAW FOR ANY PERSON TO ALTER THIS DRAWING IN ANY WAY, UNLESS ACTING UNDER THE DIRECTION OF A LICENSED PROFESSIONAL ENGINEER / REGISTERED ARCHITECT. THE ALTERING ENGINEER/ARCHITECT SHALL AFFIX TO THE DRAWING HIS/HER SEAL AND THE NOTATION "ALTERED BY" FOLLOWED BY HIS/HER SIGNATURE AND THE DATE OF SUCH ALTERATION, AND A SPECIFIC DESCRIPTION OF THE ALTERATION.

REVISION

DESCRIPTION

REVISIONS

DATE

APPROVED

CONSTRUCTION & DEVELOPMENT

PSE# R50764: 25-01 QUEENS PLAZA NORTH STAIR AND ELEVATOR TO QUEENSBORO PLAZA STATION LINES 7 (IRT) & N,W (BMT) IN THE BOROUGH OF QUEENS

dD d i D o m e n i c o + P a r t n e r s

REVISIONS

FILE: A-121_PROPOSED PLAN PEDESTRIAN BRIDGE LEVEL.DGN

ARCHITECTURE DRAWING NO.

APPROVED BY

REVISION

FWU

PRINT AS OF 16-JUN-2023

IT IS A VIOLATION OF THE PROFESSIONAL LICENSE LAW FOR ANY PERSON TO ALTER THIS DRAWING IN ANY WAY, UNLESS ACTING UNDER THE DIRECTION OF A LICENSED PROFESSIONAL ENGINEER / REGISTERED ARCHITECT. THE ALTERING ENGINEER/ARCHITECT SHALL AFFIX TO THE DRAWING HIS/HER SEAL AND THE NOTATION "ALTERED BY" FOLLOWED BY HIS/HER SIGNATURE AND THE DATE OF SUCH ALTERATION, AND A SPECIFIC DESCRIPTION OF THE ALTERATION.

DESCRIPTION

DATE :

DESIGNED BY

CHECKED BY

FILE: A-120_PROPOSED PLAN STREET LEVEL.DGN

REVISION

DRAWN BY

DATE

APPROVED

CONSTRUCTION & DEVELOPMENT

dD d i D o m e n i c o + P a r t n e r s

PSE# R50764: 25-01 QUEENS PLAZA NORTH STAIR AND ELEVATOR TO QUEENSBORO PLAZA STATION LINES 7 (IRT) & N,W (BMT) IN THE BOROUGH OF QUEENS

DRAWN BY

DESIGNED BY

DATE :

ARCHITECTURE DRAWING NO.

CHECKED BY

APPROVED BY

PRINT AS OF 16-JUN-2023

REVISION

FWU

E

P

O

R

P

BA S HA E BU ND ILD EL IN AR G B CH Y ITE CT

INTERIOR BRICK VENEER FINISH

TY R

S

E

N LI

ADA COMPLIANT STAIRS

VOLUME OF MTA EASEMENT

BACK OF HOUSE SPACE UNDERNEATH

CMU BACKUP

LK

A W

E

ID

S E

L.

EE

+1

39

QU

.7

2’

ELEVATOR SHAFT

AZ

AN

GLASS AND STAINLESS STEEL ELEVATOR ENCLOSURE

+1

21

.2

2’

OR TH

L.

PL

E

NS

CEILING AND LIGHT FIXTURES ELEVATOR PIT 1’ x 3’ FLOOR TILE AT 1:12 DRAIN SLOPE

TY R

E

P

O

R

LK

A W

E

P

ID

S E

N

LI

EXISTING MTA PEDASTRIAN BRIDGE CONNECTING TO QUEENSBOROU PLAZA STATION

BASE BUILDING FACADE CURTAIN WALL, BRICK VENEER AND METAL CLADDING

Queensboro Plaza Station is a major transit hub which serves the N, W, and 7 trains

in Long Island City. The existing MTA easement were kept and modified by negotiating

with the developer, in order to provide the necessary service. The project involves close coordination with the base building architect, consultants from various disciplines, the elevator manufacturer, and the wayfinding department of MTA.

Exit Elevator to street

PUSH FOR HELP

ELEVATOR TO STREET ELEVATOR TO STREET

BLINKING INDICATES CALL ANSWERED HELP IS ON THE WAY

DN DN

PRESS AND RELEASE FOR ASSISTANCE

PU

TO MEZZANINE Elevator to Bridge & Queenboro Plaza Station

N W 7

EMERGENCY POWER

25-01 QUEENS PLAZA NORTH SUBWAY ENTRANCE STAIR & ELEVATOR FIRE ALARM CONTROL PANEL

FOR FIRE DEPARTMENT USE ONLY NORMAL

FIREMEN SERVICE

FIRE RECALL

ELEVATOR TO BRIDGE

FIREFIGHTER'S OPERATION TO RECALL ELEVATOR INSERT FIRE KEY AND TURN TO FIREMEN SERVICE

N W 7 ELEVATOR TO BRIDGE

BLINKING INDICATES CALL ANSWERED HELP IS ON THE WAY

UP

UP

PU

PRESS AND RELEASE FOR ASSISTANCE

IT IS A VIOLATION OF THE PROFESSIONAL LICENSE LAW FOR ANY PERSON TO ALTER THIS DRAWING IN ANY WAY, UNLESS ACTING UNDER THE DIRECTION OF A LICENSED PROFESSIONAL ENGINEER / REGISTERED ARCHITECT. THE ALTERING ENGINEER/ARCHITECT SHALL AFFIX TO THE DRAWING HIS/HER SEAL AND THE NOTATION "ALTERED BY" FOLLOWED BY HIS/HER SIGNATURE AND THE DATE OF SUCH ALTERATION, AND A SPECIFIC DESCRIPTION OF THE ALTERATION.

REVISION

DESCRIPTION

REVISIONS

DATE

APPROVED

PSE# R50764: 25-01 QUEENS PLAZA NORTH STAIR AND ELEVATOR TO QUEENSBORO PLAZA STATION LINES 7 (IRT) & N,W (BMT) IN THE BOROUGH OF QUEENS

dD d i D o m e n i c o + P a r t n e r s

CONSTRUCTION & DEVELOPMENT

DRAWN BY

DATE :

ARCHITECTURE

DESIGNED BY

DRAWING NO. CHECKED BY

APPROVED BY

FILE: A-303_PROPOSED SECTIONS 4 OF 8.DGN

REVISION

FWU

PRINT AS OF 16-JUN-2023

QUEENSBORO PLAZA N W 7 QUEENSBORO PLAZA

IT IS A VIOLATION OF THE PROFESSIONAL LICENSE LAW FOR ANY PERSON TO ALTER THIS DRAWING IN ANY WAY, UNLESS ACTING UNDER THE DIRECTION OF A LICENSED PROFESSIONAL ENGINEER / REGISTERED ARCHITECT. THE ALTERING ENGINEER/ARCHITECT SHALL AFFIX TO THE DRAWING HIS/HER SEAL AND THE NOTATION "ALTERED BY" FOLLOWED BY HIS/HER SIGNATURE AND THE DATE OF SUCH ALTERATION, AND A SPECIFIC DESCRIPTION OF THE ALTERATION.

REVISION

DESCRIPTION

DATE

APPROVED

CONSTRUCTION & DEVELOPMENT

dD d i D o m e n i c o + P a r t n e r s

PSE# R50764: 25-01 QUEENS PLAZA NORTH STAIR AND ELEVATOR TO QUEENSBORO PLAZA STATION LINES 7 (IRT) & N,W (BMT) IN THE BOROUGH OF QUEENS

DRAWN BY

DESIGNED BY

DATE :

ARCHITECTURE DRAWING NO.

CHECKED BY

APPROVED BY

REVISION

DESCRIPTION

REVISIONS

DATE

APPROVED

CONSTRUCTION & DEVELOPMENT

dD d i D o m e n i c o + P a r t n e r s

DRAWN BY

DESIGNED BY

APPROVED BY

PRINT AS OF 16-JUN-2023

at the interface between the base building elevation and the MTA-owned stair. The effort results in a generous, well-lit space that provides clear circulation direction

and a sense of belonging to the high volume of daily

ridership. Completion of the building with the new MTA

entrance, including stairs and an elevator, is anticipated for the 4th Quarter of 2024. dD d i D o m e n i c o + P a r t n e r s

DRAWN BY

DESIGNED BY

DATE :

ARCHITECTURE DRAWING NO.

CHECKED BY

APPROVED BY

PRINT AS OF 16-JUN-2023

ARCHI DRAWING NO.

Particular attention to detail was paid to the coordination

PSE# R50764: 25-01 QUEENS PLAZA NORTH STAIR AND ELEVATOR TO QUEENSBORO PLAZA STATION LINES 7 (IRT) & N,W (BMT) IN THE BOROUGH OF QUEENS

DATE :

CHECKED BY

FILE: A-310_ENLARGED SECTIONS.DGN

INEER / REGISTERED ARCHITECT. THE ALTERING IFIC DESCRIPTION OF THE ALTERATION.

TION MENT

PSE# R50764: 25-01 QUEENS PLAZA NORTH STAIR AND ELEVATOR TO QUEENSBORO PLAZA STATION LINES 7 (IRT) & N,W (BMT) IN THE BOROUGH OF QUEENS

IT IS A VIOLATION OF THE PROFESSIONAL LICENSE LAW FOR ANY PERSON TO ALTER THIS DRAWING IN ANY WAY, UNLESS ACTING UNDER THE DIRECTION OF A LICENSED PROFESSIONAL ENGINEER / REGISTERED ARCHITECT. THE ALTERING ENGINEER/ARCHITECT SHALL AFFIX TO THE DRAWING HIS/HER SEAL AND THE NOTATION "ALTERED BY" FOLLOWED BY HIS/HER SIGNATURE AND THE DATE OF SUCH ALTERATION, AND A SPECIFIC DESCRIPTION OF THE ALTERATION.

REVISION

FWU

REVISION

F

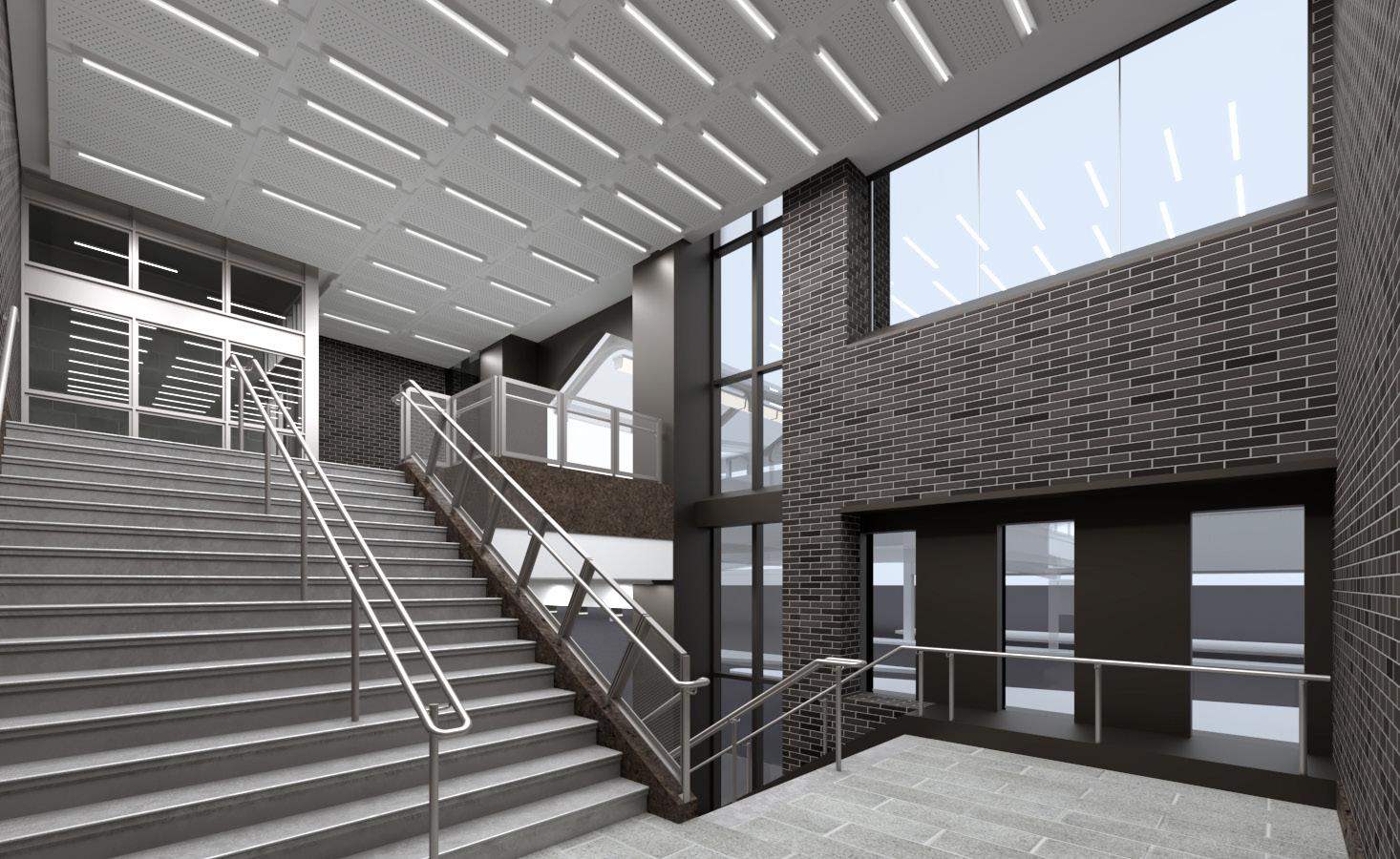

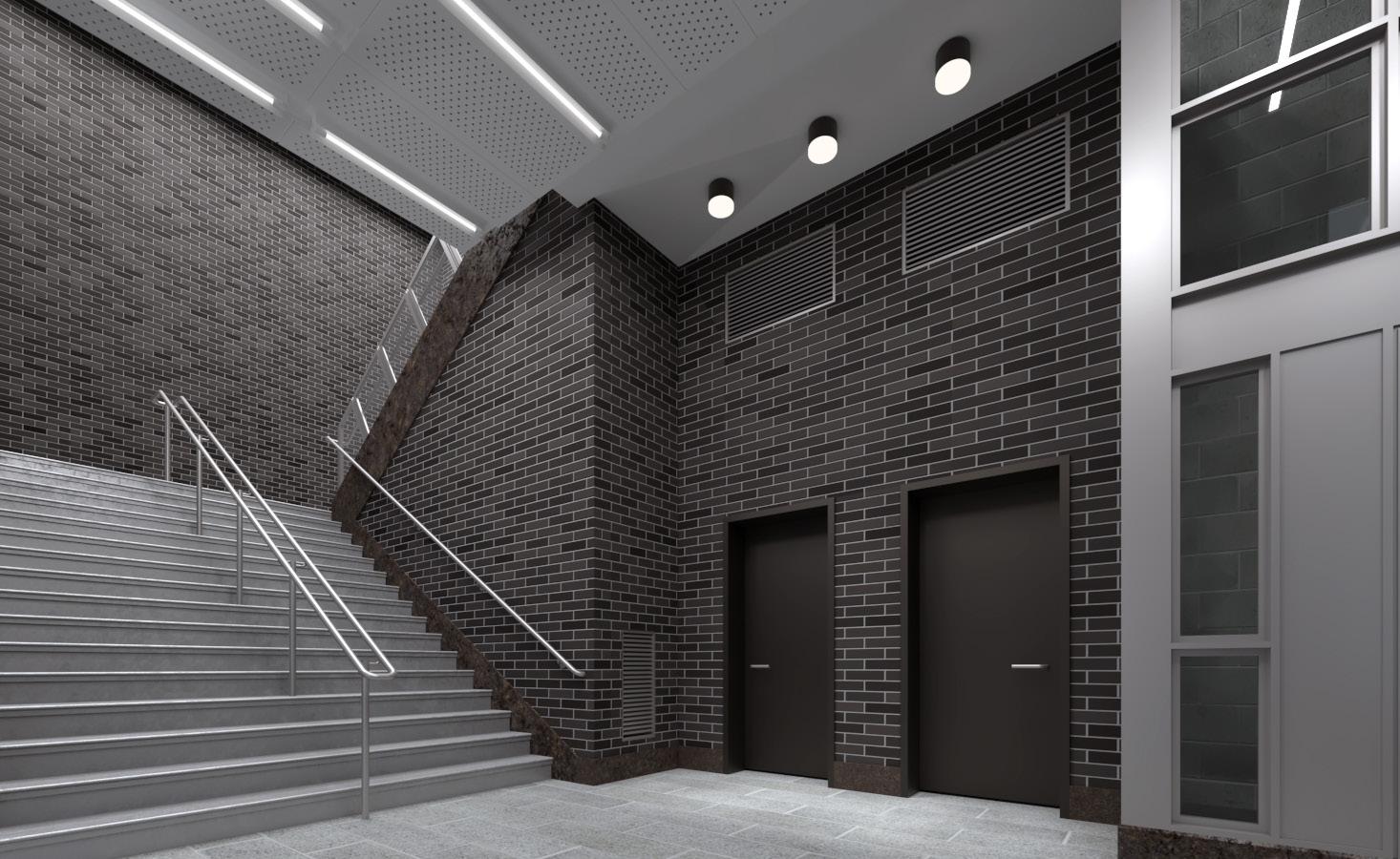

Landing Level View Looking South East

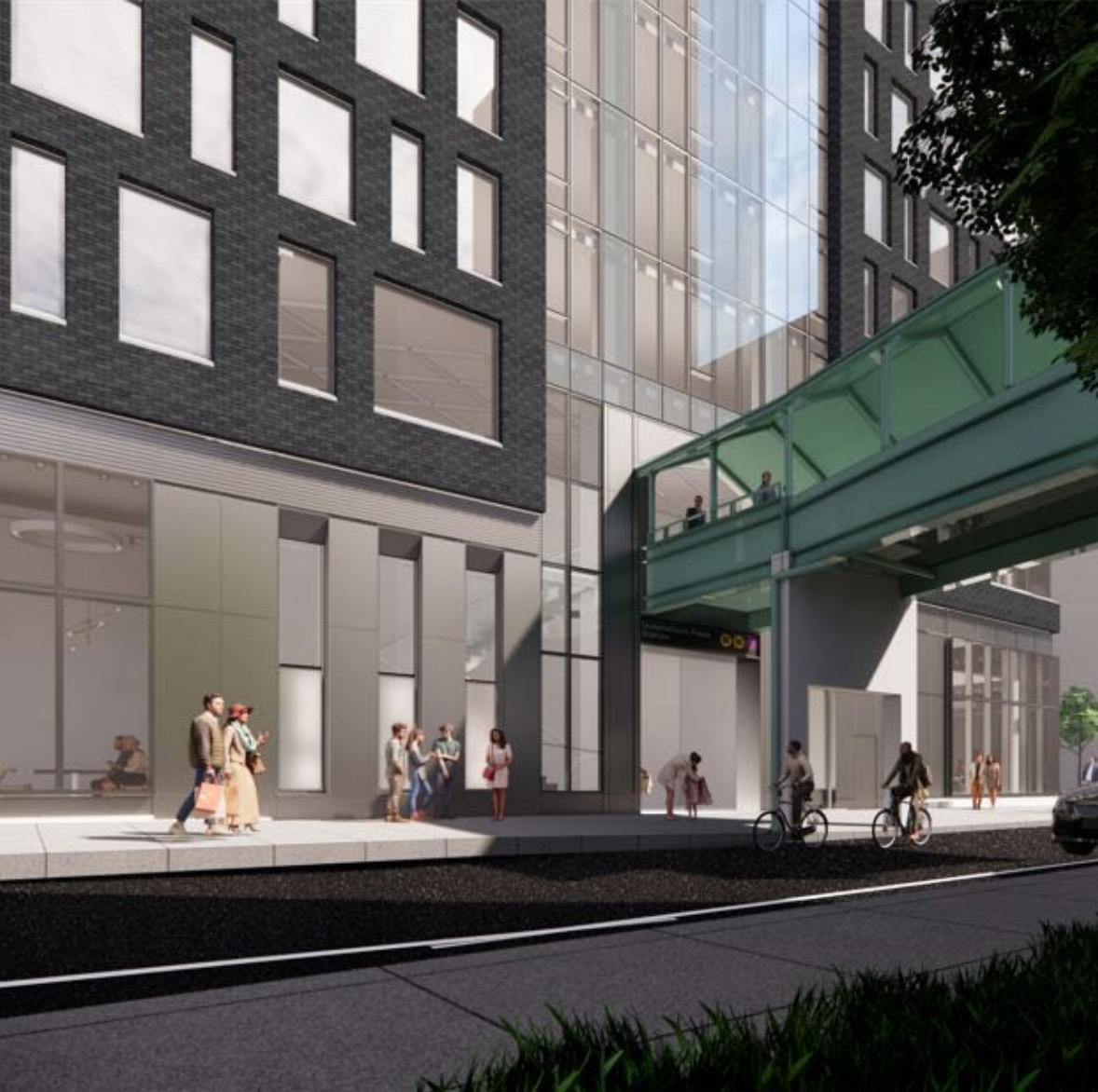

Street Level View Looking North West

Times Square Passageway - 42nd Street Connector Location:

New York, United States

Proprietor:

MTA / New York City Transit

Architects:

di Domenico + Partners

Contractor:

MLJ Contracting Corp.

Project Years: 2019-2022 Building Type: Transportation Position:

Project Designer, PD / SD / DD / CD / CA

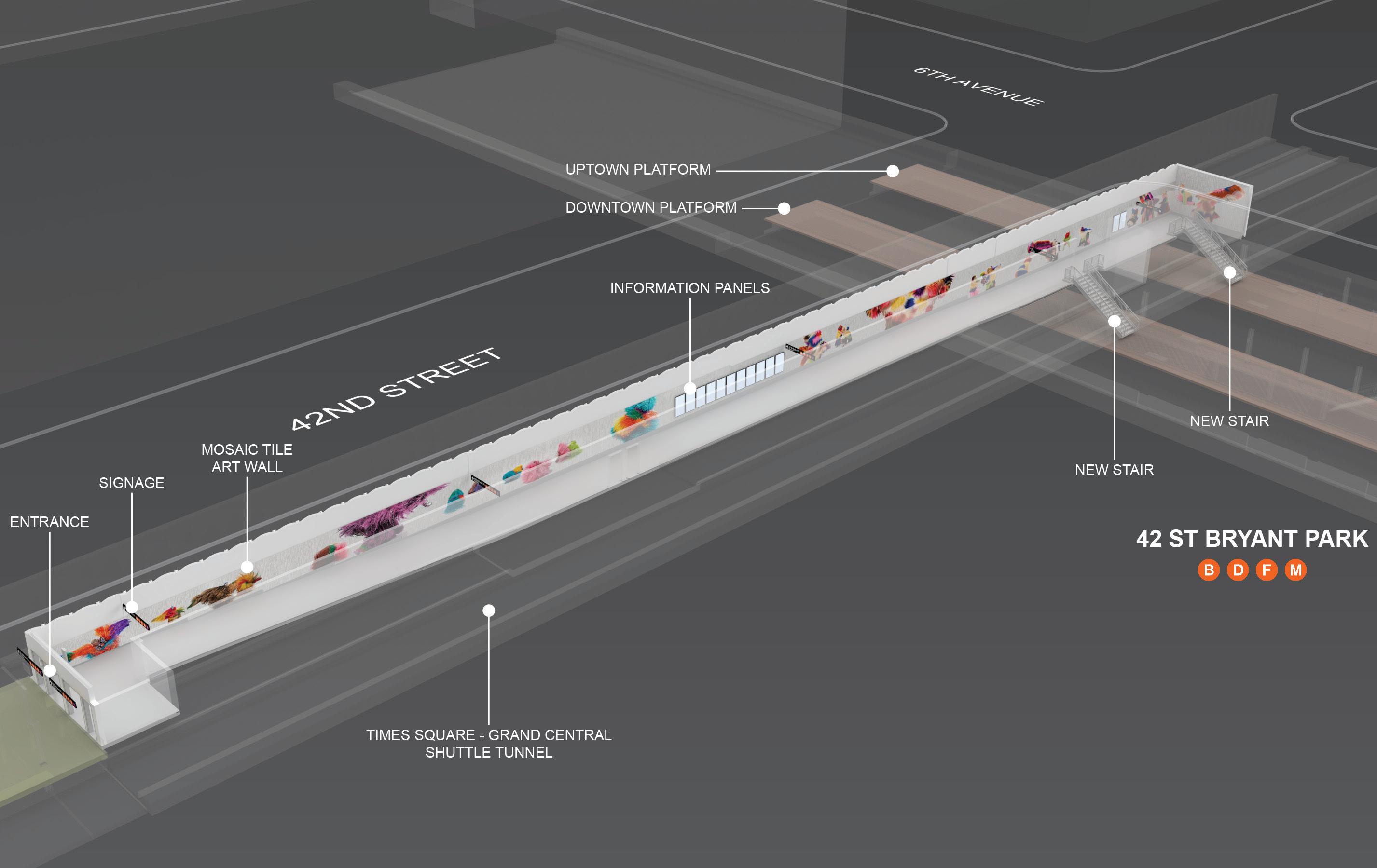

The new 42nd Street Connector was envisioned to ease

circulation between two high-trafficked stations, 42nd StTimes Square and Bryant Park, via a new underground

corridor configured from “found space,” granting access to four additional trains. The new corridor was developed by

repurposing abandoned track, underutilized infrastructure spaces, and navigating the labyrinth of existing underground areas.

100% CONSTRUCTION DRAWINGS

New York City Transit Authority

dD d i D o m e n i c o + P a r t n e r s

100% CONSTRUCTION DRAWINGS

New York City Transit Authority

dD d i D o m e n i c o + P a r t n e r s

100% CONSTRUCTION DRAWINGS

New York City Transit Authority

dD d i D o m e n i c o + P a r t n e r s

100% CONSTRUCTION DRAWINGS

New York City Transit Authority

dD d i D o m e n i c o + P a r t n e r s

Through the integration of updated technology and new stairways

to the 6th Avenue line platforms, the passageway serves as a

transformative infrastructural

addition, completing the unification of three 42nd Street stations and increasing total access to an

unprecedented 16 subway lines.

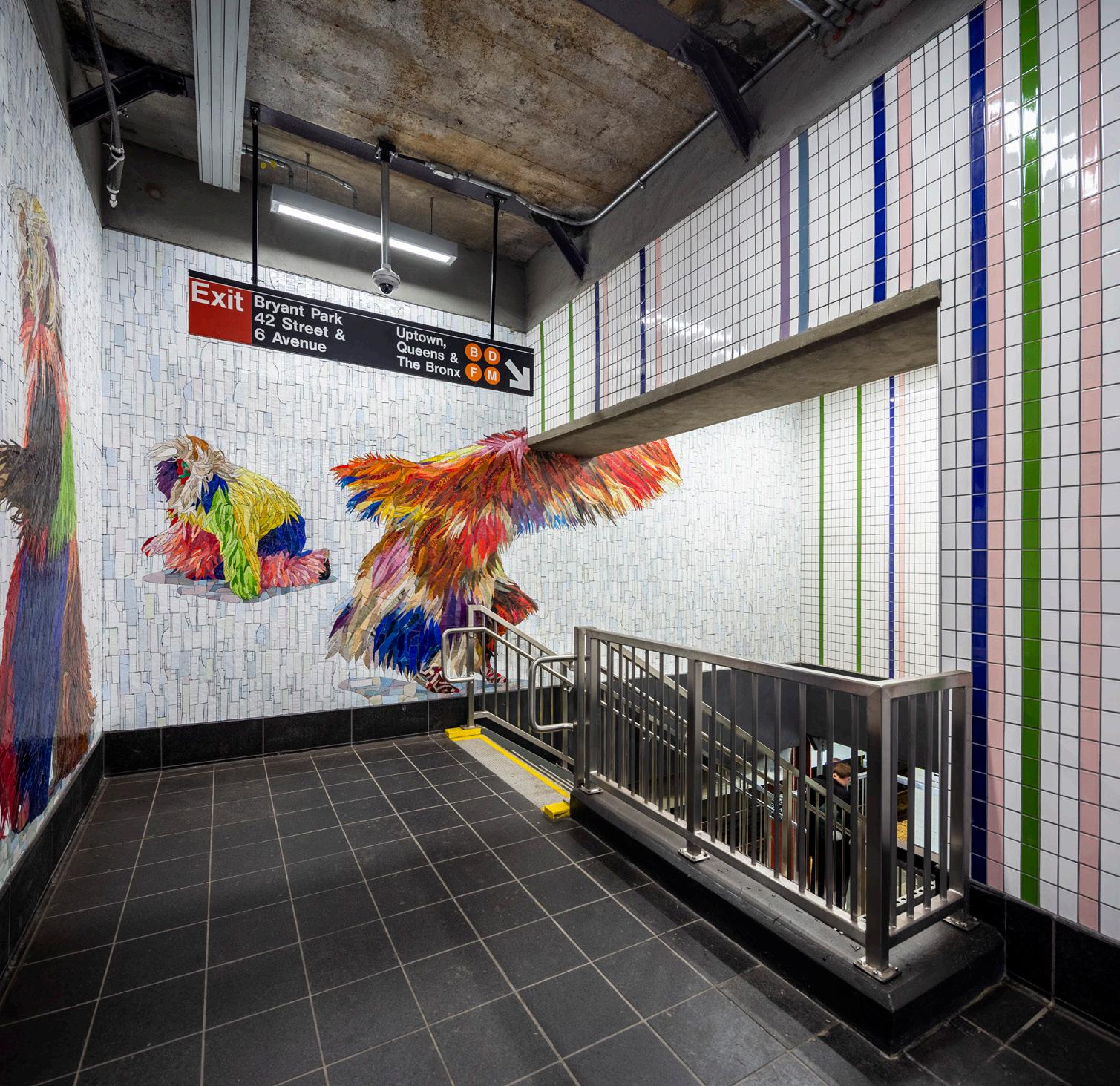

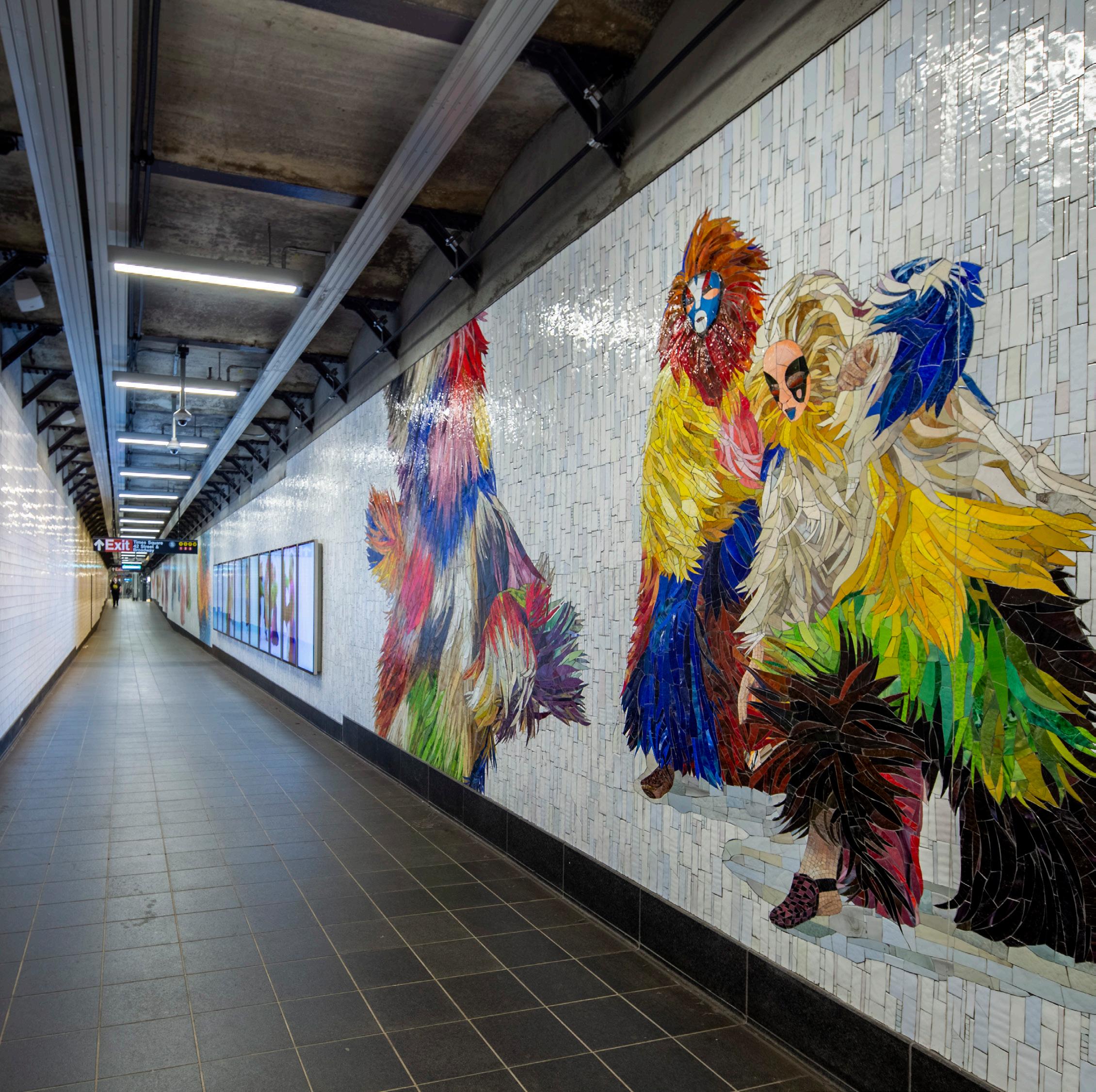

An expansive permanent artwork by Nick Cave, commissioned by MTA

Arts & Design, runs 360 linear feet of the passageway, spanning the

Connector’s North and East walls.

Along with the architecture, the

42nd Street Connector engage the

customer in a colorful visual journey and demonstrate the potential for infrastructure to inspire, inform, and invigorate the passenger experience.

Taifong Golf Club: The Siza House Location:

Chang-Hua County, Taiwan

Building Type: Entertainment Facility, Golf Club House

Proprietor:

Taiwan Glass

Building Area: 45,000 sq.ft.

Architects:

Álvaro Siza + Carlos Castanheira

Budget:

10,000,000 USD

Cooperator:

Ho+Hou Studio Architects,

Position:

Project Manager, Coordinator, CA

Studiobase Architects Project Years: 2009-2014

(joined in 2012) Photo Credit: © Fernando Guerra | FG + SG

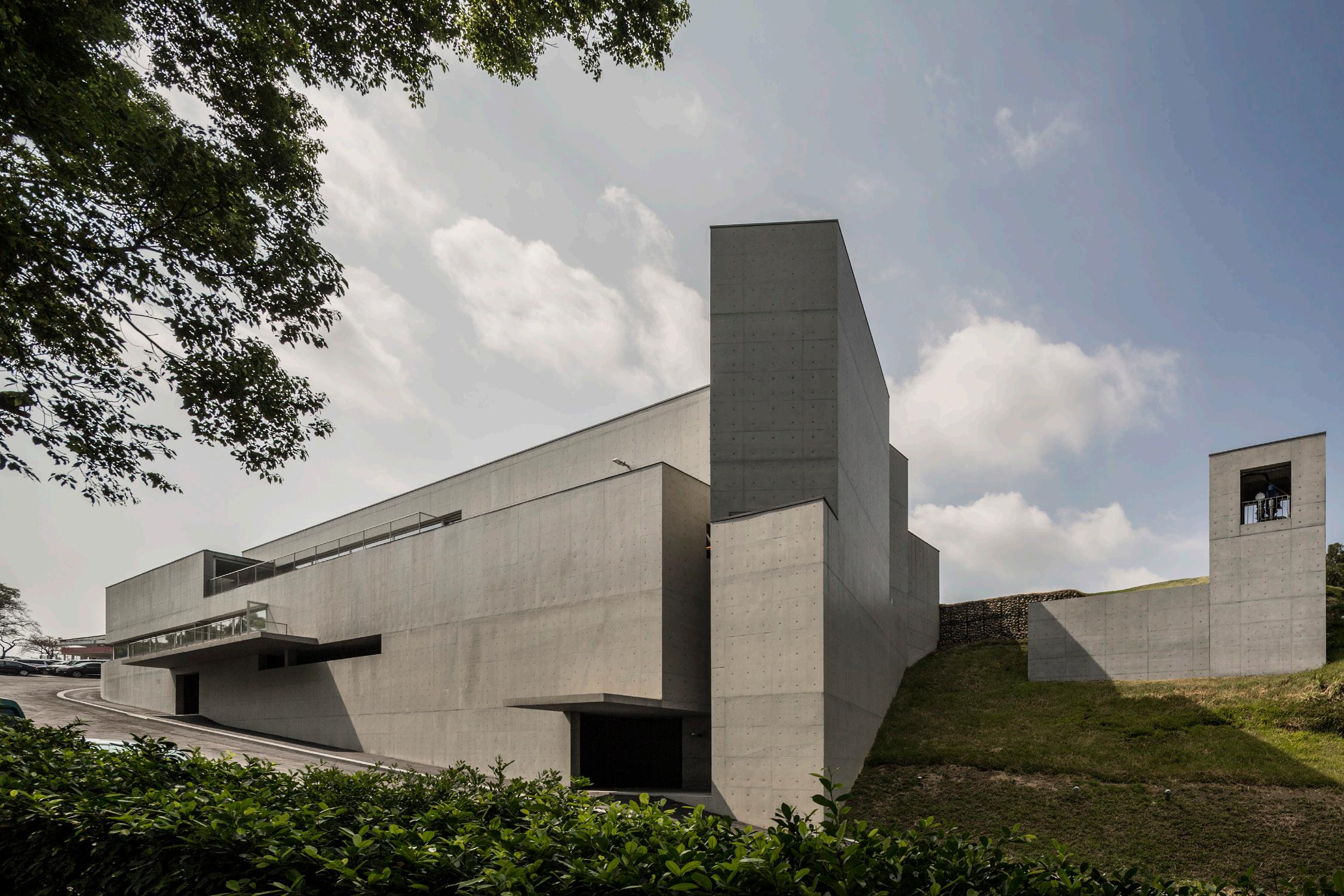

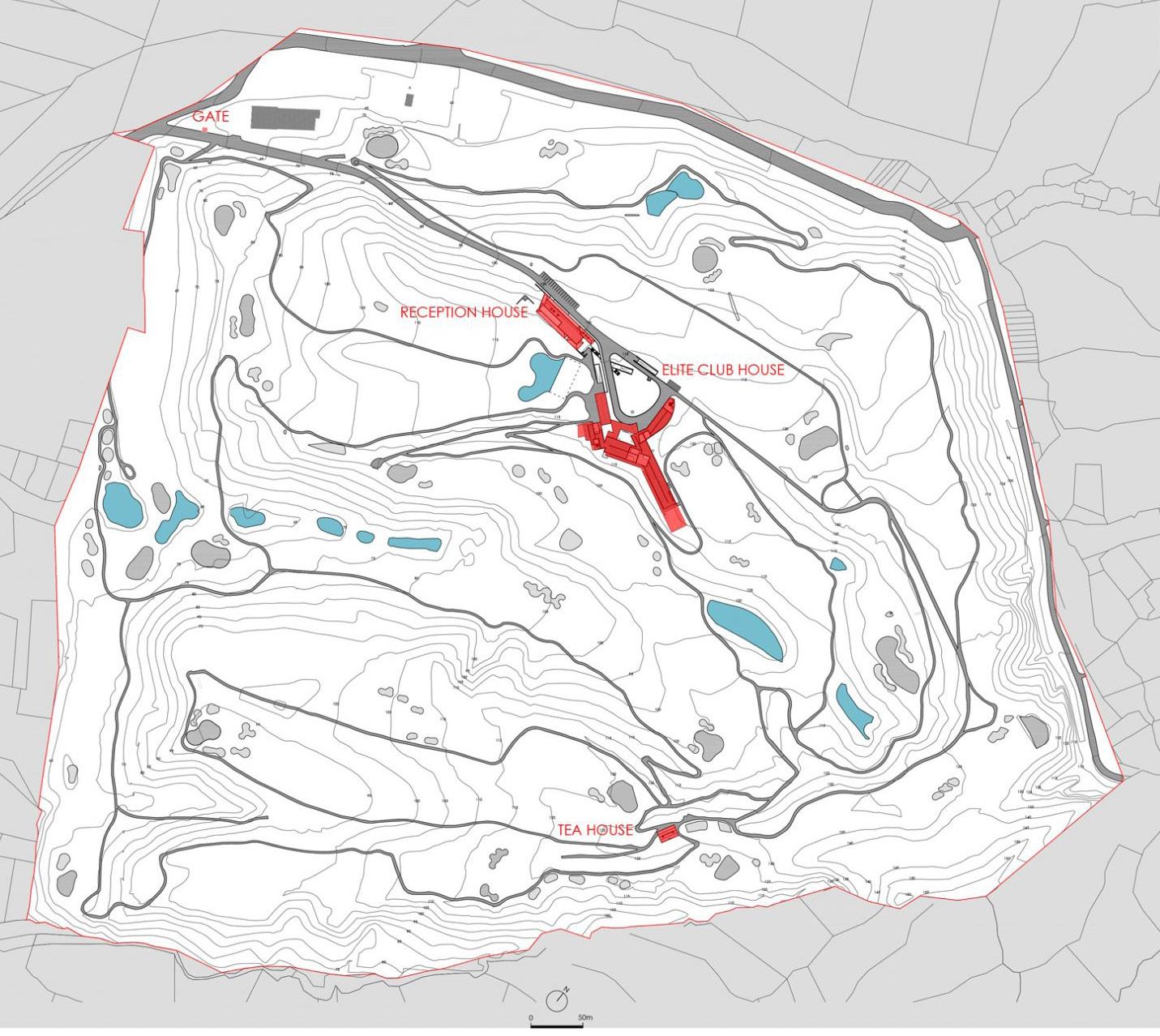

The Siza House (Reception House) at Taifong Golf Course is the first major project of Alvaro Siza in Taiwan. The original course has been established for over 30 years and the club house is in dire need of a thorough renovation to serve

the customers. While the renovation of the club house proceeds, the golf course wished to maintain its daily function.

Therefore, a new club house and a temporary reception house are planned out in phases of construction in order to keep the services running and provide necessary support to the players.

The first phase of the

construction is to build the

temporary reception house

next to the original club house.

After the reception house

is completed, the old club

house will be demolished and replaced with a 4-times big,

well-rounded functioning new

club house in place . As soon

as the new club house finishes, it will become the main serving

building for customers, and the reception house will be kept as a supporting facility.

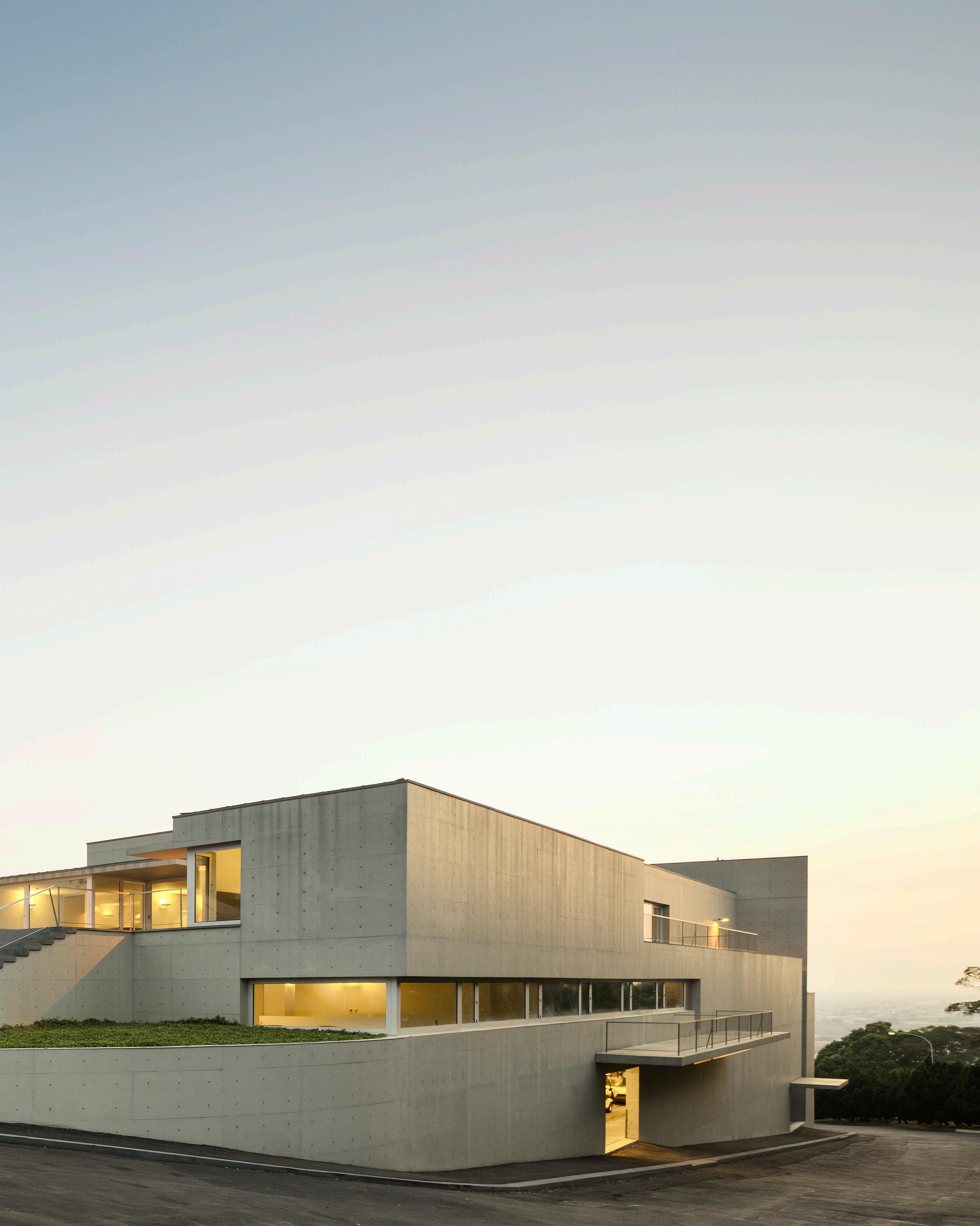

Nestled into the slope, The Siza House has four stories along the Golf Course

approach avenue and embraces the visitors, but only one story where it is level

with the Green. It features exposed concrete, angular cuts, open spaces, and solid surfaces, with shadows and reflections formed by light falling on the building from

above. The Siza House has all the necessary facilities that allow it to run as a full-

functioning club house with changing rooms, shower rooms, dining rooms, and cart parking among other social event venues and administrative offices.

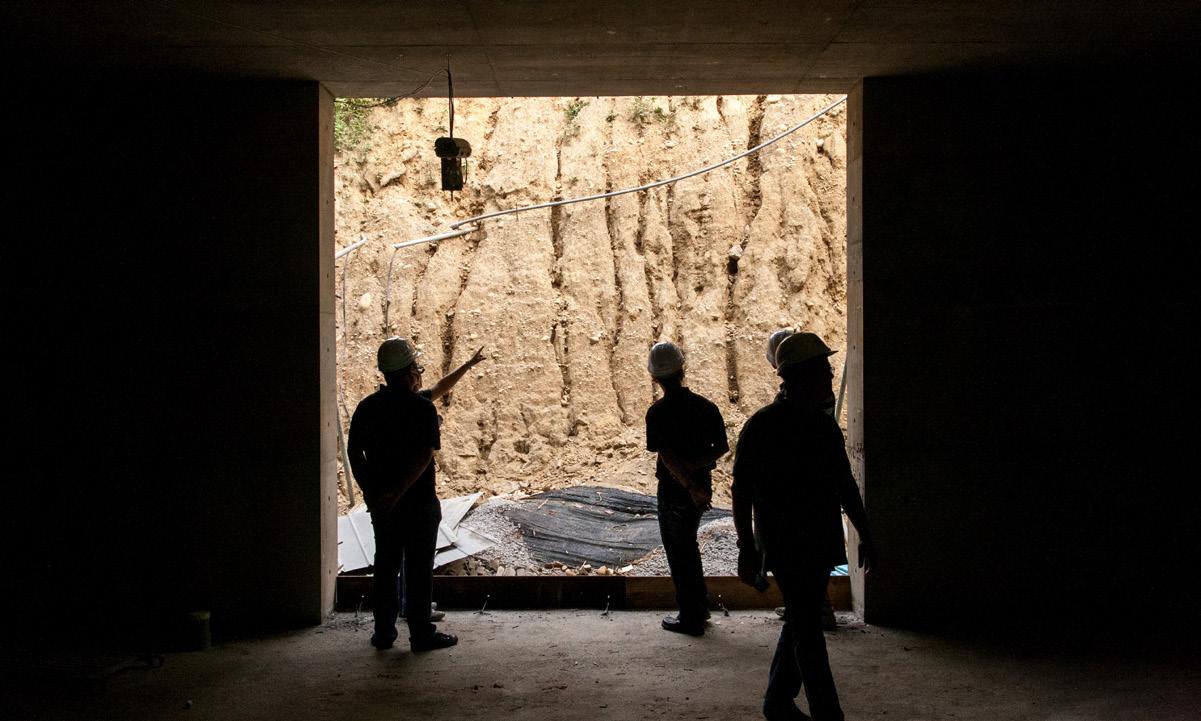

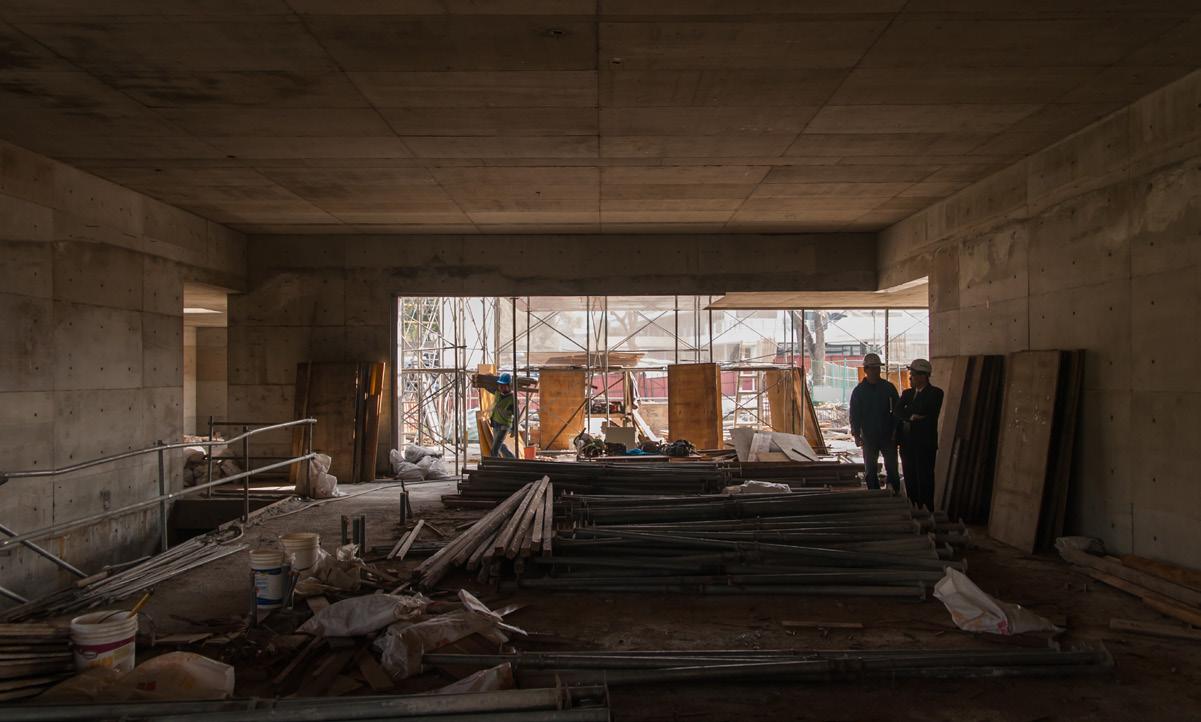

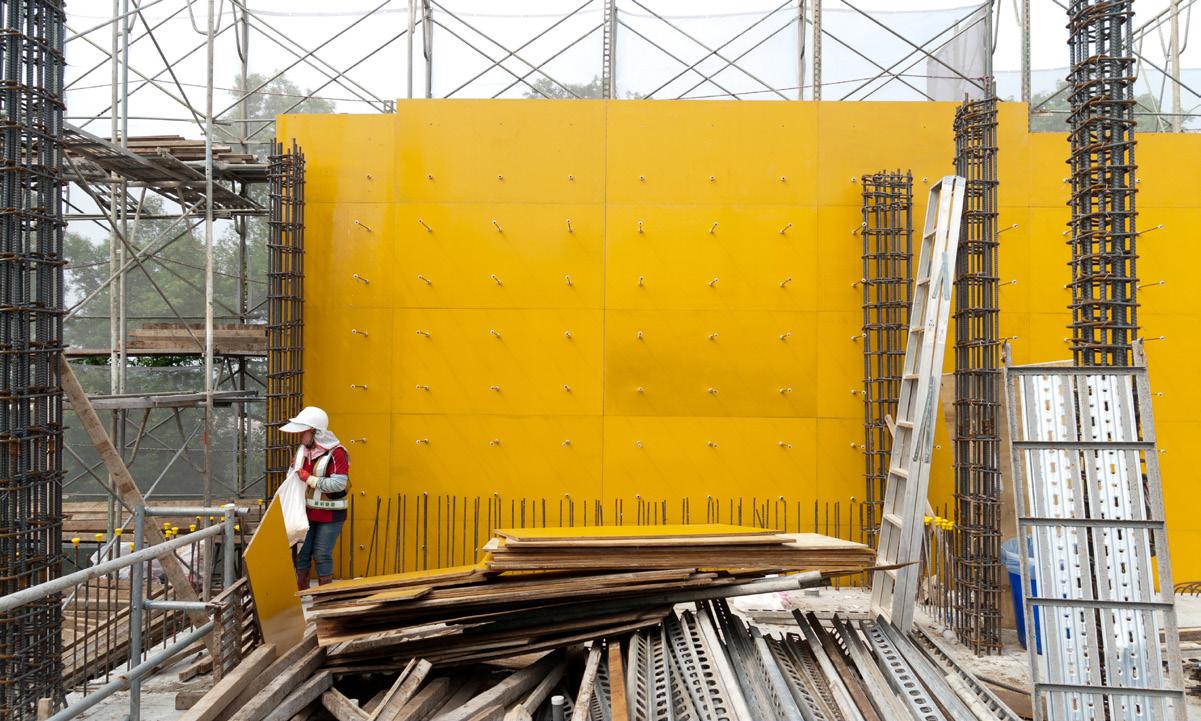

SEPTEMBER 2012 / 1ST FLOOR Concrete column rebar and exterior wall formwork installation

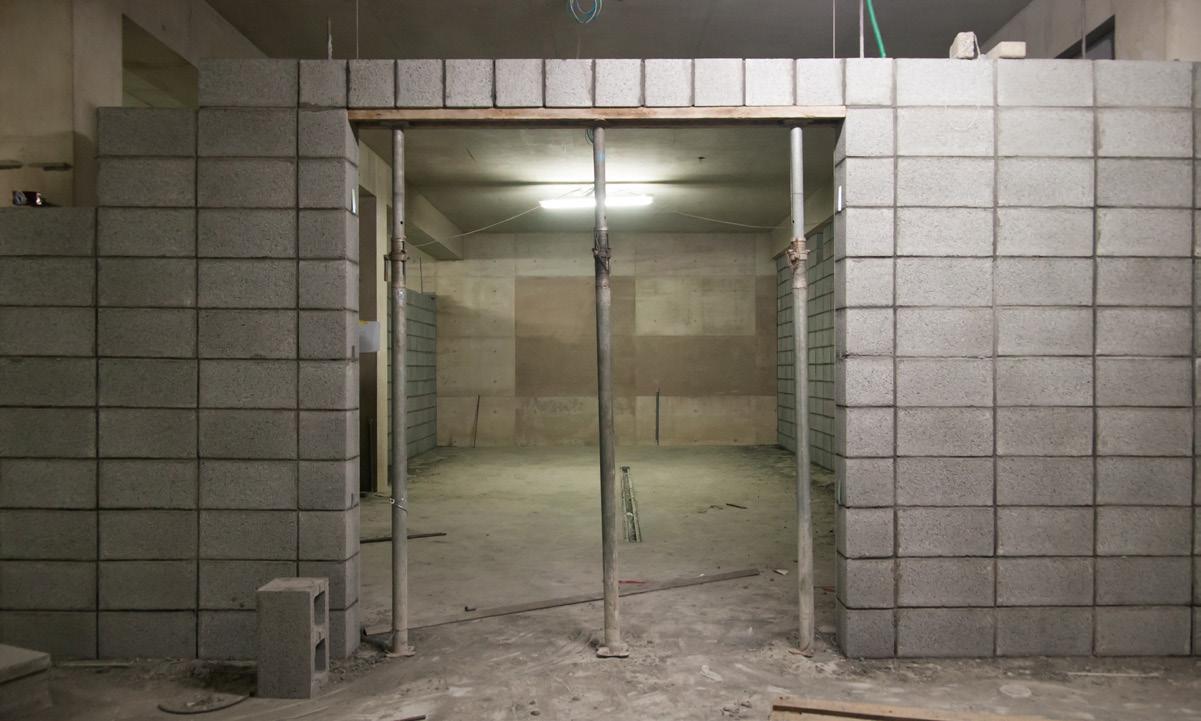

OCTOBER 2012 / BASEMENT 3RD FLOOR CMU partition wall installation

OCTOBER 2012 / BASEMENT 2ND FLOOR Cart parking entrance slope inspection

JANUARY 2013 / 1ST FLOOR Concrete formwork removal and inspection

0.2

0.4 0.3

0.1

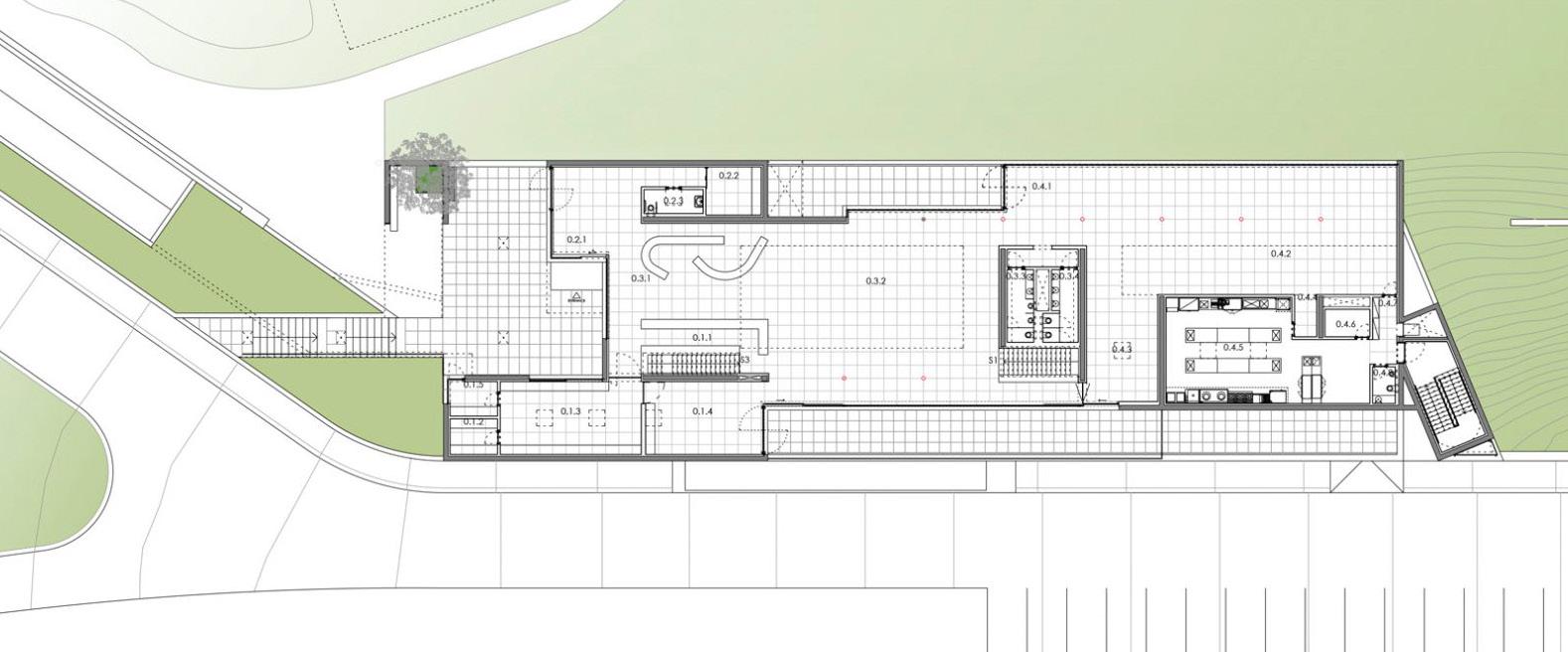

1ST FLOOR / FL +117.65M 0.1 RECEPTION 0.2 STARTING AREA 0.3 LOBBY 0.4 RESTAURANT

-1.3 -1.1

-1.2

BASEMENT -1 / FL +114.10M -1.1 ADMINISTRATION

-1.4

-1.2 LOCKER AREA -1.3 GENTLEMEN’S LOCKER ROOM -1.4 LADY’S LOCKER ROOM

-2.3

-2.4

-2.1

-2.2

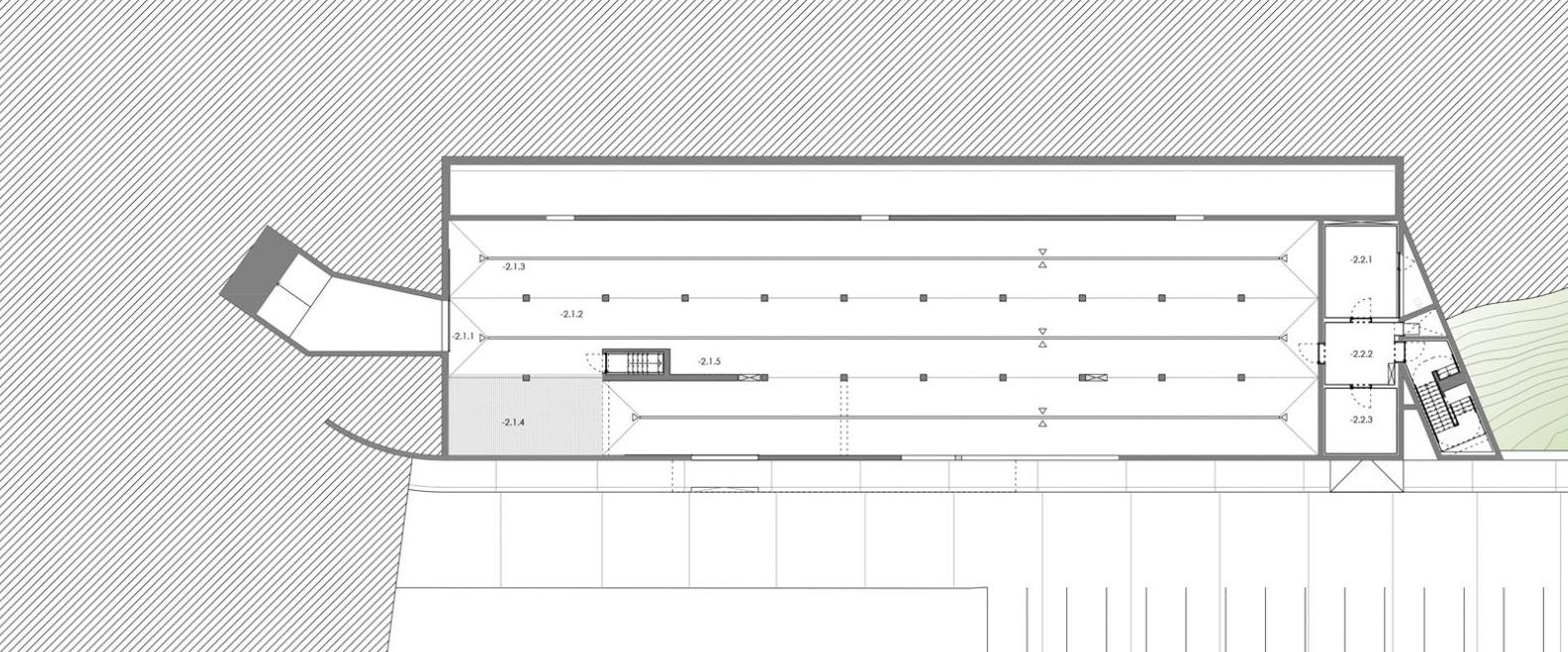

BASEMENT-2 / FL +110.50M -2.1 CART AREA -2.2 STORAGE -2.3 UTILITY BANK -2.4 CART ENTRANCE/EXIT RAMP

-3.3 -3.1

-3.2

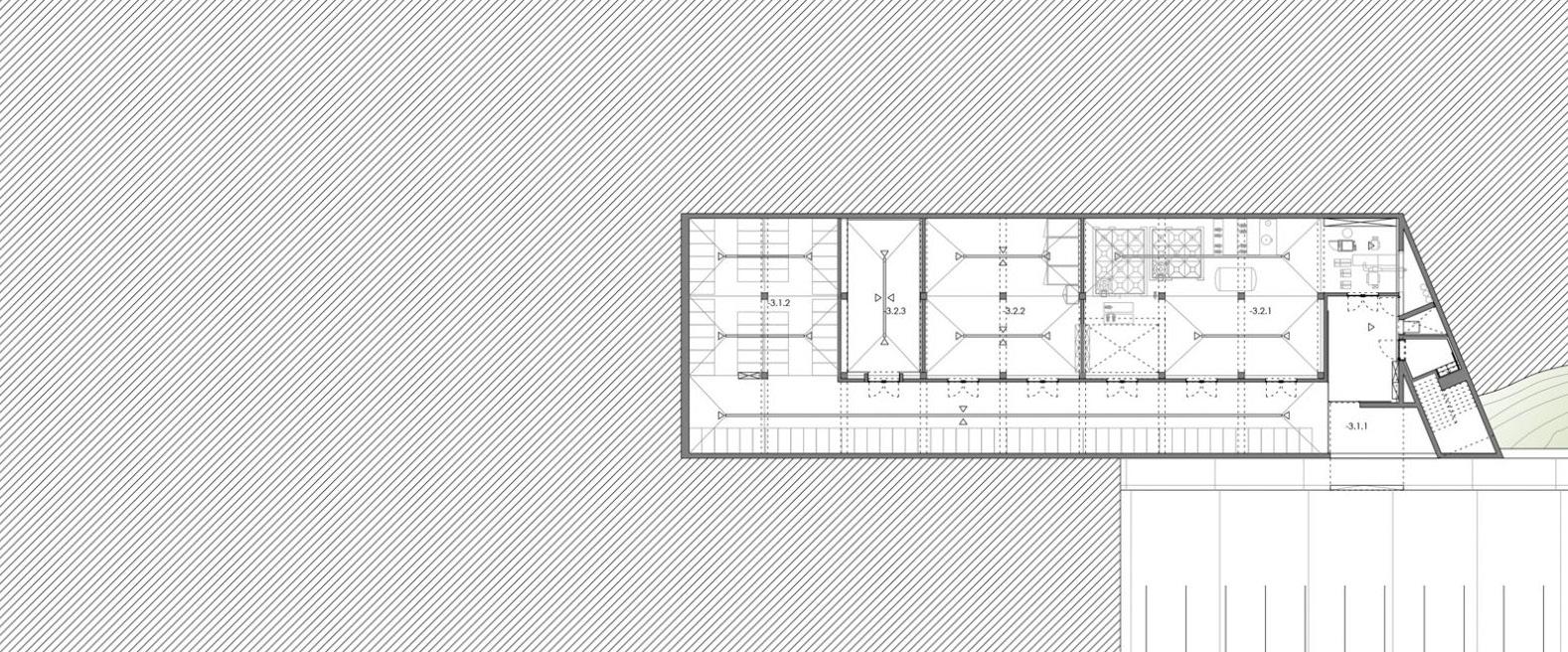

BASEMENT-3 / FL +106.90M -3.4

-3.1 MOTORWAY AREA -3.2 TECHINICAL SPACE -3.3 DISPOSAL AREA -3.4 SERVICE ENTRANCE

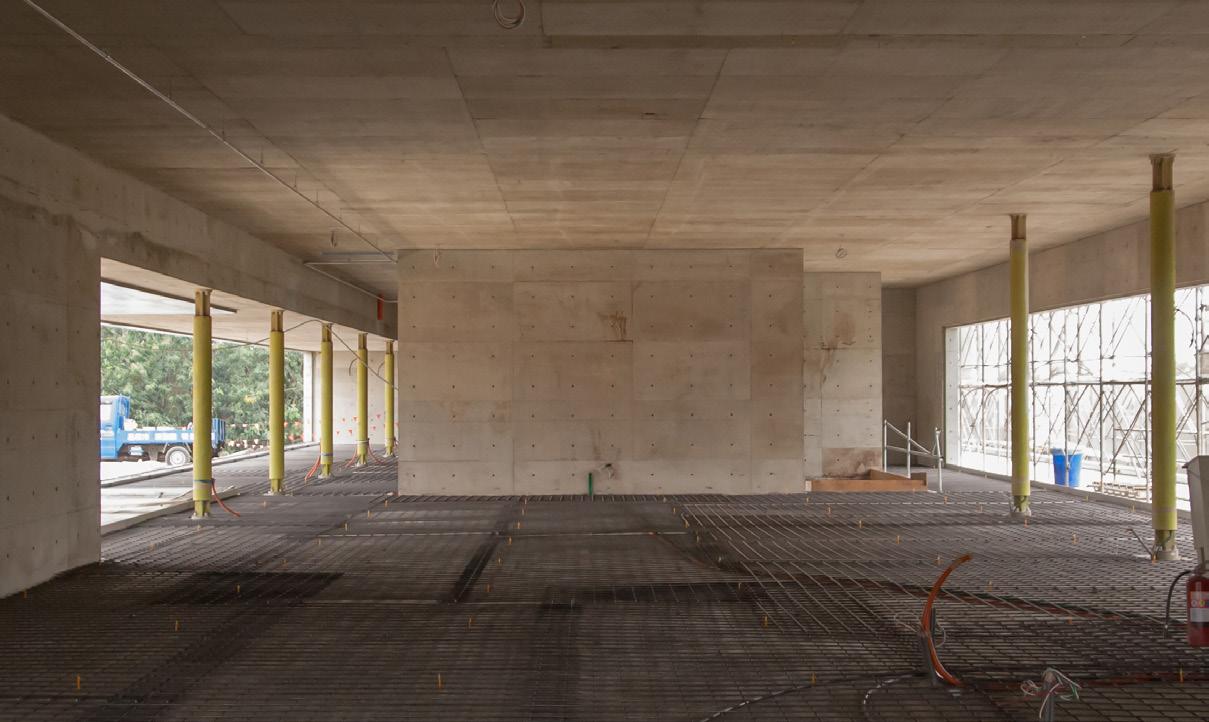

MARCH 2013 / 1ST FLOOR LOBBY AREA Topping slab pouring

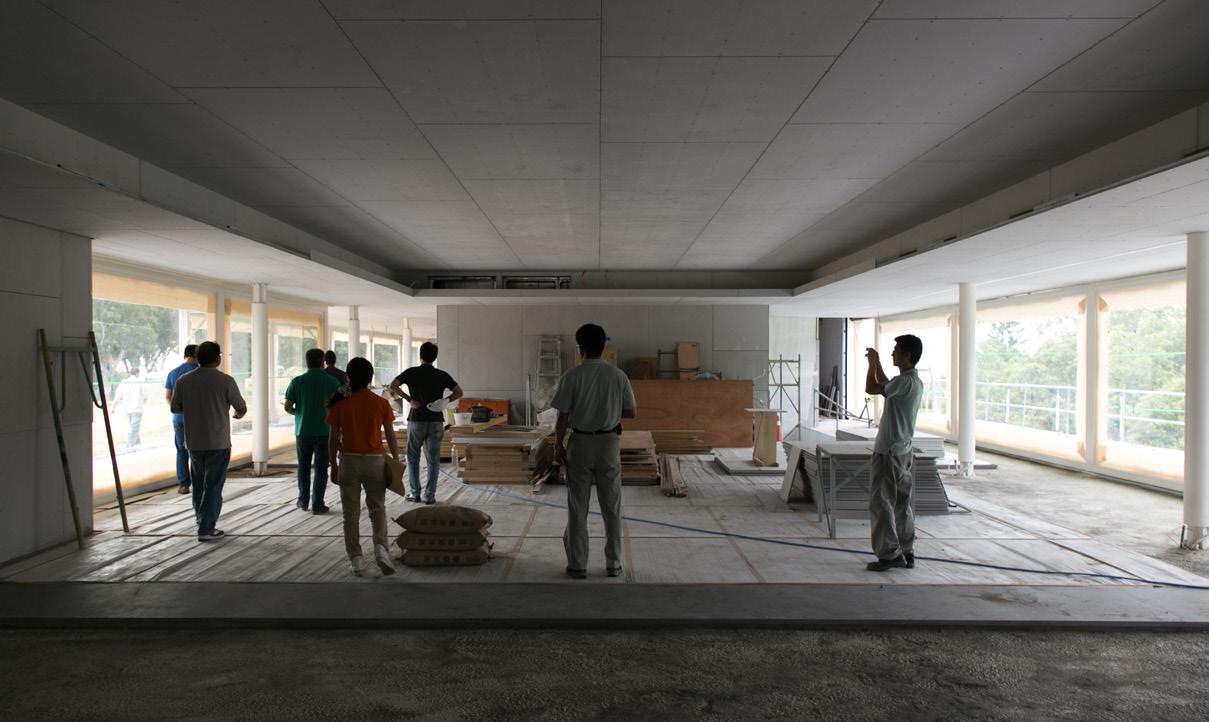

JULY 2013 / 1ST FLOOR LOBBY AREA Floor and wall stone finish installation

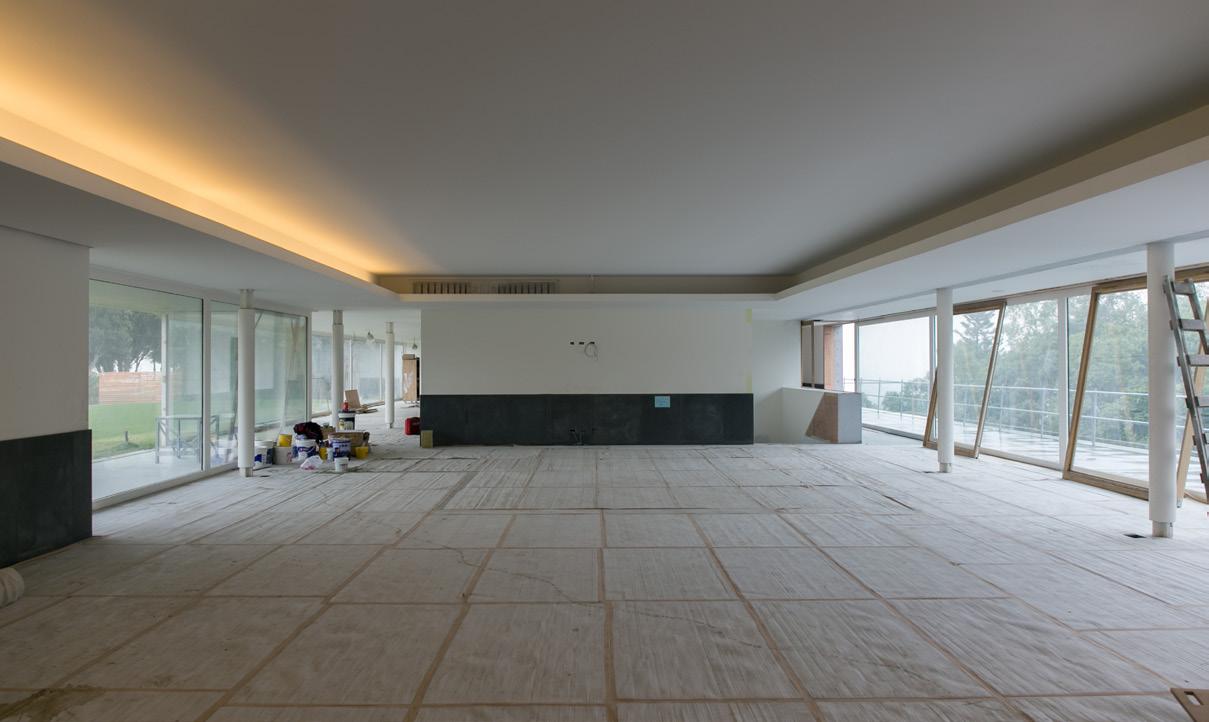

DECEMBER 2013 / 1ST FLOOR LOBBY AREA Ceiling and light fixture installation

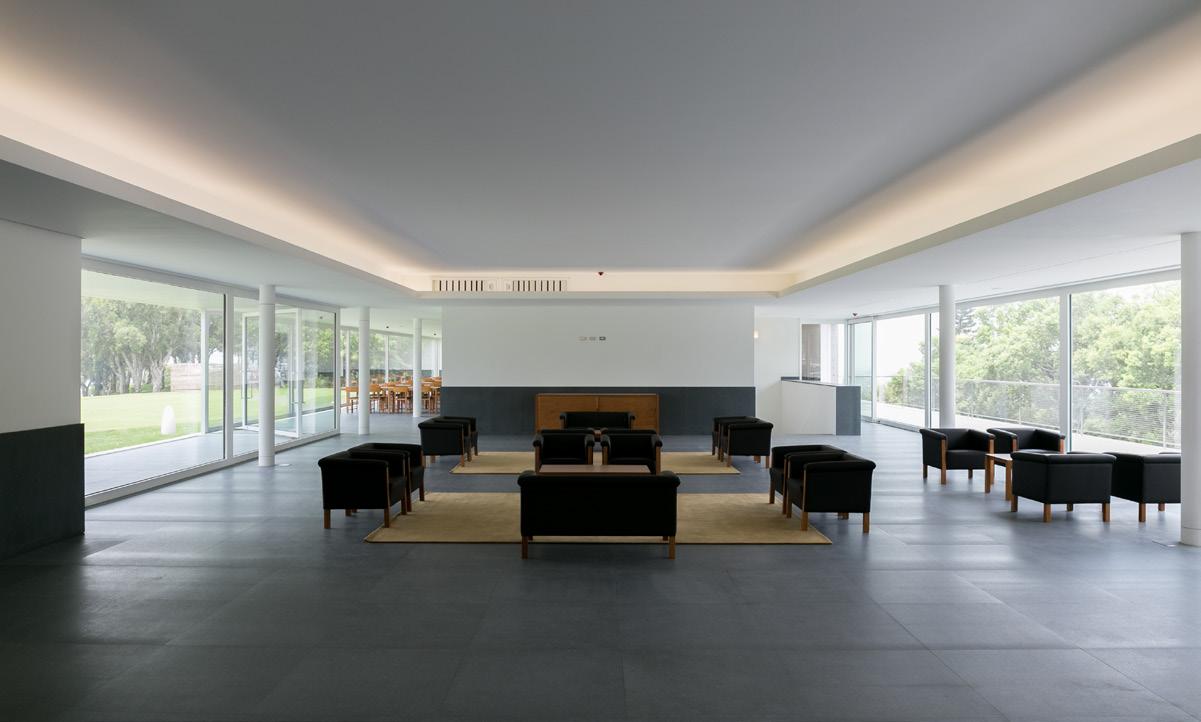

JULY 2014 / 1ST FLOOR LOBBY AREA Project completion

In the context of a very dramatic landscape, the building perfectly blends into its background and set in a

sequence that facilitates the movements that are specific to the game: the waiting, the warm up, the beginning and ending. The hierarchy and overall planning of space relationships were established through careful coordination among the client, the architect, and the golf course management team. Varies spaces are

fragmented into individual geometries, complementing one another while reducing the massing of the building

at the same time. “Nothing is haphazard, nothing is unjustified. The relationship between space and function is

everything.“ as stated by the architect, The Siza House is undoubtfully an excellent incarnation of Form follows Function.

Taitung Art Complex Location:

Taitung, Taiwan

Building Type: Public, Cultural, Retail

Proprietor:

Taitung City Government

Building Area: 10,700 sq.ft.

Architects:

Hohou Studio Architects

Budget:

400,000 USD

Project Years: 2012-2015 (Construction)

Position:

Project Manager, DD / CD / CA

Photo Credit: © Wei-Ming Yuan

A-A’

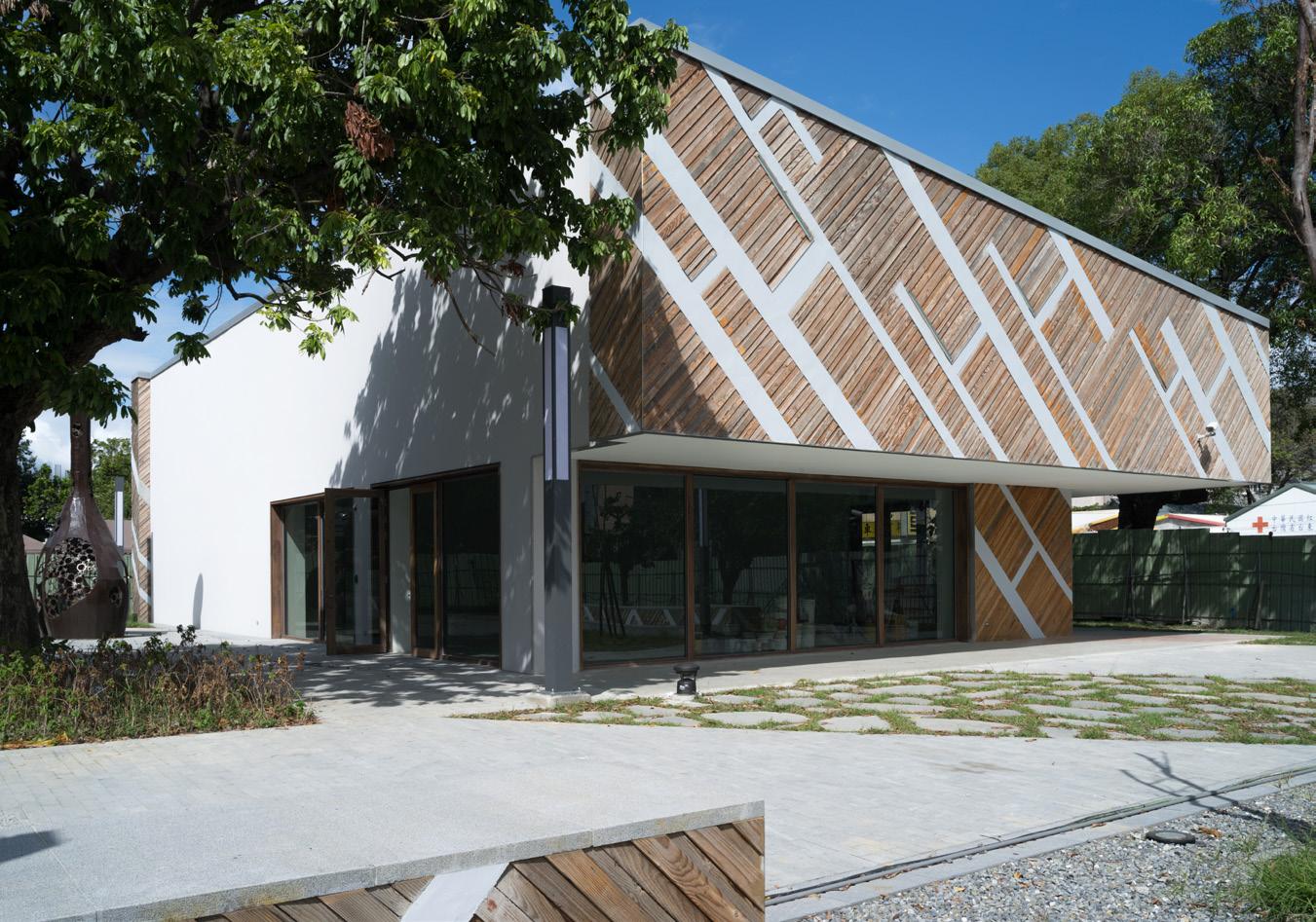

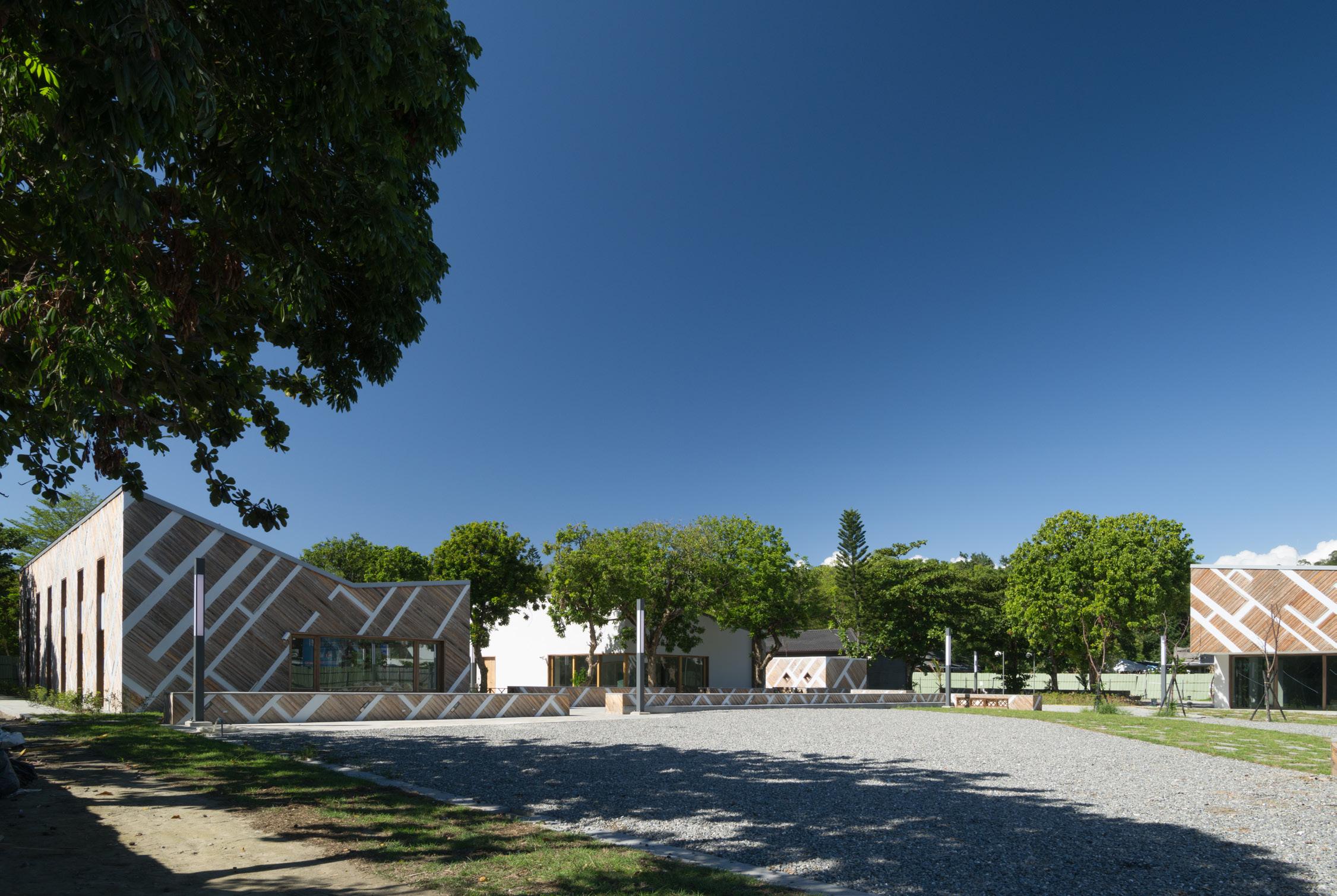

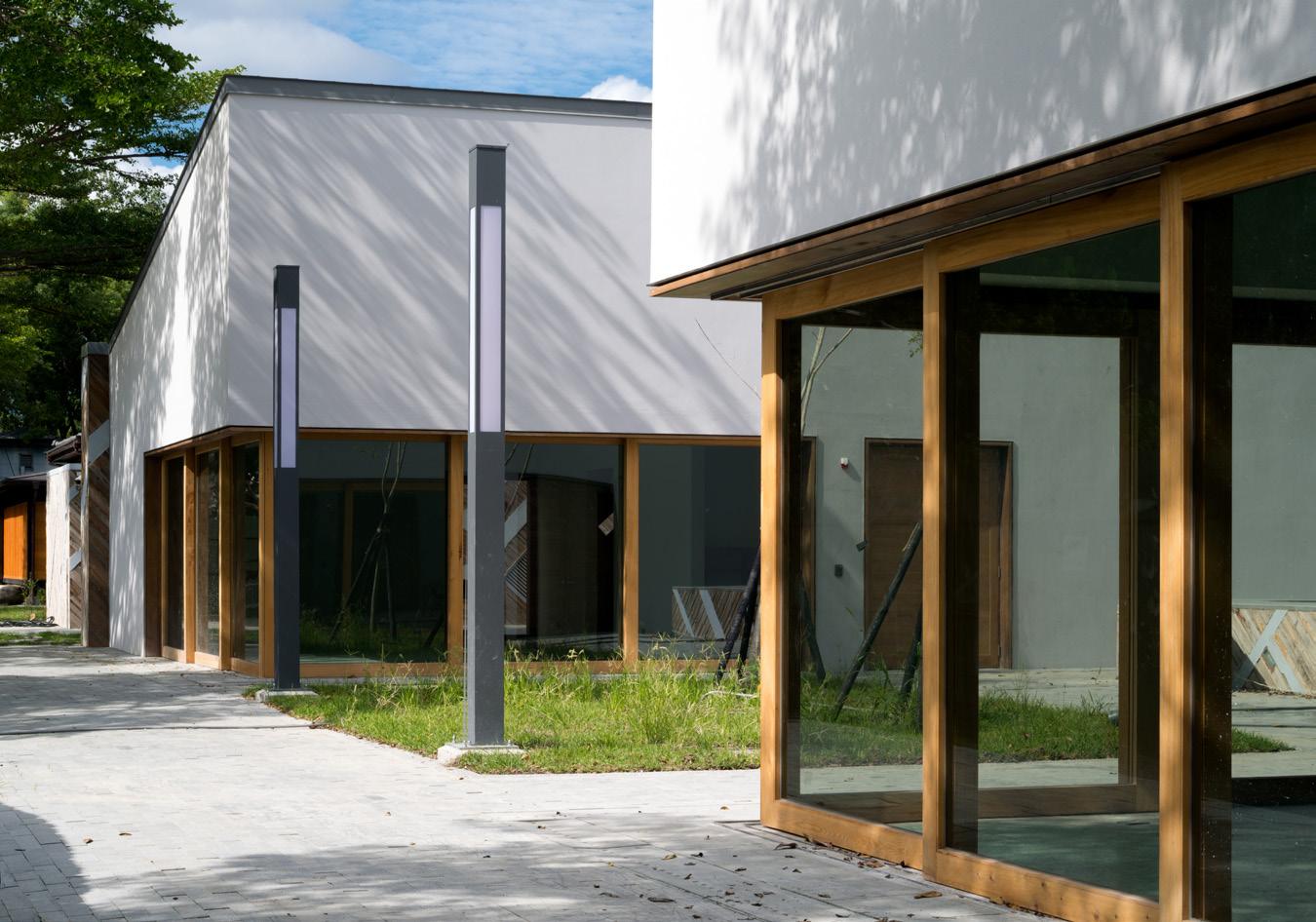

Taitung Art Complex is a project launched by Taitung City Government, aiming to establish a culture park that welcomes visitors to enjoy the intimate relationship with artists and participate in culture events. The government wish to offer

facilities to support and preserve the various form of art from the aboriginal people in the county. Along with the existing performing space, this project offers more opportunities of culture and social events happening in the city.

B’ Handicraft Store Parking Lot

Cafeteria

Restaurant

Gallery A

A’

B

Mechanical

Site Plan

B-B’

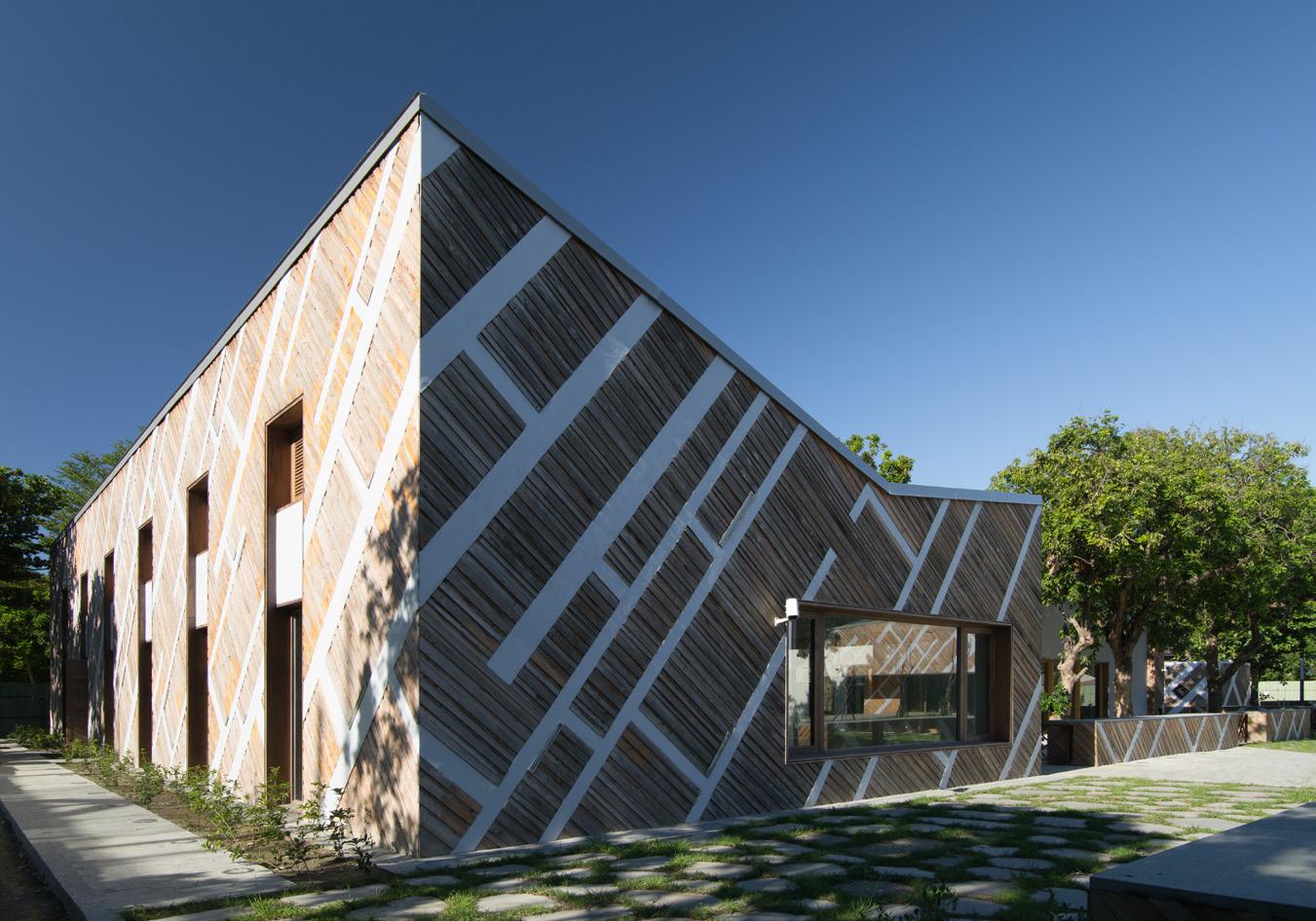

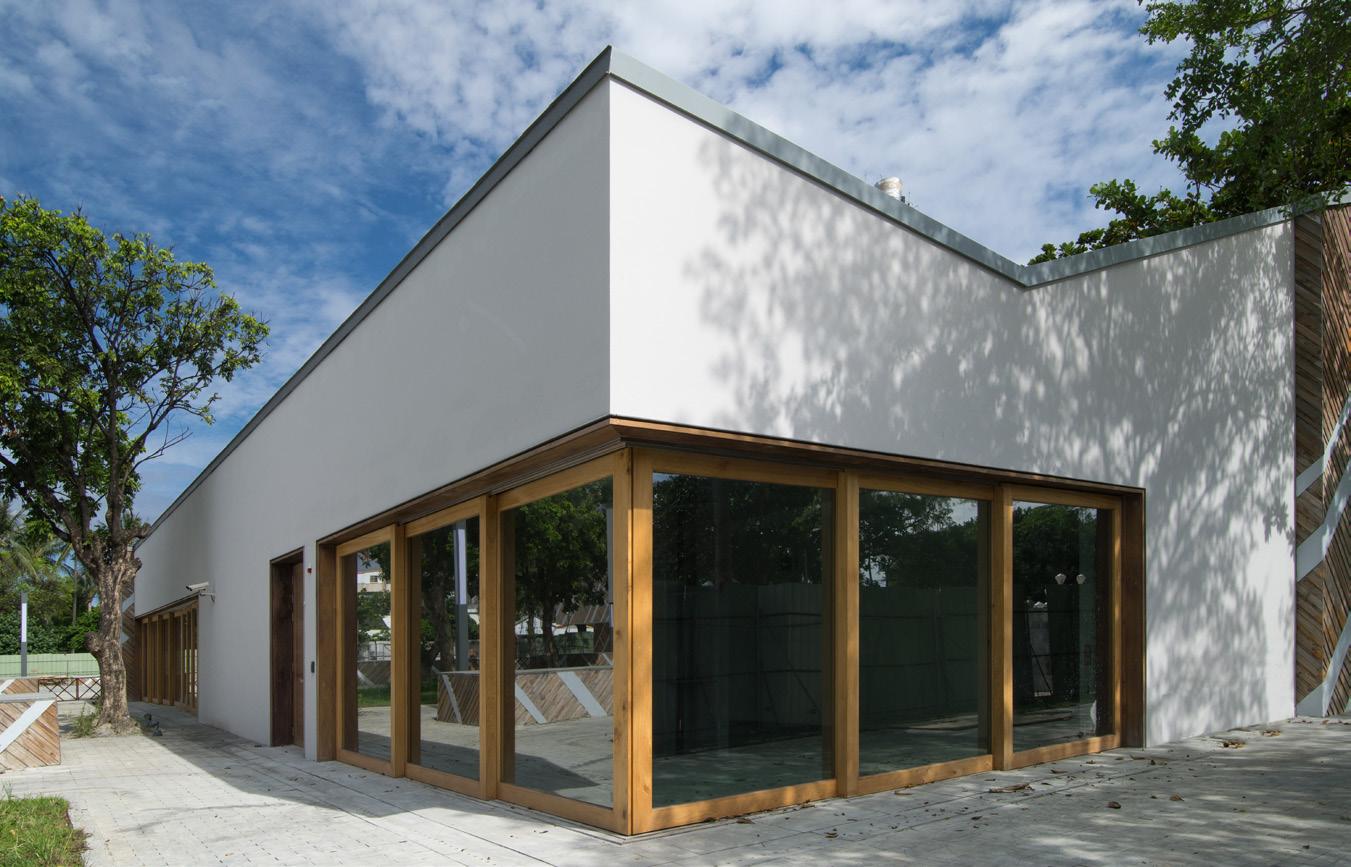

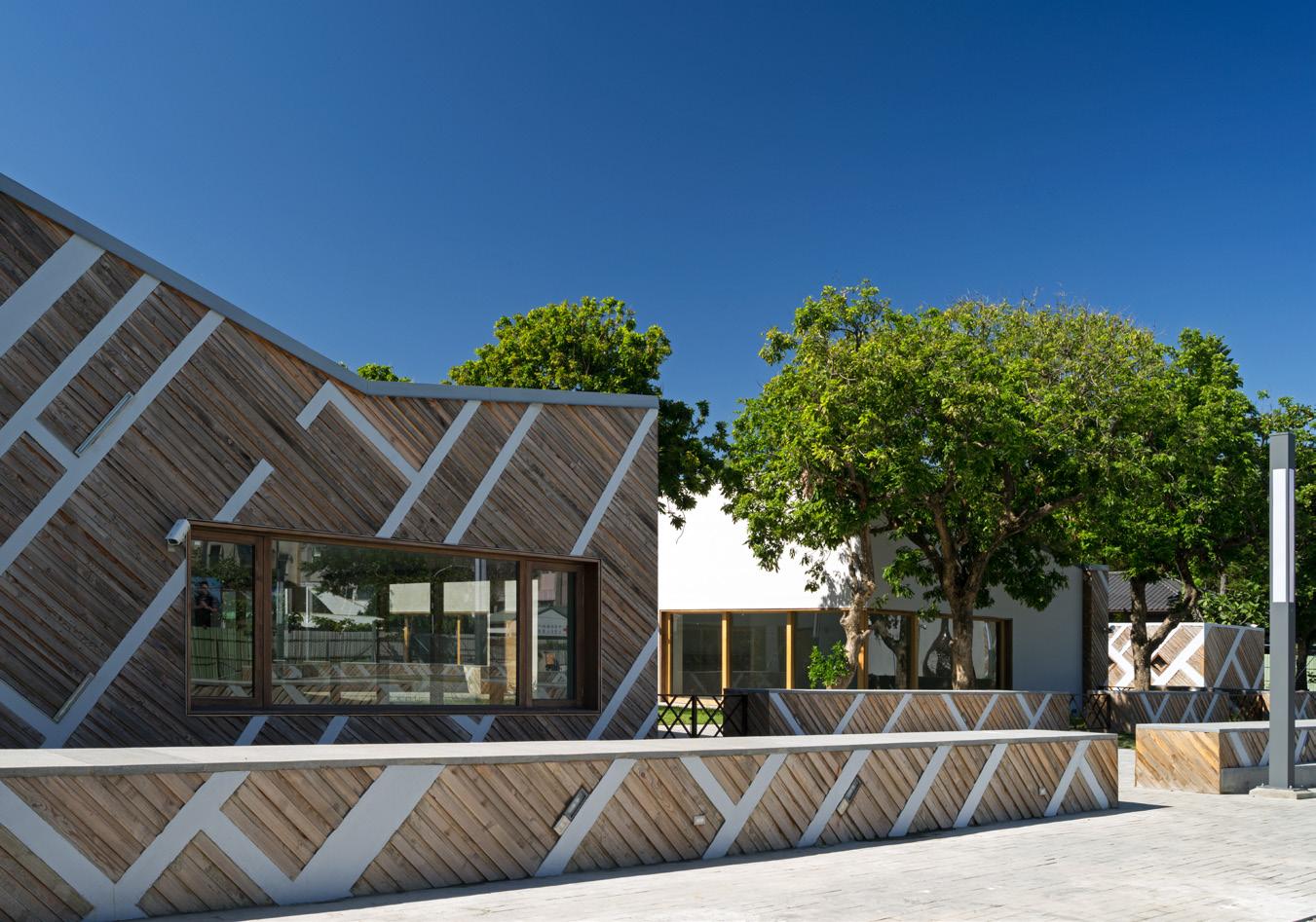

Taitung is the least developed county in the country, therefore this project strive not to create huge building volume to contain the required program. Instead, the team break down the required program into individual building blocks and

scatter them on the site, in order to create an atmosphere of an art village where visitors and the artists are able to have a closer interaction and deeper understanding of each form of art.

Zinc Plate

Air Supply Outlet

Paint with Waterproof Coating

Gypsum Board thk=1cm

SST thk=9mm

Granite thk=5cm slope=2% SST thk=2mm Terrazzo thk=5cm

Grating Plate

RC Trench 25x60cm Concrete Base thk=5cm Pebble Base thk=10cm

Zinc Plate

SST thk=9mm Air Supply Outlet

Wood Grating thk=1.5cm

Paint with Waterproof Coating

Gypsum Board thk=1cm

Granite thk=5cm slope=2% SST thk=2mm Terrazzo thk=5cm

Grating Plate

RC Trench 25x60cm Concrete Base thk=5cm Pebble Base thk=10cm

ACADEMIA PROJECTS

Hyperlink The Pixelated Urban Spaces Thesis Design, 2009Fall - 2010Spring Location:

Taipei, Taiwan

Building Type: Public, Commercial Instructor:

Hao-Hsiu Chiu

Award:

Distinction in Tunghai University Thesis Design Award of Year 2009-2010 First Place in Graduation Design Award for Taiwan Strait

Digital images has become the primary and essential

medium for human to recognize the world. In a digital

image, each pixel contains its own RGB color information and accumulatively construct a recognizable image. This project interpret this mechanism to an unconventional approach of analyzing the urban context by its spatial

properties, and further construct habitable spaces that seamlessly blend into the existing environment.

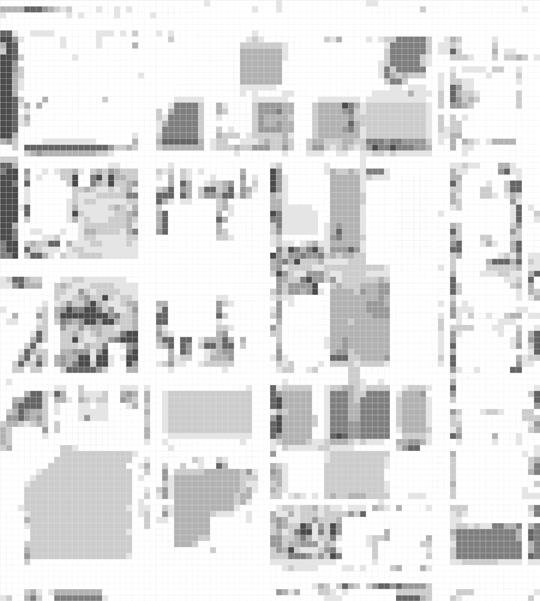

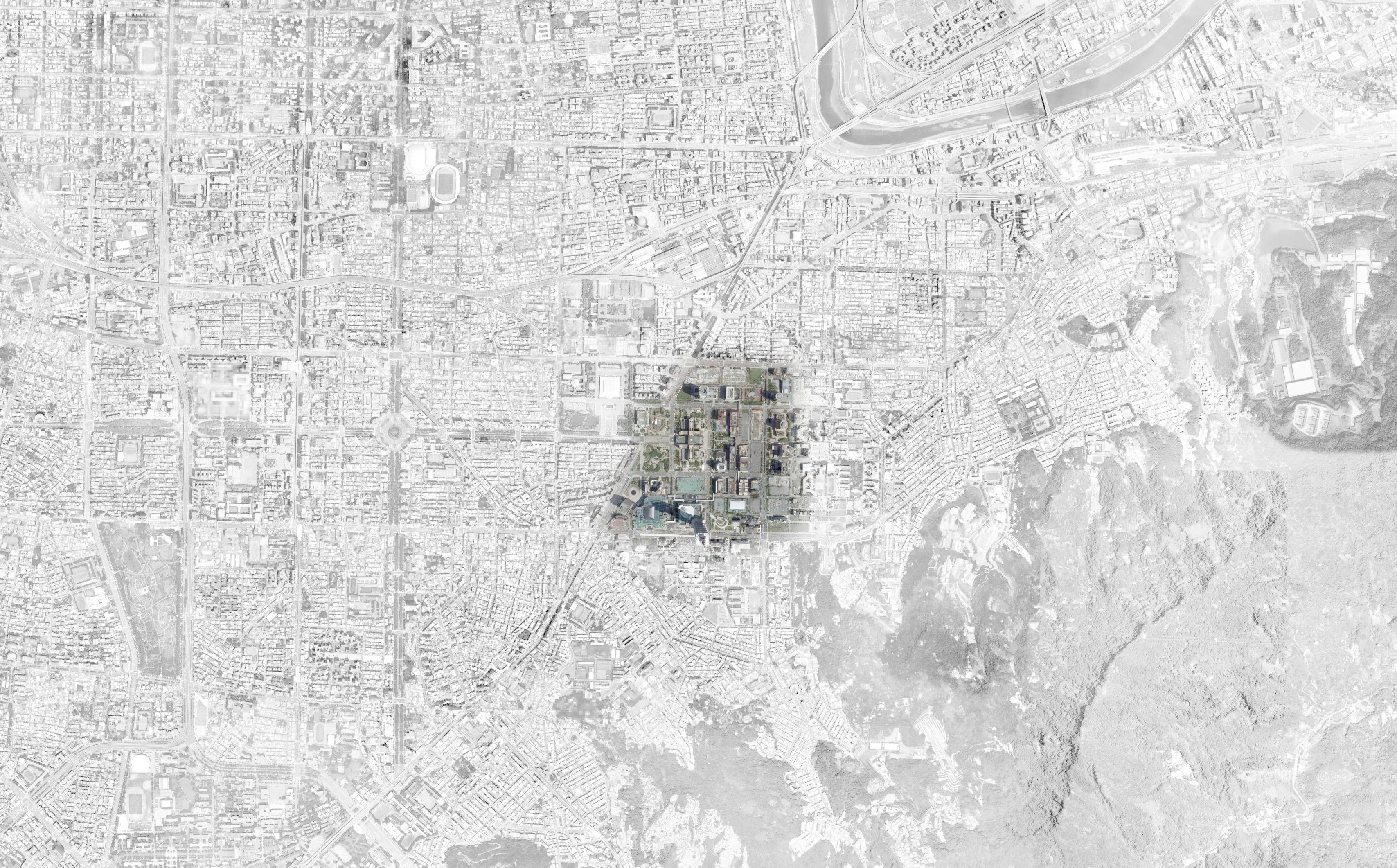

2000m 250m

500m

1000m

Taipei, Taiwan

Outdoor Activity

Green Cover

Recreation

Outdoor + Green Cover

Outdoor + Recreation

Green Cover + Recreation

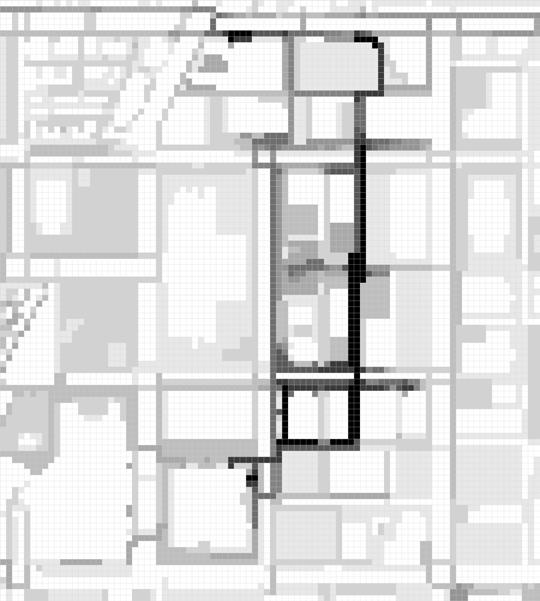

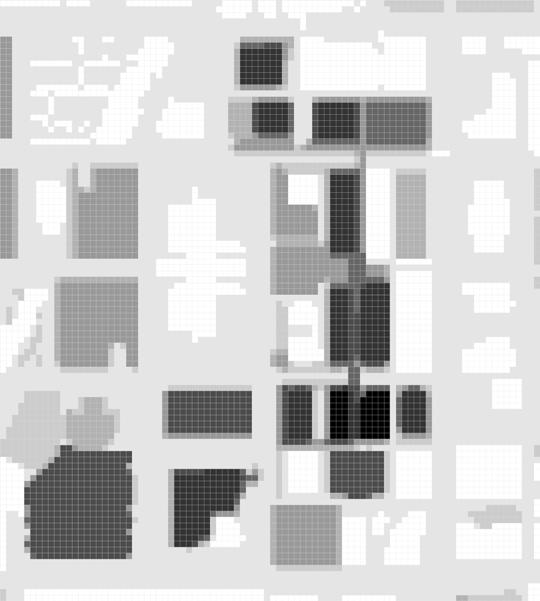

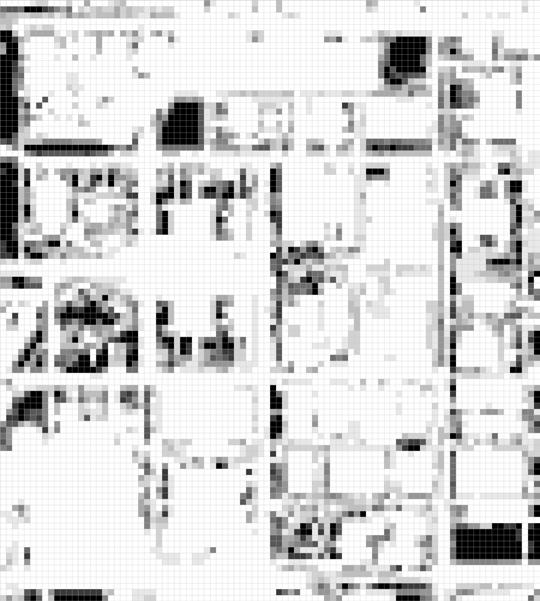

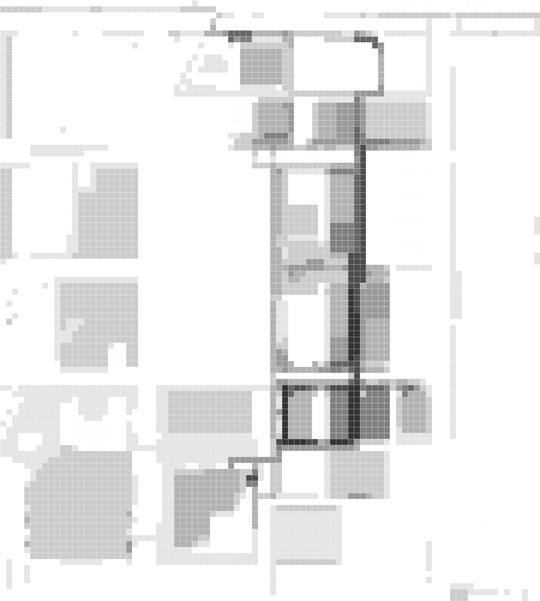

The methodology pixelate the city into fragments and analyze the properties contained within. Each

fragment is consist of its own spatial properties, which can be recognized as the RGB information in a

pixel. The intensity of “Outdoor Activity”, “Green Coverage” and “Recreation Activities” are chosen to be the three prime parameter and being mapped in gray scale and indicates the intensity of the attribute.

Staytime + Recreation

Sta y

tim

e+

Rec

rea t

ion

Staytime + Greencover Sta y

tim

e+

Ou

tdo o

enc ove r

r+

Outdoor + Staytime

Ou

Gre

tdo o

r+

Sta y

tim

e

Gre

enc ove r

Outdoor + Greencover Gre

enc ove r+

Ou

Greencover + Recreation

Outdoor + Recreation

tdo o

r+

Rec

Rec

rea t

rea t

ion

ion

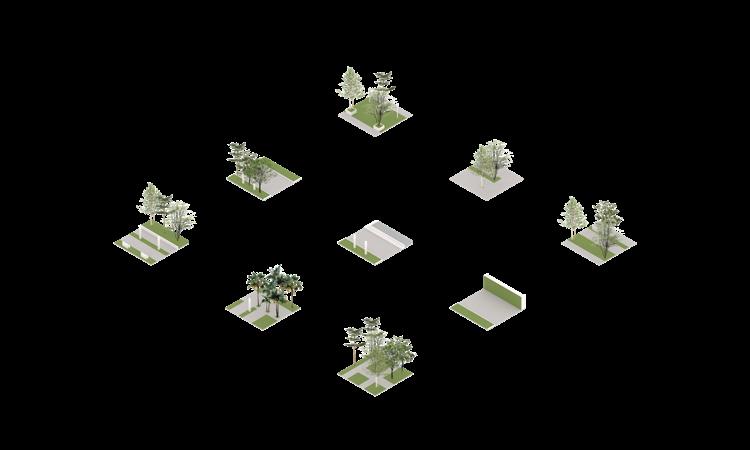

Through previous analysis, several fragments are determined where the property has its highest intensity.

The goal is to fill these fragments into the site and eliminate the heterogeneous vacant area according to

the surrounding conditions. By inserting these space fragments, the construction removes the blank area and make the spacial properties distributed in harmony and blend into the adjacent environment.

5 6

4

1 2

3 7

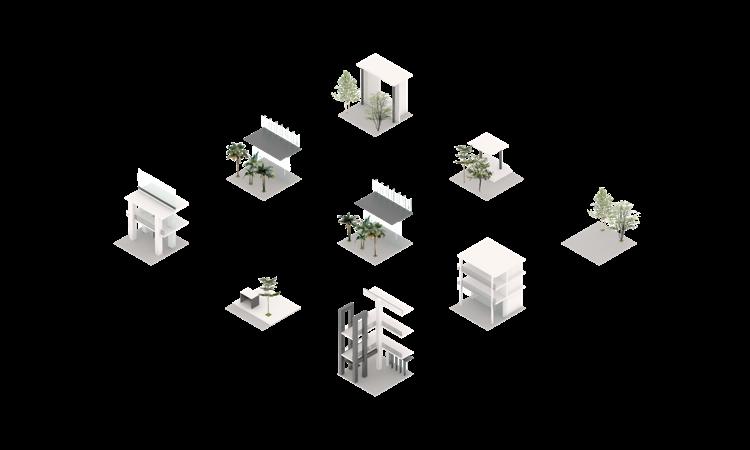

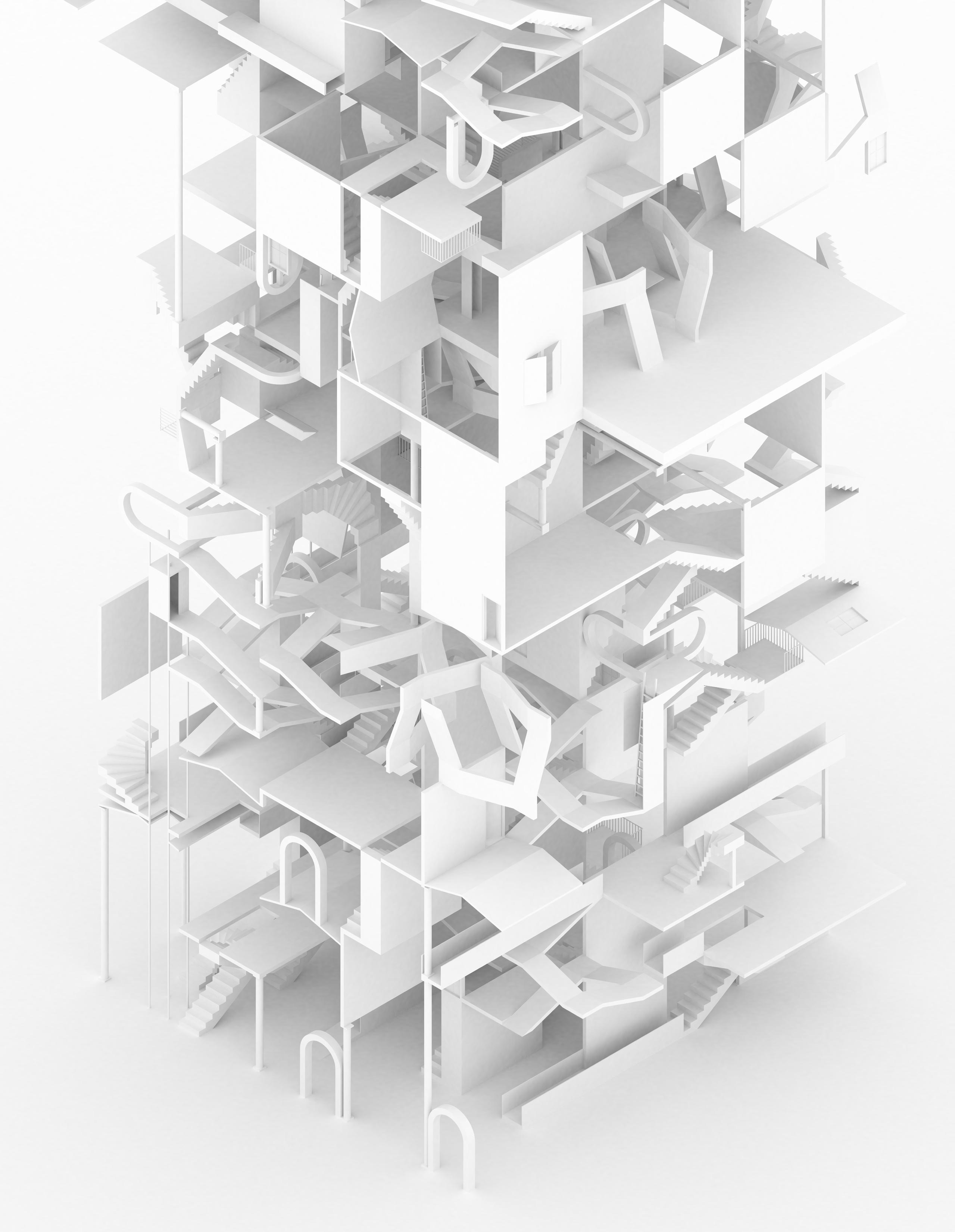

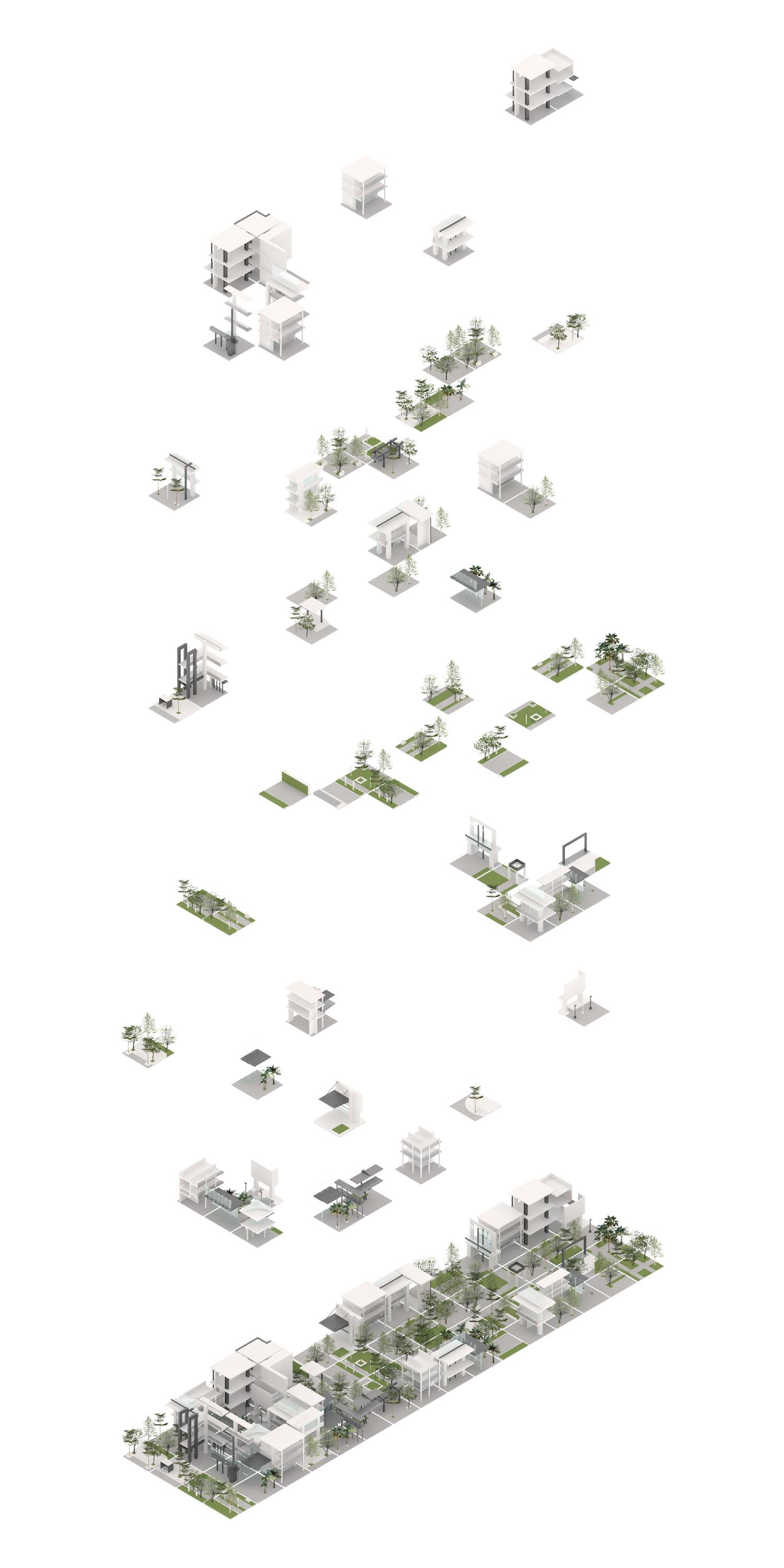

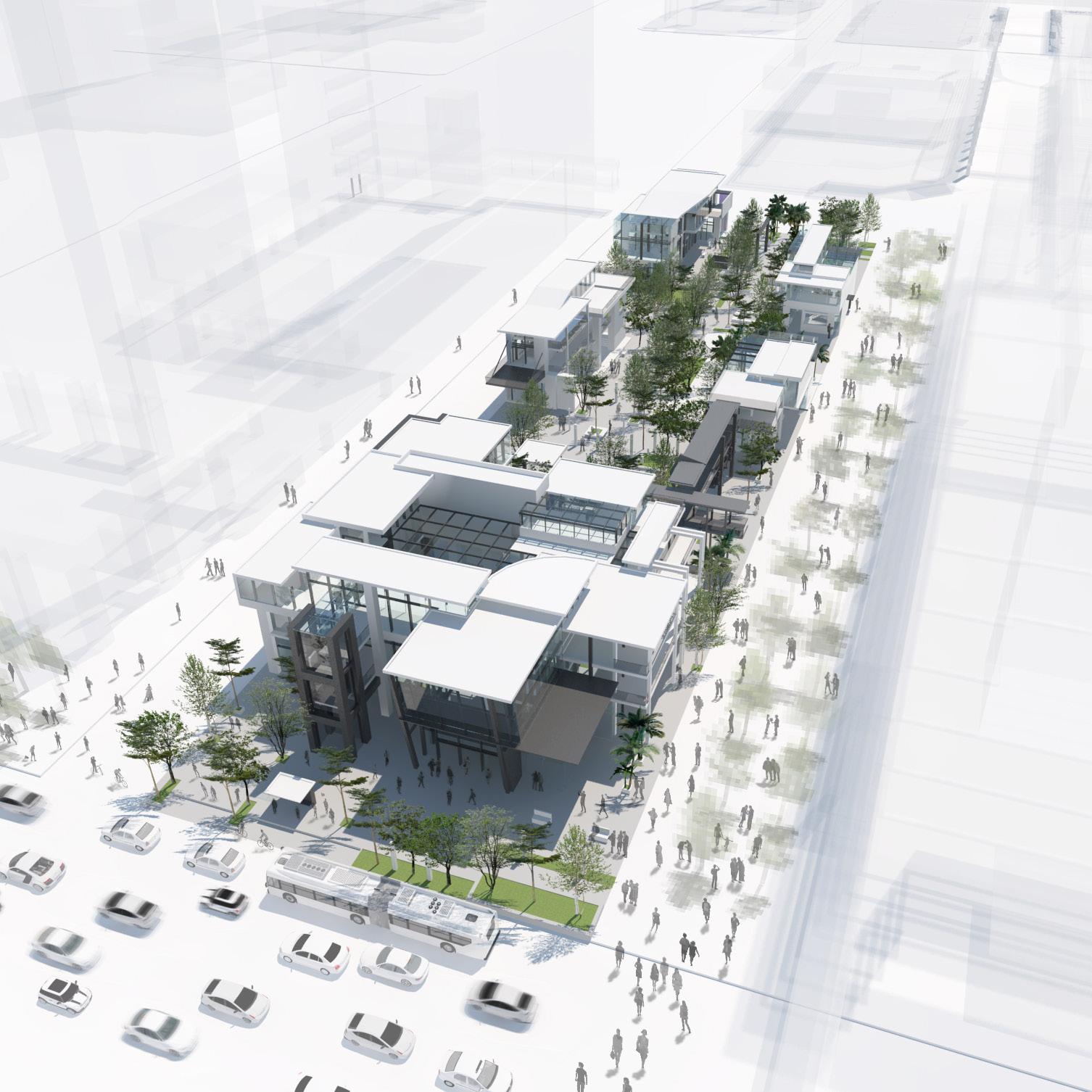

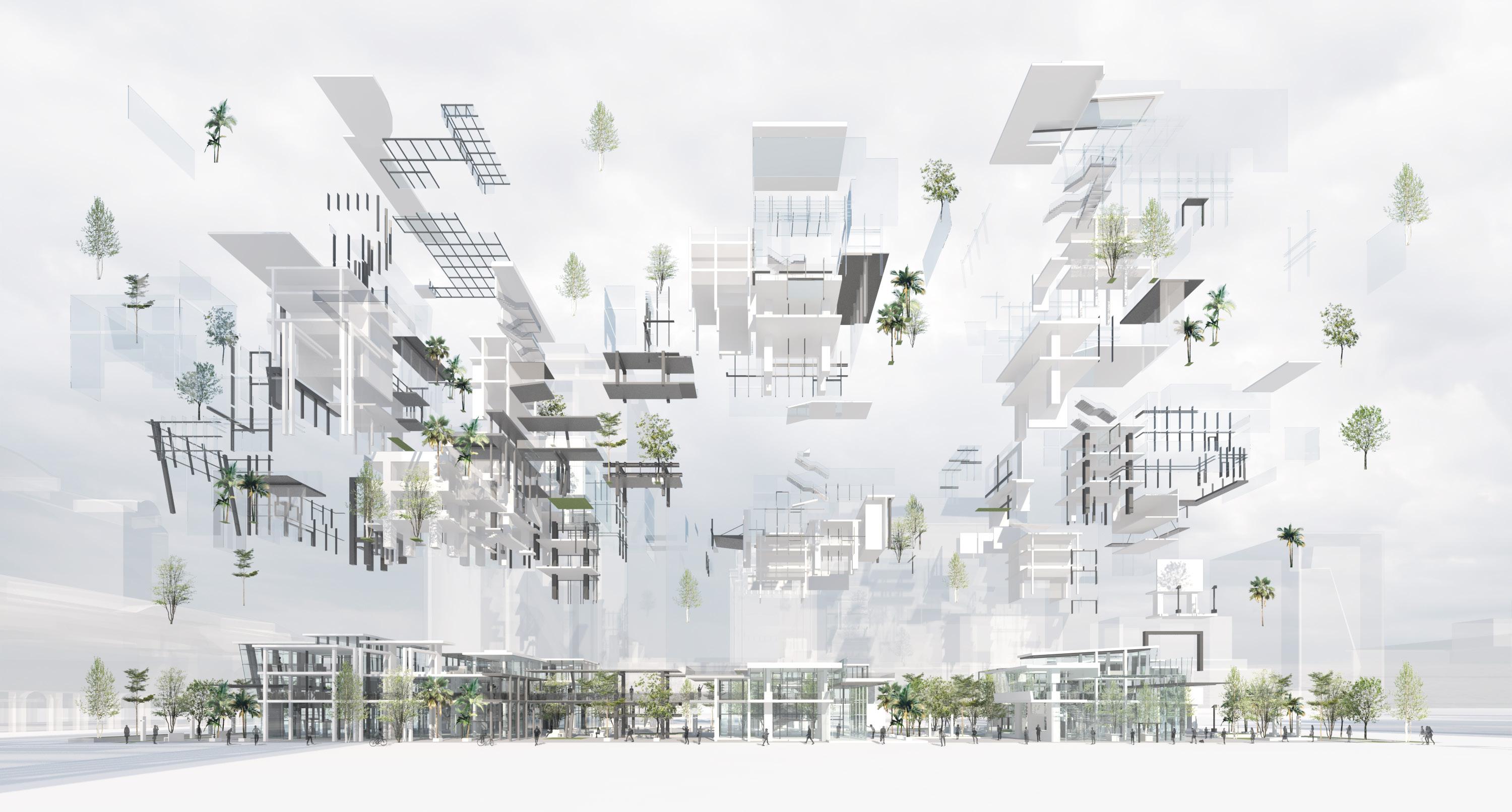

The multi-function space is the outcome of an algorithm. This process considers the spatial properties of

the urban fragments and juxtapose them according to their similarities. Instead of visually coherence, the generated space blend into the environment according to the continuous spacial experience.

11

9

12

10

8

Ground Floor Plan 0

2

5

10

20 m

1. Entrance 2. Information 3. Cafe’

4. Interior patio 5. Toilet 6. Bookstore

7. Skybridge 8. Cafeteria 9. Lounge Bar

10. Bookstore 11. Kitchen 12. Restaurant

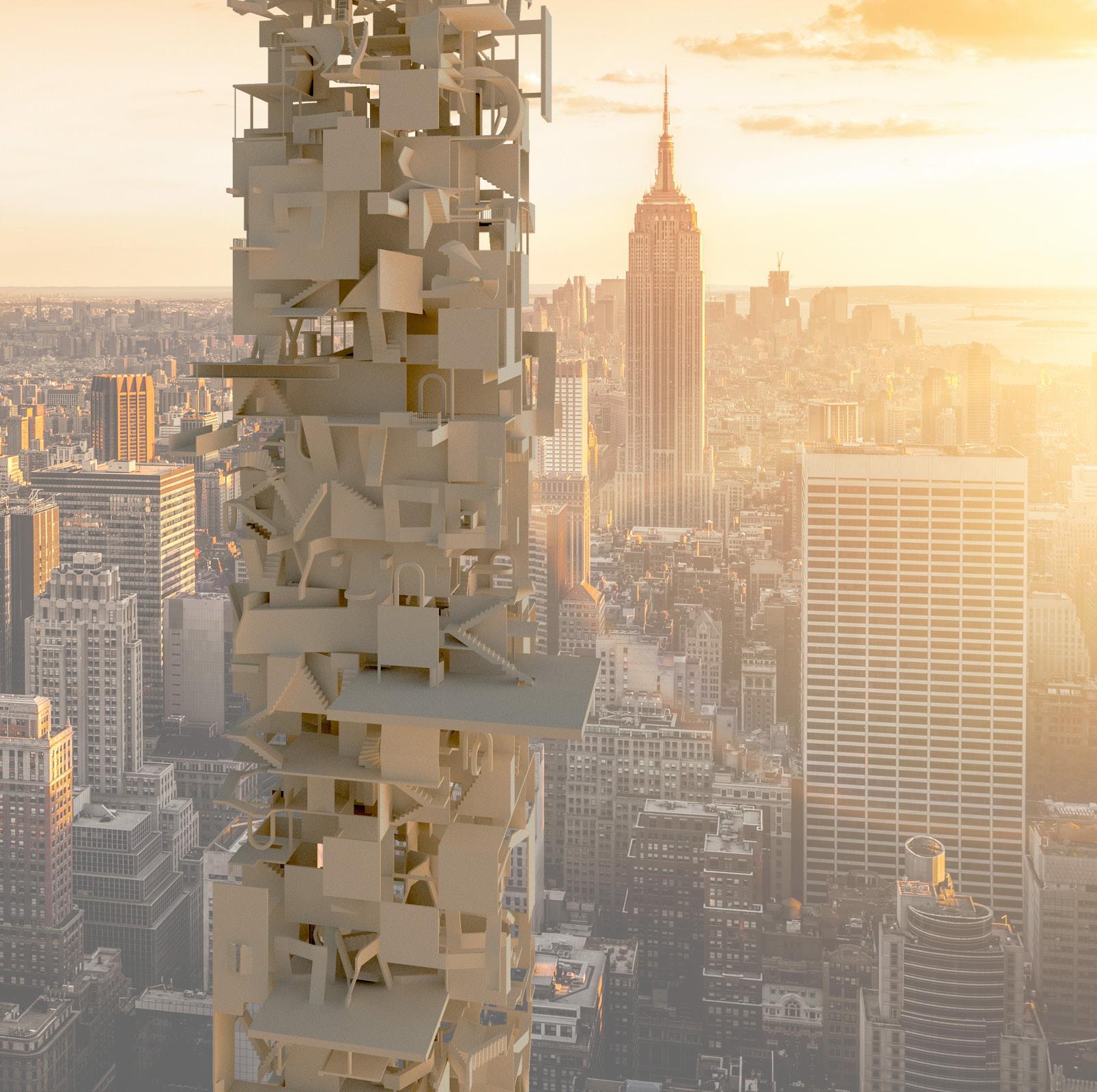

Elemental Procedures Thesis Studio, 2017 Spring Location:

N/A

Building Type: Mix-Use Instructor:

Ellie Abrons, Adam Fure

Partners:

Jonathan Yates, Onur Kamburoğlu

Award:

First Place of 2017 Burton L. Kampner Memorial Award For Thesis Design

Architecture has always been digital in terms of quantifing and indexing human interaction with space and program by categories and dichotomies. Elenemtal Procedures argues that architecture can be conceptualized as a

digital composition, where individually significant objects aggregate and compose larger constructs of space and form. By specifying a curation of architectural elements

adn manipulations, Elemental Procedures acknowledges and subverts the significance of thee elements, and speculating on new potentials of architecture.

+

=

indexed space

cultural coding

convention and expectation

+

=

resultant space

digital coding

familiar and foreign

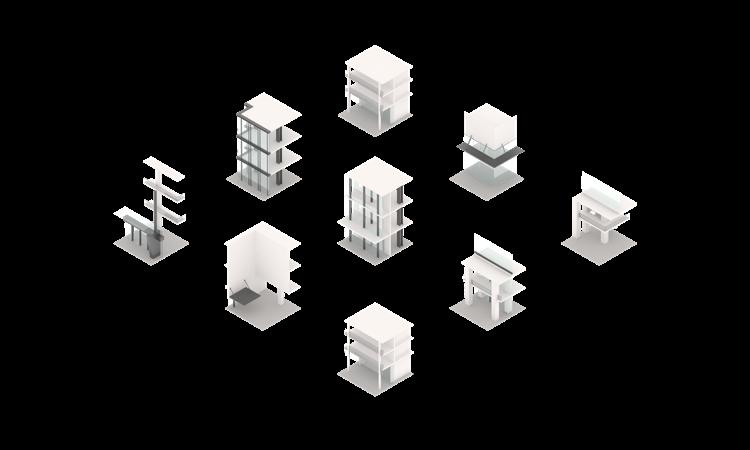

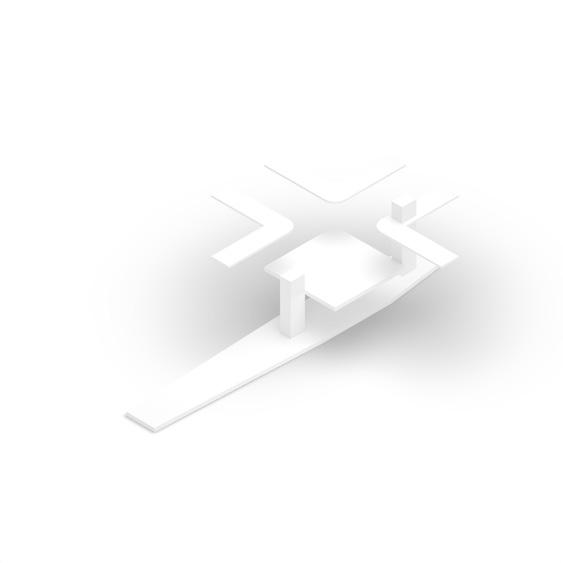

ELEMENTS

Floor

Wall

Column

Arch

ACTIONS

Balcony Taper

Bend

Stretch

Twist

Scale

Shear

Place

Rotate

Corridor

Roof

Stair

Elevator

Door

Escalator

Fireplace

Window

Ramp

Toilet

+T ape

r+

+S

tre

tch

+S

cal

Ba

nd

+T wis

t

e+

Sh

ear

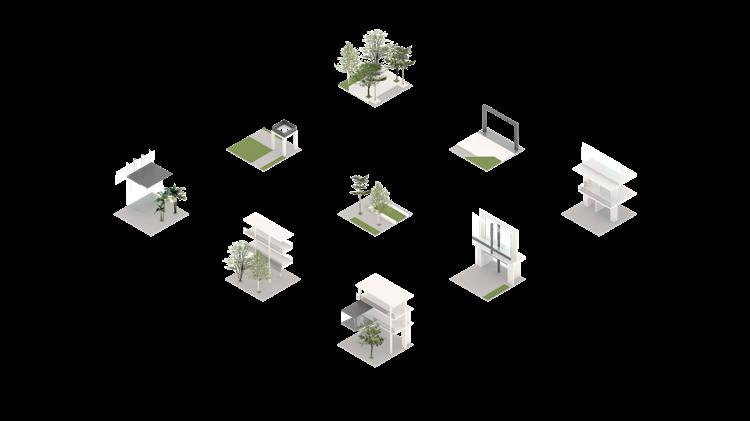

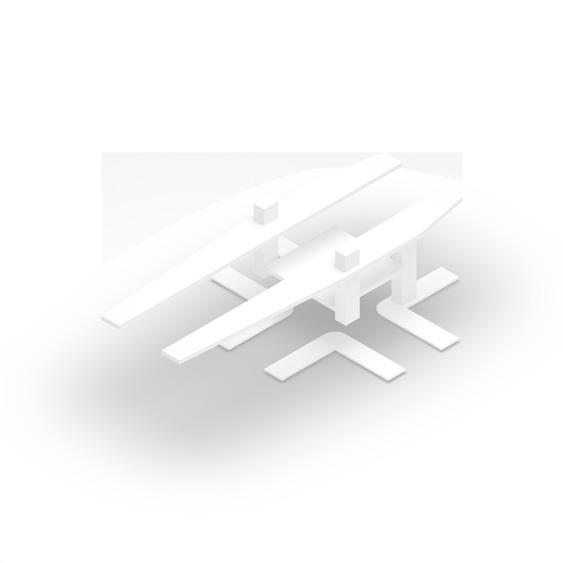

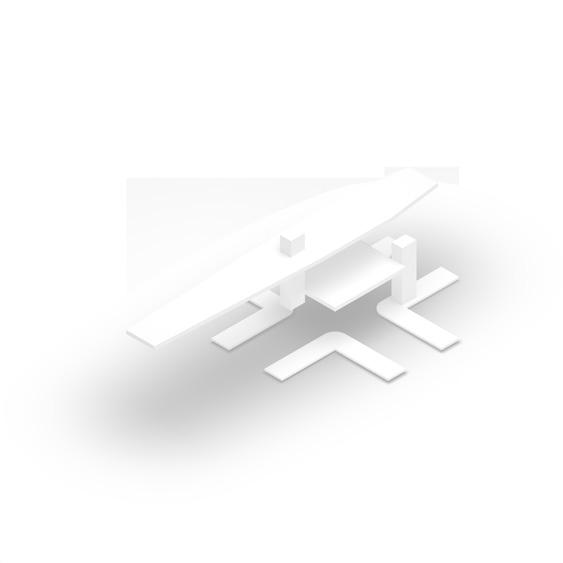

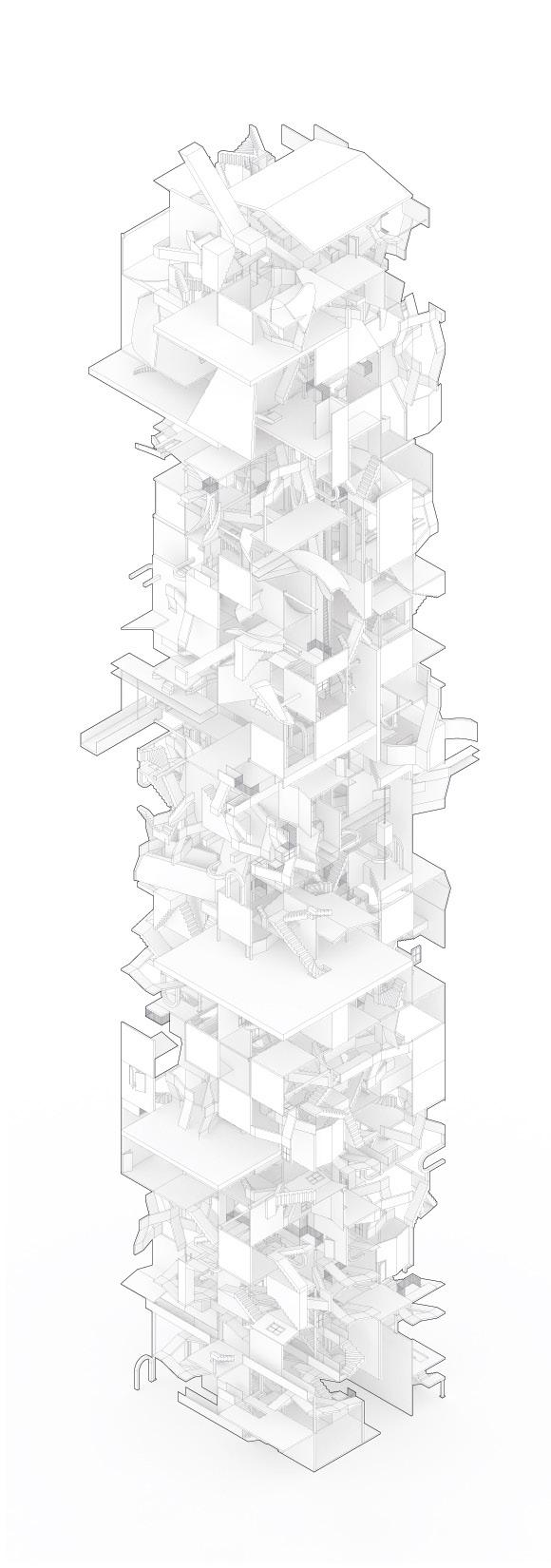

Elenemtal Procedures intersects the cultural coding of these elements’ functions and organizations

with a digital coding, manipulating the geometry

unrestricted by gravity, physical materiality, solidity, or rigidity, as well as being unburdened by the

preconceived biases of organization and orientation.

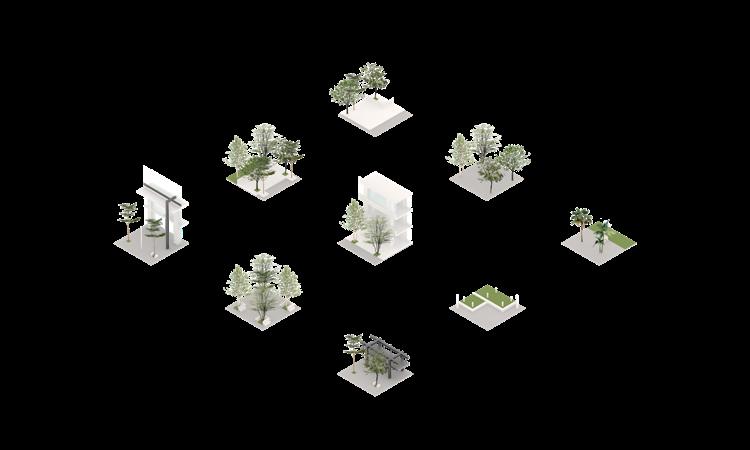

Then the designers investigate and interpret

the results, capitalizing on a human’s ingenuity, creativity, and physical understanding.

0+

Pla

ce

+R

ota

te

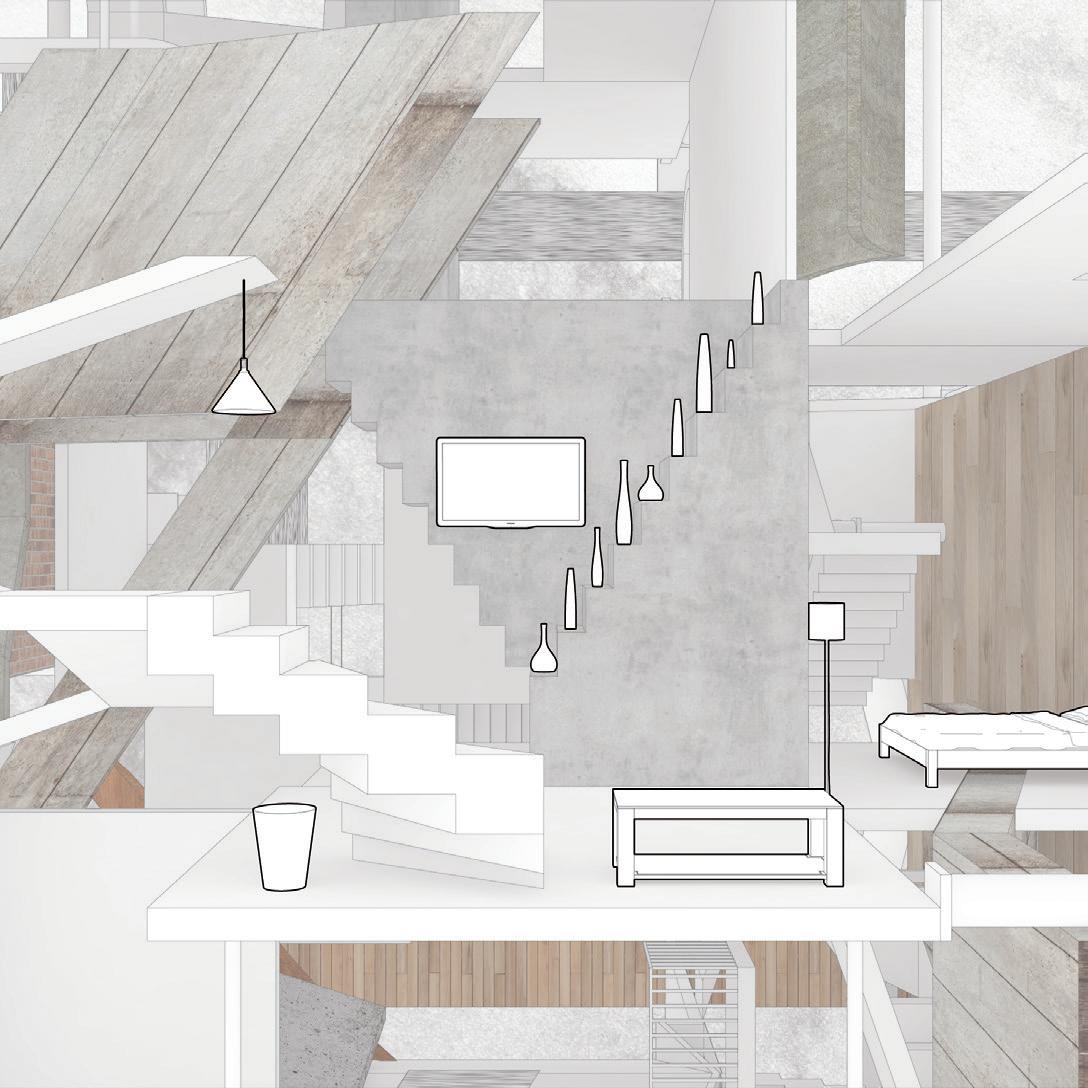

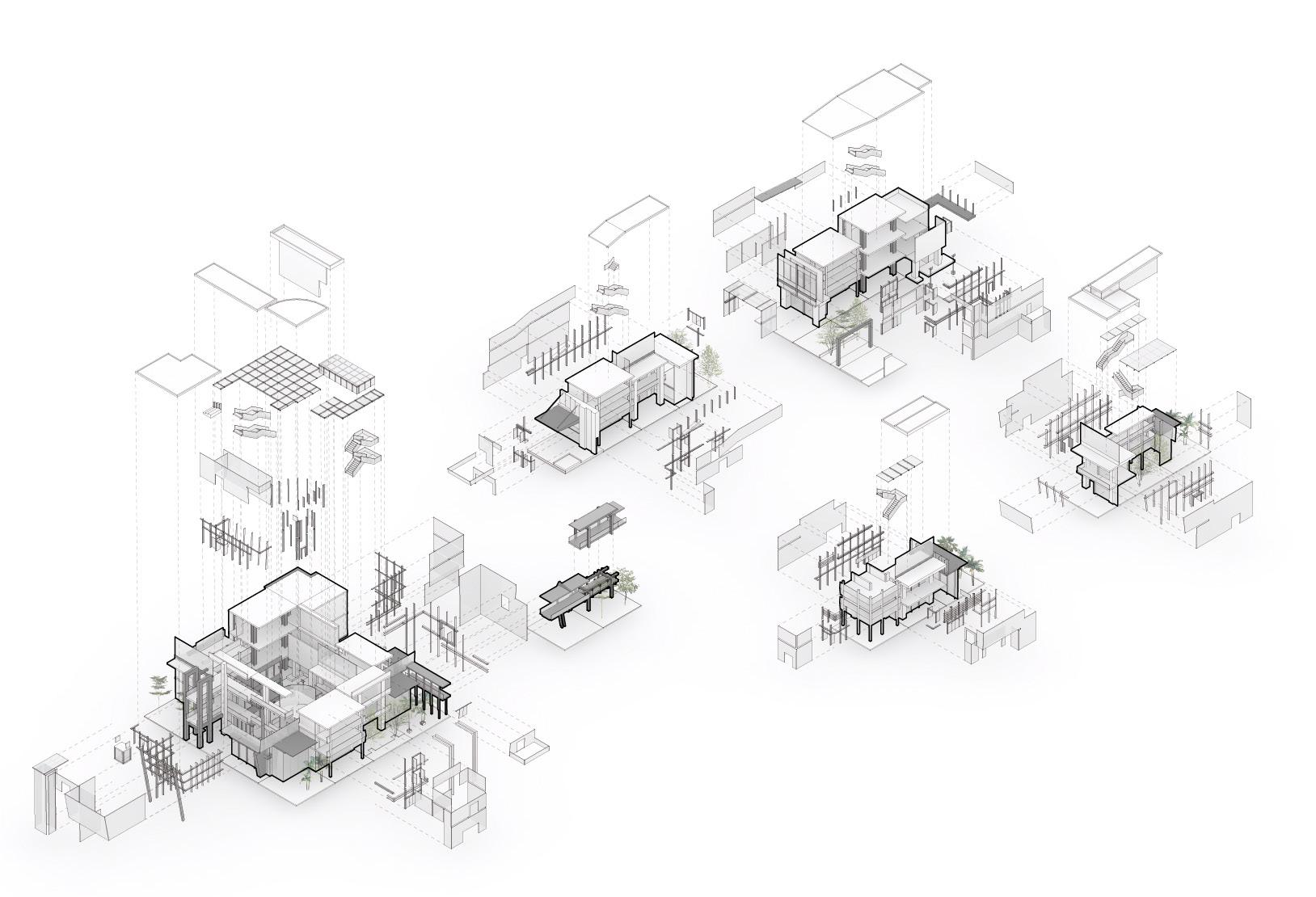

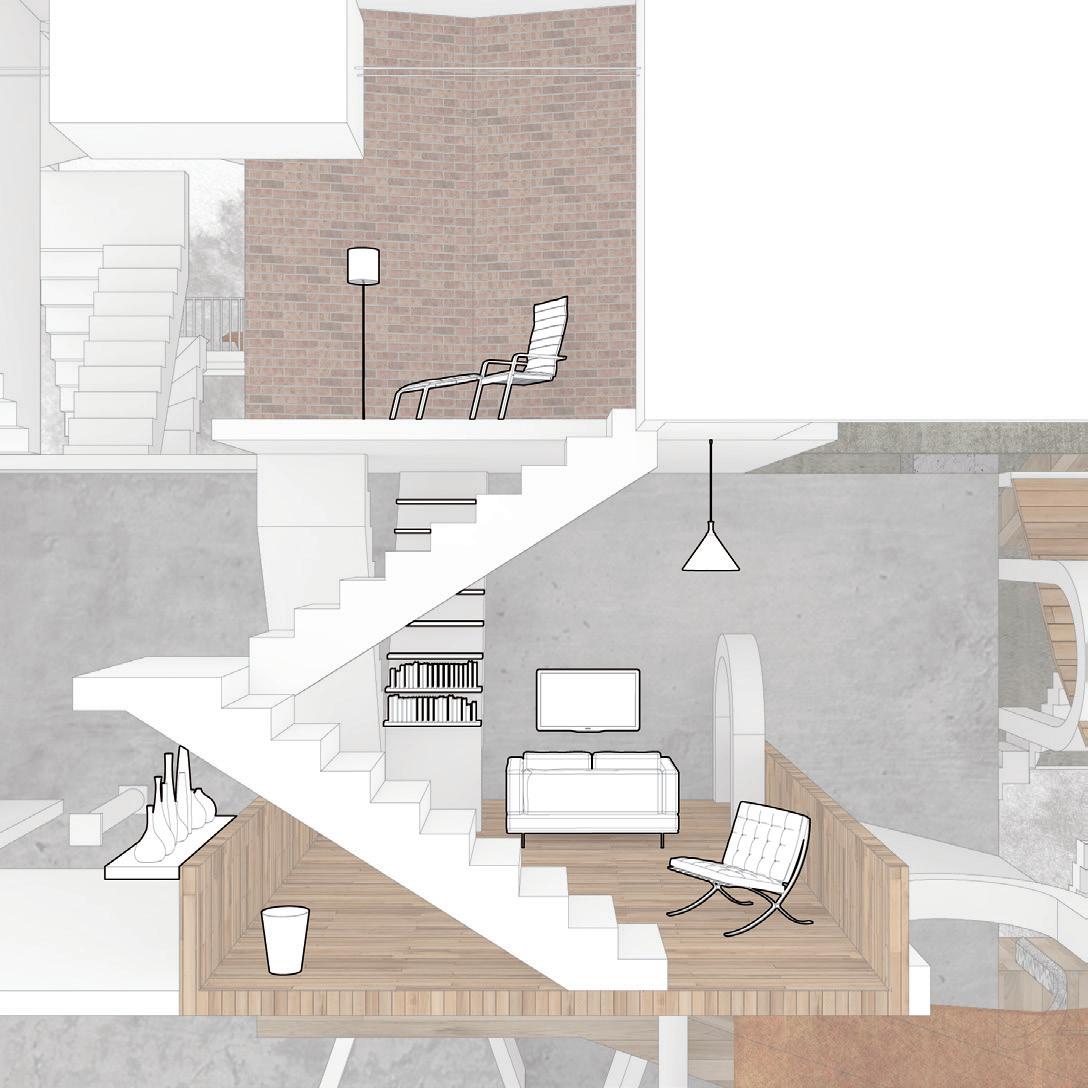

[rotated] [escalator] as shelf unit. next to a [scaled] [sheared] entrance.

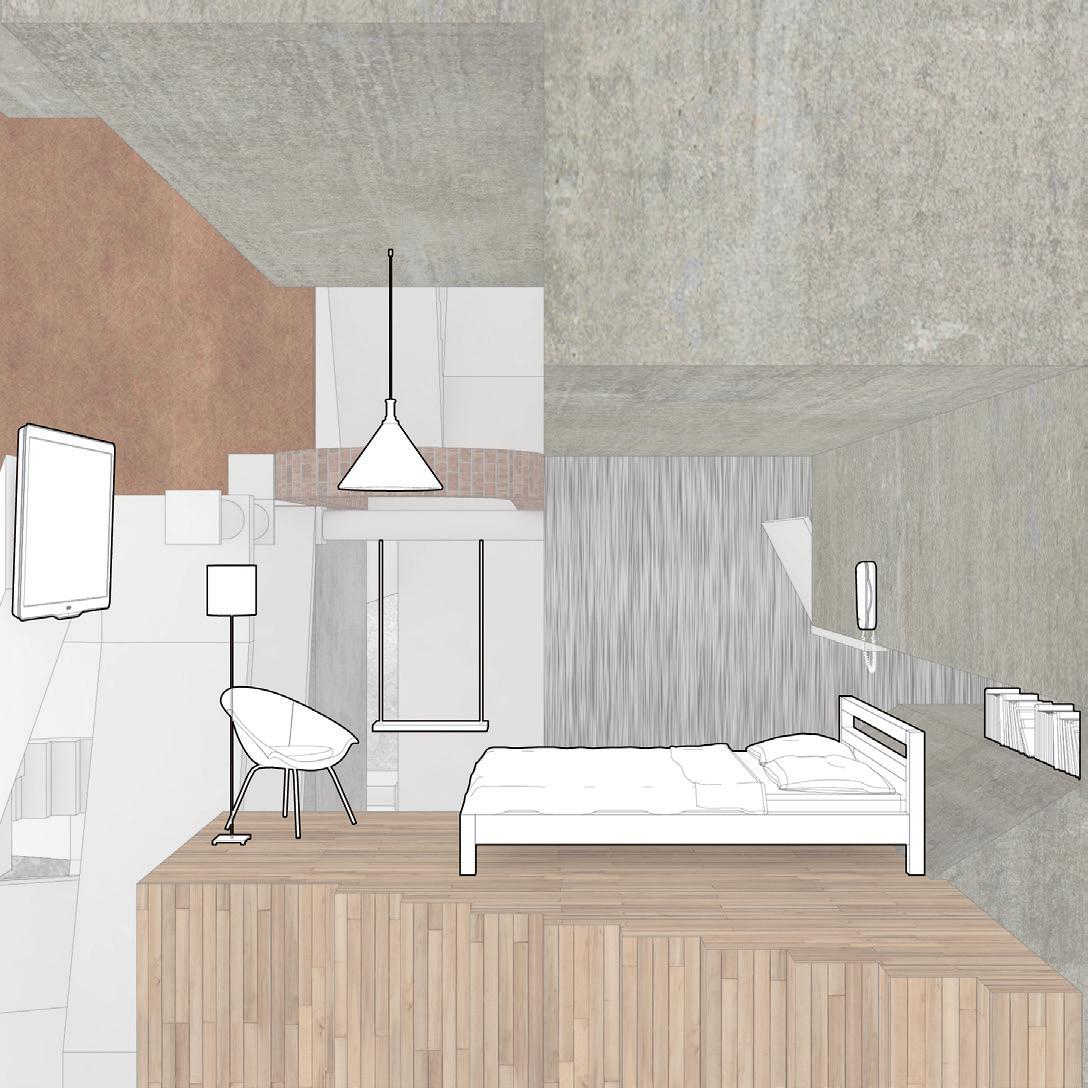

sleeping area created by a [scaled] [stair]. [rotated] [column] as structural beam.

lounge area generated by a [stretched] [corridor].

living space formed by a [twisted] [ramp].

[rotated] [roof] as a space partition.

[rotated] [arch] as a framed opening on wall.

Elemental Procedures creates a symbiotic relationship between the digital tools and the analog impulses of the designer, expanding on

the capacity of each. It creates an architecture that is both physically and conceptually between things, existing somewhere between physical and digital, analog and indexical, familiar and foreign.

THANK YOU
