PostBase® Fusion A120

PostBase® Fusion A120 Stylish. Secure. Connected

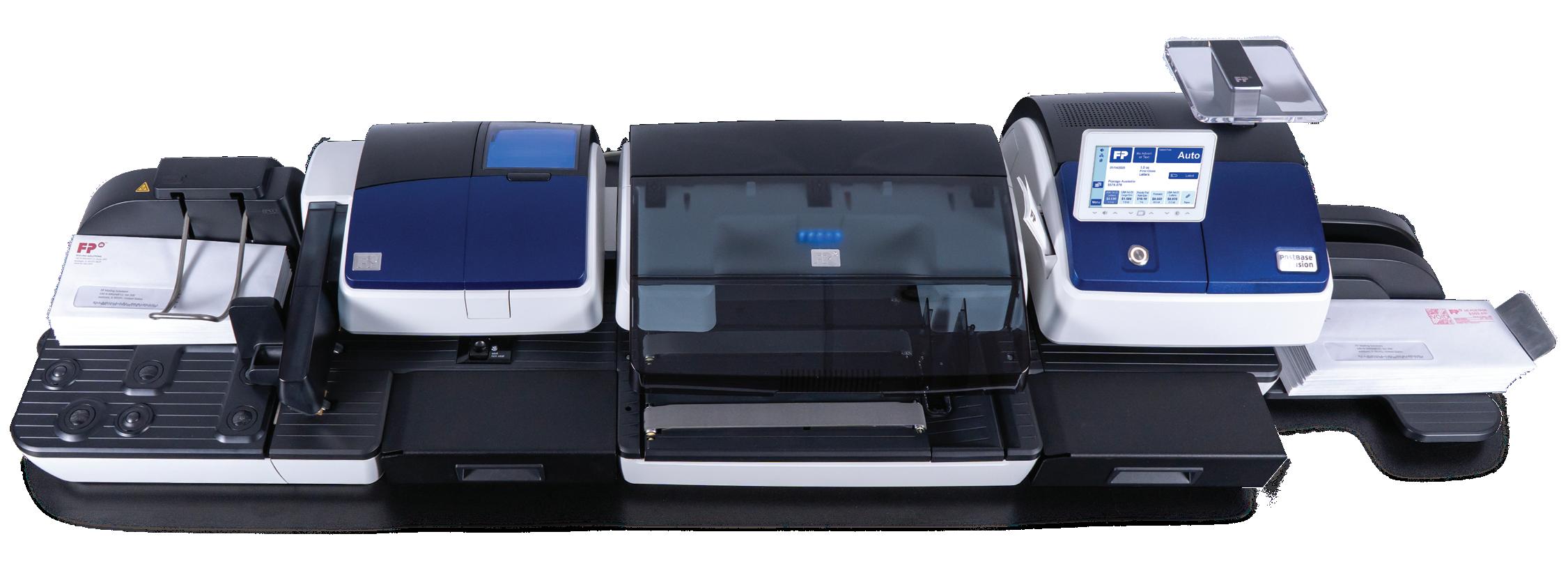

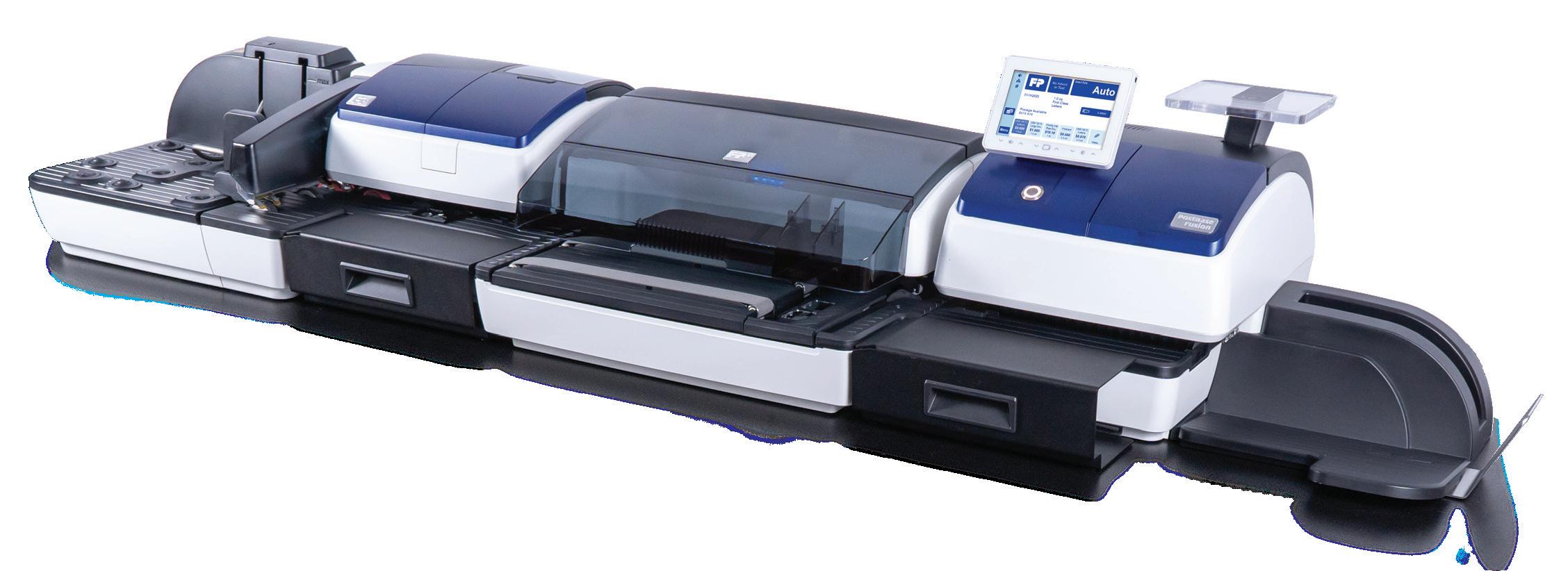

PostBase® Fusion A120 is a powerful mailing system that meets professional mailroom needs while offering advanced reporting and analytics options. Meticulously engineered with users in mind, this mailing system is intuitive and simple to use with a large adjustable touchscreen so that any operator can process mail with ease. Equipped with the most upto-date Canada Post Intelligent Mail Indicia (IMI) technology, FP's PostBase® line fully meets all Canada Post standards and requirements.

Leading the charge on accessible solutions for fast, mixed-mail processing. The PostBase® Fusion A120 sets itself apart from other meters in its class by combining an advanced postage meter configuration, dynamic scale capability, and cloud-based Vision360 analytics and reporting. Offering a new solution to bridge the gap between enterprise-level machines and a growing mailroom's needs.

SealCheck Envelope Sealer Adjustable Touchscreen

Easy-View Sealant Tank

Stack & Go Feeder

Integrated Scale

Label Dispenser

Feed Deck Extension Kit Anti-Skew Rollers

Dynamic Scale (optional) Canada Post Approved Meter

Pro Performance

SealCheck Sensor

Dynamic Scale

The key to reliability and performance is the Stack & Go feeder with the large format feed deck and adjustable anti-skew rollers that automatically straightens mail to prevent stoppages.

Exclusive to FP’s PostBase® line, SealCheck envelope sealers ensure security by validating that each envelope flap passes through the sealer.

Accurately measure mixed mail using in-line dynamic weighing that measures the size and weight of each envelope as it passes through the scale.

MoCA

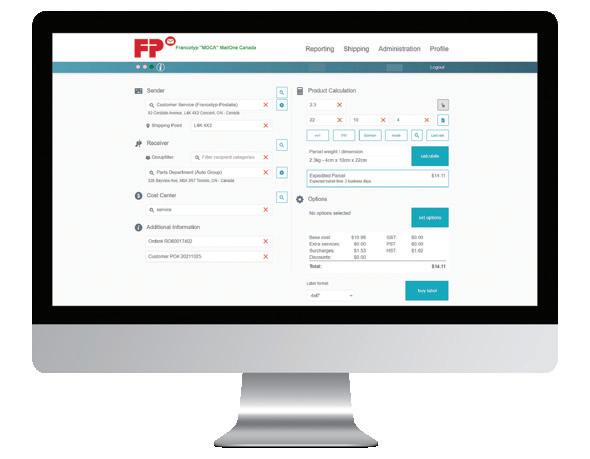

Parcel System Software Paired with the PostBase® Fusion, MoCA is the perfect companion to send packages. This cloud based FP System will process and pay for parcels, with Real Time rates, using a Teleset (PAD) account. MoCA software prints Canada Post barcodes, enabling the user to track and trace their parcel shipments.

MoCA software offers cost control capabilities to keep shipping costs in check. This offers users up front savings starting at 8% compared to the mailing machine rates, with access to all discount levels based on volume usage.

FP MoCA also offers: • Access to all Canada Post parcel services • Track & Trace with Canada Post barcodes • Cost control capabilities • In-depth usage data report analysis • Prints 4" x 6" self adhesive shipping labels with MoCA printer • Easily linked to your mailing machine account

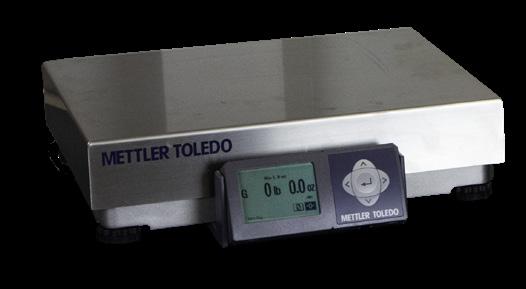

External Scale (optional)

Label Printer (optional)

Vision360

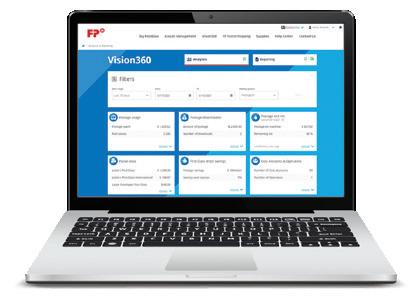

Postal Analytics and Reporting Created with exclusive technology, the PostBase® Fusion offers advanced postal analytics and reporting through Vision360. Accessible through the MyFP Customer Portal, Vision360 provides companies with a 360-degree view of postal usage to better monitor, manage, and control postal expenditures.

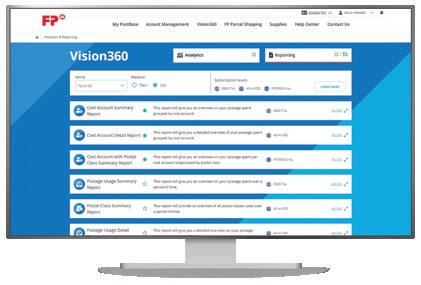

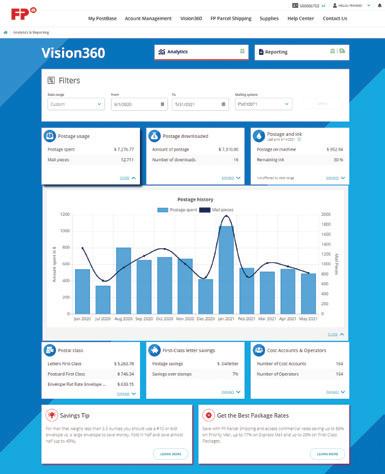

With the Vision360 analytics dashboard, you can get an operational overview of postal expenses, ink and postage on the machine, and postage downloads for better budgeting and planning. Getting the right report you need in the format required is easy. Report types are displayed on-screen as tiles or in a list view that can be sorted by favourites, alphabetical, report type, or subscription level.

Reporting Metrics Available: • Postage Download • Postal Usage • Cost Accounts • Postal Class (Advanced & Professional) • Meter Operators (Advanced & Professional)

The Advanced subscription is included with your PostBase® Fusion A120 mailing system and offers additional reports over the Basic subscription. Additionally, the Professional subscription allows you to combine multiple metrics into a single report and offers more cost accounts.

PostBase® Fusion A120 Standard Features

Specifications

Advanced, large format auto feeder Anti-skew rollers for mixed mail Feed deck extension kit for large envelope processing Prints up to 120 letters per minute Differential weighing scale SealCheck envelope security with sealing status light Adjustable flow sealing Adjustable 5” touchscreen with motorized tilting Rates up to 7 kg. with integrated scale Up to 250 Cost Accounts Cost Account Printing (via Vision360) Up to 20 quick select rate shortcuts Rate Wizard for selecting Postal Products Full set of rates and extra services Automatic postal rate downloads Integrated label dispenser PIN code access protection Integrated text & QR code advert generator - 12 slots Advertisement Logos - 6 pre-loaded, up to 30 custom "Feed-Only" count mail pieces stamp Easy ink replacement Vision360 - Advanced Subscription (20 Cost Accounts) MoCA Parcel System Software

Dimensions Dimensions - Dynamic Scale

Folder Inserter Interface

Dynamic weighing up to 90 letters per minute Interface to compatible Folder Inserter External 30 kg. scale Vision360 - Professional Subscription (250 Cost Accounts) 4” x 6” shipping label printer

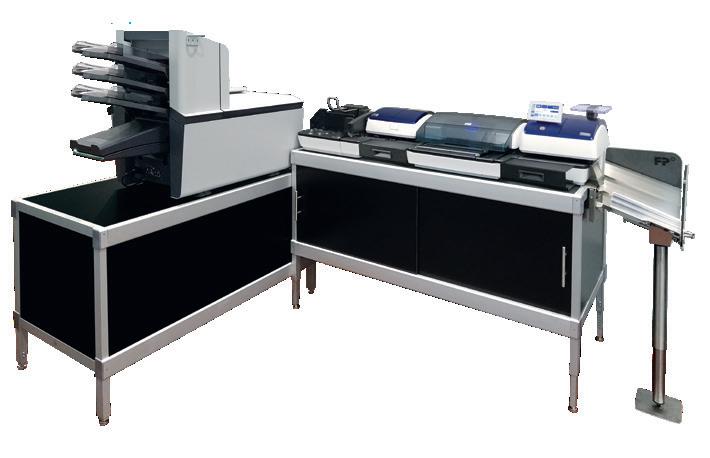

The PostBase® Fusion A120, combined with one of our FPi Folder Inserters, is the ideal solution to automate the process of manually moving finished envelopes from a folder inserter to the input of the PostBase® Fusion A120, reducing the number of steps of folding, inserting and metering mail from several steps to one.

37.6"L x 17.3"D x 11.3-12.9"H 55"L x 17.3"D x 11.3-12.9"H

Expandable catch tray length 12.6”-17.5” System weight

up to 27.44 kg.

Catch tray weight

1 kg.

Maximum letter thickness

0.40“

Envelope sizes

4” x 6” to 10” x 14”

Ink cartridge capacity

up to 18,000 imprints

Noise

<70 dB(A)

Certifications Canada Post Approved Postage Meter Energy Star 3.0

Connectivity Built in Wi-Fi connectivity and LAN

Options

Learn more at: www.francotyp.ca/postbase-fusion-a120 2025 FP Mailing Solutions. All Rights Reserved. TM, SM and ® denote trademarks or registered trademarks of Francotyp-Postalia, Inc. The FP™ logo and FP™ Mailing Solutions Product logos are trademarks or registered trademarks of Francotyp-Postalia, Inc. ©
