4000 Series
Folder Inserter

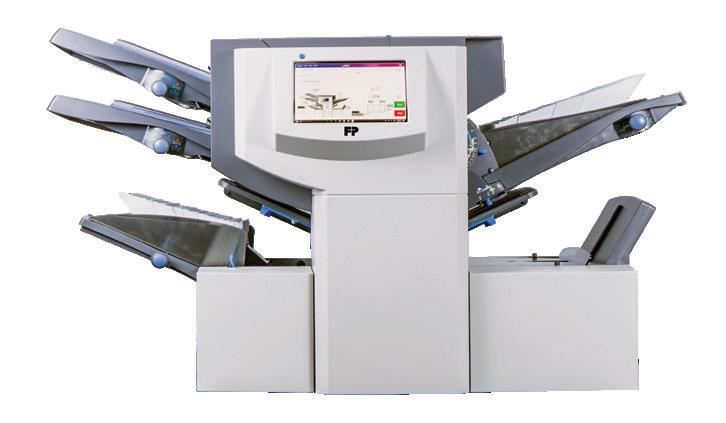

FPi 4000 Series
Folder Inserter
The FPi 4000 Series is a breakthrough mailroom advancement for all businesses who process mail. Securely automate and customize your jobs with proven technology. Combined with FlexStream software you can treat every job with the same high level of integrity by controlling every aspect of the mailing process. Additional features such as the High Capacity Envelope Feeder, High-Capacity Vertical Exit Stacker and ergonomic, height adjustable tables means the FPi 4000 Series can be optimized into the perfect machine to complement your mailroom needs.
Configuration
The FPi 4000 Series can be customized for envelopes, sheets, or inserts. A High-Capacity Envelope Feeder or optional Vertical Stacker can increase production potential.
Integrity
Document scanning options such as 2D Barcodes and OMR offer the ability to automatically, accurately, and securely assemble your sets without the need for manual sorting and grouping.
Safe Seal
Safe Seal Technology ensures the flaps on thick envelopes are securely sealed before exiting the inserter. Securely process your mail for regulatory and compliance purposes.

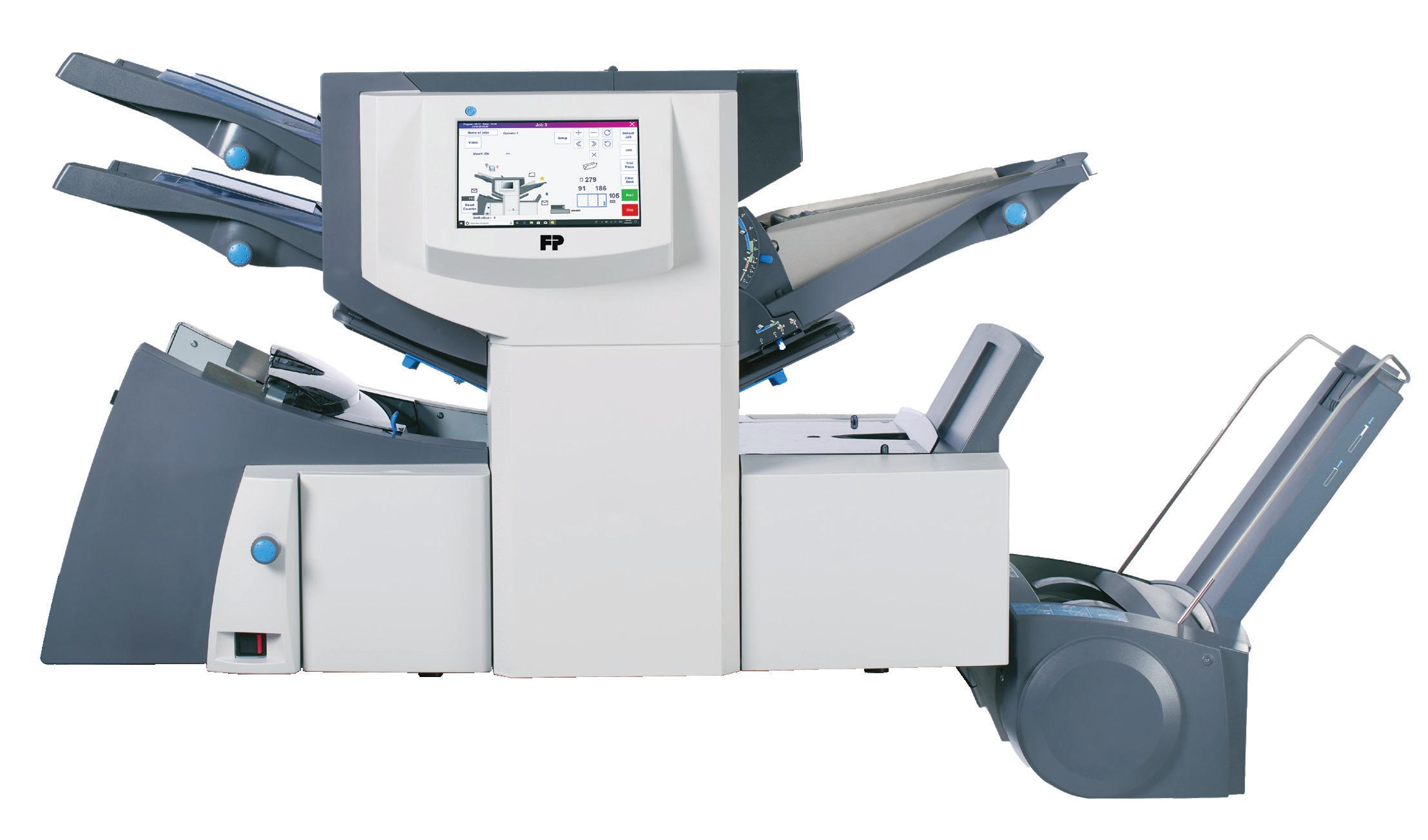

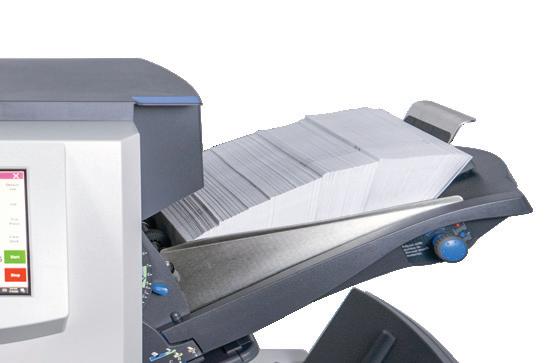

High-Capacity Envelope Feeder (Select Model)
High-Capacity Insert Feeder
Control Panel

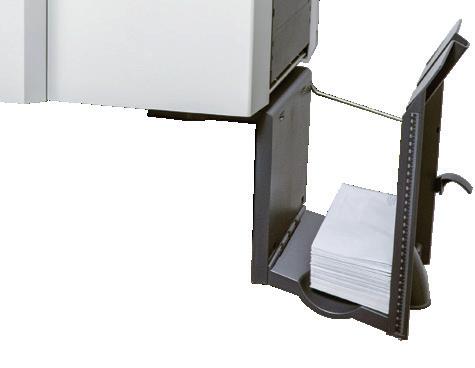

High-Capacity Vertical Exit Stacker (Optional)
Sheet Feeders (Up to 2)
Stand-Out Features

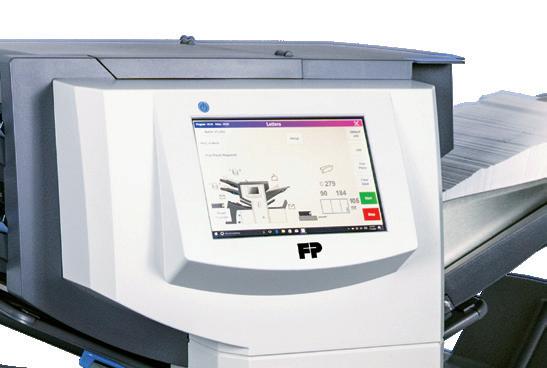

Control Panel
The control panel gives unprecedented ease-of-use and offers intuitive on-screen videos to walk the user through how to load the paper, inserts, and envelopes. Easily run your mail by choosing one of 20 pre-programed jobs, maintaining the ability to customize any job to your needs.

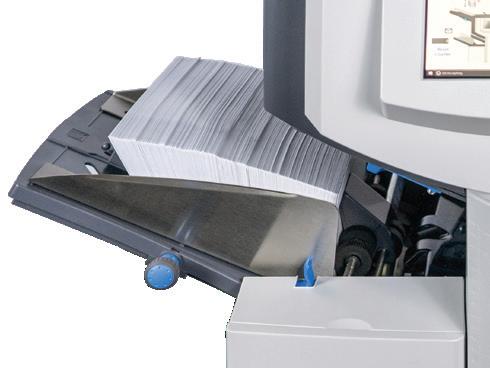

High-Capacity Insert Feeder
The High-Capacity Insert Feeder is standard in the FPi 4000 series. This feeder allows up to 300 reply envelopes and even more inserts! It can feed a variety of media from a single layer insert to a pre-folded tri-fold brochure.
Envelope Feeder Options
Depending on the model, the envelope feeder holds up to 100 envelopes, or the HighCapacity Envelope Feeder (shown on the previous page) holds up to 300 envelopes. Both feeders can process envelopes up to 6.5” by 9.5”, covering the essential business needs for invoices, notices, statements, communications and more.
Multiple Exit Options
The included drop tray holds up to 150 envelopes, or the optional High-Capacity Vertical Exit Stacker (shown on the previous page) holds up to 500 Envelopes. Easily upgrade your exit option for your growing business needs.

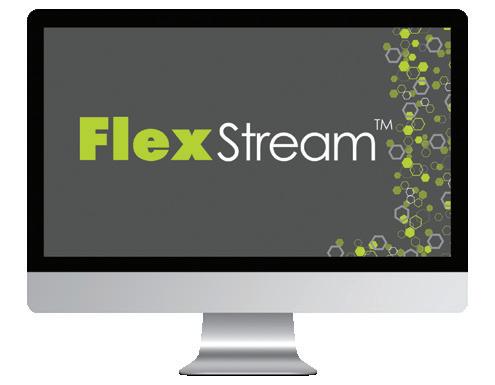

FlexStream Software Document Solution
FlexStream Software is a document automation solution that gives organizations control over their mailing process. With its unmatched versatility, FlexStream automates and simplifies business workflows. It ensures security and document integrity by adding scancodes that are read by the folder inserter. FlexStream allows the user to choose which documents to print and mail, and which to send electronically.
FlexStream Key Benefits:
• Add Scancodes for variable page, document integrity, and verification
• Gain access to USPS® Automation postage rates and discounts
• Correct undeliverable as addressed mail (reduce returned mail)
• Automate processes, reduce labor time, and save money
• Organize, sort, group, and enhance documents electronically before printing
• Add variable and static marketing text, graphics, logos, QR codes and barcodes
Folder Inserter
Standard Features
High-Capacity Insert Feeder
Insert nesting
Feeder swap, linking, cascading
Document feed detection (thickness, length, & stream)
Stores up to 20 jobs
5 Fold types (C, Z, V, Double-V, No-Fold)
Create a tri-fold brochure without inserting
Bottom addressed documents (with bottom flap envelopes)
Daily Mail up to 5 sheets of 20lb paper
Envelope Sealing
Safe Seal Technology
Drop Tray

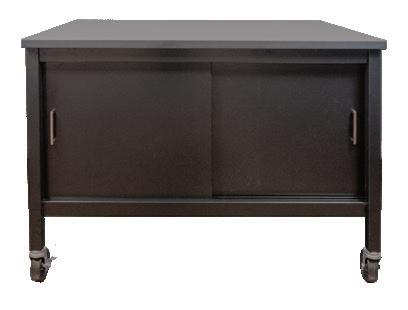

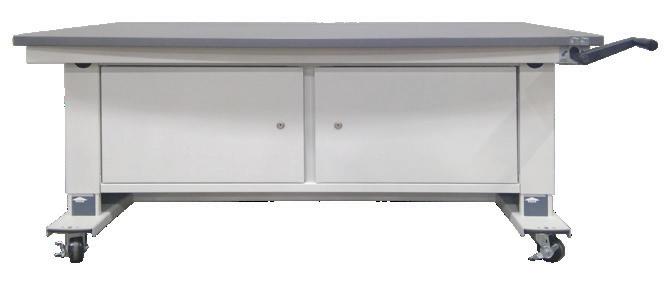

Mailroom Furniture Solutions
Having a strong stable table increases the life span of equipment and eliminates service activity related to weak, wobbly tables. Increase the life of your investment by providing a strong, stable platform.
Specifications
Technical Data
Cycling Speed (Max) up to 3,500 per hour
Base Dimensions (W x D x H) up to 39” x 21” x 25”
Weight up to 158 lbs.
Tray Capacity
Maximum number of feed stations 3 (2 Sheets, 1 Insert)
Sheet Feeder 325 each
Insert Feeder 300 BRE
Envelope Feeder up to 300 (High-Capacity)
Standard Drop Tray up to 150
High-Capacity Vertical Exit Stacker up to 500
Documents and Inserts
Sheet feeder paper weight 18 lbs. to 32 lbs.
Insert feeder paper weight 20 lbs. to 50 lbs.
Sheet feeder paper size (W x L) 7” x 7” to 9” x 16”
Insert feeder paper size (W x L) 5” x 3.25” to 9” x 6”
Envelope feeder sizes (D x W) 3.5” x 8.5” to 6.5” x 9.5”
- Specifications subject to change
Options
FlexStream Software
Integrity options: 2D Barcodes, OMR
2 Sheet Trays
High-Capacity Envelope Feeder: up to 300 envelopes
High-Capacity Vertical Exit Stacker: up to 500 envelopes
Height Adjustable Table
