Reisser® Brochure 2023 by Reisser Ltd

consistent quality always

OUR MISSION STATEMENT:

To develop long-standing and mutually beneficial relationships with suppliers, distributors and employees.

To strive to provide superior quality products and services that exceed customer expectations. Our commitment to build upon the brand, be synonymous with the best in the industry; a brand that distributors are proud to stock.

SCREWS AND FIXINGS

CUTTER®

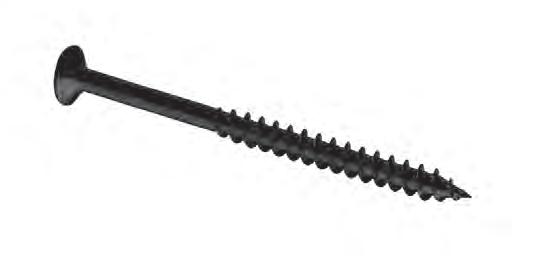

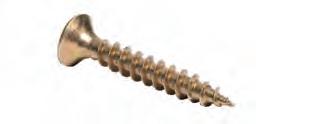

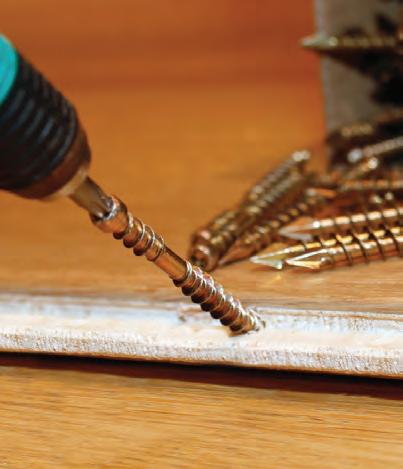

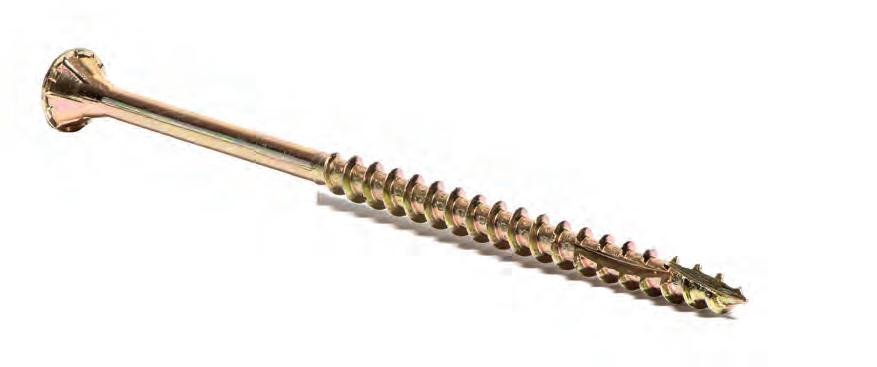

The next generation in performance woodscrews

Designed to give supreme performance and a perfect finish in all wood applications, the CUTTER® is made to reduce splitting, especially near to the edge, be self-countersinking with a clean finish, and penetrate easily.

Packed with advanced features and backed with the REISSER® “Consistent Quality Always” promise the CUTTER® leads the way in High Performance Woodscrews.

Distinct Ribs and Tucks

Self countersinking into all timber and board materials. No need to counterbore.

Re-inforced Collar

Prevents snapping and gives depth for a wide, deep pozi to be inserted, therefore reducing the risk of “cam-out”.

Lubricated, Sharp, Wide, Deep Thread

Up to 40% reduction in driving resistance therefore less torque required. Quick and easy penetration without a pilot hole.

Yellow

Tropicalized

Yellow tropicalized finish gives superior rust resistance compared to a standard BZP screw.

Two Patented Slots

Prevents splitting when screwing close to the edge.

25° Needle Point

Immediate start.

Eye-catching, Informative Packaging

SCREWS AND FIXINGS CUTTER®

High performance woodscrews including unique design with two patented slots (up to 25mm-one slot only), and ribs and tucks Craft Dimensions

Slots allow the screw to work close to the edge of the material without splitting and penetrate almost all timbers without a pilot hole. The ribs and tucks under the head allow the screw to sit flush and tight without surface damage.

◊3.0 x 20

4.0 x 40

4.0 x

SCREWS AND FIXINGS CUTTER® (CONTINUED)

4.5 x

4.5

* Sizes above 6.0 x 160 have a ‘rollet’, a criss-cross indentation on the shank which expands the timber on insertion allowing the screw to penetrate easier. Outer quantities can be subject to amendment. Partially threaded lengths are shown as (Total length /threaded length).

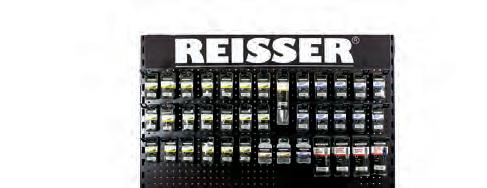

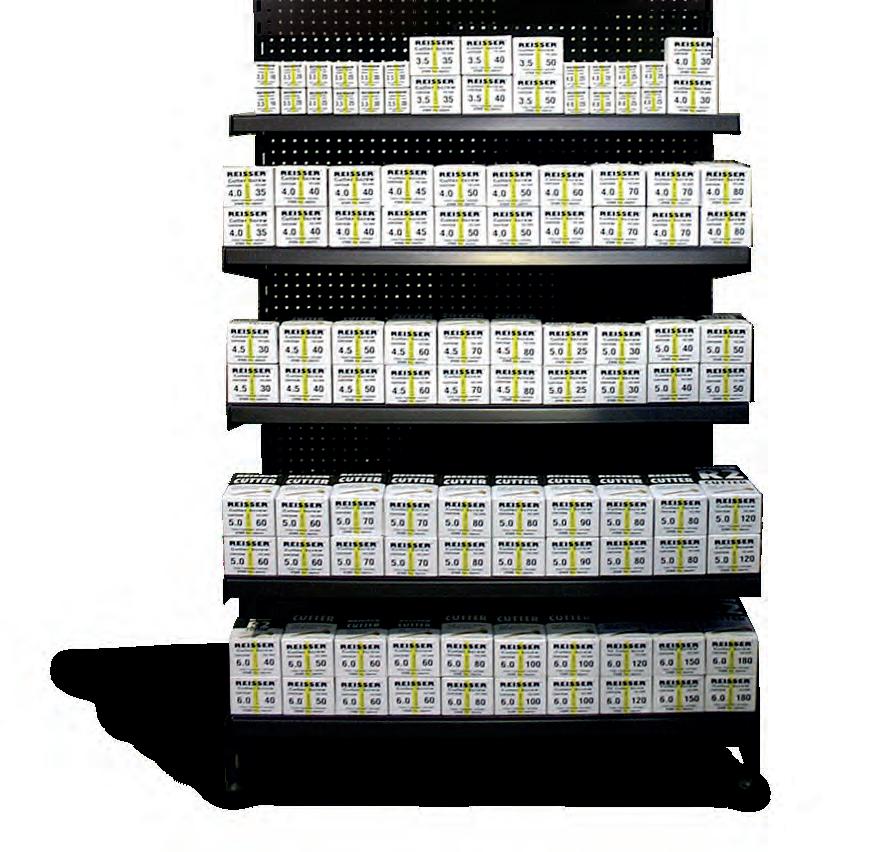

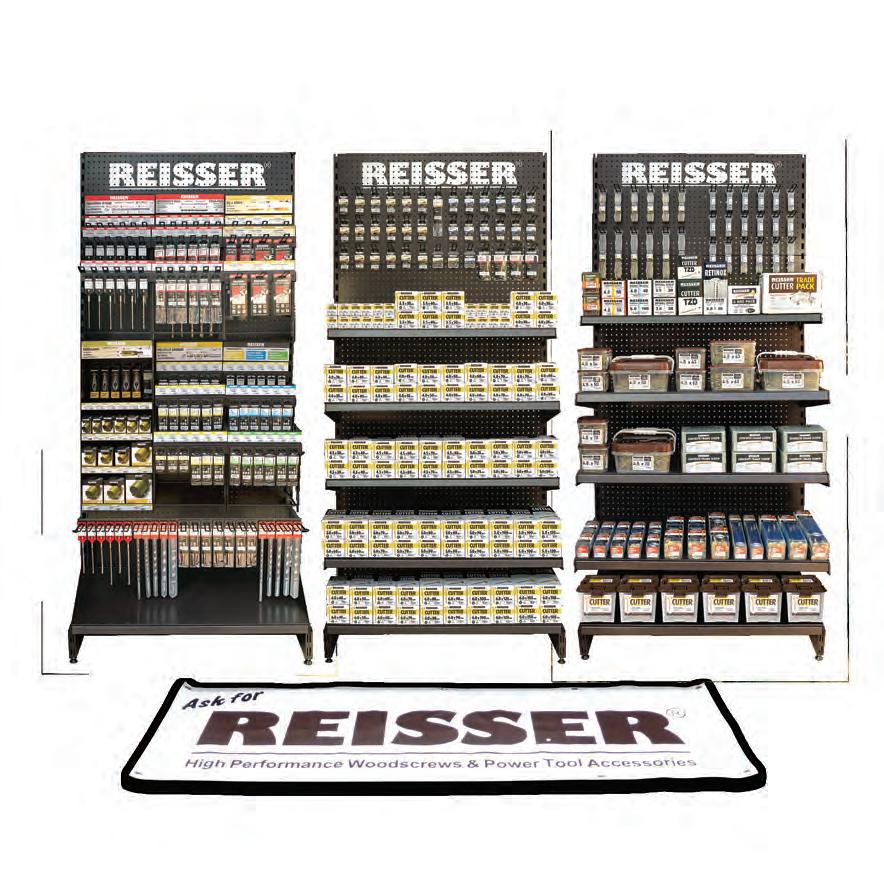

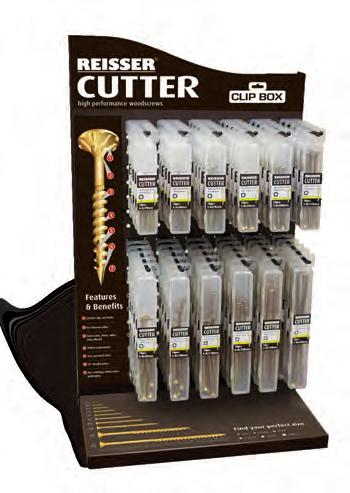

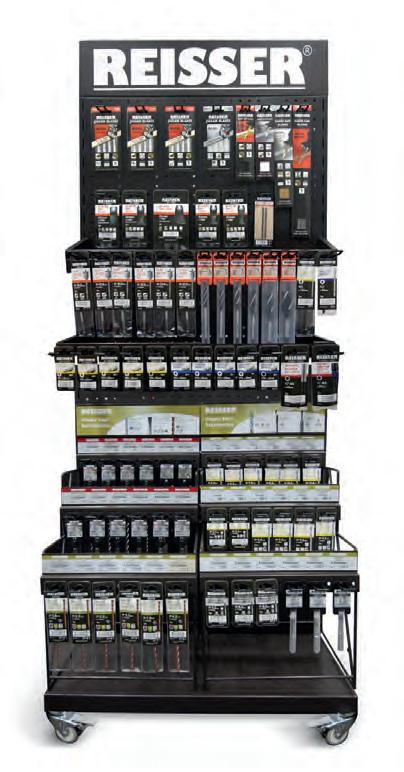

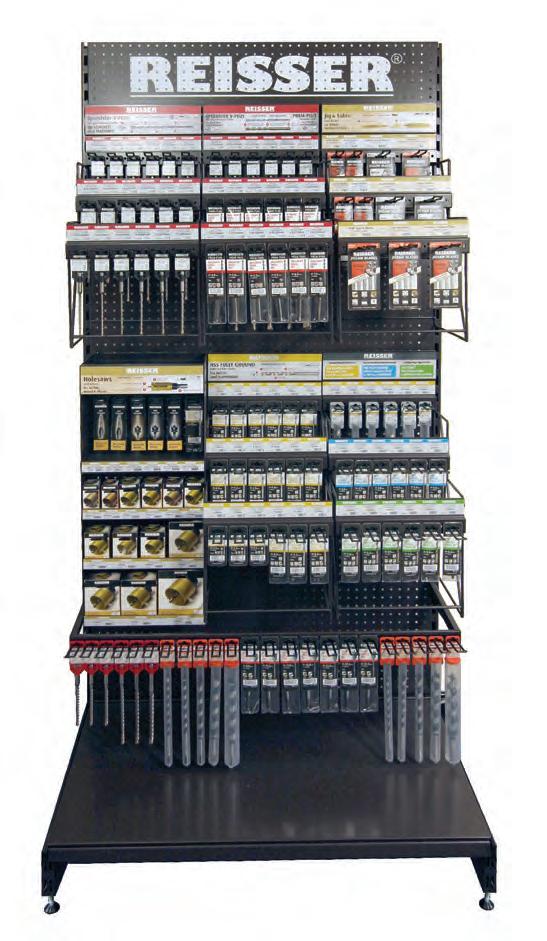

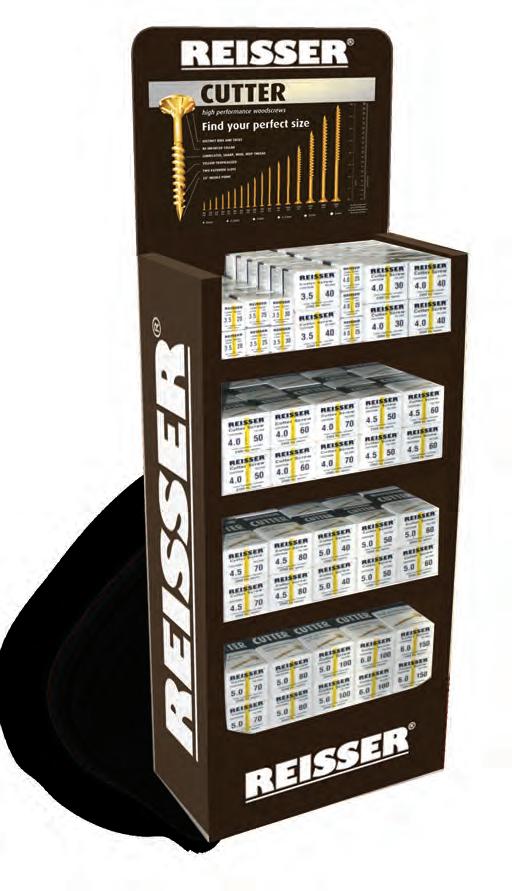

CUTTER® DEPOT

Quality display product to maximise the visual impact of the REISSER ® stock profile. Depots can be tailor made to individual requirements. Please ask for details.

• 1 metre wide stand with 5 adjustable shelves.

• Versatility, various components can be retro fitted to suit a changing profile.

• Extension panel can be added when the stand is to be wall mounted bringing the height into line with existing merchandising.

3.5x16

3.5x20

4.5x70

5.0x120

6.0x40

6.0x100

6.0x120

6.0x150

6.0x180

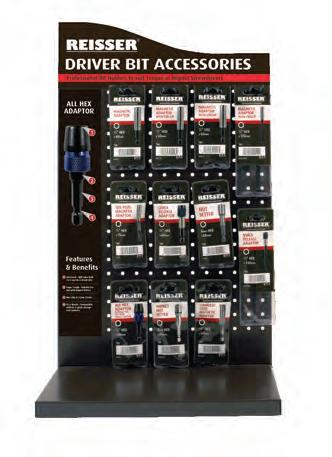

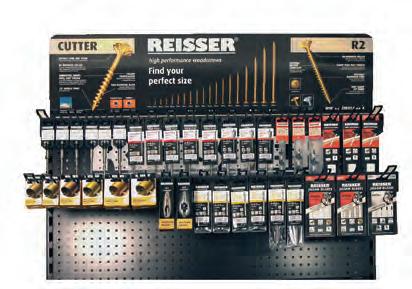

• Can be combined with Power Tool Accessory display systems to provide a combined merchandising solution.

Table shows list of recommended stock quantities and layout. Other options are available. Depot shown includes additional Power Tool Accessory option.

Partially threaded lengths are shown as (Total length /threaded length).

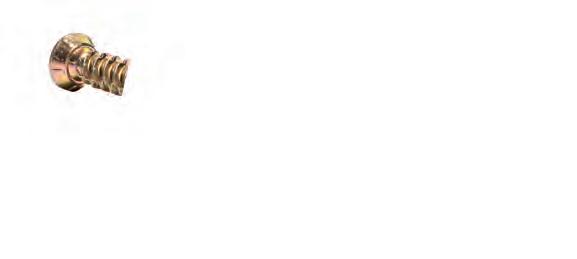

With anti-rotation design at the plug head for extra holding power, these all-purpose lightweight fixings provide a self-locating internal channel for screws.

SCREWS AND FIXINGS MINI DEPOT

• Fully customisable to meet your requirements.

• Hold the exact stock profile you need. A quality display product to maximise the visual impact of the REISSER® stock profile.

Choose your most popular products to fill your own bespoke Depot. Starter Depots can be tailor made to meet your individual requirements. See examples below.

Can be filled with:

• Tubs

• CUTTER® Screws

• R2® Screws

• R2® Retinox Screws

• Decking Screws

• Drywall Screws

• Chunky Cases

• System Cases the options are endless!

SCREWS AND FIXINGS

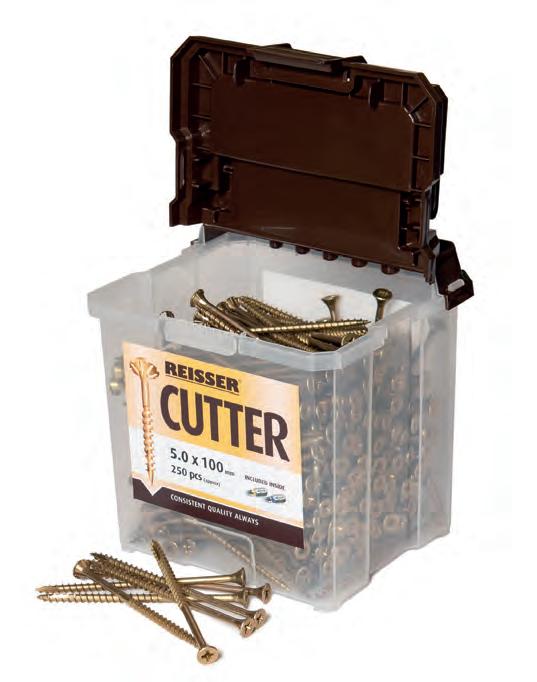

CUTTER® TUBS

REISSER® Tubs offer a great alternative to standard screwboxes.

• Chemically treated to make them shatter-resistant and frost proof.

• Waterproof, durable and tough, re-usable, easy to stack and store, with integral hinged lid.

• Slots allow the screw to work close to the edge of the material without splitting and penetrate almost all timbers without a pilot hole.

• The ribs and tucks under the head allow the screw to sit flush and tight without surface damage.

Characteristics

Dimensions

3.5 x 16 full 82213516PB 2 ,500

3.5 x 20 full 82213520PB 2 ,200

3.5 x 25 full 82213525PB 2 ,000

3.5 x 30 full 82213530PB 1,600

3.5 x 35 full 82213535PB 1,400

3.5 x 40 full 82213540PB

3.5 x 50 full 82213550PB

4.0 x 16 full 8221416PB 2 ,000

4.0 x 25 full 8221425PB 1,600

4.0 x 30 full 8221430PB 1,500

4.0 x 35 full 8221435PB 1,400

4.0 x 40 full 8221440PB 1,200

4.0 x 45 full 8221445PB 1,000

4.0 x 50 full 8221450PB 900

4.0 x 60 /36 part 8221460PB 700

4.0 x 70 /46 part 8221470PB 650

4.0 x 80 /50 part 8221480PB 500

4.5 x 40 full 82214540PB 800

4.5 x 50 full 82214550PB 700

4.5 x 60 /36 part 82214560PB 600

4.5 x 70 /46 part 82214570PB 500

4.5 x 80 /50 part 82214580PB 450

5.0 x 40 full 8221540PB 725

5.0 x 50 full 8221550PB 600

5.0 x 60 /36 part 8221560PB 500

5.0 x 70 /46 part 8221570PB 450

5.0 x 80 /50 part 8221580PB 400

5.0 x 90 /60 part 8221590PB 300

5.0 x 100 /60 part 82215100PB 250

Applications

5.0 x 120 /70 part 82215120PB 190 size thread product pieces (mm) form code per tub

6.0 x 50 full 8221650PB 450 6.0 x 80 /50 part 8221680PB 250

6.0 x 100 /60 part 82216100PB 185

6 TUBS PEROUTER Includes 2x REISSER® Pozi Bits

Partially threaded lengths are shown as (Total length /threaded length). Supplied in full sleeves of 6 tubs per size only. Other sizes available on request.

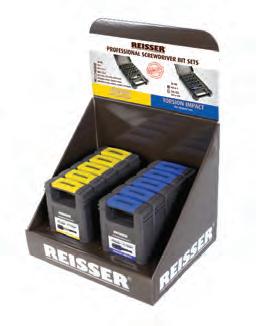

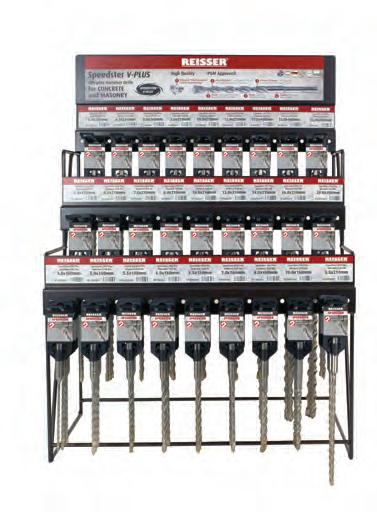

POINT OF SALE

• Can be tailor made to individual requirements. Please ask for details. Various options for the merchandising and storage of screw tubs.

• Quality display products to maximise the visual impact of the REISSER® stock profile.

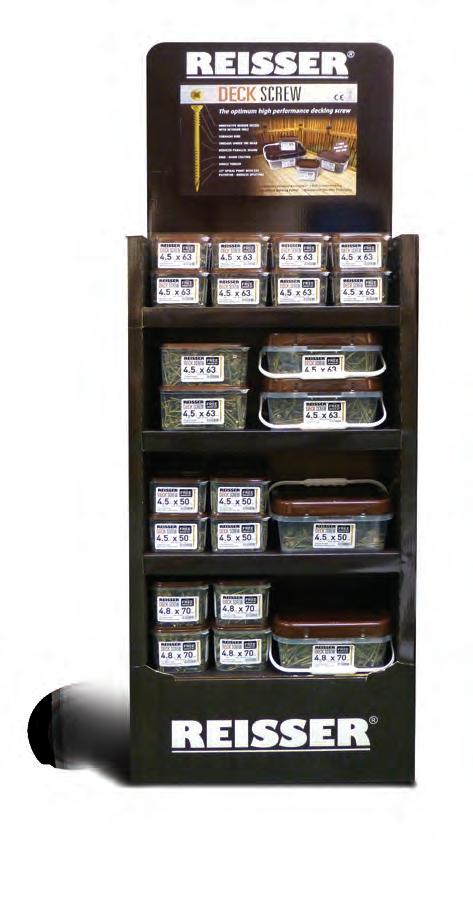

FREESTANDING DISPLAY UNIT

Stocks up to x 96 tubs

Product code (empty unit): FLOORSTAND

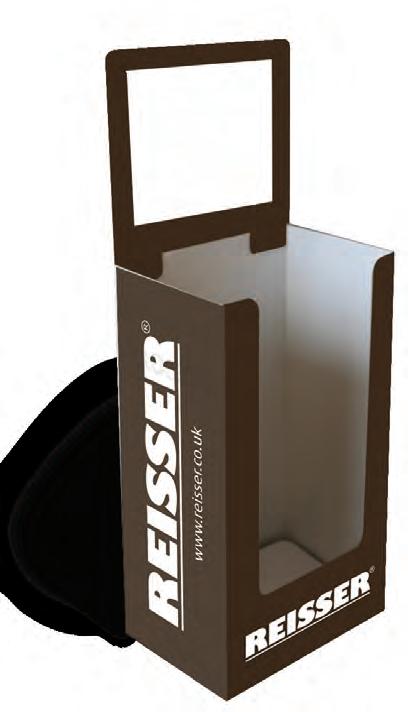

POS DUMPBIN

Stocks up to x 54 tubs

Product code (empty unit): 8221 TUBDISPLAY

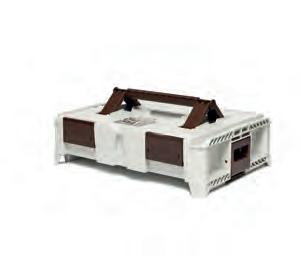

CRATE MATE®

Stocks up to x 6 tubs

Product code (empty unit): SSC2

MEGA TUBS

REISSER® Mega Tubs offer greater savings on your favourite Cutter screw sizes.

• Packed in tough, re-sealable, re-usable tubs.

MEGA TUBS

Larger quantity site tubs for high volume users.

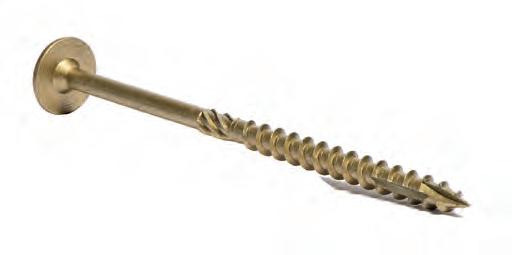

*Sizes above 6.0 x 160 have a ‘rollet’, a criss-cross indentation on the shank which expands the timber on insertion allowing the screw to penetrate easier.

‘Fast Start’ thread-tip for instant grab Re-inforced countersunk with ribs & tucks underneath Slanted rollet on shaft to ease insertion into hard timbers

• TXD Drive for high torque transfer

• Part thread with rollet on shaft to aid insertion

• Single thread with 2 slots cut out. ‘Fast Start’ thread-tip for instant grab.

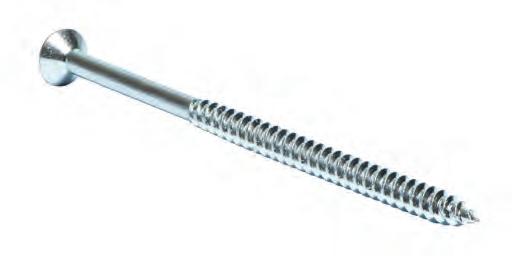

SCREWS AND FIXINGS CUTTER® BZP

• Slots allow the screw to work close to the edge of the material without splitting and penetrate almost all timbers without a pilot hole.

• BZP finish to give a different visual option.

High performance woodscrews including unique design with two patented slots (up to 25mm-one slot only), ribs and tucks Applications

Partially threaded lengths are shown as (Total length /threaded length).

CUTTER® CASES

Cases filled with REISSER® Cutter CSK Pozi Yellow woodscrews. See page 3 for specifications.

• High quality storage solutions for REISSER® screws.

• Easy to carry, stack and store, keep your screws organised and on-hand when on site.

• Choose from the original steel SYSTEM CASE® or plastic chunky SORTA CASE®.

STEEL

Part Code SC.214.MYCUTT

The Original Steel SYSTEM CASE®

A robust, versatile, professional storage system. Manufactured to the highest quality standards it offers adaptable compartment storage with the additional features of industrial, heavy duty toggle catches plus an integral safety catch which locks on closing the lid to prevent accidental opening and spillage. Cases contain fourteen compartments filled with REISSER® CUTTER woodscrews.

REISSER® Cutter Screws

1 box of 3.5 x 20mm (250pcs)

1 box of 3.5 x 25mm (190pcs)

1 box of 3.5 x 30mm (160pcs)

1 box of 3.5 x 40mm (100pcs)

1 box of 3.5 x 50mm (70pcs)

1 box of 4.0 x 25mm (300pcs)

1 box of 4.0 x 30mm (250pcs)

PLASTIC

Part Code SC.417.MYCUTT

Attractive, sturdy, plastic SORTA-CASE®

offers large volume, deep, removable storage compartments which will accept box quantities of screws (most sizes). The cases have a clear lid to easily identify the contents, are designed to interlock on top of each other when stacked to prevent shifting in your van and have an aluminium ‘comfort’ carry handle and quality aluminium toggle catches.

1 box of 4.0 x 40mm (200pcs)

1 box of 4.0 x 50mm (250pcs)

1 box of 5.0 x 50mm (200pcs)

1 box of 5.0 x 60mm (160pcs)

1 box of 5.0 x 70mm (130pcs)

1 box of 5.0 x 80mm (120pcs)

1 box of 5.0 x 100mm (100pcs)

SYSTEM CASES ® are perfect for branding and advertising. The cases can be own brand/dual brand silk screen printed or totally branded in your corporate colours (min. quantities apply).

Promote your company in your area

Aim to get a branded case to every tradesman on every site in your area!

REISSER® Cutter Screws Box of 200pcs

1 box of 3.5 x 40mm

1 box of 4.0 x 30mm

1 box of 4.0 x 40mm

1 box of 4.0 x 50mm

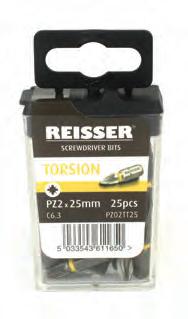

REISSER® Torsion Screwdriver Bits

2 x 25mm pozi bits 2pcs

1 box of 5.0 x 50mm

1 box of 5.0 x 60mm

1 box of 5.0 x 100mm

The Chunky SORTA-CASE® offers a great on-site solution to keep your screws organised and in top condition right where you need them!

Ideal for storing larger volumes of your favourite REISSER® screws.

CUTTER® PACKS

REISSER® CUTTER® PZ Countersunk High Performance Woodscrew Packs

trial/promo packs

• Packed in attractive ‘shelf ready’ packaging.

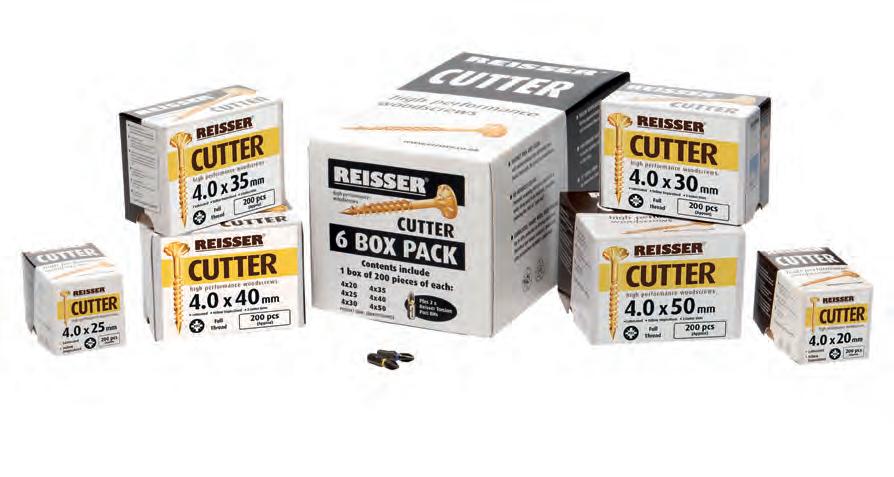

CUTTER® 6 BOX TRIAL PACK

CODE: 6BOXCUTTERPACK

CONTENTS:

Box of 200pcs of

4.0 x 20mm

4.0 x 25mm

4.0 x 30mm

4.0 x 35mm

4.0 x 40mm

4.0 x 50mm

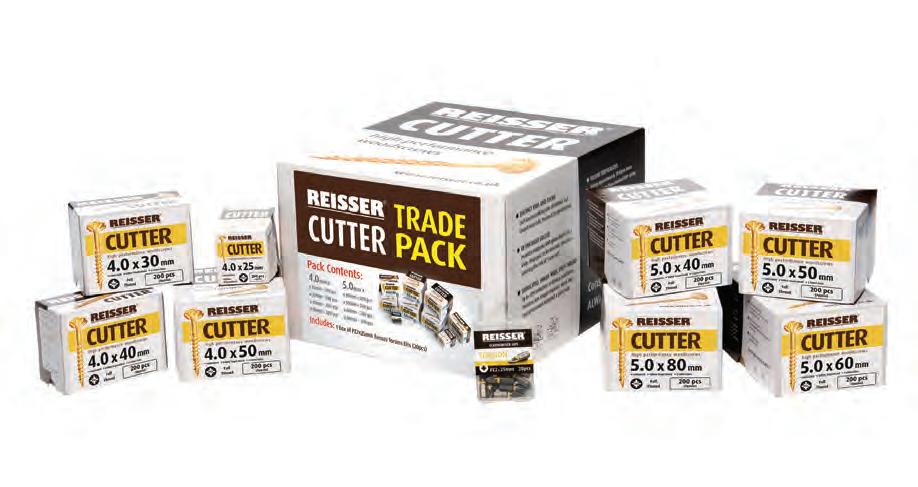

CUTTER® TRADE PACK

CODE: R2CUTTERTRADE

CONTENTS:

1 box of 200pcs of

4.0 x 25mm

4.0 x 30mm

4.0 x 40mm

4.0 x 50mm

5.0 x 40mm

5.0 x 50mm

5.0 x 60mm

5.0 x 80mm

x 25mm PZ2

REISSER® CUTTER® PZ Countersunk

High Performance Woodscrew Packs

trial/promo packs

Code: PREMPACKCUTT

CONTENTS

4.0 x 25mm – 200 pcs

4.0 x 30mm – 200 pcs

4.0 x 40mm – 200 pcs

4.0 x 50mm – 200 pcs

5.0 x 60mm HP – 100 pcs

5.0 x 70mm HP – 100 pcs

5.0 x 80mm HP – 100 pcs

5.0 x 100mm HP – 100 pcs

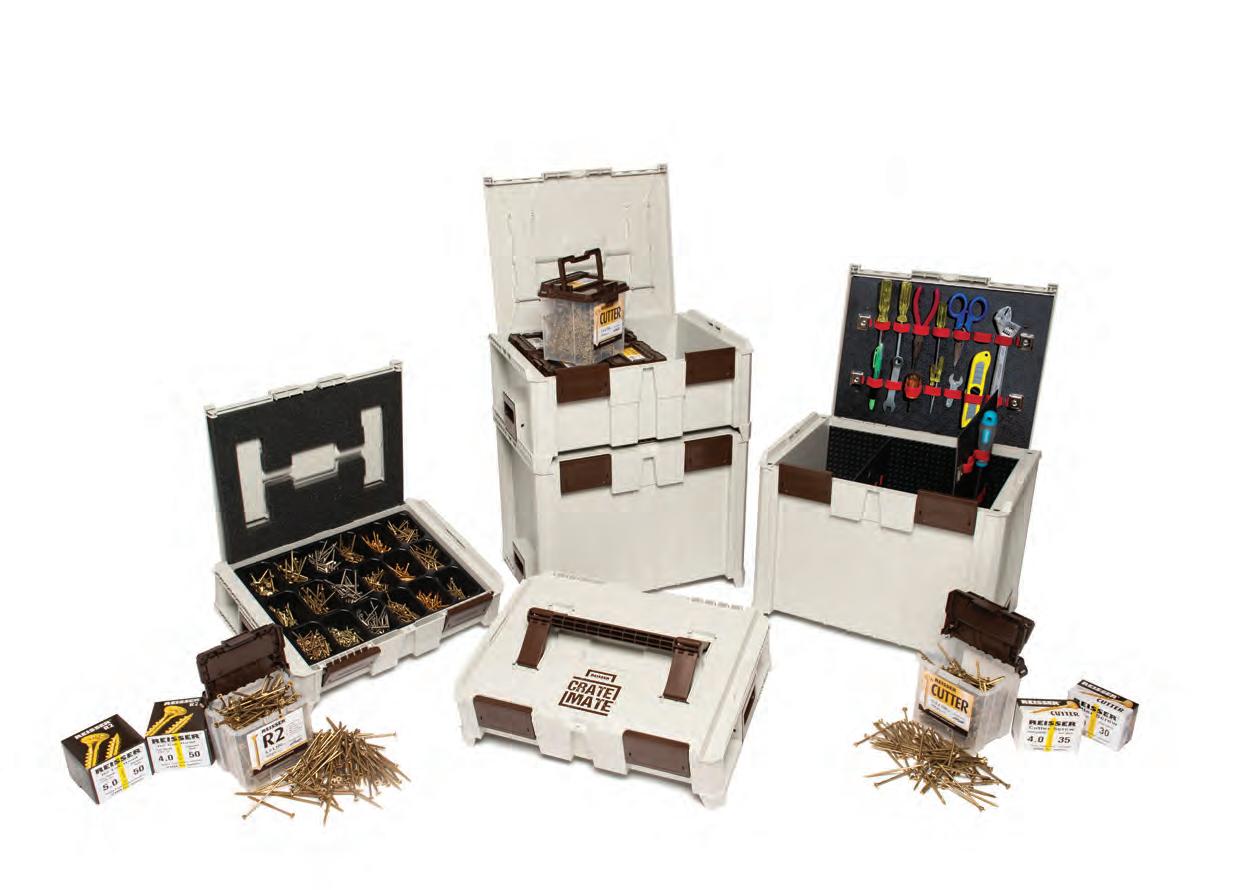

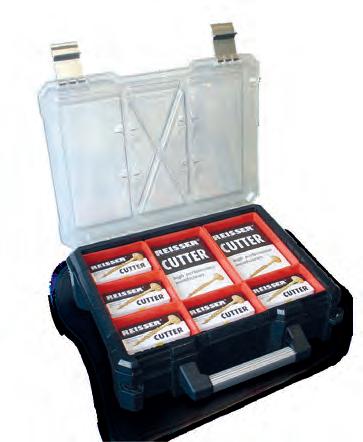

LOADED CRATEMATE® CASES

CRATE MATE® cases filled with REISSER® CSK Pozi Yellow woodscrews. The perfect solution for meeting those unforeseen on site fixing needs. Fully compatible with the CRATE MATE® Storage System.

CRATE MATE ® SSC1 CUTTER® CASE

CONTENTS

Complete with 14 Sizes of REISSER® Cutter Screws

3.5 x 16mm (200pcs)

3.5 x 20mm (200pcs)

3.5 x 30mm (200pcs)

3.5 x 40mm (130pcs)

3.5 x 50mm (200pcs)

4 x 30mm (200pcs)

4 x 25mm (200pcs)

4 x 40mm (200pcs)

4 x 50mm (150pcs)

5 x 50mm (100pcs)

5 x 60mm (100pcs)

5 x 70mm (80pcs)

5 x 80mm (80pcs)

5 x 100mm (75pcs)

CODE: SSC1/CUTTERFULL

CRATE MATE ®

SSC1 R2® CASE

CONTENTS

Complete with 14 Sizes of REISSER® R2® Screws

3.5 x 16mm (200pcs)

3.5 x 20mm (200pcs)

3.5 x 30mm (200pcs)

3.5 x 40mm (130pcs)

3.5 x 50mm (200pcs)

4 x 25mm (200pcs)

4 x 30mm (200pcs)

CODE: SSC1/R2FULL

4 x 40mm (200pcs)

4 x 50mm (150pcs)

5 x 50mm (100pcs)

5 x 60mm (100pcs)

5 x 70mm (80pcs)

5 x 80mm (80pcs)

5 x 100mm (75pcs)

LOADED CRATEMATE® TUB PACKS

Convenient and adaptable storage and protection for your REISSER ® screw tubs. Fully compatible with the CRATE MATE® Storage System.

All tubs contain REISSER® Torsion Screwdriver Bits 2 x 25mm pozi bits 2pcs

All tubs contain REISSER® Torsion Screwdriver Bits

2 x 25mm pozi bits 2pcs

CRATE MATE ® SSC2 CUTTER® CASE

CONTENTS

Complete with 6 Sizes of REISSER® Cutter Screw Tubs

1 of 4x40mm Cutter Tub (1200pcs)

1 of 4x50mm Cutter Tub (900pcs)

1 of 5x50mm Cutter Tub (600pcs)

1 of 5x60mm Cutter Tub (500pcs)

1 of 5x80mm Cutter Tub (400pcs)

1 of 5x100mm Cutter Tub (250pcs)

CODE: SSC2/6CUTTUBCASE

CRATE MATE ® SSC2 R2® CASE

CONTENTS

Complete with 6 Sizes of REISSER® R2® Screw Tubs

1 of 4x40mm R2® Tub (1200pcs)

1 of 4x50mm R2 Tub (900pcs)

1 of 5x50mm R2® Tub (600pcs)

1 of 5x60mm R2 Tub (500pcs)

1 of 5x80mm R2® Tub (400pcs)

1 of 5x100mm R2® Tub (250pcs)

CODE: SSC2/6R2TUBCASE

Why not build your own CRATE MATE® System! See page 53 for details

CYCLONE

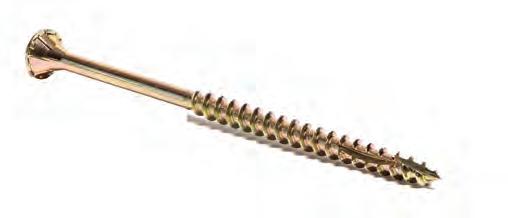

Building on the strengths of the R2® & CUTTER® screws the R3® CYCLONE sets a new standard for REISSER® woodscrews

ULTRA HIGH PERFORMANCE WOODSCREWS

• TTX ® Drive

• Cyclone Ribs

• Self Countersinking

• Lubricated

• Low Torque thread pitch

• High Strength

• Max Pull-Out Resistance

• Yellow Passivated

• Fits Hardware

• Plug Compatible

• R3® Bias Tip

• Instant Grab / Fast Start

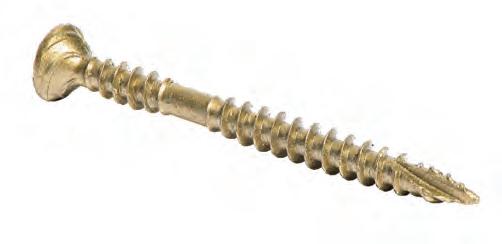

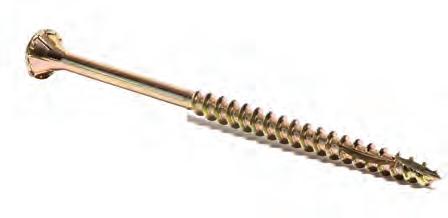

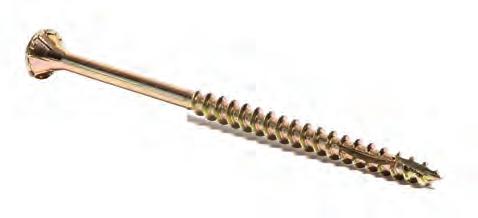

R3® CYCLONE

ULTRA HIGH PERFORMANCE WOODSCREWS

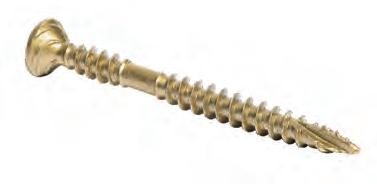

Building on the strengths of the R2® & CUTTER® screws the R3® Cyclone sets a new standard for REISSER® woodscrews

Manufactured in the same factory as the CUTTER® using the same world class materials and production facilities this new screw has added features that differentiate it from CUTTER® and offer significant performance advantages.

On the R3® CYCLONE we have replaced the two slots with a new bias thread tip design. Not only does this grab instantly, and give a high speed start, it also acts as a “hole former” pushing the wood away and forming a clear path for the main threads to follow. As no fibres are removed, maximum pull out value is maintained. The removal of slots also allows this screw to be used effectively in plastic expansion plugs.

The main thread pitch and pattern is the same tried and tested deep wide pattern as is found on the CUTTER® and R2® and the yellow passivation and lubrication gives the performance that REISSER® customers expect.

Another major change is the head design. We have replaced the ribs and tucks from the CUTTER® screw with a new R3®CYCLONE rib design. This still provides excellent countersinking in most materials but has the major advantage that it gives an overall “flat” profile which allows the head to sit and properly engage with recesses in hinges and hardware. This answers a demand for a fast start “self drilling” hinge screw.

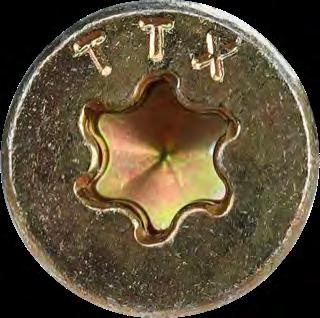

TTX TM Drive

Double reinforced collar for strength. Tight fit - no wobble.

Cyclone Ribs

New design of ribs under head allows clean self countersinking and will sit flush in hinges and hardware.

Yellow Passivated

Yellow passivated for superior corrosion resistance. Lubricated for ease of insertion.

Deep, Wide Threads

Up to 40% reduction in driving resistance therefore less torque required. Maximum pull out resistance.

R3 Bias Thread

New tip design with Bias R3 Thread pattern gives instant grab. (Ideal for ‘one handed’ applications. A fast start acts as a “hole former” pushing aside the wood fibres preventing splitting and speeding up insertion as no pilot hole is required.

SCREWS AND FIXINGS

R3® CYCLONE

6.0

SCREWS AND FIXINGS

R3® CYCLONE

Intensive testing in our labs have aided the development of the R3® CYCLONE by allowing us to improve the performance of all aspects of a woodscrew. Less torque, higher pull out, higher pull through resistance coupled with the starting performance and countersinking you have become accustomed to from CUTTER®

Wood Split Test

Gripping Test Results

Driving

Torque Test Results

Pull Out Test Results

Leading innovation in woodscrews from the brand you can trust.

Head Sinking Performance

SCREWS AND FIXINGS

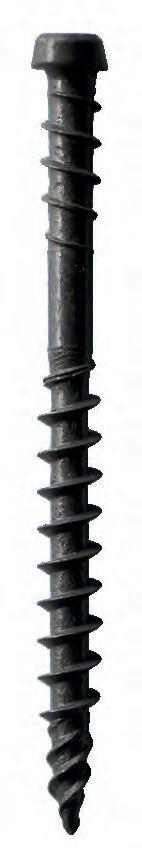

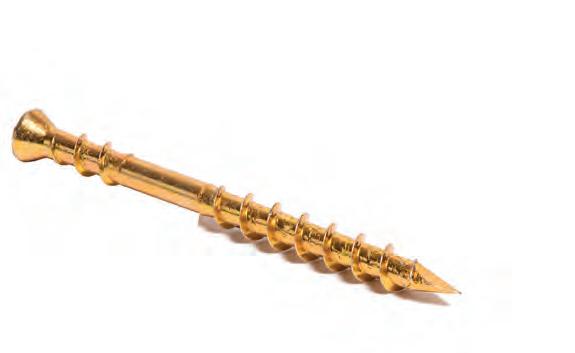

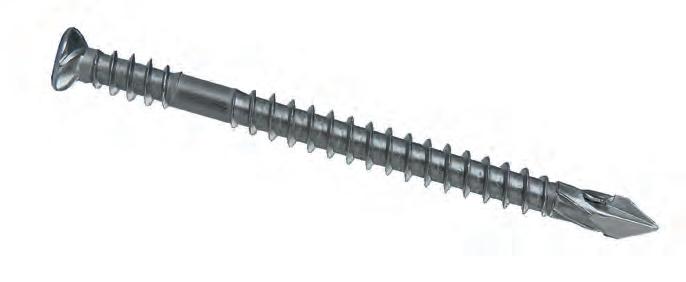

FLOORING

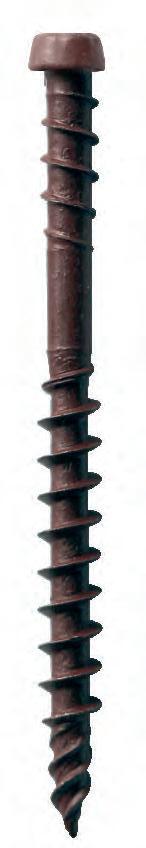

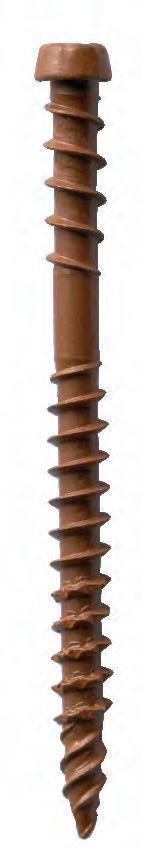

The optimum high performance flooring screw.

• Small, undercut head

• Prevents wood splitting

• Secret fixing

1 FREE DRIVER BIT PER BOX

Each batch checked thoroughly to guarantee ‘Consistency of Quality’

Characteristics

Optimum Performance, TXD Drive Head

TXD drive provides more points of contact for better torque transfer and helps reduce ‘cam out’, bit slippage and bit wear.

The small, undercut head prevents the wood splitting, reduces burrs and minimizes head protrusion giving ‘secret’ fixing.

Intelligent Threading Action

The different lead angles of the upper and lower threads act to pull down any burrs and combine to fix the two materials tightly together giving no board movement.

Superior Performance

Case and through hardened reducing the risk of breakage.

High ductility gives minimum 30º bending angle.

Yellow Tropicalized CR3 Plating

For superior rust resistance.

Lubricated Sharp Wide Single Thread

Centres the screw after rapid insertion and gives excellent holding power into joists.

Invisible REISSER® lubricant helps the screw drive in quickly and easily, reducing board friction for faster insertion and less power usage.

Fast Start ‘Diamond’ Point

For rapid insertion into all materials.

The special drilling point design provides a pre-drill function to help eliminate splitting of the wood without the need for a pilot hole.

Applications

Ordering Info

SCREWS AND FIXINGS

TIMBER CONNECTOR

High performance timber to timber fastener – ideal replacement for a coach screw

• Slots allow the screw to work close to the edge of the material without splitting and penetrate almost all timbers without a pilot hole.

Characteristics

Applications

Dimensions

Ordering Info

6.0 x

6.0 x 80 30

6.0 x 100 30

6.0 x 120 30

6.0 x 140 30 TCN60140B 25 TCN60140T 10

6.0 x 160 30

6.0 x 180 30

6.0 x 200 30 TCN60200B 25 TCN60200T 10

6.0 x 220 30 TCN60220B 25 TCN60220T 10

8.0 x 80 40 TCN80080B 25 TCN80080T 10

8.0 x 100 40 TCN80100B 25 TCN80100T 10

8.0 x 120 40 TCN80120B 25 TCN80120T 10

8.0 x 140 40 TCN80140B 25 TCN80140T 10

8.0 x 150 40 TCN80150B 25 TCN80150T 10

8.0 x 160 40

TCN80160B 25 TCN80160T 10

8.0 x 170 40 TCN80170B 25 TCN80170T 10

8.0 x 200 40 TCN80200B 25 TCN80200T 10

8.0 x 240 40 TCN80240B 25 TCN80240T 10

8.0 x 280 40 TCN80280B 25 TCN80280T 10

8.0 x 320 40 TCN80320B 25 TCN80320T 10

8.0 x 360 40 TCN80360B 25 TCN80360T 10

8.0 x 400 40

TCN80400B 25 TCN80400T 10

Optimum Performance, TXD Drive Washer Head

TXD drive provides more points of contact for better torque transfer and helps reduce ‘cam out’, bit slippage and bit wear.

Washer head offers greater tightening force and better connections than a countersunk head even in warped board.

RMB - Nano Coating

Special metal bronze coating giving MINIMUM 2000 hours protection on a salt spray test.

Nano coating prevents recess clogging ensuring good driver bit fit and reduces coating peel off in timber.

Hex-chromium free.

Slanted Rollet

To reduce drag and speed up insertion.

High Specification Steel for Superior Performance

Specially hardened steel gives maximum tensile and torsional strength - minimum 30° bending angle.

Two Slots

Prevents splitting when screwing close to the edge.

25° Needle point

Very sharp 25° point with the thread running to the end allowing immediate starting.

R2®

Performance Woodscrews

Consistent

Re-inforced Collar

The screw that started it all!

Trusted by the trade for over 30 years the R2® is available in a huge range of sizes, full and part thread and in multiple pack sizes to suit your project.

The R2® sets the standard for the Consistency of Quality and Performance of all REISSER® products.

The re-inforced collar under the head gives additional support to prevent snapping The collar also allows a wide, deep pozi to be inserted. This reduces the risk of the bit jumping out and rounding off the edges

Lubricated, Sharp, Wide, Deep Thread

The invisible REISSER® lubricant helps the screw drive in quickly and easily

High Strength

Specially hardened steel gives the R2® maximum tensile and torsional strength

Yellow Tropicalized

Yellow tropicalized finish gives superior rust resistance compared to a standard BZP screw

Choice of Thread

Available in full thread (primarily for board materials) or part thread (primarily for pulling two pieces of timber together tightly)

25° Needle Point

Very sharp 25° point with the thread running to the end allowing immediate starting

Eye-catching, Informative Packaging

Consistency of Quality

Each batch checked thoroughly to guarantee the highest quality every time

SCREWS AND FIXINGS

R2® COUNTERSUNK YELLOW

For use in all timbers (including hardwoods) plus board materials with or without a pilot hole.

3.5

Outer quantities can be subject to amendment. Partially threaded lengths are shown as (Total length /threaded length).

4.0

Dimensions Industry Craft

5.0

Outer quantities can be subject to amendment. Partially threaded lengths are shown as (Total

R2® COUNTERSUNK YELLOW CONTINUED

R2® TRADE PACK

CODE: R2TRADEPACK2010

CONTENTS

1 box of 200pcs of:

4.0 x 25mm (200 pcs)

4.0 x 30mm (200 pcs)

4.0 x 40mm (200 pcs)

4.0 x 50mm (200 pcs)

5.0 x 40mm (200 pcs)

5.0 x 50mm (200 pcs)

5.0 x 60mm (200 pcs) 5.0 x 80mm (200 pcs)

R2® COUNTERSUNK YELLOW CONTINUED

3.0 x 10 (Hinge) full 9210S22030010B 50,000

3.0 x 12 (Hinge) full 9210S22030012B 50,000

3.0 x 16 (Hinge) full 9210S22030016B 35,000

3.0 x 20 (Hinge) full 9210S22030020B 25,000

3.0 x 25 (Hinge) full 9210S22030025B 20,000

3.0 x 10 full 9200S22030010B 50,000

3.0 x 12 full 9200S22030012B

3.0 x 16 full 9200S22030016B 35,000

3.0 x 20 full 9200S22030020B 25,000

3.0 x 25 full 9200S22030025B 20,000

3.0 x 30 full 9200S22030030B 12 ,000

3.0 x 35 full 9200S22030035B 12 ,000

3.0 x 45 full 9200S22030045B 8,000

3.5 x 12 full 9200S22035012B 35,000

3.5 x 15 full 9200S22035015B 25,000

3.5 x 16 full 9200S22035016B 25,000

3.5 x 20 full 9200S22035020B 20,000

3.5 x 22 full 9200S22035022B 20,000

3.5 x 25 full 9200S22035025B 15,000

3.5 x 30 full 9200S22035030B 13,000

3.5 x 35 full 9200S22035035B 9,000

3.5 x 35 /20 part 9221S22035035B 9,000

3.5 x 40 full 9200S22035040B 7,000

3.5 x 40 /25 part 9221S22035040B 7,000

3.5 x 45 full 9200S22035045B 6,000

3.5 x 50 /30 part 9221S22035050B 5,000

3.5 x 50 full 9200S22035050B 5,000

4.0 x 12 full 9200S22040012B 25,000

4.0 x 16 full 9200S22040016B 20,000

4.0 x 18 full 9200S22040018B 20,000

4.0 x 20 full 9200S22040020B 15,000

4.0 x 22 full 9200S22040022B 15,000

4.0 x 25 full 9200S22040025B 12 ,000

4.0 x 27 full 9200S22040027B 10,000

4.0 x 30 full 9200S22040030B 10,000

4.0 x 35 full 9200S22040035B 7,000

4.0 x 40 full 9200S22040040B 6,000

4.0 x 40 /25 part 9221S22040040B 6,000

4.0 x 45 full 9200S22040045B 5,000

4.0 x 50 full 9200S22040050B 4,000

4.0 x 50 /30 part 9221S22040050B 4,000

4.0 x 55 full 9200S22040055B 3,500

4.0 x 60 /36 part 9221S22040060B 3,000

4.0 x 70 /46 part 9221S22040070B 2 ,500 4.0 x 80 /50 part 9221S22040080B 1,500 4.5 x 16 full 9200S22045016B 15,000 4.5 x 20 full 9200S22045020B 12 ,000 4.5 x 25 full 9200S22045025B 9,000 4.5 x 30 full 9200S22045030B 7,000 4.5 x 35 full 9200S22045035B 6,000 4.5 x 40 full 9200S22045040B 5,000 4.5 x 45 full 9200S22045045B 4,000 4.5 x 50 full 9200S22045050B 3,500

x 60 /36 part 9221S22045060B 2 ,500 4.5 x 70 /46 part 9221S22045070B 2 ,000

x 80 /50 part 9221S22045080B 1,500

x 35 full 9200S22050035B 5,000 5.0 x 40 full 9200S22050040B 4,000

5.0 x 45 full 9200S22050045B 4,000

5.0 x 50 full 9200S22050050B 3,000

5.0 x 50 /30 part 9221S22050050B 3,000

5.0 x 55 full 9200S22050055B 3,000

5.0 x 60 full 9200S22050060B 2 ,500

5.0 x 60 /36 part 9221S22050060B 2 ,500

5.0 x 70 /46 part 9221S22050070B 2 ,000

5.0 x 80 /50 part 9221S22050080B 1,500

5.0 x 90 /60 part 9221S22050090B 1,000

5.0 x 100 /60 part 9221S22050100B 1,000

5.0 x 120 /70 part 9221S22050120B 700 6.0 x 40 full 9200S22060040B 3,500

6.0 x 50 full 9200S22060050B 1,800

6.0 x 60 full 9200S22060060B 1,500

6.0 x 70 /46 part 9221S22060070B 1,500

6.0 x 80 /50 part 9221S22060080B 1,200

6.0 x 90 /50 part 9221S22060090B 1,000

6.0 x 100 /60 part 9221S22060100B 900

6.0 x 120 /70 part 9221S22060120B 500

6.0 x 130 /70 part 9221S22060130B 500

6.0 x 150 /70 part 9221S22060150B 400

6.0 x 180 /70 part 9221S22060180B 400

6.0 x 200 /70 part 9221S22060200B 400

6.0 x 220 /70 part 9221S22060220B 300

6.0 x 240 /70 part 9221S22060240B 300

Outer quantities can be subject to amendment. Partially threaded lengths are shown as (Total length /threaded length).

SCREWS AND FIXINGS

REISSER® Tubs offer a great alternative to standard screwboxes.

• Chemically treated to make them shatter-resistant and frost proof.

• Waterproof, durable and tough, re-usable, easy to stack and store, with integral hinged lid.

• For use in all timbers (including hardwoods) plus board materials with or without a pilot hole.

Characteristics

size thread product pieces (mm) form code per tub

3.5 x 16 full 92213516PB 2,500

3.5 x 20 full 92213520PB 2,200

3.5 x 25 full 92213525PB 2,000

3.5 x 30 full 92213530PB 1,600

3.5 x 35 full 92213535PB 1,400

3.5 x 40 full 92213540PB 1,250

3.5 x 50 full 92213550PB 950

4.0 x 16 full 9221416PB 2,000

4.0 x 25 full 9221425PB 1,600

4.0 x 30 full 9221430PB 1,500

4.0 x 35 full 9221435PB 1,400

4.0 x 40 full 9221440PB 1,200

4.0 x 45 full 9221445PB 1,000

4.0 x 50 full 9221450PB 900

4.0 x 60 /36 part 9221460PB 700

4.0 x 70 /46 part 9221470PB 650

4.0 x 80 /50 part 9221480PB 500

4.5 x 40 full 92214540PB 800

4.5 x 50 full 92214550PB 700

4.5 x 60 /36 part 92214560PB 600

4.5 x 70 /46 part 92214570PB 500

4.5 x 80 /50 part 92214580PB 450

5.0 x 40 full 9221540PB 725

5.0 x 50 full 9221550PB 600

5.0 x 60 /36 part 9221560PB 500

5.0 x 70 /46 part 9221570PB 450

5.0 x 80 /50 part 9221580PB 400

5.0 x 90 /60 part 9221590PB 300

5.0 x 100 /60 part 92215100PB 250

5.0 x 120 /70 part 92215120PB 190

Partially threaded lengths are shown as (Total length /threaded length). Supplied in full outers of 6 only. Other sizes available on request.

Applications

6.0 x 50 full 9221650PB 450

6.0 x 80 /50 part 9221680PB 250

6.0 x 100 /60 part 92216100PB 185

SCREWS AND FIXINGS

R2® COUNTERSUNK ZINC

For use in all timbers (including hardwoods) plus board materials with or without a pilot hole.

BZP bright finish to give a different visual option.

4.0

Outer quantities can be subject to amendment. Partially threaded lengths are shown as (Total length /threaded length).

R2® COUNTERSUNK ZINC CONTINUED

Dimensions Industry Craft

4.5

6.0

6.0 x 130/70 part

Outer quantities can be subject to amendment. Partially threaded lengths are shown as (Total length /threaded length). Other sizes available on request - subject to minimum order quantity.

R2 COUNTERSUNK BLACK ZINC

4.0

Pan head gives superior holding power.

SCREWS AND FIXINGS

R2® SQUARE DRIVE

Considered by some to be the best drive available, these screws provide the trusted R2® quality and performance coupled with a SQ2 square drive. The SQ drive has superb bit engagement and is excellent for ‘one handed’ and overhead operations.

R2® PAN HEAD

R2® SQUARE DRIVE BITS

SCREWS AND FIXINGS

R2® PAN HEAD YELLOW

Same quality and performace as all R2® screws with a pan head which gives extra pull though performance and clamping power.

• For use in all timbers (including hardwoods) plus board materials with or without a pilot hole.

• Ideal for fixing brackets and hardware.

3.5

5.0

R2® CERTIFICATES

CUTTER® CERTIFICATES

The Construction Products Regulation (CPR) lays down harmonised rules for the marketing of construction products in the EU and the UK. The Regulation provides a common technical language to assess the performance of construction products. It ensures that reliable information is available to professionals, public authorities, and consumers, so they can compare the performance of products from different manufacturers in different countries.

The CE/UKCA Marking indicates that a construction product is in conformity with its declared performance and that it has been assessed according to a harmonised European standard or a European Technical Assessment has been issued for it.

R2®

A2 Stainless Steel to offer excellent corrosion resistance in wet & dry and in extreme hot/cold conditions.

• Stainless Steel A2 Grade 304 (18/8)

• High Corrosion Protection

• High Resistance to Chemicals/Dyes/Foodstuffs

• Virtually Non Magnetic

• Ideal for Hygiene/Sterile Environments

• Attractive Finish - Ideal when visible

Sharp 25° point with the thread running to the end allowing immediate starting.

Sharp, wide, deep thread giving exceptional pull-out.

Invisible REISSER® lubricant helps the screw drive in quickly and easily.

Available in full thread (primarily for board materials) or part thread (primarily for pulling two pieces of timber together tight).

Re-inforced collar

under the head gives additional support to prevent snapping.The collar also allows a wide, deep pozi to be inserted. This reduces the risk of the bit jumping out and rounding off the edges.

Consistency of quality

Each batch checked thoroughly and all CE approved.

Craft

Clipbox

R2® RETINOX CLIP BOX

A2 Stainless Steel Performance Woodscrews to offer excellent corrosion resistance in many different environments.

GUARANTEED CONSISTENT QUALITY

• Available in ‘ClipBox’ pack convenient, practical & reusable.

• 18 popular sizes - 20mm to 100mm in handy ‘ClipBox’ quantities.

• Consistent & reliable REISSER® quality.

• Attractive countertop display unit available.

GUARANTEED

IPE

STAINLESS STEEL DECKING SCREW

FOR EXTREMELY HARD WOOD

IPE

STAINLESS STEEL DECKING SCREW

Designed for use in the hardest woods and the harshest environments, REISSER® IPE Decking Screws deliver an Ultra High Performance solution thanks to superior design and application features coupled with the REISSER® quality you would expect.

TTX TM Drive

Superior bit engagement. High torque transfer. No cam-out. No wobble.

Cyclone Ribs

New design of ribs under head allows clean self countersinking, leaves board surface flat and smooth.

Locking Threads

Pulls board tight and prevents jacking.

Sharp, Deep, Wide Threads

with REISSER® lubricant for fast insertion and high pull out resistance.

High Tensile Stainless Steel

SS305 Stainless steel for superior corrosion resistance and less breakage.

‘Diamond’ Self Drilling Point

Fast start in the hardest woods. Point enlarges the hole and removes wood chips to reduce splitting.

• Unique 6-Lobe Sharp Hooks • High Torque Transfer • No Cam-Out • Tight Fit - No Wobble • One-Hand Operation • Works With Any 6-Lobe Drive

Better Bit Engagement – Less Wear

COMPOSITE DECKING SCREW

FOR COMPOSITE / PLASTIC DECKING & FACIA BOARDS

R3®

For composite / plastic decking & facia boards

The R3® Composite Deck Screw incorporates a number of innovative design features to provide high performance fixing of all composite / PVC boards. Designed by REISSER® for the professional.

5.0 x

(Sahara Sand) 5.0

(Kona Sunset)

Pantone 154C ( Tan Brown)

5.0 x 63 No.2

5.0 x 63

Pantone 7C (Sapphire Silver)

(Cape Town Grey)

Also fits SQ and PH Bits.

Mushroom Head to give smooth finish, no burrs or tailings.

Opposite ‘Lock’ Threads to pull boards tight and prevent “Jacking”.

High Ductility 90º bending angle

KTCOTM Coating 2000hrs salt spray test, chromium free.

Aggressive Thread Design for low driving torque and fast insertion.

‘R3®’ Point with Cut for immediate grab and self drilling into board surface.

The optimum high performance timber decking screw

Characteristics

Dimensions

4.5 x

4.5

4.8

Applications

KO2® Drive System

For Maximum Torque Transfer

• High Torque Transfer

• No Cam-Out

• Tight Fit - No Wobble

• One-Hand Operation

• Better Bit Engagement – Less Wear

Tornado Ribs

Countersinking to prevent any splits or damage around the screw head.

Threads Under The Head

Allows the screw to lock tight into the decking giving no board movement and superior fix.

Reduced Parallel Shank

Reduces board friction to assist easy driving and allows decking to be screwed down tight without pre-drilling.

RMB - Nano Coating

Special metal bronze coating giving MINIMUM 2000 hours protection on a salt spray test.

Nano coating prevents recess clogging ensuring good driver bit fit and reduces coating peel off in timber.

Hex-chromium free.

Also available with KTC0 Category 4 Coating to give 15 years outdoor protection. (Please enquire for prices/leadtime)

Single Thread

Centres up the screw after rapid insertion. Gives excellent holding power in the timber frame.

Patented 25° Spiral Point with Cut

25° Tip gives immediate start.

3 Separate ‘intro’ threads give rapid acceleration into the decking. 10mm Single Cut reduces splitting.

Packed in Clear Plastic Boxes

•

SCREWS AND FIXINGS

DECK SCREW MINI DEPOT

A quality display product to maximise the visual impact of the REISSER® stock profile.

• Fully customisable to meet your requirements.

• Hold the exact stock profile you need.

Partially threaded lengths are shown as (Total length/threaded length). Dimensions

Unit Dimensions60cm w x 31cm d x 118cm h (163cm Including Header)

EXTRA HEAVY DUTY ROOFING FASTENER

REISSER® Heavy Duty Roofing Fasteners are designed to offer a versatile fixing option for many roofing applications including securing thick insulation profiles, tiles or panels.

Manufactured using high strength materials they provide a secure fixing even for heavy loads under harsh conditions of high winds, heavy rain and temperature variance. The buttress threads give very high pull out values, the head design provides high clamping force and the coating offers very high corrosion resistance - 1800hrs Salt Spray Test NSS resistance (ASTM B117-18) and 15 Cycle Kesternich test , no Red Rust (DIN 50018 1997), 1500hrs Salt Spray Test no Red Rust (GB/T 10125)

The self-drilling point allows fast penetration into timber and can also fix into 16-22 gauge steel (min 20mm penetration) whilst the larger thread diameter gives fast and straight driving into timber. The thick shank adds strength and increases resistance to shear loads – important in pitched roof applications.

Each batch QC tested to ensure conformity (test results available on request)

TXD Drive for maximum torque transfer

Button Head gives greater clamping force and higher pull through resistance.

Enhanced Corrosion Resistance

Enhanced Shank & Thread Size for higher strength

Buttress Thread Design gives high pullout resistance

Self Drilling Point

HEAVY DUTY ROOFING FASTENER

5.5

7.1

Tiles/Slates

Roof Fasteners

Tile Batten

Rafter

Fascia

SCREWS AND FIXINGS

2 THREADS

A premium quality, REISSER® branded woodscrew. Zinc plated, for general purpose applications.

• Attractive dispenser style packaging.

4 x 3/4

4 x 1

6 x 1/2

7 x 3/4

7 x 1

SCREWS AND FIXINGS DRYWALL

A bugle head screw with extra sharp point, available in black phosphate with a coarse thread, or zinc plated with a fine thread.

COARSE THREAD BLACK PHOSPHATE

• Black phospate, with a coarse thread, for use when applying gypsum plasterboard to timber sub-frames

FINE THREAD ZINC PLATED

• Zinc plated, with a fine thread, for use when applying gypsum plasterboard to steel partitioning

COARSE THREAD BLACK PHOSPHATE COLLATED

• Collated on strips of 50’s

• Works with all leading collated screw guns

3.5

CONCRETE FRAME SCREW

Characteristics

7.5 x

x 72

7.5 x 82

7.5 x 92

7.5 x 102

7.5 x

TXD Drive

For increased torque control and reduced ‘cam out’

Locking Ribs Underneath Head

Through-Fixing

Eliminating the need for marking and re-positioning

High Load Capacity

With interlocking ‘hi-low’ thread to give high pull out resistance in base materials

Stress-Free Fixing

Enables materials to be fixed at closer edge distances than normal expansion anchors Serrated threads aid debris removal to reduce fixing stress

Versatile Fixing

Can be used for fixing window/door frames, timber batons, facades, laths etc. into masonry

SCREWS AND FIXINGS

WALL PLUGS

With anti-rotation design at the plug head for extra holding power, these all-purpose lightweight fixings provide a self-locating internal channel for screws.

YELLOW PLUGS

• Premium quality wall plugs.

• Manufactured from New PE (polyethylene).

• 5mm two way expansion in sprues of 10.

• Boxed in 100’s/Shrinkwrapped in 1,000’s.

Characteristics

RED PLUGS

• Premium quality wall plugs.

• Manufactured from New PE (polyethylene).

• 5.5mm two way expansion in sprues of 10.

• Boxed in 100’s/Shrinkwrapped in 1,000’s.

Ordering Info

BROWN PLUGS

• Premium quality wall plugs

• Manufactured from New PE (polyethylene)

• 7mm two way expansion in sprues of 10.

• Boxed in 100’s/Shrinkwrapped in 1000’s.

BLUE PLUGS

• Premium quality wall plugs

• Manufactured from New PE (polyethylene)

• 10mm two way expansion in sprues of 10.

• Boxed in 100’s/Shrinkwrapped in 1000’s.

visit our website at reisser.co.uk

• Easy to use

• Fully interactive

• Informative

• Browse full product ranges

• View latest promotions

• Place orders online

Contact your sales representative to obtain your distributor login details.

INTRODUCING THE NEW REISSER® CRATE MATE

A practical and versatile system for the storage and transportation of tools, equipment and fixings in a professional and flexible way.

Manufactured with thicker profiles, more material and unique design features, the Crate Mate is tough, waterproof and robust to give years of protection to your tools.

Unique design handle distributes weight more evenly for more comfortable handling during transport. Stows flat when stacked for ease of use.

Two spring-loaded snap locks automatically lock cases together when placed on top of one another.

2 spring-loaded snap locks automatically lock cases together when placed on top of one another. Only one hand is needed. 4 feet on the bottom of the case guide the top-case easily into position for a secure connection.

Highest Quality German ABS

Manufactured with thicker profiles, more material and unique design features, the Crate Mate is tough, waterproof and robust to give years of protection to your tools.

Larger Internal Volume

Greater than most others on the market offering greater storage options to carry more tools and products.

CRATEMATE CRATEMATE

SSC1

Crate Mate Case #1 464 x 335 x 142 2.15kg

SSC2

Crate Mate Case #2 464 x 335 x 212 2.65kg

SSC3

Crate Mate Case #3 464 x 335 x 362 3.75kg

SSC1/BL005

Crate Mate Case #1 with 5 Compartment Tray 464 x 335 x 142 2.19kg

SSC1/BL010

Crate Mate Case #1 with 10 Compartment Tray 464 x 335 x 142 2.19kg

SSC1/BL018

Crate Mate Case #1 with 18 Compartment Tray 464 x 335 x 142 2.19kg

SSC1/PBMIXED

Crate Mate Case #1 with 14 Mixed Size Compartments 464 x 335 x 142 2.72kg

SSC2/BL006SSC2

Crate Mate Case #2 with 6 Compartment Tray 464 x 335 x 212 2.72kg

OPTIONS AND COMPATIBLE EXTRAS

SSC/FD Metal Trolley with Handle

x 420 x 160 8kg

SSC/CW

4 wheel Base Plate (with braking wheels)

x 350 x 110 3.3kg

SSC/PO Metal Base Plate (plate only)

x 350 x 10 1.2kg

F1

Shaped Foam Sheet (fits under all case lids)

x 300 x 15 0.03kg

F2 Flat Foam Sheet (fits all cases)

x 300 x 15 0.03kg

A Pick & Pluck Foam

x 300 x 72 0.14kg

Lid Tool Panel (fits all case lids) 395 x 295 x 3 0.35kg

SSC3 Tool Panel (for use with P22 set only inside SSC3) 386 x 275 x 3 0.23kg

P22

SSC3 Tool Panel Divider Kit (2 Side Foams and 2 x P2 Panels) 395 x 295 x 10 0.71kg

BL005

Moulded Insert for SSC1 (5 comps) 400 x 300 x 72 0.4kg

BL010

Moulded Insert for SSC1 (10 comps)

X 300 X 72 0.4kg

BL018

Moulded Insert for SSC1 (18 comps) 400 x 300 x 72 0.4kg

BL006 SSC2

Moulded Insert for SSC2 (6 comps)

400 x 300 x 142 0.6kg

PB100

Pick Box for SSC1

Separate Compartment (48 req. to complete a case)

49 x 49 x 72 0.0195

PB200

Pick Box for SSC1

Separate Compartment (24 req. to complete a case) 49 x 98 x 72 0.03kg

PB300

Pick Box for SSC1

Separate Compartment (12 req. to complete a case) 98 x 98 x 72

0.0455kg

PB400

Pick Box for SSC1

Separate Compartment (8 req. to complete a case) 98 x 148 x 72 0.0595kg

BL1

Locator Tray for SSC1 Pick Boxes 390 x 295 x 5 0.099kg

POWER TOOL ACCESSORIES

PREMIUM CHISELS

Applications

• For breaking and working concrete, stone, brick and block using rotary hammers with the SDS-plus or SDS-max tool holder system.

SDS-plus shank

SDS-MAX

For continuous heavy duty work in concrete, masonry, brick or natural stone with SDS-max hammers up to 10Kg.

Advanced precision forging technology

Salt bath hardened for uniform heat treatment

Shot peened finish for additional strength and durability

SDS-PLUS

For easy chiselling tasks in

POWER TOOL ACCESSORIES

POWERSPATEN CHISELS

Applications

• For breaking and working concrete, stone, brick and block using rotary hammers with the SDS-plus or SDS-max tool holder system.

SDS-plus shank SDS plus PGM APPROVED DREBO MANUIFACTURED

1439

plus SDS-max shank SDS plus PGM APPROVED DREBO MANUIFACTURED 1439

Characteristics

SDS-MAX

For continuous heavy duty work in concrete, masonry,

or natural stone with SDS-max hammers

High quality 40Cr steel

Fully heat treated

Shot peened finish for additional strength and durability

SDS-PLUS

For easy chiselling tasks in concrete, masonry, brick or natural stone when using an SDS-plus machine in the 2-4Kg class.

Bull point

Chisel

POWERSPATEN SDS-plus Angled Tile Chisel

POWERSPATEN SDS-plus Extra Wide Tile Chisel

SDS-plus

POWER TOOL ACCESSORIES

ZENTRO PLUS

4-CUTTER HAMMER DRILL

BIT WITH SDS-plus SHANK S-H MULTI FLUTE

Standards

• PGM Approved.

Applications

• For drilling concrete and masonry using rotary hammers with the SDS-plus tool holder system.

Rebar Resistant

Thanks to the optimum 4 x 90° symmetry, all four carbide cutting edges function evenly and do not seize up on hitting reinforcing steel.

High Performance Tip

Single piece carbide tip with unique cutting geometry and self-centring point.

Shot Peened Finish

strength and durability. S-H Flute

dust removal characteristics. Accurate PGM approved where certifiedyour guarantee of precisely drilled holes for a stable anchor fixing.

Self-centring solid carbide 4-cutter tip.

POWER TOOL ACCESSORIES

4-CUTTER HAMMER DRILL BIT WITH SDS-plus SHANK 4-FLUTE

Standards

• PGM Approved.

Applications

• For drilling concrete and masonry using rotary hammers with the SDS-plus tool holder system.

Rebar Resistant

Thanks to the optimum 4 x 90° symmetry, all four carbide cutting edges function evenly and do not seize up on hitting reinforcing steel.

Performance Tip

Multi-cutter tip with unique cutting geometry and self-centring point.

packaging: SDS hanging clip (5-16mm) or clear plastic tube (>16mm).

Multi cutter head with four cutting edges.

For Concrete and Masonry

POWER TOOL ACCESSORIES SPEEDSTER

ADVANCED 2-CUTTER

HAMMER DRILL BIT WITH SDS-plus SHANK

Standards

• PGM Approved.

Applications

• For drilling concrete and masonry using rotary hammers with the SDS-plus tool holder system.

Self-centring point with enlarged rebar chamfers

Improved spot drilling and additional protection when encountering rebar.

Shot Peened finish

Additional strength and durability.

Vario KVS Flute

Excellent power transfer and improved fracture resistance.

Accurate

PGM approved where certifiedyour guarantee of precisely drilled holes for a stable anchor fixing.

* 4mm diameters supplied with standard tip.

18.0-26.0mm not KVS flute

IMPORTANT: When using a drill bit 450mm or above it is recommended to drill a pilot hole of at least 140mm with a short drill bit of the same diameter.

“Power Breaker” design pulverises concrete more efficiently for faster drilling speeds - up to 25% faster drilling than conventional hammer bits.

POWER TOOL ACCESSORIES SPEEDSTER

POWER TOOL ACCESSORIES

POWERBOHR

2-CUTTER HAMMER DRILL BIT WITH SDS-plus SHANK

Standards

• PGM Approved.

Applications

• For drilling concrete and masonry using rotary hammers with the SDS-plus tool holder system.

For Concrete and Masonry

Characteristics

Accurate

PGM approved where certifiedyour guarantee of precisely drilled holes for a stable anchor fixing.

Secure

High performance brazing holds the tip firmly in the shank.

Tough

High grade chromium steel body.

Long Life

Modern surface treatment strengthens the shank and helps protect against breakage. total working qty

4.0

POWER TOOL ACCESSORIES

REBAR CUTTERS

SDS-plus SHANK ROTARY ONLY

Applications

• For the in-situ drilling of reinforcing bars in steel reinforced concrete structures.

Carbide Tip

High quality Swedish tungsten carbide tips.

Efficient Design

Access holes/flutes for clearing debris.

Sandblast Finish Rust resistant.

SDS-plus shank

INSTRUCTIONS FOR USE

1 2

Hammer drill with an SDS bit until rebar is encountered

Disconnect the machine, switch off hammer action and remove the hammer bit from the chuck

Select rotary mode (hammer off), and insert the rebar cutter into the chuck

Select the appropriate drilling speed and reconnect the machine.

Place the tip of the rebar cutter in the hole, so it sits on top of the rebar

Apply firm (not heavy) pressure, and commence drilling

When the cutter has passed through the rebar, withdraw the bit from the hole and disconnect the machine

Remove the rebar cutter and revert back to the SDS hammer bit

Switch hammer action back on, and reconnect the machine

Select the appropriate drilling speed

Insert the drill into the hole, and recommence hammer drilling to the required depth

CUTTING REBAR CAN ADVERSELY AFFECT THE STRENGTH OF THE STRUCTURE INVOLVED.

Sole responsibility for the consequences of cutting rebar lie with the user – please consult with the project engineer/architect if you have any concerns

POWER TOOL ACCESSORIES

4-CUTTER HAMMER DRILL BIT WITH SDS-max SHANK

Standards

• PGM Approved.

Applications

• For drilling concrete and masonry using rotary hammers with the SDS-max tool holder system.

For Concrete and Masonry

Retail packaging: Clear

Rebar Resistant

Revised tip design incorporating rebar chamfers.

Reinforced Core

Ensures low vibration and exceptional fracture resistance.

Flute Geometry

The high-volume flute geometry ensures the optimum removal of drilling dust.

Multi-Value Flute

Alternate flute width reduces friction for faster drilling speeds.

Accurate

PGM approved where certified - your guarantee of precisely drilled holes for a stable anchor fixing.

2-Cutter head up to ø15mm

4-Cutter head from ø16mm

* Tip is two cutter only

MVF Flute

POWER TOOL ACCESSORIES

PREM PLUS MASONRY DRILL BIT

WITH STRAIGHT SHANK

Standards

• PGM Approved.

Applications

Characteristics

OR

• For drilling concrete and masonry with impact drilling machines with a three jaw chuck.

Secure

High temperature brazing holds the tip firmly in the shank.

For Concrete and Masonry

Efficient Design

Deep twin flute minimises the risk of clogging in damp masonry and quickly channels dust for increased efficiency.

Tough

High grade chromium steel body.

Accurate

PGM approved where certified - your guarantee of precisely drilled holes for a stable anchor fixing.

POWER TOOL ACCESSORIES

KOMBI

TCT MULTI PURPOSE DRILLS WITH STRAIGHT SHANK

Standards

• PGM Approved.

Applications

• For the rotary drilling of aerated and non-reinforced concrete, masonry, ceramic tiles, plastic, wood, aluminium and steel sheets and profiles.

Tip Geometry

Diamond cut cross ground tip for easy penetration into different materials. Secure

High temperature brazing holds the tip securely in the shank.

Tough

High grade chromium steel body.

Accurate

PGM approved where certified - your guarantee of precisely drilled holes for a stable anchor fixing.

Characteristics

CERAMIC TILE & GLASS DRILL WITH CROSS GROUND TIP

Applications

• For the rotary drilling of glass and ceramic tile. Not recommended for use with harder, porcelain tiles. Visit reisser.co.uk for instructions on use.

Tip Geometry

Cross ground tungsten carbide tip.

Sandblast Finish Rust resistant.

Lubrication reduces heat and greatly increases service life. Please use a cordless power tool and follow the instructions at reisser.co.uk

TILE DRILLS

Applications

• For the rotary drilling of ceramic and porcelain tiles up to ≤PEI Grade 3. Visit reisser.co.uk for instructions on use.

Tip Geometry

High grade, split point tungsten carbide tip.

Shank Type

Three flat shank to prevent slippage (sizes ≥8mm).

Lubrication reduces heat and greatly increases service life. Please use a cordless power tool and follow the instructions at reisser.co.uk

total

length

(mm) (mm)

total

length shank product per (mm) (mm) type

POWER TOOL ACCESSORIES

DIAMOND DRILLS

PORCELAIN TILE DRILL

Ø 5.0 – 16.0mm

Applications

• For the rotary drilling of hard porcelain tiles ≤PEI Grade 5. Visit reisser.co.uk for instructions on use.

Vacuum Brazed Diamond

For superior heat resistance.

Integrated Wax Lubricant

To aid cooling when dry cutting.

Shank Type

Non-slip hex shank.

Ø 20.0 – 25.0mm

TCT Pilot Drill

To aid centring on larger sizes.

Vacuum Brazed Diamond For superior heat resistance.

Shank Type

Non-slip hex shank.

TCT PILOT DRILL FOR DIAMOND TILE DRILLS

Ø 20.0 – 25.0mm

DIAMOND BLADES

GENERAL PURPOSE

COLD SINTERED

Standards

• EN13236. Applications

• For cutting medium density materials such as concrete, common brick and paving slabs.

Cold Sintered

7mm Segment Height

Meets the requirements of EN13236

GENERAL PURPOSE

PREMIUM COLD SINTERED

Standards

• EN13236. Applications

• For cutting medium density materials such as concrete, common brick and paving slabs. Long life 10mm turbo segments, pro quality.

Cold Sintered

10mm premium quality oblique turbo segment

Meets the requirements of EN13236

bore segment height product speed (mm) (mm) (mm) code

Dimensions

bore segment bushing height product ring speed (mm) (mm) (mm) code (mm) rating

POWER TOOL ACCESSORIES

DIAMOND BLADES

Standards

• EN13236.

Applications

• Cutting medium density materials such as concrete, common brick and paving slabs. Long life 12mm* double laser welded segments, pro quality.

Double laser welded

12mm Premium quality segment*

Meets the requirements of EN13236

HARD MATERIALS & STEEL PREMIUM HOT SINTERED

Standards

• EN13236.

Applications

• Cutting high density materials such as scaffolding poles, reinforced concrete, engineering brick and Indian stone. Long life 10mm continuous rim turbo segments for less surface chipping, pro quality.

Sintered

10mm Continuous turbo premium quality segment

Meets the requirements of EN13236

Standards

• EN13236.

Applications

• Cutting hard materials such as reinforced concrete, Aged (well cured) concrete, Indian stone, hard pavers, engineering brick, paving slabs, hard roof tiles and steel scaffolding poles and lintels. Long life 12mm segment, pro quality, double laser welded.

Standards

• EN13236.

Double laser welded

12mm Premium quality segment

Meets the requirements of EN13236

& ABRASIVE MATERIALS

LASER WELDED

Applications

• Cutting soft and abrasive materials such as asphalt, green concrete, soft sandstone and lignicite blocks. Long life 10mm segments with undercut protection, pro quality, double laser welded.

Laser Welded

10mm Segment Height

Undercut protection

Meets the requirements of EN13236

POWER TOOL ACCESSORIES

BLADES

Standards

• EN13236.

Applications

• For raking out mortar prior to re-pointing.

• Faster cutting and creates less dust than a traditional mortar raker.

MORTAR RAKER COLD SINTERED

Applications

Pressed

10mm Segment Height

Meets the requirements of EN13236

• For raking out mortar prior to re-pointing.

bore segment height product speed (mm) (mm) (mm) code rating

Sintered

7mm Segment Height

7mm Segment thickness

bore segment height product

(mm) (mm) (mm) code rating

POWER TOOL ACCESSORIES DIAMOND BLADES

PORCELAIN & CERAMIC HOT SINTERED

Standards

• EN13236.

Applications

• For the dry cutting of Porcelain and hard ceramic tiles using a mini grinder.

Sintered

10mm Thin Turbo segment Height

Meets the requirements of EN13236

Dimensions Specification

bore segment height product speed (mm) (mm) (mm) code rating

PORCELAIN & CERAMIC SEMI-HOT SINTERED

Standards

• EN13236.

Applications

• For the wet cutting of Porcelain and hard ceramic tiles in tile cutting machines.

Semi-Hot Sintered

7mm Thin Continuous Segment Height

Meets the requirements of EN13236

bore segment bushing height product ring speed (mm) (mm) (mm) code (mm) rating

POWER TOOL ACCESSORIES

DIAMOND BLADES

CONCRETE CUP GRINDING WHEEL

Applications

• For dry grinding and levelling concrete surfaces. Double row.

7mm Segment Height

Packaging: Plain white box.

segmented performance wet/dry use

bore segment height product speed (mm) (mm) (mm) code rating

Packaging: Clear plastic tube with hanger (up to ø82mm).

DIAMOND CORE DRILLING SYSTEM COMPONENTS

Applications

• For the dry drilling of holes in medium density materials such as concrete, brick and aerated concrete blocks.

Select shank configuration (SDS-plus or Hex) and length required for the task.

If additional length is required, utilise an extension shank.

Select required core between 32mm & 152mm diameter (22mm & 28mm have integral hex shanks for use freehand).

If pre-drilling with a hammer bit, use a 12mm diameter drill and use the pilot rod to centre the core bit during the drilling operation. Alternatively, use the multipurpose pilot drill and use without pre-drilling.

Soldered

DIAMOND CORE DRILLS

• For the dry drilling of holes in medium density materials such as concrete, brick and aerated concrete blocks.

9.5mm HEX DRIVE

segment lgth height product (mm) (mm) (mm) code description configuration

1/2” BSP

segment lgth height product (mm) (mm) (mm) code description configuration

Hex Drive

Slotted Barrel

POWER TOOL ACCESSORIES

DIAMOND CORE DRILL ACCESSORIES

Extension

Multipurpose Tip

POWER TOOL ACCESSORIES

HSS CONICAL DRILLS AND COUNTERSINKS

3-FLUTED COUNTERSINKS

• For countersinking free of shattering and burring.

• Low cutting speed and cooling liquid

Dimensions

total shank

length shank product (mm) (mm) (mm)

DEBURRING COUNTERSINKS

• Suitable for burr removal and the cleaning up of drilled holes.

• Designed for optimum and clean chip removal through the transverse hole.

• Cylindrical shank.

• Low cutting speed and cooling liquid will increase lifetime and improve working results.

Dimensions

shank product

• For drilling cylindrical holes in

• Tapered cutting edges of the next drill step for simultaneous deburring or chamfering.

• Low cutting speed and cooling liquid will increase lifetime and improve working results.

drilling number shank range ø step of shank product (mm) (mm)

CONE CUTTERS

• For drilling larger holes in thin walled materials up to a thickness of 2.0mm, or for enlarging existing holes.

• 2 Cutting grooves increasing by approx 20°.

• No pilot drill necessary.

• Low cutting speed and cooling liquid will increase lifetime and improve working results.

drilling total cutting shank

range ø length length shank product

POWER TOOL ACCESSORIES

HSS DIN338 JOBBER DRILLS

Standards

• DIN338 Applications

• Optimised tip angle for long life in metal – particularly when drilling alloy and stainless steels.

Tip Geometry

135° Split Point* – for drilling tougher alloy and stainless steels.

Centres accurately without the need to centre punch.

M35 Cobalt HSS

5% Cobalt content for maximum life in stainless steel.

Fully Ground

Precision milled from solid material for optimum accuracy.

Reinforced Core

Giving greater fracture stability.

Finish

Applications Technical Data

total flute qty length length product per (mm) (mm) (mm) code wallet

POWER TOOL ACCESSORIES HSS DIN338 JOBBER DRILLS

ProBox ProBox

POWER TOOL ACCESSORIES

HSS DIN338 JOBBER DRILLS

FULLY GROUND

TI-N COATED

Standards

• DIN338. Applications

• Optimised tip angle for long life in metal – particularly when drilling alloy and stainless steels.

Tip Geometry

135° Split Point* – for drilling tougher alloy and stainless steels.

Centres accurately without the need to centre punch.

Ti-N Coated

High performance Titanium Nitride (Ti-N) coating increases edge hardness and reduces friction for longer life.

Fully Ground

Precision milled from solid high grade material for optimum accuracy and service life.

Reinforced Core

Giving greater fracture stability.

Bright/Gold Finish

* diameters ≥3.0mm

POWER TOOL ACCESSORIES

HSS DIN338 JOBBER DRILLS

PROBOX GP

qty length length product per (mm) (mm) (mm) code ProBox

3.0

TOOL ACCESSORIES

HSS DIN338 JOBBER DRILLS

Standards

• DIN338. Applications

• For drilling wood, plastics, non ferrous metals, aluminium, cast iron and steel.

Tip Geometry

118° Split Point* – centres accurately without the need to centre punch.

Fully Ground

Precision milled from solid material for greater accuracy and service life than our roll forged bits.

Fully Ground

Giving greater fracture stability.

Bright Finish

POWER TOOL ACCESSORIES

HSS DIN338 JOBBER DRILLS

FULLY GROUND

1.0

6.8 109 69 145871 10

7.0 109 69 145873 10

7.5 109 69 145878 10

8.0 117 75 145883 10

8. 5 117 75 145888 10

9.0 125 81 145893 10

9.5 125 81 145898

ProBox

POWER TOOL ACCESSORIES

HSS DIN338 JOBBER DRILLS

ROLL FORGED

Standards

• DIN338 Applications

• For drilling wood, plastics, non ferrous metals, aluminium, cast iron and steel.

Tip Geometry

118° Chisel Point.

Roll Forged

Greater elasticity - less breakage in hand held drilling machines.

For Metal

Steam Tempered

Greater strength.

Black Oxide Finish

Improved lubricity and rust resistance.

Dimensions

5.5

POWER TOOL ACCESSORIES

HSS DIN1897 STUB DRILLS

FULLY GROUND TI-N COATED

Standards

• DIN1897.

Applications

• Ideal for use in sheet material

• Optimised tip angle for long life in metal – particularly when drilling alloy and stainless steels.

Tip Geometry

135° Split Point – for drilling tougher alloy and stainless steels. Centres accurately, no need to centre punch.

Ti-N Coated

High performance Titanium Nitride (Ti-N) coating increases edge hardness and reduces friction for longer life.

Fully Ground

Precision milled from solid high grade material for optimim accuracy and service life.

Stub Length

For greater resistance to breakage.

HSS DIN338 BLACKSMITH’S DRILLS

FULLY GROUND

Standards

• DIN338.

Applications

• For drilling wood, plastics, non-ferrous metals, aluminium, cast iron and steel.

Tip Geometry

118° Split Point – centres accurately without the need to centre punch.

Fully Ground

Less tolerance and longer life than our roll forged bits.

Reinforced Core

Giving greater fracture stability.

Bright Finish

3-Flat Reduced Shank

To improve power transmission and reduce slippage.

≤16.0mm = 10.0mm dia.,

≤25.0mm = 13.0mm dia.

POWER TOOL ACCESSORIES

HSS DIN340 LONG SERIES DRILLS

and steel.

Dimensions

118° Split Point* – centres accurately without the need to centre punch. Fully Ground

Precision milled from solid material for greater accuracy and service life than our roll forged bits. Reinforced Core

POWER TOOL ACCESSORIES

HSS DIN1869 EXTRA LONG DRILLS

FULLY GROUND

• DIN1869. Applications • For drilling wood, plastics, non-ferrous metals, aluminium, cast iron and steel.

Tip Geometry

135° Split Point* – centres accurately without the need to centre punch.

Fully Ground

Precision milled from solid material for greater accuracy and service life than our roll forged bits.

Reinforced Core

Giving greater fracture stability.

Bright Finish

POWER TOOL ACCESSORIES

CHUCKS

Applications

• Suitable for Rotary or Rotary Impact/Percussion Drills

• ½” x 20F Mount

• SDS-plus Adaptor enables use of conventional straight shank drills with an SDS-plus hammer machine (in ROTARY MODE only)

• Locking Screw is REVERSE THREAD (Tightens Anticlockwise)

All-metal drill chuck with multi-function key & locking screw

Standard duty, all-metal keyless drill chuck & locking screw

x 20F 2.0 - 13.0mm

Heavy duty, all-metal keyless drill chuck & locking screw

1/2” x 20F 1.5 - 13.0mm

Heavy duty, single sleeve all-metal keyless drill chuck & locking screw

POWER TOOL ACCESSORIES CHUCKS

& SDS-plus

Standard duty, all-metal keyless drill chuck & SDS-plus adaptor Heavy duty, all-metal keyless drill chuck & SDS-plus adaptor

POWER TOOL ACCESSORIES

COBALT BI-METAL HOLESAWS

•

Premium Grade 8% Cobalt HSS

Cutting Edge

Maximum heat resistance – ideal for cutting stainless steel.

4-6 t.p.i. Variable Pitch Teeth

Fast cutting and less clogging.

Durable Carbon Steel Body Reduced breakage.

Universal Threaded Drive Compatible with most other brands.

POWER TOOL ACCESSORIES

BI-METAL HOLESAW ACCESSORIES

H.S.S. BI-METAL HOLESAW ARBORS

PILOT DRILL

ARBOR EXTENSION

POWER TOOL ACCESSORIES

JIGSAW BLADES

Applications

• Suitable for virtually all of today’s popular jigsaws, including AEG, Atlas Copco, Bosch, DeWalt, Fein, Festool, Freud, Hilti, Hikoki, Hitachi, Mafell, Makita, Metabo, Milwaukee, Panasonic, Porter Cable, Ryobi and Worx.

Dimensions:

POWER TOOL ACCESSORIES

JIGSAW BLADES

Applications

Dimensions:

POWER TOOL ACCESSORIES

JIGSAW BLADES

Applications

Dimensions:100mm

POWER TOOL ACCESSORIES

JIGSAW BLADES

Applications

Dimensions:

JIGSAW BLADES

Applications

Dimensions:

POWER TOOL ACCESSORIES

SABRE SAW BLADES

Applications

• Suitable for virtually all of today’s popular sabre saws, including AEG, Atlas Copco, Bosch, DeWalt, Fein, Festool, Freud, Hilti, Hikoki, Hitachi, Mafell, Makita, Metabo, Milwaukee, Panasonic, Porter Cable, Ryobi and Worx.

Dimensions:

SABRE SAW BLADES

Applications

2.5/1.8mm/ 10/14

121612

Dimensions:

121613

Dimensions:

144245 Dimensions:

3013250

Dimensions:

S1122VF

SABRE SAW BLADES

Applications

111034

POWER TOOL ACCESSORIES

BLADES

POWER TOOL ACCESSORIES OMT BLADES

•

POWER TOOL ACCESSORIES OMT BLADES

• For use with Bosch and Fein machines utilising the STARLOCK blade fastening system. Also compatible with older machines using the Bosch OIS shank.

POWER TOOL ACCESSORIES

CIRCULAR SAW BLADES

POSITIVE HOOK ANGLE FOR GENERAL WOODCUTTING

Applications

• For cutting hard and soft woods using portable circular saws and stationary table saws.

• Positive hook angle for general purpose use, not recommended for mitre or radial arm saws.

Blade images for illustration purposes only

THIN KERF

Applications

Positive hook angle

Body hardened and tempered

Thin kerf also available

CNC turned bushes for a precise fit

• For use in cordless circular saws. Thin kerf design removes less material enabling more work between battery charges.

Applications

POWER TOOL ACCESSORIES

CIRCULAR SAW BLADES

Technical Data

Applications

• Neutral hook angle ATB blades for cutting hard and soft woods in mitre, radial arm, portable and table saws.

Neutral hook angle

Body hardened and tempered

Suitable for mitre saws

Applications

• Negative rake TCG blades for cutting aluminium and plastic.

Negative hook angle

Body hardened and tempered

Suitable for mitre and radial arm saws

POSITIVE HOOK ANGLE FOR CEMENTITIOUS BOARD

Applications

• Positive rake TCG blades for cutting fibre cement board, composite cladding and panels.

• For pre-drilling and countersinking in soft wood

POWER TOOL ACCESSORIES

FLAT WOOD BITS & EXTENSIONS

Standards

• DIN3126, E6.3.

Applications

• For drilling wood.

Spur point

Less splintering around the hole.

total working quantity length length product per (mm) (mm) (mm) code wallet

Ground cutting edges

Faster cutting.

Premium grade steel

For long service life.

E6.3 Shank

Compatible with E6.3 quick change tool systems. Non-slip in 3-jaw chucks.

REISSER® flat bit extensions have precision milled sockets to accommodate flat bits with the E6.3 shank perfectly. Hex key included.

PLANER BLADES

Applications

• For solid wood and all board materials.

Reversible carbide blade

Gives up to 20 x longer life when compared to conventional type planer blades. Simply turn over when life has been achieved on one side.

Flatbits smaller than ø16mm are not suitable for use with these extensions

POWER TOOL ACCESSORIES

4-TIP FAST AUGER BITS

Standards

• DIN3126, E6.3.

Applications

• For drilling wood.

Clean, Sharp Screw Thread

For fast starting and strong pull through the material.

Spur Point

Less splintering around the hole.

Premium Grade Steel

For long service life.

E6.3 Shank*

Compatible with E6.3 quick change tool systems. Non-slip in 3-jaw chucks.

Extensions are available for 4-tip fast augers:

Use the 202236 (150mm) and 202235 (300mm) extension for diameters 16.025.0mm. Hex key included. These extensions have precision milled sockets to accommodate the E6.3 shank perfectly.

Use the hex shank extension 1940311 for 32.0mm diameter bit.

*Except for ø32mm

TCT HINGE CUTTER

Applications

• For solid wood and all board materials.

Centre point for accurate drilling

TCT cutters

For clean, flat bottomed holes.

12.7mm shank

For use in both ½” industrial routers and pillar drills.

POWER TOOL ACCESSORIES

LEWIS PATTERN AUGER BITS

Applications

• For drilling hard and soft wood.

Clean, sharp screw thread

For fast starting and strong pull through the material.

Step-tip

Reduces friction and helps prevent jamming.

SDS-PLUS SHANK

POWER TOOL ACCESSORIES FORSTNER BITS

Standards

• DIN7483G. Applications

• For drilling blind holes in wood.

Centre Point

Radial Edges For clean,

BRAD POINT WOOD DRILLS

Applications

• For drilling wood.

Spur Points

Reduce splintering around the

Wide Flute Pattern

POWER TOOL ACCESSORIES

Precision milled

For an accurate fit.

Torsion zone

To increase flexibility and reduce snapping.

Super tough V5 tool steel

For wear resistance and durability.

Standards

Applications

E6.3

E6.3 Shank (C6.3 available)

Compatible with E6.3 quick change tool systems. Non-slip in 3-jaw chucks.

• DIN3126

C6.3 & E6.3.

• To drive threaded fasteners into wood and sheet metal

bit wallet pcs handi-pak pcs bag pcs box pcs tip shank lgth product per product per product per product per type size type (mm) code wallet code pack code bag code box

C6.3

POWER TOOL ACCESSORIES

IMPACT SCREWDRIVER BITS

Special PZ Tip Design

To help prevent breakage when used in impact drivers.

Torsion Zone

To increase flexibility and reduce snapping.

Super Tough V5 Tool Steel For wear resistance and durability.

E6.3 Shank (C6.3 Available)

Compatible with E6.3 quick change tool systems. Non-slip in 3-jaw chucks.

Standards

• DIN3126

C6.3 & E6.3.

Applications

• To drive threaded fasteners into wood using cordless impact drivers

bit wallet pcs handi-pak pcs bag pcs box pcs tip shank lgth product per product per product per product per type size type (mm) code wallet code pack code bag code box

BITS FOR REISSER® HIGH PERFORMANCE SCREWS

bit wallet pcs handi-pak pcs bag pcs box pcs tip shank lgth product per product per product per product per type size type (mm) code wallet code pack code bag code box

C6.3 E6.3

POWER TOOL ACCESSORIES

BIT ACCESSORIES

wallet pcs handi-pak pcs bag pcs box pcs description shank length product per product per product per product per socket type (mm) code wallet code pack code bag code box

Magnetic Adaptor 1/4” Hex

Magnetic Adaptor & Circlip 1/4” Hex

All S/S Magnetic Adaptor & Circlip 1/4” Hex

Quick Release Magnetic Adaptor 1/4” Hex

Magnetic Adaptor 1/4” Hex

Nut Setter 6mm

Nut Setter 8mm/ 5/16”

Nut Setter 10mm Bi-Hexagonal Nut Setter 11mm IMPACT “All Hex” Adaptor 1/4” Hex

POWER TOOL ACCESSORIES

HACKSAW FRAMES AND REPLACEMENT BLADES

Premium Hacksaw Frame & Bi-Metal Blade

Premium Junior Hacksaw Frame & blade

Standard Hacksaw Frame & Bi-Metal Blade

Standard Junior Hacksaw Frame & Blade

Bi-Metal Hacksaw Blade

Junior Hacksaw Blade for Metal

Junior Hacksaw Blade for Wood

SDS-PLUS HAMMER DRILL & CHISEL SETS

5pc. SDS-PLUS HAMMER BIT SETS

ZENTRO SDS-plus

c/w euro hanger

SPEEDSTER SDS-plus

c/w euro hanger

PowerBohr SDS-plus

c/w euro hanger Counter

7pc. SDS-PLUS HAMMER

BIT SETS

9pc. SDS-PLUS HAMMER BIT SETS

POWERSPATEN

x 160

POWER TOOL ACCESSORIES

TILE DRILL SETS

5pc. TCT SPEAR POINT TILE DRILL SETS

5pc. TCT PREMIUM TILE DRILL SETS

5pc. DIAMOND TILE DRILL SETS

10pc. MIXED TILE DRILL SETS

5.0/6.0/6.5/7.0/8.0

5.0/5.5/6.0/6.5/7.0 KOMBI

POWER

MULTI-PURPOSE BIT SET

BRAD POINT WOOD BIT SETS

HSS COBALT 10pc. JOBBER DRILL SETS

HSS TI-N COATED 10pc. JOBBER DRILL SETS

HSS GROUND 10pc. JOBBER DRILL SETS

HSS ROLL FORGED 10pc. JOBBER DRILL SETS

POWER TOOL ACCESSORIES

OMT BLADE SETS

product code contents (mm) description

STAR4SET

OMT3SET

OMT4SET

OMT8SET

Counter Display Unit

1 x 35 (12 T.P.I.)

1 x 30 ( 24 T.P.I.)

1 x 35 (18 T.P.I.)

1 x 50 (18 T.P.I.)

Bi-Metal blades

1 x 32 (14 T.P.I.), 1 x 44 (14 T.P.I.), 1 x 64 (18 T.P.I.)

Bi-Metal blades

1 x 32 (14 T.P.I.), 1 x 64 (14 T.P.I.), 1 x 32 (18 T.P.I.)

High Carbon Steel blades

1 x 32 (18 T.P.I.)

Bi-Metal blades

2 x 32 (14 T.P.I.), 2 x 64 (14 T.P.I.), 1 x 32 (18 T.P.I.), 1 x 64 (18 T.P.I.)

High Carbon Steel blades

1 x 32 (18 T.P.I.), 1 x 44 (18 T.P.I.)

Bi-Metal blades

OMT4SETCDU

OMT8SETCDU

4pc. OMT blade set for machines with the “Starlock” tool holder system

3pc. OMT blade set for most power tool brands

4pc. OMT blade set for most power tool brands

8pc. OMT blade set for most power tool brands

POWER TOOL ACCESSORIES SCREWDRIVER BIT SETS

TORSION BIT SETS

25pc. DRIVER BIT “TIC-TAC” BOXES”

TORSION PZ2 25pc. BIT

BOX

CDU

Torsion PZ2 x 25 25 PZ02TT25

screwdriver bits

Torsion PH2 x 25 25 PH02TT25

screwdriver bits

Torsion Impact PZ2 x 25 25 IMPPZ02TT25

screwdriver bits

Counter Display Unit 12 x PZ02TT25 - PZ02TTCDU

Counter Display Unit 12 x PH02TT25 - PH02TTCDU

Counter Display Unit 12 x IMPPZ02TT25 - IMPPZ02TTCDU

For a CDU of 12 “Tic Tac” boxes, order 1 x PZ02TT25CDU.

HOLESAW SETS

UNIVERSAL PLUMBERS AND ELECTRICIANS HOLESAW SET

Holesaw Set and AS1 and AS2 Arbors

MERCHANDISING

MERCHANDISING SYSTEM COMPONENTS

1m PTA Depot

Accepts one row of modules PLUS large rail H=1625mm W=1000mm D=630mm

Holesaw Module

Hang/Freestanding

H=750mm W=475mm D=200mm

H=750mm W=325mm D=200mm

Curved Top CDU

Freestanding

H=585mm W=380mm D=240mm

3-Tier Module

325mm width.

Hang/Freestanding H=670mm W=325mm D=320mm HSS Bulk CDU Freestanding

1m Full Height Display

Accepts two rows of modules PLUS large rail H=2125mm W=1000mm D=630mm

3-Tier Module

475mm width.

Hang/Freestanding

H=670mm W=475mm D=320mm Driver Bit CDU

Freestanding

H=160mm W=335mm D=525mm

SYSTEM COMPONENTS

PTA Large Rail

Allows extra small items to be displayed below the modules.

100mm Single Prong Hook

For items with single hole packaging.

Top and middle module tiers will only take 100mm hooks.

140mm Single Prong Hook

For items with single hole packaging. For module bottom tiers and extension panels/CDUs.

100mm Euro Hook

For items with euro hole packaging. Top and middle module tiers will only take 100mm hooks.

140mm Euro Hook

For items with euro hole packaging. For module bottom tiers and extension panels/CDUs.

Swing Tag

Attach to Euro hooks for displaying stock re-order labels prominently.

Backing Cards and Label Prints

For items with rail system, extension panels and curved top CDUs to identify product placement.

Module/CDU Label Prints

To complete the display and provide relevant product and re-order information to the distributor/user.

MODULAR DISPLAY SYSTEM

Adaptable and expandable!

Hold the exact stock profile you need. Gondola type shelving fits easily alongside most standard shop fitting installations.

• 1 metre wide stand with 5 adjustable shelves.

• Versatility, various components can be retro fitted to suit a changing profile.

• Extension panel can be added when the stand is to be wall mounted bringing the height into line with existing merchandising.

Power Tool Accessory Extension Panel

Hook and rail system to allow flexibility of stock and layout Already have a depot? Why not easily expand your display with this additional header.

• Can be combined with Power Tool Accessory display systems to provide a combined merchandising solution.

1 2 3 4

A mix of our top selling PTA lines to maximise earnings from a 1m depot

MERCHANDISING

SPEEDSTER/POWERBOHR SDS-plus 2 x 325mm COMBI MODULE

JIG & SABRE BLADE 325mm MODULE

Stock Profile-Single Module Module 3 Top Row

product bosch type code code qty

Sabre Blades-Green Wood 121611 S1531L 5

Sabre Blades-Wood/Metal 121613 S1122VF 3

Jigsaw Blades-Metal XMG11 T118A 3

Jigsaw Blades-Laminate Flooring HC19RBi 5

Sabre Blades-Wood 121600 S644D 3

Sabre Blades-Metal 144245 S922BF 3

Jigsaw Blades-Wood 240520 T144D 10

Jigsaw Blades-Wood, Curve Cut 240502 T101AO 5

Jigsaw Blades-Wood 202436 T234X 10

Jigsaw Blades-Wood, Fine Cut 240515 T101B 10

Jigsaw Blades-Wood, Rev.Cut 240545 T101BR 10

MERCHANDISING

PTA MINI DEPOT

Order:

Hammer Drill Bit 8.0 x 210 R1108210 3

Speedster SDS-Plus Hammer Drill Bit 10.0 x 210 R11010210 2 Powerspaten SDS-Plus Flat Chisel 250 x 20 SC250 2 Powerspaten SDS-Plus Spade Chisel 250 x 40 SSC250 2

Speedster SDS-Plus Hammer Drill Bit 5.5x 160 R11055160 4

Speedster SDS-Plus Hammer Drill Bit 6.0 x 160 R1106160 4

Speedster SDS-Plus Hammer Drill Bit 6.0 x 210 R1106210 4

Speedster SDS-Plus Hammer Drill Bit 6.0 x 260 R1106260 2

Speedster SDS-Plus Hammer Drill Bit 6.5 x 210 R11065210 2

Speedster SDS-Plus Hammer Drill Bit 7.0 x 160 R1107160 4

“Kombi”

PTA EXTENSION PANEL

Profile-Extension Panel

Order:

PTAMEPS 1m Mixed PTA Extension Panel (Speedster option)

PTAMEPP 1m Mixed PTA Extension Panel (PowerBohr option)

POWERSPATEN SDS CHISELS

Profile-Single Module

MERCHANDISING

ZENTRO SDS-plus HAMMER DRILL BITS

Super premium quality, four cutter SDS-plus hammer drills for use in reinforced concrete and other tough applications.

MERCHANDISING SPEEDSTER SDS-plus HAMMER DRILL BITS

Super premium quality, two cutter SDS-plus hammer drills for use in concrete, stone and other tough applications.

POWERBOHR SDS-plus HAMMER DRILL BITS

MERCHANDISING

POWERBOHR SDS-plus HAMMER DRILL BITS

PowerBohr SDS-plus

Stock Layout

ZENTRO SDS-max HAMMER DRILL BITS

MERCHANDISING

PREM-PLUS MASONRY DRILL BITS

TILE DRILLS

MERCHANDISING DIAMOND BLADES

Diamond Blades for Masonry, Concrete and Stone

DIAMOND CORES

MERCHANDISING

HSS DIN338 JOBBER DRILLS

Counter top display unit for displaying bulk HSS drills. Lockable Perspex front

HSS Roll Forged

Cobalt HSS gives longer life in hard to drill alloyed and stainless steels

JOBBER DRILLS (IN WALLETS)

HSS DIN338 JOBBER DRILLS (IN WALLETS) – M2 TI-N COATED

Engineering grade M2 HSS and friction reducing Ti-N coating gives long life in regular and alloyed steels.

Stock Profile-Single Module

Standard duty HSS drill for steel, aluminium and non-ferrous metals.

JOBBER DRILLS (IN WALLETS) –

HSS BLACKSMITH’S REDUCED SHANK FULLY GROUND

For drilling wood, plastics, non-ferrous metals, aluminium, cast iron and steel.

HSS DIN340

For use in steel, aluminium and plastic pipes and profiles.

quality 8% Cobalt holesaws for cutting nonferrous metal, wood, plastic, steel and stainless steel

JIG & SABRE SAW BLADES

High quality, German made blades to fit most popular machines.

MERCHANDISING

JIG & SABRE SAW BLADES

MERCHANDISING

OMT BLADES

FLAT WOOD BITS

MERCHANDISING AUGER BITS HEX SHANK

MERCHANDISING

AUGER BITS HEX & SDS-PLUS SHANK

2 x 475mm Module Selection

Stock Profile-Left Module

Hex Shank 20.0 x 460 124086 1

Hex Shank 22.0 x 460 124087 1

Hex Shank 25.0 x 460 207718 2

Hex Shank 32.0 x 460 320460 2

SDS-Plus Shank 8.0 x 235 145290 2

SDS-Plus Shank 10.0 x 235 145291 2

SDS-Plus Shank 12.0 x 235 145292 2

SDS-Plus Shank 16.0 x 235 145294 2

SDS-Plus Shank 20.0 x 235 145296 2

Hex Shank 12.0 x 235 124068 2

Hex Shank 13.0 x 235 130235 1

Hex Shank 14.0 x 235 124069 2

Hex Shank 16.0 x 235 124070 2

Hex Shank 18.0 x 235 124071 1

Hex Shank 19.0 x 235 190235 1

Hex Shank 20.0 x 235 124072 2

Hex Shank 22.0 x 235 124073 2

Hex Shank 10.0 x 100 124102 2

Hex Shank 12.0 x 100 124103 2

Hex Shank 16.0 x 100 124106 2

Hex Shank 20.0 x 100 124107 2

Hex Shank 22.0 x 100 124108 2

Hex Shank 25.0 x 100 124109 2

Hex Shank 32.0 x 100 124117 2

Hex Shank 6.0 x 155 114065 2

Hex Shank 8.0 x 155 114066 2

Stock Profile-Right Module

SDS-Plus Shank 22.0 x 235 145297 2

SDS-Plus Shank 25.0 x 235 145000 2

SDS-Plus Shank 10.0 x 460 124120 1

SDS-Plus Shank 12.0 x 460 124121 1

SDS-Plus Shank 16.0 x 460 124124 1

SDS-Plus Shank 18.0 x 460 124125 1

SDS-Plus Shank 20.0 x 460 124128 1

SDS-Plus Shank 22.0 x 460 124129 1

SDS-Plus Shank 25.0 x 460 124132 1

Hex Shank 25.0 x 235 207717 2

Hex Shank 32.0 x 235 124078 1

Hex Shank 8.0 x 460 124080 1

Hex Shank 10.0 x 460 124081 1

Hex Shank 12.0 x 460 124082 1

Hex Shank 14.0 x 460 124083 1

Hex Shank 16.0 x 460 124084 1

Hex Shank 18.0 x 460 124085 1

Hex Shank 10.0 x 155 114067 2

Hex Shank 12.0 x 155 114068 2

Hex Shank 16.0 x 155 114070 2

Hex Shank 20.0 x 155 114072 2

Hex Shank 25.0 x 155 207716 2

Hex Shank 32.0 x 155 124118 2

Hex Shank 6.0 x 235 124065 2

Hex Shank 8.0 x 235 124066 2

Hex Shank 10.0 x 235 124067 2

Order: 2XAUGER475 475mm Auger Bit Double Module

Stock Layout

475mm Module

Module

MERCHANDISING FORSTNER BITS

COUNTERSINKS AND BRAD POINT DRILLS

DRIVER BIT ACCESSORIES

MERCHANDISING TORSION DRIVER BITS

IMPACT DRIVER BITS

MERCHANDISING SCREWDRIVER BITS

C6.3 x 25 (Wallet 2) PZ3

C6.3 x 25 (Wallet 2) PH1

MERCHANDISING SCREWDRIVER BITS

x 25 (Pack of 10pcs) T30

TORSION C6.3 x 25 (Pack of 10pcs) PZ1

TORSION C6.3 x 25 (Pack of 10pcs) PZ2

TORSION C6.3 x 25 (Pack of 10pcs) PZ3

TORSION C6.3 x 25 (Pack of 10pcs) PH2

TORSION C6.3 x 25 (Pack of 10pcs) PH3

MERCHANDISING SCREWDRIVER BITS

TORSION C6.3 x 25 (Wallet 2) PZ1 PZ01W 10

TORSION C6.3 x 25 (Wallet 2) PZ2 PZ02W 15

TORSION C6.3 x 25 (Wallet 2) PZ3 PZ03W 10

TORSION E6.3 x 50 (Wallet 1) PZ2 PZ0250W 10

TORSION E6.3 x 150 (Wallet 1)PZ2 PZ02150W 5

TORSION C6.3 x 25 (Wallet 2) PH1 PH01W 5

TORSION C6.3 x 25 (Wallet 2) PH2 PH02W 10

TORSION C6.3 x 25 (Wallet 2) PH3 PH03W 5

TORSION E6.3 x 50 (Wallet 1) PH2 PH0250W 5

TORSION C6.3 X 25 (WALLET 2) T20 T20W 5

TORSION C6.3 X 25 (WALLET 2) T25 T25W 5

TORSION C6.3 X 25 (WALLET 2) T30 T30W 10

TORSION C6.3 X 25 (WALLET 2) T40 T40W 5

TORSION IMPACT C6.3 x 25 (Wallet 2) PZ2 IMPPZ02W

SCREWDRIVER BIT EXTENSION PANEL

MERCHANDISING

SCREWDRIVER BIT METAL COUNTER DISPLAY UNIT

Bulk CDU Selection

Stock Profile-Single Module

Bit (Bagged in 10’s) HX4 x 25

x 25

Bit (Bagged in 10’s) HX6 x 25

Bit (Bagged in 10’s) PH1 x 25

Bit (Bagged in 10’s) PH2 x 25

MERCHANDISING

CHUCKS & ACCESSORIES

13mm Keyed Chuck 1/2” x 20F, 850w

Standard 13mm Keyless Chuck 1/2” x 20F, 700w

H/D 13mm Keyless Chuck, 1/2” x 20F, 1200w

H/D 13mm Keyless Chuck, Single Sleeve 1/2” x 20F, 1200w

Chuck Key, S2/S14 Multi-fit

13mm Keyed Chuck 1/2” x 20F, 850w and

SDS-plus Adaptor

Standard 13mm Keyless Chuck 1/2” x 20F, 700w and

SDS-plus Adaptor

H/D 13mm Keyless Chuck, 1/2” x 20F, 1200w and SDSKEYL13HD

SDS-plus Adaptor 1/2” x 20F to SDS-plus Adaptor

MERCHANDISING COMBI-MODULES

Stock Layout

MERCHANDISING

COMBI-MODULES

Order: MIXPPK325 Long PowerBohr/PowerSpaten/Kombi 325mm Mixed Module

MERCHANDISING COMBI-MODULES

The top sellers across 8 ranges of woodworking bits condensed into a three module package.

x 235 124065 2

HEX Shank Auger Bit 8.0 x 235 124066 2

HEX Shank Auger Bit 10.0 x 235 124067 3

MERCHANDISING COMBI-MODULES

MERCHANDISING

COMBI-MODULES

Stock Layout

MERCHANDISING COMBI-MODULES

NOTES

REISSER® LIMITED

TERMS OF BUSINESS

1.1 Definitions.

Business

Force

Specification:

1.2 Construction.

2.1

2.2

2.3

3.2

3.3

3.4

reserves the right to deliver up to 10% more or less than the quantity ordered. The quantity delivered shall be deemed to be the quantity ordered and the Customer shall have no right to reject the Goods or to claim damages but must pay for the Goods delivered at the price agreed.

4. DELIVERY

4.1

4.2 Unless agreed in writing and signed on behalf of the Supplier all Goods are supplied ex-works of the Supplier.

4.3 Where the Goods are handed to a carrier for carriage to the Customer or to a port for export any such carrier shall be deemed to be the Agent of the Customer and not of the Supplier for all purposes.

4.4 The Customer shall inspect the Goods supplied immediately upon receipt and no liability for non delivery, partial loss or damage to the Goods occurring prior to delivery will attach to the Supplier unless claims to that effect are notified in writing by the Customer to the Supplier (with a copy to the carrier if applicable). (i) Within ten days of despatch for partial loss or damage or non compliance with the Contract; or (ii) Within five days of the date the invoice is received for non delivery.

4.5 If the Customer shall fail to give notice in accordance with Condition 4.4 above the Goods shall be deemed to be in all respects in accordance with the Contract and the Customer shall be bound to accept and pay for the same accordingly.

4.6 If the Supplier fails to deliver the Goods, its liability shall be limited to the costs and expenses incurred by the Customer in obtaining replacement goods of similar description and quality in

4.7

4.8

4.9

4.10

5. QUALITY

5.1 Subject to clause 5.2, if:

5.2 The Supplier shall not be liable for Goods’ failure to comply with the warranty set out in clause Error! Reference source not found. in any of the following events: (a) the Customer makes any further use of such Goods after giving notice in accordance with clause 5.1; (b)

5.3

5.4

5.5

5.6

or (being a partnership) has any partner to whom any of the foregoing apply; (b) the Customer commences negotiations with all or any class of its creditors with a view to rescheduling any of its debts, or makes a proposal for or enters into any compromise or arrangement with its creditors [other

9. LIMITATION OF LIABILITY

10. FORCE

11. GENERAL 11.1 Assignment

Our Vision

REISSER was founded in 1981 by Charles Ledigo and has always held true to its core values that quality, innovation and our people are the foundations of our success. This is the platform on which we build strong relationships with our distributors and ultimately our end users.

Now after more than three decades REISSER is still privately owned and managed by its two shareholders Charles Ledigo and Jane O’Neill. Maintaining a clear and focused strategy the ethos of the company remains the same – understanding what the market wants and oﬀering our partners eﬀective products and solutions.

Continuous Improvement

We continually look for ways to improve our business that lead to higher levels of client satisfaction

Integrity

The foundation of our success; it guides us in all decisions and deﬁnes our actions

Our Company Proﬁle

Staﬀ

Development

We are committed to being the best trained and educated professionals in our industry

Teamwork

We work together with respect and cooperation to achieve common goals

REISSER Ltd are suppliers of professional products for the joinery, shop ﬁtting, construction, electrical, engineering and allied trades available through wholesale distribution only.

Passionately focused on quality, our products are manufactured by our world-class production partners. No compromise is made –ensured by the long term relationships held with suppliers, for example our two core screw manufacturers in Taiwan have worked alongside us for decades.

CONSISTENT QUALITY ALWAYS – it is the REISSER way.

High quality, reliable products, coupled with deep wide stock and underpinned by a team of long serving, professional staﬀ all make REISSER what it is today.

Customer Service

We are an extension of our partners and without them, we would not be in business

Leadership

We will be a leader in every aspect of our business

Accountability

We take responsibility for our actions and hold ourselves to the highest level of professionalism

Quality

It is synonymous with our brand

REISSER® UK LTD

Unit 7, Botany Business Park

Lower Macclesfield Road

Whaley Bridge

Derbyshire SK23 7DQ

reisser.co.uk

info@reisser.co.uk

T: 0161 483 5557

Reisser

ReisserLtd

reisser_ltd

REISSER® IRELAND LTD

Midlands Gateway Business Park

Kilbeggan

Co Westmeath

Ireland N91 H102

reisser.ie

info@reisser.ie

T: +353 579 333 314

ReisserIreland

Reisser_Ireland
