FOTILE rangehood ZMG9056-Product Brochure

Page 1


Wider Area, Closer Extraction

Effective Ventilation

900 mm

Automatic Smoke Barrier Plate

Its 900mm-wide automatic smoke barrier plate intercepts cooking smoke and extracts it before it spreads.

Silent

& Powerful Extraction

Noise, Vibration, and Harshness Reduction Technology (NVH)

NVH technology addresses noise, vibration, and harshness from multiple angles to create a more pleasant cooking environment for you. It includes features such as a BLDC motor, vibration dampers, sound-absorbing fiber cotton, a bionic wing impeller, and noise-reducing components.

Stronger Brushless Direct-Current Inverter (BLDC) More Powerful, Better Efficiency

The BLDC motor uses Microchip Technology along with field-oriented (FOC) algorithm boosts maximum static pressure up to 1170 Pa with an IEC airflow of 1510m³/h to remove cooking smoke.

Smart Cooking Experience

Intelligent Air Manager

Automatically detects harmful gases in the air before ventilating and purifying the air to keep your kitchen fresh, even when you are not cooking or in the kitchen.

Intelligent Wave Control

Activate the hood with a simple wave of your hand, eliminating the need for button operation.

Air Manager

Intelligent

Tempered Glass Design

Clean with one wipe and resists fingerprints

Sleek appearance with a larger capacity, reducing washing frequency

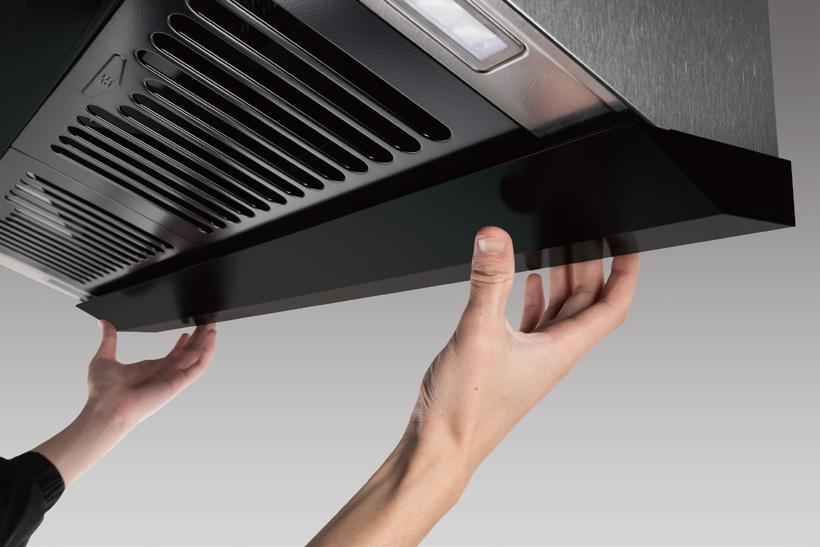

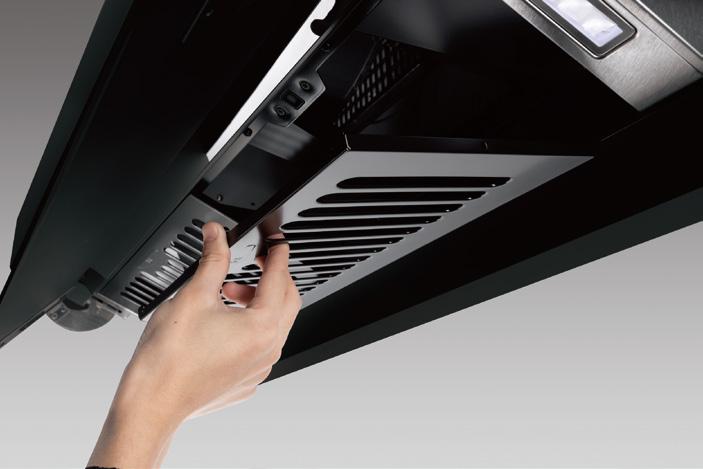

Dual Removeable Grille Filter

Easy to remove and clean, even in the sink

Max.Airflow (m 3/h) (IEC 61591)

Noise Level (dB) (IEC 60704)

Max.Static Pressure (Pa)

Speed Settings

Motor Type

Control Methods

Lighting Type

Air Manager

Delayed Turnoff

Dimensions (LxWxH) (mm)

Body Thickness (mm)

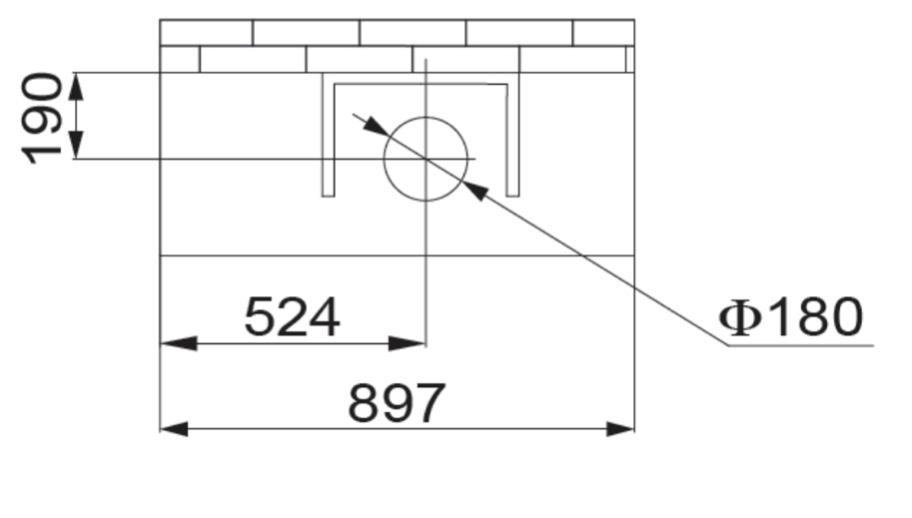

Duct Size (mm)

High Speed: 49 Low Speed: 40 1170 2 Speed + Auto Mode

Inverter Motor

Control + Touch

x 2

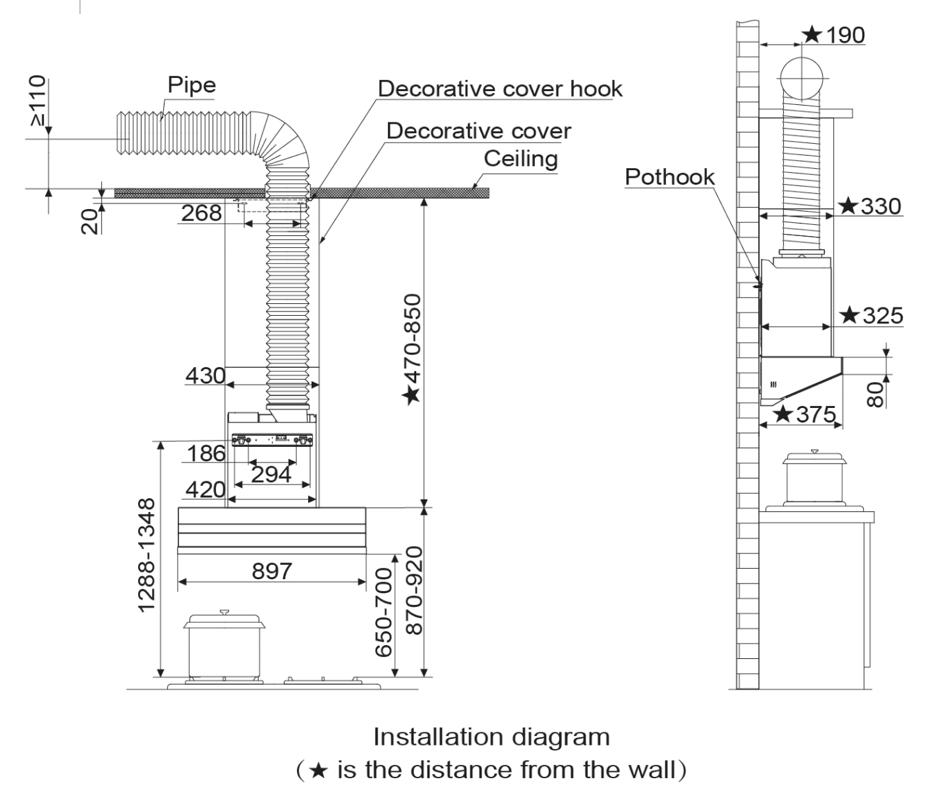

Installation

ZMG9056
ZMG9056

FOTILE's Authorised Exclusive Distributor in Australia:

Aurora Trading Group Pty Ltd

620 Camberwell Road, Camberwell Vic 3124

TEL: 61-3-9939-9926 (Melbourne) 61-2-9037-0366 (Sydney)

Email: sales@ifotile.com.au

Website: ww w.f o t ile com a u
