Fotile Australia Catalogue English Version

2024 Fotile Kitchen Appliances Full Product Catalog

Happiness Starts in Your Kitchen 01

Happiness Starts In Your Kitchen

Leading to amend and formulate the national standard of range hood As the leading unit of the national standard working group of range hood, FOTILE leading the development of the national standards of the range hood, and actively participates in the revision of relevant standards in the state and industry.

Lead to complete the international standard revision of range hood Fotile dominants to complete national standard requirements of IEC (International Electrotechnical Commission) :<< the safety of household and similar kitchen appliance / the special requirements of range hood and other oil smoke suction devices >> , that lead Chinese range hood industry have more voices in international arena.

Undertake national key scientific research projects actively FOTILE undertake to finish "Eleventh Five-Year Plan" National Science and Technology Support Plan: 《Study on the Improvement of Pollution Control of Kitchen Toilet Pollution and Improvement Technology of Environmental Function >> and the project was passed the accepted successfully in 2017,Fotile became the leader Unit of "13th Five-Year Plan" National Key Research and Plan Project: 《Key Technologies and Equipment of Oil Fume Efficient Separation and Flue Gas Purification>>.

Owning more than 10000 national patents, including more than 2400 invention patents, that at the top of whole industry.

FOTILE owns state-identified enterprise technology center and front-edge kitchen electric laboratory, including two “Approved Laboratory of China's Qualified National Accreditation Commission” and fotile build rearch center in Germany, Japan and so on. Strong scientific research strength ensure fotile innovative strength.

Won authoritative award of Quality management area - National Quality Award In 2011,fotile was awarded "Eleventh National Quality Award" by the Chinese Quality Association. This award is highly recognized and affirmed FOTILE efforts on the product quality, enterprise management, Brand value and industry strength.

Pass Zhejiang Manufacturing Certification and drives collaborative manufacturing development of the industrial chain.

As a Zhejiang Manufacturing recognized enterprise, FOTILE dominates to develop the product Zhejiang Manufacturing standard of range hood. The product standard has played a good leading role in promoting the quality promotion of similar products and the construction of manufacturing brand in the whole province.

Win more than 90 international design awardsand at the top of whole industry.

From 2007 to present, FOTILE has been obtained 66 iF awards by "IF CHINA Design Review Committee" and 30 red dot awards approved by "Design Zentrum Nordrhein Westfalen" the number of awards are at the top of whole industry.

Cooperate with high-end real estate, build a model of living life.

At present, FOTILE has reached strategic partnership relationship with more than 100 famous real estate enterprises such as Vanke, Evergrande, Country Garden and other famous real estate enterprises in the field of real estate fine decoration, aims to provide a model of kitchen life for high-end human settlements.

*The patents are mainly in China.

*IEC 60335-2-31:Household and Similar Electrical Appliances-Safety-Part

2-31:Particular Requirements for Range Hoods and Other Cooking Fume Extractors.

02

01

SELFADJUSTING

ZMG9039

02

Range Hood

EMG9050

SELFADJUSTING

Cooktop

NEW

EMS9026

EMG9035

GLG90305

GLG86322S

EMS9028

EMG9008/EMG9008-C

GLG60409S

GLS90303S

SELFADJUSTING

JQG9009X

EMG9030

NEW

NEW

EMS6008-C

03

EMG6018

EMG6018-W

GLG90505

NEW

GLG60305

Happiness Starts In Your Kitchen

30

03

Oven

04

66

Combi Oven

NEW

KSG7003AT

KSG7007A

HZK72-H1

HZK-TS1

05

Steam Oven

06

Microwave Oven

HYZK26-E1

07

NEW

NEW

SCD42-C2T

HW25800P-C2T

Sink Dishwasher

SD2F-P6

04

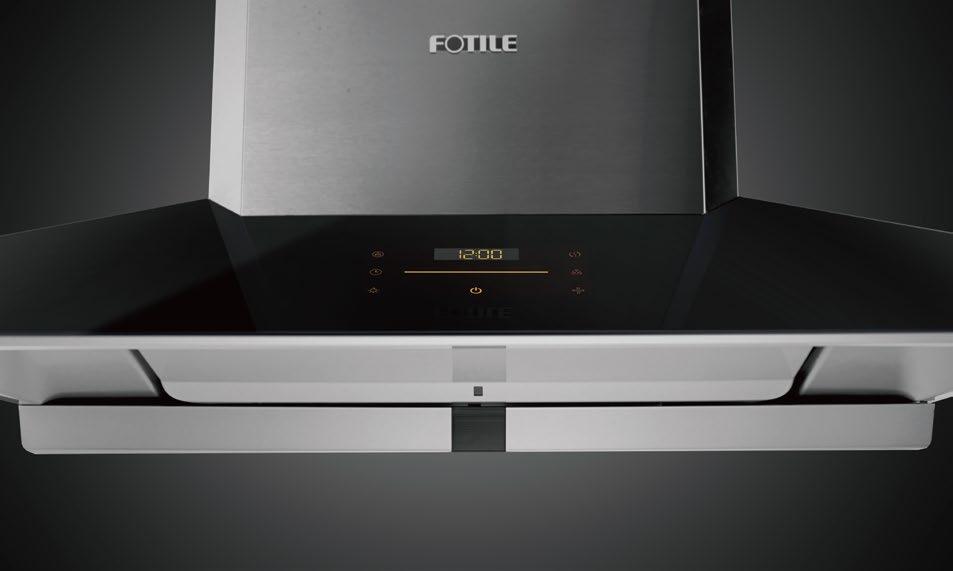

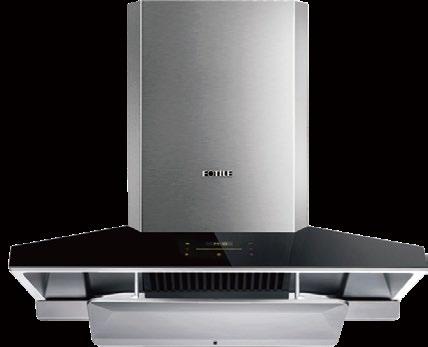

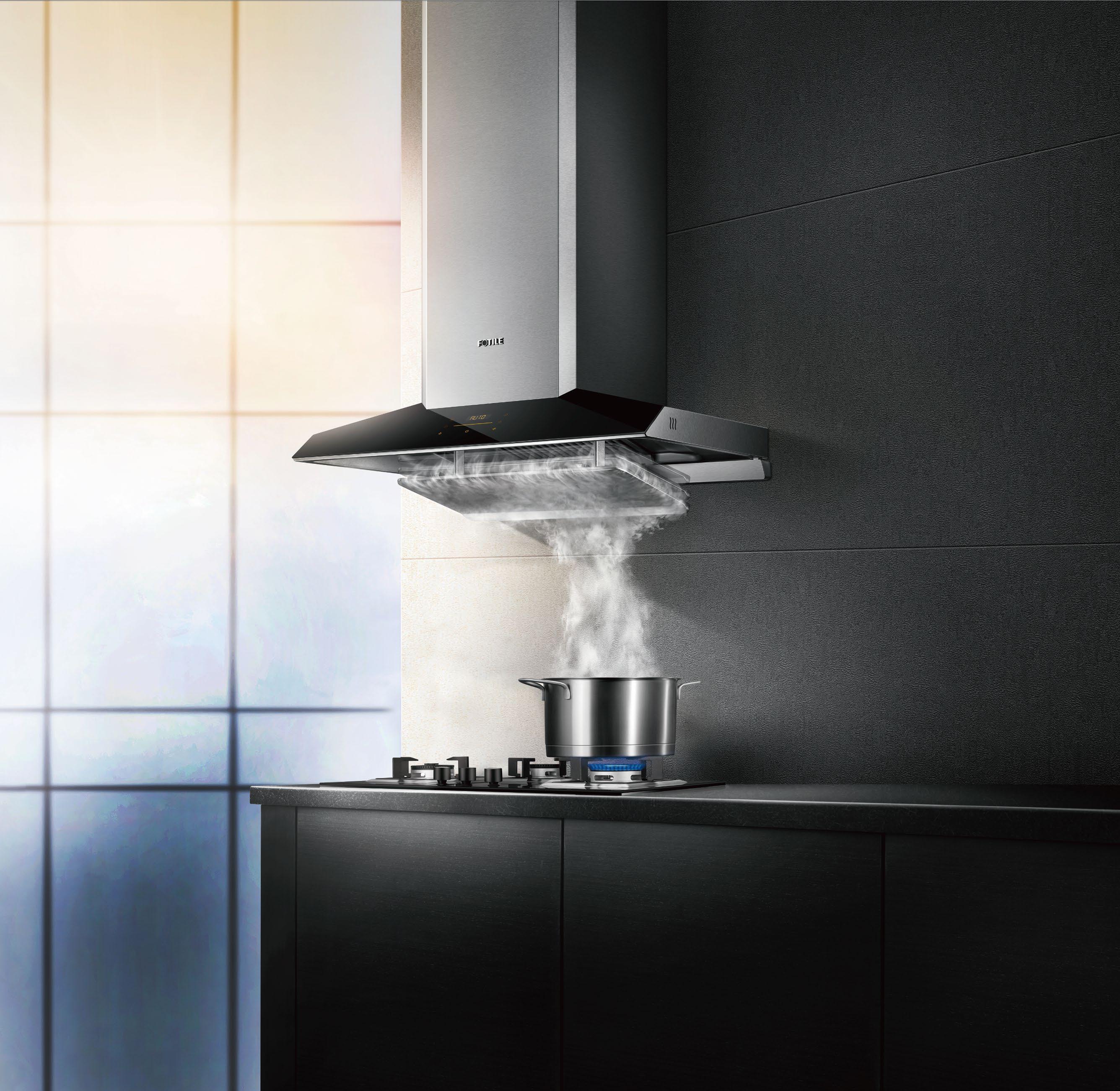

Each Fotile rangehood, designed to thoroughly solve the smoke problem, exploring the core smoke purification technology.

Closer to the smoke source, Smart Smoke Detection.

Intelligent Suction. No More Stray Smoke AIS Technology(All-In System) With the discovery of the Optimal Airborne Grease Control Zone, we can now fully trap airborne grease before it begins to spread.A 110-degree buffer plate, a wider chamber entrance and other technologies are used to fully trap airborne grease from every corner.

Brushless DC motor, Stronger Suction Power, smooth suction without hindrance DPS Technology (Double-Power System) The direct-current inverter motor strengthens the hood’s core power while reducing noise and doubling air pressure, allowing airborne grease to be extracted rapidly and smoothly.

Intelligent Self-Adjusting Technology， smoother smoke exhaust and lower noise Smart Drive Technology With Intelligent Self-Adjusting Technology, the oil fume can break through the resistance and discharge smoothly; the noise is as low as 39dB, which is comparable to the mute effect of the library.

* For more information on product features and corresponding parameters, please see the parameter table.

05

Happiness Starts In Your Kitchen

FOTILE Range Hood Series 06

Smart Smoke Detection

This function allows the Smart Wing-like Surround Suction Plate to precisely adjust its elevation by 8-12cm based on smoke type and volume, thereby creating an optimal grease and smoke control zone where grease and smoke have virtually no room to escape.

8cm

8

Light Frying Silent Performance Upon detective low volumes of grease and smoke, the Smart Wing-like Surround Suction Plate lowers by 8cm to precisely capture them.

cm

Heavy Frying Heavy-duty Performance As you cook your food with searing heat, the Wing-like Surround Suction Plate lowers further to 12cm to maintain the optimal grease and smoke control zone.

12cm

07

Cleanliness Becomes Easier

We know as well as you do that range hoods are perhaps the toughest kitchen tool to clean.

With the FOTILE W Pro’s multiple humanized design choices, cleaning is a breeze and cooking for your loved ones is simply delightful.

Cleaning Mode

Minimalist Design

The FOTILE W Pro’s 1-touch Cleaning Mode, allowing you to clean the entire machine easily and safely.

When idle, the wing-like surround suction plate and the smoke-hatch’s flat surfaces make cleaning a breeze.

Double Grease -trapping System

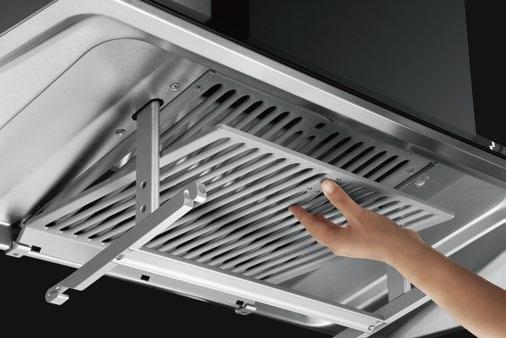

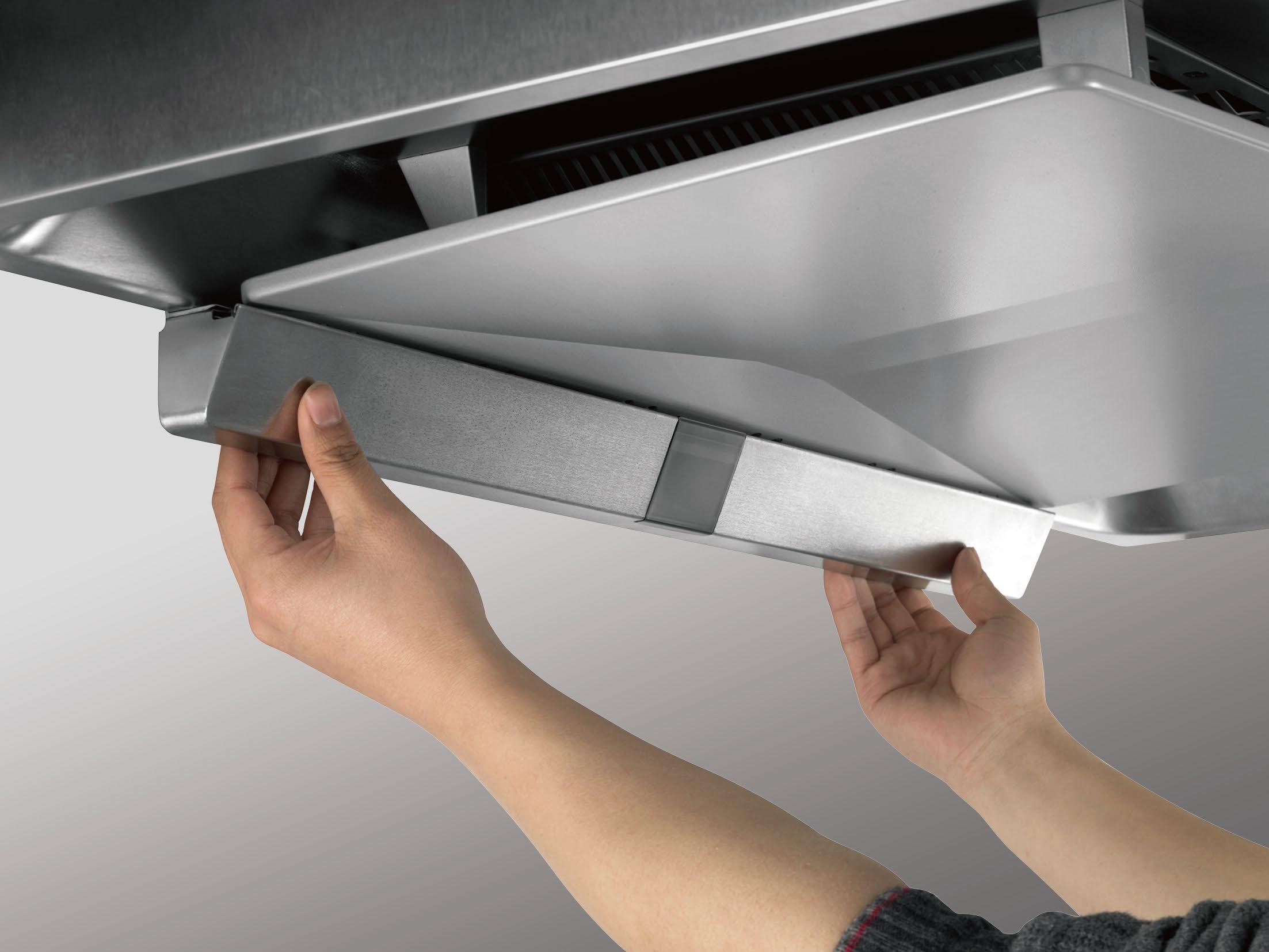

Easy-to-remove Easy-to-clean

The combined efforts of the wing-like surround suction plate and the oil cup makes it so integrated that you’ll only need to clean every once in a while, and the double window design allows you to easily detect its cleanliness.

The upgraded double-layer Clean + Clear filter makes your cleaning process much faster and easier.

Humanized Design

Semi-transparent, Super Large Oil Cup

Aluminum alloy hook. Rust-free, durable.

Anti-collision parts give you peace of mind.

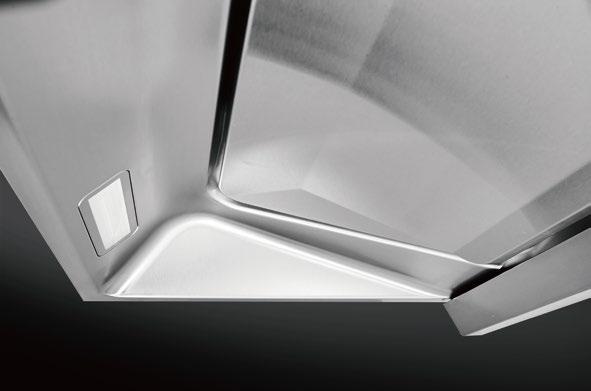

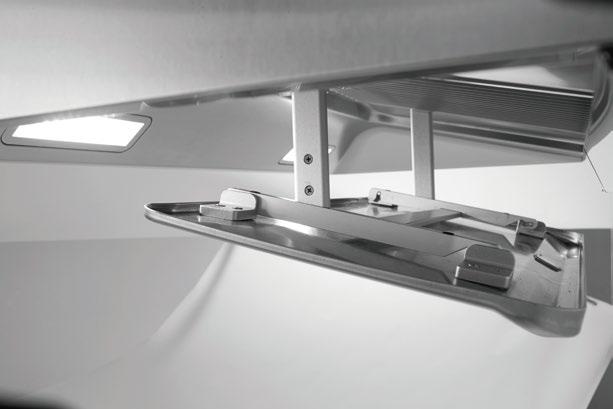

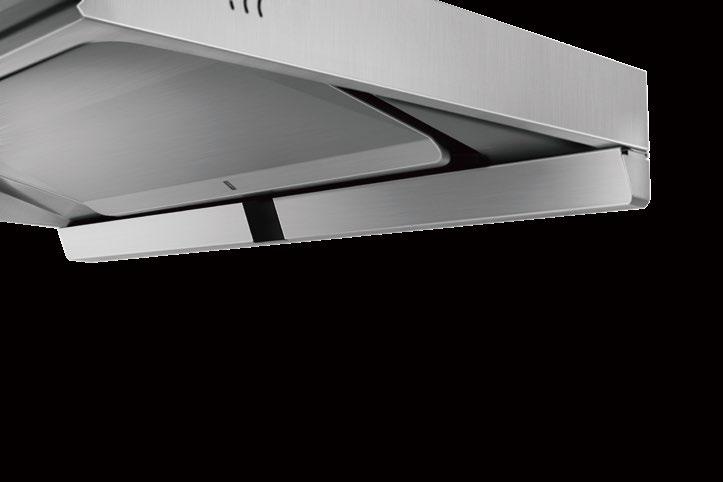

Wing-like Surround Suction Plate and Seamless Smoke Chamber Design

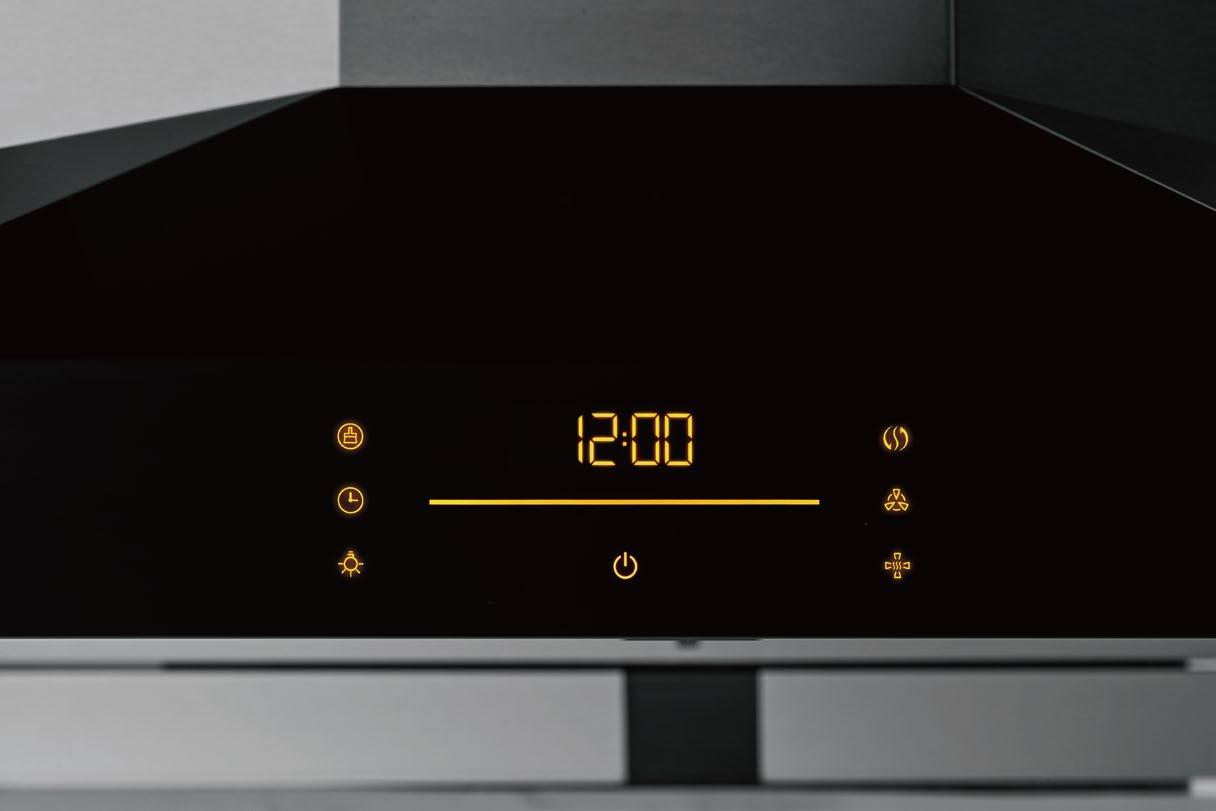

LED Indicators

The plate’s sealed edges allow for smoother airflow, while the one-stretch smoke chamber takes smoke extraction technology to new levels.

With multiple degrees of brightness and multiple colors, you can tell the air quality at just a quick glance.

Steel+Crystal Black Timelessly elegant

Lavishly Sculpted

Intricately sculpted steel matched with mesmerizing crystal black panel creates an art piece that exudes charm.

Every inch of the FOTILE W Pro is designed with sublime crafting expertise.

08

Spreading

Frying

09

580mm Golden Collection Zone

Rising

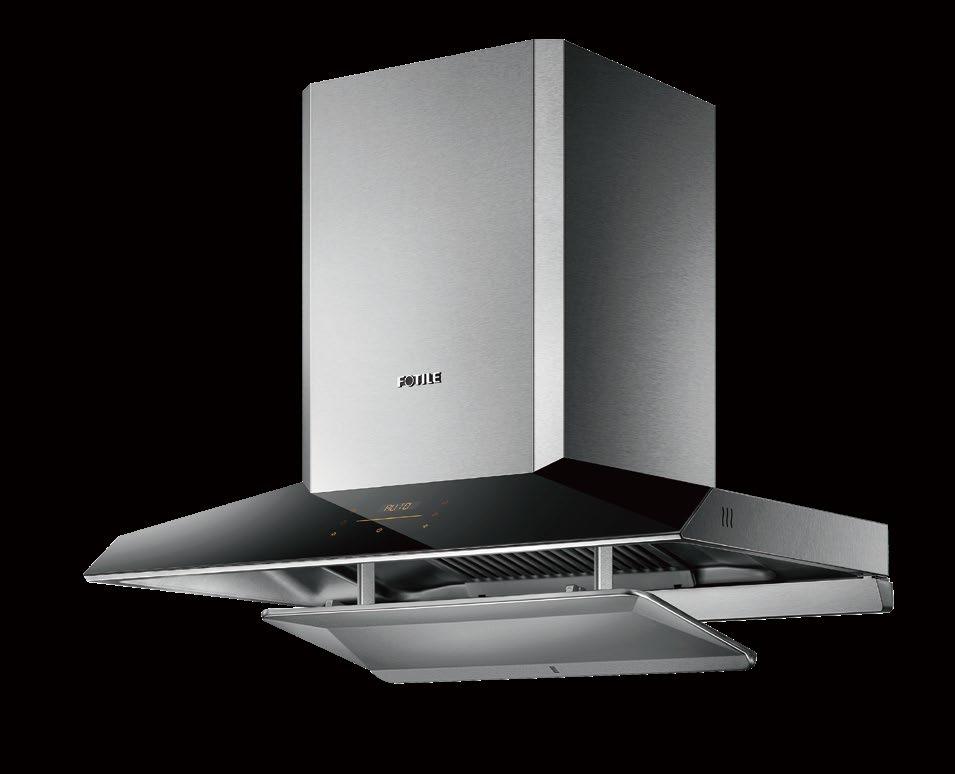

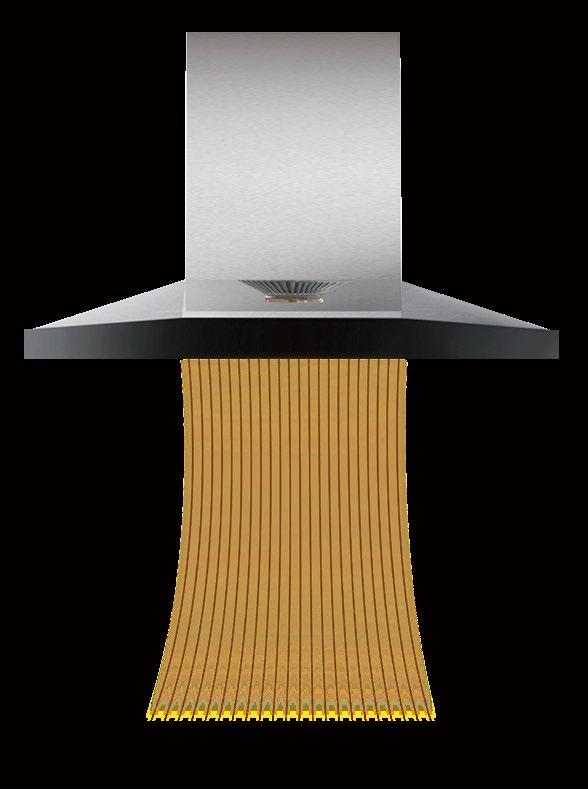

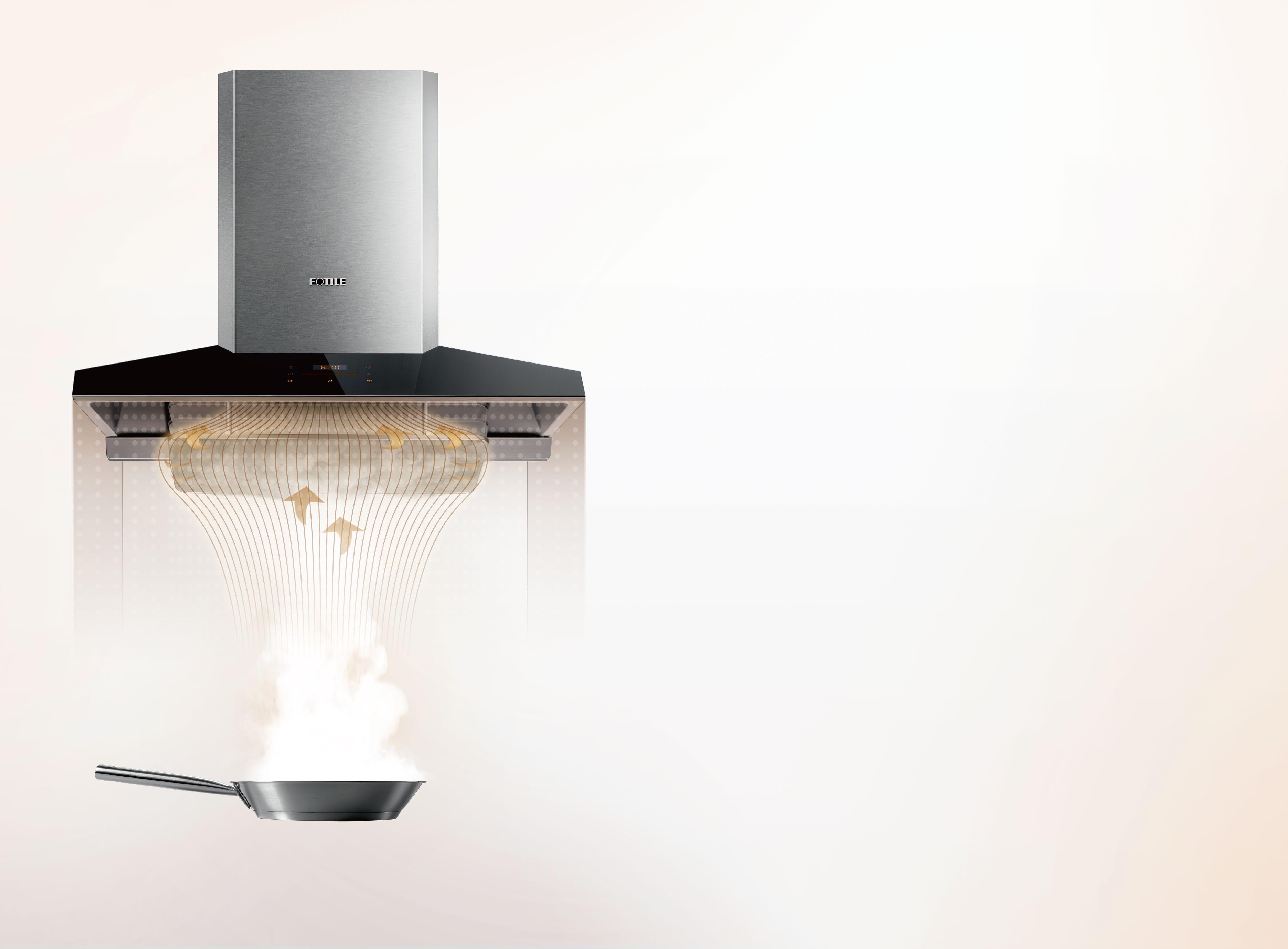

Smart Wing-like Surround Suction Plate Wider Range, Reduced Stray Smoke This innovation significantly widens both the horizontal and vertical smoke-trapping range of the FOTILE W through a wider negative core pressure area, effectively reducing the chances of smoke escaping.

Increased Negative Pressure Area

FOTILE W

Normal Chimney Style Hood

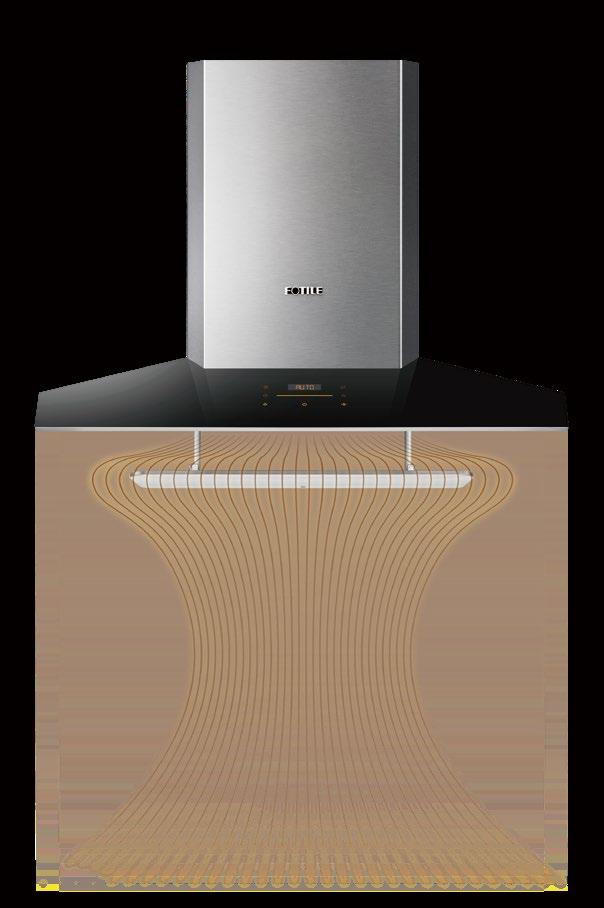

Hastened Smoke Absorption Rate The “canyon effect” is a phenomenon discovered by FOTILE labs, taking inspiration from the way air gets pressurized and strengthened when going from a wide area into a narrow canyon. This discovery is then used to design the FOTILE W ’s space-capsule-shaped canopy to smoothen and hasten the grease and smoke extraction process.

Doubly-accelerating grease and smoke passage, the patent silent volute sorts grease and smoke into their own “lanes” for smoother and more efficient extraction. *Patent: ：ZL200610050640.9

More Powerful Suitable For Any Environment The upgraded intelligent cruise mode can monitor the flue resistance and automatically increase the speed and pressure to expel 1290Pa of smoke.With the innovative design of the bionic impeller, smoothly exhausts smoke in all kinds of installation environments, and easily responds to long pipe installation.

10

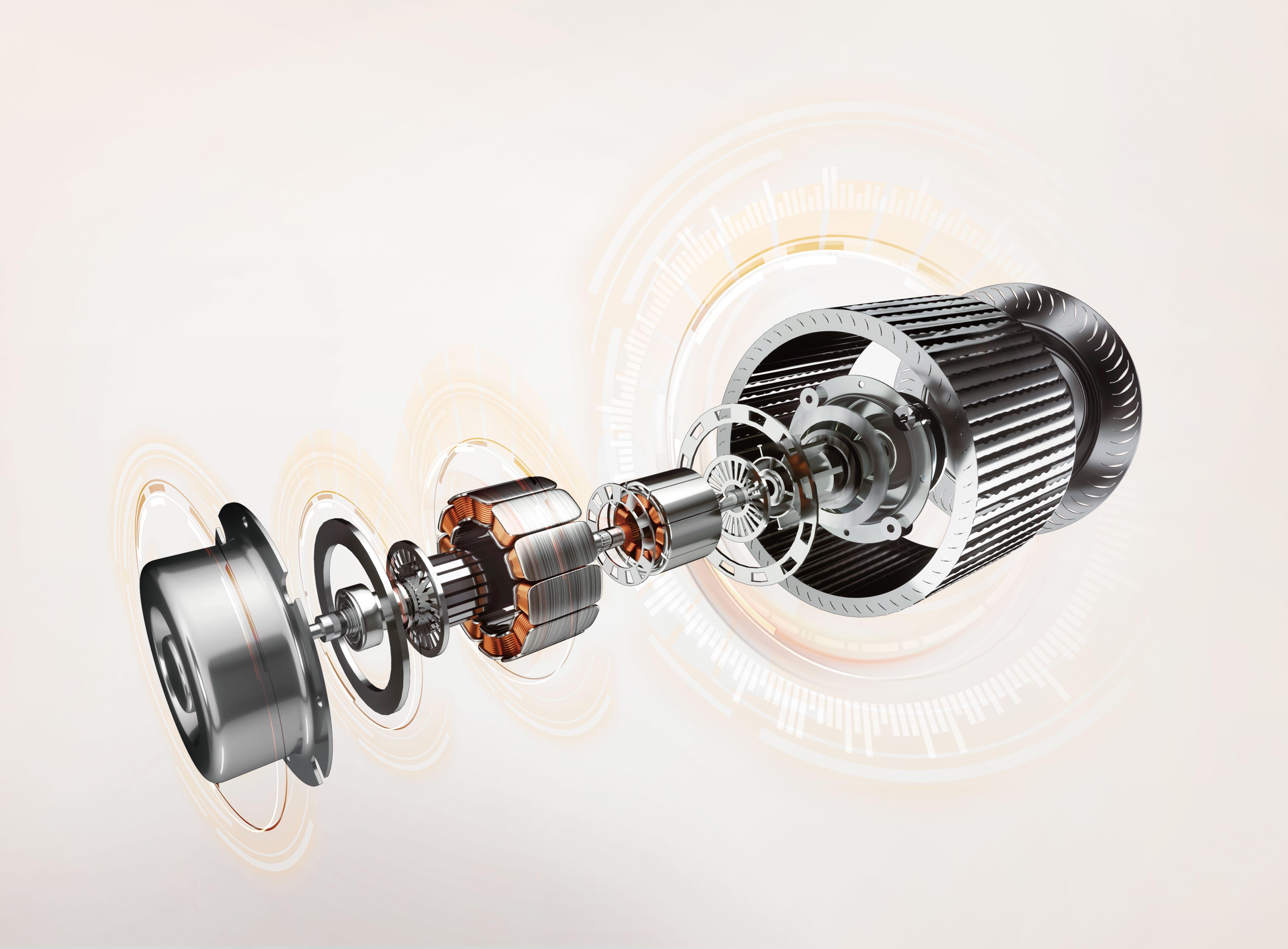

Innovative DC Inverter Motor This technology allows the all-new FOTILE W to quietly deliver high-power smoke extraction, for peace of mind and peaceful cooking.

The direct-current inverter produces a stunning 136,800 rounds per hour – a powerful upgrade that further enhances the FOTILE W ’s smoke extraction capability.

11

Smoke Extraction Resistance (Pa)

136,800 RPH DC Inverter Power

EMG 905 0 Pe rfor ma nc eC urv e

Normal

Hood Perf orm anc eC urv e

Air Volume Q (m³/h)

1590

1590

38

m³/h

The airflow up to 1590m³/h*

The noise is as low as 38 dB*

Test based on IEC 61591 standard

Test based on IEC 60704-3 standard

20

Normal Chimney Style Hood 420 Pa

1290 Pa Stronger Air Pressure For Smoother Smoke Extraction The all-new Direct-current Inverter System improves up the FOTILE W ’s extraction capabilities, effortlessly overcome wind resistance with an air pressure of up to 1290Pa.

1290Pa

Next-gen FOTILE W Pro

* Noise level low to 38dB for EMG9050 Max static pressure up to 1290Pa for JQG9009X Airflow up to 1590m³/h for EMG9050

12

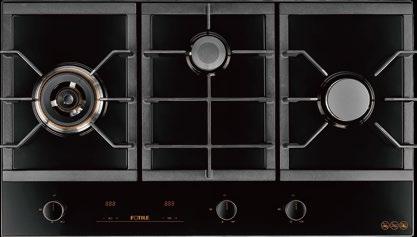

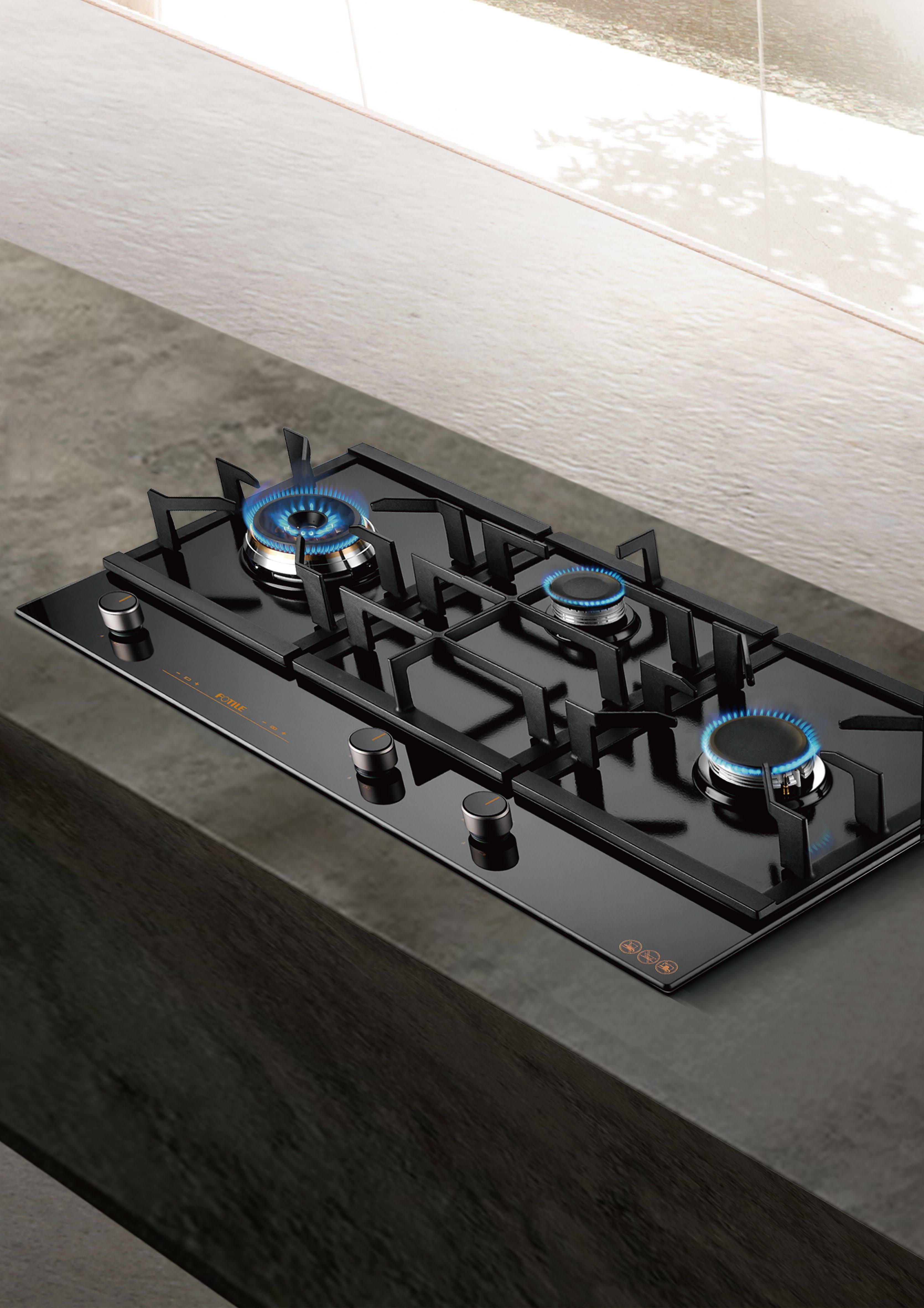

FOTILE Cooktop Series 13

Precise timing, let the stew more at ease Free to set the simmering time, no fear of accidental drying Five-layer safety panel, high temperature resistance and safer Flame failure protection

Child lock protection

Iarge Insulation drip pan

Eight-step airtightness test

Automatic flame failure protection*

10-year glass warranty *This function is only limited to the time burner

Super firepower is the basis for the delicious stir-frying.

Fotile Tri-ring technology, with selected copper Wok burner, high temperature corrosion resistance, heat penetration of food fiber, burst out unique fresh fragrance

Versatile Wok Burner, Up to 23MJ/h The main burner applies Tri-ring technology, releasing up to 23MJ/h chef-level firepower. Heats up faster in the same scene and saves cooking time

3L Fotile 23MJ/h Super Power 3 Mins Water Boiling

Other brand 18MJ/h Power 4 Mins Water Boiling

Equal temperature in one pot, balanced everywhere The professional Tri-ring fire of FOTILE realizes the simultaneous change of three-ring firepower, which evenly covers the pot bottom and realizes the same cooking of ingredients in the same pot

Normal Burner

FOTILE Tri-Ring Burner

14

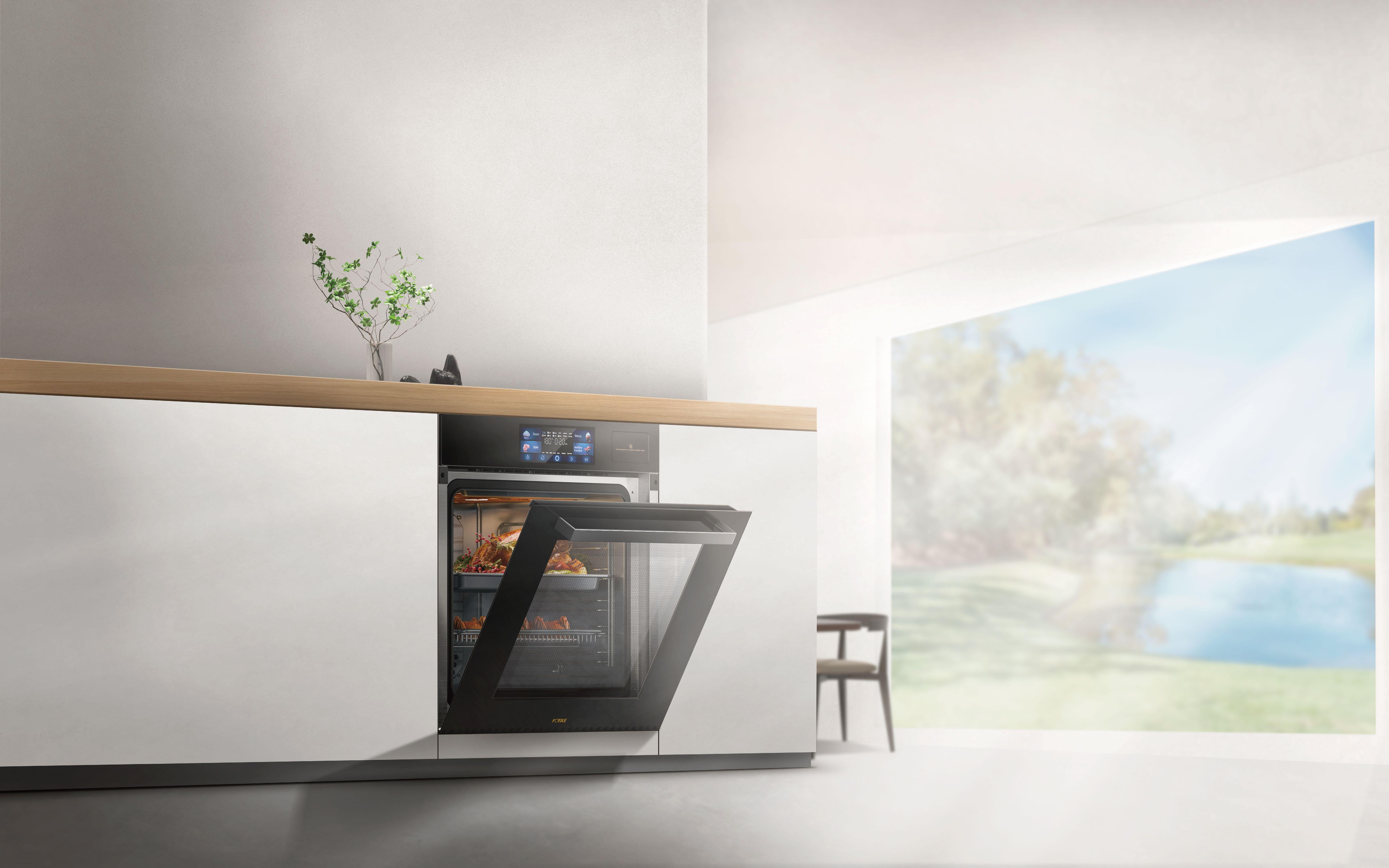

FOTILE Oven Series More ways to cook, more joy of life.

70L large capacity oven Precise temperature control and bake food like a master.

70L large capacity · constant temperature · 10 kinds of baking programs

42L powerful steaming oven Double steam, steam healthy and delicious dishes for the family.

Dual effect steam technology· Dynamic balancing system

1℃ precise temperature control · 8 preset programs · Easy to clean

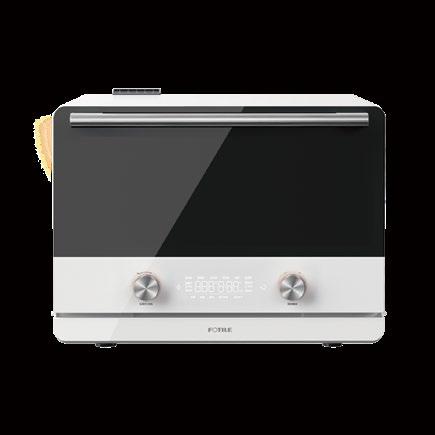

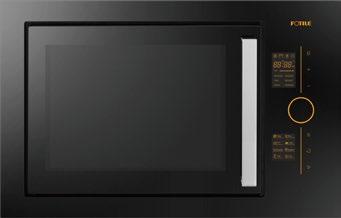

Dual-mode microwave oven Microwave + light waves are heated evenly, making heating easier.

Microwave and light heating system

Independent Ventilation System · Instant Menu

15

Happiness Starts In Your Kitchen

16

17 17

Happiness Starts In Your Kitchen

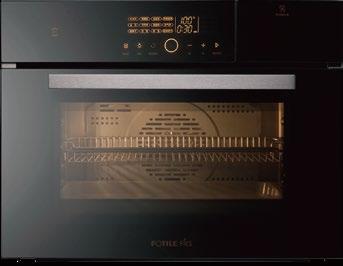

FOTILE Built-in Combi Oven Cooking almighty King.

The ever-changing cooking methods make cooking fun.

Steam The extremely hot steam system at 120°C steams out the freshness of the food.

Conv.Bake Convect|Bake|Steam-Bake Refined baking mode, precise temperature control through AI fluid algorithm.

Air Fry With zero oil and healthy air frying, the circulating hot air forces out the oil, so you can enjoy delicious food without burden.

Dehydrate Low-temperature drying system, baby snacks and scented tea can be made as you like, and no additives are more assured.

Large 72L large capacity, multi-layer steaming and roasting, fancy flavours at once.

Clean Diamond Blue Enamel Cavity, durable for peace of mind, anti-pollution for cleanliness.

18

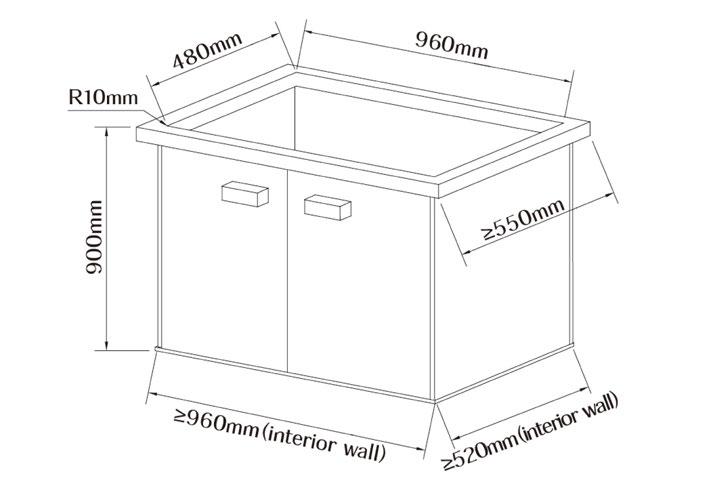

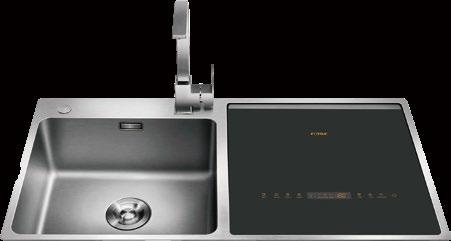

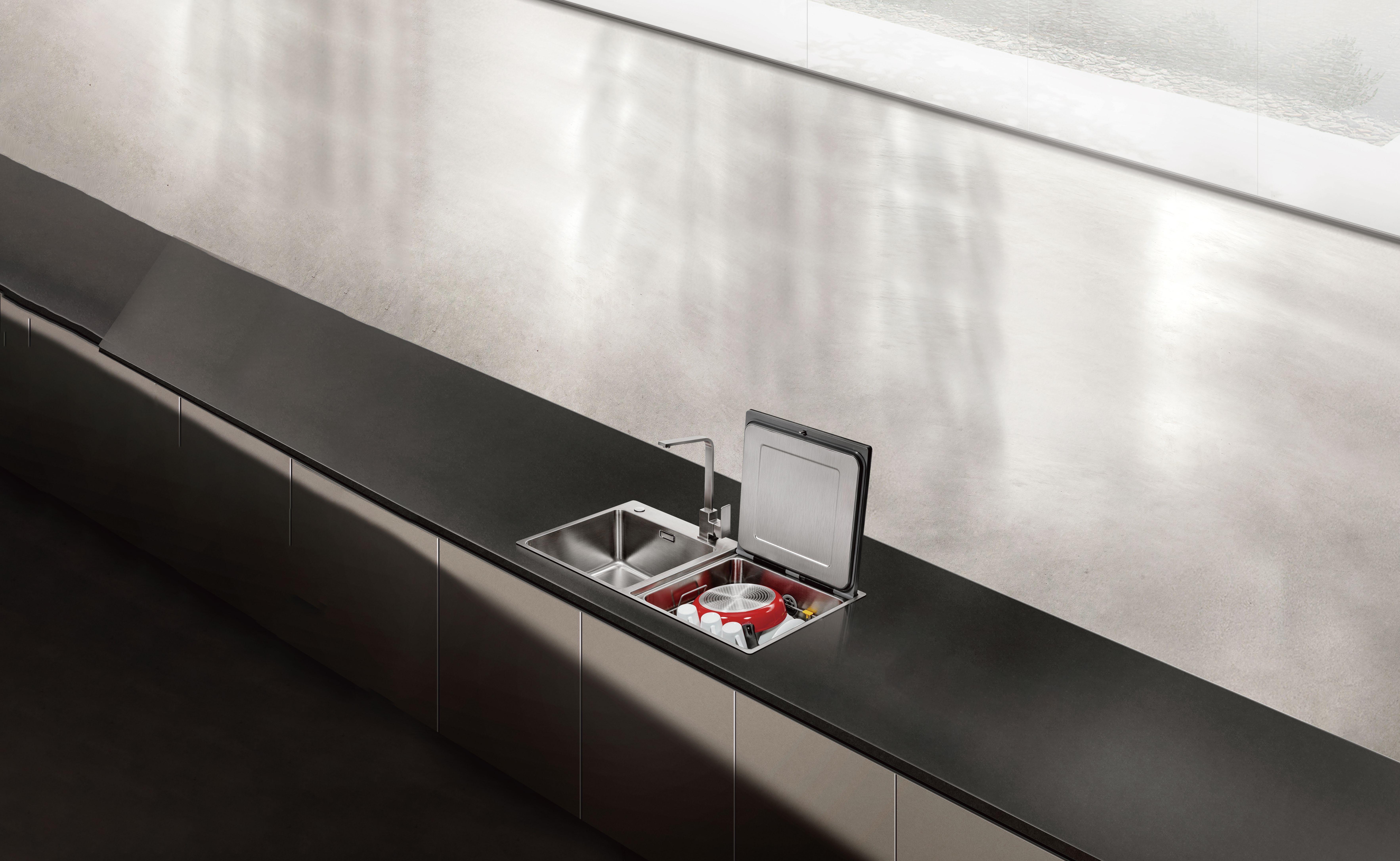

FOTILE 3-in-1 Sink Dishwasher Multi-functional home cleaning and washing centre

High Pressure HydroJet Military-grade cleaning technology By continuously injecting a stream of bubbles into the water, hundreds of billions of cavitation bubbles are continuously generated in the water, 、 momentum of the water flow. Concurrently, accelerating the speed and the explosion of bubbles effectively strips away heavy grease stains

Fruits, vegetables and seafood can be washed pesticide residues disappeared With three food washing modes, it not only effectively removes pesticide residues* from fruits and vegetables, but also easily cleans seafood for a feast * Agricultural residue removal rate of more than 92%

Innovative design, reinventing the human experience Turn the original sink into a multi-functional washing centre that combines dishwashing, fruit and vegetable washing, and storage of cutlery in one. 、 germicidal 、 drying、 No need to bend down to complete all operations

19

Happiness Starts In Your Kitchen

20

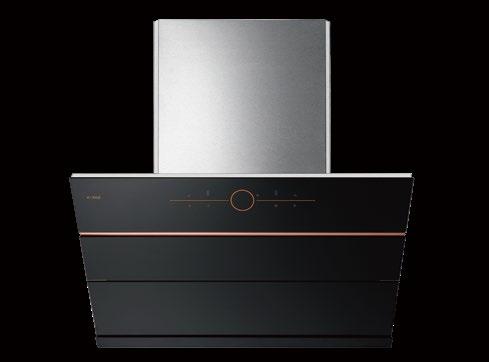

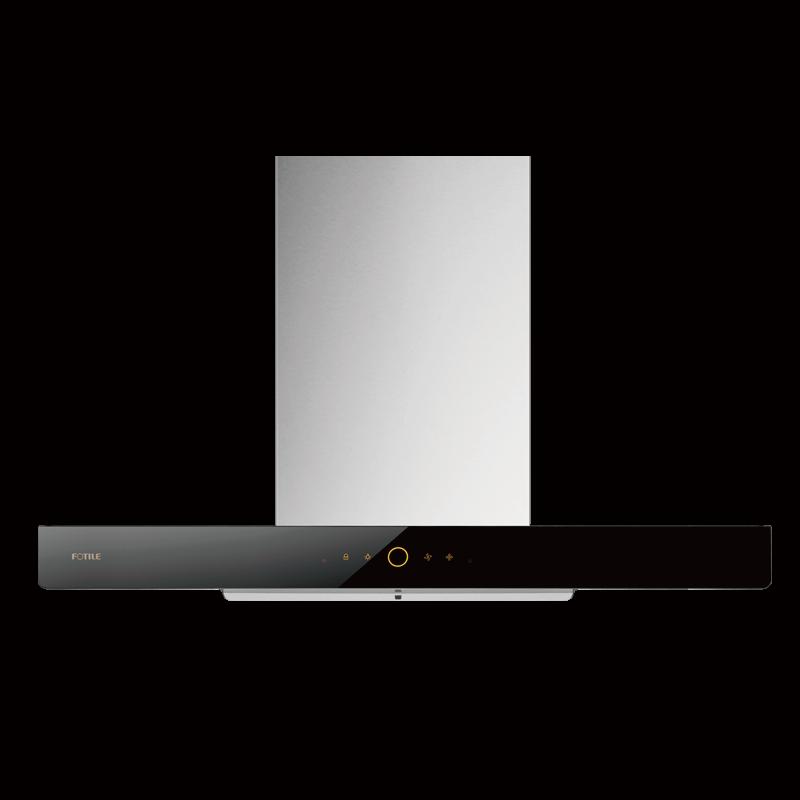

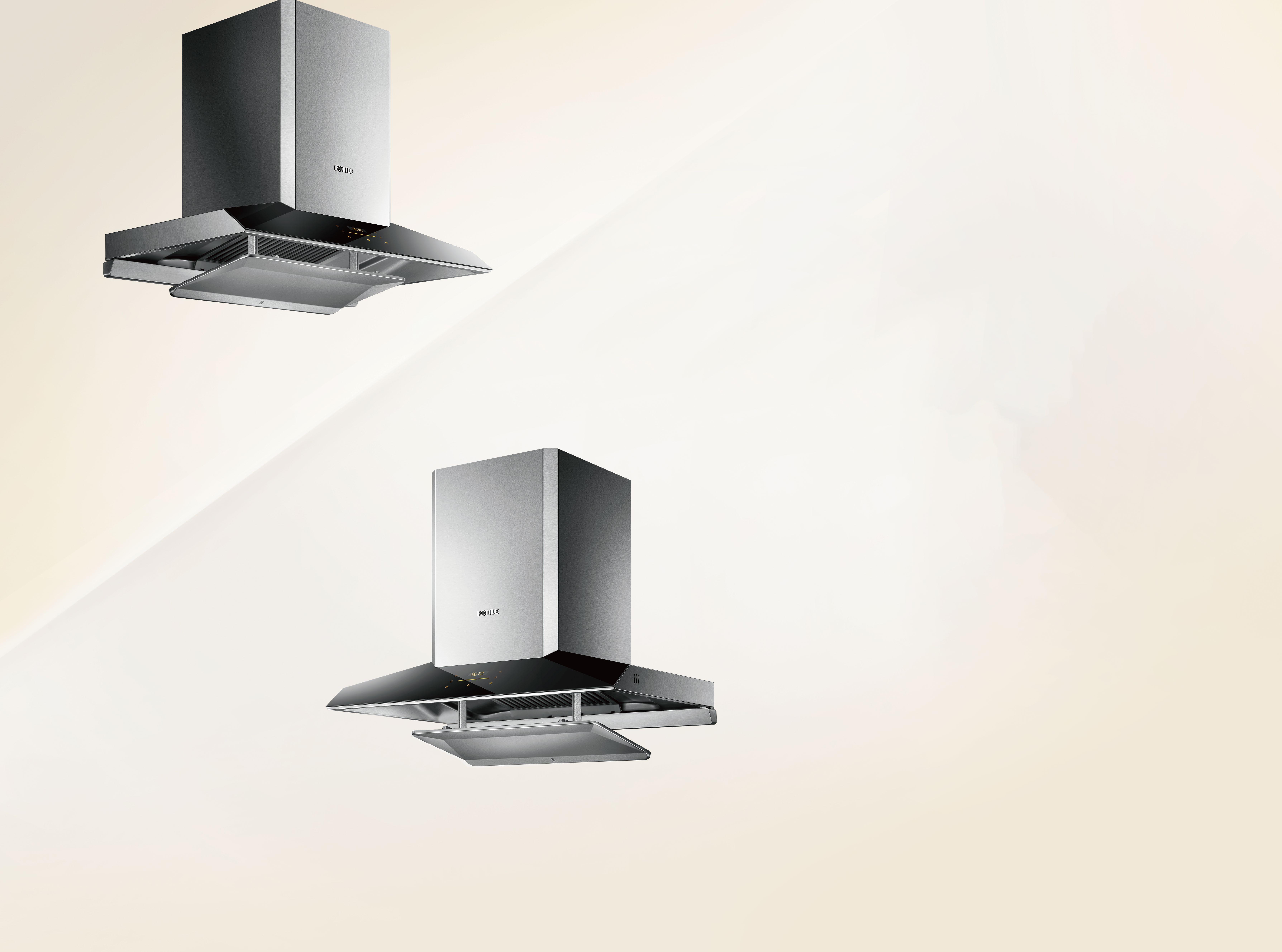

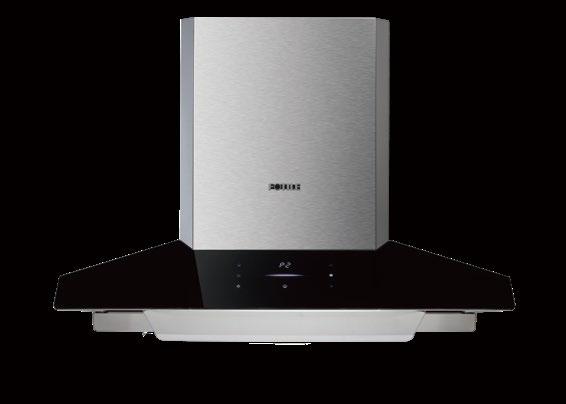

RANGE HOOD

BLDC

BLDC

ZMG9039

EMS9026

EMG9050

Auto Turbo System, Increases extraction power automatically

Intelligent Self-Adjusting

Soft Sound Technology As Low As 41dB

Auto Smoke Detection. Auto Turbo System

Wing-like Surround Suction Tech , Capture Smoke So It Can’t Escape

Wave to Control, no need to touch

Self Cleaninng

Automatic turbo system

Product size (W×D×H): 897×375×(750-1140)mm

Product size (W×D×H):895x518x(600-940)mm

Product size (W×D×H): 896×515×(640-960)mm

IEC Standard Air Flow: 1390m3/h

IEC Standard Air Flow: 1590m3/h

IEC Standard Air Flow: 1250m3/h

All new Self-adjusting Deluxe Mode

Noise Level: High: 47dB Low: 41dB

Noise Level: High: 47dB Low: 38dB

Noise Level: High: 52dB Low: 47dB

Motor power: 258W

Motor power:315W

Motor power: 270W

Oil Filtration: 92%

Oil Filtration:94%

Oil Filtration: 92%

Maximum static air pressure: 1090Pa

Maximum static air pressure:1210Pa

Maximum static air pressure: 400Pa

BLDC BLDC

BLDC

EMG9035

JQG9009X

EMG9030

BLDC Brushless DC Motor

90cm-wide tempered glass surface

Intelligent Self-Adjusting

Wave to Control, no need to touch

Innovative DC inverter motor 1290pa stronger air pressure

Auto Smoke Detection. Auto Turbo System

Product size (W×D×H): 895×512×(582-955)mm

Illuminated "O" touch screen

Intelligent Air Management

IEC Standard Air Flow: 1440 m³/h

Product size (W×D×H): 895×440×(629-1293)mm

Product size (W×D×H): 896×512×(640-960)mm

IEC Standard Air Flow: 1440m /h

IEC Standard Air Flow: 1200m3/h

Noise Level: High: 48dB Low: 42dB Motor power: 258W Oil Filtration: 92% Maximum static air pressure: 1050Pa

3

Noise Level: High: 52dB Low: 48dB

Noise Level: High: 48dB Low: 40dB

Motor power: 258W

Motor power: 258W

Oil Filtration: 92%

Oil Filtration: 92%

Maximum static air pressure: 1290Pa

Maximum static air pressure: 720Pa

BLDC

EMS9028 Wing-like Surround Suction Plate: Ultra Power: Stir-fry mode, More than capture 100S Boost Function Seamless canopy easy-to-clean

EMG9008/EMG9008-C

BLDC

EMS6008-C

Super suction power

Smart Drive System,Low noise,Powerful extraction

T-Style Design

The DC-inverter motor provides up to 900Pa of static pressure

Perfectly built into cabinets

Clean filtration for freshness you can smell

EMG9008 Product size (W×D×H):895×522×566mm

Product size (W×D×H): 595×522×(566-905)mm

EMG9008-C Product size (W×D×H): 895×522×(566-905)mm

IEC Standard Air Flow: 1180m3/h

Product size (W×D×H): 895×513×(596-920)mm

IEC Standard Air Flow：1180m3/h

Noise Level: High: 56dB Low: 39dB

IEC Standard Air Flow: 1170m³/h

Noise Level: High: 56dB Low: 39dB

Odour reduction rate: 92m3/h

Noise Level:High: 56dB Low: 50dB

Odour reduction rate: 92m3/h

Odour reduction rate: 99%

Motor power: 270W

Odour reduction rate：99%

Oil Filtration: 96%

Oil Filtration: 92%

Oil Filtration: 96%

Maximum static air pressure: 900Pa

Maximum static air pressure: 410Pa

Maximum static air pressure: 900Pa

EMS6008-Cwith decorative cover

Humanized Design: Circular bead design, protect you head hit the hood corner

EMG9008 without decorative cover EMG9008-C with decorative cover

21

BLDC

EMG6018

BLDC

EMG6018-W

Smart Drive System,Low noise,Powerful extraction

Smart Drive System,Low noise,Powerful extraction

The DC-inverter motor provides up to 900Pa of static pressure

The DC-inverter motor provides up to 900Pa of static pressure

Clean filtration for freshness you can smell

Clean filtration for freshness you can smell

Product size (W×D×H):595×522×566mm

Product size (W×D×H):595×522×566mm

IEC Standard Air Flow: 1180m3/h

IEC Standard Air Flow: 1180m3/h

Noise Level: High: 56dB Low: 39dB

Noise Level: High: 56dB Low: 39dB

Oil separation: 92%

Oil separation: 92%

Odour reduction rate: 99%

Odour reduction rate: 99%

Oil Filtration: 96%

Oil Filtration: 96%

Maximum static air pressure: 900Pa

Maximum static air pressure: 900Pa

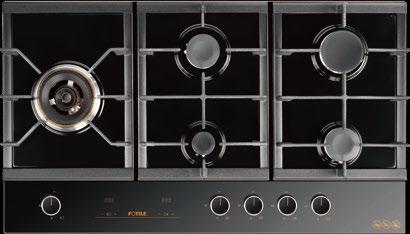

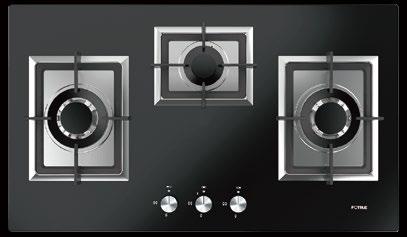

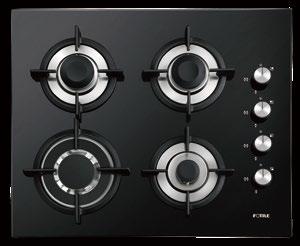

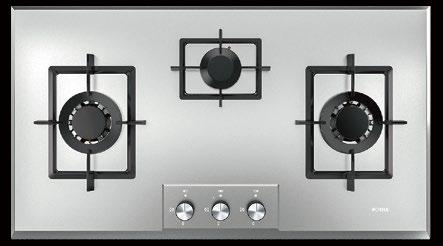

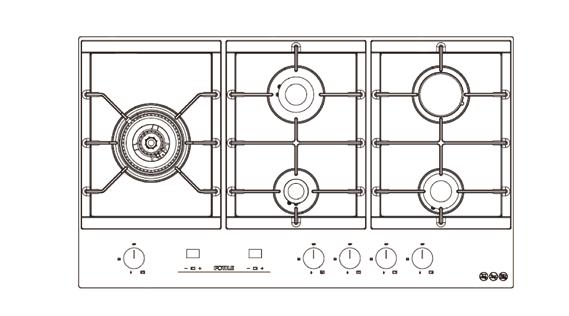

COOKTOP

GLG86322S

GLS90303S

GLG60409S

LOHAS 0s Fast Ignition

LOHAS 0s Fast Ignition

LOHAS 0s Fast Ignition

40.2MJ/h heating load

40.2MJ/h heating load

32.1MJ/h heating load

Heating efficiency≥48%

Heating efficiency≥48%

Heating efficiency≥48%

Tempered glass panel, stainless steel liquid tray, more convenient to clean

Super alloy panel, elegant and easy to clean

Tempered glass panel, stainless steel liquid tray, more convenient to clean

High safety performance， flame failure device (FFD) Heating load (MJ/h): L&R: 16.5 M:7.2 Product size (W×D): 860×500mm Built-in size (W×D): 816×460mm

GLG90505

High safety performance， flame failure device (FFD) Heating load (MJ/h): L&R: 16.5 M:7.2

High safety performance， flame failure device (FFD)

Product size (W×D): 900×500mm

Heating load (MJ/h): L-Upper: 6.4 R-Upper: 6.4 L-Down:16.5 R-Down: 2.8

Built-in size (W×D): 816×460mm

Product size (W×D): 613×513mm Built-in size (W×D): 561×481mm

GLG90305

GLG60305

Tri-ring Fast lgnition

Tri-ring Fast lgnition

Tri-ring Fast lgnition

Heating efficiency>48%

Heating efficiency>48%

Heating efficiency>48%

Heating load (MJ/h): L:23 M-Upper:6.5 R-Upper:14.5 M-Down:3.5 R-Down: 6.5

Heating load (MJ/h): L:23 R:14.5 M:6.5

Heating load (MJ/h): L:23 R-Upper:3.5 R-Down:14.5

Product size(WxD): 900x520mm Built-in size(WxD): 844x488mm Tri-ring lgnition burner,fast,efficient,well-distributed heating load.

Tempered glass panel,enamel liquid tray, more convenient for clean.

Auto-timing devices for 180mins, simplify soup-cooking experiences.

Product size(WxD): 900×520mm

Product size(WxD): 600x520mm

Built-in(WxD): 816× 460mm

Built-in(WxD): 554x478mm

Tri-ring lgnition burner,fast,efficient,well-distributed heating load.

Tri-ring lgnition burner,fast,efficient,well-distributed heating load.

Tempered glass panel,enamel liquid tray,more convenient for clean.

Tempered glass panel,enamel liquid tray,more convenient for clean.

Auto-timing devices for 180mins, simplify soup-cooking experiences.

Auto-timing devices for 180mins, simplify soup-cooking experiences.

22

COMBI OVEN

HZK72-H1

HZK-TS1

HYZK26-E1

Steam-bake smart combo

Double steam, nutritious and tender more healthy

4-In-1 Combi Oven

Precise temperature & humidity control

Uniform baking

Steam self-cleaning

Intense heat & strong steam

Steam and baking combination: three levels of humidity

110℃ high temperature steam

3D stereo heating & uniform baking

Air frying

Zero Oil Healthy Air Fry

72L big capacity

Low temperature baking

Hot Air Bake - Ring Bake - Bake - Humidified Bake

Need 15A socket Power:3300W Volume:72L

Need 15A socket Motor power：3400W Volume：42L

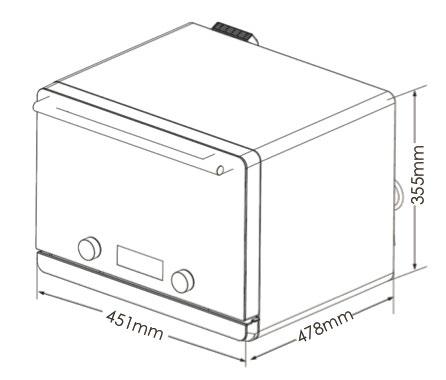

Product size (W×H×D): 451×478×355mm

Product size (W×H×D): 595×595×542mm

Product size (W×H×D)): 595×456×540mm

Volume：26L

Built-in size (W×H×D): 598×598×(≥580)mm

Built-in size (W×H×D): 598×459×(≥550)mm

Temperature：30-230℃

OVEN

Power: 2100W

STEAM OVEN

KSG7003AT

KSG7007A

SCD42-C2T

Multi-function oven with 10 functions

70L oven capacity

Dynamic steam balance system

Illuminated "O" touch screen

Multi-function oven with 8 functions

1 degree precise temperature control

5-level shelf positions

Easy operation with mechanical control

Independent steam generator, fast heating

Need 15A socket

Easy-to-clean tempered glass surface

42L steam oven capacity

Motor power : 3180W

Need 15A socket, Motor power : 2800W

Product size (W×H×D): 595x455.5x513mm

Product size (W×H×D): 595×595×552mm

Product size (W×H×D): 595×595×552mm

Built-in size (W×H×D): 598x459x(≥550)mm

Built-in size (W×H×D): 598×598×(≥580)mm

Built-in size (W×H×D): 598×598×(≥580)mm

Power: 2200W

MICROWAVE OVEN

HW25800P-C2T

23

SINK DISHWASHER

SD2F-P6

Microwave and grill heating

High Pressure HydroJet Technology

Energy efficient

3 food washing modes

Instant menu

Virus removal rate 99.99%

Product size (W×H×D): 595x385x420mm

15 mins ultra-fast cleaning

Built-in size (W×H×D): 598x388x550mm

96 hours long-lasting cleaning storage

Microwave mode: 1250W

Product size (LxWxH): 985x505x550mm

Grill mode: 750W

Built-in size (LxWxH): 960x480x≥550mm

Product Dimension 392mm

401mm

395mm 430mm 550-890mm

mm

400

m

68mm

250mm

80mm

375m

ZMG9039

640-960mm

90mm

m 20m

895mm

897mm

148mm 600-940mm

330mm

896mm

5

EMG9050 325mm

EMS9026

477m

m

395mm

395m

m 38m

m

3

516mm

53mm

401mm

180-844mm

582-955mm

440mm

449mm

80mm

640-960mm

895m

m 512mm

895mm

EMG9035

896mm

JQG9009X

355m

m

EMG9030

271

m

350m

515mm

m

355m

mm

275

mm

mm

mm

EMS9028

m

350m

505mm

mm

895mm

EMG9008-C

271

mm

75mm

505mm

566mm

mm

75mm

566-905mm

EMG9008

275

522

mm

895mm

495mm

m

355m

522

522

513

75mm

566-905mm

75mm

566mm

mm

m

70mm

895m

495mm

596-920mm

325

522

595mm

EMS6008-C

mm

595mm

EMG6018/EMG6018-W

24

Product Dimension COOKTOP 50

0m

m

860m

50

m

65mm

m

613m

0m

900m

m

m

51

3m

m

65mm 61mm

48

m 0m 46

m 0m 46

m

816m

GLG86322S

1m

m

m

816m

GLG60409S

GLS90303S

900mm

m

561m

74mm

900mm

520mm

48mm

520mm

550mm 600mm

Front view This side is against the wall

This side is against the wall 840mm

48mm

20mm

812mm

44mm

30mm

44mm

452mm

30mm

480mm

30mm

470mm 520mm

20mm

20mm

20mm

Left view

GLG90305

GLG90505

The above picture is the actual size of the product, please note that the recommended built-in size is 816x460mm

The above picture is the actual size of the product, please note that the recommended built-in size is 844x488mm

GLG60305 The above picture is the actual size of the product, please note that the recommended built-in size is 554x478mm

COMBI OVEN

56

0

54

9

23

80

≥5

598

586

23

2

54

5

Full Built-in

HZK72-H1 25

HZK-TS1

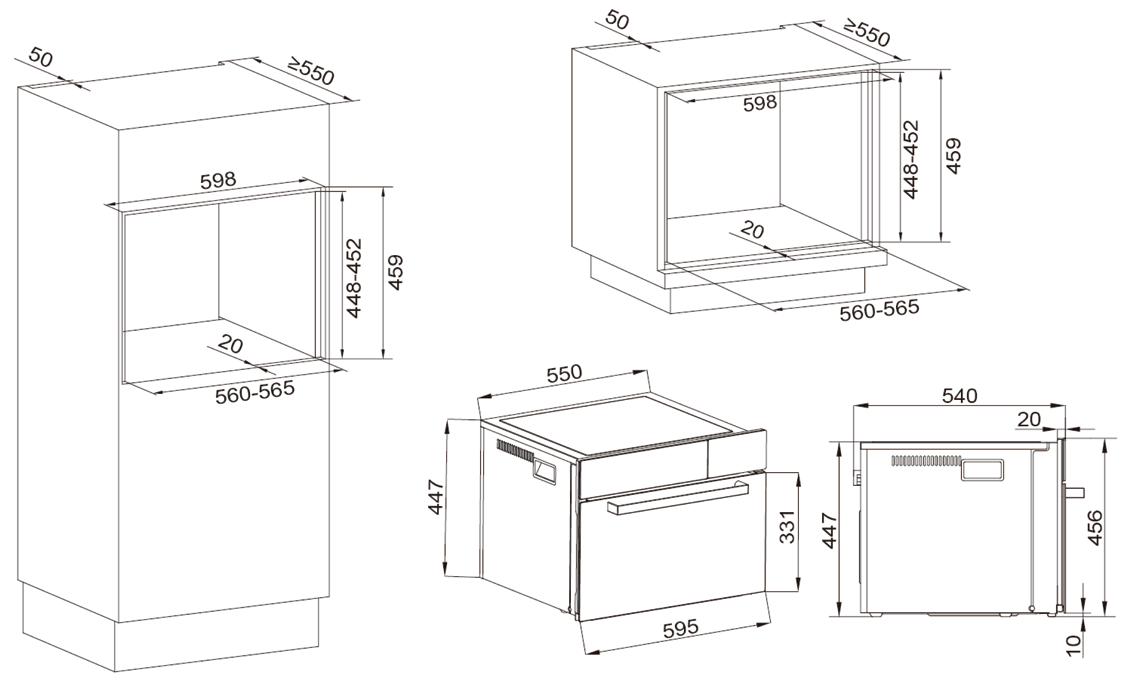

Product Dimension STEAM OVEN

59 8m m

24

m

m

58

56

0m

0m

448-452mm

m

m

m

56 0- 56 5m 55

2

2 513 3mm mm

59 5m m

m

5mm

mm

Full Built-in

Full Built-in

KSG7003AT

SCD42-C2T

KSG7007A

MICROWAVE OVEN

COMBI OVEN 550

50 22

351

385

48

388

0

8)

560(+

9.5

35

598 360(+4)

512

334mm

m

≥59mm8

5m

8m

m 587mm

59

595mm

m 24

m

2m

55 0m m

mm

459mm

59

55

50

455.5mm

≥5

50mm

446mm

OVEN

22

595

Full Built-in

HW25800P-C2T

HYZK26-E1

SINK DISHWASHER

Back View

Top View 505mm

247mm 497mm

221mm

550mm 490mm 345mm

985mm

985mm

490mm

345mm

22mm

82mm

480mm 505mm

Teft View

550mm

444mm

444mm

35mm

800mm

Front View

SD2F-P6 26

FOTILE Australia General Agent： Aurora Trading Group Pty Ltd 620 Camberwell Road, Camberwell Vic 3124 Tel: 61-3-9939 9926 E-mail: sales@ifotile.com.au Service Line: 0467 802 285

website： www.fotile.com.au

FOTILE AUSTRALIA
