Fold Engineered for the ultimate cooking experience
Combine Maximised Performance with Minimal Noise Max

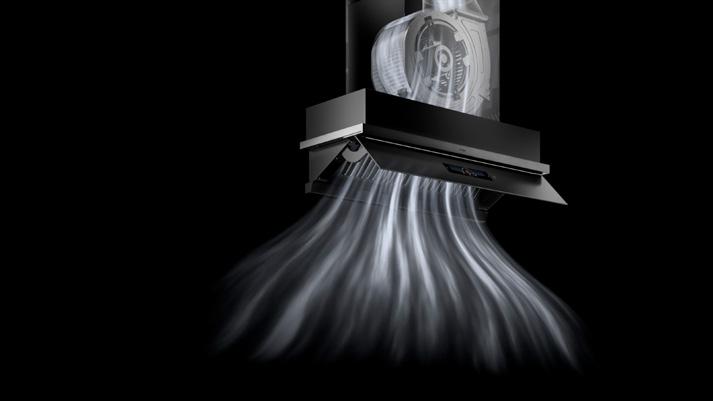

1700m³/h Air Flow

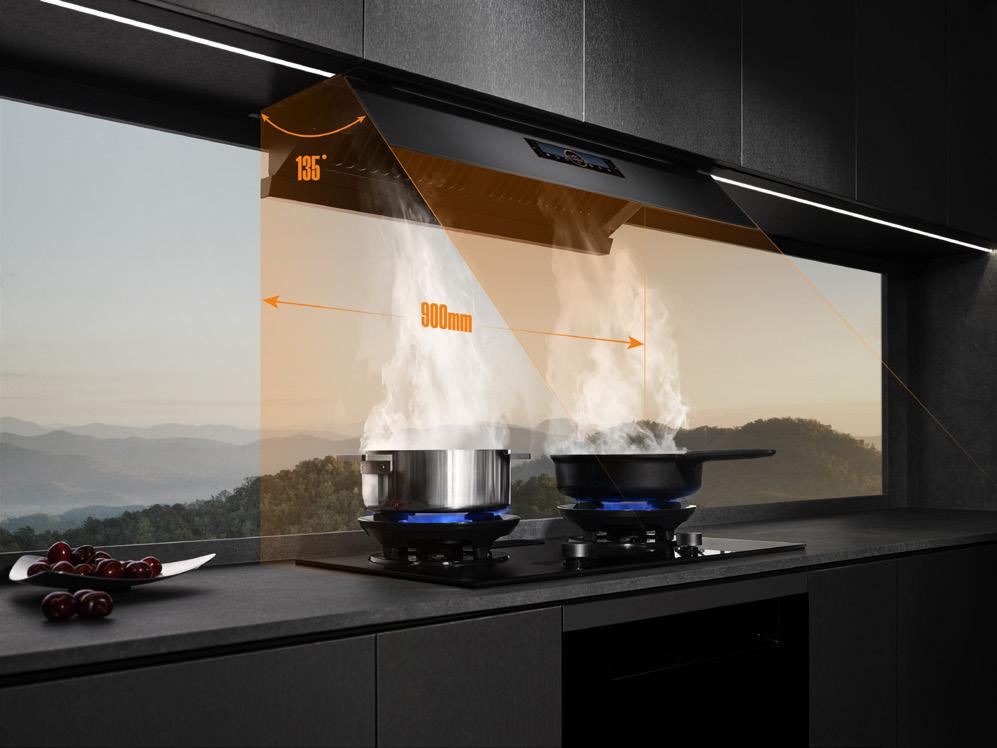

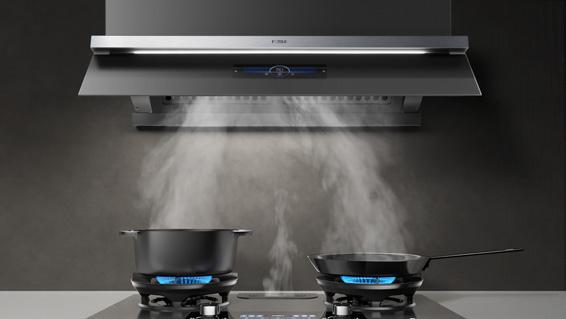

Provide a Better Cooking Experience Design

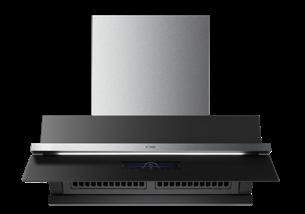

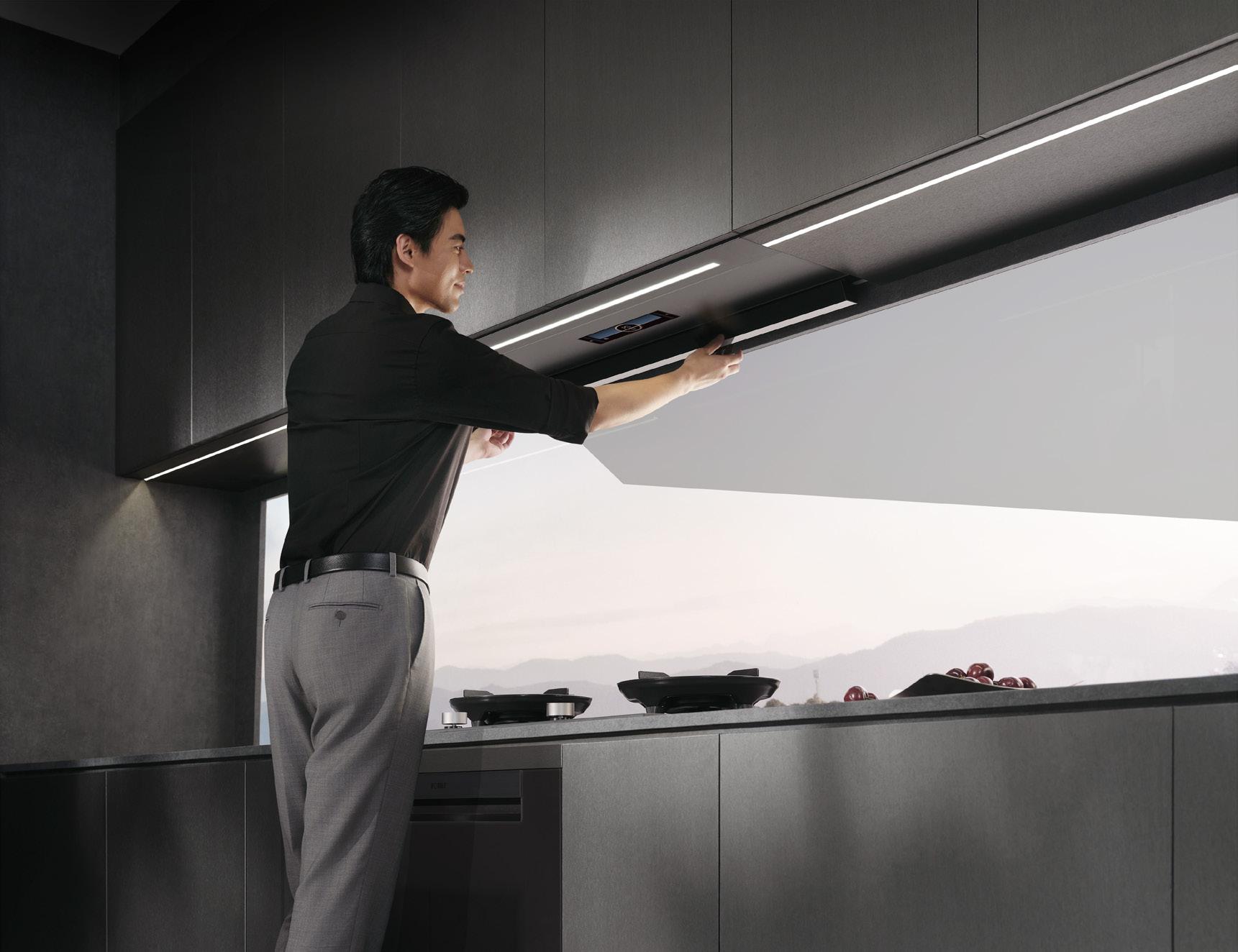

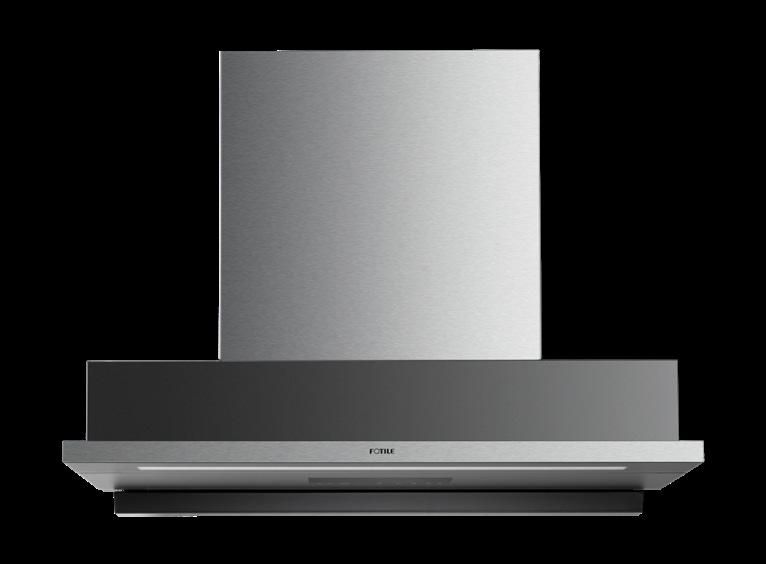

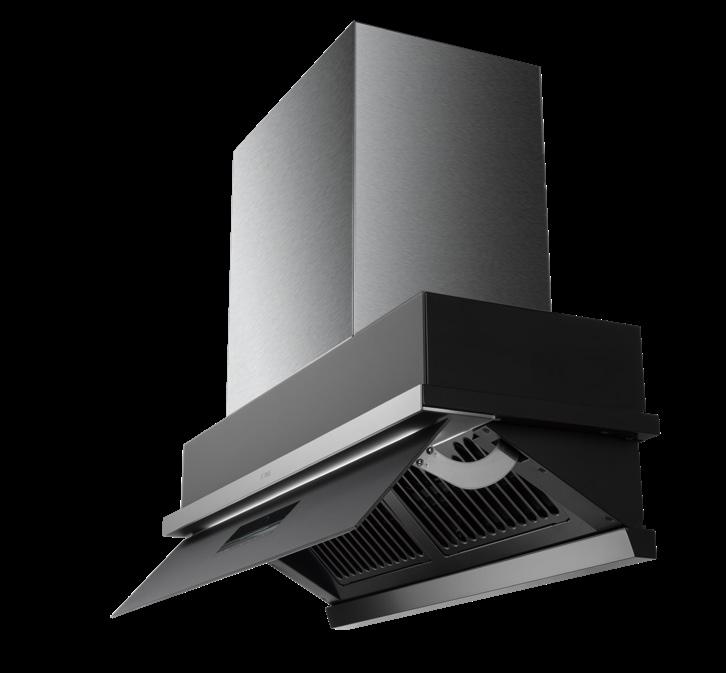

Folded Away. Unfolded Power. Built-in RangeHood BIG9069-G
quickly reach its best operating

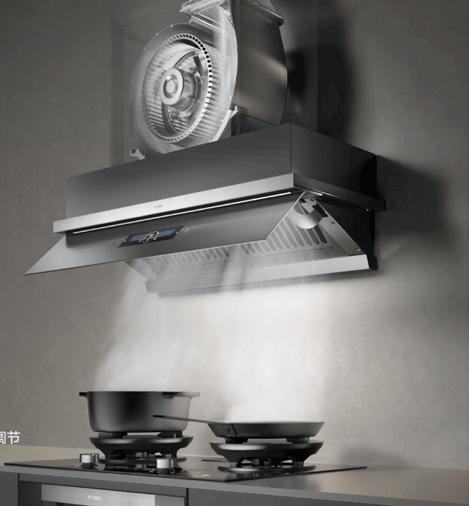

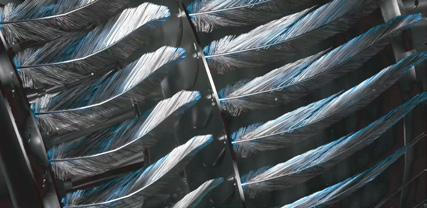

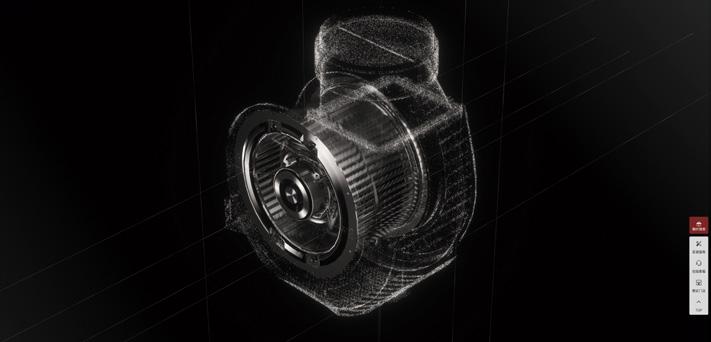

Bionic Feathered Impeller for performance
Basic Parameters
BIG9069-G
BIG9069-G Basic Dimensions
Maximum Airflow (m³/h)(IEC 61591)
Noise (dB)(IEC 60704)
Maximum Static Pressure (Pa)
Speed Setting
Motor Type
Control Methods
Lighting Type

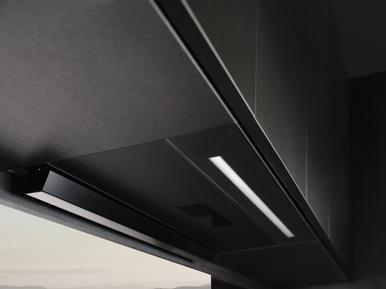

Lighting Function
Air Manager
Delay Function
Dimension (L*W*H)(mm)
Duct Size (mm)
Product dimensions (★302mm includes the body thickness with the hook)
1700
High Speed: 43 Low Speed: 40
1450
2 speed + Automatic
Brushless DC Inventer Motor

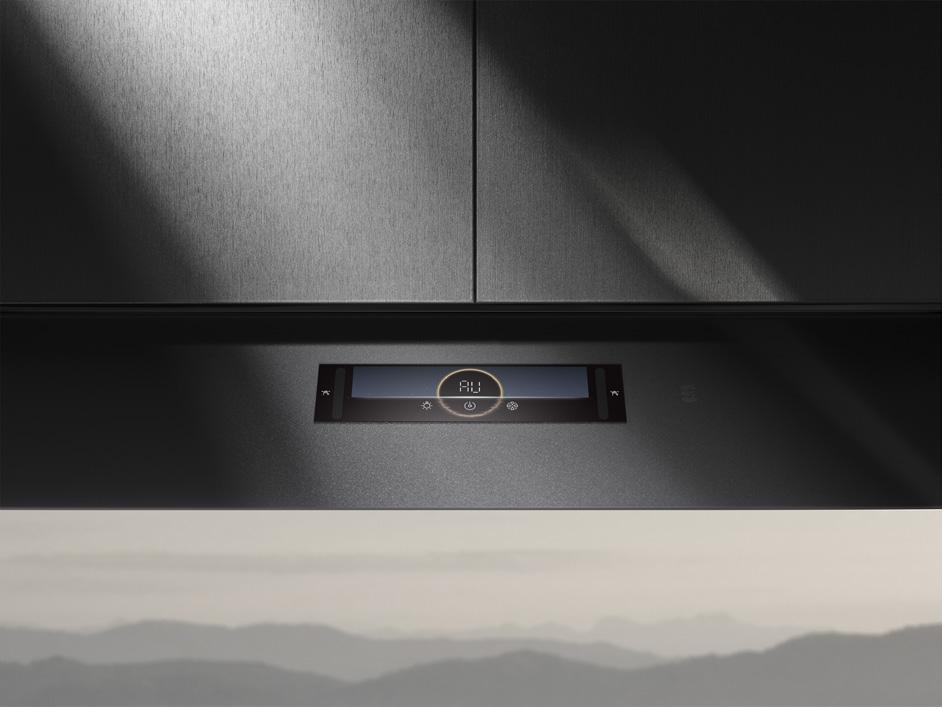

Colour Film Touch Panel + Intelligenvt Wave Control
5.5 W Full-area Lighting
Ambient Lighting
Supported
2 min
897 x 330 x 650
Cabinet Installation Diagrams
