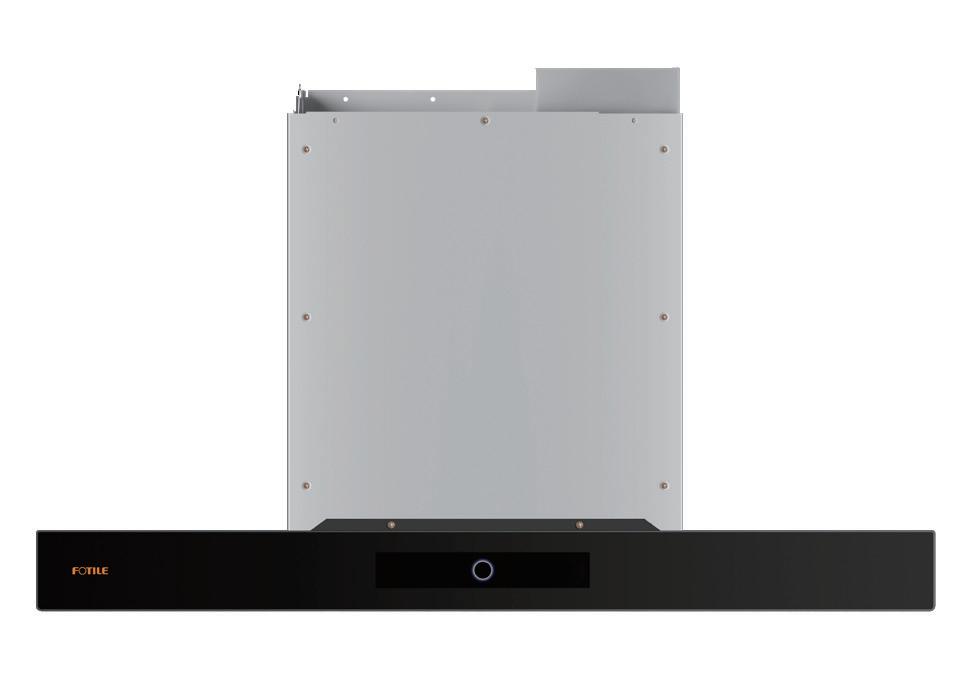

EMG9060
Without Decorative Cover
Specification
Unit: mm
Wall
Range hood centerline Φ190 Exhaust duct cut out size
Product Size(W*D*H)(mm):
895 x 525 x 634
Voltage/frequency:
220-240V 50Hz
Motor Power(W):
355W
IEC Air Flow(m3/h):
1280
Speed Levels:
Turbo+3
Noise Level(dB):
High:53 Low:37
Max Static Pressure(Pa):
1130
LED Light Power(W):
5W
Minimum installation height(mm):
Distance between hob and range hood：650
Ducting Size(mm):
180
190
Ceiling
Hook
EMG9060 (
IEC 61591: International standard for air volume testing
is the distance from the wall)
Wing-like Surround Suction Plate
BLDC Motor
Surround suction extraction achieves complete coverage
Low noise, powerful extraction
Wave to Control
Intelligent Air Management Detects harmful gases in the air and keep the air fresh
No need to touch, just wave
Warranty Two year On-Site Warranty (including parts and labour); motor (all models) and adjustable elevation rods are covered by a ten-year (parts only) warranty.
WWW.FOTILE.COM.AU
